SALUS North America SAU40T1 WiFi Gateway Thermostat User Manual GWT IG ENv1
SALUS North America, Inc. WiFi Gateway Thermostat GWT IG ENv1
user manual
!Gateway!Thermostat!
!Model:!ST910WZ!
!
!
!
!
!
!
!
!
!
Installation!Guide!
CA!
DG!
FR!
SG!
SW!
TY!

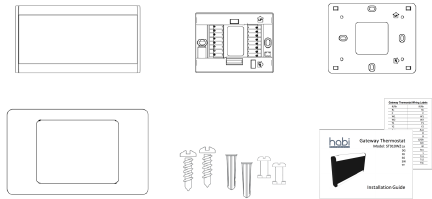

Let’s&Get&Started&
Make!sure!you!have!the!following!items:!
!
!
!
Gateway!Thermostat!
Terminal!Block!
Wall!Plate!
!
!
!
Decorative!Cover!
Mounting!Kit!
Installation!Guide!
and!wire!labels!
!
Tools&Required&
!
!
!
Drill!
(for!anchors)!
Small!flathead!
screwdriver!
Phillips!
screwdriver!
Optional)Tools)
!
!
!
Digital!Camera!or!
Smartphone!
Pencil!
Wire!Stripper!

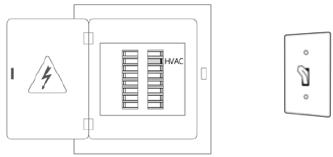

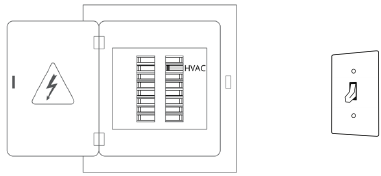

Turn&Off&the&Heating&and/or&Cooling&
Turn!OFF!the!breaker(s)!or!remove!the!fuses!to!the!heating!
and/or!cooling!systems!at!the!electrical!panel.!In!some!
regions,!there!may!be!a!switch!located!near!the!furnace.!
!
Expose&Old&Thermostat&Wiring&
Unmount!the!old!thermostat!from!the!wall!to!expose!the!
wiring!and!terminals.!Take!a!picture!of!the!terminals!to!
record!how!the!wires!are!connected.!
!
Verify&C&Wire&
The!Gateway!Thermostat!requires!a!C!wire!for!power!return.!
Verify!that!a!wire!runs!to!the!C!terminal!of!the!old!
thermostat.!If!a!C!wire!is!not!present,!then!a!C-wire!kit!(model!
SA908-)!needs!to!be!installed.!
!
Detach&and&Label&Wires,&and&Clear&Wall&
Note!the!terminals!attached!to!each!wire!and!attach!the!
matching!label!to!the!ends!of!the!wires.!Wrapping!the!wires!
around!a!pencil!can!help!prevent!the!wires!from!falling!into!
the!hole!in!the!wall.!
When!all!wires!have!been!
disconnected,!remove!any!
other!pieces!of!the!old!
thermostat!that!may!still!be!
attached!to!the!wall.!

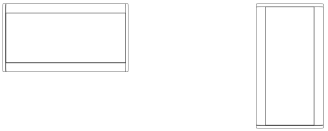

Decide&on&Orientation&
The!Gateway!Thermostat!can!be!mounted!in!either!a!
horizontal!or!vertical!orientation!to!best!fit!the!décor.!
Horizontal!Orientation!
Vertical!Orientation!
!
!
!
The!following!instructions!will!use!the!above!pictures!as!icons!
should!any!instruction!be!orientation!dependent.!
Mount&with&Decorative&Cover&
If!the!wall!behind!the!Gateway!Thermostat!needs!to!be!
covered,!the!Wall!Plate!and!Decorative!Cover!can!be!used!by!
inserting!them!between!the!Terminal!Block!and!the!wall.!
!
!
!or!!
Install&Terminal&Block&

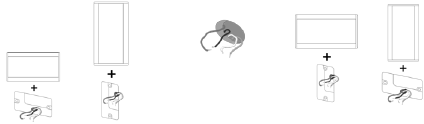

There!are!three!possible!situations!when!mounting!the!
Terminal!Block.!Follow!the!instructions!for!your!specific!
situation.!
A.!Mount!to!a!junction!
box!in!the!desired!
orientation!!
B.!Mount!
directly!on!
the!wall!
C.!Mount!to!a!box!
NOT!in!the!desired!
orientation!
or! !
!
or! !

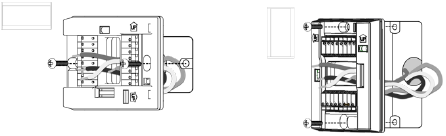

A)#Desired#Orientation#Junction#Box#
There!are!2!steps!to!mounting!on!a!junction!box!in!the!same!
orientation!as!the!desired!orientation.!
1. Align!Terminal!Block!holes!to!junction!box!holes.!
2. Use!junction!box!screws!to!attach!Terminal!Block!to!box.!
Insert!the!Wall!Plate!and!Decorative!Cover!if!desired.!
or!

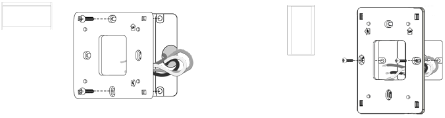

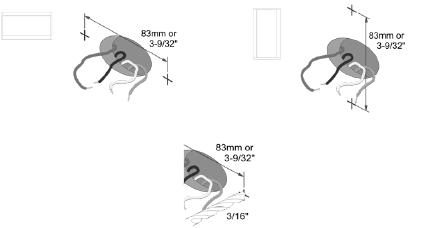

B)#Mount#Directly#on#the#Wall#
There!are!4!steps!to!mounting!directly!on!the!wall.!
1. Mark!hole!locations!(83mm!or!3-9/32”!apart)!
!
or
!
2. Drill!holes!for!anchors!(3/16”!bit)!
!
3. Insert!anchors!
!
!!!!!or
!
4. Attach!Terminal!Block!by!screwing!into!anchors!
or!!

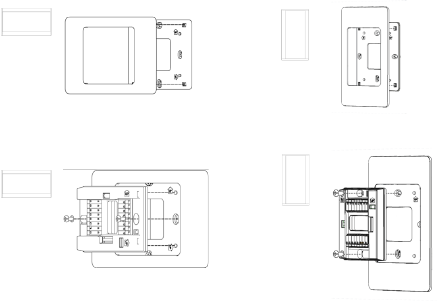

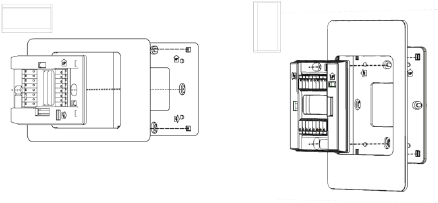

C)#Different#Orientation#Junction#Box#
There!are!3!steps!to!mounting!on!a!junction!box!not!oriented!
in!the!desired!direction.!This!situation!uses!the!Wall!Plate!to!
change!the!orientation!of!the!junction!box!mounting!holes.!
1. Orient!the!Wall!Plate!in!the!desired!thermostat!direction!
and!use!junction!box!screws!to!attach!the!Wall!Plate!to!
the!mounting!holes!of!the!junction!box.!
or!
!!
2. Snap!the!Decorative!Cover!over!the!Wall!Plate.!
or!
3. Attach!Terminal!Block!to!Wall!Plate!using!quarter!turn!
pins.!
or!
!
Attach&Wiring&
Before!attaching!the!wires,!match!the!label!on!the!wires!to!its!
corresponding!terminal.!Refer!to!the!picture!of!the!wiring!
taken!earlier!if!necessary.!!
Attach!the!wires!by!pressing!on!the!latch!next!to!the!terminal,!
inserting!the!wire!into!the!side!hole!and!releasing!the!latch.!
Pull!on!the!wire!after!releasing!the!
latch!to!verify!that!the!wire!is!firmly!
secured.!Push!any!excess!wire!into!
the!wall!or!junction!box.!

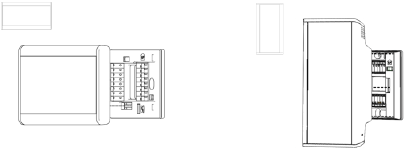

Attach&Thermostat&to&Terminal&Block&
Once!all!the!wires!have!been!attached,!including!the!C!wire,!
snap!the!thermostat!onto!the!Terminal!Block,!making!sure!
the!terminal!connector!is!aligned.!
or!
Turn&the&Power&Back&On&to&the&HVAC&
System&
Go!to!the!electrical!service!panel!or!furnace!switch!and!turn!
the!HVAC!system!back!on.!
!
Configure&the&Thermostat&
The!Gateway!Thermostat!can!now!be!configured!for!the!
HVAC!system!and!connected!to!the!Salus!Smart!Home!
service.!
The!onscreen!instructions!will!guide!you!through!the!
configuration!and!pairing!process.!
Salus&Warranty&
SALUS North America, Inc. (“Salus”) warrants that for a period of five (5) years (“Warranty
Period”) from the date of purchase by the consumer (“Customer”), this device, excluding
batteries (“Product”), shall be free of defects in materials and workmanship under normal
use and service in accordance with all supplied instructions. During the warranty period,
Salus shall, at its option, repair or replace any defective Products, at no charge for the
device. Any replacement and/or repaired devices are warranted for the remainder of the
original Warranty Period or ninety (90) days, whichever is longer.
This warranty does not cover removal or reinstallation costs. This warranty does not apply
to any Product (i) which has been modified, repaired, or altered, except by Salus or an
authorized Salus representative, (ii) which has not been maintained in accordance with
any handling or operating instructions supplied by Salus, or (iii) which has been subjected
to unusual physical or electrical stress, misuses, abuse, negligence or accidents.
This warranty is the only express warranty Salus makes for the Product. Any implied
warranties, including warranties of merchantability or fitness for a particular purpose, are
limited to the Warranty Period or the shortest period allowed by law.
SALUS SHALL NOT BE LIABLE FOR ANY LOSS OR DAMAGE OF ANY KIND, INCLUDING ANY
SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING, DIRECTLY OR
INDIRECTLY, FROM ANY BREACH OF ANY WARRANTY, EXPRESS OR IMPLIED, OR ANY
OTHER FAILURE OF THIS PRODUCT. Some states and provinces do not allow the exclusion
or limitation of incidental or consequential damages, or limitation on the duration of
implied warranties of merchantability or fitness, so these exclusions or limitations may
not apply to you.
No oral or written information or advice given by Salus or a Salus- authorized
representative shall modify or extend this warranty. If any term is held to be illegal or
unenforceable, the legality or enforceability of the remaining terms shall not be affected
or impaired.
Customer’s sole and exclusive remedy under this limited warranty is product repair or
replacement as provided herein. If a Product under warranty is defective, the Customer
may:
• contact the party (“Seller”) from which the Customer purchased the Product to
obtain an equivalent replacement product after the Seller has determined that the
Product is defective and the Customer is eligible for a replacement, or
• contact Salus Service at support@salusinc.com, to determine whether the device
qualifies for a replacement. If a replacement is warranted and is shipped prior to
the return of the device under warranty, a credit card is required and a hold may
be placed on the Customer’s credit card for the value of the replacement until the
returned device is verified as eligible for replacement, in which case, the
Customer’s credit card will not be charged.
This warranty gives you specific legal rights, and you may also have other rights that vary
from jurisdiction to jurisdiction. If you have any questions regarding this warranty, please
write Salus at:
SALUS North America, Inc.
850 Main Street
Redwood City, CA 94063
FCC&Statements&
WARNING: Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy, and if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC&and&Industry&Canada&
RF Radiation Exposure statement: This equipment complies with FCC and Industry Canada
RF radiation exposure limits set forth for an uncontrolled environment. This equipment
should be installed and operated with a minimum distance of 20 centimeters between
the antenna and all persons.
Cet appareil est conforme aux limites d’exposition au rayonnement FR du FCC et
d’Industrie Canada pour un environnement non contrôlé. Cet appareil devrait être installé
et devrait fonctionner de sorte qu’il se trouve à une distance d’au moins 20 cm entre
l’antenne et toute personne.
Industry&Canada&
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is
subject to the following two conditions: (1) this device may not cause interference, and (2)
this device must accept any interference, including interference that may cause undesired
operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils
radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1)
l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter
tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en
compromettre le fonctionnement.
&
SALUS!North!America,!Inc.!
850!Main!Street!
Redwood!City,!CA!!94063!
Version!1!
