SALUS North America SX885ZB miniSmartPlug User Manual MSP IUG ENv1r0

Salus Controls Inc. miniSmartPlug MSP IUG ENv1r0

User manual

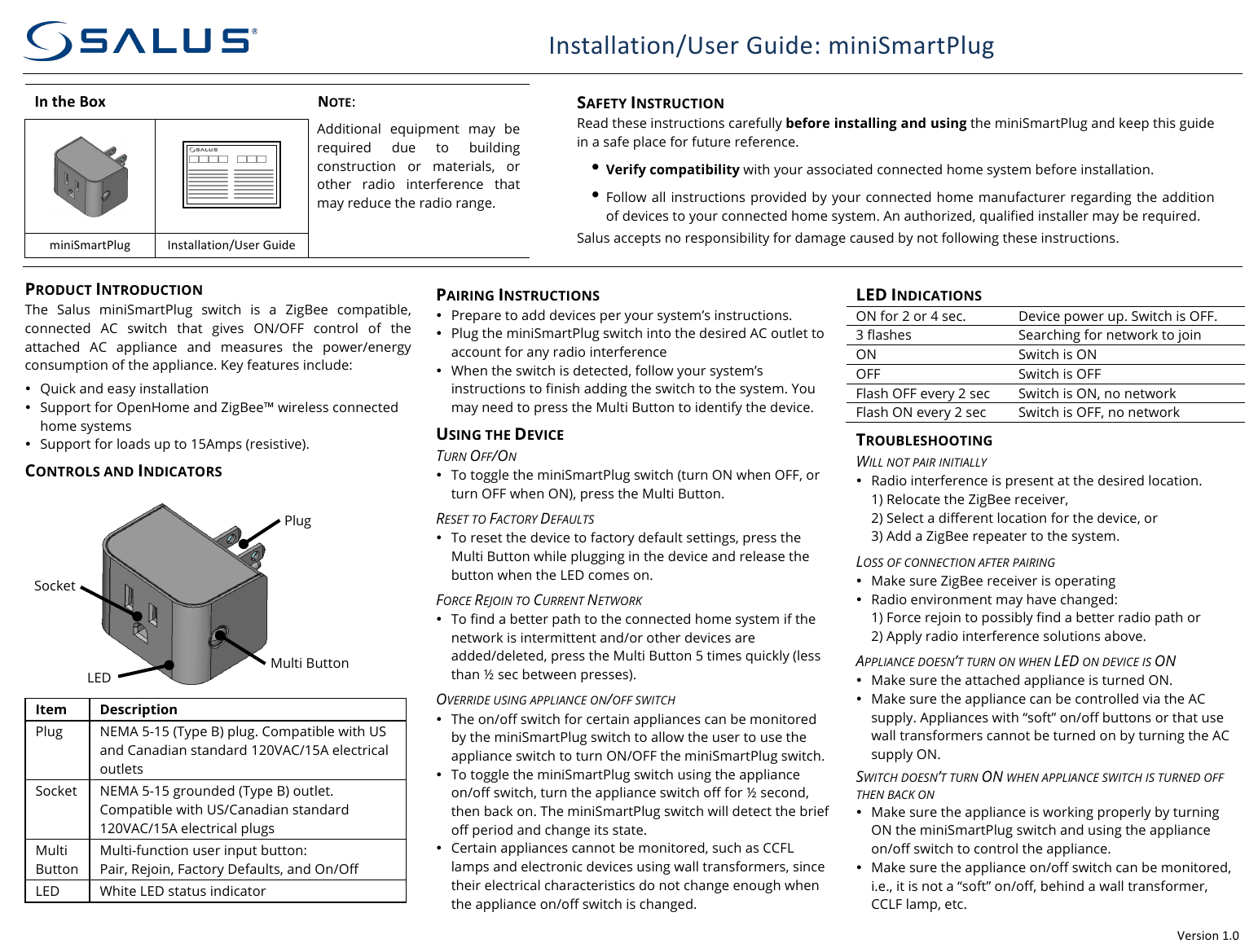

!Version!1.0!Installation/User!Guide:!miniSmartPlug!(SAU2AP1/!SX885ZB)! In#the#Box#!NOTE:! SAFETY INSTRUCTION Read these instructions carefully before installing and using the miniSmartPlug and keep this guide in a safe place for future reference.  • Verify compatibility with your associated connected home system before installation. • Follow all instructions provided by your connected home manufacturer regarding the addition of devices to your connected home system. An authorized, qualified installer may be required. Salus accepts no responsibility for damage caused by not following these instructions.  !!Additional  equipment  may  be required  due  to  building construction  or  materials,  or other  radio  interference  that may reduce the radio range. !miniSmartPlug!Installation/User!Guide!!!PRODUCT INTRODUCTION The  Salus  miniSmartPlug switch is  a  ZigBee  compatible, connected  AC  switch  that  gives  ON/OFF  control  of  the attached  AC  appliance  and  measures  the  power/energy consumption of the appliance. Key features include: • Quick and easy installation • Support for OpenHome and ZigBee™ wireless connected home systems • Support for loads up to 15Amps (resistive). CONTROLS AND INDICATORS      Item Description Plug NEMA 5-15 (Type B) plug. Compatible with US and Canadian standard 120VAC/15A electrical outlets Socket NEMA 5-15 grounded (Type B) outlet. Compatible with US/Canadian standard 120VAC/15A electrical plugs Multi Button Multi-function user input button: Pair, Rejoin, Factory Defaults, and On/Off LED White LED status indicator PAIRING INSTRUCTIONS • Prepare to add devices per your system’s instructions. • Plug the miniSmartPlug switch into the desired AC outlet to account for any radio interference • When the switch is detected, follow your system’s instructions to finish adding the switch to the system. You may need to press the Multi Button to identify the device. USING THE DEVICE TURN OFF/ON • To toggle the miniSmartPlug switch (turn ON when OFF, or turn OFF when ON), press the Multi Button. RESET TO FACTORY DEFAULTS • To reset the device to factory default settings, press the Multi Button while plugging in the device and release the button when the LED comes on. FORCE REJOIN TO CURRENT NETWORK • To find a better path to the connected home system if the network is intermittent and/or other devices are added/deleted, press the Multi Button 5 times quickly (less than ½ sec between presses). OVERRIDE USING APPLIANCE ON/OFF SWITCH • The on/off switch for certain appliances can be monitored by the miniSmartPlug switch to allow the user to use the appliance switch to turn ON/OFF the miniSmartPlug switch. • To toggle the miniSmartPlug switch using the appliance on/off switch, turn the appliance switch off for ½ second, then back on. The miniSmartPlug switch will detect the brief off period and change its state. • Certain appliances cannot be monitored, such as CCFL lamps and electronic devices using wall transformers, since their electrical characteristics do not change enough when the appliance on/off switch is changed. LED INDICATIONS ON for 2 or 4 sec. Device power up. Switch is OFF. 3 flashes Searching for network to join ON Switch is ON OFF Switch is OFF Flash OFF every 2 sec Switch is ON, no network Flash ON every 2 sec Switch is OFF, no network TROUBLESHOOTING WILL NOT PAIR INITIALLY • Radio interference is present at the desired location. 1) Relocate the ZigBee receiver, 2) Select a different location for the device, or 3) Add a ZigBee repeater to the system. LOSS OF CONNECTION AFTER PAIRING • Make sure ZigBee receiver is operating • Radio environment may have changed: 1) Force rejoin to possibly find a better radio path or 2) Apply radio interference solutions above. APPLIANCE DOESN’T TURN ON WHEN LED ON DEVICE IS ON • Make sure the attached appliance is turned ON. • Make sure the appliance can be controlled via the AC supply. Appliances with “soft” on/off buttons or that use wall transformers cannot be turned on by turning the AC supply ON. SWITCH DOESN’T TURN ON WHEN APPLIANCE SWITCH IS TURNED OFF THEN BACK ON • Make sure the appliance is working properly by turning ON the miniSmartPlug switch and using the appliance on/off switch to control the appliance. • Make sure the appliance on/off switch can be monitored, i.e., it is not a “soft” on/off, behind a wall transformer, CCLF lamp, etc. Plug Socket LED Multi Button

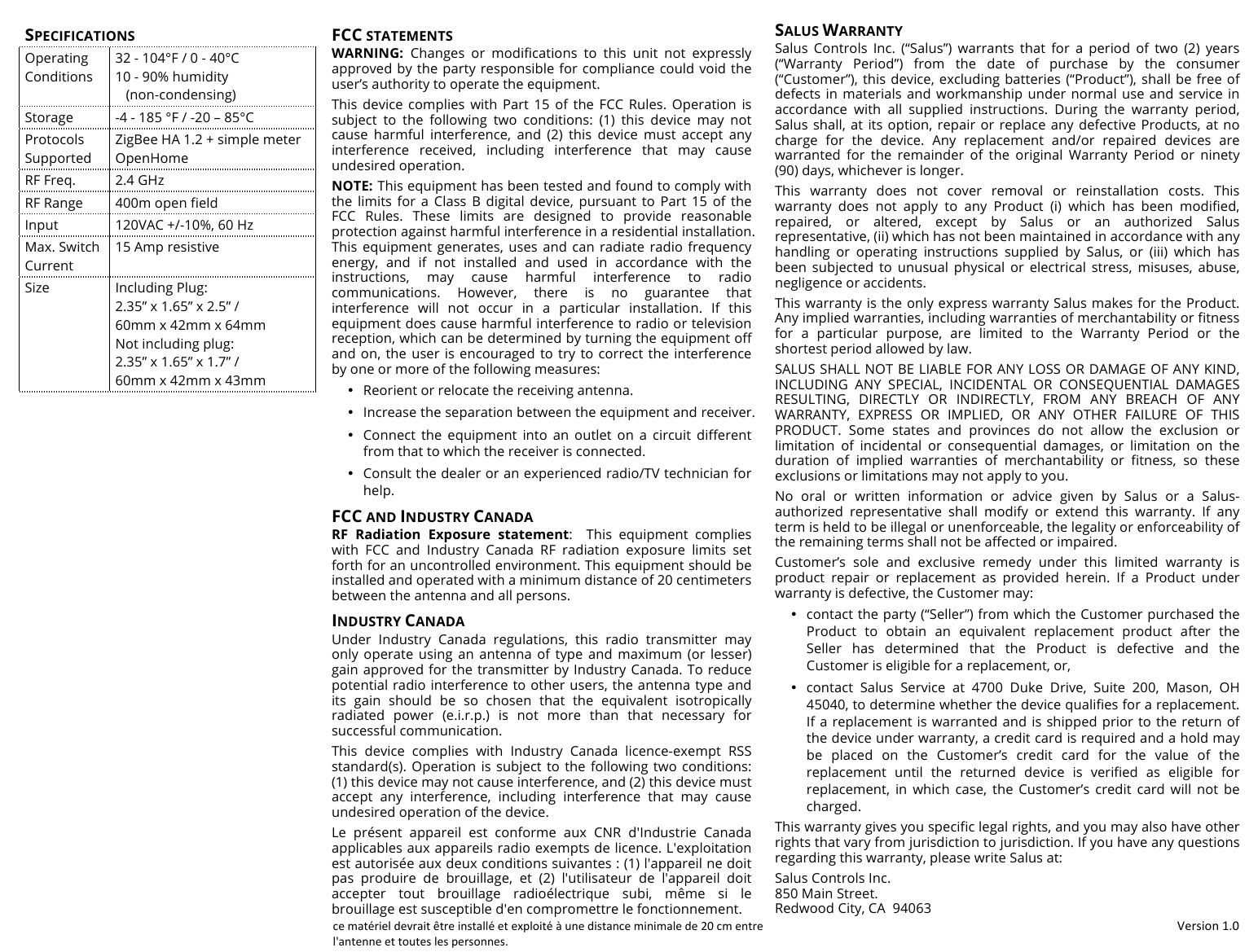

!Version!1.0!SPECIFICATIONS Operating Conditions 32 - 104°F / 0 - 40°C 10 - 90% humidity    (non-condensing) Storage -4 - 185 °F / -20 – 85°C Protocols Supported ZigBee HA 1.2 + simple meter  OpenHome RF Freq. 2.4 GHz RF Range 400m open field Input 120VAC +/-10%, 60 Hz Max. Switch Current 15 Amp resistive Size Including Plug: 2.35” x 1.65” x 2.5” /  60mm x 42mm x 64mm Not including plug: 2.35” x 1.65” x 1.7” /  60mm x 42mm x 43mm FCC STATEMENTS WARNING:  Changes  or modifications  to  this  unit  not  expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This  device  complies  with  Part  15  of  the  FCC  Rules.  Operation  is subject  to  the  following  two  conditions:  (1)  this  device  may  not cause  harmful  interference,  and  (2)  this  device  must  accept  any interference  received,  including  interference  that  may  cause undesired operation. NOTE: This equipment has been tested and found to comply with the  limits  for  a  Class  B  digital  device,  pursuant  to  Part  15  of  the FCC  Rules.  These  limits  are  designed  to  provide  reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy,  and  if  not  installed  and  used  in  accordance  with  the instructions,  may  cause  harmful  interference  to  radio communications.  However,  there  is  no  guarantee  that interference  will  not  occur  in  a  particular  installation.  If  this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user  is encouraged to try to  correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna.  • Increase the separation between the equipment and receiver.  • Connect  the  equipment  into  an  outlet  on  a  circuit  different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. FCC AND INDUSTRY CANADA RF  Radiation  Exposure  statement:
This  equipment  complies with  FCC  and  Industry  Canada  RF  radiation  exposure  limits  set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the antenna and all persons. INDUSTRY CANADA Under  Industry  Canada  regulations,  this  radio  transmitter  may only  operate  using  an  antenna  of  type  and  maximum  (or  lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its  gain  should  be  so  chosen  that  the  equivalent  isotropically radiated  power  (e.i.r.p.)  is  not  more  than  that  necessary  for successful communication.  This  device  complies  with  Industry  Canada  licence-exempt  RSS standard(s). Operation is subject  to the following two  conditions: (1) this device may not cause interference, and (2) this device must accept  any  interference,  including  interference  that  may  cause undesired operation of the device. Le  présent  appareil  est  conforme  aux CNR  d'Industrie  Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas  produire  de  brouillage,  et  (2)  l'utilisateur  de  l'appareil  doit accepter  tout  brouillage  radioélectrique  subi,  même  si  le brouillage est susceptible d'en compromettre le fonctionnement. SALUS WARRANTY Salus  Controls  Inc.  (“Salus”)  warrants  that  for  a  period  of  two  (2)  years (“Warranty  Period”)  from  the  date  of  purchase  by  the  consumer (“Customer”),  this device, excluding batteries (“Product”), shall be free  of defects in materials and  workmanship  under normal use and service in accordance  with  all  supplied  instructions.  During  the  warranty  period, Salus shall, at  its option, repair or  replace any defective Products, at no charge  for  the  device.  Any  replacement  and/or  repaired  devices  are warranted  for  the  remainder  of  the  original  Warranty  Period  or  ninety (90) days, whichever is longer. This  warranty  does  not  cover  removal  or  reinstallation  costs.  This warranty  does  not  apply  to  any  Product  (i)  which  has  been  modified, repaired,  or  altered,  except  by  Salus  or  an  authorized  Salus representative, (ii) which has not been maintained in accordance with any handling  or  operating  instructions  supplied  by  Salus,  or  (iii)  which  has been  subjected  to  unusual  physical  or  electrical  stress,  misuses,  abuse, negligence or accidents. This warranty is the only express warranty Salus makes for the Product. Any implied warranties, including warranties of merchantability or fitness for  a  particular  purpose,  are  limited  to  the  Warranty  Period  or  the shortest period allowed by law.  SALUS SHALL NOT BE LIABLE FOR ANY LOSS OR DAMAGE OF ANY KIND, INCLUDING  ANY  SPECIAL,  INCIDENTAL  OR  CONSEQUENTIAL  DAMAGES RESULTING,  DIRECTLY  OR  INDIRECTLY,  FROM  ANY  BREACH  OF  ANY WARRANTY,  EXPRESS  OR  IMPLIED,  OR  ANY  OTHER  FAILURE  OF  THIS PRODUCT.  Some  states  and  provinces  do  not  allow  the  exclusion  or limitation  of  incidental  or  consequential  damages,  or  limitation  on  the duration  of  implied  warranties  of  merchantability  or  fitness,  so  these exclusions or limitations may not apply to you. No  oral  or  written  information  or  advice  given  by  Salus  or  a  Salus-authorized  representative  shall  modify  or  extend  this  warranty.  If  any term is held to be illegal or unenforceable, the legality or enforceability of the remaining terms shall not be affected or impaired. Customer’s  sole  and  exclusive  remedy  under  this  limited  warranty  is product  repair  or  replacement  as  provided  herein.  If  a  Product  under warranty is defective, the Customer may: • contact the party (“Seller”) from which the Customer purchased the Product  to  obtain  an  equivalent  replacement product  after  the Seller  has  determined  that  the  Product  is  defective  and  the Customer is eligible for a replacement, or, • contact  Salus  Service  at  4700  Duke  Drive,  Suite  200,  Mason,  OH  45040, to determine whether the device qualifies for a replacement. If a replacement is warranted and is shipped prior to the  return  of the device under warranty, a credit card is required and a hold may be  placed  on  the  Customer’s  credit  card  for  the  value  of  the replacement  until  the  returned  device  is  verified  as  eligible  for replacement,  in  which  case,  the  Customer’s  credit  card  will  not  be charged. This warranty gives you specific legal rights, and you may also have other rights that vary from jurisdiction to jurisdiction. If you have any questions regarding this warranty, please write Salus at: Salus Controls Inc. 850 Main Street. Redwood City, CA  94063 ce matériel devrait être installé et exploité à une distance minimale de 20 cm entre l'antenne et toutes les personnes.
