Salus Controls Inc. miniSmartPlug MSP IUG ENv1r0
User manual
!Version!1.0!
Installation/User!Guide:!miniSmartPlug!(SAU2AP1/!SX885ZB)!

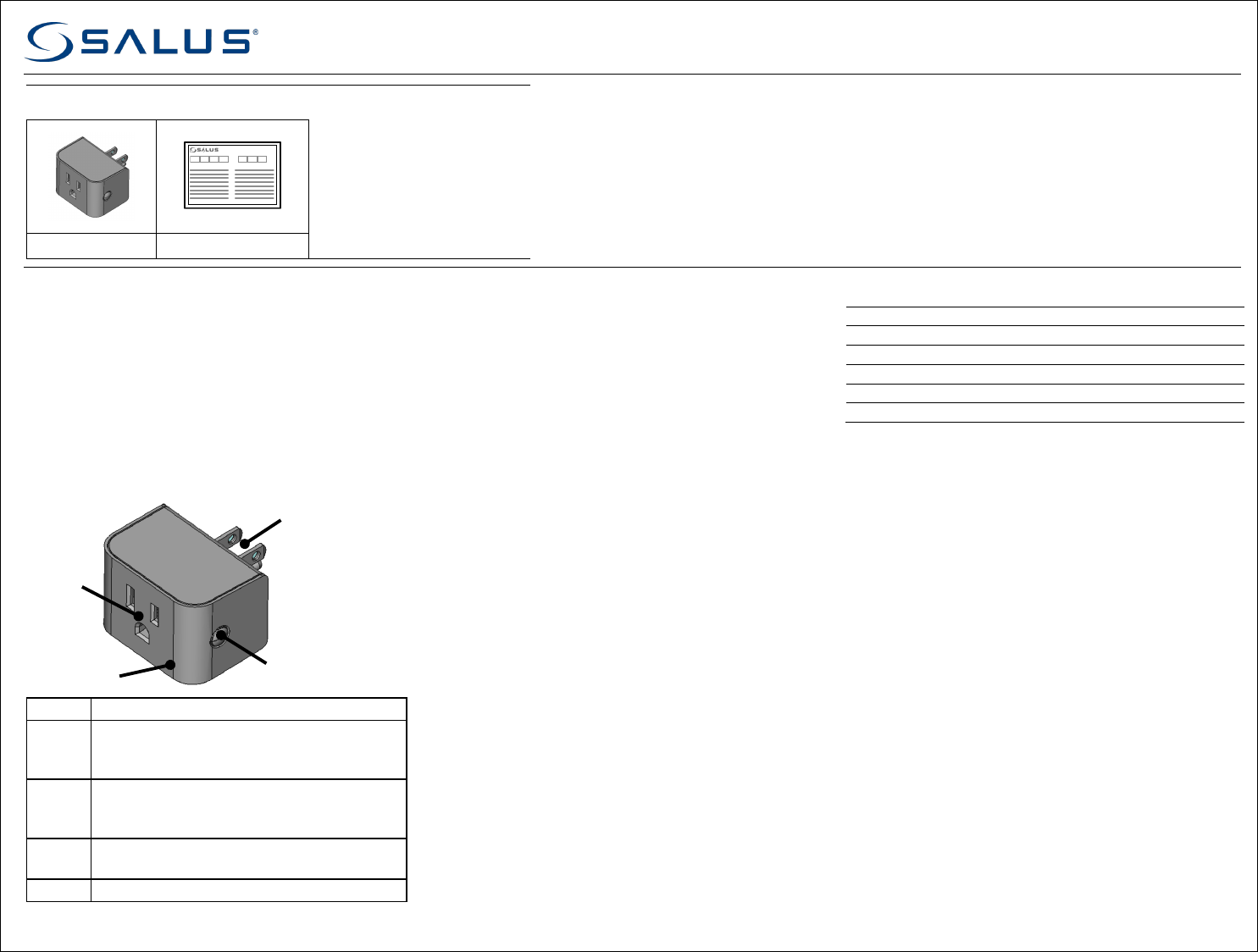

In#the#Box#
!
NOTE:!
SAFETY INSTRUCTION
Read these instructions carefully before installing and using the miniSmartPlug and keep this guide
in a safe place for future reference.
• Verify compatibility with your associated connected home system before installation.
• Follow all instructions provided by your connected home manufacturer regarding the addition
of devices to your connected home system. An authorized, qualified installer may be required.
Salus accepts no responsibility for damage caused by not following these instructions.
!
!
Additional equipment may be
required due to building
construction or materials, or
other radio interference that
may reduce the radio range.
!
miniSmartPlug!
Installation/User!Guide!
!
!
PRODUCT INTRODUCTION
The Salus miniSmartPlug switch is a ZigBee compatible,
connected AC switch that gives ON/OFF control of the
attached AC appliance and measures the power/energy
consumption of the appliance. Key features include:
• Quick and easy installation
• Support for OpenHome and ZigBee™ wireless connected
home systems
• Support for loads up to 15Amps (resistive).
CONTROLS AND INDICATORS
Item
Description
Plug
NEMA 5-15 (Type B) plug. Compatible with US
and Canadian standard 120VAC/15A electrical
outlets
Socket
NEMA 5-15 grounded (Type B) outlet.
Compatible with US/Canadian standard
120VAC/15A electrical plugs
Multi
Button
Multi-function user input button:
Pair, Rejoin, Factory Defaults, and On/Off
LED
White LED status indicator
PAIRING INSTRUCTIONS
• Prepare to add devices per your system’s instructions.
• Plug the miniSmartPlug switch into the desired AC outlet to
account for any radio interference
• When the switch is detected, follow your system’s
instructions to finish adding the switch to the system. You
may need to press the Multi Button to identify the device.
USING THE DEVICE
TURN OFF/ON
• To toggle the miniSmartPlug switch (turn ON when OFF, or
turn OFF when ON), press the Multi Button.
RESET TO FACTORY DEFAULTS
• To reset the device to factory default settings, press the
Multi Button while plugging in the device and release the
button when the LED comes on.
FORCE REJOIN TO CURRENT NETWORK
• To find a better path to the connected home system if the
network is intermittent and/or other devices are
added/deleted, press the Multi Button 5 times quickly (less
than ½ sec between presses).
OVERRIDE USING APPLIANCE ON/OFF SWITCH
• The on/off switch for certain appliances can be monitored
by the miniSmartPlug switch to allow the user to use the
appliance switch to turn ON/OFF the miniSmartPlug switch.
• To toggle the miniSmartPlug switch using the appliance
on/off switch, turn the appliance switch off for ½ second,
then back on. The miniSmartPlug switch will detect the brief
off period and change its state.
• Certain appliances cannot be monitored, such as CCFL
lamps and electronic devices using wall transformers, since
their electrical characteristics do not change enough when
the appliance on/off switch is changed.
LED INDICATIONS
ON for 2 or 4 sec.
Device power up. Switch is OFF.
3 flashes
Searching for network to join
ON
Switch is ON
OFF
Switch is OFF
Flash OFF every 2 sec
Switch is ON, no network
Flash ON every 2 sec
Switch is OFF, no network
TROUBLESHOOTING
WILL NOT PAIR INITIALLY
• Radio interference is present at the desired location.
1) Relocate the ZigBee receiver,
2) Select a different location for the device, or
3) Add a ZigBee repeater to the system.
LOSS OF CONNECTION AFTER PAIRING
• Make sure ZigBee receiver is operating
• Radio environment may have changed:
1) Force rejoin to possibly find a better radio path or
2) Apply radio interference solutions above.
APPLIANCE DOESN’T TURN ON WHEN LED ON DEVICE IS ON
• Make sure the attached appliance is turned ON.
• Make sure the appliance can be controlled via the AC
supply. Appliances with “soft” on/off buttons or that use
wall transformers cannot be turned on by turning the AC
supply ON.
SWITCH DOESN’T TURN ON WHEN APPLIANCE SWITCH IS TURNED OFF
THEN BACK ON
• Make sure the appliance is working properly by turning
ON the miniSmartPlug switch and using the appliance
on/off switch to control the appliance.
• Make sure the appliance on/off switch can be monitored,
i.e., it is not a “soft” on/off, behind a wall transformer,
CCLF lamp, etc.
Plug
Socket
LED
Multi Button
!Version!1.0!
SPECIFICATIONS
Operating
Conditions
32 - 104°F / 0 - 40°C
10 - 90% humidity
(non-condensing)
Storage
-4 - 185 °F / -20 – 85°C
Protocols
Supported
ZigBee HA 1.2 + simple meter
OpenHome
RF Freq.
2.4 GHz
RF Range
400m open field
Input
120VAC +/-10%, 60 Hz
Max. Switch
Current
15 Amp resistive
Size
Including Plug:
2.35” x 1.65” x 2.5” /
60mm x 42mm x 64mm
Not including plug:
2.35” x 1.65” x 1.7” /
60mm x 42mm x 43mm
FCC STATEMENTS
WARNING: Changes or modifications to this unit not expressly
approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
NOTE: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency
energy, and if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for
help.
FCC AND INDUSTRY CANADA
RF Radiation Exposure statement:
This equipment complies
with FCC and Industry Canada RF radiation exposure limits set
forth for an uncontrolled environment. This equipment should be
installed and operated with a minimum distance of 20 centimeters
between the antenna and all persons.
INDUSTRY CANADA
Under Industry Canada regulations, this radio transmitter may
only operate using an antenna of type and maximum (or lesser)
gain approved for the transmitter by Industry Canada. To reduce
potential radio interference to other users, the antenna type and
its gain should be so chosen that the equivalent isotropically
radiated power (e.i.r.p.) is not more than that necessary for
successful communication.
This device complies with Industry Canada licence-exempt RSS
standard(s). Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this device must
accept any interference, including interference that may cause
undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada
applicables aux appareils radio exempts de licence. L'exploitation
est autorisée aux deux conditions suivantes : (1) l'appareil ne doit
pas produire de brouillage, et (2) l'utilisateur de l'appareil doit
accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d'en compromettre le fonctionnement.
SALUS WARRANTY
Salus Controls Inc. (“Salus”) warrants that for a period of two (2) years
(“Warranty Period”) from the date of purchase by the consumer
(“Customer”), this device, excluding batteries (“Product”), shall be free of
defects in materials and workmanship under normal use and service in
accordance with all supplied instructions. During the warranty period,
Salus shall, at its option, repair or replace any defective Products, at no
charge for the device. Any replacement and/or repaired devices are
warranted for the remainder of the original Warranty Period or ninety
(90) days, whichever is longer.
This warranty does not cover removal or reinstallation costs. This
warranty does not apply to any Product (i) which has been modified,
repaired, or altered, except by Salus or an authorized Salus
representative, (ii) which has not been maintained in accordance with any
handling or operating instructions supplied by Salus, or (iii) which has
been subjected to unusual physical or electrical stress, misuses, abuse,
negligence or accidents.
This warranty is the only express warranty Salus makes for the Product.
Any implied warranties, including warranties of merchantability or fitness
for a particular purpose, are limited to the Warranty Period or the
shortest period allowed by law.
SALUS SHALL NOT BE LIABLE FOR ANY LOSS OR DAMAGE OF ANY KIND,
INCLUDING ANY SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES
RESULTING, DIRECTLY OR INDIRECTLY, FROM ANY BREACH OF ANY
WARRANTY, EXPRESS OR IMPLIED, OR ANY OTHER FAILURE OF THIS
PRODUCT. Some states and provinces do not allow the exclusion or
limitation of incidental or consequential damages, or limitation on the
duration of implied warranties of merchantability or fitness, so these
exclusions or limitations may not apply to you.
No oral or written information or advice given by Salus or a Salus-
authorized representative shall modify or extend this warranty. If any
term is held to be illegal or unenforceable, the legality or enforceability of
the remaining terms shall not be affected or impaired.
Customer’s sole and exclusive remedy under this limited warranty is
product repair or replacement as provided herein. If a Product under
warranty is defective, the Customer may:
• contact the party (“Seller”) from which the Customer purchased the
Product to obtain an equivalent replacement product after the
Seller has determined that the Product is defective and the
Customer is eligible for a replacement, or,
• contact Salus Service at 4700 Duke Drive, Suite 200, Mason, OH
45040, to determine whether the device qualifies for a replacement.
If a replacement is warranted and is shipped prior to the return of
the device under warranty, a credit card is required and a hold may
be placed on the Customer’s credit card for the value of the
replacement until the returned device is verified as eligible for
replacement, in which case, the Customer’s credit card will not be
charged.
This warranty gives you specific legal rights, and you may also have other
rights that vary from jurisdiction to jurisdiction. If you have any questions
regarding this warranty, please write Salus at:
Salus Controls Inc.
850 Main Street.
Redwood City, CA 94063
