For use with SoundGate 3Instructions for UseSOUNDGATE MIC

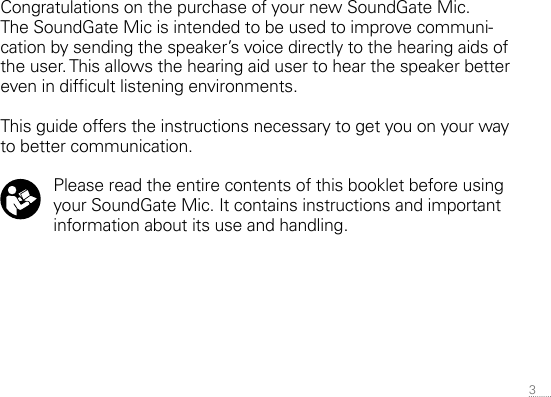

3 Congratulations on the purchase of your new SoundGate Mic. The SoundGate Mic is intended to be used to improve communi-cation by sending the speaker’s voice directly to the hearing aids of the user. This allows the hearing aid user to hear the speaker better even in difcult listening environments.This guide offers the instructions necessary to get you on your way to better communication. Please read the entire contents of this booklet before using your SoundGate Mic. It contains instructions and important information about its use and handling.

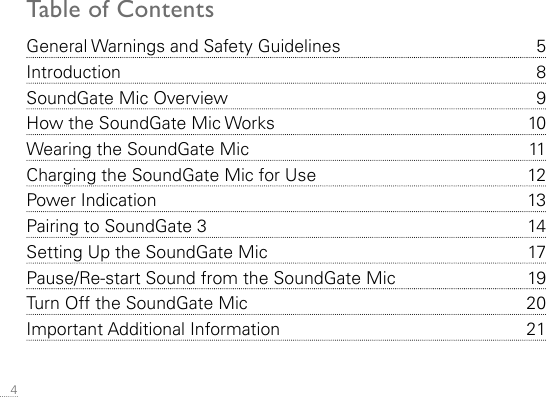

4General Warnings and Safety Guidelines 5Introduction 8SoundGate Mic Overview 9How the SoundGate Mic Works 10Wearing the SoundGate Mic 11Charging the SoundGate Mic for Use 12Power Indication 13Pairing to SoundGate 3 14Setting Up the SoundGate Mic 17Pause/Re-start Sound from the SoundGate Mic 19Turn Off the SoundGate Mic 20Important Additional Information 21Table of Contents

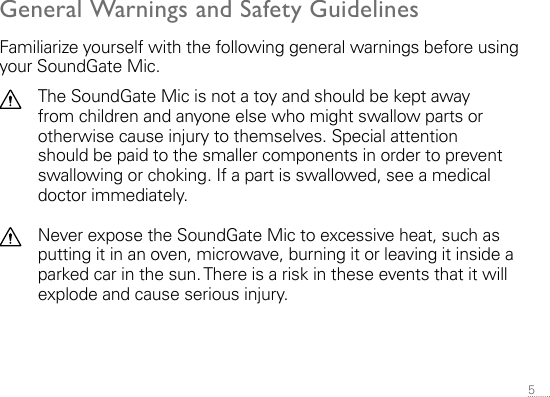

5 General Warnings and Safety GuidelinesFamiliarize yourself with the following general warnings before using your SoundGate Mic.The SoundGate Mic is not a toy and should be kept away from children and anyone else who might swallow parts or otherwise cause injury to themselves. Special attention should be paid to the smaller components in order to prevent swallowing or choking. If a part is swallowed, see a medical doctor immediately.Never expose the SoundGate Mic to excessive heat, such as putting it in an oven, microwave, burning it or leaving it inside a parked car in the sun. There is a risk in these events that it will explode and cause serious injury.

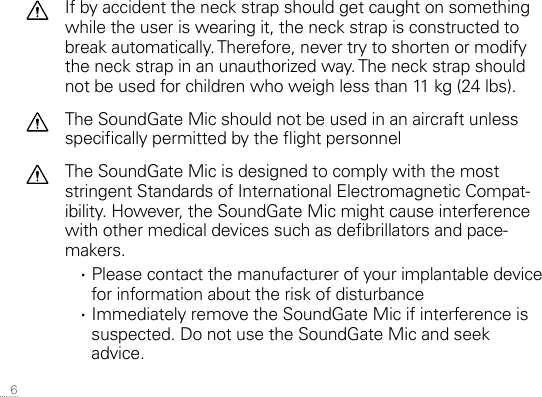

6If by accident the neck strap should get caught on something while the user is wearing it, the neck strap is constructed to break automatically. Therefore, never try to shorten or modify the neck strap in an unauthorized way. The neck strap should not be used for children who weigh less than 11 kg (24 lbs).The SoundGate Mic should not be used in an aircraft unless specically permitted by the ight personnelThe SoundGate Mic is designed to comply with the most stringent Standards of International Electromagnetic Compat-ibility. However, the SoundGate Mic might cause interference with other medical devices such as debrillators and pace-makers. ·Please contact the manufacturer of your implantable device for information about the risk of disturbance ·Immediately remove the SoundGate Mic if interference is suspected. Do not use the SoundGate Mic and seek advice.

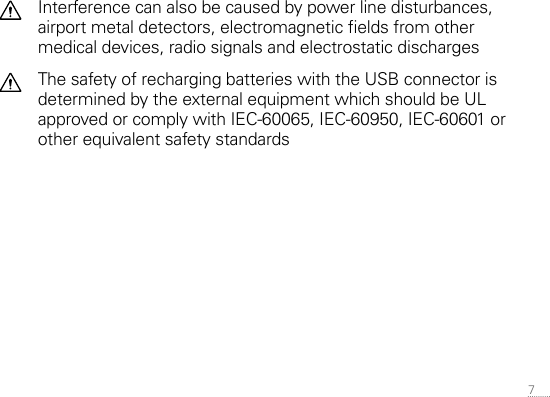

7 Interference can also be caused by power line disturbances, airport metal detectors, electromagnetic elds from other medical devices, radio signals and electrostatic dischargesThe safety of recharging batteries with the USB connector is determined by the external equipment which should be UL approved or comply with IEC-60065, IEC-60950, IEC-60601 or other equivalent safety standards

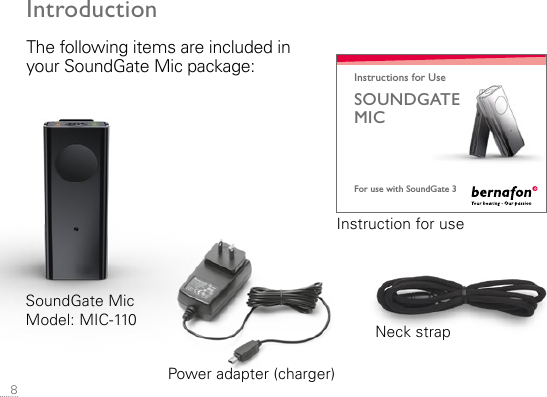

8IntroductionThe following items are included in your SoundGate Mic package:For use with SoundGate 3Instructions for UseSOUNDGATE MICPower adapter (charger)Instruction for useNeck strapSoundGate MicModel: MIC-110

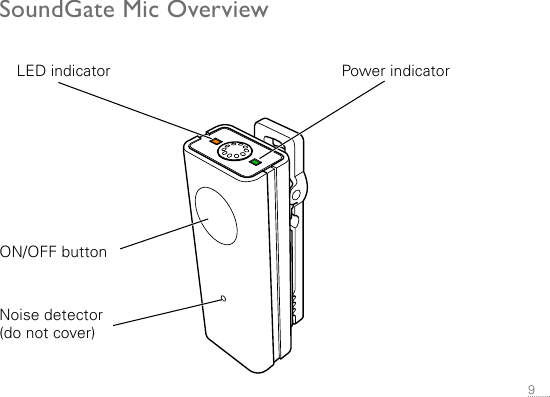

9 SoundGate Mic OverviewON/OFF buttonNoise detector (do not cover)LED indicator Power indicator

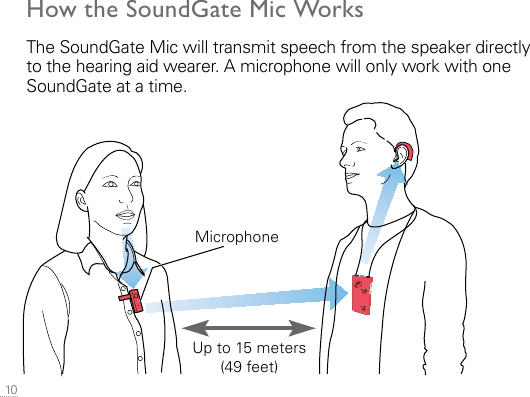

10How the SoundGate Mic WorksThe SoundGate Mic will transmit speech from the speaker directly to the hearing aid wearer. A microphone will only work with one SoundGate at a time.MicrophoneUp to 15 meters (49 feet)

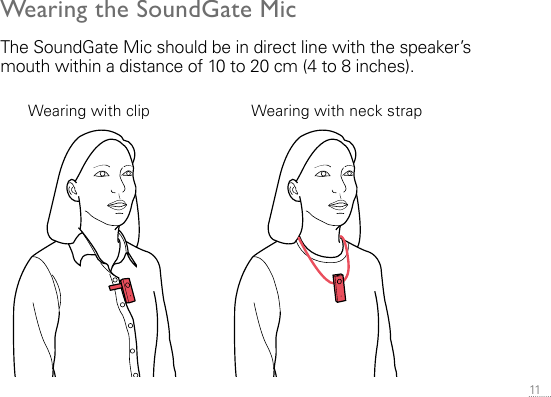

11 Wearing the SoundGate Mic The SoundGate Mic should be in direct line with the speaker’s mouth within a distance of 10 to 20 cm (4 to 8 inches).Wearing with clip Wearing with neck strap

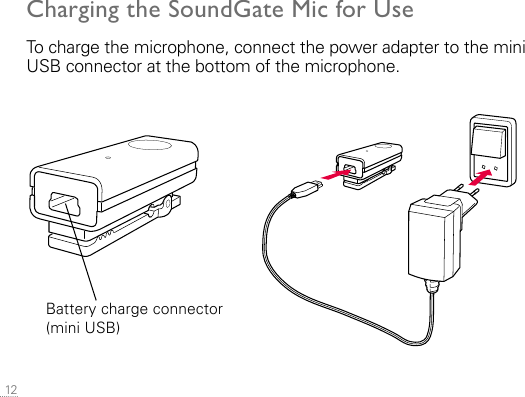

12Charging the SoundGate Mic for UseTo charge the microphone, connect the power adapter to the mini USB connector at the bottom of the microphone.Battery charge connector (mini USB)

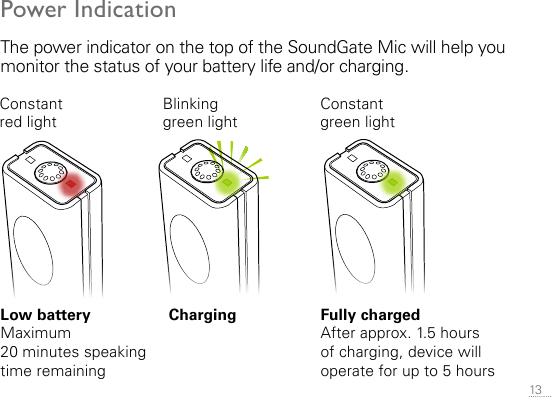

13 Power IndicationThe power indicator on the top of the SoundGate Mic will help you monitor the status of your battery life and/or charging.Charging Fully chargedAfter approx. 1.5 hours of charging, device will operate for up to 5 hoursConstant red lightBlinking green lightConstant green lightLow batteryMaximum 20 minutes speaking time remaining

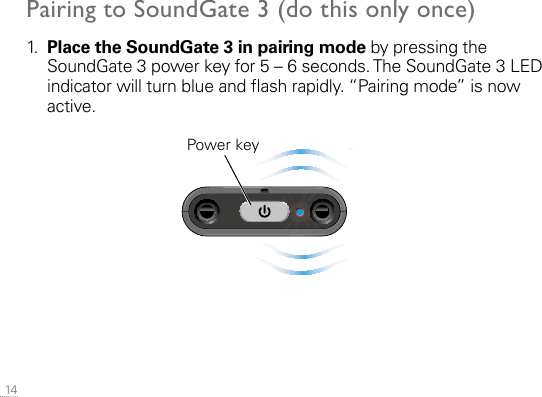

14Pairing to SoundGate 3 (do this only once)1. Place the SoundGate 3 in pairing mode by pressing the SoundGate 3 power key for 5 – 6 seconds. The SoundGate 3 LED indicator will turn blue and ash rapidly. “Pairing mode” is now active. Power keySN2_ILLU_TopLedFlashingBlue_HI30

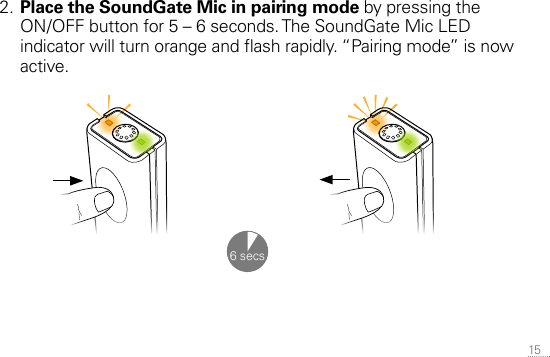

15 2. Place the SoundGate Mic in pairing mode by pressing the ON/OFF button for 5 – 6 seconds. The SoundGate Mic LED indicator will turn orange and ash rapidly. “Pairing mode” is now active.6 secs

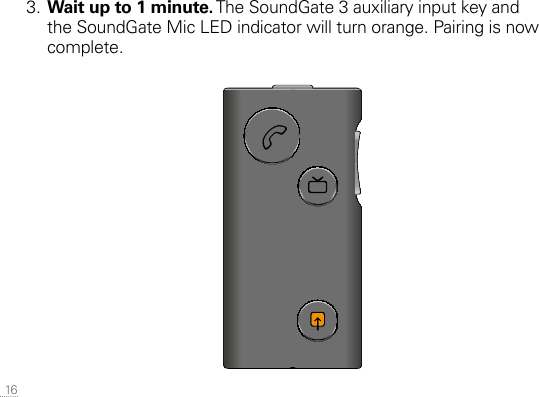

163. Wait up to 1 minute. The SoundGate 3 auxiliary input key and the SoundGate Mic LED indicator will turn orange. Pairing is now complete.SN2_ILLU_SoundgateProfile_HI1SN2_ILLU_AuxKeyOrange_HI32

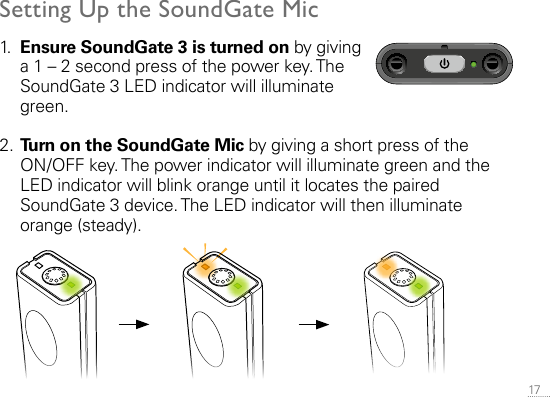

17 Setting Up the SoundGate Mic1. Ensure SoundGate 3 is turned on by giving a 1 – 2 second press of the power key. The SoundGate 3 LED indicator will illuminate green.2. Turn on the SoundGate Mic by giving a short press of the ON/OFF key. The power indicator will illuminate green and the LED indicator will blink orange until it locates the paired SoundGate 3 device. The LED indicator will then illuminate orange (steady).SN2_ILLU_GreenLed_HI12

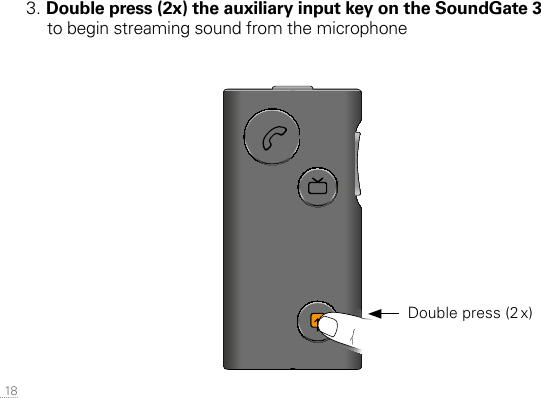

183. Double press (2x) the auxiliary input key on the SoundGate 3 to begin streaming sound from the microphoneSN2_ILLU_SoundgateProfile_HI1SN2_ILLU_AuxKeyOrange_HI32 Double press (2 x)

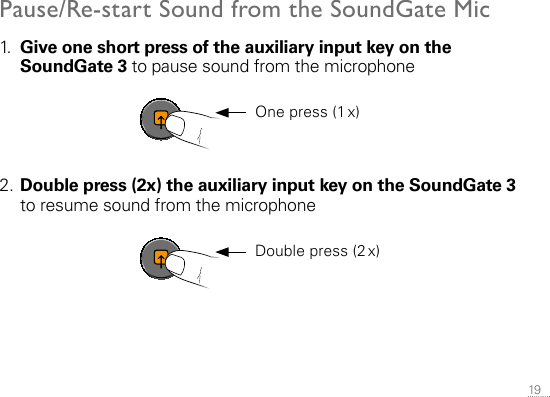

19 Pause/Re-start Sound from the SoundGate Mic1. Give one short press of the auxiliary input key on the SoundGate 3 to pause sound from the microphone2. Double press (2x) the auxiliary input key on the SoundGate 3 to resume sound from the microphoneSN2_ILLU_AuxKeyOrange_HI32 One press (1 x)SN2_ILLU_AuxKeyOrange_HI32 Double press (2 x)

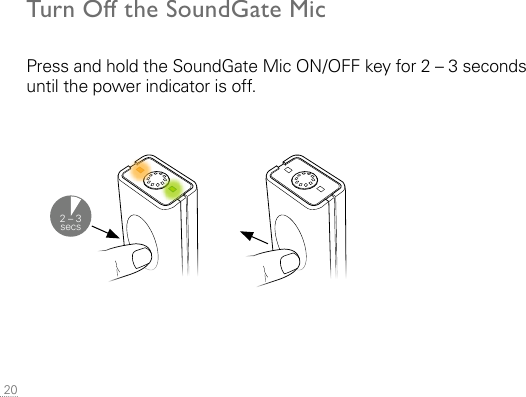

20Turn O the SoundGate MicPress and hold the SoundGate Mic ON/OFF key for 2 – 3 seconds until the power indicator is off.2 – 3 secs

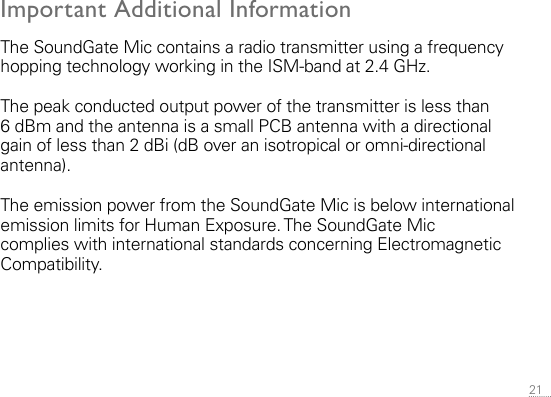

21 Important Additional InformationThe SoundGate Mic contains a radio transmitter using a frequency hopping technology working in the ISM-band at 2.4 GHz.The peak conducted output power of the transmitter is less than 6 dBm and the antenna is a small PCB antenna with a directional gain of less than 2 dBi (dB over an isotropical or omni-directional antenna).The emission power from the SoundGate Mic is below international emission limits for Human Exposure. The SoundGate Mic complies with inter national standards concerning Electromagnetic Compatibility.

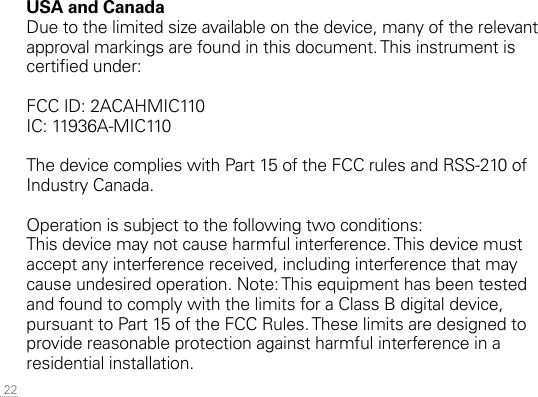

22USA and CanadaDue to the limited size available on the device, many of the relevant approval markings are found in this document. This instrument is certied under:FCC ID: 2ACAHMIC110IC: 11936A-MIC110The device complies with Part 15 of the FCC rules and RSS-210 of Industry Canada.Operation is subject to the following two conditions:This device may not cause harmful interference. This device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

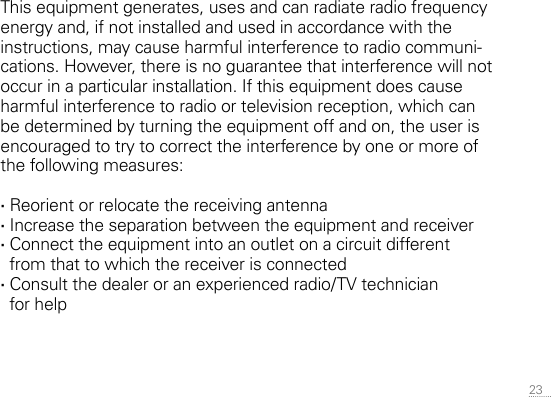

23 This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communi-cations. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ·Reorient or relocate the receiving antenna ·Increase the separation between the equipment and receiver ·Connect the equipment into an outlet on a circuit different from that to which the receiver is connected ·Consult the dealer or an experienced radio/TV technician for help
24Caution:Changes or modications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.SBO Hearing A/S hereby declares that this SoundGate Mic is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.Declaration of conformity is available at:SBO Hearing A/SKongebakken 9DK-2765 SmørumDenmark

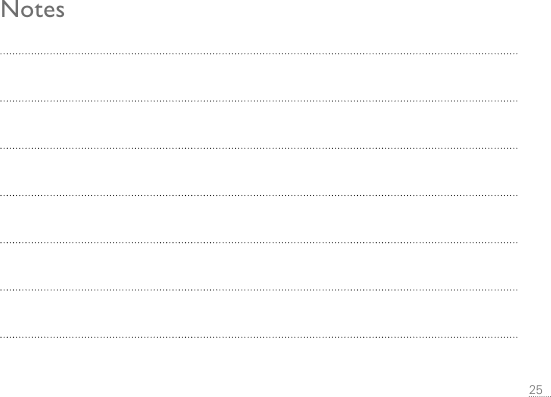

25 Notes

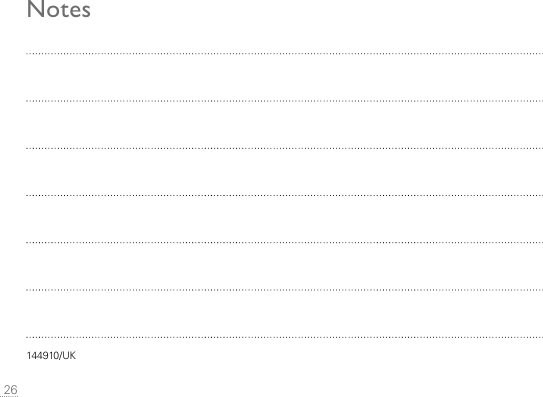

26Notes144910 / UK
< 15 mm >< > 8,15 mm< > 9.0 mm< 19 mm >Placeholder for FSC logo

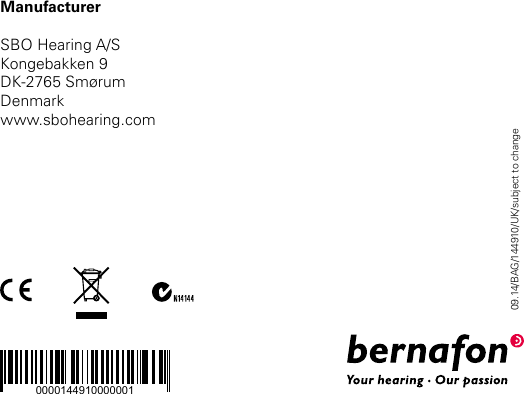

09.14/BAG/144910/UK/subject to changeManufacturerSBO Hearing A/SKongebakken 9DK-2765 SmørumDenmarkwww.sbohearing.comManufacturerBernafon AGMorgenstrasse 1313018 BernSwitzerlandPhone +41 31 998 15 15info@bernafon.chwww.bernafon.comAustraliaBernafon Australia Pty Ltd.629 Nudgee RoadNundah QLD 4012Freecall 1800 809 111Phone +61 7 3250 0300info@bernafon.com.auNew ZealandBernafon New Zealand Ltd.Level 1, Building F27-29 William Pickering DriveAlbany, Auckland 0632Toll Free 0800 44 22 57Phone +64 9 415 7917info@bernafon.co.nzUnited KingdomBernafon UKCadzow Industrial EstateOff Low Waters Road HamiltonML3 7QE ScotlandPhone +44 1698 285 968info@bernafon.co.uk0000144910000001
