SBO Hearing A/S CONNECTLINE MICROPHONE UserManual
UserManual.pdf
For use with SoundGate 3
Instructions for Use
SOUNDGATE
MIC
3
Congratulations on the purchase of your new SoundGate Mic.
The SoundGate Mic is intended to be used to improve communi-
cation by sending the speaker’s voice directly to the hearing aids of
the user. This allows the hearing aid user to hear the speaker better
even in difcult listening environments.
This guide offers the instructions necessary to get you on your way
to better communication.
Please read the entire contents of this booklet before using
your SoundGate Mic. It contains instructions and important
information about its use and handling.
4
General Warnings and Safety Guidelines 5
Introduction 8
SoundGate Mic Overview 9
How the SoundGate Mic Works 10
Wearing the SoundGate Mic 11
Charging the SoundGate Mic for Use 12
Power Indication 13
Pairing to SoundGate 3 14
Setting Up the SoundGate Mic 17
Pause/Re-start Sound from the SoundGate Mic 19
Turn Off the SoundGate Mic 20
Important Additional Information 21
Table of Contents
5
General Warnings and Safety Guidelines
Familiarize yourself with the following general warnings before using
your SoundGate Mic.
The SoundGate Mic is not a toy and should be kept away
from children and anyone else who might swallow parts or
otherwise cause injury to themselves. Special attention
should be paid to the smaller components in order to prevent
swallowing or choking. If a part is swallowed, see a medical
doctor immediately.
Never expose the SoundGate Mic to excessive heat, such as
putting it in an oven, microwave, burning it or leaving it inside a
parked car in the sun. There is a risk in these events that it will
explode and cause serious injury.
6
If by accident the neck strap should get caught on something
while the user is wearing it, the neck strap is constructed to
break automatically. Therefore, never try to shorten or modify
the neck strap in an unauthorized way. The neck strap should
not be used for children who weigh less than 11 kg (24 lbs).
The SoundGate Mic should not be used in an aircraft unless
specically permitted by the ight personnel
The SoundGate Mic is designed to comply with the most
stringent Standards of International Electromagnetic Compat-
ibility. However, the SoundGate Mic might cause interference
with other medical devices such as debrillators and pace-
makers.
·Please contact the manufacturer of your implantable device
for information about the risk of disturbance
·Immediately remove the SoundGate Mic if interference is
suspected. Do not use the SoundGate Mic and seek
advice.
7
Interference can also be caused by power line disturbances,
airport metal detectors, electromagnetic elds from other
medical devices, radio signals and electrostatic discharges
The safety of recharging batteries with the USB connector is
determined by the external equipment which should be UL
approved or comply with IEC-60065, IEC-60950, IEC-60601 or
other equivalent safety standards
8

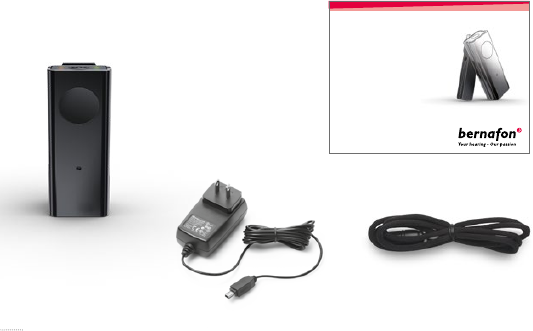

Introduction
The following items are included in
your SoundGate Mic package:
For use with SoundGate 3
Instructions for Use
SOUNDGATE
MIC
Power adapter (charger)
Instruction for use
Neck strap
SoundGate Mic
Model: MIC-110
9

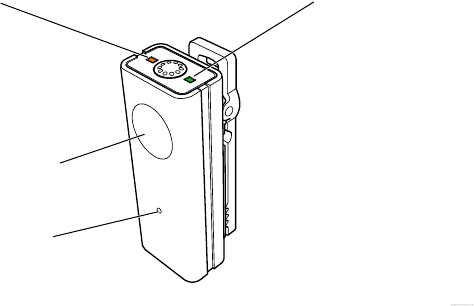

SoundGate Mic Overview
ON/OFF button
Noise detector
(do not cover)
LED indicator Power indicator
10

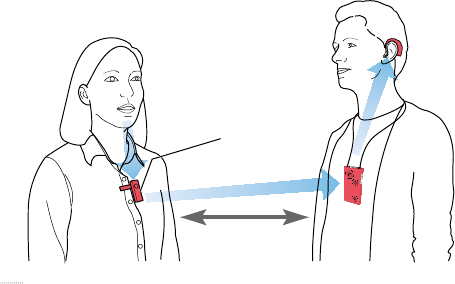

How the SoundGate Mic Works
The SoundGate Mic will transmit speech from the speaker directly
to the hearing aid wearer. A microphone will only work with one
SoundGate at a time.
Microphone
Up to 15 meters
(49 feet)
11

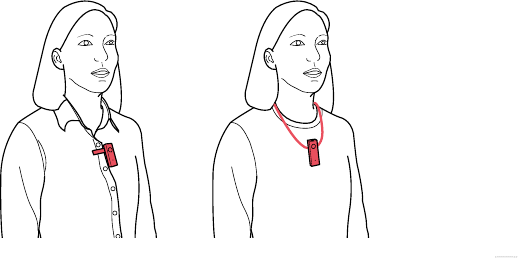

Wearing the SoundGate Mic
The SoundGate Mic should be in direct line with the speaker’s
mouth within a distance of 10 to 20 cm (4 to 8 inches).
Wearing with clip Wearing with neck strap
12

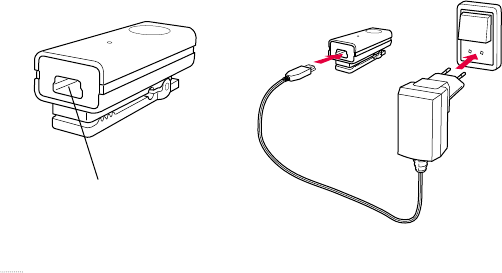

Charging the SoundGate Mic for Use
To charge the microphone, connect the power adapter to the mini
USB connector at the bottom of the microphone.
Battery charge connector
(mini USB)
13

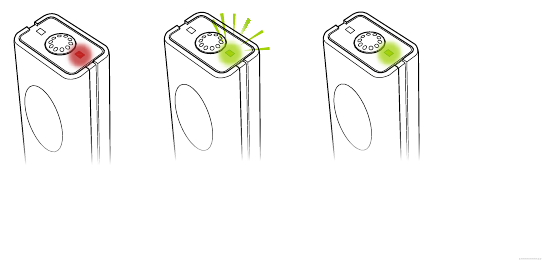

Power Indication
The power indicator on the top of the SoundGate Mic will help you
monitor the status of your battery life and/or charging.
Charging Fully charged
After approx. 1.5 hours
of charging, device will
operate for up to 5 hours
Constant
red light
Blinking
green light
Constant
green light
Low battery
Maximum
20 minutes speaking
time remaining
14
Pairing to SoundGate 3 (do this only once)
1. Place the SoundGate 3 in pairing mode by pressing the
SoundGate 3 power key for 5 – 6 seconds. The SoundGate 3 LED
indicator will turn blue and ash rapidly. “Pairing mode” is now
active.
Power key
SN2_ILLU_TopLedFlashingBlue_HI
30
15

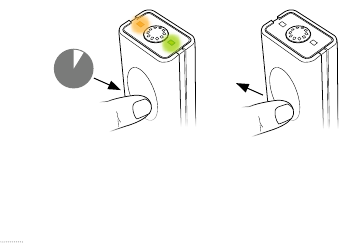

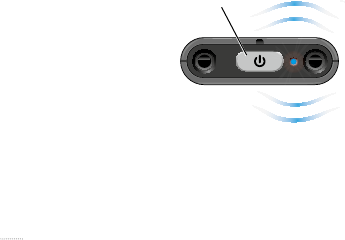

2. Place the SoundGate Mic in pairing mode by pressing the
ON/OFF button for 5 – 6 seconds. The SoundGate Mic LED
indicator will turn orange and ash rapidly. “Pairing mode” is now
active.
6 secs
16

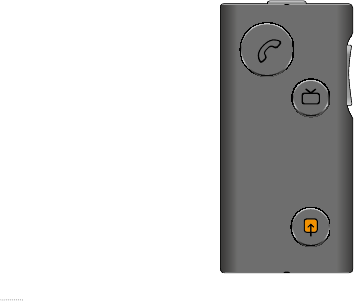

3. Wait up to 1 minute. The SoundGate 3 auxiliary input key and
the SoundGate Mic LED indicator will turn orange. Pairing is now
complete.
SN2_ILLU_SoundgateProfile_HI
1
SN2_ILLU_AuxKeyOrange_HI
32
17

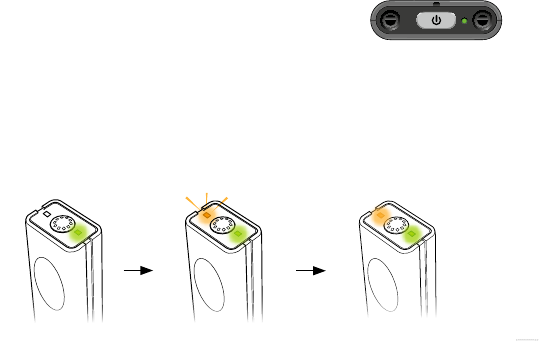

Setting Up the SoundGate Mic
1. Ensure SoundGate 3 is turned on by giving
a 1 – 2 second press of the power key. The
SoundGate 3 LED indicator will illuminate
green.
2. Turn on the SoundGate Mic by giving a short press of the
ON/OFF key. The power indicator will illuminate green and the
LED indicator will blink orange until it locates the paired
SoundGate 3 device. The LED indicator will then illuminate
orange (steady).
SN2_ILLU_GreenLed_HI
12
18
3. Double press (2x) the auxiliary input key on the SoundGate 3
to begin streaming sound from the microphone
SN2_ILLU_SoundgateProfile_HI
1
SN2_ILLU_AuxKeyOrange_HI
32
Double press (2 x)
19

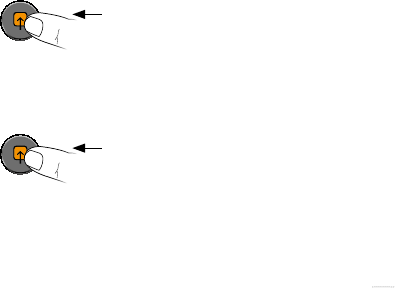

Pause/Re-start Sound from the SoundGate Mic

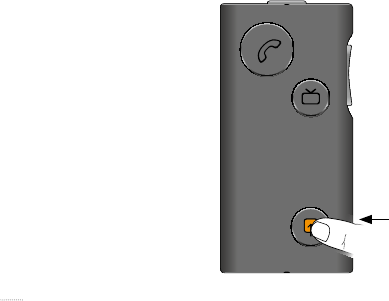

1. Give one short press of the auxiliary input key on the
SoundGate 3 to pause sound from the microphone
2. Double press (2x) the auxiliary input key on the SoundGate 3
to resume sound from the microphone
SN2_ILLU_AuxKeyOrange_HI
32
One press (1 x)
SN2_ILLU_AuxKeyOrange_HI
32
Double press (2 x)
20
Turn O the SoundGate Mic
Press and hold the SoundGate Mic ON/OFF key for 2 – 3 seconds
until the power indicator is off.
2 – 3
secs
21
Important Additional Information
The SoundGate Mic contains a radio transmitter using a frequency
hopping technology working in the ISM-band at 2.4 GHz.
The peak conducted output power of the transmitter is less than
6 dBm and the antenna is a small PCB antenna with a directional
gain of less than 2 dBi (dB over an isotropical or omni-directional
antenna).
The emission power from the SoundGate Mic is below international
emission limits for Human Exposure. The SoundGate Mic
complies with inter national standards concerning Electromagnetic
Compatibility.
22
USA and Canada
Due to the limited size available on the device, many of the relevant
approval markings are found in this document. This instrument is
certied under:
FCC ID: 2ACAHMIC110
IC: 11936A-MIC110
The device complies with Part 15 of the FCC rules and RSS-210 of
Industry Canada.
Operation is subject to the following two conditions:
This device may not cause harmful interference. This device must
accept any interference received, including interference that may
cause undesired operation. Note: This equipment has been tested
and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a
residential installation.
23
This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communi-
cations. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of
the following measures:
·Reorient or relocate the receiving antenna
·Increase the separation between the equipment and receiver
·Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected
·Consult the dealer or an experienced radio/TV technician
for help
24
Caution:
Changes or modications not expressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
SBO Hearing A/S hereby declares that this SoundGate Mic is in
compliance with the essential requirements and other relevant
provisions of Directive 1999/5/EC.
Declaration of conformity is available at:
SBO Hearing A/S
Kongebakken 9
DK-2765 Smørum
Denmark
25
