User Manual
Select
When Select is activated, the pager will only accept calls
addressed to it. When paged an alert tone will be emitted,
the red lamp will blink, and a voice message will follow.
1. Turn the pager on by moving the Slide Switch to the
“N” position.
2. Press and hold the RESET/M” button (for noise) and
then press the up/down ” buttons to set the volume
to desired level.
3. After setting the volume, release the RESET/M” button
to set the pager to Select mode.
4.
Press the RESET/M” button to reset the pager to
Select mode after a call has been received.
Monitor
When Monitor is activated, the pager will monitor all
communication (as a Carrier Squelch Receiver”) on the
selected channel as well as receiving pages.
When paged an alert tone will be emitted, the red lamp
will blink, and a voice message will follow.
1. Perform steps 1-2 under Select.
2. Press and hold the Slide Switch in N” position until a
short beep is emitted to set the pager to Monitor mode.
Congratulations!
Your pager sets a new standard in Tone & Voice Paging.
It is a highly reliable and very compact synthesized
receiver, equipped with a built-in speaker and cellular
type telescoping antenna and is shipped with a AA” size
NiCd battery and a single unit desktop charger.
All in all it is infused with the quality and attention to detail
which are the hallmarks of SCA.
Battery Installation
Sceptar can be operated with a single AA” size battery,
which can be either a dry type (Alkaline) or a rechargeable
700 mAh NiCd (Nickel Cadmium) battery.
1. Ensure the Slide Switch is in the OFF” position.
2. Move the Locking Slide toward the center of the battery
cover, as shown in illustration. Then slide the cover
toward the bottom of the pager to remove it. Insert the
negative (-) end of the battery into the pager first, then
press the positive (+) end down. The battery compartment
is marked with negative (-) and positive (+) positions.
3. Replace the battery cover and reset the Locking Slide.
Single Unit Desktop Charger
Use only the specified NiCd battery type. The charger
will charge one battery, installed in the pager, as well as
a spare battery. Pages can be received during charging,
so long as the pager is in Select” or Monitor” mode.
3. The RESET/M” button should not be pressed while
receiving a message or alert tone. Should this occur,
press and hold the slide switch inward until a short beep
is emitted to listen to the remainder of the message.
Mute
When Mute is activated, the pager will only accept calls
addressed to it. When paged the red lamp will blink but
no alert tone will be emitted and the voice message will
not be heard.
1. Perform steps 1-3 under Select.
2. Move the Slide Switch to the M” position.
3. Move the Slide Switch to the N” position to listen to a
message after the red lamp blinks.
4. Move the Slide Switch back to the M” position to reset
the pager to Mute mode after listening to a message.
2 4 5
Locking Slide
Channel Select Switch
Slide Switch
“
“
“
““
“
“
“
“
“
“
“
“
“
3
“
2-Channel Operation (Software Option)
This function allows a second channel to be used. The
Channel Select Switch is located on the bottom of the
pager. All standard and optional features are available
on both channels.
Priority Scan (Software Option)
This feature provides a priority type scan function. The
setting (1 or 2) of the Channel Select Switch indicates
the priority channel. The scan function operates in either
Monitor mode for monitor scanning or Select mode for
silent scanning. The priority sampling rate is set during
programming.
Note : Same Frequency Scan can not be achieved in the
Monitor mode. If Ch. 1 and Ch. 2 are programmed with
the same frequencies, then the pager must be operated
in the Select mode to continue to scan.
Automatic Reset (Software Option)
This function automatically resets the pager to Select
mode. The reset function can be set during programming
to activate after a specified period of time or at the end of
the voice message.
Low Battery Alarm (Software Option)
This function emits a constant alert tone when the battery
voltage has dropped to a level insufficient for reliable
operation. The NiCd battery should be recharged or a
new Alkaline battery should be inserted.
Vibrate Alert
In Vibrate Alert mode, the pager vibrates when a call is
received, instead of emitting an alert tone and voice
message. Operation is same as for Mute”.
Voice Storage (Hardware Option)
This option stores up to 20 seconds of the last message
received.
ACTIVATION: Move the Slide Switch to the M” position.
RECORD: Recording is activated when an alert page is
received. A recorded message is stored until the next
alert page or the pager is turned off.
PLAYBACK: Press the Slide Switch inward to playback
the stored message.
SAVE: Move the Slide Switch to the N” position to save
the current message. This also stops the voice recording
action.
REPLAY: Move the Slide Switch to the M” position and
press it momentarily to replay the saved message.
Vibrate Alert and Voice Storage Combined
These combined options will operate in the same way
as those outlined in respective instructions. The only
exception is the Vibrator run time, it will be the same as
the programmed Voice Storage record time.
Fixed Alert (Hardware Option)
This function sets the alert tone volume at the maximum
level, regardless of the audio volume ( ”) setting.
Earphone
Connect the earphone to the jack located on the top of
the pager. The internal speaker will be disconnected.

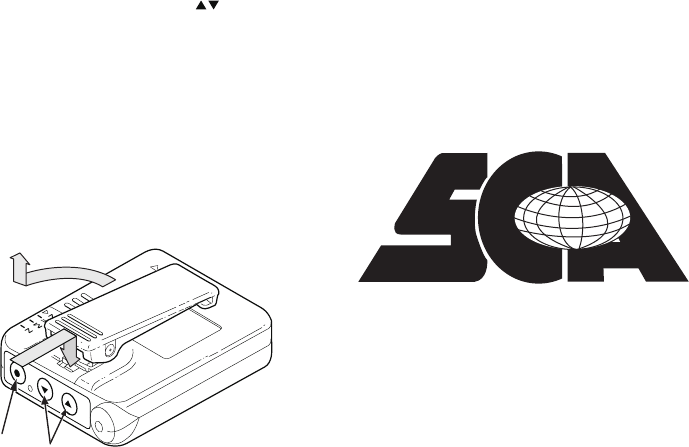

Clip Removal
1. Using a screwdriver, press down on the stopper claw
on the rear cover, as shown in illustration, and rotate the
clip counterclockwise to unlock.
2. Rotate the clip and lift up and out.
3. For installation, reverse steps 1 & 2.
OPERATION MANUAL
SCEPTAR & ALPS
TONE & VOICE PAGERS
This device complies with Part 15 of the FCC Rules.
Operation is subject to the condition that this device does
not cause harmful interference.
Changes or modifications not expressly approved by SCA
may void the user ’s authority to operate this device.
678
RESET/M VOLUME Buttons
Button
“
“
“
“
“
