SD Biosensor FA-DG SD BT DONGLE User Manual
SD Biosensor, Inc. SD BT DONGLE
User Manual
<SD BT DONGLE>
User Manual
- CONTENTS -
1. Introduction
2. Precaution
3. Before Using
3.1 What’s in the box?
3.2 Appearance
3.3 Indicator light status
4. Using the dongle
5. Product Technical Information
1. Introduction
SD BT DONGLE is designed for checking results of test to mobile application and
using wireless printer
2. Precaution
Before use, read the warnings and other information in this manual.
•Keep the dongle dry. Humidity and all types of liquids or moisture can cause harmful
interface with electronic circuits.
•Do not place heavy object on the device.
• Avoid placing the system on slopes or vibrating surfaces.
• Do not use harsh chemicals, cleaning solvents, water or strong detergents to clean
the dongle. To clean external surfaces, use a clean dampened cloth.
• Do not use excessive force on the switch or attempt to disassemble the device.
• Do not drop or subject the device to impact.
• Do not paint the dongle. Paint can clog the moving parts and prevent proper
operation.
• Keep the dongle away from strong magnets.
• Do not disassemble or modify.
• Do not dry the dongle with heater or microwave.
• Keep all accessories out of the reach of small children.
Bluetooth Wireless Technology
The Bluetooth technology makes it possible to connect compatible communication
devices without using cables.
The Bluetooth connection does not require that your SD BT DONGLE and the dongle
are in line of sight, but both devices should be 10 meters of each other, although the
connection can be subject to interference from obstructions such as walls or other
electronic devices.
3. Before Using
3.1 What’s in the box?
•Materials provided
SD BT Dongle
User Manual
•Materials not provided
Mobile print

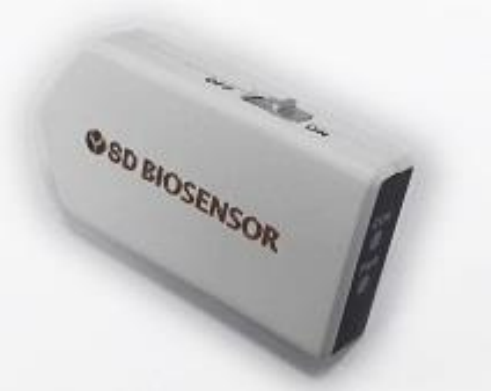

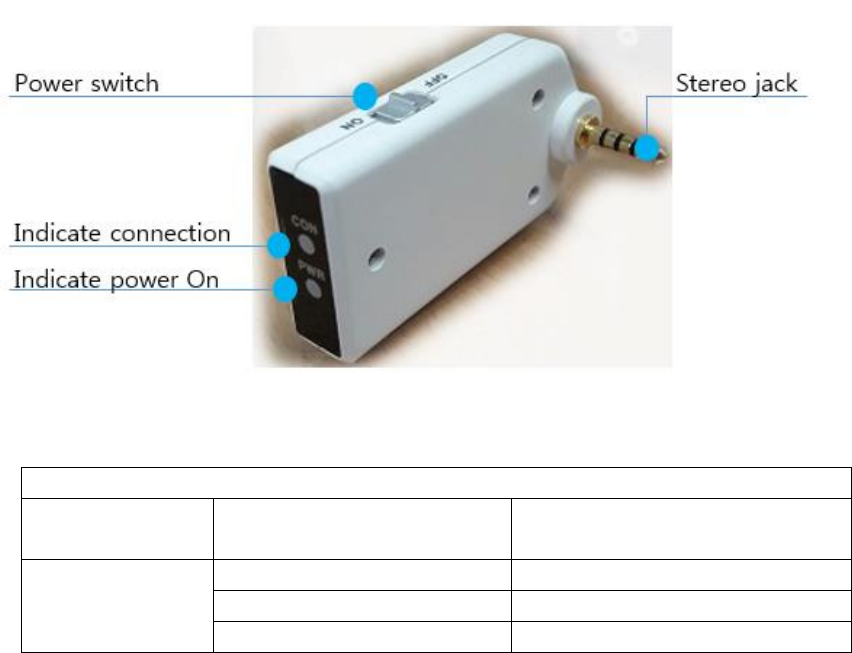

3.2 Appearance
3.3. Indicator light status
Indicator light status
Indicate power
light
Power on
Power light is on
Indicate
connection light
Mounted normally
Connection light flash 2 times
Printer connection failure
Connection light flash 3 times
Successfully connected
Connection light is on

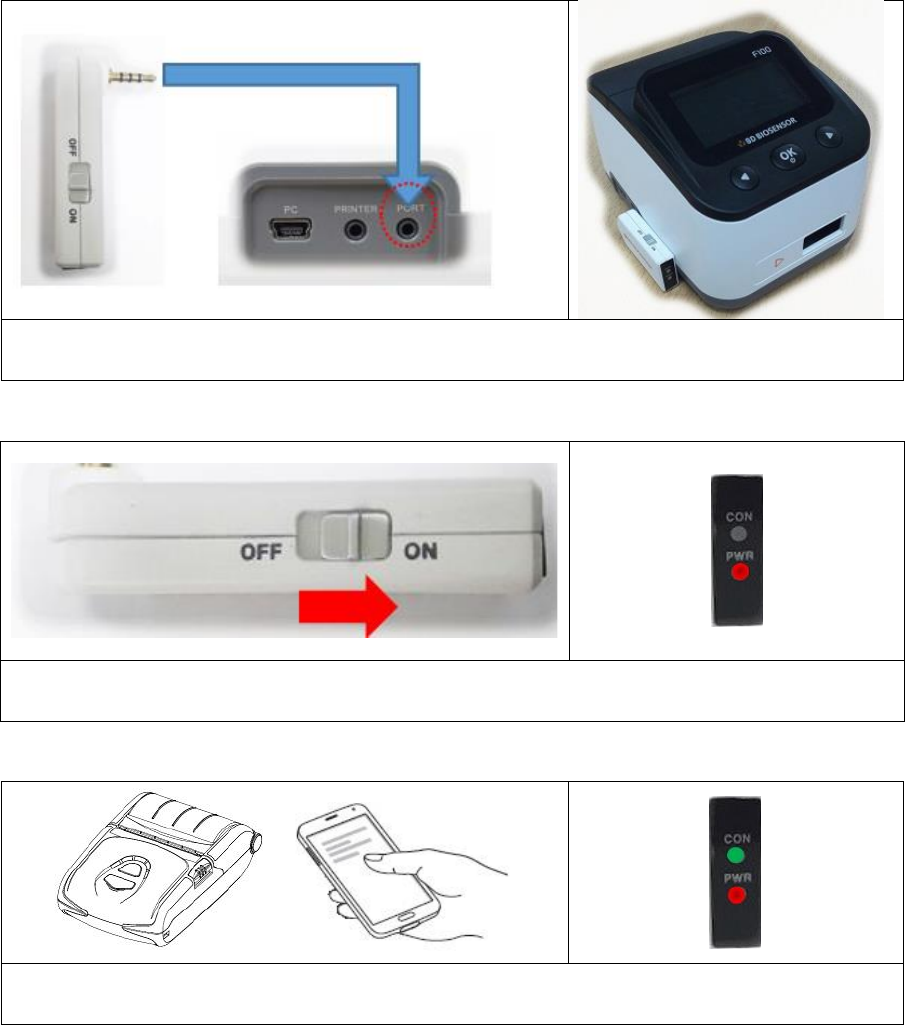

4. Using the dongle
1) Connect a dongle stereo jack to a terminal of the F100 Analyzer.
2) Turn on the power of the dongle. Then, the PWR light turns on if the
connection is normally.
or
3) CON light turns on if a mobile printer or mobile device with BLE is
properly connected.
5. Product Technical Information
Bluetooth Standard
Bluetooth 4.0 Class 2
RF frequency
2402 ~ 2480 Mhz
Wireless range
10 meters
Operating
Condition
Temperature
0 ~40℃
Humidity
10 ~70 %
Dimension
Size
48.9*26.4*24.8mm
This equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help
CAUTION
Any changes or modifications to this device not explicitly approved by manufacturer could void
your authority to operate this equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
The equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum 20 cm
between the radiator and your body.
Hereby, SD BIOSENSOR declares that this equipment is compliance with the essential
requirements and other relevant provisions of directive 1999/5/EC.
Head Office
C-4th&5th, 16, Deogyeong-daero, 1556beon-gil, Yeongtong-gu,
Suwon-si, Gyeonggi-do 16690, REPUBLIC OF KOREA
Manufacturing Site
74, Osongsaengmyeong 4-ro, Osong-eup, Heungdeok-gu, Cheongju-si,
Chungcheongbuk-do 28161, REPUBLIC OF KOREA
