SECURITY DOOR CONTROLS
Price & Installation

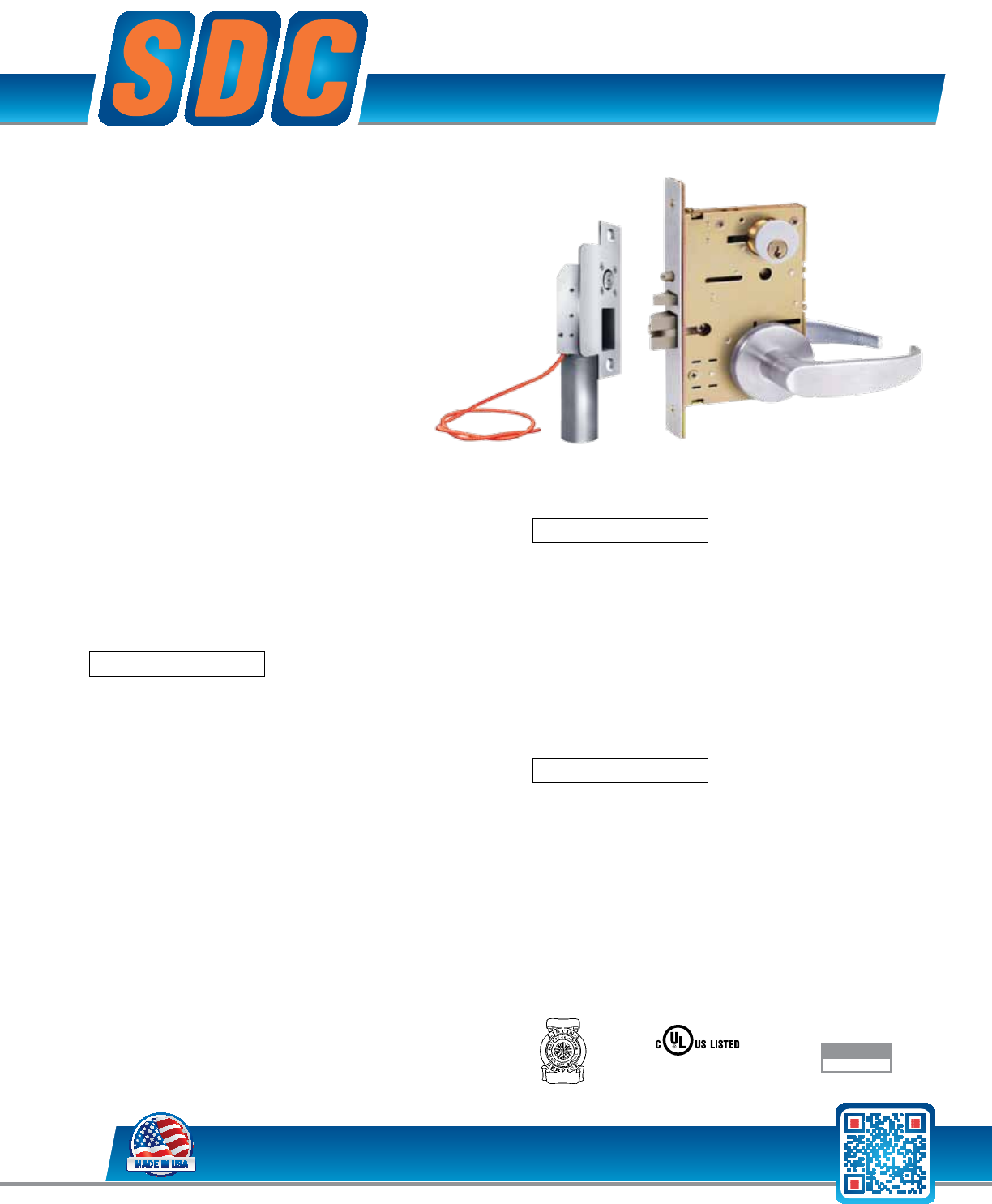

HiTower® ZR7500 and R7500 Series
The locking action is provided entirely by the mortise lock in the door.
Remote control is by the ZR/R7500 Series HiTower® electric actuator
in the frame.
Locking functions needed to meet normal operating requirements
are available, including access controls for locking or unlocking,
plus mechanical or electric key switch control, or mechanical
lever operation.
The ZR7500 HiTower® easily retrofits SDC’s previous Model 5000
HiTower® door preparation or other major mortise lock brands
with only a slight modification to the existing door
preparation. The ZR/R7500 incorporates the
same design features used on SDC’s Model 7500
HiTower®.
SDC’s patented and U.L. Listed HiTower® locks
have established a high standard of safety and
security for stair tower doors, and for other dual-
locking and latching door requirements for many
years. It is the only lock of this type that can
deadlock the mortise lock directly by the actuator
with no auxiliary dead locking cam linkage
required. This simplified action adds both greater
security and increased reliability.
A built-in shock absorber keeps the lever action smooth, to prevent
any binding pressure or other potential damage to components.
The complete SDC ZR7500 HiTower® utilizes a mechanically modified
SDC mortise lock in the door and with the SDC electric actuator in the
door frame. SDC also performs lock conversions of customer supplied
Schlage L9080 mortise locks (source code R7500). SDC modifies the
mortise lock and provides the electric actuator.
#3774-0324:101
mea/cny
678-80-Sa
6,363,363
4,596,411
5,876,073
4,623,178
4,623,181
4,641,867
4,634,155
6,363,763
Protected by one or more of the following U.S. Patents:
GYQS Electrically Controlled
Single Point Lock or Latch
• U.L.Listedheavy-dutymortiselockindoor,with.75" throw
deadlocking mortise latch bolt.
• SDCelectricactuatorintheframe.Noelectricmortiselockset
andnowiringthroughthedoor.Nopowertransferhingerequired
on single doors. Failsafe.
• Smallsizeofactuatorallowsinstallationinstandard2" hollow
metal frames.
• Actuatorassemblyissealed.Nointernalworkingpartsare
exposed.
• Actuatormechanismdoesnotprojectbeyondframe.Noelectric
bolt to bind or jam due to door misalignment.
• Horizontalcompensationfordoorclearanceofupto0.3125" to
ensure deadlocking.
• FullmonitoringisavailablewiththeoptionalSPDTsensors.
Latch and door position sensor is (L). The door secure sensor
(S) incorporates both the latch/door position sensor in addition to
monitoring the HiTower® locking mechanism.
• Lockingoperationdeadlocksthelatchbolt,andinternallyblocks
rotation of outside and/or inside lever.
• Keyoperationdirectlyretractsthelatchbolteventhoughthe
outside trim remains rigid until door is pulled open.
• Designedtointerfacewithstandardaccesssystems.
Operating Voltages
•24VDC•24VAC•115VAC
Power Consumption
450mA@24VDC
500mA@24VAC
200mA@115VAC
Building Code Compliance
NFPA,IBC,IFC,UBC,SBCandBOCA.
Factory assistance in retrofit installations.
Features
Specifications
R7500 Series Operation
SECURITY DOOR CONTROLS
www.sdcsecurity.com service@sdcsecurity.com
[t] 800.413.8783 805.494.0622 [f] 805.494.8861
801 Avenida Acaso, Camarillo CA 93012 • PO Box 3670, Camarillo CA 93011-3670
SECURITY DOOR CONTROLS
sdcsecurity.com service@sdcsecurity.com
© 2012 Security Door Controls LIT-ZR/R7500 09/12
Mortise Lock
Electric Actuator
FRAME
DOOR
C 605BrightBrass P 625BrightChrome
D 606SatinBrass Q 626SatinChrome
F 611BrightBronze S 629BrightStainless
G 612SatinBronze U 630SatinStainless(Standard)
H 613OilRubbedBronze
Not to scale
Mortise
Lockset
Door Frame
7500 EB
1.75" box
SDC Electric
Actuator
Power Supply
R7500 HiTower
Power Supply or
115 VAC Power
wiring through
door
electric mortise
lock
Electric power
transfer hinge
Standard electric mortise locks require:
1) Electric Lockset 2) Power Transfer Hinge
3) Wiring Through Door 4) Separate Transformer
Options
Finish
L SPDT Latch Position Sensor, 5 Amp max.
S SPDTDoorSecureSensor,3Ampmax.
(incorporates Latch Position Sensor)
SC-10 10ftcablewithconnectors(Lockpoweronly)
SC-10-5 10ftcablewithconnectors(Lockpowerandoptions)

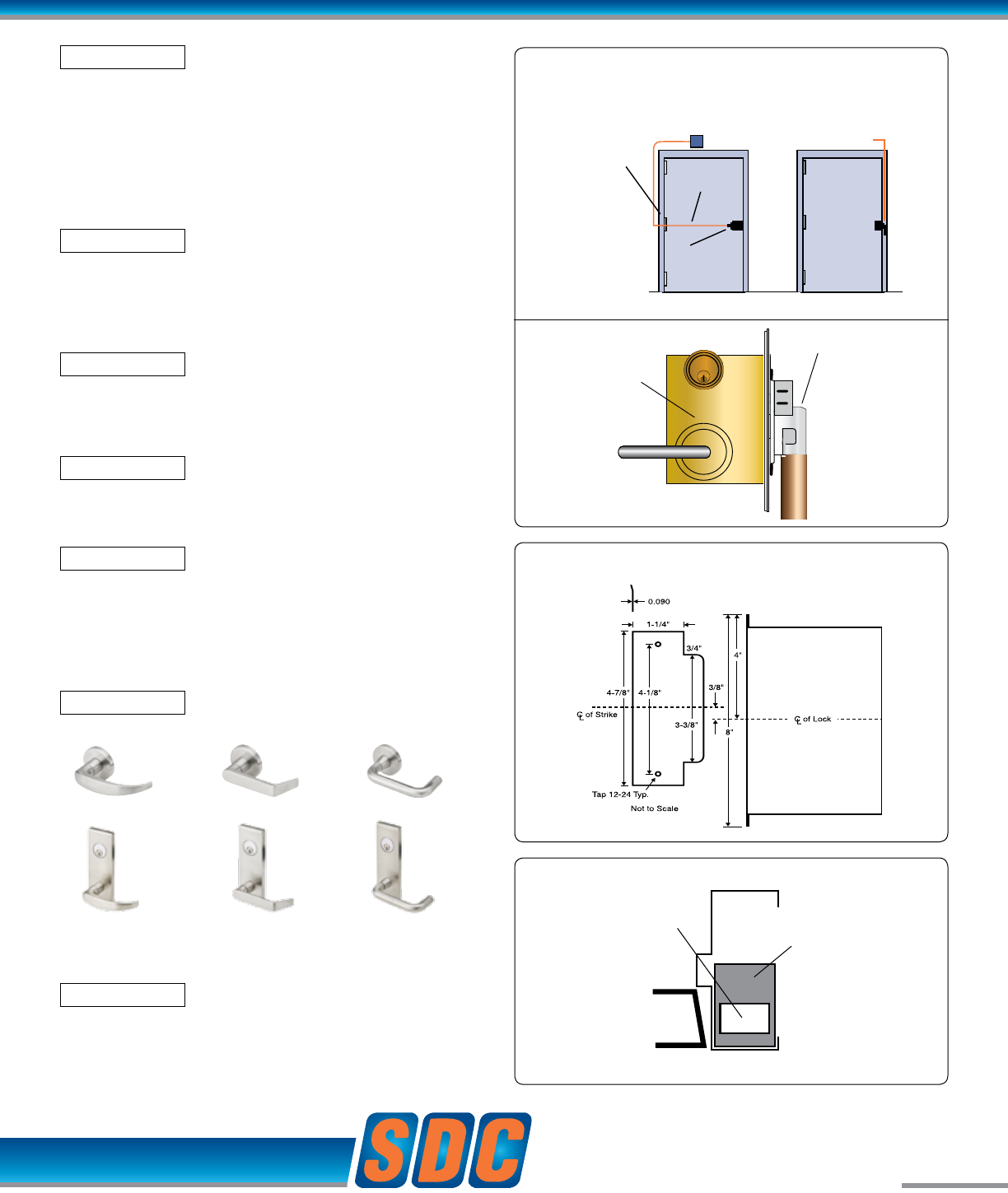

SDC HiTower® Advantages
ZR/R7500 Installation with Back box
ZR/R7500 Mortise Lock and Strike Alignment
7530 Failsafe. Inside and outside lever locked. Mortise lock is unlocked
by remote switch, access controls or by means of a key from either side.
Suggested use: Communicating doors, Mantrap doors.
7550 Failsafe.Outsideleverlocked.Mortiselockisunlockedbyremote
switch, access control or by means of an outside key, or by rotating the
inside lever.
Suggested use:OfficedoorsStairtowerdoors,laboratories,storerooms.
Functions
GE Galaxy with
escutcheon
EE Eclipse with
escutcheon
NE Novawith
escutcheon
GGalaxy with rose EEclipse with rose NNovawithrose
Lever handles are specified with SDC supplied locksets, source ZR.
Lever Trim
Source code
ZR SDC Mortise lock with trim. SDC supplies complete mortise
lockset for HiTower®
R Schlage L9080. Customer supplies lock set for conversion to HiTower®
Model
Hand of Door
L - Left Hand LR - Left Hand Reverse
R - Right Hand RR - Right Hand Reverse
Handing
Voltage
Voltage and Frame Face Size
A 115VACx2"B24VACx2"C 24VDCx2"
