SECURITY DOOR CONTROLS
www.sdcsecurity.com service@sdcsecurity.com
[t] 800.413.8783 805.494.0622
801 Avenida Acaso, Camarillo CA 93012 • PO Box 3670, Camarillo CA 93011-3670
sdcsecurity.com service@sdcsecurity.com
Price & Installation
sdcsecurity.com
service@sdcsecurity.com
SECURITY DOOR CONTROLS
• Panic and re exit hardware
• ANSI/BHMA A156.3-2001 Grade 1 Compliant
• CA Title 19 Compliant
• Meets/Exceeds ADA requirements
• UBC 97, Standard 7.2
• Panic & Fire Exit Hardware
• ANSI/BHMA A156.3 Grade 1
Patents Pending
S6000 Spectra™ Exit Devices
Spectra Class - Specification Grade Exit Devices
for superior Architectural Style & Performance
The new mechanical SDC S6000 Spectra™ series panic and fire rated
exit devices are available in rim mount, mortise and surface vertical rod
configurations. Spectra Class mechanical exit devices are UL listed and
ANSI A156.3 Grade 1 compliant and comply with all national and state
building and fire life safety codes. The SDC Spectra series exit devices
have a modern look and quiet push pad operation.
Electric Frame Actuator
Electric Latch Retraction
Delayed Egress
Exit Alarm
Latch Bolt: Stainless steel, 3/4"(19mm) throw
Latch: Deadlocking, Stainless steel,
5/8"(16mm) throw
Strike: Stainless steel
Mortise Lock Specifications
Lock Case :
Steel plated 6 1/16” x 3 15/16” x 29/32”
(154mm x 100mm x 23mm)
Anti-friction Latchbolt : 3/4”(19mm) throw
Hand: Reversible without removing the lock
from the door
Auxiliary Deadlocking Bolt :
Non-handed, stainless steel
Faceplate:
Adjustable, 19/32” stainless steel or brass.
Strike : ANSI 4 7/8”
For use on single doors or pair of doors with mullion
• Minimum Stile Width : 4 1/2”(114 mm)
For use on single doors or active leaf of double doors
Rim Mount Exit Devices
Mortise Exit Device
S6100
S6300
S6000 Spectra™ Exit Device Standard Series
Top Latch: Stainless steel 37/64” (14.8mm)
Top Strike: Included
Bottom Latch: Stainless steel 37/64” (14.8mm)
Bottom Strike: Included
Latch Case Covers:
Steel, stainless steel or brass
Vertical Rods: Aluminum tube
Standard height: For 7’0” doors
For use on single doors or pair of doors
• Minimum Stile Width : 3 1/2” (89 mm)
Surface Vetical Rod Exit Devices*
S6200 SVR
*LBR Device - Less Bottom Rod
S6200-LBR SVR
Application
1-3/4”(44 mm) door thickness standard.
Specify thickness other than 1-3/4”.
• RHR or LHR hollow metal, wood and
mineral core doors.
Device Spcifications
Device Head Cover: Zinc alloy or stainless steel
Chassis: Steel, plated
Housing: Extruded aluminum
Push Bar Base: Extruded aluminum
Touch Plate: Stainless steel
Mounting: Machine screws standard. Sex bolts
optional. Order “SNB” for wood or
non-reinforced metal doors
End Cap: Zinc alloy
Hand: Non-handed
Dogging: Allen-type key furnished
Finish: 630 Stainless Steel
Special Finishes POA
Outside Trims: Order separately
UL Listed: ANSI/BHMA Grade1 Panic Exit
Hardware, 3-Hour Fire Exit Hardware.
Options
LS Locked/unlocked status, SPDT 3 Amp contact
Trim
EKE03 Eclipse style electric trim, less mortise cylinder
GKE03 Galaxy style electric trim, less mortise cylinder
Features
• Failsecure, eld reversible to failsafe
• 4 ft. cable and connectors
• 12/24VDC @ 600/300 mA
EKE03 Eclipse,
less cylinder
GKE03 Galaxy
less cylinder
Finish
U630 Dull Stainless Steel standard
Electric Trim
Trim
Dummy Trim: EK02, GK02, SP02
Key Retracts Latchbolt: EK03, GK03, SP03
Key Locks/Unlocks Lever: EK08, GK08
No Cylinder Lever Always Active: EK14, GK14
Options
• 1 rim cylinder required for 03,
mortise cylinder required for 08 function
• 1 mortise cylinder required for CD option
CD Keyed dogging. Specify key cylinder
separately.
Not available with (F) re exit device.
CYL-6KDQ 6 pin, 1.125" mortise cylinder, keyed
different, dull chrome
CYL-6KAQ 6 pin, 1.125” mortise cylinder, keyed
alike, dull chrome
RIM-CYL 5 pin, 1.125” mortise cylinder, keyed
different, dull chrome
Finish
U630 Dull Stainless Steel standard
EK
Eclipse
GK
Galaxy
SP
Saturn
Mechanical Trim
RIM DEVICES USE SURFACE / CONCEALED VERTICAL ROD DEVICES USE
STRIKES (SCREWS INCLUDED)
ST1P
Standard
for
S6100P
ST1F
Standard
for
S6100F
ST2P
Standard top strike for
S6200P
ST2F
Standard top strike for
S6200F
Projection:
13/16” (21mm)
Projection:
13/16” (21mm)
Projection: 29/32” (23mm)
Projection: 1-1/8” (29mm)
Mortise: 2-1/4” (21mm)
Rim Strikes Top Strikes Bottom Strikes
(Floor Strikes)
Optional Threshold Strikes
ST28T
Optional floor strike for us-
ing threshold openings
Projection: 3/8” (9.5mm)
Optional for mullion
application
ST1MP
For 6100P
ST1MF
For 6100F
Projection: 7/8” (22.5mm)
Optional Mullion Strike
OPTIONAL DOUBLE DOOR STRIKE
ST2DF
Optional for pairs of doors
with rim mount device.
Projection: 1-15/16” (33mm)
REMOVABLE MULLION
KR90F
Standard Key Removable Mullion
For Panic Exit and Fire Exit Rim
Mount Devices.
Length: 8ft
Material: 2” 11 Gauge
Steel Tube
Finish: Primer gray

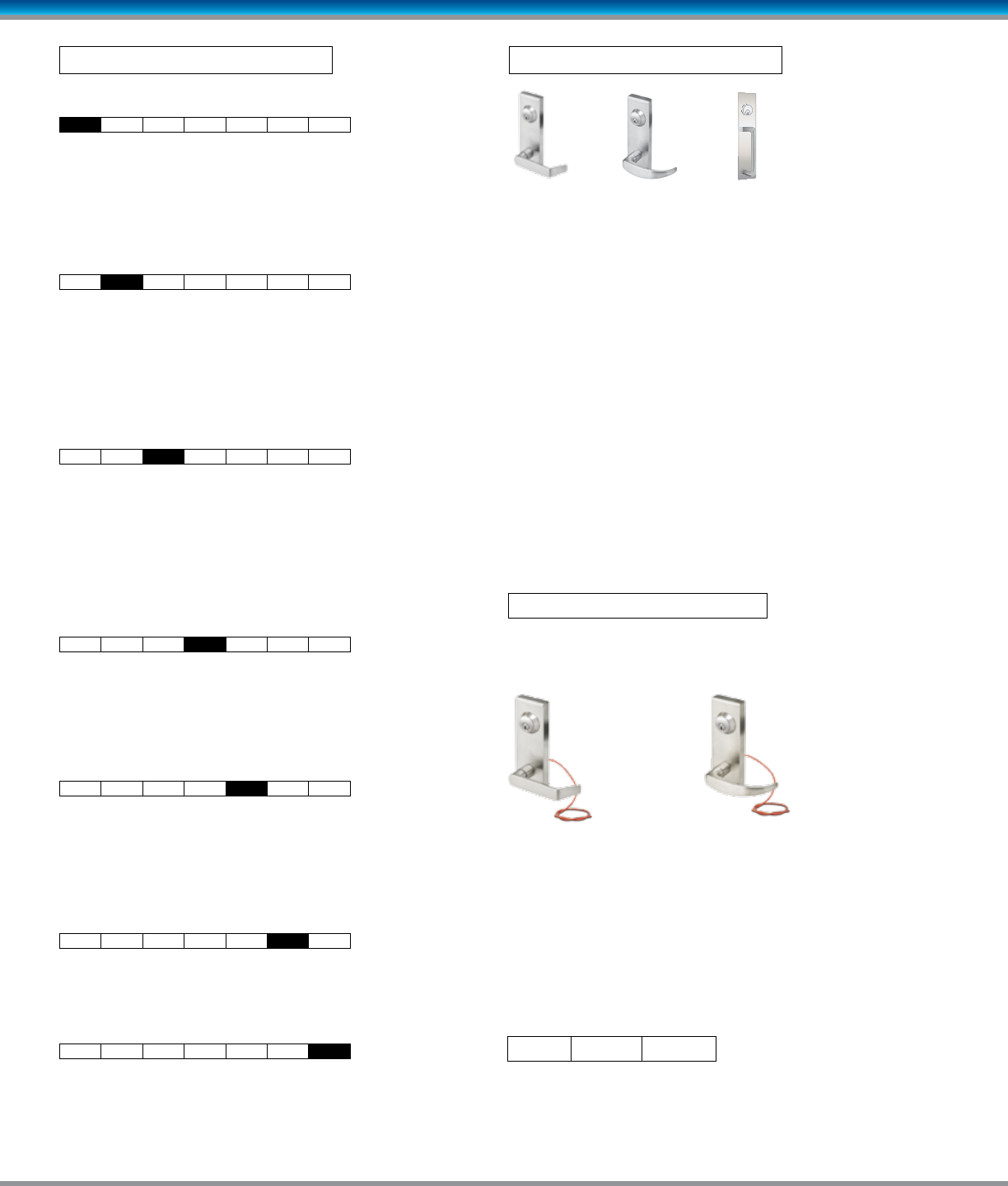

Model
Spectra Series Exit Device
S61 Rim mount
S62 Surface vertical rod
S63 Mortise
ANSI Functions
01 Exit only, No Trim
02 Dummy pull or lever (opens when dogged)
03 Lever or pull, key latch retraction
08 Lever with key locks/unlocks lever
14 Lever trim always active
Panic or Fire Rated
P Panic Exit Device
F Fire Exit Device
P - Mechanical dogging STD;
(Add part # CD for optional key cylinder dogging)
F - Mechanical dogging not available
Handing
RR Right hand reverse bevel, RHRB
LR Left hand reverse bevel, LHRB
Finish
Headcover, touchpad and endcap
U630 Dull Stainless Steel standard
Length
36 For 36" Door 42 For 42" Door 48 For 48" Door
Options
R Request-To-Exit Output, SPDT
L Latch Status Output, SPDT
Trim
Dummy Trim: EK02, GK02, SP02
Key Retracts Latchbolt: EK03, GK03, SP03
Key Locks/Unlocks Lever: EK08, GK08
No Cylinder Lever Always Active: EK14, GK14
Options
• 1 rim cylinder required for 03,
mortise cylinder required for 08 function
• 1 key cylinder required for CD option
CD Keyed dogging. Specify key cylinder separately.
Not available with (F) re exit device.
CYL-6KDQ 6 pin, 1.125" mortise cylinder, keyed different, dull chrome
CYL-6KAQ 6 pin, 1.125” mortise cylinder, keyed alike, dull chrome
RIM-CYL 5 pin, 1.125” mortise cylinder, keyed different, dull
chrome
Finish
U630 Dull Stainless Steel standard

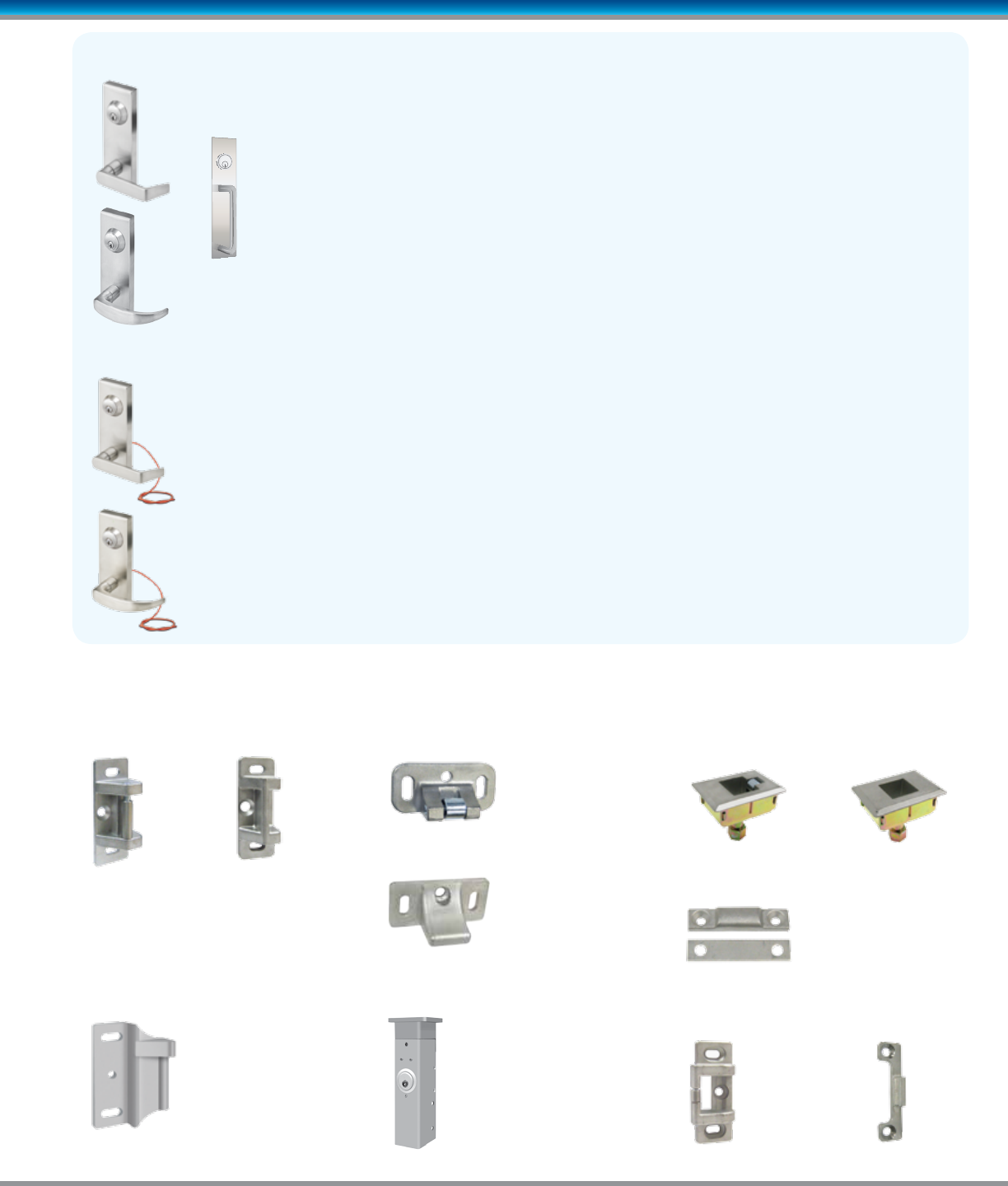

How to Specify S6000 Mechanical Trim
EK Eclipse GK Galaxy SP Saturn
Options
LS Locked/unlocked status, SPDT 3 Amp contact
EKE03 Eclipse style electric trim, less cylinder
GKE03 Galaxy style electric trim, less cylinder
Features
• Failsecure, eld reversible to failsafe • Audible tone
• 4 ft. cable and connectors • 12/24VDC @ 600/300 mA
Trim Finish Options
Electric Trim
EKE03 Eclipse,
less cylinder
GKE03 Galaxy
less cylinder
Finish
U630 Dull Stainless Steel standard
C605 Bright Brass G 612 Dull Bronze P 625 Bright Chrome
D606 Dull Brass Q 626 Dull Chrome
Trim

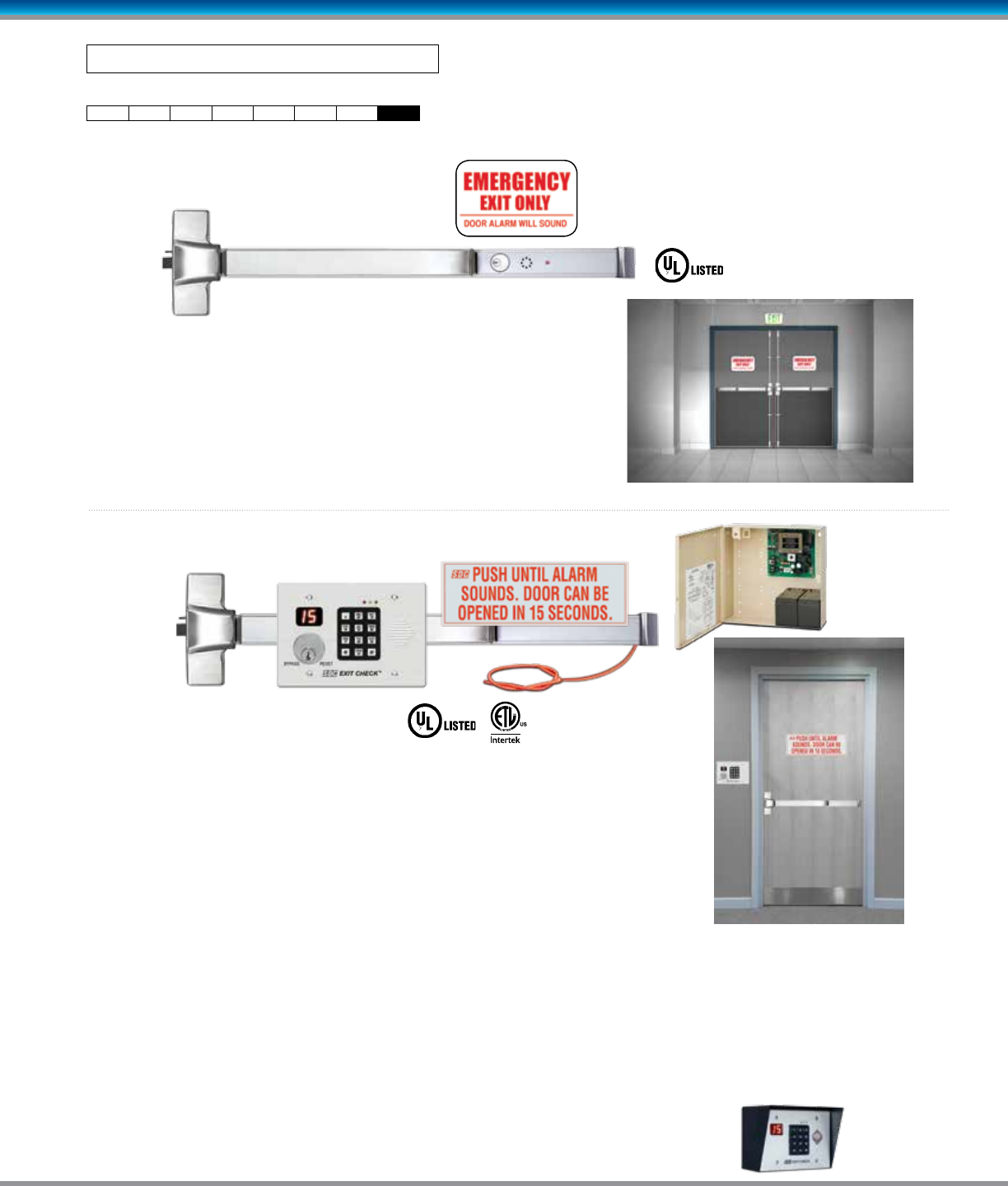

Ordering Example
A Exit Alarm, 9V battery powered
B Exit Alarm, 12-24V AC/DC input, 9V battery backup
KDE Keypad controller with redundant key switch capable of all keypad control features
DES For pair of doors, additional exit device equipped with delayed egress mechanism,
less controller. Must be ordered together with DE and device.
602RF 1 Amp power supply
• User PIN codes may be assigned to 1, 2 or all control functions.
Reset, sustained bypass and momentary bypass (REX
• Audible alarm voice release time, warning or safety message
• Visual display countdown, locked/unlocked, egress executed
• Selectable nuisance
Spectra™ Series Options
ADA
How to Specify S6000 Electrical Options
• 100 dB alarm; visual and audible On/Off status:
Armed - green LED blinks every 4 seconds,
Alarm mode - red LED, Bypass - no LED
• Remote status output
• 15 or 60 second arming delay
• 2 modes: Continuous alarm with manual key reset; Automatic
re-arm 2 minutes after door closes with any manual key reset
before 2 minutes.
Options
• REX and latch status outputs
DE Delayed egress exit device
Electrication of master exit device and wall mount controller
with keypad control and reset
Options
DEC-J 3 Gang Interior surface mount box for 101-DEC
SHD-J Shroud for surface mount box DEC-J outdoor use
Operations
NA IBC, IFC, NFPA compliant, Field Selectable 15 to 30 second Exit Delay, 1 or 2 Nuisance Delay
NC IBC, IFC, NFPA 101, NFPA 1-UFC, UBC, SBC compliant, Fixed 15 second Exit Delay, 0/1 Nuisance Delay, Calif. Building Code
OSHPD/Manual Power Up
ND IBC, IFC, NFPA 101, NFPA 1-UFC, UBC, SBC compliant, Fixed 15 second Exit Delay, 0/1 Nuisance Delay
BC BOCA National Building Code/City of Chicago Compliant, Fixed 15 second Exit Delay, 0 Nuisance Delay, Auto Reset 30 seconds
BD BOCA National Building Code, Fixed 15 second Exit Delay, 0/1 Nuisance Delay, Auto Reset 30 seconds
101-DE with
SHD-J

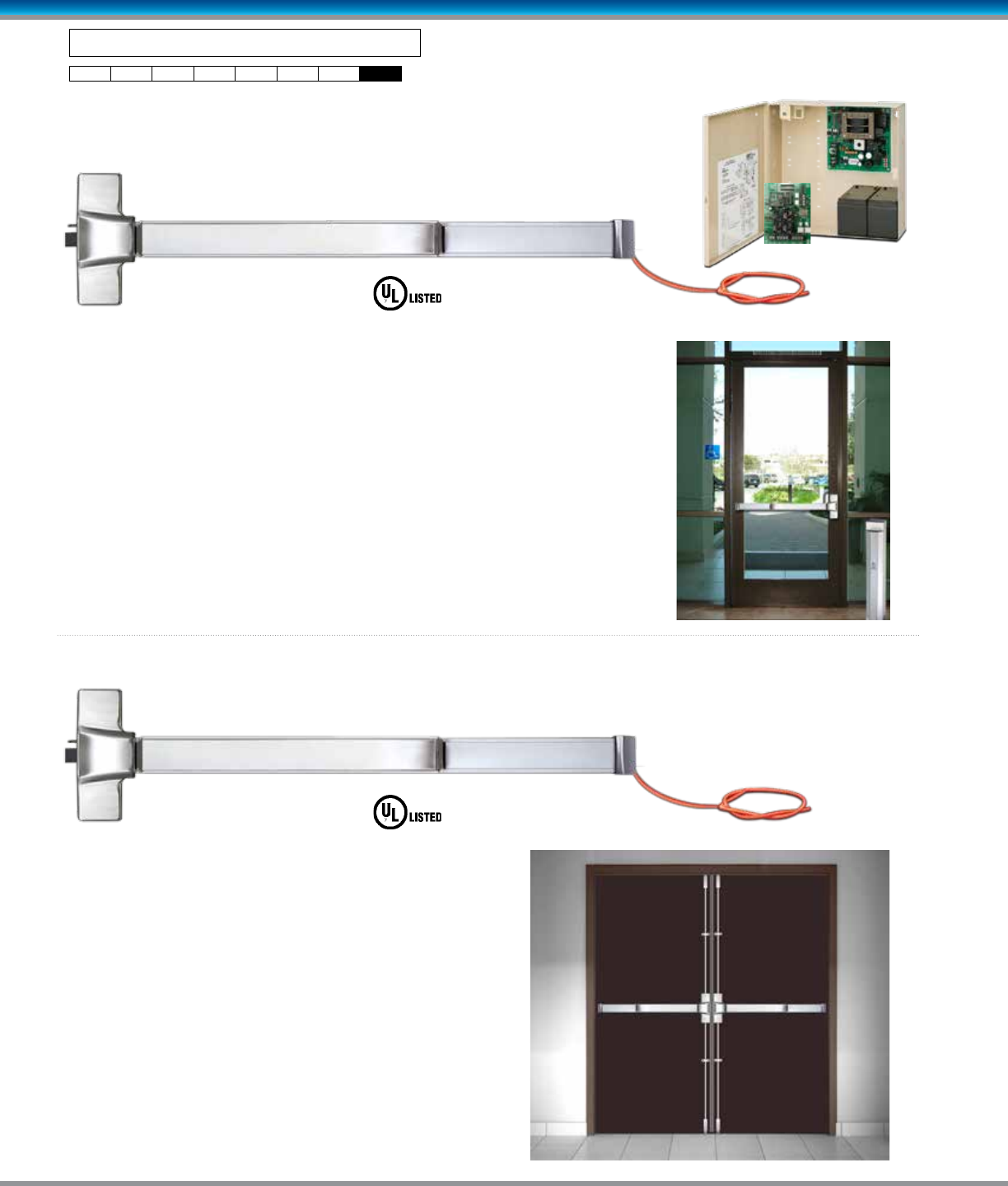

When energized by optional built-in or remote switch manual,
depressing the pushpad, causes the pushpad and latch to remain
retracted (unlocked) providing push-pull door operation. When
de-energized or signaled by a re alarm, the pushpad and latch are
released.
Voltage 170/100 mA @ 12/24VDC
Monitoring Available Latch status and REX output available
Operation: Momentary or maintained latch bolt and push
pad retraction, with simultaneous dogging.
Automatic re-triggering of latch retraction
Voltage: 24VDC @ 700 mA activation, 200 mA continuous
602RF 1 Amp power supply (1 EMC max)
632RF 2 Amp power supply (2 EMC max)
EMC 2-station sequencer required for automatic doors only.
Monitoring Available Latch status and REX output available
E Electric Latch Retraction
G Electric Dogging
How to Specify S6000 Electrical Options cont.
• Field reversible failsecure/failsafe.
• Remains latched when unlocked for re door integrity
• Failsafe (F) re rated device for stairwell doors
• Power loss or signal from re command center releases failsafe device immediately
Voltage 600/300 mA @ 12/24VDC

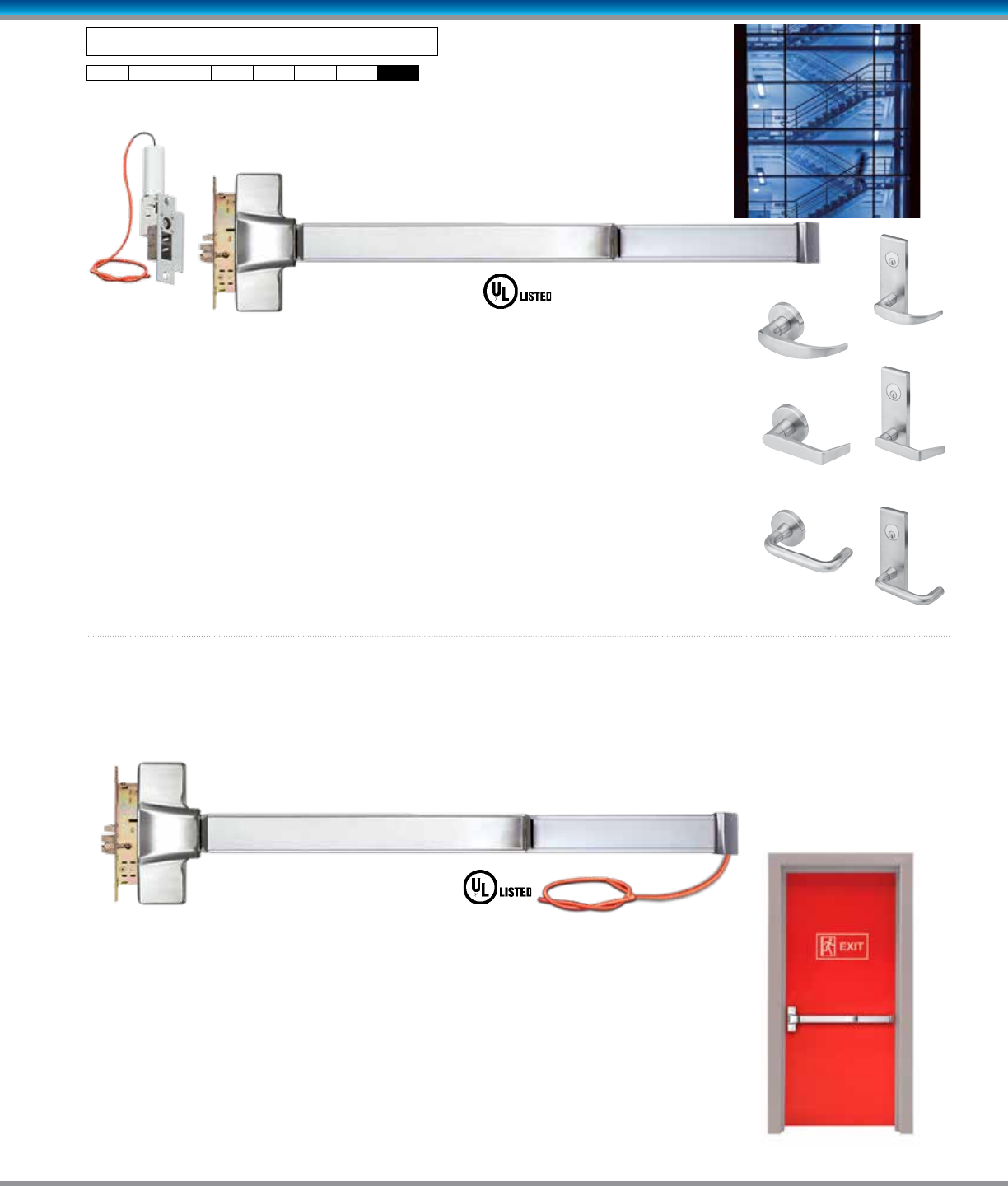

M Electric Mortise Exit Device
Features include failsafe operation and unlocks by access control,
power loss or signal from re command center. Door stays latched
even when unlocked. All wiring is maintained in the strike jamb.
Complies with national building and re codes
Specify Handing and Voltage: 24VDC, 24VAC, 115VAC
No wiring through door
No power transfer hinge or loop
H Hitower Pro Frame Actuator Controlled Fire Exit Device
How to Specify S6000 Electrical Options cont.
Trim Options
EE03 Eclipse x Escutcheon GE03 Galaxy x Escutcheon NE03 Nova x Escutcheon
E03 Eclipse G03 Galaxy N03 Nova
Status Output Options
LLatch position status output, SPDT, 3 Amp
SLatch & deadlocked status output, SPDT, 3 Amp
MF Failsafe Electric Mortise Exit Device
MS Failsecure Electric Mortise Exit Device
Options
DDoor Position
EE03 Eclipse
GE03 Galaxy
E03 Eclipse
G03 Galaxy
NE03 Nova
N03 Nova
SECURITY DOOR CONTROLS
www.sdcsecurity.com service@sdcsecurity.com
[t] 800.413.8783 805.494.0622
801 Avenida Acaso, Camarillo CA 93012 • PO Box 3670, Camarillo CA 93011-3670
sdcsecurity.com service@sdcsecurity.com
Price & Installation
sdcsecurity.com
service@sdcsecurity.com
SECURITY DOOR CONTROLS
18” (447mm) stainless steel armored flex conduit with small
plastic end caps or termination box. Recommended for use
with hollow metal and aluminum frames.
PT-2U With end caps
PT-3V With aluminum wire termination box
Options
DPS Concealed Door Position Switch SPDT, 250mA @ 30VDC
Features
• UL10B Listed for 3 Hr Fire Doors. If the hinge you are presently using
does not bear the F mark, it is not listed for use with fire doors.
• 500,000 cycles. 5 times UL test criteria
• Wire Replacement Warranty
• 5ft wire cable
Application
Installed in the center hinge position of the door, PTH Power Transfer
Hinges provide the concealed wires required between the door and the
frame, for the purpose of powering and monitoring electric door hardware.
• Electric Lock Power and Control
• Door and Lock Status Signaling
• Request-to-Exit Signaling
10B Listed for 3hr Fire Rated Door
PTH-4 Four conductor hinge, 1 Amp @ 12/24V per pair,
4.5" x 4.5" five knuckle standard weight
PTH-10 Ten conductor hinge, 1 Amp @ 12/24V per pair,
4.5" x 4.5" standard weight
Consult factory for 3 knuckle, or special sizes
Finish
All base material steel
Q626 Dull Chrome (standard) H613 Oil Rubbed Bronze
C605 Bright Brass P625 Bright Chrome
F
Power Transfer Hinge
Concealed Electric Power Transfer
PTM Heavy Duty Series
Electric Power Transfer Device
SDC’s heavy duty Electric Power Transfer De-
vice provides a concealed and secure means of
transferring electric lock and exit device power
and signal wires from the frame to the door.
Completely concealed when the door is closed
the PTM Electric Power Transfer Device is
ideal for heavy trafc and applications requiring
higher security to inhibit tampering and abuse.
Fire Rated Concealed Mortise Power Transfer
Power Transfer Loops
PT-2U PT-3V
PT-5
10B Listed For
3 Hrs Fire Rated Doors
PT-5 Concealed Mortise Mount Power Transfer Loop
Frame mortised steel dust box with exible steel loop and
chrome nish. Recommended for use with hollow metal
frames. UL Listed
Dimensions: 11.5”H x 1”W x 0.75”D (292 x 25.4 x 19mm)
2 Conductor: Two (2) 18 Ga. wires, 5 Amp @ 12/24 V AC/DC
PTM-2AL Aluminum Powder Coat, US28 equivalent
PTM-2BZ Dark Brown Powder Coat, US10B equivalent
10 Conductor: Ten (10) 24 Ga. wires, 1 Amp @ 12/24V AC/DC
PTM-10AL Aluminum Powder Coat, US28 equivalent
PTM-10BZ Dark Brown Powder Coat, US10B equivalent
DPS Contact
Optional
Power Transfer Options
DOUBLE DOOR APPLICATIONS
Rim Device and SVR Device combination - same
direction. Overlapping astragal is not required,
but coordinator required with a double door strike
Two Rim Devices on 2 independent active doors
with removable mullion.
Two Surface Vertical Rod (SVR) - same direction.
Overlapping astragal is not required.
© 2014 Security Door Controls LIT-S6000 Spectra 04/14
M:\Marketing Files\In-House Pubs\Datasheets\Exit Devices\Spectra 6000 Exit Device.indd
