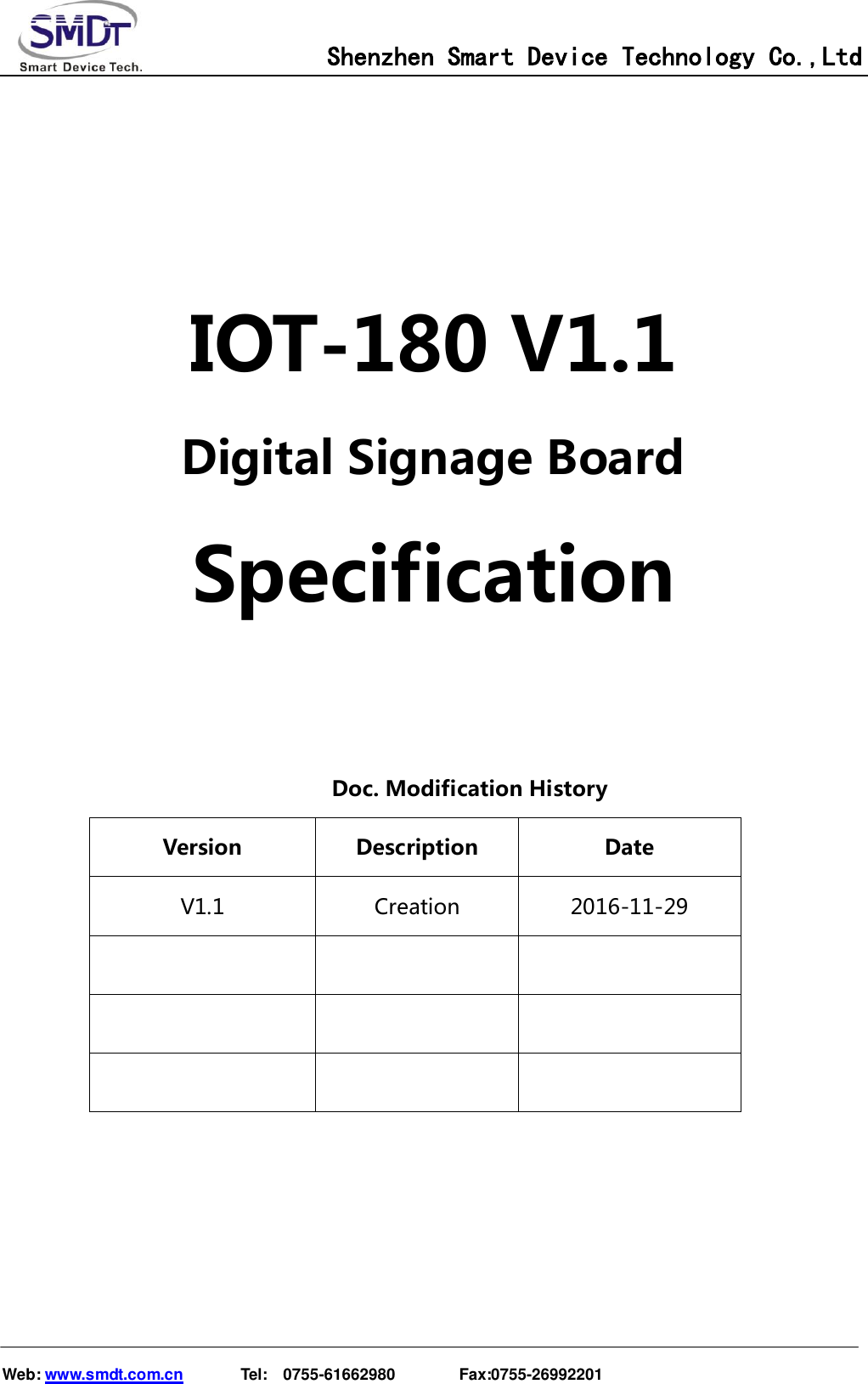

Shenzhen Smart Device Technology Co.,Ltd Web: www.smdt.com.cn Tel: 0755-61662980 Fax:0755-26992201 IOT-180 V1.1 Digital Signage Board Specification Doc. Modification History Version Description Date V1.1 Creation 2016-11-29

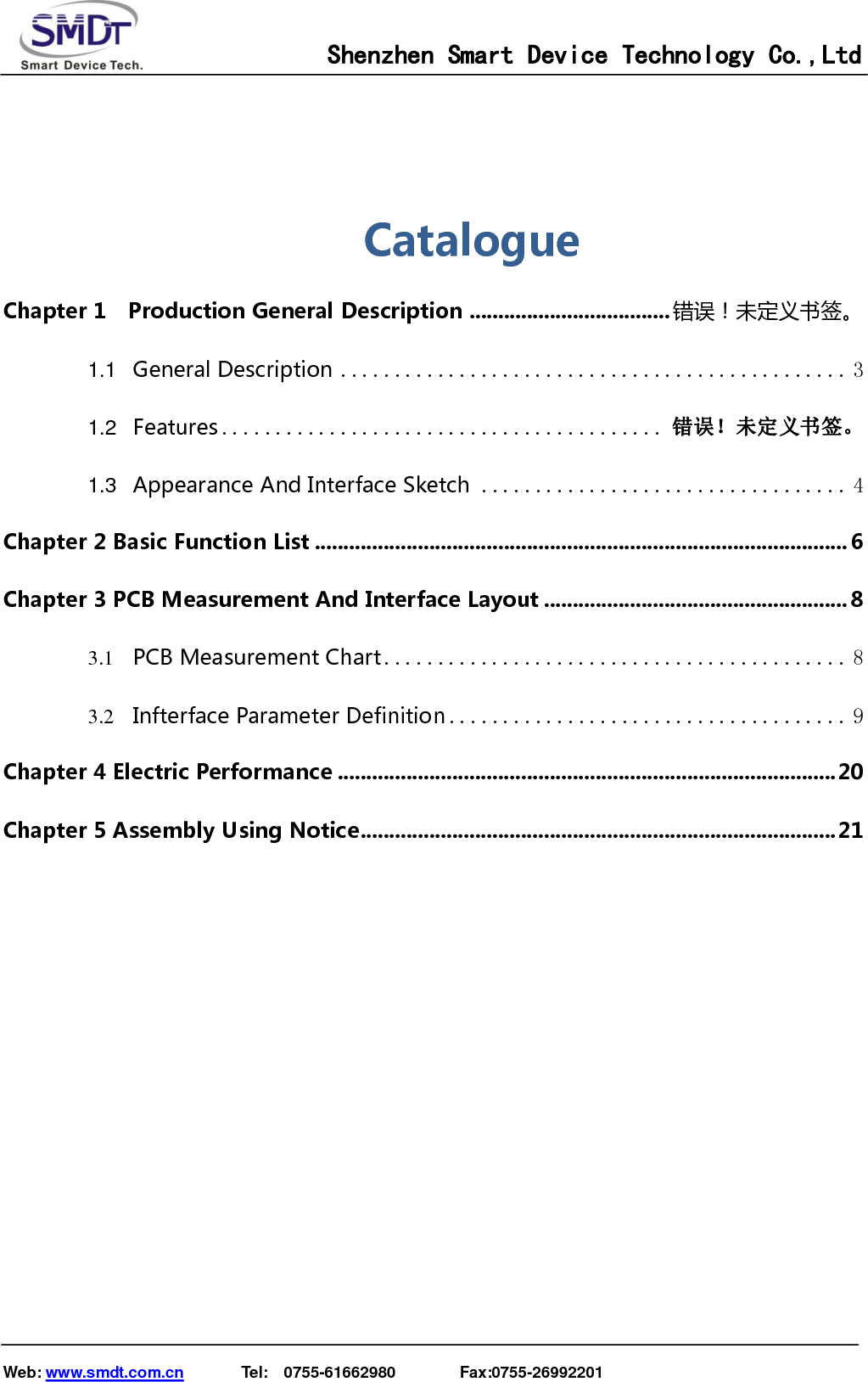

Shenzhen Smart Device Technology Co.,Ltd Web: www.smdt.com.cn Tel: 0755-61662980 Fax:0755-26992201 Catalogue Chapter 1 Production General Description ................................... 错误！未定义书签。 1.1 General Description ............................................... 3 1.2 Features ......................................... 错误！未定义书签。 1.3 Appearance And Interface Sketch .................................. 4 Chapter 2 Basic Function List ............................................................................................. 6 Chapter 3 PCB Measurement And Interface Layout ..................................................... 8 3.1 PCB Measurement Chart ........................................... 8 3.2 Infterface Parameter Definition ..................................... 9 Chapter 4 Electric Performance ....................................................................................... 20 Chapter 5 Assembly Using Notice................................................................................... 21

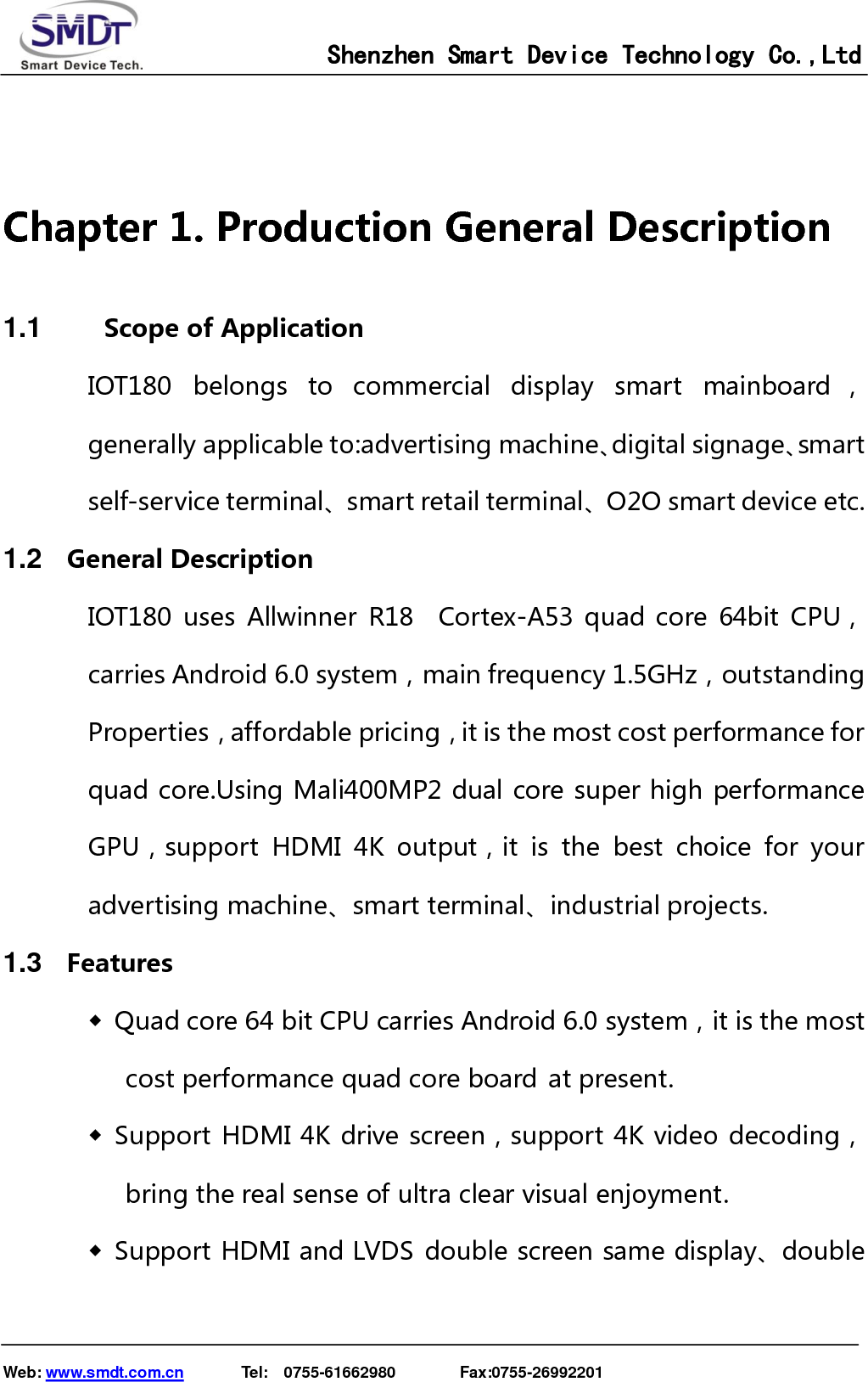

Shenzhen Smart Device Technology Co.,Ltd Web: www.smdt.com.cn Tel: 0755-61662980 Fax:0755-26992201 Chapter 1. Production General Description 1.1 Scope of Application IOT180 belongs to commercial display smart mainboard ，generally applicable to:advertising machine、digital signage、smart self-service terminal、smart retail terminal、O2O smart device etc. 1.2 General Description IOT180 uses Allwinner R18 Cortex-A53 quad core 64bit CPU，carries Android 6.0 system，main frequency 1.5GHz，outstanding Properties，affordable pricing，it is the most cost performance for quad core.Using Mali400MP2 dual core super high performance GPU，support HDMI 4K output，it is the best choice for your advertising machine、smart terminal、industrial projects. 1.3 Features ◆ Quad core 64 bit CPU carries Android 6.0 system，it is the most cost performance quad core board at present. ◆ Support HDMI 4K drive screen，support 4K video decoding，bring the real sense of ultra clear visual enjoyment. ◆ Support HDMI and LVDS double screen same display、double

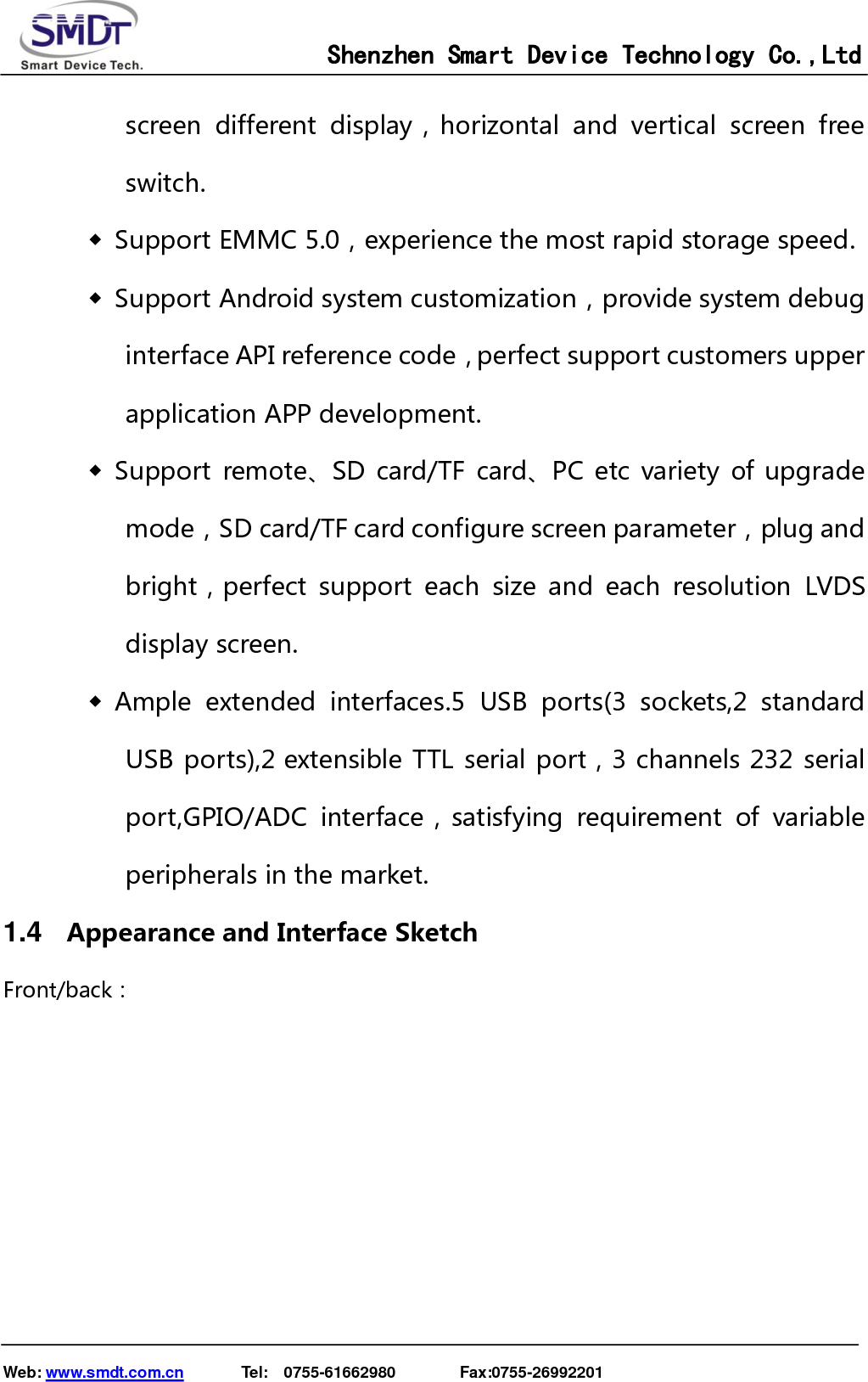

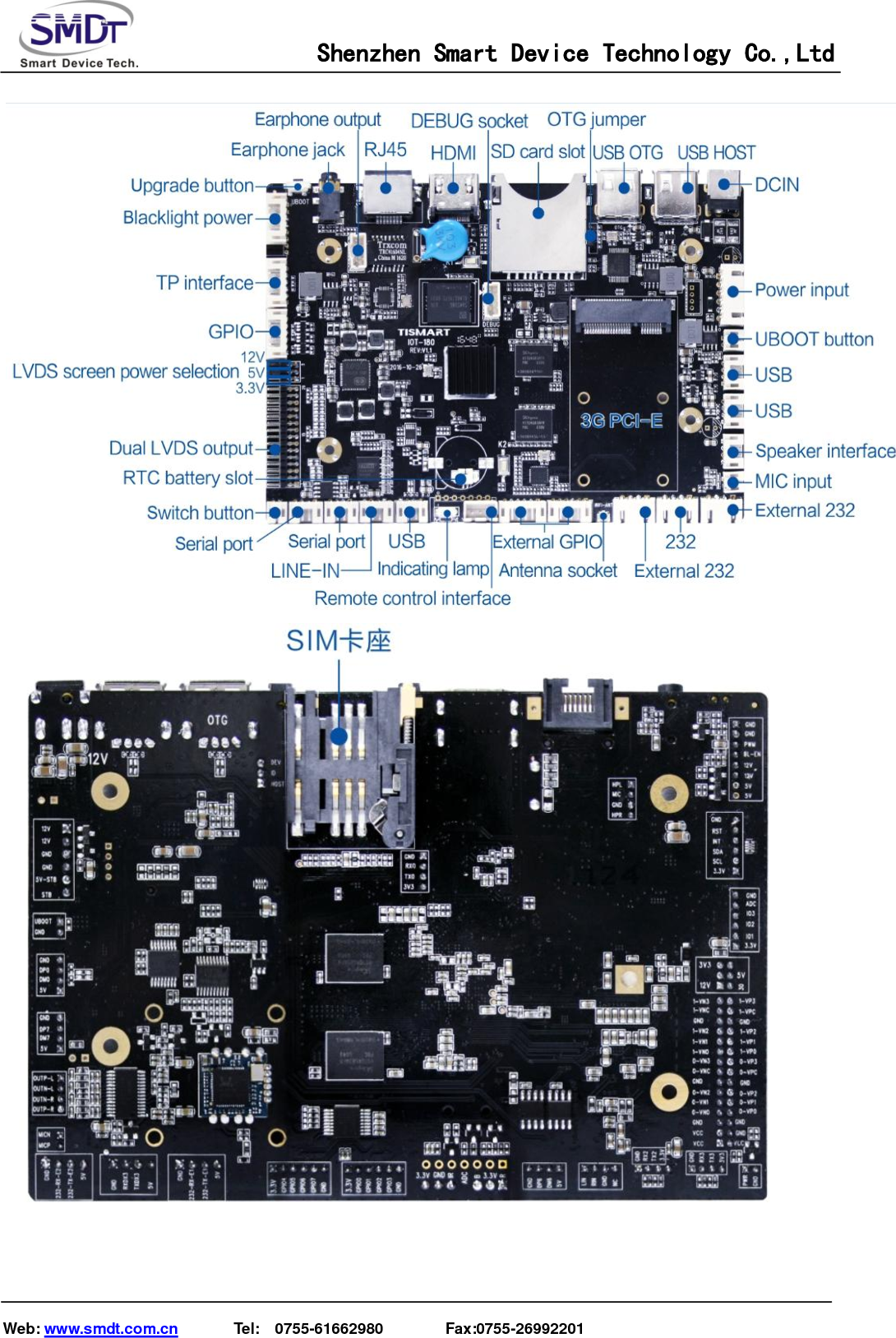

Shenzhen Smart Device Technology Co.,Ltd Web: www.smdt.com.cn Tel: 0755-61662980 Fax:0755-26992201 screen different display，horizontal and vertical screen free switch. ◆ Support EMMC 5.0，experience the most rapid storage speed. ◆ Support Android system customization，provide system debug interface API reference code，perfect support customers upper application APP development. ◆ Support remote、SD card/TF card、PC etc variety of upgrade mode，SD card/TF card configure screen parameter，plug and bright，perfect support each size and each resolution LVDS display screen. ◆ Ample extended interfaces.5 USB ports(3 sockets,2 standard USB ports),2 extensible TTL serial port，3 channels 232 serial port,GPIO/ADC interface，satisfying requirement of variable peripherals in the market. 1.4 Appearance and Interface Sketch Front/back：
Shenzhen Smart Device Technology Co.,Ltd Web: www.smdt.com.cn Tel: 0755-61662980 Fax:0755-26992201

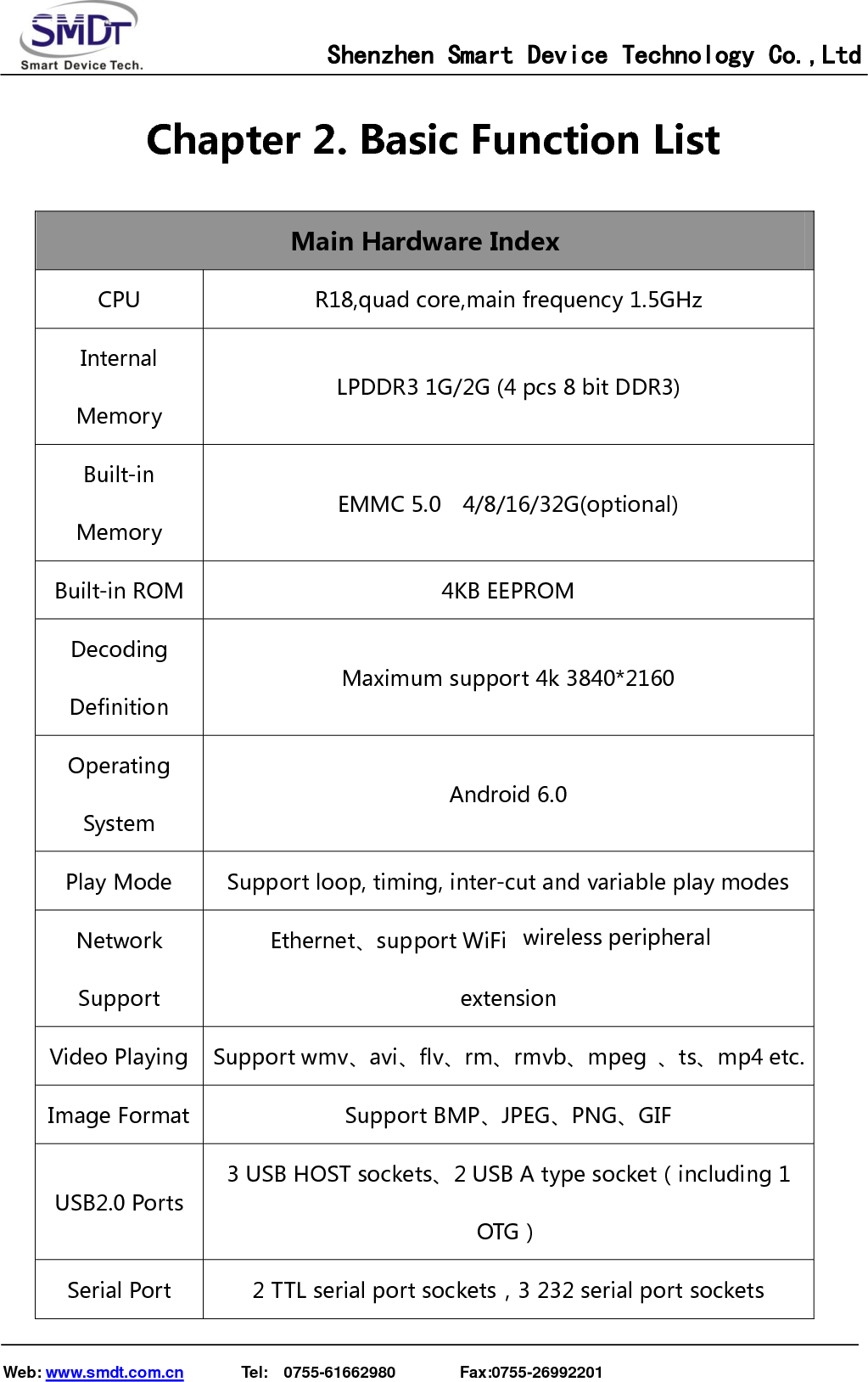

Shenzhen Smart Device Technology Co.,Ltd Web: www.smdt.com.cn Tel: 0755-61662980 Fax:0755-26992201 Chapter 2. Basic Function List Main Hardware Index CPU R18,quad core,main frequency 1.5GHz Internal Memory LPDDR3 1G/2G (4 pcs 8 bit DDR3) Built-in Memory EMMC 5.0 4/8/16/32G(optional) Built-in ROM 4KB EEPROM Decoding Definition Maximum support 4k 3840*2160 Operating System Android 6.0 Play Mode Support loop, timing, inter-cut and variable play modes Network Support Ethernet、support WiFiwireless peripheral extension Video Playing Support wmv、avi、flv、rm、rmvb、mpeg 、ts、mp4 etc. Image Format Support BMP、JPEG、PNG、GIF USB2.0 Ports 3 USB HOST sockets、2 USB A type socket（including 1 OTG） Serial Port 2 TTL serial port sockets，3 232 serial port sockets

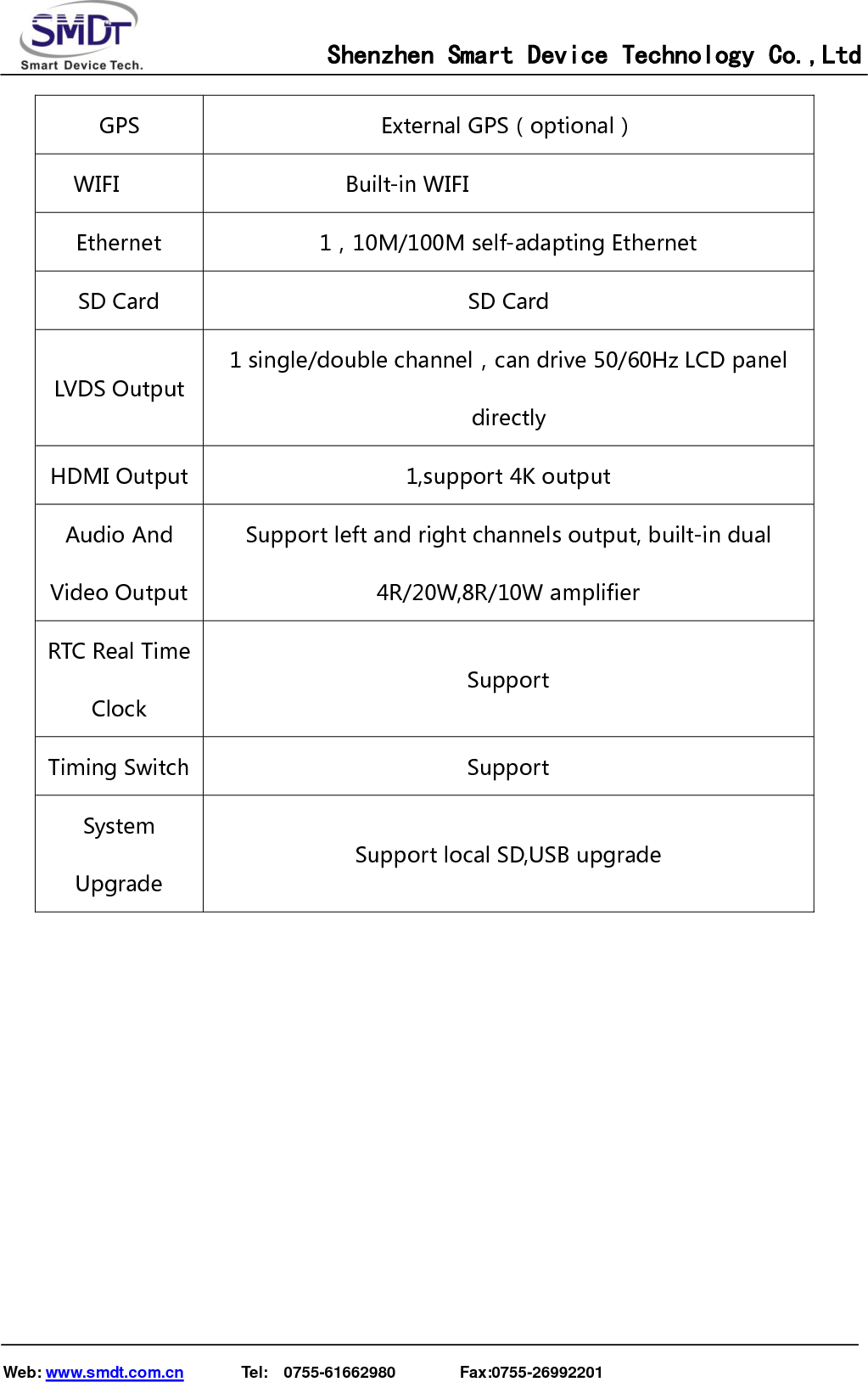

Shenzhen Smart Device Technology Co.,Ltd Web: www.smdt.com.cn Tel: 0755-61662980 Fax:0755-26992201 GPS External GPS（optional） WIFI Built-in WIFIEthernet 1，10M/100M self-adapting Ethernet SD Card SD Card LVDS Output 1 single/double channel，can drive 50/60Hz LCD panel directly HDMI Output 1,support 4K output Audio And Video Output Support left and right channels output, built-in dual 4R/20W,8R/10W amplifier RTC Real Time Clock Support Timing Switch Support System Upgrade Support local SD,USB upgrade

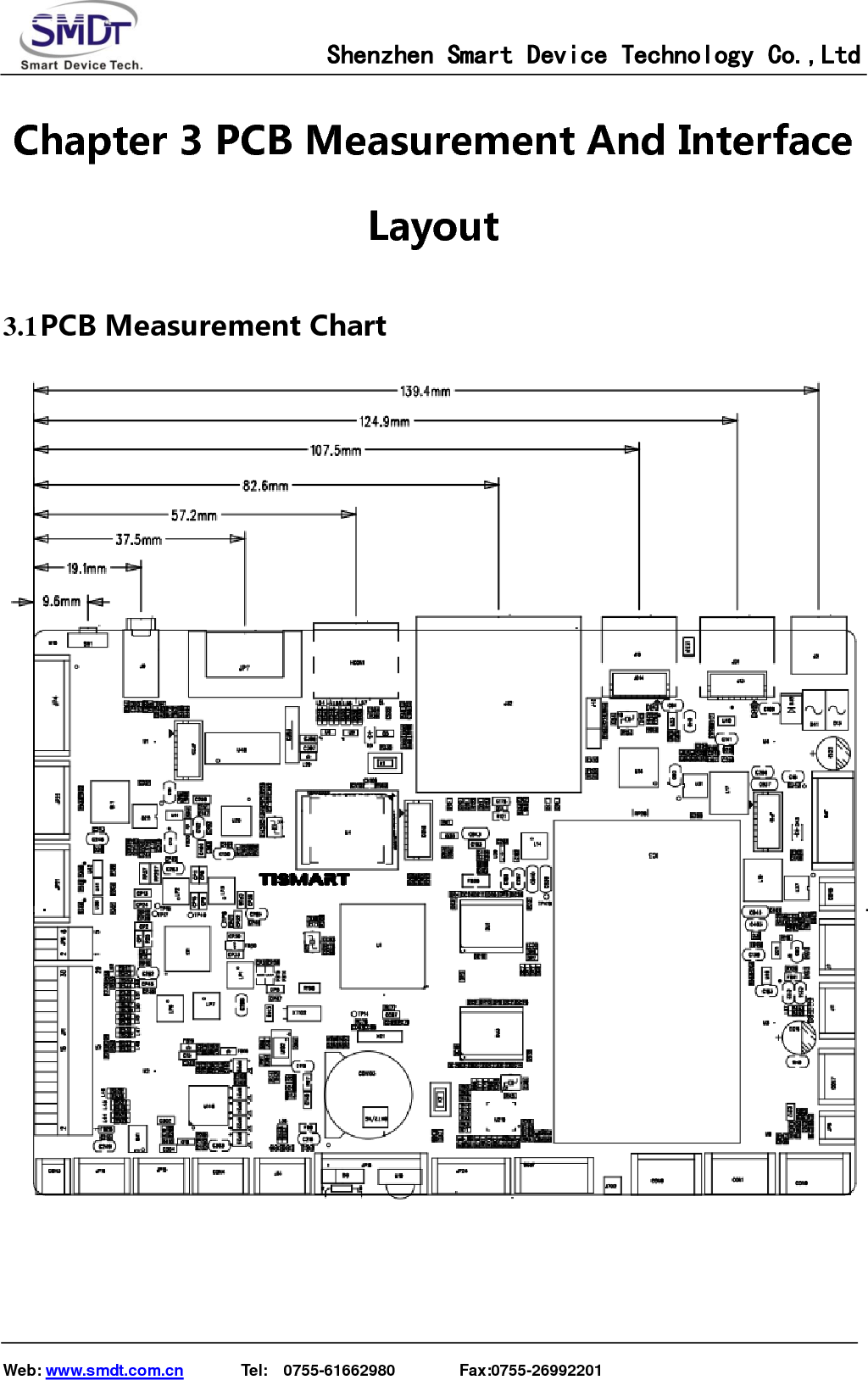

Shenzhen Smart Device Technology Co.,Ltd Web: www.smdt.com.cn Tel: 0755-61662980 Fax:0755-26992201 Chapter 3 PCB Measurement And Interface Layout 3.1 PCB Measurement Chart

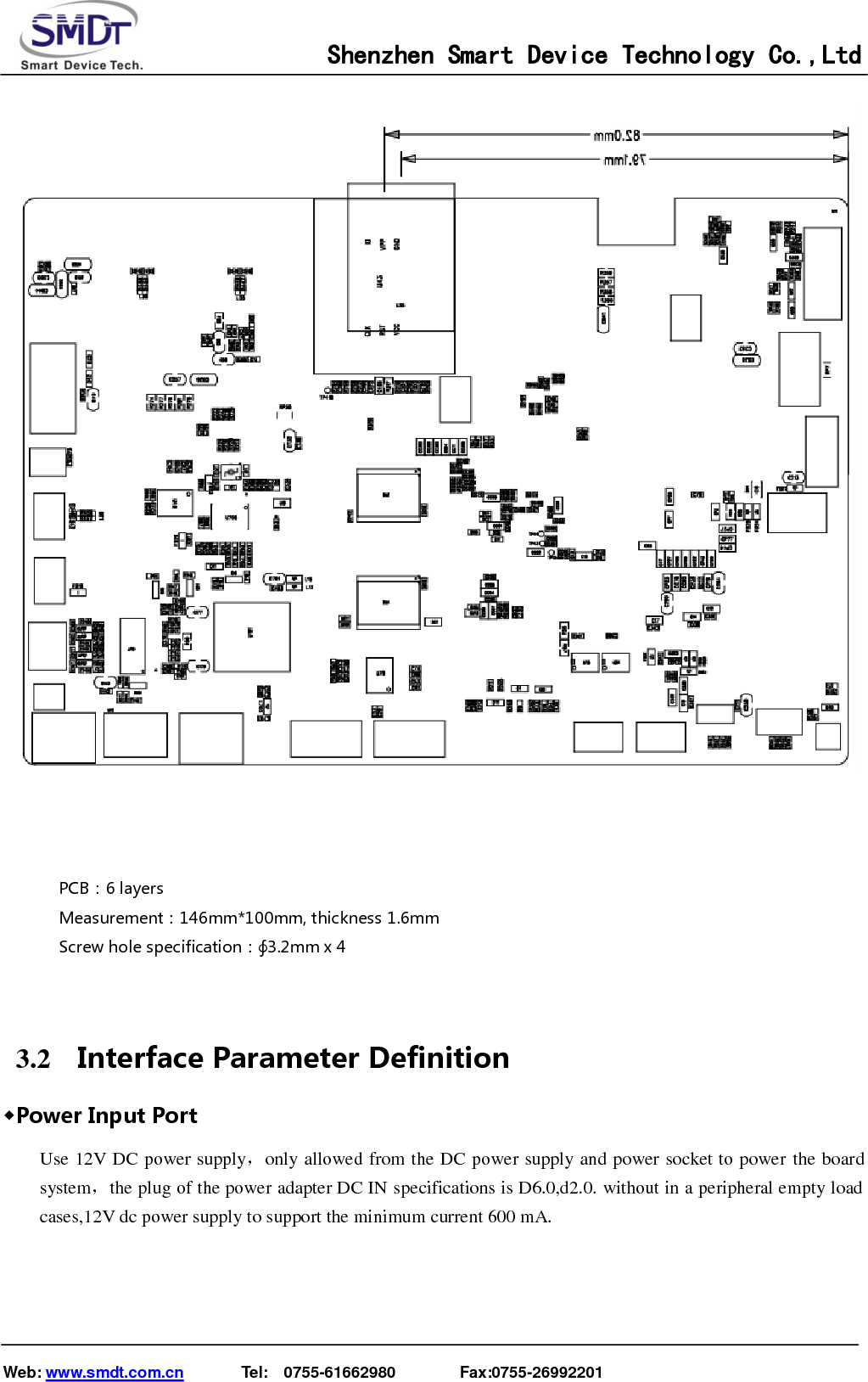

Shenzhen Smart Device Technology Co.,Ltd Web: www.smdt.com.cn Tel: 0755-61662980 Fax:0755-26992201 PCB：6 layers Measurement：146mm*100mm, thickness 1.6mm Screw hole specification：∮3.2mm x 4 3.2 Interface Parameter Definition ◆Power Input Port Use 12V DC power supply，only allowed from the DC power supply and power socket to power the board system，the plug of the power adapter DC IN specifications is D6.0,d2.0. without in a peripheral empty load cases,12V dc power supply to support the minimum current 600 mA.

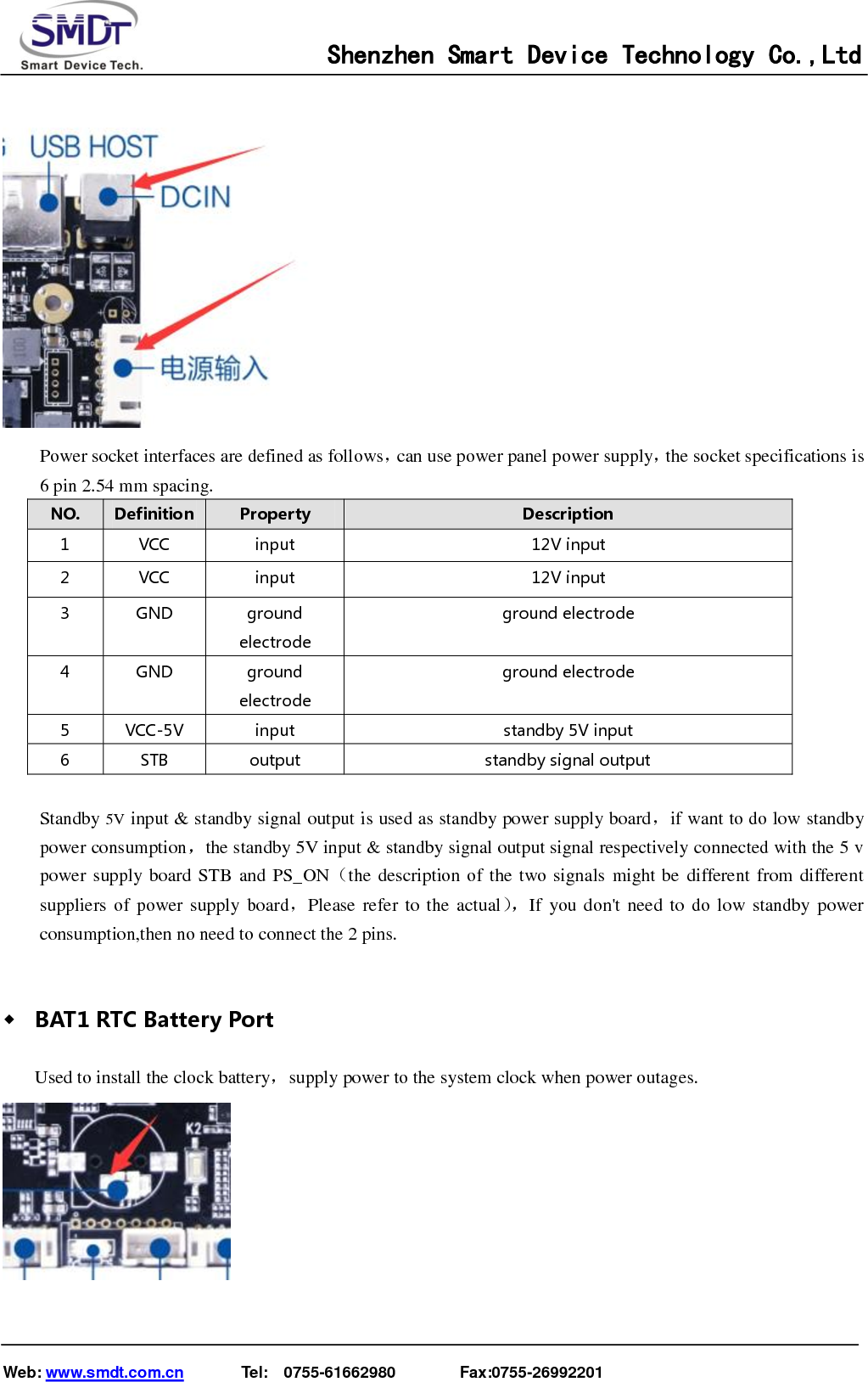

Shenzhen Smart Device Technology Co.,Ltd Web: www.smdt.com.cn Tel: 0755-61662980 Fax:0755-26992201 Power socket interfaces are defined as follows，can use power panel power supply，the socket specifications is 6 pin 2.54 mm spacing. NO. Definition Property Description 1 VCC input 12V input 2 VCC input 12V input 3 GND ground electrode ground electrode 4 GND ground electrode ground electrode 5 VCC-5V input standby 5V input 6 STB output standby signal output Standby 5V input & standby signal output is used as standby power supply board，if want to do low standby power consumption，the standby 5V input & standby signal output signal respectively connected with the 5 v power supply board STB and PS_ON（the description of the two signals might be different from different suppliers of power supply board，Please refer to the actual）， If you don't need to do low standby power consumption,then no need to connect the 2 pins. ◆ BAT1 RTC Battery Port Used to install the clock battery，supply power to the system clock when power outages.

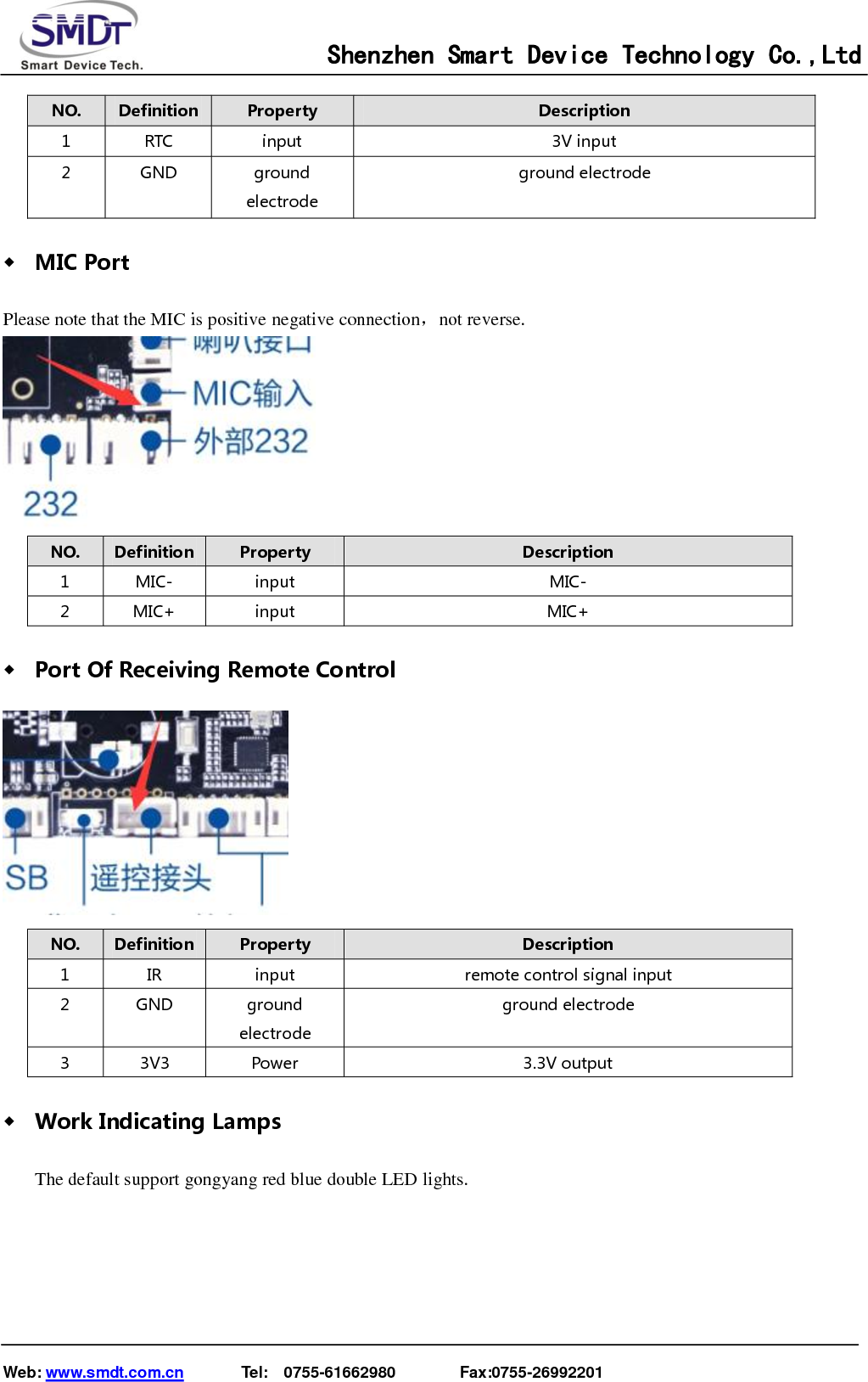

Shenzhen Smart Device Technology Co.,Ltd Web: www.smdt.com.cn Tel: 0755-61662980 Fax:0755-26992201 NO. Definition Property Description 1 RTC input 3V input 2 GND ground electrode ground electrode ◆ MIC Port Please note that the MIC is positive negative connection，not reverse. NO. Definition Property Description 1 MIC- input MIC- 2 MIC+ input MIC+ ◆ Port Of Receiving Remote Control NO. Definition Property Description 1 IR input remote control signal input 2 GND ground electrode ground electrode 3 3V3 Power 3.3V output ◆ Work Indicating Lamps The default support gongyang red blue double LED lights.

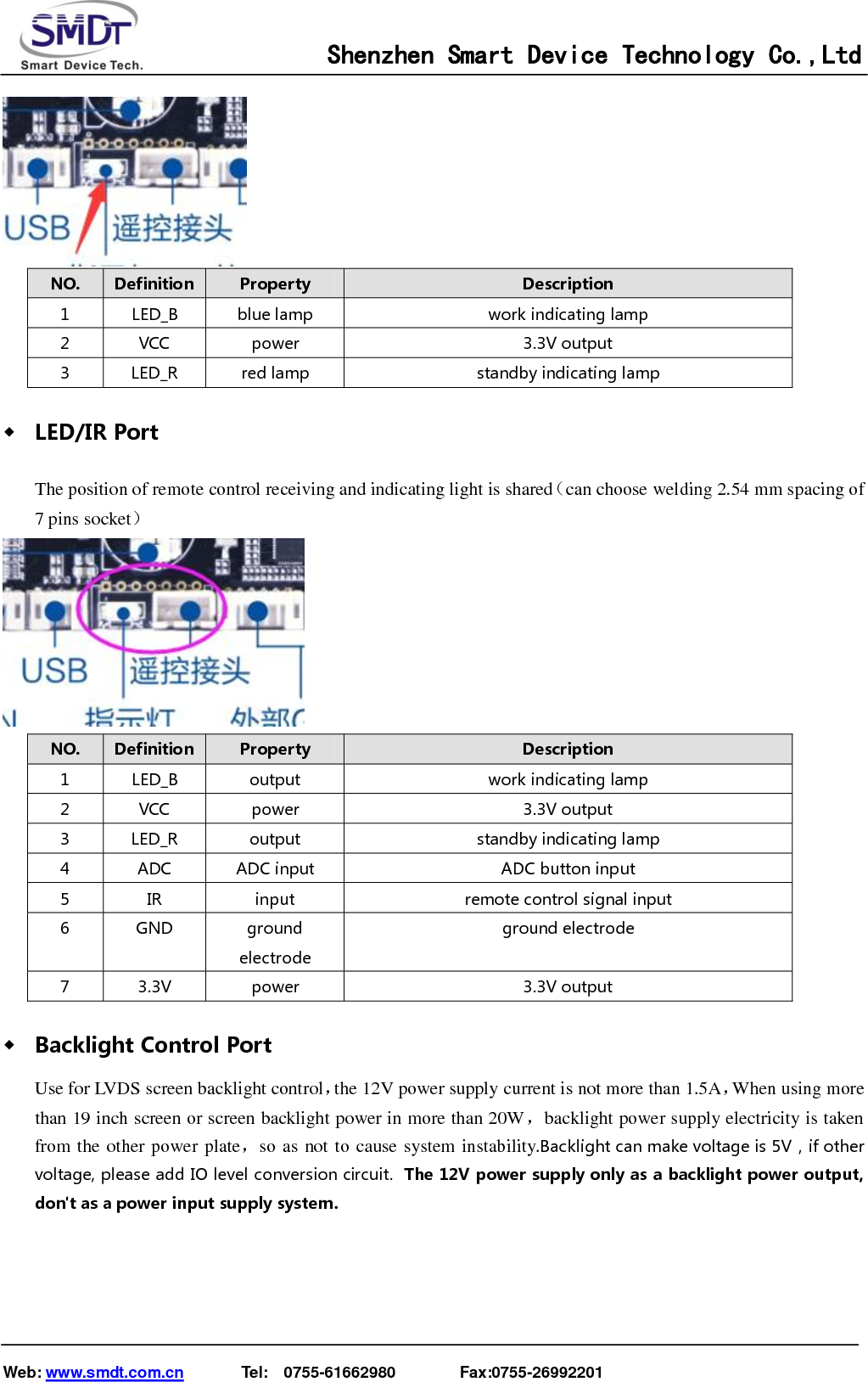

Shenzhen Smart Device Technology Co.,Ltd Web: www.smdt.com.cn Tel: 0755-61662980 Fax:0755-26992201 NO. Definition Property Description 1 LED_B blue lamp work indicating lamp 2 VCC power 3.3V output 3 LED_R red lamp standby indicating lamp ◆ LED/IR Port The position of remote control receiving and indicating light is shared（can choose welding 2.54 mm spacing of 7 pins socket） NO. Definition Property Description 1 LED_B output work indicating lamp 2 VCC power 3.3V output 3 LED_R output standby indicating lamp 4 ADC ADC input ADC button input 5 IR input remote control signal input 6 GND ground electrode ground electrode 7 3.3V power 3.3V output ◆ Backlight Control Port Use for LVDS screen backlight control，the 12V power supply current is not more than 1.5A，When using more than 19 inch screen or screen backlight power in more than 20W，backlight power supply electricity is taken from the other power plate，so as not to cause system instability.Backlight can make voltage is 5V，if other voltage, please add IO level conversion circuit. The 12V power supply only as a backlight power output, don't as a power input supply system.

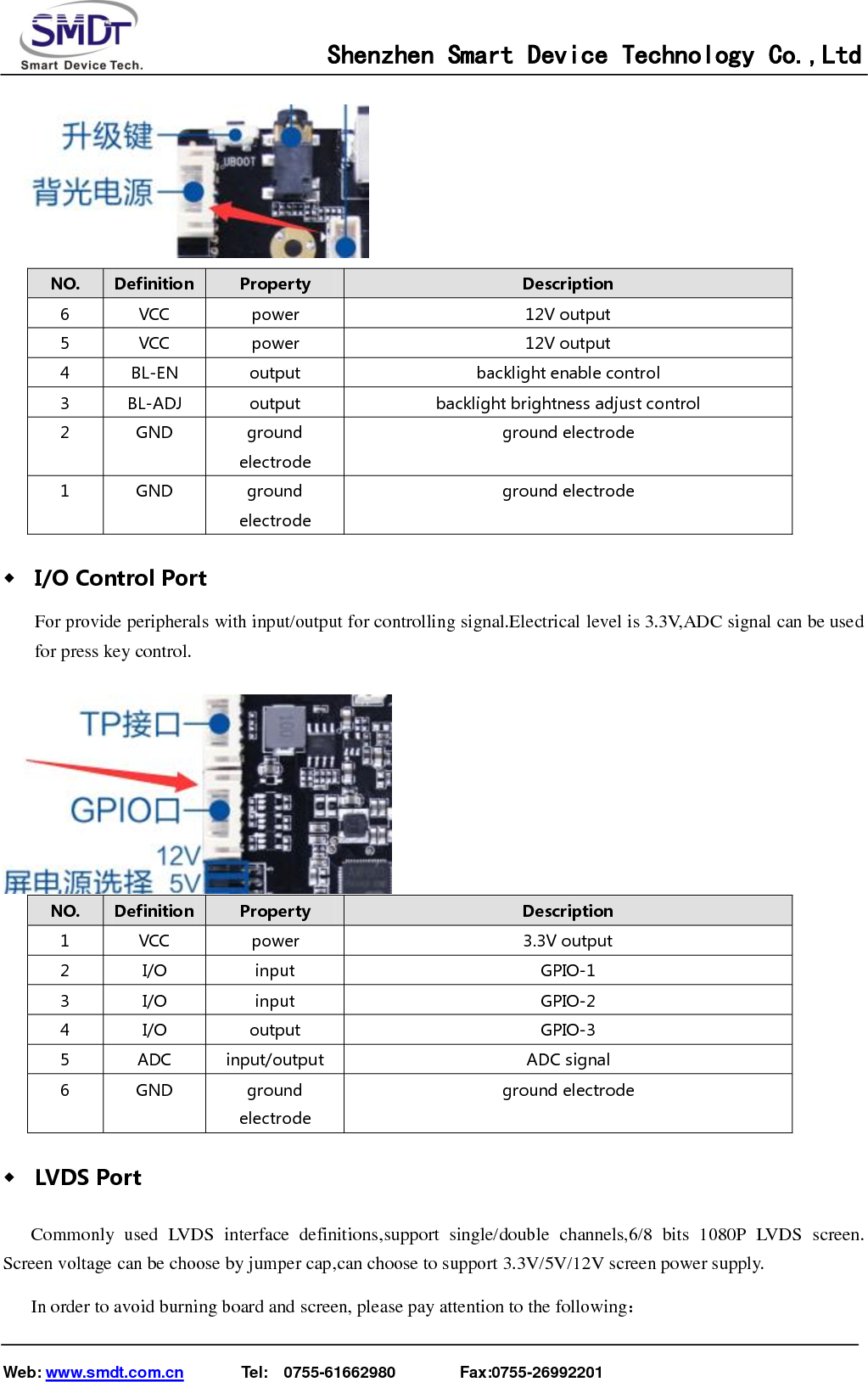

Shenzhen Smart Device Technology Co.,Ltd Web: www.smdt.com.cn Tel: 0755-61662980 Fax:0755-26992201 NO. Definition Property Description 6 VCC power 12V output 5 VCC power 12V output 4 BL-EN output backlight enable control 3 BL-ADJ output backlight brightness adjust control 2 GND ground electrode ground electrode 1 GND ground electrode ground electrode ◆ I/O Control Port For provide peripherals with input/output for controlling signal.Electrical level is 3.3V,ADC signal can be used for press key control. NO. Definition Property Description 1 VCC power 3.3V output 2 I/O input GPIO-1 3 I/O input GPIO-2 4 I/O output GPIO-3 5 ADC input/output ADC signal 6 GND ground electrode ground electrode ◆ LVDS Port Commonly used LVDS interface definitions,support single/double channels,6/8 bits 1080P LVDS screen. Screen voltage can be choose by jumper cap,can choose to support 3.3V/5V/12V screen power supply. In order to avoid burning board and screen, please pay attention to the following：

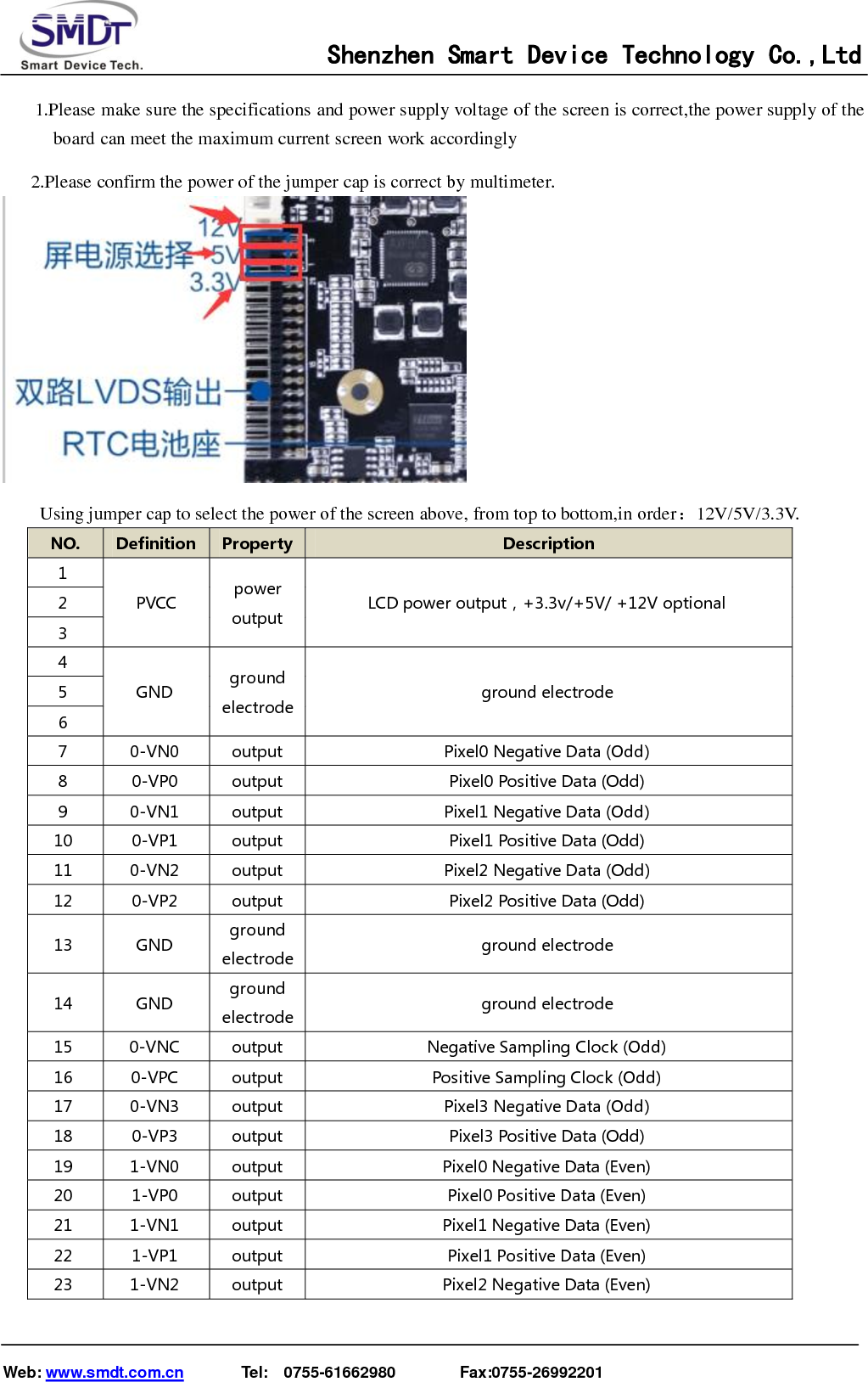

Shenzhen Smart Device Technology Co.,Ltd Web: www.smdt.com.cn Tel: 0755-61662980 Fax:0755-26992201 1.Please make sure the specifications and power supply voltage of the screen is correct,the power supply of the board can meet the maximum current screen work accordingly 2.Please confirm the power of the jumper cap is correct by multimeter. Using jumper cap to select the power of the screen above, from top to bottom,in order：12V/5V/3.3V. NO. Definition Property Description 1 PVCC power output LCD power output，+3.3v/+5V/ +12V optional 2 3 4 GND ground electrode ground electrode 5 6 7 0-VN0 output Pixel0 Negative Data (Odd) 8 0-VP0 output Pixel0 Positive Data (Odd) 9 0-VN1 output Pixel1 Negative Data (Odd) 10 0-VP1 output Pixel1 Positive Data (Odd) 11 0-VN2 output Pixel2 Negative Data (Odd) 12 0-VP2 output Pixel2 Positive Data (Odd) 13 GND ground electrode ground electrode 14 GND ground electrode ground electrode 15 0-VNC output Negative Sampling Clock (Odd) 16 0-VPC output Positive Sampling Clock (Odd) 17 0-VN3 output Pixel3 Negative Data (Odd) 18 0-VP3 output Pixel3 Positive Data (Odd) 19 1-VN0 output Pixel0 Negative Data (Even) 20 1-VP0 output Pixel0 Positive Data (Even) 21 1-VN1 output Pixel1 Negative Data (Even) 22 1-VP1 output Pixel1 Positive Data (Even) 23 1-VN2 output Pixel2 Negative Data (Even)

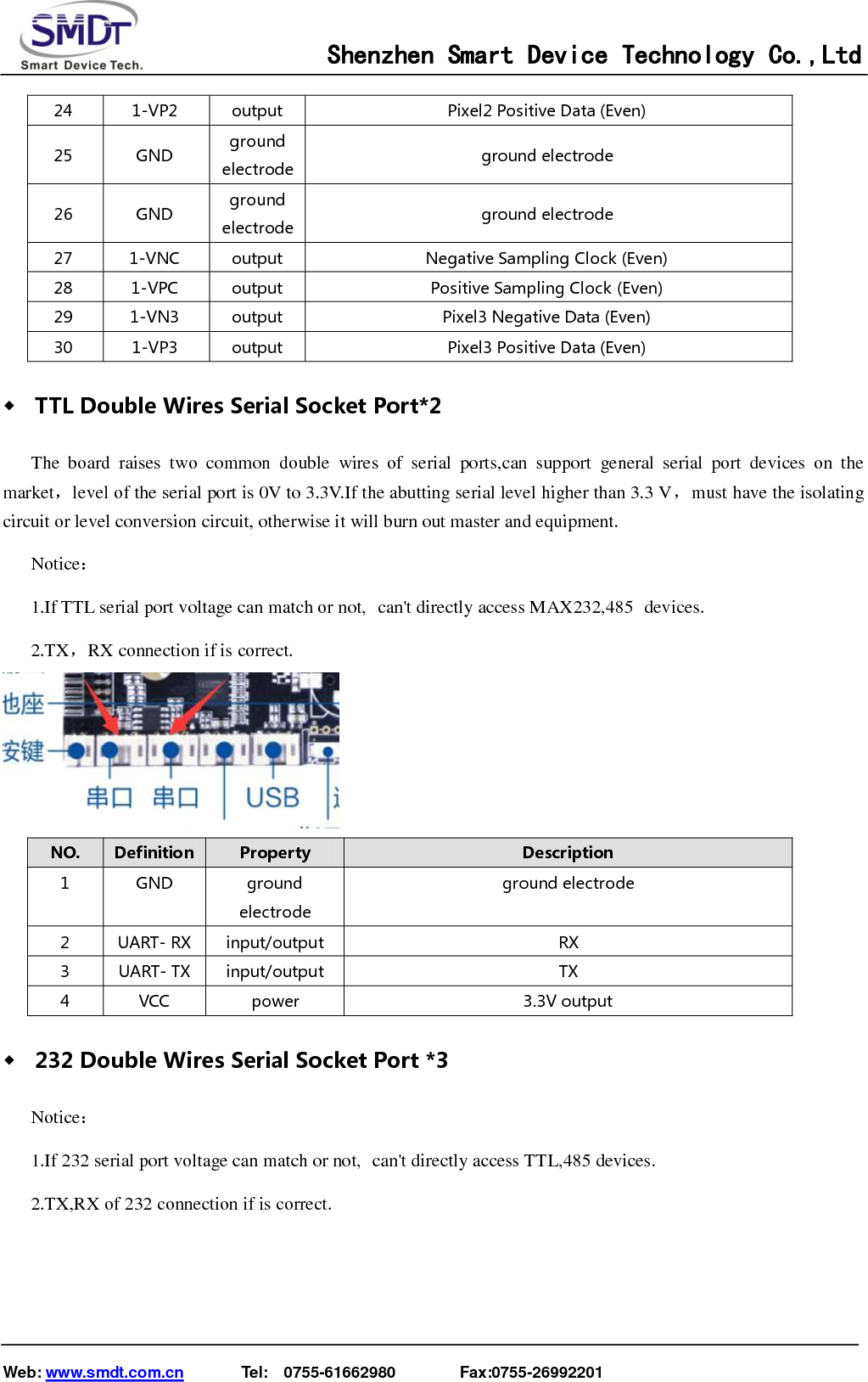

Shenzhen Smart Device Technology Co.,Ltd Web: www.smdt.com.cn Tel: 0755-61662980 Fax:0755-26992201 24 1-VP2 output Pixel2 Positive Data (Even) 25 GND ground electrode ground electrode 26 GND ground electrode ground electrode 27 1-VNC output Negative Sampling Clock (Even) 28 1-VPC output Positive Sampling Clock (Even) 29 1-VN3 output Pixel3 Negative Data (Even) 30 1-VP3 output Pixel3 Positive Data (Even) ◆ TTL Double Wires Serial Socket Port*2 The board raises two common double wires of serial ports,can support general serial port devices on the market，level of the serial port is 0V to 3.3V.If the abutting serial level higher than 3.3 V，must have the isolating circuit or level conversion circuit, otherwise it will burn out master and equipment. Notice： 1.If TTL serial port voltage can match or not, can't directly access MAX232,485 devices. 2.TX，RX connection if is correct. NO. Definition Property Description 1 GND ground electrode ground electrode 2 UART- RX input/output RX 3 UART- TX input/output TX 4 VCC power 3.3V output ◆ 232 Double Wires Serial Socket Port *3 Notice： 1.If 232 serial port voltage can match or not, can't directly access TTL,485 devices. 2.TX,RX of 232 connection if is correct.

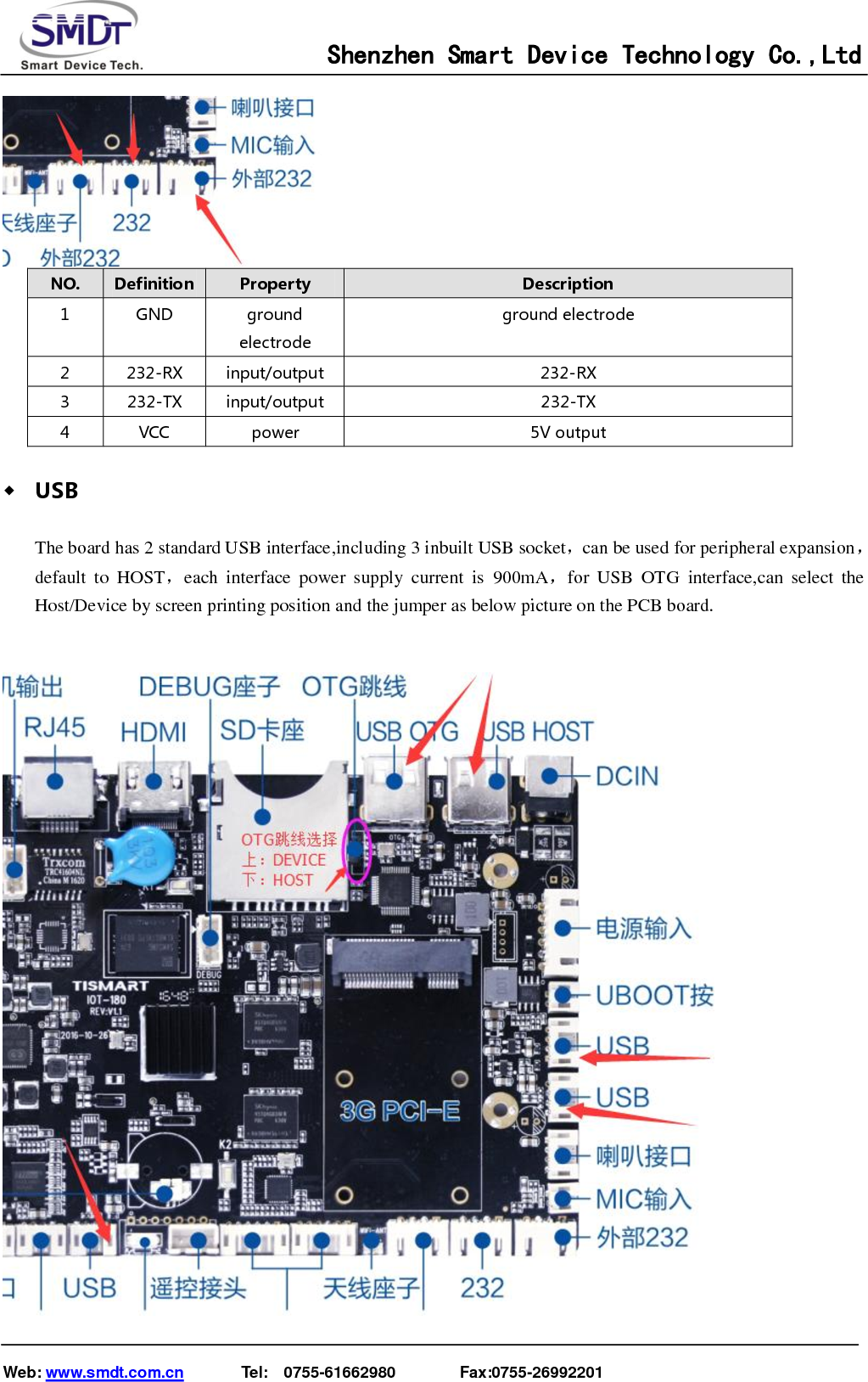

Shenzhen Smart Device Technology Co.,Ltd Web: www.smdt.com.cn Tel: 0755-61662980 Fax:0755-26992201 NO. Definition Property Description 1 GND ground electrode ground electrode 2 232-RX input/output 232-RX 3 232-TX input/output 232-TX 4 VCC power 5V output ◆ USB The board has 2 standard USB interface,including 3 inbuilt USB socket，can be used for peripheral expansion，default to HOST，each interface power supply current is 900mA，for USB OTG interface,can select the Host/Device by screen printing position and the jumper as below picture on the PCB board.

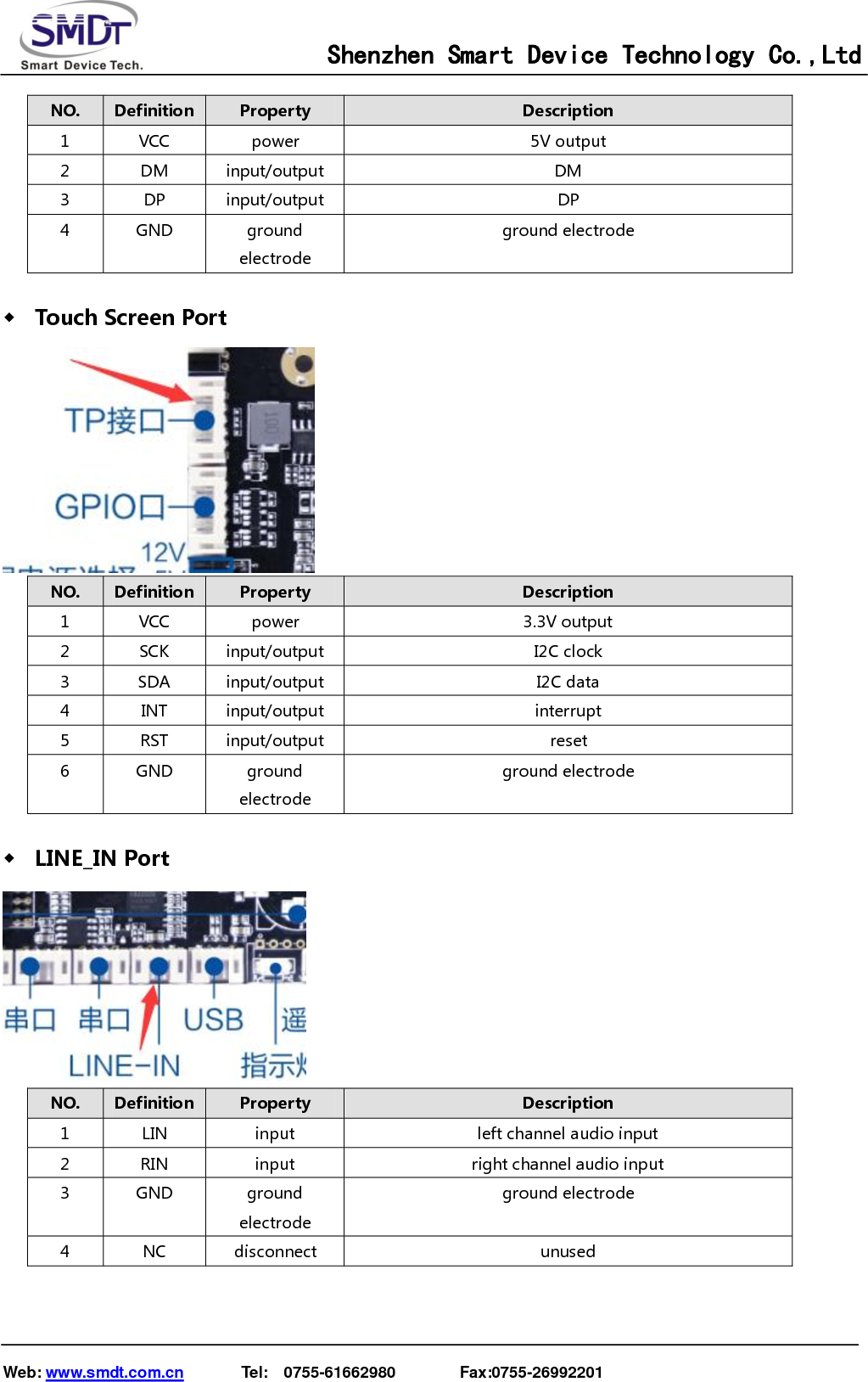

Shenzhen Smart Device Technology Co.,Ltd Web: www.smdt.com.cn Tel: 0755-61662980 Fax:0755-26992201 NO. Definition Property Description 1 VCC power 5V output 2 DM input/output DM 3 DP input/output DP 4 GND ground electrode ground electrode ◆ Touch Screen Port NO. Definition Property Description 1 VCC power 3.3V output 2 SCK input/output I2C clock 3 SDA input/output I2C data 4 INT input/output interrupt 5 RST input/output reset 6 GND ground electrode ground electrode ◆ LINE_IN Port NO. Definition Property Description 1 LIN input left channel audio input 2 RIN input right channel audio input 3 GND ground electrode ground electrode 4 NC disconnect unused

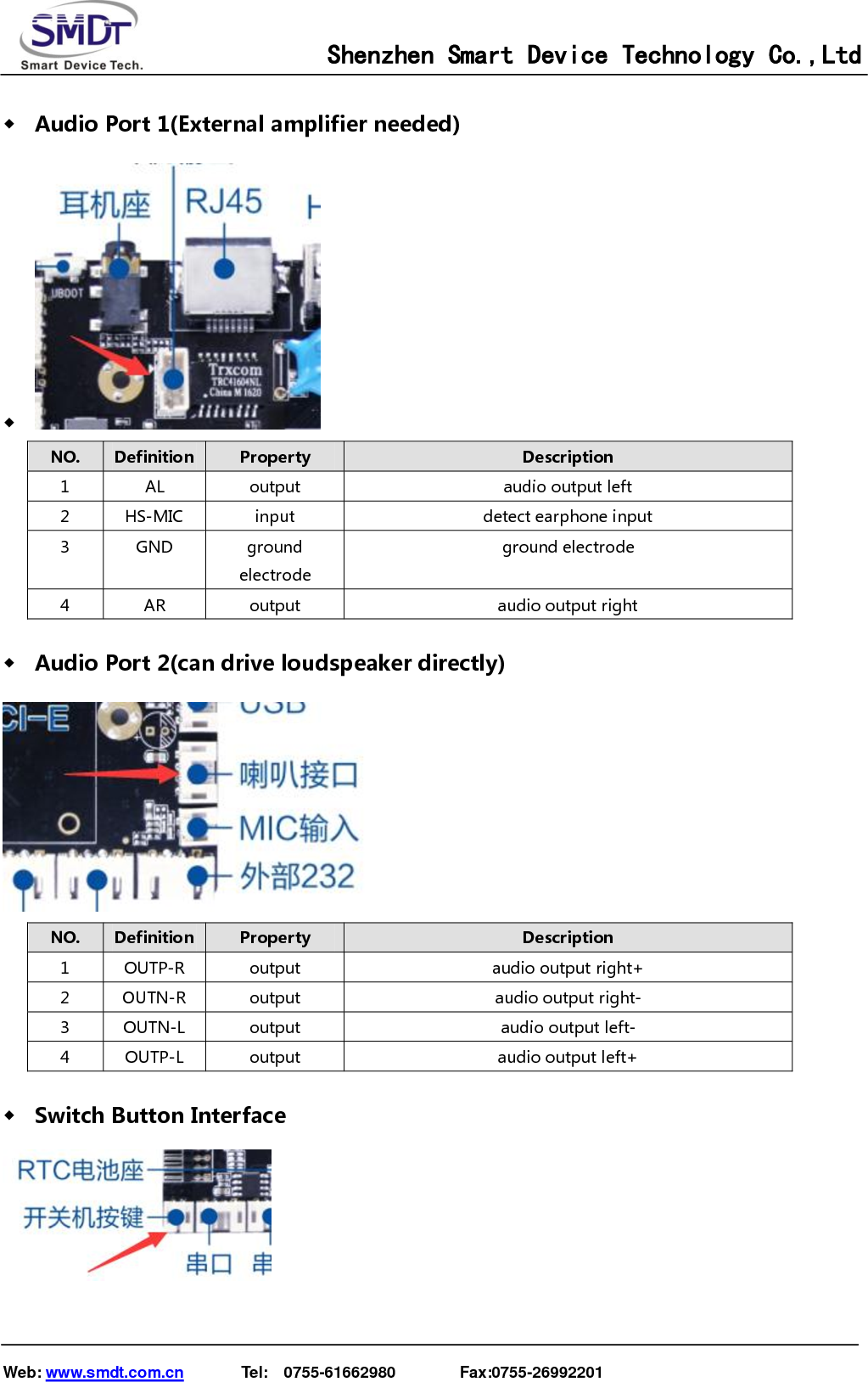

Shenzhen Smart Device Technology Co.,Ltd Web: www.smdt.com.cn Tel: 0755-61662980 Fax:0755-26992201 ◆ Audio Port 1(External amplifier needed) ◆ NO. Definition Property Description 1 AL output audio output left 2 HS-MIC input detect earphone input 3 GND ground electrode ground electrode 4 AR output audio output right ◆ Audio Port 2(can drive loudspeaker directly) NO. Definition Property Description 1 OUTP-R output audio output right+ 2 OUTN-R output audio output right- 3 OUTN-L output audio output left- 4 OUTP-L output audio output left+ ◆ Switch Button Interface

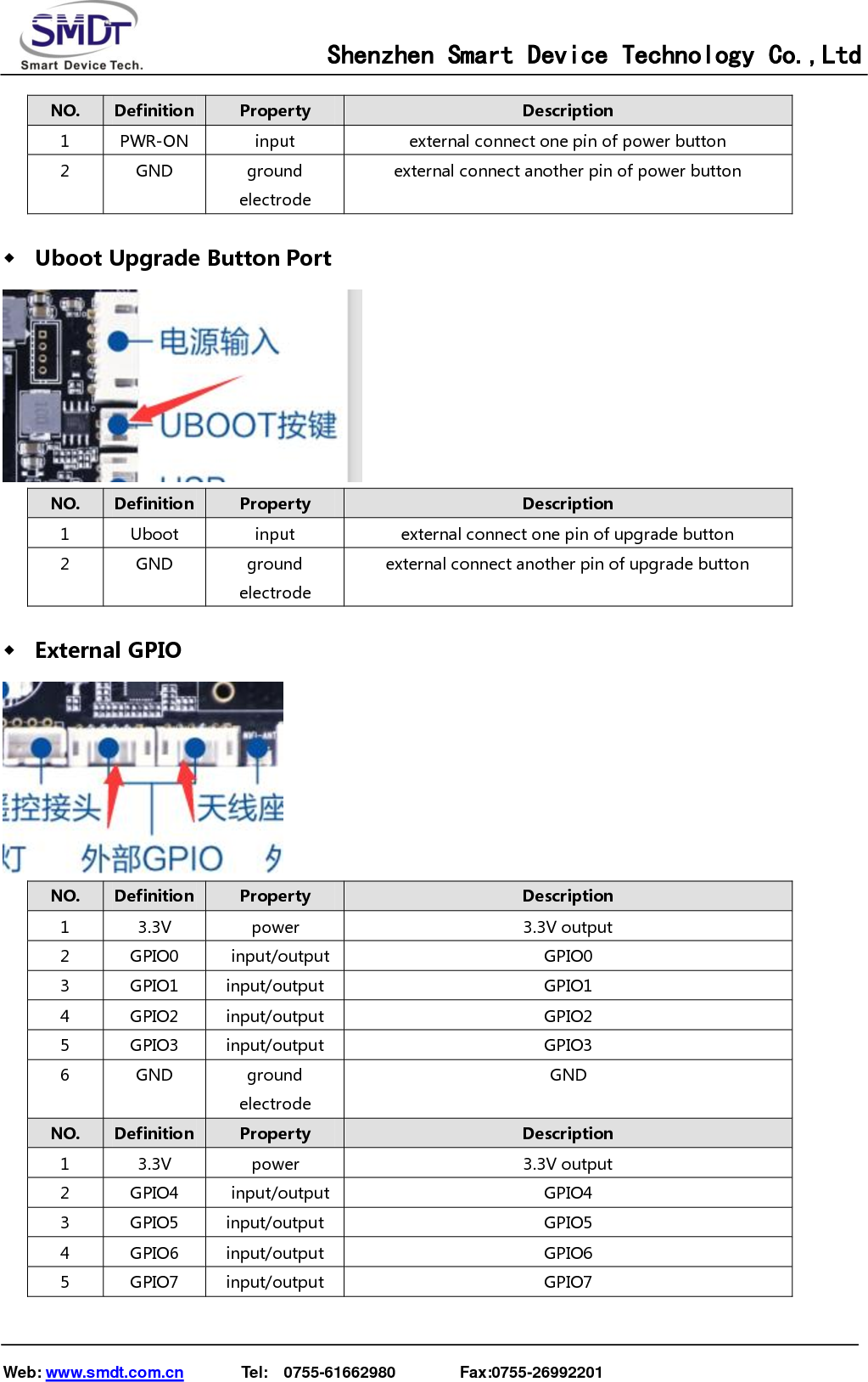

Shenzhen Smart Device Technology Co.,Ltd Web: www.smdt.com.cn Tel: 0755-61662980 Fax:0755-26992201 NO. Definition Property Description 1 PWR-ON input external connect one pin of power button 2 GND ground electrode external connect another pin of power button ◆ Uboot Upgrade Button Port NO. Definition Property Description 1 Uboot input external connect one pin of upgrade button 2 GND ground electrode external connect another pin of upgrade button ◆ External GPIO NO. Definition Property Description 1 3.3V power 3.3V output 2 GPIO0 input/output GPIO0 3 GPIO1 input/output GPIO1 4 GPIO2 input/output GPIO2 5 GPIO3 input/output GPIO3 6 GND ground electrode GND NO. Definition Property Description 1 3.3V power 3.3V output 2 GPIO4 input/output GPIO4 3 GPIO5 input/output GPIO5 4 GPIO6 input/output GPIO6 5 GPIO7 input/output GPIO7

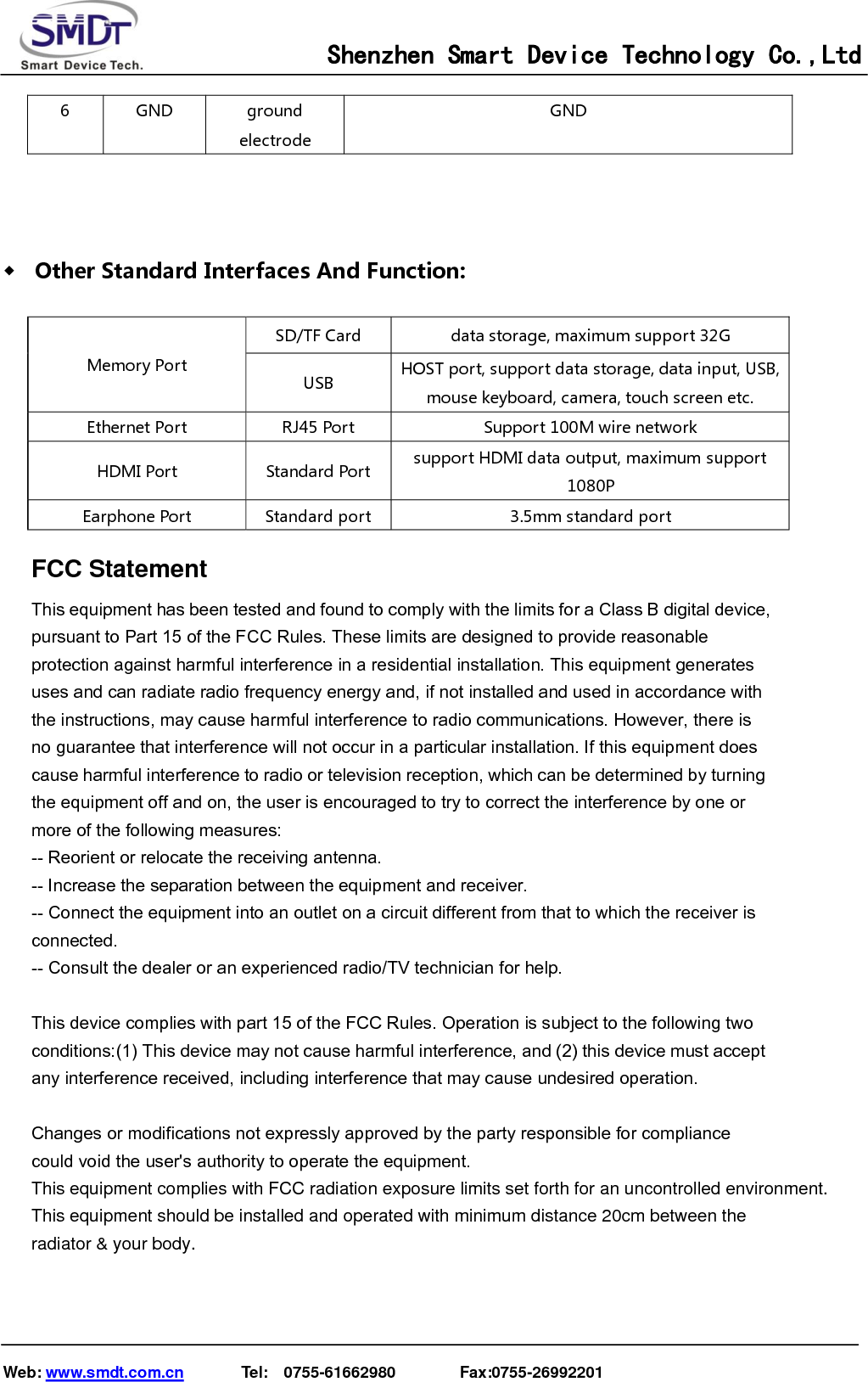

Shenzhen Smart Device Technology Co.,Ltd Web: www.smdt.com.cn Tel: 0755-61662980 Fax:0755-26992201 6 GND ground electrode GND ◆ Other Standard Interfaces And Function: Memory Port SD/TF Card data storage, maximum support 32G USB HOST port, support data storage, data input, USB, mouse keyboard, camera, touch screen etc. Ethernet Port RJ45 Port Support 100M wire network HDMI Port Standard Port support HDMI data output, maximum support 1080P Earphone Port Standard port 3.5mm standard port FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

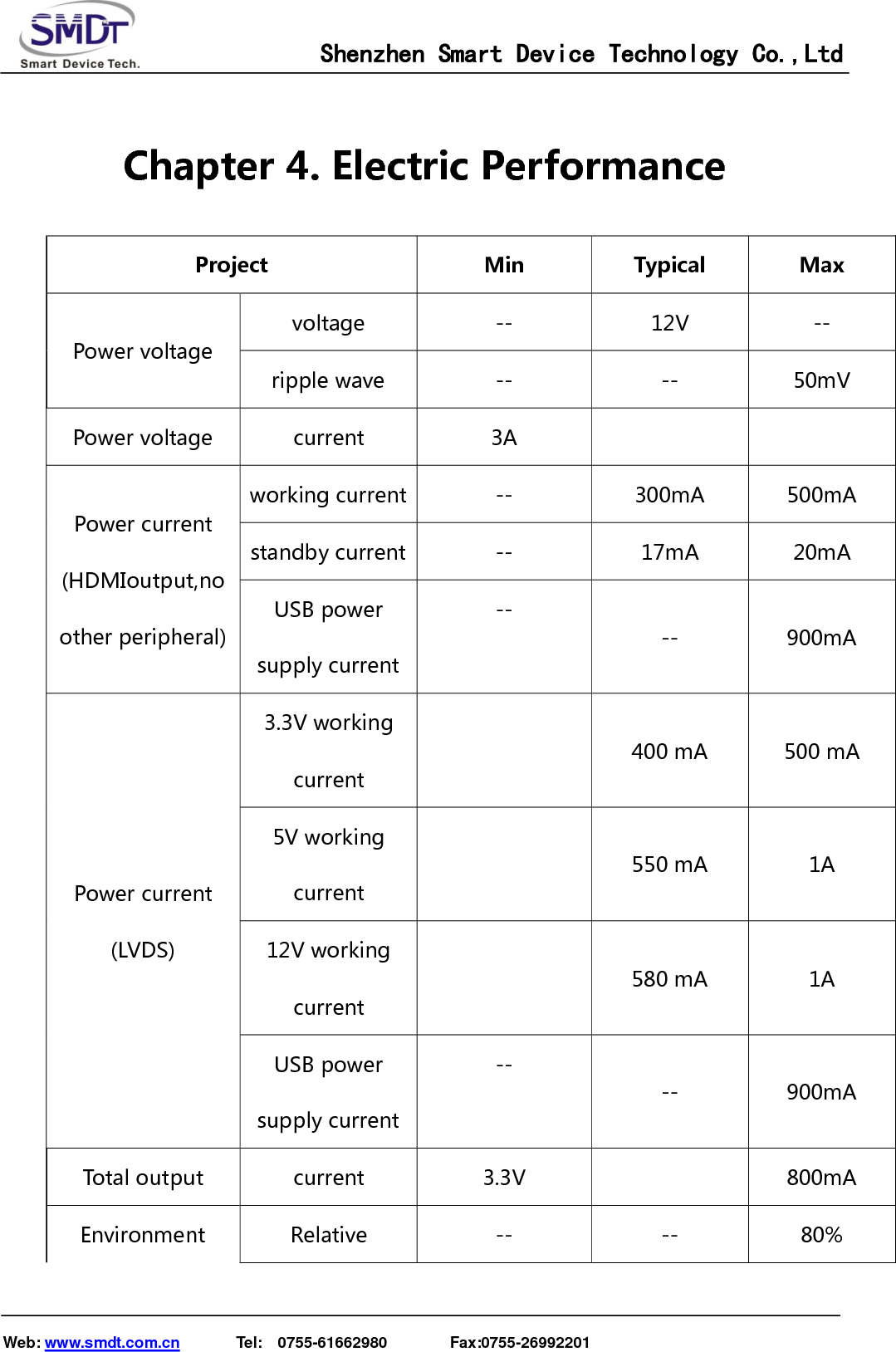

Shenzhen Smart Device Technology Co.,Ltd Web: www.smdt.com.cn Tel: 0755-61662980 Fax:0755-26992201 Chapter 4. Electric Performance Project Min Typical Max Power voltage voltage -- 12V -- ripple wave -- -- 50mV Power voltage current 3A Power current (HDMIoutput,no other peripheral) working current -- 300mA 500mA standby current -- 17mA 20mA USB power supply current -- -- 900mA Power current (LVDS) 3.3V working current 400 mA 500 mA 5V working current 550 mA 1A 12V working current 580 mA 1A USB power supply current -- -- 900mA Total output current 3.3V 800mA Environment Relative -- -- 80%

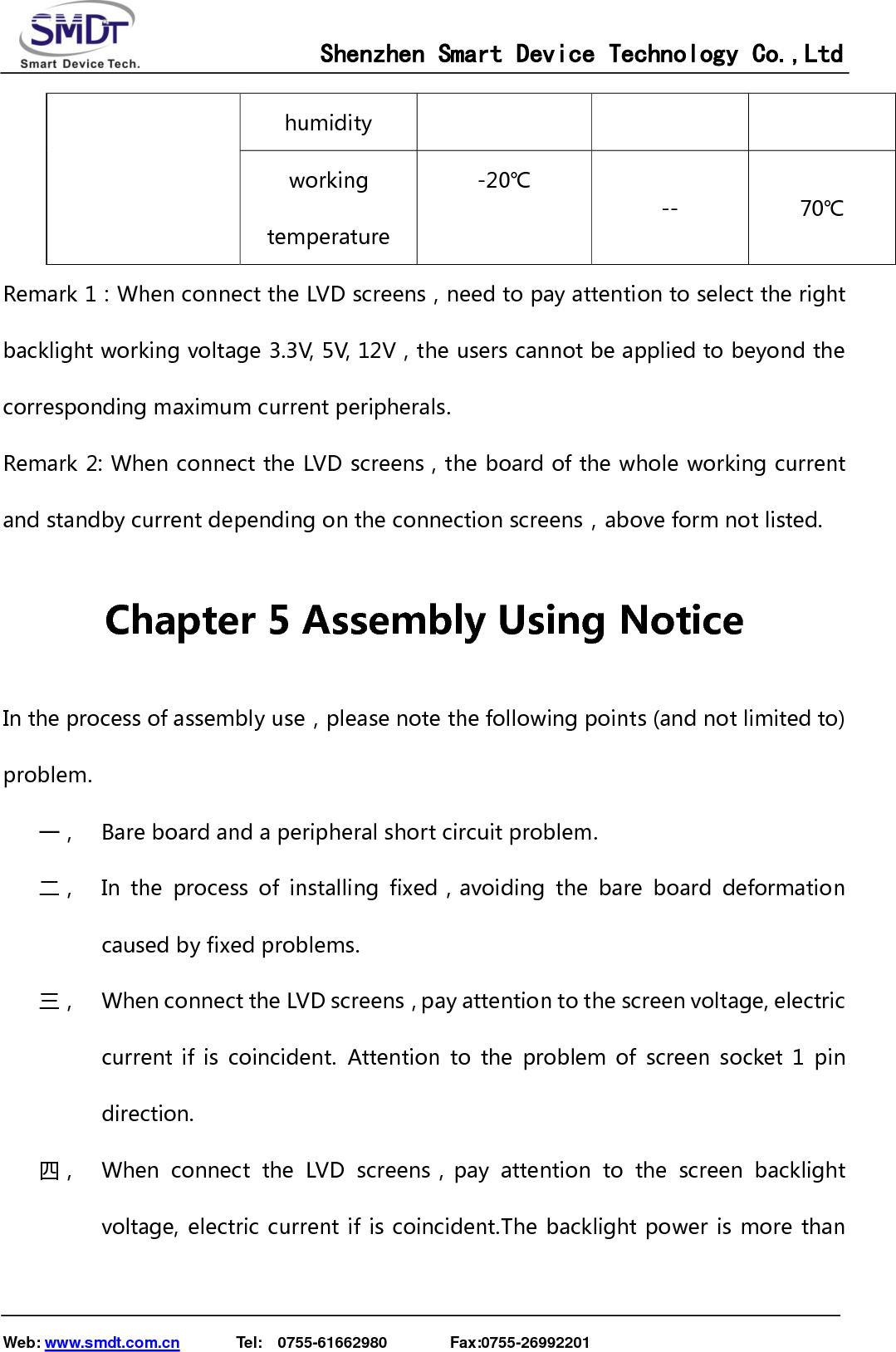

Shenzhen Smart Device Technology Co.,Ltd Web: www.smdt.com.cn Tel: 0755-61662980 Fax:0755-26992201 humidity working temperature -20℃ -- 70℃ Remark 1：When connect the LVD screens，need to pay attention to select the right backlight working voltage 3.3V, 5V, 12V，the users cannot be applied to beyond the corresponding maximum current peripherals. Remark 2: When connect the LVD screens，the board of the whole working current and standby current depending on the connection screens，above form not listed. Chapter 5 Assembly Using Notice In the process of assembly use，please note the following points (and not limited to) problem. 一， Bare board and a peripheral short circuit problem. 二， In the process of installing fixed，avoiding the bare board deformation caused by fixed problems. 三， When connect the LVD screens，pay attention to the screen voltage, electric current if is coincident. Attention to the problem of screen socket 1 pin direction. 四， When connect the LVD screens，pay attention to the screen backlight voltage, electric current if is coincident.The backlight power is more than

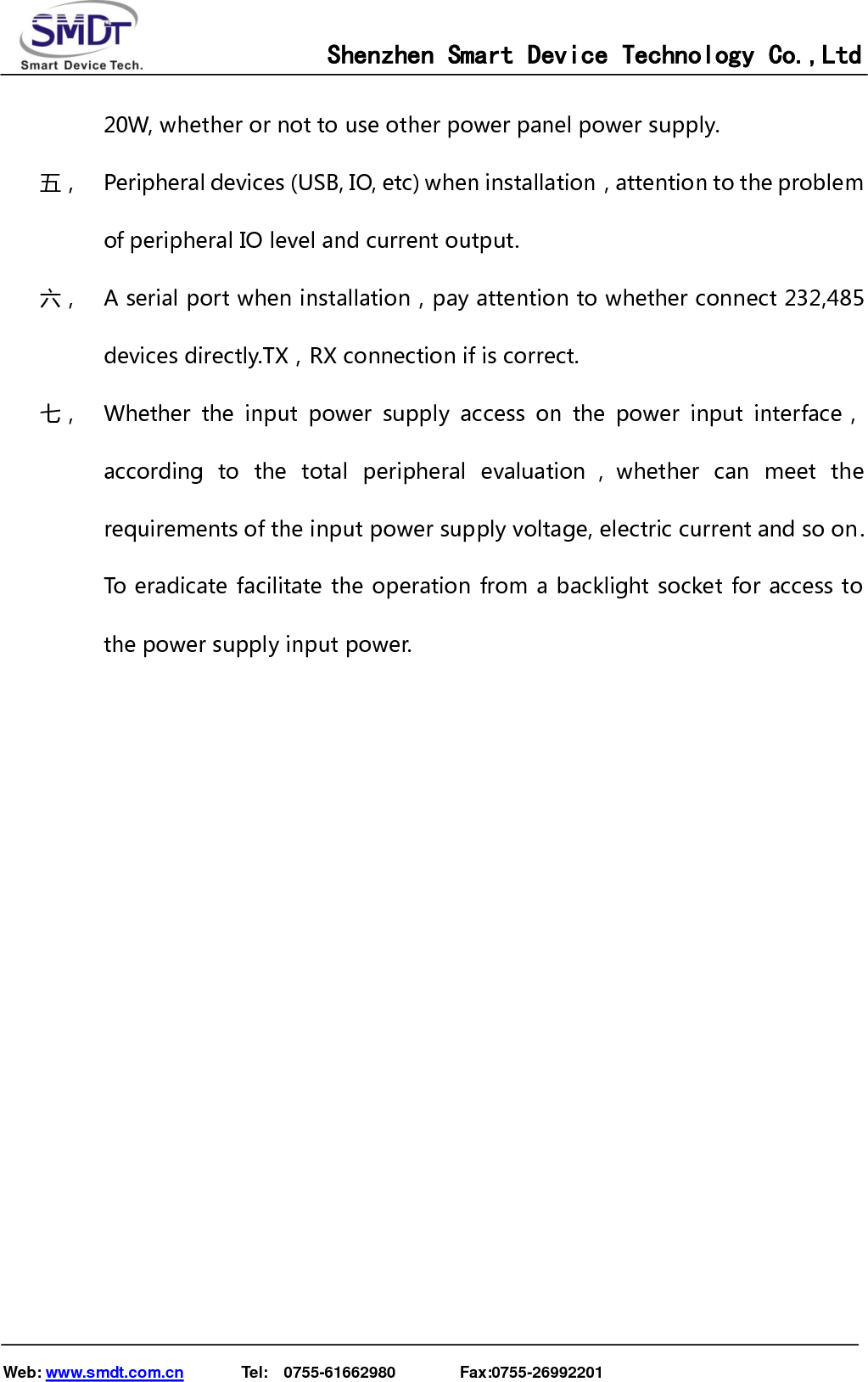

Shenzhen Smart Device Technology Co.,Ltd Web: www.smdt.com.cn Tel: 0755-61662980 Fax:0755-26992201 20W, whether or not to use other power panel power supply. 五， Peripheral devices (USB, IO, etc) when installation，attention to the problem of peripheral IO level and current output. 六， A serial port when installation，pay attention to whether connect 232,485 devices directly.TX，RX connection if is correct. 七， Whether the input power supply access on the power input interface，according to the total peripheral evaluation ，whether can meet the requirements of the input power supply voltage, electric current and so on. To eradicate facilitate the operation from a backlight socket for access to the power supply input power.
