SDI Technologies Inc. LED Full Spectrum Color Changing Bluetooth FM Clock Radio with USB Charging US iBT29 IB 0120

User Manual

Model: iBT29
instruction manual
iBT29 Eng IB
Size: 153mm x 120mm
Printing color: Black
Dec 4, 2014 P1
LED Full Spectrum
Color Changing
Bluetooth FM Clock Radio
with USB Charging
Questions? Contact Customer Service at 1-800-288-2792
iBT29
Introduction
Thank you for purchasing the iHome iBT29. This product is designed to provide fun colors and high
quality wireless sound for your iPad, iPhone, iPod or other Bluetooth audio device.
This instruction booklet explains the basic operation and care of the unit. Please read it carefully and keep
for future reference.
• Place the unit on a level surface away from sources of direct sunlight or excessive heat.
• Protect your furniture when placing your unit on a natural wood and lacquered finish. A cloth or other
protective material should be placed between it and the furniture.
• Clean your unit with a soft cloth moistened only with mild soap and water. Stronger cleaning agents,
such as benzene, thinner or similar materials can damage the surface of the unit.
1
P2
Maintenance
iBT29
Table of Contents
2
What’s Included ...............................................................................................................3
Meet Your iBT29 ..............................................................................................................4
The Display/Setting Up the Unit ..........................................................................................5
Replacing and Installing Clock Backup Battery.......................................................................6
Setting the Clock/Setting and Using the Alarms .....................................................................7
Previewing the Alarm and Turning the Alarm On/Off ..............................................................8
Snooze/Display Dimmer Button/Sleep Mode/FM Radio.........................................................9
Setting and Using FM Presets/Using FM Radio in Other Countries...........................................10
Pairing Your Bluetooth Device ..........................................................................................11
Playing Audio Via Bluetooth..............................................................................................12
Using the Speakerphone Feature .......................................................................................12
Playing Audio via Aux-In .................................................................................................13
Charging Devices via USB Port .........................................................................................14
Color Change Mode ......................................................................................................15
Battery Use Cautions and Tips ..........................................................................................16
Consumer Product Safety Guide........................................................................................17
FCC Information.............................................................................................................18
Troubleshooting..............................................................................................................19
Warranty......................................................................................................................20
P3
iBT29
3
P4

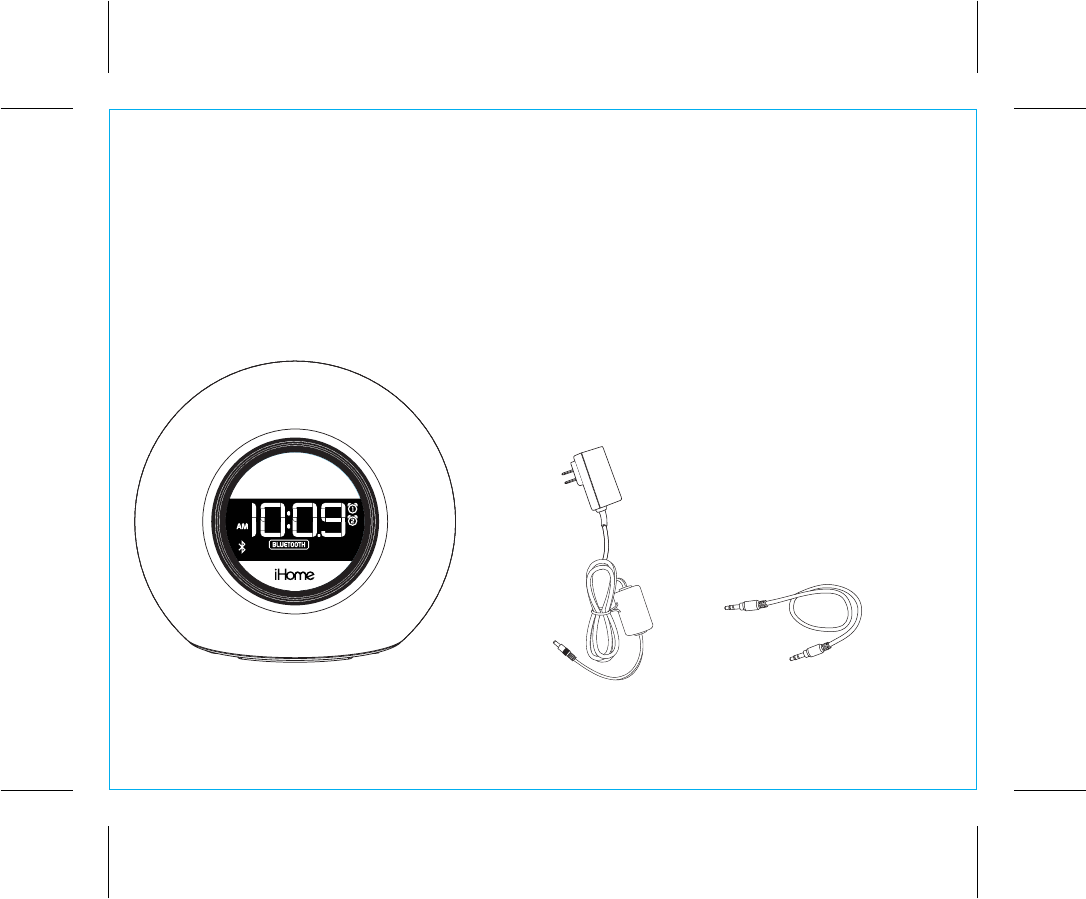

What’s Included
• iBT29 unit
• 100V-240V universal AC adaptor
• Audio cable
power adaptor audio cable
iBT29
iBT29
P5
Meet Your iBT29
Top
4
Bottom Back
DC Jack USB Charging Port Aux-in Jack
FM Antenna
Bluetooth Pairing
Button
Answer Call/
Plus Settings
Button
Mode Button Color Mode Button
Volume Down Button
Volume Up Button
Snooze/Display Dimmer Button
Alarm 1 Button
Alarm 2 Button
Time Set/Sleep
Button
Power/Alarm Reset Button
End Call/Minus Settings Button
Presets/Play/Pause Button
Backup Battery Compartment
Remove the pull tab before initial use to activate the
SureAlarm battery backup system.
Pull Tab
Remove before use
iBT29
Using the
The Display
5
P6
Alarm Active Indicator
Set Wake-to
Sleep Mode Indicator
Bluetooth/Pairing
Indicator
PM/AM
Indicators
Alarm Time/Date/Radio Frequency
Color Mode: Fade, Fast, Color, Pulse, Sky, Off
Time Display
Low Backup Battery Indicator
FM antenna
Setting Up the Unit
Connect the included AC adaptor to the DC jack located on
the back of the unit and connect the other end to a working
wall outlet. Extend FM antenna.
2 AA batteries are included for battery backup. Install them in
the backup battery compartment located on the bottom of the
unit before using the unit. See page 6 for more on installing
and replacing backup batteries.
Mode: Aux, Bluetooth, FM Radio
RESET
RESET
TEST
TEST
P7
6
Using the iBT29
Replacing and Installing Clock Backup Battery
Note: 1 CR2450 battery is included with the unit. Install it before using the unit.
This model is equipped with a battery backup circuit that will maintain the time and alarm time settings in
the event of a temporary power interruption (the display is NOT maintained). The battery backup circuit will
also operate the buzzer alarm to wake you up at the selected wake up time even if the power is out. When
the backup battery is getting weak the Low Backup Battery Indicator will begin flashing in the display.
When you see this flashing indicator you should replace the backup battery as soon as possible.
To install/replace the backup battery:
IMPORTANT: When replacing the backup battery be sure to have the
unit connected to the AC outlet to maintain all of your settings,
otherwise it will be necessary to reset the time and alarm time after the
batteries are replaced.
1. Use a Phillips screwdriver to unscrew the battery door located on the
bottom of the unit. Remove the battery door. If replacing battery,
remove the exhausted battery.
2. Insert 1 fresh CR2450 battery in the backup battery compartment.
Make sure the “+” side of the battery is facing you (see illustration).
3. Replace the battery door and screw shut. Do not overtighten. Confirm
that the backup battery indicator is not flashing in the display.
Note: Make sure you dispose of batteries properly (see your local regulations)
Replacing Backup Battery
P8
7
Setting the Clock
1. Press and hold the Time Set/Sleep Button for 2 seconds until the clock display flashes
and a beep sounds.
2. Press the or Buttons to adjust the clock to the current time (hold for rapid setting).
Make sure you set the correct AM/PM time. The AM and PM indicators appear to the
left of the display.
3. Press the Time Set/Sleep Button to confirm the time and exit clock setting mode. 2 beeps will confirm
clock setting is complete.
TIP: To toggle the clock display between standard 12 hour time and 24 hour (“military”) time display,
press the Alarm 1 Button or Alarm 2 Button while the display is flashing during clock setting.
Setting and Using the Alarms
This unit features dual alarms which can be set to different times and alarm sources. Each is set in the
same way. Instructions are given as “Alarm Button”; use Alarm 1 Button or Alarm 2 Button to set
respective alarms.
Note: Each step must be completed while display is flashing or step will time-out with any changes saved.
Using the iBT29
8
P9
Setting and Using the Alarms (Continued)
1. Press and hold the Alarm Button for 2 seconds until the alarm time display and alarm icon flash. A beep
sounds.
2. Press the or Buttons to adjust the alarm time to the desired time (hold for rapid setting).
Make sure you set the correct AM/PM alarm time. The AM and PM indicators appear to the left of the
display.
3. Press the Alarm Button to confirm the alarm time setting. The wake-to source will flash.
4. Press the or Buttons to select the desired wake-to alarm source: Bluetooth, radio or tone.
Wake to Bluetooth: You will wake to the currently linked Bluetooth device. If no device is
detected, the alarm will default to buzzer.
Wake to Radio: Press the Alarm Button to confirm. Press the Presets Button to select an FM preset
to wake to, or press the or Buttons to tune in a desired wake to station.
Wake to Tone: You will wake to last selected tone
5. Press the Alarm Button to confirm wake-to source.
6. Press the or Buttons OR the or Buttons to adjust the alarm volume.
7. Press the Alarm Button to confirm alarm volume and enter wake-to light selection.
8. Press the or Buttons to select the desired wake-to light mode: Slow fade, Fast Change, One
Color (selects current color), Pulse to Music, Sky Gradient or Off (no change to light mode that is active
when alarm sounds).
9. Press the Alarm Button to confirm the alarm settings and exit alarm setting mode. 2 beeps will confirm
alarm setting is complete. The alarm icon will remain on the display, indicating the alarm is armed.
10. To turn off a sounding alarm and reset it to come on the next day at the same time, press the
Power/Alarm Reset Button or the associated alarm button (Alarm 1 Button or Alarm 2 Button) to reset
alarm.
Previewing the Alarm and Turning the Alarm On/Off
Press and release the desired Alarm Button as needed to preview the alarm and to toggle the alarm ON
(indicated by the alarm icon) or OFF (no alarm icon).
Using the iBT29
P10
9
Snooze/Display Dimmer Button
1. To program Snooze, press and hold the Snooze/Display Dimmer Button during normal operation
(when no alarm is sounding).
2. Press the or Buttons to select the desired snooze time (between 01 and 29 minutes).
3. Press and release the Snooze/Display Dimmer Button to confirm Snooze setting. 2 beeps will sound.
4. While the alarm is sounding, press and release the Snooze/Display Dimmer Button to temporarily
silence the alarm for the set duration (9 minutes is the default). Snooze can be used several times during
alarm.
5. To adjust the brightness of the display, press and release the Snooze/Display Dimmer Button during
normal operation (when no alarm is sounding) to cycle through the brightness display settings, including
OFF.
Sleep Mode
This unit allows you to sleep to the current sound source for a set time before turning the unit off.
1. To set Sleep time, press and release the Time Set/Sleep Button as needed to cycle to the desired sleep
duration:120, 90, 60, 30 or 15 minutes or OFF (turns the unit off).
2. Press the or Buttons to adjust the sleep volume on the unit. Note that the sleep volume setting is
stored separately from other volume settings.
FM Radio
Extend the FM antenna for best reception.
1. Press and release the Mode Button as needed until the FM indicator icon and
current FM radio frequency appear on the display.
2. Press the or Buttons to tune the radio to the desired station (hold to scan for the next clear
station).
3. Press the or Buttons to adjust the volume on the unit.
4. When you are through listening, press the Power/Alarm Reset Button to turn the unit off.
Using the iBT29
Setting and Using FM Presets
The unit allows you to store up to 6 FM radio station presets
1. Press and release the Mode Button as needed until the FM indicator icon appears on the display.
2. Press and release the Presets Button as needed until the preset number (P1- P6) you wish to set is
displayed, then press and hold the Presets Button to enter setting mode.
3. Press the or Buttons to tune the radio to the desired station (hold to scan for the next clear
station).
4. Press and release the Presets Button. 2 beeps will sound to confirm the preset has been assigned.
Repeat steps 2 - 4 until you have set up to 6 preset stations.
5. To listen to a preset FM station at any time, follow steps 1 - 2 to turn on FM radio mode and cycle to
the desired preset.
Using FM Radio in Other Countries
Different areas of the world use different FM frequency steps and ranges. By default, this unit is set to
USA frequency steps. To use the radio outside the USA:
1. Make sure unit is OFF.
2. Press and hold the Mode Button until “USA” appears in the display.
3. Press and release or Buttons to cycle to your location: Europe, Japan, Australia, China or USA.
4. Press the Mode Button again to exit frequency setting mode. 2 beeps will confirm setting.
P11
10
Using the iBT29
4. When pairing is successful, the Bluetooth icon will appear solid, cabinet lights will flash blue two times
(if light is on) and 2 beeps will sound, indicating the iBT29 is ready to play music. There should also be
an indication on your device. If no device is successfully paired within 2 minutes the iBT29 will default to
previous mode. Once the iBT29 is paired to a device, it will attempt to autolink when the device is
within range (about 30 feet).
P12
Whenever AC power is connected, the iBT29 will attempt to autolink to a previously paired device. If no
device is paired, the iBT29 will automatically enter pairing mode for 2 minutes.
1. Make sure your Bluetooth device is fully charged. Turn on your Bluetooth device and
make it “discoverable” by turning on Bluetooth mode (check in Options or Settings) .
2. Press and hold the Bluetooth Pairing Button for 2 seconds. The iBT29 will beep and
“Bluetooth” and the Bluetooth icon will flash on the display, indicating the iBT29
is in pairing mode. If light mode is on, the cabinet will flash blue and red.
3. “iHome iBT29” should appear in your device’s Bluetooth menu. If “Not Paired”, “Not Connected” or similar
message appears, select “iHome iBT29” to connect it. If prompted for a passcode, enter “1234” on your
device’s keypad.
Using the iBT29
11
Pairing Your Bluetooth Device
For iPhone
iHome iBT29 iHome iBT29
iHome iBT29 iHome iBT29
For other
Playing Audio via Bluetooth
1. Press the Power/Alarm Reset Button to turn the unit ON.
2. Press and release the Mode Button as needed until “BT” appears on the display.
3. It is autoplay audio from your linked Bluetooth device and pause.
4. Press the
Play/Pause/Presets Button
on the unit to play audio from your linked Bluetooth device.
5. Press the or Buttons to go to the previous or next track.
6. Press the or Buttons to adjust the volume on the unit. You may need to adjust the volume on
your device, too.
7. When done listening, press the Power/Alarm Reset Button to turn the unit off.
Using the Speakerphone feature
NOTE: The unit must be powered on and linked to a Bluetooth phone to receive a call.
1. When a call is received, playing music is muted to hear the ring tone. “CALL” will
flash on the display. Adjust call volume on your device and/or on the unit as needed.
Press the Button to answer the call; press the Button to ignore the call. For call waiting
function, press the Button to place a currently active call on hold and answer a new call; press
the Button to switch between the calls.
2. When a call is completed, press the Button to end the call and resume previous function.
12
Using the iBT29
P13
P15
14
Charging Devices via USB Port
1. Connect the standard size end of a USB cable (not included)
to the USB Port on back of the unit and connect the other end
to the charging port on your device. It’s often best to use the
charging cable supplied with your device.
2. Monitor the charging on your device. Some devices use a
proprietary charging method and will not charge using the
USB Port. If this happens, you must charge your device using
the charger that came with it.
Using the iBT29
NOTE: Unit must be plugged into
working outlet to charge devices
P16
15
Color Change Mode
1. Press the Power/Alarm Reset Button on the unit to turn it on.
2. Press and release the Color Button as needed to cycle to the desired color mode light setting.
Indicators on the display show the current light mode for 5 seconds:
FADE: Slow Fade mode gradually fades from one color into the next
FAST: Fast Change mode fades quickly from color to color
COLOR: One Color mode pauses on the last color shown in Fast Change mode.
PULSE: Pulse to Music mode pulses the changing lights to the beat of playing music
SKY: Sky Gradient mode changes gradient colors to match the color of the sky at the current
time of day
OFF: Turns cabinet lights OFF.
TIP: When the unit is OFF, press the – or + Buttons to step through the color spectrum
Using the iBT29
P17
16
Using the iBT29
Battery Use Cautions and Tips
Long-term Storage of Your Product
• Store in a cool, dry place.
• Unit should be charged before storing.
• If stored for a long period of time, unit may be unresponsive until charged for a number of hours (depending on discharge level)
• Do not store for more than a year without charging as this can permanently harm the battery.
• After long term storage, if unit is unresponsive after charging, RESET unit while connected to AC and recharge the unit.
Internal Rechargeable Lithium-ion Battery
This device uses an internal rechargeable lithium-ion battery that should last the lifetime of the device. If you suspect your
battery may be dead, try charging it several times and try resetting the unit.
WARNING/DISPOSAL OF UNIT
Please do NOT attempt to change the battery yourself. If the battery has died and you do not want us to replace your
battery, you should follow the disposal instructions below:
• Never dispose of used batteries/electronics with ordinary solid wastes, since they contain toxic substances.
• Always dispose of used batteries/electronics in accordance with the prevailing community regulations that apply to the
disposal of batteries/electronics. If there are no local regulations concerning battery/electronics disposal, please
dispose of the device in a waste bin for electronic devices.
• Many electronics retailers now recycle batteries and other electronic components at no charge. Check to see which
ones in your area do so.
GENERAL BATTERY PRECAUTIONS
• Never use or charge a battery if it appears to be leaking, discolored, deformed, or in any way abnormal.
•
Never disassemble the unit or attempt to remove battery as that could cause leakage of alkaline solution or other electrolytic
substance.
• Always confirm that the temperature is 5°C - 35° C (41° - 95° Fahrenheit) before you charge the battery. Leakage or
deterioration of the battery may occur if this warning is not heeded.
• Never expose a battery to any liquid.
• Never expose a battery to excessive heat such as direct sunlight or fire. Never use a battery pack in an unventilated
vehicle where excessive internal temperatures may be encountered.
• Always keep batteries out of the reach of infants and small children.
Consumer Product Safety Guide
17
When used in the directed manner, this unit has been designed and manufactured to ensure your personal safety. However, improper use can result
in potential electrical shock or fire hazards. Please read all safety and operating instructions carefully before installation and use, and keep these
instructions handy for future reference. Take special note of all warnings listed in these instructions and on the unit.
1. Water and Moisture – The unit should not be used near water. For example: near a bathtub, washbowl, kitchen sink, laundry tub, swimming
pool or in a wet basement.
2. Ventilation – The unit should be situated so that its location or position does not interfere with its proper ventilation. For example, it should not
be situated on a bed, sofa, rug or similar surface that may block ventilation openings. Also, it should not be placed in a built-in installation,
such as a bookcase or cabinet, which may impede the flow of air through the ventilation openings.
3. Heat – The unit should be situated away from heat sources such as radiators, heat registers, stoves or other appliances (including amplifiers) that
produce heat.
4. Power Sources – The unit should be connected to a power supply only of the type described in the operating instructions or as marked on the
appliance. Only use the AC adapter that came with the unit.
5. Power-Cable Protection – Power supply cables should be routed so that they are not likely to be walked on or pinched by items placed upon
or against them. It is always best to have a clear area from where the cable exits the unit to where it is plugged into an AC socket.
6. Cleaning – The unit should be cleaned only using a warm damp cloth. Do not use solvents, etc.
7. Objects and Liquid Entry – Care should be taken so that objects do not fall and liquids are not spilled into any openings or vents located on
the product.
8. Attachments – Do not use attachments not recommended by the product manufacturer.
9. Lightning and Power Surge Protection – Unplug the unit from the wall socket and disconnect the antenna or cable system during a lightning storm
or when it is left unattended and unused for long periods of time. This will prevent damage to the product due to lightning and power-line surges.
10. Overloading – Do not overload wall sockets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.
11. Damage Requiring Service – The unit should be serviced by qualified service personnel when:
A. the power supply cable or plug has been damaged.
B. objects have fallen into or liquid has been spilled into the enclosure.
C. the unit has been exposed to rain.
D. the unit has been dropped or the enclosure damaged.
E. the unit exhibits a marked change in performance or does not operate normally.
12. Periods of Nonuse – If the unit is to be left unused for an extended period of time, such as a month or longer, the backup batteries should be
removed from the unit to prevent damage or corrosion.
13. Servicing – The user should not attempt to service the unit beyond those methods described in the user’s operating instructions. Service methods
not covered in the operating instructions should be referred to qualified service personnel.
P18
IMPORTANT SAFETY INSTRUCTIONS
iBT29
18
FCC ID: EMOIBT29
IC: 986B-IBT29
FCC Information
This device complies with Part 15 of the FCC Rules, operation is subject to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
FCC Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment.
• Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate
the equipment.
• NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
CAN ICES-3 (B)/NMB-3(B)
IC Statement
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may
not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de license. L'exploitation est autorisée
aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.
The device meets the exemption from the routine evaluation limits in section 2.5 of RSS 102 and compliance with RSS-102 RF exposure, users can
obtain Canadian information on RF exposure and compliance.
Le dispositif rencontre l'exemption des limites courantes d'évaluation dans la section 2.5 de RSS 102 et la conformité à l'exposition de RSS-102
rf, utilisateurs peut obtenir l'information canadienne sur l'exposition et la conformité de rf.
P19
Unit doesn’t respond (no power)
• Check that all connections are correct and properly plugged in.
• Make sure your device is properly paired with the iBT29.
• Make sure the Power is ON.
Unit doesn’t respond (locked up or frozen)
• The unit may need to be reset. To do so, unplug the unit from power source and remove the
backup battery. Let unit stand for 2 minutes. Re-install backup battery and connect unit to power
source. You will need to reset the clock, radio, and any other settings.
Trouble pairing device with iBT29
Bluetooth implementation varies depending on your device’s hardware and operating system. Please see
our website for updates on pairing.
• When you power ON the unit, it will automatically link with the last previously paired Bluetooth
device if the device is still within range (about 30 feet). To pair with a different device you must turn
off Bluetooth capability on the already paired device, or take it out of range.
• Make sure your device is working properly. Check your device’s manual for details on Bluetooth
pairing and linking.
19
Troubleshooting
For further information and to see the latest instructions, visit www.ihome.com/support
P20
Limited 1 Year Warranty
iHome Products, a division of SDI Technologies Inc. (hereafter referred to as SDI), warrants this product to be free from
defects in workmanship and materials, under normal use and conditions, for a period of one (1) year from the date
of original purchase.
Should this product fail to function in a satisfactory manner, it is best to first return it to the store where it was originally
purchased. Should this fail to resolve the matter and service still be required by reason of any defect or malfunction
during the warranty period, SDI will repair or, at its discretion, replace this product without charge. This decision is
subject to verification of the defect or malfunction upon delivery of this product to the Factory Service Center authorized
by Customer Service.
If service is required, please call Customer Service at 1-800-288-2792 to obtain a Return Authorization Number and
shipping instructions.
Disclaimer of Warranty
NOTE: This warranty is valid only if the product is used for the purpose for which it was designed. It does not cover
(i) products which have been damaged by negligence or willful actions, misuse or accident, or which have been
modified or repaired by unauthorized persons; (ii) cracked or broken cabinets, or units damaged by excessive heat;
(iii) damage to digital media players, CD’s or tape cassettes (if applicable); (iv) the cost of shipping this product to the
Factory Service Center and its return to the owner.
This warranty is valid only in the United States of America and does not extend to owners of the product other than
to the original purchaser. In no event will SDI or any of its affiliates, contractors, resellers, their officers, directors,
shareholders, members or agents be liable to you or any third party for any consequential or incidental damages, any
lost profits, actual, exemplary or punitive damages. (Some states do not allow limitations on implied warranties or
exclusion of consequential damages, so these restrictions may not apply to you.) This warranty gives you specific legal
rights, and you may also have other rights which vary from state to state.
Your acknowledgment and agreement to fully and completely abide by the above mentioned disclaimer of warranty
is contractually binding to you upon your transfer of currency (money order, cashier's check, or credit card) for purchase
of your SDI product.
© 2015 SDI Technologies, Inc. All rights reserved
Questions? Visit www.ihome.com
or call 1-800-288-2792 Toll Free
iBT29-012215-A Printed in China
P21

Navigation menu
