SEA S p A 23110700 F306, Remote Control User Manual

SEA S.p.A. F306, Remote Control

User Manual

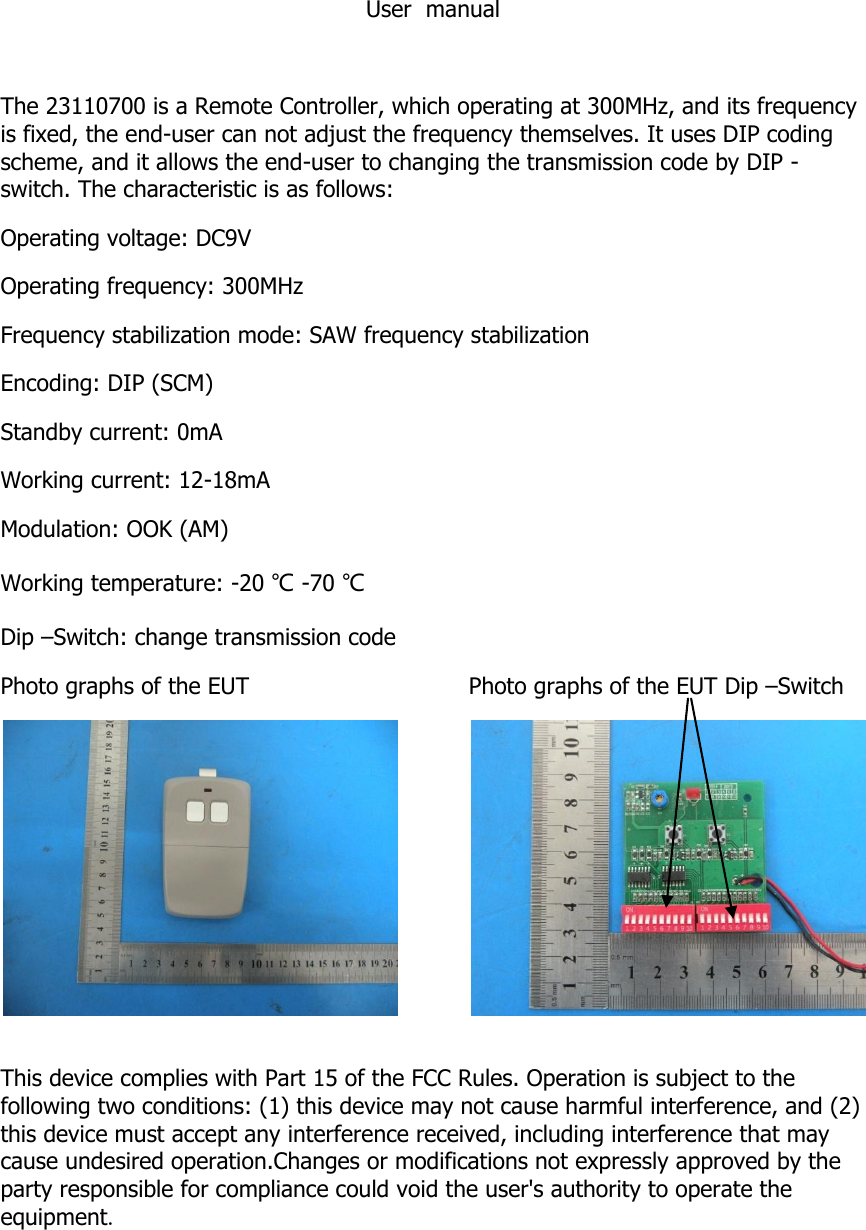

User manual The 23110700 is a Remote Controller, which operating at 300MHz, and its frequency is fixed, the end-user can not adjust the frequency themselves. It uses DIP coding scheme, and it allows the end-user to changing the transmission code by DIP - switch. The characteristic is as follows: Operating voltage: DC9V Operating frequency: 300MHz Frequency stabilization mode: SAW frequency stabilization Encoding: DIP (SCM) Standby current: 0mA Working current: 12-18mA Modulation: OOK (AM) Working temperature: -20 ℃ -70 ℃ Dip –Switch: change transmission code Photo graphs of the EUT Photo graphs of the EUT Dip –Switch This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
