SEA S p A 2311CC4 COCCIHELLA COPY User Manual Coccinella e copy rev 04 ITA ING A4

SEA S.p.A. COCCIHELLA COPY Coccinella e copy rev 04 ITA ING A4

User manual

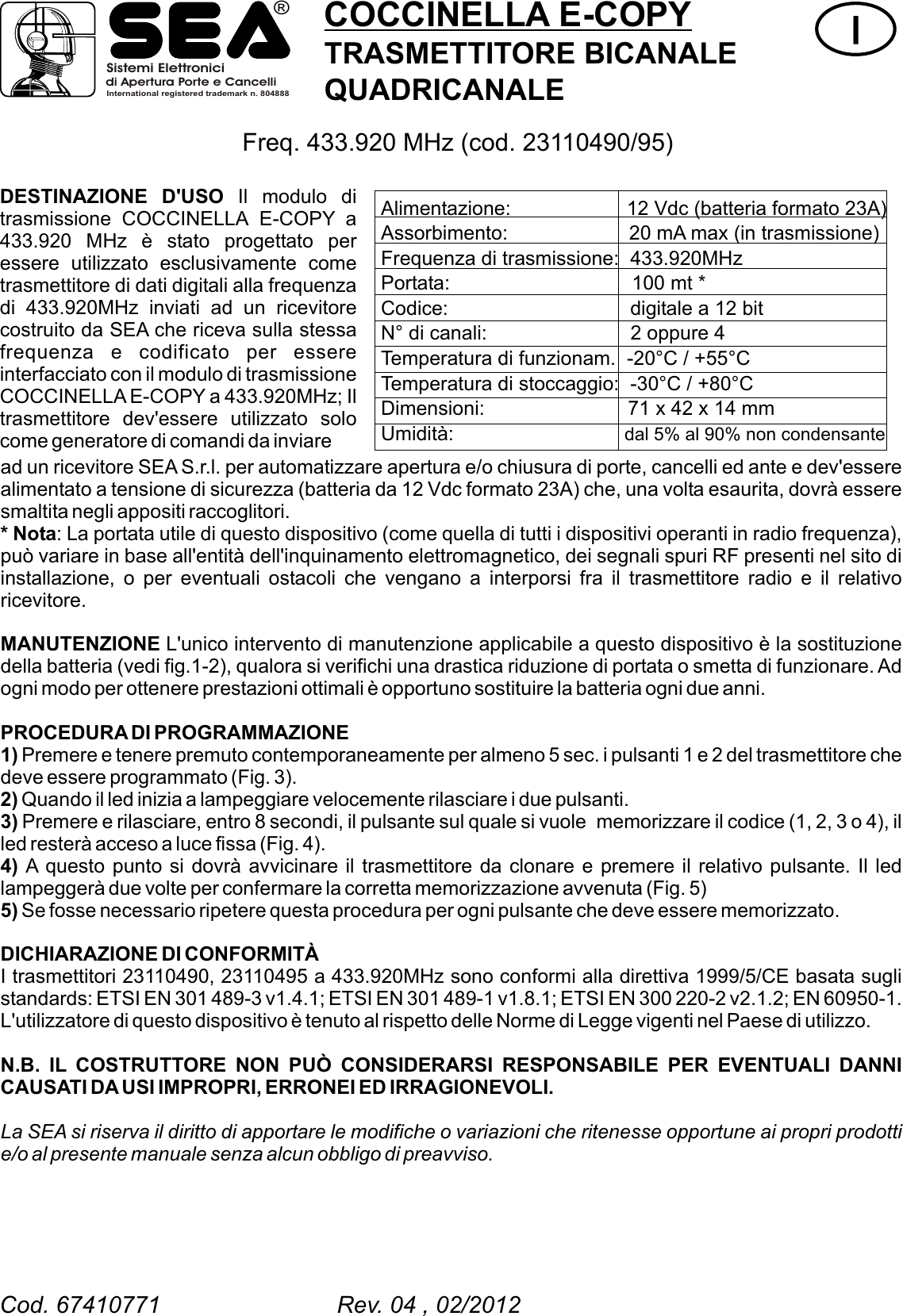

COCCINELLA E-COPYTRASMETTITORE BICANALEQUADRICANALEIIDESTINAZIONE D'USO Il modulo di trasmissione COCCINELLA E-COPY a 433.920 MHz è stato progettato per essere utilizzato esclusivamente come trasmettitore di dati digitali alla frequenza di 433.920MHz inviati ad un ricevitore costruito da SEA che riceva sulla stessa frequenza e codificato per essere interfacciato con il modulo di trasmissione COCCINELLA E-COPY a 433.920MHz; Il trasmettitore dev'essere utilizzato solo come generatore di comandi da inviare Freq. 433.920 MHz (cod. 23110490/95) ad un ricevitore SEA S.r.l. per automatizzare apertura e/o chiusura di porte, cancelli ed ante e dev'essere alimentato a tensione di sicurezza (batteria da 12 Vdc formato 23A) che, una volta esaurita, dovrà essere smaltita negli appositi raccoglitori.* Nota: La portata utile di questo dispositivo (come quella di tutti i dispositivi operanti in radio frequenza), può variare in base all'entità dell'inquinamento elettromagnetico, dei segnali spuri RF presenti nel sito di installazione, o per eventuali ostacoli che vengano a interporsi fra il trasmettitore radio e il relativo ricevitore.MANUTENZIONE L'unico intervento di manutenzione applicabile a questo dispositivo è la sostituzione della batteria (vedi fig.1-2), qualora si verifichi una drastica riduzione di portata o smetta di funzionare. Ad ogni modo per ottenere prestazioni ottimali è opportuno sostituire la batteria ogni due anni.PROCEDURA DI PROGRAMMAZIONE1) Premere e tenere premuto contemporaneamente per almeno 5 sec. i pulsanti 1 e 2 del trasmettitore che deve essere programmato (Fig. 3).2) Quando il led inizia a lampeggiare velocemente rilasciare i due pulsanti.3) Premere e rilasciare, entro 8 secondi, il pulsante sul quale si vuole  memorizzare il codice (1, 2, 3 o 4), il led resterà acceso a luce fissa (Fig. 4).4) A questo punto si dovrà avvicinare il trasmettitore da clonare e premere il relativo pulsante. Il led lampeggerà due volte per confermare la corretta memorizzazione avvenuta (Fig. 5)5) Se fosse necessario ripetere questa procedura per ogni pulsante che deve essere memorizzato. N.B. IL COSTRUTTORE NON PUÒ CONSIDERARSI RESPONSABILE PER EVENTUALI DANNI CAUSATI DA USI IMPROPRI, ERRONEI ED IRRAGIONEVOLI.La SEA si riserva il diritto di apportare le modifiche o variazioni che ritenesse opportune ai propri prodotti e/o al presente manuale senza alcun obbligo di preavviso.DICHIARAZIONE DI CONFORMITÀI trasmettitori  ,  a 433.920MHz sono conformi alla direttiva 1999/5/CE basata sugli standards: ETSI EN 301 489-3 v1.4.1; ETSI EN 301 489-1 v1.8.1; ETSI EN 300 220-2 v2.1.2; EN 60950-1. L'utilizzatore di questo dispositivo è tenuto al rispetto delle Norme di Legge vigenti nel Paese di utilizzo. 23110490 23110495 Alimentazione:                     12 Vdc (batteria formato 23A)Assorbimento:                      20 mA max (in trasmissione)Frequenza di trasmissione:  433.920MHz Portata:                                 100 mt *Codice:                                 digitale a 12 bitN° di canali:                          2 oppure 4Temperatura di funzionam.  -20°C / +55°CTemperatura di stoccaggio:  -30°C / +80°CDimensioni:                          71 x 42 x 14 mmUmidità:                               dal 5% al 90% non condensanteCod. 67410771                           Rev. 04 , 02/2012Sistemi Elettronicidi Apertura Porte e CancelliInternational registered trademark n. 804888®

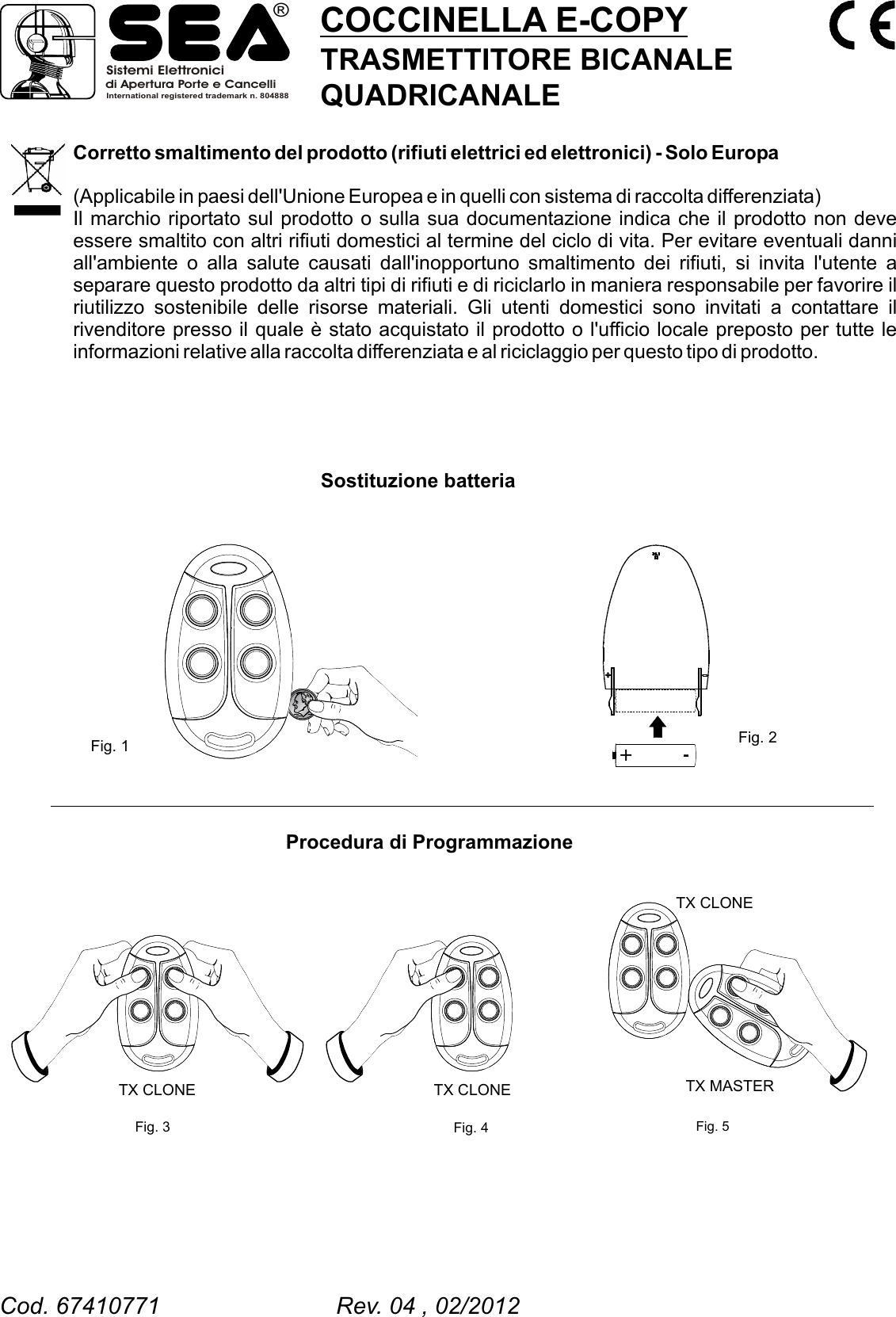

Corretto smaltimento del prodotto (rifiuti elettrici ed elettronici) - Solo Europa(Applicabile in paesi dell'Unione Europea e in quelli con sistema di raccolta differenziata)Il marchio riportato sul prodotto o sulla sua documentazione indica che il prodotto non deve essere smaltito con altri rifiuti domestici al termine del ciclo di vita. Per evitare eventuali danni all'ambiente o alla salute causati dall'inopportuno smaltimento dei rifiuti, si invita l'utente a separare questo prodotto da altri tipi di rifiuti e di riciclarlo in maniera responsabile per favorire il riutilizzo sostenibile delle risorse materiali. Gli utenti domestici sono invitati a contattare il rivenditore presso il quale è stato acquistato il prodotto o l'ufficio locale preposto per tutte le informazioni relative alla raccolta differenziata e al riciclaggio per questo tipo di prodotto. Sostituzione batteria Procedura di Programmazione Fig. 1 Fig. 2Fig. 3 Fig. 4TX CLONE TX CLONE+ -COCCINELLA E-COPYTRASMETTITORE BICANALEQUADRICANALEFig. 5TX CLONETX MASTERSistemi Elettronicidi Apertura Porte e CancelliInternational registered trademark n. 804888®Cod. 67410771                           Rev. 04 , 02/2012

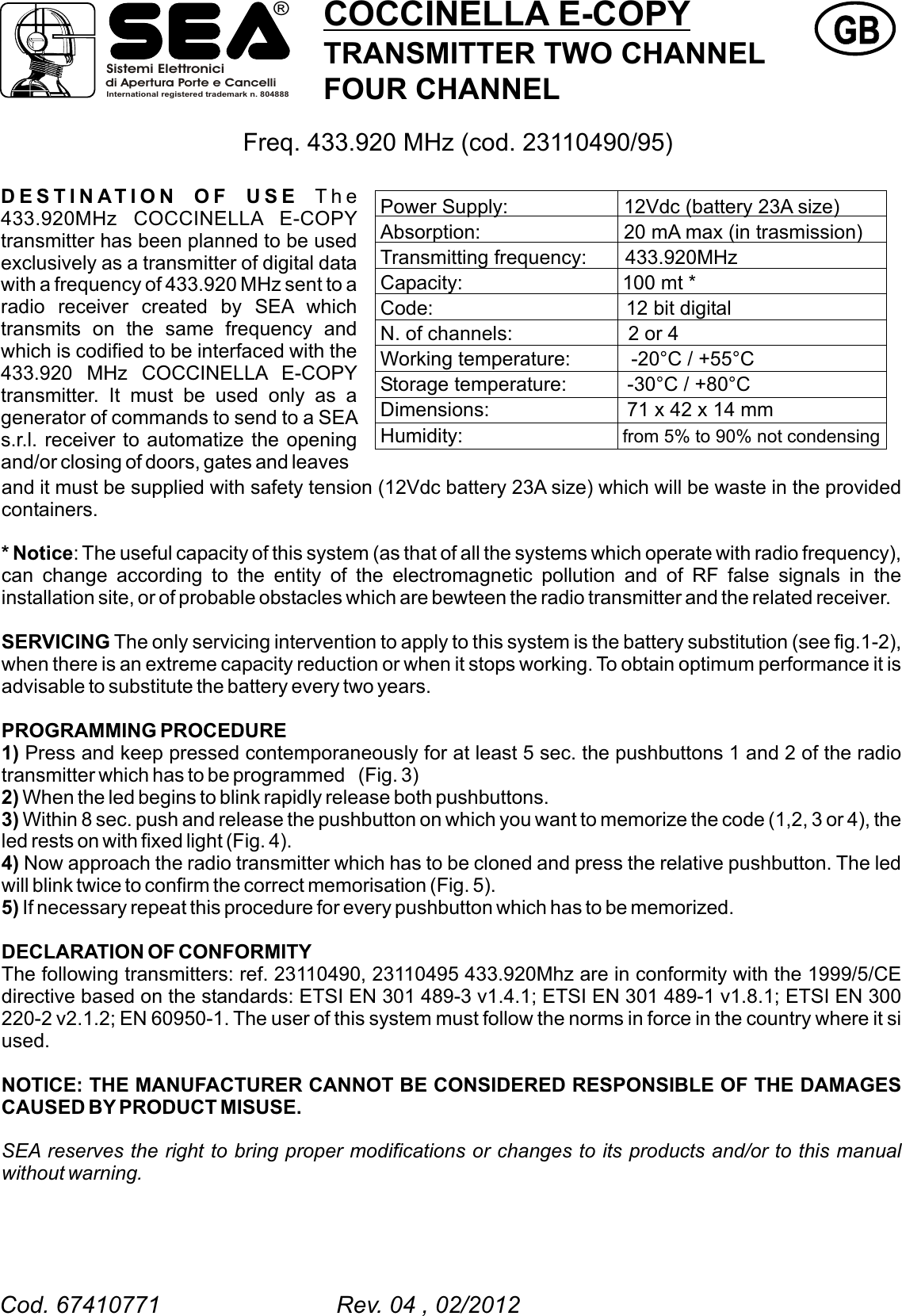

COCCINELLA E-COPYTRANSMITTER TWO CHANNELFOUR CHANNELGBGBDESTINATION OF USE The 433.920MHz COCCINELLA E-COPY transmitter has been planned to be used exclusively as a transmitter of digital data with a frequency of 433.920 MHz sent to a radio receiver created by SEA which transmits on the same frequency and which is codified to be interfaced with the 433.920 MHz COCCINELLA E-COPY transmitter. It must be used only as a generator of commands to send to a SEA s.r.l. receiver to automatize the opening and/or closing of doors, gates and leavesFreq. 433.920 MHz (cod. 23110490/95)and it must be supplied with safety tension (12Vdc battery 23A size) which will be waste in the provided containers.* Notice: The useful capacity of this system (as that of all the systems which operate with radio frequency), can change according to the entity of the electromagnetic pollution and of RF false signals in the installation site, or of probable obstacles which are bewteen the radio transmitter and the related receiver.SERVICING The only servicing intervention to apply to this system is the battery substitution (see fig.1-2), when there is an extreme capacity reduction or when it stops working. To obtain optimum performance it is advisable to substitute the battery every two years.PROGRAMMING PROCEDURE1) Press and keep pressed contemporaneously for at least 5 sec. the pushbuttons 1 and 2 of the radio transmitter which has to be programmed (Fig. 3)2) When the led begins to blink rapidly release both pushbuttons.3) Within 8 sec. push and release the pushbutton on which you want to memorize the code (1,2, 3 or 4), the led rests on with fixed light (Fig. 4).4) Now approach the radio transmitter which has to be cloned and press the relative pushbutton. The led will blink twice to confirm the correct memorisation (Fig. 5). 5) If necessary repeat this procedure for every pushbutton which has to be memorized. NOTICE: THE MANUFACTURER CANNOT BE CONSIDERED RESPONSIBLE OF THE DAMAGES CAUSED BY PRODUCT MISUSE.  SEA reserves the right to bring proper modifications or changes to its products and/or to this manual without warning.DECLARATION OF CONFORMITYThe following transmitters: ref.  ,   433.920Mhz are in conformity with the 1999/5/CE directive based on the standards: ETSI EN 301 489-3 v1.4.1; ETSI EN 301 489-1 v1.8.1; ETSI EN 300 220-2 v2.1.2; EN 60950-1. The user of this system must follow the norms in force in the country where it si used.23110490 23110495Power Supply:                     12Vdc (battery 23A size)Absorption:                          20 mA max (in trasmission)Transmitting frequency:       433.920MHz Capacity:                             100 mt *Code:                                   12 bit digital N. of channels:                     2 or 4Working temperature:           -20°C / +55°CStorage temperature:           -30°C / +80°CDimensions:                         71 x 42 x 14 mmHumidity:                             from 5% to 90% not condensingSistemi Elettronicidi Apertura Porte e CancelliInternational registered trademark n. 804888®Cod. 67410771                           Rev. 04 , 02/2012

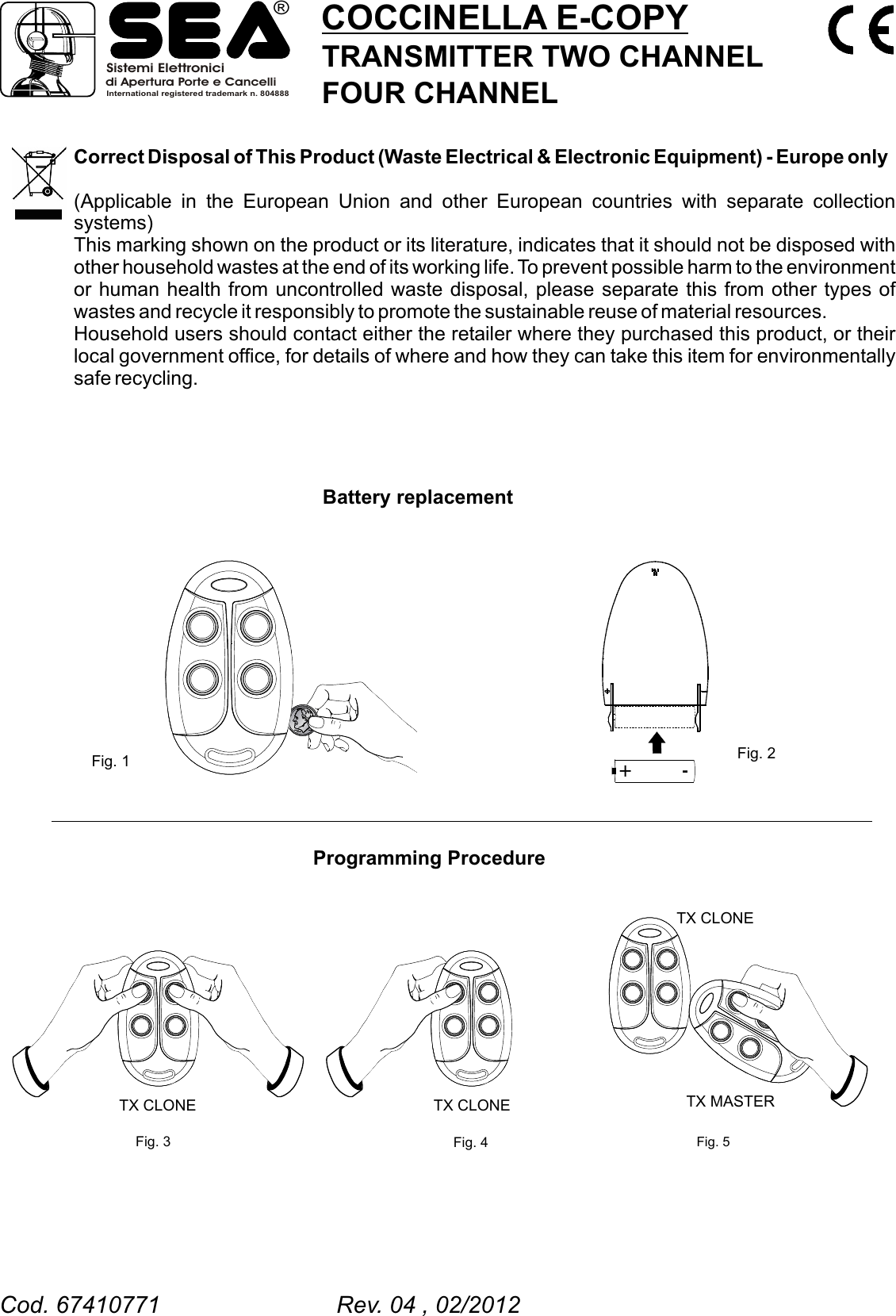

Correct Disposal of This Product (Waste Electrical & Electronic Equipment) - Europe only(Applicable in the European Union and other European countries with separate collection systems)This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Battery replacement  Programming ProcedureFig. 1 Fig. 2Fig. 3 Fig. 4TX CLONE TX CLONE+ -COCCINELLA E-COPYTRANSMITTER TWO CHANNELFOUR CHANNELFig. 5TX CLONETX MASTERSistemi Elettronicidi Apertura Porte e CancelliInternational registered trademark n. 804888®Cod. 67410771                           Rev. 04 , 02/2012

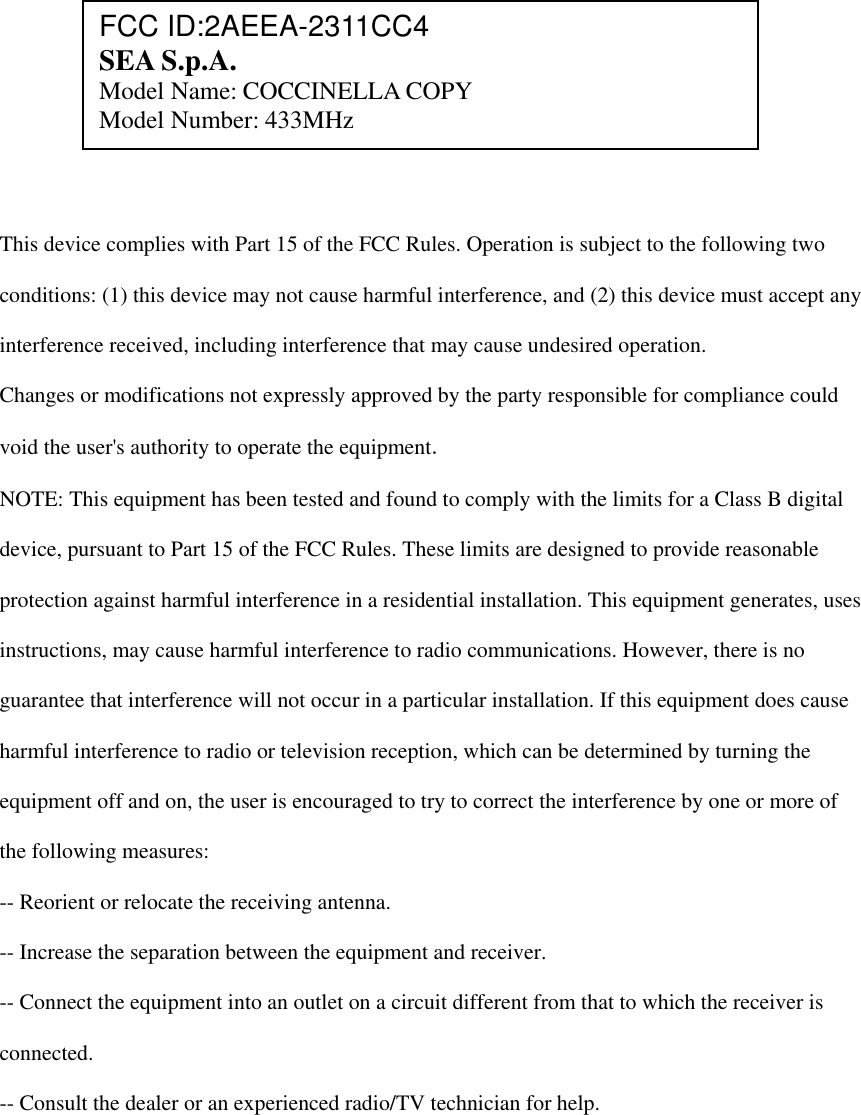

            This device complies with Part 15 of the FCC Rules. Operation is subject to the following two  conditions: (1) this device may not cause harmful interference, and (2) this device must accept any  interference received, including interference that may cause undesired operation.  Changes or modifications not expressly approved by the party responsible for compliance could  void the user's authority to operate the equipment.  NOTE: This equipment has been tested and found to comply with the limits for a Class B digital  device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable  protection against harmful interference in a residential installation. This equipment generates, uses  instructions, may cause harmful interference to radio communications. However, there is no  guarantee that interference will not occur in a particular installation. If this equipment does cause  harmful interference to radio or television reception, which can be determined by turning the  equipment off and on, the user is encouraged to try to correct the interference by one or more of  the following measures:  -- Reorient or relocate the receiving antenna.  -- Increase the separation between the equipment and receiver.  -- Connect the equipment into an outlet on a circuit different from that to which the receiver is  connected.  -- Consult the dealer or an experienced radio/TV technician for help.  FCC ID:2AEEA-2311CC4 SEA S.p.A. Model Name: COCCINELLA COPY Model Number: 433MHz
