SEECODE 3060101 Bluetooth Handfree Kit User Manual

SEECODE Co., Ltd. Bluetooth Handfree Kit

User Manual

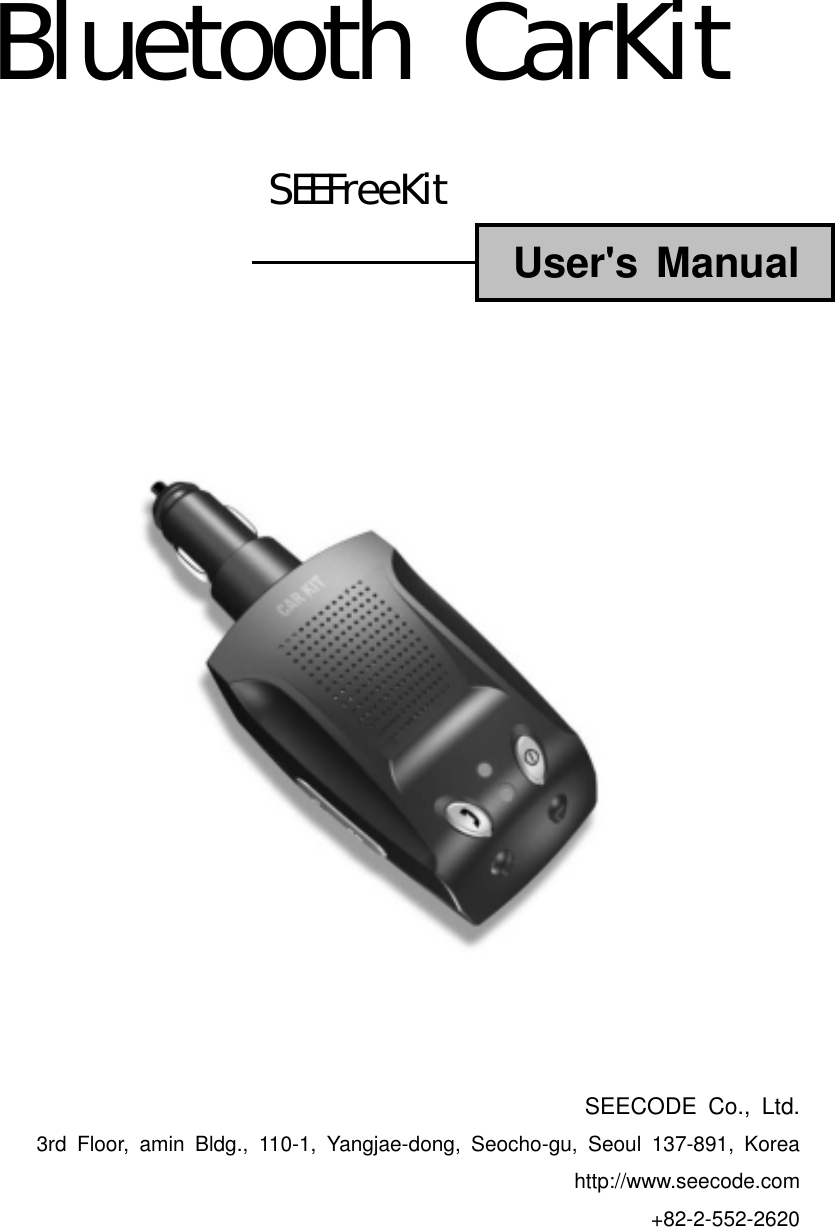

Bluetooth CarKitSEEFreeKitUser's ManualSEECODE Co., Ltd.3rd Floor, amin Bldg., 110-1, Yangjae-dong, Seocho-gu, Seoul 137-891, Koreahttp://www.seecode.com+82-2-552-2620

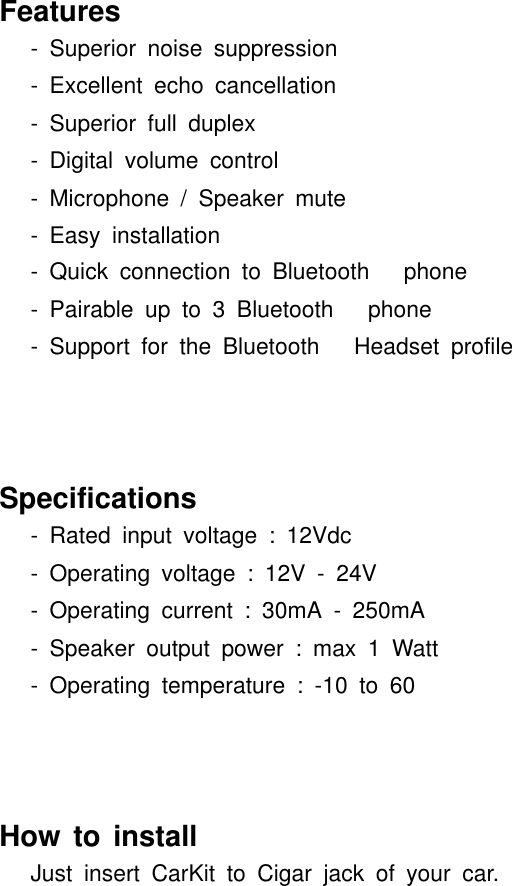

Features- Superior noise suppression- Excellent echo cancellation- Superior full duplex- Digital volume control- Microphone / Speaker mute- Easy installation- Quick connection to Bluetooth phone- Pairable up to 3 Bluetooth phone- Support for the Bluetooth Headset profileSpecifications- Rated input voltage : 12Vdc- Operating voltage : 12V - 24V- Operating current : 30mA - 250mA- Speaker output power : max 1 Watt- Operating temperature : -10 to 60How to installJust insert CarKit to Cigar jack of your car.

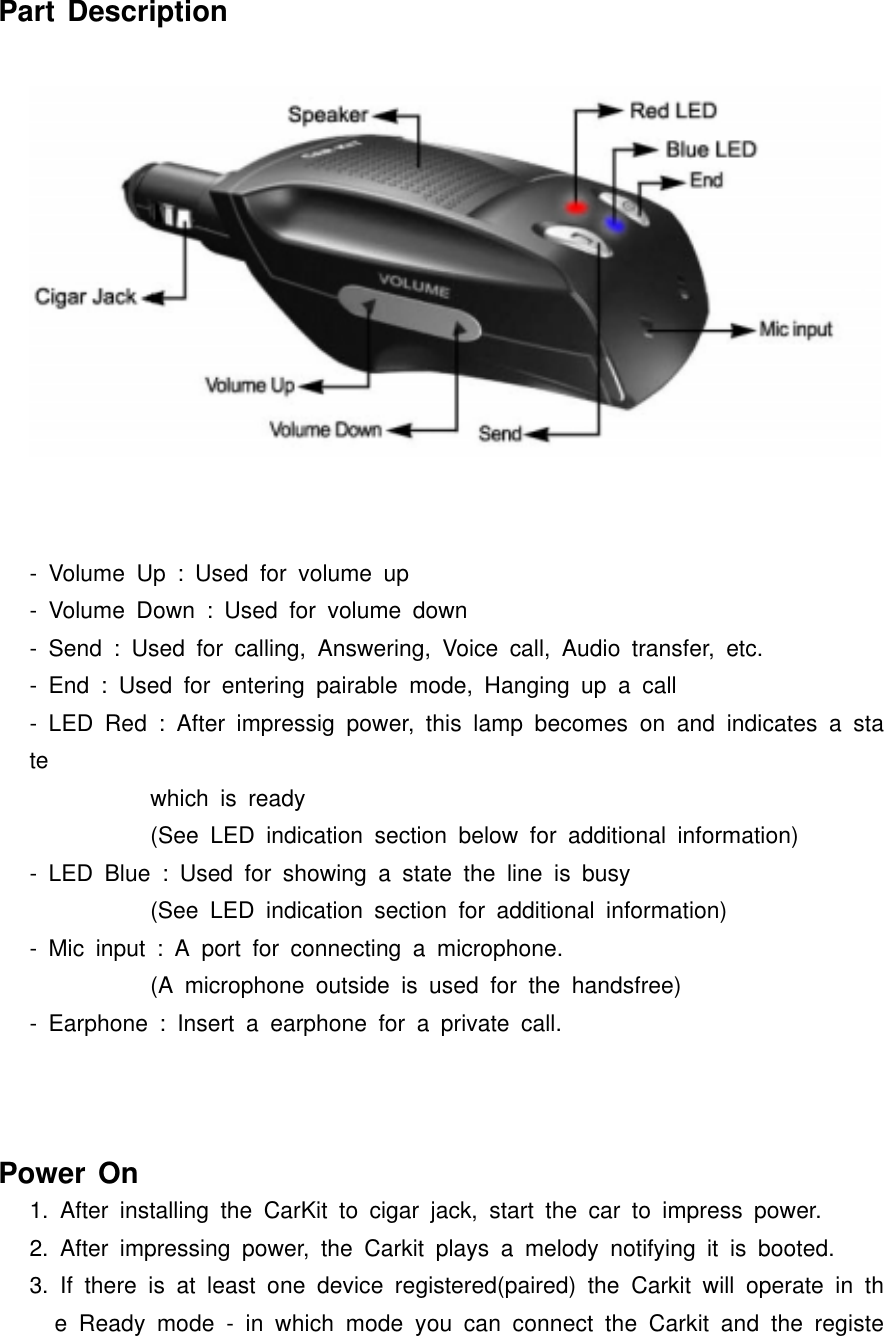

Part Description- Volume Up : Used for volume up- Volume Down : Used for volume down- Send : Used for calling, Answering, Voice call, Audio transfer, etc.- End : Used for entering pairable mode, Hanging up a call- LED Red : After impressig power, this lamp becomes on and indicates a state which is ready(See LED indication section below for additional information)- LED Blue : Used for showing a state the line is busy (See LED indication section for additional information)- Mic input : A port for connecting a microphone. (A microphone outside is used for the handsfree)- Earphone : Insert a earphone for a private call.Power On1. After installing the CarKit to cigar jack, start the car to impress power.2. After impressing power, the Carkit plays a melody notifying it is booted.3. If there is at least one device registered(paired) the Carkit will operate in the Ready mode - in which mode you can connect the Carkit and the registe

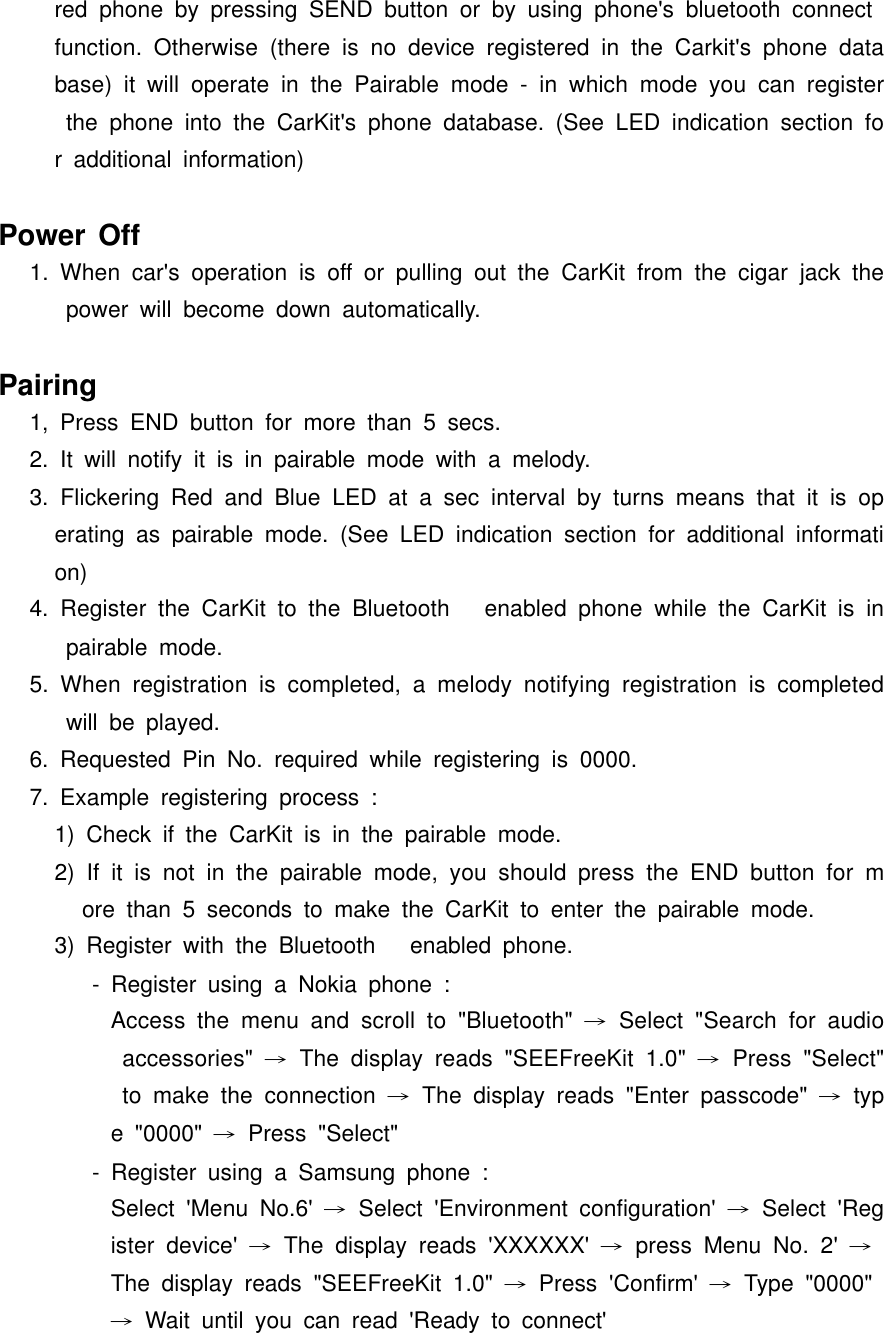

red phone by pressing SEND button or by using phone's bluetooth connect function. Otherwise (there is no device registered in the Carkit's phone database) it will operate in the Pairable mode - in which mode you can register the phone into the CarKit's phone database. (See LED indication section for additional information)Power Off1. When car's operation is off or pulling out the CarKit from the cigar jack the power will become down automatically.Pairing1, Press END button for more than 5 secs.2. It will notify it is in pairable mode with a melody.3. Flickering Red and Blue LED at a sec interval by turns means that it is operating as pairable mode. (See LED indication section for additional information)4. Register the CarKit to the Bluetooth enabled phone while the CarKit is in pairable mode.5. When registration is completed, a melody notifying registration is completed will be played.6. Requested Pin No. required while registering is 0000.7. Example registering process :1) Check if the CarKit is in the pairable mode.2) If it is not in the pairable mode, you should press the END button for more than 5 seconds to make the CarKit to enter the pairable mode.3) Register with the Bluetooth enabled phone.- Register using a Nokia phone :Access the menu and scroll to "Bluetooth" → Select "Search for audio accessories" → The display reads "SEEFreeKit 1.0" → Press "Select" to make the connection → The display reads "Enter passcode" → type "0000" → Press "Select"- Register using a Samsung phone :Select 'Menu No.6' → Select 'Environment configuration' → Select 'Register device' → The display reads 'XXXXXX' → press Menu No. 2' →The display reads "SEEFreeKit 1.0" → Press 'Confirm' → Type "0000" → Wait until you can read 'Ready to connect'

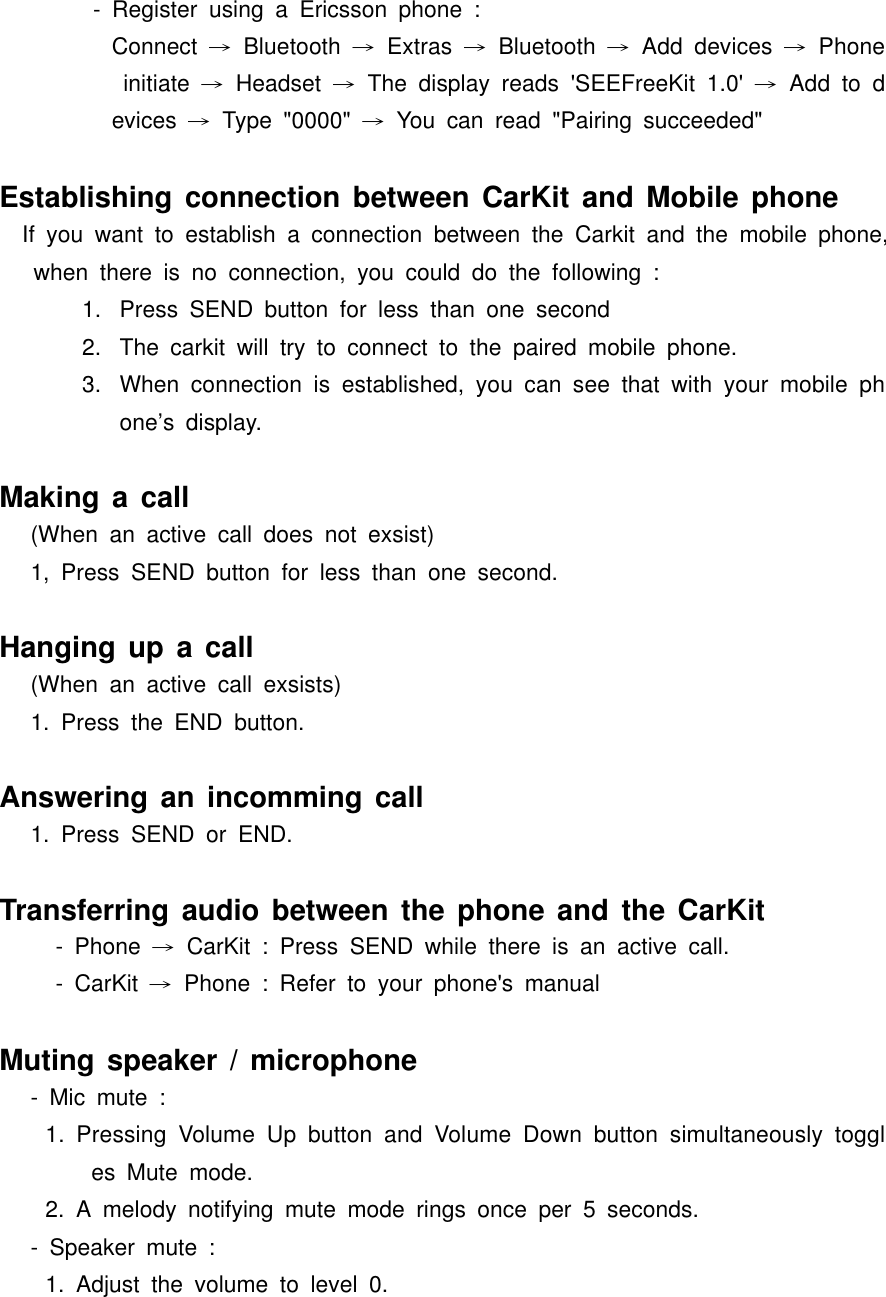

- Register using a Ericsson phone :Connect → Bluetooth → Extras → Bluetooth → Add devices → Phone initiate → Headset → The display reads 'SEEFreeKit 1.0' → Add to devices → Type "0000" → You can read "Pairing succeeded"Establishing connection between CarKit and Mobile phone If you want to establish a connection between the Carkit and the mobile phone, when there is no connection, you could do the following :1. Press SEND button for less than one second2. The carkit will try to connect to the paired mobile phone.3. When connection is established, you can see that with your mobile phone’s display.Making a call(When an active call does not exsist)1, Press SEND button for less than one second.Hanging up a call(When an active call exsists)1. Press the END button.Answering an incomming call1. Press SEND or END.Transferring audio between the phone and the CarKit- Phone → CarKit : Press SEND while there is an active call.- CarKit → Phone : Refer to your phone's manualMuting speaker / microphone- Mic mute :1. Pressing Volume Up button and Volume Down button simultaneously toggles Mute mode.2. A melody notifying mute mode rings once per 5 seconds.- Speaker mute :1. Adjust the volume to level 0.

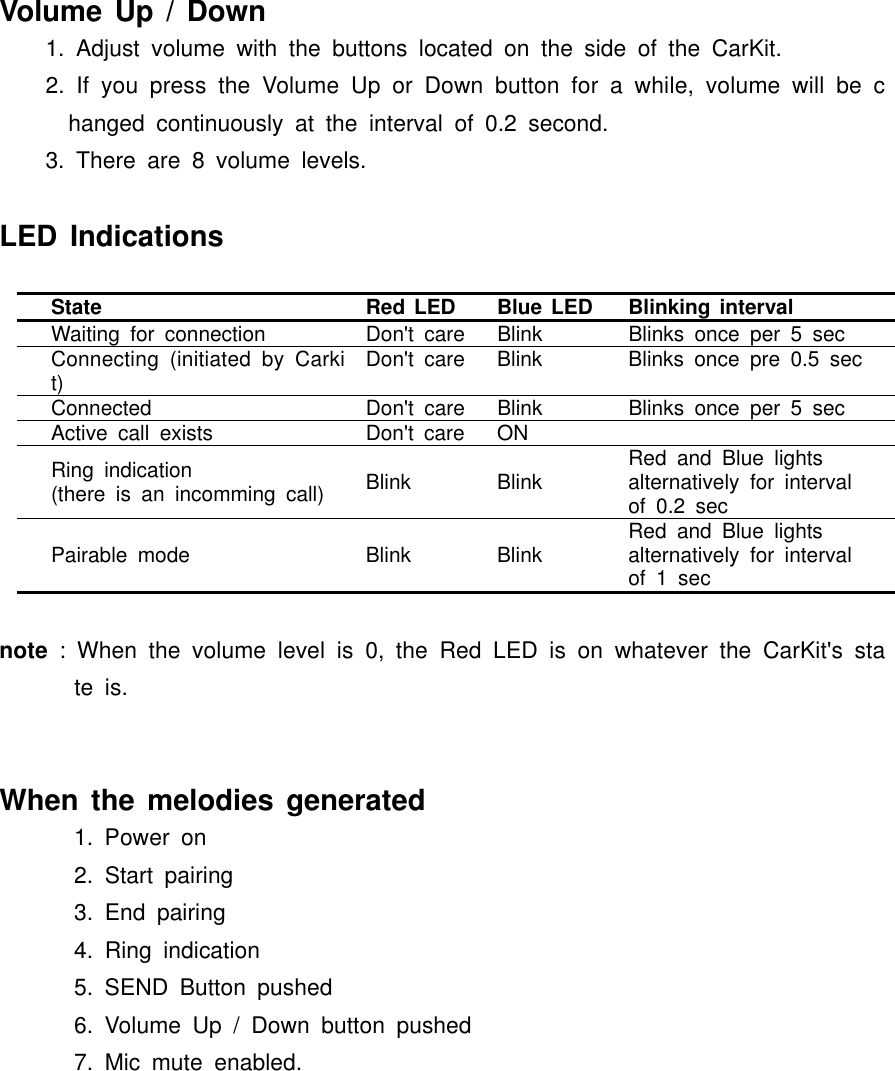

Volume Up / Down1. Adjust volume with the buttons located on the side of the CarKit.2. If you press the Volume Up or Down button for a while, volume will be changed continuously at the interval of 0.2 second.3. There are 8 volume levels.LED IndicationsState Red LED Blue LED Blinking intervalWaiting for connection Don't care Blink Blinks once per 5 secConnecting (initiated by Carkit) Don't care Blink Blinks once pre 0.5 secConnected Don't care Blink Blinks once per 5 secActive call exists Don't care ONRing indication (there is an incomming call) Blink Blink Red and Blue lights alternatively for interval of 0.2 secPairable mode Blink Blink Red and Blue lightsalternatively for interval of 1 secnote : When the volume level is 0, the Red LED is on whatever the CarKit's state is.When the melodies generated1. Power on2. Start pairing3. End pairing4. Ring indication5. SEND Button pushed6. Volume Up / Down button pushed7. Mic mute enabled.

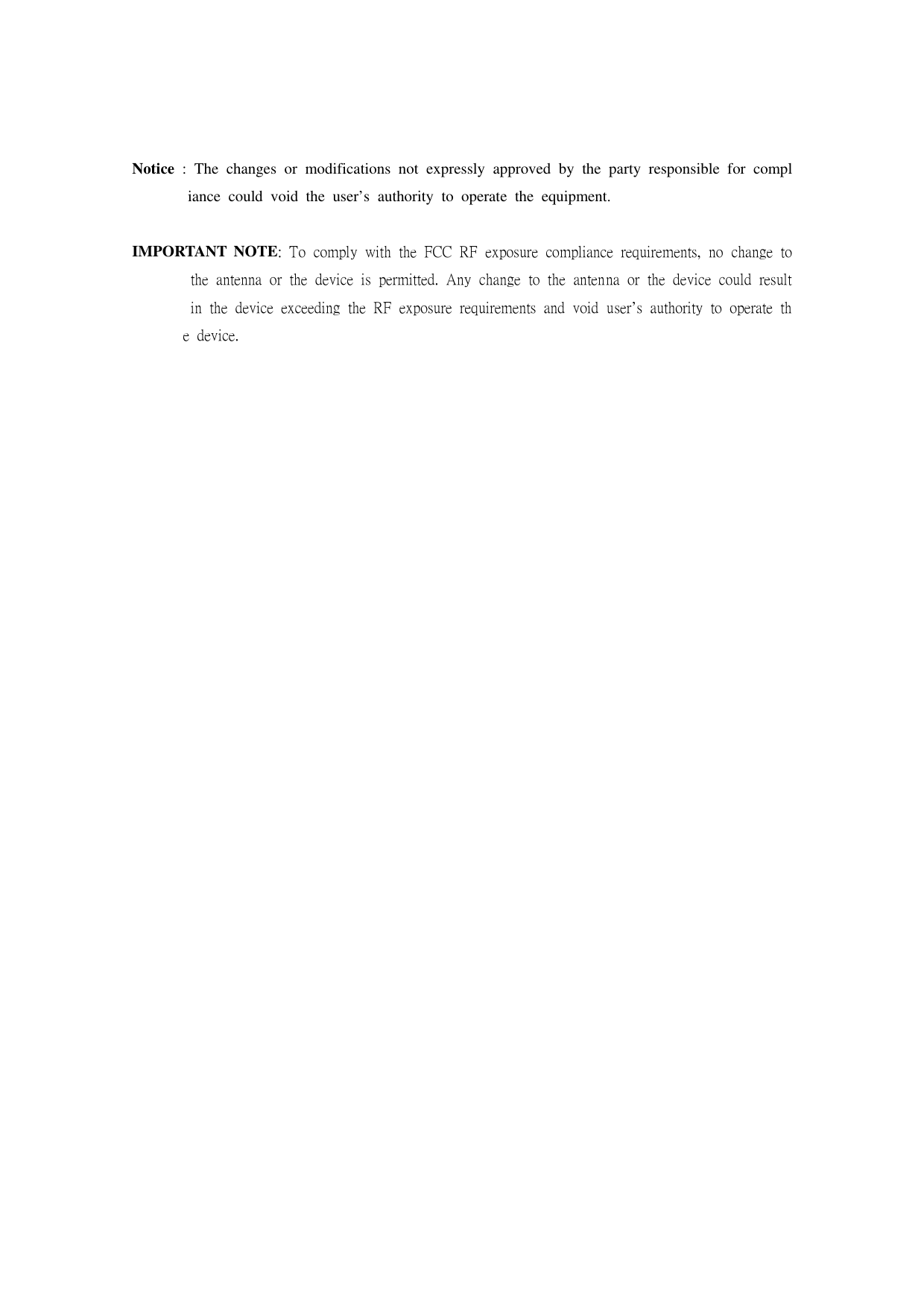

Notice : The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.IMPORTANT NOTE: To comply with the FCC RF exposure compliance requirements, no change to the antenna or the device is permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure requirements and void user’s authority to operate the device.
