SEECODE SFK404 VISOR (Bluetooth Handsfree Carkit) User Manual

SEECODE Co., Ltd. VISOR (Bluetooth Handsfree Carkit) Users Manual

Contents

Users Manual

●Be sure to read this user manual before using the VISOR.●Please keep this manual as it may be useful later.User s ManualBluetooth Speaker PhoneBluetooth Speaker Phone

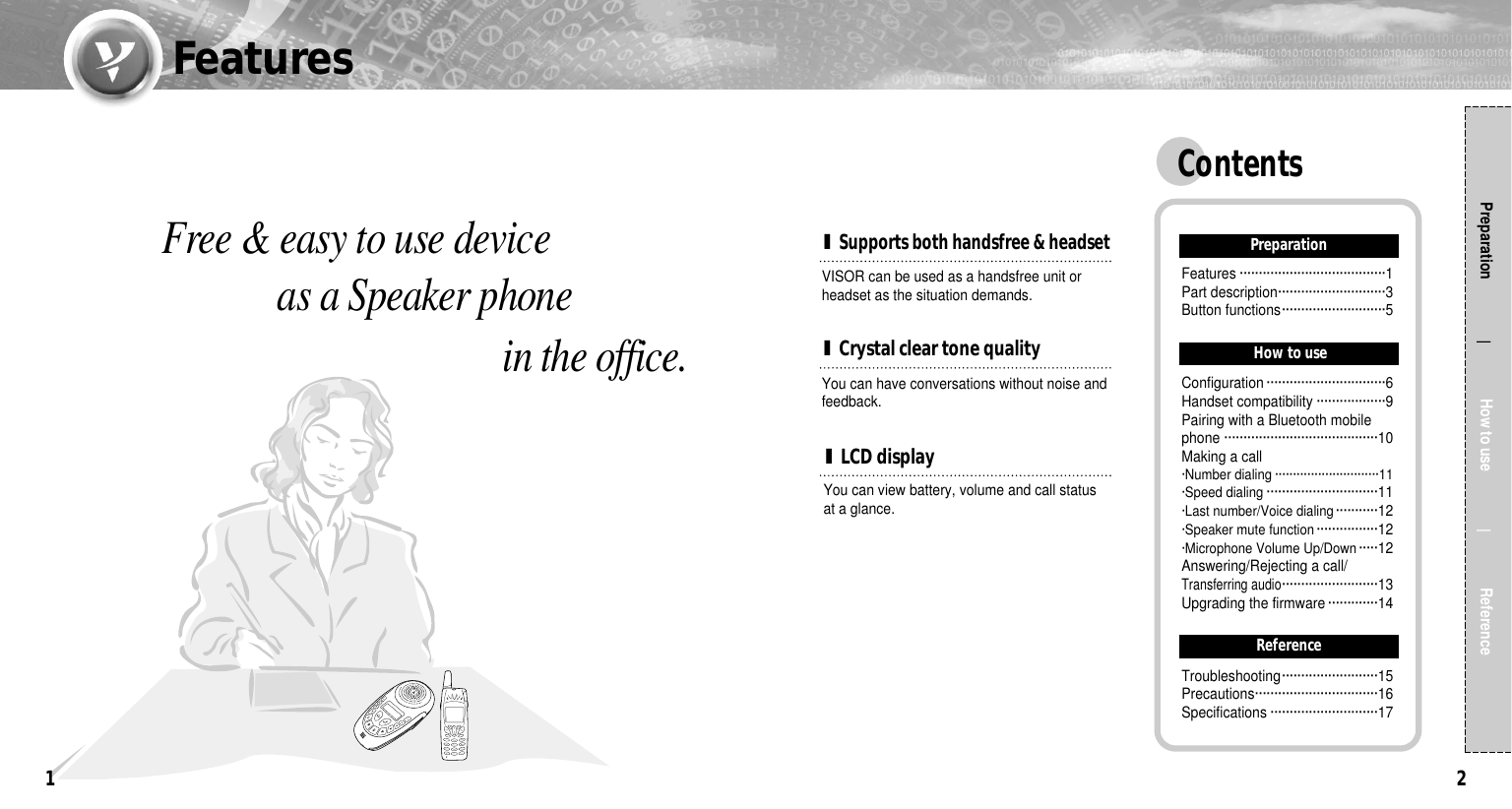

2Free & easy to use device as a Speaker phone in the office.Preparation How to use Reference1I LCD displayYou can have conversations without noise andfeedback.I Crystal clear tone qualityVISOR can be used as a handsfree unit orheadset as the situation demands.I Supports both handsfree & headsetYou can view battery, volume and call statusat a glance.ContentsPreparationFeatures ······································1Part description····························3Button functions···························5How to useConfiguration ·······························6Handset compatibility ··················9Pairing with a Bluetooth mobilephone ········································10Making a call·Number dialing ·····························11·Speed dialing ·····························11·Last number/Voice dialing···········12·Speaker mute function················12·Microphone Volume Up/Down·····12Answering/Rejecting a call/Transferring audio·························13Upgrading the firmware ·············14ReferenceTroubleshooting·························15Precautions································16Specifications ····························17Features

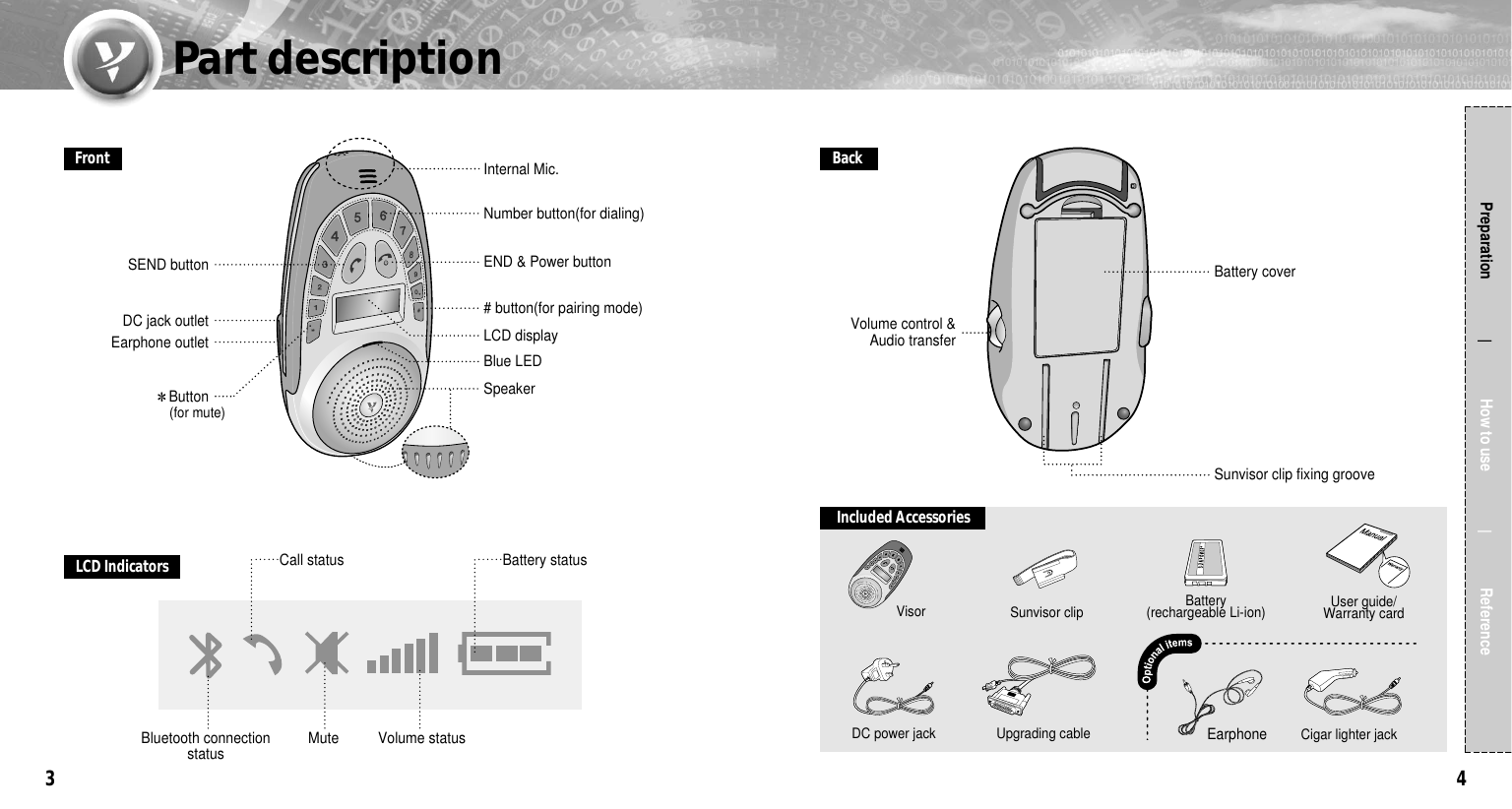

43Front BackLCD IndicatorsSpeakerCall statusBluetooth connectionstatus Volume statusInternal Mic.Number button(for dialing)END & Power buttonSEND buttonDC jack outletEarphone outlet�Button(for mute)# button(for pairing mode)LCD displayPreparation How to use ReferenceBlue LEDBattery coverSunvisor clip fixing grooveVolume control & Audio transferIncluded AccessoriesVisorUpgrading cable Cigar lighter jackDC power jackSunvisor clip User guide/Warranty cardBattery (rechargeable Li-ion)EarphoneBattery statusMute Part description

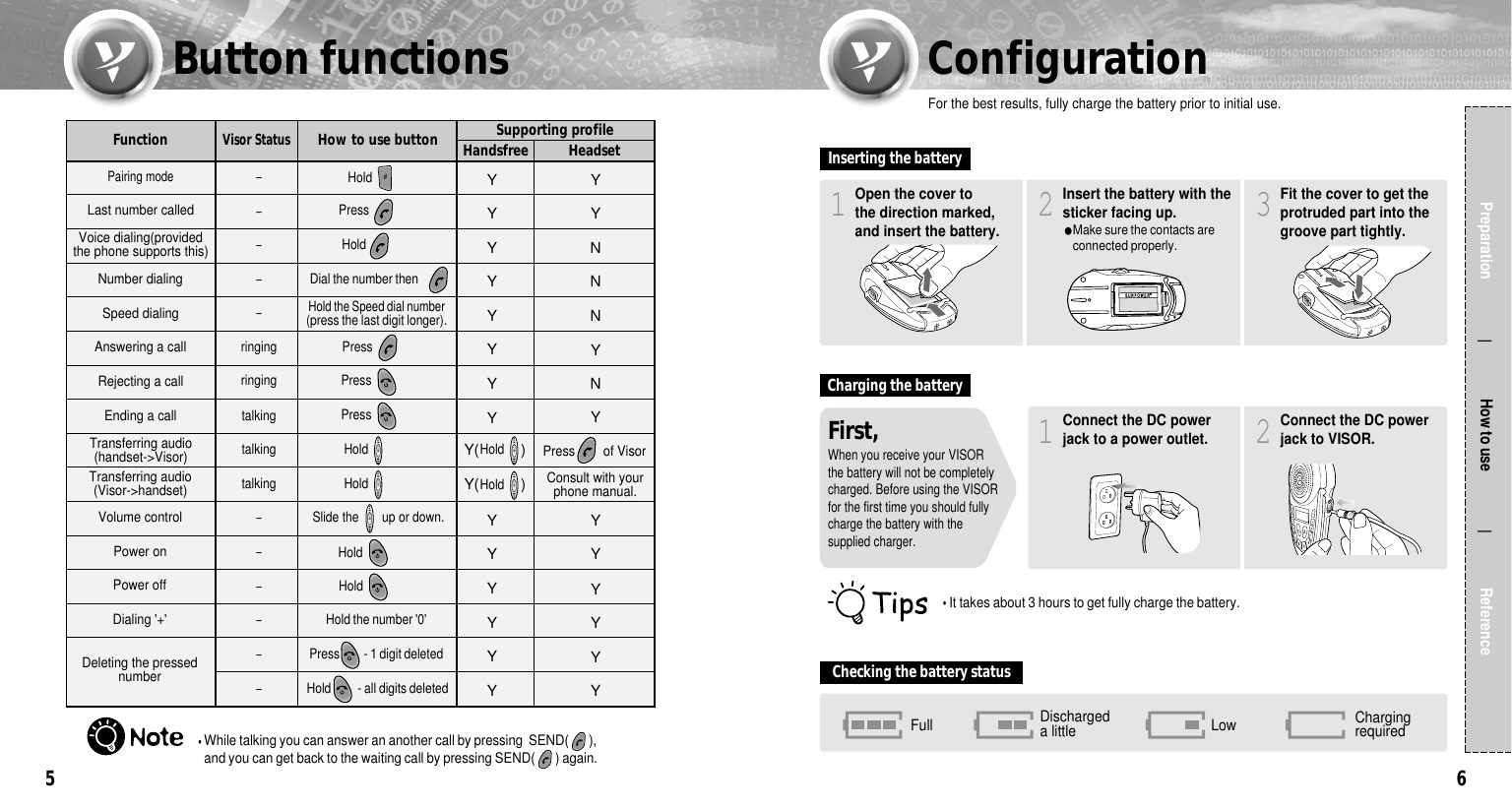

65Preparation How to use ReferencePress HoldHoldHoldVisor StatusFunction How to use button Supporting profileHandsfree HeadsetDial the number then Hold the Speed dial number(press the last digit longer).PressPressPressHoldHold-YYYYYNYNYNYYYNYYY( )Press of VisorConsult with yourphone manual.YYYYYYYYYYYY--ringingringingtalkingtalkingtalking--Rejecting a callEnding a callTransferring audio(handset->Visor)Transferring audio (Visor->handset)Slide the up or down.-Volume control-Power onHoldHold the number '0'Press - 1 digit deletedHold - all digits deleted ----Power offDialing '+' Deleting the pressednumber Pairing modeLast number calledVoice dialing(provided the phone supports this)Number dialingSpeed dialingAnswering a callInserting the batteryOpen the cover to the direction marked, and insert the battery.1Insert the battery with thesticker facing up.●Make sure the contacts areconnected properly.2Fit the cover to get theprotruded part into thegroove part tightly.3Charging the batteryChecking the battery statusConnect the DC powerjack to a power outlet.1Connect the DC powerjack to VISOR.2For the best results, fully charge the battery prior to initial use.�It takes about 3 hours to get fully charge the battery.Full Dischargeda little Low ChargingrequiredButton functions ConfigurationFirst, When you receive your VISORthe battery will not be completelycharged. Before using the VISORfor the first time you should fullycharge the battery with thesupplied charger.�While talking you can answer an another call by pressing SEND( ), and you can get back to the waiting call by pressing SEND( ) again. HoldY( )Hold

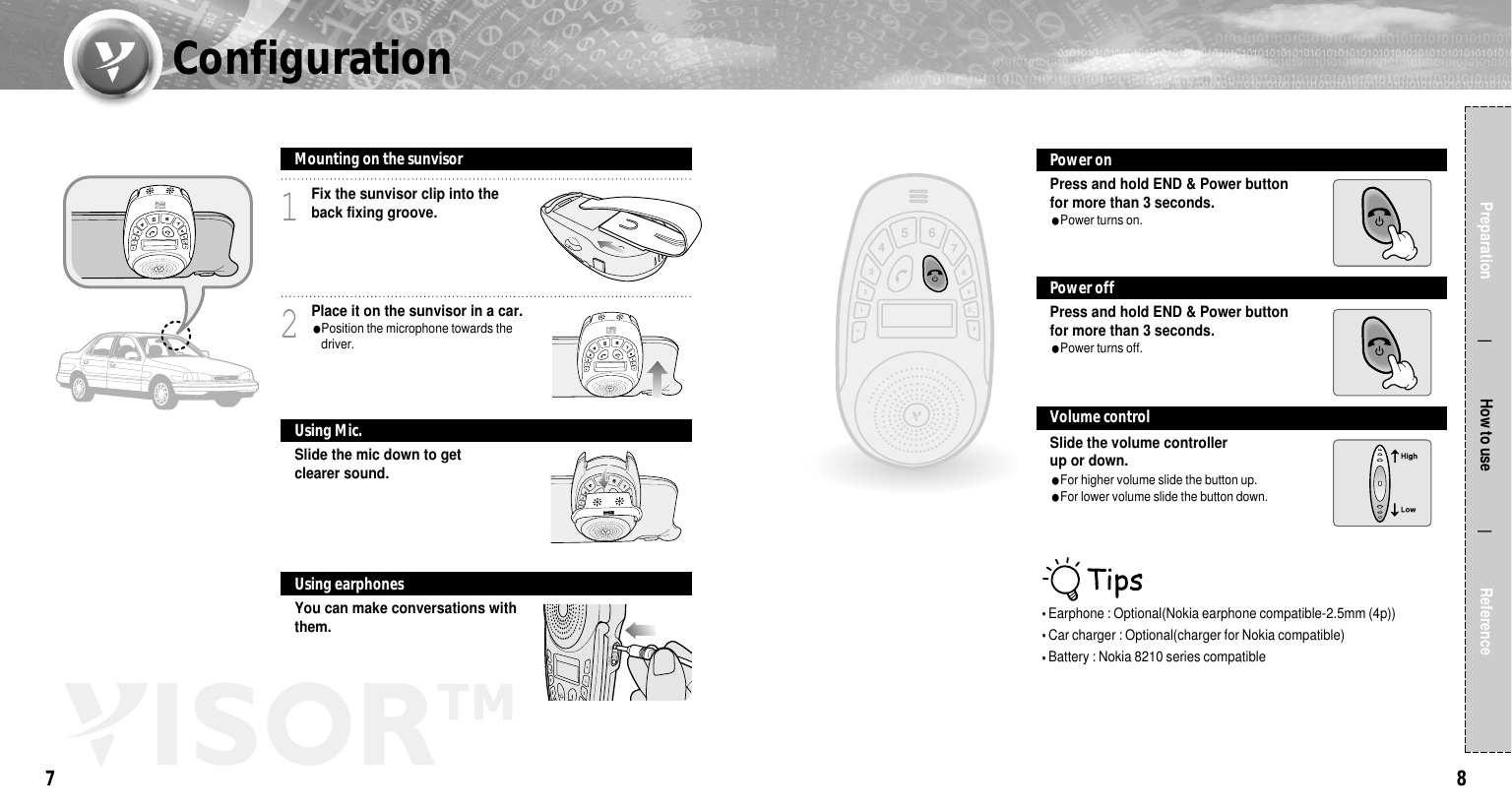

87Preparation How to use ReferenceFix the sunvisor clip into theback fixing groove.1Place it on the sunvisor in a car.●Position the microphone towards thedriver.2Slide the mic down to getclearer sound.Mounting on the sunvisorUsing Mic.You can make conversations withthem.Using earphones�Earphone : Optional(Nokia earphone compatible-2.5mm (4p))�Car charger : Optional(charger for Nokia compatible)�Battery : Nokia 8210 series compatiblePress and hold END & Power button for more than 3 seconds.●Power turns on.Power onPress and hold END & Power buttonfor more than 3 seconds.●Power turns off.Power offSlide the volume controller up or down.●For higher volume slide the button up.●For lower volume slide the button down.Volume controlConfiguration

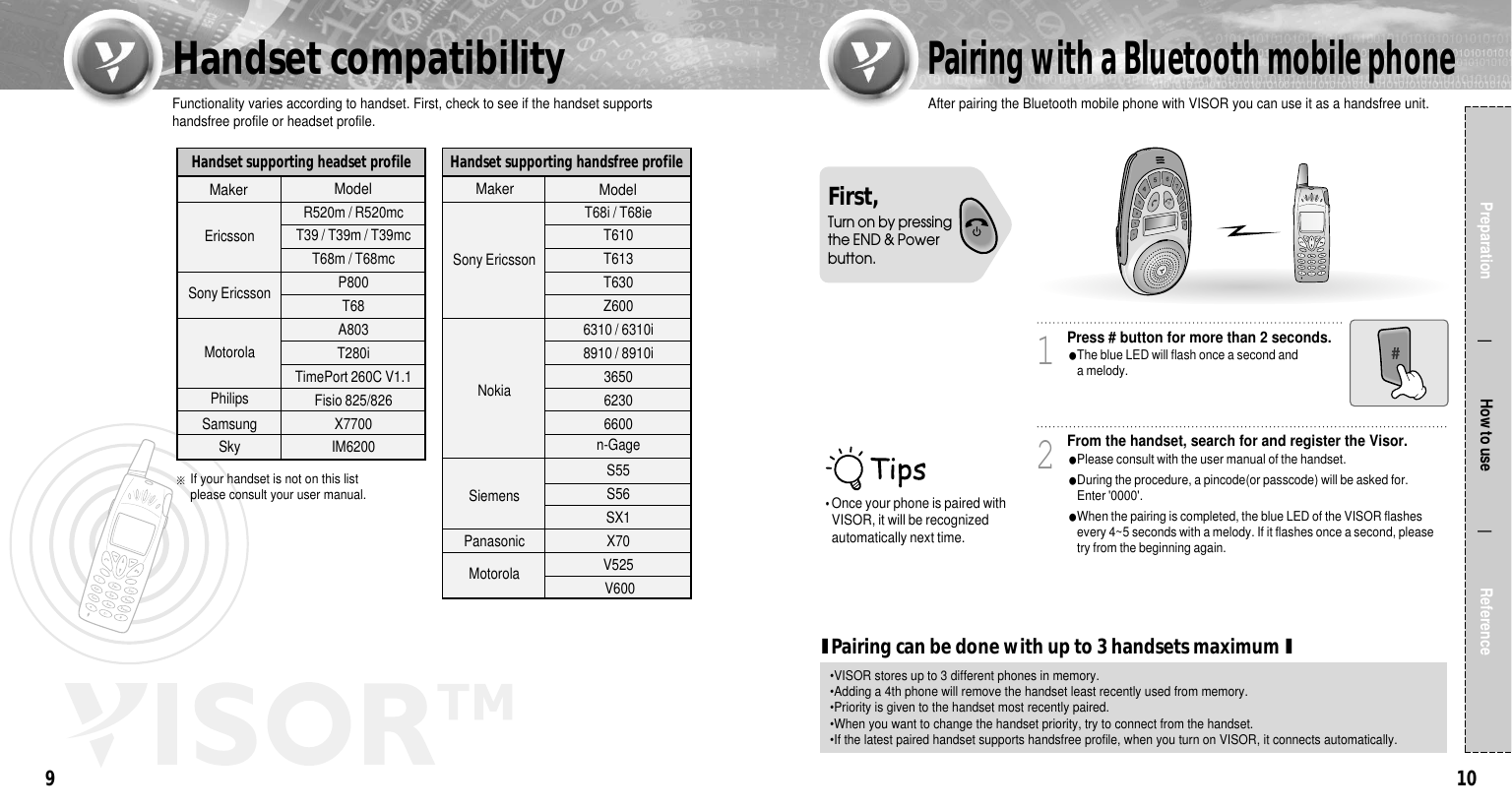

10Preparation How to use ReferenceFunctionality varies according to handset. First, check to see if the handset supportshandsfree profile or headset profile.Press # button for more than 2 seconds.●The blue LED will flash once a second and a melody. 1From the handset, search for and register the Visor.●Please consult with the user manual of the handset. ●During the procedure, a pincode(or passcode) will be asked for.Enter '0000'.●When the pairing is completed, the blue LED of the VISOR flashesevery 4~5 seconds with a melody. If it flashes once a second, pleasetry from the beginning again.2After pairing the Bluetooth mobile phone with VISOR you can use it as a handsfree unit.First, Turn on by pressingthe END & Powerbutton.IPairing can be done with up to 3 handsets maximum I•VISOR stores up to 3 different phones in memory.•Adding a 4th phone will remove the handset least recently used from memory.•Priority is given to the handset most recently paired.•When you want to change the handset priority, try to connect from the handset.•If the latest paired handset supports handsfree profile, when you turn on VISOR, it connects automatically.9Handset compatibilityPairing with a Bluetooth mobile phone�Once your phone is paired withVISOR, it will be recognizedautomatically next time.If your handset is not on this listplease consult your user manual.Handset supporting headset profileEricssonSony EricssonMotorolaPhilipsSamsungSkyModelHandset supporting handsfree profile Motorola T68i / T68ie T610 T613 T630 Z600 6310 / 6310i 8910 / 8910i365062306600n-GageS55S56SX1X70V525V600Maker ModelR520m / R520mcT39 / T39m / T39mcT68m / T68mcP800 T68A803T280iTimePort 260C V1.1Fisio 825/826X7700IM6200MakerNokiaSony EricssonSiemensPanasonic

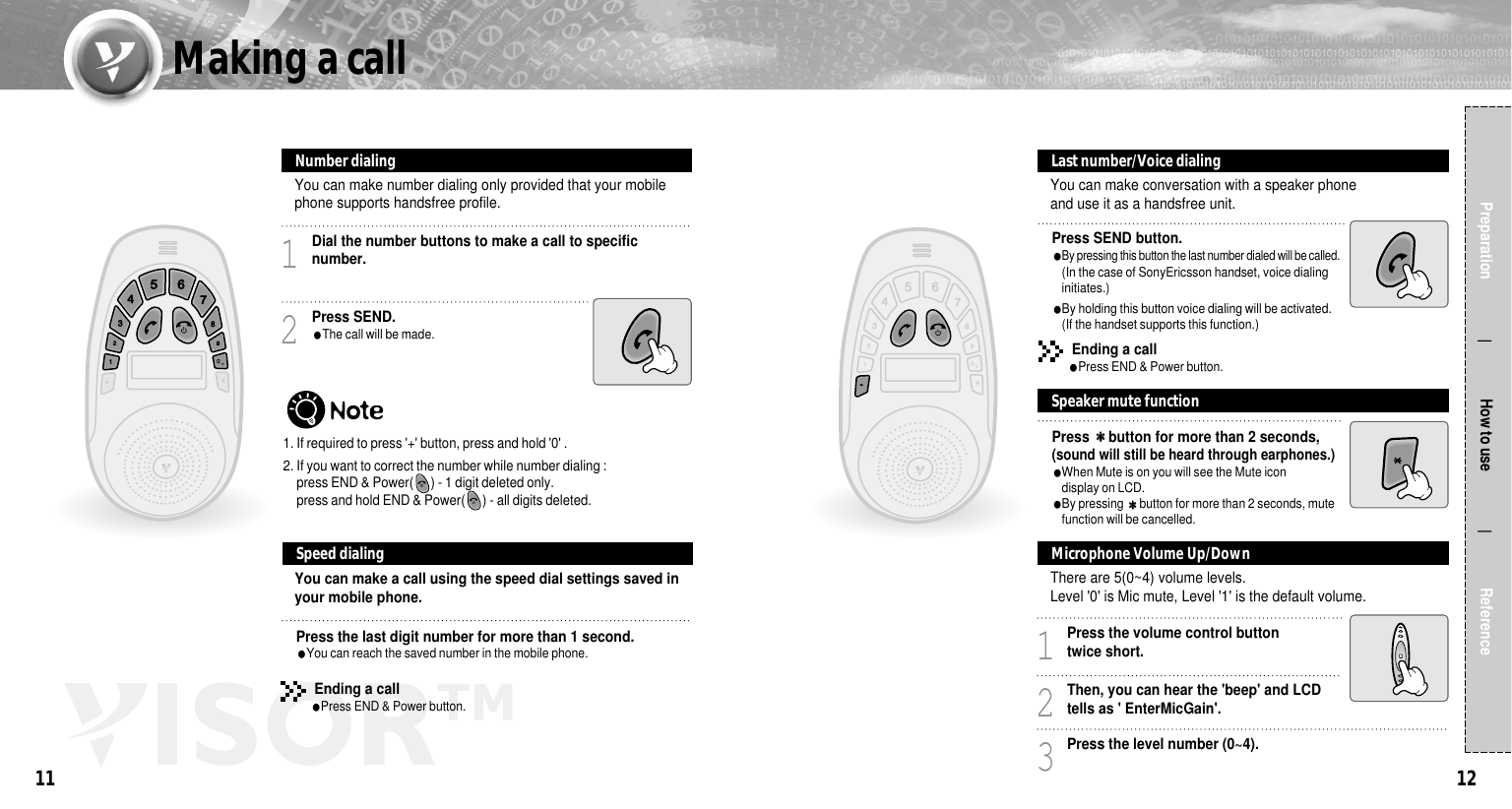

1211Preparation How to use ReferencePress SEND button.●By pressing this button the last number dialed will be called. (In the case of SonyEricsson handset, voice dialinginitiates.)●By holding this button voice dialing will be activated. (If the handset supports this function.)You can make conversation with a speaker phone and use it as a handsfree unit.Last number/Voice dialingThere are 5(0~4) volume levels. Level '0' is Mic mute, Level '1' is the default volume.Microphone Volume Up/DownEnding a call●Press END & Power button.Dial the number buttons to make a call to specificnumber.1Press SEND.●The call will be made.2You can make number dialing only provided that your mobilephone supports handsfree profile.Number dialingMaking a callPress ��button for more than 2 seconds,(sound will still be heard through earphones.)●When Mute is on you will see the Mute icon display on LCD.●By pressing ��button for more than 2 seconds, mutefunction will be cancelled.Speaker mute function Speed dialingEnding a call●Press END & Power button.You can make a call using the speed dial settings saved inyour mobile phone.Press the last digit number for more than 1 second.●You can reach the saved number in the mobile phone.1. If required to press '+' button, press and hold '0' .2. If you want to correct the number while number dialing : press END & Power( ) - 1 digit deleted only.press and hold END & Power( ) - all digits deleted.Press the volume control button twice short. 1Then, you can hear the 'beep' and LCD tells as ' EnterMicGain'.2Press the level number (0~4).3

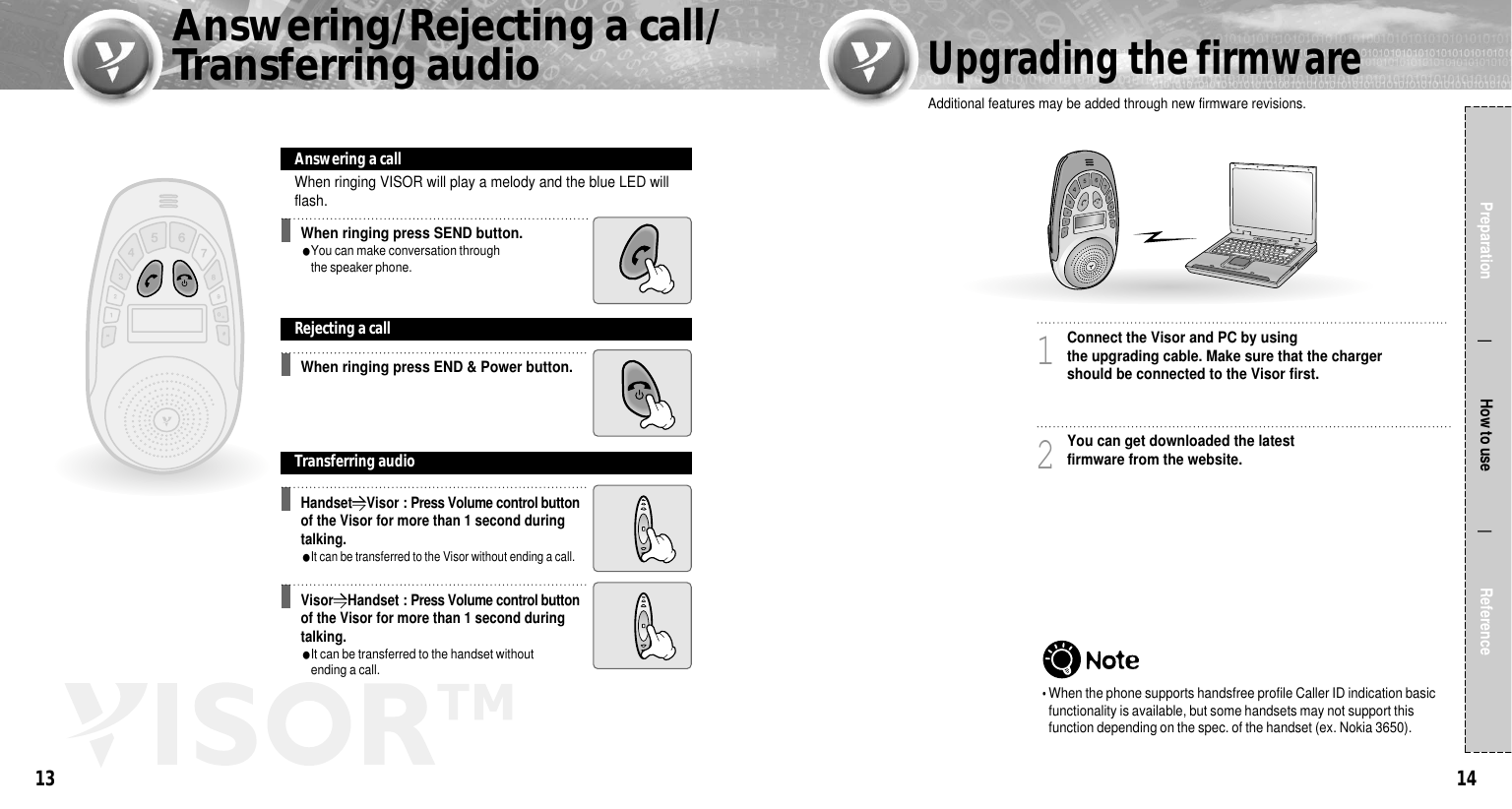

1413Preparation How to use ReferenceWhen ringing VISOR will play a melody and the blue LED willflash.Connect the Visor and PC by using the upgrading cable. Make sure that the chargershould be connected to the Visor first.1You can get downloaded the latestfirmware from the website.2Additional features may be added through new firmware revisions.When ringing press SEND button.●You can make conversation throughthe speaker phone. Answering a callWhen ringing press END & Power button.Rejecting a callTransferring audioHandset��Visor : Press Volume control buttonof the Visor for more than 1 second duringtalking.●It can be transferred to the Visor without ending a call.Visor��Handset : Press Volume control buttonof the Visor for more than 1 second duringtalking.●It can be transferred to the handset without ending a call.Answering/Rejecting a call/Transferring audioUpgrading the firmware�When the phone supports handsfree profile Caller ID indication basicfunctionality is available, but some handsets may not support thisfunction depending on the spec. of the handset (ex. Nokia 3650).

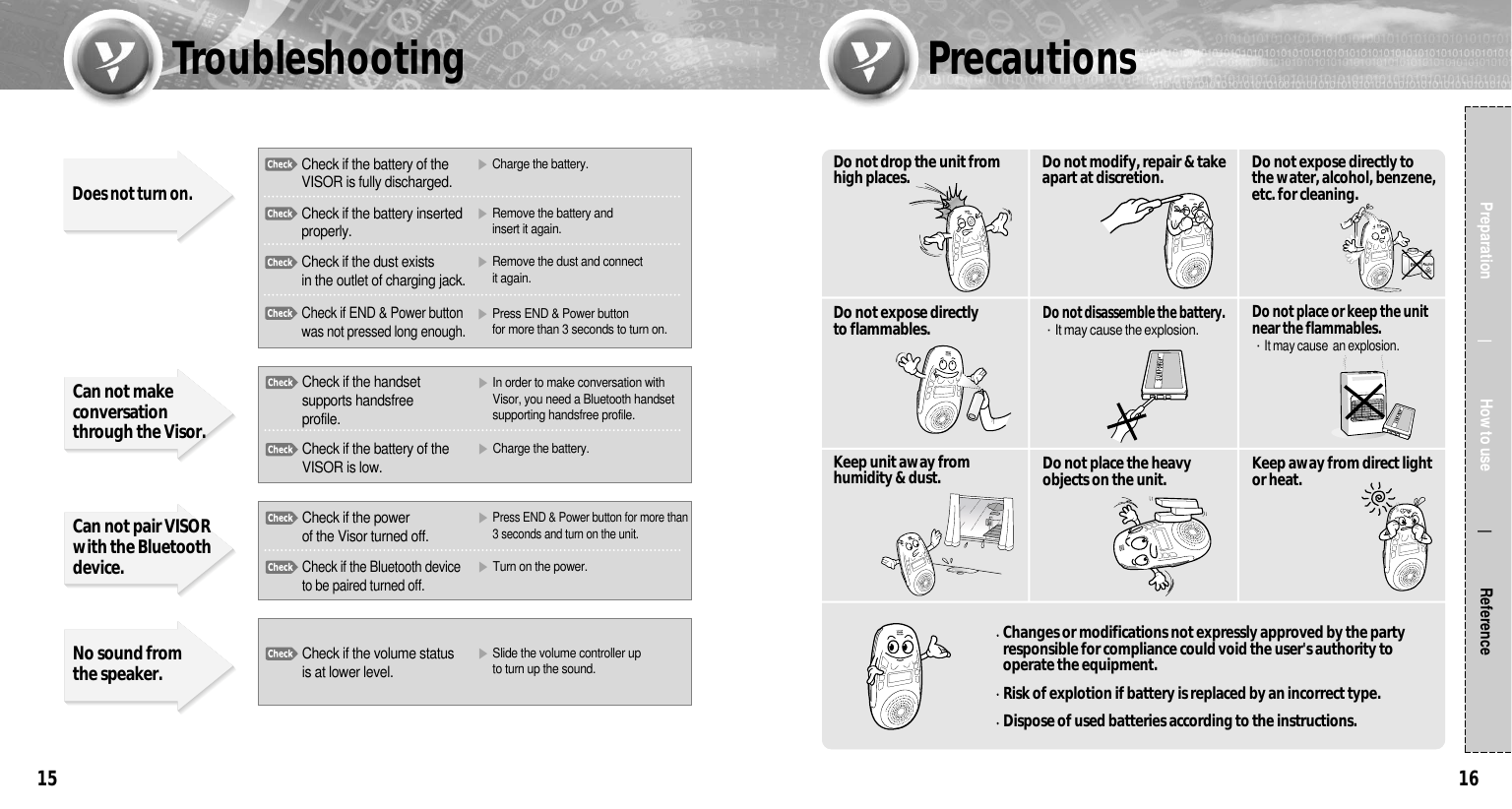

1615Preparation How to use ReferenceNo sound from the speaker. Check if the volume statusis at lower level.▶Slide the volume controller up to turn up the sound.Check if the handsetsupports handsfreeprofile.Can not makeconversationthrough the Visor.Can not pair VISORwith the Bluetoothdevice.▶In order to make conversation withVisor, you need a Bluetooth handsetsupporting handsfree profile.Check if the battery of theVISOR is low.▶Charge the battery.Check if the power of the Visor turned off.▶Press END & Power button for more than3 seconds and turn on the unit.Check if the Bluetooth deviceto be paired turned off.▶Turn on the power.Do not drop the unit fromhigh places. Do not modify, repair & takeapart at discretion.Do not expose directlyto flammables.Keep unit away fromhumidity & dust. Do not place the heavyobjects on the unit.Changes or modifications not expressly approved by the partyresponsible for compliance could void the user's authority tooperate the equipment.Risk of explotion if battery is replaced by an incorrect type.Dispose of used batteries according to the instructions.Keep away from direct lightor heat.Do not expose directly tothe water, alcohol, benzene,etc. for cleaning.Do not disassemble the battery. ∙It may cause the explosion.Do not place or keep the unitnear the flammables.∙It may cause an explosion.Does not turn on.Check if the battery of theVISOR is fully discharged.▶Charge the battery.Check if the battery insertedproperly.▶Remove the battery andinsert it again.Check if the dust exists in the outlet of charging jack.▶Remove the dust and connectit again.Check if END & Power buttonwas not pressed long enough.▶Press END & Power button for more than 3 seconds to turn on.Troubleshooting Precautions

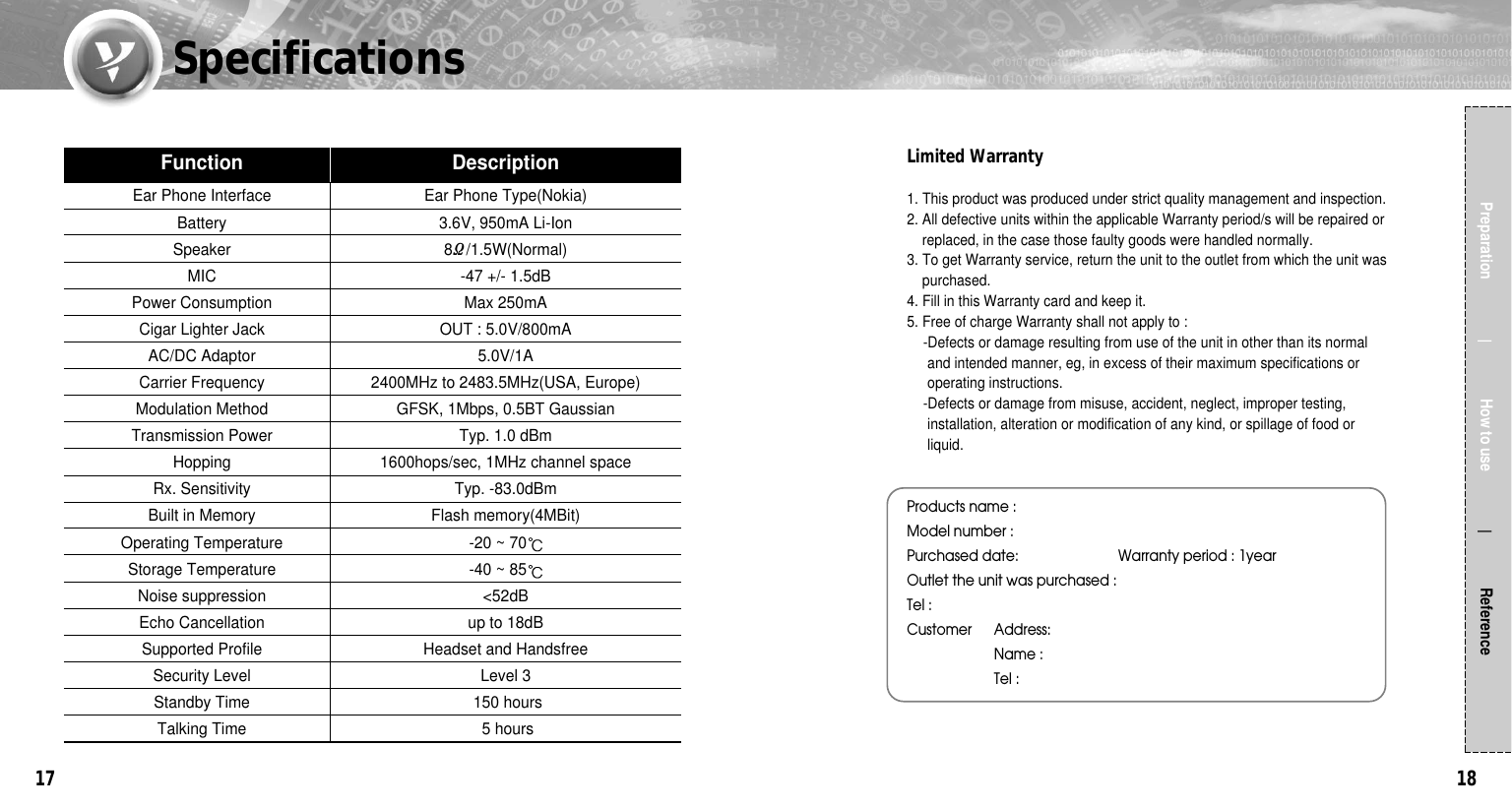

1817Preparation How to use ReferenceEar Phone Interface Ear Phone Type(Nokia)Battery 3.6V, 950mA Li-IonSpeaker 8Ω/1.5W(Normal)MIC -47 +/- 1.5dBPower Consumption Max 250mACigar Lighter Jack OUT : 5.0V/800mAAC/DC Adaptor 5.0V/1ACarrier Frequency 2400MHz to 2483.5MHz(USA, Europe)Modulation Method GFSK, 1Mbps, 0.5BT GaussianTransmission Power Typ. 1.0 dBmHopping 1600hops/sec, 1MHz channel spaceRx. Sensitivity Typ. -83.0dBmBuilt in Memory Flash memory(4MBit)Operating Temperature -20 ~ 70Storage Temperature -40 ~ 85Noise suppression <52dBEcho Cancellation up to 18dBSupported Profile Headset and HandsfreeSecurity Level Level 3Standby Time 150 hoursTalking Time 5 hoursFunction DescriptionSpecificationsLimited Warranty1. This product was produced under strict quality management and inspection.2. All defective units within the applicable Warranty period/s will be repaired orreplaced, in the case those faulty goods were handled normally.3. To get Warranty service, return the unit to the outlet from which the unit waspurchased.4. Fill in this Warranty card and keep it.5. Free of charge Warranty shall not apply to :-Defects or damage resulting from use of the unit in other than its normal and intended manner, eg, in excess of their maximum specifications oroperating instructions.-Defects or damage from misuse, accident, neglect, improper testing,installation, alteration or modification of any kind, or spillage of food orliquid.Products name :Model number :Purchased date: Warranty period : 1yearOutlet the unit was purchased : Tel :Customer Address:Name :Tel :
