Introduction
Introduction

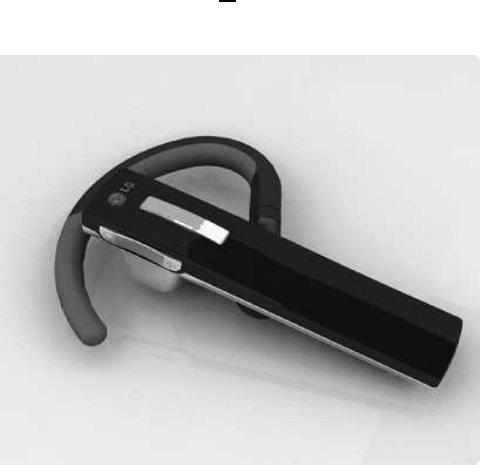

The VSH-511 Bluetooth Headset is a lightweight wireless Headset utilizing Bluetooth
technology. This product can be used as an audio accessory for devices supporting either
the Headset or Handsfree Bluetooth Profiles.
Bluetooth® is a trademark owned by Bluetooth SIG, Inc. and is used by the manufacturer
under its license term.
All brand names are the property of their respective owners.
In the Package
VSH-511
User's manual
Charging Adapter

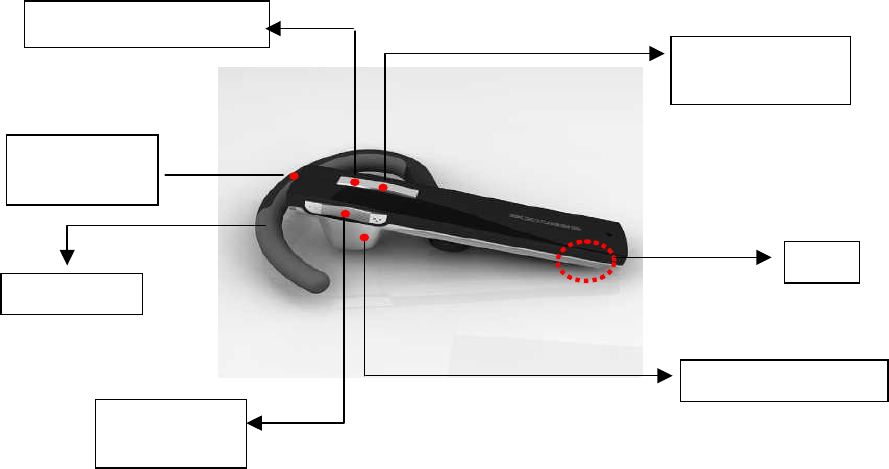

Part Description
Ear Hook
Power/Talk
Button
Ear Speaker
State & Charging LED
MIC
Volume
Button
DC Jack
Outlet
1. How to Use
Wearing the Headset
You can put on the VSH-511 either on your left or right ear.
To change ear, pull the ear hook down to the other side and turn it over the ear speaker.
And, extend the ear hook then slip it over the top of your ear, manoeuvre the speaker
gently into your ear, make fit the headset until it is held securely on your ear.
Charging
Before using your VSH-511, you need to charge it fully by plugging the charger into the DC
jack outlet. Charge the Headset for approximately 2 hours until the indicator lights go out.
Tip) Low Battery Warning
Recharge the headset when you hear a short beep at 7 second intervals. You have 5 to 7
minutes of talk time remaining once this warning indicators start.
Power On
Press and hold the Power/Talk button for more than 1 second.
Power Off
Press and hold the Power/Talk button for more than 4 seconds.
Bluetooth Pairing
1. Turn the VSH-511 on, then press and hold the Power/Talk button for at least 5
seconds until you hear a series of beeps followed by a connection signal. The blue
LED indicator light begins to flash once every second.
2. Follow the instruction guide for your phone. This usually involves going to a “setup”,
“connect”, or “Bluetooth” menu on your handset and then selecting the option to
“discover” or “add” a Bluetooth device.
3. When requested the passkey or PIN⁴, press “0000” (4 zeros). You will receive
confirmation when pairing is complete. If pairing is unsuccessful, repeat these
steps.
If pairing is successful, the blue LED indicator light will flash in standby mode every
5 seconds. If pairing fails, this will flash once every second. Please repeat the
above steps.
NOTE)
Pairing can be done with up to 3 Handsets maximum, if you add a 4th Handset,
the VSH-511 will automatically remove the registration information of the least
used
VSH-511 can be only in pairing mode when the headset turned off.
Answering a call
Press the Power/Talk button.
Ending a call
Press the Power/Talk button.
Rejecting a call
Press and hold the Power/Talk button for more than 2 seconds when ringing.
Making a call
If you make a call from the Handset, the call will (subject to phone settings) be
automatically transferred to the Headset. If not automatically transferred, you can transfer
the call manually by pressing the Power/Talk button.
Last number redialing
Press and hold the Power/Talk button for more than 2 seconds.
(This will initiate voice dialing on some Handsets.)
Voice dialing
Press the Power/Talk button.
(It’s available only when your Handset supports the voice dialing function. Please consult
your Handset’s user manual.)
Volume Control
Press the Volume Up or Down button to increase or decrease the speaker volume.
Transferring a call
To transfer a call from the Handset to the VSH-511, press the Power/Talk button while
answering. To transfer a call back to the Handset, just press the Power/Talk button again.
Call Waiting (Answering a second call without hanging up the first call)
Answer a second call by pressing the Power/Talk button while answering. Press again to
return to the first call. Press and hold the Power/Talk button for at least 2 seconds to hang
up both calls at once.
Holding Key function
To place a call on hold, press the Power/Talk button and the Volume Up & Down button
simultaneously for at least 1 second.
To turn Hold off, press these buttons again.
2. LED Indication
Function VSH-511 status LED Status
Power off Blue LED light remains on until the Talk button is
released.
Booting Blue LED light remains on until initialization completes.
Idle Blue LED light flashes on once every 7 seconds.
Operating
(Blue LED)
Discoverable Blue LED light flashes on and off every 0.5 second.
Ringing Blue LED light flashes on and off 3 times every 3
seconds until answered.
SCO Connection
(Synchronous
Connection Oriented)
Blue LED light flashes off every 7 seconds.
Low Battery Blue LED light flashes rapidly 5 times at 7 second
intervals.
Charging Blue LED light remains on. Charging
(Blue LED) Charging Completed Blue LED light remains off.
3. Summary of Button Functions
Function Current status Action
Power On Power off Press the Power/Talk button for at least 1 second.
Power Off Power on Press the Power/Talk button for at least 4 seconds.
Speaker Volume Up Power on Press the Volume Up button.
Speaker Volume Down Power on Press the Volume Down button.
Transferring a call
(Handset -> Headset) Talking Press the Power/Talk button.
Transferring a call
(Headset -> Handset) Talking Press the Power/Talk button.
Pairing Mode Power off Press the Power/Talk button for at least 5 seconds when
powered off.
Answering a call Ringing Press the Power/Talk button.
Ending a call Talking Press the Power/Talk button.
Rejecting a call Ringing Press the Power/Talk button for more than 2 seconds.
Call Waiting Mode
(Answering a second call) Talking & Ringing Press the Power/Talk button.
Call Waiting Mode
(Return to original Call) Talking Press the Power/Talk button.
Call Waiting Mode
(Hang up both calls at once) Talking Press the Power/Talk button for at least 2 seconds.
Last Number Redial Ready Press and hold the Power/Talk button for more than 2
seconds.
Voice dialing
(Mobile phone should
support) Ready Press the Power/Talk button.
Hold On Hold off Press the Power/Talk, Volume Up, and Down buttons
simultaneously.
Hold Off Hold on Press the Power/Talk, Volume Up, and Down buttons
simultaneously.
4. Specification
ITEM DESCRIPTION
Bluetooth Specification V1.2
Supported Profile Handsfree / Headset profile
Rx. Sensitivity Typ. -88 dBm
Battery 3.7V, 125mAh Li-ion
Speaker 32Ω / 11Ø
MIC -44dB / Omni directional
Standby Current 1mA (Avr.)
Talking Current 20mA (Avr.)
Standby Time Up to 150 Hr
Talking Time Up to 7 Hr
Operating Temperature -20℃ ~ 60℃
Weight 15g
Dimension 78 mm (L) x 16mm (W) x 21mm (H)
Limited Warranty
1. This product was produced under strict quality management and inspection.
2. All defective units within the applicable Warranty period/s will be repaired or replaced,
in the case those faulty goods were handled normally.
3. To get Warranty service, return the unit to the outlet from which the unit was
purchased.
4. Fill in this Warranty card and keep it.
5. Free of charge Warranty shall not apply to :
-Defects or damage resulting from use of the unit in other than its normal and intended
manner, eg, in excess of their maximum specifications or operating instructions.
-Defects or damage from misuse, accident, neglect, improper testing, installation,
alteration or modification of any kind, or spillage of food or liquid.
Products name :
Model number :
Purchased date: Warranty period : 1year
Outlet the unit was purchased :
Tel :
Customer Address:
Name :
Tel :
FCCID RPRVSH511
This device complies with part 15 of the FCC rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference and
(2) This device must accept any interference received, including interference
that may cause undesired operation.
IMPORTANT NOTE : To comply with FCC RF exposure compliance requirements,
no change to the antenna or the device is permitted. Any
change to the antenna or the device could result in the
device exceeding the RF exposure requirements and void
user’s authority to operate the device
