SENA TECHNOLOGIES IW05 Bluetooth Module User Manual Contents

Sena Technologies,Inc. Bluetooth Module Contents

UserManual.wiki >

SENA TECHNOLOGIES >

IW05 User Manual HTML Version

User Manual

Model: IW05

User Guide

Version 2.0.6.3

2015-09-09

User Guide for the IW05

Version 2.0.6.3

Firmware version 2.0.X

Printed in Korea

Sena Technologies reserves the right to make changes and improvements to its product without

providing notice.

Trademark

Parani™ is a trademark of Sena Technologies, Inc.

Windows® is a registered trademark of Microsoft Corporation.

Bluetooth® is a registered trademark of Bluetooth SIG (Special Interest Group).

Notice to Users

When a system failure may cause serious consequences, protecting life and property against such

consequences with a backup system or safety device is essential. The user agrees that protection

against consequences resulting from system failure is the user's responsibility.

This device is not approved for life-support or medical systems.

Changes or modifications to this device not explicitly approved by Sena Technologies will void the

user's authority to operate this device.

Precautions and Safety

Electricity

Use only within the IW05 power specification. Use under incorrect power specification may result

electrical shock and damage of the product.

Do not kink or crease the power supply parts or place heavy objects on the power supply parts. Fire

can result from damaged parts.

Do not handle power supply parts with wet hands. Electrical shock may result.

Immediately power off the product if smoke or odors emits from the product. Fire can result from

improper use.

Immediately power off the product if water or other liquids are present. Fire can result from improper

use.

Product

IW05 supports the TTL-level UART function. Do not connect with non-compatible products. Damage to

your products may result from improper use.

Do not drop or subject the device to impact. Damage to your products may result from improper use.

Keep away from harsh environments including humid, dusty, and smoky areas. Damage to your

products may result from improper use.

Do not use excessive force on the buttons or attempt to disassemble the device. Damage to your

products may result from improper use.

Do not place heavy objects on the product. Damage to your products may result from improper use.

Technical Support

Sena Technologies, Inc.

Tel: (+82-2) 576-7362

Fax: (+82-2) 573-7710

E-Mail: support@senaindustrial.com

Website: http://www.senaindustrial.com

Revision History

Revision

Date

Name

Description

V2.0.6

2012-04-03

JH Park

Initial Release

V2.0.6.1

2012-05-10

SH Kim

Modify incorrect descriptions

V2.0.6.2

2012-06-12

JH Park

Add contents about BCD210

V2.0.6.3

2015-09-09

TM Kim

Change the website address

Contents

1. Introduction 7

1.1. Overview .................................................................................................................................... 7

1.2. Package Check List ................................................................................................................... 7

1.2.1. Unit Package .................................................................................................................... 7

1.2.2. Starter Kit ......................................................................................................................... 7

1.3. Product Specification ................................................................................................................. 8

2. Getting Started 10

2.1. Panel Layout ............................................................................................................................ 10

2.2. Connecting the Hardware ........................................................................................................ 10

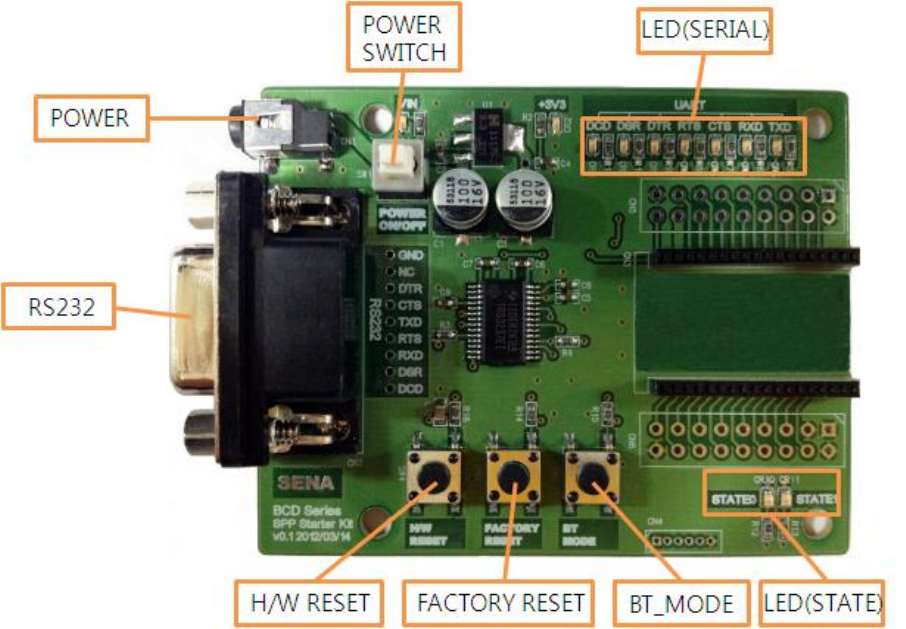

2.2.1. Connecting IW05 to Development Board ...................................................................... 11

2.2.2. Connecting Power to Development Board ..................................................................... 11

2.2.3. Connecting a Device to Development Board ................................................................. 12

3. Configuration 13

3.1. Operation Modes ...................................................................................................................... 13

3.2. Serial Ports ............................................................................................................................... 14

3.3. Data Bit ..................................................................................................................................... 14

3.4. Hardware Flow Control ............................................................................................................ 14

3.5. Remote Configuration .............................................................................................................. 14

3.6. Software and Utility .................................................................................................................. 15

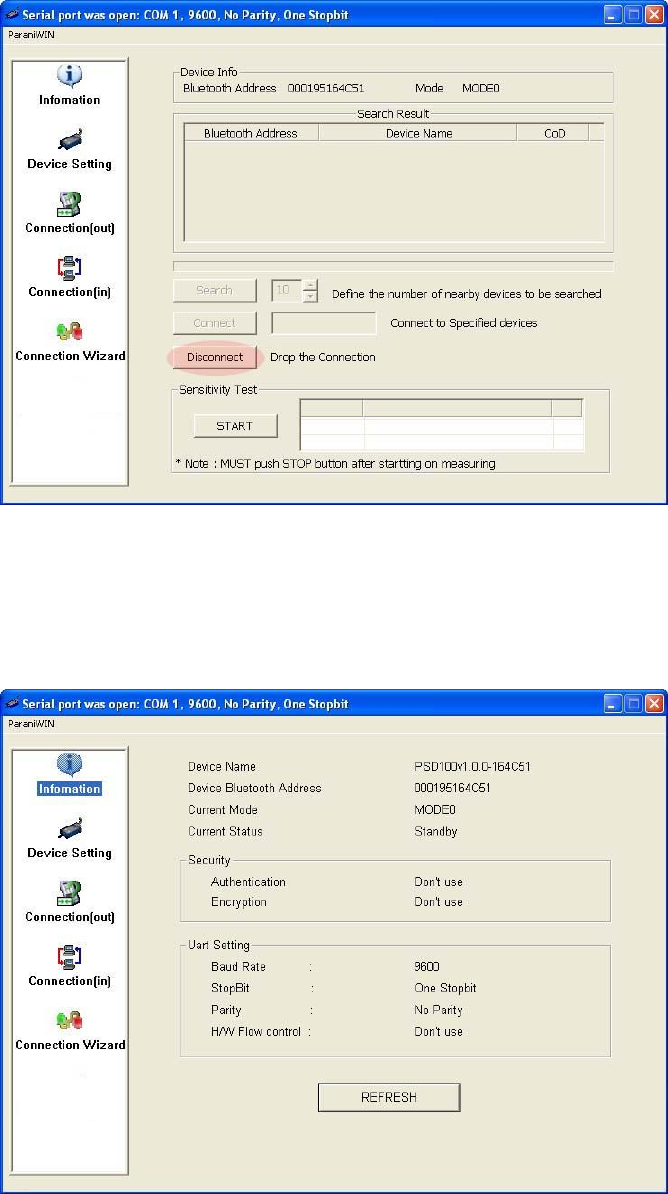

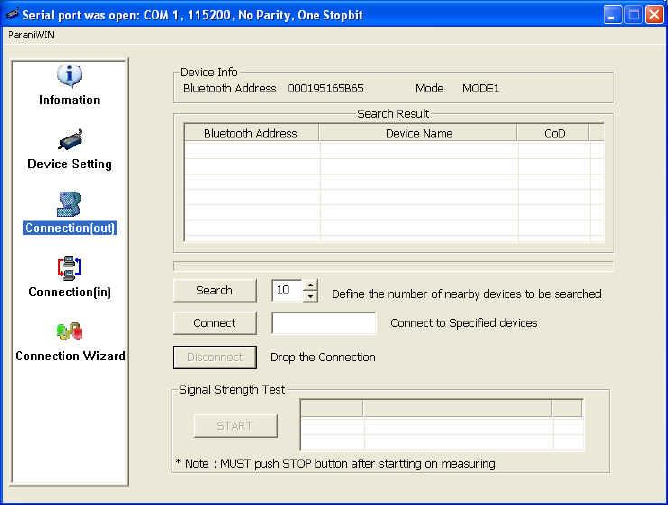

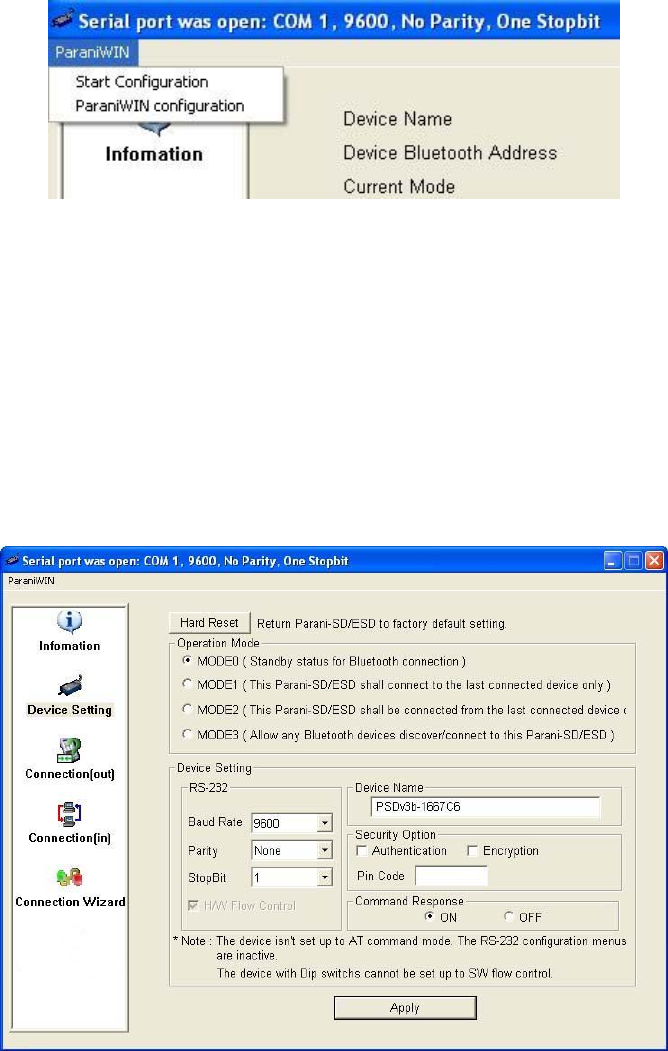

3.7. ParaniWIN ................................................................................................................................ 15

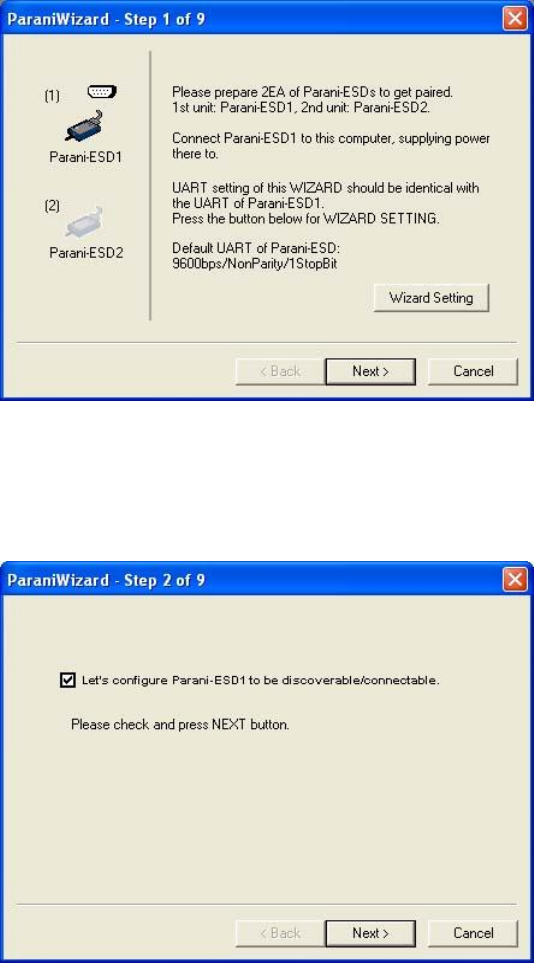

3.8. ParaniWizard ............................................................................................................................ 21

3.9. Parani Multi Wizard .................................................................................................................. 25

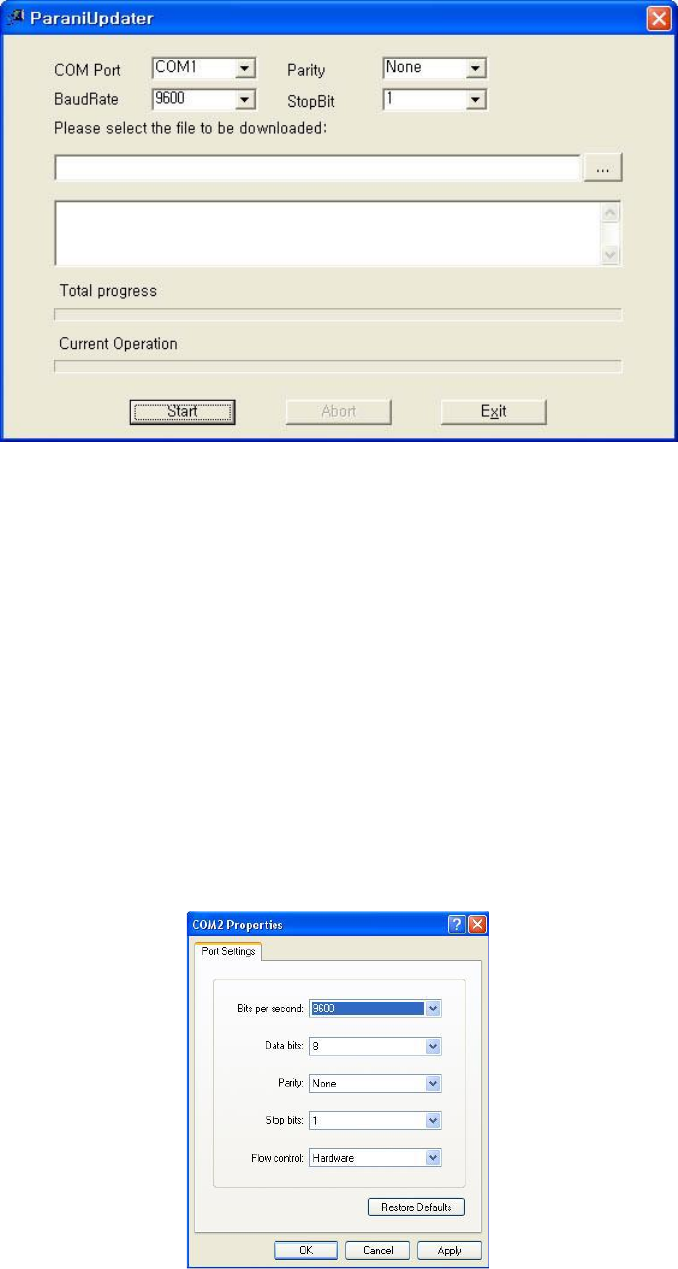

3.10. ParaniUpdater ........................................................................................................................ 26

3.11. Terminal Program ................................................................................................................... 27

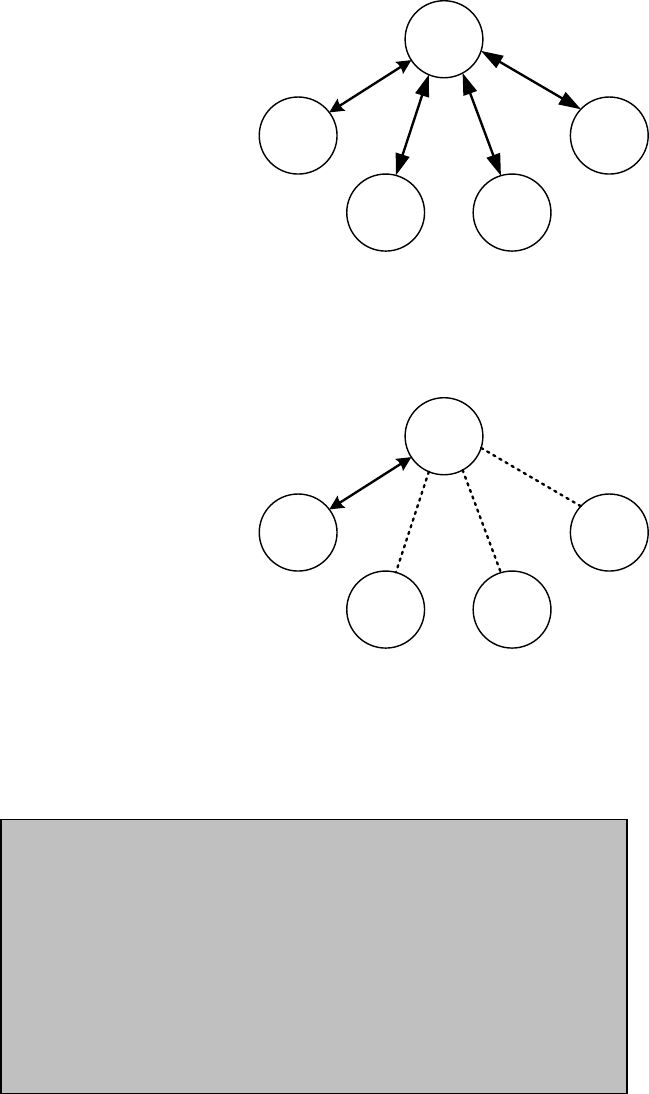

4. Multiple Connection Mode 29

4.1. Overview .................................................................................................................................. 29

4.2. Configuration ............................................................................................................................ 30

4.3. AT Commands .......................................................................................................................... 31

4.3.1. AT+MULTI,n ................................................................................................................... 31

4.3.2. AT+MLIST? .................................................................................................................... 31

4.3.3. ATHx, ATHbdaddr .......................................................................................................... 31

4.3.4. ATOx, ATObdaddr ......................................................................................................... 31

4.4. Notes ........................................................................................................................................ 32

5. Approval Information 33

5.1.1. Do not ............................................................................................................................. 35

6. RF Information 36

6.1. Radio Frequency Range .......................................................................................................... 36

6.2. Number of Frequency Channel ................................................................................................ 36

6.3. Transmission Method ............................................................................................................... 36

6.4. Modulation Method ................................................................................................................... 36

6.5. Receiving Sensitivity ................................................................................................................ 36

6.6. Power Supply ........................................................................................................................... 36

Appendix A: Connections 37

A.1. Pin Assignment ........................................................................................................................ 37

A.1.1. IW05-DU ........................................................................................................................ 37

A.1.2. Bluetooth Connection Detect(UART_DCD) Signal ........................................................ 39

A.1.3. Factory Reset(FACTORY_RESET) Signal .................................................................... 39

A.1.4. Pairing (BT_MODE) Signal (Single Connection Mode Only) ........................................ 39

A.1.5. Flow Control(FC_CTRL) On/Off Signal ......................................................................... 40

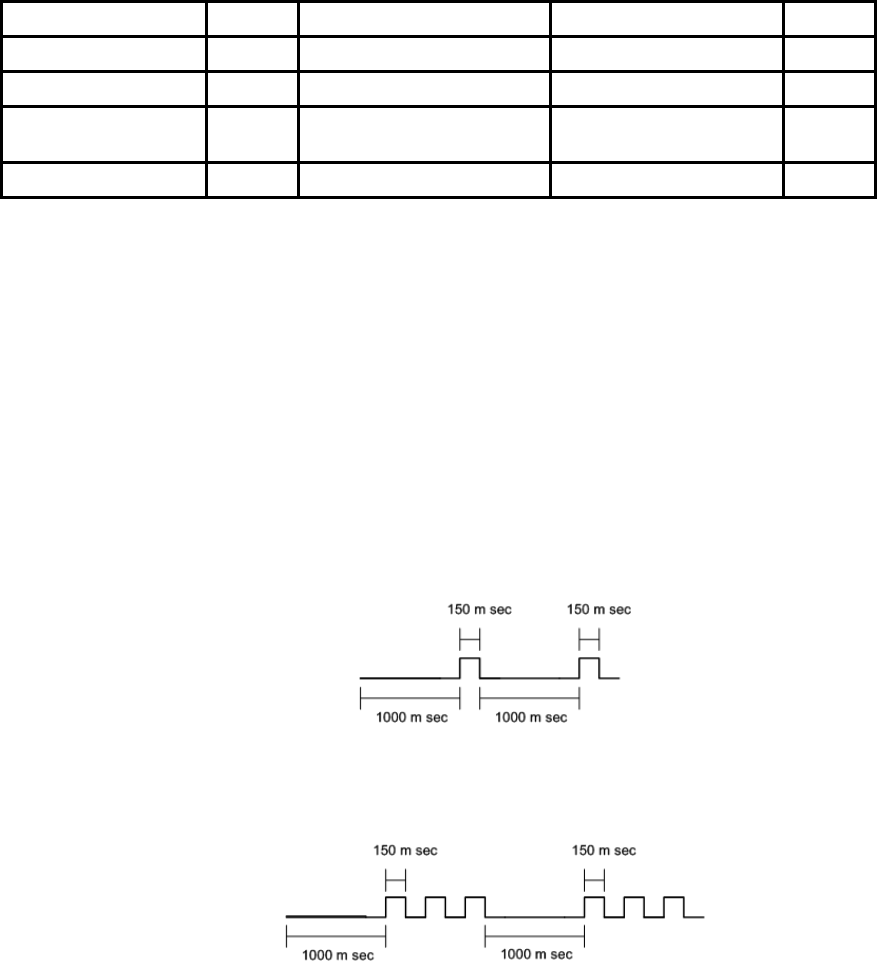

A.1.6. Bluetooth Status LED(STATUS_LED0, STATUS_LED1) Signal ................................... 40

A.1.7. Reset Signal .................................................................................................................. 40

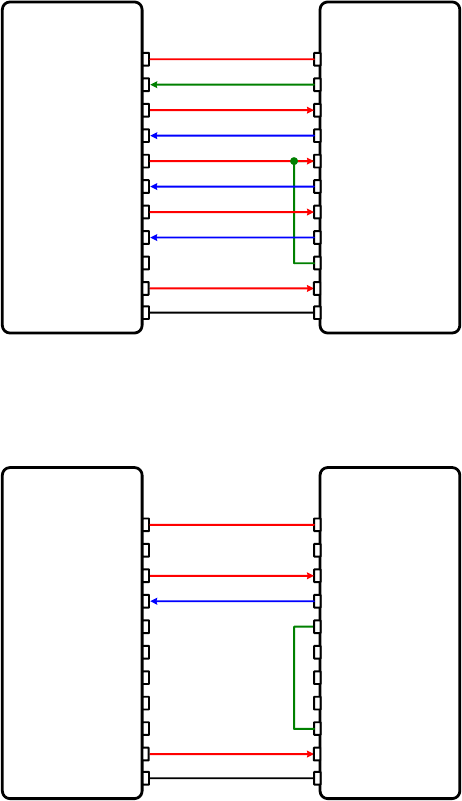

A.2. Connection Diagram ................................................................................................................ 41

A.2.1. IW-05DU ........................................................................................................................ 41

Appendix B: AT Commands 43

B.1. Terminology .............................................................................................................................. 43

B.1.1. AT Command ................................................................................................................. 43

B.1.2. AT Response ................................................................................................................. 43

B.1.3. Operation Mode ............................................................................................................. 43

B.1.4. Operation Status ............................................................................................................ 43

B.1.5. Security .......................................................................................................................... 43

B.1.6. Symbols ......................................................................................................................... 43

B.2. Command Category ................................................................................................................. 44

B.3. Command Description ............................................................................................................. 45

B.3.1. ATZ .............................................................................................................................. 45

B.3.2. AT&F ............................................................................................................................ 45

B.3.3. AT ................................................................................................................................. 45

B.3.4. AT+UARTCONFIG,Baudrate,Parity,Stopbit,Hwfc ........................................................ 45

B.3.5. AT+BTINFO? ............................................................................................................... 45

B.3.6. AT+BTINQ?.................................................................................................................. 46

B.3.7. AT+BTLAST? ............................................................................................................... 46

B.3.8. AT+BTVER? ................................................................................................................ 46

B.3.9. AT+BTRSSI,n(Single Connection Mode Only) ............................................................ 46

B.3.10. AT+MLIST? ................................................................................................................ 47

B.3.11. AT+BTMODE,n .......................................................................................................... 47

B.3.12. AT+MULTI,n ............................................................................................................... 47

B.3.13. +++............................................................................................................................. 47

B.3.14. AT+SETESC,nn ......................................................................................................... 48

B.3.15. ATO (ATOx, ATObdaddr) ........................................................................................... 48

B.3.16. AT+BTCANCEL ......................................................................................................... 48

B.3.17. AT+BTSCAN .............................................................................................................. 48

B.3.18. AT+BTSCAN,n,to ....................................................................................................... 48

B.3.19. AT+BTSCAN112233445566,to .................................................................................. 49

B.3.20. ATD ............................................................................................................................ 49

B.3.21. ATD112233445566 .................................................................................................... 49

B.3.22. ATA............................................................................................................................. 50

B.3.23. ATA112233445566 ..................................................................................................... 50

B.3.24. ATH (ATHx, ATHbdaddr) ............................................................................................ 50

B.3.25. AT+BTKEY=$string .................................................................................................... 50

B.3.26. AT+BTSD?  ................................................................................................................ 51

B.3.27. AT+BTCSD ................................................................................................................ 51

B.3.28. AT+BTFP,n ................................................................................................................. 51

B.3.29. AT+BTSEC,Authentication,Encryption ...................................................................... 51

B.3.30. AT+BTNAME=$string ................................................................................................ 51

B.3.31. AT+BTLPM,n ............................................................................................................. 52

B.3.32. AT+PASS=$string ...................................................................................................... 52

B.3.33. AT+CHPASS=$string ................................................................................................. 52

B.3.34. AT&V .......................................................................................................................... 52

B.3.35. ATSnn?  ..................................................................................................................... 52

B.3.36. ATSnn=mm ................................................................................................................ 53

B.4. Command Validity .................................................................................................................... 53

Appendix C: S-Register 55

C.1. S1: Force to Reconnect (default 1).......................................................................................... 55

C.2. S3: Stream UART Policy (default 0) ........................................................................................ 55

C.3. S4: Enable Remote Name Query (default 1) ........................................................................... 55

C.4. S6: Enable Low Power Mode (default 0) ................................................................................. 55

C.5. S10: Enable Response Message (default 1) ........................................................................... 55

C.6. S11: Enable Escape (default 1) ............................................................................................... 55

C.7. S12: Clear Data Buffer When Disconnected (default 0) .......................................................... 56

C.8. S13: Enable DCD Signal (default 1) ........................................................................................ 56

C.9. S14: Enable DTR Transfer (default 1) ..................................................................................... 56

C.10. S15: Enable Disconnect by DTR (default 0) .......................................................................... 56

C.11. S22: Faster Connection (default 3) ........................................................................................ 56

C.12. S23: Intercharacter Timeout Setting (default 0) ..................................................................... 56

C.13. S24: Maximum Number of Inquiry Result (default 15) .......................................................... 56

C.14. S26: Intercharacter Timeout (default 0) ................................................................................. 56

C.15. S28: Escape Sequence Character (default 43) ..................................................................... 57

C.16. S31: Page Timeout (default 20) ............................................................................................. 57

C.17. S33: Inquiry Timeout (default 30) .......................................................................................... 57

C.18. S37: Supervision Timeout (default 5) .................................................................................... 57

C.19. S43: COD (default 001F00) ................................................................................................... 57

C.20. S44: COD Filter (default 0) .................................................................................................... 57

C.21. S45: Inquiry Access Code (default 0x9E8B33) ..................................................................... 57

C.22. S46: BD Address of Last Connected Device ......................................................................... 57

C.23. S48: Low Power Max Interval (default 5000) ........................................................................ 58

C.24. S49: Low Power Min Interval (default 4500) ......................................................................... 58

C.25. S52: Low Power Timeout (default 5) ..................................................................................... 58

C.26. S54: BD Address of Last Connected Device ......................................................................... 58

C.27. TS55: BD Address of Last Connected Device ....................................................................... 58

C.28. S56: BD Address of Last Connected Device ......................................................................... 58

C.29. S57: Slave Disconnect Timeout (default 3) ........................................................................... 58

C.30. S58: MAX TX POWER (default 0) ......................................................................................... 58

C.31. S59: Current Slave in Communication (default 0) ................................................................. 59

C.32. S60: Reconnect Time Interval (default 5) .............................................................................. 59

Appendix D: Trouble Shooting 60

D.1. No Data Transmission ............................................................................................................. 60

D.1.1. Device Settings ............................................................................................................. 60

D.2. Data Loss or Malfunctioning .................................................................................................... 60

D.2.1. Hardware Flow Control .................................................................................................. 60

D.2.2. Response Message ....................................................................................................... 60

D.3. Transmission Delay ................................................................................................................. 60

D.3.1. RF Processing Delay ..................................................................................................... 60

D.3.2. RF Transmission Environment ...................................................................................... 60

Appendix E: Warranty 61

E.1. GENERAL WARRANTY POLICY ............................................................................................ 61

E.2. LIMITATION OF LIABILITY ...................................................................................................... 61

E.3. HARDWARE PRODUCT WARRANTY DETAILS .................................................................... 61

E.4. SOFTWARE PRODUCT WARRANTY DETAILS .................................................................... 62

E.5. THIRD-PARTY SOFTWARE PRODUCT WARRANTY DETAILS ............................................ 62

1. Introduction

1.1. Overview

The IW05 is a Bluetooth OEM SMD/DIP module combining antenna for OEM manufactures who want

to implement Bluetooth functionality with their products cost effectively and also in timely manner.

IW05 has a built in antenna to lower the overall cost while benefit from the IW05’s field-proven

standard SPP firmware provided with no additional cost.

The IW05 supports Class2 Bluetooth transmission level for the shorter communication distance

typically ranges from 50m up to 300m. The IW05 supports Class1 Bluetooth transmission level for

longer communication distance typically ranges from 200m up to 1000m.

The IW05 is provided with Bluetooth v2.0+EDR compatible firmware runs internally for SPP (Serial

Port Profile) applications by default. The SPP firmware supports up to 4 simultaneous multiple

connections and is designed to work out-of-box for real world SPP applications such as POS (Point-of-

sales), industrial automation, remote metering and other various applications. Optionally, the IW05 can

be supplied with only software stack up to HCI level so entire Bluetooth stack runs on the host side for

the application such as USB dongles for computers or OEM manufacturers can even develop and

embed their own firmware into the IW05.

The IW05 is fully qualified with Bluetooth v2.0+EDR specification so OEM manufacturers can save

cost and time for overall OEM product certifications, which makes the IW05 ideal solution for larger

volume and cost sensitive applications.

1.2. Package Check List

1.2.1. Unit Package

IW05-SC - Bluetooth embedded OEM module SMD Type, Class 1 or Class2 w/ chip antenna

IW05-SU - Bluetooth embedded OEM module SMD Type, Class 1 or Class2 w/ U.FL connector

IW05-DC - Bluetooth embedded OEM module DIP Type, Class 1 or Class2 w/ chip antenna

IW05-DS - Bluetooth embedded OEM module DIP Type, Class 1 or Class2 w/ SMA connector

IW05-DU - Bluetooth embedded OEM module DIP Type, Class 1 or Class2 w/ U.FL connector

1.2.2. Starter Kit

- BCDx10DC 1

- BCDx10DS 1

- BCDx10DU 1

- Development board 1

- DC Power adapter 1

- RS232 serial cable 1

- Stub antenna 1

- 3dBi Dipole antenna 1

- U.FL Cable 1

1.3. Product Specification

IW05

Bluetooth Specifications

Bluetooth v2.0 + EDR

Class1

Profile: SPP(Serial Port Profile)

Working distance:

By default antenna is 200m (0.12 mile),

Supports up to 1000m (0.62 mile)

Transmit Power

(Frame Average Power)

BDR : ±11+1 , EDR : ±6+1

Receive Sensitivity

-90dBm (0.1% BER)

Frequency range

2402MHz – 2480MHz

Serial Interface

Serial UART speed up to 921.6kbps

CTS/RTS flow control, DTR/DSR for loop-back & full transfer

PIN Interface

IW05-Sx: 1.27mm SMD Pad 18x2 (36pin)

IW05-Dx: 1.27mm Pin Header 18X2 (36pin)

Configuration

ParaniWIN, ParaniWizard, Modem AT command set

Firmware Update

ParaniUpdater

Power Consumption

Nominal : 70mA @3.3V,DC

Maximum : 150mA @3.3V,DC (200mA@3.3V,dc in Test Mode)

Environmental

Operating temperature: -40 ~ 85oC

Storage temperature: -40 ~ 85oC

Humidity : 90% (Non-condensing)

Physical properties

IW05 Dimension

DIP type

16.8(W) x 34.6(L) x 8.0(H) mm (0.661 in x 1.362 in x 0.315 in)

SMD type

14.8(W) x 34.6(L) x 3.0(H) mm (0.583 in x 1.362 in x 0.118 in)

Weight

IW05-SC: 2g

IW05-SU: 2g

IW05-DC: 3g

IW05-DU: 3g

IW05-DS: 6g

Approvals

FCC, CE, IC, KC, TELEC, SIG

Warranty

1-year limited warranty

Note *:

Bluetooth v2.0 supports improved AFH function. AFH function is to mitigate the interference

between WiFi and Bluetooth radios by automatically avoiding the active WiFi channel from

Bluetooth link. However, AFH does not provide a complete solution making WiFi and Bluetooth

work together in harmony. It is highly recommended for users to test their wireless system

enough before deployment since the overall system performance is affected by various

environmental factors such as distance between them.

2. Getting Started

This chapter describes how to set up the IW05 for the first time.

- 2.1 Panel Layout explains the panel layout.

- 2.2 Connecting the Hardware describes how to connect the IW05, the power, and the serial device

to the Jig Board.

Following items are pre-required to get started.

- One Jig Board (included in the Starter Kit package).

- One DC power adapter or one USB power cable (included in the Starter Kit package).

- One serial console cable for configuration (included in the Starter Kit package).

- One PC with RS232 serial port.

- Terminal emulation program running on the PC

2.1. Panel Layout

This section describes the panel layout of the Development Board.

Figure 2-1 The Panel Layout of BCD Development Board

2.2. Connecting the Hardware

This section describes how to connect the IW05 to the Development Board and the Development

Board to the serial device for initial testing.

- Connect the IW05 to the Development Board.

- Connect a power source to the Development Board for the IW05.

- Connect the Development Board for the IW05 to a serial device.

2.2.1. Connecting IW05 to Development Board

Connect the IW05 to the Development Board as shown below.

Figure 2-2 Connecting IW05 to Development Board

2.2.2. Connecting Power to Development Board

Connect the power plug to the power connector of the Development Board for the IW05 using the DC

power adapter or USB power cable that is included in the package.

Figure 2-3 Connecting Power to Development Board

2.2.3. Connecting a Device to Development Board

Connect the serial data cable between the Development Board and the serial device. If necessary,

supply power to the serial device attached to the Development Board.

Figure 2-4 Connecting a Device to Development Board

3. Configuration

3.1. Operation Modes

In addition to the serial port configurations, the IW05 requires also includes some settings for

Bluetooth. For getting the most out of IW05, user should understand the following Bluetooth

connection schemes.

A Bluetooth device can play a role as a master or slave. Master tries to connect itself to other

Bluetooth devices, and slave is waiting to be connected from other Bluetooth devices. A Bluetooth

connection is always made by a pair of master and slave devices. A slave can be in two modes,

Inquiry Scan or Page Scan mode. Inquiry Scan mode is waiting for a packet of inquiry from other

Bluetooth device and Page Scan mode is waiting for a packet of connection from other Bluetooth

device. Every Bluetooth device has its unique address, called BD (Bluetooth Device) address, which is

composed of 12 hexa-decimal numbers.

IW05 has 4 operation modes as follows:

Table 3-1 The IW05 Operation Modes

Mode

Description

Mode0

In this mode, there is no response when power on or software reset, and IW05 is just waiting

for AT command input. Neither master nor slave is assigned to IW05 in mode0. User can

change the configuration parameters of IW05 in this mode.

IW05 must be in Mode0, when it is directly controlled by AT commands.

The factory default is set to Mode0.

Mode1

IW05 tries to connect the last connected Bluetooth device.

IW05 in Mode1 is to be a master and tries to connect the last connected Bluetooth device.

IW05 always stores the BD address of the Bluetooth device to which IW05 has connected last.

When IW05 is initially used or after hardware reset, there is no BD address stored in IW05. In

this case, Mode1 will not be able to work properly. The mode change to Mode1 can be made

after IW05 succeeds to connect to one other Bluetooth device. Once changed to Mode1, IW05

will try to connect automatically the last connected Bluetooth device whenever the unit is

powered on or software reset.

IW05 in Mode1 cannot be discovered or connected by other Bluetooth devices.

Mode2

IW05 is waits for a connection from the last connected Bluetooth device.

IW05 in Mode2 is to be a slave and waiting for the connection only from the last connected

Bluetooth device. Just like Mode1, if there is no BD address stored in IW05, the mode change

from other operation modes to Mode2 is not work properly. Once changed to Mode2, IW05 will

wait for the connection from the last connected Bluetooth device whenever the unit is powered

on or software reset.

IW05 in Mode2 cannot be discovered or connected to Bluetooth devices other than the last

connected device.

Mode3

IW05 is waiting for the connection from any other Bluetooth devices. In Mode 3 the IW05 is

discoverable and can be connected to by other Bluetooth devices.

3.2. Serial Ports

The applicable settings for serial ports are as follows.

Table 3-2 The IW05 Serial Port Settings

Serial Port Settings

Values

Baud rate

1200, 2400, 4800, 9600, 14400, 19200, 38400, 57600, 115200, 230400, 460800,

921600

Data bite

Parity

No parity, Even parity, Odd parity

Stop bit

1, 2

Hardware Flow Control

Use, No Use

The values in box are the factory default settings.

3.3. Data Bit

IW05 supports only 8 data bit. But if both master device and slave device are one of Parani-SD,

Parani-ESD or IW05 or Parani-MSP1000 series, Parani series devices can support 7 data bit and

even/odd parity by setting both Parani series devices to 8 data bit and none parity. But 7 data bit and

none parity cannot be supported even if both master device and slave device are Parani series

devices.

3.4. Hardware Flow Control

IW05 plugged into its host system transmits data from host to the other side Bluetooth device. This

data is saved temporarily in the internal buffer of IW05 and sent repeatedly until the transmission is

completed packet by packet. When the radio transmission condition is not good enough to send data

promptly, it can cause a transmission delay. If the host sends more data when the buffer is full, buffer

overflow will make IW05 malfunction consequently. In order to prevent this buffer overflow, IW05 works

as follows.

When using hardware flow control, IW05 disables RTS so that it stops receiving any further data from

the host when the buffer becomes full. RTS will be re-enabled again to begin receiving data from the

host when the buffer has created more room for more data.

When hardware flow control is not being used, the IW05 clears the buffer to secure room for the next

data when the buffer becomes full. This can mean a loss of data may occur. As the transmission data

becomes large, the possibility of data loss becomes greater.

For large data transmissions, the use of hardware flow control is highly recommended. (Not support

flow control in Multi-Drop Mode.)

3.5. Remote Configuration

IW05 supports remote configuration. After connecting to the IW05 through Bluetooth, before sending

any other character, send three escape character (default :+). Then, the IW05 will enter remote

configuration mode and print “Please Enter Password”. You have to enter the password with

“AT+PASS” command within 2 minutes. After the password authentication, you are able to enter any at

command except “ATH”, “ATO”, “ATD”, “AT+BTSCAN”, “AT+BTINQ?” and “AT+BTCANCEL”. The

default password is “0000” and it is configurable with “AT+CHPASS” command.

Example of remote configuration mode.

3.6. Software and Utility

This configuration software and utility for firmware update is included with the product, which also can

be downloaded from http://www.senaindustrial.com

Table 3-3 Configuration Software

Software

Purpose

Operating System

ParaniWIN

Configuration

MS Windows 98SE or Higher

ParaniWizard

Pairing Configuration

MS Windows 98SE or Higher

ParaniMultiWizard

Multi Configuration

MS Windows 98SE or Higher

ParaniUpdater

Firmware Update

MS Windows 98SE or Higher

3.7. ParaniWIN

ParaniWIN is a program that runs on Microsoft Windows for the configuration of IW05. Install

ParaniWIN on your computer. Connect the serial port of IW05 into the serial port of the computer and

turn on the power.(BCD Development Board or RS232 interface board may be required to access the

serial port of IW05.) Run ParaniWIN.

Figure 3-1 Serial Port Setting

Set each option properly and click [Confirm]. If the settings of the IW05 are different from the

ParaniWin, an error message will pop up. If the IW05 is in the status of connection, warning message

will pop up. Then the current connection can be cancelled by [Disconnect] button on the main window.

CONNECT 000195000001

+++

Please Enter Password

AT+PASS=0000

Remote Configuration Enabled

AT+BTINFO?

000195000001,BCDx10v2.0.6-095515,MODE0,CONNECT,0,0,HWFC

Figure 3-2 Main Window

Figure 3-3 Information Window

Serial port settings can be changed by <Start Configuration> and <ParaniWIN Configuration> of

ParaniWIN in the menu bar at upper left corner of the window without re-running the ParaniWIN

program.

Figure 3-4 Menu Bar at Upper Left corner of ParaniWIN

When the ParaniWin software is able to access the IW05 properly, the icons in the left side window

come will become available for use.

In device configuration window, hardware reset can be executed or operation mode and RS232 can

be configured as well. Security option also can be configured in this window.

Figure 3-5 Device Setting Window

IW05 supports two security options, Authentication and Encryption. If you check the Authentication

option, you must also enter the Pin Code value. If the authentication is activated, the connection, only

between the Master and Slave device that share the same Pin Code, is established. IW05 supports

two security options, Authentication and Encryption. If you enable the Authentication option, you must

also enter a Pin Code value. If the authentication is enabled, the connection, between the Master and

Slave device must share the same Pin Code. In case that IW05 connects to another Bluetooth device,

that requires authentication, you must know the other device’s Pin Code. In general, most Bluetooth

devices have a pincode of 1234 or 0000. If you check Encryption option, the IW05 will encrypt packets

and sent to the device. The Encryption options works well in case that only one of the devices

between Master and Slave use the Encryption option.

IW05 has 4 response messages, ‘OK’, ‘ERROR’, ‘CONNECT’, and ‘DISCONNECT’. In some cases,

these responses can affect the host system unexpectedly. To prevent this, user can set the Command

response to ON or OFF.

Click [Apply] button to apply any changes made to the IW05.

Connection(out) icon will show the following window to search and connect other Bluetooth devices.

Figure 3-6 Connection(out) Window

Click [Search] button to search nearby Bluetooth devices. Once several Bluetooth devices has been

found, select one of the devices and click the [Connect] button. The selected Bluetooth device must be

discoverable and connectable. Click [Disconnect] button to cancel the connection.

After the connection has been established, you will be able to test signal strength by pushing the

START button.

Figure 3-7 Signal Strength Test

The signal strength test shows LInkQuality and RSSI values. The closer LinkQuality is to 255 and

RSSI is to 0, this means the IW05 has a good connection to the connected Bluetooth device. In

general, the wireless connectivity is at its best within 10 meters. You can push the STOP button at any

time in order to terminate the signal strength test. The signal strength test will continue until the STOP

button is pushed. If you close the ParaniWIN Window without pushing the STOP button, you must

restart IW05 to terminate the test.

Connection(in) icon will show the following window, which enables the IW05 to wait for a connection

from another Bluetooth device. If the waiting time is set to 0, IW05 will continually wait for connection

until [Cancel] button is clicked.

Figure 3-8 Connection(in) Window

If the Connection Wizard icon is clicked, an easy to use pairing menu will appear:

Figure 3-9 Connection Wizard Window

In this example we will refer to the two IW05s as BCD1 and BCD2 respectively. To use this menu,

please do the following:

Step 1. Connect BCD1 and then push the START button.

Step 2. Disconnect BCD1, connect BCD2 and then push the Next button after setting up Slave

configuration.

Step 3. Disconnect BCD2, once again connect the BCD1 and then push the Finish button. The pairing

configuration should be completed. Make sure that each IW05’s connect LED is on. At this point,

when both IW05s are restarted the connection will be established automatically.

3.8. ParaniWizard

ParaniWizard is a Wizard program that will allow you to configure a pair of IW05s for an automatic

connection. To make connection with Bluetooth devices other than IW05, use ParaniWIN or AT

commands on a terminal program.

In this example, we will refer to the two IW05s as BCD1 and BCD2 respectively.

Install and run ParaniWizard.

Figure 3-10 ParaniWizard Step 1

Plug BCD1 into the serial port of the host computer and power on the unit. Click [Wizard Setting]

button to configure the serial port settings of BCD1. These settings must be the same as those of the

host system, to which BCD1 will be used. Click [Next].

Figure 3-11 ParaniWizard Step 2

Click [Next] with after selecting the check box, which makes the unit discoverable, in which BCD1 can

be discovered and connected from the other Bluetooth device.

Remove BCD1 from the host computer, remember to leave the BCD1 powered on.

Now, plug BCD2 into the serial port of the host computer and power on the unit.

Figure 3-12 ParaniWizard Step 3

Click [Wizard Setting] button to configure the serial settings of BCD2. These settings must be same as

those of the host system, to which BCD2 will be used. Click [Next].

Figure 3-13 ParaniWizard Step 4

Click [Next] after selecting check box. BCD2 will then do a search nearby, and search for Bluetooth

devices for 30 seconds. The program will show the Bluetooth devices with Device Address, Device

Name and CoD(Class of Device).

Figure 3-14 ParaniWizard Step 5

Select the BCD1 from the list and click [Connect], then the following message box will be displayed.

Figure 3-15 ParaniWizard Step 6

It may take about 5 seconds to complete the connection.

For the automatic connection to take place between BCD1 and BCD2, the proper operation mode of

BCD1 and BCD2 have to be set.

Figure 3-16 ParaniWizard Step 7

Set the operation mode of BCD2 to Mode1.

Figure 3-17 ParaniWizard Step 8

Remove the BCD2 from the host computer and plug BCD1 into the serial port again. Set the operation

mode of BCD1 to Mode2.

Figure 3-18 ParaniWizard Step 9

Now the configuration of BCD1 and BCD2 has been completed. Now when the units are turned off and

then turned on again, they will make an automatic connection to each other.

3.9. Parani Multi Wizard

Parani Multi Wizard is the software tool for multiple connection mode configurations of the Parani-SD,

Parani-ESD and IW05 products.

Figure 3-19 Parani Multi Wizard Window

Parani Multi Wizard supports the Wizard mode and the Manual mode. The Wizard mode provide the

user step-by-step instructions for multiple mode configurations. To run the Wizard mode, select

“Multiple connection mode setting” and “1:N setting”, press “Start” button and follow the instructions.

Figure 3-20 Manual Setting Window

In the Manual mode, all settings for the multiple connection mode can be configured in one window. If

a Use field is unchecked or a slave address is entered as 000000000000, it is excluded from the Slave

settings.

The Auto Fill button will load the existing multiple connection mode settings from the Parani-

SD/ESD/BCD connected, which can be useful when only some parts of the settings are changed.

If the AT Command Response Disable check box is checked on, the AT command responses such as

OK, ERROR, CONNECT, DISCONNECT are suppressed.

3.10. ParaniUpdater

IW05 supports firmware updates. You can download new firmware images for the IW05 at

http://www.senaindustrial.com. With the ParaniUpdater, you can update the firmware of IW05 by

selecting the firmware image file and pushing Start button.

* Note: DO NOT power off IW05 while the firmware update is progressing, this may damage the IW05.

Figure 3-21 ParaniUpdater Window

3.11. Terminal Program

A terminal program is typically an application that will enable a PC to communicate directly with a

modem. If you are using Windows 98SE or higher version of Windows, HyperTerminal program is

included as part of the operating system. IW05 provides some extended AT commands for

configuration of the IW05.

This manual will explain the method using HyperTerminal. If you need to install HyperTerminal, click

start>setting>control panel>add/remove programs. For more precise details on HyperTerminal

installations, please refer to Microsoft Windows Help section.

Attach IW05 to serial port of host computer and power on the unit.

Launch HyperTerminal. It can be found in start menu >programs >accessories >communication

>HyperTerminal. Select the Serial port that IW05 will be connected to.

Input the same settings into Serial port configuration window as IW05 settings.

Select the Serial port setting displayed in the Window, please make sure the serial settings in

Hyperterminal are set to the same settings as the IW05’s serial settings.

Figure 3-22 HyperTerminal

To view the AT commands that are being typed, you will need to enable the local echo option. Go to

File->Properties->Settings->ASCII setup and select the “Echo typed characters locally” option.

For expanded AT commands, please refer to Appendix A. AT commands.

Example of AT commands:

at+btinfo?

000195000144,BCDx10_v2.0.6-000144,MODE0,STANDBY,0,0,NoFC

at+btinq?

000B5320070E,Promi-MSP_20070E,020300

0009DD500027,LEECOM,1E010C

atd000b5320070e

CONNECT 000B5320070E

4. Multiple Connection Mode

4.1. Overview

IW05 supports multiple connections up to 4 slave units. There are two types of multiple connection

modes: Multi-Drop Mode and Node Switching Mode.

S1 S4

S3S2

Figure 4-1 Multi-Drop Mode

In Multi-Drop Mode a master unit can connect to maximum 4 slave units at the same time and they

transfer data bi-directionally as in Figure 4-1.

S1 S4

S3S2

Figure 4-2 Node Switching Mode

In Node Switching Mode, the master unit maintains multiple connections with maximum 4 slave units

but only one connection with one slave unit is active and data is transferred as shown in Figure 4-2.

After connected to slave, master acts command mode. Active slave is selected by AT commands.

On communication after connecting

ATO1 – Communicating with #1 Slave

+++

ATO000195000003 – Communicating with slave of BD 000195000003

4.2. Configuration

All the slaves should be in the status of waiting for connection either in Mode 2 or Mode 3 and the

master unit tries to connect to the slave units. The master unit needs to be configured to work in a

multiple connection mode using AT+MULTI,x command, which makes master reboots after execution.

Table 4-1 AT+MULTI,x

AT+MULTI,0

Single Connection Mode

AT+MULTI,1

Multi-Drop Mode

AT+MULTI,2

Node Switching Mode

Table 4-2 Configuration of a Multiple Connection Mode

Manual Connection

Automatic Connection

ATD000195000001

CONNECT000195000001

+++

ATD000195000002

CONNECT000195000002

+++

ATD000195000003

CONNECT000195000003

+++

ATD000195000004

CONNECT000195000004

+++

ATS46=000195000001

ATS54=000195000002

ATS55=000195000003

ATS56=000195000004

AT+MULTI,1 or AT+MULTI,2

AT+BTMODE,1

After rebooted automatically

master tries to connect to

slaves

After input the BD addresses of the slave units into 4 S-registers S46, S54, S55 and S56 and then set

operation mode as MODE1, users can use multiple connection function. If S-registers have available

slaves’ address, AUTO CONNECT message will be displayed following corresponding TASK.

TASK1 OK – AUTO CONNECT

TASK2 OK

TASK3 OK – AUTO CONNECT

TASK4 OK

4.3. AT Commands

4.3.1. AT+MULTI,n

Select a multiple connection mode. Refer to Table 4-1 for descriptions.

4.3.2. AT+MLIST?

It shows the current mode, the connection status and the BD addresses of slaves.

4.3.3. ATHx, ATHbdaddr

Using the ATH command, connections with all slaves or only connections with specific slaves can be

disconnected selectively

Table 4-3 ATH

ATH

Disconnect all the slaves.

ATHx (ATH1, ATH2, ATH3, ATH4)

Disconnect the slave which belongs to the TASK x.

ATHbdaddr (ATH000195000001)

Disconnect the slave with specified BD address.

4.3.4. ATOx, ATObdaddr

Using the ATO command, the communication status with the last active slave or a specific slave can

be set to online (only in Node Switching Mode).

Table 4-4 ATO

ATO

Communicate with the slave recently communicated.

ATOx (ATO1, ATO2, ATO3, ATO4)

Communicate with the slave which belongs to the TASK x.

ATObdaddr (ATO000195000001)

Communicate with the slave with specified BD address.

at+mlist?

CURRENT MODE: MULTI DROP

TASK1 – 000195000001

TASK2 – 000195000002

TASK3 – DISCONNECT

TASK4 - 000195000004

4.4. Notes

When large data exchange occurs in Multi-drop mode without flow-control enabled, the master unit

may experience data loss. It may also experience occasional disconnections and/or system rebooting

especially when bi-directional communication happens. It is strongly recommended to perform

extensive performance test before any real world field applications.

The master unit would try to connect all slave units specified by S-register 46, 54, 55 and 56. If non-

existing or inactive slave addresses are entered in these S-registers, the overall performance will

degrade due to frequent connection trials to non-existing/inactive slaves. It may also force

disconnections for overall performance and outputs disconnect messages repeatedly.

Node-switching mode provides nearly equivalent performance as single connection mode. It is always

recommended to use flow-control for both of Multi-Drop Mode and Node Switching Mode.

5. Approval Information

Regulatory Notices

1. FCC

FCC Part 15.19 Statements:

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) this device may not cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause undesired operation.

FCC Part 15.21 statement

Any changes or modifications not expressly approved by the party responsible for compliance could

void the user's authority to operate this equipment.

FCC Part 15.105 statement

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses and can radiate radio frequency energy and, if

not installed and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or television reception, which

can be determined by turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

OEM Responsibilities to comply with FCC and Industry Canada Regulations

The module has been certified for integration into products only by OEM integrators under the

following condition:

- The antenna(s) must be installed such that a minimum separation distance of at least 20 cm is

maintained between the radiator (antenna) and all persons at all times.

-The module is limited to installation in mobile or fixed applications.

- The transmitter module must not be co-located or operating in conjunction with any other antenna or

transmitter except in accordance with FCC multi-transmitter product procedures.

-Separate approval will be required for all other operating configurations, including portable

configurations with respect to Part 2.1093 and different antenna configurations other than supplied

antennas.

As long as the two condition above is met, further transmitter testing will not be required. However, the

OEM integrator is still responsible for testing their end-product for any additional compliance

requirements required with this module installed (for example, digital device emissions, PC peripheral

requirements, etc.).

In the event that these conditions cannot be met, then the FCC authorizations are no longer

considered valid and the FCC ID cannot be used on the final product. In these circumstances, the

OEM integrator will be responsible for re-evaluating the end product including this module and

obtaining separate FCC authorizations.

- This device is intended only for OEM integrators

- For OEM integration only – device cannot be sold to general public.

- Manual Information to the End User

The OEM integrator has to be aware not to provide information to the end user regarding how

to install or remove this RF module in the user’s manual of the end product which integrates

this module.

-To ensure compliance for all non-transmitter functions, a host product manufacturer is

responsible for ensuring compliance with the module(s) installed and fully operational.

Host manufacturer is responsible for ensuring that the host continues to be compliant with the

Part 15 subpart B unintentional radiator requirements after the module is installed and

operational. The Grantee will provide assistance if necessary.

enclosed module. In that case, the final end product must be labeled in a visible area with the

following:

“Contains FCC ID: S7A-IW05

“Contains IC: 8154A-IW

Hereby, SENA TECHNOLOGIES.Inc Declares that this IW05 is in compliance with the essential

requirements and other relevant provisions of directive 1999/5/EC.

End Product Labeling

The module is labeled with its own FCC ID and IC Certification Number. If the FCC ID and IC

Certification Number are not visible when the module is installed inside another device, then the

outside of the device into which the module is installed must also display a label referring to the

2. IC

RSS-GEN, Sec. 7.1.3 – (licence-exempt radio apparatus)

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to

the following two conditions: (1) this device may not cause interference, and (2) this device must

accept any interference, including interference that may cause undesired operation of the device.

Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio

exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit

pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique

subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.

RF Exposure

The antenna (or antennas) must be installed so as to maintain at all times a distance minimum of

at least 20 cm between the radiation source (antenna) and any individual. This device may not be

installed or used in conjunction with any other antenna or transmitter.

l'exposition aux RF

L’antenne (ou les antennes) doit être installée de façon à maintenir à tout instant une distance

minimum de au moins 20 cm entre la source de radiation (l’antenne) et toute personne physique.

Caution: Any changes or modifications to this device not explicitly approved by manufacturer could

void your authority to operate thisequipment.Attention:

Les changements ou modifications de cet appareil non expressément approuvé par le fabricant

peuvent annuler votre droit à utiliser cet équipement.

É tiquetage du produit final (IC)

Le module est étiqueté avec sa propre identification FCC et son propre numéro de certification IC. Si

l’identification FCC et le numéro de certification IC ne sont pas visibles lorsque

le module est installé à l’intérieur d’un autre dispositif, la partie externe du dispositif dans lequel

le module est installé devra également présenter une étiquette faisant référence au module inclus.

Dans ce cas, le produit final devra être étiqueté sur une zone visible avec les informations suivantes :

« Contient module émetteur identification FCC ID : S7A-IW05

« Contient module émetteur IC : 8154A-IW

5.1.1. Do not

Any changes or modifications to the equipment not expressly approved by the party responsible for

compliance could void user’s authority to operate the equipment.

6. RF Information

6.1. Radio Frequency Range

2.402~2.480GHz

6.2. Number of Frequency Channel

79 channels

6.3. Transmission Method

FHSS(Frequency Hopping Spread Spectrum)

6.4. Modulation Method

1Mbps: GFSK(Gaussian Frequency Shift Keying)

2Mbps: π/4 DQPSK(pi/4 rotated Differential Quaternary Phase Shift Keying)

3Mbps: 8DPSK(8 phase Differential Phase Shift Keying)

6.5. Receiving Sensitivity

Products

Receiving Sensitivity

IW05-DU

-90dBm

Parani-BCD210

-84dBm

6.6. Power Supply

Products

Power Supply

IW05

DC3.3V

Appendix A: Connections

A.1. Pin Assignment

A.1.1. IW05-DU

Table A-1. Pin Assignment of IW05-DU (SPP)

Pin Name

(SPP Define)

Direction

IN/OUT

State

Description

GND

Ground

GND

Ground

PVCC

Power supply for power amplifier, 3.3V

N/A

UART_RTS

OUT

Pull-up

UART request to send active low

UART_RXD

Pull-down

UART data input

UART_TXD

OUT

Pull-up

UART data output

UART_CTS

Pull-down

UART clear to send active low

N/A

+3V3

Power supply for system, 3.3V

GND

Ground

RESETB

Pull-up

Reset, active low, > 5ms to cause a reset

GND

Ground

N/A

UART_DSR

Pull-up

UART data set ready

FACTORY_RESET

Pull-up

Input for factory default setting, (Active ’L’)

BT_MODE

Pull-up

Input for pairing mode

F/C_CTRL

OUT

Pull-up

Output for UART flow control ON/OFF

UART_DTR

OUT

Pull-down

UART data terminal ready

UART_DCD

OUT

Pull-down

UART data carrier detect

N/A

STATUS_LED0

OUT

Pull-down

Output for Bluetooth status display, LED0

STATUS_LED1

OUT

Pull-down

Output for Bluetooth status display, LED1

GND

Ground

GND

Ground

GND

Ground

A.1.2. Bluetooth Connection Detect(UART_DCD) Signal

Status of Bluetooth connection will be delivered to Host PC via UART_DCD signal. When Bluetooth

connection is made, UART_DCD signal will be set to low.

A.1.3. Factory Reset(FACTORY_RESET) Signal

Factory reset signal will be used for setting the IW05 to factory defaults. Factory reset signal should be

on 0V status for at least 1 second for the reset to occur.

A.1.4. Pairing (BT_MODE) Signal (Single Connection Mode Only)

IW05 provides a pairing signal input for instant configuration and automatic connection to two IW05s.

In this example, we will name the two IW05s as BCD1 and BCD2 In pairing mode.

Step 1. Turn on BCD1 and BCD2 and do factory default both of them by using RST signal.

Step 2. Set the pairing signal of BCD1 to a low state and hold the signal for 2 seconds.

Step 3. Set the pairing signal of BCD2 to a low state and hold the signal for 2 seconds.

Set the pairing signal of BCD2 to high state and hold the signal for 2 seconds. Now Set the pairing

signal of BCD2 to low state and hold it for 2 seconds

Step 4. Wait for BCD1 & BCD2 to connect to each other. It may take about 10 seconds to make a

connection. If there are many Bluetooth devices nearby, the connection time may increase.

Step 5. At this point your pair of IW05 is configured to make automatic connection to each other.

You can now use this pair of IW05’s like virtual serial cable.

* Note : During the pairing process, by way of the pairing signal, the Command Response will be

deactivated. Thus, the IW05 will not send the response messages such as OK, Connect and

Disconnect.

Table A-2 Pairing Process by Pairing Signal

BCD1

Status

Pairing Signal

BCD2

Status

Pairing Signal

1. Reset

Mode0

HIGH

1. Reset

Mode0

HIGH

2. Drop pairing

signal

Mode3

LOW

2. Drop pairing signal

Mode3

LOW

3.Restore

pairing signal

Mode3

HIGH

3.Restore

pairing signal

Mode3

HIGH

4. Drop pairing signal

Mode1

LOW

5.Restore

pairing signal

Mode1

HIGH

6. Connected

Slave

HIGH

6. Connected

Master

HIGH

Using pairing button, users can make a pairing connection between a IW05 unit and other Bluetooth

devices.

Step 1. Turn on BCD1 and do factory default by using RST signal.

Step 2. Set the pairing signal of BCD1 to a low state and hold the signal for 2 seconds.

Step 3. Users can discover and connect to BCD1 by using the software or user interface of other

Bluetooth device that they want to connect from.

Step 4. Wait for BCD1 & other Bluetooth device to connect to each other. It may take about 10

seconds to make a connection. If there are many Bluetooth devices nearby, the connection time

may increase.

Step 5. Now BCD1 is waiting for a connection from the last connected Bluetooth device. The last

connected Bluetooth device can connect to BCD1.

Table A-3 Pairing Process with other Bluetooth device by Pairing Signal

BCD1

Status

Pairing Signal

Other Bluetooth Device

Status

1. Reset

Mode0

HIGH

2. Drop pairing signal

Mode3

LOW

3. Inquiry and connect to

BCD1

4. Connected

Slave

HIGH

4. Connected

Master

A.1.5. Flow Control(FC_CTRL) On/Off Signal

If user wants to set the status of hardware flow control option using AT+UARTCONFIG command,

FC_CTRL signal should be connected with UART_CTS signal.

If Hwfc parameter in AT+UARTCONFIG command is set to 1, FC_CTRL signal is set to high and then

hardware flow control is enabled. And if Hwfc parameter in AT+UARTCONFIG command is set to 0,

FC_CTRL signal is set to low and then hardware flow control is disabled.

A.1.6. Bluetooth Status LED(STATUS_LED0, STATUS_LED1) Signal

<STATUS_LED0>

If any Bluetooth device is connected, this signal is set to high during 150msec periodically

after low status during 1 sec.

<STATUS_LED1>

When the connection status is Standby, this signal is set to high.

When the connection status is Pending, this signal is toggled 3 times periodically after low

status during 1 sec.

When the connection status is Connect, this signal is set to low.

A.1.7. Reset Signal

IW05 can be reset from one of following sources:

- RESETB pin

- Power on reset

- UART break character

- Software configured watchdog timer

The RESETB pin is an active low signal and is internally filtered using the internal low frequency clock

oscillator. A reset will be performed between 1.5 and 4.0ms following RESETB being active. So it is

recommended that RESETB be applied for a period greater than 5ms.

A.2. Connection Diagram

A.2.1. IW-05DU

A.2.1.1. When TTL level of MICOM is 3.3V

MICOM

MICRO-VDD

MICOM-RXD

MICOM-CTS

MICOM-RTS

MICOM-RST

MICOM-DTR

MICOM-DSR

TXD

RXD

CTS

RTS

F/C_CTRL

DTR

DSR

MICOM-TXD

MICOM-GND

VDD

GND

MICOM-DCD DCD

DC 3.3V Parani-BCD

RESETB

A.2.1.2. When TTL level of MICOM is 3.3V and Hardware Flow Control is not used

MICOM

MICRO-VDD

MICOM-RXD

MICOM-RST

TXD

RXD

CTS

RTS

F/C_CTRL

DTR

DSR

MICOM-TXD

MICOM-GND

VDD

GND

DCD

DC 3.3V Parani-BCD

RESETB

A.2.1.3. When TTL level of MICOM is 5V

DC 3.3V

62K 120K

DC 5V

MICOM

MICRO-VDD

MICOM-RXD

MICOM-CTS

MICOM-RTS

MICOM-RST

MICOM-DTR

MICOM-DSR

TXD

RXD

CTS

RTS

F/C_CTRL

DTR

DSR

MICOM-TXD

MICOM-GND

VDD

GND

MICOM-DCD DCD

Parani-BCD

RESETB

Appendix B: AT Commands

B.1. Terminology

B.1.1. AT Command

AT command set is a Tin fact standardTH HT languageTH for controlling HTmodemsTH. The AT command set was

developed by HTHayesTH and is recognized by virtually all HT personal computerTH modems. IW05 provides the

extended AT command set to control and configure the serial parameters and Bluetooth connection.

B.1.2. AT Response

IW05 replies to AT commands with 4 kinds of message, ‘OK’, ‘ERROR’, ‘CONNECT’ and

‘DISCONNECT’.

B.1.3. Operation Mode

Mode

Description

Mode0

Waiting for AT commands

Mode1

Attempting to connect to the last connected Bluetooth device

Mode2

Waiting for a connection from the last connected Bluetooth device

Mode3

Waiting for the connection from another Bluetooth device

B.1.4. Operation Status

Status

Description

Standby

Waiting for AT commands

Pending

Executing tasks

Connect

Transmitting data

B.1.5. Security

Security

Description

Authentication

Pin Code (or Pass key)

Encryption

Data encryption

B.1.6. Symbols

The symbols are used for the description of command syntax as follows:

Symbols

Meaning

ASCII Code



Carriage return

0x0D



Line feed

0x0A



Carriage return + Line feed

112233445566

Bluetooth device address

N or m

One digit decimal number

Timeout in seconds

B.2. Command Category

Command Category

Index

AT Commands

RESET

ATZ

AT&F

SERIAL PORT

AT+UARTCONFIG,b,p,s,h

BLUETOOTH

Information

AT+BTINFO?

AT+BTINQ?

AT+BTLAST?

AT+BTVER?

AT+BTRSSI,n

AT+MLIST?

Mode

AT+BTMODE,n

AT+MULTI,n

Status

+++

AT+SETESC,nn

ATO

AT+BTCANCEL

AT+BTSCAN

AT+BTSCAN,n,to

AT+BTSCAN112233445566,to

Connection

ATD

ATD112233445566

ATA

ATA112233445566

ATH

Security

AT+BTKEY=$string

AT+BTSD?

AT+BTCSD

AT+BTFP,n

AT+BTSEC,a,e

Miscellaneous

AT+BTNAME=$string

AT+BTLPM,n

REMOTE CONFIGURATION

AT+PASS=”nnnnnnnn”

AT+CHPASS=”nnnnnnnn”

S-REGISTER

AT&V

ATSnn?

ATSnn=mm

B.3. Command Description

B.3.1. ATZ

Response

OK

Purpose

Software Reset

Description

This has the same effects as Powercycling the unit.

This command disconnects any connected Bluetooth device, and stops ongoing tasks.

After rebooting, the status will be decided by the preset operation mode.

Some AT commands require the ATZ command be run so that the commands can take

effect.

B.3.2. AT&F

Response

OK

Purpose

Hardware reset

Description

This has the same effect as initialization by pressing the factory reset button.

All parameters are initialized to factory defaults

B.3.3. AT

Response

OK

Purpose

Check the connection status with host equipment

Description

Check if the connection to host equipment is operating normally. The serial parameters of

IW05 must be same as those of host equipment. If not, the IW05 will not respond or

‘ERROR’ message will appear or an abnormal sequence of strings will appear.

B.3.4. AT+UARTCONFIG,Baudrate,Parity,Stopbit,Hwfc

Response

OK

Purpose

Set Serial parameters

Parameters

Baudrate=1200/2400/4800/9600/14400/19200/38400/57600/115200/230400/460800/921600

(Default=9600)

Parity=N/E/O (Default=N)

Stopbit=1/2 (Default=1)

Hwfc(Hardware Flow Control)=0/1 (Default=1)

Description

The Serial parameters can be set or changed. The factory default is 9600, N, 1, 1.

To take effect the ATZ command must be used or Powercycle the unit.

Example

AT+UARTCONFIG,115200,N,1,1

B.3.5. AT+BTINFO?

Response

112233445566,DeviceName,Mode,Status,Auth,Encryp,FlowControl

OK

Purpose

Display Bluetooth settings

Description

The current Bluetooth settings are displayed including BD address, Device name,

Operation mode, Operation status, Authentication, Data Encryption, and Hardware Flow

Control. The initial value of Device name is ‘BCDx10_v2.0.6-445566’. BCD stands for

IW05, v2.0.6 for the version of firmware, and 445566 for the last 6 digits of BD address.

Mode=MODE0/MODE1/MODE2/MODE3

Status=STANDBY/PENDING/CONNECT

Auth=0/1 (Authentication is not activated when 0)

Encrypt=0/1 (Encryption is not activated when 0)

FlowControl=HWFC/NoFC

Example

000B530011FF,SENA,MODE0,PENDING,1,1,HWFC

B.3.6. AT+BTINQ?

Response

112233445566,FriendlyName,CoD

OK

Purpose

Search Bluetooth devices nearby

Description

The Bluetooth devices in Inquiry scan mode nearby are displayed with their BD addresses,

Device names, and Class of device.

Maximum 15 devices are scanned for 30 seconds. (Default 15 value in S-register 24)

B.3.7. AT+BTLAST?

Response

112233445566

Purpose

Display the BD address of the last connected device

Description

The Bluetooth device last connected to this IW05 is displayed with its BD address.

B.3.8. AT+BTVER?

Response

BCDX10_v2.0.6

OK

Purpose

Display device firmware version

Description

Display device firmware version

B.3.9. AT+BTRSSI,n(Single Connection Mode Only)

Response

OK

0,255,0,0 (repeatedly)

Purpose

Test signal strength

Parameters

n=0: Stop signal strength test

n=1: Start signal strength test

Description

When Bluetooth connection is established, you can use this command in Standby status.

The signal strength will be displayed repeatedly in order of Status, LinkQuality, Status,

RSSI. If the LinkQuality is close to 255 and RSSI is close to 0, the signal strength is in good

standing.

Example

+++

AT+BTRSSI,1

OK

0,255,0,0

B.3.10. AT+MLIST?

Response

CURRENT MODE:SINGLE CONNECTION MODE

OK

Purpose

Display the current multiple connection mode and connected slave’s Bluetooth addresses.

Description

Display current mode(SINGLE CONNECTION MODE , MULTI-DROP MODE, NODE

SWITCHING MODE) and connected slave Bluetooth address.

Example

AT+MLIST?

CURRENT MODE: MULTI-DROP MODE

TASK1 – 000195000001

TASK2 – DISCONNECT

TASK3 – DISCONNECT

TASK4 – 000195000004

B.3.11. AT+BTMODE,n

Response

OK

Purpose

Set operation mode

Parameters

n=0: MODE0 (Default)

n=1: MODE1

n=2: MODE2

n=3: MODE3

Description

When the operation status is ‘Pending’ currently, change the status to ‘Standby’ with

AT+BTCANCEL prior to this command.

To take effect the ATZ must be executed or Powercycle the unit

Example

AT+BTMODE,2

OK

ATZ

B.3.12. AT+MULTI,n

Response

(n = 0)

OK

(n = 1 or n = 2)

TASK1 OK

TASK2 OK

TASK3 OK

TASK4 OK

Purpose

Set multiple connection mode

Parameters

n=0: Single Connection Mode (Default)

n=1: Multi-Drop Mode

n=2: Node Switching Mode

Description

Set single connection mode, multi-drop mode or node switching mode.

B.3.13. +++

Response

OK

Purpose

Convert the operation status of ‘Connect’ to ‘Standby’

Description

In ‘Connect’ status, data from host is transmitted to the other side Bluetooth device, and

any AT command is not accepted but this command, which is not echoed on the screen.

When IW05 encounters a character ‘+’ from host, it stops the data transmission and waits

for next 2 characters. If the next 2 characters aren’t both ‘+’, it restart to transmit data

including the first ‘+’ as well. If not, it converts the operation status to ‘Standby’.

If the data from host includes ‘+++’, it will convert the operation status to ‘Standby’. Notice

that IW05 holds data transmission when it encounters ‘+’, until receiving next character.

‘+’ is an escape sequence character by default, which is changeable by AT+SETESC.

* Caution : In low power mode, you cannot change online status to command waiting status

by using the ‘+++’ string. Entering the ‘+++’ string during low power mode and online status

may entail unexpected errors.

B.3.14. AT+SETESC,nn

Response

OK

Purpose

Change the escape sequence character

Description

Escape sequence character set to ‘+’ by default is changeable.

The parameter nn must be a printable character.

Example

AT+SETESC,42

B.3.15. ATO (ATOx, ATObdaddr)

Response

None

Purpose

Convert the operation status of ‘Standby’ to ‘Connect’

Description

You can convert the operation status of ‘Standby’ to ‘Connect’ ready to transmit data. In

Node Switching mode, a specific slave can be specified to become an active connection by

specifying the connection number or the Bluetooth address.

Example

ATO

ATO3

ATO000195000001

B.3.16. AT+BTCANCEL

Response

OK

Purpose

Terminate the current executing task

Description

This terminates a current executing task, such as Inquiry scan and Page scan, then

converts the operation status to ‘Standby’

B.3.17. AT+BTSCAN

Response

OK

CONNECT 112233445566

Purpose

Wait for inquiry and connection from other Bluetooth devices

Description

This allows the inquiry and connection from the other Bluetooth devices. The operation

status will be in ‘Pending’ after this command. When connection is made and released, the

operation status is back to ‘Pending’. To convert the operation status to ‘Standby’

AT+BTCANCEL must be used.

This has the same effect as AT+BTSCAN,3,0.

When connection is made with other Bluetooth device, response will be ‘CONNECT’ with

its BD address.

B.3.18. AT+BTSCAN,n,to

Response

OK

CONNECT 112233445566

OK

ERROR

Purpose

Wait for inquiry and connection from other Bluetooth devices for a given duration

Parameters

n=1: Allows Inquiry scan

n=2: Allows Page scan

n=3: Allows both of Inquiry scan and Page scan

to= Time duration in seconds

Description

For the given to, IW05 is waiting for the inquiry and connection from other Bluetooth

devices. If parameter is set to 0, it will wait forever.

When connection is made with other Bluetooth device, response will be ‘CONNECT’ with

its BD address. If there is no connection made within this time duration, response is

‘ERROR’ and the operation status becomes to ‘Standby’.

Example

AT+BTSCAN,2,30

B.3.19. AT+BTSCAN112233445566,to

Response

OK

CONNECT 112233445566

OK

ERROR

Purpose

Wait for connection by the Bluetooth device with given BD address

Parameters

112233445566=BD address

to= time duration in seconds

Description

IW05 will wait to be connected to by the Bluetooth device with the given BD address. If

parameter is set to 0, it will wait forever.

When connection is made with the Bluetooth device, response will be ‘CONNECT’ with its

BD address. If there is no connection made within this time duration, response is ‘ERROR’

and the operation status becomes to ‘Standby’.

Example

AT+BTSCAN000B530011FF,30

B.3.20. ATD

Response

OK

CONNECT 112233445566

OK

ERROR

Purpose

Connect to the last connected Bluetooth device

Description

IW05 saves the BD address of the Bluetooth device most recently connected to.

If it fails to make a connection, response will display an ‘ERROR’.

B.3.21. ATD112233445566

Response

OK

CONNECT 112233445566

OK

ERROR

Purpose

Connect to a specific Bluetooth device with a given BD address

Parameters

112233445566=BD address

Description

IW05 attempts to connect to the Bluetooth device with the given BD address. To make

successful connection, the Bluetooth device must be in Page scan mode. This attempt

continues for 5 minutes.

If it fails to make connection, response is ‘ERROR’.

Example

ATD000B530011FF

B.3.22. ATA

Response

OK

Start ACL Open

ACL Connect Success

Purpose

ACL connect to the last connected Bluetooth device

Description

If it make connection, response will display an ‘ACL Connect Success’. Must have reboot

for new ACL connection.

B.3.23. ATA112233445566

Response

OK

Start ACL Open

ACL Connect Success

Purpose

ACL connect to a specific Bluetooth device with a given BD address

Parameters

112233445566 = BD address

Description

IW05 attempts to ACL connect to the Bluetooth device with the given BD address. To make

successful ACL connection, the Bluetooth device must be in Page scan mode. If it makes

connection, response will display an ‘ACL Connect Success’. Must have reboot for new

ACL connection.

Example

ATA0001950011FF

B.3.24. ATH (ATHx, ATHbdaddr)

Response

OK

DISCONNECT

Purpose

Release the current connection

Description

The current Bluetooth connection will be disconnected. It takes about Supervision

Timeout(S37) to detect an abnormal disconnection such as power off and moving out of

service range. In multiple connection modes, a specific connection can be specified to be

disconnected by specifying the connection number or the Bluetooth address.

The response message of ‘DISCONNECT’ may be displayed on disconnection depending

on the disconnection condition. You can make it not displayed using S10 register.

Example

ATH

ATH3

ATH000195000001

B.3.25. AT+BTKEY=$string

Response

OK

Purpose

Change pin code

Parameters

$string= New pin code (Default=”1234”)

Description

Pin code is a string, which allows up to 16 alpha-numeric characters. Based on this pin

code, IW05 generates a link key which is used in actual authentication process

Example

AT+BTKEY=”apple”

B.3.26. AT+BTSD? 

Response

112233445566

OK

Purpose

Display a list of Bluetooth devices sharing the same pin code

Description

Once a connection is made with a pin code, IW05saves the Bluetooth device with its link

key, generated by the pin code. The connection to a device listed in IW05 can be made

automatically without the authentication process. The maximum number kept on the list is

B.3.27. AT+BTCSD

Response

OK

Purpose

Clear the list of Bluetooth devices sharing the same pin code

Description

This clears the list of Bluetooth devices linked with the same key in flash memory. To take

effect the ATZ command must be used or Powercycle the unit.

B.3.28. AT+BTFP,n

Response

OK

Purpose

Set generation of link key every time of connection

Parameters

n=0: Inactivate (Default)

n=1: Activate

Description

If n is set to 1, IW05 asks for the pin code every time a connection is made. This can be

used to increase security.

B.3.29. AT+BTSEC,Authentication,Encryption

Response

OK

Purpose

Set authentication and data encryption

Parameters

Authentication=0: Inactivate (Default)

Authentication=1: Activate

Encryption=0: Inactivate (Default)

Encryption=1: Activate

Description

If the authentication is activated, the pin code must be set by AT+BTKEY command. Data

encryption cannot be used when authentication is not enabled, i.e. Authentication=0 and

Encryption=1 will not work properly.

B.3.30. AT+BTNAME=$string

Response

OK

Purpose

Change device name

Parameters

$string= New device name (Default=”BCDx10_v2.0.6-445566”)

Description

IW05 can have a user friendly name for easy identification. The name allows up to 30

alpha-numeric characters.

Example

AT+BTNAME=”My-Parani-BCD ”

B.3.31. AT+BTLPM,n

Response

OK

Purpose

Set low power mode

Parameters

n=0: Inactivate (Default)

n=1: Activate

Description

During no data transmission, IW05 can be in low power mode to save the power.

Low Power Timeout is set to S-register S52.

So if low power mode is activated and if there is no data transfer during a period specified

in S52, IW05 will be entered low power mode.

Please note that it takes a few seconds to make the IW05 out of low power mode.

B.3.32. AT+PASS=$string

Response

Remote Configuration Enabled

Purpose

Input password in remote configuration mode.

Parameters

$string= Password (Default=”0000”)

Description

Input password for authentication in remote configuration mode.

Example

AT+PASS=1234

B.3.33. AT+CHPASS=$string

Response

OK

Purpose

Change password used in remote configuration mode.

Parameters

$string= New password

Description

Change password used in remote configuration mode. Password length is up to 8.

Example

AT+CHPASS=12345678

B.3.34. AT&V

Response

S0:m0;S1:m1; …Sn:mn

OK

Purpose

Display all the S-registers

Description

All parameters are stored at S-register in flash memory. These values are sustained until

hardware reset.

B.3.35. ATSnn? 

Response

value

OK

Purpose

Display a given S-register

Parameters

nn= Address of S-register

Description

A specific S-register will be displayed.

B.3.36. ATSnn=mm

Response

OK

Purpose

Change S-register value

Parameters

nn= Address of S-register

mm= New value of S-register

Description

Some S-registers are optimized for the overall performance and protected and cannot be

changed. When users try to change these S-registers, response is ‘ERROR’.

For details of S-register, refer Appendix. B.

Example

ATS10=0

B.4. Command Validity

AT Command

Operation Status

Standby

Pending

Connect

○

ATZ

○

AT&F

○

AT+BINQ?

◎

ATD112233445566

◎

ATD

◎

ATA112233445566

◎

ATA

◎

AT+BTSCAN

◎

AT+BTSCAN,n,to

◎

AT+BTSCAN112233445566,to

◎

AT+BTCANCEL

○

+++

○

AT+SETESC

◎

ATO

●

ATH

●

AT+BTSEC,Auth,Encr

◎

AT+BTLAST?

○

AT+BTMODEn

◎

AT+BTNAME=”Name”

◎

AT+BTKEY=”nnnn”

◎

AT+BTINFO?

○

AT+BTLPM,n

◎

AT+BTSD?

○

AT+BTCSD

◎

AT+BTFP,n

◎

AT+UARTCONFIG,b,p,s,h

◎

AT+BTVER?

○

AT+BTRSSI,n

●

AT+PASS=”nnnnnnnn”

○

AT+CHPASS=”nnnnnnnn”

○

◎ Valid only when IW05 is not connected to other Bluetooth device.

● Valid only when IW05 is connected to other Bluetooth device.

Appendix C: S-Register

S-registers contain 52 parameters for the IW05. These are stored in flash memory and the values will

be saved unless hardware reset is executed. The value of S-register can be accessed and changed

with ATS command. Some S-registers not shown below are set to maximize the performance of IW05.

Thus it is not recommended to change these S-registers.

Change the value of S-register only in Standby status. Turn IW05 off and on.

C.1. S1: Force to Reconnect (default 1)

S1=0, IW05 in Mode1 does not try to reconnect when disconnected.

S1=1, IW05 in Mode1 keeps trying to reconnect when disconnected.

C.2. S3: Stream UART Policy (default 0)

S3=0, the priority of UART streaming is throughput.

S3=1, the priority is latency, which minimizes the delay of data transmission. This is useful in case of

transmitting very small data quickly.

When this value is 1, in order to minimize latency, IW05 sends the received data immediately. When

this value is 0, the IW05 maximizes throughput, the IW05 stores received data for a short time and

sends a large data packet. If the packet length is less than 100 bytes, having latency being the priority

is recommended. If the packet length is more than 100 bytes, having throughput as the priority is

recommended. Also, if you want to use high baud rate, throughput priority will be more effective. Just

for reference, the buffer length for receiving data is 2 Kbytes.

C.3. S4: Enable Remote Name Query (default 1)

S4=0, IW05 will query only the BD address. This speeds up the inquiry process.

S4=1, IW05 will query the BD address, device name and class of device.

When this value is 1, IW05 finds not only BD address but also friendly name. When this value is 0,

IW05 finds only BD address. When set to 0 this will make queries much faster. When using the pairing

button, finding friendly name will be omitted automatically.

C.4. S6: Enable Low Power Mode (default 0)

S6=0, deactivate Low Power Mode.

S6=1, activate Low Power Mode.

This value decides whether IW05 works in Low Power Mode or not. When this value is 0, IW05 works

only in active power mode. When this value is 1, IW05 will be in low power mode to save the power.

Therefore, it takes a few seconds to wake the IW05 out of low power mode.

C.5. S10: Enable Response Message (default 1)

S10=0, IW05 does not send response messages to the host system.

S10=1, IW05 sends response messages to host system.

This value decides whether IW05 sends response messages such as OK, ERROR, CONNECT,

DISCONNECT or not. When this value is 0, IW05 will not send any response messages. If the

response messages conflicts with your host programs or devices that is connected to IW05, change

this value to 0.

C.6. S11: Enable Escape (default 1)

S11=0, IW05 does not allow escape sequence characters. The operation status of Connect cannot be

changed to Standby. Since the IW05 skips the process of detecting escape sequence characters,

more efficient data transmission can be had.

S11=1, IW05 allows for the escape sequence character. Whenever it is needed, the Connect status

can be changed to Standby.

C.7. S12: Clear Data Buffer When Disconnected (default 0)

S12=0, IW05 does not clear the data buffer received from host system when disconnected.

S12=1, IW05 clears the data buffer when disconnected.

C.8. S13: Enable DCD Signal (default 1)

S13=0, DCD signal off

S13=1, DCD signal on

C.9. S14: Enable DTR Transfer (default 1)

S14=0, DTR/DSR signal is transferred in a loop-back fashion..

S14=1, DTR signal is transferred to DSR of remote device.

C.10. S15: Enable Disconnect by DTR (default 0)

S15=0, DTR signal cannot release the connection.

S15=1, The Bluetooth connection can be released when DTR signal is off.

This value decides whether Bluetooth connection is released when DTR signal drops or not. If this

value is 1, you can use DTR signal in order to disconnect Bluetooth connection.

C.11. S22: Faster Connection (default 3)

S22=0, none

S22=1, page scan

S22=2, inquiry scan

S22=3, page/inquiry scan

Connecting time is average 1.5sec faster than normal mode.

C.12. S23: Intercharacter Timeout Setting (default 0)

S23=0: Not used

S23=1: 1 x S26

S23=2: 10 x S26

S23=3: 100 x S26

C.13. S24: Maximum Number of Inquiry Result (default 15)

The maximum number of inquiry list can be controlled. This value can be set up to 15.

(If 0 is set, inquiry is performed without limitation on number of inquiry list.)

C.14. S26: Intercharacter Timeout (default 0)

This value describes time interval between characters used to separate the data from serial port. If

there is no more data coming from serial port in this value, data is sent to client.

S23=1 x S26=50: Timeout-> 50msec

S23=2 x S26=50: Timeout-> 500msec

S23=3 x S26=3: Timeout-> 300msec

Inter Character Time Out

* Optimal Value(S23 x S26)

50ms

180

100ms

235

200ms

340

* When 10 bytes data are sent every intercharacter timeout, they are sent separately by 10 bytes at

the optimal value. If the intercharater timeout is set below the optimal value, the data will be put

together and sent by 20, 30, 40 bytes or more.

C.15. S28: Escape Sequence Character (default 43)

The decimal number of the ASCII code of escape sequence character can be controlled. The initial

value is 43, the ASCII code of ‘+’.

C.16. S31: Page Timeout (default 20)

This is the timeout in seconds to attempt connection with the ATD command. After this timeout expires,

the IW05 will restart automatically. If this value is 0, IW05 will attempt to connect without restarting. . It

must set at 5 second units.

C.17. S33: Inquiry Timeout (default 30)

This is the timeout in seconds to execute inquiry scan.

C.18. S37: Supervision Timeout (default 5)

This is the timeout to presume disconnection, which is set to 5 seconds initially. The smaller the value

becomes, the more quickly IW05 can detect an abnormal disconnection. But when the communication

is suspended, it may be regarded as disconnection. This value should be greater than the Slave

Disconnect Timeout(S57). (Slave unit depends on the value of master unit.)

C.19. S43: COD (default 001F00)

This value describes the sort of the Bluetooth device and is editable.

C.20. S44: COD Filter (default 0)

This value is used to filter the sort of the Bluetooth devices on inquiring. All the Bluetooth devices are

inquired in case of 0. In case of 3E0100, Bluetooth devices with CoD 3E0100 are inquired.

C.21. S45: Inquiry Access Code (default 0x9E8B33)

Inquiry access code is used during inquiry state. The reserved IAC addresses are 0x9E8B00 ~

0x9E8B3F. The general inquiry IAC is 0x9E8B33.

IW05 is able to find the Bluetooth devices that are configured as the same IAC.

C.22. S46: BD Address of Last Connected Device

This saves the BD address of the Bluetooth device connected most recently in single connection

mode. This saves the Task1 BD address of the Bluetooth device connected most recently in a multiple

connection mode.

C.23. S48: Low Power Max Interval (default 5000)

This is the max interval value to use low power mode, which is set to 5000 initially. (5000 x 625μsec =

3125msec)

C.24. S49: Low Power Min Interval (default 4500)

This is the min interval value to use low power mode, which is set to 4500 initially. (4500 x 625μsec =

2812msec)

A small interval increases power consumption, a large interval increases latency.

C.25. S52: Low Power Timeout (default 5)

This is the low power timeout value, which is set to 5 initially. (5sec)

During no data transmission in the timeout, IW05 will be in low power mode to save the power.

Therefore, it takes a few seconds to wake the IW05 out of low power mode.

C.26. S54: BD Address of Last Connected Device

This saves the Task2 BD address of the Bluetooth device connected most recently in a multiple

connection mode.

C.27. TS55: BD Address of Last Connected Device

This saves the Task3 BD address of the Bluetooth device connected most recently in a multiple

connection mode.

C.28. S56: BD Address of Last Connected Device

This saves the Task4 BD address of the Bluetooth device connected most recently in a multiple

connection mode.

C.29. S57: Slave Disconnect Timeout (default 3)

This S57 register value defines the time period in seconds that a master unit waits in case a slave unit

does not receive the data sent from the master. For this time period, the master unit will not send data

to all slave units if any slave unit does not receive the data. If the slave unit does not receive the data

after this time period elapses, the master unit will disconnect the connection with the problematic slave

unit. The value should be greater than 0 and smaller than the Supervision Timeout(S37).

C.30. S58: MAX TX POWER (default 0)

This value describes the peak output power. Setting this causes rebooting and applying. (There is a

little deviation according to the devices.)

BCD110

Parameter

dBm

Use chip setting.

-14

-10

-5

BCD210

Parameter

dBm

Use chip setting.

-12

-8

-4

C.31. S59: Current Slave in Communication (default 0)

This value shows the current slave number in communication. The value is automatically stored when

the slave is selected for communication. This value can also be set by user so the master unit

connects to a specific slave to connect first in case the master unit reboots. The value range is 0~4. 0

means the maser unit never connected to a slave. The master will connect to a slave whatever

responses first.

C.32. S60: Reconnect Time Interval (default 5)

This value defines reconnect time interval in case a slave is disconnected in multiple connection mode.

The actual reconnect time interval will be the value multiplied by two in seconds. For example, if the

value is set to 5, the reconnect time interval will be 10 seconds. The value should be greater than or

equal to 5. The master unit will only try to reconnect when its mode is set to Mode1.

Appendix D: Trouble Shooting

D.1. No Data Transmission

D.1.1. Device Settings

Check whether the Baud rate of IW05 matches that of its host equipment.

Check whether the host equipment of IW05 uses Hardware Flow Control. IW05 is initially set to Use of

Hardware Flow Control. If your host equipment does not use Hardware Flow Control, please disable

the Hardware flow control option by ParaniWIN or AT command.

D.2. Data Loss or Malfunctioning

D.2.1. Hardware Flow Control

When transmitting large amounts of data with No Hardware Flow Control, IW05 may clear the data

buffer unexpectedly. The possibility becomes greater as the RF transmission environment becomes

worse.

D.2.2. Response Message

The messages of IW05 response may affect the function of host system. Set ATS10=0 not to send IW05 response

to host system and try again. Refer Appendix B. for details.

D.3. Transmission Delay

D.3.1. RF Processing Delay

It takes 30msec approximately for a IW05 to complete a data transmission to the other Bluetooth

device. This time delay cannot be reduced and may enlarge as the RF transmission environment

becomes worse. Do not use IW05. If your applications cannot allow for this time delay.

D.3.2. RF Transmission Environment

If there are many Bluetooth devices working in a small area and/or the RF communication distance is

too great and/or there are some obstacles affecting RF performance, the IW05 repeats the

transmission packet by packet due to interferences and/or low RF performance. This may lead to

increased data transmission time delays.

Appendix E: Warranty

E.1. GENERAL WARRANTY POLICY

Sena Technologies, Inc. (hereinafter referred to as SENA) warrants that the Product shall conform to

and perform in accordance with published technical specifications and the accompanying written

materials, and shall be free of defects in materials and workmanship, for the period of time herein

indicated, such warranty period commencing upon receipt of the Product.

This warranty is limited to the repair and/or replacement, at SENA’s discretion, of defective or non-

conforming Product, and SENA shall not be responsible for the failure of the Product to perform

specified functions, or any other non- conformance caused by or attributable to: (a) any misapplication

or misuse of the Product; (b) failure of Customer to adhere to any of SENA’s specifications or

instructions; (c) neglect of, abuse of, or accident to, the Product; or (d) any associated or

complementary equipment or software not furnished by SENA.

Limited warranty service may be obtained by delivering the Product to SENA or to the international

distributor it was purchased through and providing proof of purchase or receipt date. Customer agrees

to insure the Product or assume the risk of loss or damage in transit, to prepay shipping charges to

SENA, and to use the original shipping container or equivalent.

E.2. LIMITATION OF LIABILITY

EXCEPT AS EXPRESSLY PROVIDED HEREIN, SENA MAKES NO WARRANTY OF ANY KIND,

EXPRESSED OR IMPLIED, WITH RESPECT TO ANY EQUIPMENT, PARTS OR SERVICES

PROVIDED PURSUANT TO THIS AGREEMENT, INCLUDING BUT NOT LIMITED TO THE IMPLIED

WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. NEITHER

SENA NOR ITS DEALER SHALL BE LIABLE FOR ANY OTHER DAMAGES, INCLUDING BUT NOT

LIMITED TO DIRECT, INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES,

WHETHER IN AN ACTION IN CONTRACT OR TORT (INCLUDING NEGLIGENCE AND STRICT

LIABILITY), SUCH AS, BUT NOT LIMITED TO, LOSS OF ANTICIPATED PROFITS OR BENEFITS

RESULTING FROM, OR ARISING OUT OF, OR IN CONNECTION WITH THE USE OF FURNISHING

OF EQUIPMENT, PARTS OR SERVICES HEREUNDER OR THE PERFORMANCE, USE OR

INABILITY TO USE THE SAME, EVEN IF SENA OR ITS DEALER HAS BEEN ADVISED OF THE

POSSIBILITY OF SUCH DAMAGES. IN NO EVENT WILL SENA OR ITS DEALERS TOTAL LIABILITY

EXCEED THE PRICE PAID FOR THE PRODUCT.

E.3. HARDWARE PRODUCT WARRANTY DETAILS

WARRANTY PERIOD: SENA warranties embedded hardware Product for a period of one (1) year, and

external hardware Product for a period of three (3) or five (5) years according to the Product type.

WARRANTY PROCEDURE: Upon return of the hardware Product SENA will, at its option, repair or

replace Product at no additional charge, freight prepaid, except as set forth below. Repair parts and

replacement Product will be furnished on an exchange basis and will be either reconditioned or new.

All replaced Product and parts become the property of SENA. If SENA determines that the Product is

not under warranty, it will, at the Customers option, repair the Product using current SENA standard

rates for parts and labor, and return the Product at no charge in or out of warranty.

WARRANTY EXCLUSIONS: Damages caused by

- Accidents, falls, objects striking the SENA product,

- Operating the Product in environments that exceed SENA's temperature and humidity specifications,

- Power fluctuations, high voltage discharges,

- Improper grounding, incorrect cabling,

- Misuse, negligence by the customer or any other third party,

- Failure to install or operate the product (s) in accordance to their SENA User Manual,

- Failure caused by improper or inadequate maintenance by the customer or any other third party,

- Floods, lightning, earthquakes,

- Water spills,

- Replacement of parts due to normal wear and tear,

- Hardware has been altered in any way,

-Product that has been exposed to repair attempts by a third party without SENA’s written consent,

- Hardware hosting modified SENA Software, or non-SENA Software, unless modifications have been

approved by SENA.

- Battery component capacity degradation due to usage, aging, and with some chemistry, lack of

maintenance.

E.4. SOFTWARE PRODUCT WARRANTY DETAILS

WARRANTY PERIOD: SENA warranties software Product for a period of one (1) year.

WARRANTY COVERAGE: SENA warranty will be limited to providing a software bug fix or a software

patch, at a reasonable time after the user notifies SENA of software non-conformance.
