SENA TECHNOLOGIES SMH10-A Bluetooth Stereo Motorcycle Headset User Manual

Sena Technologies,Inc. Bluetooth Stereo Motorcycle Headset

User Manual

User's Guidewww.sena.com

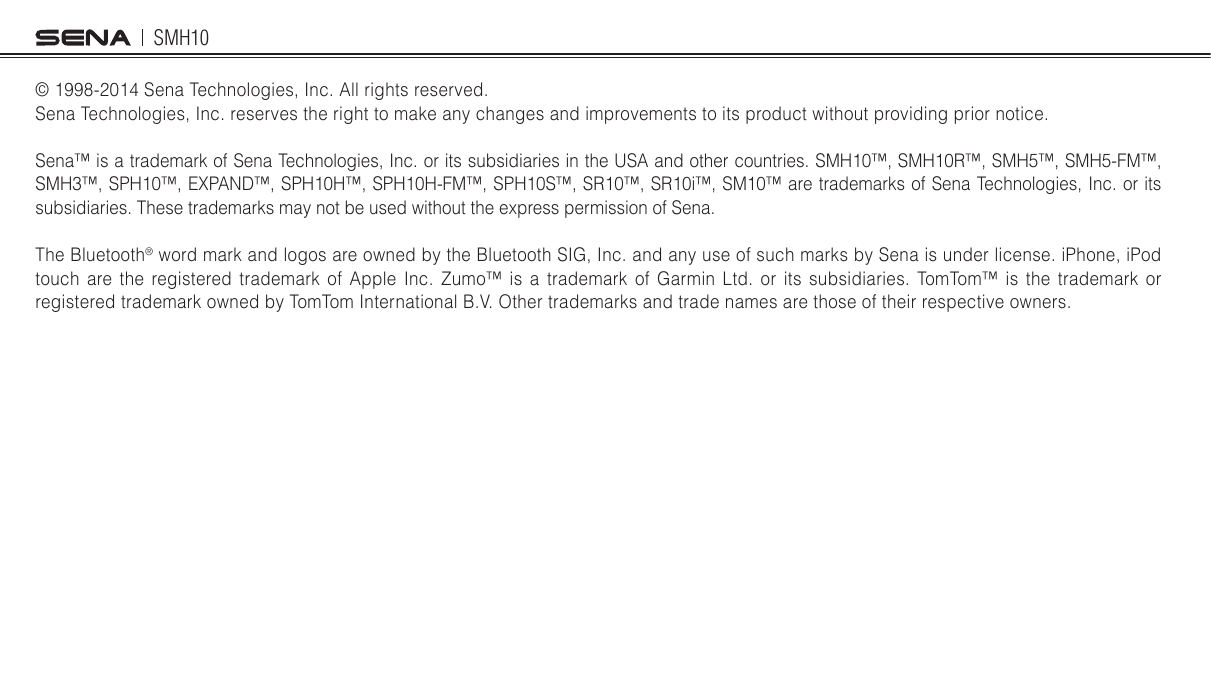

SMH102© 1998-2014 Sena Technologies, Inc. All rights reserved.Sena Technologies, Inc. reserves the right to make any changes and improvements to its product without providing prior notice.Sena™ is a trademark of Sena Technologies, Inc. or its subsidiaries in the USA and other countries. SMH10™, SMH10R™, SMH5™, SMH5-FM™, SMH3™, SPH10™, EXPAND™, SPH10H™, SPH10H-FM™, SPH10S™, SR10™, SR10i™, SM10™ are trademarks of Sena Technologies, Inc. or its subsidiaries. These trademarks may not be used without the express permission of Sena.The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Sena is under license. iPhone, iPod touch are the registered trademark of Apple Inc. Zumo™ is a trademark of Garmin Ltd. or its subsidiaries. TomTom™ is the trademark or registered trademark owned by TomTom International B.V. Other trademarks and trade names are those of their respective owners.
SMH103EnglishCONTENTS1. INTRODUCTION................................................................................ 52. PACKAGE CONTENTS ..................................................................... 63.  INSTALLING THE SMH10 ON YOUR HELMET................................ 74.  POWERING ON/OFF AND CHARGING.......................................... 104.1 Powering On .................................................................................. 104.2 Powering Off .................................................................................. 104.3 Charging ........................................................................................ 104.4  Low Battery Warning ...................................................................... 114.5  Checking the Battery Level ........................................................... 115. VOLUME ADJUSTMENT ................................................................. 116.  PAIRING THE SMH10 WITH BLUETOOTH DEVICES ................... 126.1  Mobile Phone Pairing ..................................................................... 126.2 Multipoint Pairing ........................................................................... 126.3  Bluetooth Stereo Device Pairing .................................................... 136.4  Bluetooth GPS Navigation Pairing ................................................. 136.5  Pairing with the Sena SR10, Bluetooth Two-way Radio Adapter ... 157.  PAIRING WITH SELECTIVE PROFILE: A2DP STEREO OR HANDSFREE ................................................................................... 177.1  A2DP Stereo Music Only ............................................................... 177.2  HFP for Phone Call Only ................................................................ 178. INTERCOM PAIRING ...................................................................... 188.1  Pairing with Other SMH10 Headsets for Intercom Conversation ... 188.2  Pairing with Other Sena Headset Models for Intercom Conversation .................................................................................. 199.  SMH10 CONFIGURATION SETTING ............................................. 199.1  Assigning Speed Dial  ................................................................... 209.2  Enabling/Disabling Voice Activated Phone Answering  ................ 219.3  Enabling/Disabling Voice Activated Intercom  .............................. 219.4  Enabling/Disabling Voice Prompts ................................................ 219.5 Enabling/Disabling Sidetone ......................................................... 229.6  Enabling/Disabling Advanced Noise Control ................................ 229.7  Delete all Bluetooth Pairing Information  ....................................... 229.8  Exit Voice Conlguration Menu  ...................................................... 2310. FUNCTION PRIORITY..................................................................... 2311. STEREO MUSIC .............................................................................. 2411.1  By Stereo Audio Cable .................................................................. 2411.2  By Bluetooth Wireless Stereo  ........................................................ 2412.  MOBILE PHONE CALL MAKING AND ANSWERING ..................... 2512.1  Mobile Phone Call Making and Answering .................................... 2512.2 Speed Dialing ................................................................................ 26
SMH10413. TWO-WAY INTERCOM ................................................................... 2713.1  Start and End Two-way Intercom ................................................... 2713.2  Intercom and Mobile Phone Call ................................................... 2813.3  Intercom and GPS  ........................................................................ 2813.4  Intercom and Two-way Radio ........................................................ 2914.  THREE-WAY CONFERENCE INTERCOM ..................................... 3014.1  Start Three-way Intercom ............................................................... 3014.2  End Three-way Intercom ................................................................ 3115.  FOUR WAY CONFERENCE INTERCOM ....................................... 3215.1  Start Four-way Intercom ................................................................. 3215.2  End Four-way Intercom .................................................................. 3216. MUSIC SHARING ............................................................................ 3317. UNIVERSAL INTERCOM................................................................. 3317.1  Universal Intercom Pairing ............................................................. 3417.2  Two-way Universal Intercom .......................................................... 3417.3  Three-way Universal Intercom ....................................................... 3417.4  Four-way Universal Intercom ......................................................... 3618.  THREE-WAY CONFERENCE PHONE CALL WITH INTERCOM PARTICIPANT ................................................................................. 3719. INTERCOM FAILURE ...................................................................... 3820. INTERCOM RECONNECTION ........................................................ 3821.  RESET TO FACTORY DEFAULT SETTINGS................................. 3822. FAULT RESET ................................................................................. 3923. FIRMWARE UPGRADE ................................................................... 3924. SENA BLUETOOTH CONNECTION CASE STUDIES ............................4025.  OPERATION QUICK REFERENCE ................................................ 48CERTIFICATION AND SAFETY APPROVALS ...................................... 49s  FCC Compliance Statement ............................................................... 49s  FCC RF Exposure Statement .............................................................. 49s FCC Caution ....................................................................................... 49s  CE Declaration of Conformity  ............................................................ 50s  Industry Canada Statement  ............................................................... 50s Bluetooth License  .............................................................................. 50s  WEEE (Waste Electrical and Electronic Equipment) ........................... 50SAFETY INFORMATION ........................................................................ 51s  Product Storage and Management .................................................... 51s Product Use ........................................................................................ 51s Battery ................................................................................................ 52PRODUCT WARRANTY AND DISCLAIMER ......................................... 53s Limited Warranty ................................................................................. 53s Warranty Exclusions ........................................................................... 55s Warranty Service ................................................................................. 56s  Return for Full Refund ......................................................................... 56

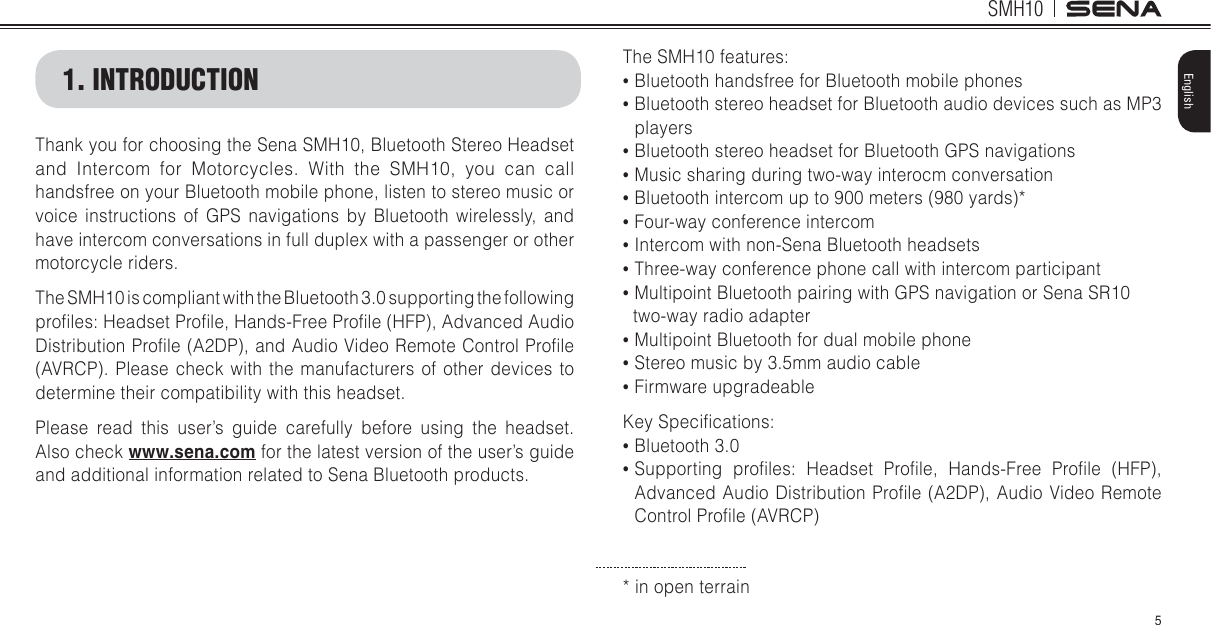

SMH105EnglishThank you for choosing the Sena SMH10, Bluetooth Stereo Headset and Intercom for Motorcycles. With the SMH10, you can call handsfree on your Bluetooth mobile phone, listen to stereo music or voice instructions of GPS navigations by Bluetooth wirelessly, and have intercom conversations in full duplex with a passenger or other motorcycle riders. The SMH10 is compliant with the Bluetooth 3.0 supporting the following prolles Headset Prolle, Hands-Free Prolle (HFP), Advanced Audio Distribution Prolle (A2DP), and Audio Video Remote Control Prolle (AVRCP). Please check with the manufacturers of other devices to determine their compatibility with this headset.Please read this user’s guide carefully before using the headset. Also check www.sena.com for the latest version of the user’s guide and additional information related to Sena Bluetooth products.1. INTRODUCTIONThe SMH10 featuresŖ Bluetooth handsfree for Bluetooth mobile phones Ŗ Bluetooth stereo headset for Bluetooth audio devices such as MP3 playersŖ Bluetooth stereo headset for Bluetooth GPS navigationsŖ Music sharing during two-way interocm conversationŖ Bluetooth intercom up to 900 meters (980 yards)*Ŗ Four-way conference intercomŖ Intercom with non-Sena Bluetooth headsetsŖ Three-way conference phone call with intercom participant Ŗ Multipoint Bluetooth pairing with GPS navigation or Sena SR10   two-way radio adapter Ŗ Multipoint Bluetooth for dual mobile phoneŖ Stereo music by 3.5mm audio cableŖ Firmware upgradeable+ey SpecilcationsŖ Bluetooth 3.0Ŗ  Supporting prolles Headset Prolle, Hands-Free Prolle (HFP), Advanced Audio Distribution Prolle (A2DP), Audio Video Remote Control Prolle (AVRCP) * in open terrain

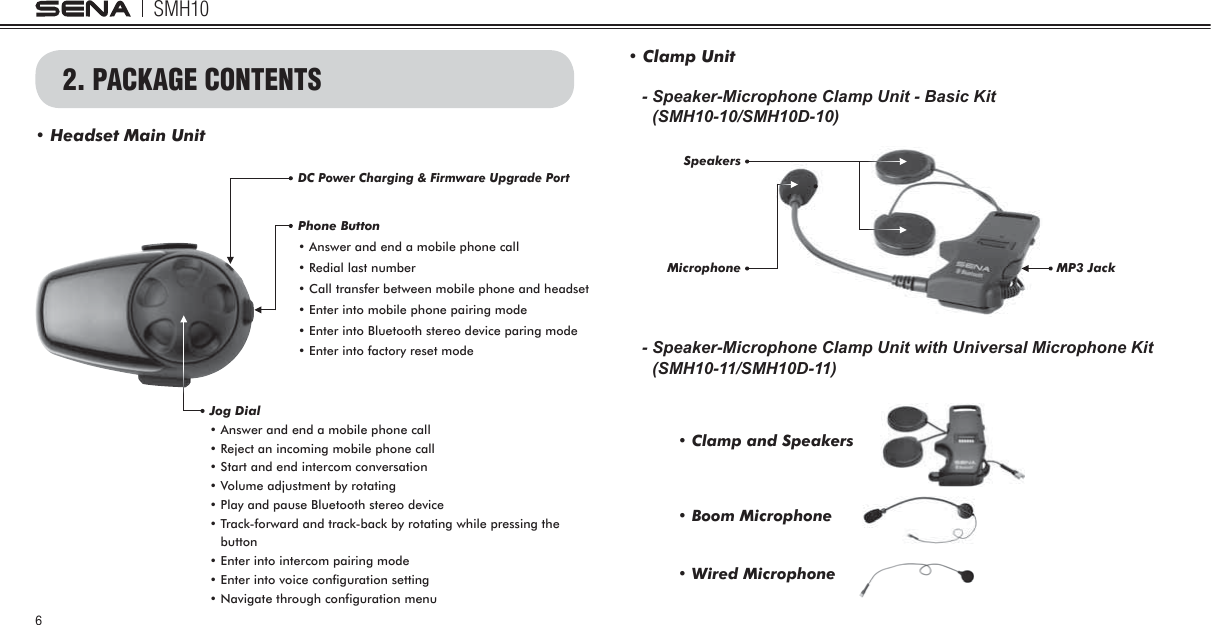

SMH1062. PACKAGE CONTENTS+HDGVHW0DLQ8QLW-RJ'LDO$QVZHUDQGHQGDPRELOHSKRQHFDOO5HMHFWDQLQFRPLQJPRELOHSKRQHFDOO6WDUWDQGHQGLQWHUFRPFRQYHUVDWLRQ9ROXPHDGMXVWPHQWE\URWDWLQJ3OD\DQGSDXVH%OXHWRRWKVWHUHRGHYLFH7UDFNIRUZDUGDQGWUDFNEDFNE\URWDWLQJZKLOHSUHVVLQJWKHEXWWRQ(QWHULQWRLQWHUFRPSDLULQJPRGH(QWHULQWRYRLFHFRQILJXUDWLRQVHWWLQJ1DYLJDWHWKURXJKFRQILJXUDWLRQPHQX3KRQH%XWWRQ$QVZHUDQGHQGDPRELOHSKRQHFDOO5HGLDOODVWQXPEHU&DOOWUDQVIHUEHWZHHQPRELOHSKRQHDQGKHDGVHW(QWHULQWRPRELOHSKRQHSDLULQJPRGH(QWHULQWR%OXHWRRWKVWHUHRGHYLFHSDULQJPRGH(QWHULQWRIDFWRU\UHVHWPRGH'&3RZHU&KDUJLQJ)LUPZDUH8SJUDGH3RUW03-DFN0LFURSKRQH6SHDNHUV&ODPSDQG6SHDNHUV%RRP0LFURSKRQH:LUHG0LFURSKRQH&ODPS8QLW   -  Speaker-Microphone Clamp Unit - Basic Kit (SMH10-10/SMH10D-10)   -  Speaker-Microphone Clamp Unit with Universal Microphone Kit (SMH10-11/SMH10D-11)
SMH107EnglishTo securely install the SMH10 on the helmet, please follow the procedure.1. Loosen the two screws on the back plate of the speaker-microphone clamp unit using the enclosed Allen Wrench. Insert the back plate of the clamp unit between the internal padding and external shell of the helmet, and tighten the two screws. Please make sure that the microphone is located properly close to your mouth when you wear the helmet.Insert3. INSTALLING THE SMH10 ON YOUR HELMET86%3RZHU'DWD&DEOH&LJDUHWWH&KDUJHUPP6WHUHR$XGLR-DFN&DEOH*OXHG6XUIDFH0RXQWLQJ$GDSWHU0LFURSKRQH6SRQJHV6SHDNHU3DGV+RRNDQG/RRS)DVWHQHUVIRU6SHDNHUV$OOHQ:UHQFK

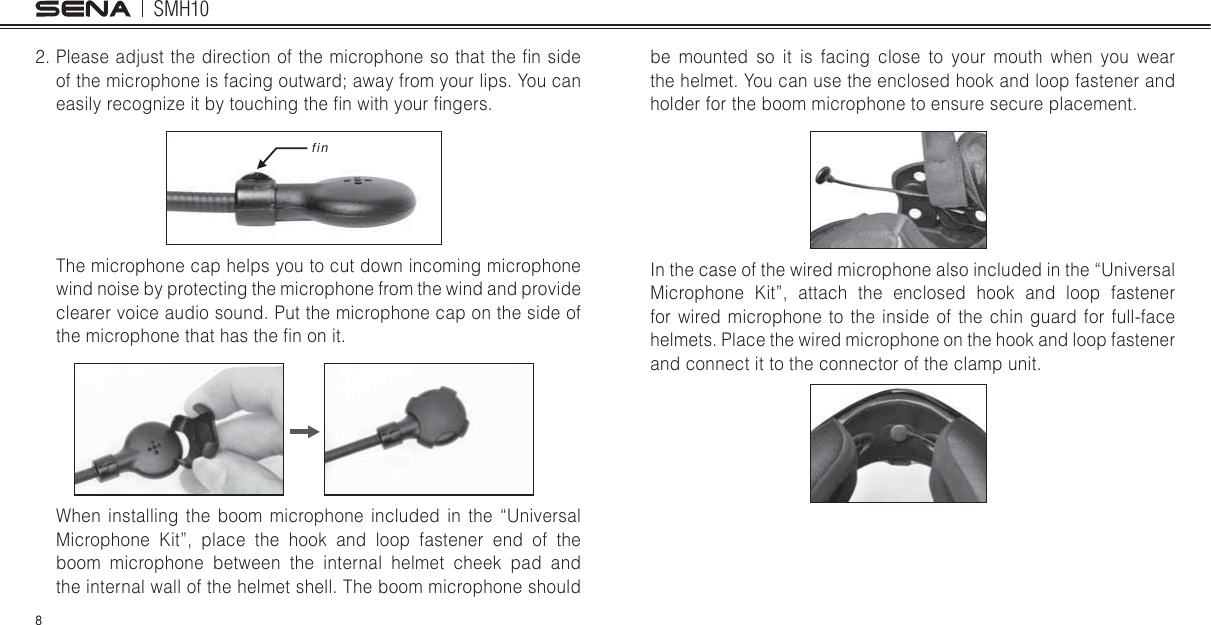

SMH1082. Please adJust the direction of the microphone so that the ln side of the microphone is facing outward; away from your lips. You can easily recogniZe it by touching the ln with your lngers.fin  The microphone cap helps you to cut down incoming microphone wind noise by protecting the microphone from the wind and provide clearer voice audio sound. Put the microphone cap on the side of the microphone that has the ln on it.  When installing the boom microphone included in the “Universal Microphone Kit”, place the hook and loop fastener end of the boom microphone between the internal helmet cheek pad and the internal wall of the helmet shell. The boom microphone should be mounted so it is facing close to your mouth when you wear the helmet. You can use the enclosed hook and loop fastener and holder for the boom microphone to ensure secure placement.   In the case of the wired microphone also included in the “Universal Microphone Kit”, attach the enclosed hook and loop fastener for wired microphone to the inside of the chin guard for full-face helmets. Place the wired microphone on the hook and loop fastener and connect it to the connector of the clamp unit.

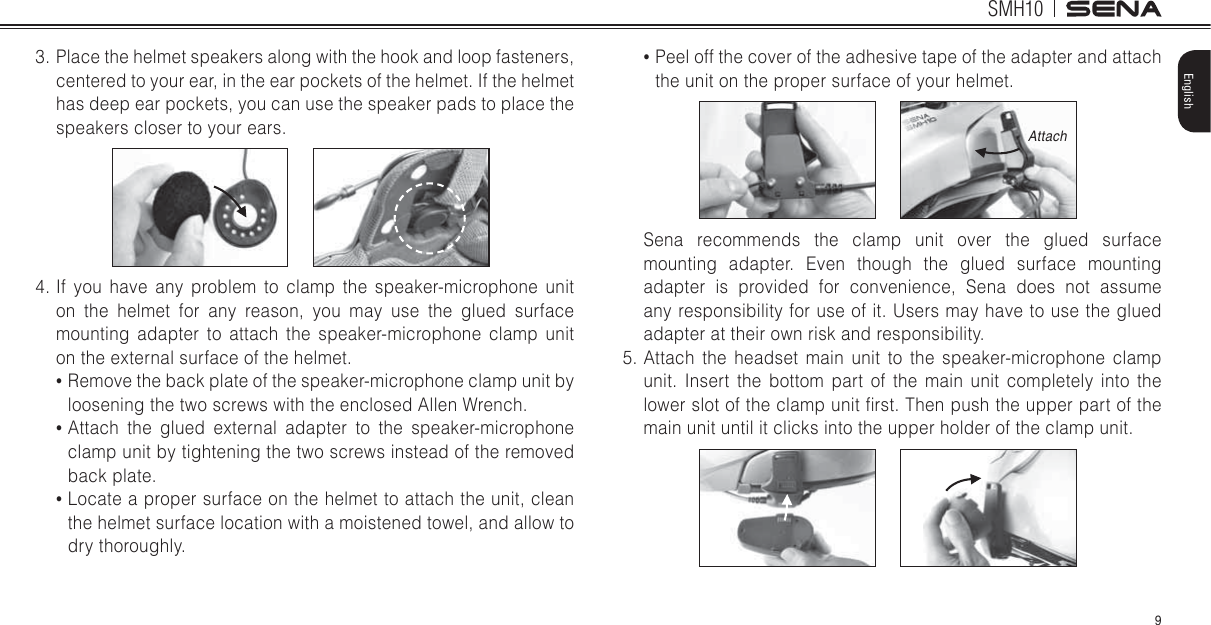

SMH109English3. Place the helmet speakers along with the hook and loop fasteners, centered to your ear, in the ear pockets of the helmet. If the helmet has deep ear pockets, you can use the speaker pads to place the speakers closer to your ears.4. If you have any problem to clamp the speaker-microphone unit on the helmet for any reason, you may use the glued surface mounting adapter to attach the speaker-microphone clamp unit on the external surface of the helmet.  Ŗ Remove the back plate of the speaker-microphone clamp unit by loosening the two screws with the enclosed Allen Wrench.Ŗ Attach the glued external adapter to the speaker-microphone clamp unit by tightening the two screws instead of the removed back plate.Ŗ Locate a proper surface on the helmet to attach the unit, clean the helmet surface location with a moistened towel, and allow to dry thoroughly.Ŗ Peel off the cover of the adhesive tape of the adapter and attach the unit on the proper surface of your helmet.Attach  Sena recommends the clamp unit over the glued surface mounting adapter. Even though the glued surface mounting adapter is provided for convenience, Sena does not assume any responsibility for use of it. Users may have to use the glued adapter at their own risk and responsibility.5. Attach the headset main unit to the speaker-microphone clamp unit. Insert the bottom part of the main unit completely into the lower slot of the clamp unit lrst. Then push the upper part of the main unit until it clicks into the upper holder of the clamp unit.
SMH10106. To remove the main headset from the speaker-microphone clamp unit, hold the lower part of the speaker-microphone clamp unit with your thumb and gently press down the hook on the upper part of the headset main unit with your index lnger until it clicks out. You may have to do this to charge up or to carry the headset main unit.4. POWERING ON/OFF AND CHARGINGTo power on and off the headset, you don’t need to press and hold any button for several seconds. Just short press the Jog Dial and the Phone Button simultaneously, and you will get quick on-and-off convenience. 4.1 Powering OnPress the Jog Dial and the Phone Button at the same time for about 1 second to power on. The blue LED turns on and you will hear ascending beeps. 4.2 Powering OffJust short press the Jog Dial and the Phone Button simultaneously, you don’t need to press and hold for a few seconds. The red LED turns on for a while until it turns off completely and you will hear descending beeps.4.3 ChargingThe LED turns on red while charging, and turns to blue when the headset is fully charged. It takes about 2.5 hours to be completely charged.
SMH1011English4.4  Low Battery WarningWhen the battery is low, the blinking blue LED in stand-by mode turns to red and you will hear mid-tone triple beeps and a voice prompt saying “Low battery”.4.5  Checking the Battery LevelYou can check the battery level in two different ways when the headset is powering on.4.5.1 LED IndicatorWhen the headset is powering on, the red LED mashes rapidly indicating the battery level.4 mashes  High, 70^1003 mashes  Medium, 30^702 mashes  Low, 0^304.5.2 Voice Prompt IndicatorWhen you power on the headset, keep pressing the Jog Dial and Phone Button simultaneously for about 3 seconds until you hear high tone triple beeps. Then you will hear voice prompt indicating the battery level. However, if you release the buttons as soon as the headset turns on, you will not hear the voice prompt of battery level indication.5. VOLUME ADJUSTMENTYou can easily adjust the volume by rotating the Jog Dial. You will hear a beep when the volume reaches maximum or minimum level. The volume is set and maintained independently at different levels for each audio source even when you turn off and on the headset. For example, once you set the volume for mobile phone handsfree, it will not change even if you adjust the volume when you hear Bluetooth MP3 music. So you can always maintain the preferred optimum volume level for each audio source.

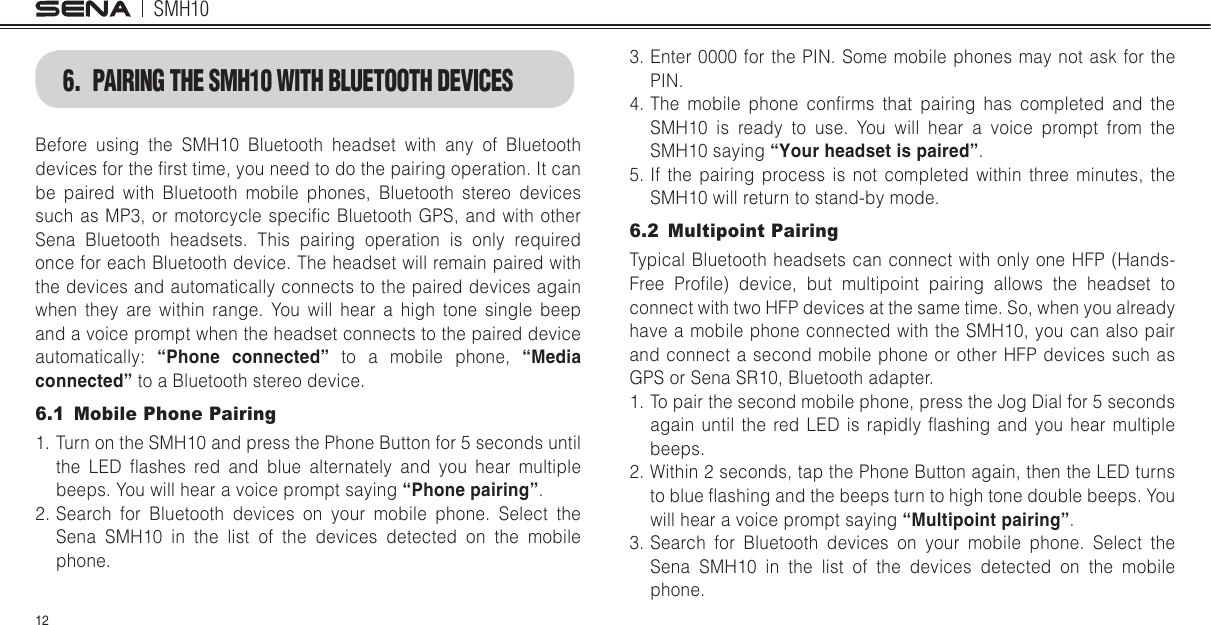

SMH1012Before using the SMH10 Bluetooth headset with any of Bluetooth devices for the lrst time, you need to do the pairing operation. It can be paired with Bluetooth mobile phones, Bluetooth stereo devices such as MP3, or motorcycle specilc Bluetooth GPS, and with other Sena Bluetooth headsets. This pairing operation is only required once for each Bluetooth device. The headset will remain paired with the devices and automatically connects to the paired devices again when they are within range. You will hear a high tone single beep and a voice prompt when the headset connects to the paired device automatically “Phone connected” to a mobile phone, “Media connected” to a Bluetooth stereo device. 6.1  Mobile Phone Pairing1. Turn on the SMH10 and press the Phone Button for 5 seconds until the LED mashes red and blue alternately and you hear multiple beeps. You will hear a voice prompt saying “Phone pairing”.2. Search for Bluetooth devices on your mobile phone. Select the Sena SMH10 in the list of the devices detected on the mobile phone.6.  PAIRING THE SMH10 WITH BLUETOOTH DEVICES3. Enter 0000 for the PIN. Some mobile phones may not ask for the PIN.4.  The mobile phone conlrms that pairing has completed and the SMH10 is ready to use. You will hear a voice prompt from the SMH10 saying “Your headset is paired”.5. If the pairing process is not completed within three minutes, the SMH10 will return to stand-by mode.6.2 Multipoint PairingTypical Bluetooth headsets can connect with only one HFP (Hands-Free Prolle) device, but multipoint pairing allows the headset to connect with two HFP devices at the same time. So, when you already have a mobile phone connected with the SMH10, you can also pair and connect a second mobile phone or other HFP devices such as GPS or Sena SR10, Bluetooth adapter.1. To pair the second mobile phone, press the Jog Dial for 5 seconds again until the red LED is rapidly mashing and you hear multiple beeps. 2. Within 2 seconds, tap the Phone Button again, then the LED turns to blue mashing and the beeps turn to high tone double beeps. You will hear a voice prompt saying “Multipoint pairing”. 3. Search for Bluetooth devices on your mobile phone. Select the Sena SMH10 in the list of the devices detected on the mobile phone.

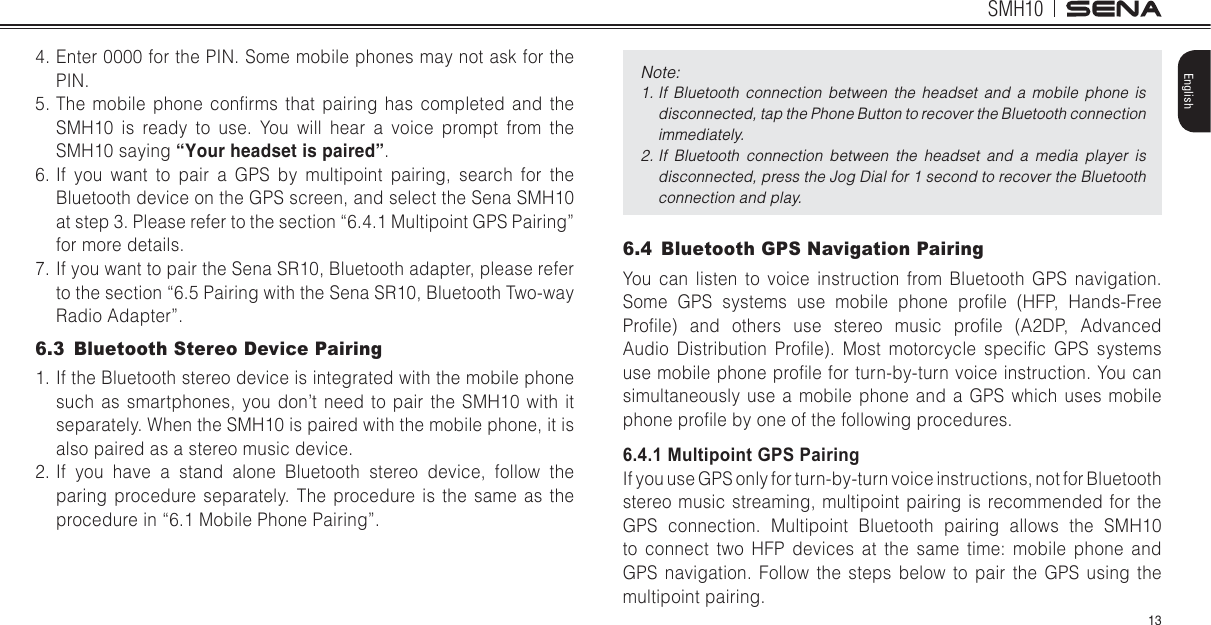

SMH1013English4. Enter 0000 for the PIN. Some mobile phones may not ask for the PIN. 5. The mobile phone conlrms that pairing has completed and the SMH10 is ready to use. You will hear a voice prompt from the SMH10 saying “Your headset is paired”.6. If you want to pair a GPS by multipoint pairing, search for the Bluetooth device on the GPS screen, and select the Sena SMH10 at step 3. Please refer to the section “6.4.1 Multipoint GPS Pairing” for more details.7. If you want to pair the Sena SR10, Bluetooth adapter, please refer to the section “6.5 Pairing with the Sena SR10, Bluetooth Two-way Radio Adapter”.6.3  Bluetooth Stereo Device Pairing1. If the Bluetooth stereo device is integrated with the mobile phone such as smartphones, you don’t need to pair the SMH10 with it separately. When the SMH10 is paired with the mobile phone, it is also paired as a stereo music device.2. If you have a stand alone Bluetooth stereo device, follow the paring procedure separately. The procedure is the same as the procedure in “6.1 Mobile Phone Pairing”.Note:1.   If Bluetooth connection between the headset and a mobile phone is disconnected, tap the Phone Button to recover the Bluetooth connection immediately.2.  If Bluetooth connection between the headset and a media player is disconnected, press the Jog Dial for 1 second to recover the Bluetooth connection and play.6.4  Bluetooth GPS Navigation PairingYou can listen to voice instruction from Bluetooth GPS navigation. Some GPS systems use mobile phone prolle (HFP, Hands-Free Prolle) and others use stereo music prolle (A2DP, Advanced Audio Distribution Prolle). Most motorcycle specilc GPS systems use mobile phone prolle for turn-by-turn voice instruction. You can simultaneously use a mobile phone and a GPS which uses mobile phone prolle by one of the following procedures.  6.4.1 Multipoint GPS PairingIf you use GPS only for turn-by-turn voice instructions, not for Bluetooth stereo music streaming, multipoint pairing is recommended for the GPS connection. Multipoint Bluetooth pairing allows the SMH10 to connect two HFP devices at the same time mobile phone and GPS navigation. Follow the steps below to pair the GPS using the multipoint pairing.

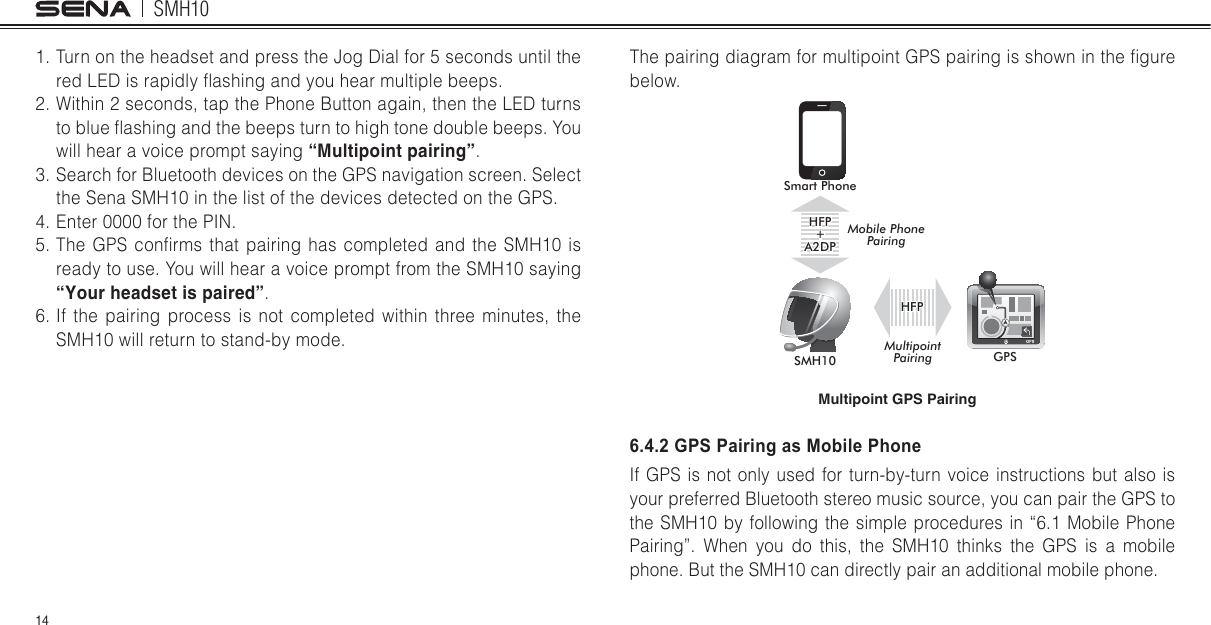

SMH10141. Turn on the headset and press the Jog Dial for 5 seconds until the red LED is rapidly mashing and you hear multiple beeps.2. Within 2 seconds, tap the Phone Button again, then the LED turns to blue mashing and the beeps turn to high tone double beeps. You will hear a voice prompt saying “Multipoint pairing”.3. Search for Bluetooth devices on the GPS navigation screen. Select the Sena SMH10 in the list of the devices detected on the GPS. 4. Enter 0000 for the PIN. 5. The GPS conlrms that pairing has completed and the SMH10 is ready to use. You will hear a voice prompt from the SMH10 saying “Your headset is paired”.6. If the pairing process is not completed within three minutes, the SMH10 will return to stand-by mode.The pairing diagram for multipoint GPS pairing is shown in the lgure below.6PDUW3KRQH60+ *36+)3+$'3Mobile Phone PairingMultipoint Pairing+)3Multipoint GPS Pairing6.4.2 GPS Pairing as Mobile Phone If GPS is not only used for turn-by-turn voice instructions but also is your preferred Bluetooth stereo music source, you can pair the GPS to the SMH10 by following the simple procedures in “6.1 Mobile Phone Pairing”. When you do this, the SMH10 thinks the GPS is a mobile phone. But the SMH10 can directly pair an additional mobile phone.

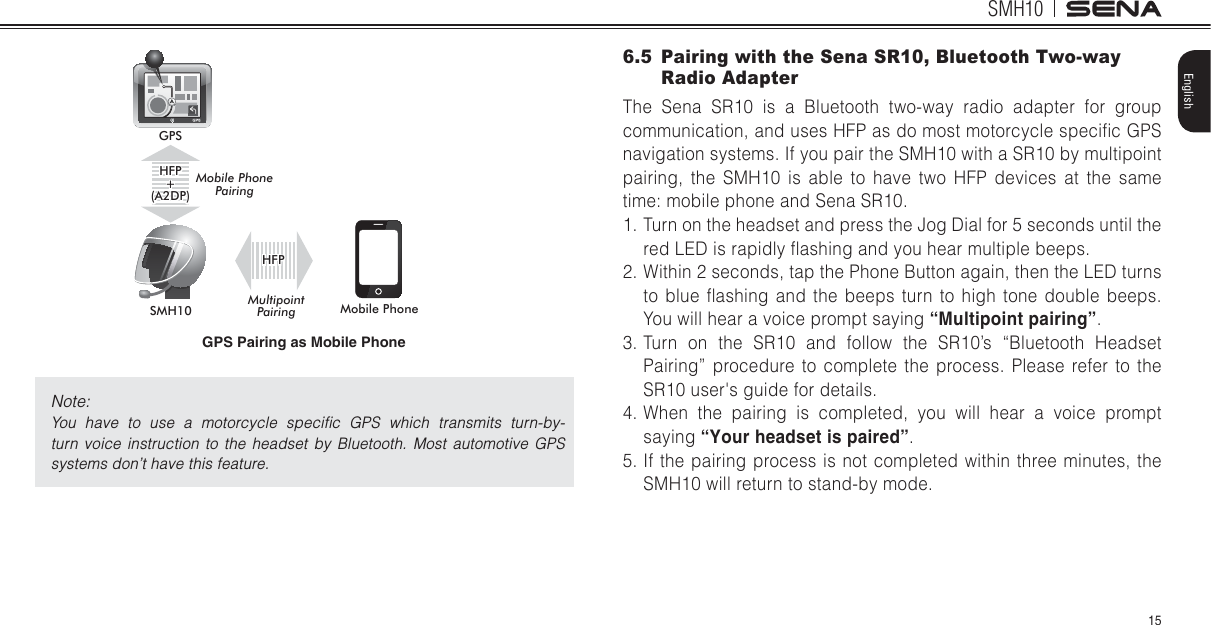

SMH1015English0RELOH3KRQH60+*36+)3+$'3Mobile Phone PairingMultipoint Pairing +)3GPS Pairing as Mobile PhoneNote: You have to use a motorcycle specific GPS which transmits turn-by-turn voice instruction to the headset by Bluetooth. Most automotive GPS systems don’t have this feature.6.5  Pairing with the Sena SR10, Bluetooth Two-way  Radio AdapterThe Sena SR10 is a Bluetooth two-way radio adapter for group communication, and uses HFP as do most motorcycle specilc GPS navigation systems. If you pair the SMH10 with a SR10 by multipoint pairing, the SMH10 is able to have two HFP devices at the same time mobile phone and Sena SR10.  1. Turn on the headset and press the Jog Dial for 5 seconds until the red LED is rapidly mashing and you hear multiple beeps.2. Within 2 seconds, tap the Phone Button again, then the LED turns to blue mashing and the beeps turn to high tone double beeps. You will hear a voice prompt saying “Multipoint pairing”.3. Turn on the SR10 and follow the SR10’s “Bluetooth Headset Pairing” procedure to complete the process. Please refer to the SR10 user's guide for details.4. When the pairing is completed, you will hear a voice prompt saying “Your headset is paired”.5. If the pairing process is not completed within three minutes, the SMH10 will return to stand-by mode.

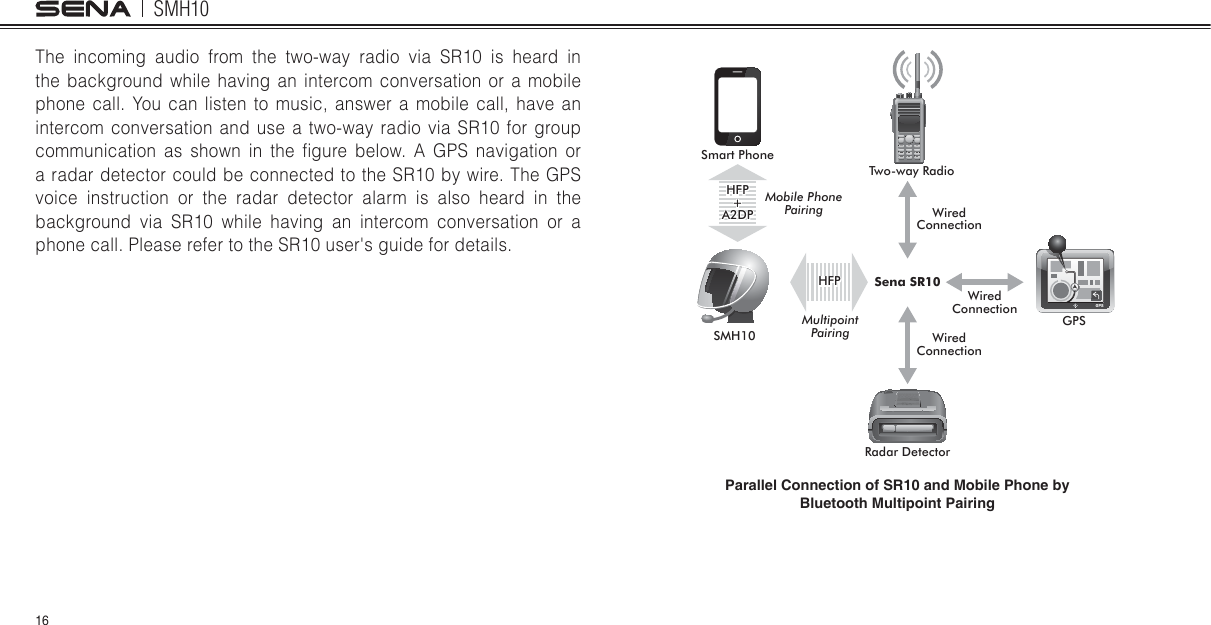

SMH1016The incoming audio from the two-way radio via SR10 is heard in the background while having an intercom conversation or a mobile phone call. You can listen to music, answer a mobile call, have an intercom conversation and use a two-way radio via SR10 for group communication as shown in the lgure below. A GPS navigation or a radar detector could be connected to the SR10 by wire. The GPS voice instruction or the radar detector alarm is also heard in the background via SR10 while having an intercom conversation or a phone call. Please refer to the SR10 user's guide for details.6PDUW3KRQH7ZRZD\5DGLR60+*36Sena SR105DGDU'HWHFWRU+)3+$'3Mobile Phone PairingMultipoint Pairing+)3:LUHG&RQQHFWLRQ:LUHG&RQQHFWLRQ:LUHG&RQQHFWLRQParallel Connection of SR10 and Mobile Phone by  Bluetooth Multipoint Pairing

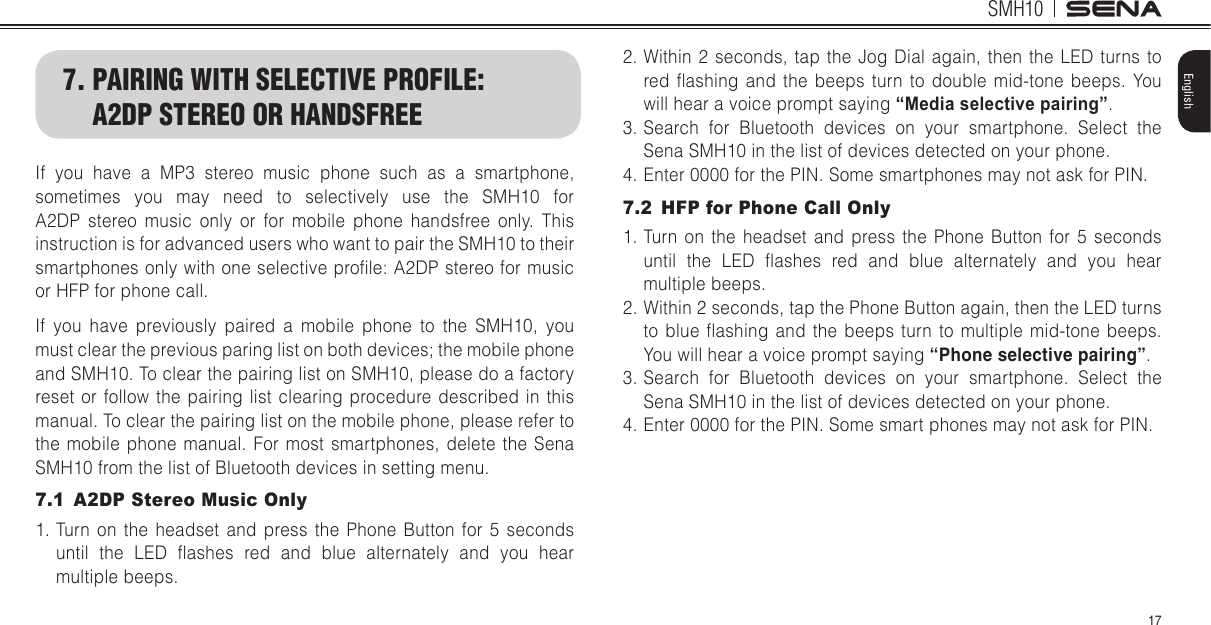

SMH1017English7. PAIRING WITH SELECTIVE PROFILE: A2DP STEREO OR HANDSFREEIf you have a MP3 stereo music phone such as a smartphone, sometimes you may need to selectively use the SMH10 for A2DP stereo music only or for mobile phone handsfree only. This instruction is for advanced users who want to pair the SMH10 to their smartphones only with one selective prolle A2DP stereo for music or HFP for phone call.If you have previously paired a mobile phone to the SMH10, you must clear the previous paring list on both devices; the mobile phone and SMH10. To clear the pairing list on SMH10, please do a factory reset or follow the pairing list clearing procedure described in this manual. To clear the pairing list on the mobile phone, please refer to the mobile phone manual. For most smartphones, delete the Sena SMH10 from the list of Bluetooth devices in setting menu.7.1  A2DP Stereo Music Only1. Turn on the headset and press the Phone Button for 5 seconds until the LED mashes red and blue alternately and you hear multiple beeps.2. Within 2 seconds, tap the Jog Dial again, then the LED turns to red mashing and the beeps turn to double mid-tone beeps. You will hear a voice prompt saying “Media selective pairing”.3. Search for Bluetooth devices on your smartphone. Select the Sena SMH10 in the list of devices detected on your phone.4. Enter 0000 for the PIN. Some smartphones may not ask for PIN.7.2  HFP for Phone Call Only1. Turn on the headset and press the Phone Button for 5 seconds until the LED mashes red and blue alternately and you hear multiple beeps.2. Within 2 seconds, tap the Phone Button again, then the LED turns to blue mashing and the beeps turn to multiple mid-tone beeps. You will hear a voice prompt saying “Phone selective pairing”.3. Search for Bluetooth devices on your smartphone. Select the Sena SMH10 in the list of devices detected on your phone.4. Enter 0000 for the PIN. Some smart phones may not ask for PIN.

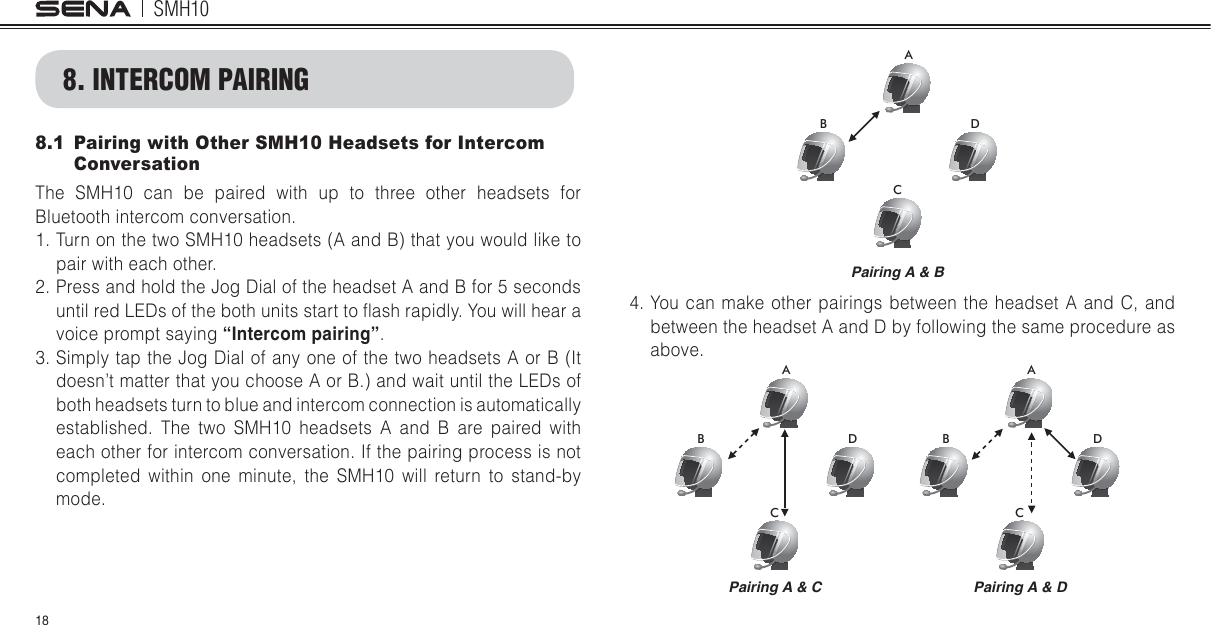

SMH10188.1  Pairing with Other SMH10 Headsets for Intercom ConversationThe SMH10 can be paired with up to three other headsets for Bluetooth intercom conversation.1. Turn on the two SMH10 headsets (A and B) that you would like to pair with each other.2. Press and hold the Jog Dial of the headset A and B for 5 seconds until red LEDs of the both units start to mash rapidly. You will hear a voice prompt saying “Intercom pairing”.3.  Simply tap the Jog Dial of any one of the two headsets A or B (It doesn’t matter that you choose A or B.) and wait until the LEDs of both headsets turn to blue and intercom connection is automatically established. The two SMH10 headsets A and B are paired with each other for intercom conversation. If the pairing process is not completed within one minute, the SMH10 will return to stand-by mode.8. INTERCOM PAIRING$%'&Pairing A & B4. You can make other pairings between the headset A and C, and between the headset A and D by following the same procedure as above.$$%%''&&Pairing A & C Pairing A & D

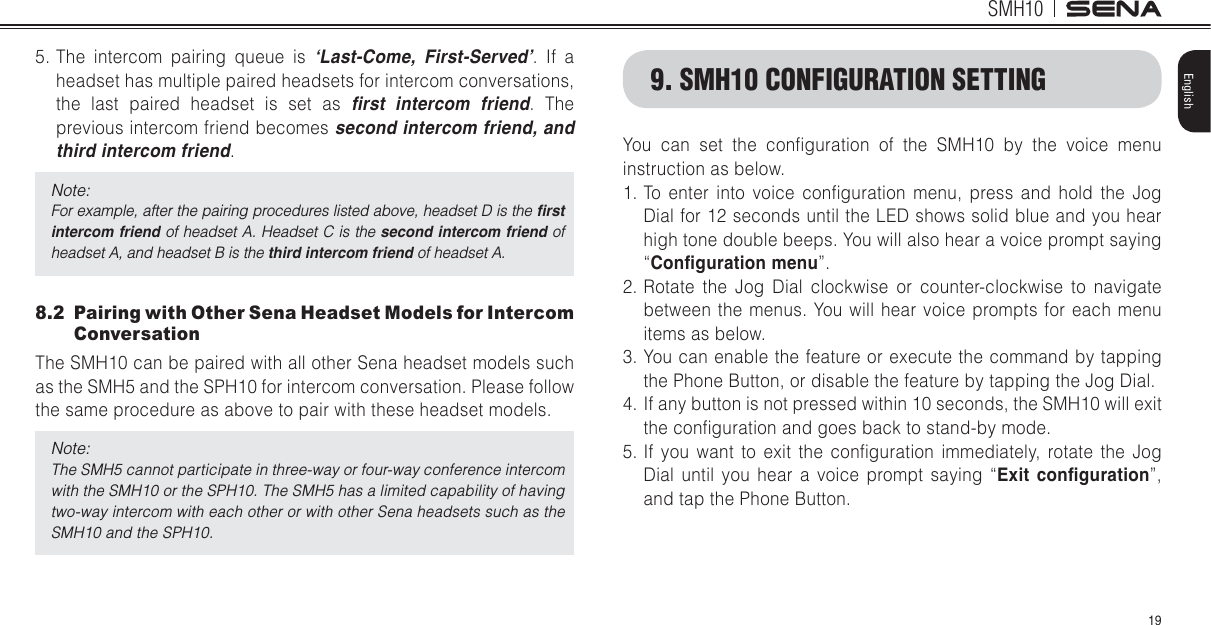

SMH1019English5. The intercom pairing queue is ‘Last-Come, First-Served’. If a headset has multiple paired headsets for intercom conversations, the last paired headset is set as ſTUV KPVGTEQO HTKGPF. The previous intercom friend becomes UGEQPFKPVGTEQOHTKGPFCPFVJKTFKPVGTEQOHTKGPF.Note:For example, after the pairing procedures listed above, headset D is the ſTUVKPVGTEQOHTKGPF of headset A. Headset C is the UGEQPFKPVGTEQOHTKGPFof headset A, and headset B is the VJKTFKPVGTEQOHTKGPF of headset A.8.2  Pairing with Other Sena Headset Models for Intercom ConversationThe SMH10 can be paired with all other Sena headset models such as the SMH5 and the SPH10 for intercom conversation. Please follow the same procedure as above to pair with these headset models.Note:The SMH5 cannot participate in three-way or four-way conference intercom with the SMH10 or the SPH10. The SMH5 has a limited capability of having two-way intercom with each other or with other Sena headsets such as the SMH10 and the SPH10.You can set the conlguration of the SMH10 by the voice menu instruction as below. 1. To enter into voice conlguration menu, press and hold the Jog Dial for 12 seconds until the LED shows solid blue and you hear high tone double beeps. You will also hear a voice prompt saying “%QPſIWTCVKQPOGPW”.2. Rotate the Jog Dial clockwise or counter-clockwise to navigate between the menus. You will hear voice prompts for each menu items as below.3. You can enable the feature or execute the command by tapping the Phone Button, or disable the feature by tapping the Jog Dial. 4.  If any button is not pressed within 10 seconds, the SMH10 will exit the conlguration and goes back to stand-by mode. 5. If you want to exit the conlguration immediately, rotate the Jog Dial until you hear a voice prompt saying “'ZKV EQPſIWTCVKQP”, and tap the Phone Button.9. SMH10 CONFIGURATION SETTING

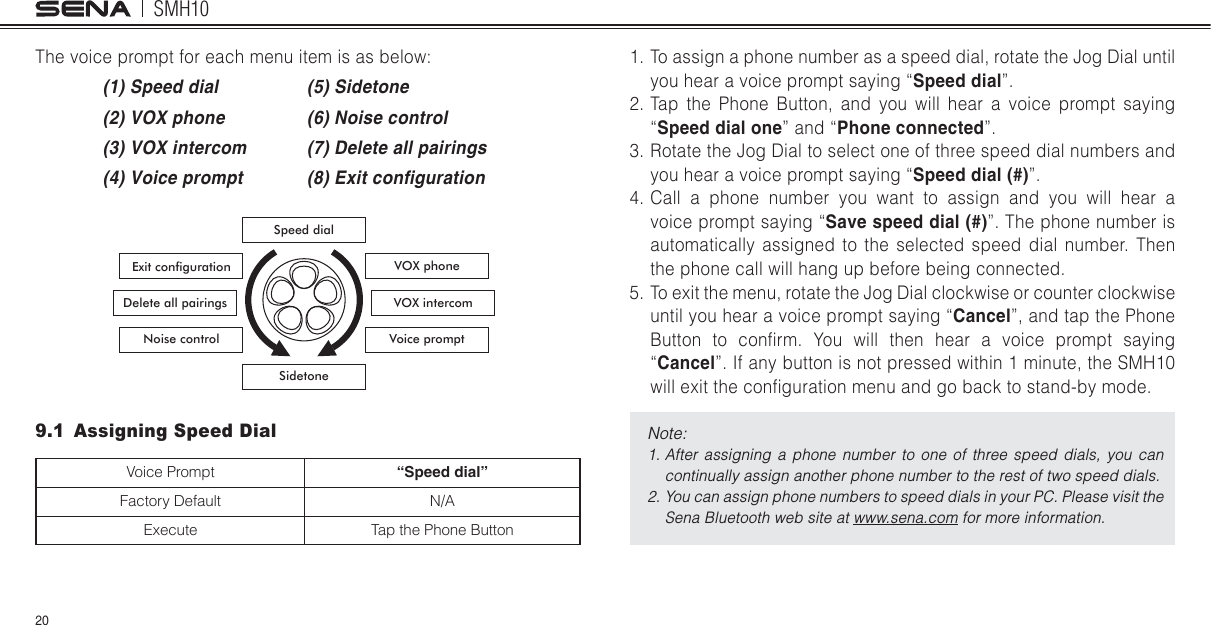

SMH1020The voice prompt for each menu item is as below(1) Speed dial (5) Sidetone(2) VOX phone (6) 0QKUGEQPVTQN81:KPVGTEQO (7) Delete all pairings8QKEGRTQORV 'ZKVEQPſIWTCVKQP ([LWFRQILJXUDWLRQ'HOHWHDOOSDLULQJV1RLVHFRQWURO92;SKRQH92;LQWHUFRP9RLFHSURPSW6SHHGGLDO6LGHWRQH9.1  Assigning Speed Dial Voice Prompt “Speed dial”Factory Default N/AExecute Tap the Phone Button1. To assign a phone number as a speed dial, rotate the Jog Dial until you hear a voice prompt saying “Speed dial”.2. Tap the Phone Button, and you will hear a voice prompt saying “Speed dial one” and “Phone connected”.3. Rotate the Jog Dial to select one of three speed dial numbers and you hear a voice prompt saying “Speed dial (#)”. 4. Call a phone number you want to assign and you will hear a voice prompt saying “Save speed dial (#)”. The phone number is automatically assigned to the selected speed dial number. Then the phone call will hang up before being connected.5. To exit the menu, rotate the Jog Dial clockwise or counter clockwise until you hear a voice prompt saying “Cancel”, and tap the Phone Button to conlrm. You will then hear a voice prompt saying “Cancel”. If any button is not pressed within 1 minute, the SMH10 will exit the conlguration menu and go back to stand-by mode. Note:1.  After assigning a phone number to one of three speed dials, you can continually assign another phone number to the rest of two speed dials.2.  You can assign phone numbers to speed dials in your PC. Please visit the Sena Bluetooth web site at www.sena.com for more information.

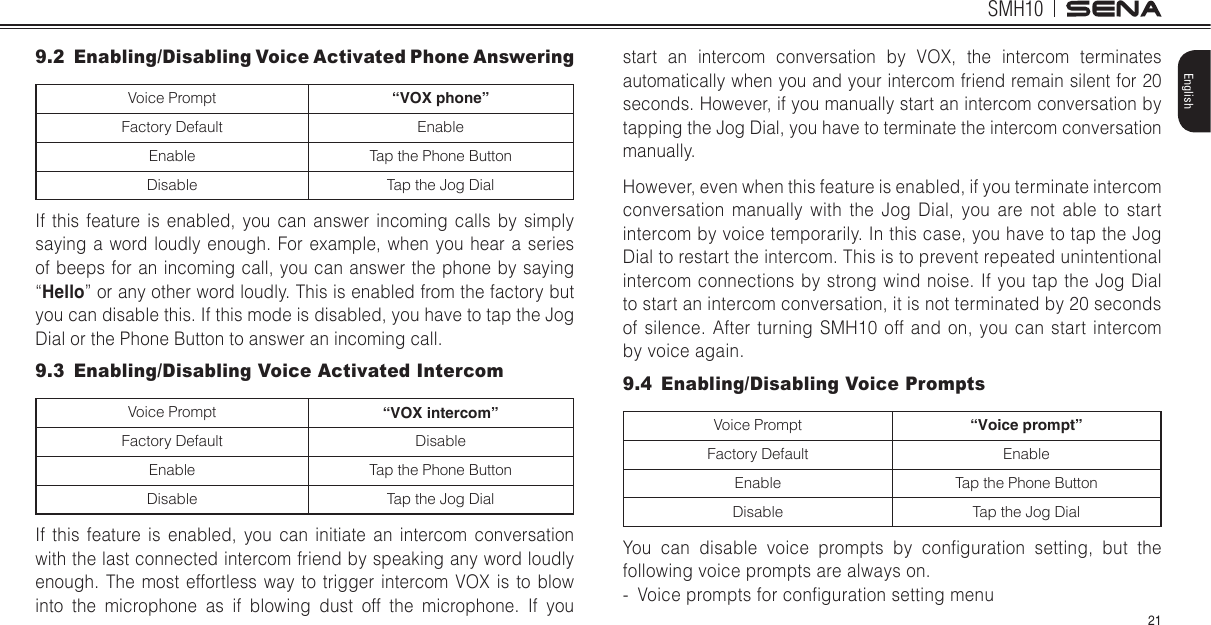

SMH1021English9.2  Enabling/Disabling Voice Activated Phone Answering Voice Prompt “VOX phone”Factory Default EnableEnable Tap the Phone ButtonDisable Tap the Jog DialIf this feature is enabled, you can answer incoming calls by simply saying a word loudly enough. For example, when you hear a series of beeps for an incoming call, you can answer the phone by saying “Hello” or any other word loudly. This is enabled from the factory but you can disable this. If this mode is disabled, you have to tap the Jog Dial or the Phone Button to answer an incoming call.9.3  Enabling/Disabling Voice Activated Intercom Voice Prompt “VOX intercom”Factory Default DisableEnable Tap the Phone ButtonDisable Tap the Jog DialIf this feature is enabled, you can initiate an intercom conversation with the last connected intercom friend by speaking any word loudly enough. The most effortless way to trigger intercom VOX is to blow into the microphone as if blowing dust off the microphone. If you start an intercom conversation by VOX, the intercom terminates automatically when you and your intercom friend remain silent for 20 seconds. However, if you manually start an intercom conversation by tapping the Jog Dial, you have to terminate the intercom conversation manually.  However, even when this feature is enabled, if you terminate intercom conversation manually with the Jog Dial, you are not able to start intercom by voice temporarily. In this case, you have to tap the Jog Dial to restart the intercom. This is to prevent repeated unintentional intercom connections by strong wind noise. If you tap the Jog Dial to start an intercom conversation, it is not terminated by 20 seconds of silence. After turning SMH10 off and on, you can start intercom by voice again.9.4  Enabling/Disabling Voice PromptsVoice Prompt “Voice prompt”Factory Default EnableEnable Tap the Phone ButtonDisable Tap the Jog DialYou can disable voice prompts by conlguration setting, but the following voice prompts are always on.-  Voice prompts for conlguration setting menu

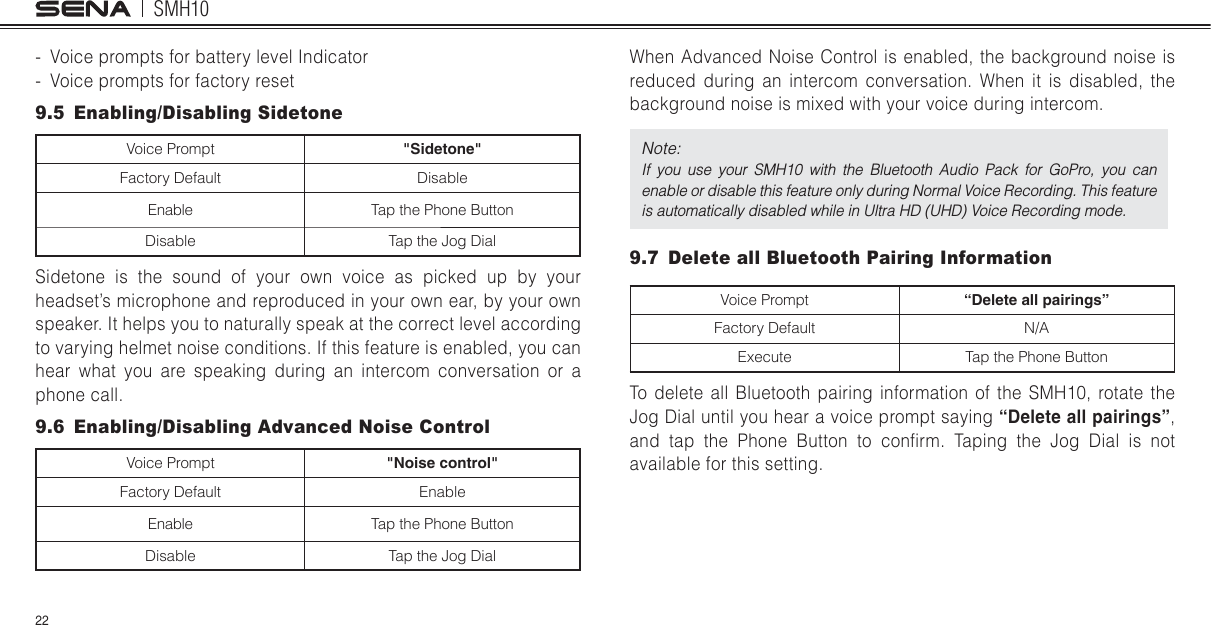

SMH1022-  Voice prompts for battery level Indicator-  Voice prompts for factory reset9.5 Enabling/Disabling SidetoneVoice Prompt "Sidetone"Factory Default DisableEnable Tap the Phone ButtonDisable Tap the Jog DialSidetone is the sound of your own voice as picked up by your headset’s microphone and reproduced in your own ear, by your own speaker. It helps you to naturally speak at the correct level according to varying helmet noise conditions. If this feature is enabled, you can hear what you are speaking during an intercom conversation or a phone call.9.6  Enabling/Disabling Advanced Noise ControlVoice Prompt "Noise control"Factory Default EnableEnable Tap the Phone ButtonDisable Tap the Jog DialWhen Advanced Noise Control is enabled, the background noise is reduced during an intercom conversation. When it is disabled, the background noise is mixed with your voice during intercom.Note: If you use your SMH10 with the Bluetooth Audio Pack for GoPro, you can enable or disable this feature only during Normal Voice Recording. This feature is automatically disabled while in Ultra HD (UHD) Voice Recording mode.9.7  Delete all Bluetooth Pairing Information Voice Prompt “Delete all pairings”Factory Default N/AExecute Tap the Phone ButtonTo delete all Bluetooth pairing information of the SMH10, rotate the Jog Dial until you hear a voice prompt saying “Delete all pairings”, and tap the Phone Button to conlrm. Taping the Jog Dial is not available for this setting.
SMH1023English9.8 E[it Voice ConÀguration Menu Voice Prompt ő'ZKVEQPſIWTCVKQPŒFactory Default N/AExecute Tap the Phone ButtonTo exit voice conlguration menu and get back to stand-by mode, rotate the Jog Dial until you hear a voice prompt saying “Exit FRQ¿JXUDWLRQ´, and tap the Phone Button to conlrm. Tapping the Jog Dial is not available for this setting.Rotate Jog Dial Tap Phone Button Tap Jog DialSpeed Dial Execute N/AVOX Phone Enable DisableVOX Intercom Enable DisableVoice Prompt Enable DisableSidetone Enable DisableAdvanced Noise Control Enable DisableDelete All Pairings Execute N/AExit Conlguration Execute N/A8QKEG%QPſIWTCVKQP/GPW$WVVQP1RGTCVKQPUThe SMH10 operates in the following order of priority    (highest) Mobile phone,    Intercom,    Stereo music by audio cable,    Music sharing by Bluetooth stereo music, (lowest)  Bluetooth stereo music  A lower priority function is always interrupted by a higher priority function. For example, stereo music is interrupted by intercom call, and intercom conversation is interrupted by incoming mobile phone call.10. FUNCTION PRIORITY

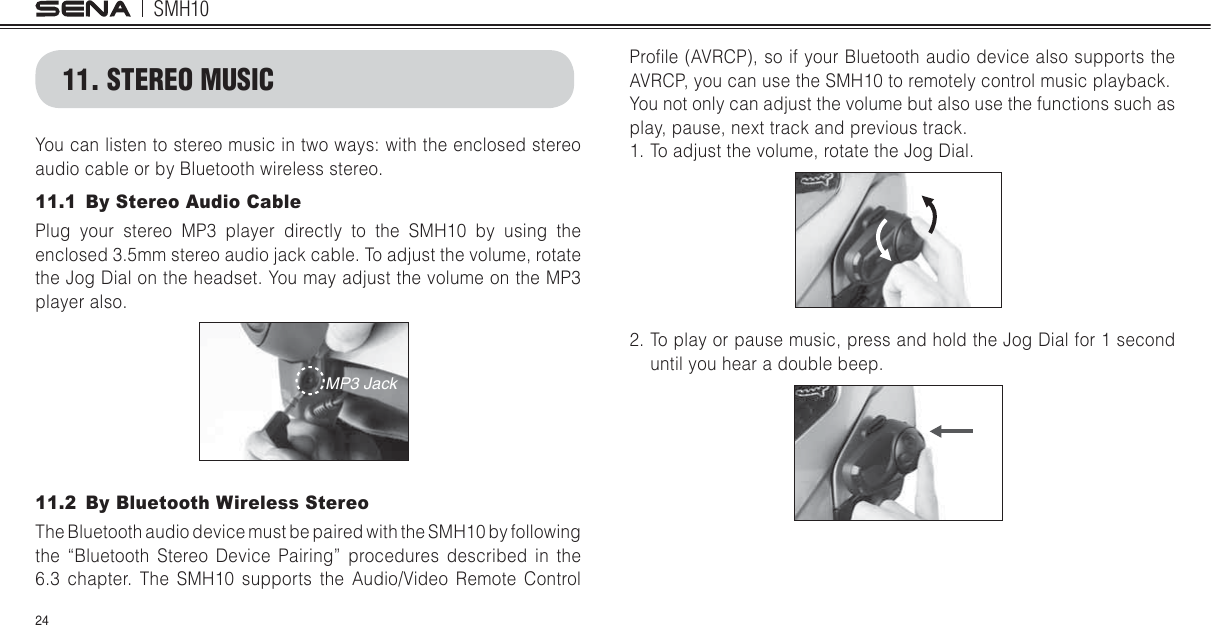

SMH1024You can listen to stereo music in two ways with the enclosed stereo audio cable or by Bluetooth wireless stereo.11.1  By Stereo Audio CablePlug your stereo MP3 player directly to the SMH10 by using the enclosed 3.5mm stereo audio jack cable. To adjust the volume, rotate the Jog Dial on the headset. You may adjust the volume on the MP3 player also. MP3 Jack11.2  By Bluetooth Wireless Stereo The Bluetooth audio device must be paired with the SMH10 by following the “Bluetooth Stereo Device Pairing” procedures described in the 6.3 chapter. The SMH10 supports the Audio/Video Remote Control 11. STEREO MUSICProlle (AVRCP), so if your Bluetooth audio device also supports the AVRCP, you can use the SMH10 to remotely control music playback. You not only can adjust the volume but also use the functions such as play, pause, next track and previous track.1. To adjust the volume, rotate the Jog Dial.2. To play or pause music, press and hold the Jog Dial for 1 second until you hear a double beep.
SMH1025English3. To track forward or track back, rotate while pressing the Jog Dial clockwise or counter clockwise. Note: Bluetooth music is available only when the MP3 jack port remains open. Please make sure the audio cable is unplugged from the clamp unit to play music by Bluetooth.12.1  Mobile Phone Call Making and Answering1. When you have an incoming call, simply tap the Phone Button or the Jog Dial to answer the call.2. You can also answer the incoming call by loudly speaking any word of your choice if Voice Activated Phone Answering is enabled.3. To end a call, tap the Phone Button or press the Jog Dial for 2 seconds until you hear a beep, or wait for the called person to end the call.4. To reject a call, press the Jog Dial for 2 seconds until you hear a beep while the phone is ringing.5. To transfer a call between the mobile phone and the headset during the phone conversation, press the Phone Button for 2 seconds until you hear a beep.6. There are several ways to make a phone callŖ Enter numbers on your mobile phone keypad and make a call. Then the call is automatically transferred to the headset.Ŗ For some older mobile phones which do not automatically transfer calls to the headset, press the Phone Button after entering phone numbers on the mobile phone keypad.12.  MOBILE PHONE CALL MAKING AND ANSWERING

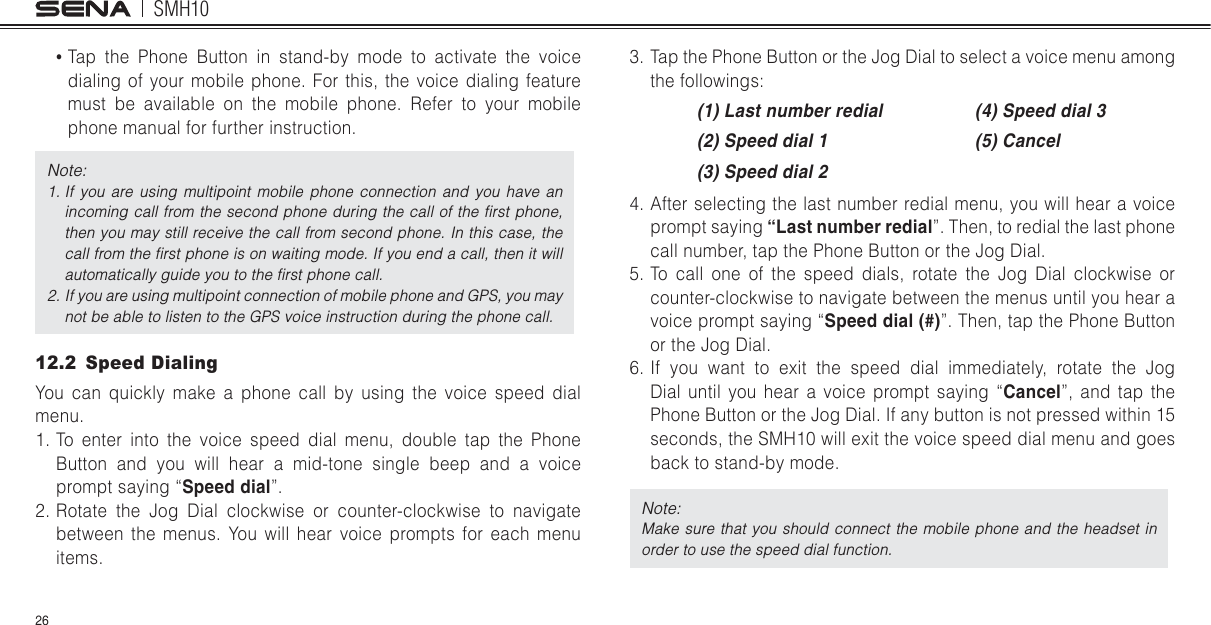

SMH1026Ŗ Tap the Phone Button in stand-by mode to activate the voice dialing of your mobile phone. For this, the voice dialing feature must be available on the mobile phone. Refer to your mobile phone manual for further instruction.Note: 1.  If you are using multipoint mobile phone connection and you have an incoming call from the second phone during the call of the first phone, then you may still receive the call from second phone. In this case, the call from the first phone is on waiting mode. If you end a call, then it will automatically guide you to the first phone call.2.  If you are using multipoint connection of mobile phone and GPS, you may not be able to listen to the GPS voice instruction during the phone call.12.2 Speed DialingYou can quickly make a phone call by using the voice speed dial menu.1. To enter into the voice speed dial menu, double tap the Phone Button and you will hear a mid-tone single beep and a voice prompt saying “Speed dial”.2. Rotate the Jog Dial clockwise or counter-clockwise to navigate between the menus. You will hear voice prompts for each menu items.3. Tap the Phone Button or the Jog Dial to select a voice menu among the followings.CUVPWODGTTGFKCN (4) Speed dial 3(2) Speed dial 1 (5) %CPEGN(3) Speed dial 24. After selecting the last number redial menu, you will hear a voice prompt saying “Last number redial”. Then, to redial the last phone call number, tap the Phone Button or the Jog Dial.5. To call one of the speed dials, rotate the Jog Dial clockwise or counter-clockwise to navigate between the menus until you hear a voice prompt saying “Speed dial (#)”. Then, tap the Phone Button or the Jog Dial.6. If you want to exit the speed dial immediately, rotate the Jog Dial until you hear a voice prompt saying “Cancel”, and tap the Phone Button or the Jog Dial. If any button is not pressed within 15 seconds, the SMH10 will exit the voice speed dial menu and goes back to stand-by mode.Note: Make sure that you should connect the mobile phone and the headset in order to use the speed dial function.
SMH1027EnglishAnswer Tap Phone Button or Tap Jog Dial or Say “Hello”End Tap Phone Button or Press Jog Dial for 2”Reject Press Jog Dial for 2”Transfer Press Phone Button for 2”Call Use phone keypadSpeed Dial  Double tap Phone ButtonVoice Command Tap Phone ButtonMobile Phone Call Button Operations13.1  Start and End Two-way Intercom1. You can start an intercom conversation with one of any intercom friends by tapping the Jog Dial single tapping to intercom with the lrst intercom friend, double tapping with the second intercom friend, and triple tapping with the third intercom friend.2nd IntercomFriend1st IntercomFriend3rd IntercomFriendStart Two-way Intercom Conversation13. TWO-WAY INTERCOM

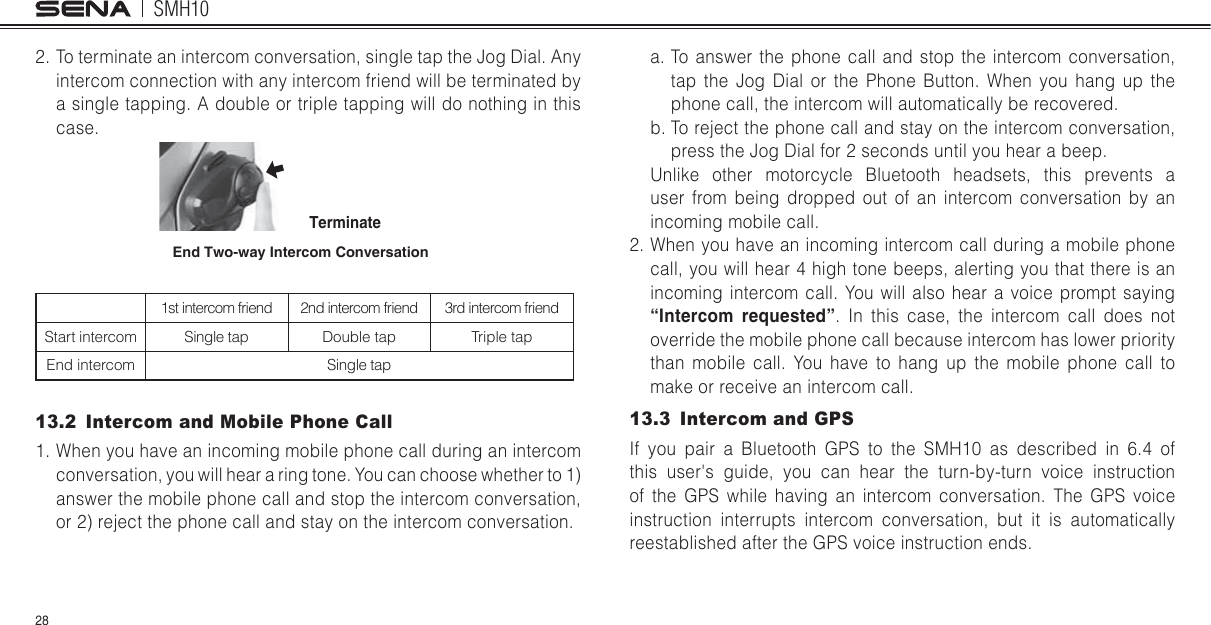

SMH1028a. To answer the phone call and stop the intercom conversation, tap the Jog Dial or the Phone Button. When you hang up the phone call, the intercom will automatically be recovered.b. To reject the phone call and stay on the intercom conversation, press the  Jog Dial for 2 seconds until you hear a beep.Unlike other motorcycle Bluetooth headsets, this prevents a user from being dropped out of an intercom conversation by an incoming mobile call.2. When you have an incoming intercom call during a mobile phone call, you will hear 4 high tone beeps, alerting you that there is an incoming intercom call. You will also hear a voice prompt saying “Intercom requested”. In this case, the intercom call does not override the mobile phone call because intercom has lower priority than mobile call. You have to hang up the mobile phone call to make or receive an intercom call.13.3  Intercom and GPS If you pair a Bluetooth GPS to the SMH10 as described in 6.4 of this user's guide, you can hear the turn-by-turn voice instruction of the GPS while having an intercom conversation. The GPS voice instruction interrupts intercom conversation, but it is automatically reestablished after the GPS voice instruction ends.2. To terminate an intercom conversation, single tap the Jog Dial. Any intercom connection with any intercom friend will be terminated by a single tapping. A double or triple tapping will do nothing in this case.End Two-way Intercom ConversationTerminate1st intercom friend 2nd intercom friend 3rd intercom friendStart intercom Single tap Double tap Triple tapEnd intercom Single tap13.2  Intercom and Mobile Phone Call1. When you have an incoming mobile phone call during an intercom conversation, you will hear a ring tone. You can choose whether to 1) answer the mobile phone call and stop the intercom conversation, or 2) reject the phone call and stay on the intercom conversation.

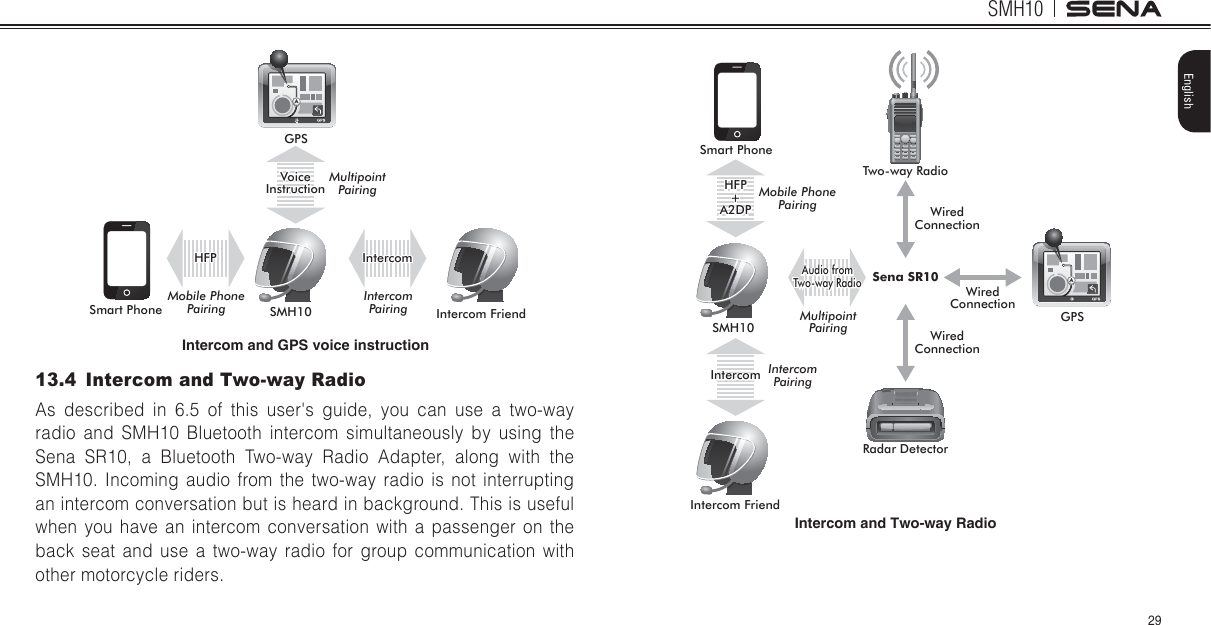

SMH1029English6PDUW3KRQH 60+*36,QWHUFRP)ULHQG9RLFH,QVWUXFWLRQ Multipoint PairingIntercomPairingMobile Phone Pairing,QWHUFRP+)3 Intercom and GPS voice instruction13.4  Intercom and Two-way RadioAs described in 6.5 of this user's guide, you can use a two-way radio and SMH10 Bluetooth intercom simultaneously by using the Sena SR10, a Bluetooth Two-way Radio Adapter, along with the SMH10. Incoming audio from the two-way radio is not interrupting an intercom conversation but is heard in background. This is useful when you have an intercom conversation with a passenger on the back seat and use a two-way radio for group communication with other motorcycle riders. Intercom and Two-way Radio6PDUW3KRQH7ZRZD\5DGLR60+ *365DGDU'HWHFWRUSena SR10Mobile Phone PairingMultipoint PairingIntercomPairing$XGLRIURP7ZRZD\5DGLR,QWHUFRP:LUHG&RQQHFWLRQ:LUHG&RQQHFWLRQ:LUHG&RQQHFWLRQ+)3+$'3,QWHUFRP)ULHQG

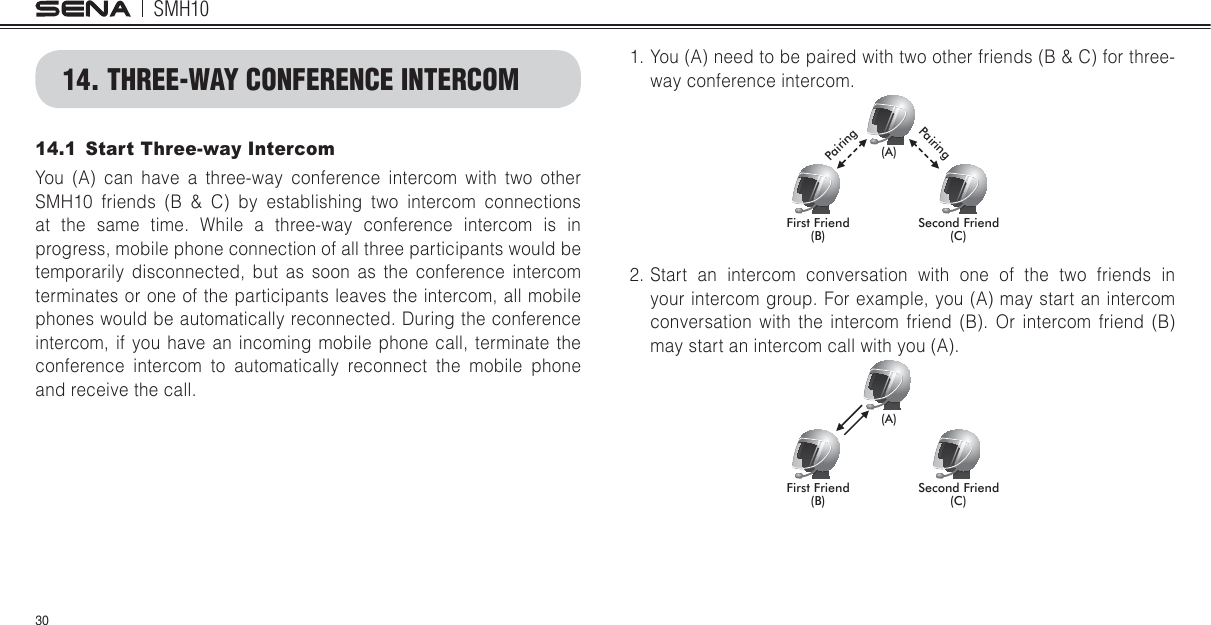

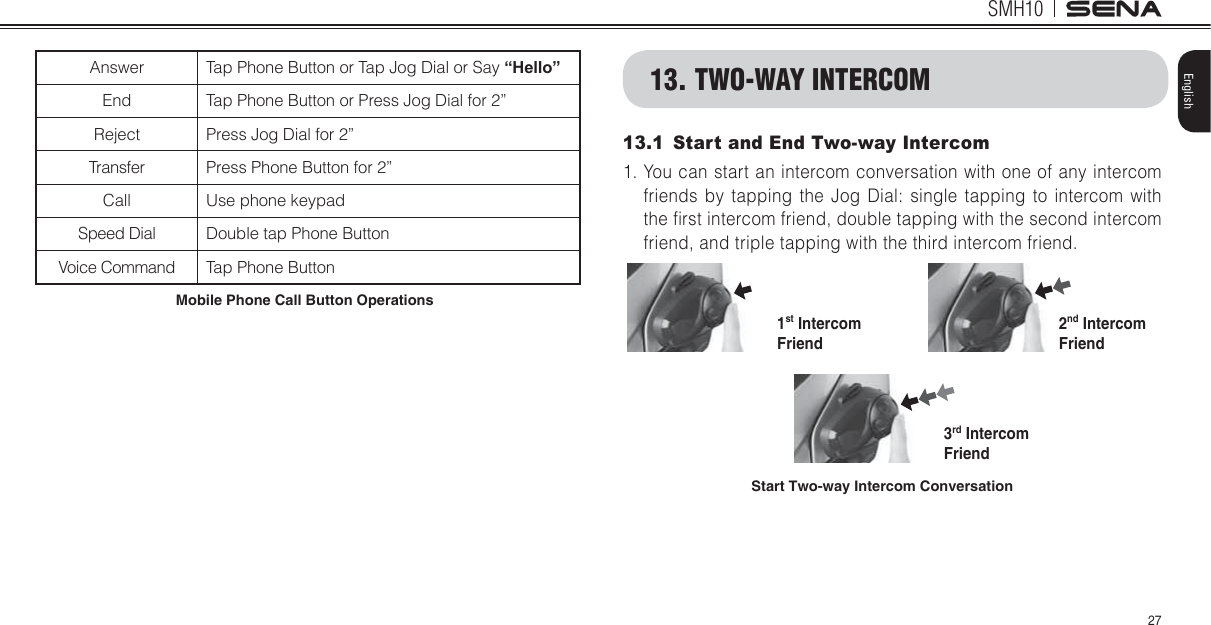

SMH103014.1  Start Three-way IntercomYou (A) can have a three-way conference intercom with two other SMH10 friends (B & C) by establishing two intercom connections at the same time. While a three-way conference intercom is in progress, mobile phone connection of all three participants would be temporarily disconnected, but as soon as the conference intercom terminates or one of the participants leaves the intercom, all mobile phones would be automatically reconnected. During the conference intercom, if you have an incoming mobile phone call, terminate the conference intercom to automatically reconnect the mobile phone and receive the call.14. THREE-WAY CONFERENCE INTERCOM1.  You (A) need to be paired with two other friends (B & C) for three-way conference intercom.$%)LUVW)ULHQG 6HFRQG)ULHQG&3DLULQJ3DLULQJ2. Start an intercom conversation with one of the two friends in your intercom group. For example, you (A) may start an intercom conversation with the intercom friend (B). Or intercom friend (B) may start an intercom call with you (A). $%)LUVW)ULHQG 6HFRQG)ULHQG&

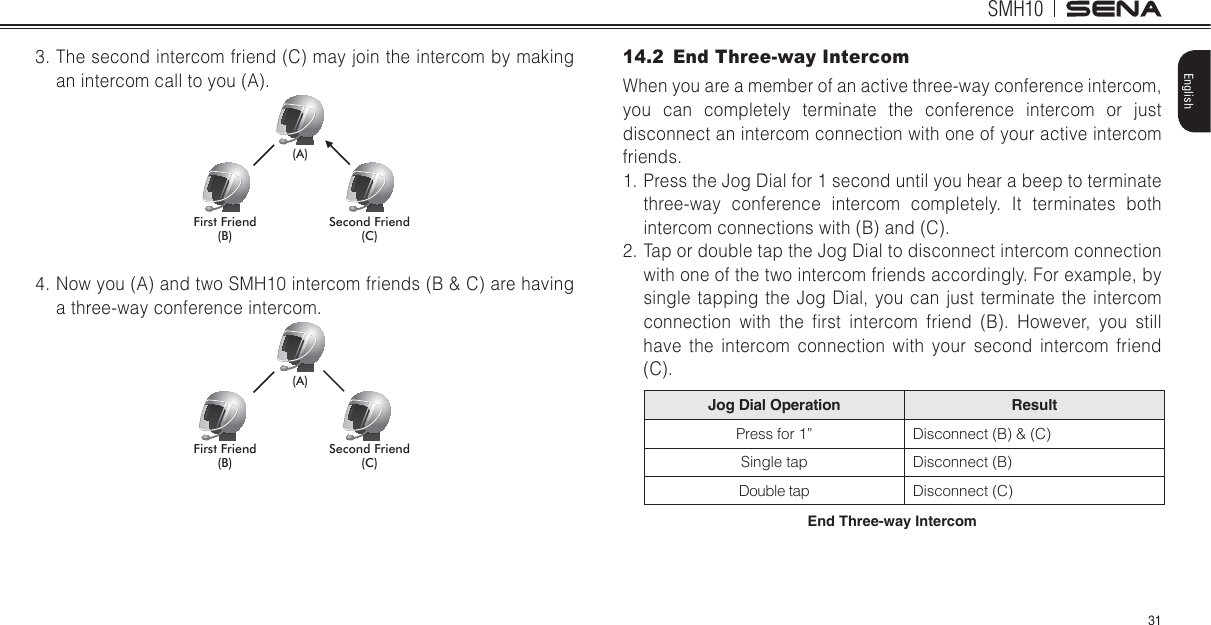

SMH1031English3. The second intercom friend (C) may join the intercom by making an intercom call to you (A). $%)LUVW)ULHQG 6HFRQG)ULHQG&4. Now you (A) and two SMH10 intercom friends (B & C) are having a three-way conference intercom.$%)LUVW)ULHQG 6HFRQG)ULHQG&14.2  End Three-way IntercomWhen you are a member of an active three-way conference intercom, you can completely terminate the conference intercom or just disconnect an intercom connection with one of your active intercom friends.1. Press the Jog Dial for 1 second until you hear a beep to terminate three-way conference intercom completely. It terminates both intercom connections with (B) and (C).2. Tap or double tap the Jog Dial to disconnect intercom connection with one of the two intercom friends accordingly. For example, by single tapping the Jog Dial, you can just terminate the intercom connection with the lrst intercom friend (B). However, you still have the intercom connection with your second intercom friend (C).Jog Dial Operation ResultPress for 1” Disconnect (B) & (C)Single tap Disconnect (B)Double tap Disconnect (C)End Three-way Intercom

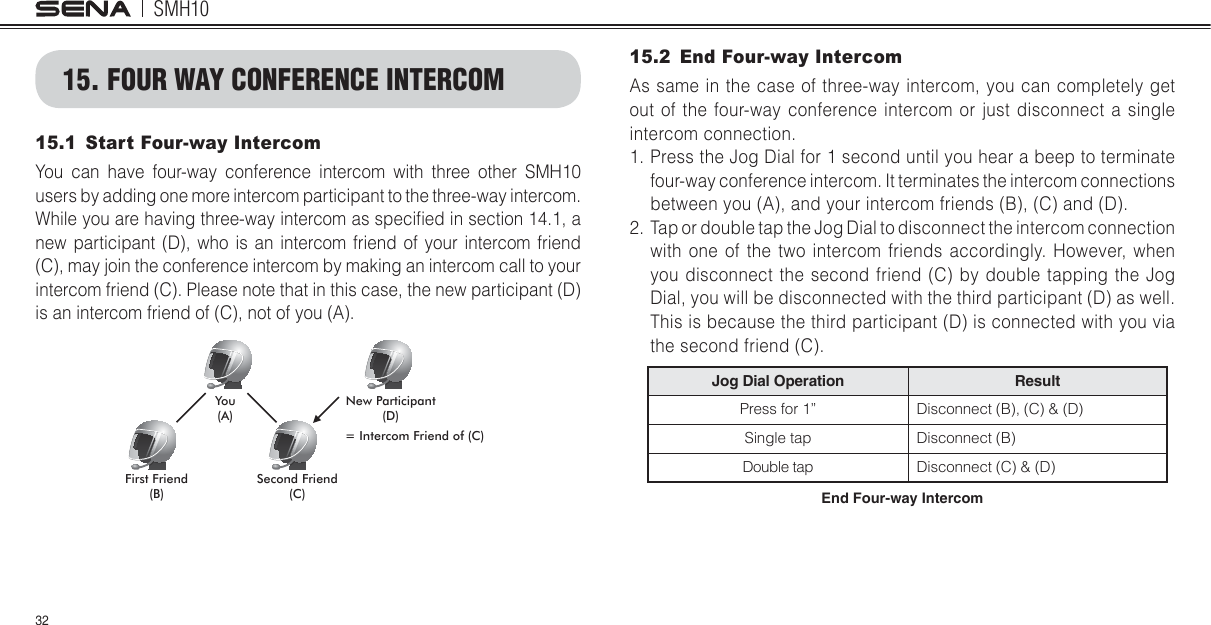

SMH103215.1  Start Four-way IntercomYou can have four-way conference intercom with three other SMH10 users by adding one more intercom participant to the three-way intercom. While you are having three-way intercom as speciled in section 14.1, a new participant (D), who is an intercom friend of your intercom friend (C), may join the conference intercom by making an intercom call to your intercom friend (C). Please note that in this case, the new participant (D) is an intercom friend of (C), not of you (A). )LUVW)ULHQG%6HFRQG)ULHQG&<RX$1HZ3DUWLFLSDQW' ,QWHUFRP)ULHQGRI&15. FOUR WAY CONFERENCE INTERCOM15.2  End Four-way IntercomAs same in the case of three-way intercom, you can completely get out of the four-way conference intercom or just disconnect a single intercom connection.1.  Press the Jog Dial for 1 second until you hear a beep to terminate four-way conference intercom. It terminates the intercom connections between you (A), and your intercom friends (B), (C) and (D).2.  Tap or double tap the Jog Dial to disconnect the intercom connection with one of the two intercom friends accordingly. However, when you disconnect the second friend (C) by double tapping the Jog Dial, you will be disconnected with the third participant (D) as well. This is because the third participant (D) is connected with you via the second friend (C).Jog Dial Operation ResultPress for 1” Disconnect (B), (C) & (D)Single tap Disconnect (B)Double tap Disconnect (C) & (D)End Four-way Intercom

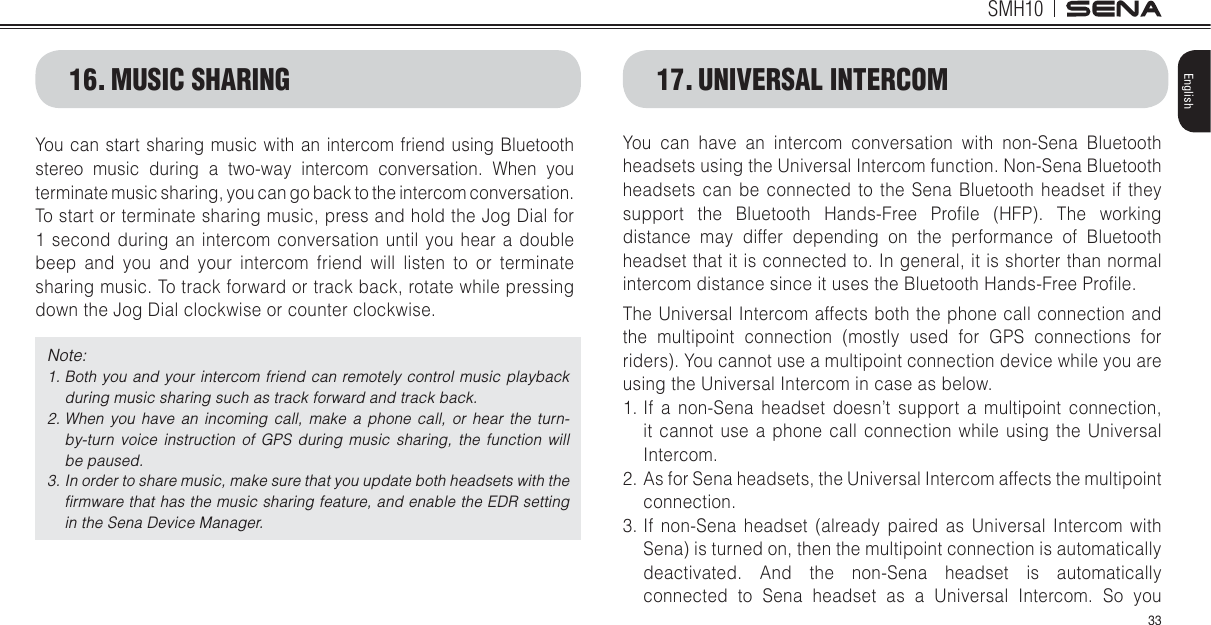

SMH1033EnglishYou can start sharing music with an intercom friend using Bluetooth stereo music during a two-way intercom conversation. When you terminate music sharing, you can go back to the intercom conversation. To start or terminate sharing music, press and hold the Jog Dial for 1 second during an intercom conversation until you hear a double beep and you and your intercom friend will listen to or terminate sharing music. To track forward or track back, rotate while pressing down the Jog Dial clockwise or counter clockwise.Note: 1.  Both you and your intercom friend can remotely control music playback during music sharing such as track forward and track back. 2.  When you have an incoming call, make a phone call, or hear the turn-by-turn voice instruction of GPS during music sharing, the function will be paused. 3.  In order to share music, make sure that you update both headsets with the firmware that has the music sharing feature, and enable the EDR setting in the Sena Device Manager.16. MUSIC SHARING 17. UNIVERSAL INTERCOMYou can have an intercom conversation with non-Sena Bluetooth headsets using the Universal Intercom function. Non-Sena Bluetooth headsets can be connected to the Sena Bluetooth headset if they support the Bluetooth Hands-Free Prolle (HFP). The working distance may differ depending on the performance of Bluetooth headset that it is connected to. In general, it is shorter than normal intercom distance since it uses the Bluetooth Hands-Free Prolle.The Universal Intercom affects both the phone call connection and the multipoint connection (mostly used for GPS connections for riders). You cannot use a multipoint connection device while you are using the Universal Intercom in case as below.1. If a non-Sena headset doesn’t support a multipoint connection, it cannot use a phone call connection while using the Universal Intercom.2. As for Sena headsets, the Universal Intercom affects the multipoint connection.3. If non-Sena headset (already paired as Universal Intercom with Sena) is turned on, then the multipoint connection is automatically deactivated. And the non-Sena headset is automatically connected to Sena headset as a Universal Intercom. So you

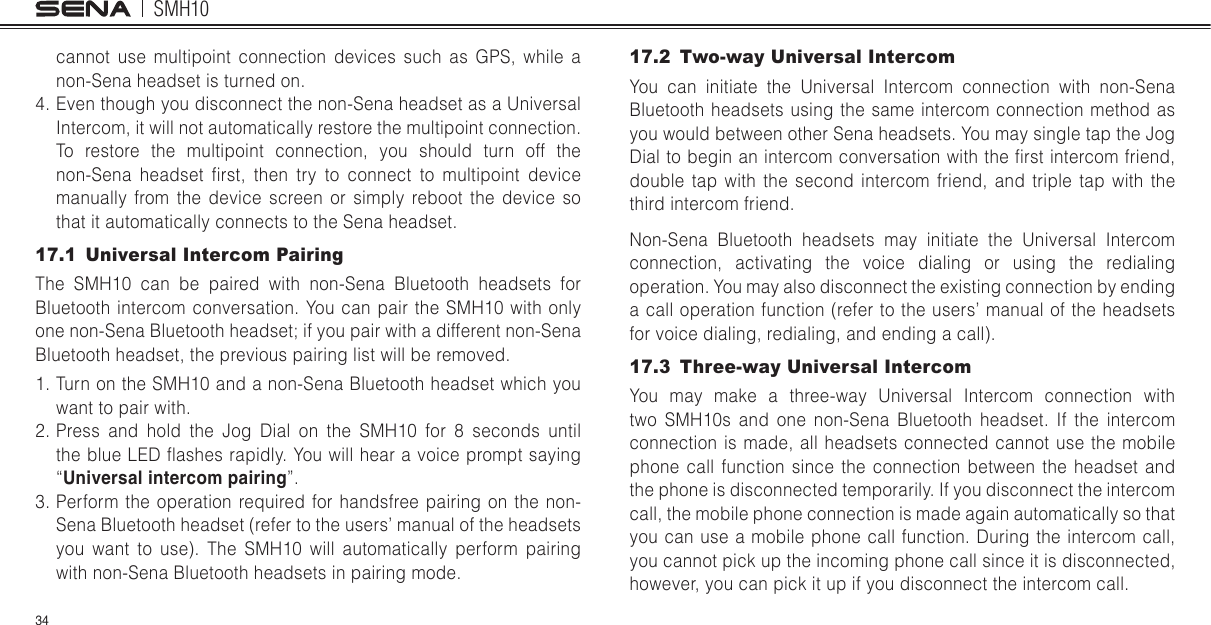

SMH1034cannot use multipoint connection devices such as GPS, while a non-Sena headset is turned on.4. Even though you disconnect the non-Sena headset as a Universal Intercom, it will not automatically restore the multipoint connection. To restore the multipoint connection, you should turn off the non-Sena headset lrst, then try to connect to multipoint device manually from the device screen or simply reboot the device so that it automatically connects to the Sena headset.17.1  Universal Intercom PairingThe SMH10 can be paired with non-Sena Bluetooth headsets for Bluetooth intercom conversation. You can pair the SMH10 with only one non-Sena Bluetooth headset; if you pair with a different non-Sena Bluetooth headset, the previous pairing list will be removed. 1. Turn on the SMH10 and a non-Sena Bluetooth headset which you want to pair with.2. Press and hold the Jog Dial on the SMH10 for 8 seconds until the blue LED mashes rapidly. You will hear a voice prompt saying “Universal intercom pairing”.3. Perform the operation required for handsfree pairing on the non-Sena Bluetooth headset (refer to the users’ manual of the headsets you want to use). The SMH10 will automatically perform pairing with non-Sena Bluetooth headsets in pairing mode.17.2  Two-way Universal IntercomYou can initiate the Universal Intercom connection with non-Sena Bluetooth headsets using the same intercom connection method as you would between other Sena headsets. You may single tap the Jog Dial to begin an intercom conversation with the lrst intercom friend, double tap with the second intercom friend, and triple tap with the third intercom friend.  Non-Sena Bluetooth headsets may initiate the Universal Intercom connection, activating the voice dialing or using the redialing operation. You may also disconnect the existing connection by ending a call operation function (refer to the users’ manual of the headsets for voice dialing, redialing, and ending a call).17.3  Three-way Universal IntercomYou may make a three-way Universal Intercom connection with two SMH10s and one non-Sena Bluetooth headset. If the intercom connection is made, all headsets connected cannot use the mobile phone call function since the connection between the headset and the phone is disconnected temporarily. If you disconnect the intercom call, the mobile phone connection is made again automatically so that you can use a mobile phone call function. During the intercom call, you cannot pick up the incoming phone call since it is disconnected, however, you can pick it up if you disconnect the intercom call.
SMH1035English1. You (A) need to be paired with non-Sena Bluetooth headset (B) and another SMH10 headset (C) for the three-way conference intercom.$% &3DLULQJ3DLULQJ2. Start an intercom conversation with non-Sena Bluetooth headset (B) in your intercom group. For example, you (A) may start an intercom conversation with non-Sena Bluetooth headset (B). The non-Sena Bluetooth headset (B) may also start an intercom call with you (A).$% &3. The Other SMH10 (C) may join the intercom by making an intercom call to you (A).$% &4. Now you (A), non-Sena Bluetooth headset (B), and the other SMH10 (C) are having a three-way conference intercom.$% &5. You may disconnect the three-way Universal Intercom using the same way as you do in normal three-way intercom. Please refer to section, 14.2 “End Three-way Intercom”.

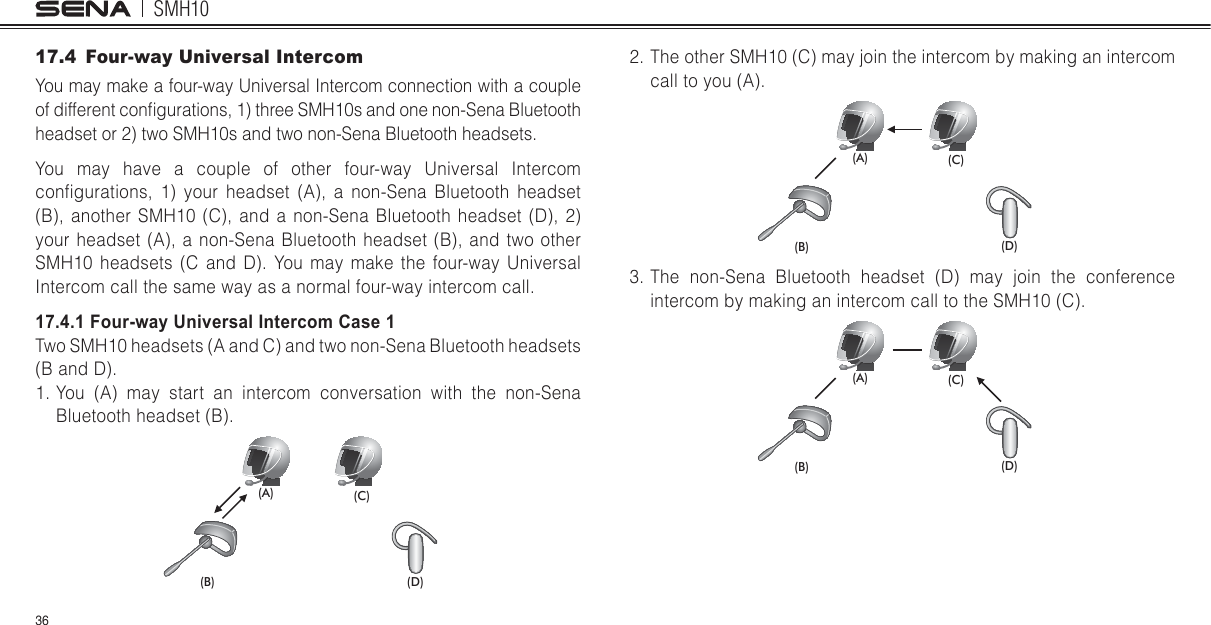

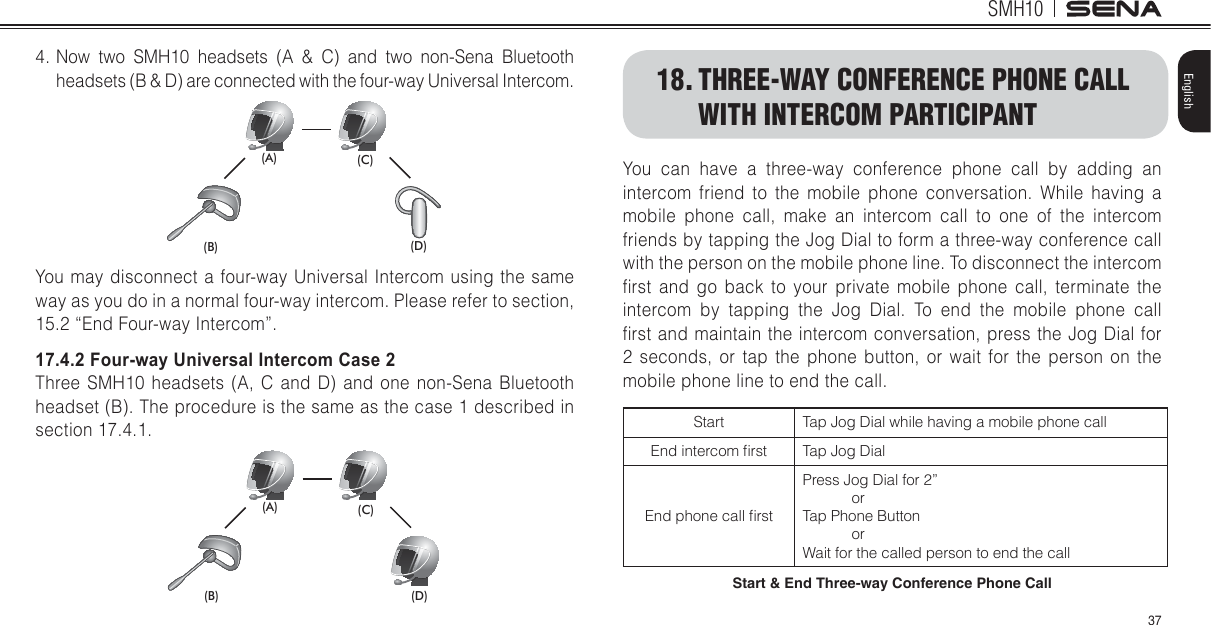

SMH103617.4  Four-way Universal IntercomYou may make a four-way Universal Intercom connection with a couple of different conlgurations, 1) three SMH10s and one non-Sena Bluetooth headset or 2) two SMH10s and two non-Sena Bluetooth headsets. You may have a couple of other four-way Universal Intercom conlgurations, 1) your headset (A), a non-Sena Bluetooth headset (B), another SMH10 (C), and a non-Sena Bluetooth headset (D), 2) your headset (A), a non-Sena Bluetooth headset (B), and two other SMH10 headsets (C and D). You may make the four-way Universal Intercom call the same way as a normal four-way intercom call.17.4.1 Four-way Universal Intercom Case 1Two SMH10 headsets (A and C) and two non-Sena Bluetooth headsets (B and D).1. You (A) may start an intercom conversation with the non-Sena Bluetooth headset (B).% '$ &2. The other SMH10 (C) may join the intercom by making an intercom call to you (A).% '$ &3. The non-Sena Bluetooth headset (D) may join the conference intercom by making an intercom call to the SMH10 (C).% '$ &
SMH1037English4. Now two SMH10 headsets (A & C) and two non-Sena Bluetooth headsets (B & D) are connected with the four-way Universal Intercom.% '$ &You may disconnect a four-way Universal Intercom using the same way as you do in a normal four-way intercom. Please refer to section, 15.2 “End Four-way Intercom”. 17.4.2 Four-way Universal Intercom Case 2Three SMH10 headsets (A, C and D) and one non-Sena Bluetooth headset (B). The procedure is the same as the case 1 described in section 17.4.1.% '$ &You can have a three-way conference phone call by adding an intercom friend to the mobile phone conversation. While having a mobile phone call, make an intercom call to one of the intercom friends by tapping the Jog Dial to form a three-way conference call with the person on the mobile phone line. To disconnect the intercom lrst and go back to your private mobile phone call, terminate the intercom by tapping the Jog Dial. To end the mobile phone call lrst and maintain the intercom conversation, press the Jog Dial for 2 seconds, or tap the phone button, or wait for the person on the mobile phone line to end the call.Start Tap Jog Dial while having a mobile phone callEnd intercom lrst Tap Jog DialEnd phone call lrstPress Jog Dial for 2”            orTap Phone Button            orWait for the called person to end the call5VCTV'PF6JTGGYC[%QPHGTGPEG2JQPG%CNN18. THREE-WAY CONFERENCE PHONE CALL WITH INTERCOM PARTICIPANT
SMH1038When you try to start an intercom conversation with an intercom friend who is already having a conference intercom with other riders or a mobile phone call, you will hear a low tone double beep signifying an intercom busy signal. In this case, you have to try again later. If your intercom friend goes out of range while having an intercom conversation, you may hear static noise and eventually the intercom will be disconnected. In this case, the SMH10 automatically tries to reconnect the intercom every 8 seconds and you will hear high tone double beeps until the intercom is reestablished. If you don’t want to make a reconnection, tap the Jog Dial to stop the attempt. 19. INTERCOM FAILURE20. INTERCOM RECONNECTION1. To restore the SMH10 to factory default settings, press and hold the Phone Button for 12 seconds until the LED shows solid red and you hear double beeps. You will hear a voice prompt saying “Factory reset”.2. Within 5 seconds, press the Jog Dial to conlrm reset. The headset will be restored to factory setting and switched off automatically. You will hear a voice prompt saying “Headset reset, good-bye”.3. If you don’t press the Jog Dial within 5 seconds, the reset attempt is canceled and the headset returns to stand-by mode. You will hear a voice prompt saying “Canceled”.21. RESET TO FACTORY DEFAULT SETTINGS

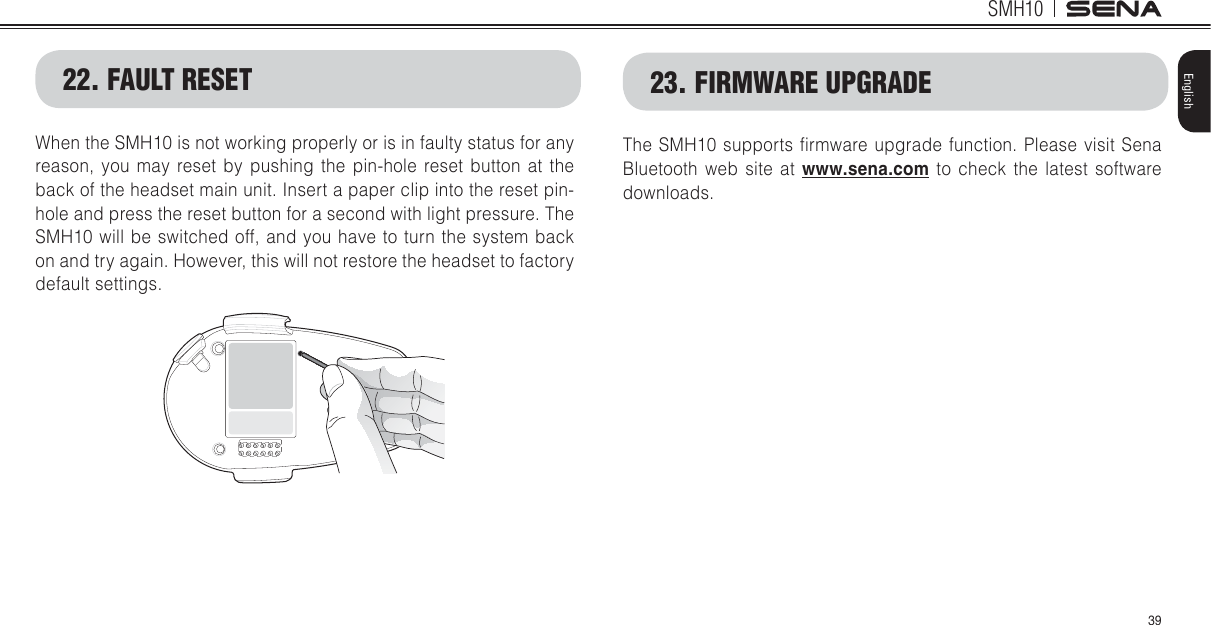

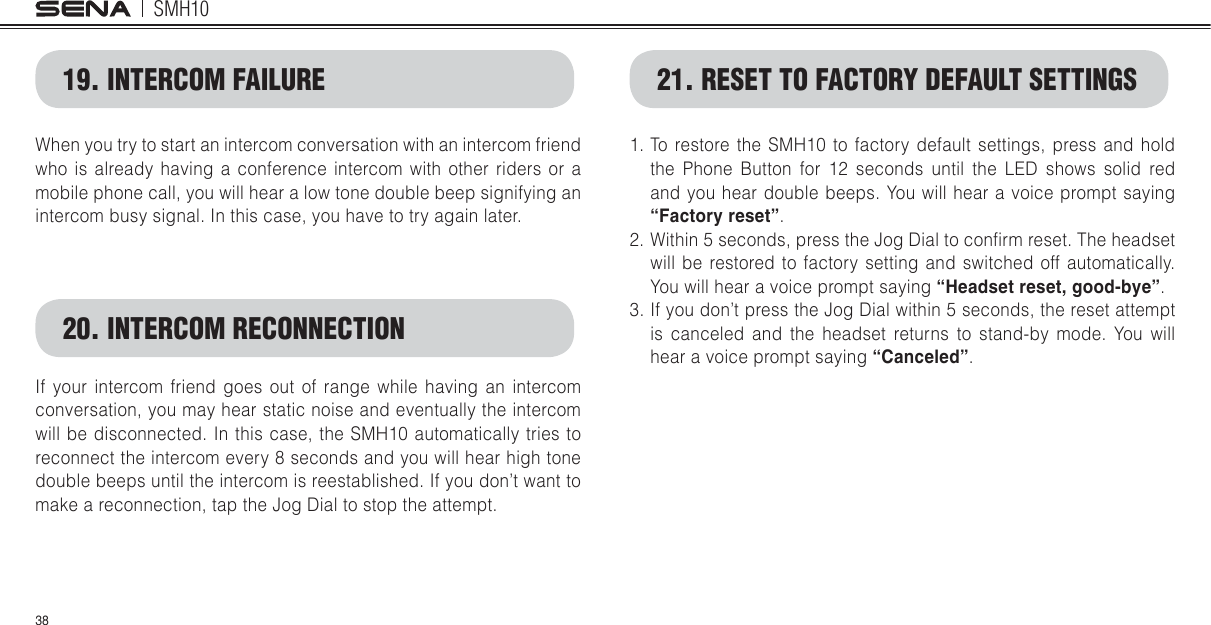

SMH1039English22. FAULT RESETWhen the SMH10 is not working properly or is in faulty status for any reason, you may reset by pushing the pin-hole reset button at the back of the headset main unit. Insert a paper clip into the reset pin-hole and press the reset button for a second with light pressure. The SMH10 will be switched off, and you have to turn the system back on and try again. However, this will not restore the headset to factory default settings.23. FIRMWARE UPGRADEThe SMH10 supports lrmware upgrade function. Please visit Sena Bluetooth web site at www.sena.com to check the latest software downloads.

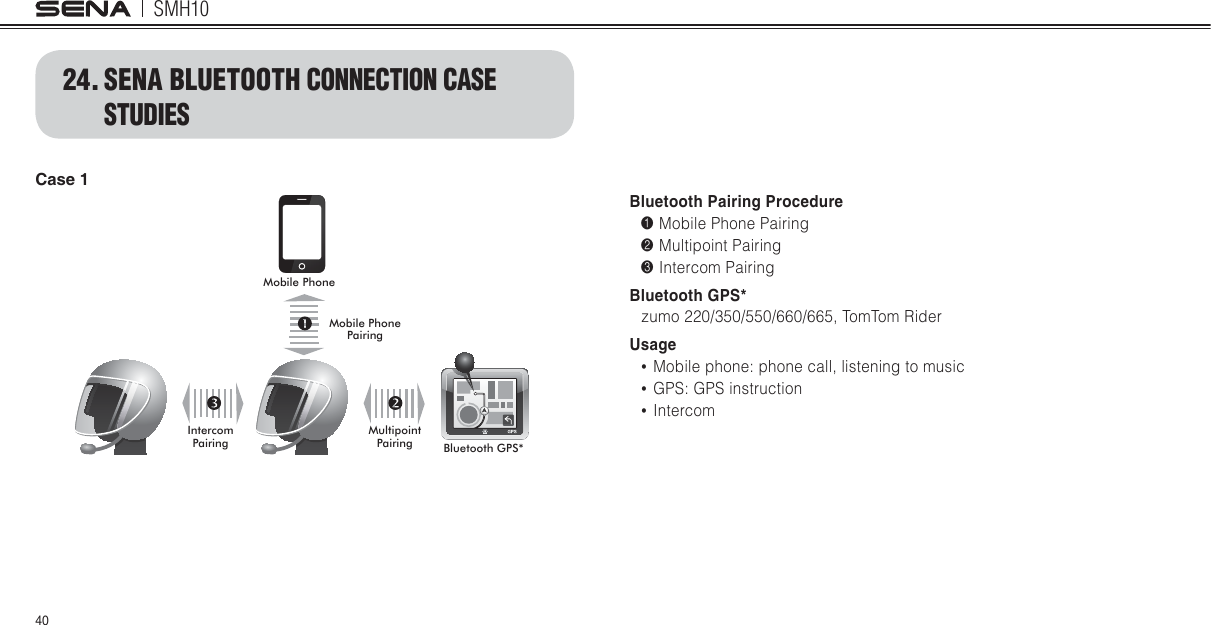

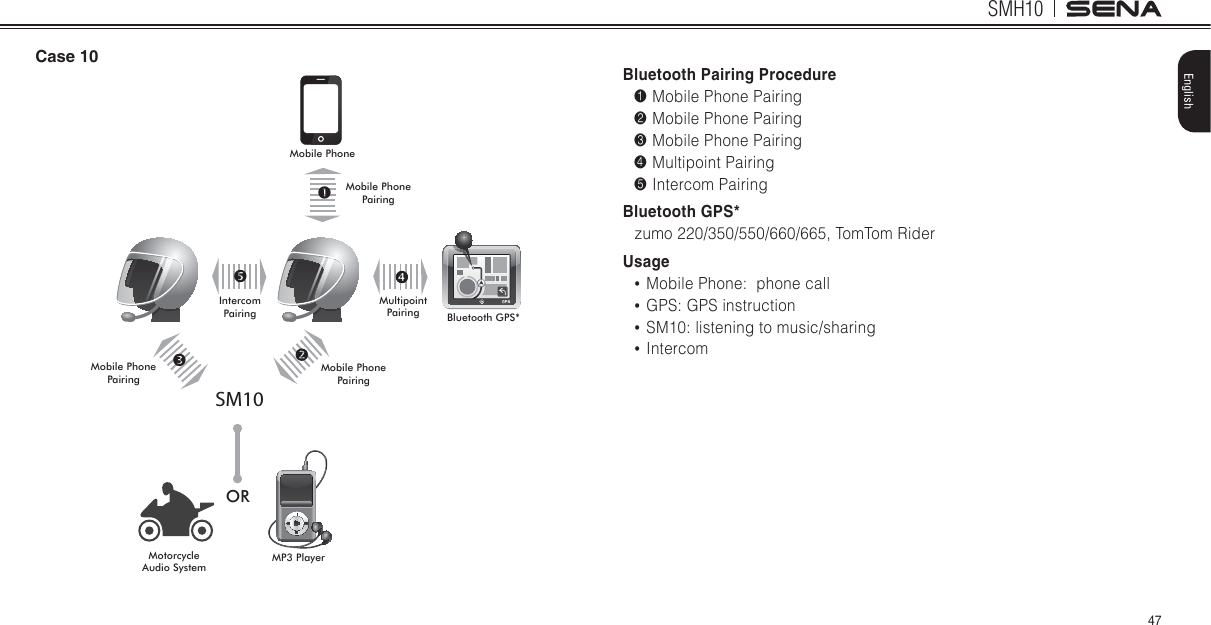

SMH104024. SENA BLUETOOTH CONNECTION CASE STUDIESCase 10RELOH3KRQH%OXHWRRWK*360RELOH3KRQH3DLULQJ0XOWLSRLQW3DLULQJ,QWHUFRP3DLULQJBluetooth Pairing Procedure1 Mobile Phone Pairing 2 Multipoint Pairing3 Intercom PairingBluetooth GPS*zumo 220/350/550/660/665, TomTom RiderUsageŖ Mobile phone phone call, listening to musicŖ GPS GPS instructionŖ Intercom

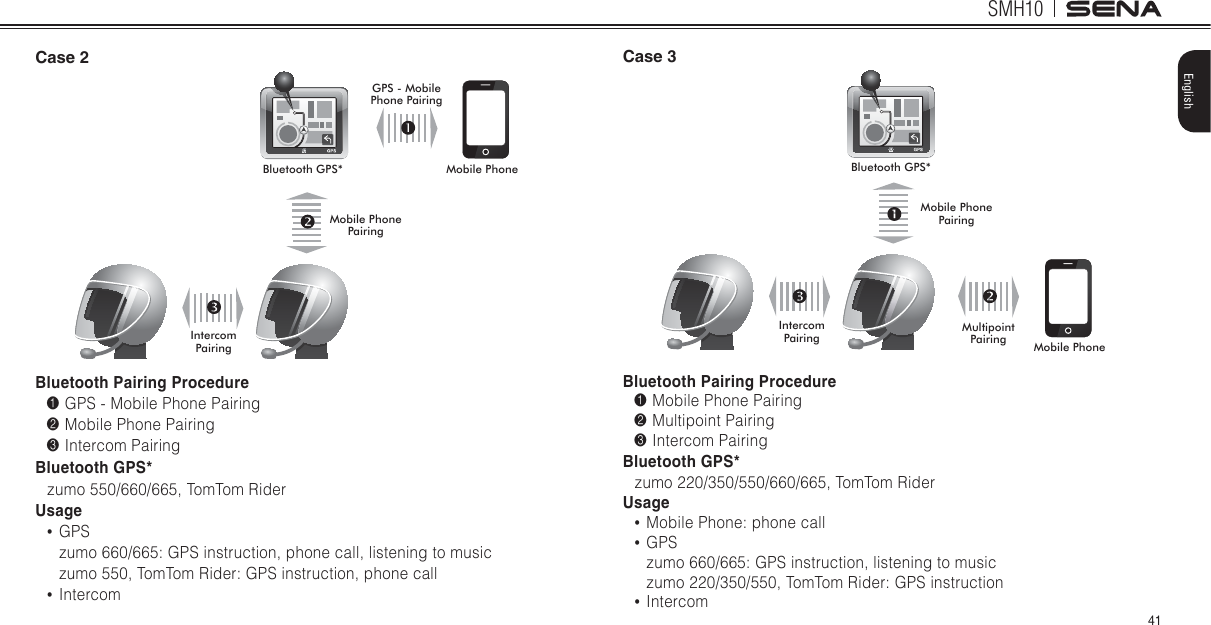

SMH1041EnglishCase 20RELOH3KRQH%OXHWRRWK*360RELOH3KRQH3DLULQJ*360RELOH3KRQH3DLULQJ,QWHUFRP3DLULQJBluetooth Pairing Procedure1 GPS - Mobile Phone Pairing2 Mobile Phone Pairing3 Intercom PairingBluetooth GPS*  zumo 550/660/665, TomTom RiderUsageŖ GPS zumo 660/665 GPS instruction, phone call, listening to music  zumo 550, TomTom Rider GPS instruction, phone callŖ IntercomCase 30RELOH3KRQH%OXHWRRWK*360RELOH3KRQH3DLULQJ0XOWLSRLQW3DLULQJ,QWHUFRP3DLULQJBluetooth Pairing Procedure1 Mobile Phone Pairing2 Multipoint Pairing3 Intercom PairingBluetooth GPS*zumo 220/350/550/660/665, TomTom RiderUsageŖ Mobile Phone phone callŖ GPS zumo 660/665 GPS instruction, listening to music  zumo 220/350/550, TomTom Rider GPS instructionŖ Intercom

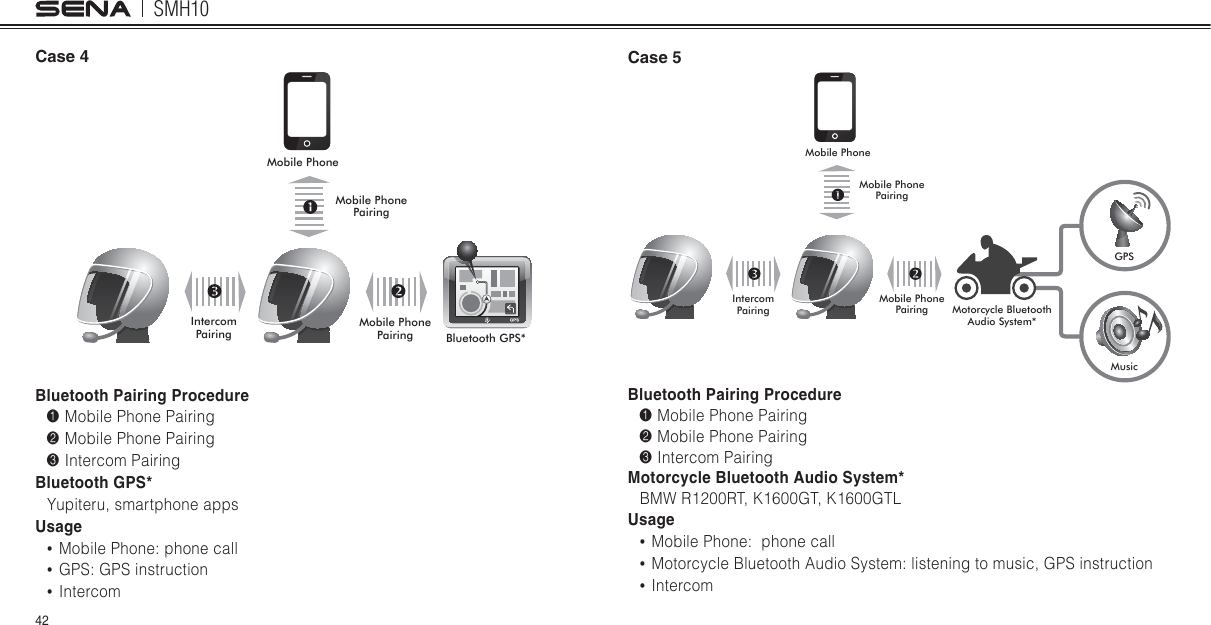

SMH1042Case 40RELOH3KRQH%OXHWRRWK*360RELOH3KRQH3DLULQJ0RELOH3KRQH3DLULQJ,QWHUFRP3DLULQJBluetooth Pairing Procedure1 Mobile Phone Pairing2 Mobile Phone Pairing3 Intercom PairingBluetooth GPS*Yupiteru, smartphone appsUsageŖ Mobile Phone phone callŖ GPS GPS instructionŖ IntercomCase 50RELOH3KRQH*360XVLF0RWRUF\FOH%OXHWRRWK$XGLR6\VWHP,QWHUFRP3DLULQJ0RELOH3KRQH3DLULQJ0RELOH3KRQH3DLULQJBluetooth Pairing Procedure1 Mobile Phone Pairing2 Mobile Phone Pairing3 Intercom PairingMotorcycle Bluetooth Audio System*   BMW R1200RT, K1600GT, K1600GTLUsageŖ Mobile Phone  phone callŖ Motorcycle Bluetooth Audio System listening to music, GPS instructionŖ Intercom

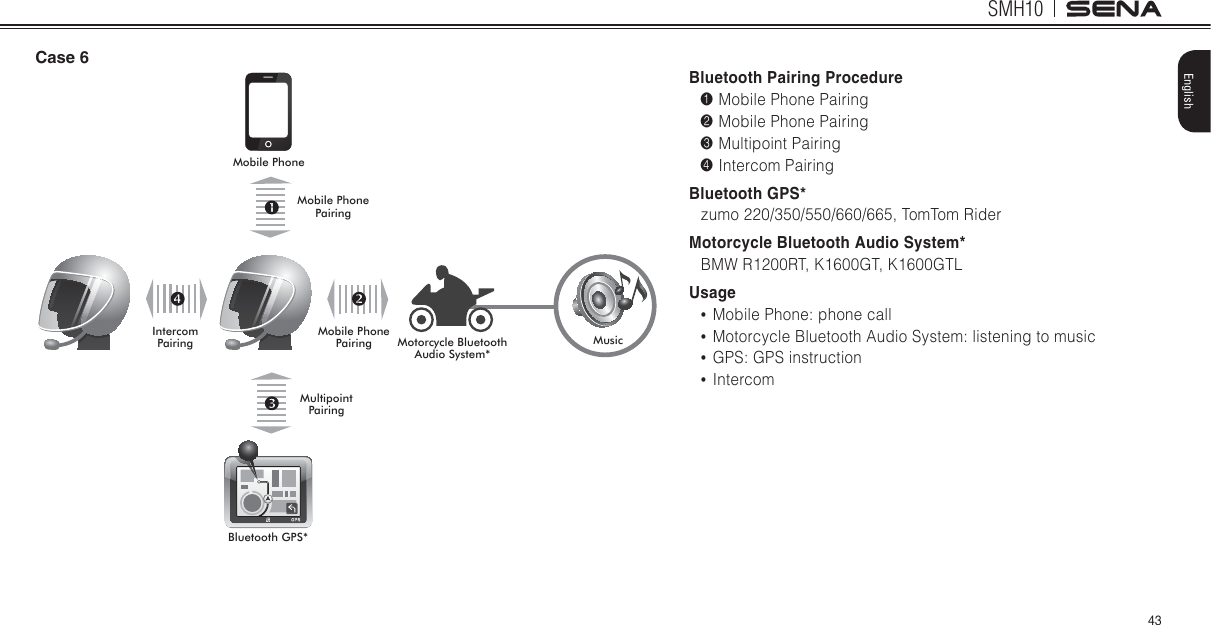

SMH1043EnglishCase 60RELOH3KRQH0XVLF%OXHWRRWK*360RELOH3KRQH3DLULQJ0RELOH3KRQH3DLULQJ0RWRUF\FOH%OXHWRRWK$XGLR6\VWHP0XOWLSRLQW3DLULQJ,QWHUFRP3DLULQJBluetooth Pairing Procedure1 Mobile Phone Pairing2 Mobile Phone Pairing3 Multipoint Pairing4 Intercom PairingBluetooth GPS*   zumo 220/350/550/660/665, TomTom RiderMotorcycle Bluetooth Audio System*   BMW R1200RT, K1600GT, K1600GTLUsageŖ Mobile Phone phone callŖ Motorcycle Bluetooth Audio System listening to musicŖ GPS GPS instructionŖ Intercom

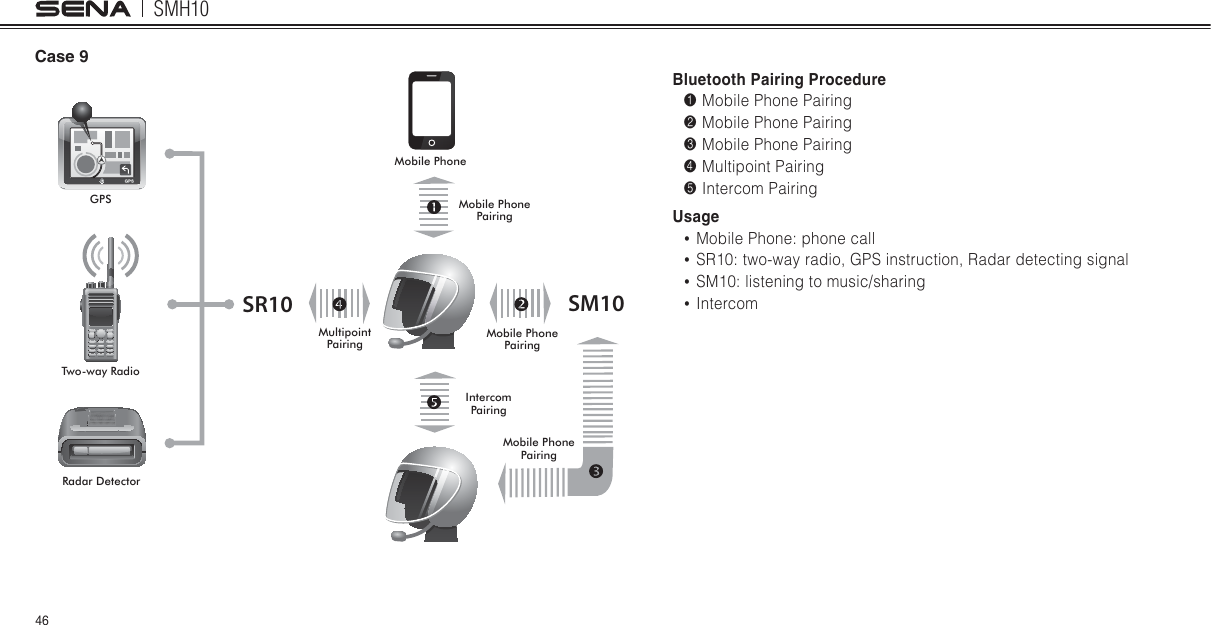

SMH1044Case 70RELOH3KRQH*360RELOH3KRQH3DLULQJ7ZRZD\5DGLR5DGDU'HWHFWRU0XOWLSRLQW3DLULQJ,QWHUFRP3DLULQJSR10Bluetooth Pairing Procedure1 Mobile Phone Pairing2 Multipoint Pairing3 Intercom PairingUsageŖ Mobile Phone phone callŖ SR10 two-way radio, GPS guidance, Radar detecting signalŖ Intercom
SMH1045EnglishCase 80RELOH3KRQH%OXHWRRWK*360RELOH3KRQH3DLULQJ,QWHUFRP3DLULQJ033OD\HU0RELOH3KRQH3DLULQJ*360RELOH3KRQH3DLULQJBluetooth Pairing Procedure1 GPS - Mobile Phone Pairing2 Mobile Phone Pairing3 Mobile Phone Pairing4 Intercom PairingBluetooth GPS*   zumo 220/350/550/660/665, TomTom RiderUsageŖ GPS phone call, GPS instructionŖ MP3 Player listening to musicŖ Intercom
SMH1046Bluetooth Pairing Procedure1 Mobile Phone Pairing2 Mobile Phone Pairing3 Mobile Phone Pairing4 Multipoint Pairing5 Intercom PairingUsageŖ Mobile Phone phone callŖ SR10 two-way radio, GPS instruction, Radar detecting signalŖ SM10 listening to music/sharingŖ IntercomCase 9SR10 SM100RELOH3KRQH*367ZRZD\5DGLR0RELOH3KRQH3DLULQJ0RELOH3KRQH3DLULQJ0RELOH3KRQH3DLULQJ,QWHUFRP3DLULQJ0XOWLSRLQW3DLULQJ5DGDU'HWHFWRU
SMH1047EnglishBluetooth Pairing Procedure1 Mobile Phone Pairing2 Mobile Phone Pairing3 Mobile Phone Pairing4 Multipoint Pairing5 Intercom PairingBluetooth GPS*   zumo 220/350/550/660/665, TomTom RiderUsageŖ Mobile Phone  phone callŖ GPS GPS instructionŖ SM10 listening to music/sharingŖ IntercomCase 10SM100RELOH3KRQH%OXHWRRWK*360RELOH3KRQH3DLULQJ0RELOH3KRQH3DLULQJ250RELOH3KRQH3DLULQJ,QWHUFRP3DLULQJ0XOWLSRLQW3DLULQJ033OD\HU0RWRUF\FOH$XGLR6\VWHP

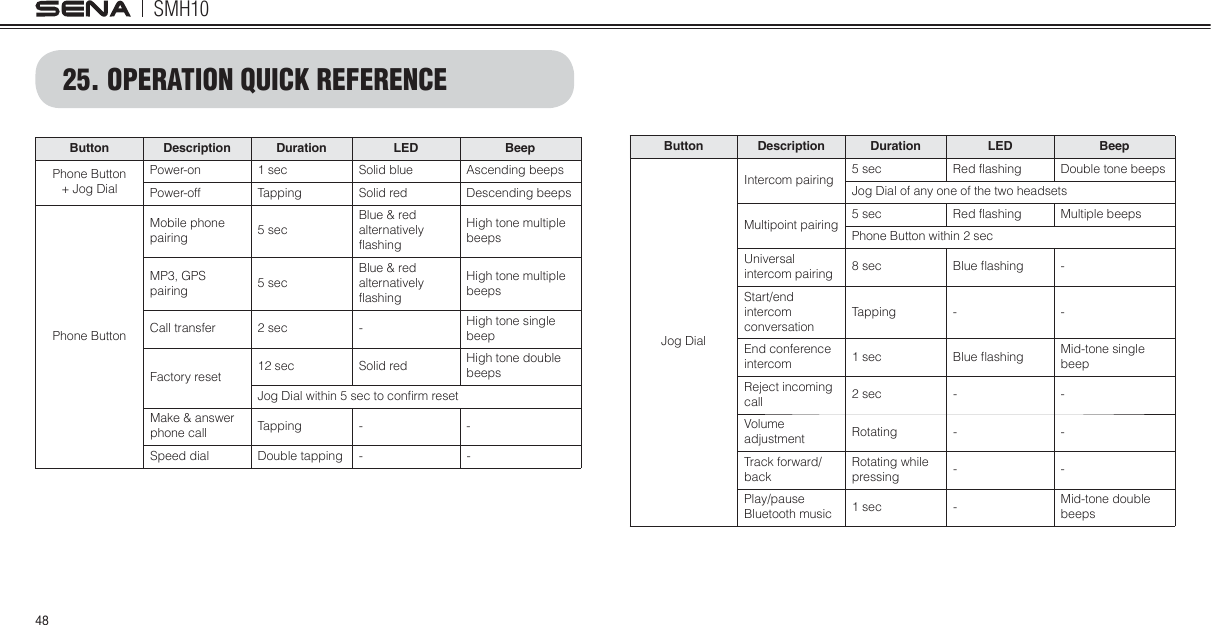

SMH104825. OPERATION QUICK REFERENCEButton Description Duration LED BeepPhone Button + Jog DialPower-on 1 sec Solid blue Ascending beepsPower-off Tapping Solid red Descending beepsPhone ButtonMobile phone pairing 5 secBlue & red alternatively flashingHigh tone multiple beeps  MP3, GPS pairing 5 secBlue & red alternatively flashingHigh tone multiple beeps  Call transfer 2 sec - High tone single beepFactory reset 12 sec Solid red High tone double beeps  Jog Dial within 5 sec to confirm resetMake & answer phone call Tapping - -Speed dial   Double tapping - -Button Description Duration LED BeepJog DialIntercom pairing 5 sec Red flashing Double tone beepsJog Dial of any one of the two headsetsMultipoint pairing 5 sec Red flashing Multiple beepsPhone Button within 2 secUniversal intercom pairing 8 sec Blue mashing -Start/end intercomconversationTapping - -End conference intercom 1 sec Blue mashing Mid-tone single beepReject incoming call 2 sec - -Volume adjustment Rotating - -Track forward/ backRotating while pressing --Play/pauseBluetooth music 1 sec - Mid-tone double beeps

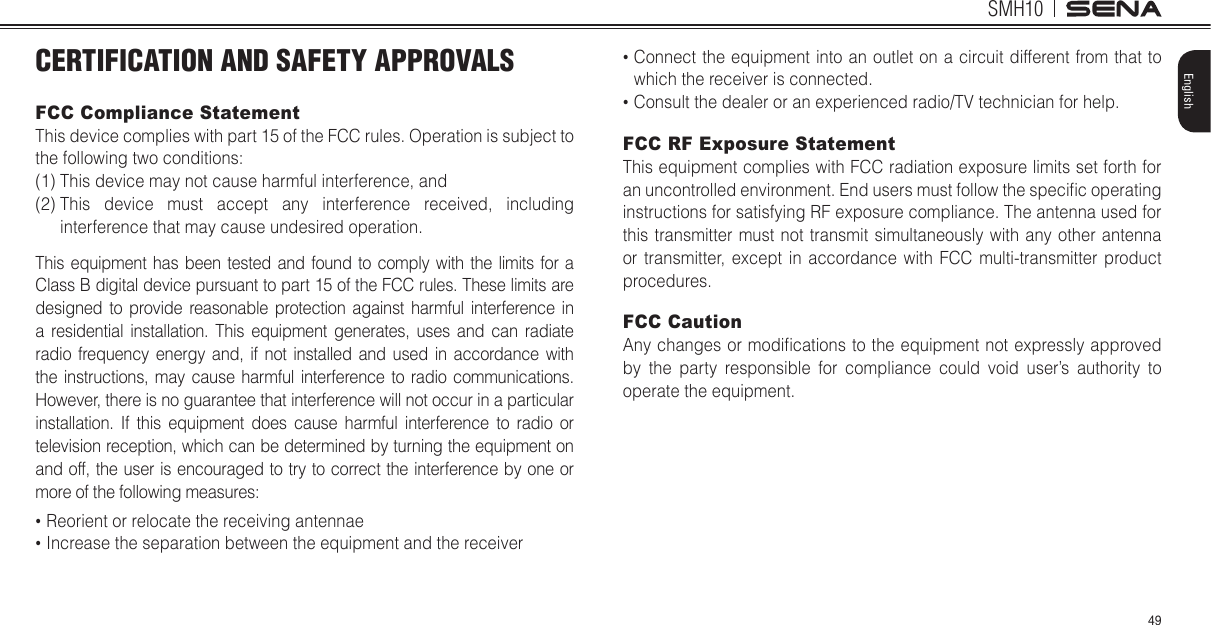

SMH1049EnglishCERTIFICATION AND SAFETY APPROVALSFCC Compliance StatementThis device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1) This device may not cause harmful interference, and (2)  This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment on and off, the user is encouraged to try to correct the interference by one or more of the following measures Reorient or relocate the receiving antennae  Increase the separation between the equipment and the receiver  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help.FCC RF Exposure StatementThis equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specilc operating instructions for satisfying RF exposure compliance. The antenna used for this transmitter must not transmit simultaneously with any other antenna or transmitter, except in accordance with FCC multi-transmitter product procedures.FCC CautionAny changes or modilcations to the equipment not expressly approved by the party responsible for compliance could void user’s authority to operate the equipment.
SMH1050CE Declaration of Conformity This product is CE marked according to the provisions of the R&TTE Directive (99/5/EC). Hereby, Sena declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. For further information, please consult www.sena.com. Please note that this product uses radio frequency bands not harmonized within EU. Within the EU this product is intended to be used in Austria, Belgium, Denmark, Finland, France, Germany, Greece, Ireland, Italy, Luxembourg, The Netherlands, Portugal, Spain, Sweden, United Kingdom and within EFTA in Iceland, Norway and Switzerland. Industry Canada Statement This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions (1) This device may not cause interference. (2)  This device must accept any interference, including interference that may cause undesired operation of the device. Bluetooth License The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Sena is under license. Other trademarks and trade names are those of their respective owners. The product is compliant with and adopts the Bluetooth® Specilcation 3.0 and has successfully passed all interoperability tests that are speciled in the Bluetooth® specilcation. However, interoperability between the device and other Bluetooth®-enabled products is not guaranteed. WEEE (Waste Electrical and Electronic Equipment)The crossed-out wheel bin symbol on the product, literature, or packaging reminds you that all electrical and electronic products, batteries, and accumulators must be taken to separate collection at the end of their working life. This requirement applies to the European Union and other locations where separate collection systems are available. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please do not dispose of these products as unsorted municipal waste, but hand it in at an oflcial collection point for recycling.

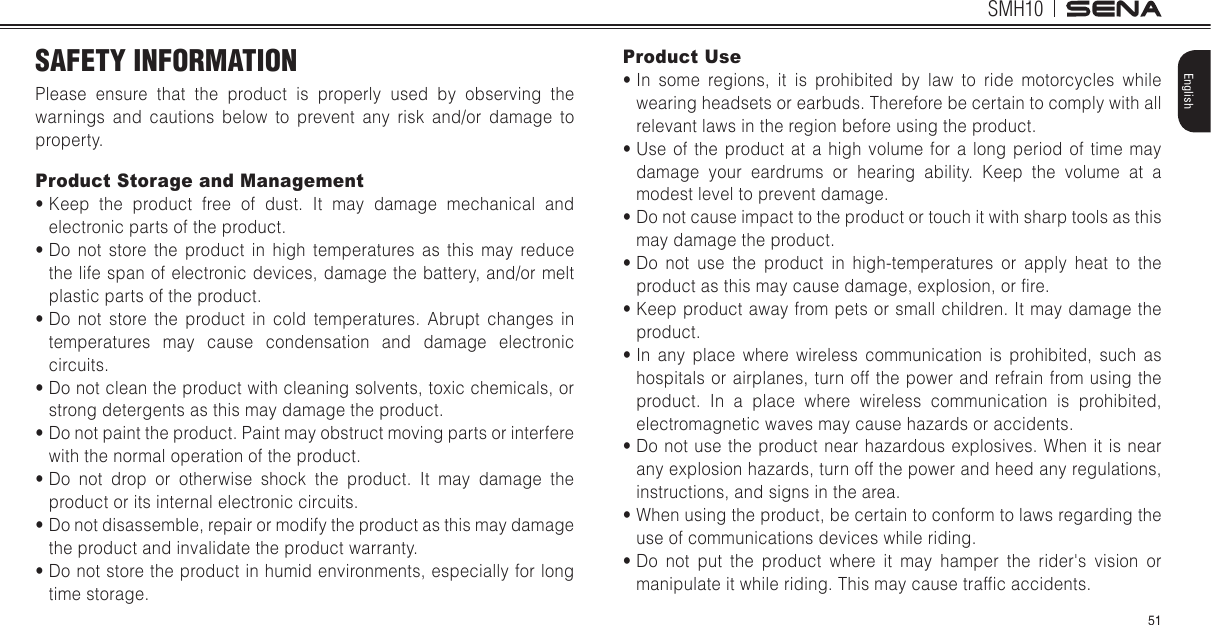

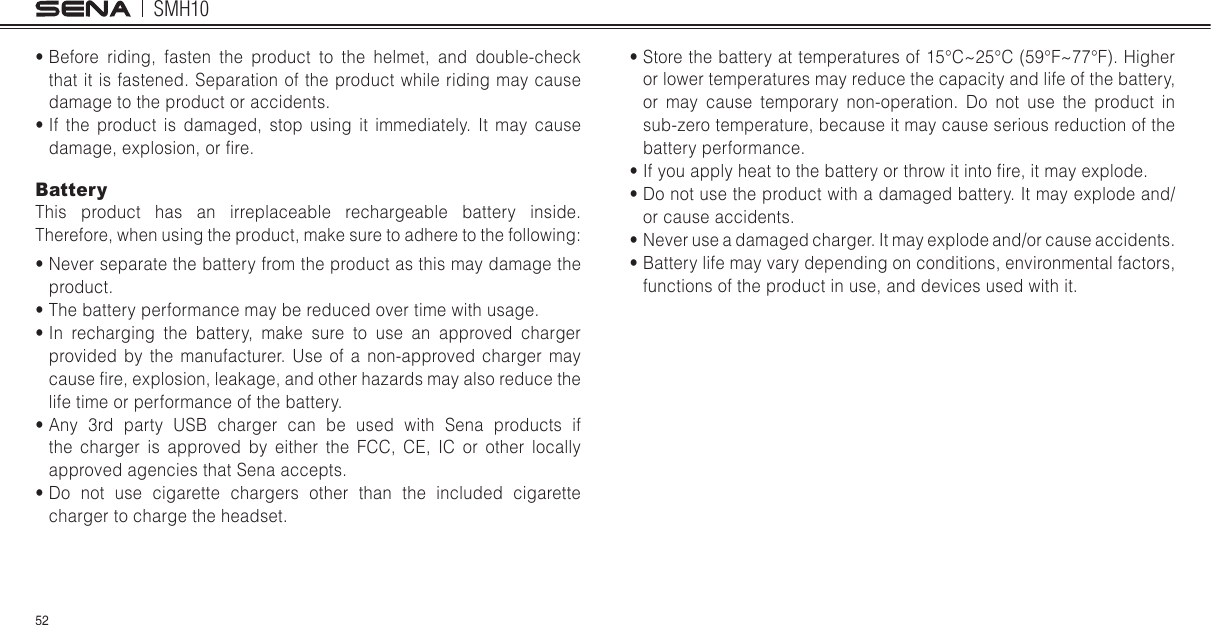

SMH1051EnglishSAFETY INFORMATIONPlease ensure that the product is properly used by observing the warnings and cautions below to prevent any risk and/or damage to property.Product Storage and Managements  Keep the product free of dust. It may damage mechanical and electronic parts of the product.s  Do not store the product in high temperatures as this may reduce the life span of electronic devices, damage the battery, and/or melt plastic parts of the product.s  Do not store the product in cold temperatures. Abrupt changes in temperatures may cause condensation and damage electronic circuits. s  Do not clean the product with cleaning solvents, toxic chemicals, or strong detergents as this may damage the product.s  Do not paint the product. Paint may obstruct moving parts or interfere with the normal operation of the product.s  Do not drop or otherwise shock the product. It may damage the product or its internal electronic circuits.s  Do not disassemble, repair or modify the product as this may damage the product and invalidate the product warranty.s  Do not store the product in humid environments, especially for long time storage.Product Uses  In some regions, it is prohibited by law to ride motorcycles while wearing headsets or earbuds. Therefore be certain to comply with all relevant laws in the region before using the product. s  Use of the product at a high volume for a long period of time may damage your eardrums or hearing ability. Keep the volume at a modest level to prevent damage.s  Do not cause impact to the product or touch it with sharp tools as this may damage the product.s  Do not use the product in high-temperatures or apply heat to the product as this may cause damage, explosion, or fire.s  Keep product away from pets or small children. It may damage the product.s  In any place where wireless communication is prohibited, such as hospitals or airplanes, turn off the power and refrain from using the product. In a place where wireless communication is prohibited, electromagnetic waves may cause hazards or accidents.s  Do not use the product near hazardous explosives. When it is near any explosion hazards, turn off the power and heed any regulations, instructions, and signs in the area.s  When using the product, be certain to conform to laws regarding the use of communications devices while riding.s  Do not put the product where it may hamper the rider's vision or manipulate it while riding. This may cause traffic accidents.
SMH1052s  Before riding, fasten the product to the helmet, and double-check that it is fastened. Separation of the product while riding may cause damage to the product or accidents.s  If the product is damaged, stop using it immediately. It may cause damage, explosion, or fire.BatteryThis product has an irreplaceable rechargeable battery inside. Therefore, when using the product, make sure to adhere to the followings  Never separate the battery from the product as this may damage the product.s  The battery performance may be reduced over time with usage.s  In recharging the battery, make sure to use an approved charger provided by the manufacturer. Use of a non-approved charger may cause fire, explosion, leakage, and other hazards may also reduce the life time or performance of the battery.s  Any 3rd party USB charger can be used with Sena products if the charger is approved by either the FCC, CE, IC or other locally approved agencies that Sena accepts.s  Do not use cigarette chargers other than the included cigarette charger to charge the headset.s  Store the battery at temperatures of 15C^25C (59F^77F). Higher or lower temperatures may reduce the capacity and life of the battery, or may cause temporary non-operation. Do not use the product in sub-zero temperature, because it may cause serious reduction of the battery performance.s  If you apply heat to the battery or throw it into fire, it may explode.s  Do not use the product with a damaged battery. It may explode and/or cause accidents.s  Never use a damaged charger. It may explode and/or cause accidents.s  Battery life may vary depending on conditions, environmental factors, functions of the product in use, and devices used with it.

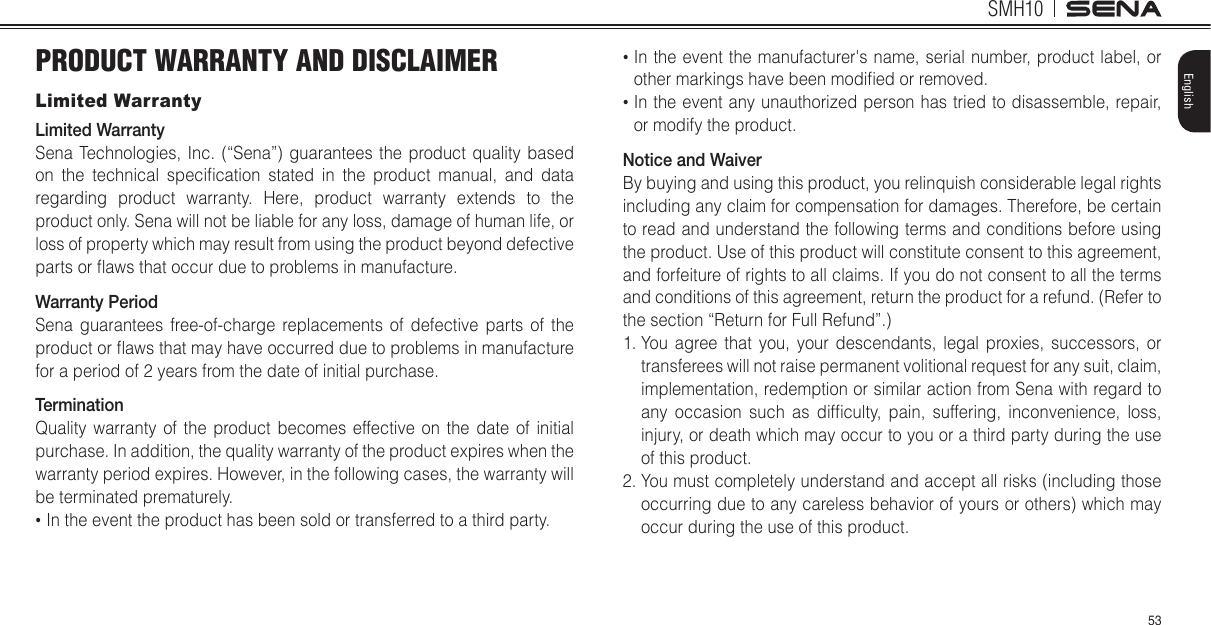

SMH1053EnglishPRODUCT WARRANTY AND DISCLAIMERLimited WarrantyLimited WarrantySena Technologies, Inc. (“Sena”) guarantees the product quality based on the technical specilcation stated in the product manual, and data regarding product warranty. Here, product warranty extends to the product only. Sena will not be liable for any loss, damage of human life, or loss of property which may result from using the product beyond defective parts or maws that occur due to problems in manufacture.Warranty PeriodSena guarantees free-of-charge replacements of defective parts of the product or maws that may have occurred due to problems in manufacture for a period of 2 years from the date of initial purchase. TerminationQuality warranty of the product becomes effective on the date of initial purchase. In addition, the quality warranty of the product expires when the warranty period expires. However, in the following cases, the warranty will be terminated prematurely.  In the event the product has been sold or transferred to a third party.  In the event the manufacturer's name, serial number, product label, or other markings have been modiled or removed.   In the event any unauthorized person has tried to disassemble, repair, or modify the product. Notice and WaiverBy buying and using this product, you relinquish considerable legal rights including any claim for compensation for damages. Therefore, be certain to read and understand the following terms and conditions before using the product. Use of this product will constitute consent to this agreement, and forfeiture of rights to all claims. If you do not consent to all the terms and conditions of this agreement, return the product for a refund. (Refer to the section “Return for Full Refund”.)1.  You agree that you, your descendants, legal proxies, successors, or transferees will not raise permanent volitional request for any suit, claim, implementation, redemption or similar action from Sena with regard to any occasion such as diflculty, pain, suffering, inconvenience, loss, injury, or death which may occur to you or a third party during the use of this product.2.  You must completely understand and accept all risks (including those occurring due to any careless behavior of yours or others) which may occur during the use of this product.

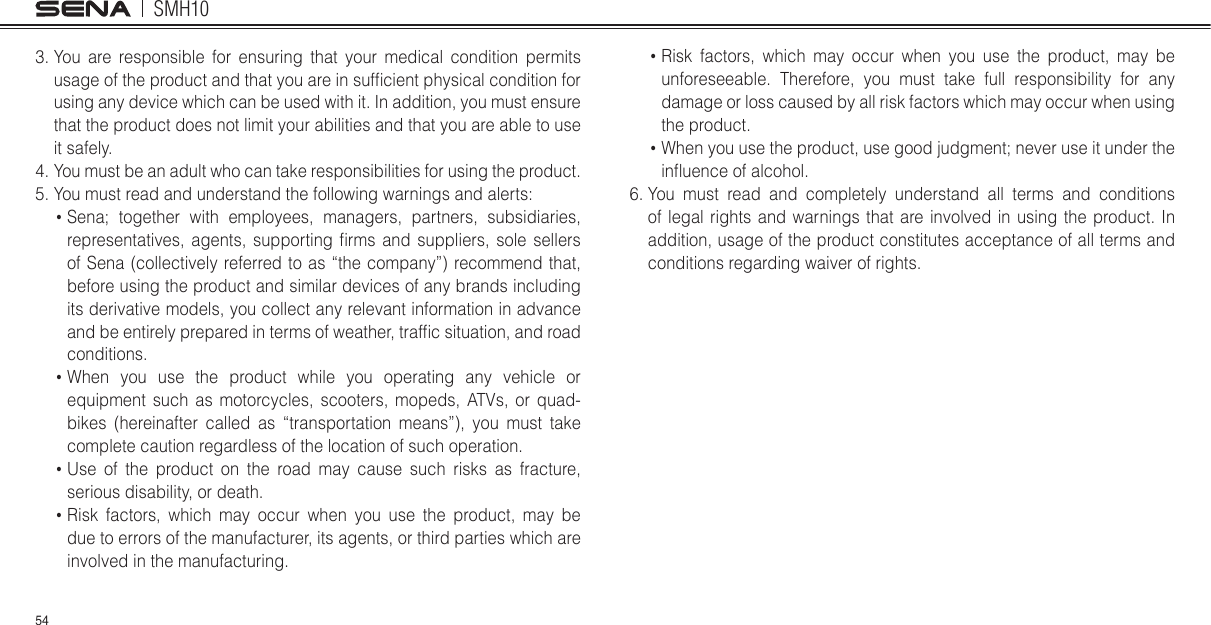

SMH10543.  You are responsible for ensuring that your medical condition permits usage of the product and that you are in suflcient physical condition for using any device which can be used with it. In addition, you must ensure that the product does not limit your abilities and that you are able to use it safely.4.  You must be an adult who can take responsibilities for using the product.5. You must read and understand the following warnings and alerts  Sena; together with employees, managers, partners, subsidiaries, representatives, agents, supporting lrms and suppliers, sole sellers of Sena (collectively referred to as “the company”) recommend that, before using the product and similar devices of any brands including its derivative models, you collect any relevant information in advance and be entirely prepared in terms of weather, traflc situation, and road conditions.  When you use the product while you operating any vehicle or equipment such as motorcycles, scooters, mopeds, ATVs, or quad-bikes (hereinafter called as “transportation means”), you must take complete caution regardless of the location of such operation.  Use of the product on the road may cause such risks as fracture, serious disability, or death.  Risk factors, which may occur when you use the product, may be due to errors of the manufacturer, its agents, or third parties which are involved in the manufacturing.  Risk factors, which may occur when you use the product, may be unforeseeable. Therefore, you must take full responsibility for any damage or loss caused by all risk factors which may occur when using the product.  When you use the product, use good judgment; never use it under the inmuence of alcohol.6.  You must read and completely understand all terms and conditions of legal rights and warnings that are involved in using the product. In addition, usage of the product constitutes acceptance of all terms and conditions regarding waiver of rights.

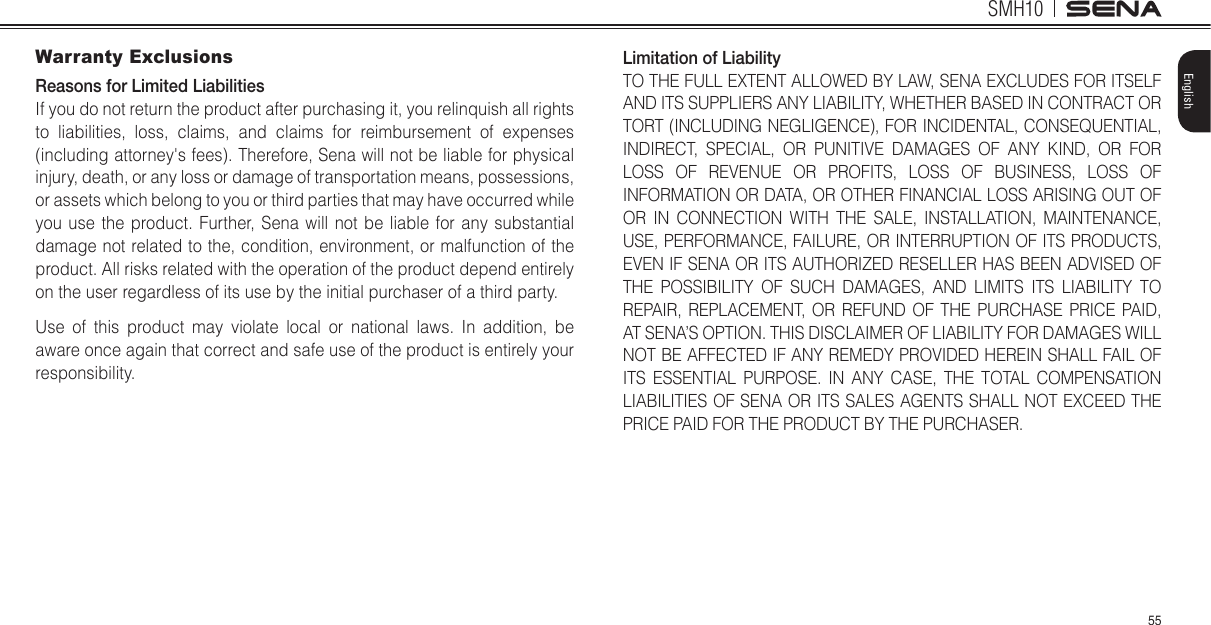

SMH1055EnglishWarranty ExclusionsReasons for Limited LiabilitiesIf you do not return the product after purchasing it, you relinquish all rights to liabilities, loss, claims, and claims for reimbursement of expenses (including attorney's fees). Therefore, Sena will not be liable for physical injury, death, or any loss or damage of transportation means, possessions, or assets which belong to you or third parties that may have occurred while you use the product. Further, Sena will not be liable for any substantial damage not related to the, condition, environment, or malfunction of the product. All risks related with the operation of the product depend entirely on the user regardless of its use by the initial purchaser of a third party.Use of this product may violate local or national laws. In addition, be aware once again that correct and safe use of the product is entirely your responsibility.Limitation of LiabilityTO THE FULL EXTENT ALLOWED BY LAW, SENA EXCLUDES FOR ITSELF AND ITS SUPPLIERS ANY LIABILITY, WHETHER BASED IN CONTRACT OR TORT (INCLUDING NEGLIGENCE), FOR INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY KIND, OR FOR LOSS OF REVENUE OR PROFITS, LOSS OF BUSINESS, LOSS OF INFORMATION OR DATA, OR OTHER FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE, USE, PERFORMANCE, FAILURE, OR INTERRUPTION OF ITS PRODUCTS, EVEN IF SENA OR ITS AUTHORIZED RESELLER HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES, AND LIMITS ITS LIABILITY TO REPAIR, REPLACEMENT, OR REFUND OF THE PURCHASE PRICE PAID, AT SENA’S OPTION. THIS DISCLAIMER OF LIABILITY FOR DAMAGES WILL NOT BE AFFECTED IF ANY REMEDY PROVIDED HEREIN SHALL FAIL OF ITS ESSENTIAL PURPOSE. IN ANY CASE, THE TOTAL COMPENSATION LIABILITIES OF SENA OR ITS SALES AGENTS SHALL NOT EXCEED THE PRICE PAID FOR THE PRODUCT BY THE PURCHASER.

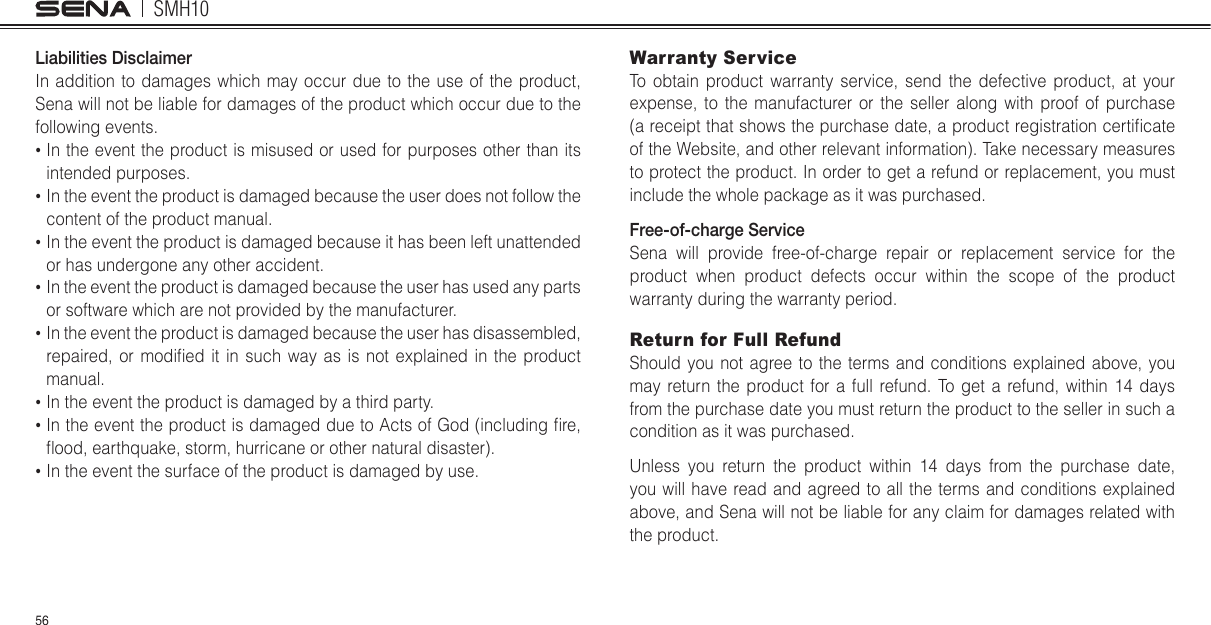

SMH1056Liabilities DisclaimerIn addition to damages which may occur due to the use of the product, Sena will not be liable for damages of the product which occur due to the following events.  In the event the product is misused or used for purposes other than its intended purposes.  In the event the product is damaged because the user does not follow the content of the product manual.  In the event the product is damaged because it has been left unattended or has undergone any other accident.  In the event the product is damaged because the user has used any parts or software which are not provided by the manufacturer.  In the event the product is damaged because the user has disassembled, repaired, or modiled it in such way as is not explained in the product manual.  In the event the product is damaged by a third party.  In the event the product is damaged due to Acts of God (including lre, mood, earthquake, storm, hurricane or other natural disaster).  In the event the surface of the product is damaged by use.Warranty ServiceTo obtain product warranty service, send the defective product, at your expense, to the manufacturer or the seller along with proof of purchase (a receipt that shows the purchase date, a product registration certilcate of the Website, and other relevant information). Take necessary measures to protect the product. In order to get a refund or replacement, you must include the whole package as it was purchased.Free-of-charge ServiceSena will provide free-of-charge repair or replacement service for the product when product defects occur within the scope of the product warranty during the warranty period.Return for Full RefundShould you not agree to the terms and conditions explained above, you may return the product for a full refund. To get a refund, within 14 days from the purchase date you must return the product to the seller in such a condition as it was purchased.Unless you return the product within 14 days from the purchase date, you will have read and agreed to all the terms and conditions explained above, and Sena will not be liable for any claim for damages related with the product.
www.sena.com User's Guide for Firmware v5.1.13.4.3
