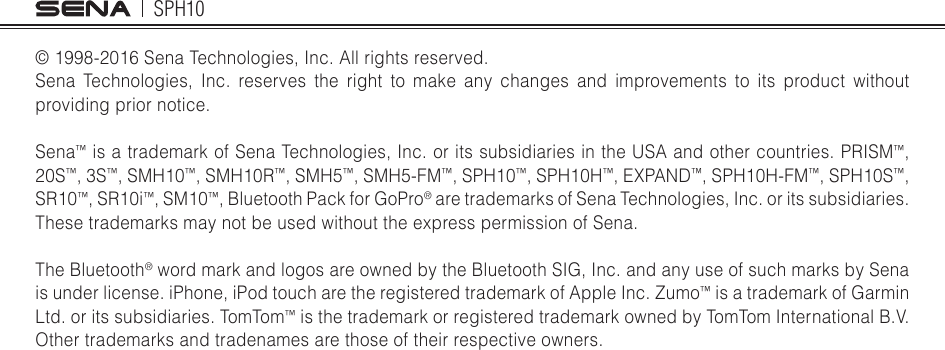

SPH10© 1998-2016 Sena Technologies, Inc. All rights reserved.Sena Technologies, Inc. reserves the right to make any changes and improvements to its product without providing prior notice.Sena™ is a trademark of Sena Technologies, Inc. or its subsidiaries in the USA and other countries. PRISM™, 20S™, 3S™, SMH10™, SMH10R™, SMH5™, SMH5-FM™, SPH10™, SPH10H™, EXPAND™, SPH10H-FM™, SPH10S™, SR10™, SR10i™, SM10™, Bluetooth Pack for GoPro® are trademarks of Sena Technologies, Inc. or its subsidiaries. These trademarks may not be used without the express permission of Sena.The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Sena is under license. iPhone, iPod touch are the registered trademark of Apple Inc. Zumo™ is a trademark of Garmin Ltd. or its subsidiaries. TomTom™ is the trademark or registered trademark owned by TomTom International B.V. Other trademarks and tradenames are those of their respective owners.

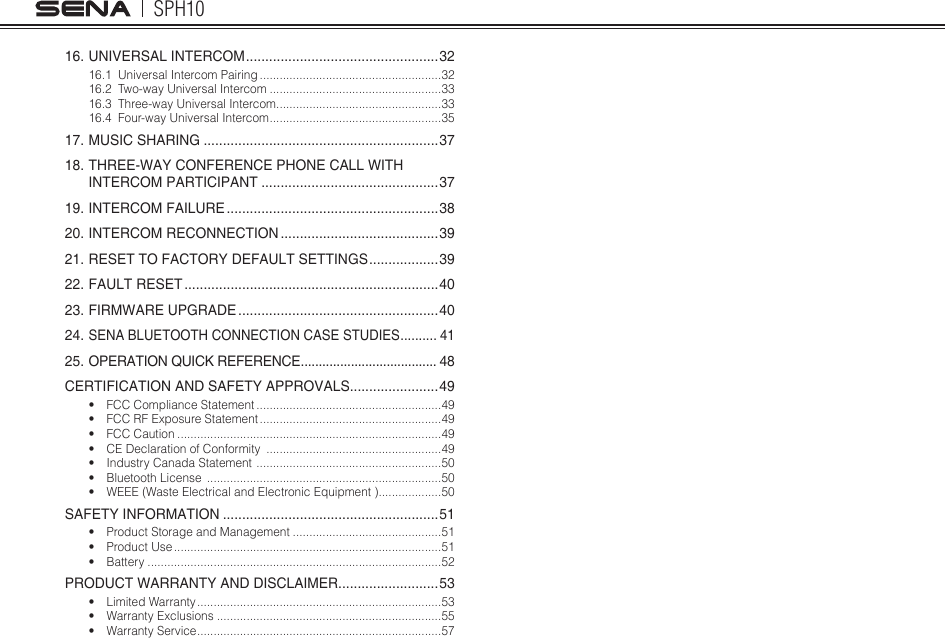

SPH10416. UNIVERSAL INTERCOM .................................................. 3216.1 Universal Intercom Pairing .......................................................3216.2 Two-way Universal Intercom ....................................................3316.3 Three-way Universal Intercom ..................................................3316.4 Four-way Universal Intercom ....................................................3517. MUSIC SHARING .............................................................3718. THREE-WAY CONFERENCE PHONE CALL WITH INTERCOM PARTICIPANT ..............................................3719. INTERCOM FAILURE .......................................................3820. INTERCOM RECONNECTION .........................................3921. RESET TO FACTORY DEFAULT SETTINGS .................. 3922. FAULT RESET ..................................................................4023. FIRMWARE UPGRADE ....................................................4024. SENA BLUETOOTH CONNECTION CASE STUDIES .......... 4125. OPERATION QUICK REFERENCE ...................................... 48CERTIFICATION AND SAFETY APPROVALS .......................49• FCC Compliance Statement ........................................................49• FCC RF Exposure Statement .......................................................49• FCC Caution ................................................................................49• CE Declaration of Conformity .....................................................49• Industry Canada Statement ........................................................50• Bluetooth License .......................................................................50• WEEE (Waste Electrical and Electronic Equipment ) ...................50SAFETY INFORMATION ........................................................51• Product Storage and Management .............................................51• Product Use .................................................................................51• Battery .........................................................................................52PRODUCT WARRANTY AND DISCLAIMER ..........................53• Limited Warranty ..........................................................................53• Warranty Exclusions ....................................................................55• Warranty Service ..........................................................................57

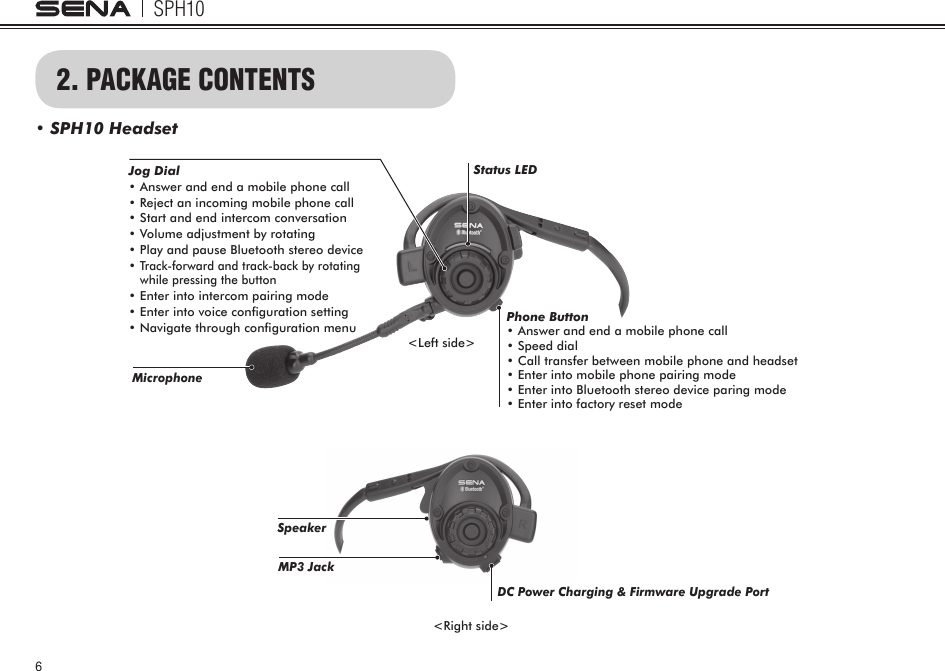

SPH1062. PACKAGE CONTENTS• SPH10 HeadsetMP3 JackSpeakerDC Power Charging & Firmware Upgrade Port<Right side>Phone Button• Answer and end a mobile phone call• Speed dial• Call transfer between mobile phone and headset• Enter into mobile phone pairing mode • Enter into Bluetooth stereo device paring mode • Enter into factory reset modeStatus LEDMicrophone<Left side>Jog Dial• Answer and end a mobile phone call• Reject an incoming mobile phone call• Start and end intercom conversation• Volume adjustment by rotating• Play and pause Bluetooth stereo device• Track-forward and track-back by rotating while pressing the button• Enter into intercom pairing mode• Enter into voice configuration setting• Navigate through configuration menu

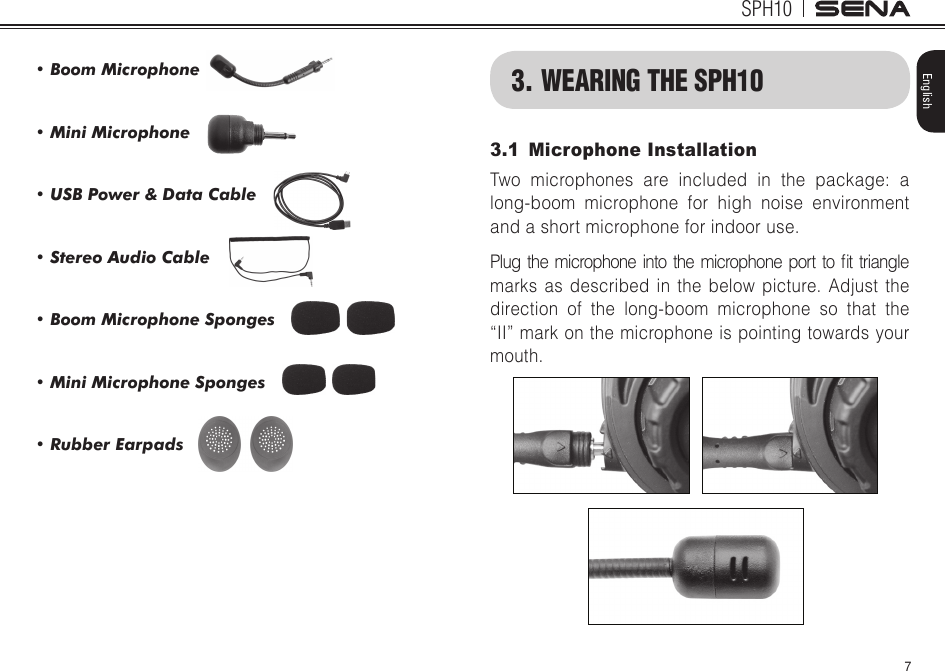

7SPH10English3. WEARING THE SPH103.1 Microphone InstallationTwo microphones are included in the package: along-boom microphone for high noise environment and a short microphone for indoor use.Plug the microphone into the microphone port to t trianglemarks as described in the below picture. Adjust the direction of the long-boom microphone so that the “II” mark on the microphone is pointing towards your mouth.• Boom Microphone• Mini Microphone• USB Power & Data Cable• Stereo Audio Cable• Boom Microphone Sponges• Mini Microphone Sponges• Rubber Earpads

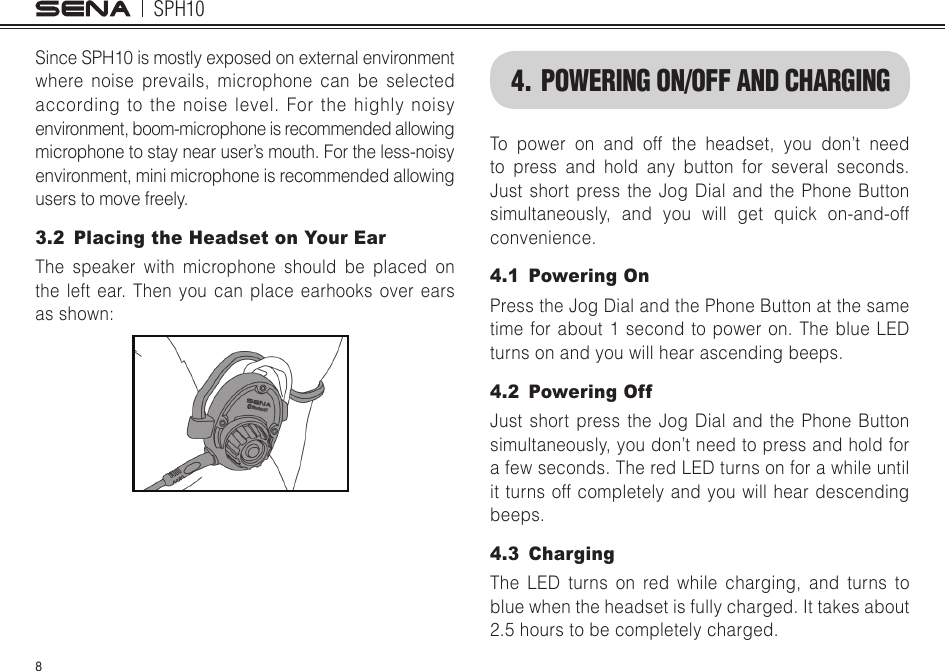

SPH108Since SPH10 is mostly exposed on external environment where noise prevails, microphone can be selected according to the noise level. For the highly noisy environment, boom-microphone is recommended allowing microphone to stay near user’s mouth. For the less-noisy environment, mini microphone is recommended allowing users to move freely.3.2 Placing the Headset on Your EarThe speaker with microphone should be placed on the left ear. Then you can place earhooks over ears asshown:4. POWERING ON/OFF AND CHARGINGTo power on and off the headset, you don’t need to press and hold any button for several seconds. Just short press the Jog Dial and the Phone Button simultaneously, and you will get quick on-and-off convenience. 4.1 Powering OnPress the Jog Dial and the Phone Button at the same time for about 1 second to power on. The blue LED turns on and you will hear ascending beeps. 4.2 Powering OffJust short press the Jog Dial and the Phone Button simultaneously, you don’t need to press and hold for a few seconds. The red LED turns on for a while until it turns off completely and you will hear descending beeps.4.3 ChargingThe LED turns on red while charging, and turns to blue when the headset is fully charged. It takes about 2.5 hours to be completely charged.

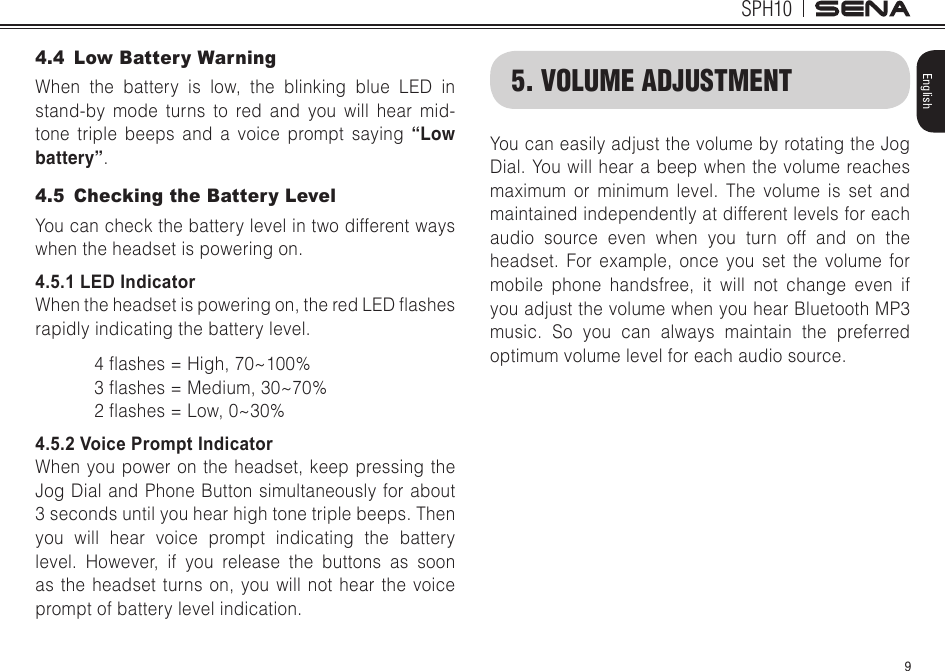

9SPH10English4.4 Low Battery WarningWhen the battery is low, the blinking blue LED in stand-by mode turns to red and you will hear mid-tone triple beeps and a voice prompt saying “Low battery”.4.5 Checking the Battery LevelYou can check the battery level in two different ways when the headset is powering on.4.5.1 LED IndicatorWhentheheadsetispoweringon,theredLEDashesrapidly indicating the battery level.4ashes=High,70~100%3ashes=Medium,30~70%2ashes=Low,0~30%4.5.2 Voice Prompt IndicatorWhen you power on the headset, keep pressing the Jog Dial and Phone Button simultaneously for about 3 seconds until you hear high tone triple beeps. Then you will hear voice prompt indicating the battery level. However, if you release the buttons as soon as the headset turns on, you will not hear the voice prompt of battery level indication.5. VOLUME ADJUSTMENTYou can easily adjust the volume by rotating the Jog Dial. You will hear a beep when the volume reaches maximum or minimum level. The volume is set and maintained independently at different levels for each audio source even when you turn off and on the headset. For example, once you set the volume for mobile phone handsfree, it will not change even if you adjust the volume when you hear Bluetooth MP3 music. So you can always maintain the preferred optimum volume level for each audio source.

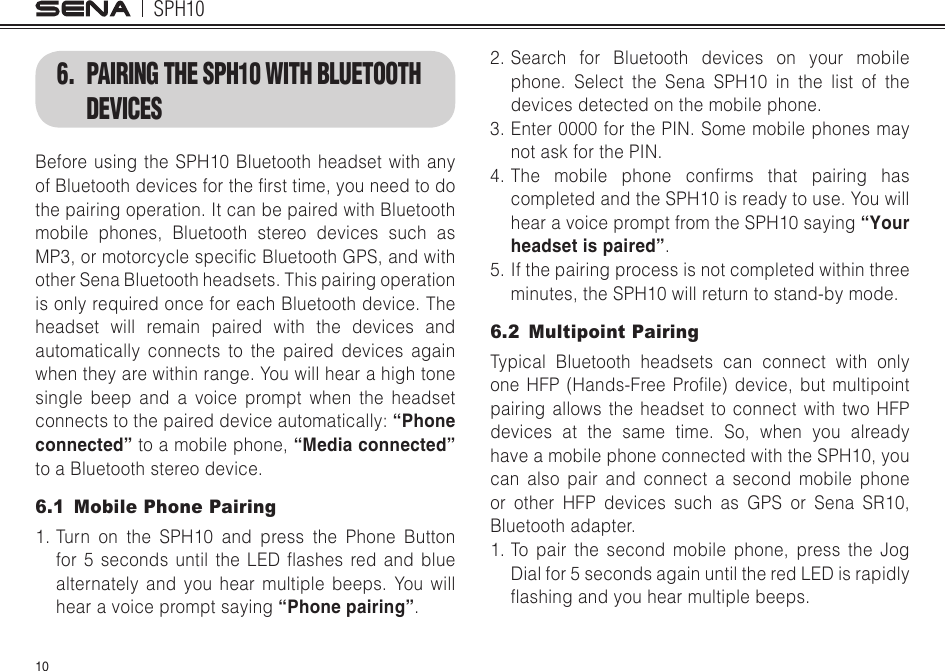

SPH10106. PAIRING THE SPH10 WITH BLUETOOTH DEVICESBefore using the SPH10 Bluetooth headset with any ofBluetoothdevicesforthersttime,youneedtodothe pairing operation. It can be paired with Bluetooth mobile phones, Bluetooth stereo devices such as MP3,ormotorcyclespecicBluetoothGPS,andwithother Sena Bluetooth headsets. This pairing operation is only required once for each Bluetooth device. The headset will remain paired with the devices and automatically connects to the paired devices again when they are within range. You will hear a high tone single beep and a voice prompt when the headset connectstothepaireddeviceautomatically:“Phone connected” to a mobile phone, “Media connected” to a Bluetooth stereo device. 6.1 Mobile Phone Pairing1. Turn on the SPH10 and press the Phone Button for5 secondsuntil theLED ashesredand bluealternately and you hear multiple beeps. You will hear a voice prompt saying “Phone pairing”.2. Search for Bluetooth devices on your mobile phone. Select the Sena SPH10 in the list of the devices detected on the mobile phone.3. Enter 0000 for the PIN. Some mobile phones may not ask for the PIN.4.The mobile phone conrms that pairing hascompleted and the SPH10 is ready to use. You will hear a voice prompt from the SPH10 saying “Your headset is paired”.5. If the pairing process is not completed within three minutes, the SPH10 will return to stand-by mode.6.2 Multipoint PairingTypical Bluetooth headsets can connect with only oneHFP(Hands-FreeProle)device,but multipointpairing allows the headset to connect with two HFP devices at the same time. So, when you already have a mobile phone connected with the SPH10, you can also pair and connect a second mobile phone or other HFP devices such as GPS or Sena SR10, Bluetooth adapter.1. To pair the second mobile phone, press the Jog Dial for 5 seconds again until the red LED is rapidly ashingandyouhearmultiplebeeps.

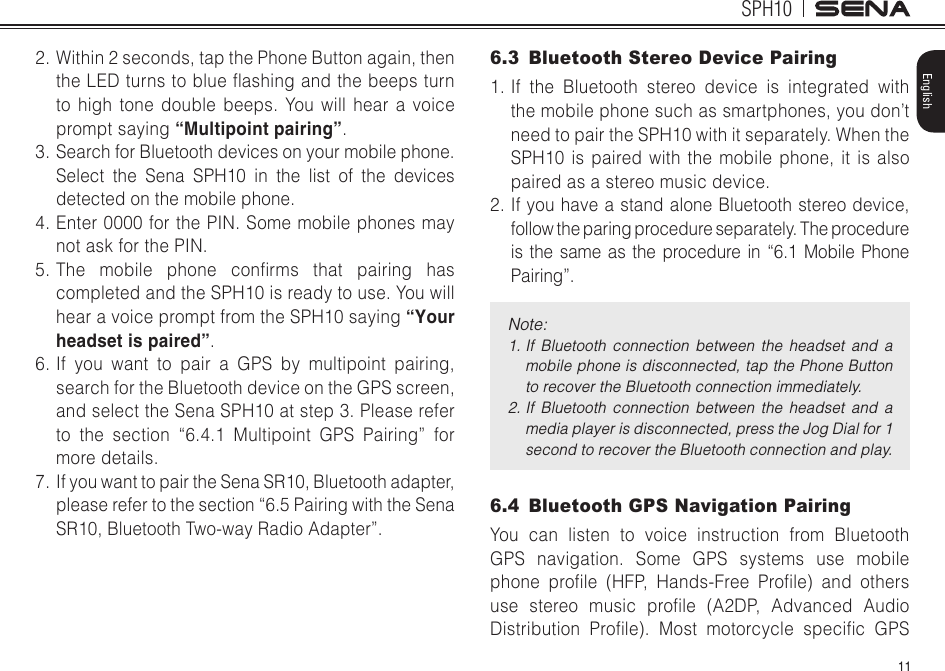

11SPH10English2. Within 2 seconds, tap the Phone Button again, then theLEDturnstoblueashingandthebeepsturnto high tone double beeps. You will hear a voice prompt saying “Multipoint pairing”. 3. Search for Bluetooth devices on your mobile phone. Select the Sena SPH10 in the list of the devices detected on the mobile phone. 4. Enter 0000 for the PIN. Some mobile phones may not ask for the PIN. 5.The mobile phone conrms that pairing hascompleted and the SPH10 is ready to use. You will hear a voice prompt from the SPH10 saying “Your headset is paired”.6. If you want to pair a GPS by multipoint pairing, search for the Bluetooth device on the GPS screen, and select the Sena SPH10 at step 3. Please refer to the section “6.4.1 Multipoint GPS Pairing” for more details.7. If you want to pair the Sena SR10, Bluetooth adapter, please refer to the section “6.5 Pairing with the Sena SR10, Bluetooth Two-way Radio Adapter”.6.3 Bluetooth Stereo Device Pairing1. If the Bluetooth stereo device is integrated with the mobile phone such as smartphones, you don’t need to pair the SPH10 with it separately. When the SPH10 is paired with the mobile phone, it is also paired as a stereo music device.2. If you have a stand alone Bluetooth stereo device, follow the paring procedure separately. The procedure is the same as the procedure in “6.1 Mobile Phone Pairing”.Note:1. If Bluetooth connection between the headset and a mobile phone is disconnected, tap the Phone Button to recover the Bluetooth connection immediately.2. If Bluetooth connection between the headset and a media player is disconnected, press the Jog Dial for 1 second to recover the Bluetooth connection and play.6.4 Bluetooth GPS Navigation PairingYou can listen to voice instruction from Bluetooth GPS navigation. Some GPS systems use mobile phone prole (HFP, Hands-Free Prole) and othersuse stereo music prole (A2DP, Advanced AudioDistribution Prole). Most motorcycle specic GPS

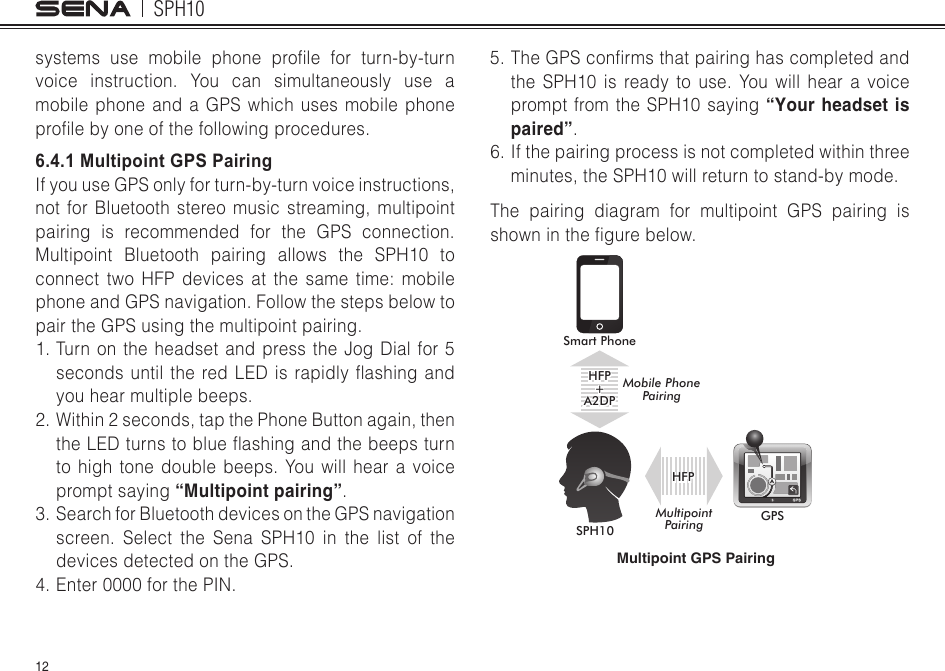

SPH1012systems use mobile phone prole for turn-by-turnvoice instruction. You can simultaneously use a mobile phone and a GPS which uses mobile phone prolebyoneofthefollowingprocedures.6.4.1 Multipoint GPS PairingIf you use GPS only for turn-by-turn voice instructions, not for Bluetooth stereo music streaming, multipoint pairing is recommended for the GPS connection. Multipoint Bluetooth pairing allows the SPH10 to connect two HFP devices at the same time: mobilephone and GPS navigation. Follow the steps below to pair the GPS using the multipoint pairing.1. Turn on the headset and press the Jog Dial for 5 secondsuntiltheredLEDisrapidlyashingandyou hear multiple beeps.2. Within 2 seconds, tap the Phone Button again, then theLEDturnstoblueashingandthebeepsturnto high tone double beeps. You will hear a voice prompt saying “Multipoint pairing”.3. Search for Bluetooth devices on the GPS navigation screen. Select the Sena SPH10 in the list of the devices detected on the GPS. 4. Enter 0000 for the PIN. 5.TheGPSconrmsthatpairinghascompletedandthe SPH10 is ready to use. You will hear a voice prompt from the SPH10 saying “Your headset is paired”.6. If the pairing process is not completed within three minutes, the SPH10 will return to stand-by mode.The pairing diagram for multipoint GPS pairing is showninthegurebelow.Multipoint GPS PairingSmart PhoneSPH10GPSHFP+A2DPMobile Phone PairingMultipoint PairingHFP

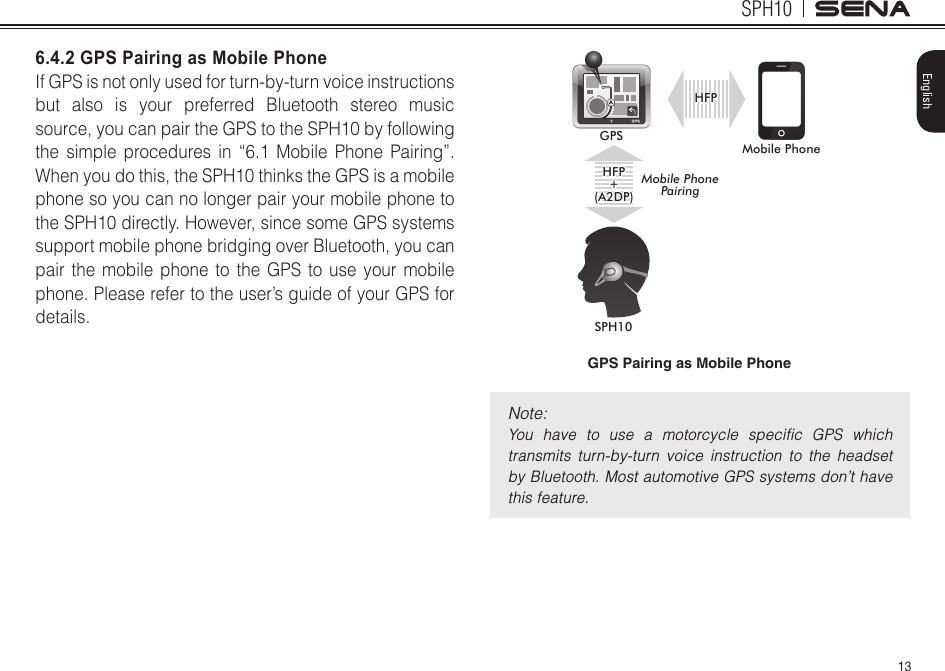

13SPH10English6.4.2 GPS Pairing as Mobile Phone If GPS is not only used for turn-by-turn voice instructions but also is your preferred Bluetooth stereo music source, you can pair the GPS to the SPH10 by following the simple procedures in “6.1 Mobile Phone Pairing”. When you do this, the SPH10 thinks the GPS is a mobile phone so you can no longer pair your mobile phone to the SPH10 directly. However, since some GPS systems support mobile phone bridging over Bluetooth, you can pair the mobile phone to the GPS to use your mobile phone. Please refer to the user’s guide of your GPS for details.SPH10Mobile PhoneGPSHFP+(A2DP)Mobile Phone PairingHFPGPS Pairing as Mobile PhoneNote: You have to use a motorcycle speciﬁc GPS which transmits turn-by-turn voice instruction to the headset by Bluetooth. Most automotive GPS systems don’t have this feature.

SPH10146.5 Pairing with the Sena SR10, Bluetooth Two-way Radio AdapterThe Sena SR10 is a Bluetooth two-way radio adapter for group communication, and uses HFP as do most motorcycle specic GPS navigation systems. If youpair the SPH10 with a SR10 by multipoint pairing, the SPH10 is able to have two HFP devices at the same time:mobilephoneandSenaSR10.1. Turn on the headset and press the Jog Dial for 5 secondsuntiltheredLEDisrapidlyashingandyou hear multiple beeps.2. Within 2 seconds, tap the Phone Button again, then theLEDturnstoblueashingandthebeepsturnto high tone double beeps. You will hear a voice prompt saying “Multipoint pairing”.3. Turn on the SR10 and follow the SR10’s “Bluetooth Headset Pairing” procedure to complete the process. Please refer to the SR10 user's guide for details.4. When the pairing is completed, you will hear a voice prompt saying “Your headset is paired”.5. If the pairing process is not completed within three minutes, the SPH10 will return to stand-by mode.The incoming audio from the two-way radio via SR10 is heard in the background while having an intercom conversation or a mobile phone call. You can listen to music, answer a mobile call, have an intercom conversation and use a two-way radio via SR10forgroupcommunicationasshowninthegurebelow. A GPS navigation or a radar detector could be connected to the SR10 by wire. The GPS voice instruction or the radar detector alarm is also heard in the background via SR10 while having an intercom conversation or a phone call. Please refer to the SR10 user's guide for details.

SPH10162. Within 2 seconds, tap the Jog Dial again, then theLEDturnsto redashingand thebeepsturnto double mid-tone beeps. You will hear a voice prompt saying “Media selective pairing”.3. Search for Bluetooth devices on your smartphone. Select the Sena SPH10 in the list of devices detected on your phone.4. Enter 0000 for the PIN. Some smartphones may not ask for PIN.7.2 HFP for Phone Call Only1. Turn on the headset and press the Phone Button for5 secondsuntilthe LEDashesredand bluealternately and you hear multiple beeps.2. Within 2 seconds, tap the Phone Button again, thentheLEDturnstoblueashingandthebeepsturn to multiple mid-tone beeps. You will hear a voice prompt saying “Phone selective pairing”.3. Search for Bluetooth devices on your smartphone. Select the Sena SPH10 in the list of devices detected on your phone.4. Enter 0000 for the PIN. Some smart phones may not ask for PIN.8. INTERCOM PAIRING8.1 Pairing with Other SPH10 Headsets for Intercom ConversationThe SPH10 can be paired with up to three other headsets for Bluetooth intercom conversation.1. Turn on the two SPH10 headsets (A and B) that you would like to pair with each other.2. Press and hold the Jog Dial of the headset A and B for 5 seconds until red LEDs of the both units start toashrapidly.Youwillhearavoicepromptsaying“Intercom pairing”.3. Simply tap the Jog Dial of any one of the two headsets A or B (It doesn’t matter that you choose A or B.) and wait until the LEDs of both headsets turn to blue and intercom connection is automatically established. The two SPH10 headsets A and B are paired with each other for intercom conversation. If the pairing process is not completed within one minute, the SPH10 will return to stand-by mode.

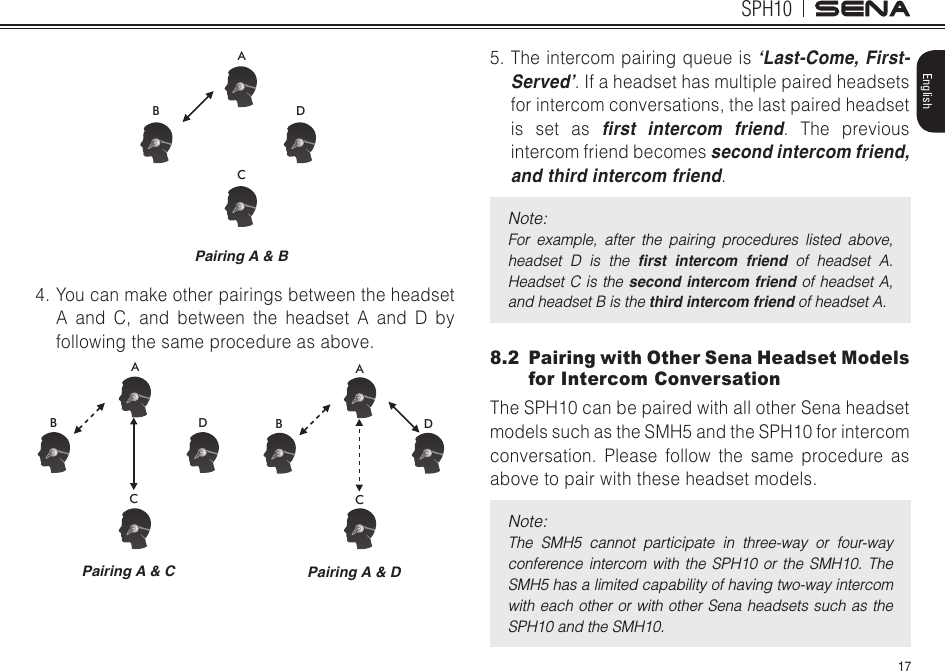

17SPH10EnglishACB DPairing A & B4. You can make other pairings between the headset A and C, and between the headset A and D by following the same procedure as above.ACB DACB DPairing A & C Pairing A & D5. The intercom pairing queue is ‘Last-Come, First-Served’. If a headset has multiple paired headsets for intercom conversations, the last paired headset is set as rst intercom friend. The previous intercom friend becomes second intercom friend, and third intercom friend.Note:For example, after the pairing procedures listed above, headset D is the rst intercom friend of headset A. Headset C is the second intercom friend of headset A, and headset B is the third intercom friend of headset A.8.2 Pairing with Other Sena Headset Models for Intercom ConversationThe SPH10 can be paired with all other Sena headset models such as the SMH5 and the SPH10 for intercom conversation. Please follow the same procedure as above to pair with these headset models.Note:The SMH5 cannot participate in three-way or four-way conference intercom with the SPH10 or the SMH10. The SMH5 has a limited capability of having two-way intercom with each other or with other Sena headsets such as the SPH10 and the SMH10.

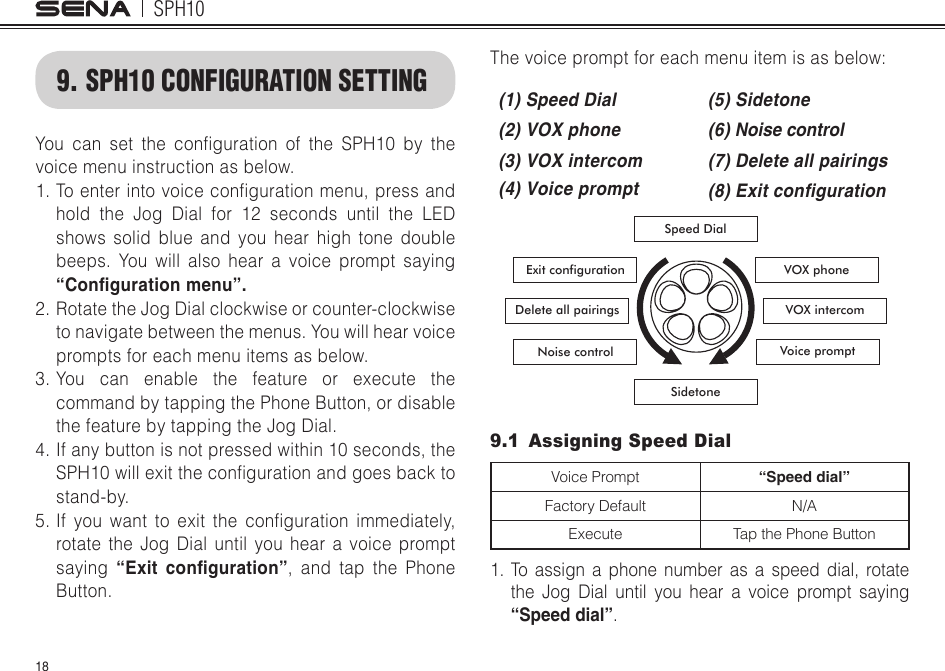

SPH10189. SPH10 CONFIGURATION SETTINGYou can set the conguration of the SPH10 by thevoice menu instruction as below. 1.Toenterintovoicecongurationmenu,pressandhold the Jog Dial for 12 seconds until the LED shows solid blue and you hear high tone double beeps. You will also hear a voice prompt saying “Conguration menu”.2. Rotate the Jog Dial clockwise or counter-clockwise to navigate between the menus. You will hear voice prompts for each menu items as below.3. You can enable the feature or execute the command by tapping the Phone Button, or disable the feature by tapping the Jog Dial. 4. If any button is not pressed within 10 seconds, the SPH10willexitthecongurationandgoesbacktostand-by. 5.If you want to exit the conguration immediately,rotate the Jog Dial until you hear a voice prompt saying “Exit conguration”, and tap the Phone Button.Thevoicepromptforeachmenuitemisasbelow:(1) Speed Dial (5) Sidetone(2) VOX phone (6) Noise control(3) VOX intercom (7) Delete all pairings(4) Voice prompt (8) Exit conguration Speed DialVoice promptSidetoneExit configurationNoise controlVOX phoneDelete all pairings VOX intercom9.1 Assigning Speed Dial Voice Prompt “Speed dial”Factory Default N/AExecute Tap the Phone Button1. To assign a phone number as a speed dial, rotate the Jog Dial until you hear a voice prompt saying “Speed dial”.

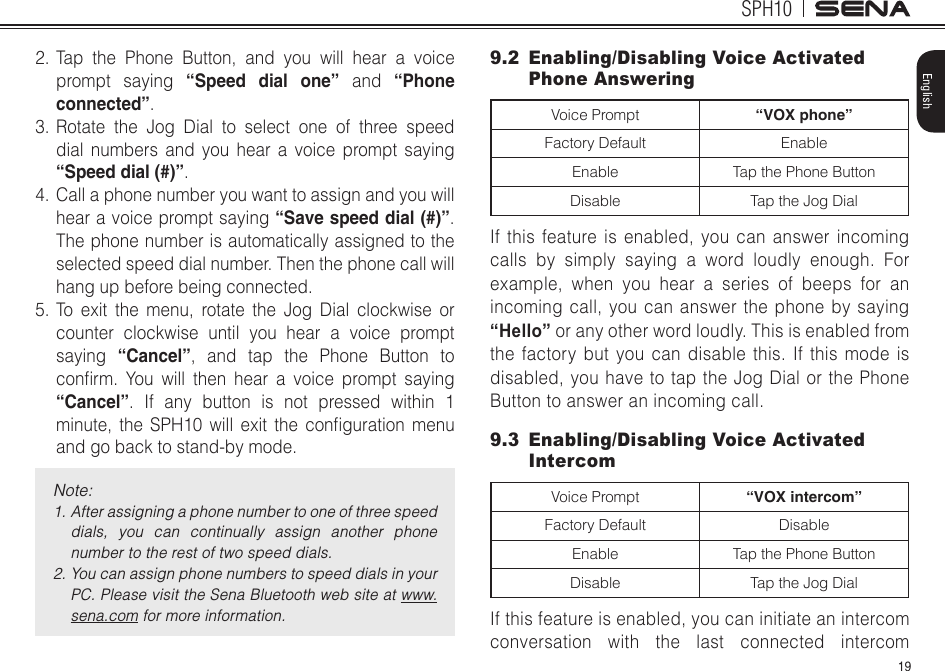

19SPH10English2. Tap the Phone Button, and you will hear a voice prompt saying “Speed dial one” and “Phone connected”.3. Rotate the Jog Dial to select one of three speed dial numbers and you hear a voice prompt saying “Speed dial (#)”. 4. Call a phone number you want to assign and you will hear a voice prompt saying “Save speed dial (#)”. The phone number is automatically assigned to the selected speed dial number. Then the phone call will hang up before being connected.5. To exit the menu, rotate the Jog Dial clockwise or counter clockwise until you hear a voice prompt saying “Cancel”, and tap the Phone Button to conrm. You will then hear a voice prompt saying“Cancel”. If any button is not pressed within 1 minute, the SPH10 will exit the conguration menuand go back to stand-by mode. Note:1. After assigning a phone number to one of three speed dials, you can continually assign another phone number to the rest of two speed dials.2. You can assign phone numbers to speed dials in your PC. Please visit the Sena Bluetooth web site at www.sena.com for more information.9.2 Enabling/Disabling Voice Activated Phone Answering Voice Prompt “VOX phone”Factory Default EnableEnable Tap the Phone ButtonDisable Tap the Jog DialIf this feature is enabled, you can answer incoming calls by simply saying a word loudly enough. For example, when you hear a series of beeps for an incoming call, you can answer the phone by saying “Hello” or any other word loudly. This is enabled from the factory but you can disable this. If this mode is disabled, you have to tap the Jog Dial or the Phone Button to answer an incoming call.9.3 Enabling/Disabling Voice Activated Intercom Voice Prompt “VOX intercom”Factory Default DisableEnable Tap the Phone ButtonDisable Tap the Jog DialIf this feature is enabled, you can initiate an intercom conversation with the last connected intercom

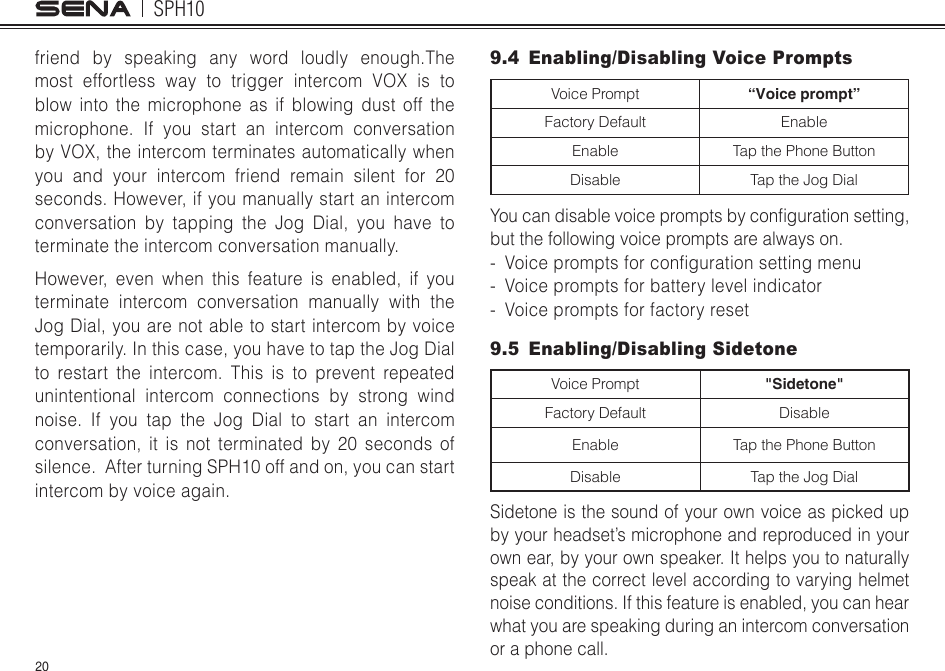

SPH1020friend by speaking any word loudly enough.The most effortless way to trigger intercom VOX is to blow into the microphone as if blowing dust off the microphone. If you start an intercom conversation by VOX, the intercom terminates automatically when you and your intercom friend remain silent for 20 seconds. However, if you manually start an intercom conversation by tapping the Jog Dial, you have to terminate the intercom conversation manually. However, even when this feature is enabled, if you terminate intercom conversation manually with the Jog Dial, you are not able to start intercom by voice temporarily. In this case, you have to tap the Jog Dial to restart the intercom. This is to prevent repeated unintentional intercom connections by strong wind noise. If you tap the Jog Dial to start an intercom conversation, it is not terminated by 20 seconds of silence. After turning SPH10 off and on, you can start intercom by voice again.9.4 Enabling/Disabling Voice PromptsVoice Prompt “Voice prompt”Factory Default EnableEnable Tap the Phone ButtonDisable Tap the Jog DialYoucandisablevoicepromptsbycongurationsetting,but the following voice prompts are always on.- Voicepromptsforcongurationsettingmenu- Voice prompts for battery level indicator- Voice prompts for factory reset9.5 Enabling/Disabling SidetoneVoice Prompt "Sidetone"Factory Default DisableEnable Tap the Phone ButtonDisable Tap the Jog DialSidetone is the sound of your own voice as picked up by your headset’s microphone and reproduced in your own ear, by your own speaker. It helps you to naturally speak at the correct level according to varying helmet noise conditions. If this feature is enabled, you can hear what you are speaking during an intercom conversation or a phone call.

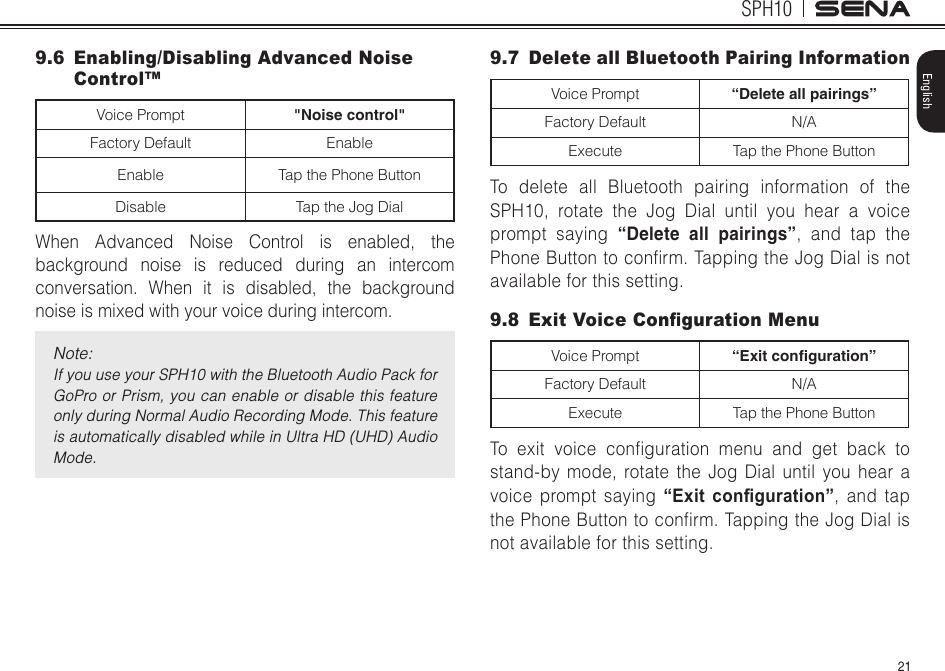

21SPH10English9.6 Enabling/Disabling Advanced Noise Control™Voice Prompt "Noise control"Factory Default EnableEnable Tap the Phone ButtonDisable Tap the Jog DialWhen Advanced Noise Control is enabled, the background noise is reduced during an intercom conversation. When it is disabled, the background noise is mixed with your voice during intercom.Note:If you use your SPH10 with the Bluetooth Audio Pack for GoPro or Prism, you can enable or disable this feature only during Normal Audio Recording Mode. This feature is automatically disabled while in Ultra HD (UHD) Audio Mode.9.7 Delete all Bluetooth Pairing Information Voice Prompt “Delete all pairings”Factory Default N/AExecute Tap the Phone ButtonTo delete all Bluetooth pairing information of the SPH10, rotate the Jog Dial until you hear a voice prompt saying “Delete all pairings”, and tap the PhoneButtontoconrm.Tapping the Jog Dial is not available for this setting.9.8 ExitVoiceCongurationMenuVoice Prompt “Exit conguration”Factory Default N/AExecute Tap the Phone ButtonTo exit voice conguration menu and get back tostand-by mode, rotate the Jog Dial until you hear a voice prompt saying “Exit conguration”, and tap thePhoneButtontoconrm.TappingtheJogDialisnot available for this setting.

SPH1022Rotate Jog Dial Tap Phone Button Tap Jog DialSpeed Dial Execute N/AVOX Phone Enable DisableVOX Intercom Enable DisableVoice Prompt Enable DisableSidetone Enable DisableAdvanced Noise Control Enable DisableDelete All Pairings Execute N/AExitConguration Execute N/AVoice Conguration Menu & Button Operations10. FUNCTION PRIORITYTheSPH10operatesinthefollowingorderofpriority: (highest) Mobile phone, Intercom, Stereo music by audio cable Music sharing by Bluetooth stereo music, (lowest) Bluetooth stereo music A lower priority function is always interrupted by a higher priority function. For example, stereo music is interrupted by intercom call, and intercom conversation is interrupted by incoming mobile phone call.

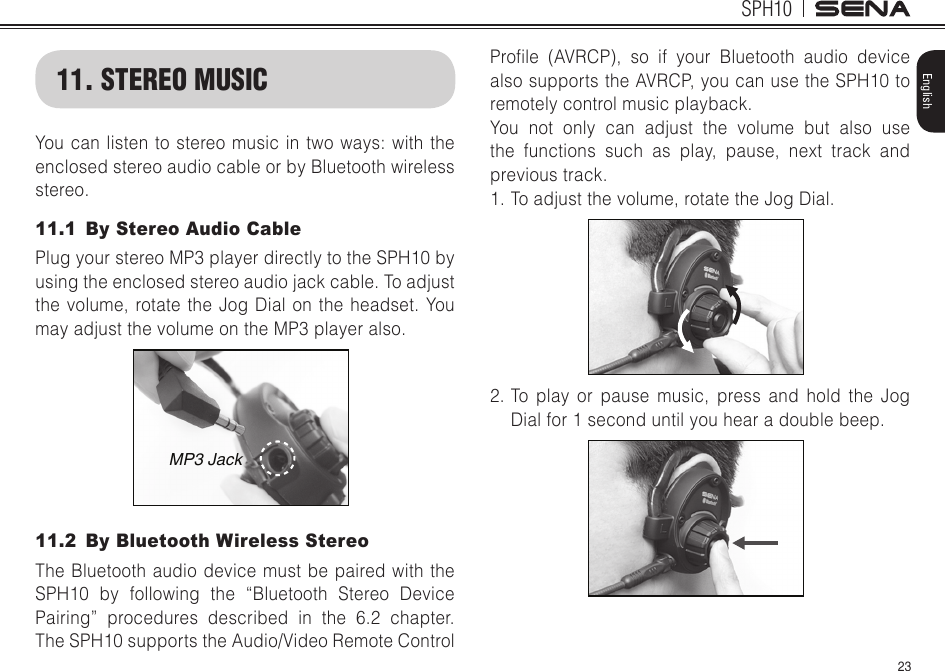

23SPH10English11. STEREO MUSICYoucanlistentostereomusicintwoways:withtheenclosed stereo audio cable or by Bluetooth wireless stereo.11.1 By Stereo Audio CablePlug your stereo MP3 player directly to the SPH10 by using the enclosed stereo audio jack cable. To adjust the volume, rotate the Jog Dial on the headset. You may adjust the volume on the MP3 player also. MP3 Jack11.2 By Bluetooth Wireless Stereo The Bluetooth audio device must be paired with the SPH10 by following the “Bluetooth Stereo Device Pairing” procedures described in the 6.2 chapter. The SPH10 supports the Audio/Video Remote Control Prole (AVRCP), so if your Bluetooth audio devicealso supports the AVRCP, you can use the SPH10 to remotely control music playback. You not only can adjust the volume but also use the functions such as play, pause, next track and previous track.1. To adjust the volume, rotate the Jog Dial.2. To play or pause music, press and hold the Jog Dial for 1 second until you hear a double beep.

SPH10243. To track forward or track back, rotate while pressing the Jog Dial clockwise or counter clockwise. Note: Bluetooth music is available only when the MP3 jack port remains open. Please make sure the audio cable is unplugged from the clamp unit to play music by Bluetooth.12. MOBILE PHONE CALL MAKING AND ANSWERING12.1 Mobile Phone Call Making and Answering1. When you have an incoming call, simply tap the Phone Button or the Jog Dial to answer the call.2. You can also answer the incoming call by loudly speaking any word of your choice if Voice Activated Phone Answering is enabled.3. To end a call, tap the Phone Button or press the Jog Dial for 2 seconds until you hear a beep, or wait for the called person to end the call.4. To reject a call, press the Jog Dial for 2 seconds until you hear a beep while the phone is ringing.5. To transfer a call between the mobile phone and the headset during the phone conversation, press the Phone Button for 2 seconds until you hear a beep.6.Thereareseveralwaystomakeaphonecall:- Enter numbers on your mobile phone keypad and make a call. Then the call is automatically transferred to the headset.

25SPH10English- For some older mobile phones which do not automatically transfer calls to the headset, press the Phone Button after entering phone numbers on the mobile phone keypad.- Tap the Phone Button in stand-by mode to activate the voice dialing of your mobile phone. For this, the voice dialing feature must be available on the mobile phone. Refer to your mobile phone manual for further instruction.Note: 1. If you are using multipoint mobile phone connection and you have an incoming call from the second phone during the call of the ﬁrst phone, then you may still receive the call from second phone. In this case, the call from the ﬁrst phone is on waiting mode. If you end a call, then it will automatically guide you to the ﬁrst phone call.2. If you are using multipoint connection of mobile phone and GPS, you may not be able to listen to the GPS voice instruction during the phone call.12.2 Speed DialingYou can quickly make a phone call by using the voice speed dial menu.1. To enter into the voice speed dial menu, double tap the Phone Button and you will hear a mid-tone single beep and a voice prompt saying “Speed dial”.2. Rotate the Jog Dial clockwise or counter-clockwise to navigate between the menus. You will hear voice prompts for each menu item.3. Tap the Phone Button or the Jog Dial to select a voicemenuamongthefollowings:(1) Last number redial (4) Speed dial 3(2) Speed dial 1 (5) Cancel(3) Speed dial 24. After selecting the last number redial menu, you will hear a voice prompt saying “Last number redial”. Then, to redial the last phone call number, tap the Phone Button or the Jog Dial.5. To call one of the speed dials, rotate the Jog Dial clockwise or counter-clockwise to navigate between the menus until you hear a voice prompt saying “Speed dial (#)”. Then, tap the Phone Button or the Jog Dial.

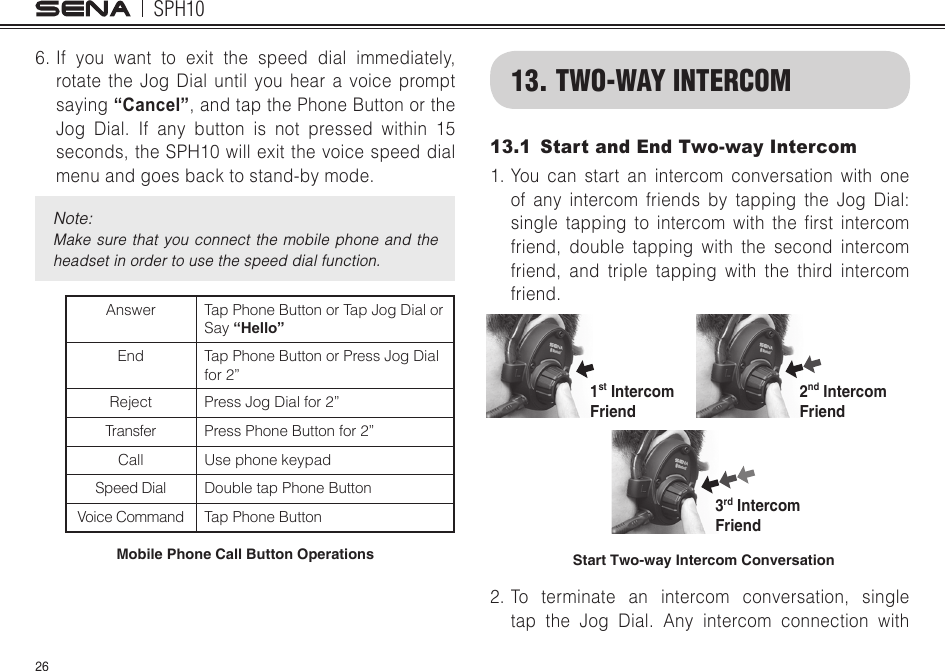

SPH10266. If you want to exit the speed dial immediately, rotate the Jog Dial until you hear a voice prompt saying “Cancel”, and tap the Phone Button or the Jog Dial. If any button is not pressed within 15 seconds, the SPH10 will exit the voice speed dial menu and goes back to stand-by mode.Note: Make sure that you connect the mobile phone and the headset in order to use the speed dial function.Answer Tap Phone Button or Tap Jog Dial or Say “Hello”End Tap Phone Button or Press Jog Dial for 2”Reject Press Jog Dial for 2”Transfer Press Phone Button for 2”Call Use phone keypadSpeed Dial Double tap Phone ButtonVoice Command Tap Phone ButtonMobile Phone Call Button Operations13. TWO-WAY INTERCOM13.1 Start and End Two-way Intercom1. You can start an intercom conversation with one of any intercom friends by tapping the Jog Dial:single tapping to intercom with the rst intercomfriend, double tapping with the second intercom friend, and triple tapping with the third intercom friend.Start Two-way Intercom Conversation2nd IntercomFriend1st IntercomFriend3rd IntercomFriend2. To terminate an intercom conversation, single tap the Jog Dial. Any intercom connection with

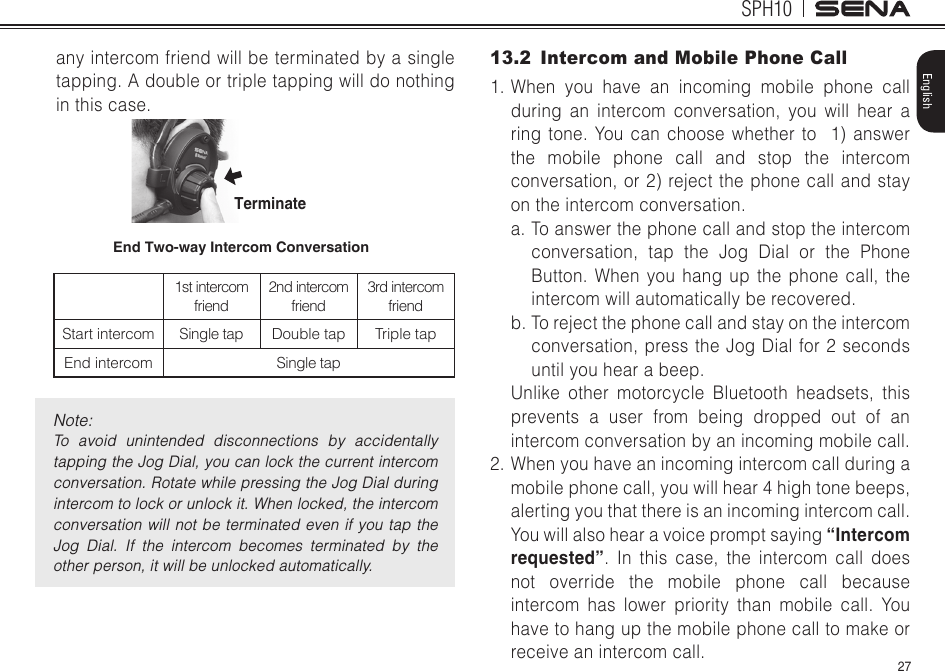

27SPH10Englishany intercom friend will be terminated by a single tapping. A double or triple tapping will do nothing in this case.End Two-way Intercom ConversationTerminate1st intercom friend2nd intercom friend3rd intercom friendStart intercom Single tap Double tap Triple tapEnd intercom Single tapNote: To avoid unintended disconnections by accidentally tapping the Jog Dial, you can lock the current intercom conversation. Rotate while pressing the Jog Dial during intercom to lock or unlock it. When locked, the intercom conversation will not be terminated even if you tap the Jog Dial. If the intercom becomes terminated by the other person, it will be unlocked automatically.13.2 Intercom and Mobile Phone Call1. When you have an incoming mobile phone call during an intercom conversation, you will hear a ring tone. You can choose whether to 1) answer the mobile phone call and stop the intercom conversation, or 2) reject the phone call and stay on the intercom conversation.a. To answer the phone call and stop the intercom conversation, tap the Jog Dial or the Phone Button. When you hang up the phone call, the intercom will automatically be recovered.b. To reject the phone call and stay on the intercom conversation, press the Jog Dial for 2 seconds until you hear a beep.Unlike other motorcycle Bluetooth headsets, this prevents a user from being dropped out of an intercom conversation by an incoming mobile call.2. When you have an incoming intercom call during a mobile phone call, you will hear 4 high tone beeps, alerting you that there is an incoming intercom call. You will also hear a voice prompt saying “Intercom requested”. In this case, the intercom call does not override the mobile phone call because intercom has lower priority than mobile call. You have to hang up the mobile phone call to make or receive an intercom call.

SPH102813.4 Intercom and Two-way RadioAs described in 6.4 of this user's guide, you can use a two-way radio and SPH10 Bluetooth intercom simultaneously by using the Sena SR10, a Bluetooth Two-way Radio Adapter, along with the SPH10. Incoming audio from the two-way radio is not interrupting an intercom conversation but is heard in background. This is useful when you have an intercom conversation with a passenger on the back seat and use a two-way radio for group communication with other motorcycle riders. 13.3 Intercom and GPS If you pair a Bluetooth GPS to the SPH10 as described in 6.3 of this user's guide, you can hear the turn-by-turn voice instruction of the GPS while having an intercom conversation. The GPS voice instruction interrupts intercom conversation, but it is automatically reestablished after the GPS voice instruction ends.Smart Phone SPH10GPSIntercom FriendVoiceInstruction Multipoint PairingIntercomPairingMobile Phone PairingIntercomHFP Intercom and GPS voice instruction

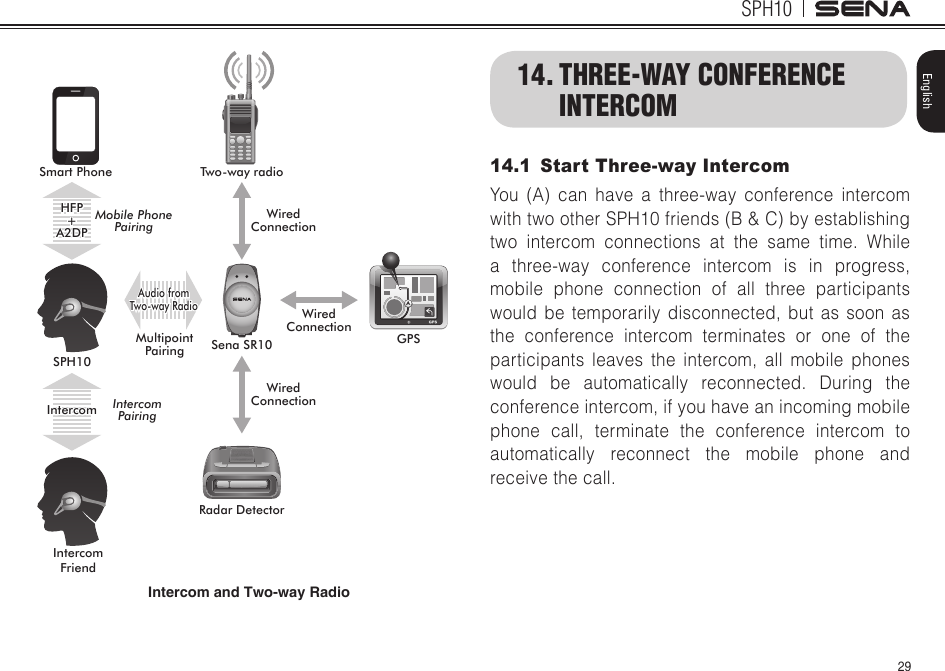

29SPH10EnglishIntercom and Two-way RadioSmart Phone Two-way radioSPH10GPSRadar DetectorSena SR10Intercom FriendMobile Phone PairingMultipoint PairingIntercomPairingAudio fromTwo-way RadioIntercomWiredConnectionWiredConnectionWiredConnectionHFP+A2DP14. THREE-WAY CONFERENCE INTERCOM14.1 Start Three-way IntercomYou (A) can have a three-way conference intercom with two other SPH10 friends (B & C) by establishing two intercom connections at the same time. While a three-way conference intercom is in progress, mobile phone connection of all three participants would be temporarily disconnected, but as soon as the conference intercom terminates or one of the participants leaves the intercom, all mobile phones would be automatically reconnected. During the conference intercom, if you have an incoming mobile phone call, terminate the conference intercom to automatically reconnect the mobile phone and receive the call.

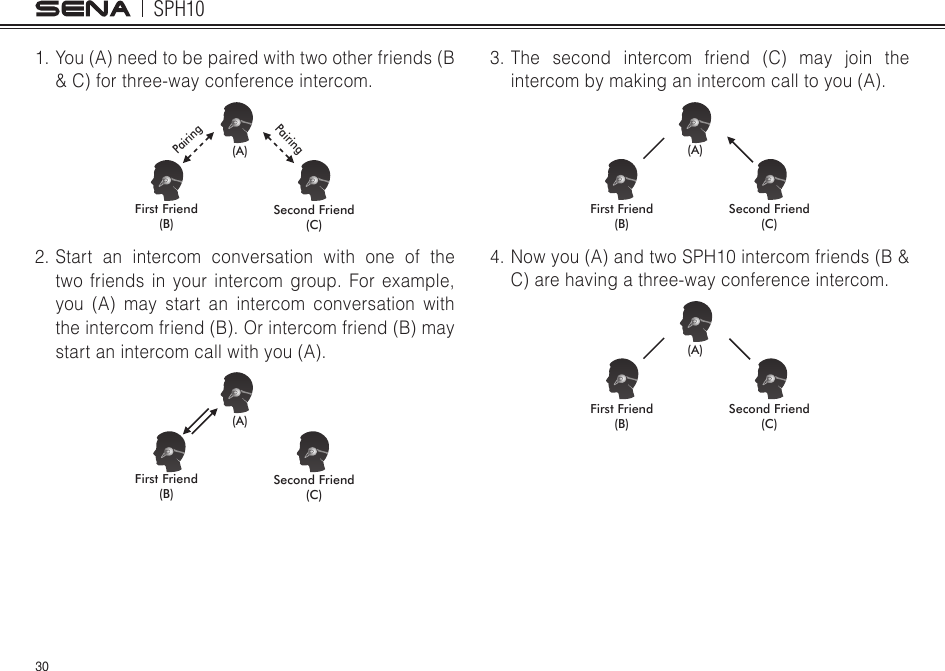

SPH10301. You (A) need to be paired with two other friends (B & C) for three-way conference intercom.(A)First Friend(B)PairingPairingSecond Friend (C)2. Start an intercom conversation with one of the two friends in your intercom group. For example, you (A) may start an intercom conversation with the intercom friend (B). Or intercom friend (B) may start an intercom call with you (A). (A)First Friend(B)Second Friend (C)3. The second intercom friend (C) may join the intercom by making an intercom call to you (A). (A)First Friend(B)Second Friend (C)4. Now you (A) and two SPH10 intercom friends (B & C) are having a three-way conference intercom.(A)First Friend(B)Second Friend (C)

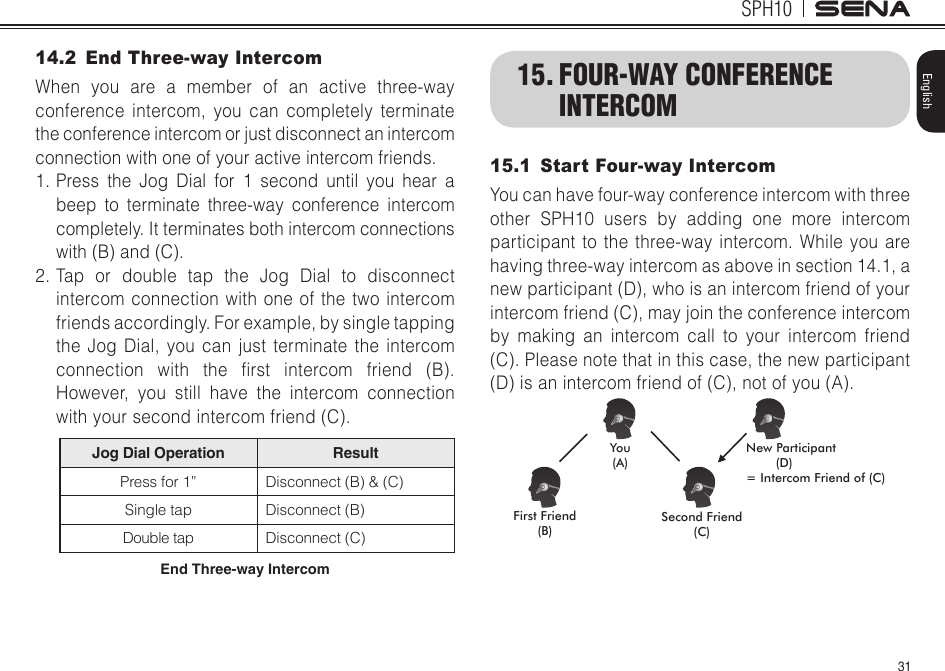

31SPH10English14.2 End Three-way IntercomWhen you are a member of an active three-way conference intercom, you can completely terminate the conference intercom or just disconnect an intercom connection with one of your active intercom friends.1. Press the Jog Dial for 1 second until you hear a beep to terminate three-way conference intercom completely. It terminates both intercom connections with (B) and (C).2. Tap or double tap the Jog Dial to disconnect intercom connection with one of the two intercom friends accordingly. For example, by single tapping the Jog Dial, you can just terminate the intercom connection with the rst intercom friend (B).However, you still have the intercom connection with your second intercom friend (C).Jog Dial Operation ResultPress for 1” Disconnect (B) & (C)Single tap Disconnect (B)Double tap Disconnect (C)End Three-way Intercom15. FOUR-WAY CONFERENCE INTERCOM15.1 Start Four-way IntercomYou can have four-way conference intercom with three other SPH10 users by adding one more intercom participant to the three-way intercom. While you are having three-way intercom as above in section 14.1, a new participant (D), who is an intercom friend of your intercom friend (C), may join the conference intercom by making an intercom call to your intercom friend (C). Please note that in this case, the new participant (D) is an intercom friend of (C), not of you (A). You (A)New Participant(D)= Intercom Friend of (C)First Friend(B)Second Friend (C)

SPH103215.2 End Four-way IntercomAs same in the case of three-way intercom, you can completely get out of the four-way conference intercom or just disconnect a single intercom connection.1. Press the Jog Dial for 1 second until you hear a beep to terminate four-way conference intercom. It terminates the intercom connections between you (A), and your intercom friends (B), (C) and (D).2. Tap or double tap the Jog Dial to disconnect the intercom connection with one of the two intercom friends accordingly. However, when you disconnect the second friend (C) by double tapping the Jog Dial, you will be disconnected with the third participant (D) as well. This is because the third participant (D) is connected with you via the second friend (C).Jog Dial Operation ResultPress for 1” Disconnect (B), (C) & (D)Single tap Disconnect (B)Double tap Disconnect (C) & (D)End Four-way Intercom16. UNIVERSAL INTERCOMYou can have an intercom conversation with non-Sena Bluetooth headsets using the Universal Intercom function. Non-Sena Bluetooth headsets can be connected to the Sena Bluetooth headset if they support the Bluetooth Hands-Free Prole (HFP). The workingdistance may differ depending on the performance of Bluetooth headset that it is connected to. In general, it is shorter than normal intercom distance since it uses theBluetoothHands-FreeProle.16.1 Universal Intercom PairingThe SPH10 can be paired with non-Sena Bluetooth headsets for Bluetooth intercom conversation. You can pair the SPH10 with only one non-Sena Bluetooth headset; if you pair with a different non-Sena Bluetooth headset, the previous pairing list will be removed. 1. Turn on the SPH10 and a non-Sena Bluetooth headset which you want to pair with.2. Press and hold the Jog Dial on the SPH10 for 8 secondsuntilthe blueLEDashesrapidly.Youwillhear a voice prompt saying “Universal intercom pairing”.

33SPH10English3. Perform the operation required for handsfree pairing on the non-Sena Bluetooth headset (refer to the users’ manual of the headsets you want to use). The SPH10 will automatically perform pairing with non-Sena Bluetooth headsets in pairing mode.16.2 Two-way Universal IntercomYou can initiate the Universal Intercom connection with non-Sena Bluetooth headsets using the same intercom connection method as you would between other Sena headsets. You may single tap the Jog Dial to begin an intercom conversation with the rst intercom friend,double tap with the second intercom friend, and triple tap with the third intercom friend. Non-Sena Bluetooth headsets may initiate the Universal Intercom connection, activating the voice dialing or using the redialing operation. You may also disconnect the existing connection by ending a call operation function (refer to the users’ manual of the headsets for voice dialing, redialing, and ending a call).16.3 Three-way Universal IntercomYou may make a three-way Universal Intercom connection with two SPH10s and one non-Sena Bluetooth headset. If the intercom connection is made, all headsets connected cannot use the mobile phone call function since the connection between the headset and the phone is disconnected temporarily. If you disconnect the intercom call, the mobile phone connection is made again automatically so that you can use a mobile phone call function. During the intercom call, you cannot pick up the incoming phone call since it is disconnected, however, you can pick it up if you disconnect the intercom call.1. You (A) need to be paired with non-Sena Bluetooth headset (B) and another SPH10 headset (C) for the three-way conference intercom.(A)(B) (C)PairingPairing

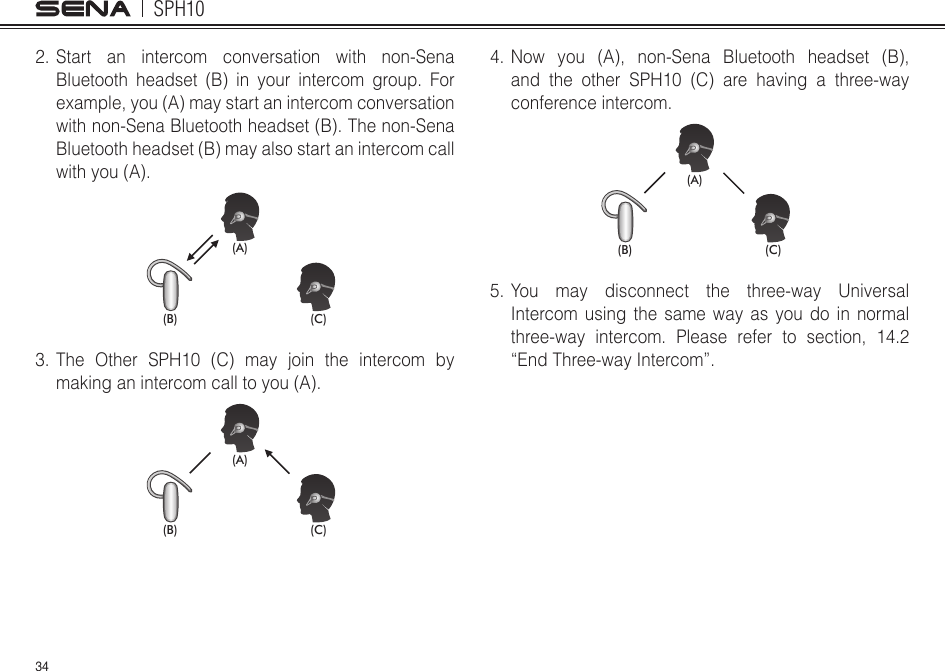

SPH10342. Start an intercom conversation with non-Sena Bluetooth headset (B) in your intercom group. For example, you (A) may start an intercom conversation with non-Sena Bluetooth headset (B). The non-Sena Bluetooth headset (B) may also start an intercom call with you (A).(A)(B) (C)3. The Other SPH10 (C) may join the intercom by making an intercom call to you (A).(B) (C)(A)4. Now you (A), non-Sena Bluetooth headset (B), and the other SPH10 (C) are having a three-way conference intercom.(B) (C)(A)5. You may disconnect the three-way Universal Intercom using the same way as you do in normal three-way intercom. Please refer to section, 14.2 “End Three-way Intercom”.

35SPH10English16.4 Four-way Universal IntercomYou may make a four-way Universal Intercom connectionwithacoupleofdifferentcongurations,1)three SPH10s and one non-Sena Bluetooth headset or 2) two SPH10s and two non-Sena Bluetooth headsets. You may have a couple of other four-way Universal Intercom congurations, 1) your headset (A), a non-Sena Bluetooth headset (B), another SPH10 (C), and a non-Sena Bluetooth headset (D), 2) your headset (A), a non-Sena Bluetooth headset (B), and two other SPH10 headsets (C and D). You may make the four-way Universal Intercom call the same way as a normal four-way intercom call.16.4.1 Four-way Universal Intercom Case 1Two SPH10 headsets (A and C) and two non-Sena Bluetooth headsets (B and D).1. You (A) may start an intercom conversation with the non-Sena Bluetooth headset (B).(B) (D)(A) (C)2. The other SPH10 (C) may join the intercom by making an intercom call to you (A).(B) (D)(A) (C)

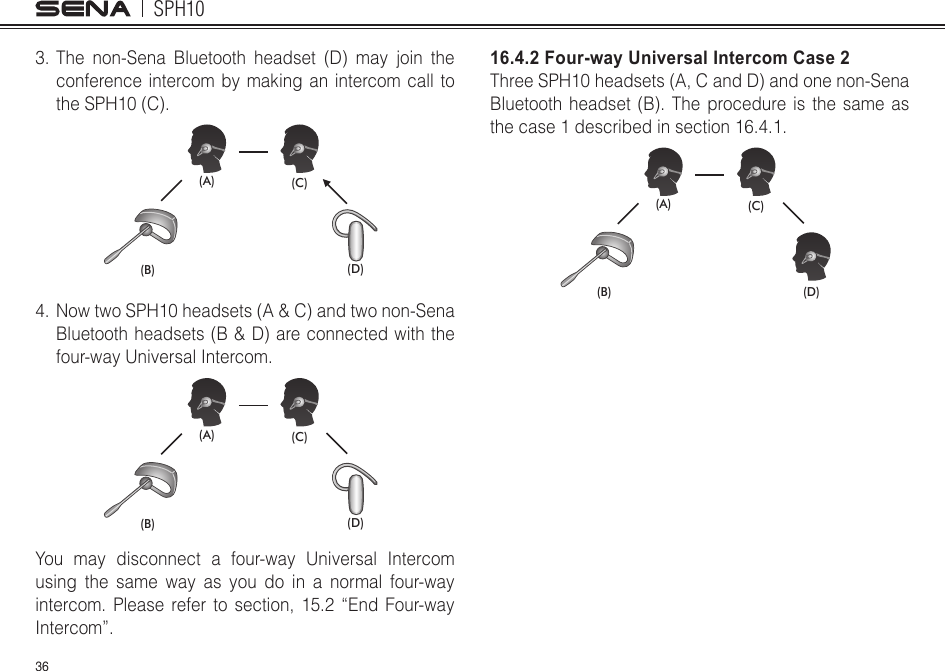

SPH10363. The non-Sena Bluetooth headset (D) may join the conference intercom by making an intercom call to the SPH10 (C).(B) (D)(A) (C)4. Now two SPH10 headsets (A & C) and two non-Sena Bluetooth headsets (B & D) are connected with the four-way Universal Intercom.(B) (D)(A) (C)You may disconnect a four-way Universal Intercom using the same way as you do in a normal four-way intercom. Please refer to section, 15.2 “End Four-way Intercom”. 16.4.2 Four-way Universal Intercom Case 2Three SPH10 headsets (A, C and D) and one non-Sena Bluetooth headset (B). The procedure is the same as the case 1 described in section 16.4.1.(B) (D)(A) (C)

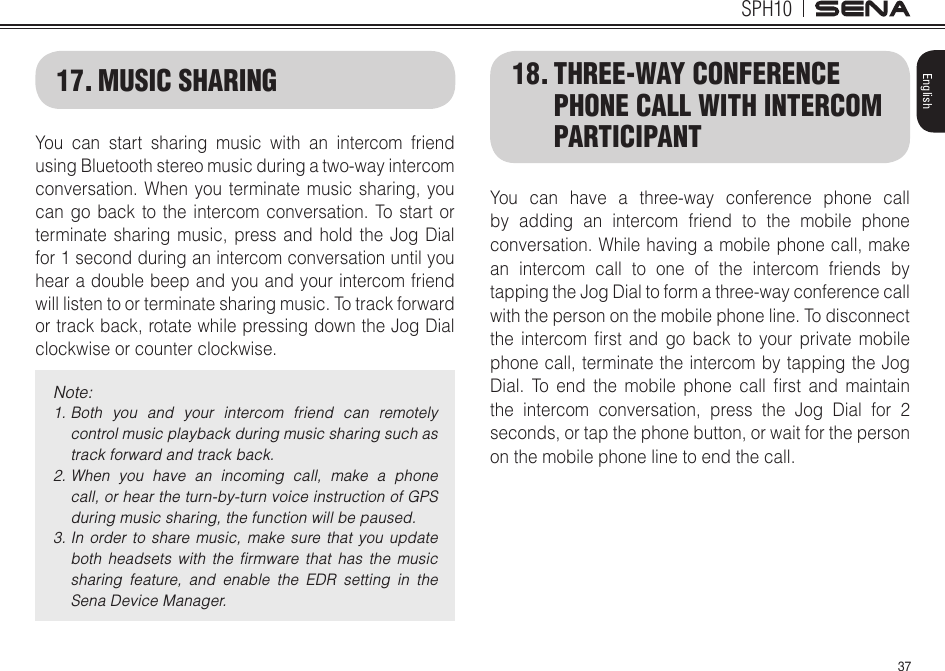

37SPH10English17. MUSIC SHARINGYou can start sharing music with an intercom friend using Bluetooth stereo music during a two-way intercom conversation. When you terminate music sharing, you can go back to the intercom conversation. To start or terminate sharing music, press and hold the Jog Dial for 1 second during an intercom conversation until you hear a double beep and you and your intercom friend will listen to or terminate sharing music. To track forward or track back, rotate while pressing down the Jog Dial clockwise or counter clockwise.Note: 1. Both you and your intercom friend can remotely control music playback during music sharing such as track forward and track back.2. When you have an incoming call, make a phone call, or hear the turn-by-turn voice instruction of GPS during music sharing, the function will be paused.3. In order to share music, make sure that you update both headsets with the ﬁrmware that has the music sharing feature, and enable the EDR setting in the Sena Device Manager.18. THREE-WAY CONFERENCE PHONE CALL WITH INTERCOM PARTICIPANTYou can have a three-way conference phone call by adding an intercom friend to the mobile phone conversation. While having a mobile phone call, make an intercom call to one of the intercom friends by tapping the Jog Dial to form a three-way conference call with the person on the mobile phone line. To disconnect the intercom rst and go back to your private mobilephone call, terminate the intercom by tapping the Jog Dial. To end the mobile phone call rst and maintainthe intercom conversation, press the Jog Dial for 2 seconds, or tap the phone button, or wait for the person on the mobile phone line to end the call.

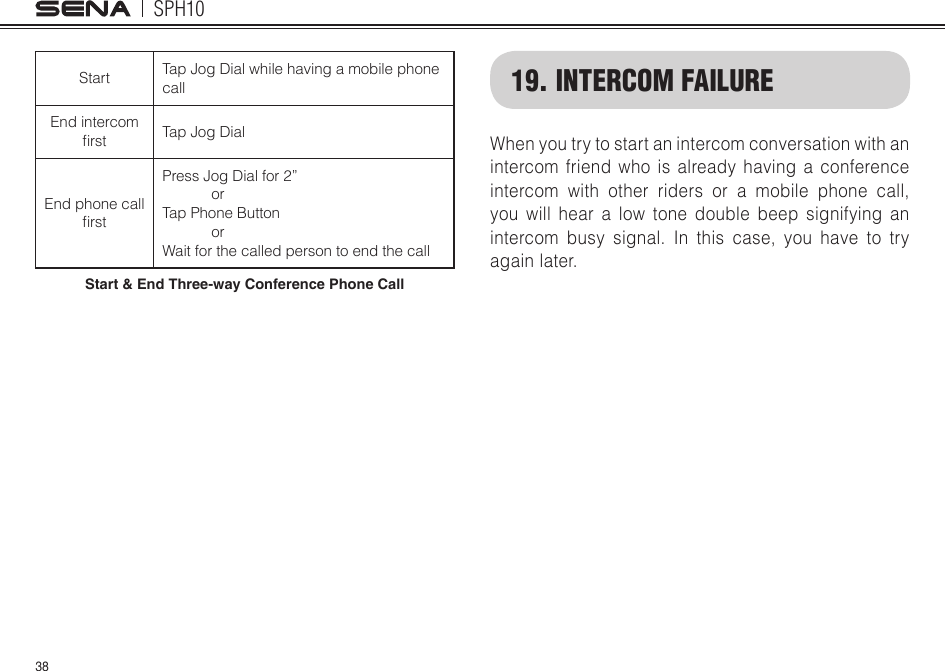

SPH1038Start Tap Jog Dial while having a mobile phone callEnd intercom rst Tap Jog DialEnd phone call rstPress Jog Dial for 2” orTap Phone Button orWait for the called person to end the callStart & End Three-way Conference Phone Call19. INTERCOM FAILUREWhen you try to start an intercom conversation with an intercom friend who is already having a conference intercom with other riders or a mobile phone call, you will hear a low tone double beep signifying an intercom busy signal. In this case, you have to try again later.

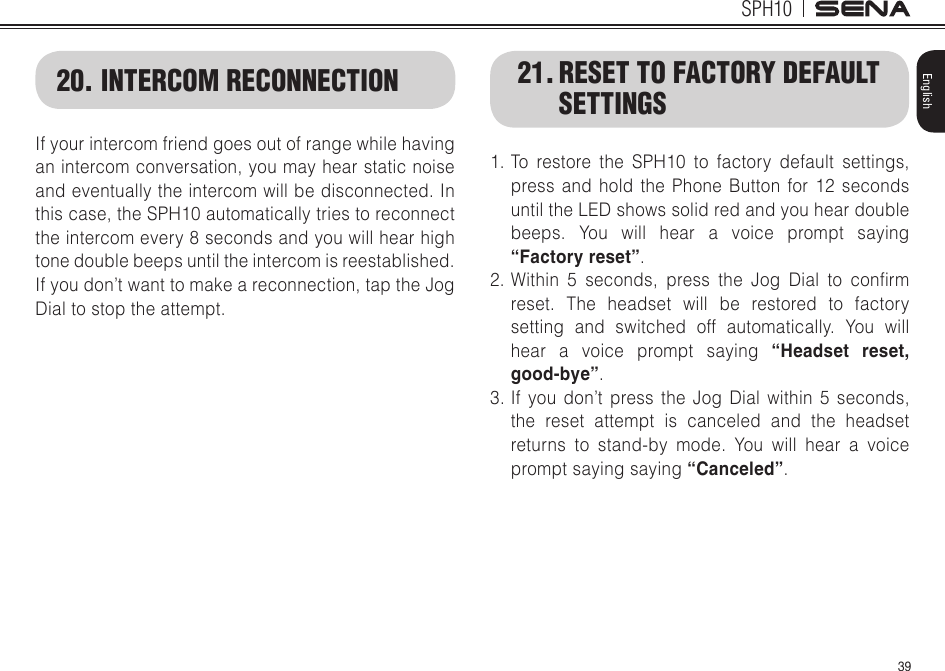

39SPH10English20. INTERCOM RECONNECTIONIf your intercom friend goes out of range while having an intercom conversation, you may hear static noise and eventually the intercom will be disconnected. In this case, the SPH10 automatically tries to reconnect the intercom every 8 seconds and you will hear high tone double beeps until the intercom is reestablished. If you don’t want to make a reconnection, tap the Jog Dial to stop the attempt. 21. RESET TO FACTORY DEFAULT SETTINGS1. To restore the SPH10 to factory default settings, press and hold the Phone Button for 12 seconds until the LED shows solid red and you hear double beeps. You will hear a voice prompt saying “Factory reset”.2.Within 5 seconds, press the Jog Dial to conrmreset. The headset will be restored to factory setting and switched off automatically. You will hear a voice prompt saying “Headset reset, good-bye”.3. If you don’t press the Jog Dial within 5 seconds, the reset attempt is canceled and the headset returns to stand-by mode. You will hear a voice prompt saying saying “Canceled”.

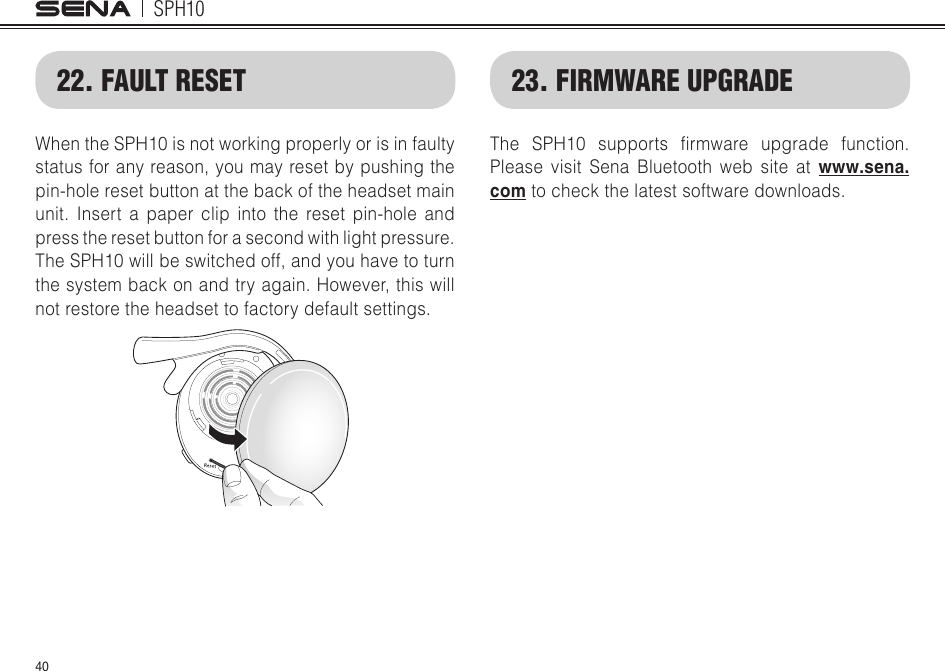

SPH104022. FAULT RESETWhen the SPH10 is not working properly or is in faulty status for any reason, you may reset by pushing the pin-hole reset button at the back of the headset main unit. Insert a paper clip into the reset pin-hole and press the reset button for a second with light pressure. The SPH10 will be switched off, and you have to turn the system back on and try again. However, this will not restore the headset to factory default settings.23. FIRMWARE UPGRADEThe SPH10 supports rmware upgrade function.Please visit Sena Bluetooth web site at www.sena.com to check the latest software downloads.

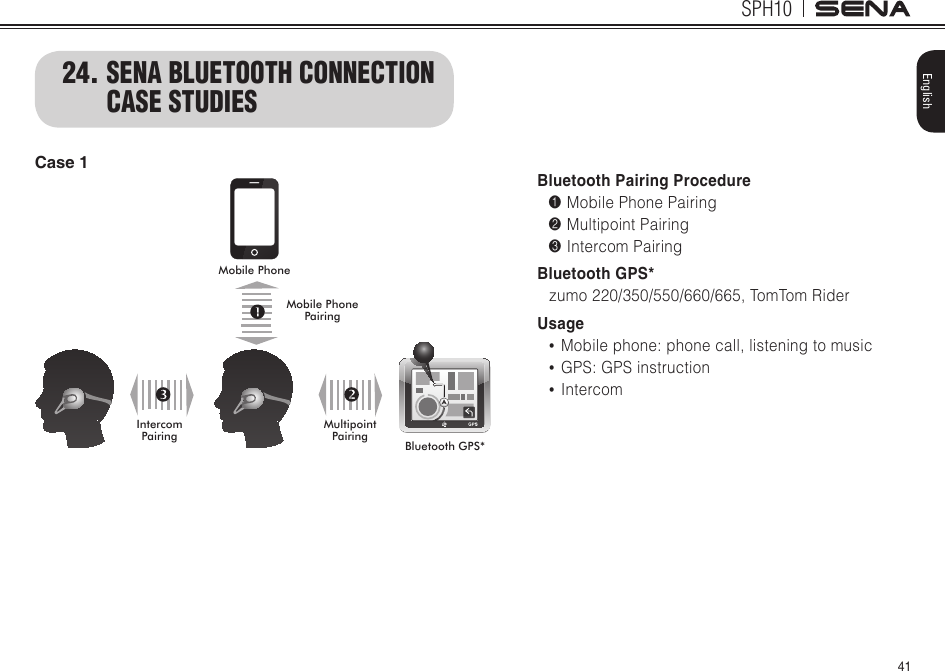

41SPH10English24. SENA BLUETOOTH CONNECTION CASE STUDIESCase 1Mobile PhoneBluetooth GPS*Mobile Phone PairingMultipoint PairingIntercom PairingBluetooth Pairing Procedure1 Mobile Phone Pairing 2 Multipoint Pairing3 Intercom PairingBluetooth GPS*zumo 220/350/550/660/665, TomTom RiderUsage•Mobilephone:phonecall,listeningtomusic• GPS:GPSinstruction• Intercom

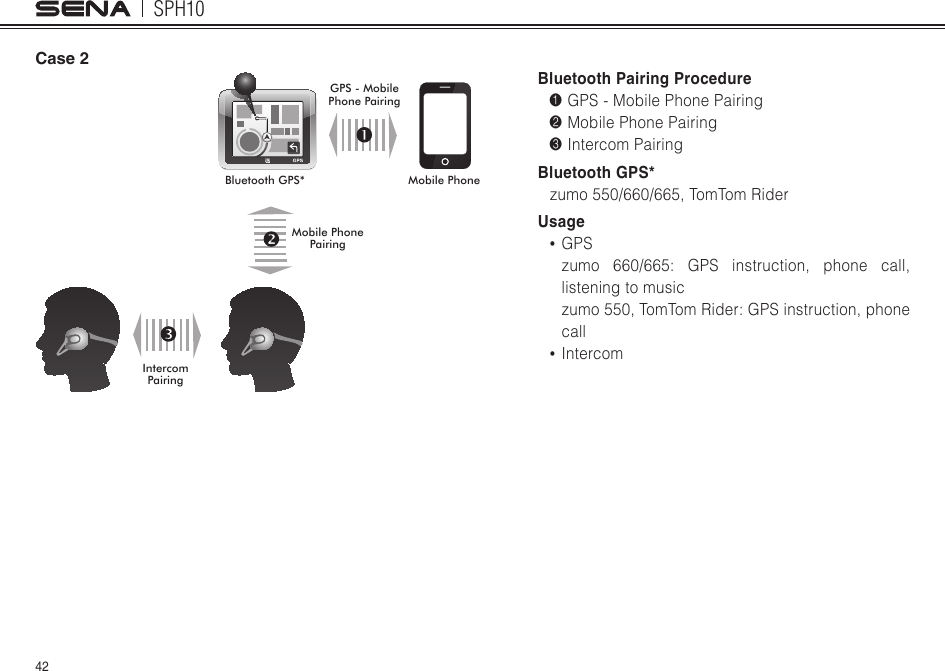

SPH1042Case 2Mobile PhoneBluetooth GPS*Mobile Phone PairingGPS - Mobile Phone PairingIntercom PairingBluetooth Pairing Procedure1 GPS - Mobile Phone Pairing2 Mobile Phone Pairing3 Intercom PairingBluetooth GPS*zumo 550/660/665, TomTom RiderUsage• GPS zumo 660/665: GPS instruction, phone call,listening to music zumo550,TomTomRider:GPSinstruction,phonecall• Intercom

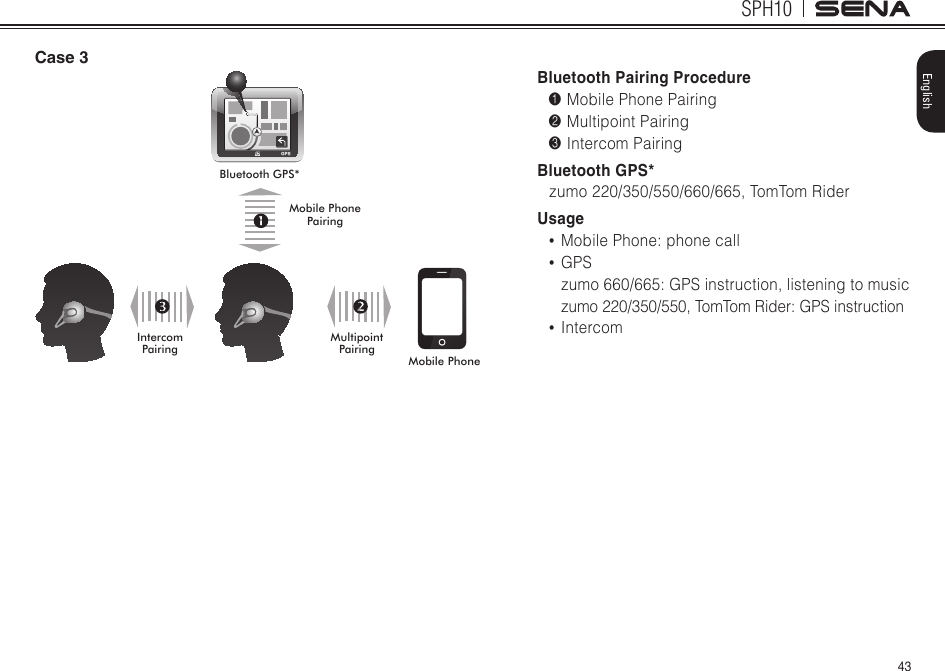

43SPH10EnglishCase 3Mobile PhoneBluetooth GPS*Mobile Phone PairingMultipoint PairingIntercom PairingBluetooth Pairing Procedure1 Mobile Phone Pairing2 Multipoint Pairing3 Intercom PairingBluetooth GPS*zumo 220/350/550/660/665, TomTom RiderUsage• MobilePhone:phonecall• GPS zumo660/665:GPSinstruction,listeningtomusic zumo220/350/550,TomTomRider:GPSinstruction• Intercom

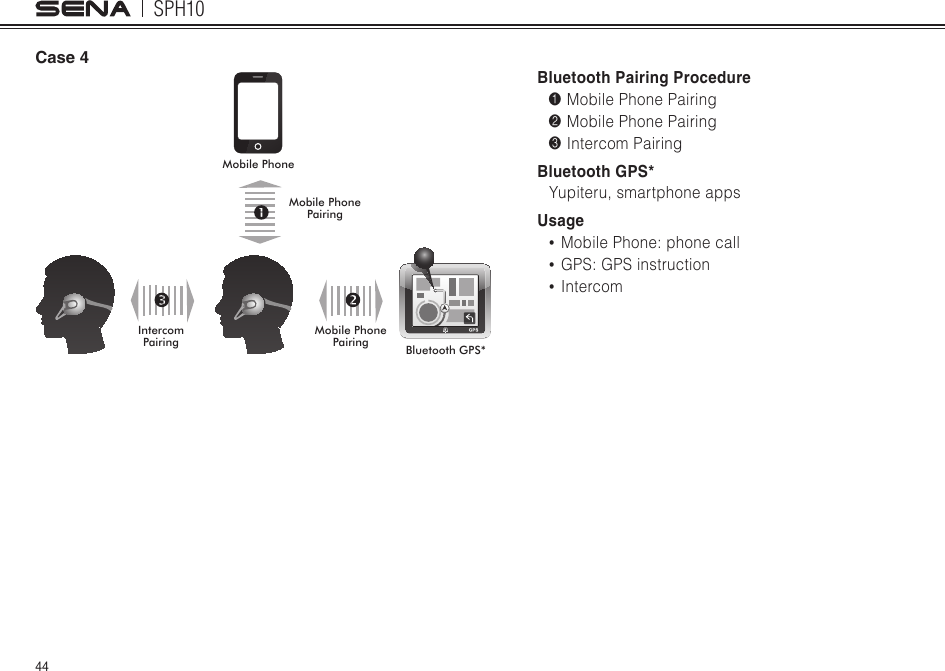

SPH1044Case 4Mobile PhoneBluetooth GPS*Mobile Phone PairingMobile Phone PairingIntercom PairingBluetooth Pairing Procedure1 Mobile Phone Pairing2 Mobile Phone Pairing3 Intercom PairingBluetooth GPS*Yupiteru, smartphone appsUsage• MobilePhone:phonecall• GPS:GPSinstruction• Intercom

45SPH10EnglishCase 5SR10Mobile PhoneGPSMobile Phone PairingTwo-way RadioMultipoint PairingIntercom PairingBluetooth Pairing Procedure1 Mobile Phone Pairing2 Multipoint Pairing3 Intercom PairingUsage•MobilePhone:phonecall•SR10:two-wayradio,GPSguidancel• Intercom

SPH1046Case 6Mobile PhoneBluetooth GPS*Mobile Phone PairingIntercom PairingMP3 PlayerMobile Phone PairingGPS - Mobile Phone PairingBluetooth Pairing Procedure1 GPS - Mobile Phone Pairing2 Mobile Phone Pairing3 Mobile Phone Pairing4 Intercom PairingBluetooth GPS*zumo 220/350/550/660/665, TomTom RiderUsage•GPS:phonecall,GPSinstruction• MP3Player:listeningtomusic• Intercom

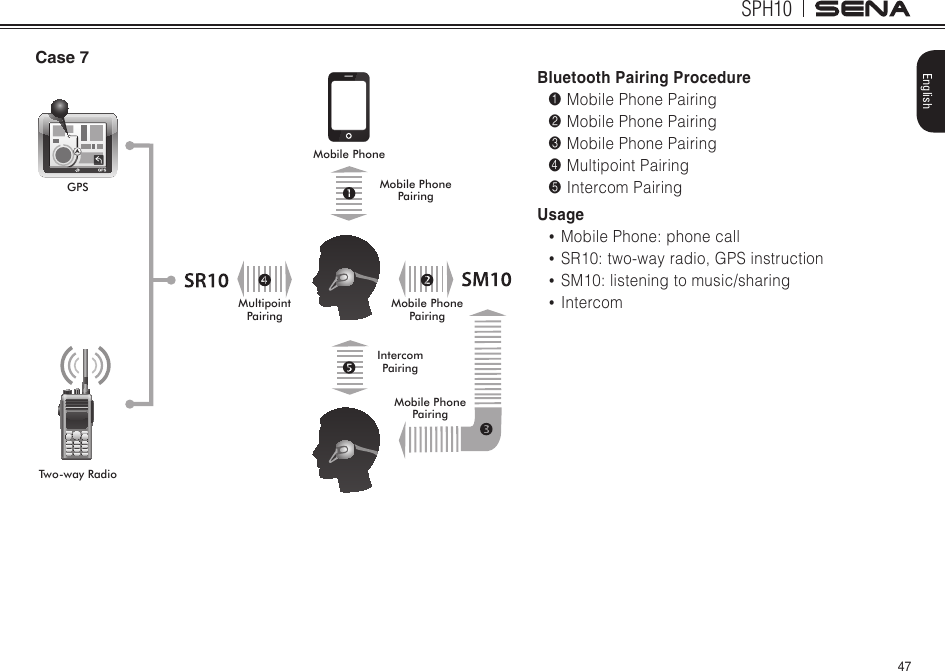

47SPH10EnglishCase 7Mobile PhoneGPSTwo-way RadioMobile Phone PairingMobile Phone PairingMobile Phone PairingIntercom PairingMultipoint PairingBluetooth Pairing Procedure1 Mobile Phone Pairing2 Mobile Phone Pairing3 Mobile Phone Pairing4 Multipoint Pairing5 Intercom PairingUsage•MobilePhone:phonecall• SR10:two-wayradio,GPSinstruction• SM10:listeningtomusic/sharing• Intercom

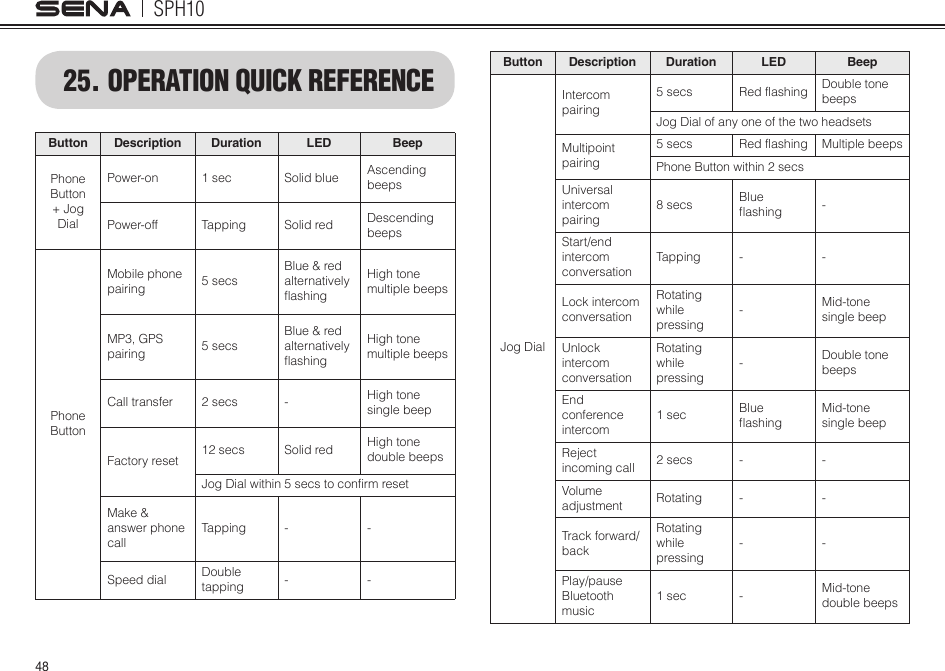

SPH104825. OPERATION QUICK REFERENCEButton Description Duration LED BeepPhone Button + Jog DialPower-on 1 sec Solid blue Ascending beepsPower-off Tapping Solid red Descending beepsPhone ButtonMobile phone pairing 5 secsBlue & red alternatively flashingHigh tone multiple beeps MP3, GPS pairing 5 secsBlue & red alternatively flashingHigh tone multiple beeps Call transfer 2 secs -High tone single beepFactory reset 12 secs Solid red High tone double beeps Jog Dial within 5 secs to confirm resetMake & answer phone callTapping - -Speed dial Double tapping - -Button Description Duration LED BeepJog DialIntercom pairing5 secs Red flashing Double tone beepsJog Dial of any one of the two headsetsMultipoint pairing5 secs Red flashing Multiple beepsPhone Button within 2 secsUniversal intercom pairing8 secs Blue ashing -Start/end intercomconversationTapping - -Lock intercom conversationRotating while pressing-Mid-tone single beepUnlock intercom conversationRotating while pressing-Double tone beepsEnd conference intercom1 sec Blue ashingMid-tone single beepReject incoming call 2 secs - -Volume adjustment Rotating - -Track forward/ backRotating while pressing- -Play/pauseBluetooth music1 sec -Mid-tone double beeps

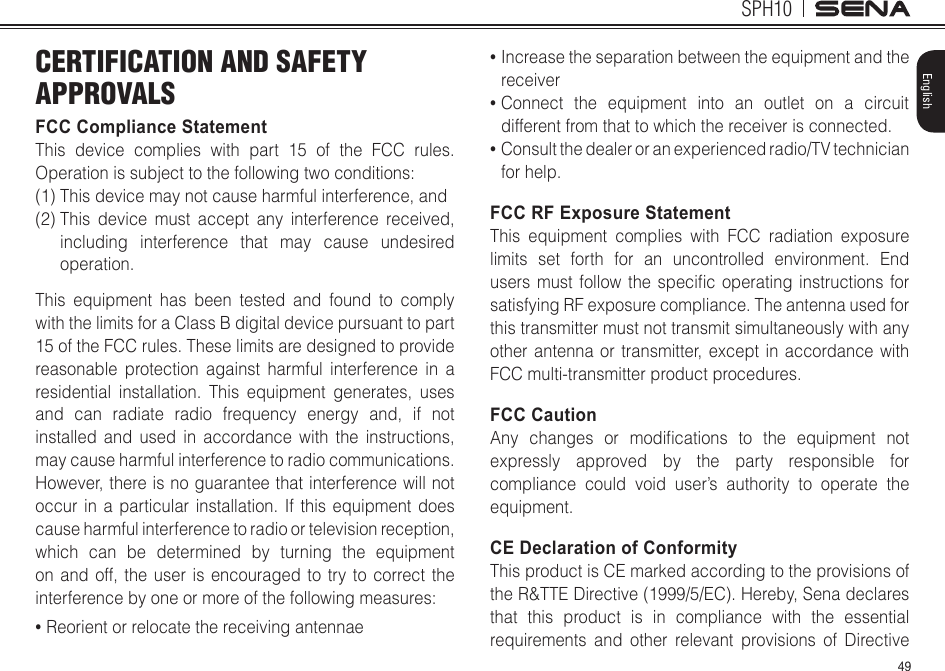

49SPH10EnglishCERTIFICATION AND SAFETY APPROVALSFCC Compliance StatementThis device complies with part 15 of the FCC rules. Operationissubjecttothefollowingtwoconditions:(1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment on and off, the user is encouraged to try to correct the interferencebyoneormoreofthefollowingmeasures:• Reorient or relocate the receiving antennae• Increase the separation between the equipment and the receiver• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.• Consult the dealer or an experienced radio/TV technician for help.FCC RF Exposure StatementThis equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users mustfollowthespecicoperatinginstructionsforsatisfying RF exposure compliance. The antenna used for this transmitter must not transmit simultaneously with any other antenna or transmitter, except in accordance with FCC multi-transmitter product procedures.FCC CautionAny changes or modications to the equipment notexpressly approved by the party responsible for compliance could void user’s authority to operate the equipment. CE Declaration of Conformity This product is CE marked according to the provisions of the R&TTE Directive (1999/5/EC). Hereby, Sena declares that this product is in compliance with the essential requirements and other relevant provisions of Directive

SPH10501999/5/EC. For further information, please consult www.sena.com. Please note that this product uses radio frequency bands not harmonized within EU. Within the EU this product is intended to be used in Austria, Belgium, Denmark, Finland, France, Germany, Greece, Ireland, Italy, Luxembourg, The Netherlands, Portugal, Spain, Sweden, United Kingdom and within EFTA in Iceland, Norway and Switzerland. Industry Canada Statement This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the followingtwoconditions:(1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. Bluetooth License The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Sena is under license. Other trademarks and trade names are those of their respective owners. The product is compliant with and adopts the Bluetooth® Specication 3.0 and has successfully passed allinteroperability tests that are specied in the Bluetooth® specication.However,interoperabilitybetweenthedeviceand other Bluetooth®-enabled products is not guaranteed. WEEE (Waste Electrical and Electronic Equipment )The crossed-out wheel bin symbol on the product, literature, or packaging reminds you that all electrical and electronic products, batteries, and accumulators must be taken to separate collection at the end of their working life. This requirement applies to the European Union and other locations where separate collection systems are available. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please do not dispose of these products as unsorted municipal waste, buthanditinatanofcialcollectionpointforrecycling.y Le present appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisee aux deux conditions suivantes :(1) l'appareil ne doit pas produire de brouillage, et(2) l'utilisateur de l'appareil doit accepter tout brouillage radioelectrique subi, meme si le brouillage est susceptible d'en compromettre le fonctionnement. yCaution: Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

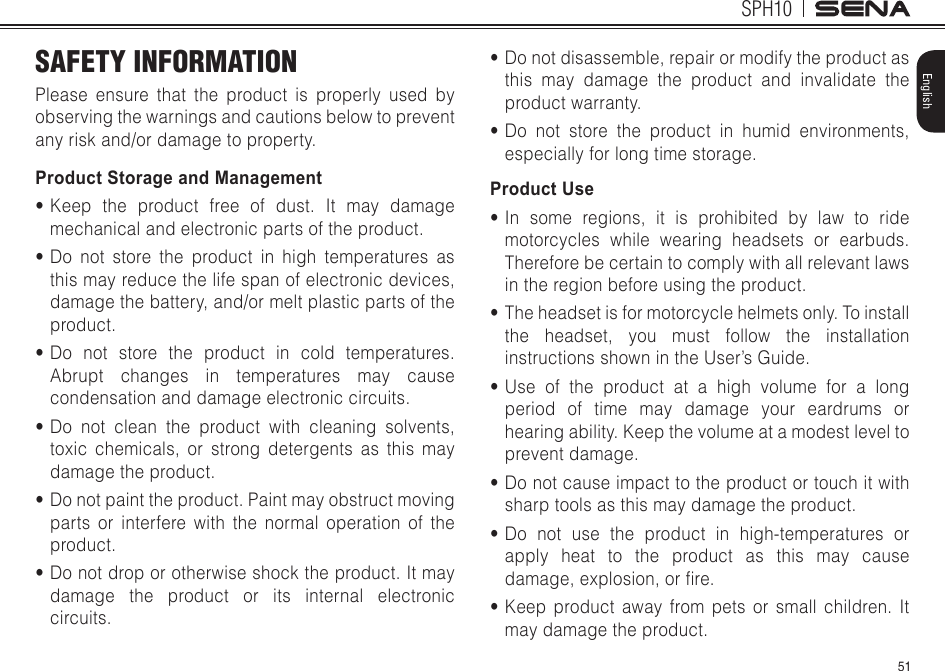

51SPH10EnglishSAFETY INFORMATIONPlease ensure that the product is properly used by observing the warnings and cautions below to prevent any risk and/or damage to property.Product Storage and Management•Keep the product free of dust. It may damage mechanical and electronic parts of the product.•Do not store the product in high temperatures as this may reduce the life span of electronic devices, damage the battery, and/or melt plastic parts of the product.•Do not store the product in cold temperatures. Abrupt changes in temperatures may cause condensation and damage electronic circuits.•Do not clean the product with cleaning solvents, toxic chemicals, or strong detergents as this may damage the product.•Do not paint the product. Paint may obstruct moving parts or interfere with the normal operation of the product.•Do not drop or otherwise shock the product. It may damage the product or its internal electronic circuits.•Do not disassemble, repair or modify the product as this may damage the product and invalidate the product warranty.•Do not store the product in humid environments, especially for long time storage.Product Use•In some regions, it is prohibited by law to ride motorcycles while wearing headsets or earbuds. Therefore be certain to comply with all relevant laws in the region before using the product.•The headset is for motorcycle helmets only. To install the headset, you must follow the installation instructions shown in the User’s Guide.•Use of the product at a high volume for a long period of time may damage your eardrums or hearing ability. Keep the volume at a modest level to prevent damage.•Do not cause impact to the product or touch it with sharp tools as this may damage the product.•Do not use the product in high-temperatures or apply heat to the product as this may cause damage,explosion,orre.•Keep product away from pets or small children. It may damage the product.

SPH1052•In any place where wireless communication is prohibited, such as hospitals or airplanes, turn off the power and refrain from using the product. In a place where wireless communication is prohibited, electromagnetic waves may cause hazards or accidents.•Do not use the product near hazardous explosives. When it is near any explosion hazards, turn off the power and heed any regulations, instructions, and signs in the area.•When using the product, be certain to conform to laws regarding the use of communications devices while riding.•Do not put the product where it may hamper the rider's vision or manipulate it while riding. This may causetrafcaccidents.•Before riding, fasten the product to the helmet, and double-check that it is fastened. Separation of the product while riding may cause damage to the product or accidents.•If the product is damaged, stop using it immediately. Itmaycausedamage,explosion,orre.BatteryThis product has an irreplaceable rechargeable battery inside. Therefore, when using the product, makesuretoadheretothefollowing:•Never separate the battery from the product as this may damage the product.•The battery performance may be reduced over time with usage.•In recharging the battery, make sure to use an approved charger provided by the manufacturer. Use ofanon-approved chargermaycausere,explosion, leakage, and other hazards may also reduce the life time or performance of the battery.•Any 3rd party USB charger can be used with Sena products if the charger is approved by either the FCC, CE, IC or other locally approved agencies that Sena accepts.•Do not use cigarette chargers other than the included cigarette charger to charge the headset.•Storethebattery attemperatures of15°C~25°C(59°F~77°F). Higher or lower temperatures mayreduce the capacity and life of the battery, or may cause temporary non-operation. Do not use the product in sub-zero temperature, because it may cause serious reduction of the battery performance.

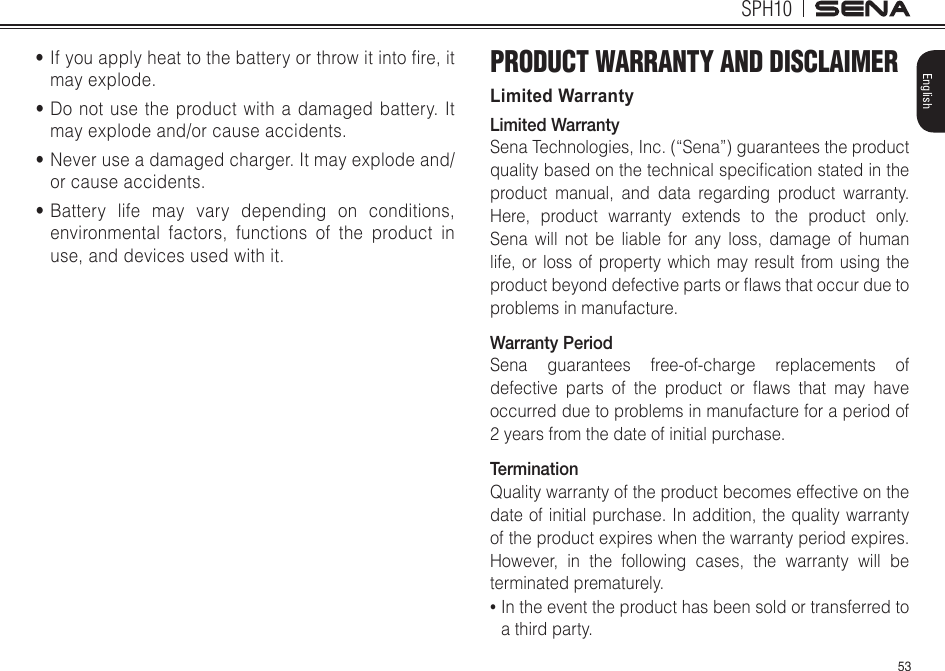

53SPH10English•Ifyouapplyheattothebatteryorthrowitintore,itmay explode.•Do not use the product with a damaged battery. It may explode and/or cause accidents.•Never use a damaged charger. It may explode and/or cause accidents.•Battery life may vary depending on conditions, environmental factors, functions of the product in use, and devices used with it.PRODUCT WARRANTY AND DISCLAIMERLimited WarrantyLimited WarrantySena Technologies, Inc. (“Sena”) guarantees the product qualitybasedonthetechnicalspecicationstatedintheproduct manual, and data regarding product warranty. Here, product warranty extends to the product only. Sena will not be liable for any loss, damage of human life, or loss of property which may result from using the productbeyonddefectivepartsorawsthatoccurduetoproblems in manufacture.Warranty PeriodSena guarantees free-of-charge replacements of defectiveparts oftheproduct orawsthatmayhaveoccurred due to problems in manufacture for a period of 2 years from the date of initial purchase. TerminationQuality warranty of the product becomes effective on the date of initial purchase. In addition, the quality warranty of the product expires when the warranty period expires. However, in the following cases, the warranty will be terminated prematurely.• In the event the product has been sold or transferred to a third party.

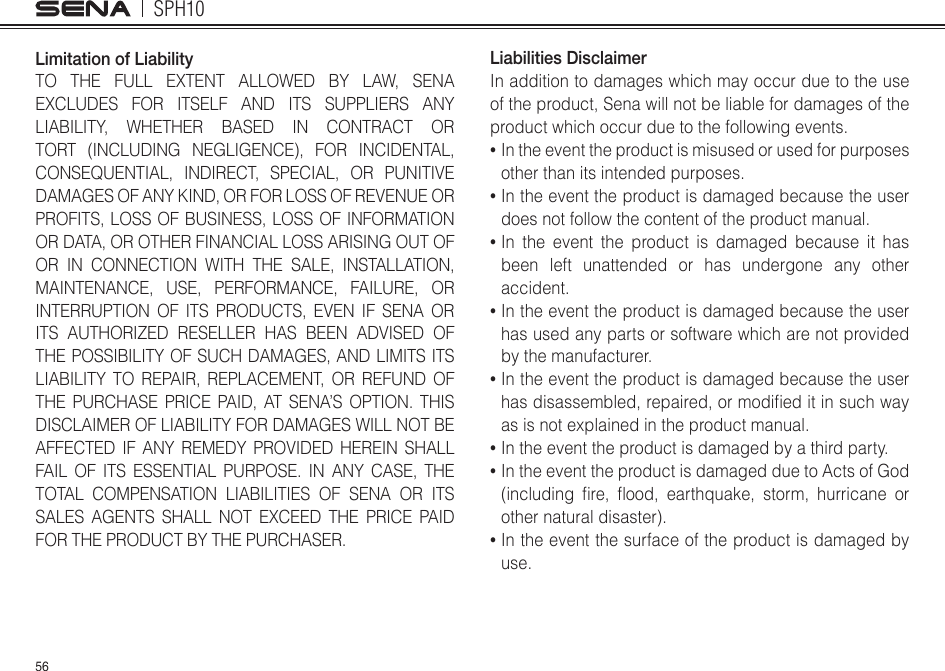

$SPH1054• In the event the manufacturer's name, serial number, productlabel,orothermarkingshavebeenmodiedorremoved. • In the event any unauthorized person has tried to disassemble, repair, or modify the product. Notice and WaiverBy buying and using this product, you relinquish considerable legal rights including any claim for compensation for damages. Therefore, be certain to read and understand the following terms and conditions before using the product. Use of this product will constitute consent to this agreement, and forfeiture of rights to all claims. If you do not consent to all the terms and conditions of this agreement, return the product for a refund. 1. You agree that you, your descendants, legal proxies, successors, or transferees will not raise permanent volitional request for any suit, claim, implementation, redemption or similar action from Sena with regard to any occasion such as difculty, pain, suffering,inconvenience, loss, injury, or death which may occur to you or a third party during the use of this product.2. You must completely understand and accept all risks (including those occurring due to any careless behavior of yours or others) which may occur during the use of this product.3. You are responsible for ensuring that your medical condition permits usage of the product and that you areinsufcientphysicalconditionforusinganydevicewhich can be used with it. In addition, you must ensure that the product does not limit your abilities and that you are able to use it safely.4. You must be an adult who can take responsibilities for using the product.5. You must read and understand the following warnings andalerts:• Sena; together with employees, managers, partners, subsidiaries, representatives, agents, supporting rmsandsuppliers,solesellersofSena(collectivelyreferred to as "the company") recommend that, before using the product and similar devices of any brands including its derivative models, you collect any relevant information in advance and be entirely prepared in terms of weather, trafc situation, androad conditions.• When you use the product while you operating any vehicle or equipment such as motorcycles, scooters, mopeds, ATVs, or quad-bikes (hereinafter called as "transportation means"), you must take complete caution regardless of the location of such operation.• Use of the product on the road may cause such risks as fracture, serious disability, or death.$
