WIM Introduction 1.0
1.1 Background
The Wireless Interface Module (WIM) is a Bluetooth enabled electronic control unit designed for use with Harley
Davidson touring motorcycles. The WIM will interface with both Premium and Standard infotainment units and
replaces the wired headset. The WIM is not compatible with Harley’s Cruiser, Sportster, or Street lines. The WIM will
be sold in any market touring motorcycles are sold.

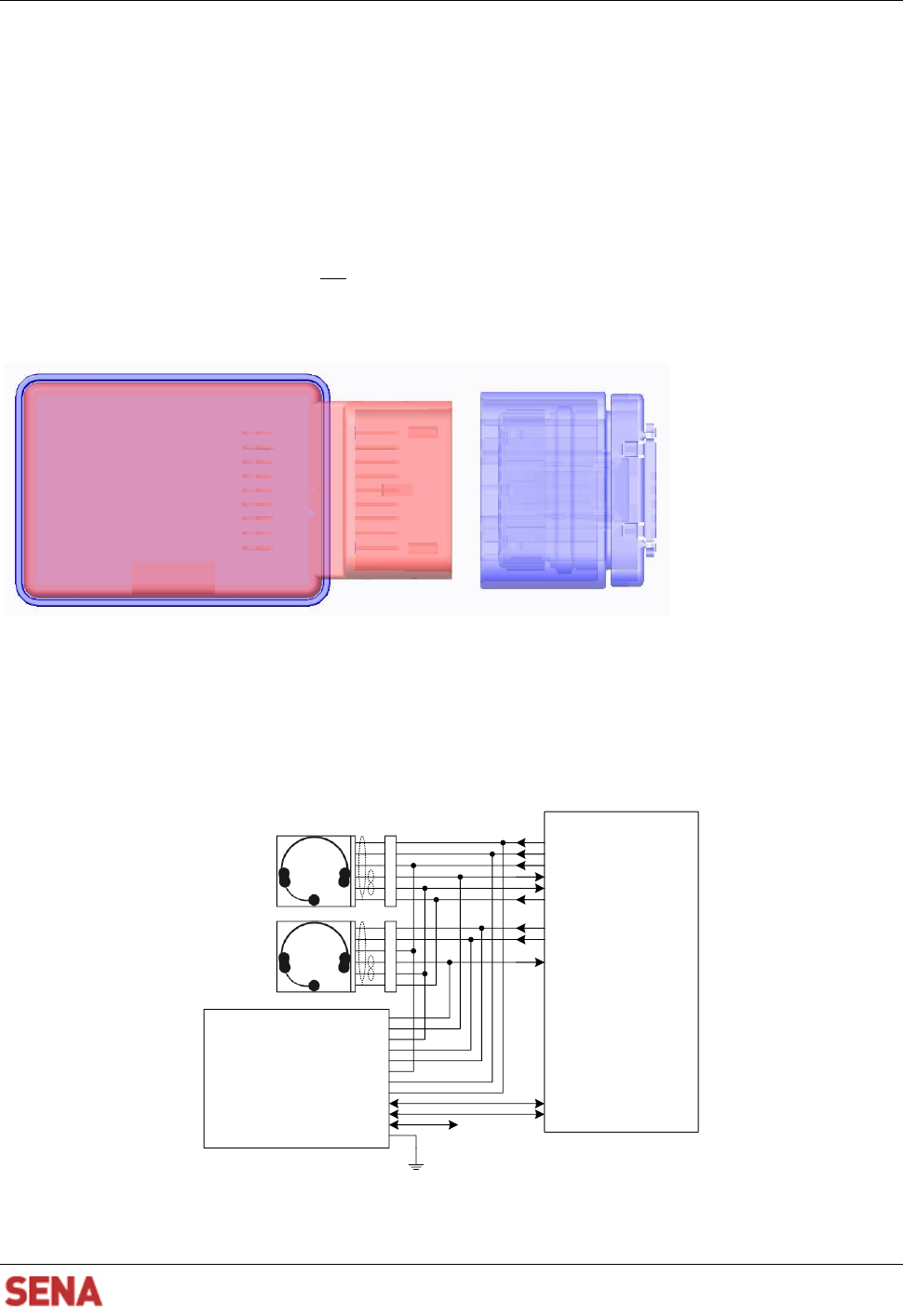

Figure 1: WIM System Block Diagram
1.2 Basic Operation and Block Diagram
ISYS RADIO
Rear
Wired
Headset 4
3
5
6
2
1E1 Rear Headset, Left +
E2 Rear Headset, Right +
E3 Headset Common -
D1 Rear Microphone +
C2 Microphone Common -
D2 Microphone Shield
Front
Wired
Headset 4
3
5
6
2
1F1 Front Headset, Left +
F2 Front Headset, Right +
C1 Front Microphone +
A3 Accessory CAN-
A4 Accessory CAN+
Wireless
Interface
Module Front Headset, Right +
Microphone Common -
Front Headset, Left +
Headset Common -
Rear Microphone +
Front Microphone +
CAN-
CAN+
P&A Relay Power
Ground
Rear Headset, Left +
Rear Headset, Right +
P&A Relay
Figure 2: Basic WIM System Block Diagram
Wireless Interface Module
1.3 DUT Orientation
Orientation A
Orientation B
Orientation C
Table 1: DUT Orientations
1.4 Connector and Pin-Out
Figure 3: WIM Pin Diagram
Wireless Interface Module
Pin
Signal
16
Rear Headset Left
15
Rear Headset Right
14
Headset Common GND
13
Front Headset Left
12
Front Headset Right
11
USB GND
10
Rear Microphone
9
Front Microphone
8
Microphone Common GND
7
USB Power (5V)
6
CAN Plus
5
CAN Minus
4
USB Data Plus
3
USB Data Minus
2
POWER GND
1
POWER Input
Table 2: WIM Connector Pin Table
Wireless Interface Module
FCC Part 15 Subpart C Section 15.247
FCC ID: S7A-SP40
FCC Compliance Statement
FCC Part 15.19 Statements:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired
operation.
FCC Part 15.21 statement
Any changes or modifications not expressly approved by the party responsible for compliance could void the
user's authority to operate this equipment.
FCC Part 15.105 statement
This equipment has been tested and found to comply with the limits for a digital device, pursuant to part 15
of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
This transmitter must not be co-located or operating in conjunction with any other antenna
or transmitter unless authorized to do so by the FCC.
IC
RSS-GEN, Sec. 7.1.3 – (licence-exempt radio apparatus)
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the
following two conditions: (1) this device may not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de
licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de
brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d’en compromettre le fonctionnement.
CE
Hereby, SENA TECHNOLOGIES.Inc Declares that this SP40 is in compliance with the essential
requirements and other relevant provisions of directive 1999/5/EC.
This equipment should be installed and operated with minimum 20 cm between the radiator and your body.
