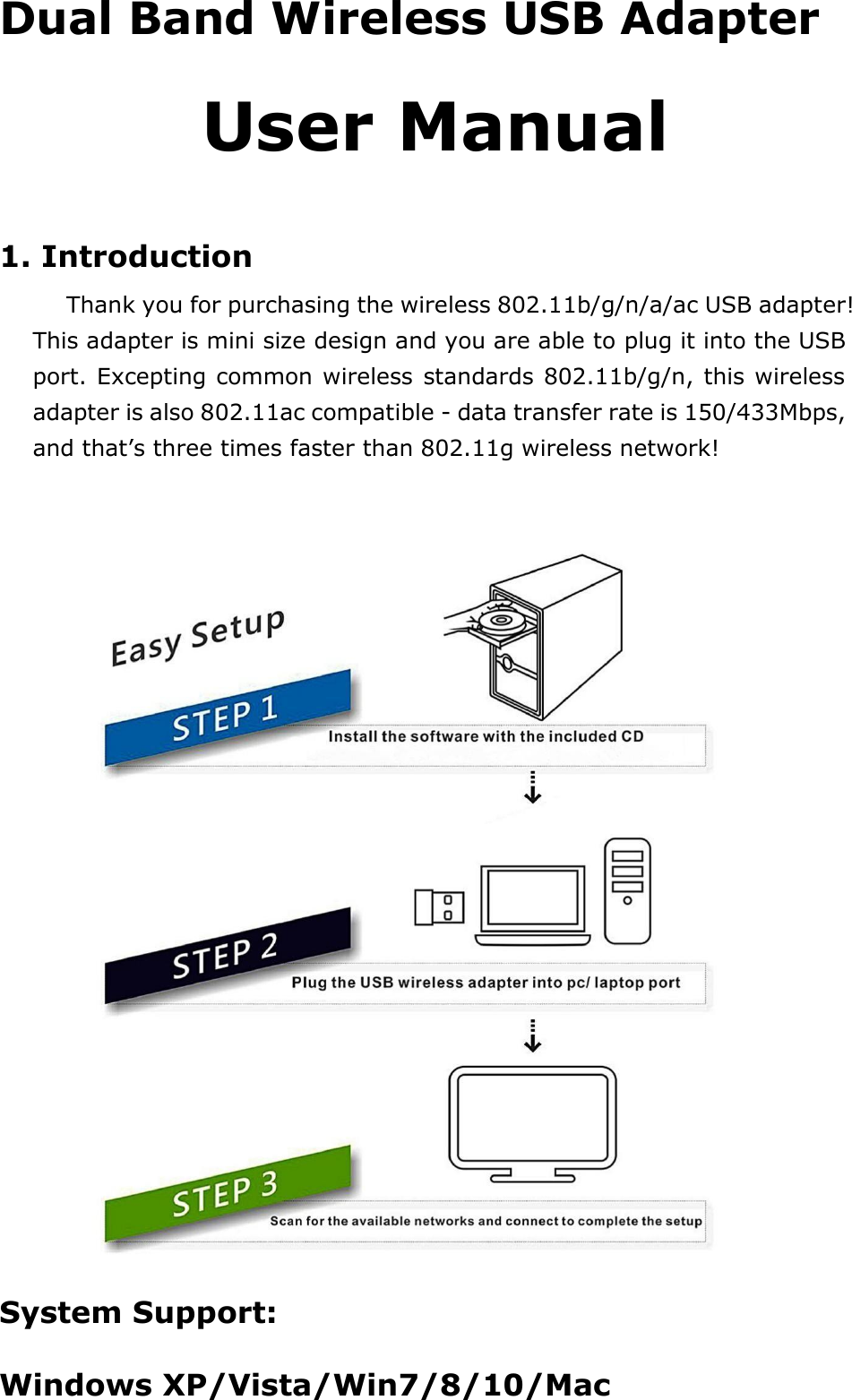

Dual Band Wireless USB Adapter User Manual 1. Introduction Thank you for purchasing the wireless 802.11b/g/n/a/ac USB adapter! This adapter is mini size design and you are able to plug it into the USB port. Excepting common wireless standards 802.11b/g/n, this wireless adapter is also 802.11ac compatible - data transfer rate is 150/433Mbps, and that’s three times faster than 802.11g wireless network! System Support: Windows XP/Vista/Win7/8/10/Mac

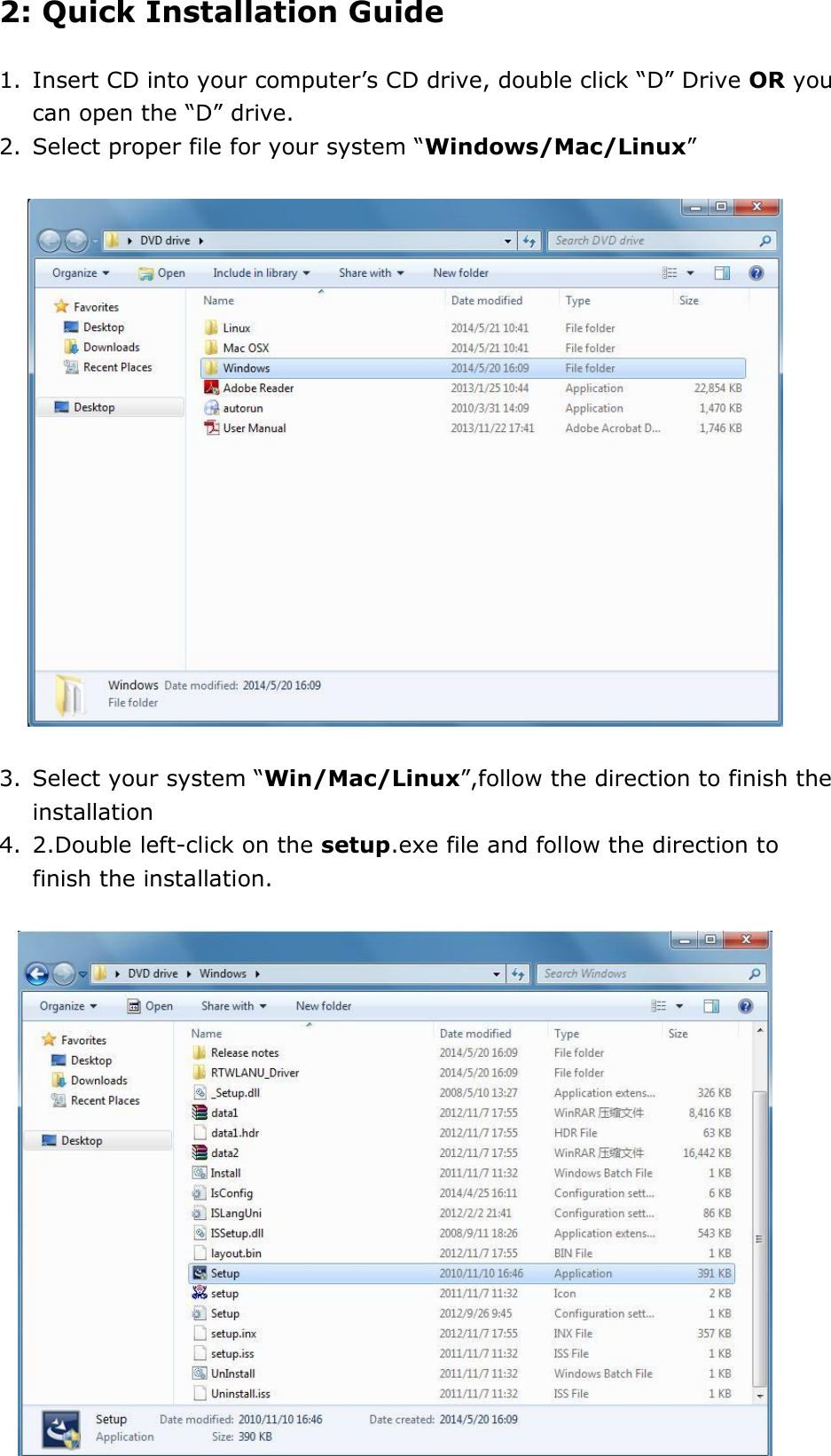

2: Quick Installation Guide 1. Insert CD into your computer’s CD drive, double click “D” Drive OR you can open the “D” drive. 2. Select proper file for your system “Windows/Mac/Linux” 3. Select your system “Win/Mac/Linux”,follow the direction to finish the installation 4. 2.Double left-click on the setup.exe file and follow the direction to finish the installation.

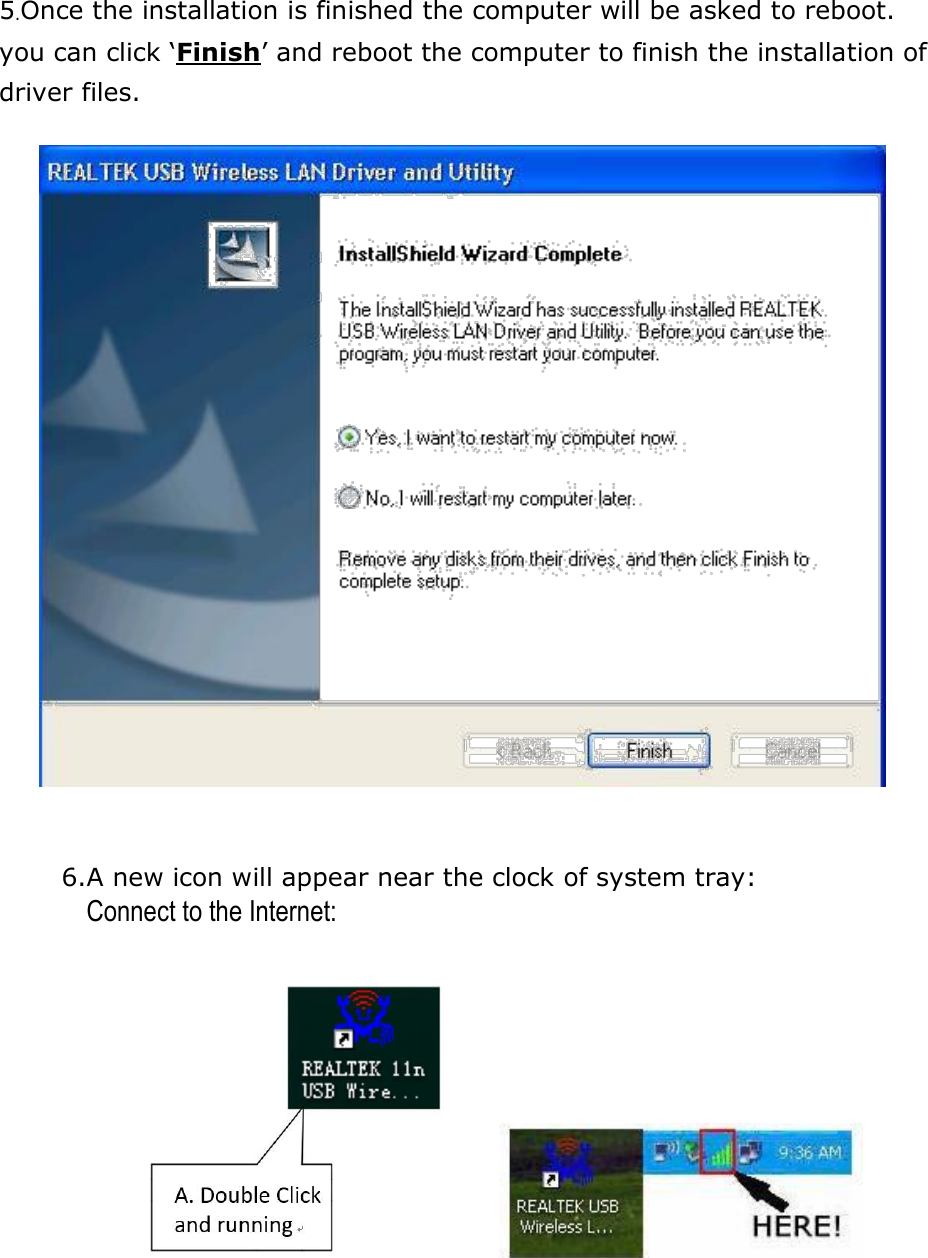

5.Once the installation is finished the computer will be asked to reboot. you can click ‘Finish’ and reboot the computer to finish the installation of driver files. 6.A new icon will appear near the clock of system tray: Connect to the Internet:

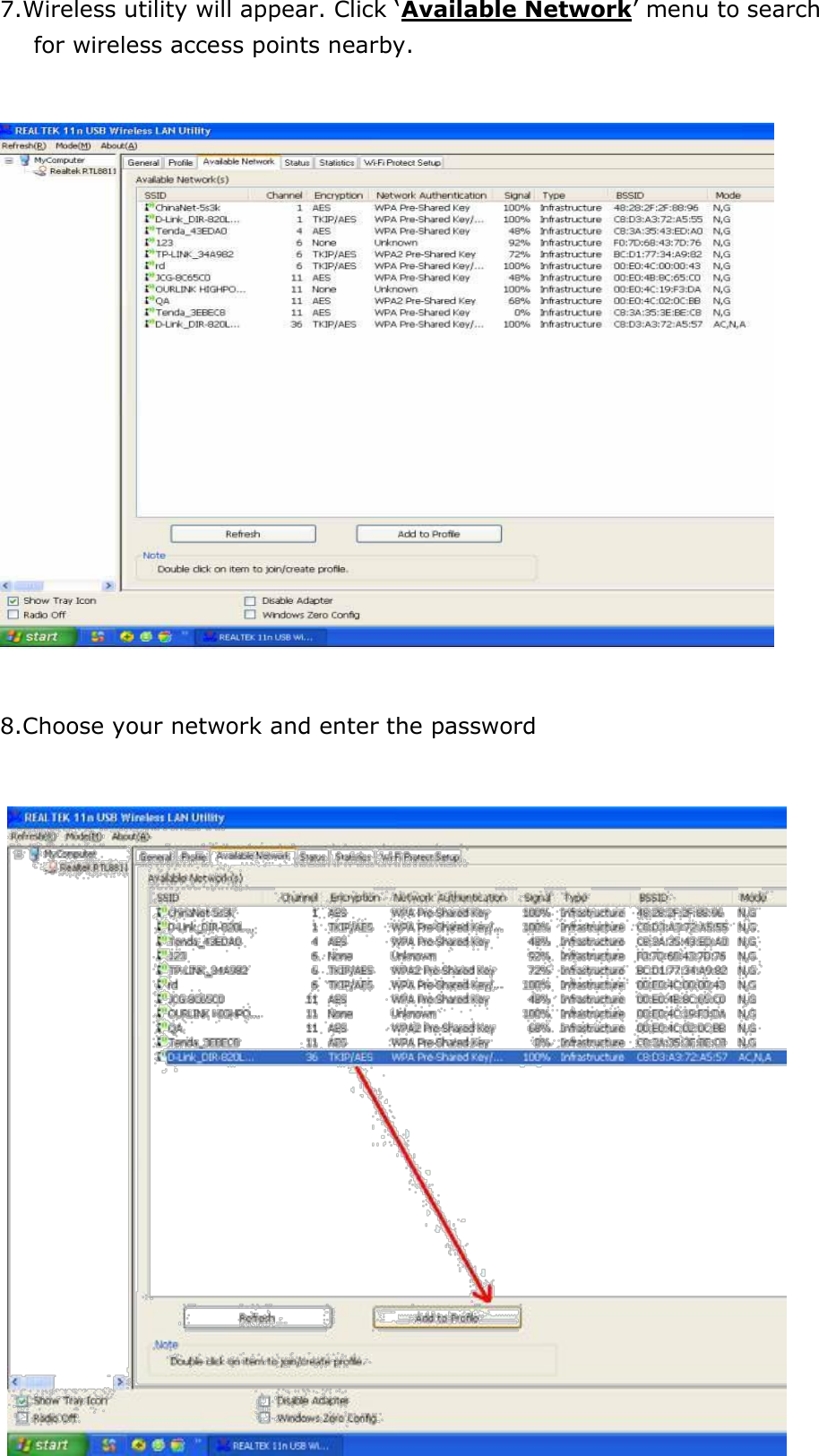

7.Wireless utility will appear. Click ‘Available Network’ menu to search for wireless access points nearby. 8.Choose your network and enter the password

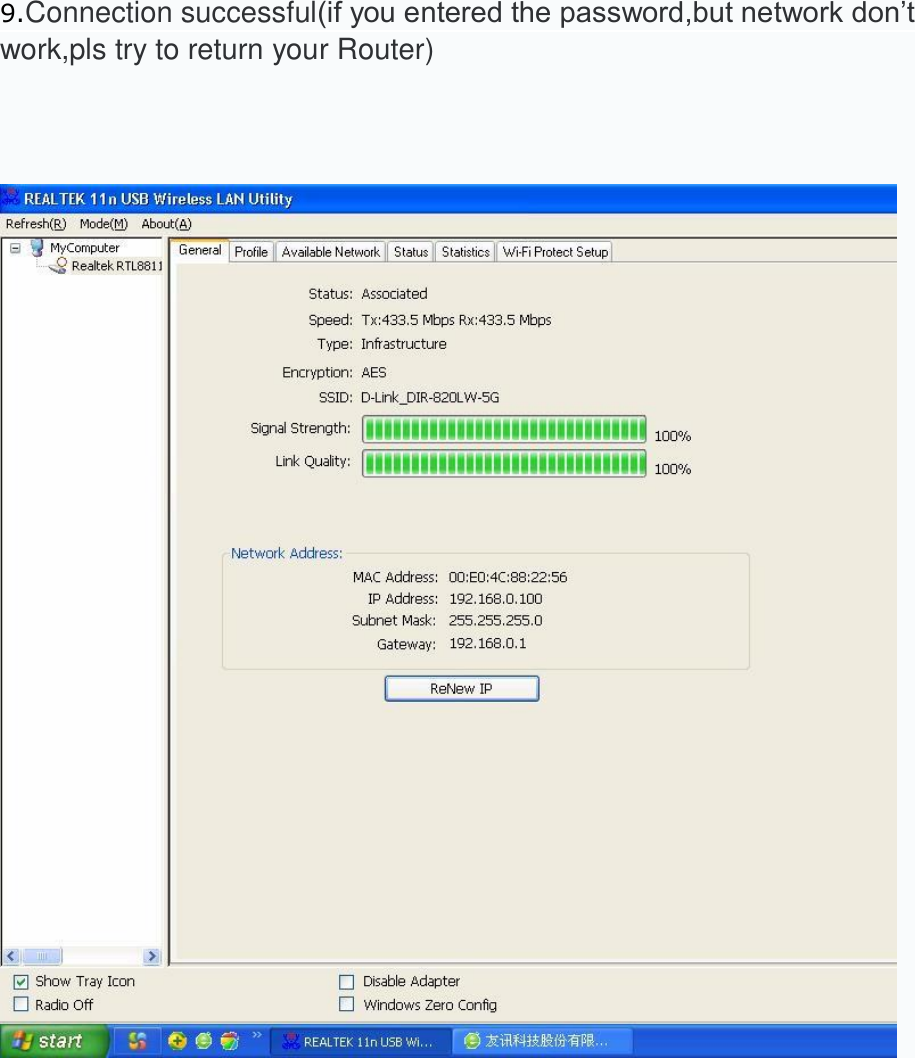

9.Connection successful(if you entered the password,but network don’t work,pls try to return your Router)

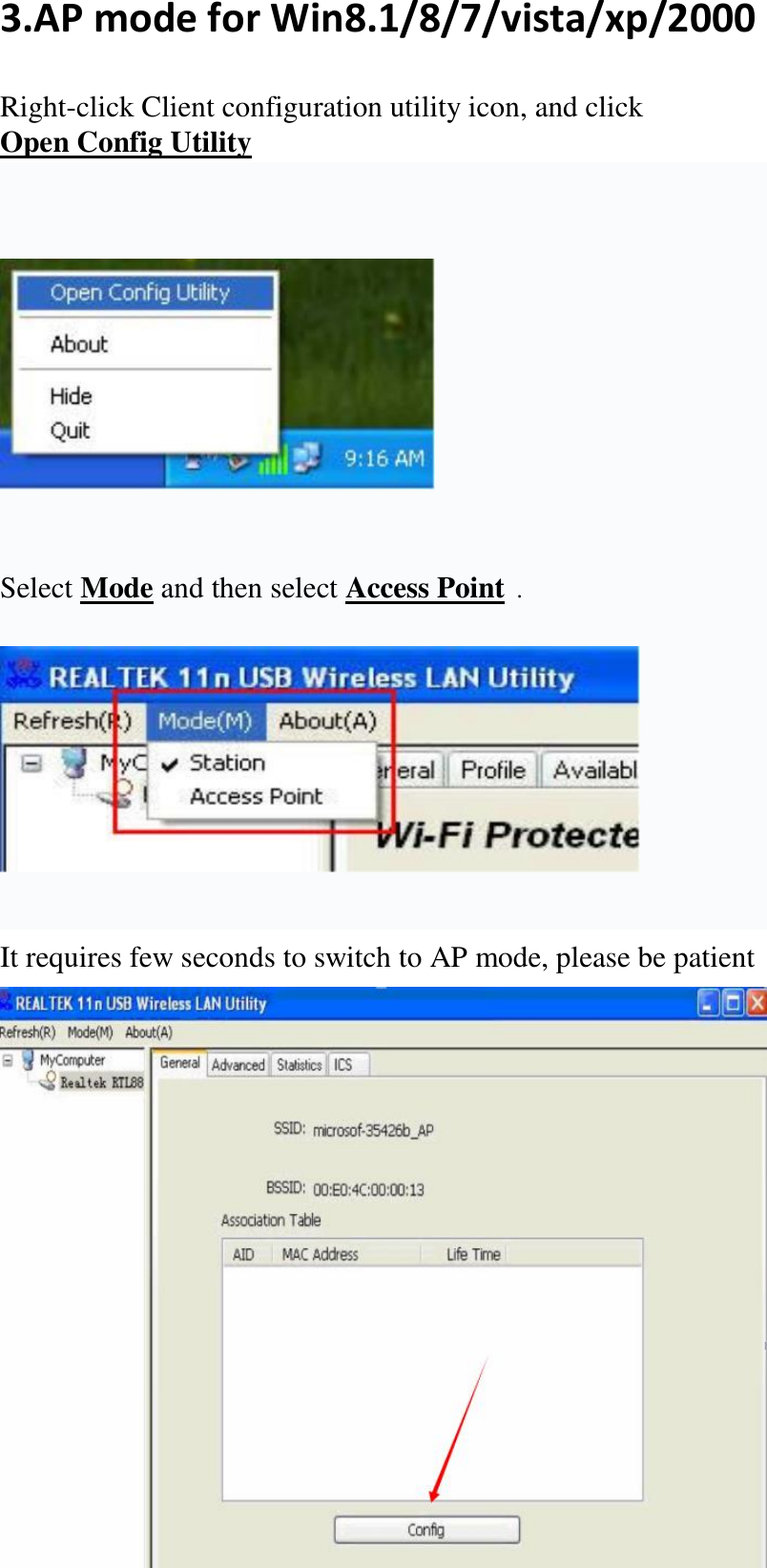

3.AP mode for Win8.1/8/7/vista/xp/2000 Right-click Client configuration utility icon, and click Open Config Utility Select Mode and then select Access Point． It requires few seconds to switch to AP mode, please be patient

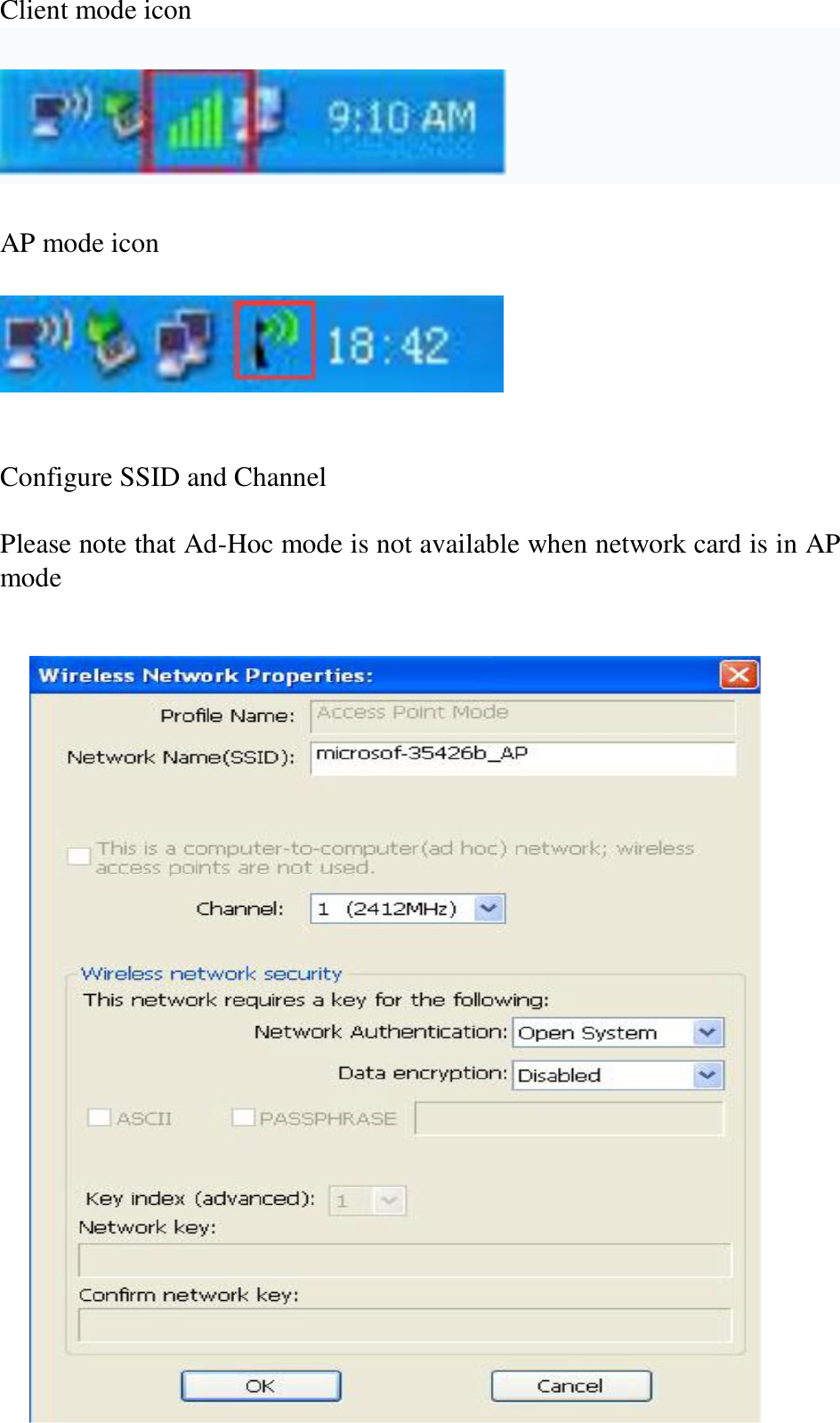

Client mode icon AP mode icon Configure SSID and Channel Please note that Ad-Hoc mode is not available when network card is in AP mode

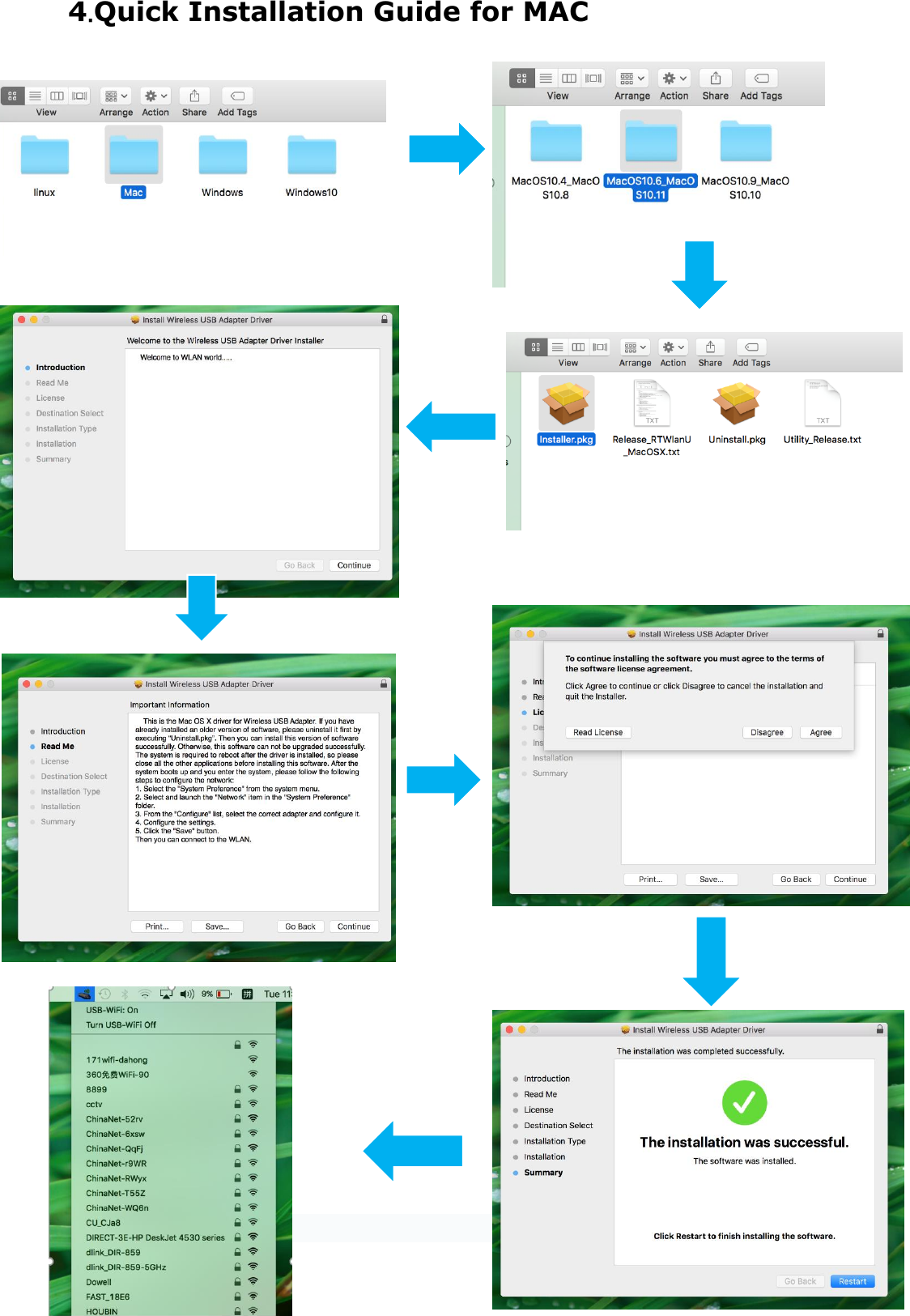

4.Quick Installation Guide for MAC o

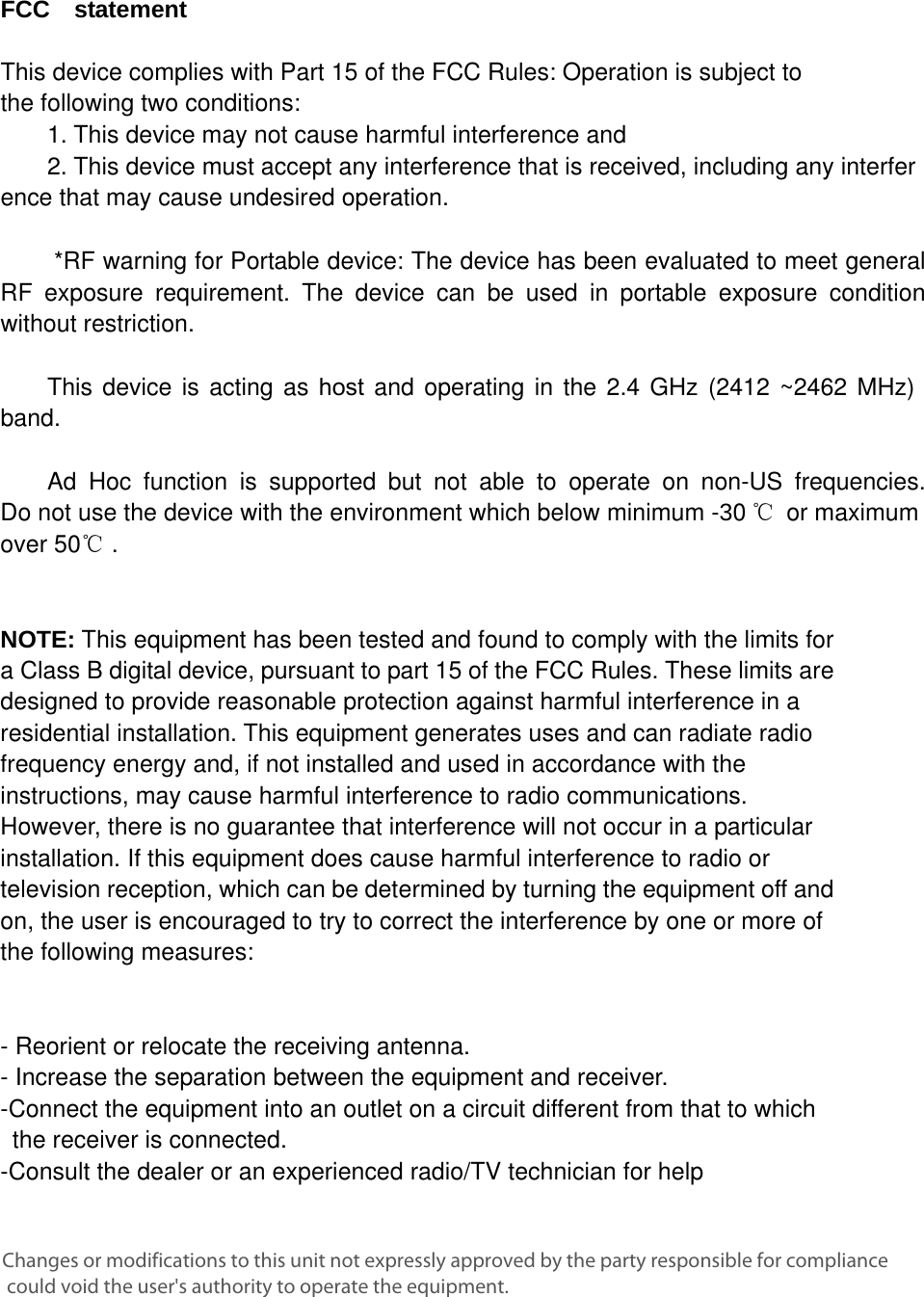

FCC statement This device complies with Part 15 of the FCC Rules: Operation is subject tothe following two conditions:1. This device may not cause harmful interference and2. This device must accept any interference that is received, including any interference that may cause undesired operation.*RF warning for Portable device: The device has been evaluated to meet generalRF exposure requirement. The device can be used in portable exposure conditionwithout restriction.This device is acting as host and operating in the 2.4 GHz (2412 ~2462 MHz) band.Ad Hoc function is supported but not able to operate on non-US frequencies.Do not use the device with the environment which below minimum -30℃ or maximumover 50℃ .NOTE: This equipment has been tested and found to comply with the limits fora Class B digital device, pursuant to part 15 of the FCC Rules. These limits aredesigned to provide reasonable protection against harmful interference in aresidential installation. This equipment generates uses and can radiate radiofrequency energy and, if not installed and used in accordance with theinstructions, may cause harmful interference to radio communications.However, there is no guarantee that interference will not occur in a particularinstallation. If this equipment does cause harmful interference to radio ortelevision reception, which can be determined by turning the equipment off andon, the user is encouraged to try to correct the interference by one or more ofthe following measures:- Reorient or relocate the receiving antenna.- Increase the separation between the equipment and receiver.-Connect the equipment into an outlet on a circuit different from that to whichthe receiver is connected.-Consult the dealer or an experienced radio/TV technician for helpChanges or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
