Dual Band Wireless USB Adapter
User Manual
1. Introduction
Thank you for purchasing the wireless 802.11b/g/n/a/ac USB adapter!
This adapter is mini size design and you are able to plug it into the USB
port. Excepting common wireless standards 802.11b/g/n, this wireless
adapter is also 802.11ac compatible - data transfer rate is 150/433Mbps,
and that’s three times faster than 802.11g wireless network!
System Support:
Windows XP/Vista/Win7/8/10/Mac

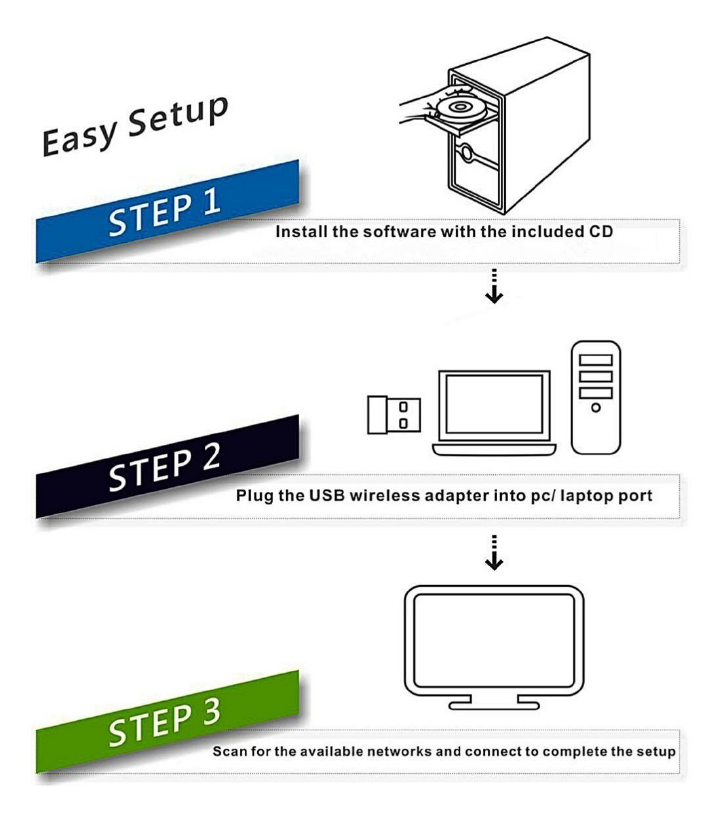

2: Quick Installation Guide

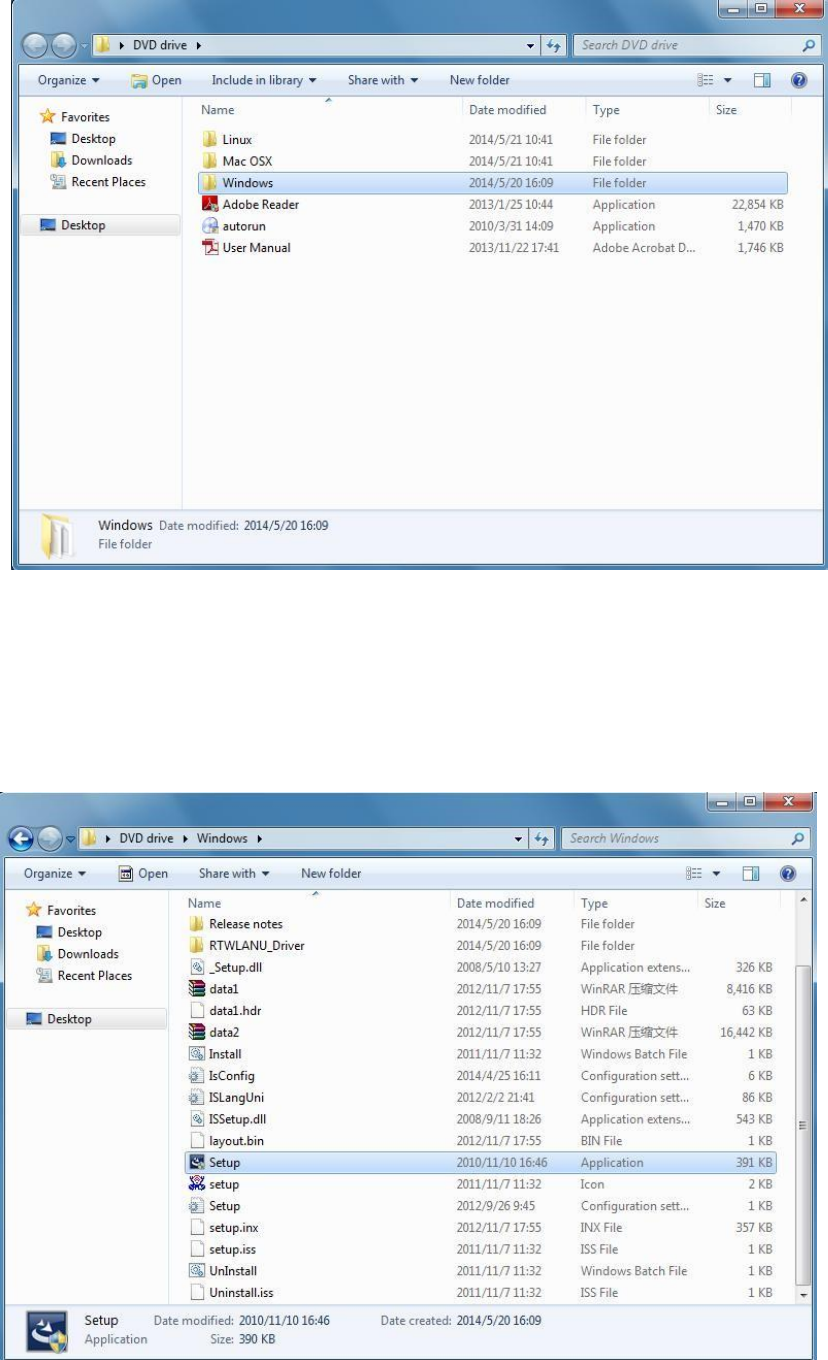

1. Insert CD into your computer’s CD drive, double click “D” Drive OR you
can open the “D” drive.
2. Select proper file for your system “Windows/Mac/Linux”
3. Select your system “Win/Mac/Linux”,follow the direction to finish the
installation
4. 2.Double left-click on the setup.exe file and follow the direction to
finish the installation.

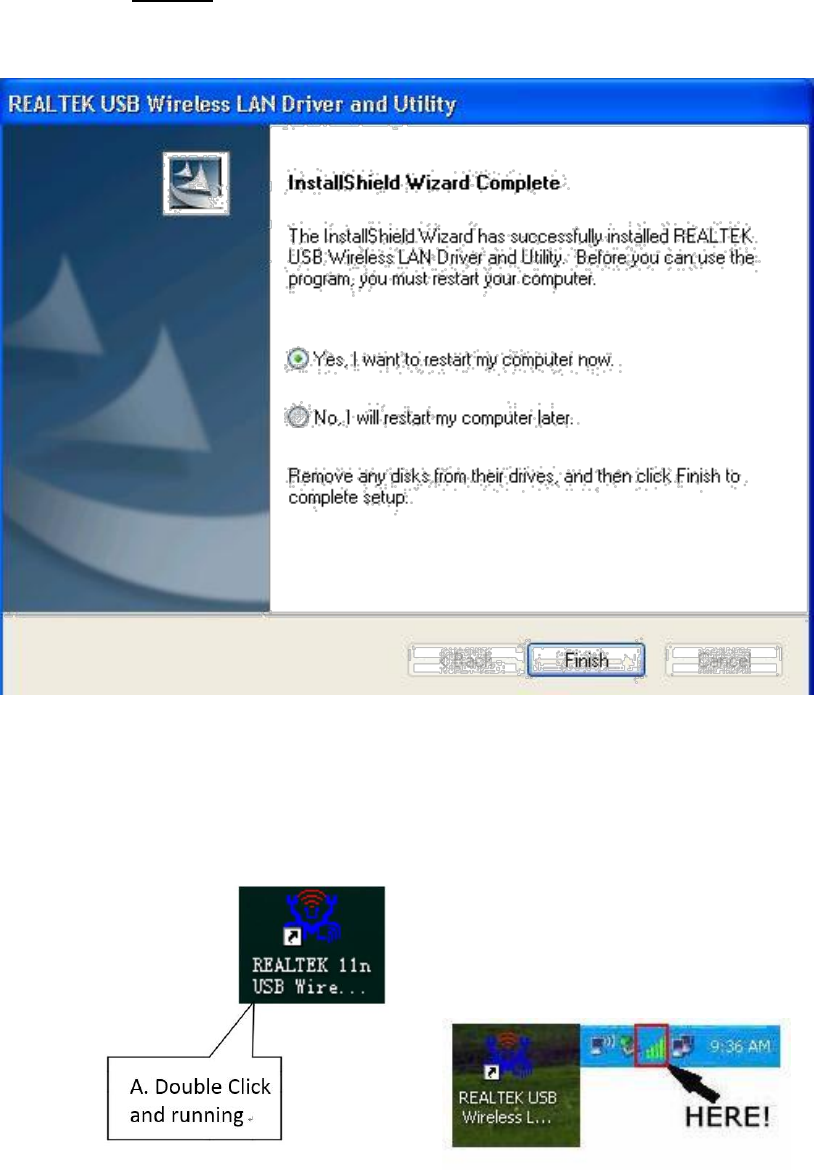

5.Once the installation is finished the computer will be asked to reboot.
you can click ‘Finish’ and reboot the computer to finish the installation of
driver files.
6.A new icon will appear near the clock of system tray:

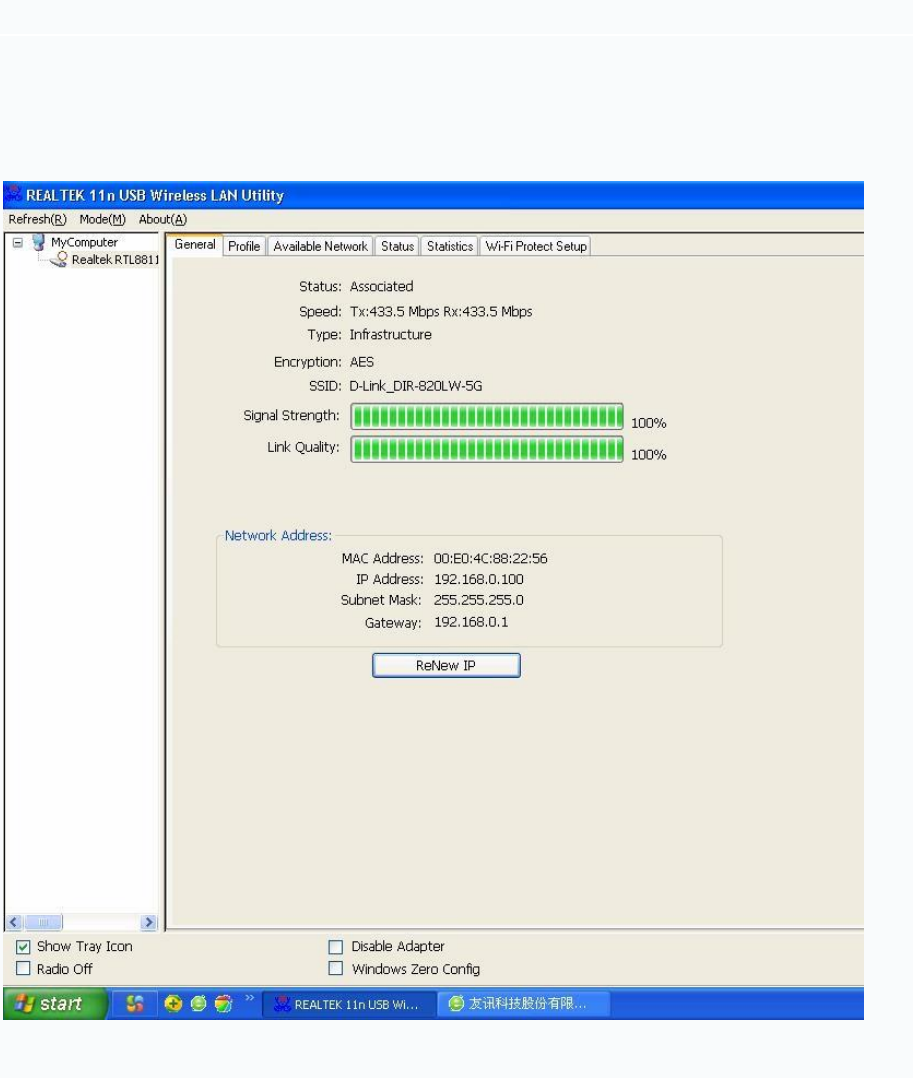

Connect to the Internet:

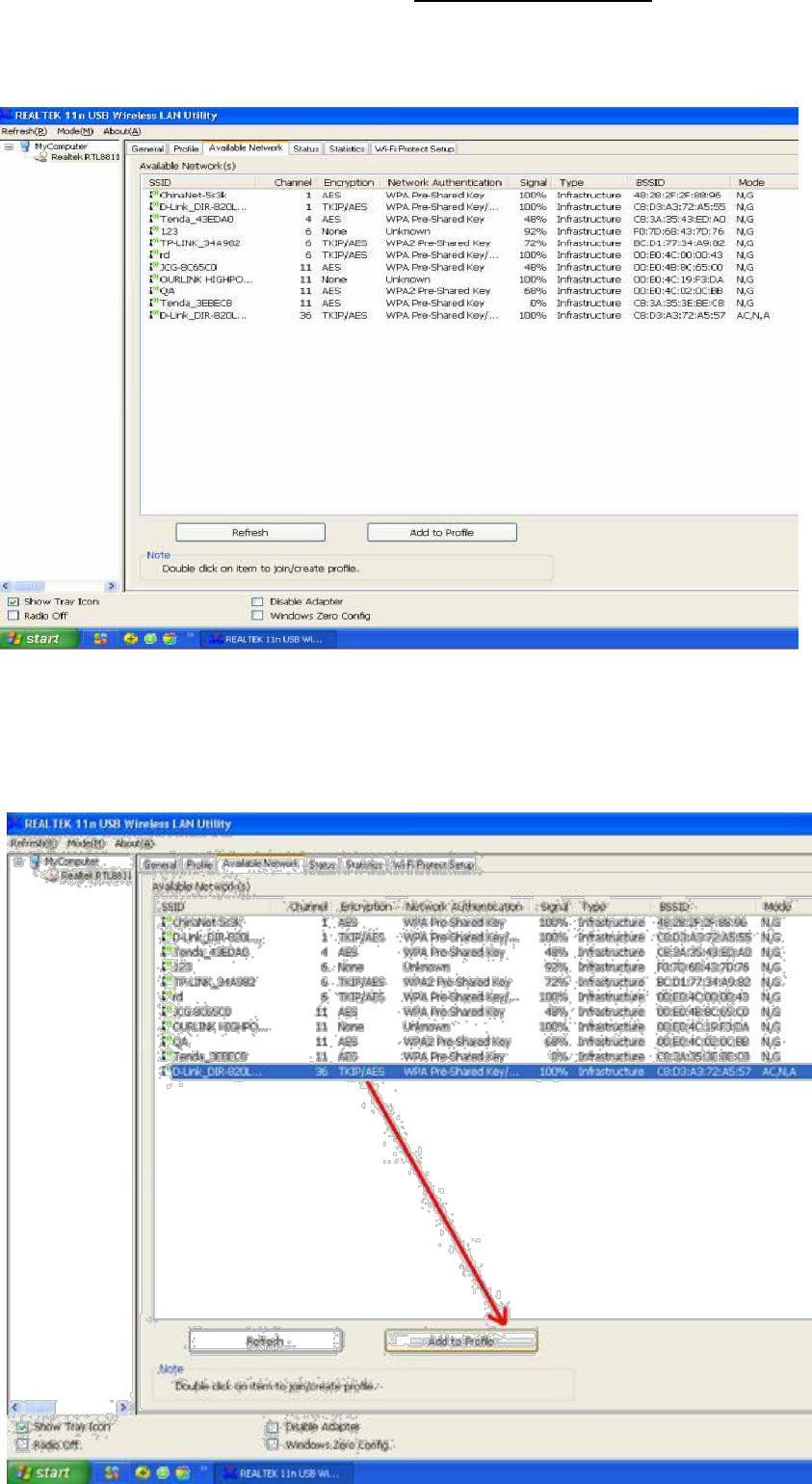

7.Wireless utility will appear. Click ‘Available Network’ menu to search
for wireless access points nearby.
8.Choose your network and enter the password
3.AP mode for Win8.1/8/7/vista/xp/2000

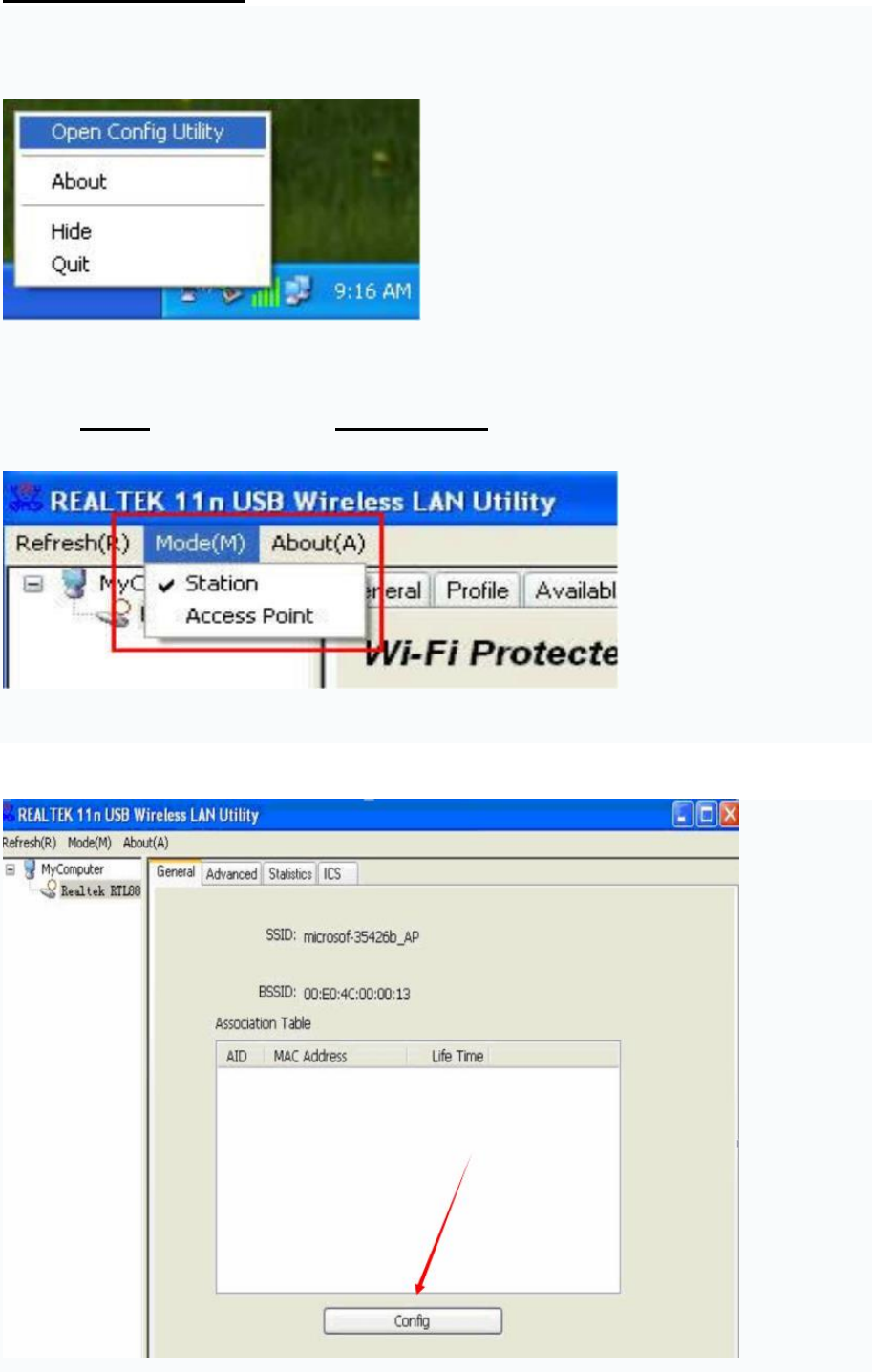

Right-click Client configuration utility icon, and click
Open Config Utility
Select Mode and then select Access Point．
It requires few seconds to switch to AP mode, please be patient

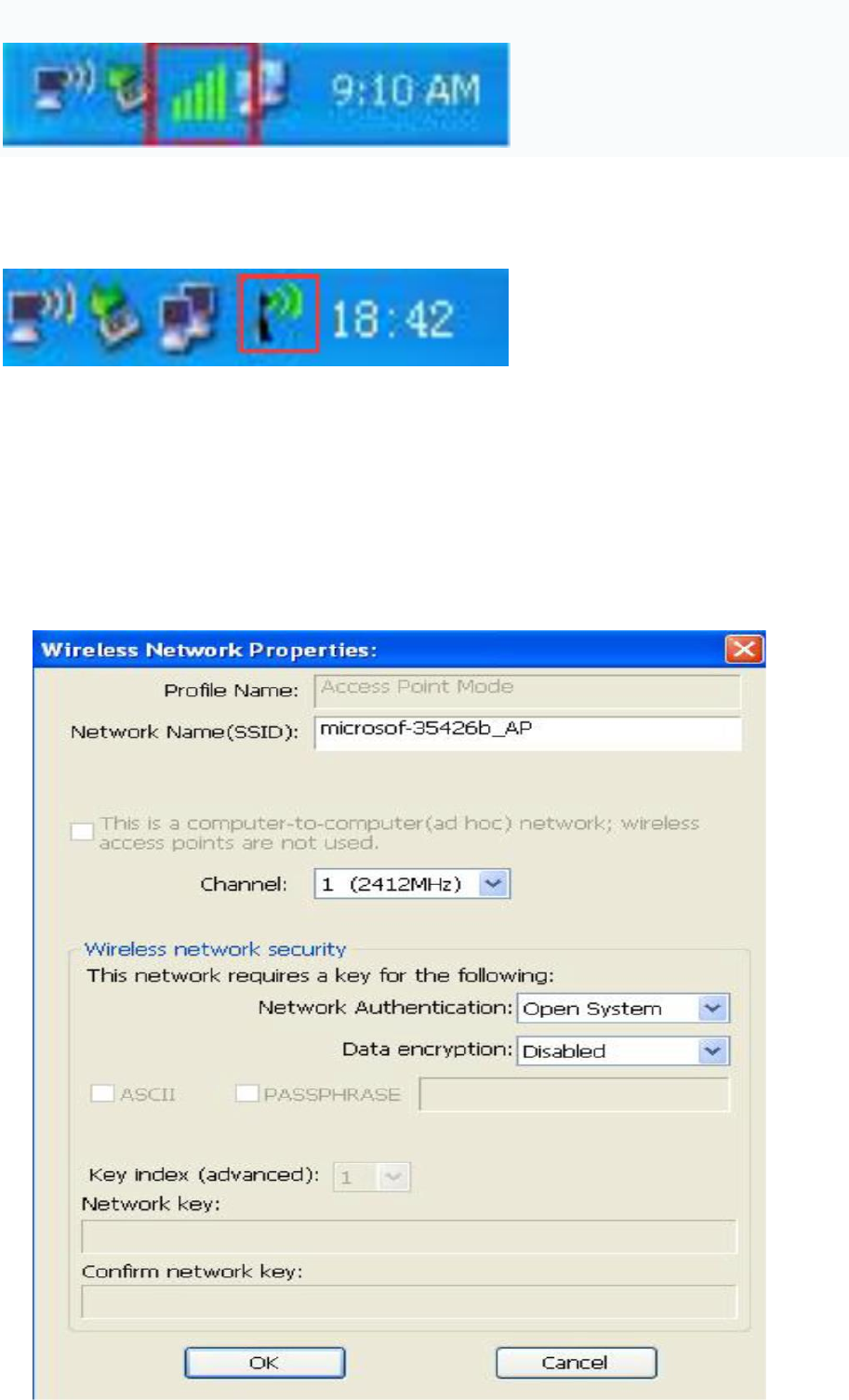

Client mode icon
AP mode icon
Configure SSID and Channel
Please note that Ad-Hoc mode is not available when network card is in AP
mode

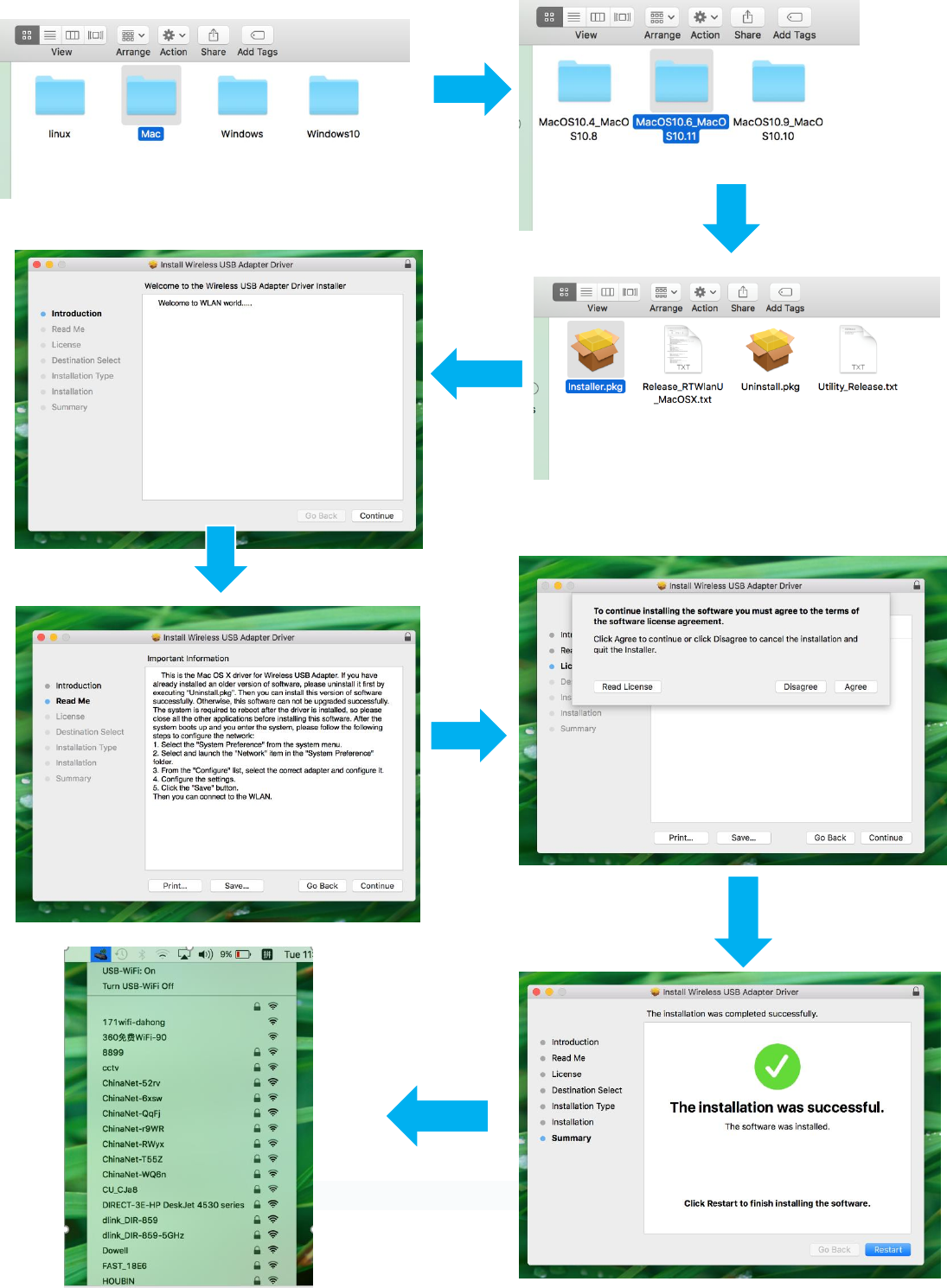

4.Quick Installation Guide for MAC
o
FCC statement
This device complies with Part 15 of the FCC Rules: Operation is subject to
the following two conditions:
1. This device may not cause harmful interference and
2. This device must accept any interference that is received, including any interfer
ence that may cause undesired operation.
*RF warning for Portable device: The device has been evaluated to meet general
RF exposure requirement. The device can be used in portable exposure condition
without restriction.
This device is acting as host and operating in the 2.4 GHz (2412 ~2462 MHz)
band.
Ad Hoc function is supported but not able to operate on non-US frequencies.
Do not use the device with the environment which below minimum -30℃ or maximum
over 50℃ .
NOTE: This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of
the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help
Changes or modifications to this unit not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
