SHI KISB Electronic BTK-A22 BLUETOOTH HEADSET User Manual

Shenzhen SHI KISB Electronic Co., Ltd. BLUETOOTH HEADSET

USERS MANUAL

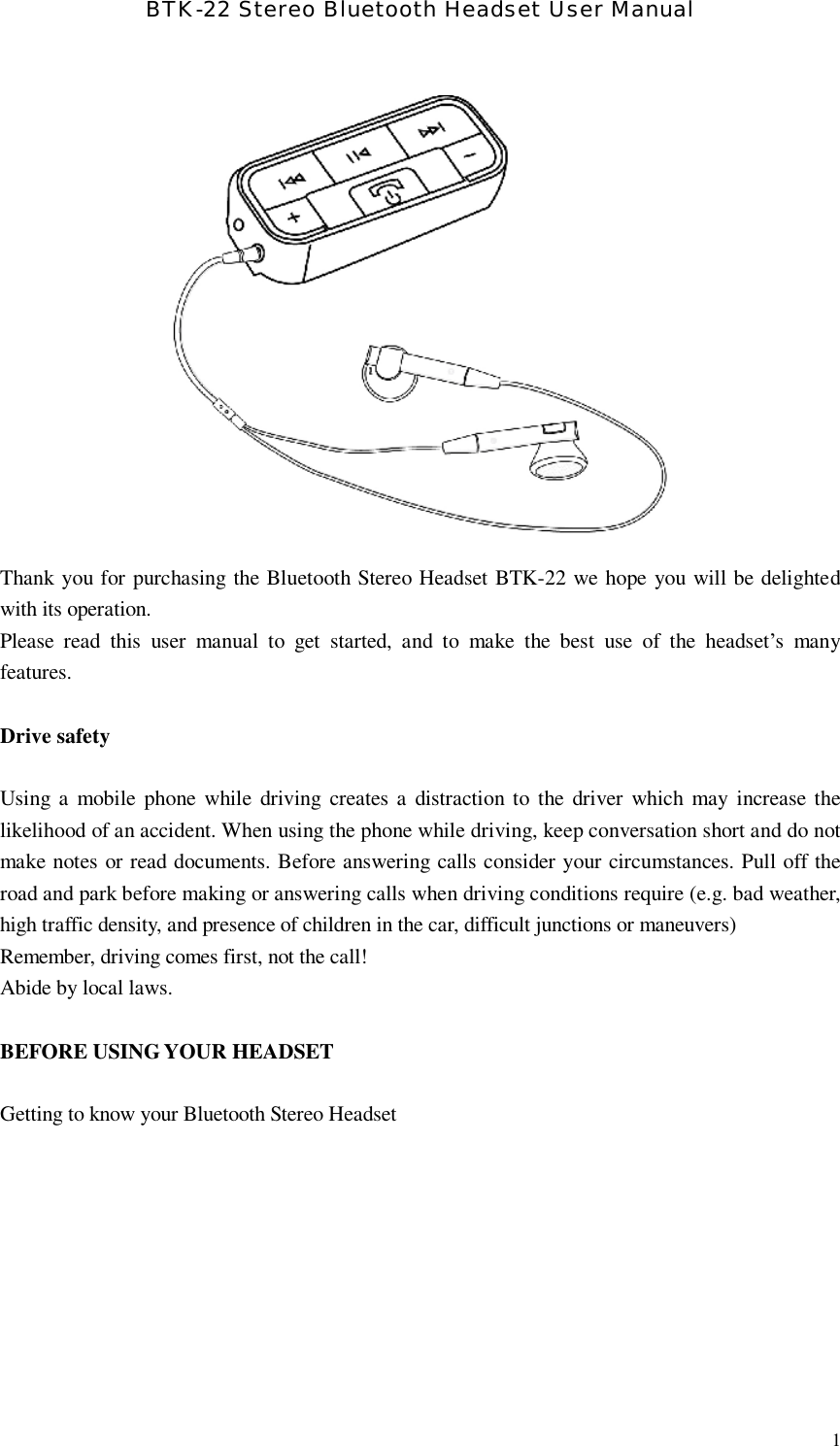

1BTK-22 Stereo Bluetooth Headset User Manual Thank you for purchasing the Bluetooth Stereo Headset BTK-22 we hope you will be delighted with its operation. Please read this user manual to get started, and to make the best use of the headset’s many features. Drive safety Using a mobile phone while driving creates a distraction to the driver which may increase the likelihood of an accident. When using the phone while driving, keep conversation short and do not make notes or read documents. Before answering calls consider your circumstances. Pull off the road and park before making or answering calls when driving conditions require (e.g. bad weather, high traffic density, and presence of children in the car, difficult junctions or maneuvers) Remember, driving comes first, not the call! Abide by local laws. BEFORE USING YOUR HEADSET Getting to know your Bluetooth Stereo Headset
2 Getting Started To use your Bluetooth Stereo Headset, please follow these simple steps: l Charge your headset l Pair your headset with a Bluetooth-enabled mobile handset Charging Your Headset Your headset uses a rechargeable battery. You must charge the battery fully before using the headset for the first time. Simply plug in provided USB cable to USB port then to USB Car Charger Adaptor / Notebook Computer / Desktop Computer. Headset will start charging. The red indicator of headset will turn on when charging. When the battery is full, the red indicator of the headset will turn off. 1) Charge the headset until the red light on the headset turn off. 2) The headset will be fully charged in approximately 1 hour. 3) Remove the USB cable from the charging socket. . IMPORTANT: The headset cannot be used while charging. Talk& standby Time The full charged batter offers about 8 hours* talk time, 10 hours* play time and 200 hours* standby time. When no calls are in progress, the headset remains turn on in standby mode. *Depending on the phone type and usage, the actual time may vary.
3Low Battery When Battery of the headset is low, there is a beep, and flashes in red instead of blue during standby model. Turning Your Headset On and Off Turn on the headset Press and hold the ON/OFF button for 3 seconds until you hear a short beep. The LED will flash blue for 3 times. IMPORTANT: Press the ON/OFF button again each time you turn on the headset to reactivate pairing so that connection between the headset and the mobile headset is resumed. For pairing, please refer to “pairing your headset” Turning Off the headset Press and hold the ON/OFF button for 5 second until you hear a long beep. The LED will flash red for 3 times. Pairing Your Headset Prior to using your Bluetooth Stereo Headset for the first time, you must pair it with a Bluetooth-enable mobile handset. 1. Place the headset and the mobile handset where they are easily viewable by no more than 1 meter apart. 2. Ensure the headset is OFF. 3. Press and hold the On/Off button for 4 seconds until the headset LED alternately flashes blue and red. 4. Active your mobile handset’s Bluetooth function by referring to your mobile handset user guide for details. 5. Set the mobile handset to search for Bluetooth devices with in about 1 meter, as instructed in the mobile handset user guide and select “BTK-22” from the list. 6. Enter the preprogrammed passkey “0000” and press “OK” to pair your headset and mobile handset. When the pairing is complete, the headset LED will flash blue. 7. Press: Return” to go back to your mobile handset’s main menu. For certain mobile handset models, a headset icon will be shown on the screen. You should now be able to make and receive calls using your headset. IMPORTANT: If the pair cannot be completed within 1 minute while the pairing mode is activated, the headset LED flashes blue each 1 second. Please repeat step 2 to 7 to pair the headset

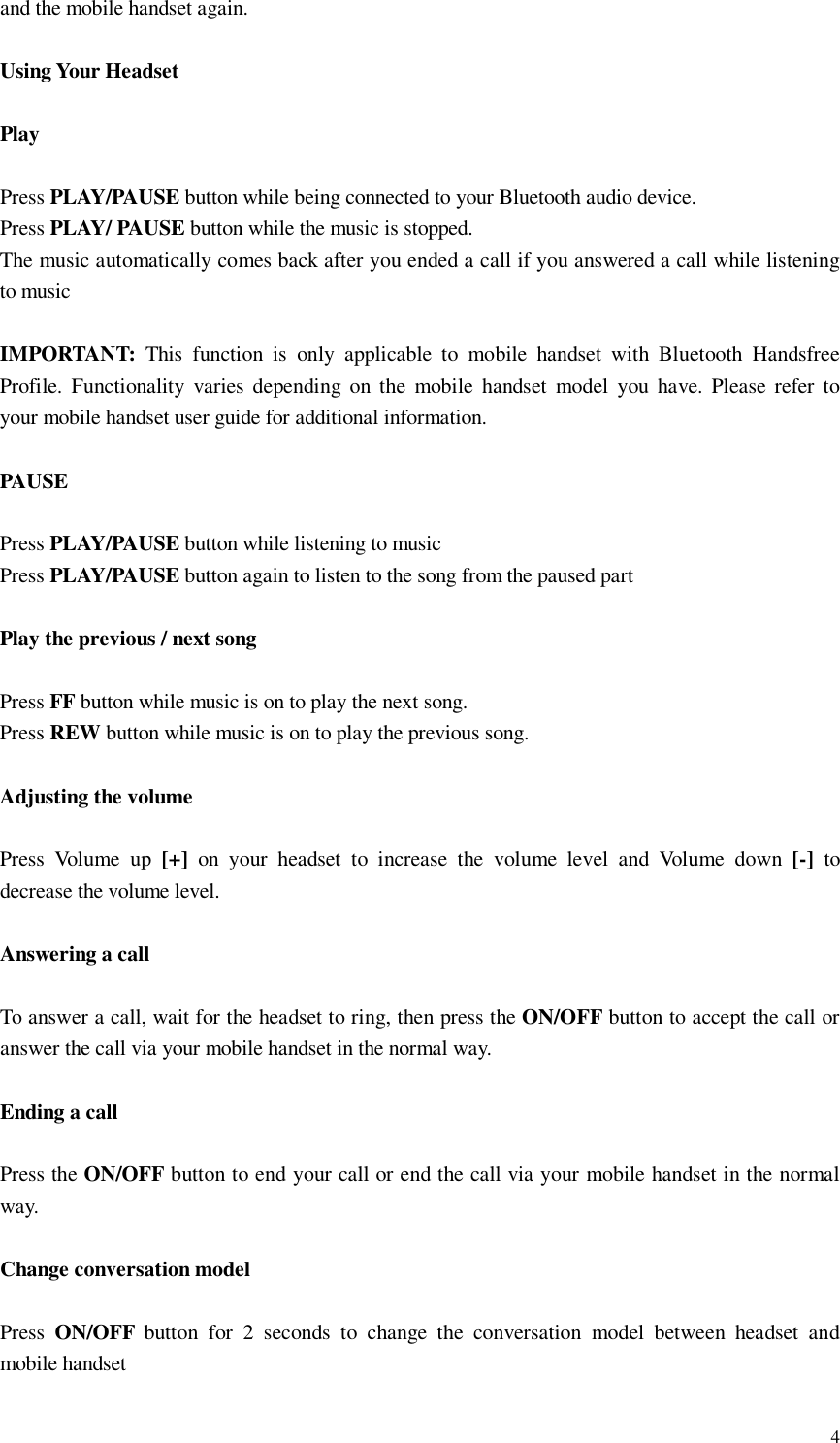

4and the mobile handset again. Using Your Headset Play Press PLAY/PAUSE button while being connected to your Bluetooth audio device. Press PLAY/ PAUSE button while the music is stopped. The music automatically comes back after you ended a call if you answered a call while listening to music IMPORTANT: This function is only applicable to mobile handset with Bluetooth Handsfree Profile. Functionality varies depending on the mobile handset model you have. Please refer to your mobile handset user guide for additional information. PAUSE Press PLAY/PAUSE button while listening to music Press PLAY/PAUSE button again to listen to the song from the paused part Play the previous / next song Press FF button while music is on to play the next song. Press REW button while music is on to play the previous song. Adjusting the volume Press Volume up [+] on your headset to increase the volume level and Volume down [-] to decrease the volume level. Answering a call To answer a call, wait for the headset to ring, then press the ON/OFF button to accept the call or answer the call via your mobile handset in the normal way. Ending a call Press the ON/OFF button to end your call or end the call via your mobile handset in the normal way. Change conversation model Press ON/OFF button for 2 seconds to change the conversation model between headset and mobile handset

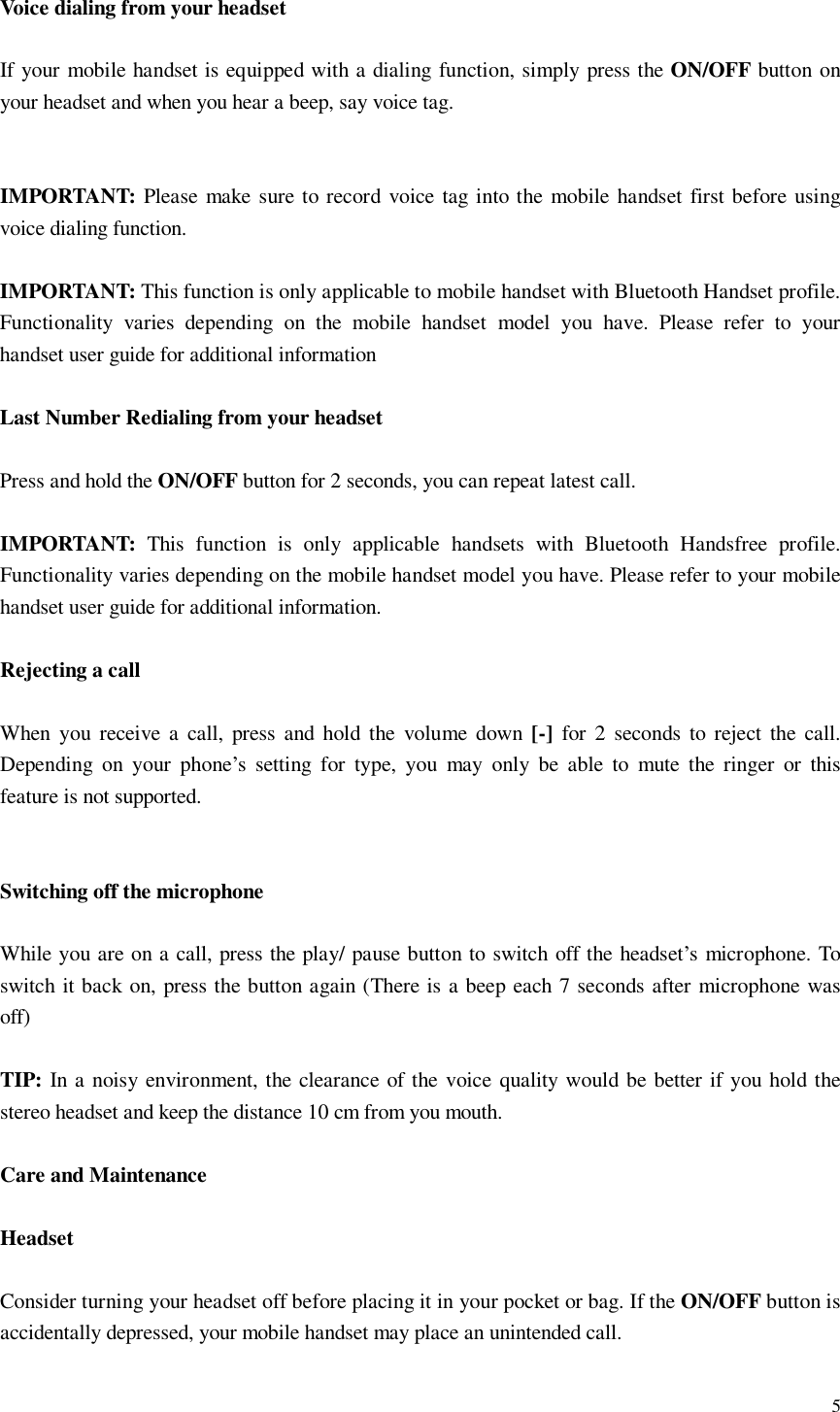

5 Voice dialing from your headset If your mobile handset is equipped with a dialing function, simply press the ON/OFF button on your headset and when you hear a beep, say voice tag. IMPORTANT: Please make sure to record voice tag into the mobile handset first before using voice dialing function. IMPORTANT: This function is only applicable to mobile handset with Bluetooth Handset profile. Functionality varies depending on the mobile handset model you have. Please refer to your handset user guide for additional information Last Number Redialing from your headset Press and hold the ON/OFF button for 2 seconds, you can repeat latest call. IMPORTANT: This function is only applicable handsets with Bluetooth Handsfree profile. Functionality varies depending on the mobile handset model you have. Please refer to your mobile handset user guide for additional information. Rejecting a call When you receive a call, press and hold the volume down [-] for 2 seconds to reject the call. Depending on your phone’s setting for type, you may only be able to mute the ringer or this feature is not supported. Switching off the microphone While you are on a call, press the play/ pause button to switch off the headset’s microphone. To switch it back on, press the button again (There is a beep each 7 seconds after microphone was off) TIP: In a noisy environment, the clearance of the voice quality would be better if you hold the stereo headset and keep the distance 10 cm from you mouth. Care and Maintenance Headset Consider turning your headset off before placing it in your pocket or bag. If the ON/OFF button is accidentally depressed, your mobile handset may place an unintended call.

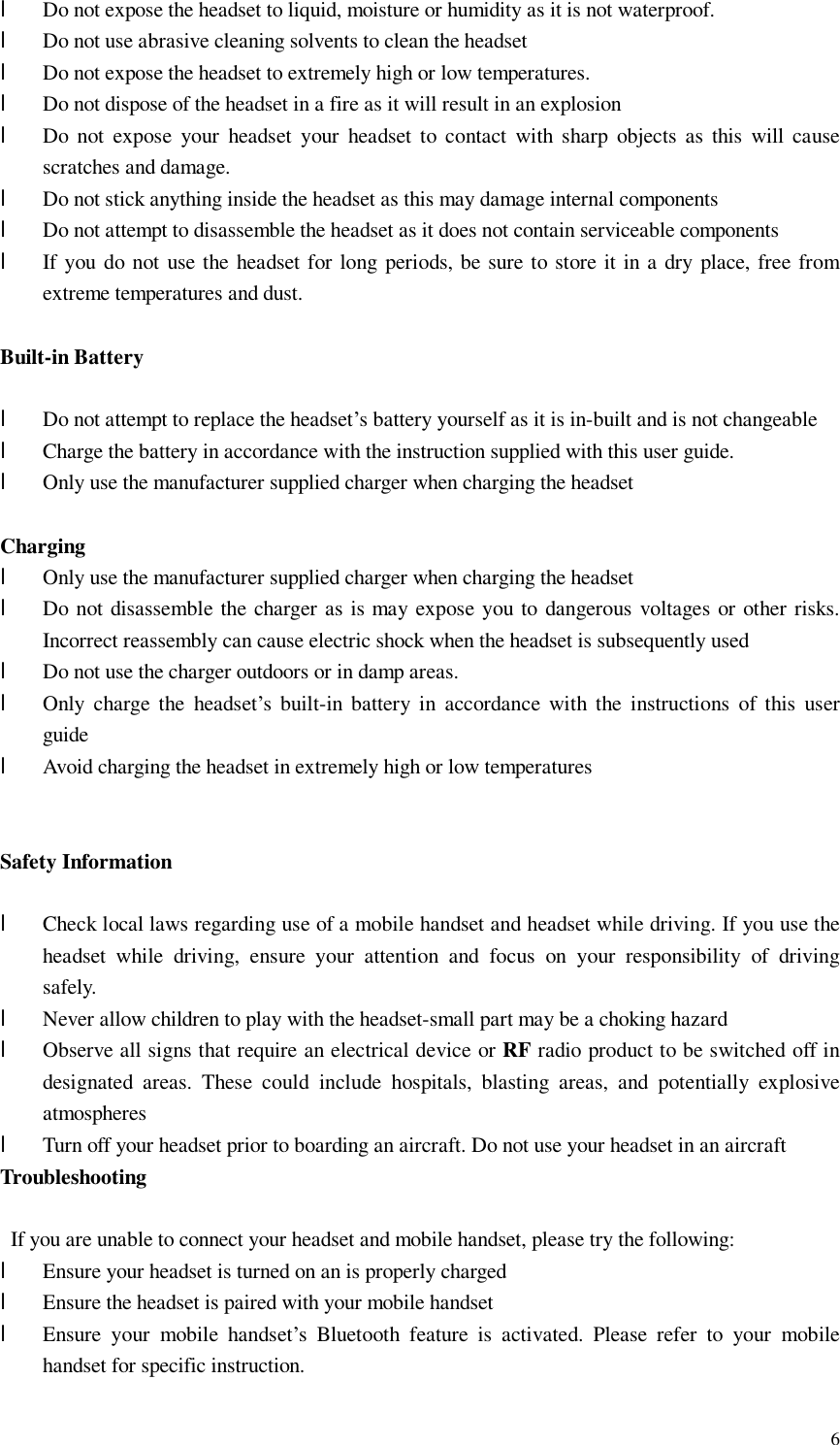

6l Do not expose the headset to liquid, moisture or humidity as it is not waterproof. l Do not use abrasive cleaning solvents to clean the headset l Do not expose the headset to extremely high or low temperatures. l Do not dispose of the headset in a fire as it will result in an explosion l Do not expose your headset your headset to contact with sharp objects as this will cause scratches and damage. l Do not stick anything inside the headset as this may damage internal components l Do not attempt to disassemble the headset as it does not contain serviceable components l If you do not use the headset for long periods, be sure to store it in a dry place, free from extreme temperatures and dust. Built-in Battery l Do not attempt to replace the headset’s battery yourself as it is in-built and is not changeable l Charge the battery in accordance with the instruction supplied with this user guide. l Only use the manufacturer supplied charger when charging the headset Charging l Only use the manufacturer supplied charger when charging the headset l Do not disassemble the charger as is may expose you to dangerous voltages or other risks. Incorrect reassembly can cause electric shock when the headset is subsequently used l Do not use the charger outdoors or in damp areas. l Only charge the headset’s built-in battery in accordance with the instructions of this user guide l Avoid charging the headset in extremely high or low temperatures Safety Information l Check local laws regarding use of a mobile handset and headset while driving. If you use the headset while driving, ensure your attention and focus on your responsibility of driving safely. l Never allow children to play with the headset-small part may be a choking hazard l Observe all signs that require an electrical device or RF radio product to be switched off in designated areas. These could include hospitals, blasting areas, and potentially explosive atmospheres l Turn off your headset prior to boarding an aircraft. Do not use your headset in an aircraft Troubleshooting If you are unable to connect your headset and mobile handset, please try the following: l Ensure your headset is turned on an is properly charged l Ensure the headset is paired with your mobile handset l Ensure your mobile handset’s Bluetooth feature is activated. Please refer to your mobile handset for specific instruction.

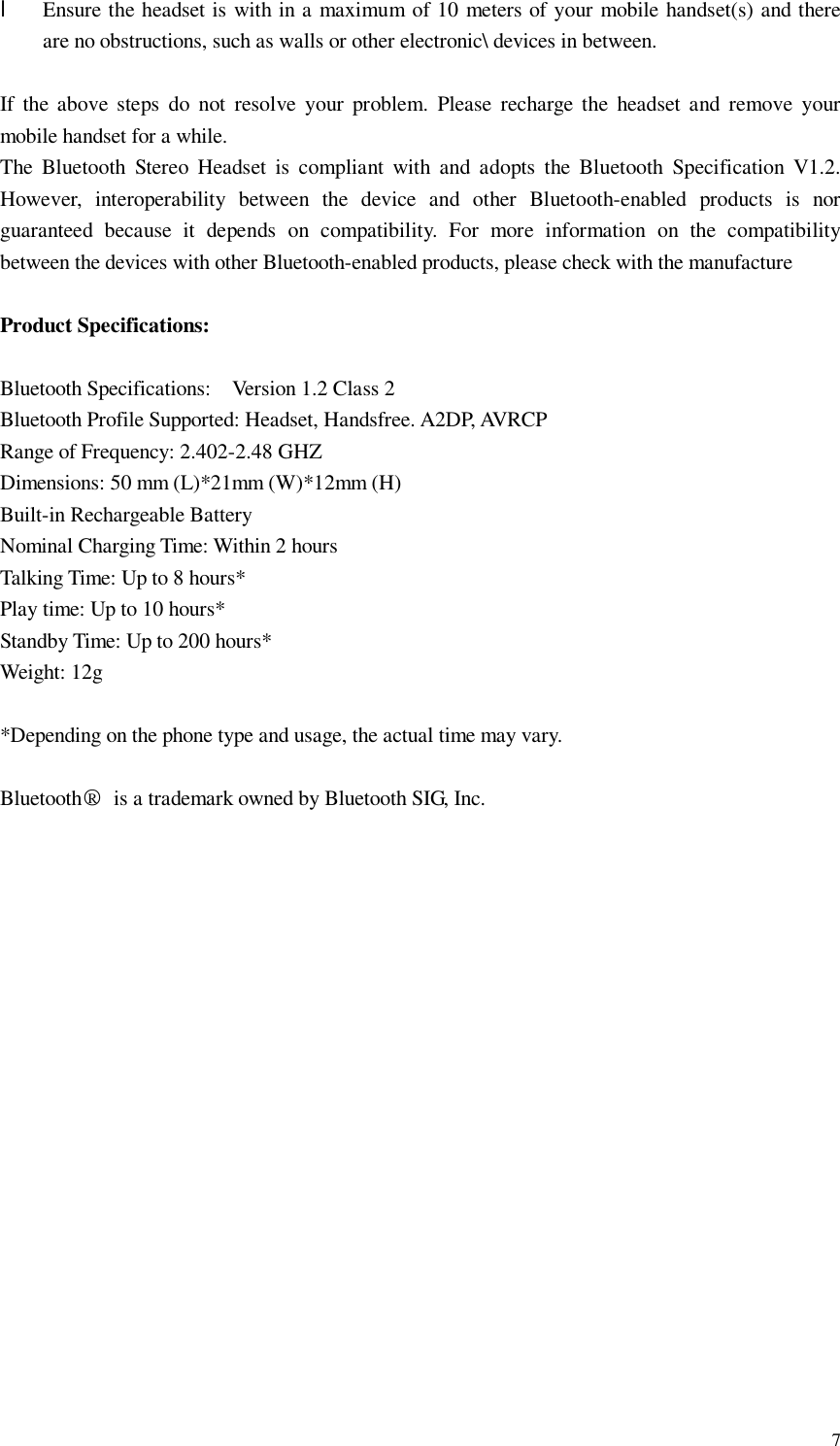

7l Ensure the headset is with in a maximum of 10 meters of your mobile handset(s) and there are no obstructions, such as walls or other electronic\ devices in between. If the above steps do not resolve your problem. Please recharge the headset and remove your mobile handset for a while. The Bluetooth Stereo Headset is compliant with and adopts the Bluetooth Specification V1.2. However, interoperability between the device and other Bluetooth-enabled products is nor guaranteed because it depends on compatibility. For more information on the compatibility between the devices with other Bluetooth-enabled products, please check with the manufacture Product Specifications: Bluetooth Specifications: Version 1.2 Class 2 Bluetooth Profile Supported: Headset, Handsfree. A2DP, AVRCP Range of Frequency: 2.402-2.48 GHZ Dimensions: 50 mm (L)*21mm (W)*12mm (H) Built-in Rechargeable Battery Nominal Charging Time: Within 2 hours Talking Time: Up to 8 hours* Play time: Up to 10 hours* Standby Time: Up to 200 hours* Weight: 12g *Depending on the phone type and usage, the actual time may vary. Bluetooth○R is a trademark owned by Bluetooth SIG, Inc.

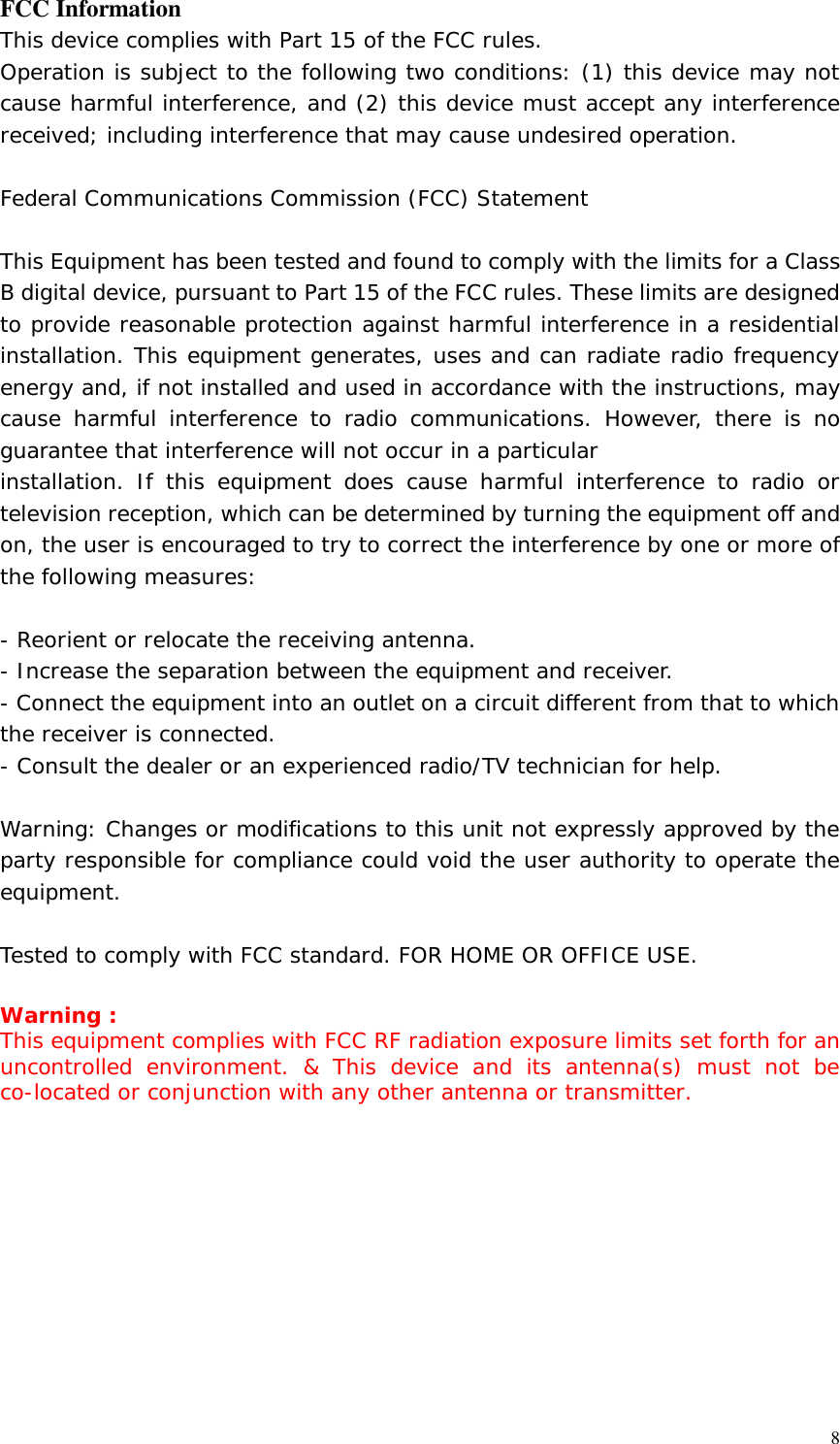

8FCC Information This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received; including interference that may cause undesired operation. Federal Communications Commission (FCC) Statement This Equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment. Tested to comply with FCC standard. FOR HOME OR OFFICE USE. Warning : This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. & This device and its antenna(s) must not be co-located or conjunction with any other antenna or transmitter.
