SITECSystem MVP100 Portable Multimedia Player with Digital Camera User Manual
SITECSystem Co., Ltd. Portable Multimedia Player with Digital Camera Users Manual
Users Manual
CENTRIX MVP-100
User Manual
Thank you for purchasing this product.
Please read the manual carefully before use.
SITECSystem Co., Ltd
www.centrixclub.com
Table Of Contents
•Thank you notes
•Online registration Info.
•Copyrights notice
•Trademarks
•Limited Liability
•Safety Instructions
1. Before Using
2. Getting started
3. Music Box
4. Video Box
5. Image
6. Snapshot
7. Voice Recorder
8. File Manager
9. Settings
10. Firmware Update
11. FAQ
12. Specifications
13. Warranty
14. A/S information
Warranty Notes
Thank you for your CENTRIX MVP-100 purchase.
We will do our best to compensate to customer’s support with the top-
on-top product. This guide will ensure that you get the most functions
of MVP-100 with conveniences. Please do read through this guide
before using and contact our customer support center for any problem
in use.
Thank you notes
•You can receive continuous services through online register of
CENTRIX Club (www.centrixclub.com).
•This site provides you diverse
information and news of product.
•By online registration, you can
receive diverse event or product
information provided by
CENTRIX Club.
•Using Firmware Update from
website, you can receive
continuous service for product
improvement.
•Diverse of customer questions
are answered and online support
is available.
Online registration Info.
12
• Using this manual if you make play, copy, distribution of the
software, audio and video which have an intellectual property are
protected by copyright & international laws. User are responsible
for infringement of copyright or intellectual property.
• CENTRIX is the registered trademark of SitecSystem Co., Ltd.
• Microsoft Windows 98, Windows ME, Windows 2000,
Windows XP is registered trademarks of Microsoft Corporation.
•Limited Liability on improper use : Manufacturer, Importer,
Distributor, Agencies shall not be liable for product damages
caused by misuse, abuse, improper handling, infringement of
literary property by photographing & portrait using this
product. The manufacturer shall not be responsible for injury
and damages caused by improper uses in out of standard or
conditions.
•Limited Liability on loss of data : Users should keep
separately data stored on disk media, video file, photo file to
avoid operating error, failure of unknown cause, loss during
A/S. Manufacturer, Importer, Distributor, Agencies shall not
be liable for damages caused by loss of data stored on the
product.
•Limited Liability on alteration of functions : The
manufacturer, SitecSystem Co., Ltd may change the
specifications or S/W without individual’s consent or prior
information.
Trademarks
Limited Liability
Copyright Notice
Safety Instructions
34
Visual Safety
• Watching video files with narrow screen
can cause a visual damage. Do not use for
a long time continuously.
Safety while walking
• Reduce volume of headphone or
earphone while walking or at street side,
pedestrian’s crosswalk because it can
cause damages.
Safety during driving
• Do not use headphones or earphones
while cycling, driving such as motorized
vehicle & roller skating.
• It can be against the law in some regions
to use headphones or earphones during
driving.
• Do not leave this product in a car. It may
cause damages to the product and user
according to the ascending or descending
of in car temperature.
Hearing Safety
• Do not use headphones or earphones at
high volume. Auditory injury can be caused.
• Reduce volume or stop using the player if
you experience a ringing in your ears.
• Hearing for a long time can cause
auditory injury.
Safety in public transportation
It may cause accidental damage using in
bus, subway, railway such as public
transportation by caught earphones
between the doors. Listening with loud
volume while using public transportation
may cause inconveniences to other people.
To protect other’s privacy, please use with
low volume while using public transportation.
Prohibition of expose to water, humidity,
rain, beverage, medicine and cosmetic
This player, as a electronic product, is easily
damaged by water. Do not power on if the
player gets wet , then mop up the player
immediately and go get A/S.
Do not use water or other chemicals to
clean the player. Use dry mope or towel.
Prohibition of place objects inside
It is prohibited to put metal or inflammable
objects inside the player for safe usage. It
may cause inferior of player.
Prohibition of reassembling, remodeling
Do not disassemble or modify. It may cause
breakage, inferior or accidental damage.
Precaution against drop or impact
Do not drop or put strong impact through
stepping on the product. It may cause
breakage or inferior.
Safety Instructions
Safety Instructions
Precaution against heavy lading
Do not place heavy objects on the device
to avoid breakage.
Precaution against fire
Keep out of direct ray of light or such
places where there are heating equipment.
Such places may cause player inferior or
breakage.
Proper data backups
Keep your data separately which is stored
in this player unless it may cause data
deletion during inferior or repair.
Manufacturer, Importer, Distributor,
Agencies shall not be liable for data
damages caused by user.
Use only proper accessories
It may cause accidental damage if you use
another accessories not provided with this
player.
Prohibition of chemicals
Do not peel the surface using chemicals
or detergent.
proper
56
Precaution against fire
Power off immediately and detach the
adapter if smoke, smell or noise such
unusual thing happens.
Precaution against magnetic
Magnetic may bring in damage in your
player.
Power management
Do not overload a single power circuit. It
may cause fire or heat.
Precaution of thunder and lightning
Unplug the power use when it thunders or
lightning flashes. Electric shock or breakage
may cause.
Using of approved battery
Use the battery belonged to this product or
manufacturer providing one for safe usage.
Using of approved adapter
Use the AC power adapter belonged to this
product for safe usage.
OK
OK
Safety Instructions
Precaution against humidity or dust
• Do not leave the player where there
are much humidity and dust.
Precaution against using of infants
& children
• Keep battery & adapter away from
touching or sucking of infants & children.
It may cause accidental damage to
infants and children.
Precaution against using battery,
adapter, main body
• Keep the player away from water and
excessively humid areas.
• Do not handle with wet hands, it may
cause accidental damage and receiving
of electric shock.
• Keep away from harsh environments
including impacting, heating, sauna or
disassembling with sharp thing unless it
may cause explosion.
• Do not handle the charging terminal of
adapter or battery with metals unless it
may cause product inferior or damage.
7
Safety Instructions
8

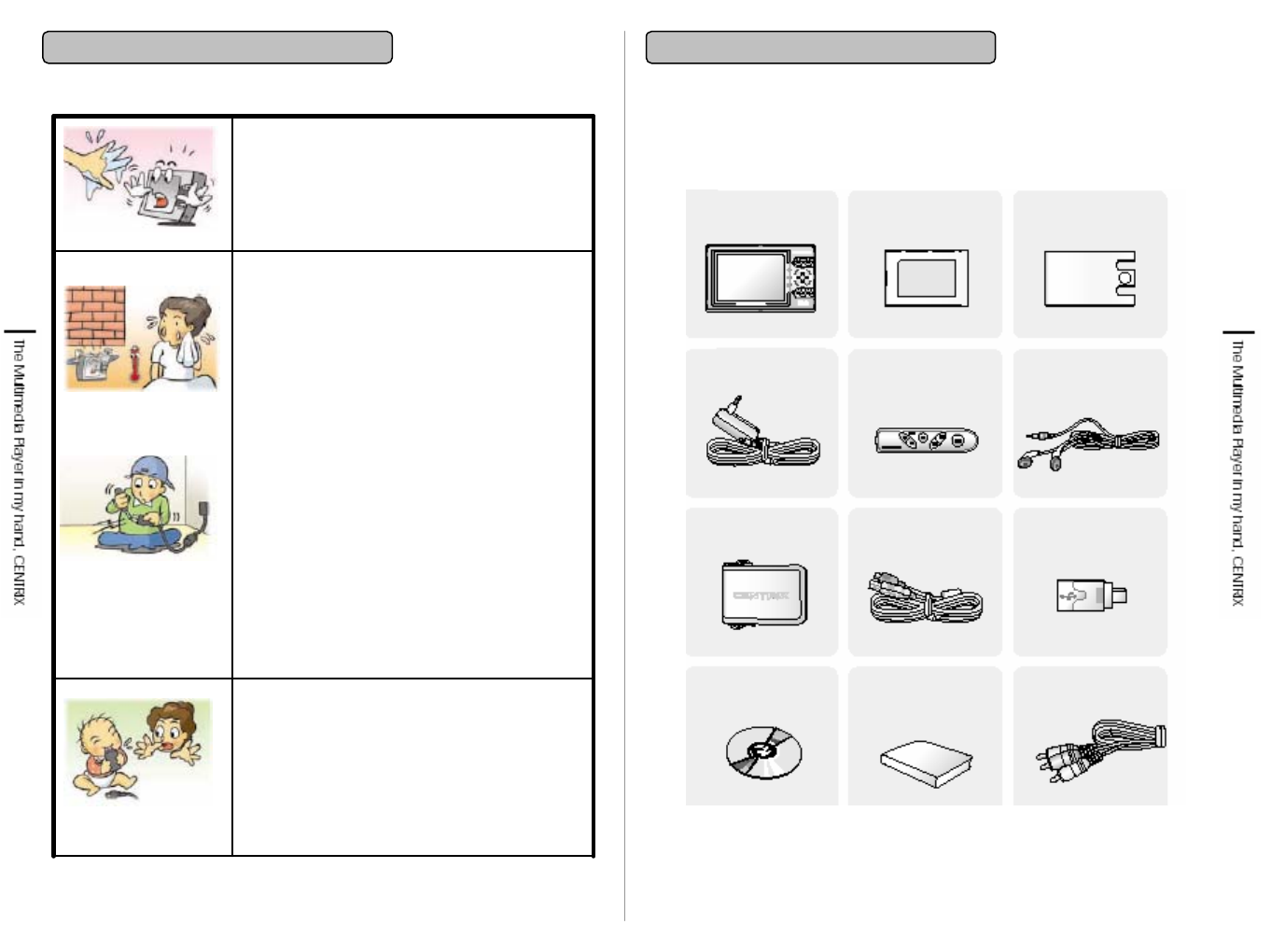

1-1. Accessories & Components
1. Before Using
MVP-100 Battery Plastic Cover
Earphone
Remote
Controller
AC Adapter
Carrying
Case
USB Device
Cable
(Mini B)
USB Host
Jack
(Mini A)
Application
CD User Manual A/V Cable
910
1. Before Using
1-2. Minimum System Requirements
* Under Window 98 system, you should
install additional driver for recognition of
USB.
* Media Converter cannot be installed in
Window 98 system.
USB 1.1 or USB 2.0 required
PC
Interface
Internet Explorer 6.0 or above
MS Windows Media Player 9
MS Direct X 9.0b or above
(minimum requirements)
Multimedia
(Must have
Utility for
Media
Converter)
Divx 5.1.1. or above
Windows 98,SE,ME,2000,XP
Operating
System
256MB or above
(512MB Preferred)
Memory
Pentium III or above
(Pentium IV Preferred)
CPU
While data transmission : It may cause
HDD error if the USB cable is left out while
data transmission/reception from PC or
from external device through USB Host
function as well.
Precaution against drop or impact : It may
cause breakage by external impact or
drop. Avoid accidental impact or drop
against the product.
Precaution
against HDD
handling
Back-up of the stored data before
formatting, if you want to format HDD at
your pleasure.
Precaution
against HDD
format
In case of disk breakage, it is not detected
as external storage device or files are not
visible in each menu of system.
In this case you should ask A/S.
Disk breakage
Check through disk error test provided by
Window program if it is a HDD error.
HDD error
It is necessary to format this product with
FAT32 file system.
It is not detected in this product to format
as NTFS file system under Window base
PC.
1. Before Using
1-3. Using HDD
2. Getting Started 2. Getting Started
11 12

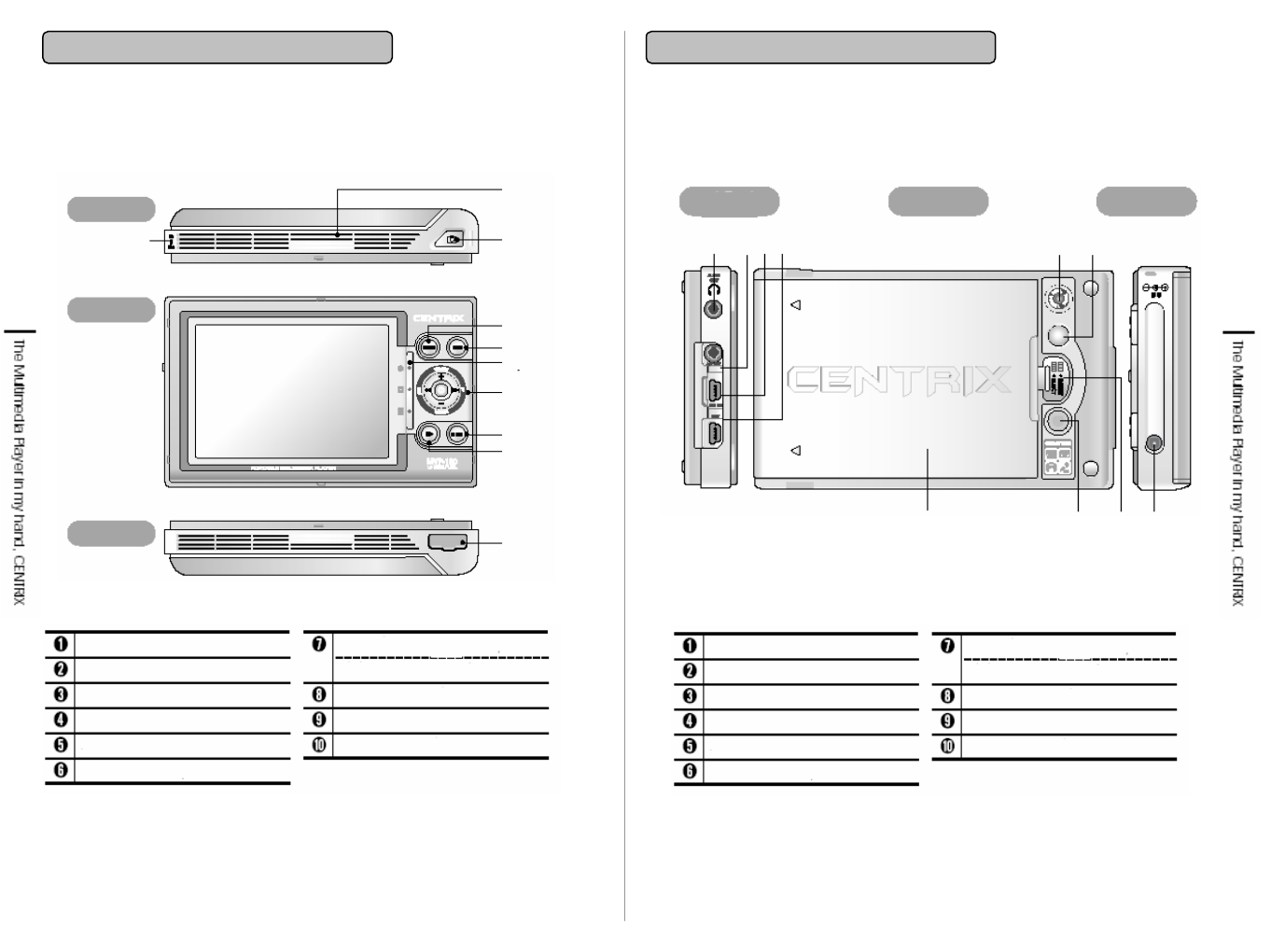

2-1. Name of parts
Top
Bottom
Front
③
④
⑤
⑥
⑦
⑧
⑨
⑩
①
②
Built-In MIC
Built-In 2 Way Speaker
Camera Shutter
Power On/Off
Menu (Function Setting)
Power, HDD, Recharge LED
Vol up/down, REW/FF
SELECT (Straight Push)
Stop/Escape
Play/Pause
Cradle Interface
Remote Control/Earphone Jack
A/V Jack
USB 2.0 Device Jack
USB 1.1 Host Jack
Camera Lens
Camera Mirror
Rechargeable/ Removable
Lithium Polymer Battery
Camera Flash
Battery Lock
DC 5V Jack
①②③④ ⑤ ⑥
⑦⑧⑨⑩
Left Back
Right
2-1. Name of parts
Right
14
2. Getting Started
13
2-1. Name of parts
Earphone Jack
Volume Up
Volume Down
STOP
REW/ Previous Song
FF/ Next Song

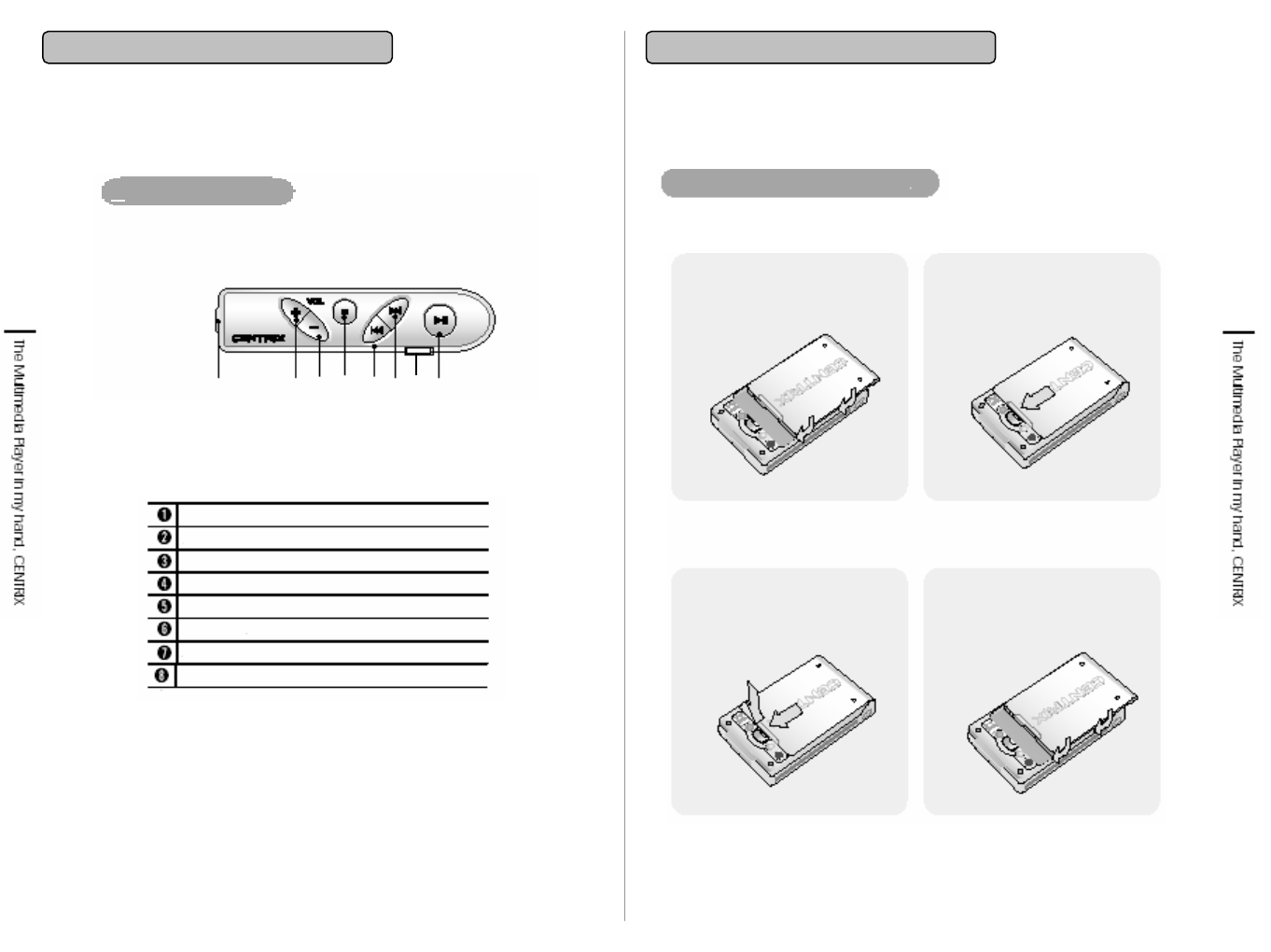

Hold key
Play/ Pause
Remote Control
①②③④ ⑤⑥ ⑦⑧
Attaching/Detaching battery
2. Slide the battery to the
arrow direction till it locks into
the place precisely.
*Detaching the rechargeable battery
1. Cover 4/3 of battery onto
the back side of main body
And fix it.
*Attaching the rechargeable battery
2. Slide 4/3 of the battery out
of the player and
lift it up then it will release.
1. Press the lock to
release the battery and
slide 4/3 of it out of the
player.
2-2. Connecting & Installation
2. Getting Started
15 16
1. Connect the Remote control to the Audio jack.
2. You can connect earphones directly to the player.
Connecting Remote Control & earphone
2. Getting Started 2. Getting Started
2-2. Connecting & Installation2-2. Connecting & Installation
Connecting external speaker
1. Connect the external speaker to the Audio jack.
2. Speaker connection line is not provided.
19 20

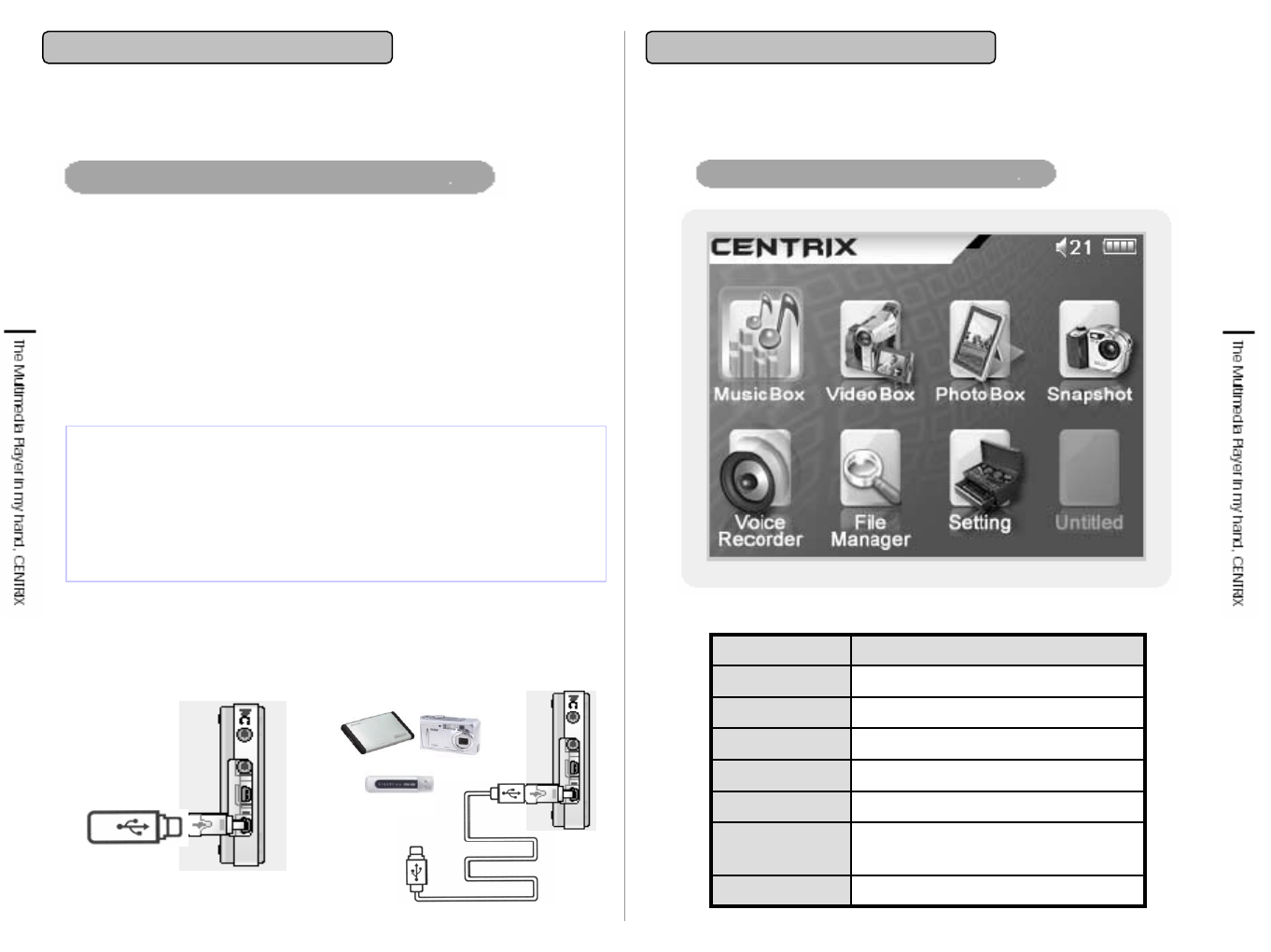

1. Power on the player. Wait until the main screen is displayed.
2. Connect to a PC with USB 2.0 cable (Mini USB B, long cable).
When it is connected to PC, “USB Device Connected” message
will pop-up on the screen
of the player.
3. Open USB port which is on the left side and connect USB 2.0
cable (Mini USB B, long cable) with USB 2.0 Jack which is on
the lower end of player.
4. When it is connected to the main body, it is detected as a mass
storage on PC. If no power source is input, the USB is not
detected. Power on when it is connected to PC.
5. When it is connected to PC, it is detected as a mass storage,
MVP-100.
6. you can transfer movie, music, image file from PC to audio box,
Video, Image folder in the player.
• You should connect to PC with USB 2.0 port.
• This player has USB 2.0 & USB1.1 Host Jack.
Do not use with connecting above two Jacks at the same time.
• Under Window 98 system, you should install additional USB
driver for recognition of USB.
2. Getting Started
2-2. Connecting & Installation
PC Connecting with USB 2.0
2-2. Connecting & Installation
2. Getting Started
Separation from PC
1. If you want to separate the connection between player
and PC, click the USB connecting icon from the menu
icon which is shown right side in the below end of PC
then “Hardware safely detachable” message will pop-up.
2. Select “USB mass storage device” and press ”Stop”.
3. Select “ Toshiba MK2004GAL USB Device” and select
“ Hardware device stop” message from menu.
4. Be sure to check “ Hardware safely detachable” message
on PC.
5. You can separate this player with PC.
Hardware safely detachable
17 18

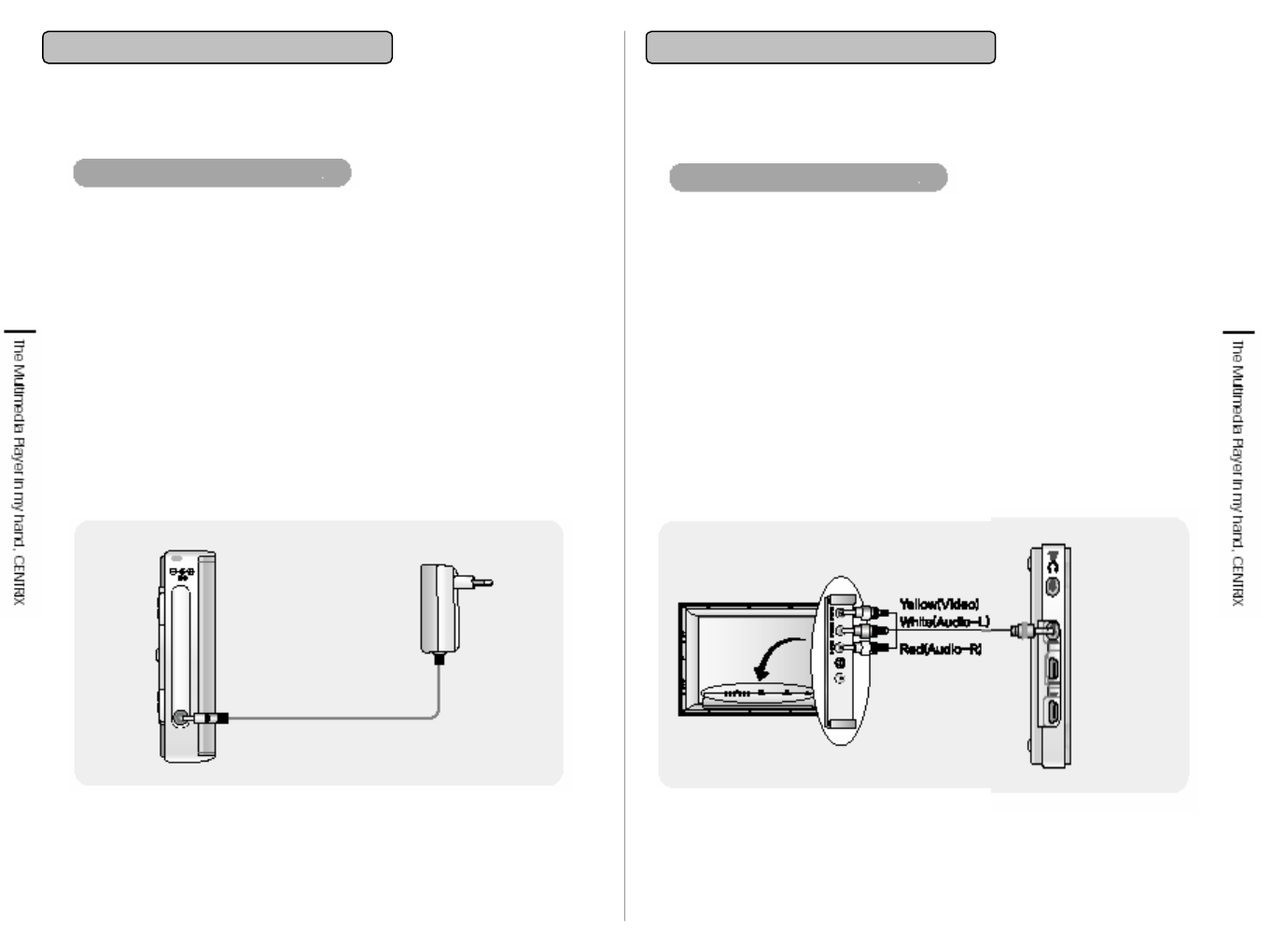

1. Connect the adapter to the player’s DC Jack which
is on the lower end of the right side from the front of
player.
2. If the LED which is on the lower end of the front
illuminates with red color, charging is in processing.
3. The LED light will change into green color when
charging is complete.
4. The LED light will turn-off when the adapter is
detached.
Connecting adapter and charging
2. Getting Started 2. Getting Started
Connecting TV
1. Connect A/V cable to the image input terminal of TV.
Yellow is Video, White is Audio left channel, Red is Audio
right channel.
2. Connect A/V cable to the end of A/V Jack which is on the
lower end of the left side from the front.
3. Set the TV setting as Line-in .
4. When you power on the player, menu icons will be
displayed on TV screen and you can enjoy video file by
setting TV screen.
5. If you pull out the A/V cable from the player, then you can
enjoy video file on the LCD screen again.
6. If you stick A/V cable to the player while screen playing on
built-in LCD, then there is no output on LCD.
2-2. Connecting & Installation2-2. Connecting & Installation
21 22
2. Getting Started
2-2. Connecting & Installation 2-3. Basic Function
2. Getting Started

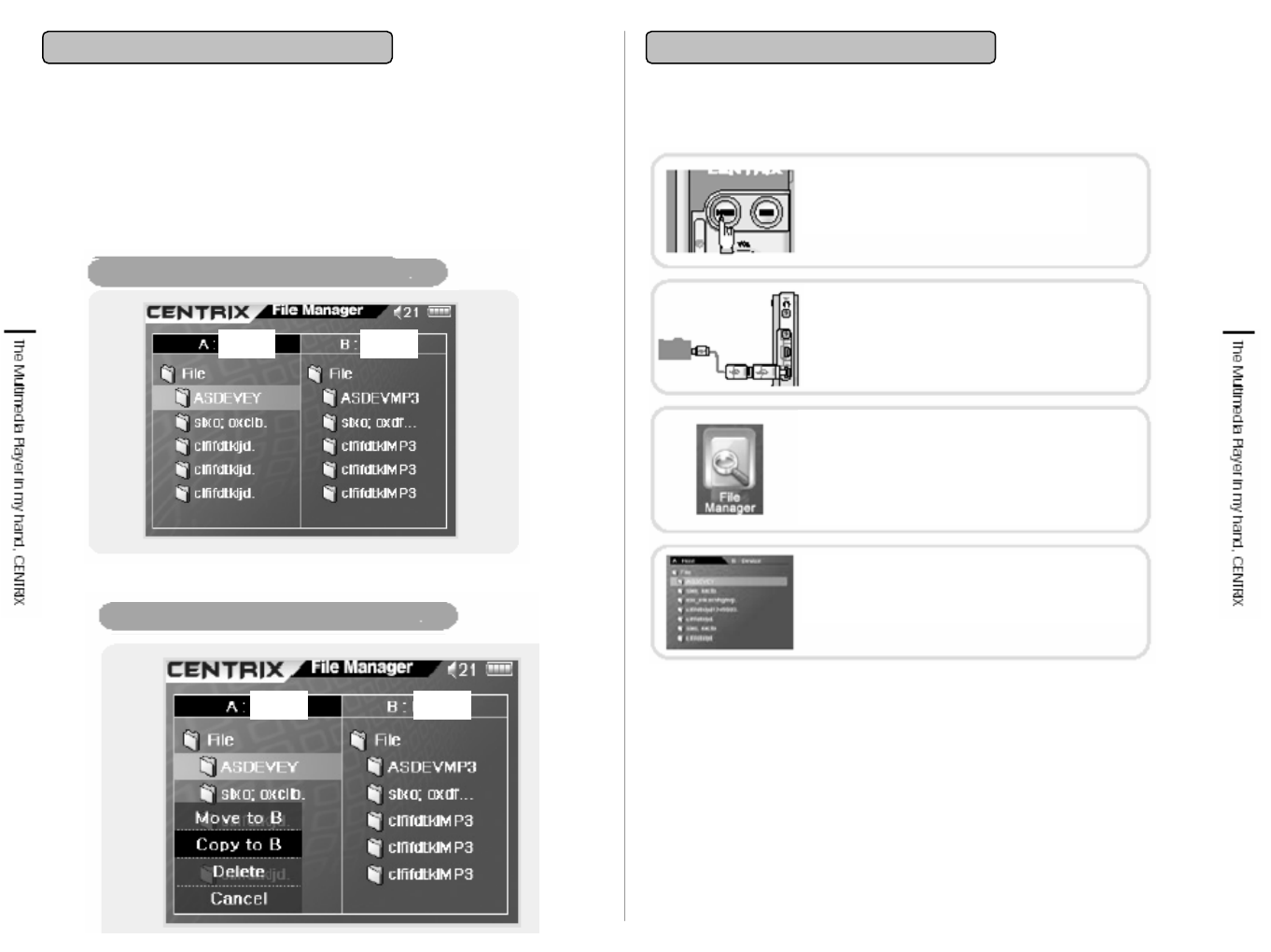

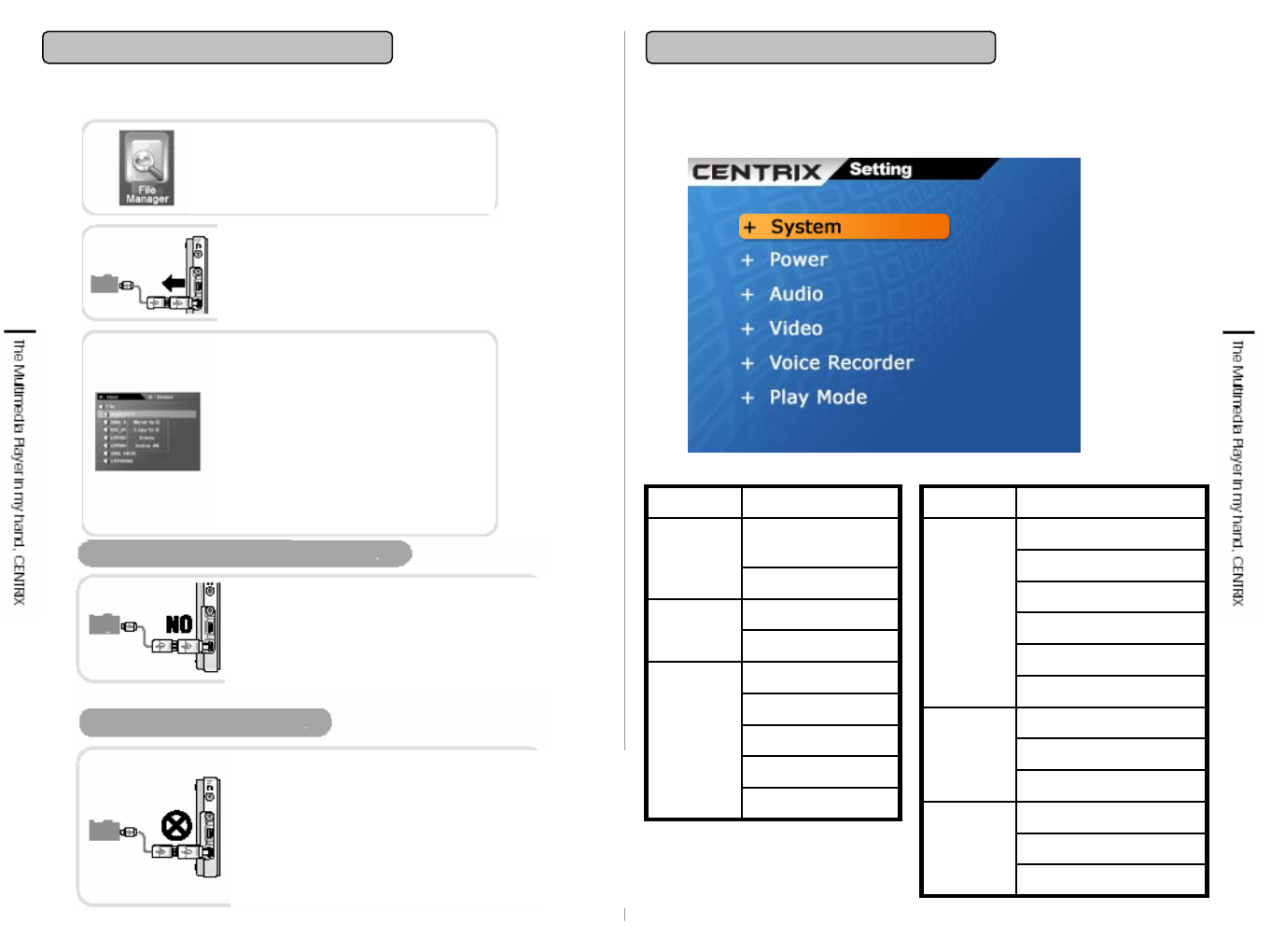

< USB Flash Memory Drive> <Digital Camera/ External USB
HDD/Flash MP3 Player>
1. Connect USB 1.1 Host cable (Mini USB A, short cable) to USB
storage device (USB Flash Memory Drive).
2. Open USB port which is on the left side and connect USB Host cable
(short cable) with USB Host Jack which is on the lower end of player.
3. When it is connected to the main body, it is detected as a mass
storage (B: device) on PC.
4. Transfer, save, deletion of file is available at File Manager menu.
5. Connect two cables each other if certain product is not available to
connect to USB 1.1 Host cable (short cable).
Connecting external storage to USB OTG : USB1.1 Main Menu
FunctionMenu
Setting the functions
Setting
Managing external storage
using USB Host
File Manager
Recording voice
Voice Recorder
Taking pictures
Snapshot
Playing image files
Playing video files
Video
Playing music files
Music
<Direct connection is available> <Direct connection is not available>
* Precaution
• This player has USB 2.0 & USB1.1 Host Jack. Do not use with
connecting USB 2.0 and USB1.1Host Jack at the same time.
• Separate application needed digital camera or various drives
appeared Multi Card Reader, Security function applied USB Storage
device is not recognized in this player.
23 24
2. Getting Started
2-3. Basic Function
2. Getting Started

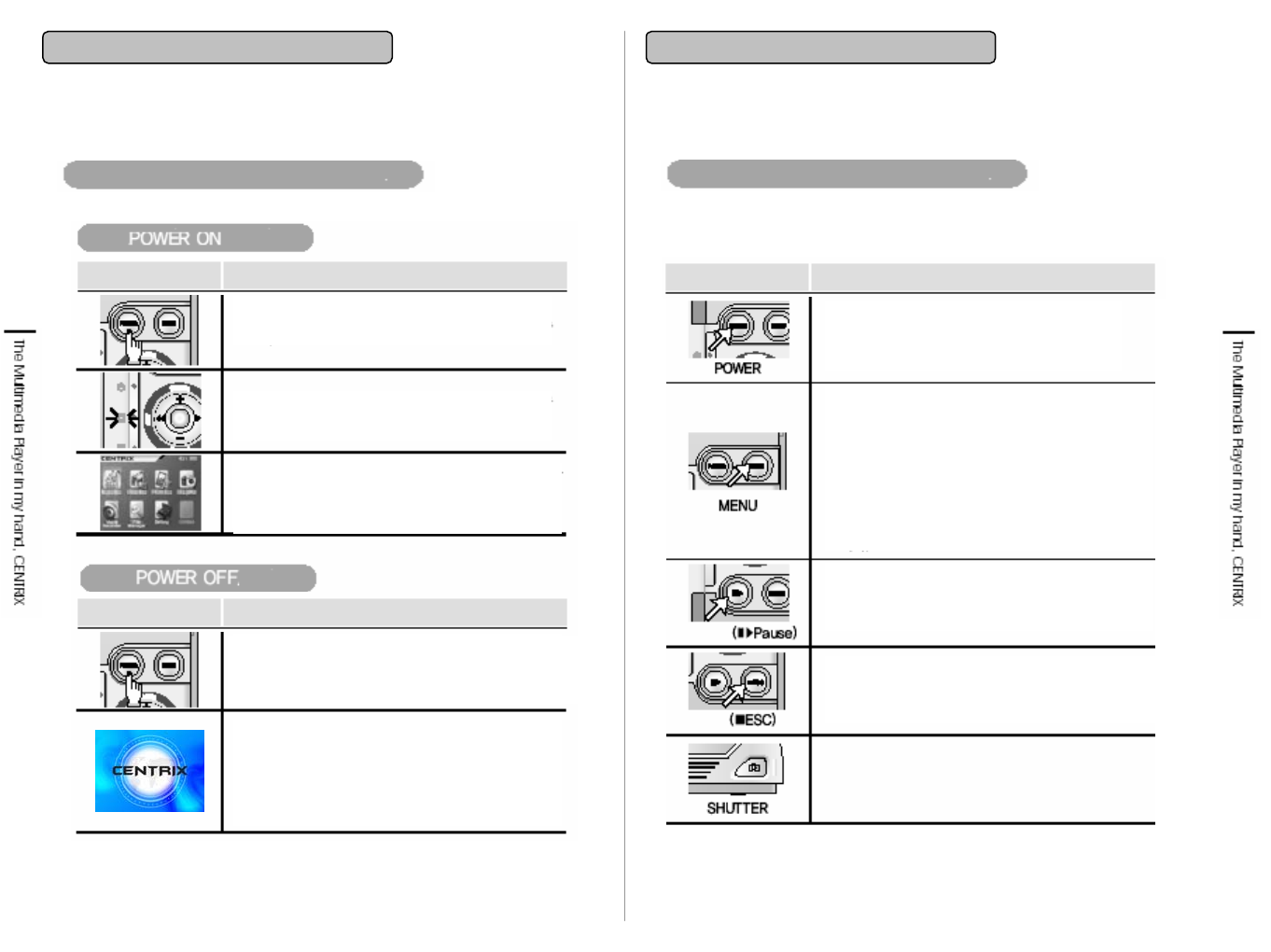

Power On/Off
2-3. Basic Function
Name & functions of buttons
Button Functions
• Press when power on/off.
• Press about 3 seconds to make power
on/off
• Use the MENU button to go back to setting
screen.
• If you press MENU button during playback
mode, it will shift to circumstance setting
screen of playing file, after setting it, press
■/ESC key for shift to playback mode.
• Use Play/Pause button to play music/video
file and you press again to pause play of
music/video.
•Use ■/ESC key to pause playing (music,
video, snapshot) and transfer to upper screen.
Use ■/ESC key to transfer to upper menu.
• Press shutter button a bit long to shift
to Snapshot mode. It will not operate
when it is connected to PC with USB
cable.
Play
STOP
Button Functions
Button Functions
1. Press power button about 3 seconds to
make power on
2. Hard disk LED (middle LED) is on and
then Power LED (top LED) is on
3. Opening Image is displayed and then the
main menu is displayed.
3. Opening Image is displayed and then the
main menu is displayed.
3. Opening Image is displayed and then the
main menu is displayed.
1. Press power button about 3 seconds to make
power off.
2. Stop all functions before you shut off the player.
1. Ending Image is displayed and then the
player is off.
25 26
2. Getting Started
2-3. Basic Function
3. Music
Navigation Button
3-1. Music Playback Screen
Music Player Display
•셋팅화면으로 바로 나갈 때 사용합
니다.
•재생모드에서 메뉴버튼을 누르면
해당재생파일에대한환경설정화
면으로 전환되고 원하시는 환경모드
설정 후 ■/ESC키를 누르면 재생모
드로 전환이 됩니다.
•제품의 기능 작동 시(음악, 동영상 플레이나
사진 찍기 등) 정지버튼을 누르면 기능이 정지
되고 바로 상위 화면으로 이동합니다.
•해당메뉴에서 상위 메뉴로 이동 시 사용합니
다.
•셔터를 오래 누르면 바로 사진 찍기 모드로
이동합니다. 단PC와USB로연결시작동되
지 않습니다.
During file navigation: Transfer to down
direction.
While music/video file playing: Decreases the
volume.
While Photo viewing: Rotates the photo.
Snapshot: Set the setting value.
VOL -
While playing: Playback of next song for
music, next frame for video, next image for
photo.
Snapshot: Use FF button for correction of
setting item.
File Manager: Use FF button to shift Device &
Host.
FF
(press the button from above directly)
Playbacks selected file.
Transfers to selected folder.
Watching video: Selects screen swift function.
Listening music: Changes Equalizer function.
Select
During file navigation: Transfers to upper
direction.
While music/video file playing: Increases the
volume.
While Photo viewing: Rotates the photo.
Snapshot: Set the setting value.
VOL +
File playing: Playback of previous song for
music, previous frame for video, previous
image for photo.
Snapshot: Use REW button for correction of
setting item.
File Manager: Use REW button to shift
Device & Host.
REW
Button Functions
Button
• Below functions are realized by pressing Navigation button to desired
direction. You can listen stored music file (MP3, WMA, OGG etc) through music player.
Equalizer12
Playback mode11
File format (mp3, wma etc)10
Duration of playback9
File name of next Song8
Volume7
Balance indicator of Right & Left6
Transfer Rate (Bit rate)/ Sampling (Sampling Rate)5
Time of processing4
File name3
Name of Artist2
Song Title1
27 28
3. Music Box
3-2. Playing Music File
3. Music Box
File Playback
Play stop
Press ■/ESC key to stop playback.
Then you will enter into Music directory and
you can select song you would like to listen
and playback.

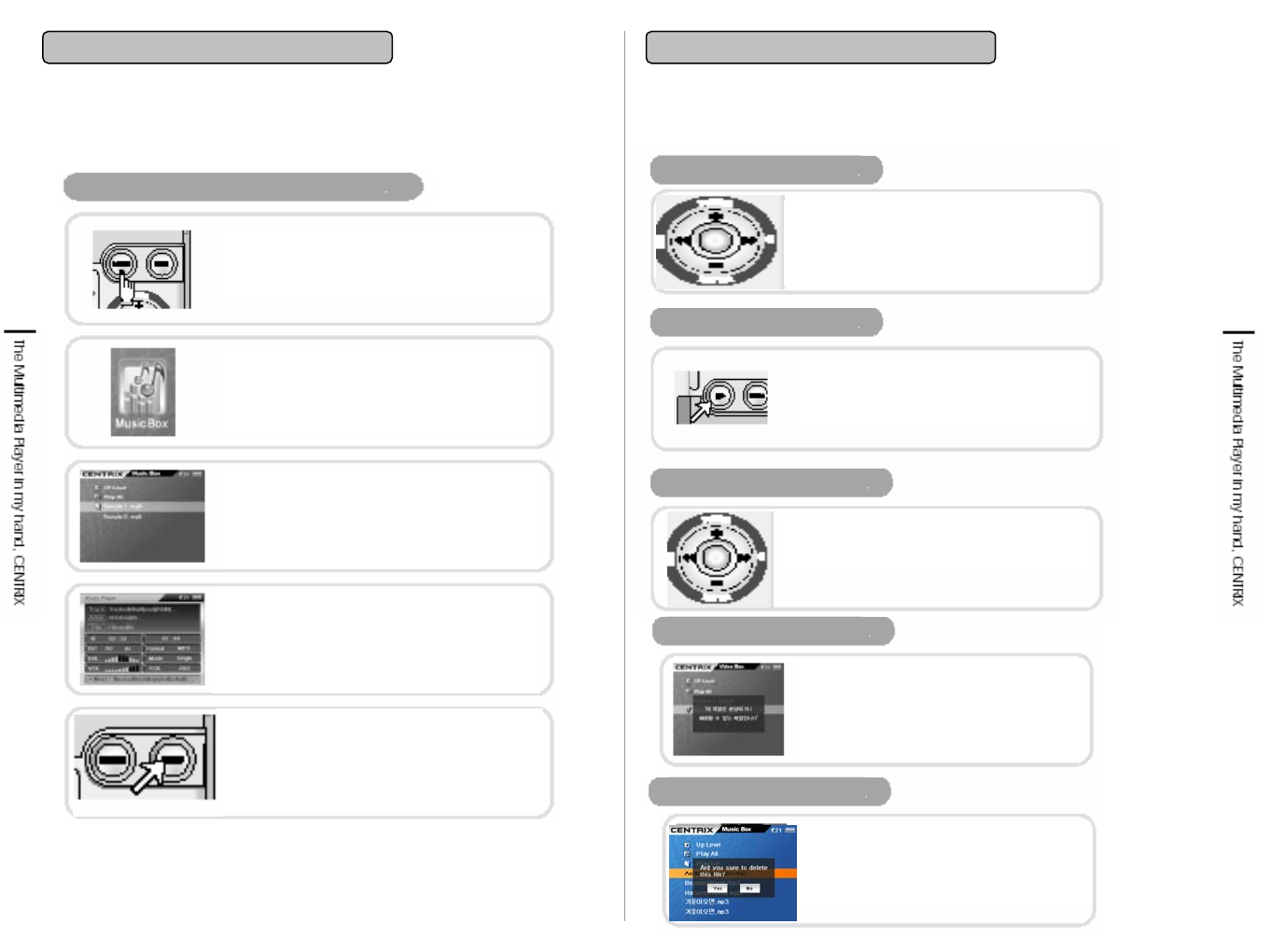

POWER ON
Press POWER button for Power on.
Music Menu Selection
Transfer to navigation button and select
Music and click. By selecting, the icon will
be indicated.
Music File Selection
Put cursor on the file you would like to
playback from the folder under Music and
click. By selecting, the icon will be
highlighted
Music File Playback
If you press the click button, music file will be
played. For battery power saving, LCD
screen will be powered off in seconds and
file playbacks continuously
3-2. Playing Music File
Music Player Display
Volume Control
Play /Pause
Play Next/ Previous File
Damaged/Unplayable File
재생 불가 파일
File Deletion
Use Volume +. – of Navigation button
while music file playback and volume
status will be indicated as a number in the
top right of the screen.
Use Pause button to pause the music
file playback and press the button again
to resume the playback.
Press ◀or ▶buttons to play previous/
next music file while playing.
If selected file is not a playable or a
damaged one, then “This file is
damaged or not playable.” message
will be shown on the screen and it
returns to the folder again.
To delete one file, put cursor on the file
and press Menu key shortly. Select as
“delete’ and then press ‘select’ button,
the file is deleted.
◀▶
29 30
3. Music Box
3-2. Playing Music File
Music Player Setting
Equalizer Setting
ID Tag information Display

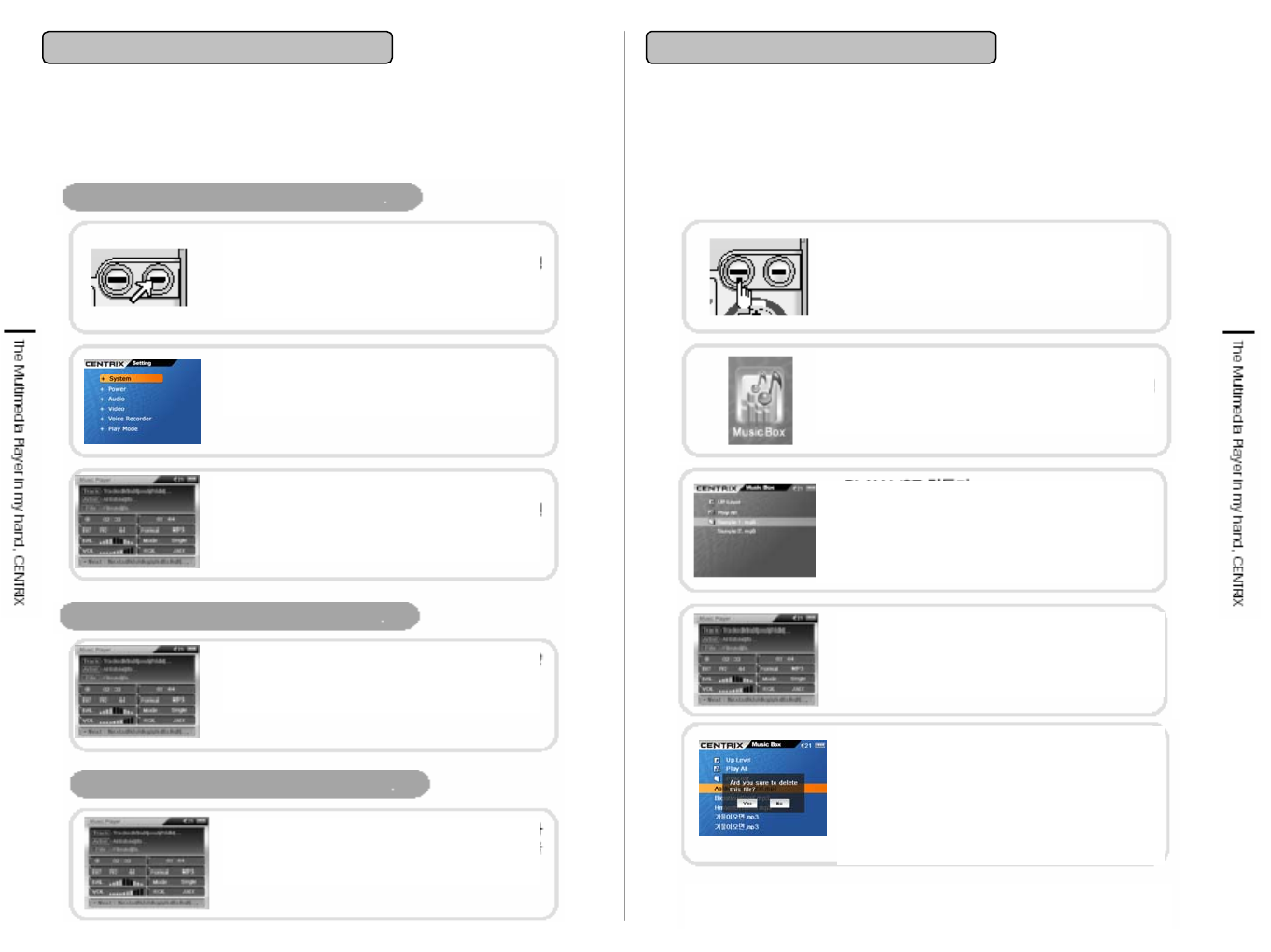

Press Menu While Playing
If you press ‘Menu’ button while playing
then it is shifted as the circumstance
setting mode of the current file.
Settings
Set the Audio setting function or Play mode
suites to user’s taste.
Returning to Play mode
After circumstance setting is completed,
press ■/ESC button to switchover to the
playing
If you press ‘Select’ button while music file
playing then it is shifted as Equalizer preset
setting.
ID TAG contains Artist name, title info. The
player supports standard ID Tag version
1,2.
* Other function is same as in 3-2. Playing Music file.
You can make lists of music file and listen them consecutively.
3. Music Box
3-3. Using Playist
POWER ON
Press POWER button for Power on.
Music Menu Selection
Transfer to navigation button and select Music
and click. By selecting, the icon will be
indicated.
Add to Playlist
Select music file and click MENU button
shortly. You will be asked whether you want to
add to Playlist. Use direction key to select YES
button then the file will be added to the list.
Deletion of file in Playlist
Select file to be deleted and Click MENU
button shortly. You will be asked whether
you want to delete file from Playlist. You can
choose Yes. And then the file will be deleted
from Play list. But the file is only deleted on
the Playlist not on the original folder.
Playing Playlist
Select file under the play list and the files in
Playlist is played consecutively.
31 32
4. Video Box
4-1. Video Playback Screen
4. Video Box
4-2. Playing Video File
Video File Playback
Elapsed time Total playing time
01:23:24 01:51:14
Title : rooms.avi
File name
• You can watch video file (MPG, AVI etc) stored in Video folder
through Video Player.
• You can watch WMV file which are not played in this player
through conversion with media converter.
Play stop
Press ■/ESC key to stop playback.
Then you will enter into Video directory and
you can select song you would like to listen
and playback.
POWER ON
Press POWER button for Power on.
Video Menu Selection
Transfer to navigation button and select
Video and click. By selecting, the icon will
be indicated.
Video File Selection
Put cursor on the file you would like to
playback from the folder under Video and
click. By selecting, the icon will be
highlighted
Video File Playback
If you press the click button, video file will be
played after buffering process. Buffering
Process is displayed as Number and %
Music Player Display
Volume Control
Play /Pause
Play Next/ Previous Frame
Damaged/Unplayable File
재생 불가 파일
Delete File
Use Volume +. – of Navigation button
while music file playback and volume
status will be indicated as a number in the
top right of the screen.
Use Pause button to pause the video
file playback and press the button again
to resume the playback.
Press o r buttons to watch
previous/ next video scene while playing.
When you want to skip the movie,
If selected file is not a playable or a
damaged one, then “This file is
damaged or not playable.” message
will be shown on the screen and it
returns to the folder again.
To delete one file, put cursor on the file
and press Menu key shortly. Select as
“delete’ and then press ‘select’ button,
the file is deleted.
4. Video Box

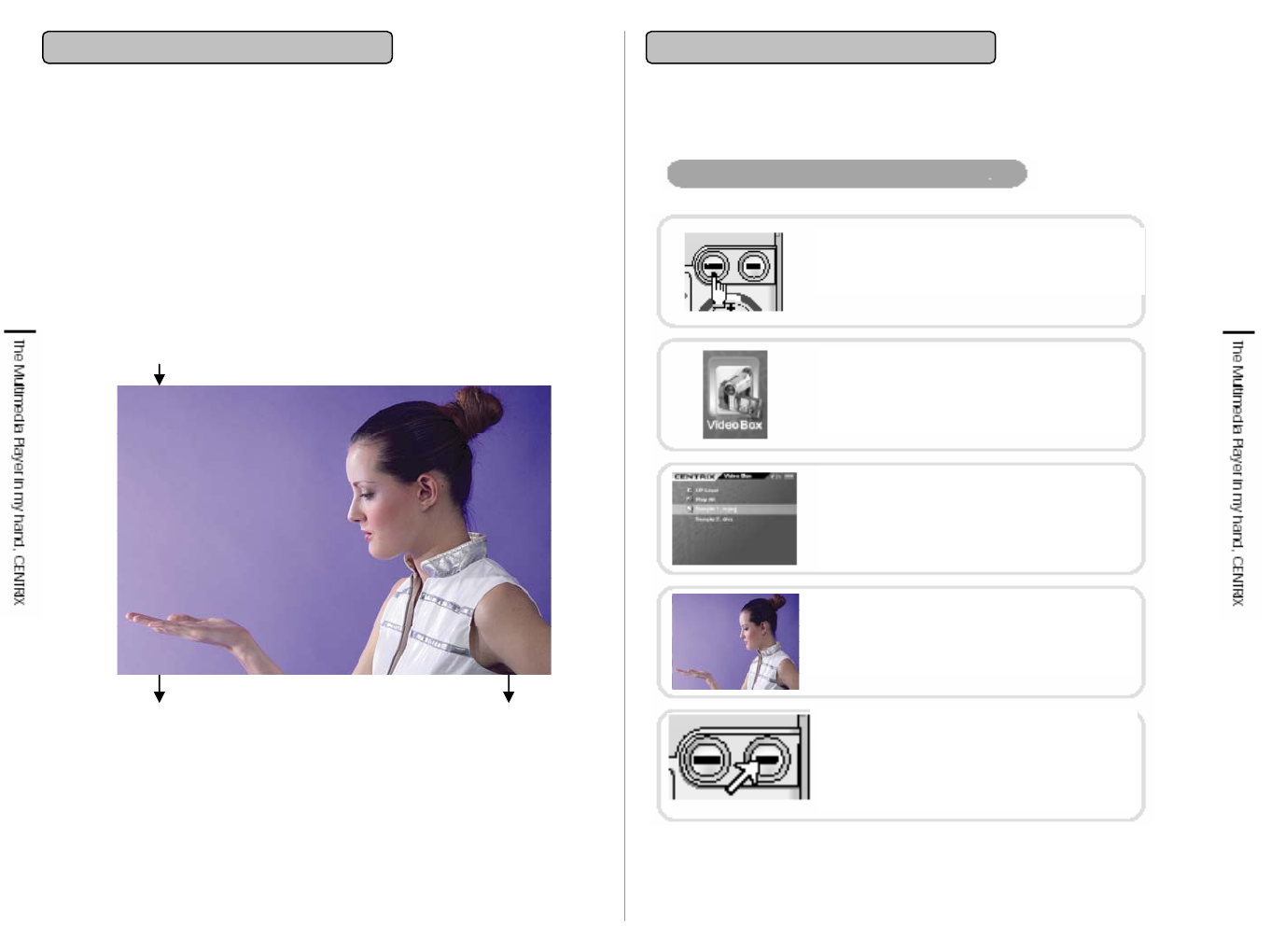

4-2. Playing Video File
▶▶
▶▶
Video Player Setting

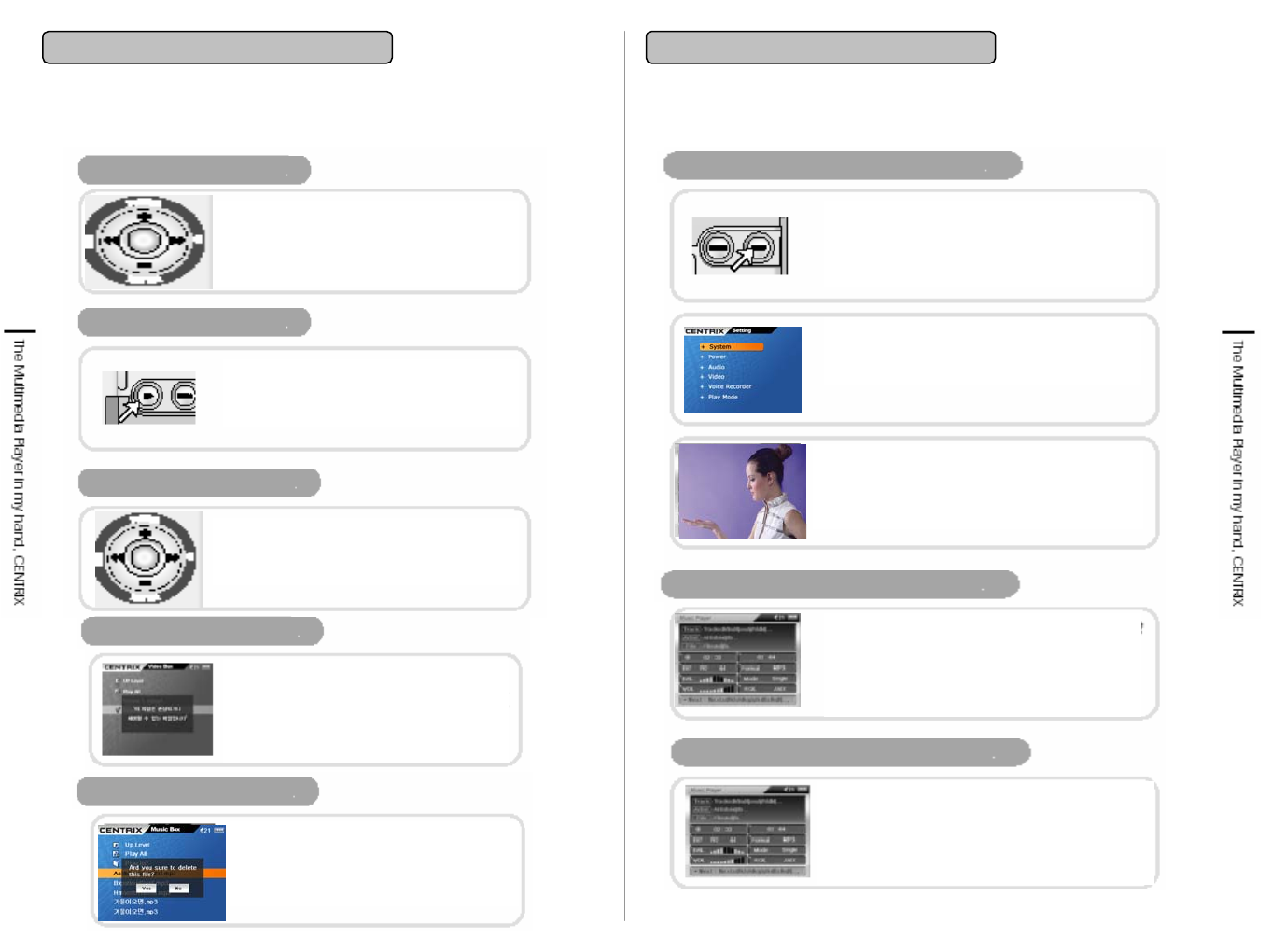

Display size switchover
Subtitle Display
Press Menu While Playing
If you press ‘Menu’ button while playing
then it is shifted as the circumstance setting
mode of the current file.
Settings
Set video and audio or other setting
function or Play mode suites to user’s taste.
Returning to Play mode
After circumstance setting is completed,
press ■/ESC button to switchover to the
playing
If you press Select button while video file
playing, screen size setting is switched.
If you select ‘Screen’ then it is displayed
fitted to screen size and select ‘Original’
then it is displayed as to the original size.
To play subtitle there should be same file
name between video & subtitle file which has
extension name as smi. If you do not want to
subtitle then off the Caption on Setting>Play
mode.
4. Video Box
4-2. Playing Video File
33 34
35 36
5. Image

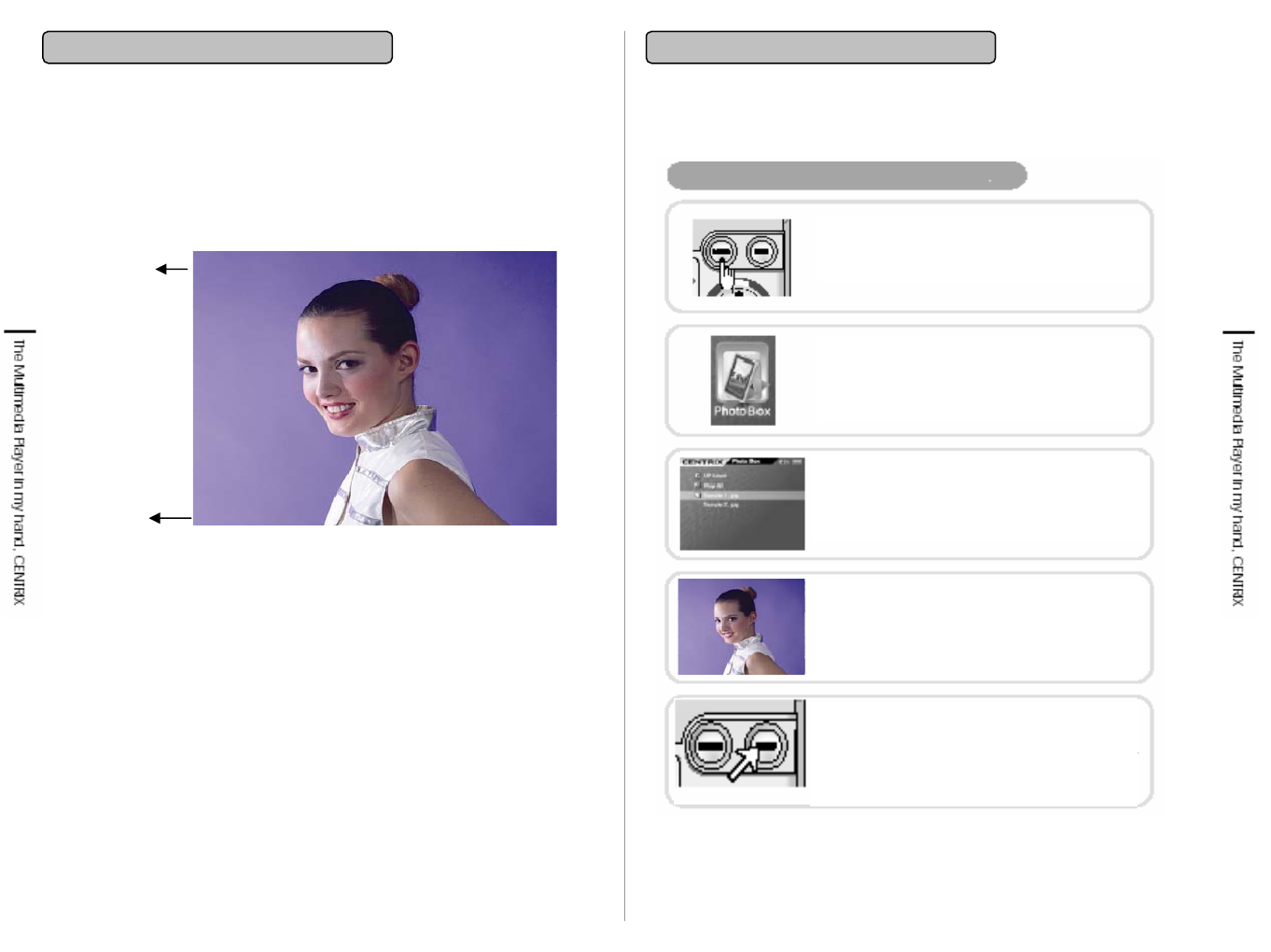

5-1. Photo Viewer Screen
5. Image
5-2. View Photo File
Image File Playing
Play stop
Press ■/ESC key to stop playback.
Then you will enter into Image directory and
you can select song you would like to listen
and playback.
POWER ON
Press POWER button for Power on.
Image Menu Selection
Transfer to navigation button and select
Image and click. By selecting, the icon will
be indicated.
Image File Selection
Put cursor on the file you would like to
playback from the folder under Image and click.
By selecting, the icon will be highlighted
Image File Playback
If you press the click button, Image file is
displayed. It can take times to buffering image
files. Buffering Process is displayed as Number
and %
File name
1580X980Image size
(unit : Pixel)
Title : centrix.jpg
You can see saved image file (JPG) through Photo Viewer.
37 38

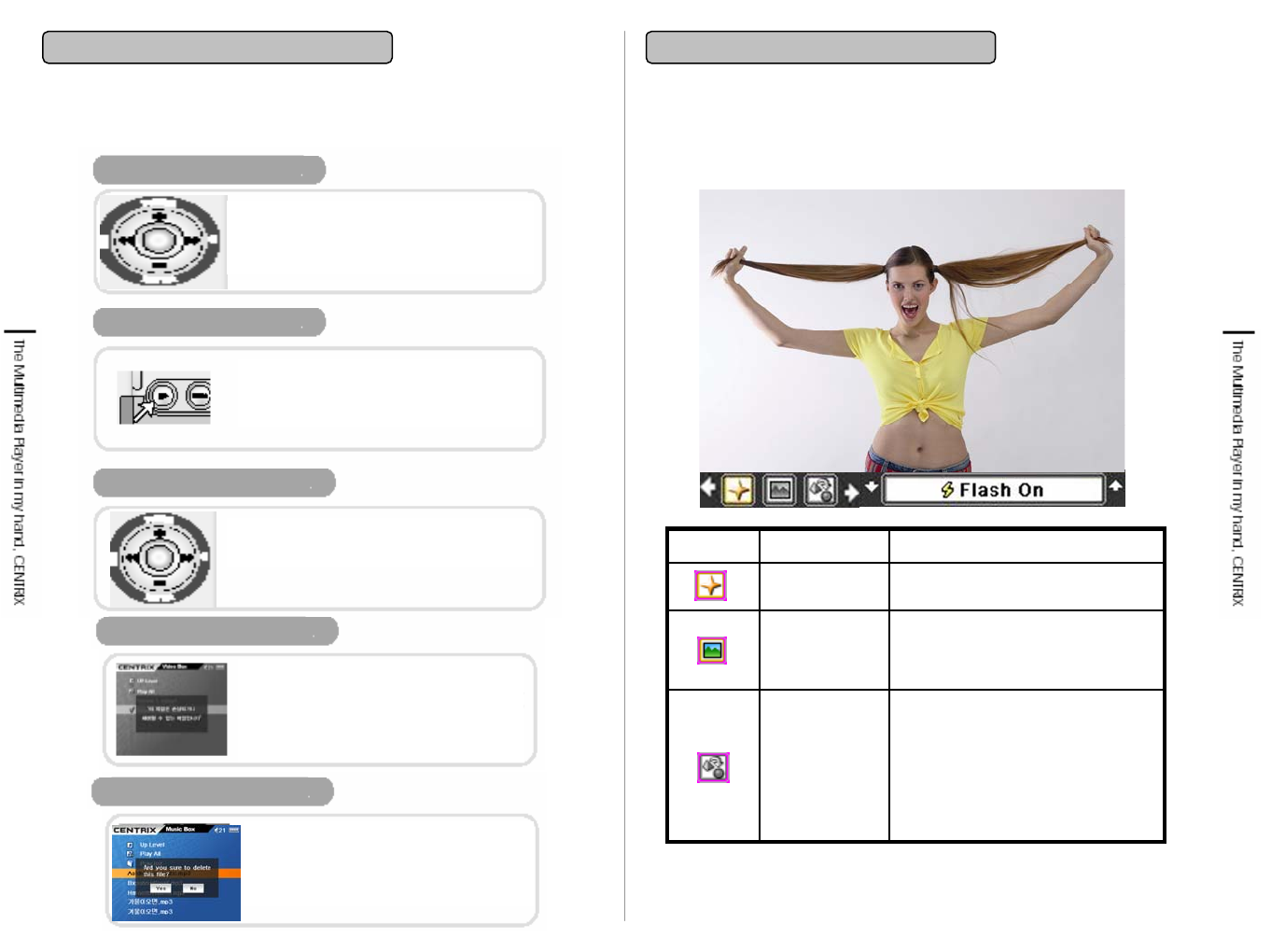

6-1. Snapshot Screen
6. Snapshot
Music Player Display
Image Rotation
Play /Pause
Play Next/ Previous File
Damaged/Unplayable File
재생 불가 파일
Delete File
Use Volume +.- button while image
file playback then screen image will
be rotated to the Left/ Right.
Use Pause button to pause the music
file playback and press the button again
to resume the playback.
Press ◀or ▶buttons to play previous/
next music file while playing.
If selected file is not a playable or a
damaged one, then “This file is
damaged or not playable.” message
will be shown on the screen and it
returns to the folder again.
To delete one file, put cursor on the file
and press Menu key shortly. Select as
“delete’ and then press ‘select’ button,
the file is deleted.
◀▶
5. Image
5-2. View Photo File
You can make a Snapshot through built-in camera.
Gives effects on photographing
such as, Normal,
Solarize (Picturesque), Negative
(Film status), Sepia (a bit red),
Black & White status.
Effect
SXGA(1280 X 1024)
VGA(640X480)
QVGA(320 X240)
Resolution
Flash On/ OffFlash
Setting ValuesIcon Info.Icon
39

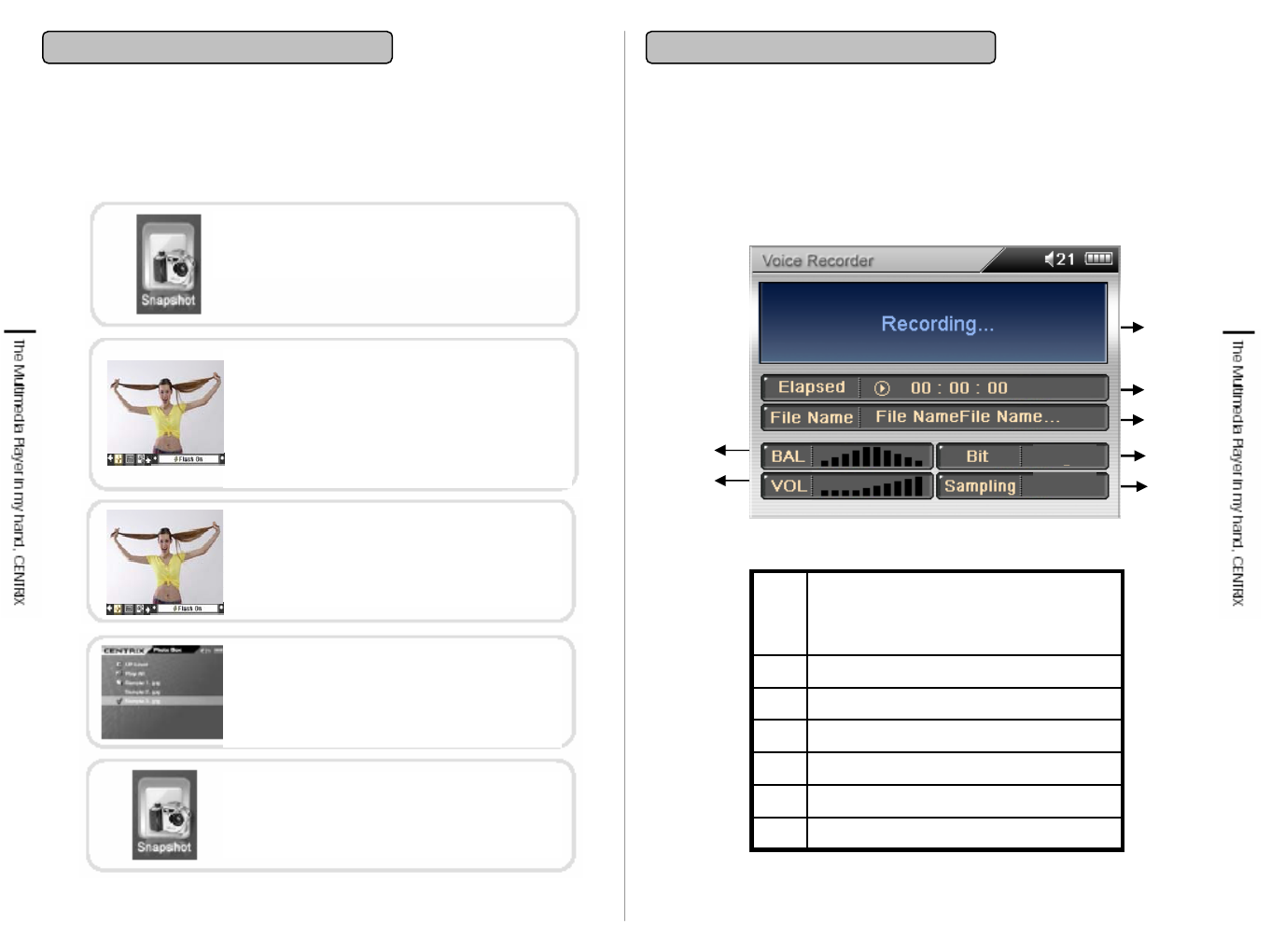

6-2. Take a Picture
6. Snapshot
Move to Snapshot mode
1. Select Snapshot in main menu.
2. Press Shutter for a moment.
Snapshot
Snapshot is seeing screen beforehand status, if
you press shutter or play key you can take a
picture. It shows photos taken beforehand and
asks whether you will save it. If you wan to
save it click “Yes” if not click “No”. Then it
returns to preview status.
Camera settings
You can make camera setting by using ◀▶
▼▲ buttons of setting screen in the below
end and set desired setting and press shutter.
You can take a Snapshot as set in the player.
Image saving
Photographed photos are saved in Snapshot
directory in the Image menu. If you want to
see the photographed photos then transfer to
Snapshot directory and select photo file
Snapshot completion
To complete snapshot on preview screen then
press ■/ESC key. By pressing ■/ESC key,
transferring to main screen is possible.
7-1. Voice recorder screen
7. Voice Recorder
Sampling rate of recording file7
Bit rate of recording file6
Volume status of recording (Mic Gain)5
Balance indicator of Right & Left4
Name of recording file3
Time of recording processed2
Display screen
Recording : Recording is in processing
Ready : Recording standby
1
40
①
②
③
④
⑤
⑥
⑦
• You can record conversation or lectures using built-in microphone.
• Microphone is built-in on the top of main body, so you should use it considering
the recording direction. (Refer to the name of each part 2-1.)
41 42

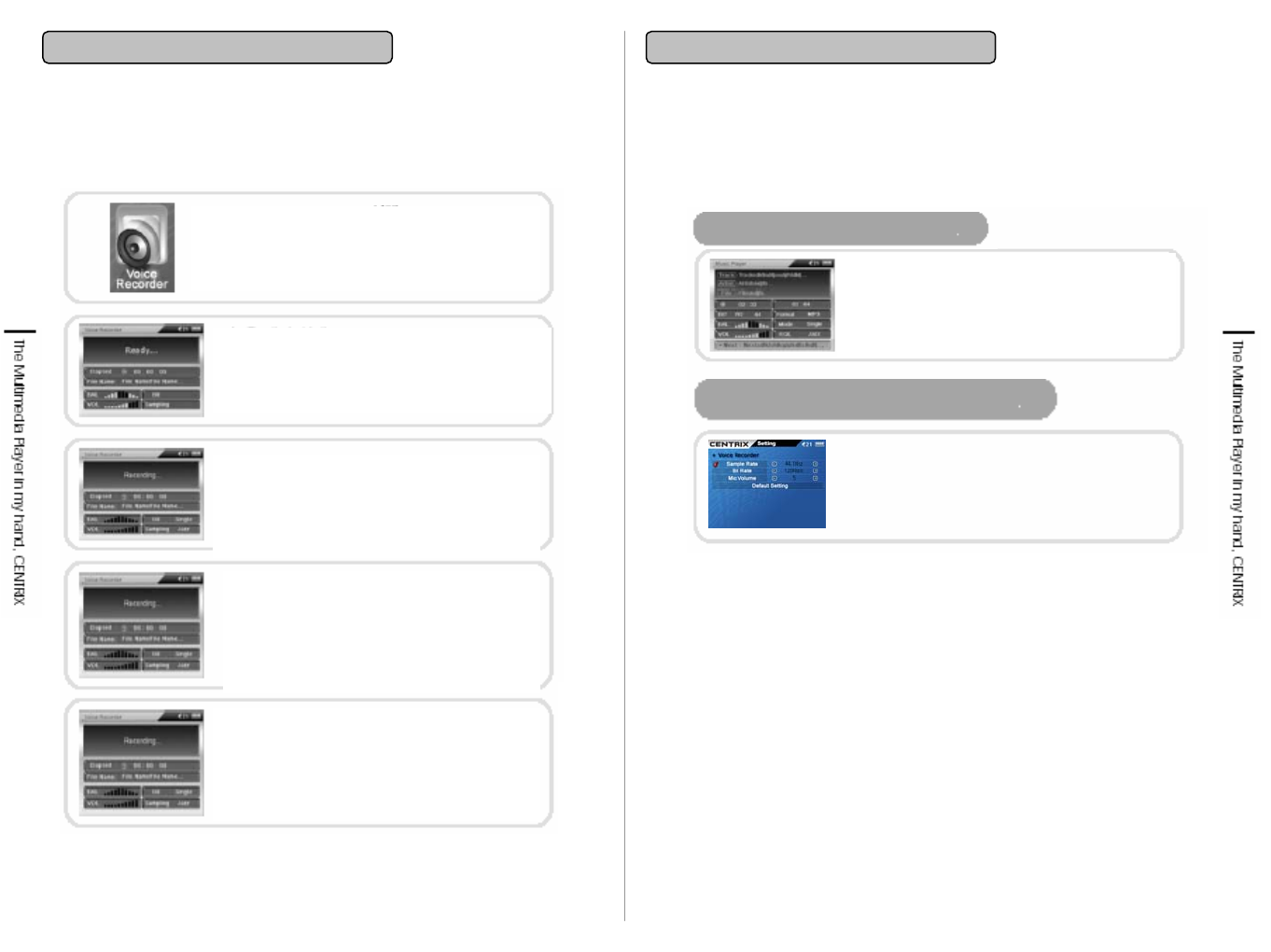

7-2. Voice recording
7. Voice Recorder
Completion of recording/ stop
If you press ■/ESC while recording then all
the recorded files will be saved in the Voice
folder under Music. By pressing ■/ESC key
it will transfer to main screen.
Voice Recorder selection
Transfer to ‘ Voice Recorder’ using Navigation
button and click it. By selecting Voice Recorder
icon will be highlighted.
Recording standby
By pressing Voice Recorder, voice record
standby status (Ready) will be displayed and
shifted to recording standby status.
Recording
Under recording standby status, recording
will be started by pressing II▶button. If you
press II▶button one more time, it will be
paused.
Pause/ Release
Press II▶button one more time to pause
the screen while playback.
Press II▶butto again to record from the
pause status again.
7-2. Voice recording
7. Voice Recorder
Recorded file playback
Alteration of Voice Recording Setting
Recorded file is saved automatically in the
Voice folder under Music folder. At this point
press Play or Select key after searching
desired file then you can playback the
recorded file.
To change recording setting then transfer to
setting Menu and set the functions of Voice
Recorder. Recording setting switchover while
recording is not available.
43 44
8. File Manager
8-1. File Manager Screen 8-2. USB Host Function
8. File Manager
• You can transfer and receive data by connecting external storage device
(device) with MVP-100(Host)without PC connection. USB speed is USB 1.1.
• File Manager is compatible with external storage device which is formatted as
FAT 16/32 file system.
Connecting external storage to USB OTG
Transfer files from the host to device
POWER ON
Press the Power button to turn on the
power.
Connecting Device
Under all functions of player are stopped, by
using USB Host cable connect external
storage devices such as digital camera, USB
memory Stick to USB Host port.
Selecting File Manager
Put cursor on File Manager and press enter
button then a screen showing A:HDD, B:USB
will be displayed. If is not correctly connected
this screen will not be displayed. Read through
above points and connect again.
Selecting Device
Select desired A/B Drive using Navigation
button (REW/FF).
MVP-100 is detected
as A:HDD. External Storage Device is
detected as A:HDD.
HDD USB
HDD USB
45 46
8-3. Selecting File and Detailed Function
8. File Manager
9-1. Setting menu structure
9. Settings
Amplifier
Balance
Bass Boost
Equalizer
Speaker
Audio
Power Off
LCD Off
Power
OS Update
System info.
Display
System
FunctionMenu
LCD Brightness
Video
LCD Contrast
Saturation
TV Out
Size
Language
Caption
Repeat
Play
Mode
Sampling Rate
Voice
Recorder Bit Rate
Mic Gain
Slide Timer
Function Menu
Function completion
Press pause button ■/ESC to complete
File Manager function then it will transfer
to initial screen.
Cable separation
After completion of function, separate USB
cable between player & Device. If it is
separated while file transferring or copying, it
may cause file damage.
All the devices (external storage device)
which are connected to this product are
powered by this product. If connected device
has much power consumption, the connection
can be released automatically for product
safety.
You can connect devices (external storage device)
which is detected on PC without separate Application
or need no separate Security function. Some digital
cameras and USB Flash memory and etc. are not
connected. Some device (external storage device)
which is connected to this player is detected only when
the power itself is on. Before connecting to this player,
be sure of the using procedure.
Release of Device
Device connection unavailable
Put cursor on the selected file and
press Menu button, then below pop-
up will be displayed.
MOVE TO A(B): Transfer selected
file to A(B)
COPY TO A(B): Transfer selected
file to A(B)
DELETE: Delete selected file.
DELETE ALL: Delete all the files
within the selected folder.
47 48
9. Settings 9. Settings
9-2. System
Item Functions

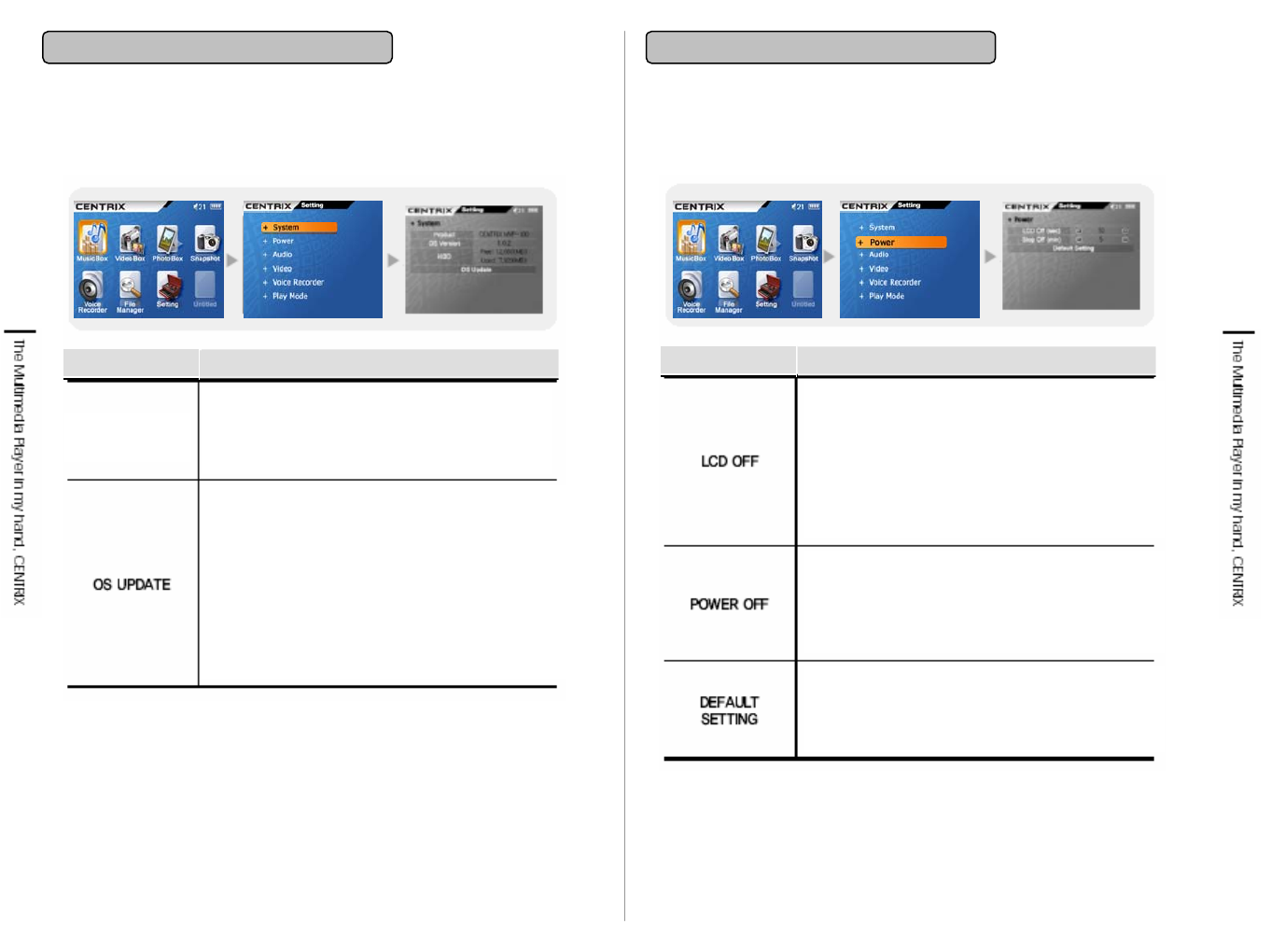

Put the cursor on OS Update and press Select key
then updated Firmware version saved in the Root is
searched. If there is no Firmware saved, it is
indicated that there is no Firmware. If there is a
Firmware saved, you will be asked whether you will
update Firmware. If you select ‘Yes’ Firmware
update will be processed. Do not operate product
during update. After completion of update, power off
by pressing power button and reboot the player, then
it will be operated as a Firmware updated status.
System info.
Indication
Displays the system info. of player.
Product name
OS version: Shows the Latest update version
HDD: Shows the occupied and empty capacity
9-3. Power
Item Functions
LCD Off Menu is to set the automatic LCD Off
time while pausing and there is no other key
operating.
LCD is turned off while MP3 playing or voice
recording.
When key input value is added, LCD is turned on
and the setting unit is second.
This function is applied for saving battery
Power Off Menu is to set the automatic Power Off
time while pausing and there is no other key
operating.
The setting unit is minute.
This function is applied for saving battery
This function is to initialize as a basic setting
value. The initial value is as below.
LCD OFF: 30 seconds
POWER OFF: 10 minutes
49 50
9. Settings 9. Settings
9-4. Audio
Item Functions
9-5. Video
You can adjust the contrast between the color. Basic
setting is 15.
LCD
Contrast
The basic Video setting value is as below.
LCD Brightness : 15, LCD Contrast : 15
Size : Original, Language : English
Default
Setting
You can set the Video Display size whether you will
adjust it to the original resolution or to the Display size.
If you set as Screen size, it will be set as the entire size
of TV or LCD.
Size
You can set the display languages such as Korean,
English and folder name, file name, ID Tag, Sub title is
played as setting language.
Language
You can set the video signal output when Video Out is
set as TV. NTSC is applied in USA, Canada, Korea,
Japan etc and PAL is applied in Europe, Australia etc.
TV Out
You can set the LCD brightness. Basic setting is 15.
LCD
Brightness
Functions
Item

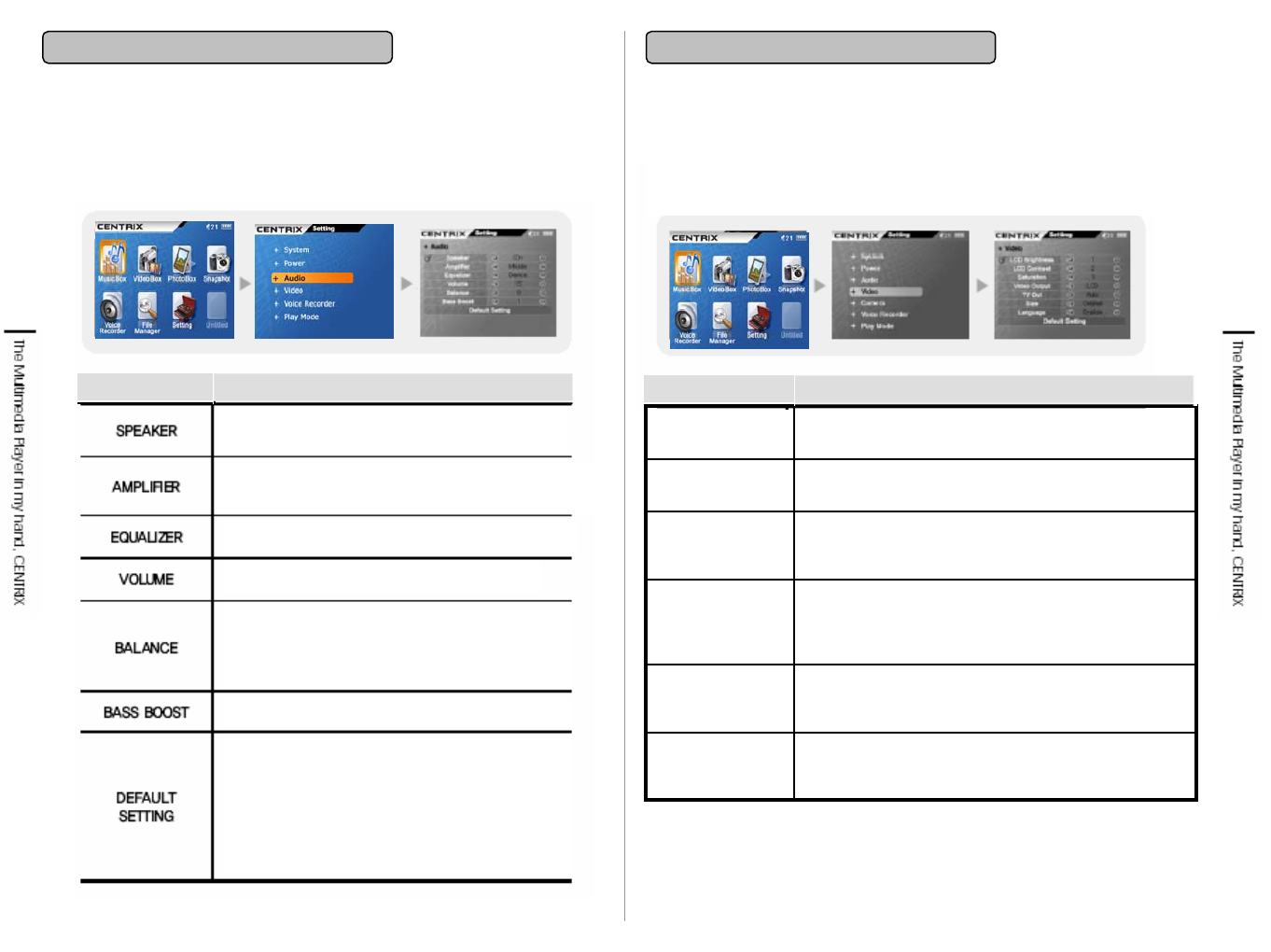

You can turn on/off the built-in speaker. The
basic setting is On.
You can set the Gain value of Audio output. The Low
is 20mW/C, Middle is 30mW/C and High is 40mW/C.
You can set Equalizer as Dance, Classic and etc.
You can set the Audio Volume from 0 to 30.
You can set the Balance of Right/Left audio
output. When it is +, the right sound is turned on
and for -, the left sound is turned on. When it is
0, the Right/Left output is same.
You can set the Audio Bass enhancement.
You can initialize as a basic Audio setting value.
The basic setting is as below.
Speaker: On
Amplifier: Middle
Equalizer: Standard
Volume: 15
Balance: 0, Bass Boost: Linear
51 52
9. Settings 9. Settings

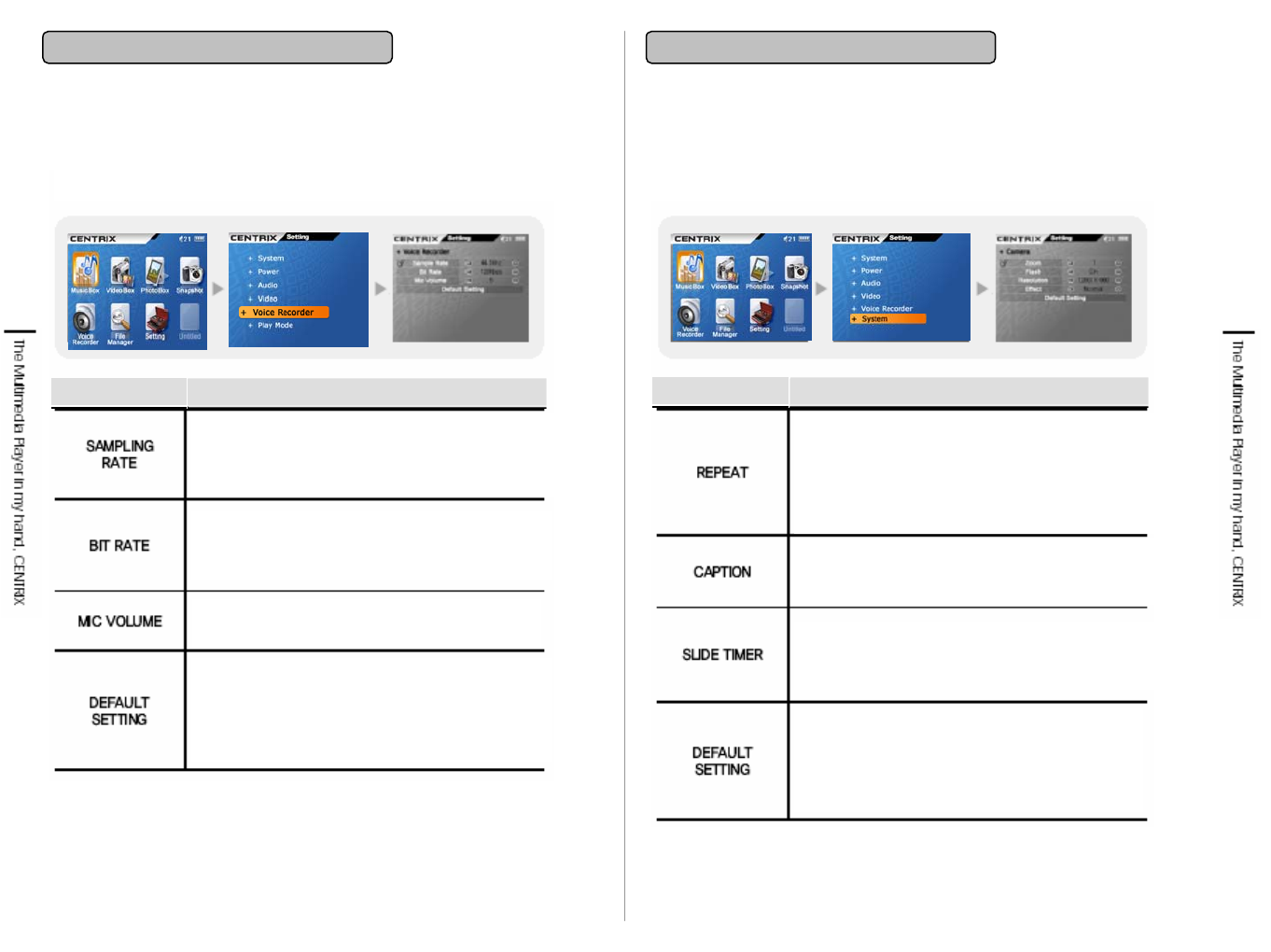

9-5. Voice Recorder
Item Functions
Sampling Rate is to set the sound quality while
voice recording. You can select 32KHz & 44.1KHz
and with 44.1KHz.
Bit Rate is to select the compress rate while voice
recording. You can select 96Kbps & 128Kbps.
Mic Volume is to adjust the Gain value while
recording.
You can initialize Voice Recorder setting value.
The basic setting value is as below.
Sampling Rate: 44.1KHz
Bit Rate: 128Kbps
Mic Volume: 5
9-6. Play Mode
Item Functions
Repeat is to set the playback mode while Music
Playing.
If you select No: No replay
If you select Single: Replay of one song selected
If you select Folder: Replay of one folder selected
If you select All: Replay of Music folder
Caption is to set the turn on or off of the video file
subtitle playback. The subtitle is displayed as the
same file name(*.smi) as video file.
You can set the timer while Slide show playing of
Image. You can set from 1 to 10 seconds. It is not
playable if you set as 0
You can initialize as a basic Play Mode setting
value. The basic setting value is as below.
Repeat: No
Caption: On
Slide Timer: 5
53 54
10. Firmware update 11. FAQ
Transfer from main screen to Setting menu.
Transfer to System folder after select System
folder from setting menu.
Transfer to
System folder
4
Put cursor on OS Update and press Select
key then it will start to search OS Update
version saved in System folder. If there is no
Firmware saved, it is indicated that there is no
Firmware.
If there is a Firmware saved, you will be
asked whether you will update Firmware.
If you select ‘Yes’ Firmware update will be
processed. Do not operate product during
update.
Update start5
Separate USB cable after saving file in
System folder.
USB cable
separation
3
After completion of update, power off by
pressing power button and reboot the player,
then it will be operated as a Firmware
updated status. To check that there is no
failure in update, transfer to Setting menu and
check OS version of System folder. You can
check the status of update completion.
Update
completion
6
Connect this player to PC with USB Cable.
You should connect this player to USB 2.0
jack of PC. When this product is detected as
external storage device on PC, save the
downloaded OS file to the System folder of
player.
File Upload 2
When new OS file is released, save it
downloaded from web site
(www.centrixclub.com). Check the OS version
before saving.
OS Update
File download
1
• You can upgrade MVP-100 with new OS file.
• Please visit www.centrixclub.com.
• Check whether remote controller Hold key is
‘On’. When Hold key is ‘On’ remote controller
does not operate.
Remote controller
does not operate.
• Some image file may not be playable according to
the Photo file specification. Check the image file
specification of this player.
Photo file does
not play properly.
• Not supported video file or compressed out of
specification, damaged files will not be played. Check
supported video file specification in advance.
• WMV file or DTS sounded video file is playable with
conversion at Media Converter program included in
Application CD.
• Even it is AVI file, if the video file has Microsoft WMV
format, then it can not be played.
• When you select video file playback, the initial
loading time will be varied according to the kinds of
video file.
Video file does
not play properly.
• Music file playback is not possible if the file is not
supported format in this player or compressed out of
specification.
• Check supported audio file specification in advance.
No Sound of
Music or Video
files
• This product supports only SMI file playback. The
subtitle file which has the extension name as .smi
should have the same file name as video file and be
in the same folder.
• Check whether Caption is ‘On’ in Play Mode. When
Caption is ‘OFF’ caption display is not available.
Video caption
does not display.
• There is no source of power or filled with
stored data. Check before recording the
remaining room for store and organize files.
Recording is not
operated.
• To save the battery if there is no key input while
playing audio file the LCD display is automatically
turned off. If you press any key then LCD will turn on
again.
• No image will display if display mode is set as TV out.
Power off the player and power on again.
Nothing is
displayed on the
LCD screen.
• Check whether volume is set as 0 or low volume.
• Check whether earphones or wire remote controller is
plugged firmly.
Can’ t hear
anything from
earphones.
SolutionsTroubles
57 58
11. FAQ
11. FAQ
• There is no source of power or filled with stored data.
Check before recording the remaining room for store
and organize files.
Recording is not
operated.
• LCD off function is designated for extending the
playing time. If there is no key input while music
playing, recording, viewing photo or USB connecting,
the LCD is automatically turned off.
LCD is repeatedly
turned off.
• Power off function is designated for extending the
playing time. If there is no key input while playing, the
power is automatically off. Press power button to
play again.
Power is off
repeatedly.
• If power is off, the player is not detected.
• If the power is weak, the player is not detected as an
external storage device. Use after recharging or
connecting adapter.
• You should install separate driver under Window 98
version of PC. Install USB 98 Driver in the supplied
Application CD.
• Check whether USB Cable is connected to USB2.0
port.
• If it is connected to USB Host, correct to connect to
USB2.0 port.
Player is not
detected as an
external storage
device when it is
connected to PC
as an USB device.
• Check whether remote controller Hold key is ‘On’.
When Hold key is ‘On’ remote controller does not
operate.
Remote controller
does not operate.
• This product supports only SMI file playback. The
subtitle file which has the extension name as .smi
should have the same file name as video file and be
in the same folder.
• Check whether Caption is ‘On’ in Play Mode. When
Caption is ‘OFF’ caption display is not available.
Video caption
does not display.
SolutionsTroubles
• After purchasing CENTRIX, visit
www.centrixclub.com site of each country to
subscribe & register under Support section.
How can I make
the customer
register.
• Serial number is pasted on the battery attach part or
the side of box.
Where can I find
the serial
number?
• File Manager is compatible with external storage
device which is made as FAT 16/32 file system.
• When connect to PC, some external storage devices
such as digital camera, external HDD which are
needed of separate Driver or Application are not
detected as an external storage device. Digital
camera, external HDD which has no power input or
source may not be detected. External storage device
which has 500mHa or above power consumption is
not detected. Some digital camera or same CENTRIX
is detected when power on. Check whether USB
Cable is connected to USB Host. If it is connected to
USB2.0, correct to connect to USB Host.
External storage
device is not
detected while
connecting to
USB HOST.
SolutionsTroubles
12. Specification 12. Specification
12-2. File Playback Specification
12-1. General Specifications
MPEG 1/2/2.5 Layer 3, WMA, OGG,
AC-3, Low Complexity AAC
File Type
Audio
Playable
File Format
Max. 320kbps
Bit Rate
32KHz, 44.1KHz, 48KHzSampling rate
ID3 V1, ID3 V2 2.0, ID3 V2 3.0
Tag
MPEG1, MPEG2, MP@ML, MPEG4 SP & ASP,
( DivX & XviD with MP3 and AC-3)
Direct Play
Video Format
Video
Playable
File Format
DivX or XviD video file with QPEL (Quarter Pixel
motion) / GMC (Global Motion Compensation)/ DTS
Sound encoded, Damaged video files, Video files
with unplayable audio format
Unplayable
Video Format
WMV, ASF
Transcoder
Video Format*
MP3, AAC, AC-3
AC-3(2ch)
Playable
Audio Format
Max. 720 X 480(TV Out)
Resolution
Up to 30fps
Frame Rate
Video : Max. 4Mbps
Audio : Max. 640Kbps
Bit Rate
SMI Format Supportable
Caption
S/N Ratio
Headphone
Out
Frequency
Range
No. of Channel Stereo (L+R)
Audio
20Hz ~ 20Hz
40mW(L)+40mW(R)
Volume & Amp. (16ohm)
96 dB( MP3)
3,5” TFT LCD, QVGA (320 x 240)
LCD
Video NTSC/PAL , D1(720 X 480)
TV Out
20GB 1.8” HDD
Storage
1.3M Pixel Digital Camera with Flash
(SXGA 1280 X 960)
Digital Camera
Specifications
Category
Built-in stereo Speaker Speaker
Built-In mono Mic
Voice Recorder
Baseline (Non-progressive) JPG
(Up to 3900 x 2900)
Image Viewer
USB 2.0(Device)
PC Interface USB 1.1(USB Host)
Windows 98 SE/ME/2000/XP
OS
Operating
System FAT32 File System
File System
4 Hours 30 Minutes (320X240, 30Frame,
Speaker off)
Video*
Play Time
10Hours (LCD Off)
Audio
DC 5.0V, 3A
AC Adapter
Power
Supply 3000mAh Lithium Polymer
(removable & rechargeable)
Built-In battery
130(W) x 78(H) x 24.5(T)mm
Dimension
General
Approx. 285g
(Battery included)
Weight
0°C ~40°C
Operating
Temperature
Earphones, Wired remote controller, AV
Cable, USB Cable, AC Adapter, Carrying
Case, User Manual, Application CD
Accessories & Components
Specifications
Category
* WMV video format can be playable through separate video Transcoder
program.
* Video Playing time is depending on the file format and bit rate.
* The color of product or Graphic User Interface can be varied.
60
59
61 62
13. Warranty
13-1. General Warranty Policy
SitecSystem Co., Ltd conducts upon the consumer damage compensation
regulation laid down by Consumer protection law replacement & refunds,
paid/free A/S of all purchases made from SitecSoft Co., Ltd as below.
1. Warranty period
2 Months
Earphones, Cables
Out of
Warranty
Battery, User Manual, Install CD,
Fashion Cover, Arm/Neck string,
Gifts
6 Months
adapter, Battery
Keeping
period of
Service
components
: 5 Years
after quit of
sales
1 Year
Main body & Remote controller
Remarks
Warranty
period
Product
2. Warranty and Refunds range
Damage or breakage through unsuitable handling by
customer
Voluntarily
Disassembling or remodeling by customer
Change of mind
1 month passed after delivery of product in full
working condition
Range of no
replacements
& refunds
Incorrectly shipped
Dead On Arrival or damaged In Transit
Range of
replacements
& refunds
Please keep the purchasing receipt for the exchange & refund of
product as you need to present it in advance. Purchasing receipt is
needed to check the product delivery time.
3. Range of customer fault
• Corrosion caused by water or objects
• Defect caused by misuse or unsuitable operation
• Voluntarily disassembling or remodeling
• Defect caused by impact
• Defect caused by misuse of peripherals which are not supplied by
SitecSystem Co., Ltd
• Situation which is acknowledged as user’s fault
• Invisible to check the product info. owing to the damage of product
number.
• Presents no purchasing receipt against replacements or refunds
We will request you some repair cost or can provide you limited warranty
service & paid replacement against below mentioned customer faults.
Also as for below cases, the freight costs will be charged to you.
13. Warranty
