SK Telesys SKSN-C30-CO CDMA RF Repeater User Manual
SK Telesys Co.,Ltd. CDMA RF Repeater
Users Manual
CDMA REPEATER
CDMA RF
R
EPEATE
R
USER MANUAL
Version 1.0
2007
CDMA REPEATER
Contents
1. OVERVIEWS..............................................................................................................8
2. COMPONENTS...........................................................................................................9
2.1 PACKING LIST ......................................................................................................9
2.2 SYSTEM QUICK VIEW .......................................................................................10
2.3 WARNING AND HAZARDS
3. FEATURES AND SPECIFICATION OF SYSTEM ....................................................13
3.1 ELECTRICAL SPECIFICATION...........................................................................13
3.2 MECHANICAL SPECIFICATION .........................................................................14
3.3 ENVIRONMENT SPECIFICATION ......................................................................14
3.4 FREQUENCY USED ...........................................................................................15
4. SYSTEM BLOCK DIAGRAM....................................................................................16
4.1 BLOCK DIAGRAM...............................................................................................16
4.2 BLOCK DIAGRAM DESCRIPTION .....................................................................16
5. SYSTEM OVERVIEW...............................................................................................18
5.1 CONSTRUCTION AND FEATURES OF SYSTEM ..............................................18
5.1.1 PSU (POWER SUPPLY UNIT)..........................................................................19
5.1.2 CONTROLLER ....................................................................................................19
5.1.3 UP / DOWN CONVERTER ..................................................................................20
5.1.4 FILTER.................................................................................................................21
5.1.5 PAU(POWER AMPLIFIER UNIT).........................................................................21
CDMA REPEATER
5.1.6 ISOLATION CHECK MODULE ............................................................................21
5.1.7 CABINET .............................................................................................................21
5.2 ADDITIONAL FUNCTIONS .................................................................................24
5.2.1 AGC FUNCTION.................................................................................................24
5.2.2 SHUTDOWN FUNCTION ...................................................................................25
5.2.3 OSCILLATION CHECK FUNCTION...................................................................25
5.2.4 OSCILLATION SHUTDOWN FUNCTION ..........................................................26
6. SYSTEM INSTALLATION GUIDE ..........................................................................27
7. WEB GUI INSTALLATION GUIDE............................................................................29
7.1 PROGRAM SETUP .............................................................................................29
7.2 WEB GUI CONNECTION ....................................................................................31
7.3 MONITOR/CONTROL OF WEB GUI STATE .......................................................33
7.3.1 ACCOUNT...........................................................................................................34
7.3.2 USER REGISTRATION ......................................................................................35
7.3.3 USER DELETION AND MODIFICATION ..........................................................35
7.3.4 ALARM HISTORY...............................................................................................36
7.3.5 CONFIG...............................................................................................................37
7.3.6 UP LOAD ............................................................................................................37
8. MAINTENANCE GUIDE............................................................................................40
8.1 CONFIRMATION OF SYSTEM COMPONENTS .................................................40
8.2 CAUTIONS ON SYSTEM INSTALLATION ..........................................................40
CDMA REPEATER
9. SYSTEM SET UP AND INSPECTION ......................................................................41
9.3.1 INSPECTION OF REPEATER ...........................................................................42
9.3.2 FACILITY INSPECTION......................................................................................43
10 . WARRANTY AND REPAIR POLICY......................................................................44
☎ CONTACT INFORMATION......................................................................................46
Information in this document is subject to change without notice.
SK Telesys Co., LTD. All rights reserved.
CDMA REPEATER
- Lists of Figures -
< Fig. 1 > Configuration of iDEN Network.............................................................................. 8
< Fig. 2 > Components of CDMA Repeater ........................................................................... 9
< Fig. 3 > Front & Back View of CDMA Repeater.............................................................. 10
< Fig. 4 > Side View of CDMA Repeater............................................................................. 10
< Fig. 5 >Bottom View of CDMA Repeater ...........................................................................11
< Fig. 6 > CDMA Frequency.................................................................................................. 15

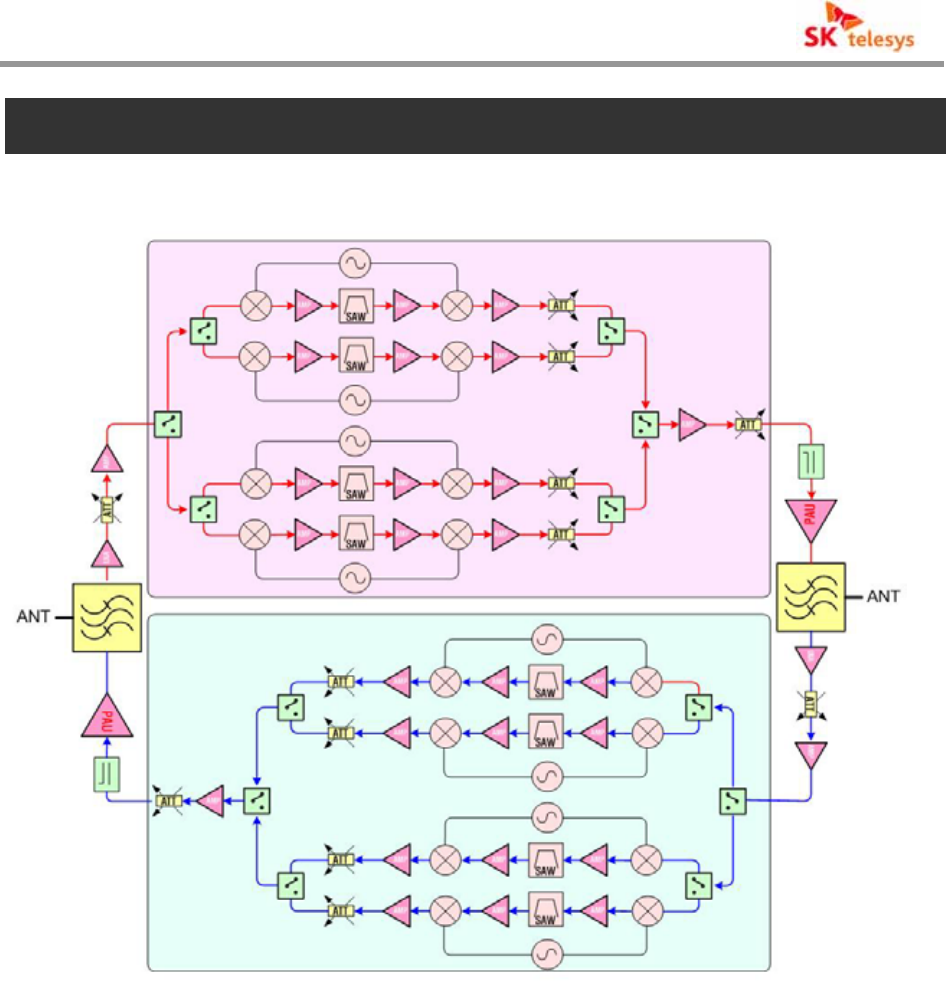

< Fig. 7 > Block Diagram....................................................................................................... 16

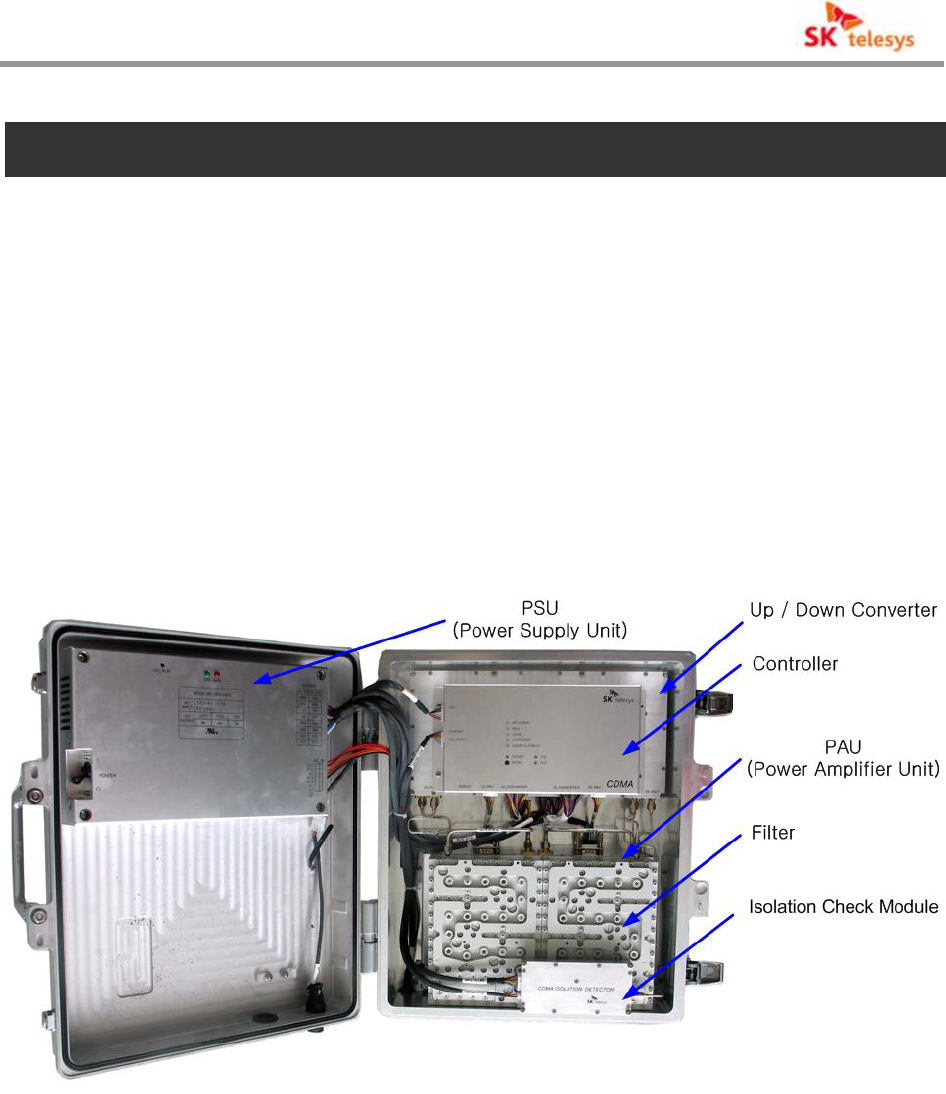

< Fig. 8 > Internal Construction of CDMA Repeater ........................................................... 18
< Fig. 9 > Bottom View of CDMA RF Repeater.................................................................. 19

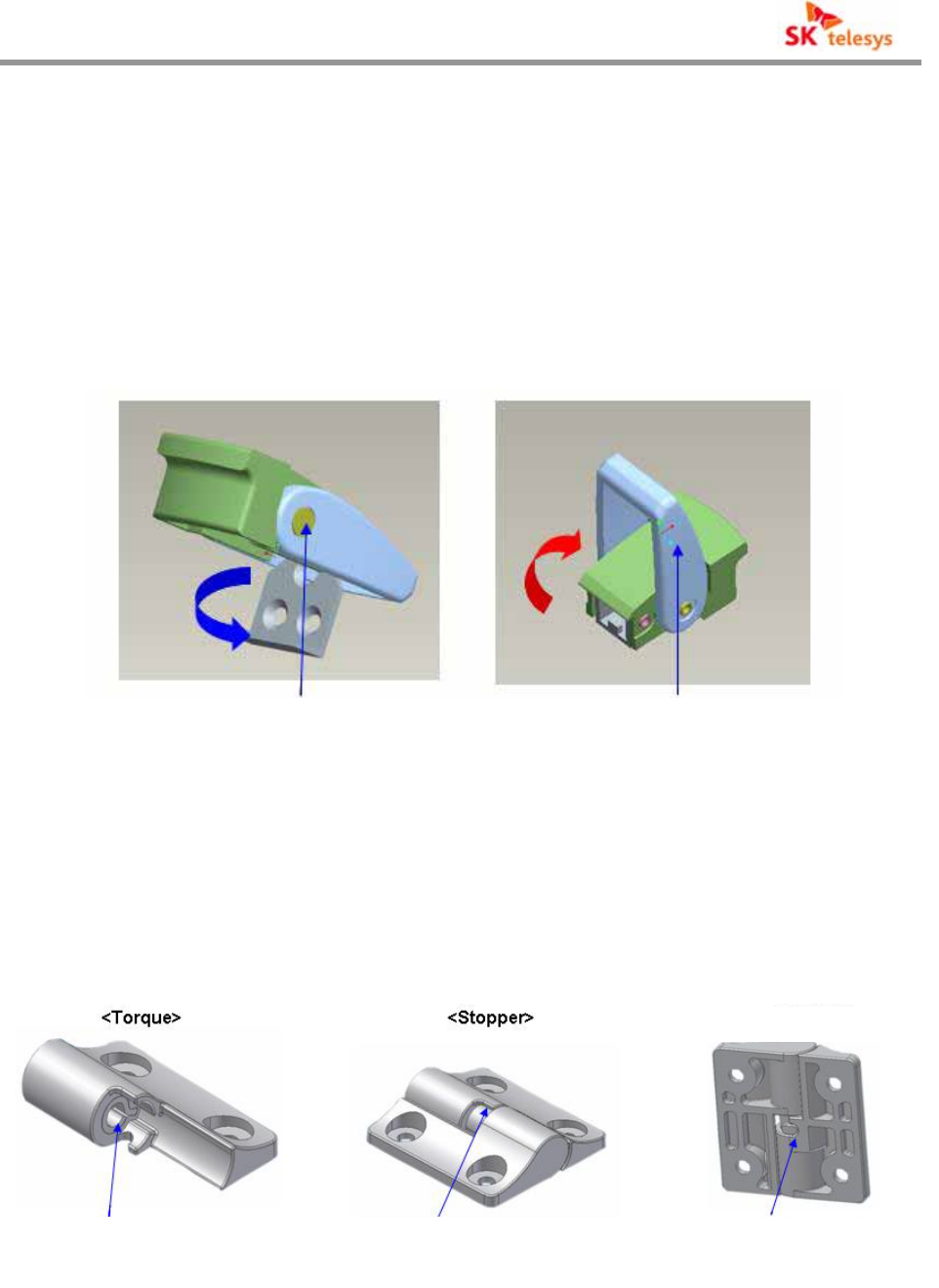

< Fig. 10 > Latch Structure .................................................................................................... 22
< Fig. 11 > Hinge Functions .................................................................................................. 22

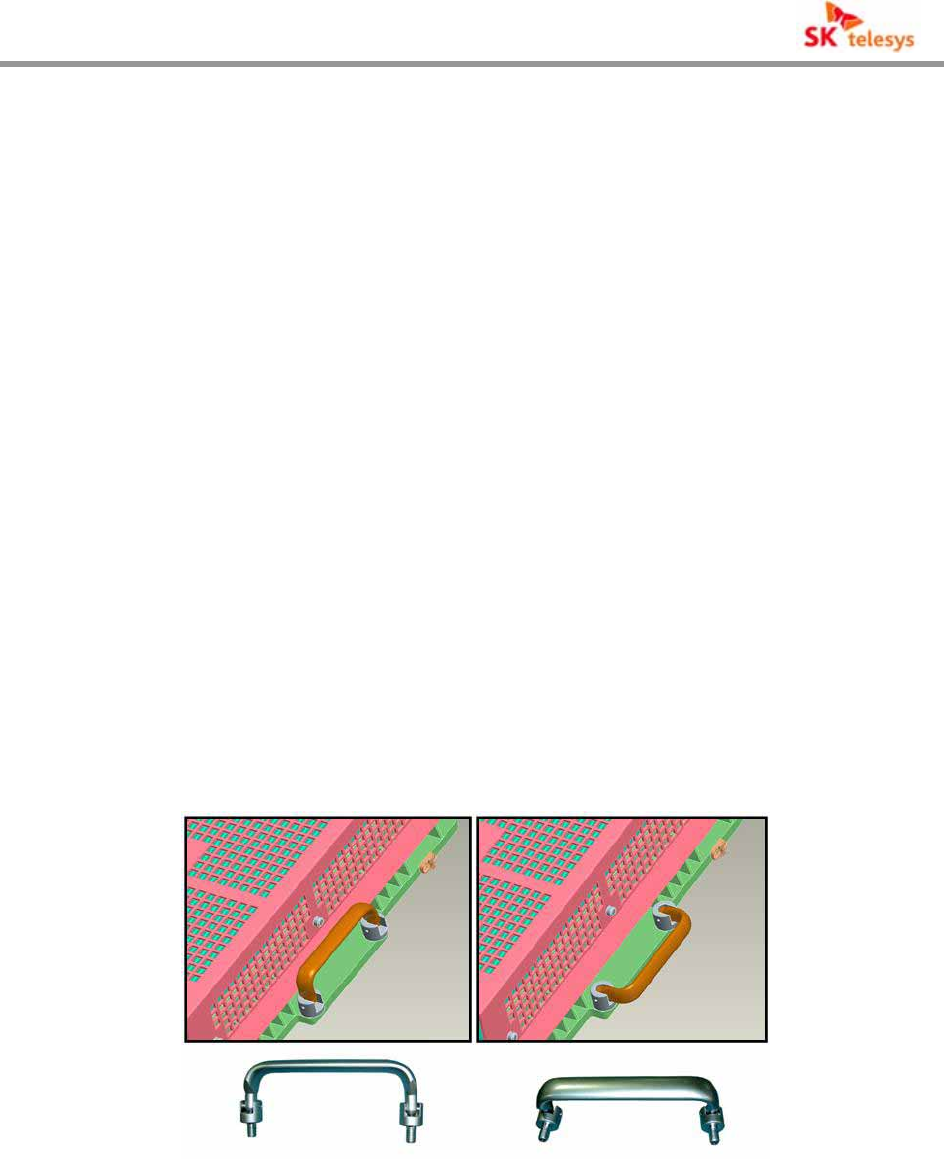

< Fig. 12 > Swing Handle Function ...................................................................................... 23

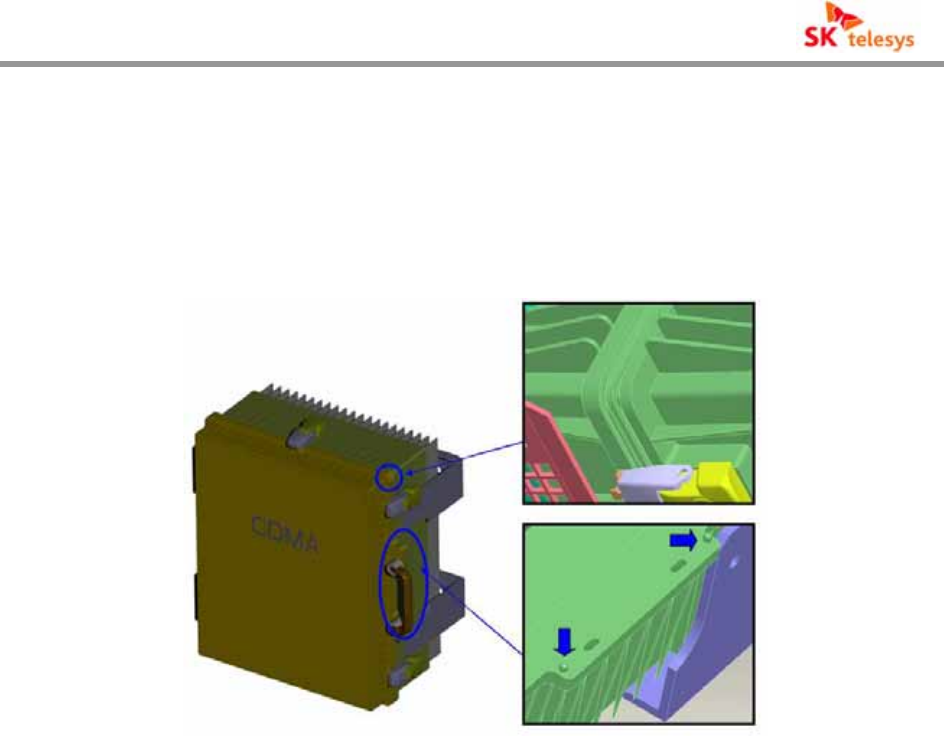

< Fig. 13 > Guide for Wrench Prevention ............................................................................ 24

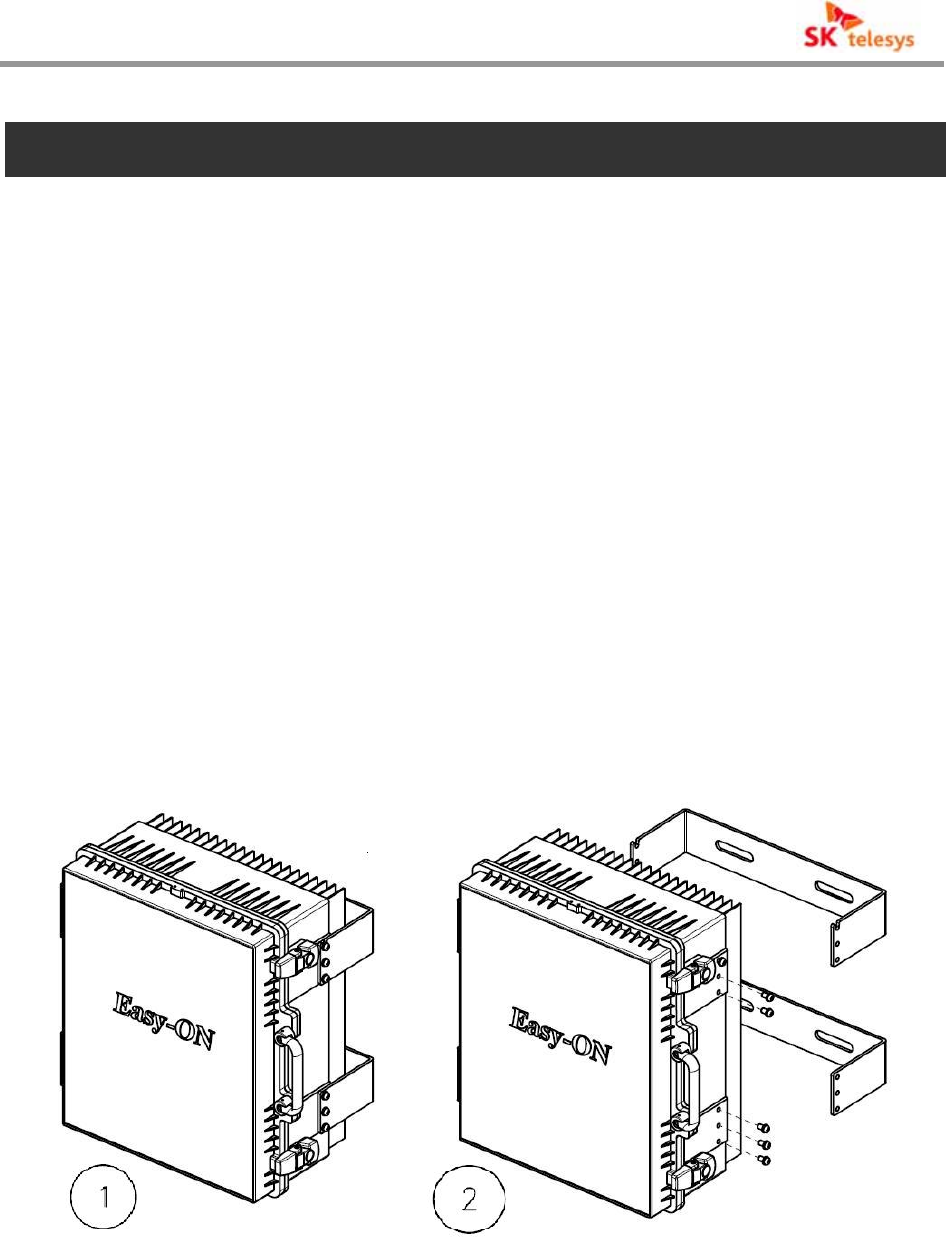

< Fig. 14 > Mounting Sequence of the CDMA Repeater.................................................... 28

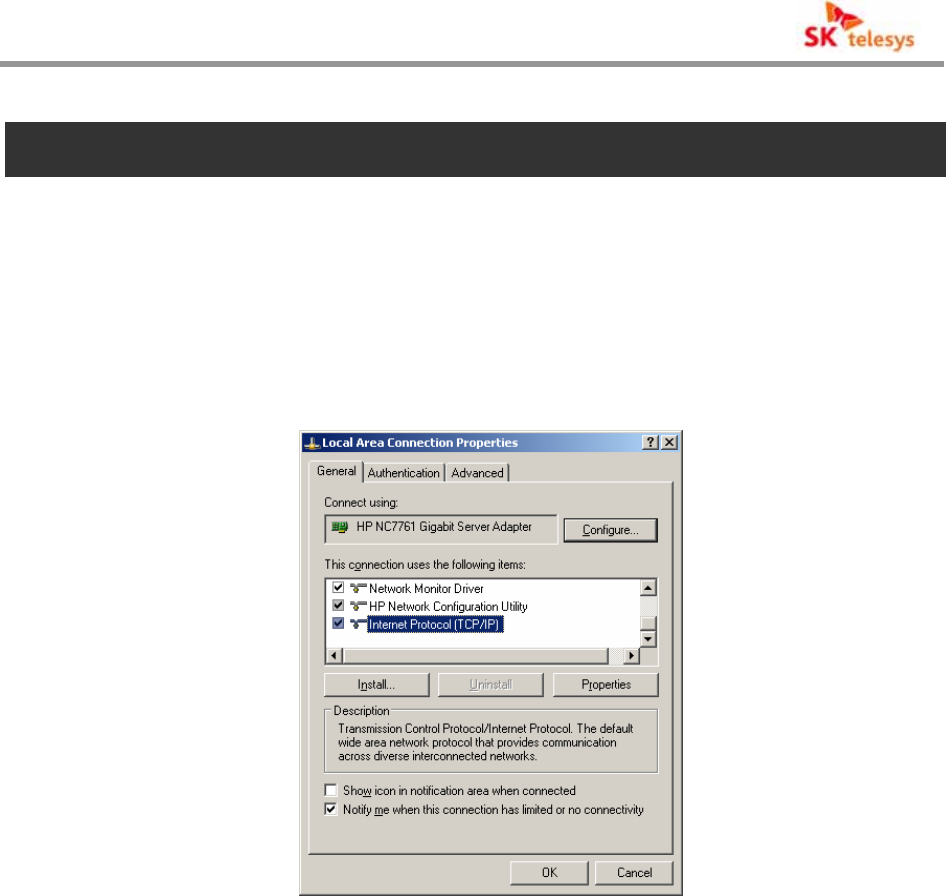

< Fig. 15 > Local Area Connection Properties..................................................................... 29

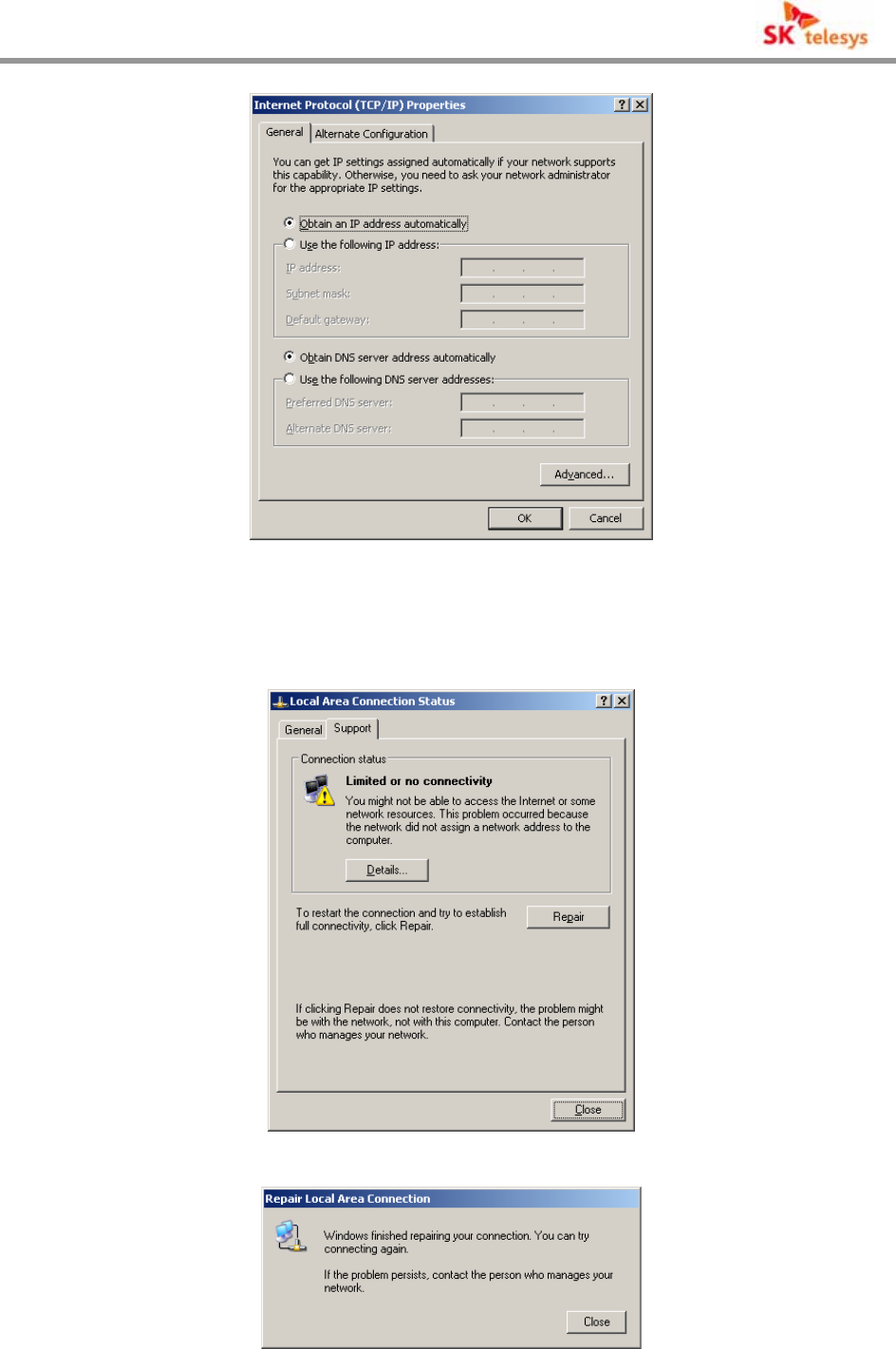

< Fig. 16 > Internet Protocol(TCP/IP) Properties.................................................................. 30
< Fig. 17 > Local Area Connection Status-1 ........................................................................ 30
< Fig. 18 > Local Area Connection Status-2 ........................................................................ 30

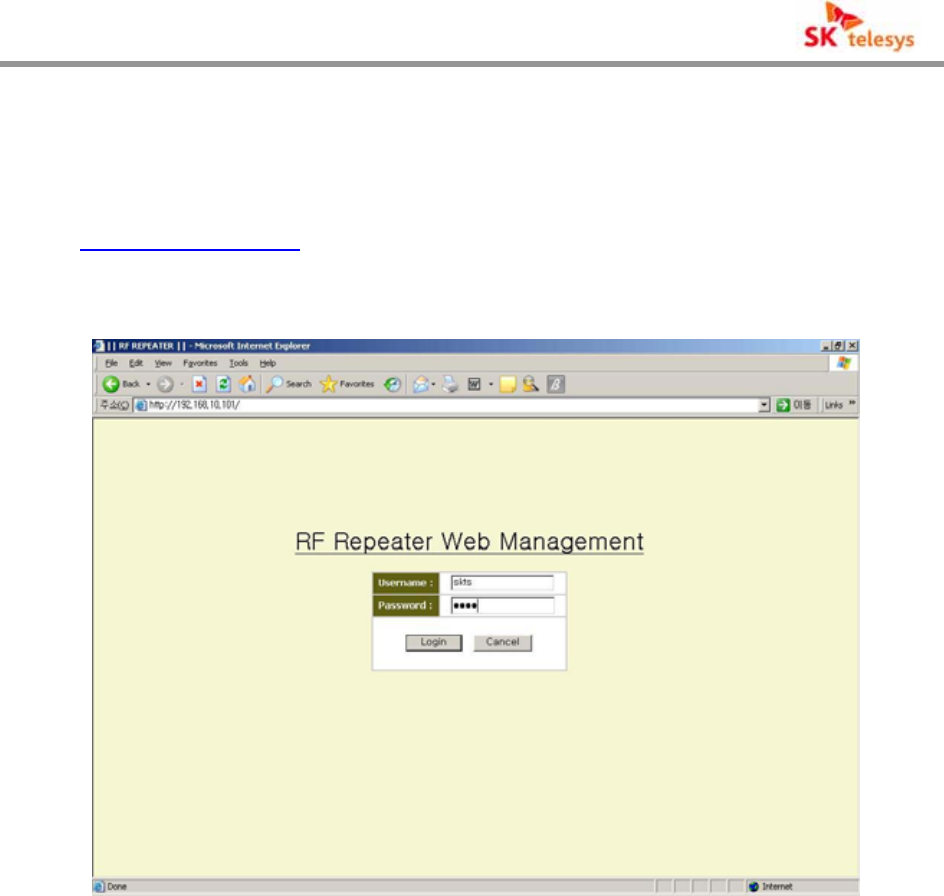

< Fig. 19 > Web GUI Initial Screen ...................................................................................... 31

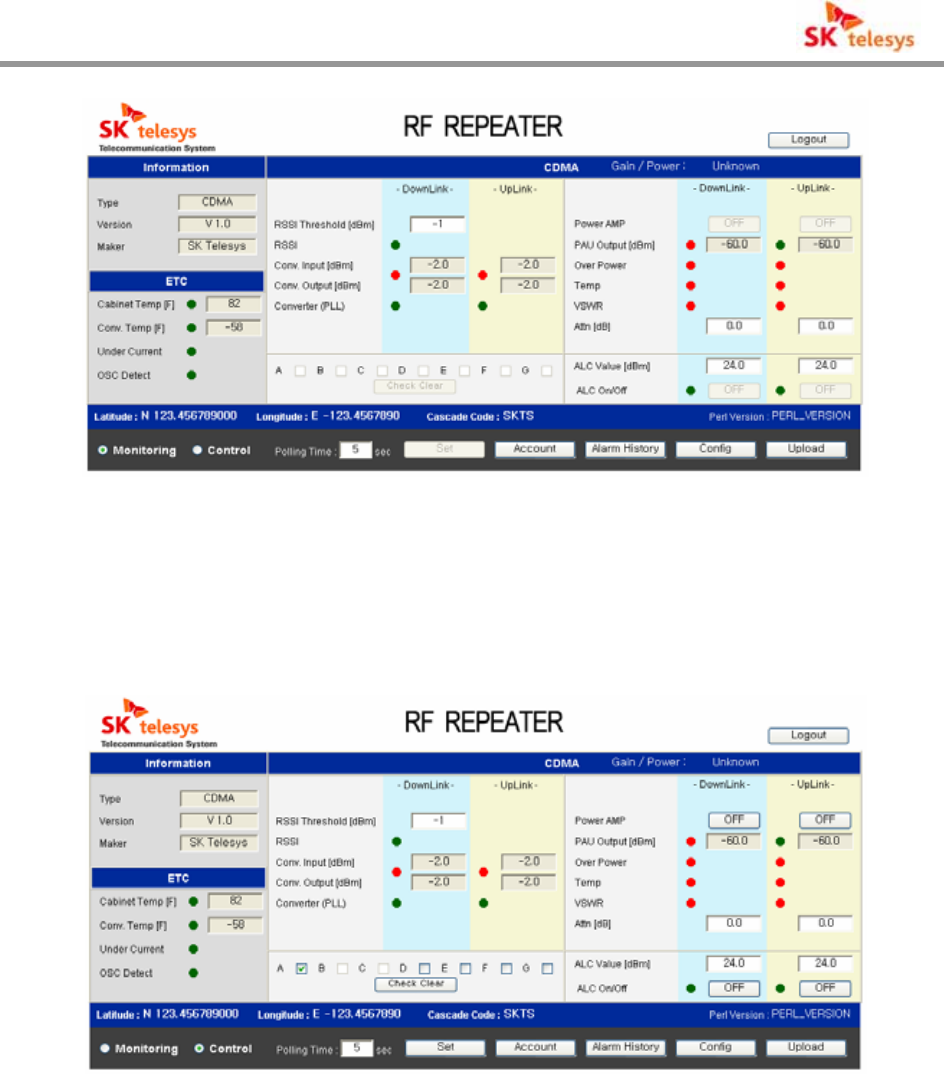

< Fig. 20 > Monitoring Screen of i CDMA Repeater State................................................. 32
< Fig. 21 > Control Screen of CDMA Repeater State......................................................... 32
< Fig. 22 > Input Range Excess Message........................................................................... 33
< Fig. 23 > Set Up Completion Message............................................................................. 33
< Fig. 24 > Mode Select ........................................................................................................ 33

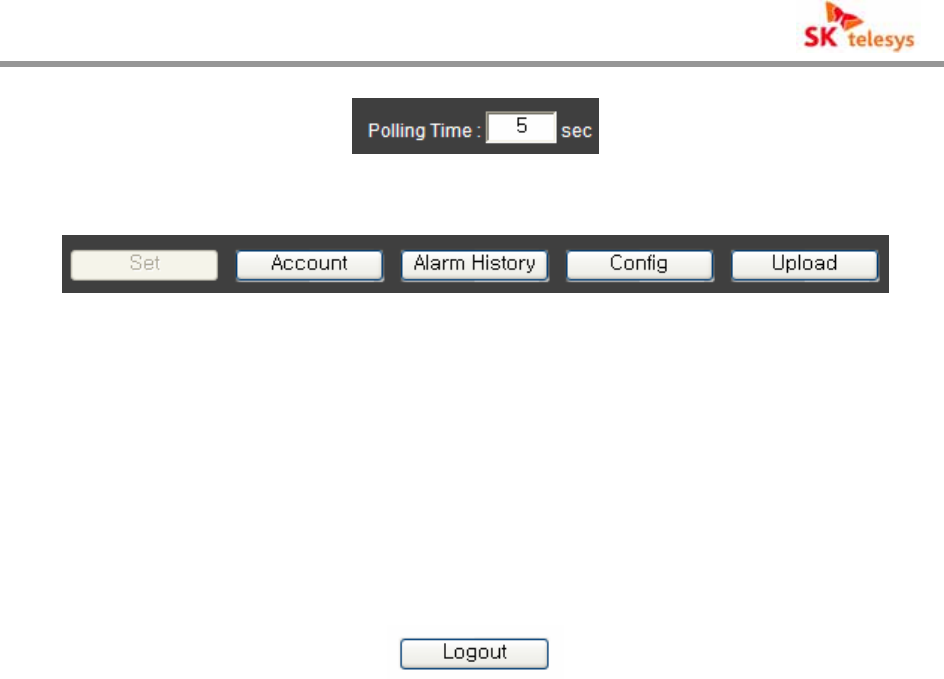

< Fig. 25 > Polling Time......................................................................................................... 34
< Fig. 26 > Function Button ................................................................................................... 34
< Fig. 27 > Logout .................................................................................................................. 34

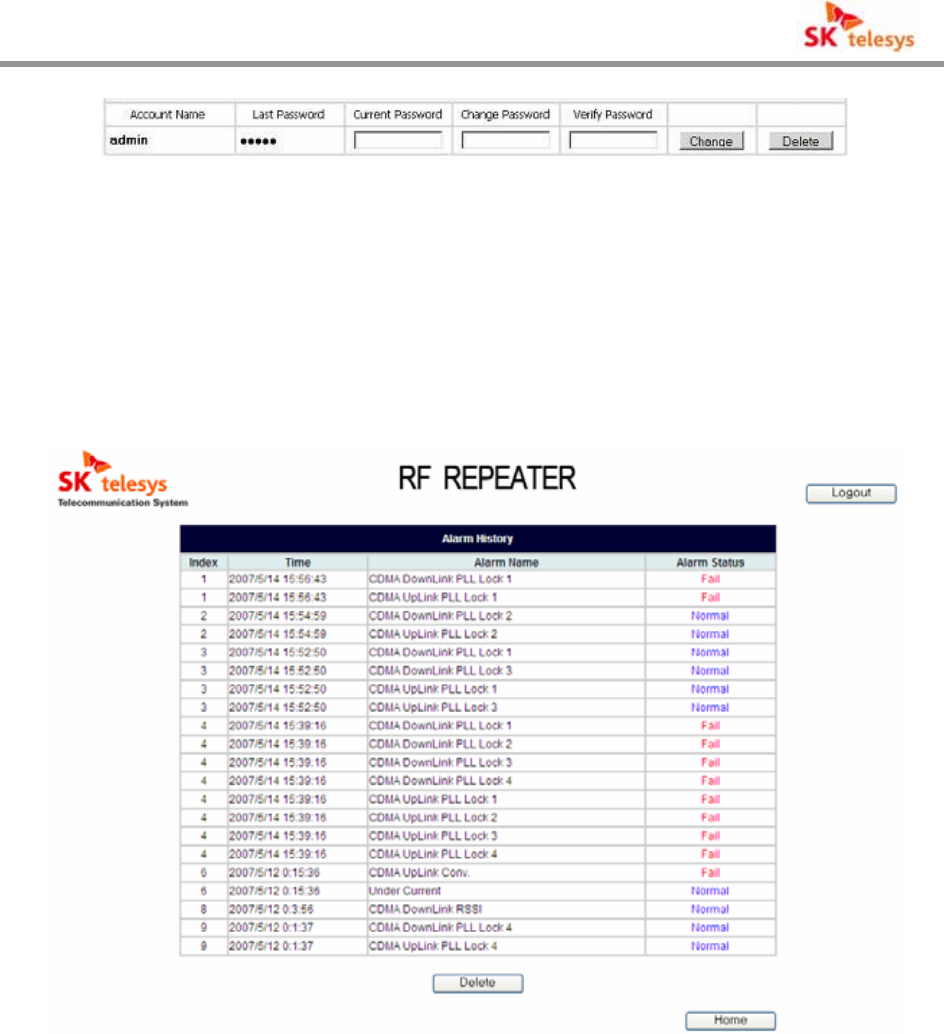

< Fig. 28 > Account Page...................................................................................................... 35
< Fig. 29 > User Registration ................................................................................................ 35
< Fig. 30 > Deletion and Change of User ........................................................................... 36
< Fig. 31 > Alarm History.......................................................................................................36

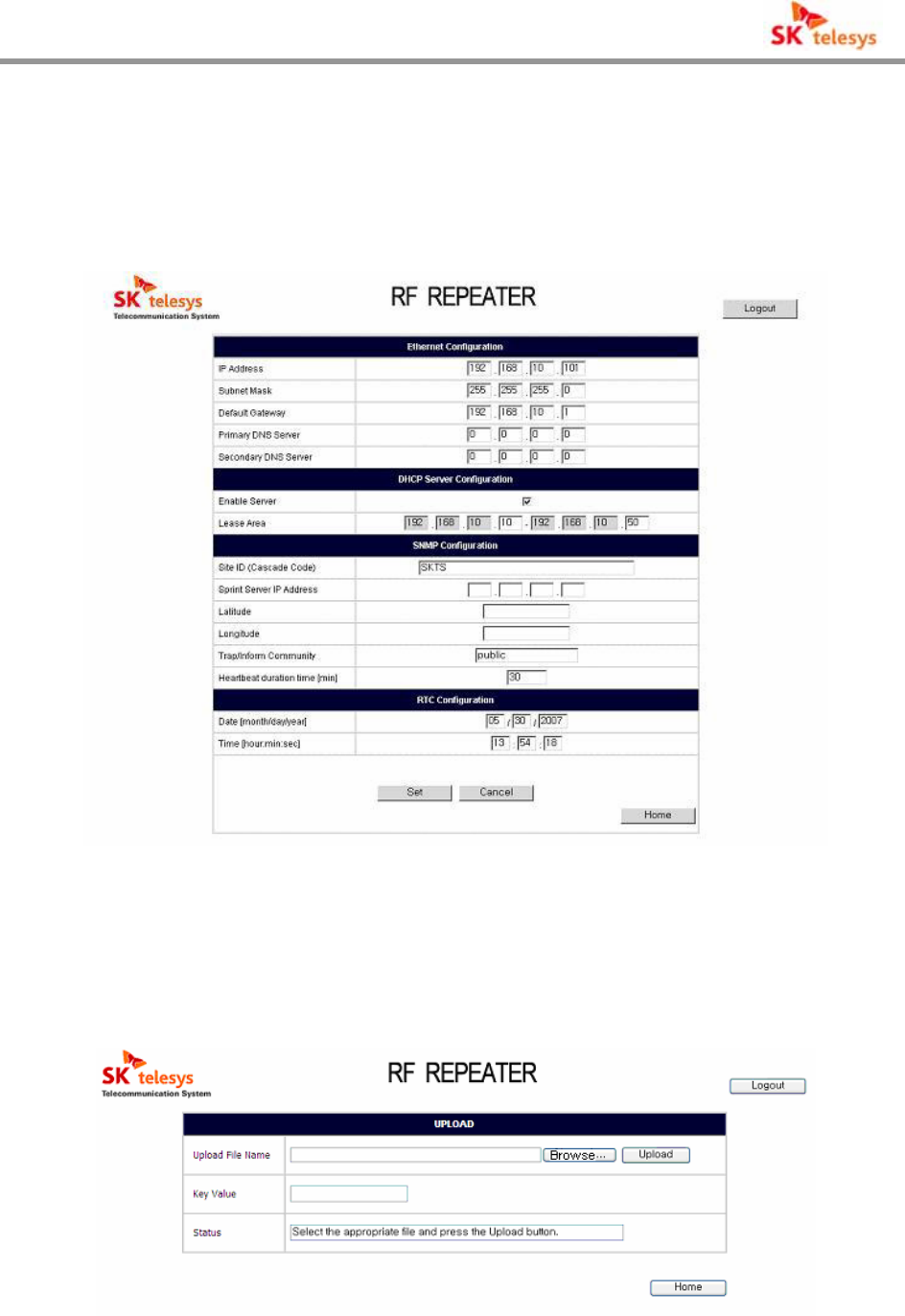

< Fig. 32 > Configuration Information of System ................................................................. 37
CDMA REPEATER
< Fig. 33 > Upload Page ....................................................................................................... 37

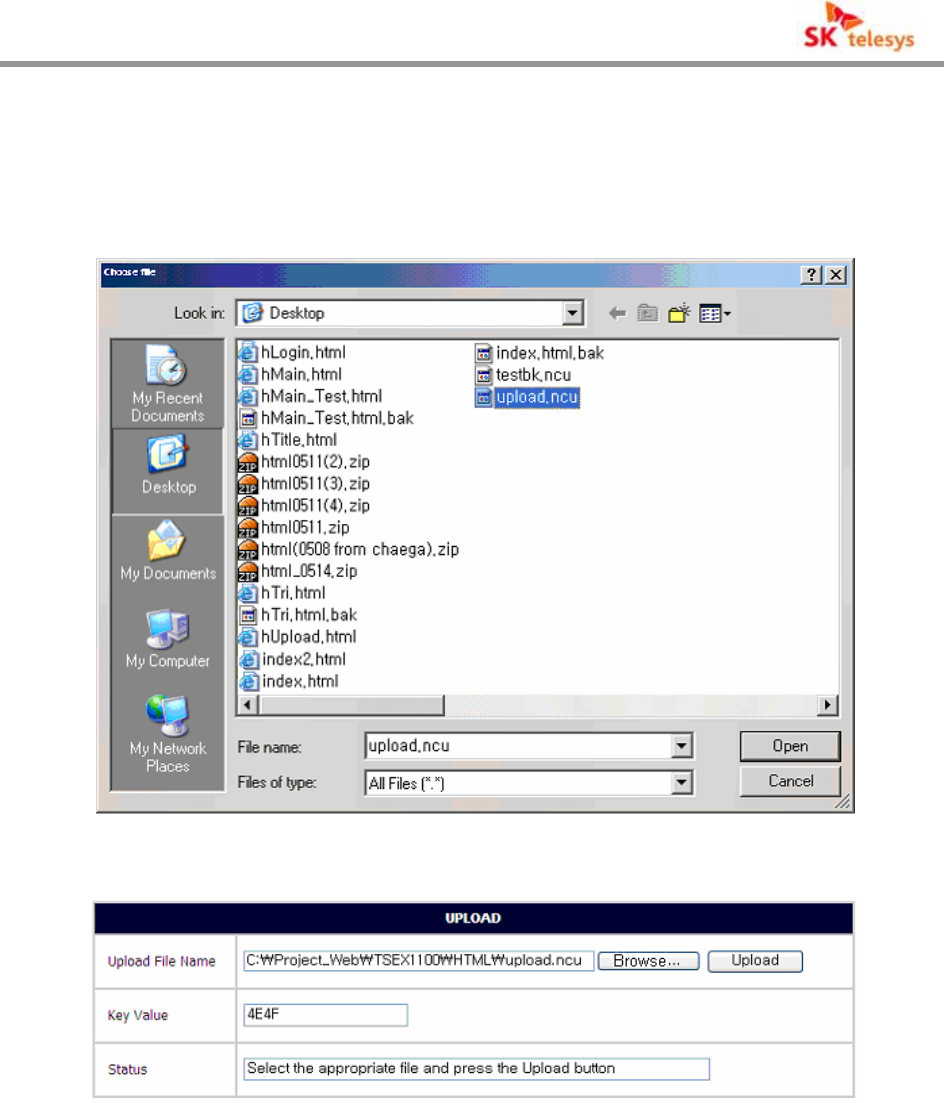

< Fig. 34 > File Selection....................................................................................................... 38
< Fig. 35 > Upload Arrangement ........................................................................................... 38

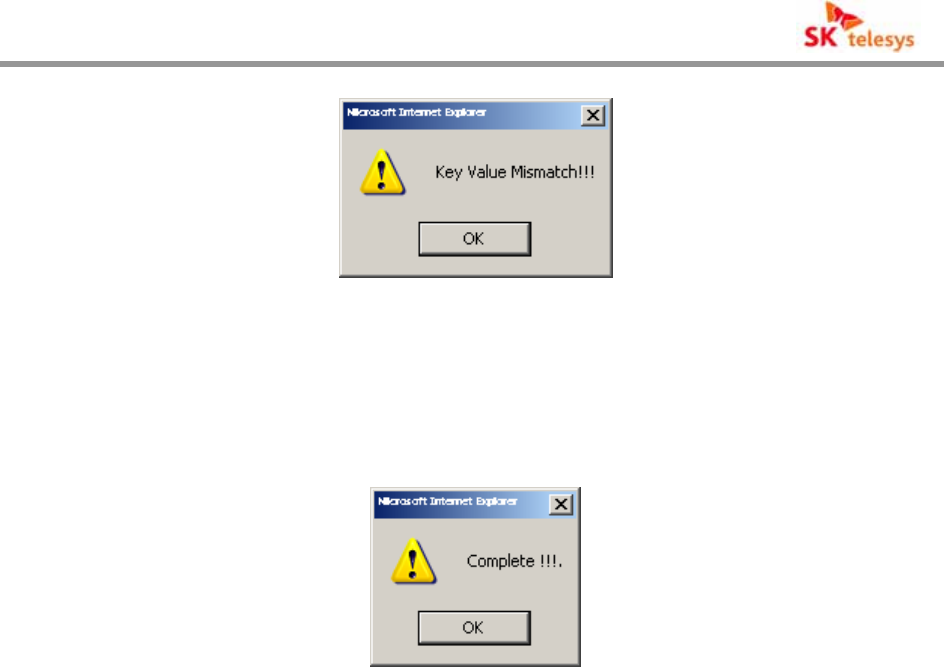

< Fig. 36 > Key Value Error .................................................................................................. 39
< Fig. 37 > Upload Completion.............................................................................................. 39
CDMA REPEATER
- Lists of Tables -
<Table 1 > Packing List............................................................................................................ 9
<Table 2 > System Features .................................................................................................. 13
<Table 3 > Figure and Function............................................................................................. 14
<Table 4 > Environmental specifications................................................................................ 14
<Table 5 > CDMA Frequency ................................................................................................. 15
CDMA REPEATER
1. Overviews
The RF repeater for CDMA is an economical RF repeater to enable customers who want
extension of communication ranges to extend communication ranges by installing repeaters in
the building inside, parking lots at the wave shade region, etc.
The RF repeater for CDMA is designed to enable users to select their desired bands(at
most 20MHz) among the CDMA 65MHz band. The CDMA repeater is excellent in the frequency
selection level and minimizes interference with other signals.
The Controller of the CDMA RF repeater has a local repeater control function to constantly
manage and control the repeaters for stable services of the repeaters installed at sites and a
remote repeater control function to support remote monitoring and control using a repeater
integrated-monitoring system.
The CDMA RF repeater is interlocked with a CDMA repeater integrated-monitoring system
using a modem in order to be interlocked with the CDMA repeater integrated-monitoring system.
The internal structure of a CDMA repeater composes a DL(Down Link) converter and UL(Up
Link) converter as one-module for optimum size and efficiency and consists of a PSU(Power
Supply Unit), filter unit, NMS module, and PAU(Power Amplifier Unit).
All modules except PAU were commonly used for economy and efficiency of operation and
enabled system output change only with replacement of PAU and PSU.

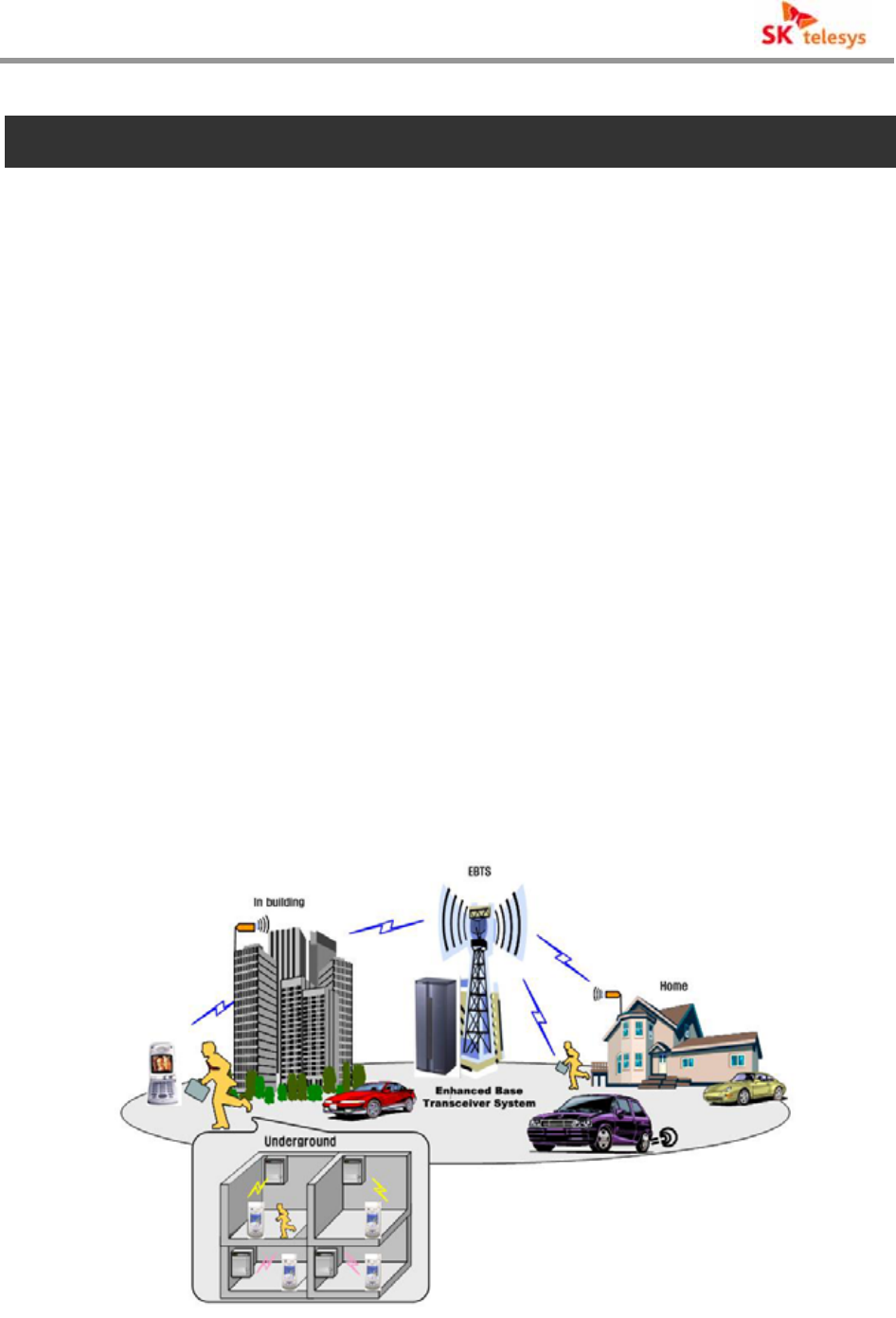

< Fig. 1 > Configuration of iDEN Network
CDMA REPEATER
2. Components

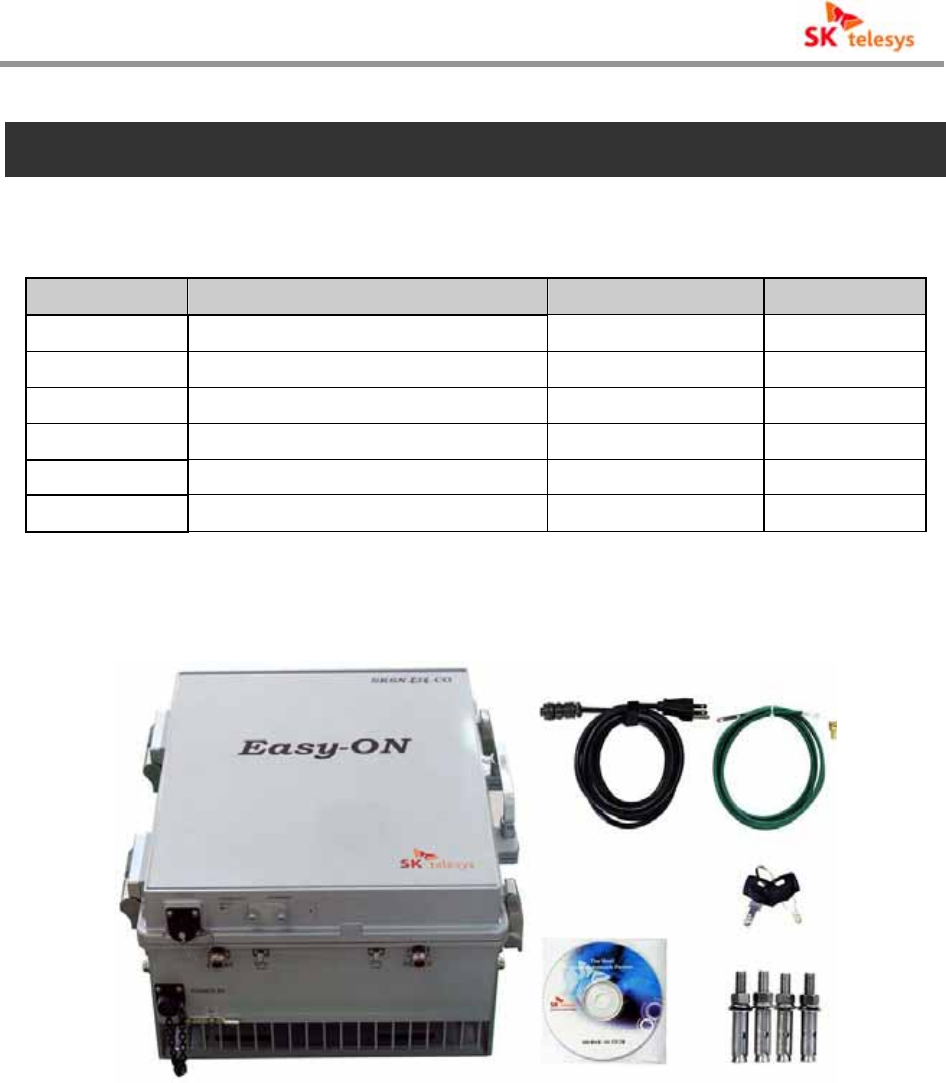

2.1 Packing List
No Description Quantity Remark
1 CDMA Repeater 1
2 AC Power Cable 1
3 Ground Cable 1
4 Bolts to fix the holder 4
5 KEY 2
6 CD 1
Manual
<Table 1 > Packing List
< Fig. 2 > Components of CDMA Repeater
CDMA REPEATER
2.2 System Quick View

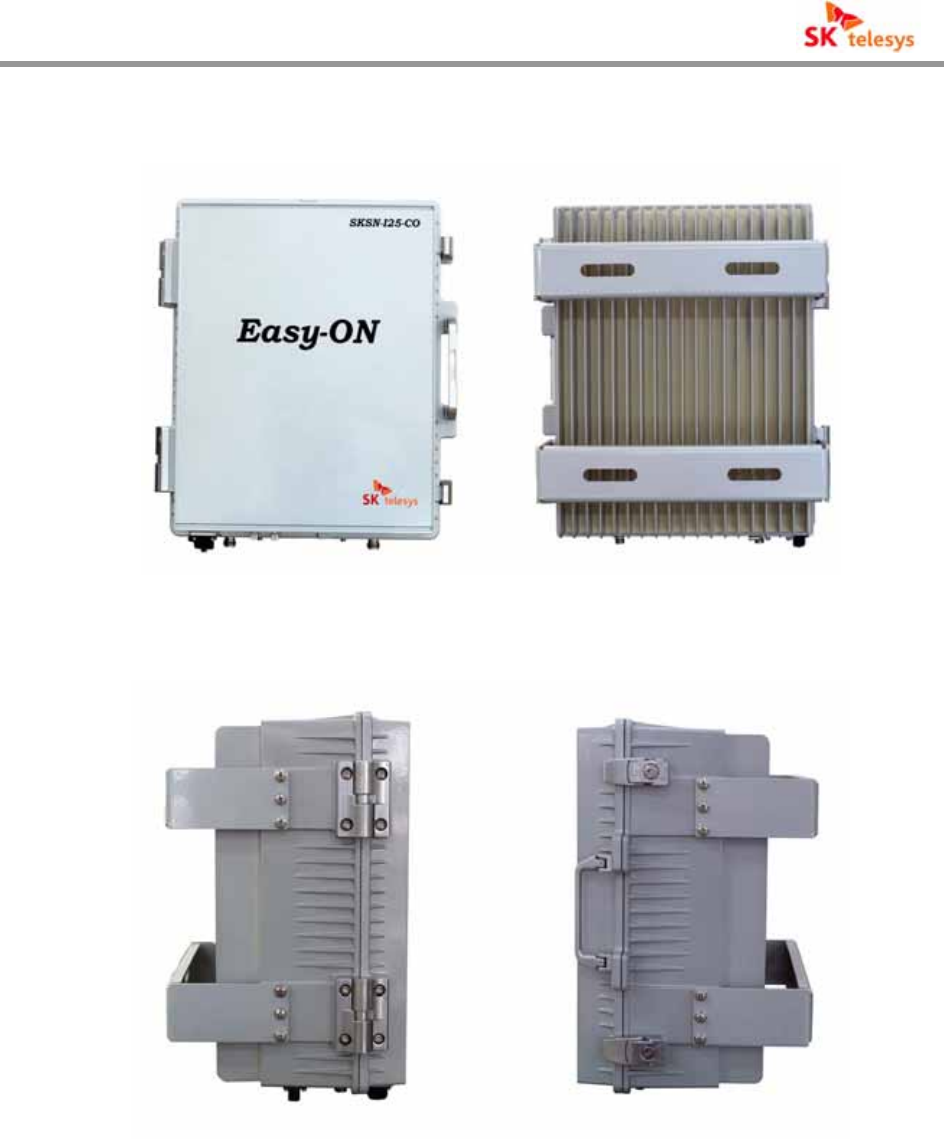

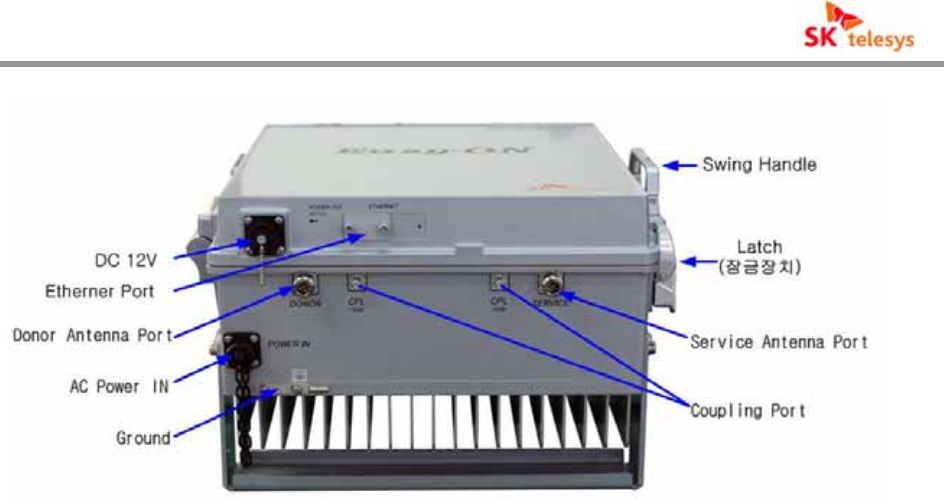

< Fig. 3 > Front & Back View of CDMA Repeater
< Fig. 4 > Side View of CDMA Repeater
CDMA REPEATER

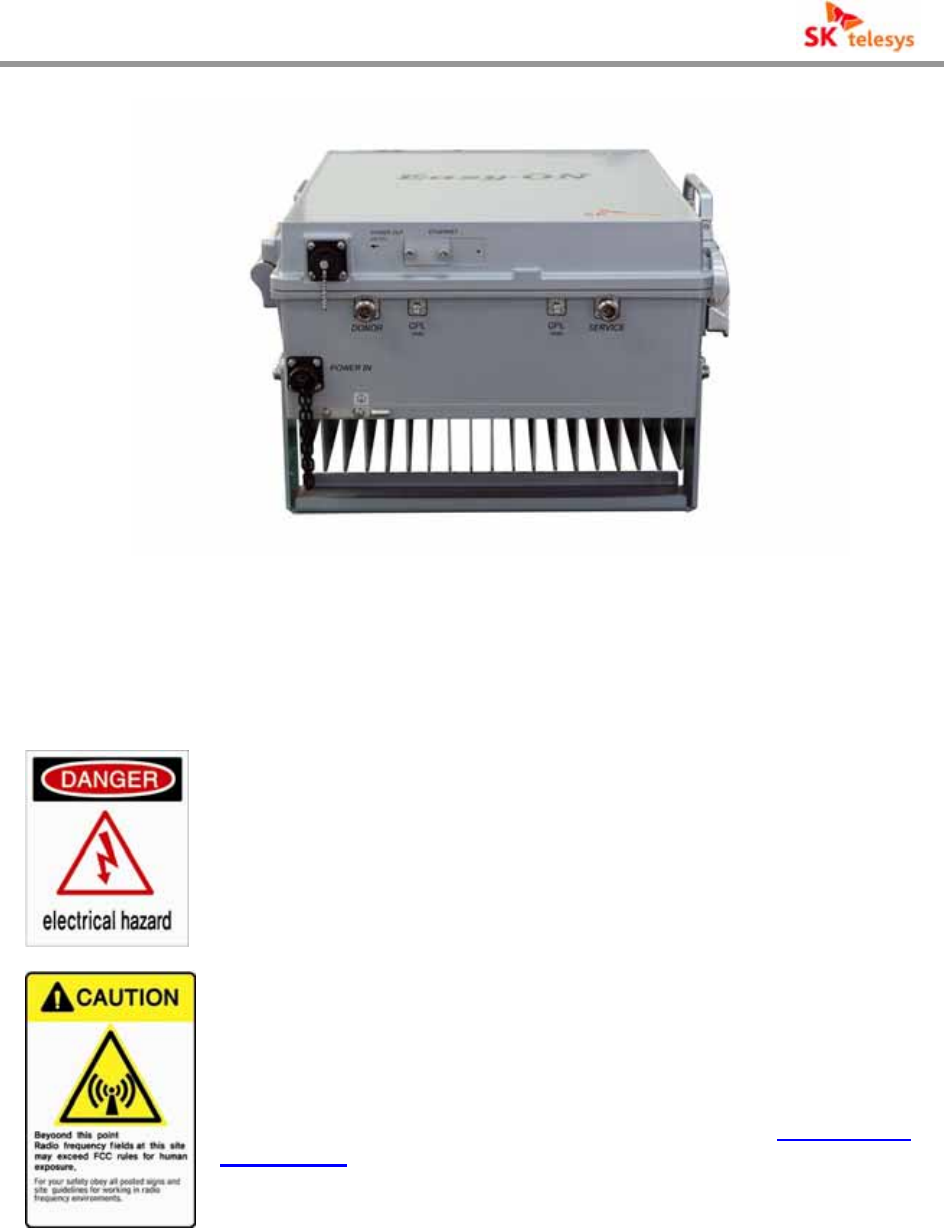

< Fig. 5 >Bottom View of CDMA Repeater
2.2 Warning and Hazards
WARNING! ELECTRIC SHOCK
Danger of electric shock!
Switch off while( it is ) maintained and inspected!
WARNING! EXPOSURE TO RF
Working with the repeater while in operation, may expose the
technician to RF electromagnetic fields that exceed FCC rule
s for human exposure. Visit the FCC website at www.fcc.gov
/oet/rfsafety to learn more about the effects of exposure to R
F electromagnetic fields.
CDMA REPEATER
RF EXPOSURE & ANTENNA PLACEMENT
Actual separation distance is determined upon gain of antenna
used.
Please maintain a minimum safe distance of at least 20 cm whi
le operating near the donor and the service antennas. Also, th
e donor antenna needs to be mounted outdoors on a permane
nt structure.
FCC STATEMENT
This equipment has been tested and found to comply with the
limits for a Class A digital device, pursuant to Part 15 of the F
CC Rules. These limits are designed to provide reasonable prot
ection against harmful interference when the equipment is oper
ated in a commercial environment. This equipment generates, u
ses, and can radiate radio frequency energy and, if not installe
d and used in accordance with the instruction manual, may ca
use harmful interference to radio communications.
Operation of this equipment in a residential area is likely to ca
use harmful interference in which case the user will be require
d to correct the interference at own expense.
Warning!
This equipment generates or uses radio frequency energy.
Changes or modifications to this equipment may cause harmf
ul interference unless the modifications are expressly approve
d in the instruction manual. The user could lose the authority
to operate this equipment if an unauthorized change or modi
fication is made.
CDMA REPEATER
3. Features and Specification of System
3.1 Electrical Specification
Item Specification Remark
Frequency Range Downlink : 1930 ~ 1995 MHz
Uplink : 1850 ~ 1915 MHz
80 dB / 24 dBm ※ CDMA (80/24)
86 dB / 30 dBm ※ CDMA (86/30)
Amplifier Gain /
Output Power per Channel
93 dB / 37 dBm ※ CDMA (93/37)
※ CDMA (80/24)
※ CDMA (86/30)
Input Level -16 ~ -56dBm / Total
※ CDMA (93/37)
Ripple ± 1.25dB
40 dB(1dB/Step±0.5dB or less) ※ CDMA (80/24)
46 dB(1dB/Step±0.5dB or less) ※ CDMA (86/30)
Gain Control Range
53 dB(1dB/Step±0.5dB or less) ※ CDMA (93/37)
Roll offs ∆50 dBc or more @ Band Edge± 1.625 MHz
Spurious RF Emission -13dBm or less
Propagation Delay 13 us or less
4.5 dB or less @ Max. Gain (Uplink)
Noise Figure
12 dB or less @ Min.. Gain (Uplink)
VSWR 1.5 : 1
Input/output connector N-Type (Female)
Input/output impedance 50Ω
Power 108 ~ 127 VAC, 60Hz Option※ -40 to -60VDC
20 to 30 VDC
<Table 2 > System Features
CDMA REPEATER
3.2 Mechanical Specification
Item Specification
Cabinet Indoor Type
RF Connector Type (IN/OUT) N-Type Female
390 * 326 * 175 mm ※ CDMA (80/24)
390 * 326 * 195 mm ※ CDMA (86/30)
Dimension
(H*W*D)
390 * 326 * 225 mm ※ CDMA (93/37)
18.5Kg ※ CDMA (80/24)
20.0Kg ※ CDMA (86/30)
Weight
21.5Kg ※ CDMA (93/37)
<Table 3 > Figure and Function
3.3 Environment Specification
Item Specification Remark
Working temperature/
working humidity -10 ~ 50 / ℃℃5 % ~ 95% Temperature and humidity
around cabinets
Power 108 ~ 127 VAC, 60Hz Option※ -40 to -60VDC
20 to 30 VDC
<Table 4 > Environmental specifications
CDMA REPEATER
3.4 Frequency used
Item Specification Remark
A 1930.625 ~ 1944.375 MHz BW :13.75 MHz
D 1945.625 ~ 1949.375 MHz BW : 3.75 MHz
B 1950.625 ~ 1964.375 MHz BW :13.75 MHz
E 1965.625 ~ 1969.375 MHz
F 1970.625 ~ 1974.375 MHz BW : 3.75 MHz
C 1975.625 ~ 1989.375 MHz BW :13.75 MHz
Down Link
G 1990.625 ~ 1994.375 MHz BW : 3.75 MHz
A 1850.625 ~ 1864.375 MHz BW :13.75 MHz
D 1865.625 ~ 1869.375 MHz BW : 3.75 MHz
B 1870.625 ~ 1884.375 MHz BW :13.75 MHz
E 1885.625 ~ 1889.375 MHz
F 1890.625 ~ 1894.375 MHz
BW : 3.75 MHz
C 1895.625 ~ 1909.375 MHz BW :13.75 MHz
Up Link
G 1910.625 ~ 1914.375 MHz BW : 3.75 MHz
<Table 5 > CDMA Frequency
< Fig. 6 > CDMA Frequency
CDMA REPEATER
4. System Block Diagram
4.1 Block Diagram
< Fig. 7 > Block Diagram
4.2 Block Diagram description
The filter as a cavity typed one is linked with Donor ANT and Service ANT of CDMA repeater,
which selectively passes the broadband wanted between the received signal and terminal signal.
Up/Down Converter Module consists of Down converter, Up converter and IF SAW Filter of
variable bandwidth from Filter to PAU input between Down link and Up link of CDMA repeater.
And to handle two bands of 1900M band and 1800M band same structure comprises in couple.
Up/Down converter of the Down Link converts the base station signals inputted through the LNA
part into the IF frequency(140MHz), which are divided into 1 path of 20MHz bandwidth and 3
paths of 5MHz bandwidth.
CDMA REPEATER
Each divided signal minimizes influence on other signals, removes spurious waves, and
improves separation levels by taking excellent Roll Off characteristics while passing through the
IF SAW and intercepting neighboring other bands and signals.
PAU amplifies CDMA signal at proper output level with the module at the final end and passes by Filter to
emit through ANT.
CDMA REPEATER
5. System Overview
5.1 Construction and Features of System
CDMA RF Repeater is arranged to effectively use the comprising modules when an operator
makes up and operates.
CDMA RF Repeater is basically installed by wall, and if required it is constructed to be installed
on 19 inch Rack. And, the bottom of the enclosure is provided with 1 donor port, 1 service port,
RF for donor monitoring, RF for service monitoring, and AC power terminals respectively.
The internal structure of the CDMA repeater was composed of a DL(Down Link) converter and a
UL(Up Link) converter as one module for optimum size and high efficiency and was composed
of a PSU(Power Supply Unit), Filter Unit, Controller, and PAU(Power Amplifier Unit).
< Fig. 8 > Internal Construction of CDMA Repeater
CDMA REPEATER
< Fig. 9 > Bottom View of CDMA RF Repeater
5.1.1 PSU (Power Supply Unit)
With AC power input for A/D or D/D conversion it is used to supply safe direct current power to
each device equipped with active degauss, using main active degauss for industrial or
equivalent semi-conducts to satisfy every electrical features with strong nature.
Its power takes AC 108-127V input to convert to DC 7V, DC 12V and DC 27V for use.
5.1.2 Controller
The controller consists of RCB(RF Control Board) and NCB(Network Control Board) to monitor
and control the state of each module of CDMA repeater.
RCB(RF Control Board) is linked to GUI through DEBUG port to collect the inspected
information of modules and control.
NCB(Network Control Board)enables upper NMS(Ethernet) communication through RJ-45 port
to inspect and control the state. It has LED to show the state in NCB(Network Control Board)’s
front to easily confirm the abnormal condition of Module.
Since the controller is run by exchangeable batteries, when exchanged in a wrong form, it may
explode and used batteries must be safely disposed.
Caution※
It may explode when exchanged in a wrong form.
Dispose the used batteries according to the direction of manufacturer.
CDMA REPEATER

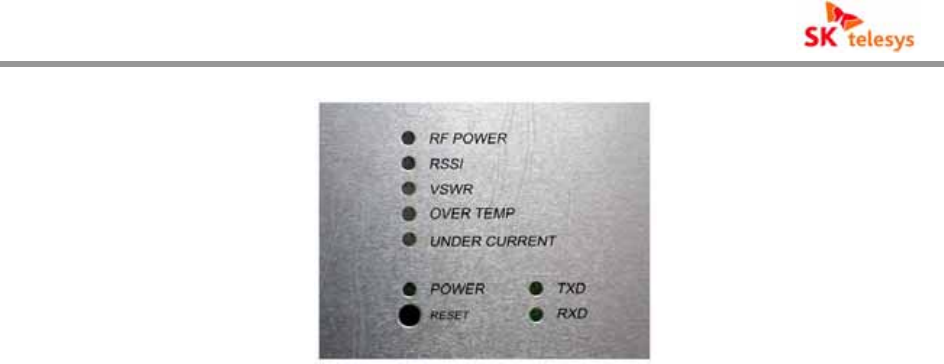

(1) LED
a. RF POWER : On alarming Red light, On normal running Green LED
b. RSSI : On alarming Red light, On normal running Green LED
c. VSWR : On alarming Red light, On normal running Green LED
d. OVER TEMP : On alarming Red light, On normal running Green LED
e. UNDER CURRENT : On alarming Red light, On normal running Green LED
f. POWER : On power admitted Green light, On normal communication
Green blinking.
h. RESET : Controller Reset Button
i. TXD : On Data transmitting with Web GUI connected Green blinking
j. RXD : On Data receiving with Web GUI connected Green blinking
5.1.3 Up / Down Converter
Up/Down converter module is composed of a Down converter and Up converter from the filter to
the PAU input in the Down link and Up link of the CDMA repeater.
The Up/Down converter converts the base station signals inputted through the LNA part into the
IF frequency(140MHz), which are divided into 1 path of 20MHz bandwidth and 3 paths of 5MHz
bandwidth.
Each divided signal minimizes influence on other signals, removes spurious waves, and
improves separation levels by taking excellent Roll Off characteristics while passing through the
IF SAW and intercepting neighboring other bands and signals.
Insertion of Isolator in front end of Mixer restrains local signal from leaking into Input stage.
Mixer applies a degauss with the feature of High IP3 to minimize IMD component of system,
maintain linear shape and minimize impact on next stage. BTS signal changed into IF frequency
is to be recovered into the original frequency through Up Converter.
Local stage for IF conversion is designed to minimize phase noises in order not to reduce
quality(ρ value) of waveform that can take place during the conversion process of signals.
CDMA REPEATER
RF Block of Down Link Up/Down Converter as Down Link Gain Control Block phase performs
AGC and ALC functions to protect devices on over-input of CDMA RF Repeater, and with the
need of user it may turn On/Off the functions with automatic compensation function for gains on
temperature of system.
5.1.4 Filter
As cavity typed filter it is linked to Donor ANT of CDMA Repeater, which selectively passes the
wanted band among signals of BTS received with antenna that other bands are removed and
band to be served only can be input into LNA phase after acquiring enough Isolation between
Down Link and Up Link. And Up Link operates to minimize Spurious power occurred in PAU.
5.1.5 PAU(Power Amplifier Unit)
PAU considers Spurious features to apply degauss with credibility, endurance and high P1dB
and inspects at all times output by linking to system’s control part. So when main problem
happens, it can be reported to upper level and if required by the user PAU move can be On/Off.
Down Link PAU amplifies CDMA signal to proper output level and supply Control board with
VSWR information of output port and Repeater’s output level.
Also detect its own temperature and supply Control board with Device failure to check normal
operation state of Module.
5.1.6 Isolation Check Module
The output signals from the Down Link converter of the UP/DOWN converter module is coupled
to become an input of the isolation check module. Such signals find the maximum value and
minimum value by measuring a oscillation detection value while moving by 50KHz from -
250KHz to +250KHz of oscillation check frequency within the module.
When the difference between the maximum value and minimum value is 2dB greater than the
setting value, the gain is compensated as much as the difference, and when it is -2dB less than
the setting value, the gain is compensated as much as -0.5dB. Isolation is monitored and
controlled through such action.
5.1.7 Cabinet
Cabinet of Repeater has Die-Casting structure enabling constructed Module to set up to Door
part to enhance implementation efficiency and minimize the size of cabinet.
CDMA REPEATER
Heat dissipation pin of repeater has excellent heat dissipation effect by deciding its length for
dissipation by output volume.
(1) Latch
Latch is well sealed and locked to secure safety in which it can play a major role in
preventing moisture and vibration.
With automatic lift function of Head, door is easy open and closed. Minimized Shaft’s recess
of Latch prevents shaking.
Strengthening Shaft hardness and recess Automatic lift function of Head
< Fig. 10 > Latch Structure
(2) Hinge
On assembling and maintaining cabinet it is designed to consider convenience and rapidity
for its opening and closing, and it has 3 merits such as Torque, Stopper and Separation
Angle function.
< Fig. 11 > Hinge Functions
< Separated angle>
Torque function realizatio A stopper function when
opening cabinets Separation when opening
cabinets
CDMA REPEATER
A. Torque Function
With Torque function embodiment it prevents sudden door opening or closing to consider
the operator’s safety on assembling and operating.
B. Stopper Function
With Stopper function embodiment it keeps sudden door opening from damaging cabinet
on maintaining after assembling and set up. The additional design for opening preventing
groove has double safety structure for stopping function.
C. Separation Angle Function
Attached Notch to the center bottom of Hinge keeps separation on closing, and as
opening in a certain angle(about 20-30 degree) Door and Body part of Cabinet may be
separated.
(3) Swing Handle
On moving the cabinet it applies folding typed Handle for safety and convenience, and it has
a find view because it can be folded inward.
When Door of Cabinet is open, closed or moved, it is convenient to be reversely lifted to be
used. It has strength of Handle considering equipment’s weight for delivery safety.
< Fig. 12 > Swing Handle Function
(4) Wrench Prevention Sill
It is put on Door part, which prevents cabinet of repeater from wrenching because of
vibration and external environment after set up.
CDMA REPEATER
(5) Guide
To keep from wrenching between cabinets after assembling it has Guide function. At the
same time contact area extension of Door and Body part of Cabinet enhances heat
transmission effect.
< Fig. 13 > Guide for Wrench Prevention
5.2 Additional Functions
5.2.1 AGC Function
The function is for stable operation of repeater and base station to keep output of repeater from
exceeding set up limit.
A. Handling Procedure
a. Switch ON/OFF AGC function set up through GUI.
b. When Down Link output value is more than set up level or less than 1.5dB, correct
the difference.
c. When Up Link output value is more than set up level or less than 1.5dB, correct the
difference.
d. Monitor output value of Down Link and Up Link every second.
B. Notes
a. Down Link and Up link are separately operated.
b. On oscillation check it does not operate.
CDMA REPEATER
5.2.2 Shutdown Function
When output of repeater exceeds set up limit, it is to function Shutdown for stable protection..
A. Handling Procedure
a. Operate when output value of Down Link and Up Link is 3dB over ALC set up limit.
b. Inspect output for 5 seconds to find that 5 second output is operation condition.
Then do PAU OFF to perform the first Shutdown move.
c. Perform PAU ON move 5 seconds after Shutdown move.
d. Inspect output for 4 seconds again after waiting for stable output for 1 second.
e. Perform c, d and e move for 3 times.
f. After 3rd move the PAU ON waiting time is 5 minutes. With Shutdown condition
afterward, proceed complete Shutdown state.
g. On complete Shutdown state the user should directly switch the repeater OFF or ON,
or set up PAU ON to come out of complete Shutdown state.
B. Notes
a. Do not operate when ALC Operation set up is OFF.
b. Down Link and Up Ling are independently operated.
5.2.3 Oscillation Check Function
A. Handling Procedure
a. Switch ON/OFF oscillation check function with GUI.
b. Inspect the section between -250KHz and +250KHz based on the frequency found
through channel scanning.
c. Measure the oscillation detection value while moving by 50KHz from -250KHz to
+250KHz of oscillation check frequency.
d. Find the minimum and maximum value from values measured from c.
e. When the difference between the maximum value and minimum value is 2dB
greater than the setting value, the gain is compensated as much as the difference.
f. When it is -2dB less than the setting value, the gain is compensated as much as -
0.5dB.
B. Notes
a. Do not operate while channel scan is operating.
b. When ALC is operating, gain correction value should not exceed ALC set up level.
c. When Up Link ALC operation is OFF, link Down Link Gain to operate.
CDMA REPEATER
5.2.4 Oscillation Shutdown Function
A. Handling Procedure
a. Operate when oscillation attenuation is over 30dB.
b. Switch all PAU OFF and start alarming.
c. Return PAU to original state after 10 seconds to perform oscillation check function.
d. On continuous Shutdown condition, try 3 times to enter complete Shutdown state
afterward.
e. On complete Shutdown state the user should directly switch the repeater OFF or ON,
or set up PAU ON to come out of complete Shutdown state.
B. Notes
a. Operate when oscillation check function is ON only.
CDMA REPEATER
6. System Installation guide
Cabinet of Repeater has Die-Casting structure, in which it basically needs by wall installation
and if required it can be installed at 19 inch Rack.
Holder of Repeater has 4 Wall Mount Hole, which needs to safely be installed enough to hole
the weight of repeater on installing by wall.
The procedure for installing by wall is as follows;
(１) Take Repeater out of package.
(２) Check the components of repeater to remove 12 screws assembled to bracket from the
repeater.(6 per side)
(３) Use 4 anchor bolts to fix bracket to the wall.
(４) Check if bracket is safely installed to the wall.
(５) Bracket installed by wall has 2 Guard screws. Lightly life the repeater on 2 Guard screws
to safely fix the other screw.
(６) Check if it is safely installed safely and firmly.
CDMA REPEATER
< Fig. 14 > Mounting Sequence of the CDMA Repeater
CDMA REPEATER
7. Web GUI Installation guide
7.1 Program Setup
(１) The Ethernet Ports of Repeater and Laptop are linked through LAN Cable.
(２) LAN Cable is used as Cross Cable.
(３) As selecting the following picture, Laptop is automatically assigned IP from the repeater.
< Fig. 15 > Local Area Connection Properties
CDMA REPEATER
< Fig. 16 > Internet Protocol(TCP/IP) Properties
(４) When network is not linked in a certain time, select Repair on Support window to
recover IP.
< Fig. 17 > Local Area Connection Status-1
< Fig. 18 > Local Area Connection Status-2
CDMA REPEATER
7.2 Web GUI Connection
(１) Input connection address on address window of Internet Explorer to access.
(２) The Connection address set up as the repeater is released is as follows;
http://192.168.10.101/
As linked to the repeater, input Username and Password on Login screen as follows to
click [Login].
< Fig. 19 > Web GUI Initial Screen
(３) Default Username & Password set up as the repeater is released are skts & skts.
(４) As linked to Web GUI, the following screen appears.
CDMA REPEATER
< Fig. 20 > Monitoring Screen of CDMA Repeater State
(５) After connected, reads the state from repeater system and updates on screen.
(６) As selecting Control at bottom of connection screen, it stops Polling and activates Set
Button and controllable items to change into control mode to alter set up value.
< Fig. 21 > Control Screen of CDMA Repeater State
CDMA REPEATER
(７) On changing set up value when the input range set by items is exceeded, warning
window appears to return to the earlier value.
< Fig. 22 > Input Range Excess Message
(８) After changing set up value, press Set button to transmit the changed data.
When set up is completed, the message appears.
< Fig. 23 > Set Up Completion Message
7.3 Monitor/Control of Web GUI State
You can select Mode Select at bottom of main screen of Web GUI as follows and monitor and
control the operation repeater.
< Fig. 24 > Mode Select
(１) As selecting Monitoring Mode, it monitors the present state of repeater system.
(２) As selection Control Mode, it stops Updating of repeater system and changes into
controllable Mode.
(３) The basic Mode after connecting is Monitoring Mode, and after controlling repeater on
Control Mode it automatically changes into Monitoring Mode.
(４) As for Monitoring Mode it is Polling period to update the state from system. It may input
between minimum 5 up to 60 seconds.
CDMA REPEATER
< Fig. 25 > Polling Time
< Fig. 26 > Function Button
Set : It activates on Control Mode. After changing set up value take down the control
on system to change state.
Account : Manages User’s information.
Alarm History : May show Alarm History Data on system.
Config : Reads and changes the parameter value affecting system connection.
Upload : Upload system program.
< Fig. 27 > Logout
Ends the present connection.
7.3.1 Account
It can register or delete the users accessible to Use Management page, and the grade of user is
divided into Super user and Normal user.
Total maximum user’s number available for registration is 4 for super user and 25 for normal
user.
On shipment the Default Super User name & Password of repeater are skts & skts.
As pressing Home button it returns to main screen.
CDMA REPEATER
< Fig. 28 > Account Page
7.3.2 User Registration
Select the right of User to register on Create Account Block at the bottom of Page, input User
Name and Password to be registered as new and press Create Button to register.
< Fig. 29 > User Registration
7.3.3 User deletion and modification
Deletion of User is Super User’s unique right. Press Delete button on the right of User List Block
to delete. Deletion of Super User Name is possible only with input of Current Password.
Deletion of Normal User is just available by pressing Delete button.
To change Password press Change button to apply after new Password input.
CDMA REPEATER
< Fig. 30 > Deletion and Change of User
7.3.4 Alarm History
Alarm details stored in system can be seen, which shows the occurrence time of alarm, its
occurrence and release.
Alarm History can be seen up to Index 50.
< Fig. 31 > Alarm History
Press Delete button at the bottom to delete alarm details stored, and the deleted alarm details
can not be restored.
Press Home button to return to main screen.
CDMA REPEATER
7.3.5 Config
It shows basic connection information required to connection and system’s construction
information, and the initial set up value on shipment is as follows;
< Fig. 32 > Configuration Information of System
7.3.6 Up Load
Upload Page is necessary to Upgrade the system program.
< Fig. 33 > Upload Page
CDMA REPEATER
Click [Search] button to select the file for Uploading on Popup window.
Controller of repeater comprises Network Control Board and Repeater Control Board, and each
Board’s Upload file is divided into SKTSNCB_vxx.ncu and SKTSRCB_x_vx.x.xx.rcu.
< Fig. 34 > File Selection
< Fig. 35 > Upload Arrangement
As the selected file path is seen, input Key Value provided and press Upload button to Upgrade
system.
If Key Value is different by files and inaccurate, Upload is impossible.
CDMA REPEATER
< Fig. 36 > Key Value Error
On completion of Upload, the following message appears and system is automatically rebooted.
On rebutting connection is not available, after rebooted normal connection is available.
< Fig. 37 > Upload Completion
CDMA REPEATER
8. Maintenance Guide
8.1 Confirmation of System Components
For normal operation of equipment the following should be confirmed on installation.
A. Confirm whether the repeater’s exterior would be deformed by damaged package
of repeater on delivery.
B. Confirm that the components of equipment accord and that installation place
satisfies temperature and humidity for operation of equipment defined on the
product’s specification.
C. Confirm the input signal condition of equipment defined on the product’s
specification.
D. Confirm that the state of cable and connector is good.
E. Confirm that the state of bracket of repeater is good.
8.2 Cautions on System Installation
In order for dangerous events not to occur on installation of repeater, the provided guidance
should be followed.
Especially, the power cord of this repeater is of an eternal connection type, so an easily
accessible power interruption device should be installed in the indoor wiring, and there should
be an easily accessible socket-outlet near the repeater.
Orde
r Description Cautions
1
Donor ANT welding and feeder
installation.
Service ANT or LCX equipped
• Cable should be installed without exterior damage.
• Protect connection parts like connector with insulation tape to
prevent humidity.
• Install feeder to minimize environment influence.
2 Installation of Antenna for Donor • Strongly fixed for local wind velocity to prevent antenna’s
direction from bending after installation
3 Power cable and RF cable
arrangement • Prevent cable from damaging by crooking or stretching.
CDMA REPEATER
9. System Set Up and Inspection
9.1 Items to be checked for Opening
A. Confirm AC 108 ~ 127 VAC common use power and power cable.
B. Check if Donor RF input signal from exterior is at normal level.
Caution※
When system operates without input signal confirmed, over-input may cause serious
damage on amplifying degauss because of saturation of output. Therefore, after
checking input signal level by equipment and ALC ON state(on shipment ALC ON)
operate equipment.
C. Put 108 ~ 127 VAC into power connector of equipment to switch ON.
D. Check Alarm LED blinking state of GUI or Repeater’s front board through laptop.
E. When it is judged that Down Link RF input signal from exterior is normal, switch
OFF the Repeater to connect ANT feed and Service ANT to Input/Output Port of
Repeater and switch ON again.
Caution ※
Conclude carefully lest Down Link and Up Link Port be reversed.
9.2 Items to be check after opening
A. Confirm existence of abnormality by checking the alarm LED lighting status of
repeaters.
B. Confirm whether the RF input/output values are normal or not by using GUI.
C. Confirm the normal operation status of repeaters by measuring the characteristics,
etc. of spurious waves of the repeater’s down link and up link output using a
spectrum waveform analyzer by using a coupling terminal beside each input/output
port of the repeater after about 10 or more minutes passes after turning on the
power of repeaters.
D. Optimize the electric wave environments while comparing with the status before
opening about whether there is no electric wave shade region or non-
communicable region by measuring the communication quality in the service region
using a terminal or gauge after normal operation of the repeater.
CDMA REPEATER
9.3 Failure and Inspection
9.3.1 Inspection of Repeater
On routine or emergency service of repeater the following orders should be taken to check its
failure.
A. Check RF input/output level and LED of repeater using Web GUI. On routine service
check calling quality with terminal or measurer, or on emergency service the
following should be taken even if RF input/out level of repeater on Web GUI is
normal.
B. Connect link harmonic analyzer to test terminal of repeater to confirm output state.
C. Use Coupling port to check output value.
D. Check if the output value of repeater obtained by harmonic analyzer agrees with
actual out put value of repeater.
E. Check input level of repeater when the output value of repeater obtained by
harmonic analyzer does not agree with actual output value of repeater.
F. When input level is not same as the one on installation time showing distinct
difference, check antenna welding state and feeder’s installation state.
G. If the output value of repeater is abnormal as comparing input level to operation
gains of repeater, switch ON/OFF the repeater to check the output state with
harmonic analyzer. On severe failure immediately replace with spare parts to supply
normal service.
CDMA REPEATER
9.3.2 Facility Inspection
On routine Inspection and service failure the following parts and items are needed to be
inspected.
Inspection Parts Inspection Items Remark
Donor Antenna & Service Antenna
Inspect the malfunction of Antenna’s welding,
received signal’s intensity of donor antenna and
RSSI value.
Feeder, Leakage Coaxial Cable Inspect whether feeder or leakage coaxial cable
may be cut or damaged.
Connector, Distributor
Inspect whether connector’s linking part or cable
may be flooded, or whether each linking part is
firmly fastened.
Power Incoming Part Confirm that common terminal box for 108 ~ 127
VAC is not leaked.
CDMA REPEATER
10 . Warranty and Repair Policy
10.1 General Warranty
This product carries a Standard Warranty period of five (5) years unless indicated otherwise on
the package or in the acknowledgment of the purchase order.
10.2 Limitations of Warranty
Your exclusive remedy for any defective product is limited to the repair or replacement of the
defective product. SK Telesys Corp. may elect which remedy or combination of remedies to
provide in its sole discretion. SK Telesys Corp. shall have a reasonable time after determining
that a defective product exists to repair or replace the problem unit. SK Telesys Corp. warranty
applies to repaired or replaced products for the balance of the applicable period of the original
warranty or ninety days from the date of shipment of a repaired or replaced product, whichever
is longer.
10.3 Limitation of Damages
The liability for any defective product shall in no event exceed the purchase price for the
defective product.
10.4 No Consequential Damages
SK Telesys Corp. has no liability for general, consequential, incidental or special damages.
10.5 Additional Limitation on Warranty
SK Telesys Corp. standard warranty does not cover products which have been received
improperly packaged, altered, or physically damaged. For example, broken warranty seal, labels
exhibiting tampering, physically abused SK Telesys Corp. Proprietary Document Page 27 of 31
iDEN RF Repeater User Manual enclosure, broken pins on connectors, any modifications made
without SK Telesys Corp. authorization, will void all warranty.
CDMA REPEATER
10.6 Return Material Authorization (RMA)
No product may be returned directly to SK Telesys Corp. without first getting an approval from
SK Telesys Corp. If it is determined that the product may be defective, you will be given an RMA
number and instructions in how to return the product. An unauthorized return, i.e., one for which
an RMA number has not been issued, will be returned to you at your expense. Authorized
returns are to be shipped to the address on the RMA in an approved shipping container. You will
be given our courier information. It is suggested that the original box and packaging materials
should be kept if an occasion arises where a defective product needs to be shipped back to SK
Telesys Corp. To request an RMA, please call 888-758-7002 or send an email to
service@sktelesys.com.
CDMA REPEATER
☎ Contact Information
Maker
Korea Office
Address
SK Telesys Co., Ltd
12-13F, Naewei Bldg.6, Eulgiro-2Ga, Jung-Gu, Seoul 100-844, Korea
Homepage: www.sktelesys.com
US Office
Address SK Telesys Corp.
12750 center court drive suite #400, Cerritos, CA 90703
Staff in charge of
sales
Kap Soo, Park, Director
Phone: 562-207-1924, Fax: 562-207-1925
Email: kapspark@sktelesys.com
Service contact
in US Email : service@sktelesys.com
Phone: 888-758-7002
Staff in charge of
R&D Jae-Hyung Kim, Manager
Phone: 82-31-786-5625, Email: kjhyung@sktelesys.com
