SKY DRAGON Audio video Technology BC235DCK206 Bluetooth Speaker User Manual BC235D

Shenzhen SKY DRAGON Audio-video Technology Co.LTD Bluetooth Speaker BC235D

User manual

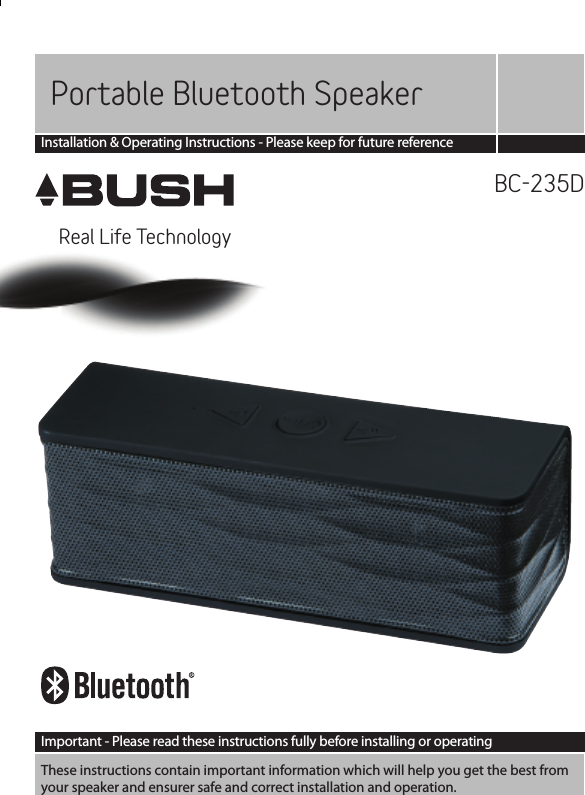

Portable Bluetooth SpeakerReal Life TechnologyInstallation & Operating Instructions - Please keep for future referenceBC-235DImportant - Please read these instructions fully before installing or operatingThese instructions contain important information which will help you get the best from your speaker and ensurer safe and correct installation and operation.
Portable Bluetooth SpeakerReal Life TechnologyInstallation & Operating Instructions - Please keep for future referenceBC-235DImportant - Please read these instructions fully before installing or operatingThese instructions contain important information which will help you get the best from your speaker and ensurer safe and correct installation and operation. Important – Please read these instructions fully before installation Safety InformationCAUTION: TO REDUCE THE RISK OF ELECTRICSHOCK, DO NOT REMOVE ANY COVER. NOUSER-SERVICEABLE PARTS INSIDE, REFERANY SERVICING TO QUALIFIED SERVICEPERSONNEL.•Please read this owne r’s guide•Please take the time to follow the instructions in thisowner’s guide carefully. It will help you set up andoperate your system properly and enjoy all of itsadvanced features.•Please save this owne r’s guide for future reference.•The product label is located on the back of theproduct.•Heed all warnings - on the product and in theowner’s guide.•Do not use this apparatus near water or moisture.Do not use this product near a bathtub, washbowl,kitchen sink, and laundry tub, in a wet basement,near a swimming pool, or anywhere else that wateror moisture is present.•manufacturer.••Servicing is required when the apparatus hasbeen damaged in any way: such as liquid has beenspilled or objects have fallen into the apparatus; theapparatus has been exposed to rain or moisture,does not operate normally, or has been dropped -Do not attempt to service this product yourself.Opening or removing covers may expose you to dangerous voltages or other hazards.•Use proper power sources - Plug the product into aproper power source, as described in the operatinginstructions or as marked on the product.We apologise for any inconvenience caused by any minor inconsistencies in these instructions,which may occur as a result of product improvements and development.This appliance complies with the following EU directives: 2006/95/EC Low voltage directive / 2004/108/ECEMC directive , 2002/96/EC WEEE directive, 1999/5/EC R&TTE directive..Disposal InformationThe symbol on the product or its packaging indicates that this product may not be treatedas household waste. Instead it should be handed over to the applicable collection point forthe recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and humanhealth, which could otherwise be caused by inappropriate waste handling of this product. Foryour household waste disposal ser vice or the shop where the product was purchased.

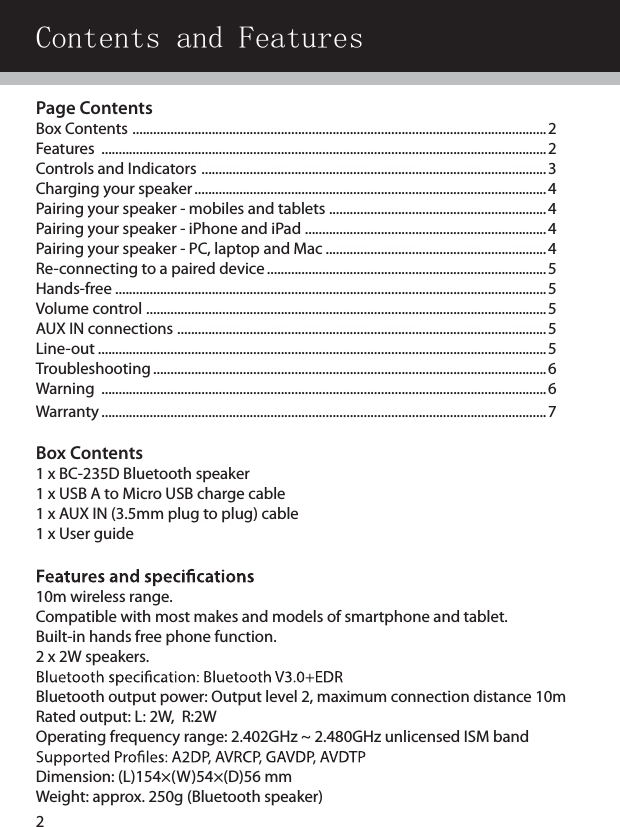

Contents and FeaturesPage ContentsBox Contents ........................................................................................................................2Features .................................................................................................................................2Controls and Indicators ....................................................................................................3Charging your speaker ......................................................................................................4 Pairing your speaker - mobiles and tablets ...............................................................4Pairing your speaker - iPhone and iPad ......................................................................4 Pairing your speaker - PC, laptop and Mac ................................................................4Re-connecting to a paired device .................................................................................5Hands-free .............................................................................................................................5Volume control ....................................................................................................................5AUX IN connections ........................................................................................................... 5Line-out ..................................................................................................................................5Troubleshooting ..................................................................................................................6Warning .................................................................................................................................6Warranty ................................................................................................................................. 7Box Contents1 x BC-235D Bluetooth speaker 1 x USB A to Micro USB charge cable1 x AUX IN (3.5mm plug to plug) cable1 x User guide10m wireless range.Compatible with most makes and models of smartphone and tablet.Built-in hands free phone function. 2 x 2W speakers.Bluetooth output power: Output level 2, maximum connection distance 10mRated output: L: 2W, R:2WOperating frequency range: 2.402GHz ~ 2.480GHz unlicensed ISM band Dimension: (L)154×(W)54×(D)56 mmWeight: approx. 250g (Bluetooth speaker)2
Portable Bluetooth SpeakerReal Life TechnologyInstallation & Operating Instructions - Please keep for future referenceBC-235DImportant - Please read these instructions fully before installing or operatingThese instructions contain important information which will help you get the best from your speaker and ensurer safe and correct installation and operation. 1. Microphone1. LINE OUT - Audio Output socket2. AUX IN - For external audio input (3.5mm socket)3. LED Charging indicator light4. MICRO USB - Charging socket5. ON/OFF - Power switch3. Play/Pause/Hands-free 2. Volume - 4. Volume +Controls and IndicatorsControls and Indicators1. Microphone position for hands-free calls2. Press to reduce volume, hold down to reduce volume fast. 3. In Bluetooth search mode, hold down for 3 seconds to enter pairing mode; in Bluetooth play status, press to pause/play music; when a call comes, press key to answer, press again to hang up. 4. Press to increase volume, hold down to increase the volume fast. 3

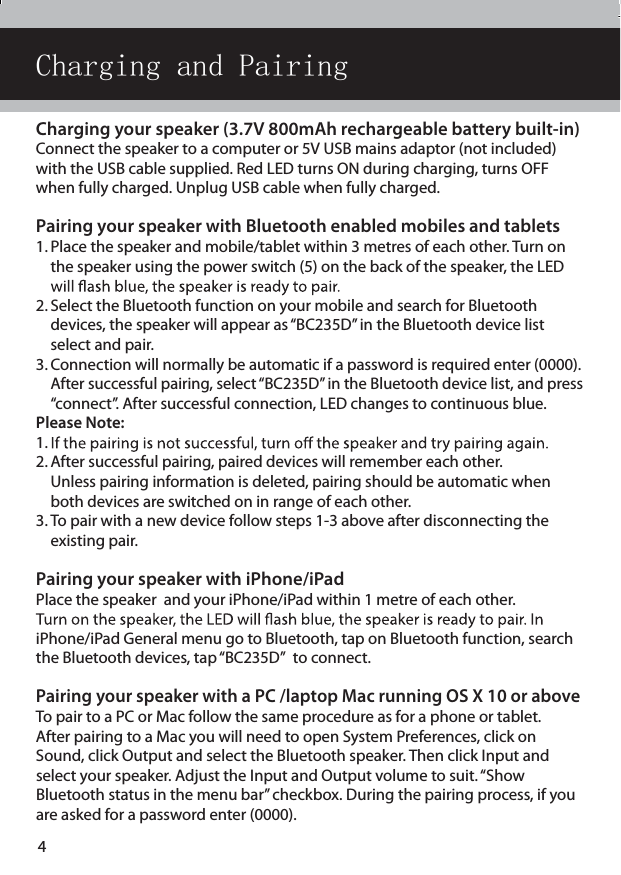

Portable Bluetooth SpeakerReal Life TechnologyInstallation & Operating Instructions - Please keep for future referenceBC-235DImportant - Please read these instructions fully before installing or operatingThese instructions contain important information which will help you get the best from your speaker and ensurer safe and correct installation and operation. Charging your speaker (3.7V 800mAh rechargeable battery built-in)Connect the speaker to a computer or 5V USB mains adaptor (not included) with the USB cable supplied. Red LED turns ON during charging, turns OFF when fully charged. Unplug USB cable when fully charged.Pairing your speaker with Bluetooth enabled mobiles and tablets1. Place the speaker and mobile/tablet within 3 metres of each other. Turn on the speaker using the power switch (5) on the back of the speaker, the LED 2. Select the Bluetooth function on your mobile and search for Bluetooth devices, the speaker will appear as “BC235D” in the Bluetooth device list select and pair. 3. Connection will normally be automatic if a password is required enter (0000). After successful pairing, select “BC235D” in the Bluetooth device list, and press “connect”. After successful connection, LED changes to continuous blue.Please Note: 1. 2. After successful pairing, paired devices will remember each other. Unless pairing information is deleted, pairing should be automatic when both devices are switched on in range of each other. 3. To pair with a new device follow steps 1-3 above after disconnecting the existing pair.Pairing your speaker with iPhone/iPadPlace the speaker and your iPhone/iPad within 1 metre of each other. iPhone/iPad General menu go to Bluetooth, tap on Bluetooth function, search the Bluetooth devices, tap “BC235D” to connect.Pairing your speaker with a PC /laptop Mac running OS X 10 or above To pair to a PC or Mac follow the same procedure as for a phone or tablet. After pairing to a Mac you will need to open System Preferences, click on Sound, click Output and select the Bluetooth speaker. Then click Input and select your speaker. Adjust the Input and Output volume to suit. “Show Bluetooth status in the menu bar” checkbox. During the pairing process, if you are asked for a password enter (0000).Charging and Pairing4

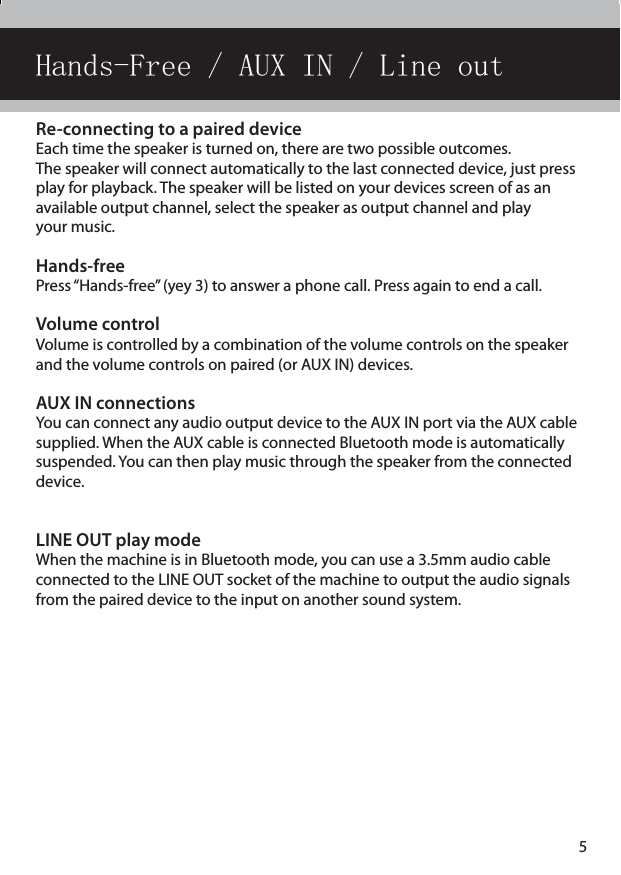

Re-connecting to a paired device Each time the speaker is turned on, there are two possible outcomes. The speaker will connect automatically to the last connected device, just press play for playback. The speaker will be listed on your devices screen of as an available output channel, select the speaker as output channel and play your music.Hands-freePress “Hands-free” (yey 3) to answer a phone call. Press again to end a call.Volume controlVolume is controlled by a combination of the volume controls on the speaker and the volume controls on paired (or AUX IN) devices.AUX IN connectionsYou can connect any audio output device to the AUX IN port via the AUX cable supplied. When the AUX cable is connected Bluetooth mode is automatically suspended. You can then play music through the speaker from the connected device.LINE OUT play modeWhen the machine is in Bluetooth mode, you can use a 3.5mm audio cable connected to the LINE OUT socket of the machine to output the audio signals from the paired device to the input on another sound system.Hands-Free / AUX IN / Line out5

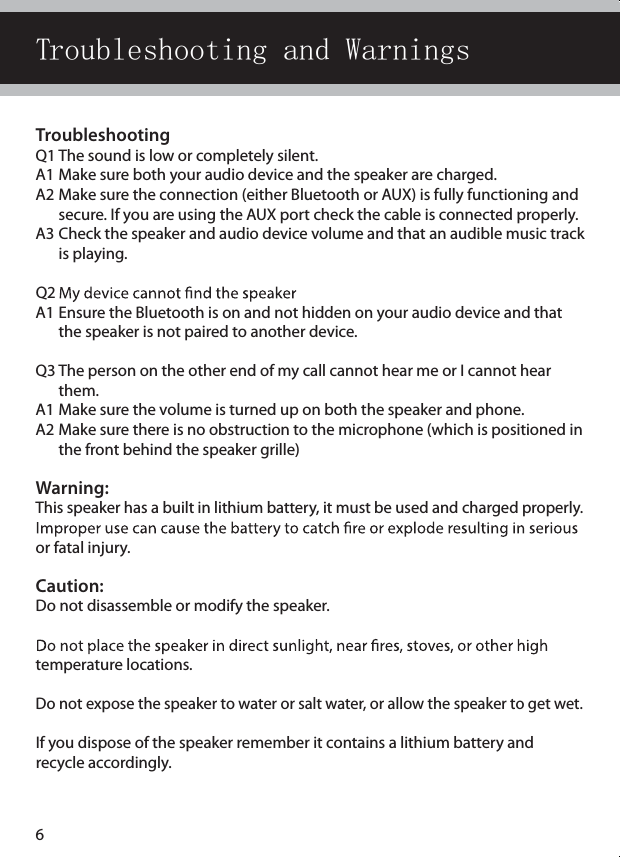

TroubleshootingQ1 The sound is low or completely silent.A1 Make sure both your audio device and the speaker are charged. A2 Make sure the connection (either Bluetooth or AUX) is fully functioning and secure. If you are using the AUX port check the cable is connected properly.A3 Check the speaker and audio device volume and that an audible music track is playing.Q2 A1 Ensure the Bluetooth is on and not hidden on your audio device and that the speaker is not paired to another device.Q3 The person on the other end of my call cannot hear me or I cannot hear them.A1 Make sure the volume is turned up on both the speaker and phone.A2 Make sure there is no obstruction to the microphone (which is positioned in the front behind the speaker grille)Warning: This speaker has a built in lithium battery, it must be used and charged properly. or fatal injury.Caution: Do not disassemble or modify the speaker. temperature locations. Do not expose the speaker to water or salt water, or allow the speaker to get wet. If you dispose of the speaker remember it contains a lithium battery and recycle accordingly.Troubleshooting and Warnings6

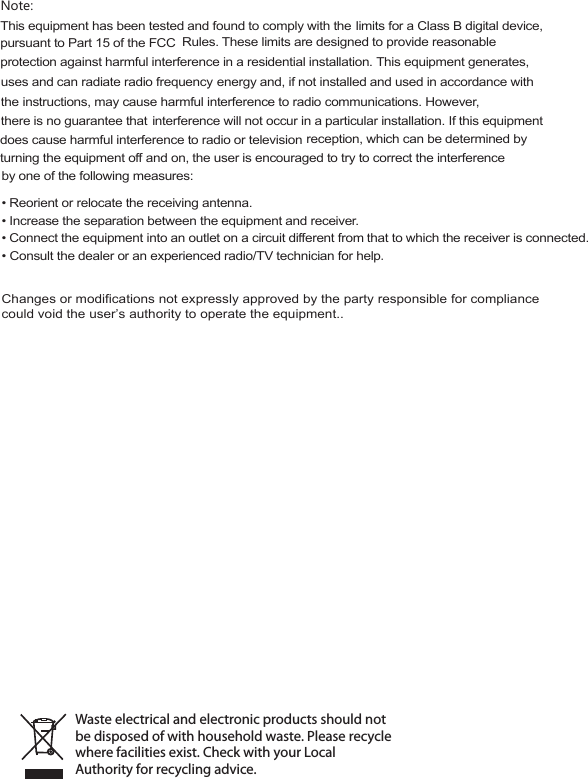

Waste electrical and electronic products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority for recycling advice.This equipment has been tested and found to comply with the pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates,uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help.Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment..limits for a Class B digital device, Note:
