User manual
Portable Bluetooth Speaker
Real Life Technology
Installation & Operating Instructions - Please keep for future reference
BC-235D
Important - Please read these instructions fully before installing or operating
These instructions contain important information which will help you get the best from
your speaker and ensurer safe and correct installation and operation.
Portable Bluetooth Speaker
Real Life Technology
Installation & Operating Instructions - Please keep for future reference
BC-235D
Important - Please read these instructions fully before installing or operating
These instructions contain important information which will help you get the best from
your speaker and ensurer safe and correct installation and operation.
Important – Please read these instructions fully before installation
Safety Information
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE ANY COVER. NO
USER-SERVICEABLE PARTS INSIDE, REFER
ANY SERVICING TO QUALIFIED SERVICE
PERSONNEL.
•Please read this owne r’s guide
•Please take the time to follow the instructions in this
owner’s guide carefully. It will help you set up and
operate your system properly and enjoy all of its
advanced features.
•Please save this owne r’s guide for future reference.
•The product label is located on the back of the
product.
•Heed all warnings - on the product and in the
owner’s guide.
•Do not use this apparatus near water or moisture.
Do not use this product near a bathtub, washbowl,
kitchen sink, and laundry tub, in a wet basement,
near a swimming pool, or anywhere else that water
or moisture is present.
•
manufacturer.
•
•Servicing is required when the apparatus has
been damaged in any way: such as liquid has been
spilled or objects have fallen into the apparatus; the
apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped -
Do not attempt to service this product yourself.
Opening or removing covers may expose you to
dangerous voltages or other hazards.
•Use proper power sources - Plug the product into a
proper power source, as described in the operating
instructions or as marked on the product.
We apologise for any inconvenience caused by any minor inconsistencies in these instructions,
which may occur as a result of product improvements and development.
This appliance complies with the following EU directives: 2006/95/EC Low voltage directive / 2004/108/EC
EMC directive , 2002/96/EC WEEE directive, 1999/5/EC R&TTE directive..
Disposal Information
The symbol on the product or its packaging indicates that this product may not be treated
as household waste. Instead it should be handed over to the applicable collection point for
the recycling of electrical and electronic equipment. By ensuring this product is disposed of
correctly, you will help prevent potential negative consequences for the environment and human
health, which could otherwise be caused by inappropriate waste handling of this product. For
your household waste disposal ser vice or the shop where the product was purchased.
Contents and Features
Page Contents
Box Contents ........................................................................................................................2
Features .................................................................................................................................2
Controls and Indicators ....................................................................................................3
Charging your speaker ......................................................................................................4
Pairing your speaker - mobiles and tablets ...............................................................4
Pairing your speaker - iPhone and iPad ......................................................................4
Pairing your speaker - PC, laptop and Mac ................................................................4
Re-connecting to a paired device .................................................................................5
Hands-free .............................................................................................................................5
Volume control ....................................................................................................................5
AUX IN connections ........................................................................................................... 5
Line-out ..................................................................................................................................5
Troubleshooting ..................................................................................................................6
Warning .................................................................................................................................6
Warranty ................................................................................................................................. 7
Box Contents
1 x BC-235D Bluetooth speaker
1 x USB A to Micro USB charge cable
1 x AUX IN (3.5mm plug to plug) cable
1 x User guide

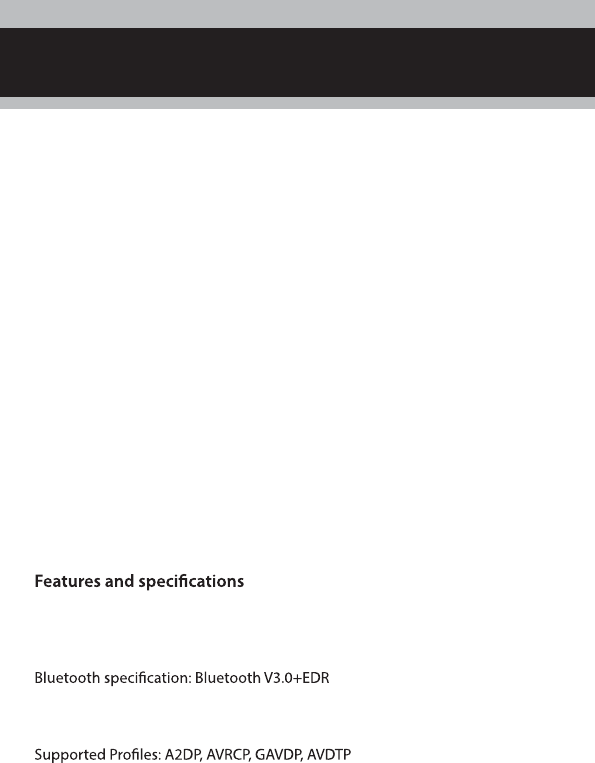

10m wireless range.
Compatible with most makes and models of smartphone and tablet.
Built-in hands free phone function.
2 x 2W speakers.
Bluetooth output power: Output level 2, maximum connection distance 10m
Rated output: L: 2W, R:2W
Operating frequency range: 2.402GHz ~ 2.480GHz unlicensed ISM band
Dimension: (L)154×(W)54×(D)56 mm
Weight: approx. 250g (Bluetooth speaker)
2
Portable Bluetooth Speaker
Real Life Technology
Installation & Operating Instructions - Please keep for future reference
BC-235D
Important - Please read these instructions fully before installing or operating
These instructions contain important information which will help you get the best from
your speaker and ensurer safe and correct installation and operation.

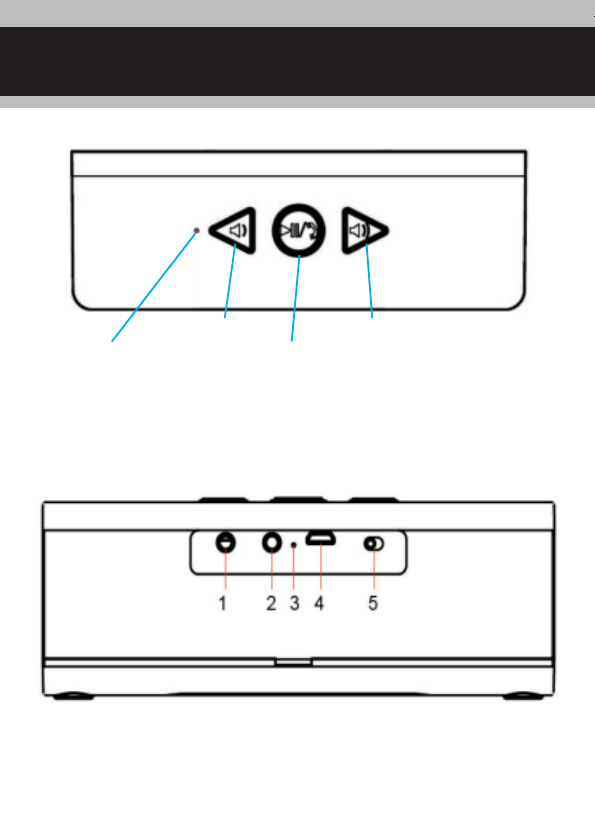

1. Microphone
1. LINE OUT - Audio Output socket
2. AUX IN - For external audio input (3.5mm socket)
3. LED Charging indicator light
4. MICRO USB - Charging socket
5. ON/OFF - Power switch
3. Play/Pause/Hands-free
2. Volume - 4. Volume +
Controls and Indicators
Controls and Indicators
1. Microphone position for hands-free calls
2. Press to reduce volume, hold down to reduce volume fast.
3. In Bluetooth search mode, hold down for 3 seconds to enter pairing
mode; in Bluetooth play status, press to pause/play music; when a
call comes, press key to answer, press again to hang up.
4. Press to increase volume, hold down to increase the volume fast.
3
Portable Bluetooth Speaker
Real Life Technology
Installation & Operating Instructions - Please keep for future reference
BC-235D
Important - Please read these instructions fully before installing or operating
These instructions contain important information which will help you get the best from
your speaker and ensurer safe and correct installation and operation.
Charging your speaker (3.7V 800mAh rechargeable battery built-in)
Connect the speaker to a computer or 5V USB mains adaptor (not included)
with the USB cable supplied. Red LED turns ON during charging, turns OFF
when fully charged. Unplug USB cable when fully charged.
Pairing your speaker with Bluetooth enabled mobiles and tablets

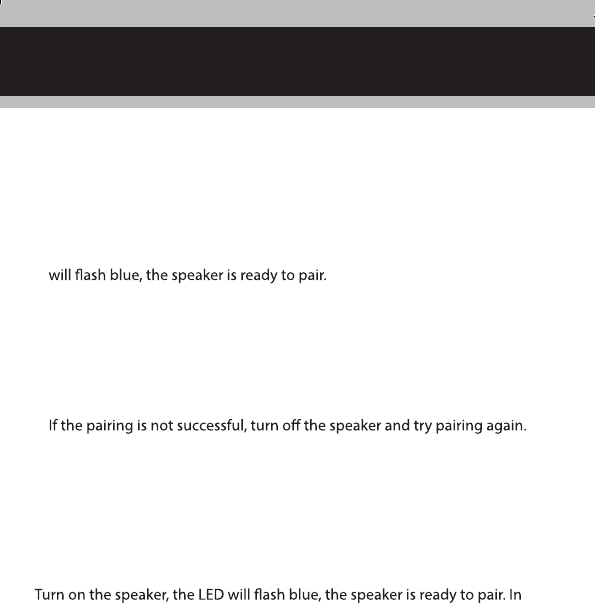

1. Place the speaker and mobile/tablet within 3 metres of each other. Turn on
the speaker using the power switch (5) on the back of the speaker, the LED
2. Select the Bluetooth function on your mobile and search for Bluetooth
devices, the speaker will appear as “BC235D” in the Bluetooth device list
select and pair.
3. Connection will normally be automatic if a password is required enter (0000).
After successful pairing, select “BC235D” in the Bluetooth device list, and press
“connect”. After successful connection, LED changes to continuous blue.
Please Note:
1.
2. After successful pairing, paired devices will remember each other.
Unless pairing information is deleted, pairing should be automatic when
both devices are switched on in range of each other.
3. To pair with a new device follow steps 1-3 above after disconnecting the
existing pair.
Pairing your speaker with iPhone/iPad
Place the speaker and your iPhone/iPad within 1 metre of each other.
iPhone/iPad General menu go to Bluetooth, tap on Bluetooth function, search
the Bluetooth devices, tap “
BC235D”
to connect.
Pairing your speaker with a PC /laptop Mac running OS X 10 or above
To pair to a PC or Mac follow the same procedure as for a phone or tablet.
After pairing to a Mac you will need to open System Preferences, click on
Sound, click Output and select the Bluetooth speaker. Then click Input and
select your speaker. Adjust the Input and Output volume to suit. “Show
Bluetooth status in the menu bar” checkbox. During the pairing process, if you
are asked for a password enter (0000).
Charging and Pairing
4
Re-connecting to a paired device
Each time the speaker is turned on, there are two possible outcomes.
The speaker will connect automatically to the last connected device, just press
play for playback. The speaker will be listed on your devices screen of as an
available output channel, select the speaker as output channel and play
your music.
Hands-free
Press “Hands-free” (yey 3) to answer a phone call. Press again to end a call.
Volume control
Volume is controlled by a combination of the volume controls on the speaker
and the volume controls on paired (or AUX IN) devices.
AUX IN connections
You can connect any audio output device to the AUX IN port via the AUX cable
supplied. When the AUX cable is connected Bluetooth mode is automatically
suspended. You can then play music through the speaker from the connected
device.
LINE OUT play mode
When the machine is in Bluetooth mode, you can use a 3.5mm audio cable
connected to the LINE OUT socket of the machine to output the audio signals
from the paired device to the input on another sound system.
Hands-Free / AUX IN / Line out
5

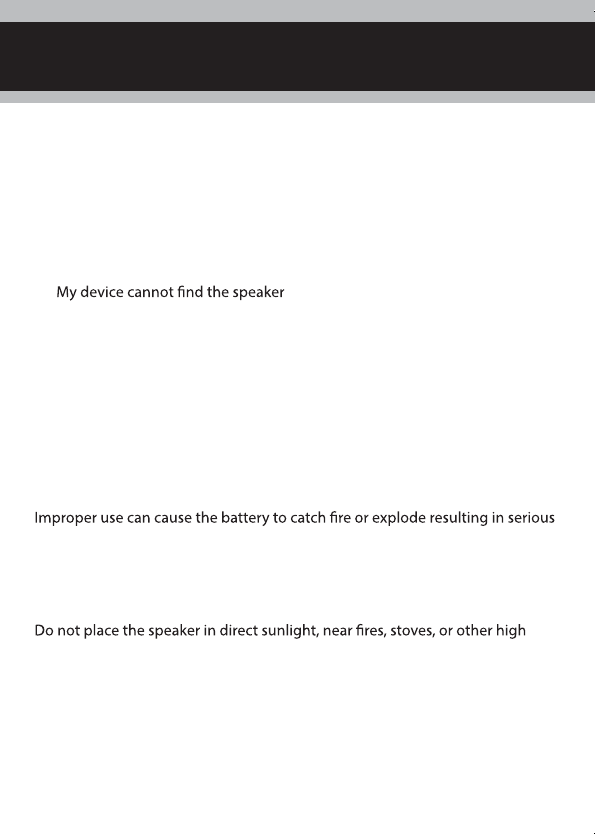

Troubleshooting
Q1 The sound is low or completely silent.
A1 Make sure both your audio device and the speaker are charged.
A2 Make sure the connection (either Bluetooth or AUX) is fully functioning and
secure. If you are using the AUX port check the cable is connected properly.
A3 Check the speaker and audio device volume and that an audible music track
is playing.
Q2
A1 Ensure the Bluetooth is on and not hidden on your audio device and that
the speaker is not paired to another device.
Q3 The person on the other end of my call cannot hear me or I cannot hear
them.
A1 Make sure the volume is turned up on both the speaker and phone.
A2 Make sure there is no obstruction to the microphone (which is positioned in
the front behind the speaker grille)
Warning:
This speaker has a built in lithium battery, it must be used and charged properly.
or fatal injury.
Caution:
Do not disassemble or modify the speaker.
temperature locations.
Do not expose the speaker to water or salt water, or allow the speaker to get wet.
If you dispose of the speaker remember it contains a lithium battery and
recycle accordingly.
Troubleshooting and Warnings
6
