SKYPINE ELECTRONICS (SHEN ZHEN) CO., LTD. Multimedia Navigation System Part 2

Contents

Part 2

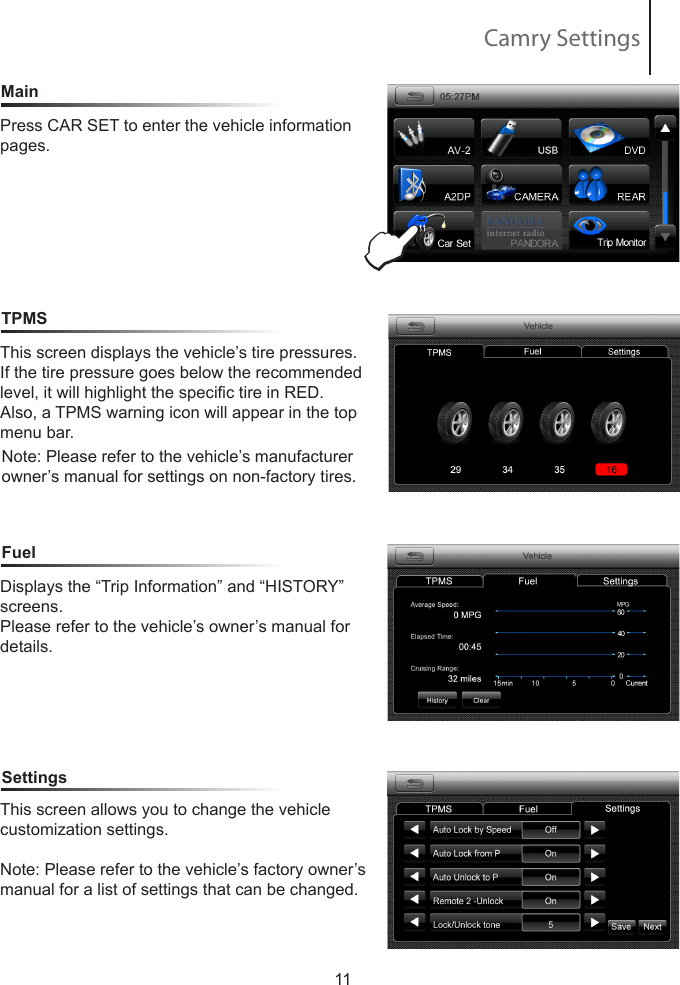

Camry SettingsMainTPMSFuel11Press CAR SET to enter the vehicle information pages.This screen displays the vehicle’s tire pressures. If the tire pressure goes below the recommended level, it will highlight the specic tire in RED.Also, a TPMS warning icon will appear in the top menu bar.Note: Please refer to the vehicle’s manufacturer owner’s manual for settings on non-factory tires.Displays the “Trip Information” and “HISTORY” screens.Please refer to the vehicle’s owner’s manual for details.SettingsThis screen allows you to change the vehicle customization settings.Note: Please refer to the vehicle’s factory owner’s manual for a list of settings that can be changed.E

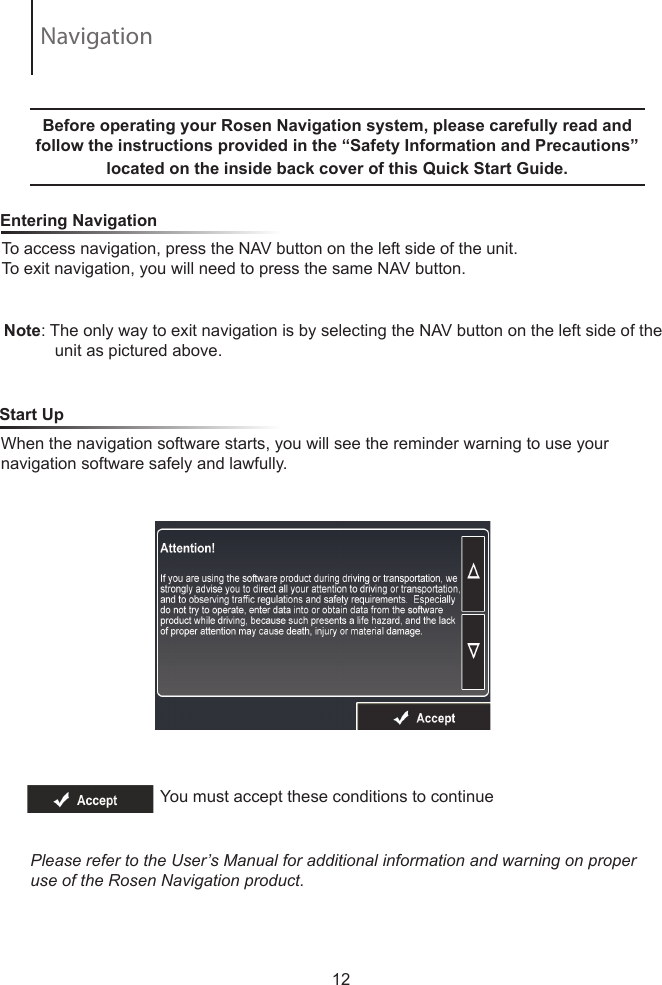

To access navigation, press the NAV button on the left side of the unit. To exit navigation, you will need to press the same NAV button. Entering NavigationNote: The only way to exit navigation is by selecting the NAV button on the left side of the unit as pictured above. Before operating your Rosen Navigation system, please carefully read and follow the instructions provided in the “Safety Information and Precautions” located on the inside back cover of this Quick Start Guide. When the navigation software starts, you will see the reminder warning to use your navigation software safely and lawfully. Start UpYou must accept these conditions to continue Please refer to the User’s Manual for additional information and warning on proper use of the Rosen Navigation product.12Navigation

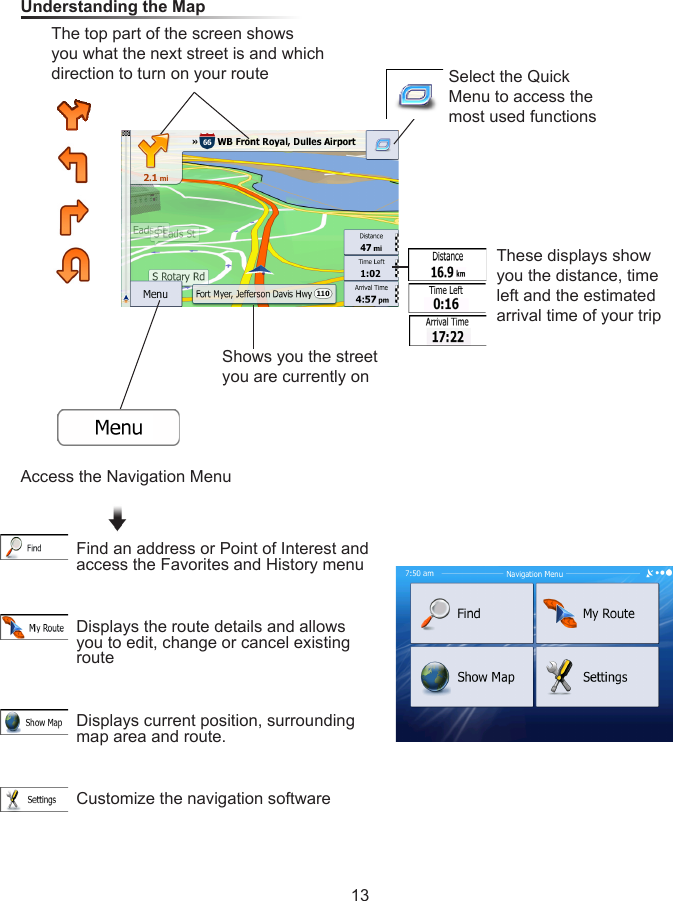

13Understanding the Map Select the Quick Menu to access the most used functionsThese displays show you the distance, time left and the estimated arrival time of your tripThe top part of the screen shows you what the next street is and which direction to turn on your routeShows you the street you are currently onAccess the Navigation MenuFind an address or Point of Interest and access the Favorites and History menuDisplays the route details and allows you to edit, change or cancel existing routeDisplays current position, surrounding map area and route.Customize the navigation software

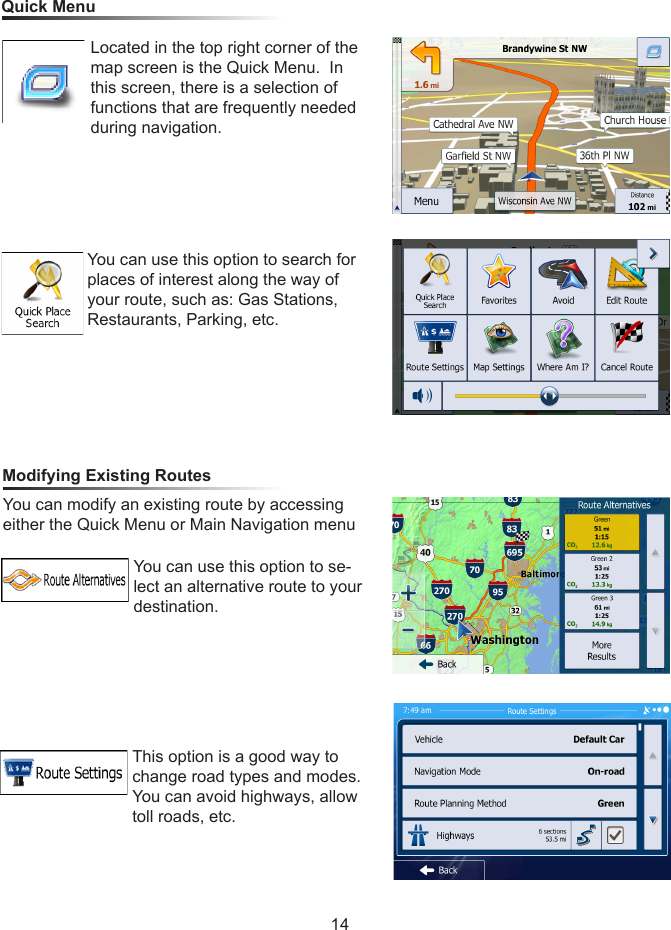

14Modifying Existing RoutesYou can modify an existing route by accessing either the Quick Menu or Main Navigation menuQuick Menu Located in the top right corner of the map screen is the Quick Menu. In this screen, there is a selection of functions that are frequently needed during navigation.You can use this option to search for places of interest along the way of your route, such as: Gas Stations, Restaurants, Parking, etc.You can use this option to se-lect an alternative route to your destination.This option is a good way to change road types and modes. You can avoid highways, allow toll roads, etc.

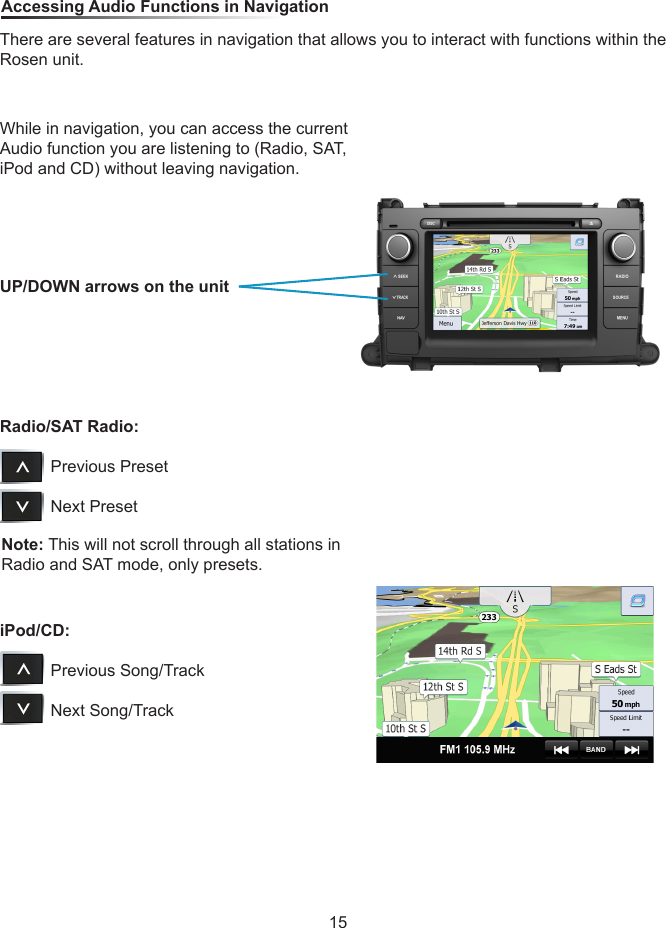

While in navigation, you can access the current Audio function you are listening to (Radio, SAT, iPod and CD) without leaving navigation.Note: This will not scroll through all stations in Radio and SAT mode, only presets. Accessing Audio Functions in NavigationThere are several features in navigation that allows you to interact with functions within the Rosen unit.UP/DOWN arrows on the unitRadio/SAT Radio: Previous Preset Next PresetiPod/CD: Previous Song/Track Next Song/Track15

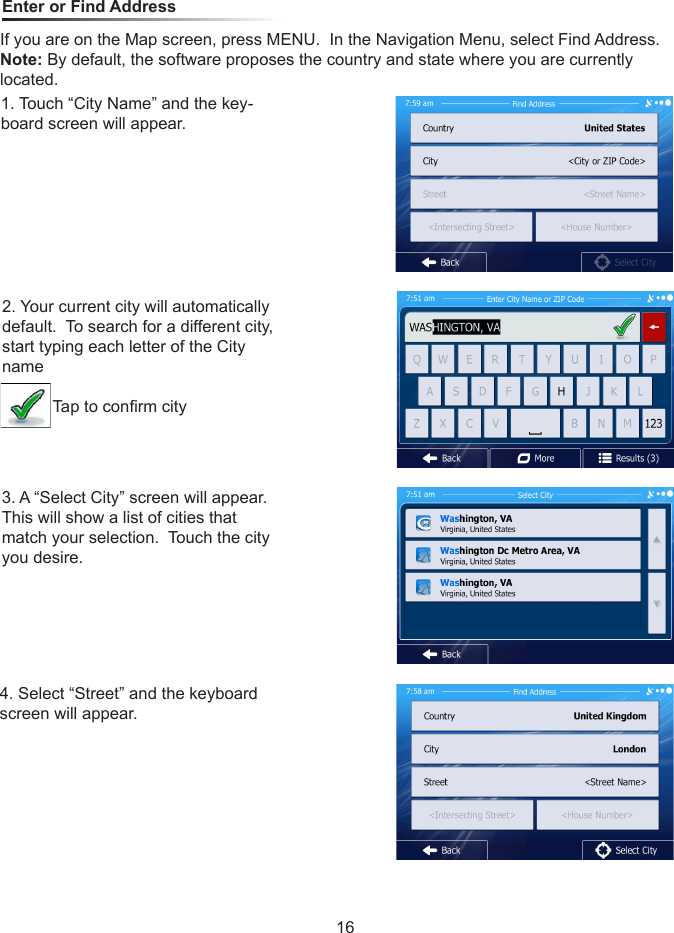

Enter or Find AddressIf you are on the Map screen, press MENU. In the Navigation Menu, select Find Address.Note: By default, the software proposes the country and state where you are currently located.1. Touch “City Name” and the key-board screen will appear.2. Your current city will automatically default. To search for a different city, start typing each letter of the City name Tap to conrm city3. A “Select City” screen will appear. This will show a list of cities that match your selection. Touch the city you desire.4. Select “Street” and the keyboard screen will appear.16

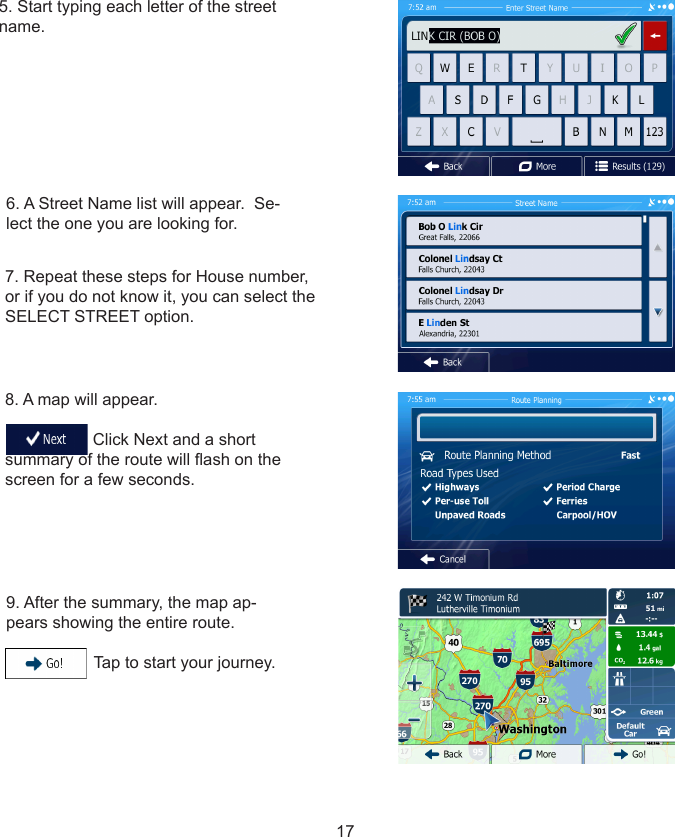

177. Repeat these steps for House number, or if you do not know it, you can select the SELECT STREET option.8. A map will appear. Click Next and a short summary of the route will ash on the screen for a few seconds.9. After the summary, the map ap-pears showing the entire route. Tap to start your journey.5. Start typing each letter of the street name.6. A Street Name list will appear. Se-lect the one you are looking for.

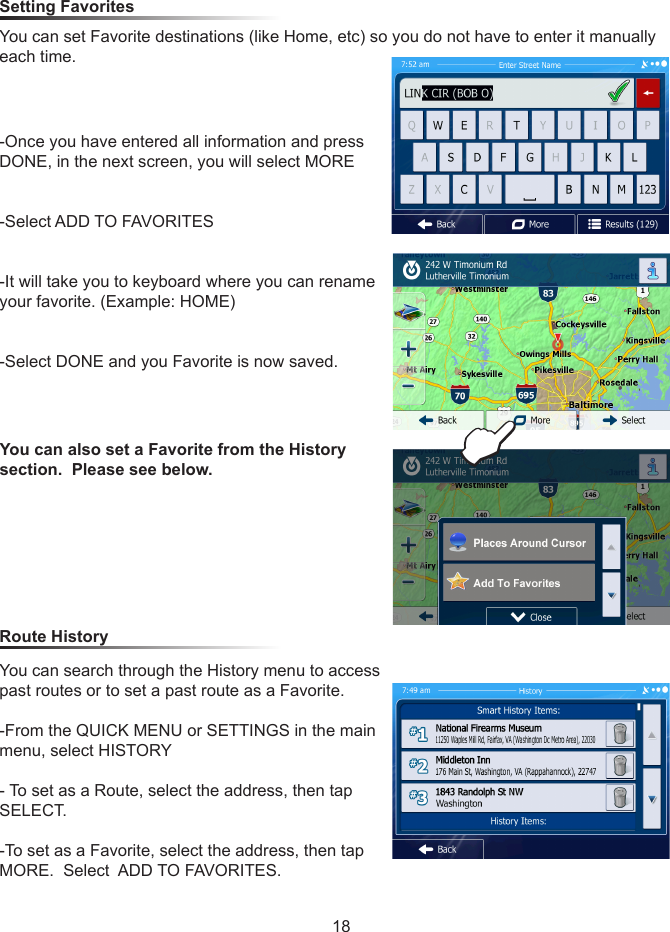

18Setting Favorites You can set Favorite destinations (like Home, etc) so you do not have to enter it manually each time. -Once you have entered all information and press DONE, in the next screen, you will select MORE-Select ADD TO FAVORITES-It will take you to keyboard where you can rename your favorite. (Example: HOME)-Select DONE and you Favorite is now saved. Route History You can also set a Favorite from the History section. Please see below.You can search through the History menu to access past routes or to set a past route as a Favorite.-From the QUICK MENU or SETTINGS in the main menu, select HISTORY- To set as a Route, select the address, then tap SELECT. -To set as a Favorite, select the address, then tap MORE. Select ADD TO FAVORITES.E

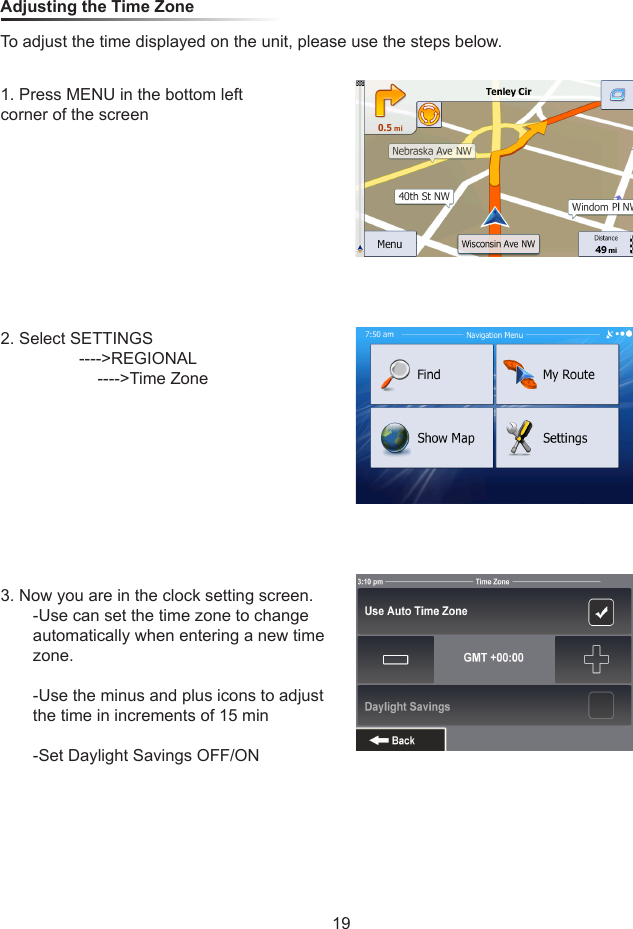

Adjusting the Time ZoneTo adjust the time displayed on the unit, please use the steps below.1. Press MENU in the bottom left corner of the screen2. Select SETTINGS ---->REGIONAL ---->Time Zone3. Now you are in the clock setting screen. -Use can set the time zone to change automatically when entering a new time zone. -Use the minus and plus icons to adjust the time in increments of 15 min -Set Daylight Savings OFF/ON19

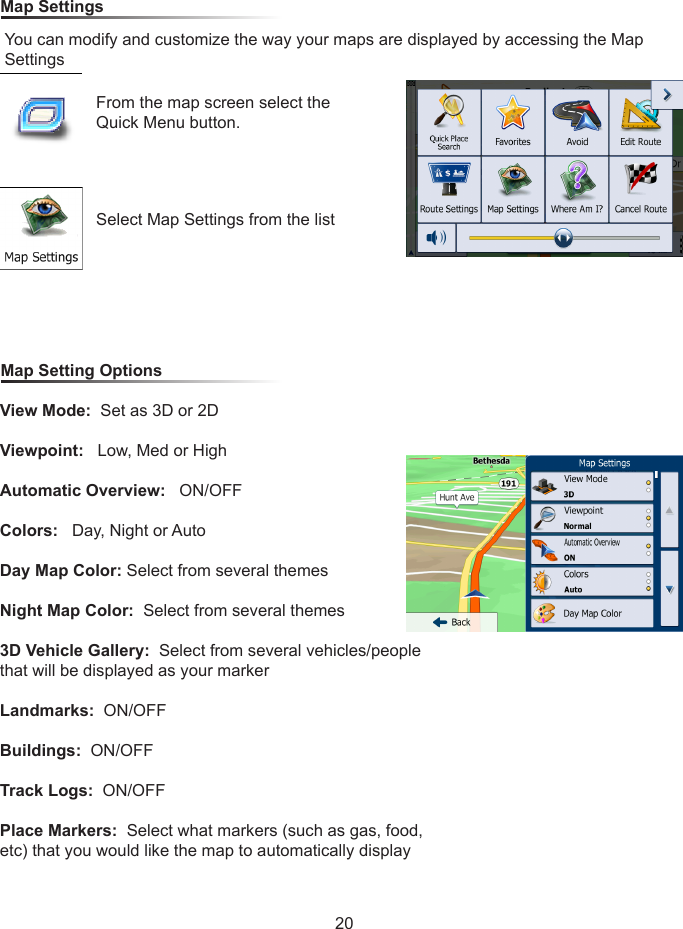

From the map screen select the Quick Menu button.Select Map Settings from the listMap Settings You can modify and customize the way your maps are displayed by accessing the Map SettingsMap Setting OptionsView Mode: Set as 3D or 2DViewpoint: Low, Med or HighAutomatic Overview: ON/OFFColors: Day, Night or AutoDay Map Color: Select from several themesNight Map Color: Select from several themes3D Vehicle Gallery: Select from several vehicles/people that will be displayed as your markerLandmarks: ON/OFFBuildings: ON/OFFTrack Logs: ON/OFFPlace Markers: Select what markers (such as gas, food, etc) that you would like the map to automatically display20

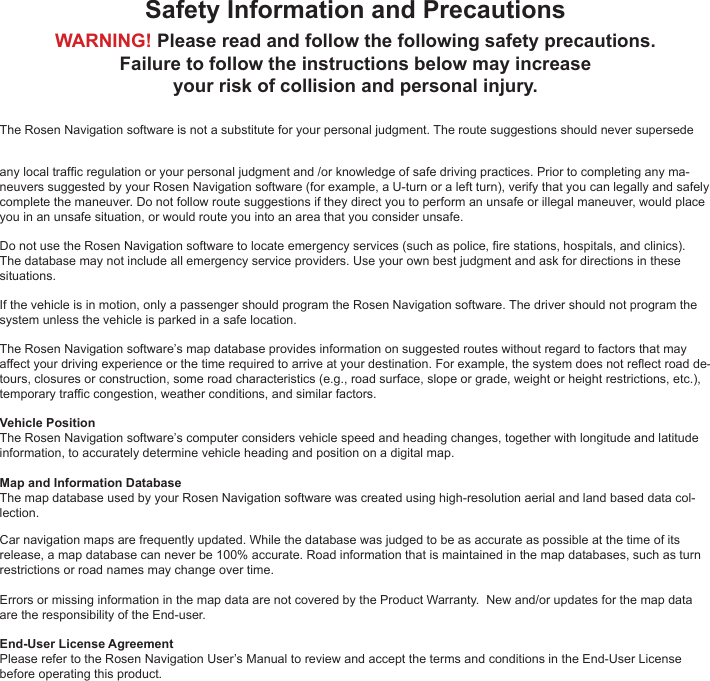

Safety Information and PrecautionsWARNING! Please read and follow the following safety precautions. Failure to follow the instructions below may increaseyour risk of collision and personal injury.The Rosen Navigation software is not a substitute for your personal judgment. The route suggestions should never supersede any local trafc regulation or your personal judgment and /or knowledge of safe driving practices. Prior to completing any ma-neuvers suggested by your Rosen Navigation software (for example, a U-turn or a left turn), verify that you can legally and safely complete the maneuver. Do not follow route suggestions if they direct you to perform an unsafe or illegal maneuver, would place you in an unsafe situation, or would route you into an area that you consider unsafe.Do not use the Rosen Navigation software to locate emergency services (such as police, re stations, hospitals, and clinics). The database may not include all emergency service providers. Use your own best judgment and ask for directions in these situations.If the vehicle is in motion, only a passenger should program the Rosen Navigation software. The driver should not program the system unless the vehicle is parked in a safe location.The Rosen Navigation software’s map database provides information on suggested routes without regard to factors that may affect your driving experience or the time required to arrive at your destination. For example, the system does not reect road de-tours, closures or construction, some road characteristics (e.g., road surface, slope or grade, weight or height restrictions, etc.), temporary trafc congestion, weather conditions, and similar factors.Vehicle PositionThe Rosen Navigation software’s computer considers vehicle speed and heading changes, together with longitude and latitude information, to accurately determine vehicle heading and position on a digital map. Map and Information DatabaseThe map database used by your Rosen Navigation software was created using high-resolution aerial and land based data col-lection.Car navigation maps are frequently updated. While the database was judged to be as accurate as possible at the time of its release, a map database can never be 100% accurate. Road information that is maintained in the map databases, such as turn restrictions or road names may change over time.Errors or missing information in the map data are not covered by the Product Warranty. New and/or updates for the map data are the responsibility of the End-user. End-User License Agreement Please refer to the Rosen Navigation User’s Manual to review and accept the terms and conditions in the End-User License before operating this product.

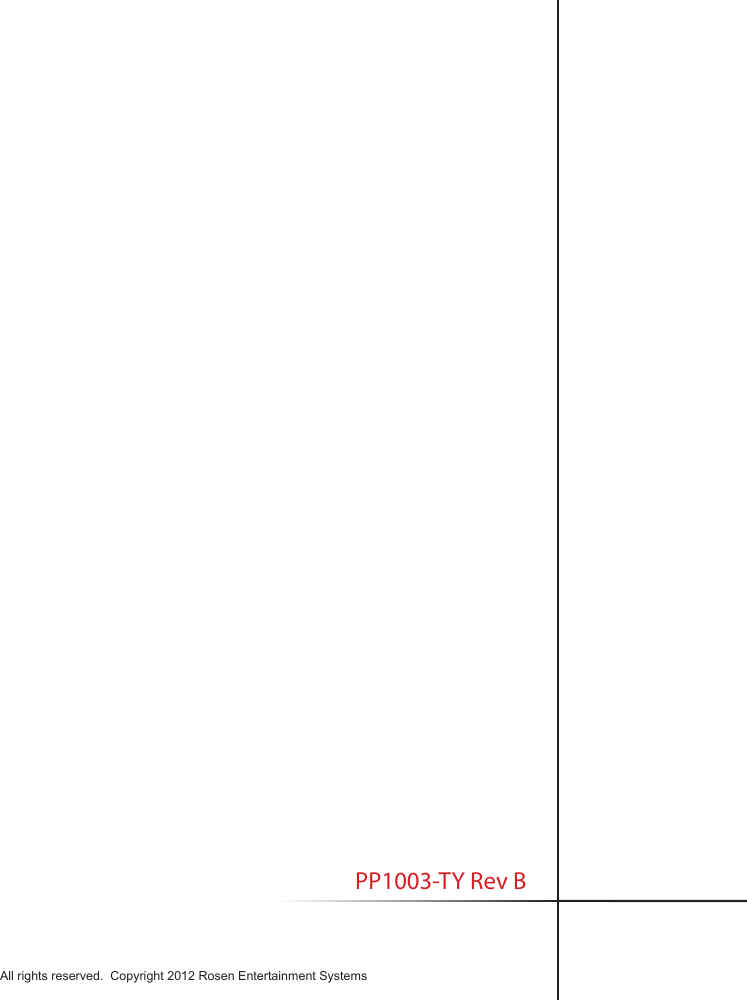

All rights reserved. Copyright 2012 Rosen Entertainment Systems PP1003-TY Rev B

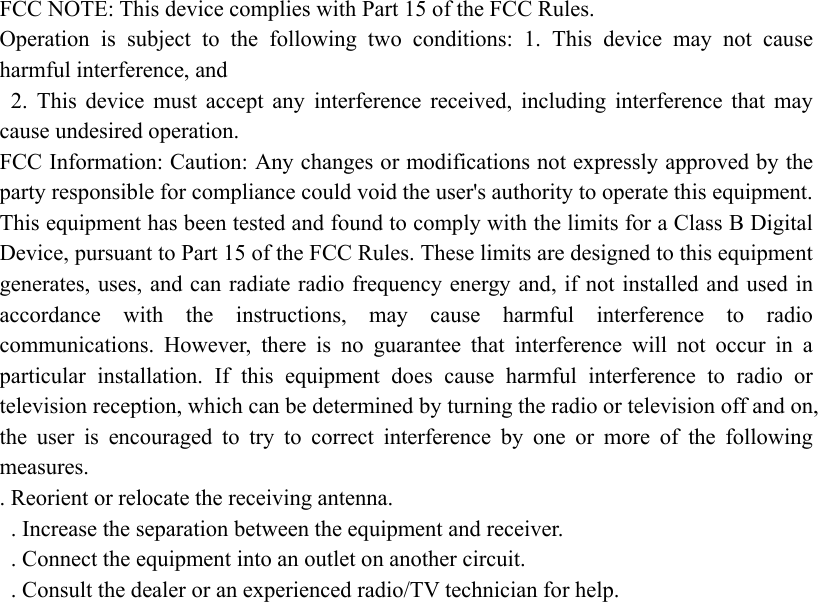

FCC NOTE: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that maycause undesired operation.FCC Information: Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.This equipment has been tested and found to comply with the limits for a Class B Digital Device, pursuant to Part 15 of the FCC Rules. These limits are designed to this equipment generates, uses, and can radiate radio frequency energy and, if not installed and used inaccordance with the instructions, may cause harmful interference to radiocommunications. However, there is no guarantee that interference will not occur in aparticular installation. If this equipment does cause harmful interference to radio ortelevision reception, which can be determined by turning the radio or television off and on,the user is encouraged to try to correct interference by one or more of the following measures. . Reorient or relocate the receiving antenna. . Increase the separation between the equipment and receiver.. Connect the equipment into an outlet on another circuit. . Consult the dealer or an experienced radio/TV technician for help.
