SKYPINE ELECTRONICS CNE8115BCL Car Navigation Entertainment System User Manual I

SKYPINE ELECTRONICS (SHEN ZHEN) CO., LTD. Car Navigation Entertainment System I

Contents

User Manual I

Owner’s manual & Installation manual
NX
NZ
2-DIN DVD MULTIMEDIA STATION
WITH BUILT-IN NAVIGATION
& 6.5” TOUCH PANEL CONTROL
DVD MULTIMEDIA STATION
WITH BUILT-IN NAVIGATION
& 7” TOUCH PANEL CONTROL
NX_NZ500 0608.indd 1 6/16/2009 8:01:09 AM
00
00
5
5
English
NX500/NZ5002
CLARION PRODUCT REGISTRATION INFORMATION
For USA and Canada only
www.clarion.com
Dear Customer:
Congratulations on your purchase of a Clarion mobile electronic product. We are
confident that you’ll enjoy your Clarion experience.
There are many benefits to registering your product. We invite you to visit our website
at www.clarion.com to register your Clarion product.
We have made product registration simple with our easy to use website. The registra-
tion form is short and easy to complete. Once you’re registered, we can keep you
informed of important product information.
Register at www.clarion.com - it’s easy to keep your Clarion product up to date.
NX_NZ500 0608.indd 2 6/16/2009 8:01:09 AM
English
NX500/NZ500 3
Contents
1. FEATURES ........................................................................................................................4
Expanding Systems ............................................................................................................4
2. PRECAUTIONS .................................................................................................................5
3. CONTROLS .......................................................................................................................7
Operational Panel ...............................................................................................................7
Functions of Buttons ...........................................................................................................8
Remote Control ..................................................................................................................9
Functions of Remote Control Buttons ................................................................................10
4. CAUTIONS ON HANDLING ..............................................................................................12
Operation panel ..................................................................................................................12
Navigation System .............................................................................................................12
USB Port ............................................................................................................................12
Cleaning .............................................................................................................................13
Handling Discs ...................................................................................................................14
5. DVD VIDEO SYSTEM ........................................................................................................ 15
DVD Video Features ........................................................................................................... 15
Discs ................................................................................................................................16
About the registered marks etc. ..........................................................................................16
6. OPERATIONS .................................................................................................................... 17
Basic Operations ................................................................................................................ 17
Radio Operations ...............................................................................................................21
DVD Video Player Operations ............................................................................................23
Sirius Satellite Radio Operations ........................................................................................29
Navigation System Operations ...........................................................................................31
Introduction to Navigation Software ..............................................................................31
Main Menu Screen Operations ...................................................................................... 31
Route to Home Address .............................................................................................32
Select the Destination ................................................................................................. 32
• Address or Intersection Mode .................................................................................32
• Point of Interest Mode .............................................................................................33
• Coordinates Mode ..................................................................................................34
• Edit Favorites Mode ................................................................................................34
• History Mode ..........................................................................................................35
System Preferencies Setup ........................................................................................35
Office Address Setup .................................................................................................. 36
Trip Computer Readings and Resets .......................................................................... 37
7. ACCESSORIES .................................................................................................................38
iPod/iPhone Operations ......................................................................................................38
USB Operations .................................................................................................................40
AUX In/AV In Operations ....................................................................................................41
Camera In Operations ........................................................................................................ 41
Setup Operations ...............................................................................................................42
8. TROUBLESHOOTING .......................................................................................................44
9. ERROR DISPLAYS ............................................................................................................45
10. SPECIFICATIONS ..............................................................................................................46
INSTALLATION/ WIRE CONNECTION GUIDE ....................................................47
NX_NZ500 0608.indd 3 6/16/2009 8:01:09 AM
English
NX500/NZ5004

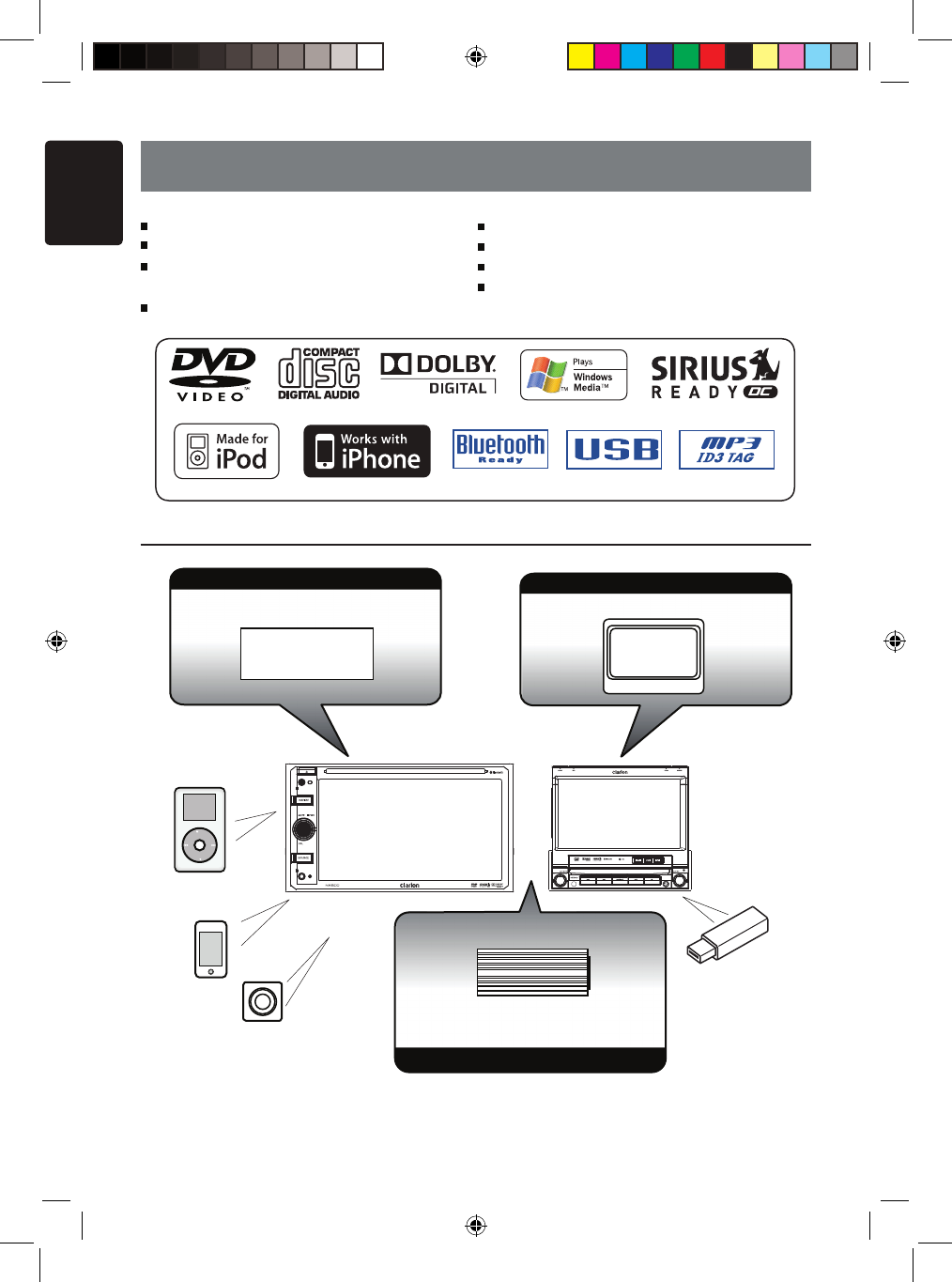

1. FEATURES
Expanding Systems
Expanding audio features
Expanding sound features
External power amplifier
NOTE:
The items listed outside the frames are the commercial products generally sold.
Double Din 6.5” Touch Panel Control
Motorized 7” Touch Panel Control
DVD Video/CD-DA/MP3/WMA
Playback Capability
Built-In Navigation
OEM Steering Wheel Remote Ready
Compatible with Sirius Satellite Radio
Bluetooth
®
Interface Ready
Compatible with iPod
®/
iPhone
™
via USB
Satellite Radio
(Sirius: SC-C1)
SOURCE
VOL
MUTE PWR
NAVI/AV
NX409
SOURCE
VOL
CLOSE BND
SEL
INFO
PS/AS NAVI/AV
PWR
push MUTE push ENT
NZ409
SCAN
Expanding visual features
Rear monitor
iPhone
iPod
Back up
camera
USB
Memory
NX_NZ500 0608.indd 4 6/16/2009 8:02:29 AM
English
NX500/NZ500 5
2. PRECAUTIONS
• For your safety, the driver should not watch any video sources and/or operate the controls while driving.
Please note that watching and operating any video sources while driving are prohibited by law in some
countries. Also, while driving, keep the volume to a level at which external sounds can be heard.
• When using the navigation system, follow the precautions listed below. After reading this manual,
be sure to keep it in a handy place (such as the glove box of your car).
• This navigation system should not be used to replace your own judgment. No itinerary suggested
by this navigation system should ever override any highway regulations, your own judgment, or a
knowledge of safe driving practices. Do not follow the navigation system’s suggested itinerary if it
would cause you to perform a dangerous or illegal act, place you in a dangerous situation, or take
you into an area you consider unsafe.
• The advice provided by the navigation system is to be regarded as a suggestion only. There may
be times when the navigation system displays the vehicle’s location incorrectly, fails to suggest the
shortest route, or fails to direct you to your desired destination. In such instances, rely on your own
driving judgment, taking into account the driving conditions at the time.
• Do not use the navigation system to locate emergency services. The database does not contain a
complete listing of emergency services such as police stations, fire halls, hospitals and walk-in
clinics. Please show discretion and ask for directions in such instances.
• As the driver, you alone are responsible for your driving safety.
• In order to avoid a traffic accident, do not operate the system while driving.
• In order to avoid a traffic accident, operate the system only when the vehicle is stopped at a safe
place and the parking brake is on.
• In order to avoid a traffic accident or traffic offense, remember that actual road conditions and
traffic regulations take precedence over the information contained on the navigation system.
• The software may contain inaccurate or incomplete information due to the passage of time,
changing circumstances, and the sources of information used. Please respect current traffic
conditions and regulations at all times while driving.
• Where actual road conditions and highway regulations differ from the information contained on
the navigation system, abide by the highway regulations.
• Keep the amount of time spent viewing the screen while driving to a strict minimum.
• The navigation system does not provide, nor represent in any way information on: traffic and
highway regulations; technical aspects of the vehicle including weight, height, width, load and
speed limits; road conditions including grade, percentage of incline and surface conditions;
obstacles such as the height and width of bridges and tunnels; and other current driving or road
conditions. Always rely on your own judgment when driving a car, taking into account current
driving conditions.
• Do not disassemble or modify this unit. It may cause an accident, fire, or electric shock.
• Do not use this unit when a trouble exists, such as no screen content appears or no sound is
audible. It may cause an accident, fire, or electric shock. For that case, consult your authorized
dealer or a nearest Clarion service center.
• In case of a problem, such as foreign materials have entered in the unit, the unit gets wet, or
smoke or strange smells come out of the unit, etc., stop using this unit immediately, and consult
your authorized dealer or a nearest Clarion service center.
Using it in that condition may cause an accident, fire, or electric shock.
• Use a fuse with the same specification only when replacing the fuse.
Using a fuse with a different specification may causes a fire.
• For the installation of this unit or a change in the installation, ask your authorized dealer or a
nearest Clarion service center for safety.
Professional skills and experiences are required to do so.
WARNING
NX_NZ500 0608.indd 5 6/16/2009 8:04:42 AM

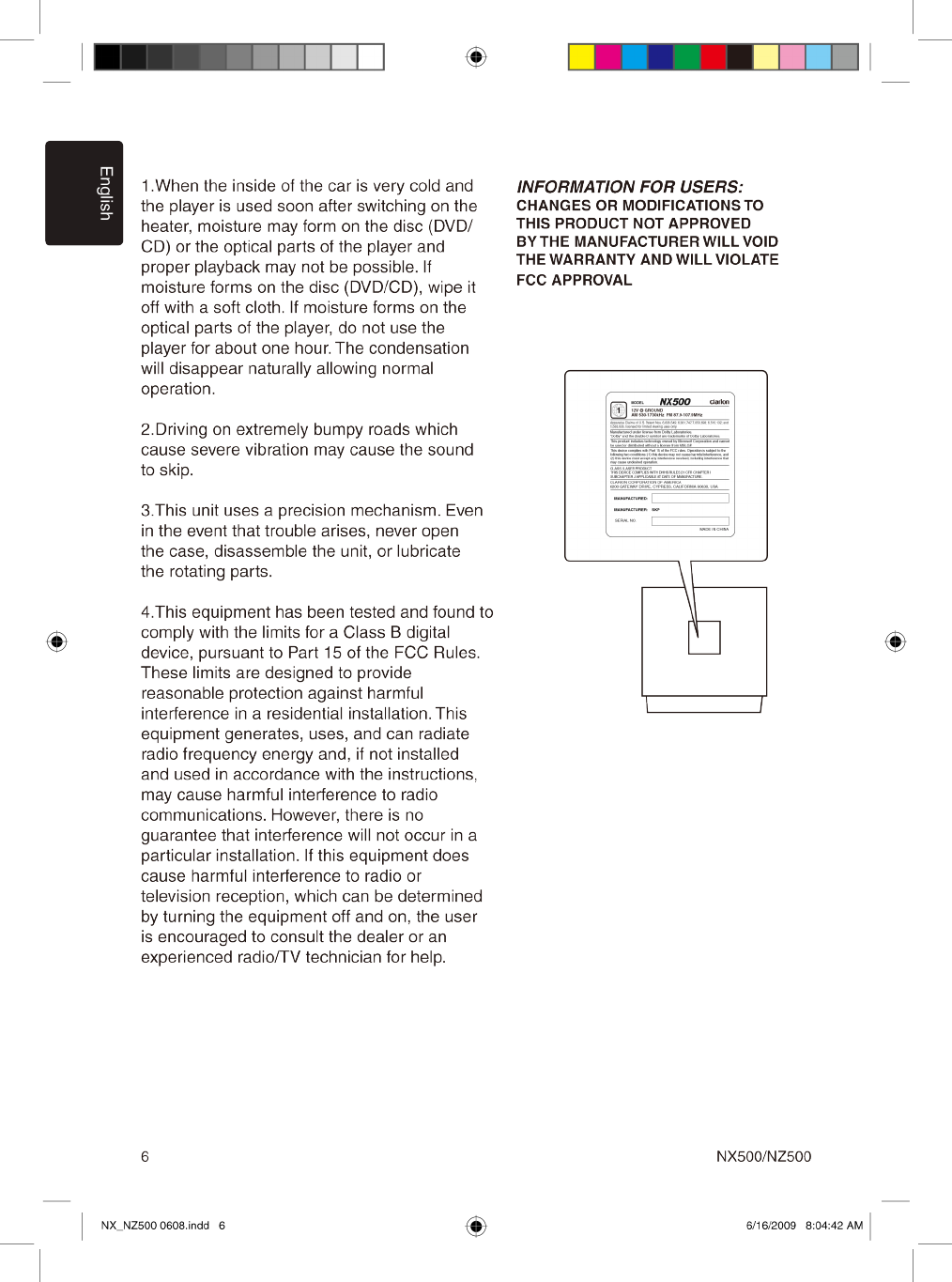

PS/AS NAVI/AV

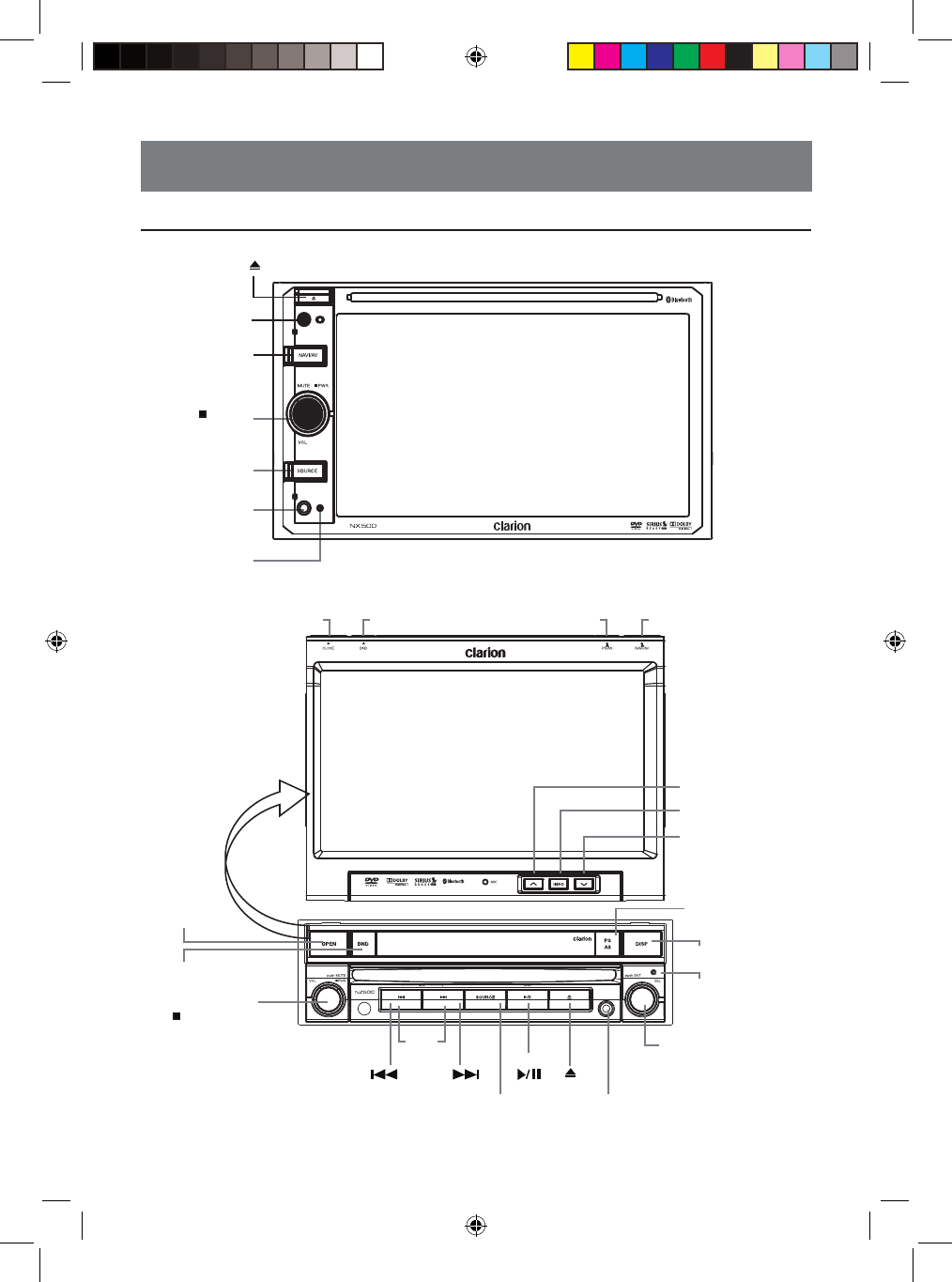

3. CONTROLS
Operational Panel
[ ]
[MUTE]
[ PWR]
[VOL]
[SOURCE]
[NAVI/AV]
AUX IN
SENSOR
RESET
[CLOSE] [BND] [PS/AS] [NAVI/AV]
[push MUTE]
[ PWR]
[VOL]
[ ] [ ]
[SOURCE]
[ ] [ ]
[push ENT]
[SEL]
[INFO]
[TILT DOWN]
[TILT UP]
SEEK
SCAN
AUX IN
RESET
DISPLAY
PS
AS
[OPEN]
[BND]
NX_NZ500 0608.indd 7 6/16/2009 8:05:04 AM
English
NX500/NZ5008
Note: Be sure to read this chapter while
referring to front diagram “CONTROLS”
[MUTE] [ PWR] [VOL] Knob
• Press this knob to turn on the power. Keep
pressing this knob more than 1 second to turn
off the power.
• Press this knob to attenuate the sound of the
receiver, press again to restore sound.
• Rotate the knob to increase or decrease the
volume.
[NAVI/AV] Button
• Press this button to enter navigation video.
• Press this button more than 2 seconds to
return to the previous mode.
[SOURCE] Button
• Press this button to scroll through the available
sources such as AM/FM Tuner, Sirius, DVD,
NAVI, USB, Camera modes, etc.
[ ] [ ] Search/Seek Button
• Press to search next or previous station or
channel in Tuner, Sirius radio modes.
• Press to search next or previous track or
chapter in CD, MP3/WMA, iPod and DVD
video modes.
• Press and hold to fast forward or fast
backward by ×2 ,4,8,16 step in CD, MP3/WMA
and DVD video mode.
• Press and hold to fast forward or fast
backward in iPod music.
• Press and hold to enter manual seek status in
Tuner and Sirius radio mode, then press briefly
to seek station by step.
[ ] Play /Pause Button / Scan Button
Press to play, pause or scan audio or video.
• Press shortly to scan.
• Press and hold one time:
Audio or video file will be paused. If then press
briefly, file will be resumed to play.
[ ] Eject
• Press to eject disc from unit when panel
is opened.
[OPEN] [CLOSE] Button
Use this button to open/close operation panel.
[BAND] Button
• Use this button to enter AM/FM tuner mode
from any source.
• Once in AM/FM tuner mode, you can press it
to change bands between FM1, FM2, FM3,
AM bands.
[PS/AS] Button
• Press this button to start the preset scan
mode.
• Press and hold this button to start the auto
preset scan and setting mode.
[ ] [ ] Button
Press the buttons to adjust the operational panel
angle.
[INFO] Button
Press to turn On and Off to display list in
Tuner, Sirius radio, DVD/CD modes.
[push ENT] [SEL] Button
• Rotate the button to move to next folder in
iPod mode.
• Press to confirm and play current media file
in CD, MP3/WMA, DVD and iPod mode.
[DISPLAY] Button
• Press this button to display band in Radio,
Sattelite, CD/DVD, iPod mode.
• Press one more time to dispaly current time
from any mode.
RESET Button
• Press this button to reset the unit.
SENSOR
• Receiver for the remote control unit (operating
range: 30 degree in all directions).
Functions of Buttons
NX_NZ500 0608.indd 8 6/16/2009 8:05:36 AM
English
NX500/NZ500 9
Remote Control
Signal transmitter
Signal transmitter
[OPEN]
[POWER]
[VOLUME]
[INFO]
[/ BAND]
[SEL]
[MENU]
[PIC
A B
]
[OK
REPEAT
]
[ ]
[ ]
ROOT
[ ]
[ ]
[SUB TITLE/VIDEO iPod MODE*]
[ANGLE/AUDIO iPod MODE*]
[ ] [ ]
[ ] [ ]
[MUTE]
[MODE]
[SRCH]
[ ]
[ESC]
[TITLE]
[ZOOM]
[AUDIO]
[0 - 9]
[ ]
AUDIO VIDEO
iPod
Replacing the batteries
1. Press the retention tab and pull
out the battery tray and remove
the old battery.
2. Insert the new CR2025 battery
and slide the battery tray back
in the remote control the same
direction that you removed it.
Please ensure the tray is inserted in
the correct direction.
Note:
Using batteries improperly can cause
them to explode. Take note of the
following points:
• When replacing batteries, replace
both batteries with new ones.
• Do not short-circuit, disassemble or
heat batteries.
• Do not dispose of batteries into fire or
flames.
• Dispose of spent batteries properly.
* Only when capable iPod/iPhone
is connected
NX_NZ500 0608.indd 9 6/16/2009 8:05:37 AM
English
NX500/NZ50010
Functions of Remote Control Buttons
You can use the remote control unit to control the NX500 and NZ500.
Note:
• The wireless remote control operation may not be optimal in direct sunlight.
Shared modes
[MODE] Button
• Press this button to scroll through the various
available sources such as the AM/FM tuner,
DVD player, iPod, Sirius Radio, or AUX IN.
[VOLUME] Button
Increase and decrease volume.
[MUTE] Button
Turns mute on and off.
[POWER] Button
Press this button to turn the unit on or off.
[OPEN] Button
Press this button to OPEN or CLOSE the
motorized screen. Please ensure there are
no obstructions before starting the operation.
[MENU] Button
Press this button to enter the MAIN MENU.
From the main menu, you can select your
desired source or change your settings.
[PIC] Button
Press this button to change your monitor
settings such as Brightness, Color, and
Contrast.
[SEL] Button
Press this button to change your audio
settings such as Tone, Fader, and Balance.
[ESC] Button
Press this button to exit selection and
adjustment menus.
TUNER/Satellite Radio mode
[BAND] button
Switches reception band.
[0 - 9] Buttons
• Use in the Key Pad screen to set the radio
frequency or Satellite Radio channels.
• Use to select the preset number in the Preset
List screen.
[SEARCH] Button
Press to show/hide the Key Pad screen.
[OK] button
Press to fix the entered data in the Key Pad
screen.
[ ], [ ] Buttons
Press to seek the next available higher or
lower station in TUNER mode. In Sirius Radio
mode, you will scroll through the categories.
[ ], [ ] Buttons
Press to manually select the next higher or
lower station in TUNER and Satellite Radio
modes.
[ ], [ ] Buttons
Press to scroll through the saved presets in
the TUNER mode. Press [OK] to tune to the
highlighted preset.
[INFO] Button
Press to switch in and out of the LIST mode
while in the TUNER/ Sirius Radio mode.
DVD PLAYER mode
• Press to turn on and off the playtime display in
the DVD video.
• Press to switch in and out of the LIST mode
while playing CD audio.
[SEARCH] Button
Press to open the direct search menu while in
the DVD video mode.
[OK] Button
Press to select, play or pause video and
audio media.
[ /BAND] Button
•Press to stop video and audio media playback.
[0 - 9] Buttons
• Press to enter DVD video chapters/titles in the
Key Pad screen.
• Press to set the track/folder number of the CD,
or MP3/WMA in the Key Pad screen.
[DISC SEL] Button
• Press to show/hide the Track List screen in the
CD mode.
• Press to show/hide the Folder List screen in
the MP3/WMA mode.
[TITLE] Button
Press to go to the title menu on the DVD.
[ROOT] Button
Press to go to the root menu on the DVD.
[ ], [ ], [ ], [ ] Buttons
• Press to select button items on the menu
screen of a DVD video.
• Press [ ], [ ] to scroll through the page
screens in the CD and MP3/WMA modes.
NX_NZ500 0608.indd 10 6/16/2009 8:05:37 AM
English
NX500/NZ500 11
Functions of Remote Control Buttons
[ ], [ ] Buttons
• Press to select the next higher or lower
chapter number in DVD video mode.
• Press to select the next higher or lower track
in CD.
[ ], [ ]Buttons
Press to perform fast-forward and fast-
backward. Press again to advance to higher
speed reversing or forwarding such as 2x,
4x, 8x and 1 6x. Press once more to resume
normal speed playback.
[RPT] Button
• Press to perform chapter repeat in the DVD
video mode, and track repeat in CD and MP3/
WMA modes.
• Press again to perform title repeat in DVD
video mode or folder repeat in MP3/WMA
mode. In CD mode, this will activate the repear
all mode.
• Press again to perform all repeat in MP3/WMA
playback mode.
[A B] Button
• Press to set initial starting point of repeat.
The screen will show ‘REP A-’.
• Press again to set repeat ending point.
The screen will show ‘REP A-B’
• Press again to turn off A-B repeating. The
screen will show ‘REP AB Off’
[ZOOM] Button
Press to turn on and zoom in while in DVD
Video mode. You can zoom in up to 3x.
[AUDIO] Button
Press to switch the AUDIO function in the DVD
video mode.
[SUB-T] Button
Press to display subtitles in the DVD video
mode.
[ANGLE] Button
Press to switch the ANGLE function in the DVD
video mode when the Angle mark is displayed.
[OK ] Button
Press to play or pause the selected media.
[ ], [ ] Buttons
Press to scroll the list screens.
[ ], [ ] Buttons
Press to select the next higher or lower track
numbers.
[ ], [ ] Buttons
Press to perform fast-forward or fast-backward
searching. Press again to change the speed
to 2x, 4x, 8x or 16x.
NX_NZ500 0608.indd 11 6/16/2009 8:05:37 AM
English
NX500/NZ50012
4. CAUTIONS ON HANDLING
Operation Panel
• The operation panel will operate properly in a
temperature range of 0˚ to 60˚ C.
• Do not allow any liquids on the set from
drinks, umbrellas etc. Doing so may damage
the internal circuitry.
• Do not disassemble or modify the set in any
way. Doing so may result in damage.
• Subjecting the operation panel to shocks may
result in breakage, deformation or other
damage.
• Do not let cigarettes burn the display.
Doing so may damage or deform the cabinet.
• If a problem should occur, have the set
inspected at your store of purchase.
• Do not insert objects or poke in the space
between the operation panel and the main
unit when the panel is tilted.
• The remote control unit may not work if the
remote control sensor is exposed to direct
sunlight.
• In extremely cold weather, the display
movement may slow down and the display
may darken, but this is not a malfunction. The
display will work normally when the
temperature increases.
• Small black and shiny spots inside the liquid
crystal panel are normal for LCD products.
For a longer service life, be sure to read the following cautions.
Navigation System
• To prevent discharge of the car battery, use
this system with the engine of the vehicle
running as much as possible.
• The housing of this unit may become hot
because this unit has a high-speed CPU. Be
careful to handle the unit during navigating or
immediately after turning the power off.
• Turn off the power of the vehicle when
connecting or disconnecting wires. Doing this
while the power of the vehicle is turned on,
may cause a trouble or malfunction.
Note:
• When using this unit first time after
purchasing, or not used for long periods
of time, it might take about 5 to 15 minutes
until the current location is determined
using GPS. Moreover, even when using
it often, it may take about 2 to 3 minutes until
the current location is determined according
to the GPS measuring situation.
• When the route (path) cannot be calculated,
move desired destination to a nearby main
road and perform calculation again. It may
be impossible to find a route in case the
car location is too close to the desired
destination.
• For vehicles equipped with an intelligent key,
do not bring the intelligent key close to the
unit of the navigation system. The navigation
system may not operate correctly.
• If an electrical equipment that generates
a strong electrical noise is used near this
unit, the screen may be disturbed and noise
may be generated. In this case, keep away
such an electrical equipment or refrain from
using it.
• Data saved to the flash memory may get lost
in case of a breakdown, malfunction, or other
trouble of this unit.
• Operation of the navigation system may be
limited to protect the unit if the temperature is
extremely high or low. In such a case, please
wait until temperature becomes normal again.
NX_NZ500 0608.indd 12 6/16/2009 8:05:37 AM
English
NX500/NZ500 13
Cleaning
• Cleaning the cabinet
Use a soft, dry cloth and gently wipe off the dirt.
For tough dirt, apply some neutral detergent
diluted in water to a soft cloth, wipe off the dirt
gently, then wipe again with a dry cloth.
Do not use benzene, thinner, car cleaner, etc.,
as these substances may damage the cabinet
or cause the paint to peel. Also, leaving rubber
or plastic products in contact with the cabinet
for long periods of time may cause stains.
• Cleaning the liquid crystal panel
The liquid crystal panel tends to collect dust, so
wipe it off occasionally with a soft cloth. The
surface is easily scratched, so do not rub it with
hard objects.
USB Port
• The USB memory stick may stick out when
inserted, so it may cause danger during
driving. In such cases, you can use a
commercial USB extension cable, etc., but use
it safely under your own judgment.
• The USB memory sticks must be recognized
as “USB mass storage class” to work properly.
Some models may not operate correctly.
When the memorized data is lost or
damaged by any chance, Clarion shall not
be liable for any damage.
When using an USB memory stick, we
recommend that you backup your data stored
on it before by using a personal computer etc.
• Data files may be broken when using USB
memory sticks in the following situation:
When disconnecting the USB memory stick or
turning the power off during writing or reading
data.
When affected by static electricity or electric
noise.
Connect/disconnect the USB memory stick
when it is not accessed.
• Some USB memory sticks cannot be inserted
to the main unit because of their shape. In
such cases, use a commercial USB extension
cable to connect them.
• Connecting with the computer is not covered.
• Music files (MP3, WMA, etc.) stored in the
USB memory stick cannot be played back.
Alkaline (CR) button batteries contain
Perchlorate.
Don’t put in Trash.
Dispose as Hazardous Waste.
WARNING
NX_NZ500 0608.indd 13 6/16/2009 8:05:37 AM
English
NX500/NZ50014

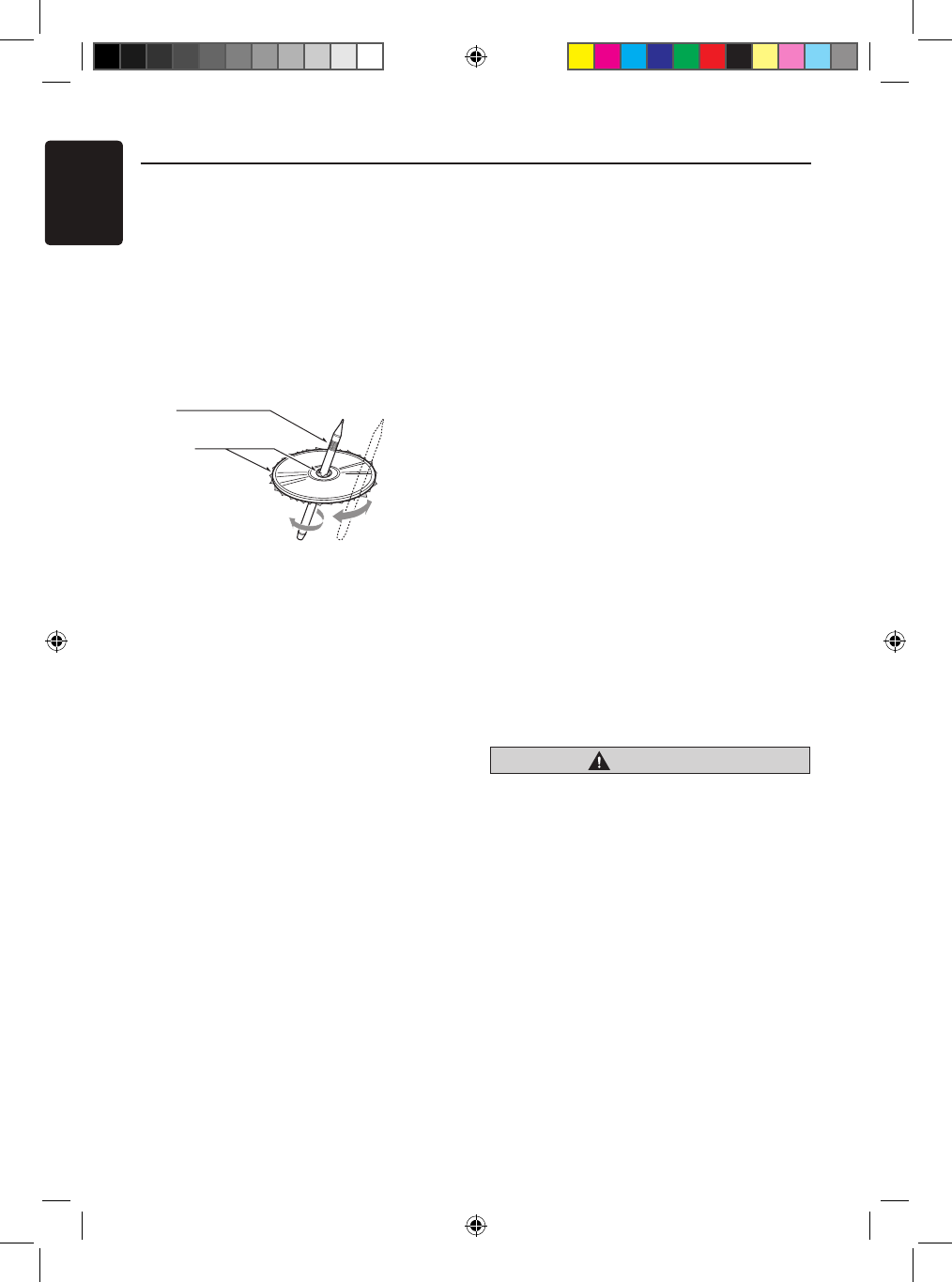

Handling Discs
Handling
• New discs may have some roughness
around the edges. If such discs are used,
the player may not work or the sound
may skip. Use a ball-point pen or the like
to remove any roughness from the edge
of the disc.
• Never stick labels on the surface of the
disc or mark the surface with a pencil or
pen.
• Never play a disc with any cellophane
tape or other glue on it or with peeling off
marks. If you try to play such a disc, you
may not be able to get it back out of the
DVD player or it may damage the DVD
player.
• Do not use discs that have large
scratches, are misshapen, cracked, etc.
Use of such discs may cause
misoperation or damage.
• To remove a disc from its storage case,
press down on the center of the case and
lift the disc out, holding it carefully by the
edges.
• Do not use commercially available disc
protection sheets or discs equipped with
stabilizers, etc. These may damage the
disc or cause breakdown of the internal
mechanism.
Storage
• Do not expose discs to direct sunlight or
any heat source.
• Do not expose discs to excess humidity
or dust.
• Do not expose discs to direct heat from
heaters.
Cleaning
• To remove fingermarks and dust, use a
soft cloth and wipe in a straight line from
the center of the disc to the
circumference.
• Do not use any solvents, such as
commercially available cleaners,
anti-static spray, or thinner to clean discs.
• After using special disc cleaner, let the
disc dry off well before playing it.
On Discs
• Exercise a good precaution when loading
a disc. The operation panel will close
automatically when leaving it open for a
while.
• Never turn off the power and remove the
unit from the car with a disc loaded.
For your safety, the driver should not
insert or eject a disc, opening the
operation panel while driving.
Ball-point pen
Roughness
CAUTION
NX_NZ500 0608.indd 14 6/16/2009 8:05:37 AM
English
NX500/NZ500 15

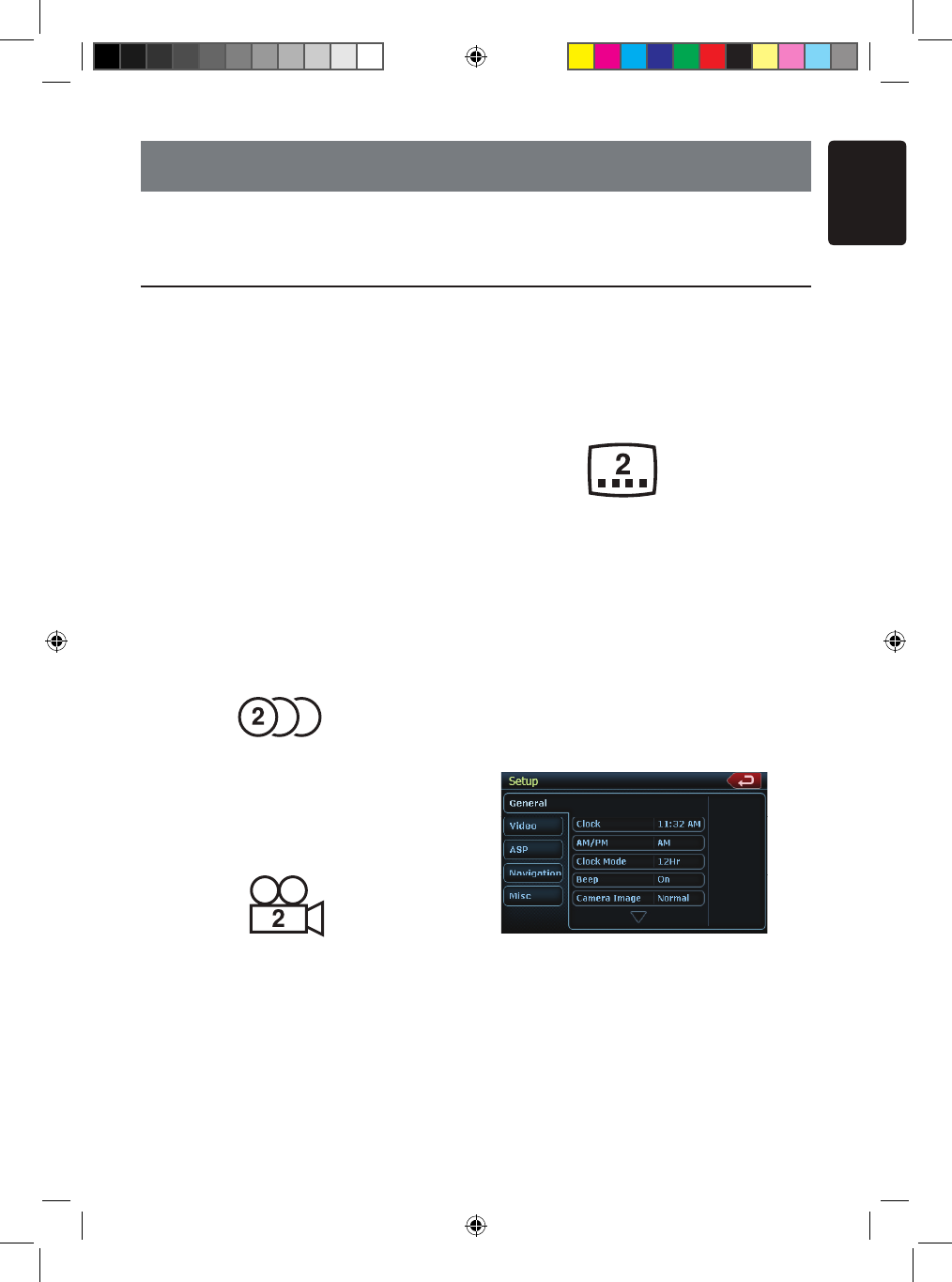

5. DVD VIDEO SYSTEM
This unit provides the following functions in
addition to the high image quality and
sound quality of DVD video.
Note:
• The functions described in this section,
for example, the recorded language,
subtitles, angles, etc. differ depending on
the DVD video disc.
Refer to the instructions provided with the
DVD video.
• Some disc functions may operate
differently from described in this manual.
Multi-sound function
DVD video can store up to 8 languages for
one film; select the language of your
preference.
• The languages stored on the disc are
indicated by the icon shown below.
Multi-angle function
A DVD video that is filmed from multiple
angles allows you to select the angle of
choice.
• The number of recorded angles are
indicated by the icon shown below.
Subpicture (subtitles) function
A DVD video can record subtitles for up
to 32 languages and you can select the
language of the subtitles you wish to see.
The number of recorded subtitle
languages are indicated by the icon shown
below.
Multi-story function
When a DVD video contains more than
one story for a film, you can select the
story you wish to enjoy. The operation
procedures vary with the disc; observe the
instructions for selecting a story provided
during playback.
Menu screens
Menus can be called up during DVD
video playback to perform menu setting.
• Example showing menu display
DVD video is a high-quality digital video source that provides crisp and clear images. One
12 cm disc contains either one film or four hours of music.
DVD Video Features
NX_NZ500 0608.indd 15 6/16/2009 8:05:38 AM

Navigation menu
