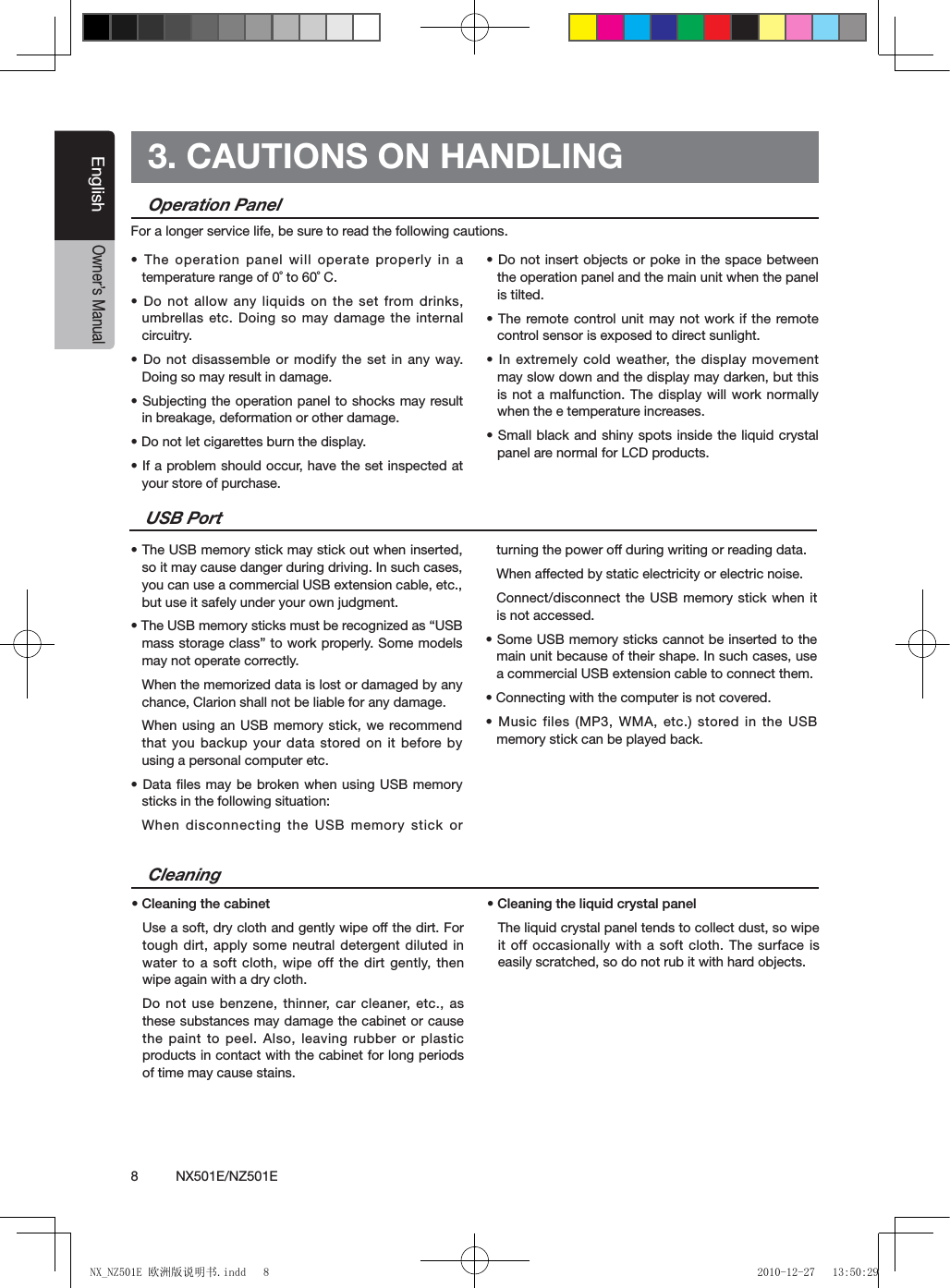

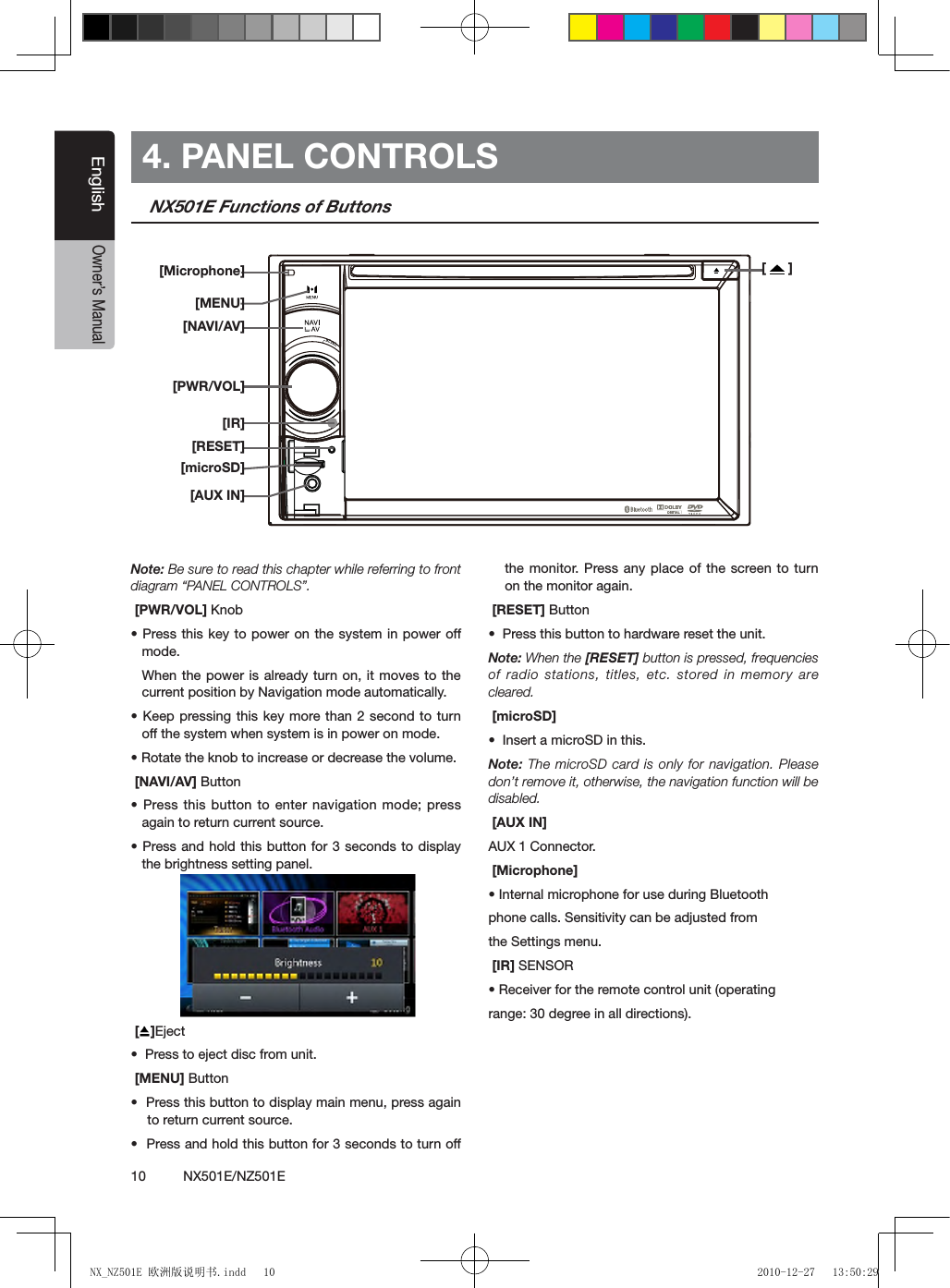

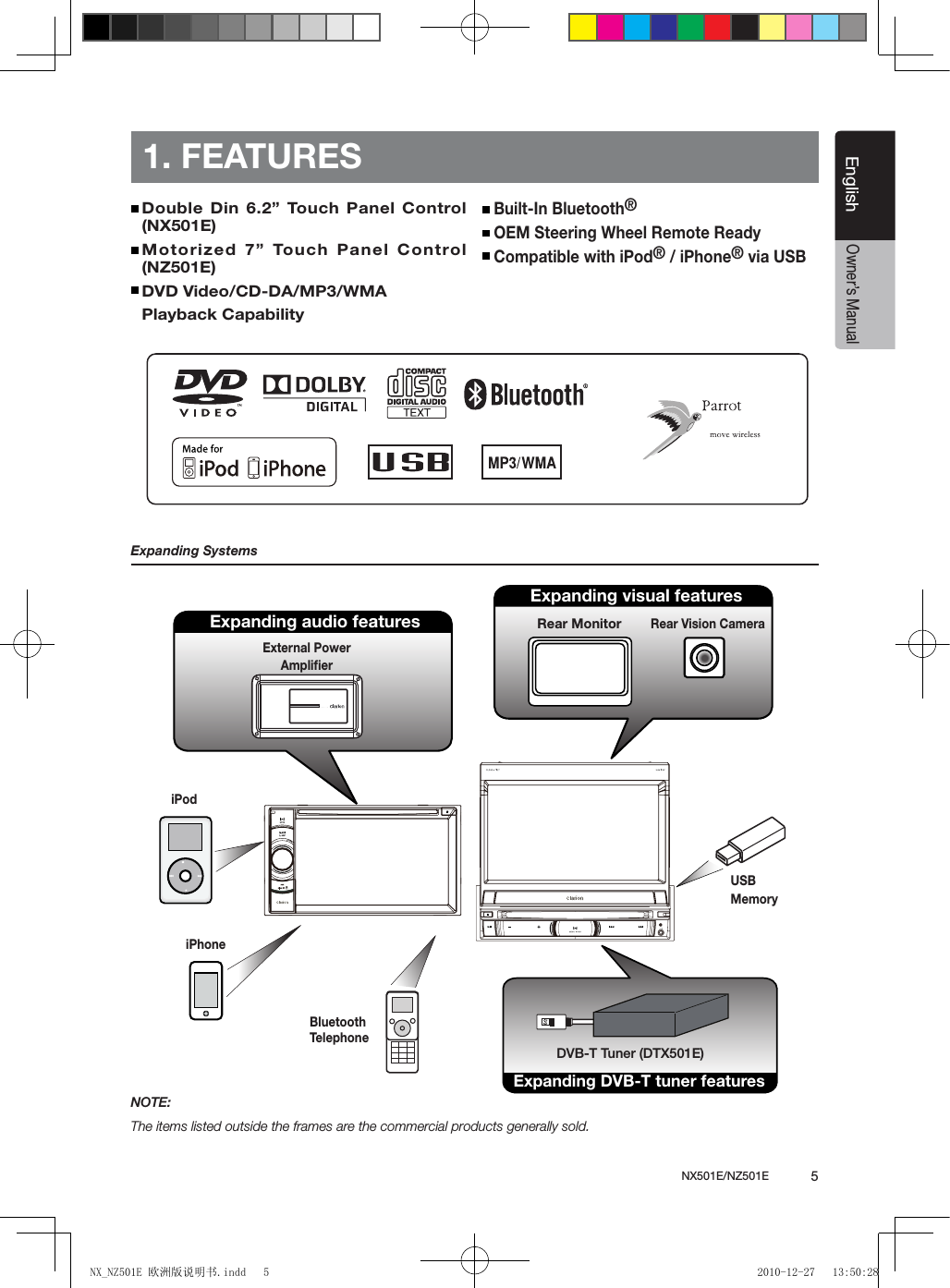

![10 NX501E/NZ501EEnglishOwner’s Manual4. PANEL CONTROLSNX501E Functions of ButtonsNote: Be sure to read this chapter while referring to front diagram “PANEL CONTROLS”. [PWR/VOL] Knob• Press this key to power on the system in power off mode. When the power is already turn on, it moves to the current position by Navigation mode automatically.• Keep pressing this key more than 2 second to turn off the system when system is in power on mode.• Rotate the knob to increase or decrease the volume. [NAVI/AV] Button• Press this button to enter navigation mode; press again to return current source. • Press and hold this button for 3 seconds to display the brightness setting panel. []Eject• Press to eject disc from unit. [MENU] Button• Press this button to display main menu, press again to return current source.• Press and hold this button for 3 seconds to turn off the monitor. Press any place of the screen to turn on the monitor again. [RESET] Button• Press this button to hardware reset the unit.Note: When the [RESET] button is pressed, frequencies of radio stations, titles, etc. stored in memory are cleared. [microSD]• Insert a microSD in this. Note: The microSD card is only for navigation. Please don’t remove it, otherwise, the navigation function will be disabled. [AUX IN]AUX 1 Connector. [Microphone]• Internal microphone for use during Bluetoothphone calls. Sensitivity can be adjusted fromthe Settings menu. [IR] SENSOR• Receiver for the remote control unit (operatingrange: 30 degree in all directions).[ ][Microphone][MENU][NAVI/AV][PWR/VOL] [RESET][microSD][AUX IN][IR] NX_NZ501E 欧洲版说明书.indd 10 2010-12-27 13:50:29](https://usermanual.wiki/SKYPINE-ELECTRONICS/CNE8121CL/User-Guide-1447228-Page-10.png)

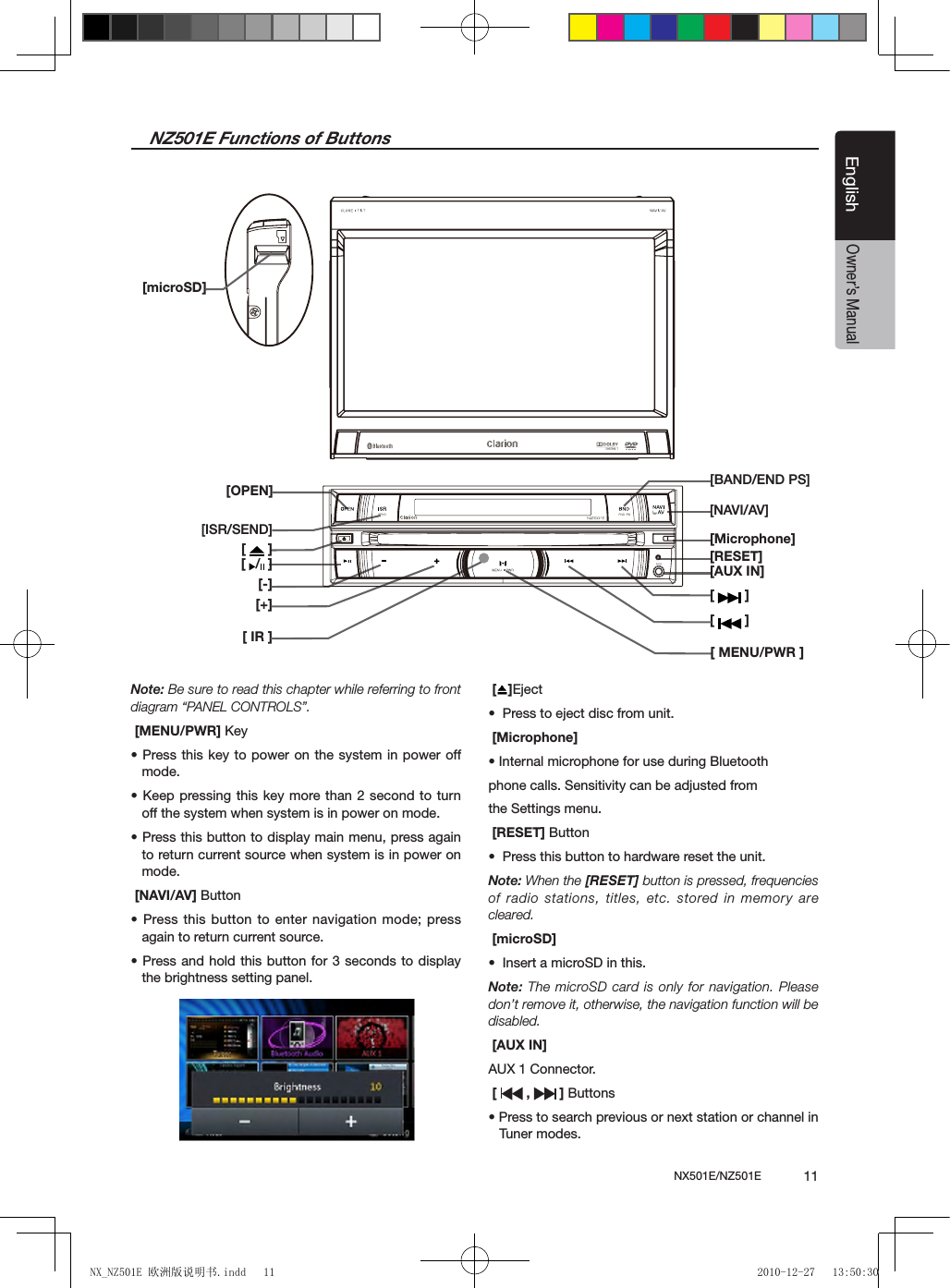

![NX501E/NZ501E 11EnglishEnglishOwner’s ManualNZ501E Functions of Buttons[ ][ ][OPEN][ISR/SEND][ / ][-][+][ IR ][BAND/END PS][NAVI/AV][Microphone][RESET][AUX IN][ ][ MENU/PWR ][microSD]Note: Be sure to read this chapter while referring to front diagram “PANEL CONTROLS”. [MENU/PWR] Key • Press this key to power on the system in power off mode. • Keep pressing this key more than 2 second to turn off the system when system is in power on mode.• Press this button to display main menu, press again to return current source when system is in power on mode. [NAVI/AV] Button• Press this button to enter navigation mode; press again to return current source. • Press and hold this button for 3 seconds to display the brightness setting panel. []Eject• Press to eject disc from unit. [Microphone]• Internal microphone for use during Bluetoothphone calls. Sensitivity can be adjusted fromthe Settings menu. [RESET] Button• Press this button to hardware reset the unit.Note: When the [RESET] button is pressed, frequencies of radio stations, titles, etc. stored in memory are cleared. [microSD]• Insert a microSD in this. Note: The microSD card is only for navigation. Please don’t remove it, otherwise, the navigation function will be disabled. [AUX IN]AUX 1 Connector. [ , ] Buttons• Press to search previous or next station or channel in Tuner modes.NX_NZ501E 欧洲版说明书.indd 11 2010-12-27 13:50:30](https://usermanual.wiki/SKYPINE-ELECTRONICS/CNE8121CL/User-Guide-1447228-Page-11.png)

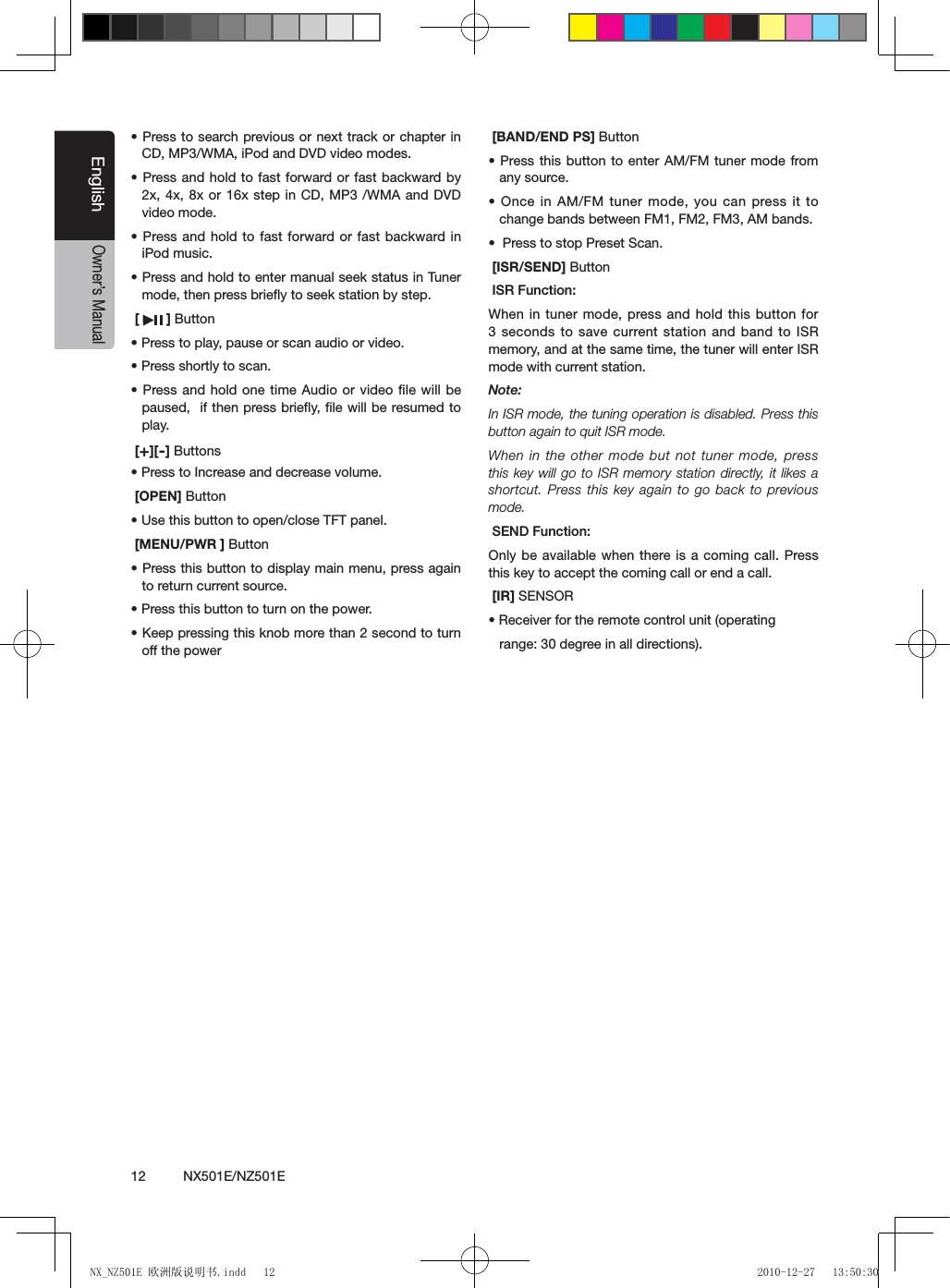

![12 NX501E/NZ501EEnglishOwner’s Manual• Press to search previous or next track or chapter in CD, MP3/WMA, iPod and DVD video modes.• Press and hold to fast forward or fast backward by 2x, 4x, 8x or 16x step in CD, MP3 /WMA and DVD video mode.• Press and hold to fast forward or fast backward in iPod music.• Press and hold to enter manual seek status in Tuner mode, then press briefly to seek station by step. [ ] Button• Press to play, pause or scan audio or video.• Press shortly to scan.• Press and hold one time Audio or video le will be paused, if then press briefly, file will be resumed to play. [+][-] Buttons• Press to Increase and decrease volume. [OPEN] Button• Use this button to open/close TFT panel. [MENU/PWR ] Button• Press this button to display main menu, press again to return current source.• Press this button to turn on the power. • Keep pressing this knob more than 2 second to turn off the power [BAND/END PS] Button• Press this button to enter AM/FM tuner mode from any source.• Once in AM/FM tuner mode, you can press it to change bands between FM1, FM2, FM3, AM bands.• Press to stop Preset Scan. [ISR/SEND] Button ISR Function:When in tuner mode, press and hold this button for 3 seconds to save current station and band to ISR memory, and at the same time, the tuner will enter ISR mode with current station. Note: In ISR mode, the tuning operation is disabled. Press this button again to quit ISR mode.When in the other mode but not tuner mode, press this key will go to ISR memory station directly, it likes a shortcut. Press this key again to go back to previous mode. SEND Function:Only be available when there is a coming call. Press this key to accept the coming call or end a call. [IR] SENSOR• Receiver for the remote control unit (operatingrange: 30 degree in all directions).NX_NZ501E 欧洲版说明书.indd 12 2010-12-27 13:50:30](https://usermanual.wiki/SKYPINE-ELECTRONICS/CNE8121CL/User-Guide-1447228-Page-12.png)

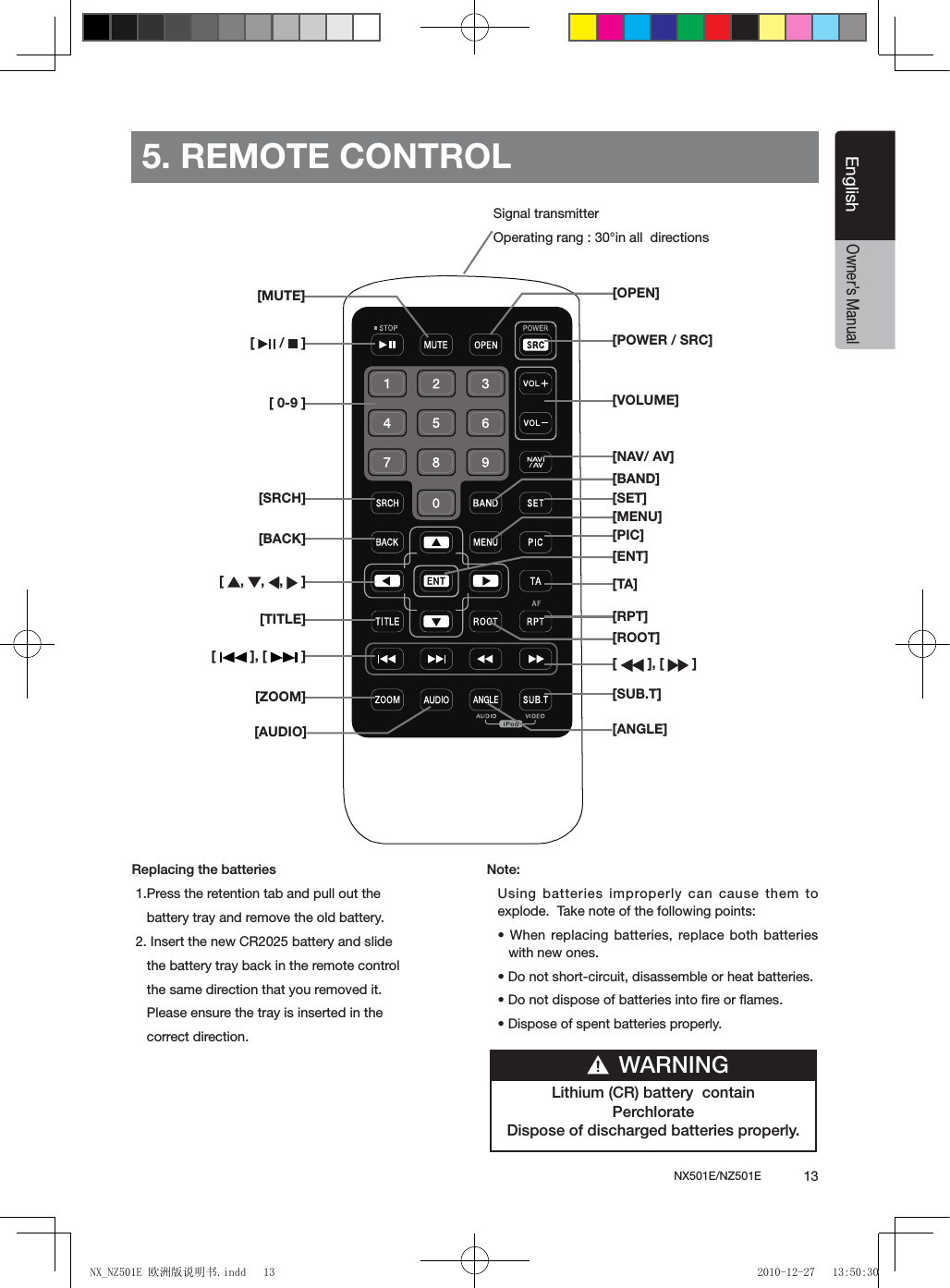

![NX501E/NZ501E 13EnglishEnglishOwner’s Manual5. REMOTE CONTROLReplacing the batteries 1.Press the retention tab and pull out the battery tray and remove the old battery. 2. Insert the new CR2025 battery and slide the battery tray back in the remote control the same direction that you removed it. Please ensure the tray is inserted in the correct direction.Note:Using batteries improperly can cause them to explode. Take note of the following points:• When replacing batteries, replace both batteries with new ones.• Do not short-circuit, disassemble or heat batteries.• Do not dispose of batteries into re or ames.• Dispose of spent batteries properly.Signal transmitterOperating rang : 30°in all directions[ / ][ 0-9 ][SRCH][BACK][ , , , ][TITLE][ ], [ ][ZOOM][MUTE][AUDIO][POWER / SRC][VOLUME][SET][PIC][TA][RPT][ ], [ ][SUB.T][OPEN][ANGLE][NAV/ AV][MENU][BAND][ROOT][ENT]Lithium (CR) battery containPerchlorateDispose of discharged batteries properly.WARNINGNX_NZ501E 欧洲版说明书.indd 13 2010-12-27 13:50:30](https://usermanual.wiki/SKYPINE-ELECTRONICS/CNE8121CL/User-Guide-1447228-Page-13.png)

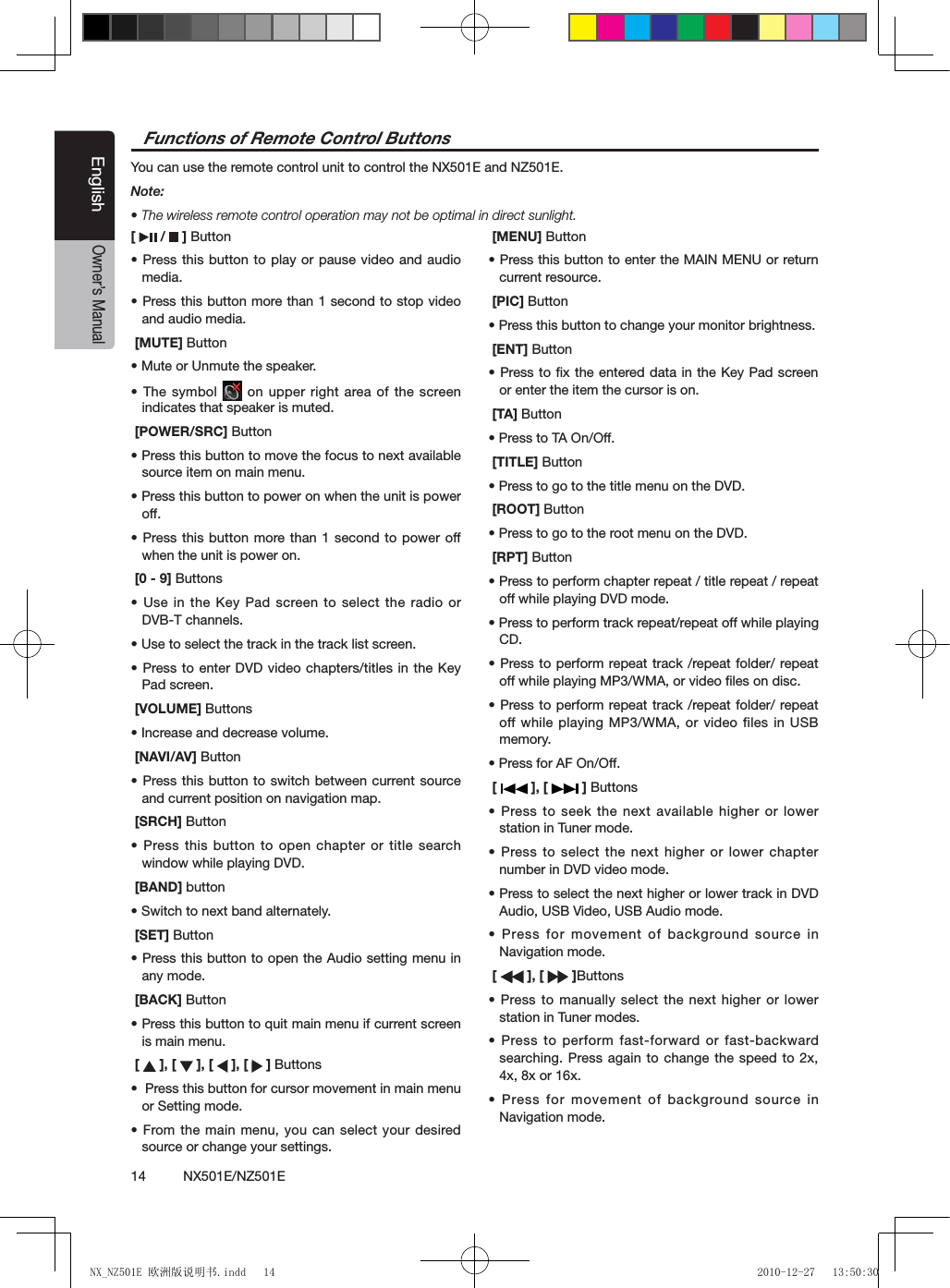

![14 NX501E/NZ501EEnglishOwner’s Manual[ / ] Button• Press this button to play or pause video and audio media.• Press this button more than 1 second to stop video and audio media. [MUTE] Button• Mute or Unmute the speaker.• The symbol on upper right area of the screen indicates that speaker is muted. [POWER/SRC] Button• Press this button to move the focus to next available source item on main menu.• Press this button to power on when the unit is power off.• Press this button more than 1 second to power off when the unit is power on. [0 - 9] Buttons• Use in the Key Pad screen to select the radio or DVB-T channels.• Use to select the track in the track list screen.• Press to enter DVD video chapters/titles in the Key Pad screen. [VOLUME] Buttons• Increase and decrease volume. [NAVI/AV] Button• Press this button to switch between current source and current position on navigation map. [SRCH] Button• Press this button to open chapter or title search window while playing DVD. [BAND] button• Switch to next band alternately. [SET] Button• Press this button to open the Audio setting menu in any mode. [BACK] Button• Press this button to quit main menu if current screen is main menu. [ ], [ ], [ ], [ ] Buttons• Press this button for cursor movement in main menu or Setting mode.• From the main menu, you can select your desired source or change your settings. [MENU] Button• Press this button to enter the MAIN MENU or return current resource. [PIC] Button• Press this button to change your monitor brightness. [ENT] Button• Press to x the entered data in the Key Pad screen or enter the item the cursor is on. [TA] Button• Press to TA On/Off. [TITLE] Button• Press to go to the title menu on the DVD. [ROOT] Button• Press to go to the root menu on the DVD. [RPT] Button• Press to perform chapter repeat / title repeat / repeat off while playing DVD mode.• Press to perform track repeat/repeat off while playing CD.• Press to perform repeat track /repeat folder/ repeat off while playing MP3/WMA, or video files on disc.• Press to perform repeat track /repeat folder/ repeat off while playing MP3/WMA, or video files in USB memory.• Press for AF On/Off. [ ], [ ] Buttons• Press to seek the next available higher or lower station in Tuner mode. • Press to select the next higher or lower chapter number in DVD video mode.• Press to select the next higher or lower track in DVD Audio, USB Video, USB Audio mode.• Press for movement of background source in Navigation mode. [ ], [ ]Buttons• Press to manually select the next higher or lower station in Tuner modes.• Press to perform fast-forward or fast-backward searching. Press again to change the speed to 2x, 4x, 8x or 16x.• Press for movement of background source in Navigation mode.Functions of Remote Control ButtonsYou can use the remote control unit to control the NX501E and NZ501E.Note:• The wireless remote control operation may not be optimal in direct sunlight.NX_NZ501E 欧洲版说明书.indd 14 2010-12-27 13:50:30](https://usermanual.wiki/SKYPINE-ELECTRONICS/CNE8121CL/User-Guide-1447228-Page-14.png)

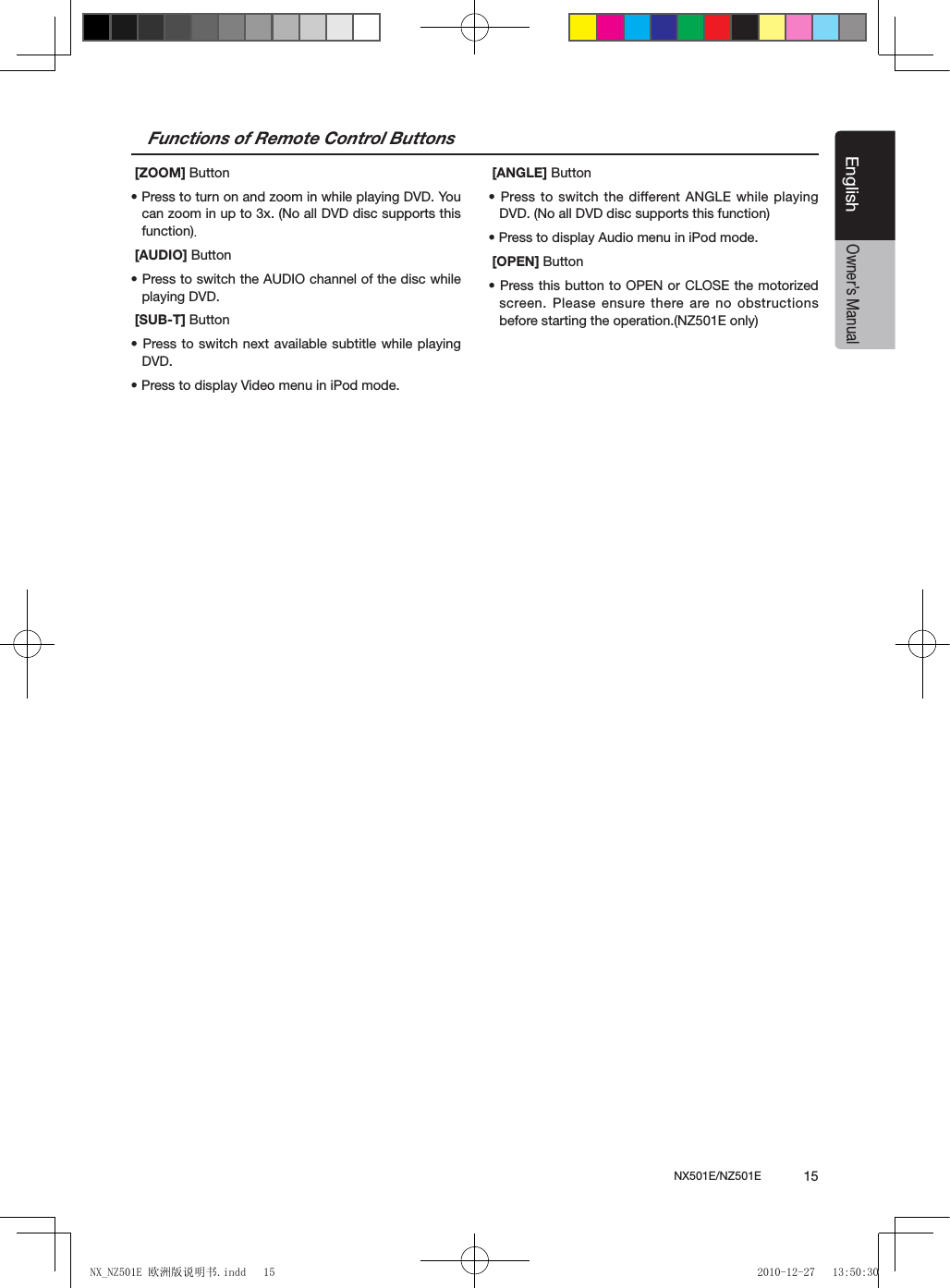

![NX501E/NZ501E 15EnglishEnglishOwner’s ManualFunctions of Remote Control Buttons [ZOOM] Button• Press to turn on and zoom in while playing DVD. You can zoom in up to 3x. (No all DVD disc supports this function). [AUDIO] Button• Press to switch the AUDIO channel of the disc while playing DVD. [SUB-T] Button• Press to switch next available subtitle while playing DVD.• Press to display Video menu in iPod mode. [ANGLE] Button• Press to switch the different ANGLE while playing DVD. (No all DVD disc supports this function)• Press to display Audio menu in iPod mode. [OPEN] Button• Press this button to OPEN or CLOSE the motorized screen. Please ensure there are no obstructions before starting the operation.(NZ501E only)NX_NZ501E 欧洲版说明书.indd 15 2010-12-27 13:50:30](https://usermanual.wiki/SKYPINE-ELECTRONICS/CNE8121CL/User-Guide-1447228-Page-15.png)

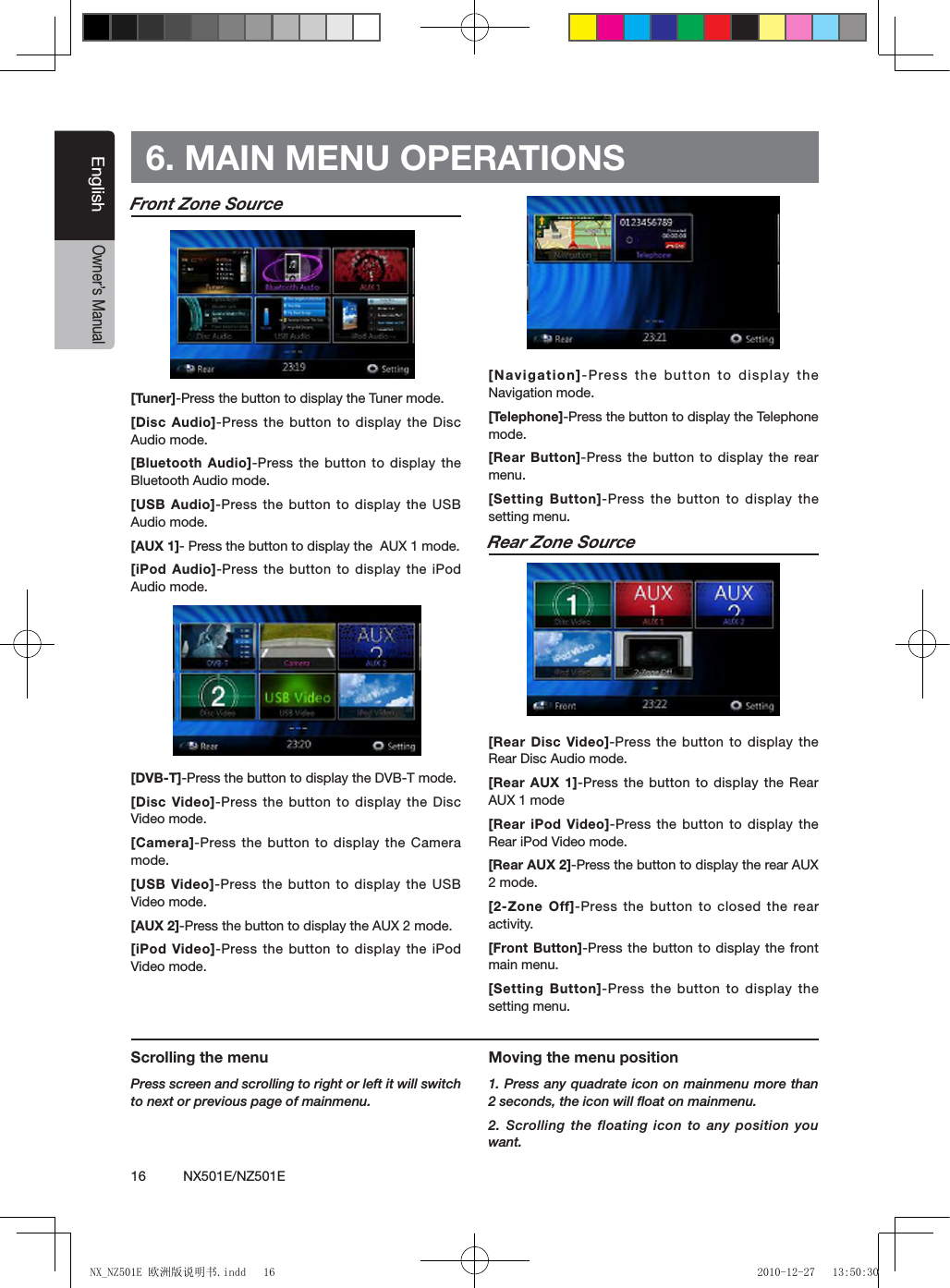

![16 NX501E/NZ501EEnglishOwner’s ManualFront Zone Source[Tuner]-Press the button to display the Tuner mode.[Disc Audio]-Press the button to display the Disc Audio mode.[Bluetooth Audio]-Press the button to display the Bluetooth Audio mode.[USB Audio]-Press the button to display the USB Audio mode.[AUX 1]- Press the button to display the AUX 1 mode.[iPod Audio]-Press the button to display the iPod Audio mode.[DVB-T]-Press the button to display the DVB-T mode.[Disc Video]-Press the button to display the Disc Video mode.[Camera]-Press the button to display the Camera mode.[USB Video]-Press the button to display the USB Video mode.[AUX 2]-Press the button to display the AUX 2 mode.[iPod Video]-Press the button to display the iPod Video mode.[Navigation]-Press the button to display the Navigation mode.[Telephone]-Press the button to display the Telephone mode.[Rear Button]-Press the button to display the rear menu.[Setting Button]-Press the button to display the setting menu.Rear Zone Source[Rear Disc Video]-Press the button to display the Rear Disc Audio mode.[Rear AUX 1]-Press the button to display the Rear AUX 1 mode[Rear iPod Video]-Press the button to display the Rear iPod Video mode.[Rear AUX 2]-Press the button to display the rear AUX 2 mode.[2-Zone Off]-Press the button to closed the rear activity.[Front Button]-Press the button to display the front main menu.[Setting Button]-Press the button to display the setting menu.6. MAIN MENU OPERATIONSScrolling the menuPress screen and scrolling to right or left it will switch to next or previous page of mainmenu.Moving the menu position1. Press any quadrate icon on mainmenu more than 2 seconds, the icon will float on mainmenu. 2. Scrolling the floating icon to any position you want.NX_NZ501E 欧洲版说明书.indd 16 2010-12-27 13:50:30](https://usermanual.wiki/SKYPINE-ELECTRONICS/CNE8121CL/User-Guide-1447228-Page-16.png)

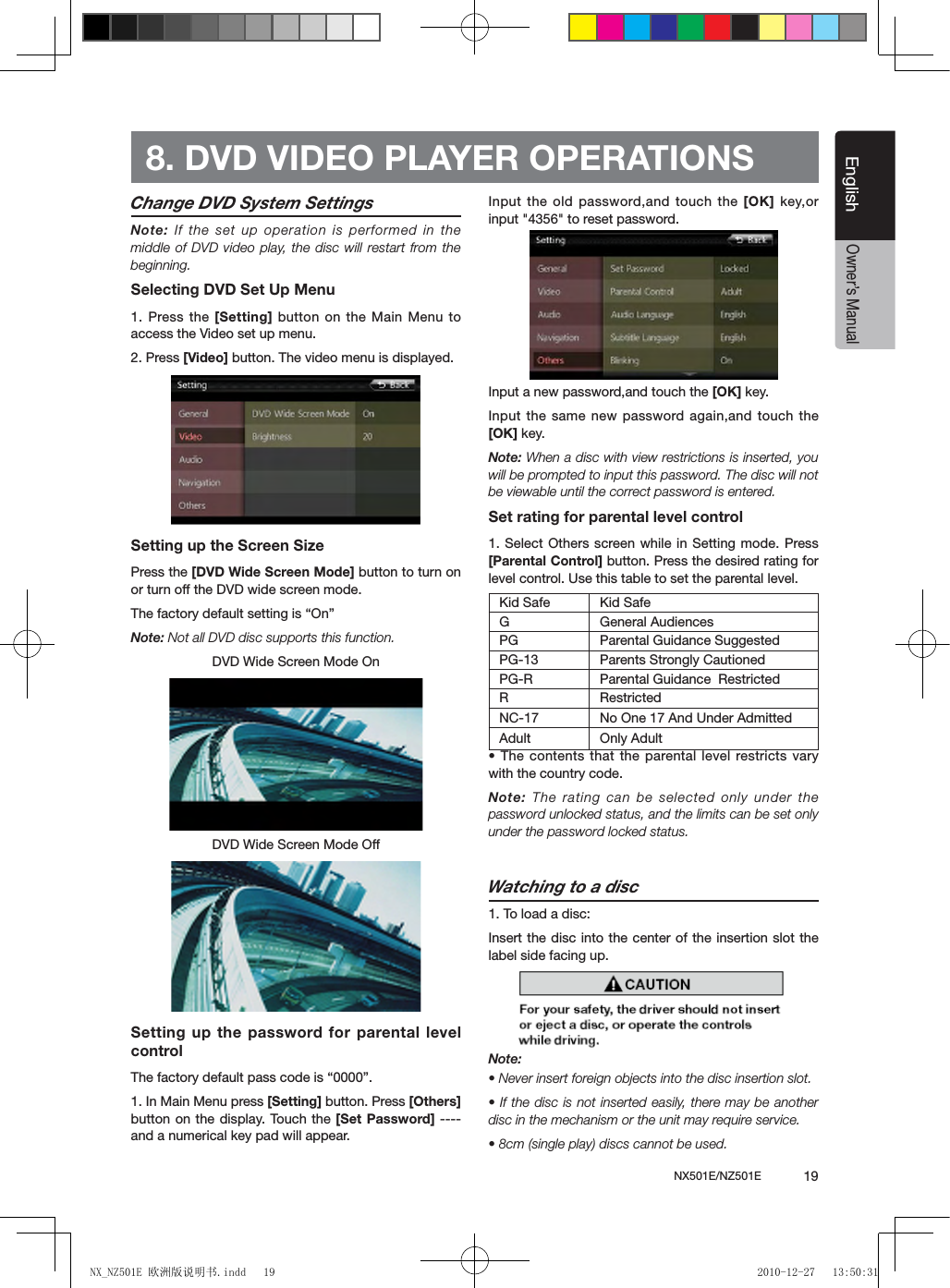

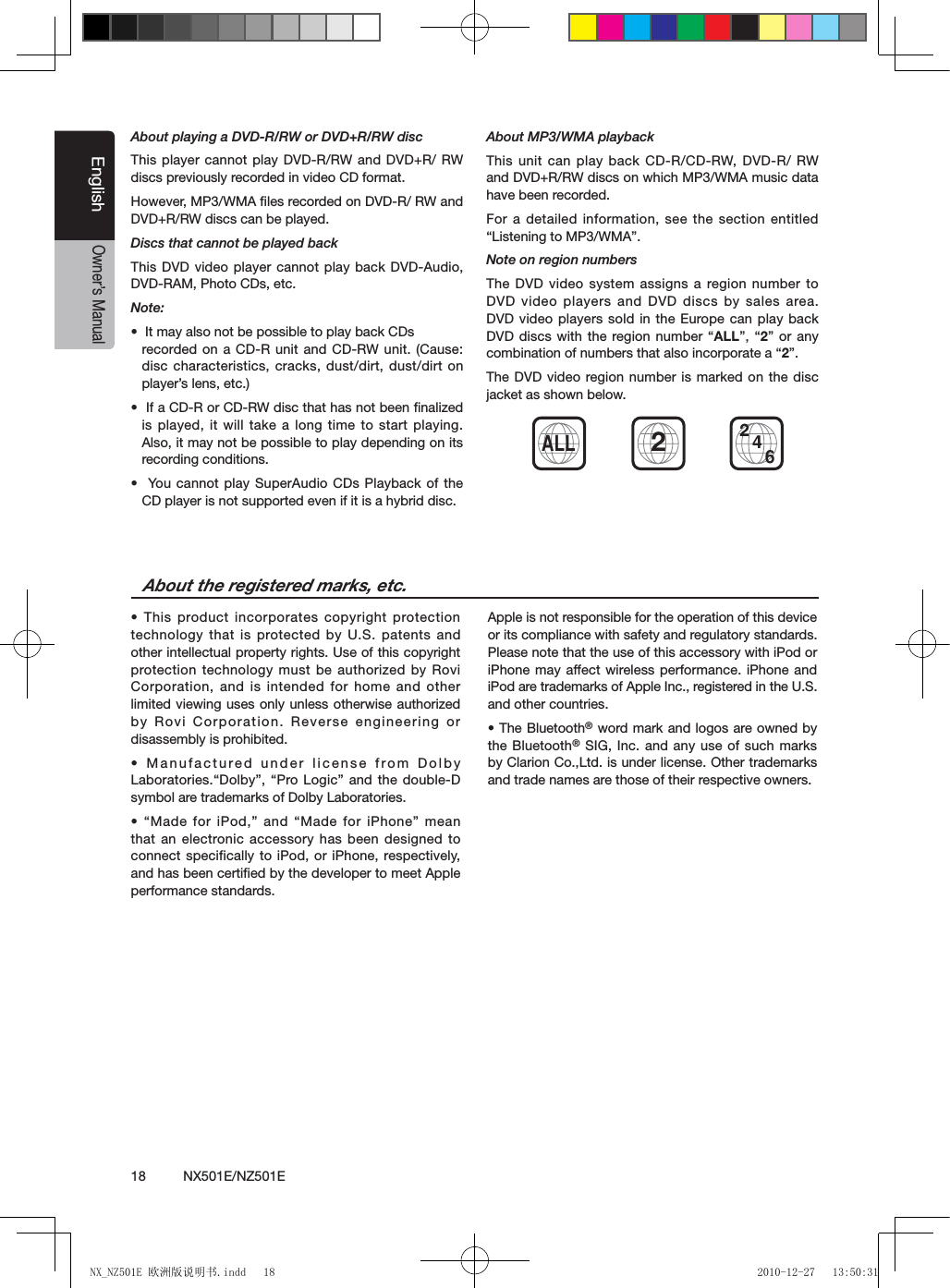

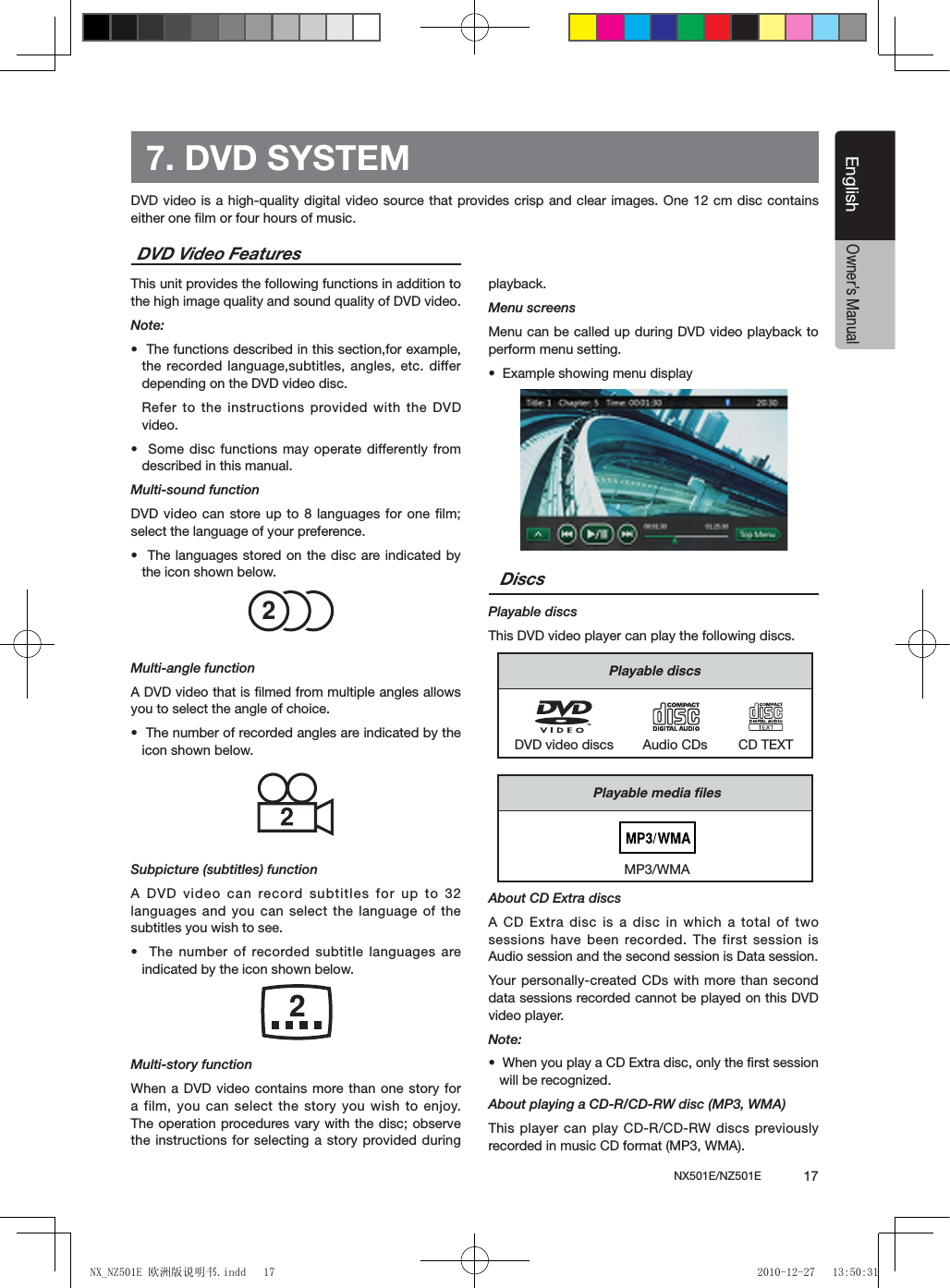

![NX501E/NZ501E 19EnglishEnglishOwner’s ManualChange DVD System SettingsNote: If the set up operation is performed in the middle of DVD video play, the disc will restart from the beginning.Selecting DVD Set Up Menu1. Press the [Setting] button on the Main Menu to access the Video set up menu.2. Press [Video] button. The video menu is displayed.Setting up the Screen Size Press the [DVD Wide Screen Mode] button to turn on or turn off the DVD wide screen mode. The factory default setting is “On”Note: Not all DVD disc supports this function.DVD Wide Screen Mode OnDVD Wide Screen Mode OffSetting up the password for parental level controlThe factory default pass code is “0000”.1. In Main Menu press [Setting] button. Press [Others] button on the display. Touch the [Set Password] ---- and a numerical key pad will appear.Input the old password,and touch the [OK] key,or input "4356" to reset password.Input a new password,and touch the [OK] key.Input the same new password again,and touch the [OK] key. Note: When a disc with view restrictions is inserted, you will be prompted to input this password. The disc will not be viewable until the correct password is entered.Set rating for parental level control1. Select Others screen while in Setting mode. Press [Parental Control] button. Press the desired rating for level control. Use this table to set the parental level.Kid Safe Kid SafeG General AudiencesPG Parental Guidance SuggestedPG-13 Parents Strongly CautionedPG-R Parental Guidance RestrictedR RestrictedNC-17 No One 17 And Under AdmittedAdult Only Adult • The contents that the parental level restricts vary with the country code.Note: The rating can be selected only under the password unlocked status, and the limits can be set only under the password locked status.Watching to a disc1. To load a disc: Insert the disc into the center of the insertion slot the label side facing up.Note:• Never insert foreign objects into the disc insertion slot.• If the disc is not inserted easily, there may be another disc in the mechanism or the unit may require service.• 8cm (single play) discs cannot be used.8. DVD VIDEO PLAYER OPERATIONSNX_NZ501E 欧洲版说明书.indd 19 2010-12-27 13:50:31](https://usermanual.wiki/SKYPINE-ELECTRONICS/CNE8121CL/User-Guide-1447228-Page-19.png)

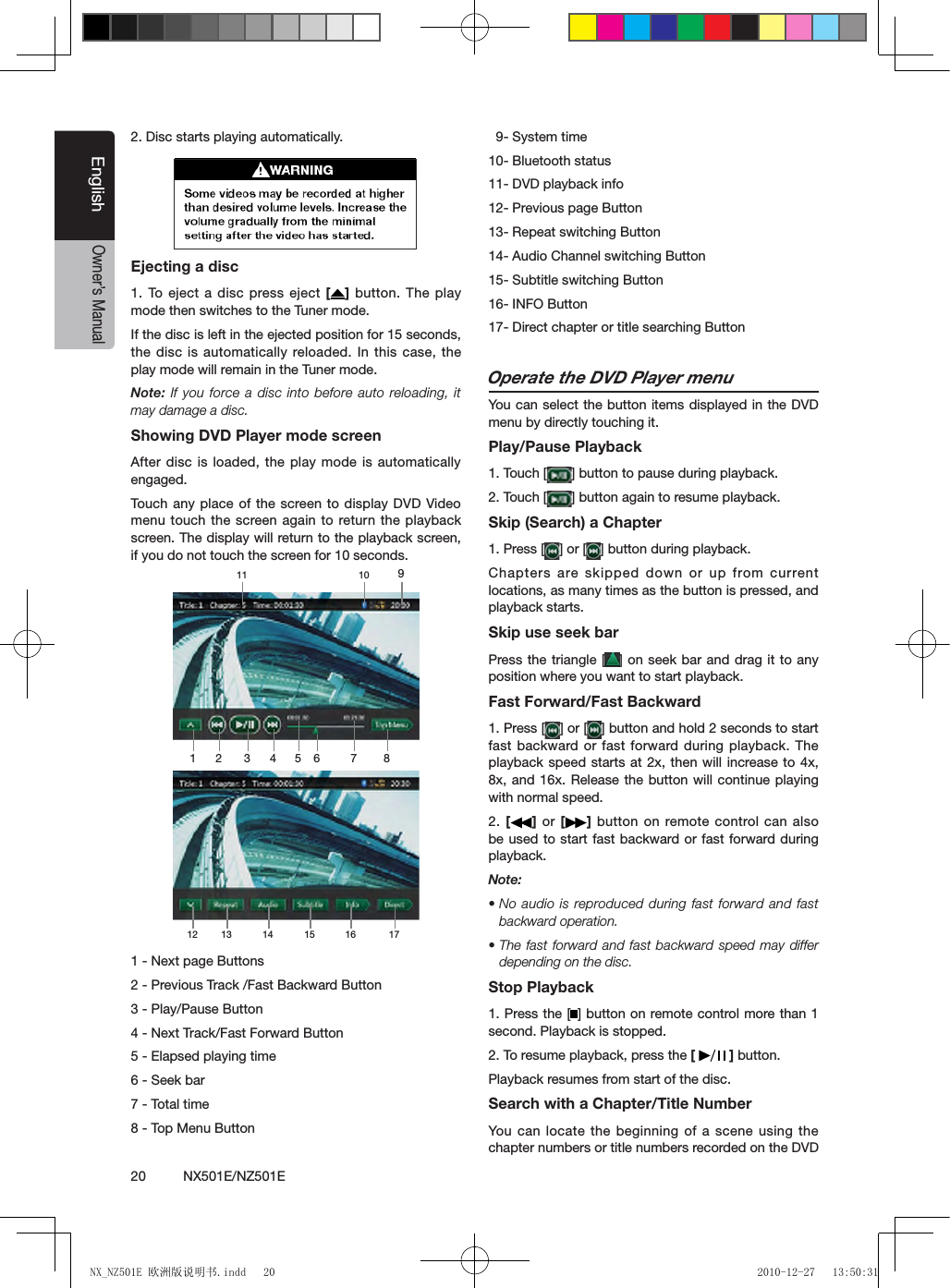

![20 NX501E/NZ501EEnglishOwner’s Manual2. Disc starts playing automatically.Ejecting a disc1. To eject a disc press eject [ ] button. The play mode then switches to the Tuner mode.If the disc is left in the ejected position for 15 seconds, the disc is automatically reloaded. In this case, the play mode will remain in the Tuner mode.Note: If you force a disc into before auto reloading, it may damage a disc.Showing DVD Player mode screenAfter disc is loaded, the play mode is automatically engaged.Touch any place of the screen to display DVD Video menu touch the screen again to return the playback screen. The display will return to the playback screen, if you do not touch the screen for 10 seconds.1 - Next page Buttons2 - Previous Track /Fast Backward Button3 - Play/Pause Button4 - Next Track/Fast Forward Button5 - Elapsed playing time6 - Seek bar7 - Total time8 - Top Menu Button 9- System time10- Bluetooth status11- DVD playback info12- Previous page Button13- Repeat switching Button14- Audio Channel switching Button 15- Subtitle switching Button16- INFO Button17- Direct chapter or title searching ButtonOperate the DVD Player menuYou can select the button items displayed in the DVD menu by directly touching it.Play/Pause Playback1. Touch [ ] button to pause during playback.2. Touch [ ] button again to resume playback.Skip (Search) a Chapter1. Press [ ] or [ ] button during playback.Chapters are skipped down or up from current locations, as many times as the button is pressed, and playback starts.Skip use seek barPress the triangle [ ] on seek bar and drag it to any position where you want to start playback.Fast Forward/Fast Backward1. Press [ ] or [ ] button and hold 2 seconds to start fast backward or fast forward during playback. The playback speed starts at 2x, then will increase to 4x, 8x, and 16x. Release the button will continue playing with normal speed.2. [] or [ ] button on remote control can also be used to start fast backward or fast forward during playback. Note:• No audio is reproduced during fast forward and fast backward operation.• The fast forward and fast backward speed may differ depending on the disc.Stop Playback1. Press the [ ] button on remote control more than 1 second. Playback is stopped.2. To resume playback, press the [ ] button.Playback resumes from start of the disc.Search with a Chapter/Title NumberYou can locate the beginning of a scene using the chapter numbers or title numbers recorded on the DVD 1 2 3 4 5 6 7 89101112 13 14 15 16 17NX_NZ501E 欧洲版说明书.indd 20 2010-12-27 13:50:31](https://usermanual.wiki/SKYPINE-ELECTRONICS/CNE8121CL/User-Guide-1447228-Page-20.png)

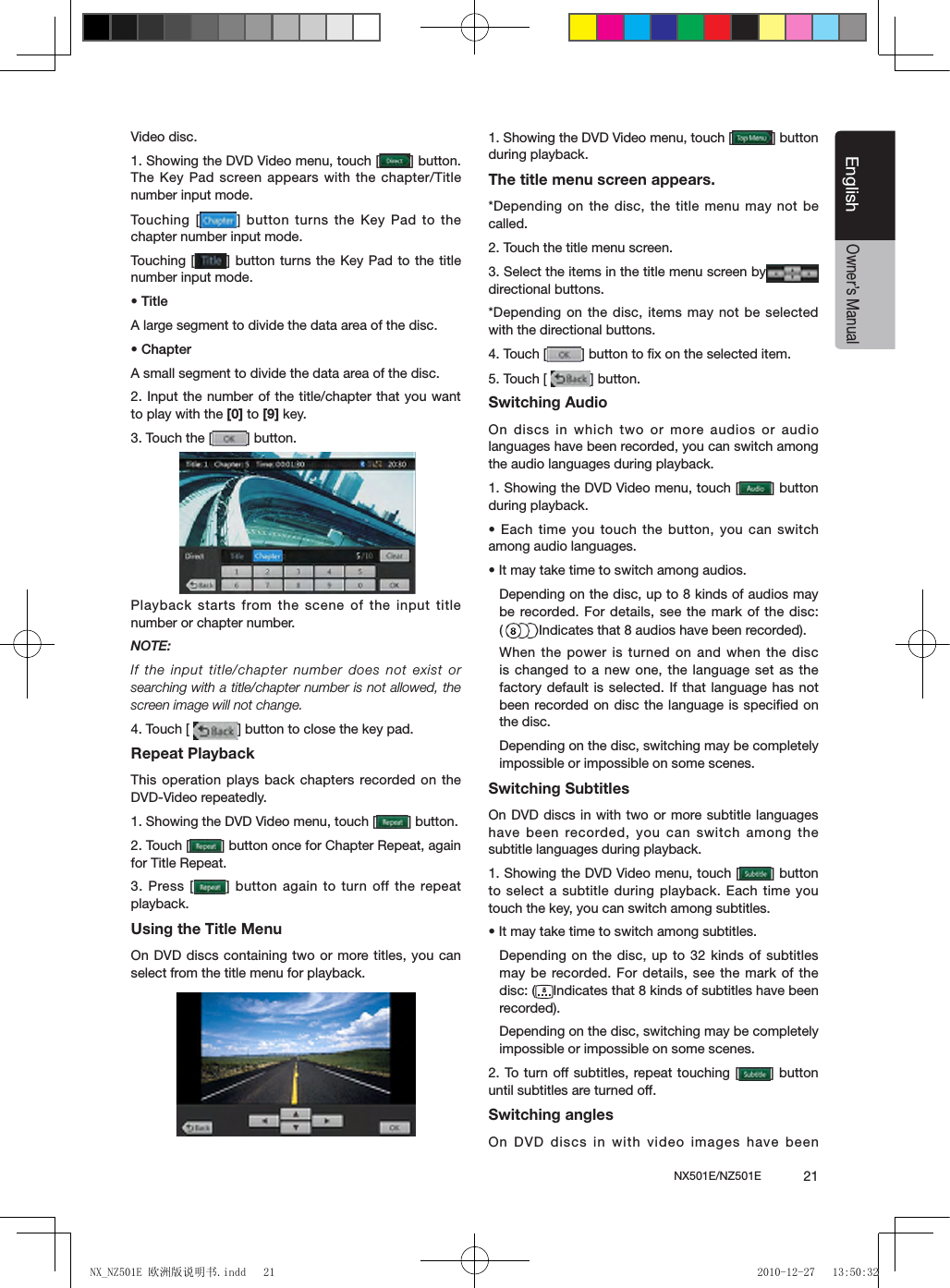

![NX501E/NZ501E 21EnglishEnglishOwner’s ManualVideo disc.1. Showing the DVD Video menu, touch [ ] button. The Key Pad screen appears with the chapter/Title number input mode. Touching [ ] button turns the Key Pad to the chapter number input mode. Touching [ ] button turns the Key Pad to the title number input mode. • TitleA large segment to divide the data area of the disc.• ChapterA small segment to divide the data area of the disc.2. Input the number of the title/chapter that you want to play with the [0] to [9] key.3. Touch the [ ] button.Playback starts from the scene of the input title number or chapter number.NOTE:If the input title/chapter number does not exist or searching with a title/chapter number is not allowed, the screen image will not change.4. Touch [ ] button to close the key pad.Repeat PlaybackThis operation plays back chapters recorded on the DVD-Video repeatedly.1. Showing the DVD Video menu, touch [ ] button.2. Touch [ ] button once for Chapter Repeat, again for Title Repeat.3. Press [ ] button again to turn off the repeat playback.Using the Title MenuOn DVD discs containing two or more titles, you can select from the title menu for playback.1. Showing the DVD Video menu, touch [ ] button during playback.The title menu screen appears.*Depending on the disc, the title menu may not be called.2. Touch the title menu screen.3. Select the items in the title menu screen bydirectional buttons.*Depending on the disc, items may not be selected with the directional buttons.4. Touch [ ] button to fix on the selected item.5. Touch [ ] button.Switching AudioOn discs in which two or more audios or audio languages have been recorded, you can switch among the audio languages during playback.1. Showing the DVD Video menu, touch [ ] button during playback.• Each time you touch the button, you can switch among audio languages.• It may take time to switch among audios.Depending on the disc, up to 8 kinds of audios may be recorded. For details, see the mark of the disc: (Indicates that 8 audios have been recorded).When the power is turned on and when the disc is changed to a new one, the language set as the factory default is selected. If that language has not been recorded on disc the language is specified on the disc.Depending on the disc, switching may be completely impossible or impossible on some scenes.Switching SubtitlesOn DVD discs in with two or more subtitle languages have been recorded, you can switch among the subtitle languages during playback.1. Showing the DVD Video menu, touch [ ] button to select a subtitle during playback. Each time you touch the key, you can switch among subtitles.• It may take time to switch among subtitles.Depending on the disc, up to 32 kinds of subtitles may be recorded. For details, see the mark of the disc: ( Indicates that 8 kinds of subtitles have been recorded).Depending on the disc, switching may be completely impossible or impossible on some scenes.2. To turn off subtitles, repeat touching [ ] button until subtitles are turned off.Switching anglesOn DVD discs in with video images have been NX_NZ501E 欧洲版说明书.indd 21 2010-12-27 13:50:32](https://usermanual.wiki/SKYPINE-ELECTRONICS/CNE8121CL/User-Guide-1447228-Page-21.png)

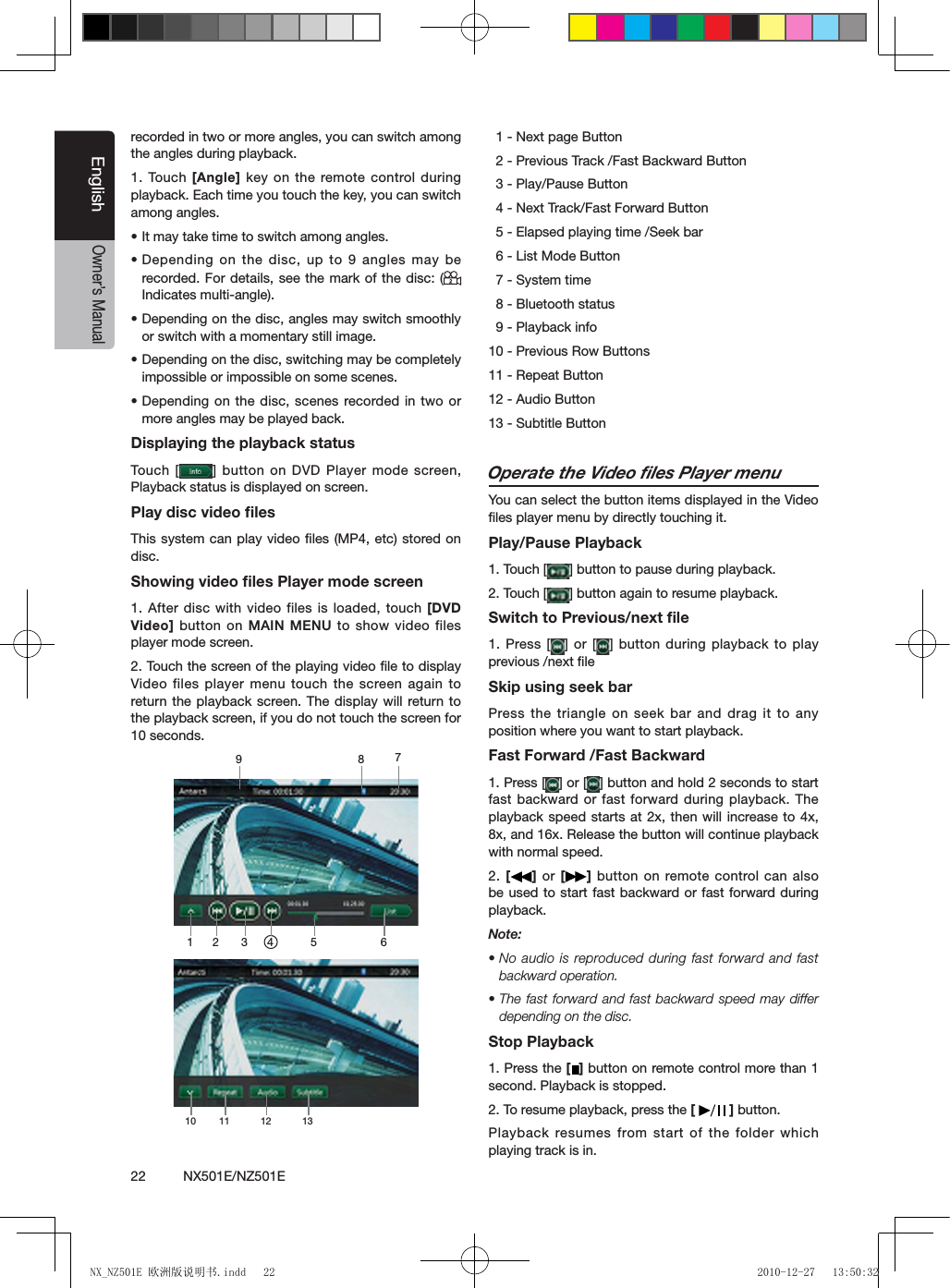

![22 NX501E/NZ501EEnglishOwner’s Manualrecorded in two or more angles, you can switch among the angles during playback.1. Touch [Angle] key on the remote control during playback. Each time you touch the key, you can switch among angles.• It may take time to switch among angles.• Depending on the disc, up to 9 angles may be recorded. For details, see the mark of the disc: (Indicates multi-angle).• Depending on the disc, angles may switch smoothly or switch with a momentary still image.• Depending on the disc, switching may be completely impossible or impossible on some scenes.• Depending on the disc, scenes recorded in two or more angles may be played back.Displaying the playback statusTouch [ ] button on DVD Player mode screen, Playback status is displayed on screen.Play disc video filesThis system can play video files (MP4, etc) stored on disc.Showing video files Player mode screen1. After disc with video files is loaded, touch [DVD Video] button on MAIN MENU to show video files player mode screen.2. Touch the screen of the playing video file to display Video files player menu touch the screen again to return the playback screen. The display will return to the playback screen, if you do not touch the screen for 10 seconds.1 2 3 4 5 678910 11 12 13 1 - Next page Button 2 - Previous Track /Fast Backward Button 3 - Play/Pause Button 4 - Next Track/Fast Forward Button 5 - Elapsed playing time /Seek bar 6 - List Mode Button 7 - System time 8 - Bluetooth status 9 - Playback info10 - Previous Row Buttons11 - Repeat Button12 - Audio Button 13 - Subtitle ButtonOperate the Video files Player menuYou can select the button items displayed in the Video files player menu by directly touching it.Play/Pause Playback1. Touch [ ] button to pause during playback.2. Touch [ ] button again to resume playback.Switch to Previous/next file1. Press [ ] or [ ] button during playback to play previous /next file Skip using seek barPress the triangle on seek bar and drag it to any position where you want to start playback.Fast Forward /Fast Backward1. Press [ ] or [ ] button and hold 2 seconds to start fast backward or fast forward during playback. The playback speed starts at 2x, then will increase to 4x, 8x, and 16x. Release the button will continue playback with normal speed.2. [] or [ ] button on remote control can also be used to start fast backward or fast forward during playback. Note:• No audio is reproduced during fast forward and fast backward operation.• The fast forward and fast backward speed may differ depending on the disc.Stop Playback1. Press the [ ] button on remote control more than 1 second. Playback is stopped.2. To resume playback, press the [ ] button.Playback resumes from start of the folder which playing track is in.NX_NZ501E 欧洲版说明书.indd 22 2010-12-27 13:50:32](https://usermanual.wiki/SKYPINE-ELECTRONICS/CNE8121CL/User-Guide-1447228-Page-22.png)
![NX501E/NZ501E 23EnglishEnglishOwner’s ManualRepeat PlaybackThis operation plays back video files recorded on the disc repeatedly.The repeat set as the factory default is Repeat Folder.1. Showing the video files player menu, touch [ ] button.2. Touch[ ] button once for Repeat off, again for Repeat Track.3. Press [ ] button again for Repeat Folder.Switching AudioSome video files will have two or more audio channels; you can switch among the audio channels during playback.1. Touch [ ] button during playback.• Each time you touch the button, you can switch among audio languages.• It may take time to switch among audios.Depending on the disc, switching may be impossible.Switching SubtitlesSome video files will have two or more subtitles have been recorded; you can switch among these subtitles during playback.1. Touch the [ ] button to select a subtitle during playback.• Each time you touch the key, you can switch among subtitles.• It may take time to switch among subtitles.Depending on the disc, switching may be impossible.Video files listShowing the Video files player menu; touch the [] button to display video files list screen.Video files list operations is almost same as Disc Audio player mode. Please refer to DVD Audio Player Operations.NX_NZ501E 欧洲版说明书.indd 23 2010-12-27 13:50:33](https://usermanual.wiki/SKYPINE-ELECTRONICS/CNE8121CL/User-Guide-1447228-Page-23.png)

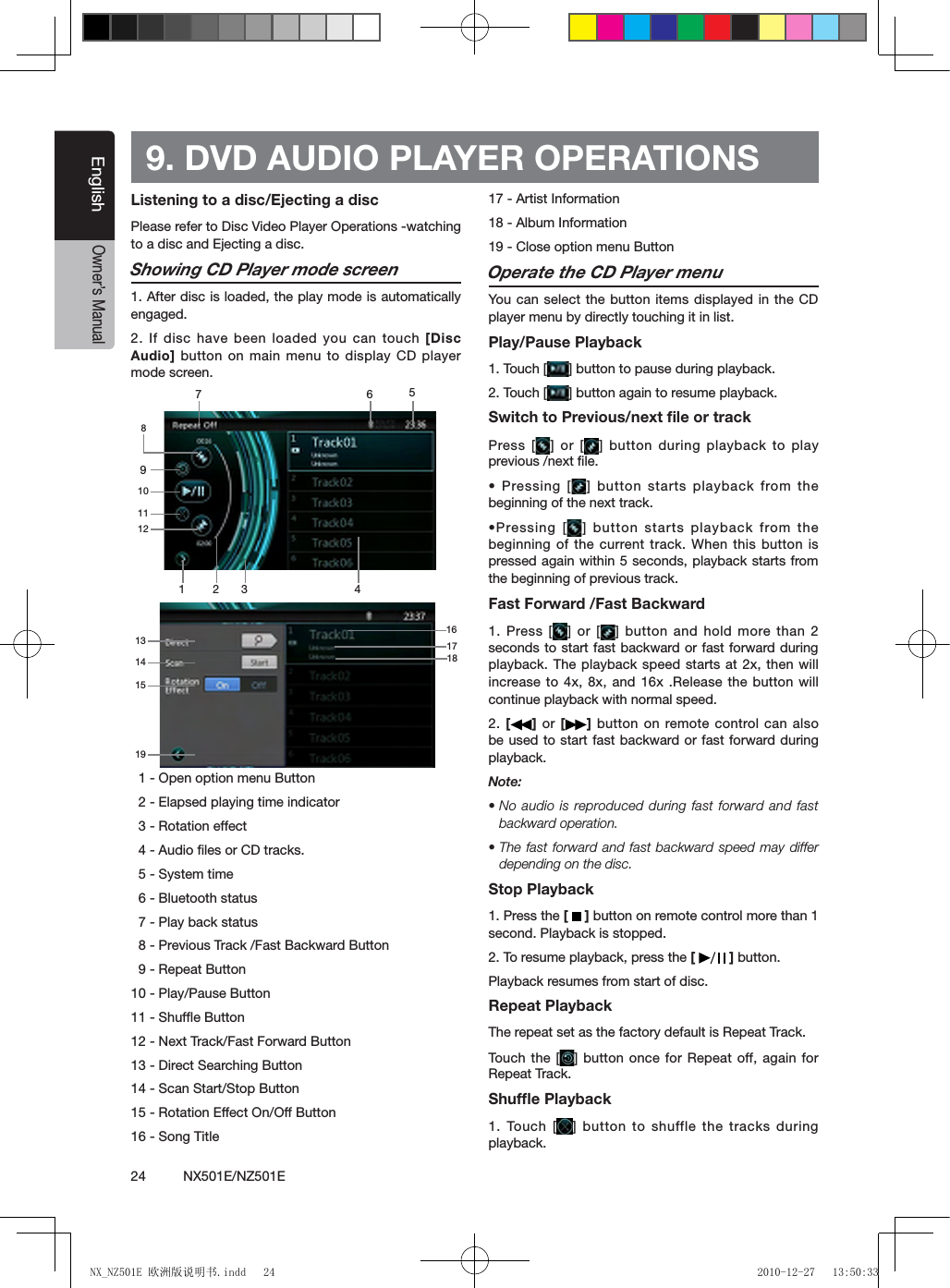

![24 NX501E/NZ501EEnglishOwner’s ManualListening to a disc/Ejecting a discPlease refer to Disc Video Player Operations -watching to a disc and Ejecting a disc.Showing CD Player mode screen1. After disc is loaded, the play mode is automatically engaged.2. If disc have been loaded you can touch [Disc Audio] button on main menu to display CD player mode screen. 1 - Open option menu Button 2 - Elapsed playing time indicator 3 - Rotation effect 4 - Audio files or CD tracks. 5 - System time 6 - Bluetooth status 7 - Play back status 8 - Previous Track /Fast Backward Button 9 - Repeat Button10 - Play/Pause Button11 - Shuffle Button12 - Next Track/Fast Forward Button13 - Direct Searching Button14 - Scan Start/Stop Button15 - Rotation Effect On/Off Button16 - Song Title17 - Artist Information18 - Album Information19 - Close option menu ButtonOperate the CD Player menuYou can select the button items displayed in the CD player menu by directly touching it in list.Play/Pause Playback1. Touch [ ] button to pause during playback.2. Touch [ ] button again to resume playback.Switch to Previous/next file or trackPress [ ] or [ ] button during playback to play previous /next file.• Pressing [ ] button starts playback from the beginning of the next track.•Pressing [ ] button starts playback from the beginning of the current track. When this button is pressed again within 5 seconds, playback starts from the beginning of previous track.Fast Forward /Fast Backward1. Press [ ] or [ ] button and hold more than 2 seconds to start fast backward or fast forward during playback. The playback speed starts at 2x, then will increase to 4x, 8x, and 16x .Release the button will continue playback with normal speed.2. [] or [ ] button on remote control can also be used to start fast backward or fast forward during playback. Note:• No audio is reproduced during fast forward and fast backward operation.• The fast forward and fast backward speed may differ depending on the disc.Stop Playback1. Press the [ ] button on remote control more than 1 second. Playback is stopped.2. To resume playback, press the [ ] button.Playback resumes from start of disc.Repeat PlaybackThe repeat set as the factory default is Repeat Track.Touch the [ ] button once for Repeat off, again for Repeat Track.Shuffle Playback1. Touch [ ] button to shuffle the tracks during playback.9. DVD AUDIO PLAYER OPERATIONS1 2 356784910111213141519161718NX_NZ501E 欧洲版说明书.indd 24 2010-12-27 13:50:33](https://usermanual.wiki/SKYPINE-ELECTRONICS/CNE8121CL/User-Guide-1447228-Page-24.png)

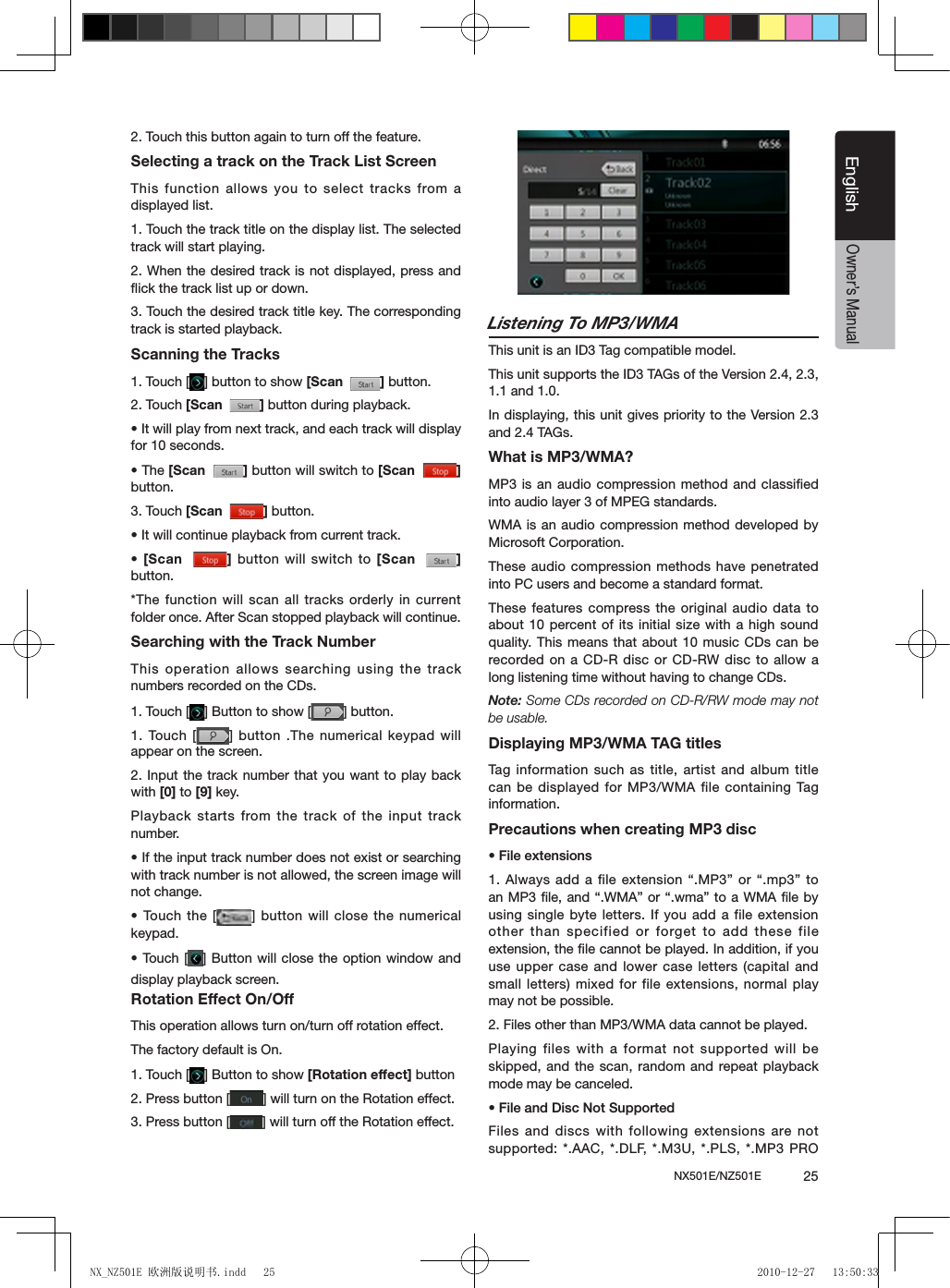

![NX501E/NZ501E 25EnglishEnglishOwner’s Manual2. Touch this button again to turn off the feature.Selecting a track on the Track List ScreenThis function allows you to select tracks from a displayed list.1. Touch the track title on the display list. The selected track will start playing.2. When the desired track is not displayed, press and flick the track list up or down.3. Touch the desired track title key. The corresponding track is started playback.Scanning the Tracks1. Touch [ ] button to show [Scan ] button.2. Touch [Scan ] button during playback.• It will play from next track, and each track will display for 10 seconds.• The [Scan ] button will switch to [Scan ]button.3. Touch [Scan ] button.• It will continue playback from current track.• [Scan ] button will switch to [Scan ] button.*The function will scan all tracks orderly in current folder once. After Scan stopped playback will continue.Searching with the Track NumberThis operation allows searching using the track numbers recorded on the CDs.1. Touch [ ] Button to show [ ] button.1. Touch [ ] button .The numerical keypad will appear on the screen.2. Input the track number that you want to play back with [0] to [9] key.Playback starts from the track of the input track number.• If the input track number does not exist or searching with track number is not allowed, the screen image will not change.• Touch the [ ] button will close the numerical keypad.• Touch [ ] Button will close the option window and display playback screen.Rotation Effect On/OffThis operation allows turn on/turn off rotation effect.The factory default is On.1. Touch [ ] Button to show [Rotation effect] button2. Press button [ ] will turn on the Rotation effect.3. Press button [ ] will turn off the Rotation effect.Listening To MP3/WMAThis unit is an ID3 Tag compatible model.This unit supports the ID3 TAGs of the Version 2.4, 2.3, 1.1 and 1.0.In displaying, this unit gives priority to the Version 2.3 and 2.4 TAGs.What is MP3/WMA?MP3 is an audio compression method and classified into audio layer 3 of MPEG standards.WMA is an audio compression method developed by Microsoft Corporation.These audio compression methods have penetrated into PC users and become a standard format.These features compress the original audio data to about 10 percent of its initial size with a high sound quality. This means that about 10 music CDs can be recorded on a CD-R disc or CD-RW disc to allow a long listening time without having to change CDs.Note: Some CDs recorded on CD-R/RW mode may not be usable.Displaying MP3/WMA TAG titlesTag information such as title, artist and album title can be displayed for MP3/WMA file containing Tag information.Precautions when creating MP3 disc• File extensions1. Always add a file extension “.MP3” or “.mp3” to an MP3 le, and “.WMA” or “.wma” to a WMA le by using single byte letters. If you add a file extension other than specified or forget to add these file extension, the file cannot be played. In addition, if you use upper case and lower case letters (capital and small letters) mixed for file extensions, normal play may not be possible.2. Files other than MP3/WMA data cannot be played.Playing files with a format not supported will be skipped, and the scan, random and repeat playback mode may be canceled.• File and Disc Not SupportedFiles and discs with following extensions are not supported: *.AAC, *.DLF, *.M3U, *.PLS, *.MP3 PRO NX_NZ501E 欧洲版说明书.indd 25 2010-12-27 13:50:33](https://usermanual.wiki/SKYPINE-ELECTRONICS/CNE8121CL/User-Guide-1447228-Page-25.png)

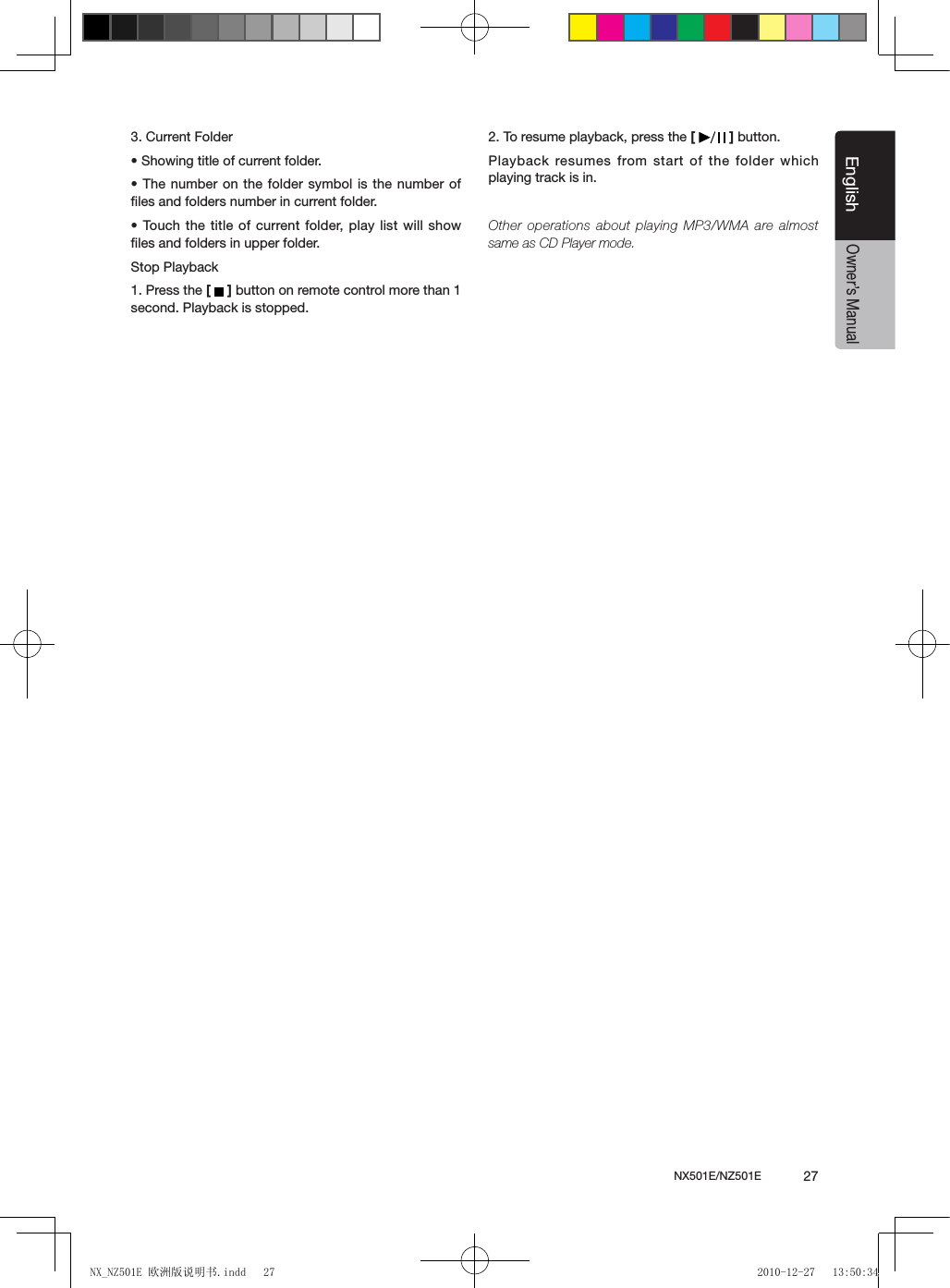

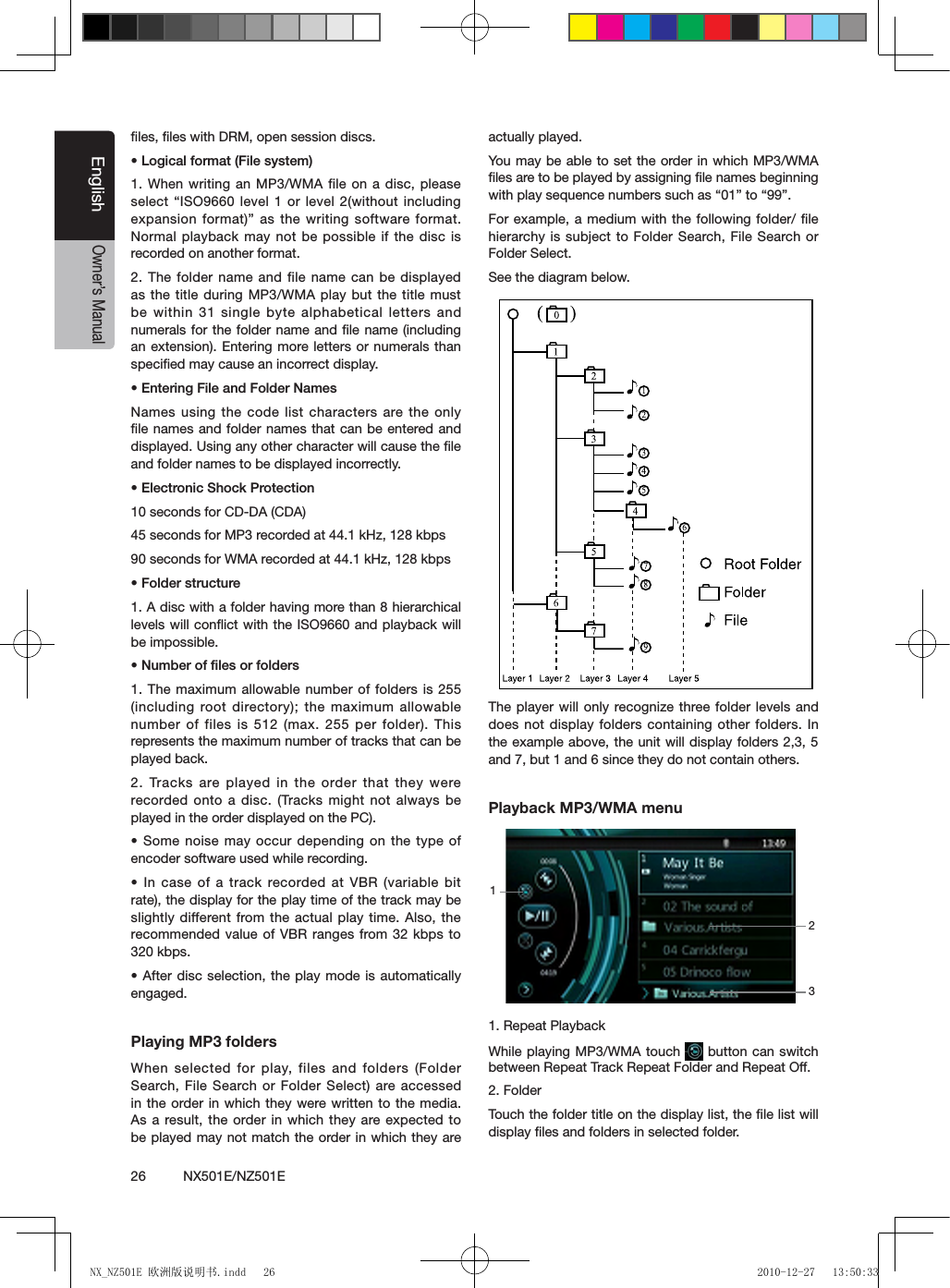

![NX501E/NZ501E 27EnglishEnglishOwner’s Manual3. Current Folder• Showing title of current folder.• The number on the folder symbol is the number of files and folders number in current folder.• Touch the title of current folder, play list will show files and folders in upper folder.Stop Playback1. Press the [ ] button on remote control more than 1 second. Playback is stopped.2. To resume playback, press the [ ] button.Playback resumes from start of the folder which playing track is in.Other operations about playing MP3/WMA are almost same as CD Player mode.NX_NZ501E 欧洲版说明书.indd 27 2010-12-27 13:50:34](https://usermanual.wiki/SKYPINE-ELECTRONICS/CNE8121CL/User-Guide-1447228-Page-27.png)

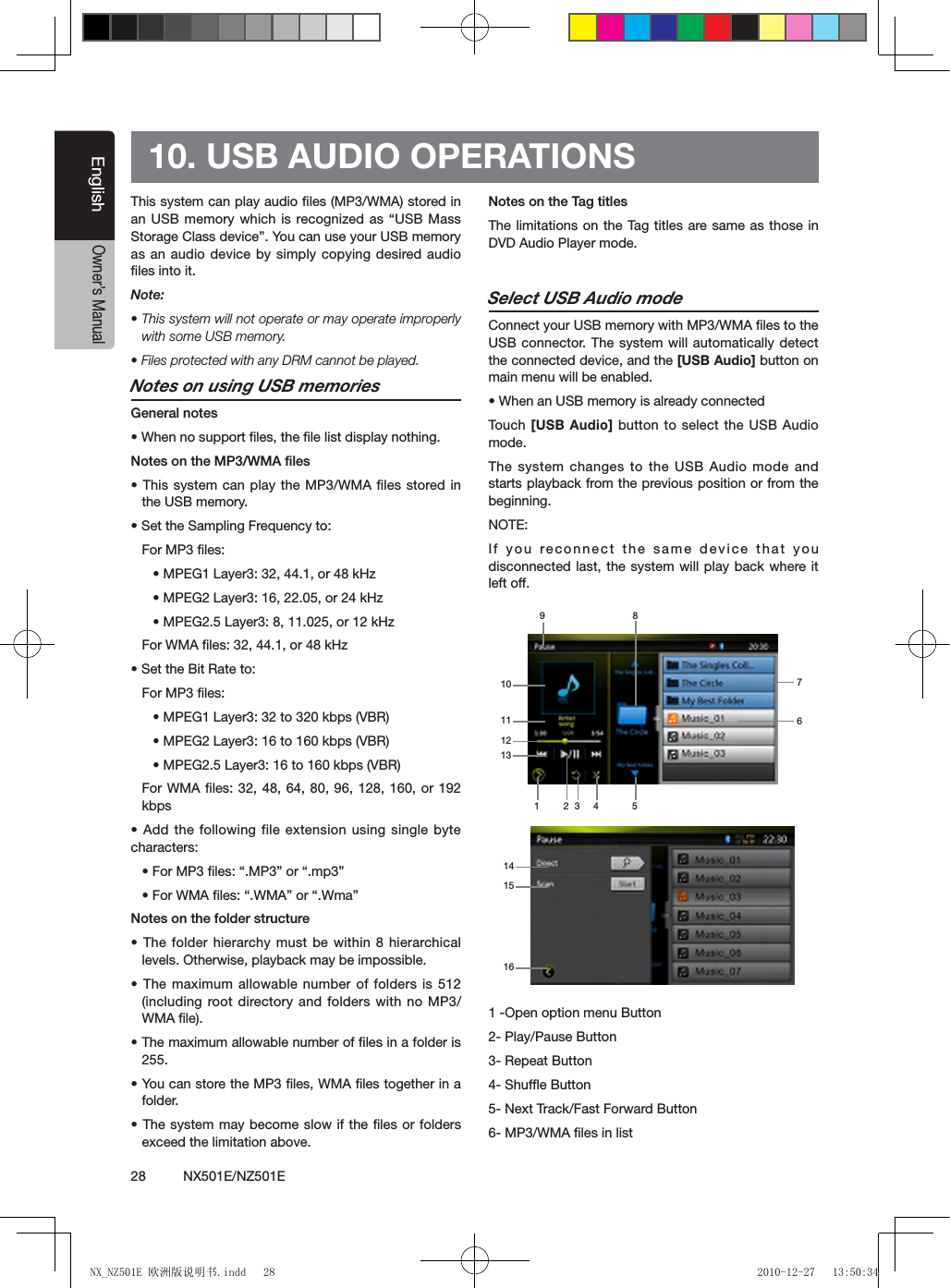

![28 NX501E/NZ501EEnglishOwner’s Manual10. USB AUDIO OPERATIONSThis system can play audio files (MP3/WMA) stored in an USB memory which is recognized as “USB Mass Storage Class device”. You can use your USB memory as an audio device by simply copying desired audio files into it.Note: • This system will not operate or may operate improperly with some USB memory.• Files protected with any DRM cannot be played.Notes on using USB memoriesGeneral notes• When no support les, the le list display nothing.Notes on the MP3/WMA les• This system can play the MP3/WMA les stored in the USB memory.• Set the Sampling Frequency to:For MP3 les:• MPEG1 Layer3: 32, 44.1, or 48 kHz• MPEG2 Layer3: 16, 22.05, or 24 kHz• MPEG2.5 Layer3: 8, 11.025, or 12 kHzFor WMA les: 32, 44.1, or 48 kHz• Set the Bit Rate to:For MP3 les:• MPEG1 Layer3: 32 to 320 kbps (VBR)• MPEG2 Layer3: 16 to 160 kbps (VBR)• MPEG2.5 Layer3: 16 to 160 kbps (VBR)For WMA les: 32, 48, 64, 80, 96, 128, 160, or 192 kbps• Add the following file extension using single byte characters:• For MP3 les: “.MP3” or “.mp3”• For WMA les: “.WMA” or “.Wma”Notes on the folder structure• The folder hierarchy must be within 8 hierarchical levels. Otherwise, playback may be impossible.• The maximum allowable number of folders is 512 (including root directory and folders with no MP3/WMA file).• The maximum allowable number of les in a folder is 255.• You can store the MP3 les, WMA les together in a folder.• The system may become slow if the les or folders exceed the limitation above.Notes on the Tag titlesThe limitations on the Tag titles are same as those in DVD Audio Player mode.Select USB Audio modeConnect your USB memory with MP3/WMA files to the USB connector. The system will automatically detect the connected device, and the [USB Audio] button on main menu will be enabled. • When an USB memory is already connectedTouch [USB Audio] button to select the USB Audio mode.The system changes to the USB Audio mode and starts playback from the previous position or from the beginning.NOTE:If you reconnect the same device that you disconnected last, the system will play back where it left off.1 -Open option menu Button2- Play/Pause Button3- Repeat Button4- Shuffle Button 5- Next Track/Fast Forward Button6- MP3/WMA files in list1 3 4 52678910111312141615NX_NZ501E 欧洲版说明书.indd 28 2010-12-27 13:50:34](https://usermanual.wiki/SKYPINE-ELECTRONICS/CNE8121CL/User-Guide-1447228-Page-28.png)

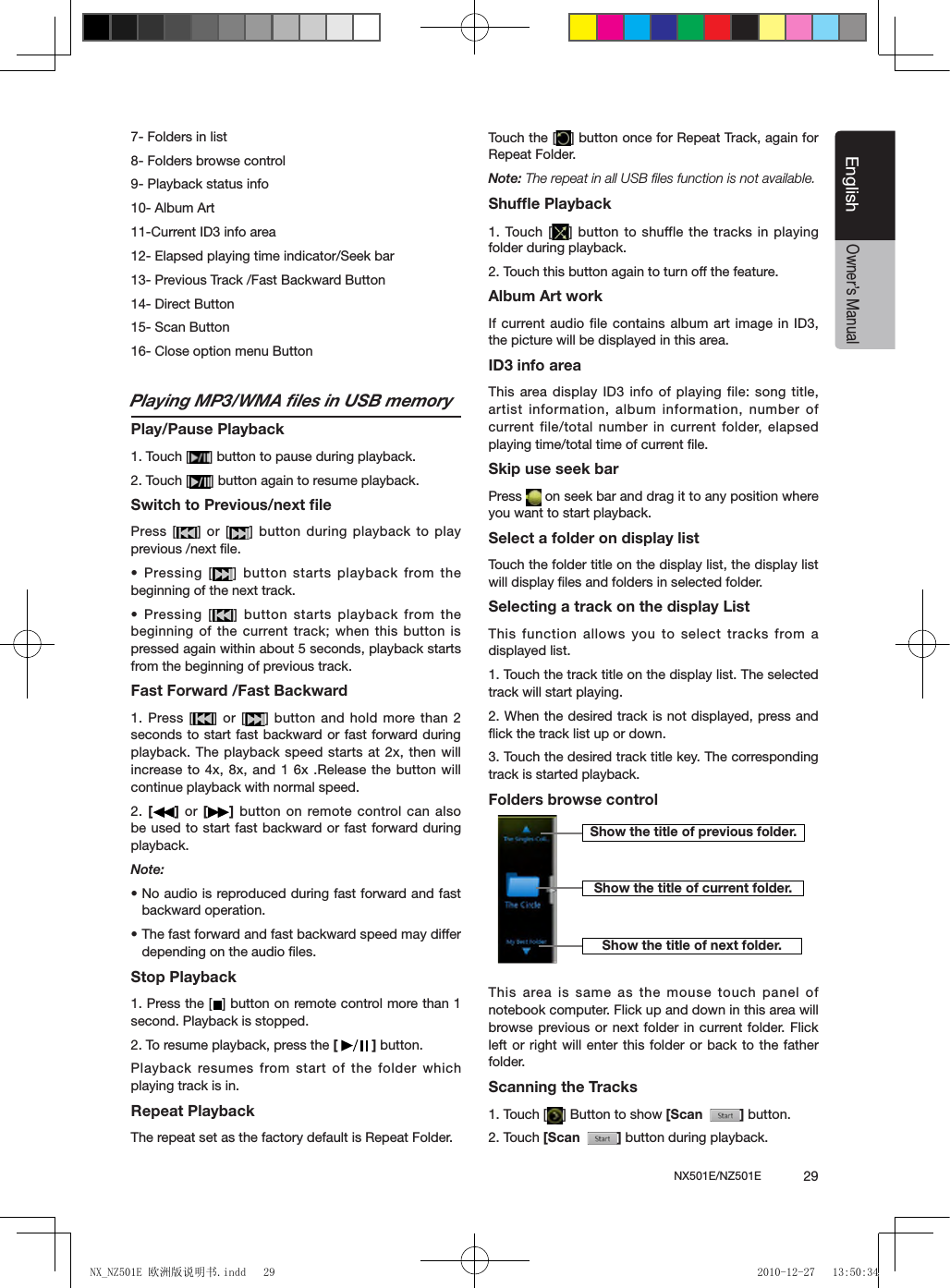

![NX501E/NZ501E 29EnglishEnglishOwner’s Manual7- Folders in list8- Folders browse control9- Playback status info10- Album Art11-Current ID3 info area12- Elapsed playing time indicator/Seek bar13- Previous Track /Fast Backward Button14- Direct Button 15- Scan Button 16- Close option menu ButtonPlaying MP3/WMA files in USB memoryPlay/Pause Playback1. Touch [ ] button to pause during playback.2. Touch [ ] button again to resume playback.Switch to Previous/next filePress [ ] or [ ] button during playback to play previous /next file.• Pressing [ ] button starts playback from the beginning of the next track.• Pressing [ ] button starts playback from the beginning of the current track; when this button is pressed again within about 5 seconds, playback starts from the beginning of previous track.Fast Forward /Fast Backward1. Press [ ] or [ ] button and hold more than 2 seconds to start fast backward or fast forward during playback. The playback speed starts at 2x, then will increase to 4x, 8x, and 1 6x .Release the button will continue playback with normal speed.2. [] or [ ] button on remote control can also be used to start fast backward or fast forward during playback. Note:• No audio is reproduced during fast forward and fast backward operation.• The fast forward and fast backward speed may differ depending on the audio files.Stop Playback1. Press the [ ] button on remote control more than 1 second. Playback is stopped.2. To resume playback, press the [ ] button.Playback resumes from start of the folder which playing track is in.Repeat PlaybackThe repeat set as the factory default is Repeat Folder.Touch the [ ] button once for Repeat Track, again for Repeat Folder.Note: The repeat in all USB files function is not available.Shuffle Playback1. Touch [ ] button to shuffle the tracks in playing folder during playback.2. Touch this button again to turn off the feature.Album Art workIf current audio file contains album art image in ID3, the picture will be displayed in this area.ID3 info areaThis area display ID3 info of playing file: song title, artist information, album information, number of current file/total number in current folder, elapsed playing time/total time of current file.Skip use seek barPress on seek bar and drag it to any position where you want to start playback.Select a folder on display listTouch the folder title on the display list, the display list will display files and folders in selected folder.Selecting a track on the display List This function allows you to select tracks from a displayed list.1. Touch the track title on the display list. The selected track will start playing.2. When the desired track is not displayed, press and flick the track list up or down.3. Touch the desired track title key. The corresponding track is started playback.Folders browse controlThis area is same as the mouse touch panel of notebook computer. Flick up and down in this area will browse previous or next folder in current folder. Flick left or right will enter this folder or back to the father folder.Scanning the Tracks1. Touch [ ] Button to show [Scan ] button.2. Touch [Scan ] button during playback.Show the title of previous folder.Show the title of current folder.Show the title of next folder.NX_NZ501E 欧洲版说明书.indd 29 2010-12-27 13:50:34](https://usermanual.wiki/SKYPINE-ELECTRONICS/CNE8121CL/User-Guide-1447228-Page-29.png)

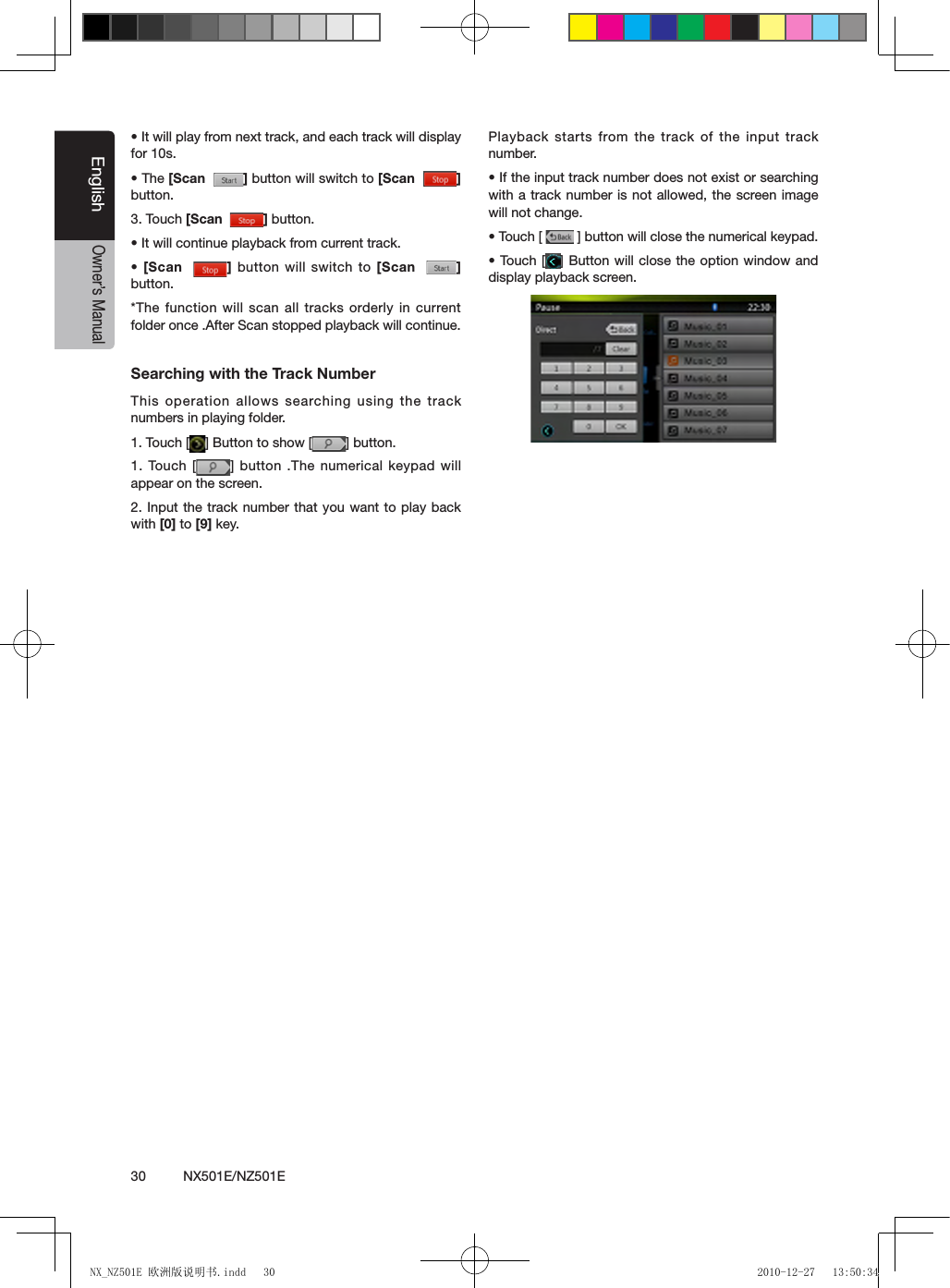

![30 NX501E/NZ501EEnglishOwner’s Manual• It will play from next track, and each track will display for 10s.• The [Scan ] button will switch to [Scan ] button.3. Touch [Scan ] button.• It will continue playback from current track.• [Scan ] button will switch to [Scan ] button.*The function will scan all tracks orderly in current folder once .After Scan stopped playback will continue.Searching with the Track NumberThis operation allows searching using the track numbers in playing folder.1. Touch [ ] Button to show [ ] button.1. Touch [ ] button .The numerical keypad will appear on the screen.2. Input the track number that you want to play back with [0] to [9] key.Playback starts from the track of the input track number.• If the input track number does not exist or searching with a track number is not allowed, the screen image will not change.• Touch [ ] button will close the numerical keypad.• Touch [ ] Button will close the option window and display playback screen.NX_NZ501E 欧洲版说明书.indd 30 2010-12-27 13:50:34](https://usermanual.wiki/SKYPINE-ELECTRONICS/CNE8121CL/User-Guide-1447228-Page-30.png)

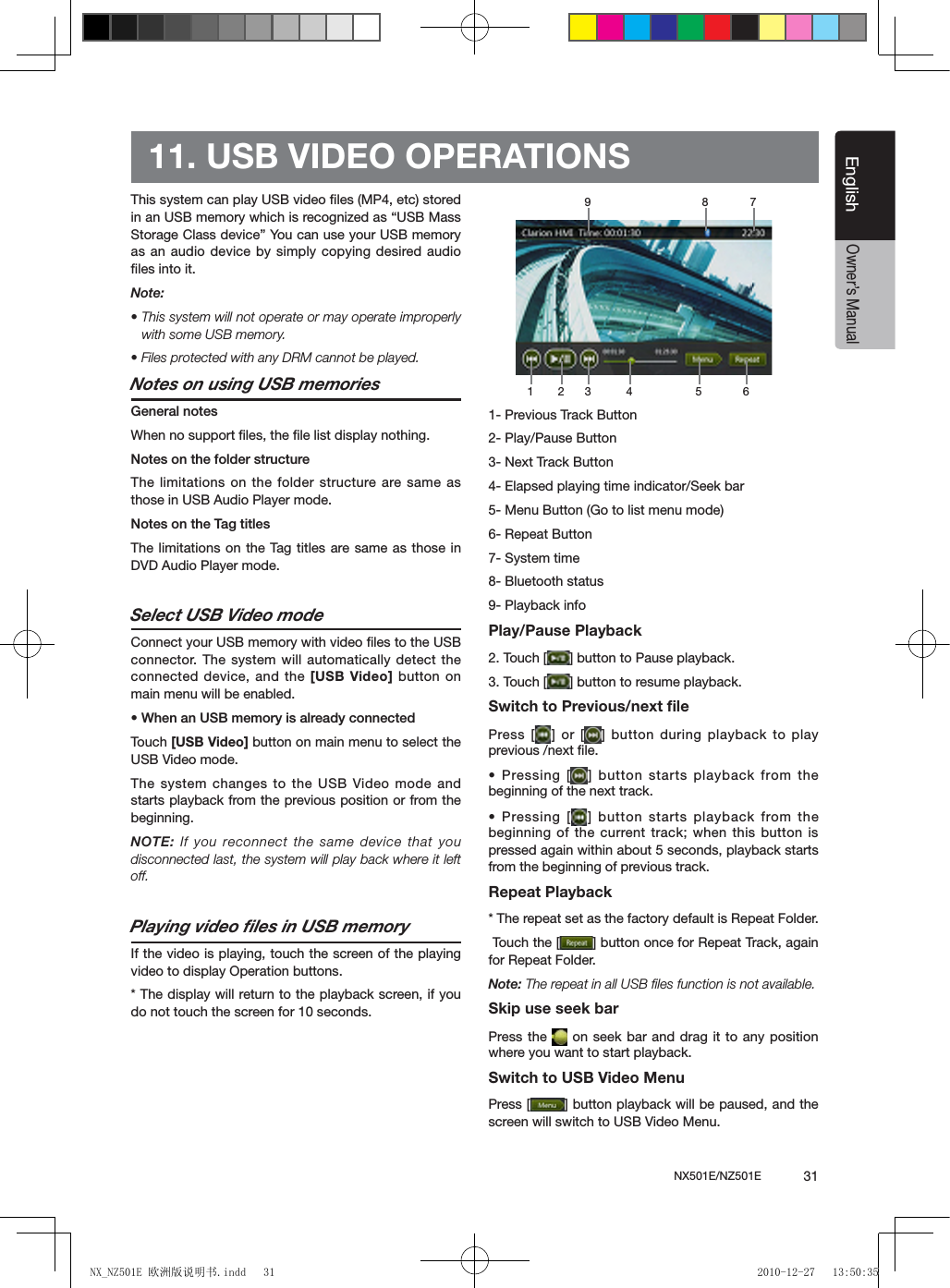

![NX501E/NZ501E 31EnglishEnglishOwner’s Manual11. USB VIDEO OPERATIONSThis system can play USB video files (MP4, etc) stored in an USB memory which is recognized as “USB Mass Storage Class device” You can use your USB memory as an audio device by simply copying desired audio files into it.Note:• This system will not operate or may operate improperly with some USB memory.• Files protected with any DRM cannot be played.Notes on using USB memoriesGeneral notesWhen no support files, the file list display nothing.Notes on the folder structureThe limitations on the folder structure are same as those in USB Audio Player mode.Notes on the Tag titlesThe limitations on the Tag titles are same as those in DVD Audio Player mode.Select USB Video modeConnect your USB memory with video files to the USB connector. The system will automatically detect the connected device, and the [USB Video] button on main menu will be enabled. • When an USB memory is already connectedTouch [USB Video] button on main menu to select the USB Video mode.The system changes to the USB Video mode and starts playback from the previous position or from the beginning.NOTE: If you reconnect the same device that you disconnected last, the system will play back where it left off.Playing video files in USB memoryIf the video is playing, touch the screen of the playing video to display Operation buttons. * The display will return to the playback screen, if you do not touch the screen for 10 seconds.1- Previous Track Button2- Play/Pause Button3- Next Track Button4- Elapsed playing time indicator/Seek bar5- Menu Button (Go to list menu mode)6- Repeat Button7- System time8- Bluetooth status9- Playback infoPlay/Pause Playback2. Touch [ ] button to Pause playback.3. Touch [ ] button to resume playback.Switch to Previous/next filePress [ ] or [ ] button during playback to play previous /next file.• Pressing [ ] button starts playback from the beginning of the next track.• Pressing [ ] button starts playback from the beginning of the current track; when this button is pressed again within about 5 seconds, playback starts from the beginning of previous track.Repeat Playback* The repeat set as the factory default is Repeat Folder. Touch the [ ] button once for Repeat Track, again for Repeat Folder.Note: The repeat in all USB files function is not available.Skip use seek barPress the on seek bar and drag it to any position where you want to start playback.Switch to USB Video MenuPress [ ] button playback will be paused, and the screen will switch to USB Video Menu.1 2 3 4 5 6789NX_NZ501E 欧洲版说明书.indd 31 2010-12-27 13:50:35](https://usermanual.wiki/SKYPINE-ELECTRONICS/CNE8121CL/User-Guide-1447228-Page-31.png)

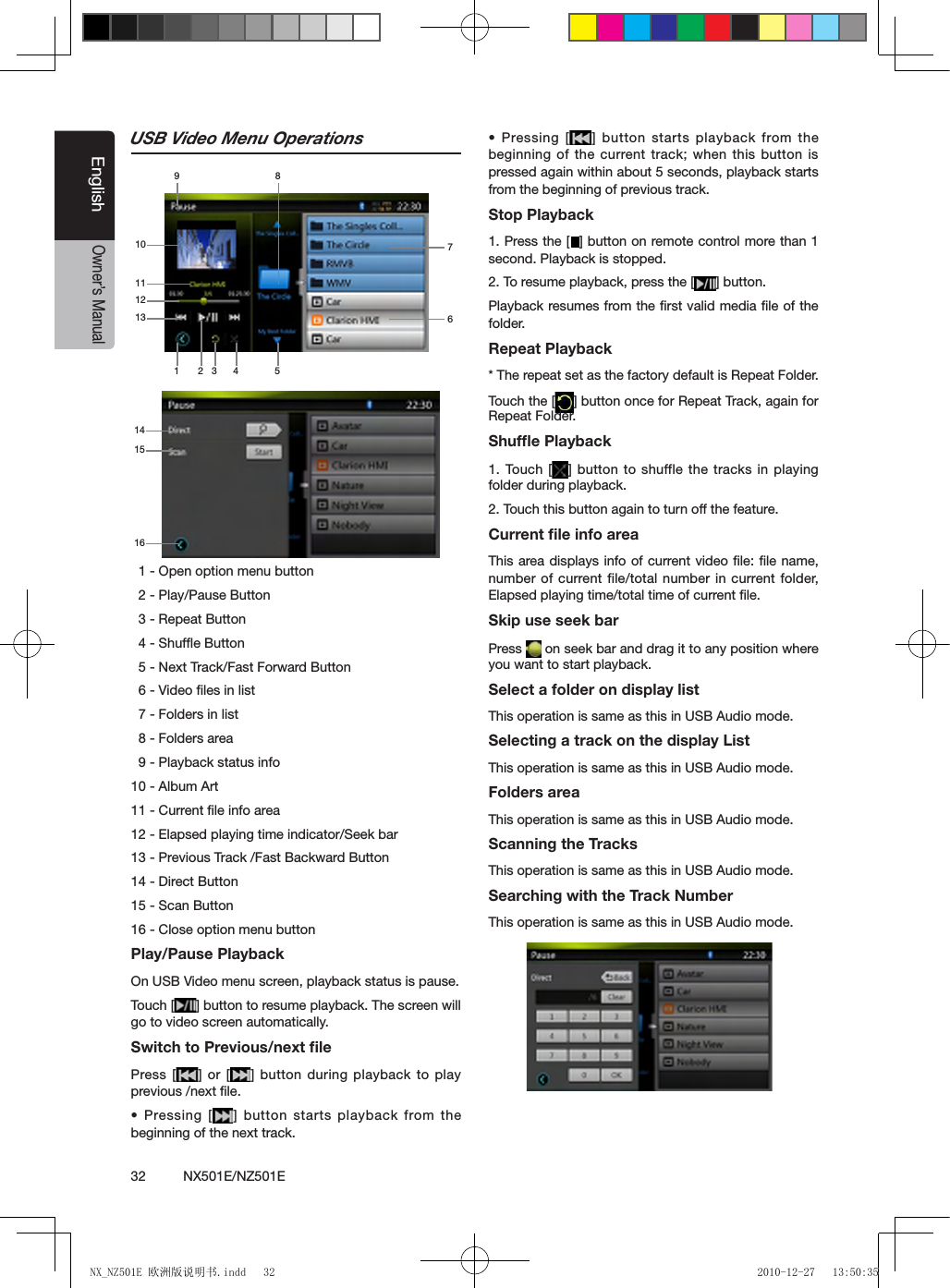

![32 NX501E/NZ501EEnglishOwner’s ManualUSB Video Menu Operations 1 - Open option menu button 2 - Play/Pause Button 3 - Repeat Button 4 - Shuffle Button 5 - Next Track/Fast Forward Button 6 - Video files in list 7 - Folders in list 8 - Folders area 9 - Playback status info10 - Album Art11 - Current file info area12 - Elapsed playing time indicator/Seek bar13 - Previous Track /Fast Backward Button14 - Direct Button15 - Scan Button16 - Close option menu button Play/Pause PlaybackOn USB Video menu screen, playback status is pause.Touch [ ] button to resume playback. The screen will go to video screen automatically.Switch to Previous/next filePress [ ] or [ ] button during playback to play previous /next file.• Pressing [ ] button starts playback from the beginning of the next track.• Pressing [ ] button starts playback from the beginning of the current track; when this button is pressed again within about 5 seconds, playback starts from the beginning of previous track.Stop Playback1. Press the [ ] button on remote control more than 1 second. Playback is stopped.2. To resume playback, press the [ ] button.Playback resumes from the first valid media file of the folder.Repeat Playback* The repeat set as the factory default is Repeat Folder.Touch the [ ] button once for Repeat Track, again for Repeat Folder.Shuffle Playback1. Touch [ ] button to shuffle the tracks in playing folder during playback.2. Touch this button again to turn off the feature.Current file info areaThis area displays info of current video le: le name, number of current file/total number in current folder, Elapsed playing time/total time of current file.Skip use seek barPress on seek bar and drag it to any position where you want to start playback.Select a folder on display listThis operation is same as this in USB Audio mode.Selecting a track on the display List This operation is same as this in USB Audio mode.Folders areaThis operation is same as this in USB Audio mode.Scanning the TracksThis operation is same as this in USB Audio mode.Searching with the Track NumberThis operation is same as this in USB Audio mode.1416151 3 4 52678910111312NX_NZ501E 欧洲版说明书.indd 32 2010-12-27 13:50:35](https://usermanual.wiki/SKYPINE-ELECTRONICS/CNE8121CL/User-Guide-1447228-Page-32.png)

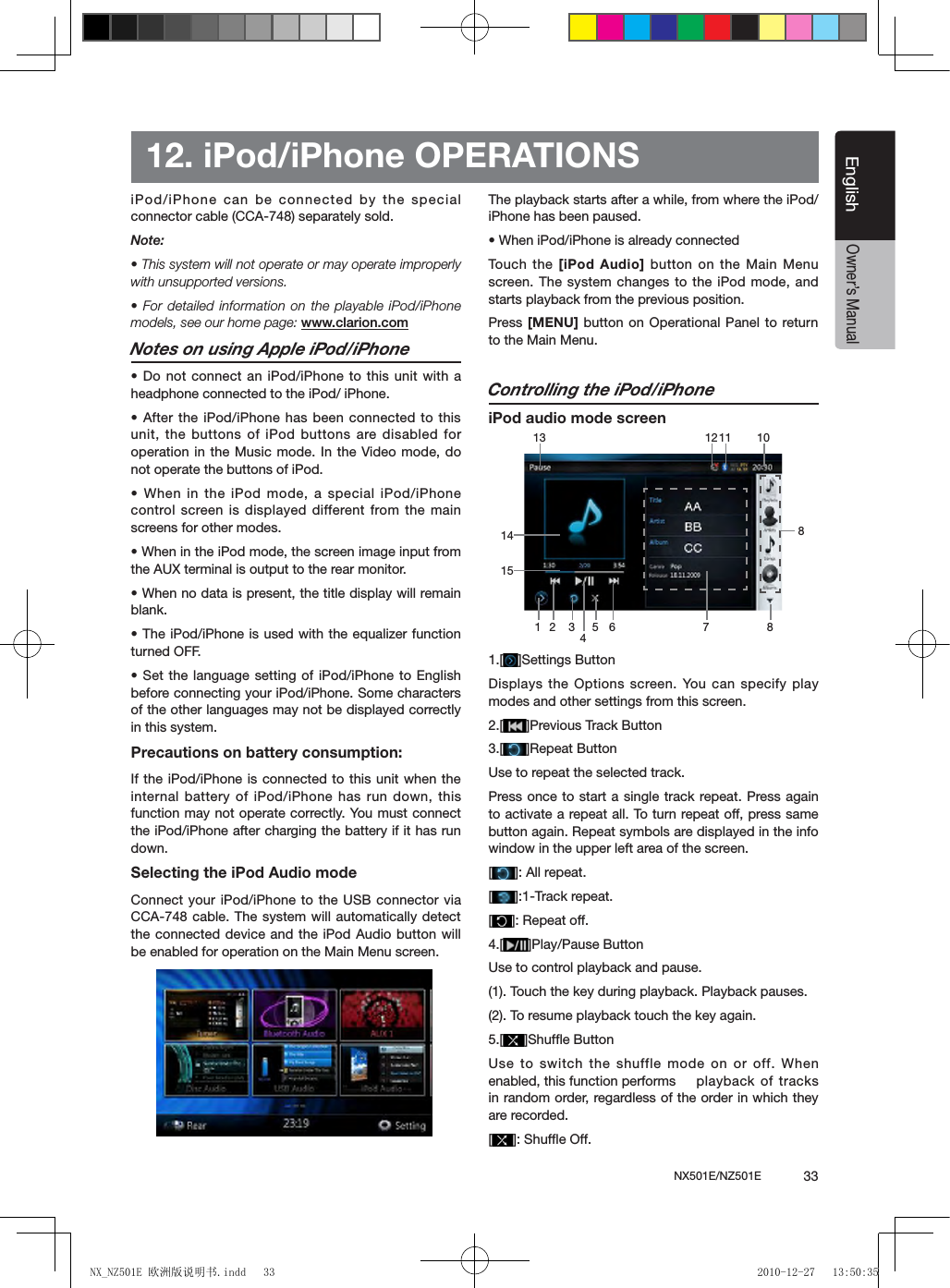

![NX501E/NZ501E 33EnglishEnglishOwner’s Manual12. iPod/iPhone OPERATIONSiPod/iPhone can be connected by the special connector cable (CCA-748) separately sold.Note:• This system will not operate or may operate improperly with unsupported versions.• For detailed information on the playable iPod/iPhone models, see our home page: www.clarion.comNotes on using Apple iPod/iPhone• Do not connect an iPod/iPhone to this unit with a headphone connected to the iPod/ iPhone.• After the iPod/iPhone has been connected to this unit, the buttons of iPod buttons are disabled for operation in the Music mode. In the Video mode, do not operate the buttons of iPod.• When in the iPod mode, a special iPod/iPhone control screen is displayed different from the main screens for other modes.• When in the iPod mode, the screen image input from the AUX terminal is output to the rear monitor.• When no data is present, the title display will remain blank.• The iPod/iPhone is used with the equalizer function turned OFF.• Set the language setting of iPod/iPhone to English before connecting your iPod/iPhone. Some characters of the other languages may not be displayed correctly in this system.Precautions on battery consumption:If the iPod/iPhone is connected to this unit when the internal battery of iPod/iPhone has run down, this function may not operate correctly. You must connect the iPod/iPhone after charging the battery if it has run down.Selecting the iPod Audio modeConnect your iPod/iPhone to the USB connector via CCA-748 cable. The system will automatically detect the connected device and the iPod Audio button will be enabled for operation on the Main Menu screen. The playback starts after a while, from where the iPod/iPhone has been paused.• When iPod/iPhone is already connectedTouch the [iPod Audio] button on the Main Menu screen. The system changes to the iPod mode, and starts playback from the previous position.Press [MENU] button on Operational Panel to return to the Main Menu.Controlling the iPod/iPhoneiPod audio mode screen1.[ ]Settings ButtonDisplays the Options screen. You can specify play modes and other settings from this screen.2.[ ]Previous Track Button3.[ ]Repeat ButtonUse to repeat the selected track.Press once to start a single track repeat. Press again to activate a repeat all. To turn repeat off, press same button again. Repeat symbols are displayed in the info window in the upper left area of the screen.[]: All repeat.[]:1-Track repeat.[]: Repeat off.4.[ ]Play/Pause ButtonUse to control playback and pause.(1). Touch the key during playback. Playback pauses.(2). To resume playback touch the key again.5.[ ]Shuffle ButtonUse to switch the shuffle mode on or off. When enabled, this function performs playback of tracks in random order, regardless of the order in which they are recorded.[]: Shufe Off.1 2 5 6 7 8101213341181415NX_NZ501E 欧洲版说明书.indd 33 2010-12-27 13:50:35](https://usermanual.wiki/SKYPINE-ELECTRONICS/CNE8121CL/User-Guide-1447228-Page-33.png)

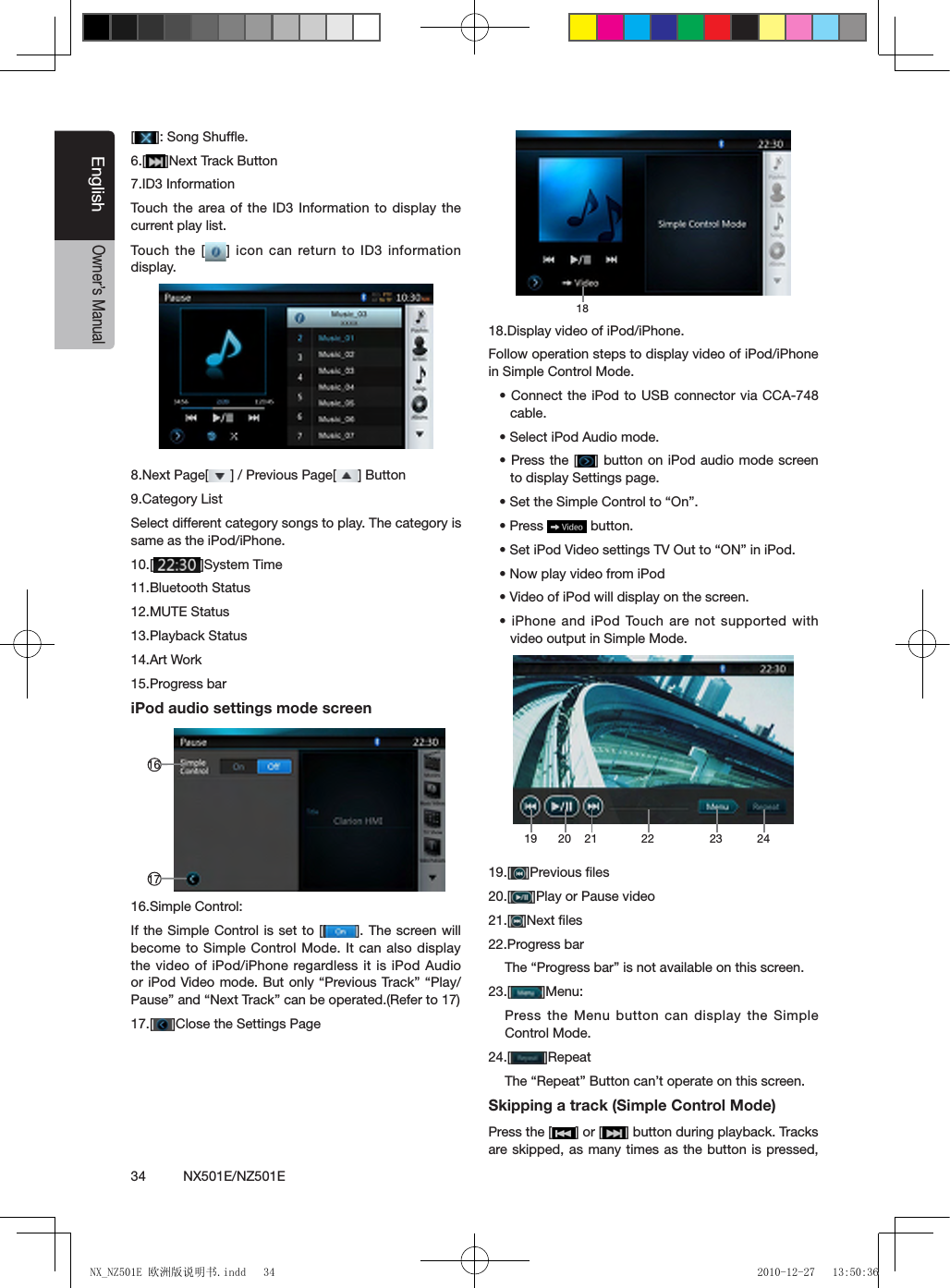

![34 NX501E/NZ501EEnglishOwner’s Manual[]: Song Shufe.6.[ ]Next Track Button7.ID3 InformationTouch the area of the ID3 Information to display the current play list.Touch the [ ] icon can return to ID3 information display.8.Next Page[ ] / Previous Page[ ] Button9.Category ListSelect different category songs to play. The category is same as the iPod/iPhone.10.[ ]System Time11.Bluetooth Status12.MUTE Status13.Playback Status14.Art Work15.Progress bariPod audio settings mode screen 161716.Simple Control:If the Simple Control is set to [ ]. The screen will become to Simple Control Mode. It can also display the video of iPod/iPhone regardless it is iPod Audio or iPod Video mode. But only “Previous Track” “Play/Pause” and “Next Track” can be operated.(Refer to 17)17.[ ]Close the Settings Page 1818.Display video of iPod/iPhone.Follow operation steps to display video of iPod/iPhone in Simple Control Mode.• Connect the iPod to USB connector via CCA-748 cable.• Select iPod Audio mode.• Press the [ ] button on iPod audio mode screen to display Settings page.• Set the Simple Control to “On”.• Press button.• Set iPod Video settings TV Out to “ON” in iPod.• Now play video from iPod• Video of iPod will display on the screen.• iPhone and iPod Touch are not supported with video output in Simple Mode.19 2120 22 23 2419.[ ]Previous files20.[ ]Play or Pause video21.[ ]Next files22.Progress barThe “Progress bar” is not available on this screen.23.[ ]Menu:Press the Menu button can display the Simple Control Mode.24.[ ]RepeatThe “Repeat” Button can’t operate on this screen.Skipping a track (Simple Control Mode)Press the [ ] or [ ] button during playback. Tracks are skipped, as many times as the button is pressed, NX_NZ501E 欧洲版说明书.indd 34 2010-12-27 13:50:36](https://usermanual.wiki/SKYPINE-ELECTRONICS/CNE8121CL/User-Guide-1447228-Page-34.png)

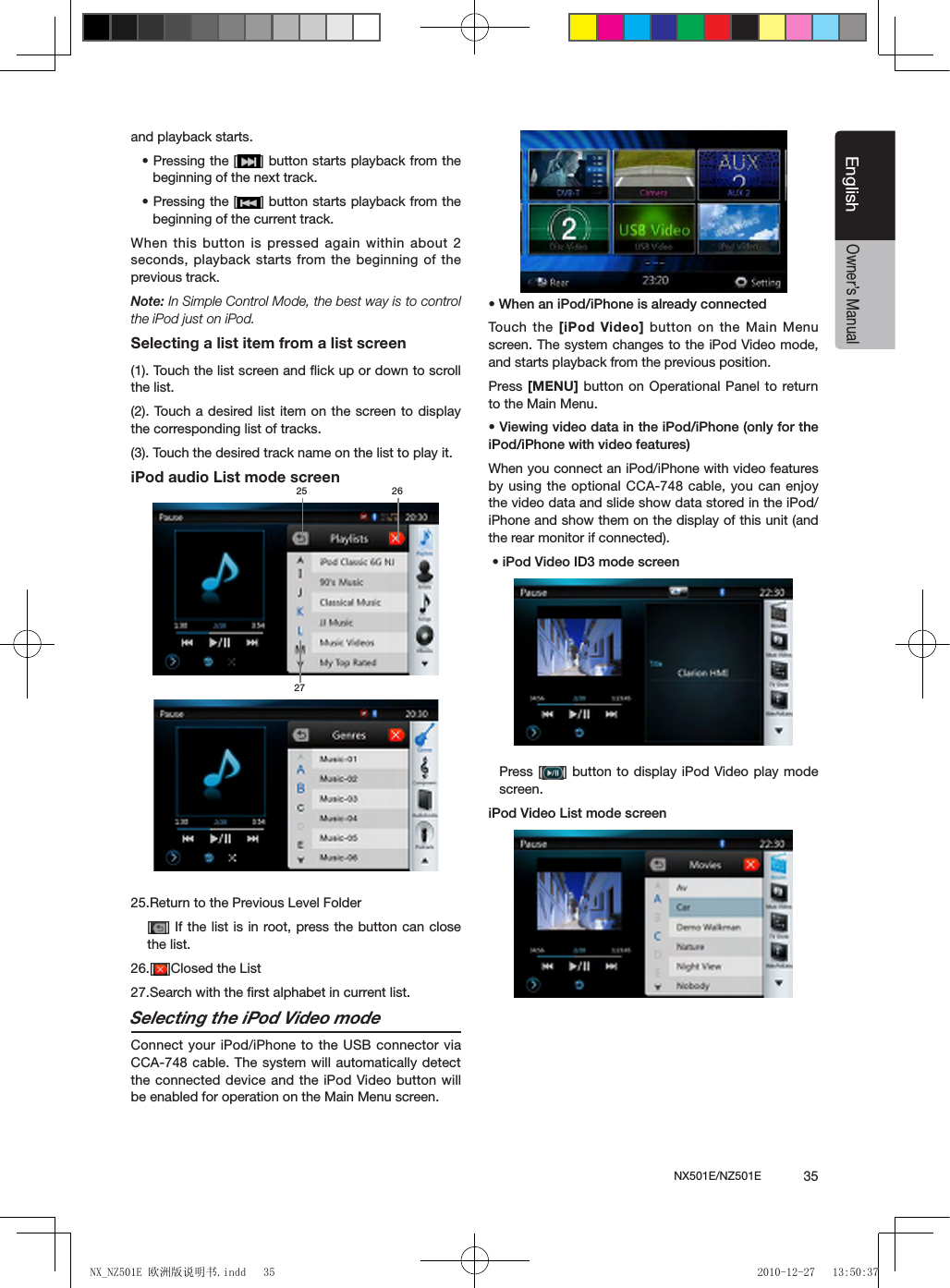

![NX501E/NZ501E 35EnglishEnglishOwner’s Manualand playback starts.• Pressing the [ ] button starts playback from the beginning of the next track.• Pressing the [ ] button starts playback from the beginning of the current track. When this button is pressed again within about 2 seconds, playback starts from the beginning of the previous track.Note: In Simple Control Mode, the best way is to control the iPod just on iPod.Selecting a list item from a list screen(1). Touch the list screen and flick up or down to scroll the list.(2). Touch a desired list item on the screen to display the corresponding list of tracks.(3). Touch the desired track name on the list to play it.iPod audio List mode screen 25.Return to the Previous Level Folder[ ] If the list is in root, press the button can close the list.26.[ ]Closed the List27.Search with the first alphabet in current list.Selecting the iPod Video modeConnect your iPod/iPhone to the USB connector via CCA-748 cable. The system will automatically detect the connected device and the iPod Video button will be enabled for operation on the Main Menu screen. • When an iPod/iPhone is already connectedTouch the [iPod Video] button on the Main Menu screen. The system changes to the iPod Video mode, and starts playback from the previous position.Press [MENU] button on Operational Panel to return to the Main Menu.• Viewing video data in the iPod/iPhone (only for the iPod/iPhone with video features)When you connect an iPod/iPhone with video features by using the optional CCA-748 cable, you can enjoy the video data and slide show data stored in the iPod/iPhone and show them on the display of this unit (and the rear monitor if connected). • iPod Video ID3 mode screenPress [ ] button to display iPod Video play mode screen.iPod Video List mode screen25 2627NX_NZ501E 欧洲版说明书.indd 35 2010-12-27 13:50:37](https://usermanual.wiki/SKYPINE-ELECTRONICS/CNE8121CL/User-Guide-1447228-Page-35.png)

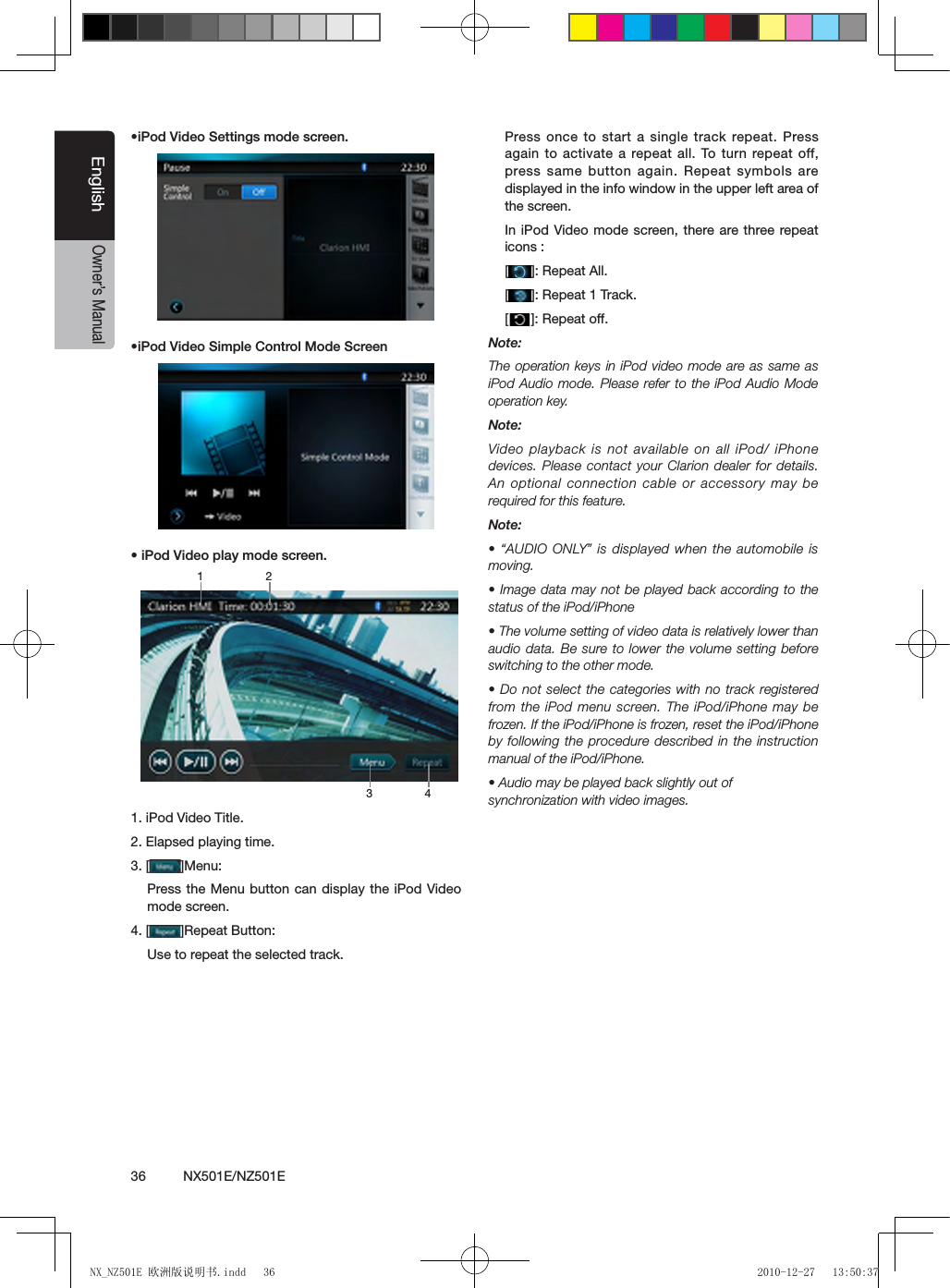

![36 NX501E/NZ501EEnglishOwner’s Manual•iPod Video Settings mode screen.•iPod Video Simple Control Mode Screen• iPod Video play mode screen.1. iPod Video Title.2. Elapsed playing time.3. [ ]Menu:Press the Menu button can display the iPod Video mode screen.4. [ ]Repeat Button:Use to repeat the selected track.Press once to start a single track repeat. Press again to activate a repeat all. To turn repeat off, press same button again. Repeat symbols are displayed in the info window in the upper left area of the screen.In iPod Video mode screen, there are three repeat icons :[]: Repeat All.[]: Repeat 1 Track.[]: Repeat off.Note:The operation keys in iPod video mode are as same as iPod Audio mode. Please refer to the iPod Audio Mode operation key.Note:Video playback is not available on all iPod/ iPhone devices. Please contact your Clarion dealer for details. An optional connection cable or accessory may be required for this feature.Note:• “AUDIO ONLY” is displayed when the automobile is moving.• Image data may not be played back according to the status of the iPod/iPhone• The volume setting of video data is relatively lower than audio data. Be sure to lower the volume setting before switching to the other mode.• Do not select the categories with no track registered from the iPod menu screen. The iPod/iPhone may be frozen. If the iPod/iPhone is frozen, reset the iPod/iPhone by following the procedure described in the instruction manual of the iPod/iPhone.• Audio may be played back slightly out of synchronization with video images.3 41 2NX_NZ501E 欧洲版说明书.indd 36 2010-12-27 13:50:37](https://usermanual.wiki/SKYPINE-ELECTRONICS/CNE8121CL/User-Guide-1447228-Page-36.png)

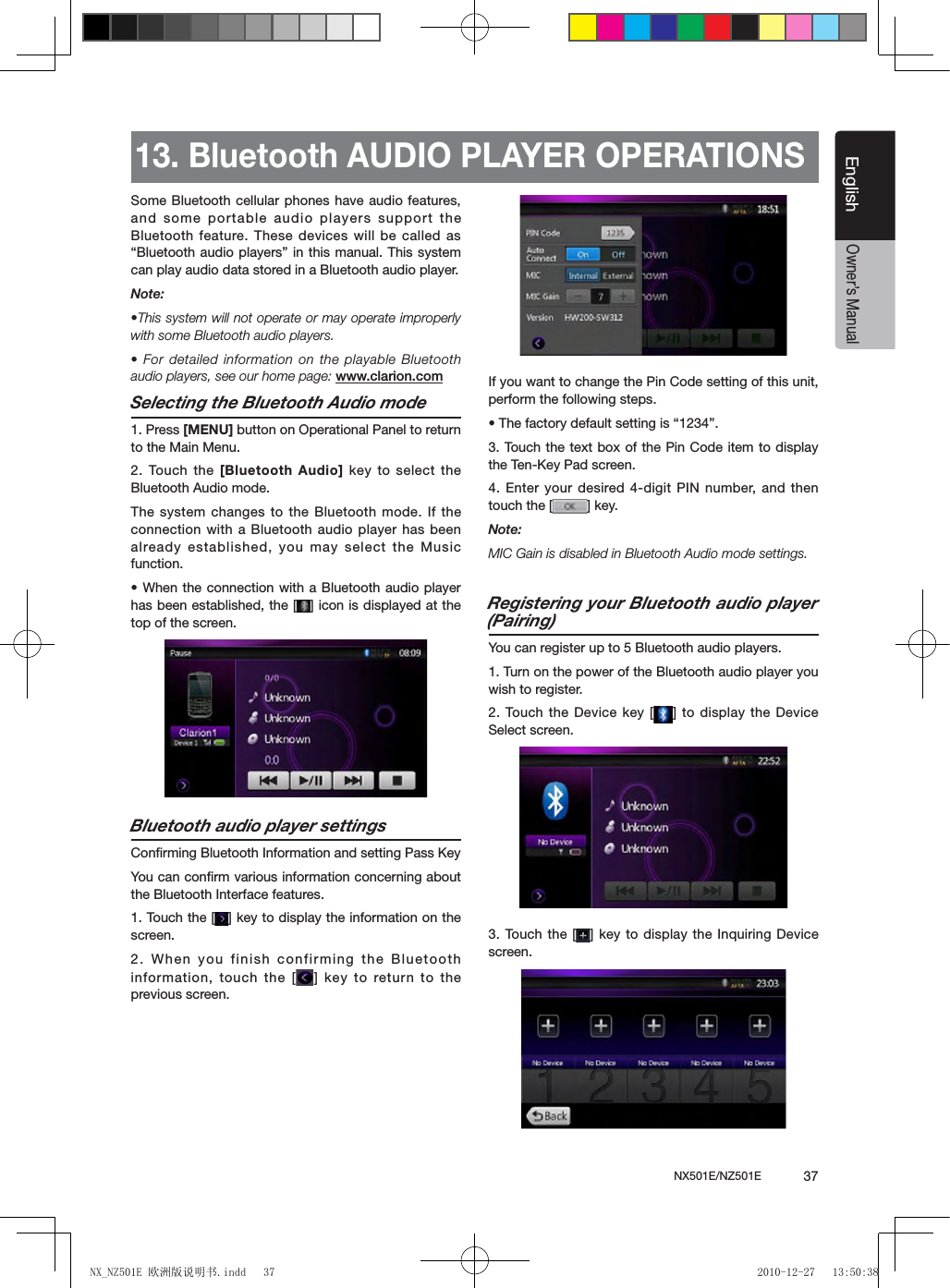

![NX501E/NZ501E 37EnglishEnglishOwner’s Manual13. Bluetooth AUDIO PLAYER OPERATIONSSome Bluetooth cellular phones have audio features, and some portable audio players support the Bluetooth feature. These devices will be called as “Bluetooth audio players” in this manual. This system can play audio data stored in a Bluetooth audio player.Note: •This system will not operate or may operate improperly with some Bluetooth audio players.• For detailed information on the playable Bluetooth audio players, see our home page: www.clarion.comSelecting the Bluetooth Audio mode1. Press [MENU] button on Operational Panel to return to the Main Menu.2. Touch the [Bluetooth Audio] key to select the Bluetooth Audio mode. The system changes to the Bluetooth mode. If the connection with a Bluetooth audio player has been already established, you may select the Music function.• When the connection with a Bluetooth audio player has been established, the [ ] icon is displayed at the top of the screen.Bluetooth audio player settingsConrming Bluetooth Information and setting Pass KeyYou can confirm various information concerning about the Bluetooth Interface features.1. Touch the [ ] key to display the information on the screen.2. When you finish confirming the Bluetooth information, touch the [ ] key to return to the previous screen.If you want to change the Pin Code setting of this unit, perform the following steps.• The factory default setting is “1234”.3. Touch the text box of the Pin Code item to display the Ten-Key Pad screen.4. Enter your desired 4-digit PIN number, and then touch the [ ] key.Note:MIC Gain is disabled in Bluetooth Audio mode settings.Registering your Bluetooth audio player (Pairing)You can register up to 5 Bluetooth audio players.1. Turn on the power of the Bluetooth audio player you wish to register.2. Touch the Device key [ ] to display the Device Select screen.3. Touch the [ ] key to display the Inquiring Device screen.NX_NZ501E 欧洲版说明书.indd 37 2010-12-27 13:50:38](https://usermanual.wiki/SKYPINE-ELECTRONICS/CNE8121CL/User-Guide-1447228-Page-37.png)

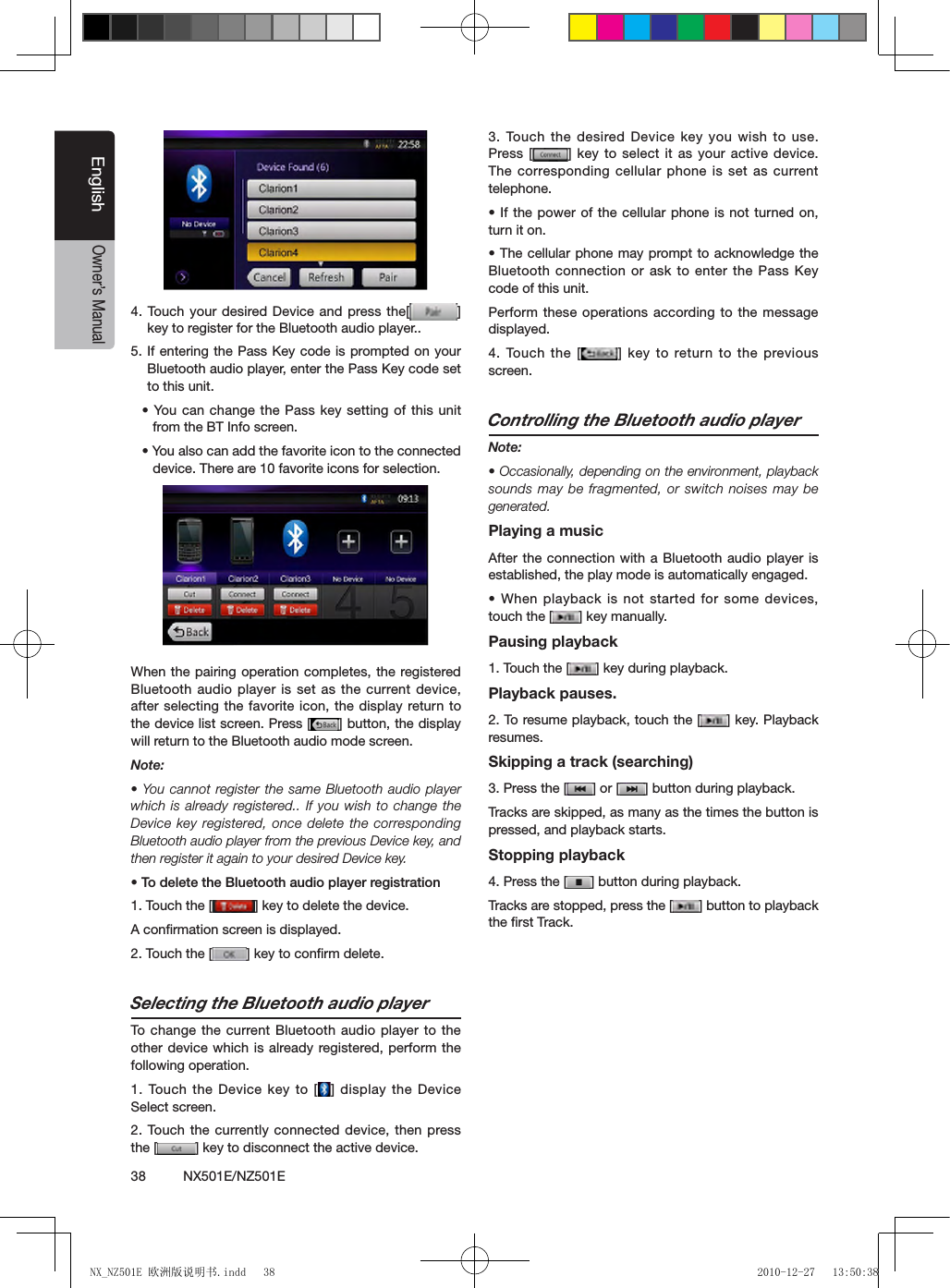

![38 NX501E/NZ501EEnglishOwner’s Manual4. Touch your desired Device and press the[ ] key to register for the Bluetooth audio player..5. If entering the Pass Key code is prompted on your Bluetooth audio player, enter the Pass Key code set to this unit.• You can change the Pass key setting of this unit from the BT Info screen.• You also can add the favorite icon to the connected device. There are 10 favorite icons for selection.When the pairing operation completes, the registered Bluetooth audio player is set as the current device, after selecting the favorite icon, the display return to the device list screen. Press [ ] button, the display will return to the Bluetooth audio mode screen.Note:• You cannot register the same Bluetooth audio player which is already registered.. If you wish to change the Device key registered, once delete the corresponding Bluetooth audio player from the previous Device key, and then register it again to your desired Device key.• To delete the Bluetooth audio player registration1. Touch the [ ] key to delete the device.A confirmation screen is displayed.2. Touch the [ ] key to confirm delete.Selecting the Bluetooth audio playerTo change the current Bluetooth audio player to the other device which is already registered, perform the following operation.1. Touch the Device key to [ ] display the Device Select screen.2. Touch the currently connected device, then press the [ ] key to disconnect the active device.3. Touch the desired Device key you wish to use. Press [ ] key to select it as your active device. The corresponding cellular phone is set as current telephone.• If the power of the cellular phone is not turned on, turn it on.• The cellular phone may prompt to acknowledge the Bluetooth connection or ask to enter the Pass Key code of this unit.Perform these operations according to the message displayed.4. Touch the [ ] key to return to the previous screen.Controlling the Bluetooth audio playerNote:• Occasionally, depending on the environment, playback sounds may be fragmented, or switch noises may be generated.Playing a musicAfter the connection with a Bluetooth audio player is established, the play mode is automatically engaged.• When playback is not started for some devices, touch the [ ] key manually.Pausing playback1. Touch the [ ] key during playback.Playback pauses.2. To resume playback, touch the [ ] key. Playback resumes.Skipping a track (searching)3. Press the [ ] or [ ] button during playback.Tracks are skipped, as many as the times the button is pressed, and playback starts.Stopping playback4. Press the [ ] button during playback.Tracks are stopped, press the [ ] button to playback the first Track.NX_NZ501E 欧洲版说明书.indd 38 2010-12-27 13:50:38](https://usermanual.wiki/SKYPINE-ELECTRONICS/CNE8121CL/User-Guide-1447228-Page-38.png)

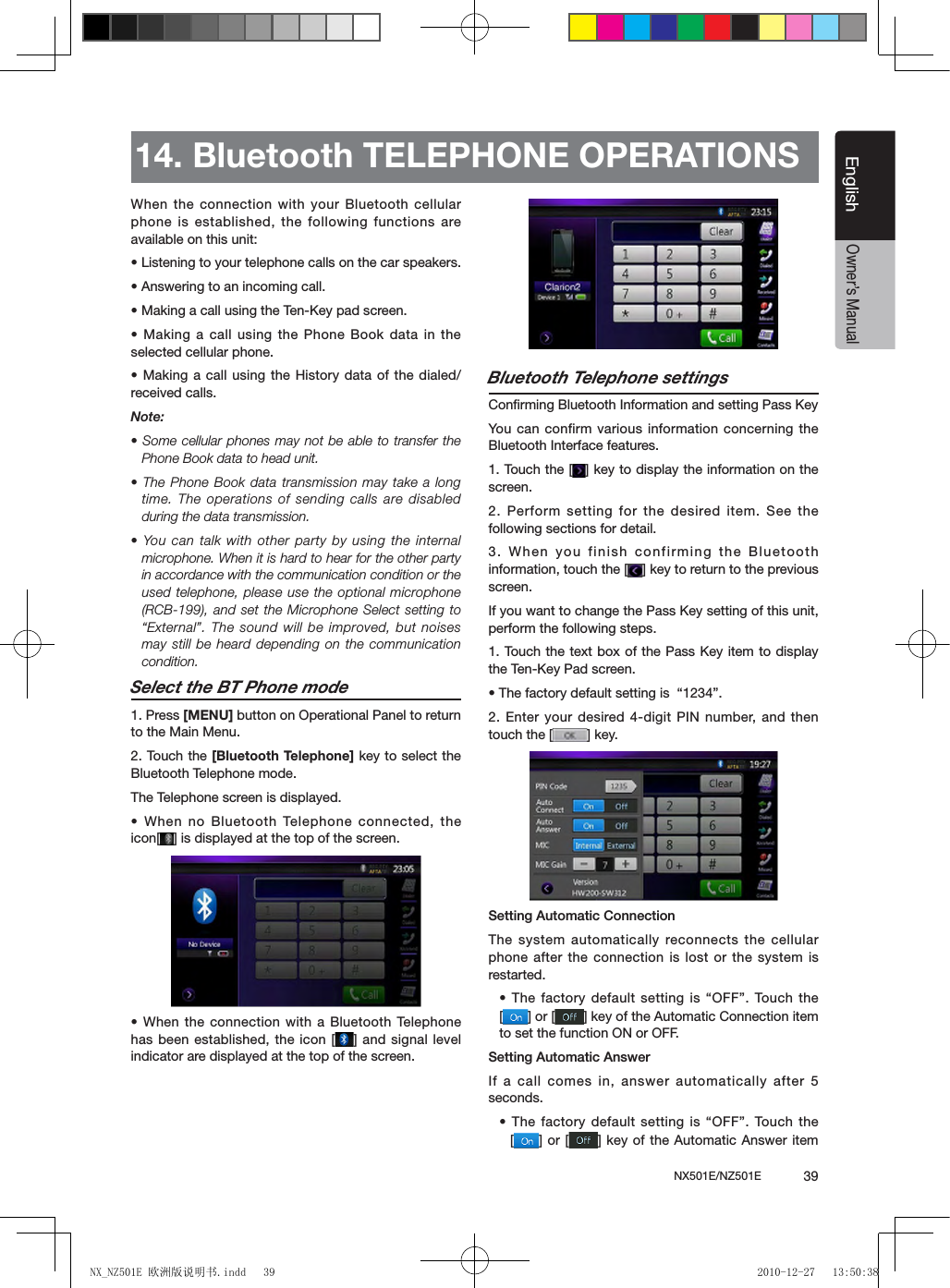

![NX501E/NZ501E 39EnglishEnglishOwner’s ManualWhen the connection with your Bluetooth cellular phone is established, the following functions are available on this unit:• Listening to your telephone calls on the car speakers.• Answering to an incoming call.• Making a call using the Ten-Key pad screen.• Making a call using the Phone Book data in the selected cellular phone.• Making a call using the History data of the dialed/received calls.Note:• Some cellular phones may not be able to transfer the Phone Book data to head unit.• The Phone Book data transmission may take a long time. The operations of sending calls are disabled during the data transmission.• You can talk with other party by using the internal microphone. When it is hard to hear for the other party in accordance with the communication condition or the used telephone, please use the optional microphone (RCB-199), and set the Microphone Select setting to “External”. The sound will be improved, but noises may still be heard depending on the communication condition.Select the BT Phone mode1. Press [MENU] button on Operational Panel to return to the Main Menu.2. Touch the [Bluetooth Telephone] key to select the Bluetooth Telephone mode. The Telephone screen is displayed.• When no Bluetooth Telephone connected, the icon[ ] is displayed at the top of the screen.• When the connection with a Bluetooth Telephone has been established, the icon [ ] and signal level indicator are displayed at the top of the screen.Bluetooth Telephone settingsConrming Bluetooth Information and setting Pass KeyYou can confirm various information concerning the Bluetooth Interface features.1. Touch the [ ] key to display the information on the screen.2. Perform setting for the desired item. See the following sections for detail.3. When you finish confirming the Bluetooth information, touch the [ ] key to return to the previous screen.If you want to change the Pass Key setting of this unit, perform the following steps.1. Touch the text box of the Pass Key item to display the Ten-Key Pad screen.• The factory default setting is “1234”.2. Enter your desired 4-digit PIN number, and then touch the [ ] key.Setting Automatic ConnectionThe system automatically reconnects the cellular phone after the connection is lost or the system is restarted.• The factory default setting is “OFF”. Touch the [] or [ ] key of the Automatic Connection item to set the function ON or OFF.Setting Automatic AnswerIf a call comes in, answer automatically after 5 seconds. • The factory default setting is “OFF”. Touch the [] or [ ] key of the Automatic Answer item 14. Bluetooth TELEPHONE OPERATIONSNX_NZ501E 欧洲版说明书.indd 39 2010-12-27 13:50:38](https://usermanual.wiki/SKYPINE-ELECTRONICS/CNE8121CL/User-Guide-1447228-Page-39.png)

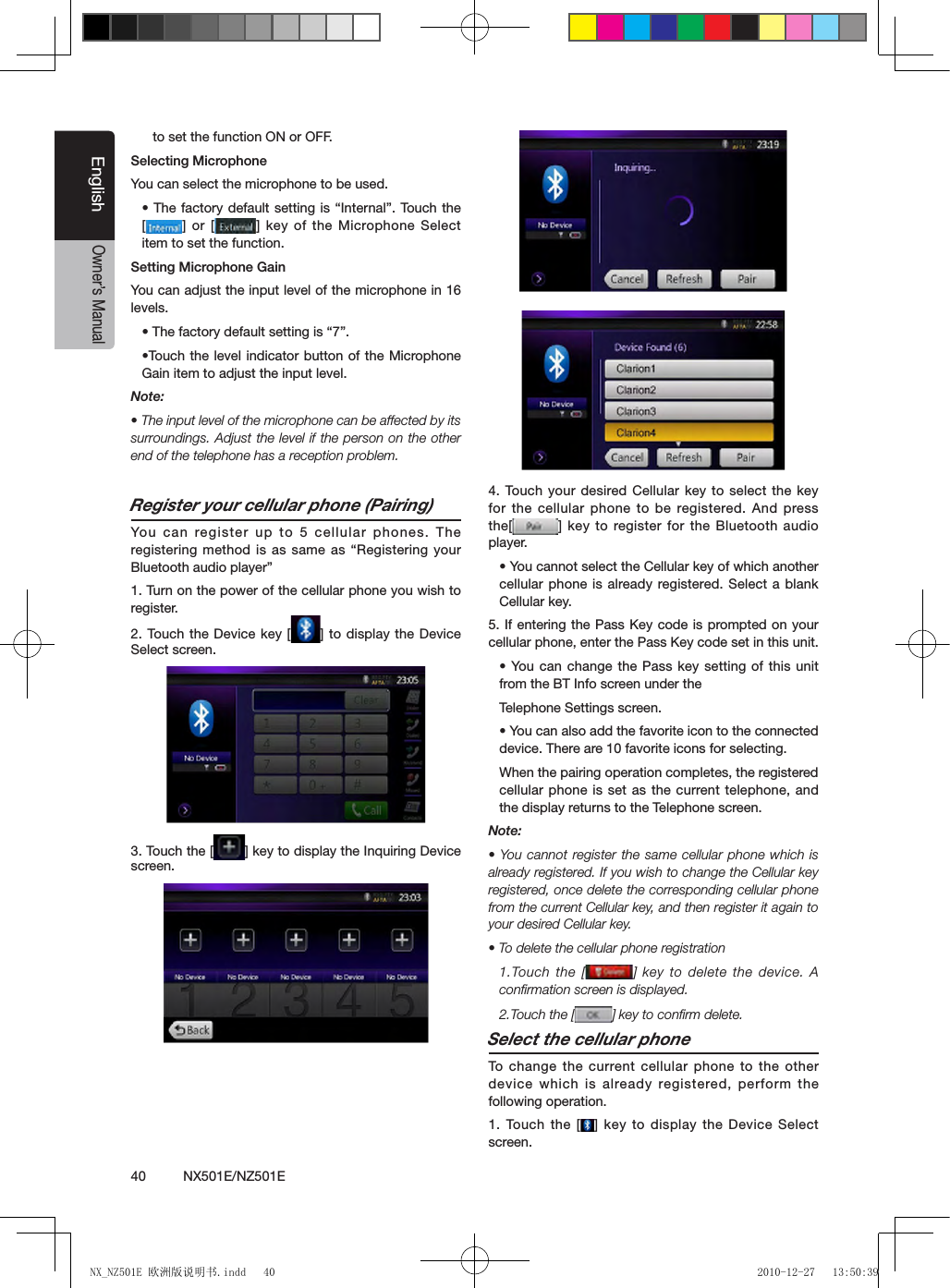

![40 NX501E/NZ501EEnglishOwner’s Manualto set the function ON or OFF.Selecting MicrophoneYou can select the microphone to be used.• The factory default setting is “Internal”. Touch the [] or [ ] key of the Microphone Select item to set the function.Setting Microphone Gain You can adjust the input level of the microphone in 16 levels.• The factory default setting is “7”.•Touch the level indicator button of the Microphone Gain item to adjust the input level.Note:• The input level of the microphone can be affected by its surroundings. Adjust the level if the person on the other end of the telephone has a reception problem.Register your cellular phone (Pairing)You can register up to 5 cellular phones. The registering method is as same as “Registering your Bluetooth audio player”1. Turn on the power of the cellular phone you wish to register.2. Touch the Device key [ ] to display the Device Select screen.3. Touch the [ ] key to display the Inquiring Device screen.4. Touch your desired Cellular key to select the key for the cellular phone to be registered. And press the[ ] key to register for the Bluetooth audio player.• You cannot select the Cellular key of which another cellular phone is already registered. Select a blank Cellular key.5. If entering the Pass Key code is prompted on your cellular phone, enter the Pass Key code set in this unit.• You can change the Pass key setting of this unit from the BT Info screen under theTelephone Settings screen.• You can also add the favorite icon to the connected device. There are 10 favorite icons for selecting.When the pairing operation completes, the registered cellular phone is set as the current telephone, and the display returns to the Telephone screen.Note:• You cannot register the same cellular phone which is already registered. If you wish to change the Cellular key registered, once delete the corresponding cellular phone from the current Cellular key, and then register it again to your desired Cellular key.• To delete the cellular phone registration1.Touch the [ ] key to delete the device. A confirmation screen is displayed.2.Touch the [ ] key to confirm delete.Select the cellular phoneTo change the current cellular phone to the other device which is already registered, perform the following operation.1. Touch the [ ] key to display the Device Select screen.NX_NZ501E 欧洲版说明书.indd 40 2010-12-27 13:50:39](https://usermanual.wiki/SKYPINE-ELECTRONICS/CNE8121CL/User-Guide-1447228-Page-40.png)

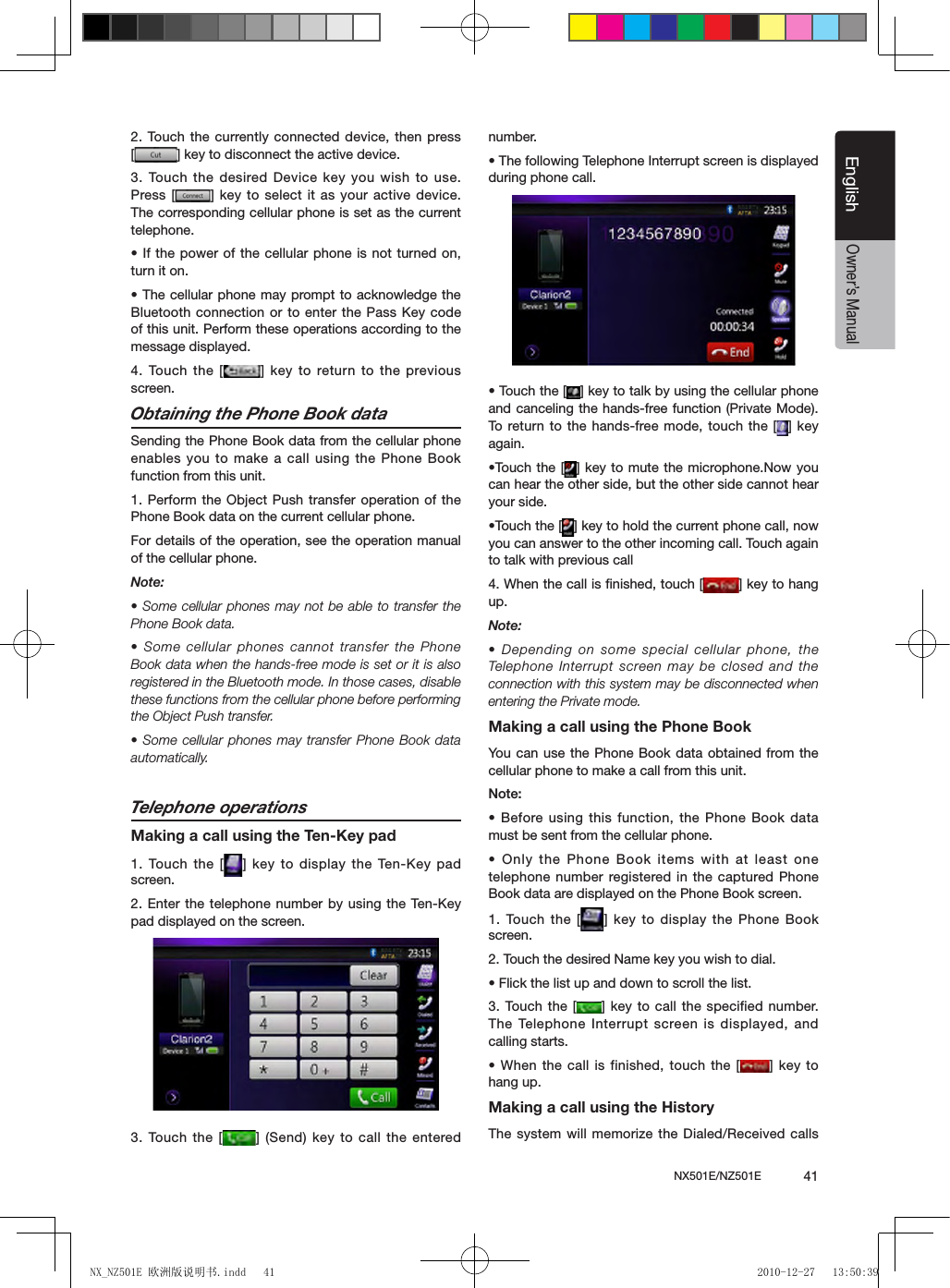

![NX501E/NZ501E 41EnglishEnglishOwner’s Manual2. Touch the currently connected device, then press [ ] key to disconnect the active device.3. Touch the desired Device key you wish to use. Press [ ] key to select it as your active device. The corresponding cellular phone is set as the current telephone.• If the power of the cellular phone is not turned on, turn it on.• The cellular phone may prompt to acknowledge the Bluetooth connection or to enter the Pass Key code of this unit. Perform these operations according to the message displayed.4. Touch the [ ] key to return to the previous screen.Obtaining the Phone Book dataSending the Phone Book data from the cellular phone enables you to make a call using the Phone Book function from this unit.1. Perform the Object Push transfer operation of the Phone Book data on the current cellular phone.For details of the operation, see the operation manual of the cellular phone.Note:• Some cellular phones may not be able to transfer the Phone Book data.• Some cellular phones cannot transfer the Phone Book data when the hands-free mode is set or it is also registered in the Bluetooth mode. In those cases, disable these functions from the cellular phone before performing the Object Push transfer.• Some cellular phones may transfer Phone Book data automatically.Telephone operationsMaking a call using the Ten-Key pad1. Touch the [ ] key to display the Ten-Key pad screen.2. Enter the telephone number by using the Ten-Key pad displayed on the screen.3. Touch the [ ] (Send) key to call the entered number.• The following Telephone Interrupt screen is displayed during phone call.• Touch the [ ] key to talk by using the cellular phone and canceling the hands-free function (Private Mode). To return to the hands-free mode, touch the [ ] key again.•Touch the [ ] key to mute the microphone.Now you can hear the other side, but the other side cannot hear your side.•Touch the [ ] key to hold the current phone call, now you can answer to the other incoming call. Touch again to talk with previous call4. When the call is finished, touch [ ] key to hang up. Note:• Depending on some special cellular phone, the Telephone Interrupt screen may be closed and the connection with this system may be disconnected when entering the Private mode.Making a call using the Phone BookYou can use the Phone Book data obtained from the cellular phone to make a call from this unit.Note:• Before using this function, the Phone Book data must be sent from the cellular phone.• Only the Phone Book items with at least one telephone number registered in the captured Phone Book data are displayed on the Phone Book screen.1. Touch the [ ] key to display the Phone Book screen.2. Touch the desired Name key you wish to dial.• Flick the list up and down to scroll the list.3. Touch the [ ] key to call the specified number. The Telephone Interrupt screen is displayed, and calling starts.• When the call is finished, touch the [ ] key to hang up.Making a call using the HistoryThe system will memorize the Dialed/Received calls NX_NZ501E 欧洲版说明书.indd 41 2010-12-27 13:50:39](https://usermanual.wiki/SKYPINE-ELECTRONICS/CNE8121CL/User-Guide-1447228-Page-41.png)

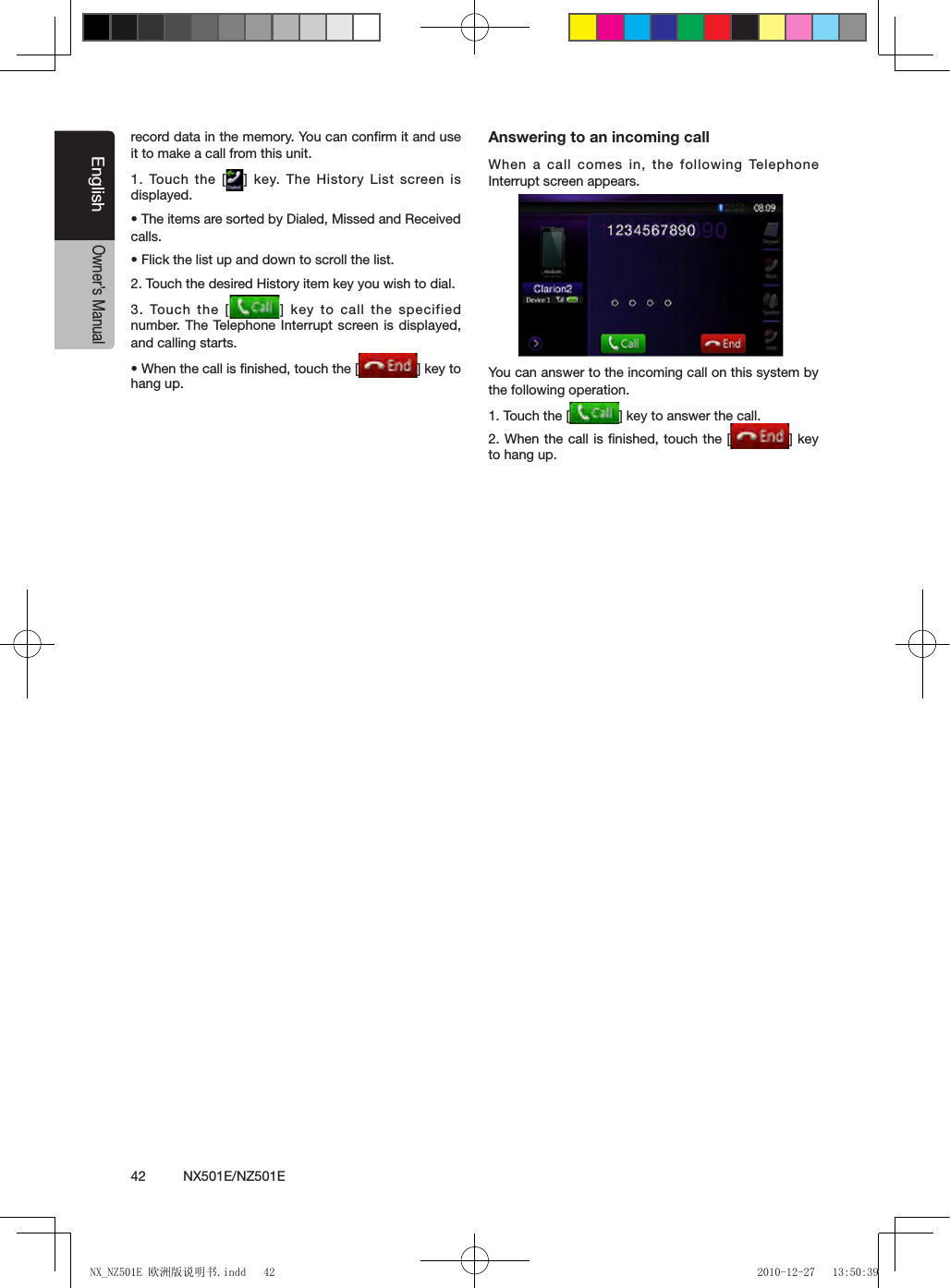

![42 NX501E/NZ501EEnglishOwner’s Manualrecord data in the memory. You can confirm it and use it to make a call from this unit.1. Touch the [ ] key. The History List screen is displayed.• The items are sorted by Dialed, Missed and Received calls.• Flick the list up and down to scroll the list.2. Touch the desired History item key you wish to dial.3. Touch the [ ] key to call the specified number. The Telephone Interrupt screen is displayed, and calling starts.• When the call is nished, touch the [ ] key to hang up.Answering to an incoming callWhen a call comes in, the following Telephone Interrupt screen appears.You can answer to the incoming call on this system by the following operation.1. Touch the [ ] key to answer the call.2. When the call is finished, touch the [ ] key to hang up.NX_NZ501E 欧洲版说明书.indd 42 2010-12-27 13:50:39](https://usermanual.wiki/SKYPINE-ELECTRONICS/CNE8121CL/User-Guide-1447228-Page-42.png)

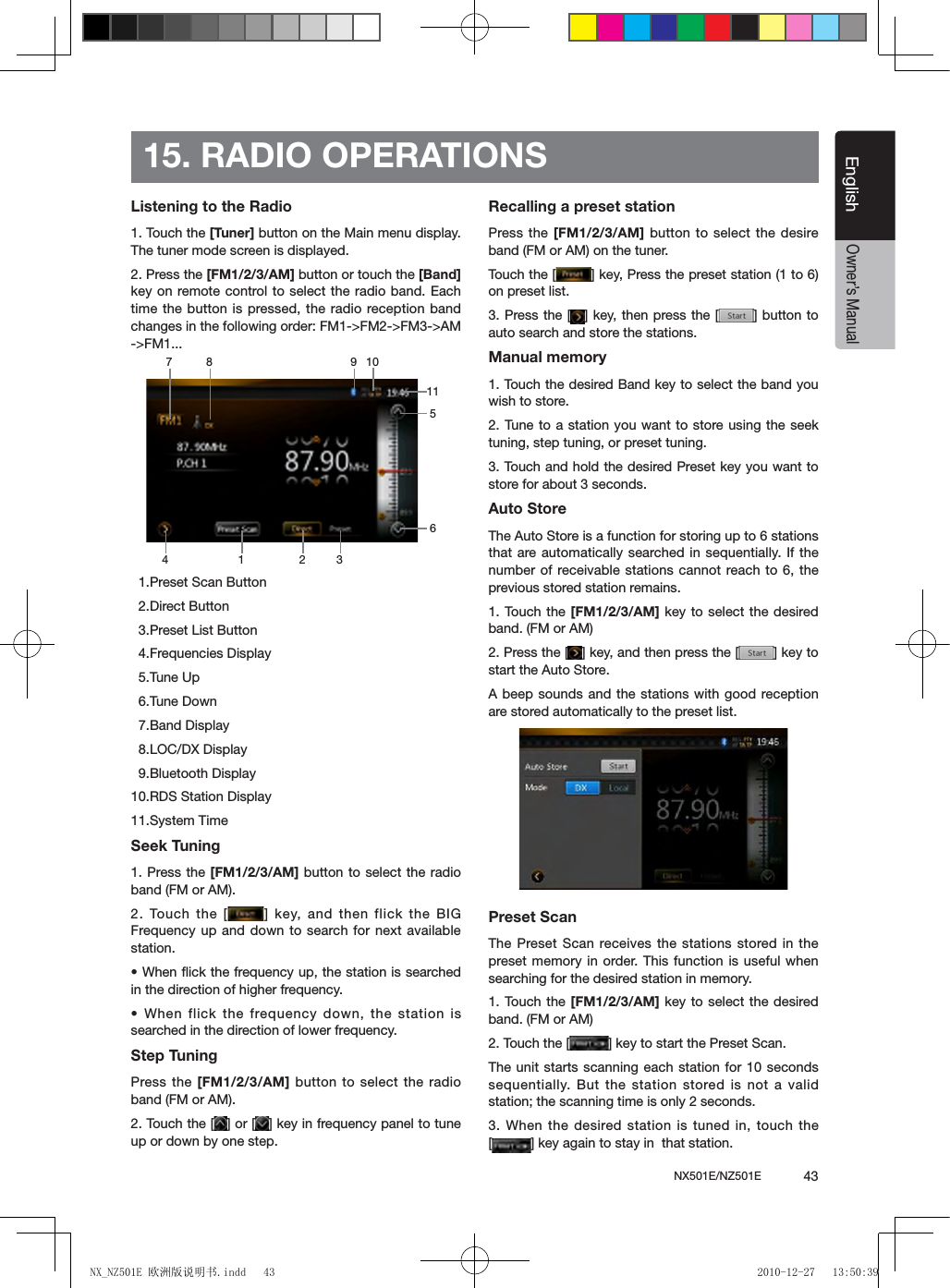

![NX501E/NZ501E 43EnglishEnglishOwner’s Manual15. RADIO OPERATIONSListening to the Radio1. Touch the [Tuner] button on the Main menu display. The tuner mode screen is displayed.2. Press the [FM1/2/3/AM] button or touch the [Band] key on remote control to select the radio band. Each time the button is pressed, the radio reception band changes in the following order: FM1->FM2->FM3->AM ->FM1... 1.Preset Scan Button 2.Direct Button 3.Preset List Button 4.Frequencies Display 5.Tune Up 6.Tune Down 7.Band Display 8.LOC/DX Display 9.Bluetooth Display10.RDS Station Display11.System Time Seek Tuning1. Press the [FM1/2/3/AM] button to select the radio band (FM or AM).2. Touch the [ ] key, and then flick the BIG Frequency up and down to search for next available station.• When ick the frequency up, the station is searched in the direction of higher frequency.• When flick the frequency down, the station is searched in the direction of lower frequency.Step TuningPress the [FM1/2/3/AM] button to select the radio band (FM or AM).2. Touch the [ ] or [ ] key in frequency panel to tune up or down by one step.Recalling a preset stationPress the [FM1/2/3/AM] button to select the desire band (FM or AM) on the tuner.Touch the [ ] key, Press the preset station (1 to 6) on preset list.3. Press the [ ] key, then press the [ ] button to auto search and store the stations.Manual memory1. Touch the desired Band key to select the band you wish to store.2. Tune to a station you want to store using the seek tuning, step tuning, or preset tuning.3. Touch and hold the desired Preset key you want to store for about 3 seconds.Auto StoreThe Auto Store is a function for storing up to 6 stations that are automatically searched in sequentially. If the number of receivable stations cannot reach to 6, the previous stored station remains.1. Touch the [FM1/2/3/AM] key to select the desired band. (FM or AM)2. Press the [ ] key, and then press the [ ] key to start the Auto Store.A beep sounds and the stations with good reception are stored automatically to the preset list.Preset ScanThe Preset Scan receives the stations stored in the preset memory in order. This function is useful when searching for the desired station in memory.1. Touch the [FM1/2/3/AM] key to select the desired band. (FM or AM)2. Touch the [ ] key to start the Preset Scan.The unit starts scanning each station for 10 seconds sequentially. But the station stored is not a valid station; the scanning time is only 2 seconds.3. When the desired station is tuned in, touch the [] key again to stay in that station.1 328 946511710NX_NZ501E 欧洲版说明书.indd 43 2010-12-27 13:50:39](https://usermanual.wiki/SKYPINE-ELECTRONICS/CNE8121CL/User-Guide-1447228-Page-43.png)

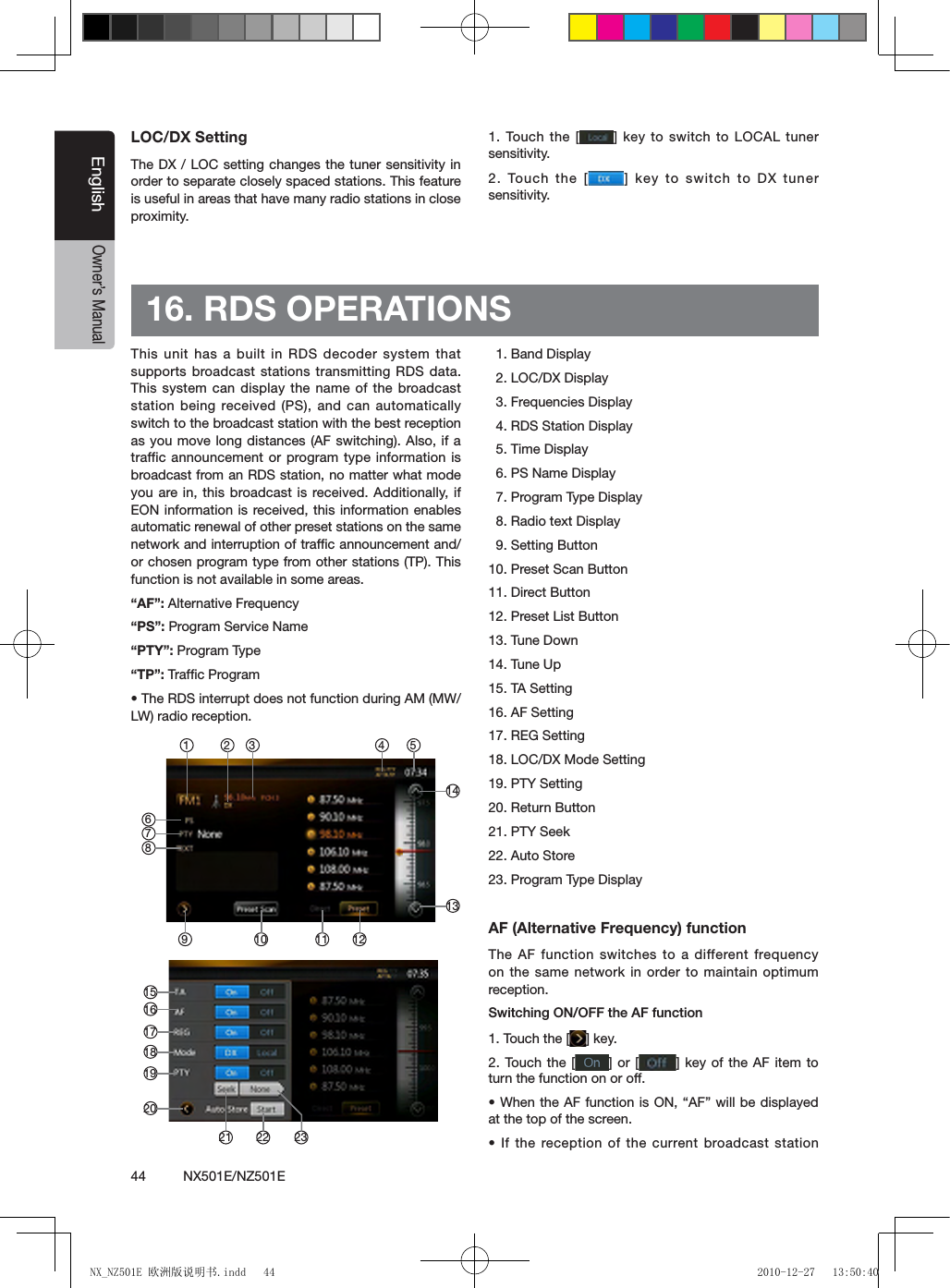

![44 NX501E/NZ501EEnglishOwner’s ManualLOC/DX SettingThe DX / LOC setting changes the tuner sensitivity in order to separate closely spaced stations. This feature is useful in areas that have many radio stations in close proximity.1. Touch the [ ] key to switch to LOCAL tuner sensitivity.2. Touch the [ ] key to switch to DX tuner sensitivity.16. RDS OPERATIONS This unit has a built in RDS decoder system that supports broadcast stations transmitting RDS data. This system can display the name of the broadcast station being received (PS), and can automatically switch to the broadcast station with the best reception as you move long distances (AF switching). Also, if a traffic announcement or program type information is broadcast from an RDS station, no matter what mode you are in, this broadcast is received. Additionally, if EON information is received, this information enables automatic renewal of other preset stations on the same network and interruption of traffic announcement and/or chosen program type from other stations (TP). This function is not available in some areas.“AF”: Alternative Frequency“PS”: Program Service Name“PTY”: Program Type“TP”: Traffic Program• The RDS interrupt does not function during AM (MW/LW) radio reception. 1. Band Display 2. LOC/DX Display 3. Frequencies Display 4. RDS Station Display 5. Time Display 6. PS Name Display 7. Program Type Display 8. Radio text Display 9. Setting Button10. Preset Scan Button11. Direct Button12. Preset List Button13. Tune Down14. Tune Up15. TA Setting16. AF Setting17. REG Setting18. LOC/DX Mode Setting19. PTY Setting20. Return Button21. PTY Seek22. Auto Store23. Program Type DisplayAF (Alternative Frequency) functionThe AF function switches to a different frequency on the same network in order to maintain optimum reception.Switching ON/OFF the AF function1. Touch the [ ] key.2. Touch the [ ] or [ ] key of the AF item to turn the function on or off.• When the AF function is ON, “AF” will be displayed at the top of the screen.• If the reception of the current broadcast station 10 12114 5913141 2 37681615171819202221 23NX_NZ501E 欧洲版说明书.indd 44 2010-12-27 13:50:40](https://usermanual.wiki/SKYPINE-ELECTRONICS/CNE8121CL/User-Guide-1447228-Page-44.png)

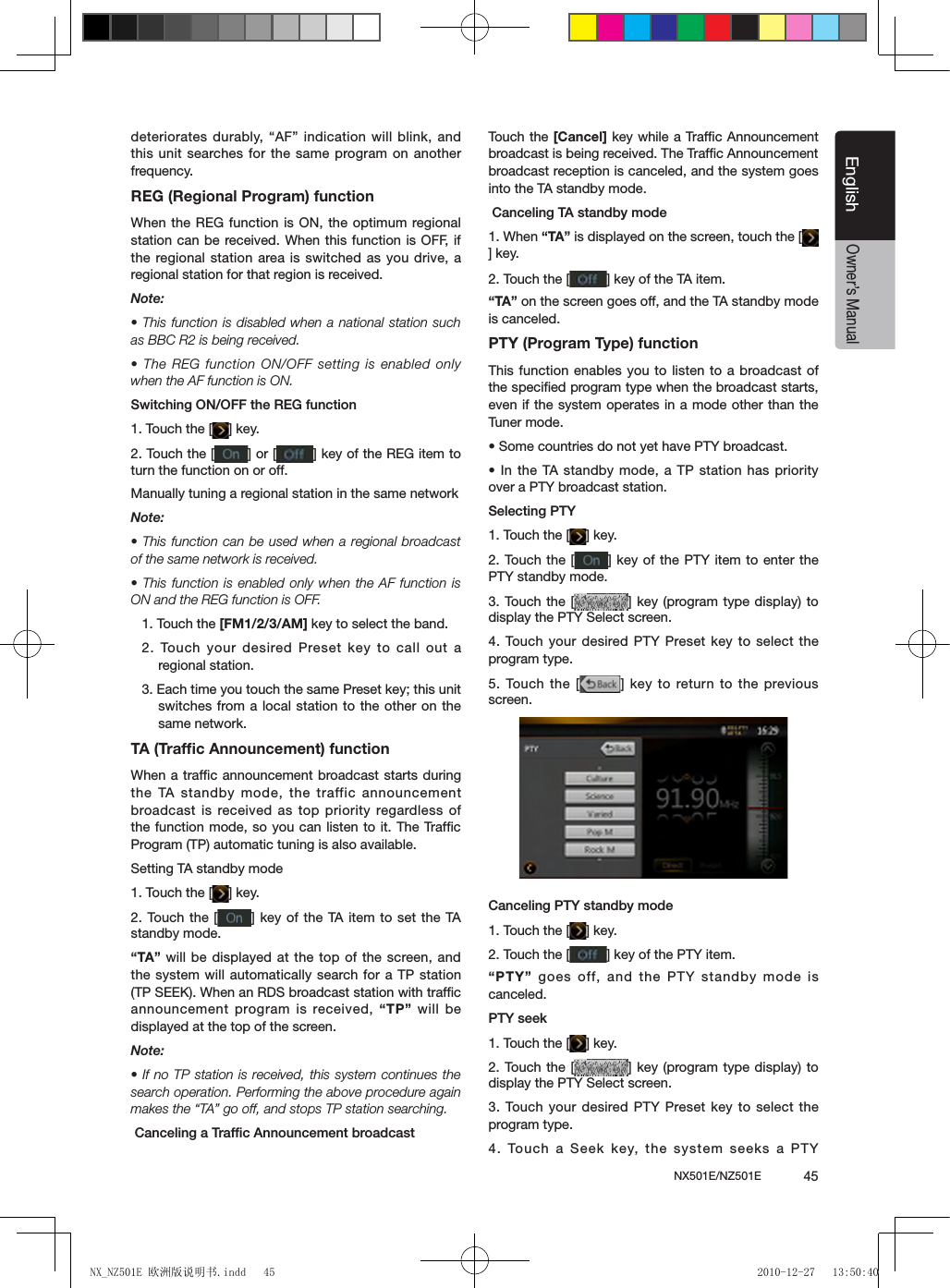

![NX501E/NZ501E 45EnglishEnglishOwner’s Manualdeteriorates durably, “AF” indication will blink, and this unit searches for the same program on another frequency.REG (Regional Program) functionWhen the REG function is ON, the optimum regional station can be received. When this function is OFF, if the regional station area is switched as you drive, a regional station for that region is received.Note:• This function is disabled when a national station such as BBC R2 is being received.• The REG function ON/OFF setting is enabled only when the AF function is ON.Switching ON/OFF the REG function1. Touch the [ ] key.2. Touch the [ ] or [ ] key of the REG item to turn the function on or off.Manually tuning a regional station in the same networkNote:• This function can be used when a regional broadcast of the same network is received.• This function is enabled only when the AF function is ON and the REG function is OFF.1. Touch the [FM1/2/3/AM] key to select the band.2. Touch your desired Preset key to call out a regional station.3. Each time you touch the same Preset key; this unit switches from a local station to the other on the same network.TA (Traffic Announcement) functionWhen a traffic announcement broadcast starts during the TA standby mode, the traffic announcement broadcast is received as top priority regardless of the function mode, so you can listen to it. The Traffic Program (TP) automatic tuning is also available.Setting TA standby mode1. Touch the [ ] key.2. Touch the [ ] key of the TA item to set the TA standby mode.“TA” will be displayed at the top of the screen, and the system will automatically search for a TP station (TP SEEK). When an RDS broadcast station with trafc announcement program is received, “TP” will be displayed at the top of the screen.Note:• If no TP station is received, this system continues the search operation. Performing the above procedure again makes the “TA” go off, and stops TP station searching.●Canceling a Trafc Announcement broadcastTouch the [Cancel] key while a Traffic Announcement broadcast is being received. The Traffic Announcement broadcast reception is canceled, and the system goes into the TA standby mode.●Canceling TA standby mode1. When “TA” is displayed on the screen, touch the [] key.2. Touch the [ ] key of the TA item.“TA” on the screen goes off, and the TA standby mode is canceled.PTY (Program Type) functionThis function enables you to listen to a broadcast of the specified program type when the broadcast starts, even if the system operates in a mode other than the Tuner mode.• Some countries do not yet have PTY broadcast.• In the TA standby mode, a TP station has priority over a PTY broadcast station.Selecting PTY1. Touch the [ ] key.2. Touch the [ ] key of the PTY item to enter the PTY standby mode.3. Touch the [ ] key (program type display) to display the PTY Select screen.4. Touch your desired PTY Preset key to select the program type.5. Touch the [ ] key to return to the previous screen.Canceling PTY standby mode1. Touch the [ ] key.2. Touch the [ ] key of the PTY item.“PTY” goes off, and the PTY standby mode is canceled.PTY seek1. Touch the [ ] key.2. Touch the [ ] key (program type display) to display the PTY Select screen.3. Touch your desired PTY Preset key to select the program type.4. Touch a Seek key, the system seeks a PTY NX_NZ501E 欧洲版说明书.indd 45 2010-12-27 13:50:40](https://usermanual.wiki/SKYPINE-ELECTRONICS/CNE8121CL/User-Guide-1447228-Page-45.png)

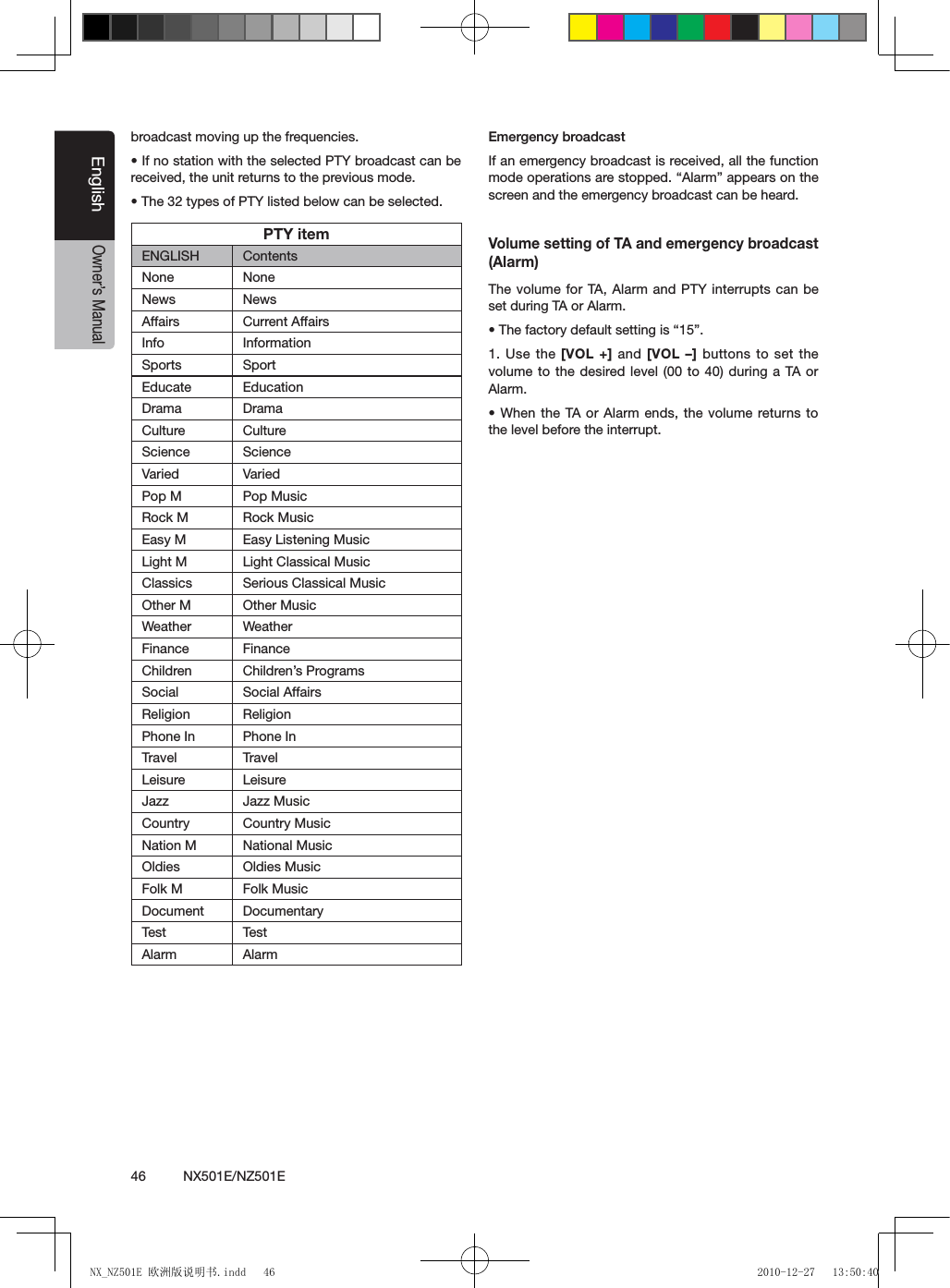

![46 NX501E/NZ501EEnglishOwner’s Manualbroadcast moving up the frequencies.• If no station with the selected PTY broadcast can be received, the unit returns to the previous mode.• The 32 types of PTY listed below can be selected.PTY itemENGLISH Contents None NoneNews News Affairs Current Affairs Info Information Sports Sport Educate Education Drama Drama Culture Culture Science Science Varied Varied Pop M Pop Music Rock M Rock Music Easy M Easy Listening Music Light M Light Classical Music Classics Serious Classical Music Other M Other Music Weather Weather Finance Finance Children Children’s Programs Social Social Affairs Religion Religion Phone In Phone In Travel Travel Leisure Leisure Jazz Jazz Music Country Country Music Nation M National Music Oldies Oldies Music Folk M Folk Music Document Documentary Test TestAlarm Alarm Emergency broadcastIf an emergency broadcast is received, all the function mode operations are stopped. “Alarm” appears on the screen and the emergency broadcast can be heard.Volume setting of TA and emergency broadcast (Alarm)The volume for TA, Alarm and PTY interrupts can be set during TA or Alarm.• The factory default setting is “15”.1. Use the [VOL +] and [VOL –] buttons to set the volume to the desired level (00 to 40) during a TA or Alarm.• When the TA or Alarm ends, the volume returns to the level before the interrupt.NX_NZ501E 欧洲版说明书.indd 46 2010-12-27 13:50:40](https://usermanual.wiki/SKYPINE-ELECTRONICS/CNE8121CL/User-Guide-1447228-Page-46.png)

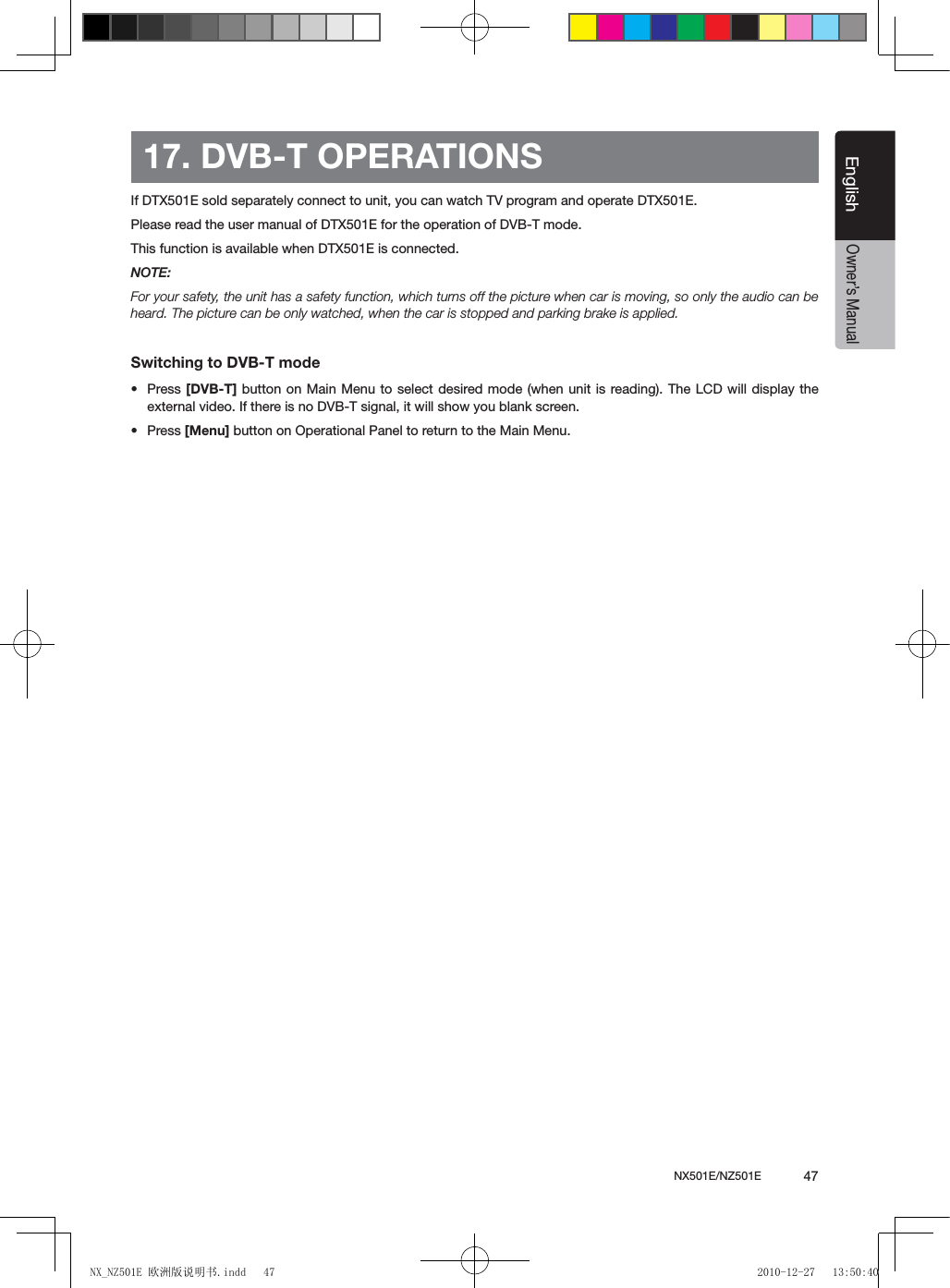

![NX501E/NZ501E 47EnglishEnglishOwner’s Manual17. DVB-T OPERATIONSIf DTX501E sold separately connect to unit, you can watch TV program and operate DTX501E.Please read the user manual of DTX501E for the operation of DVB-T mode.This function is available when DTX501E is connected.NOTE:For your safety, the unit has a safety function, which turns off the picture when car is moving, so only the audio can be heard. The picture can be only watched, when the car is stopped and parking brake is applied.Switching to DVB-T mode• Press [DVB-T] button on Main Menu to select desired mode (when unit is reading). The LCD will display the external video. If there is no DVB-T signal, it will show you blank screen.• Press [Menu] button on Operational Panel to return to the Main Menu.NX_NZ501E 欧洲版说明书.indd 47 2010-12-27 13:50:40](https://usermanual.wiki/SKYPINE-ELECTRONICS/CNE8121CL/User-Guide-1447228-Page-47.png)

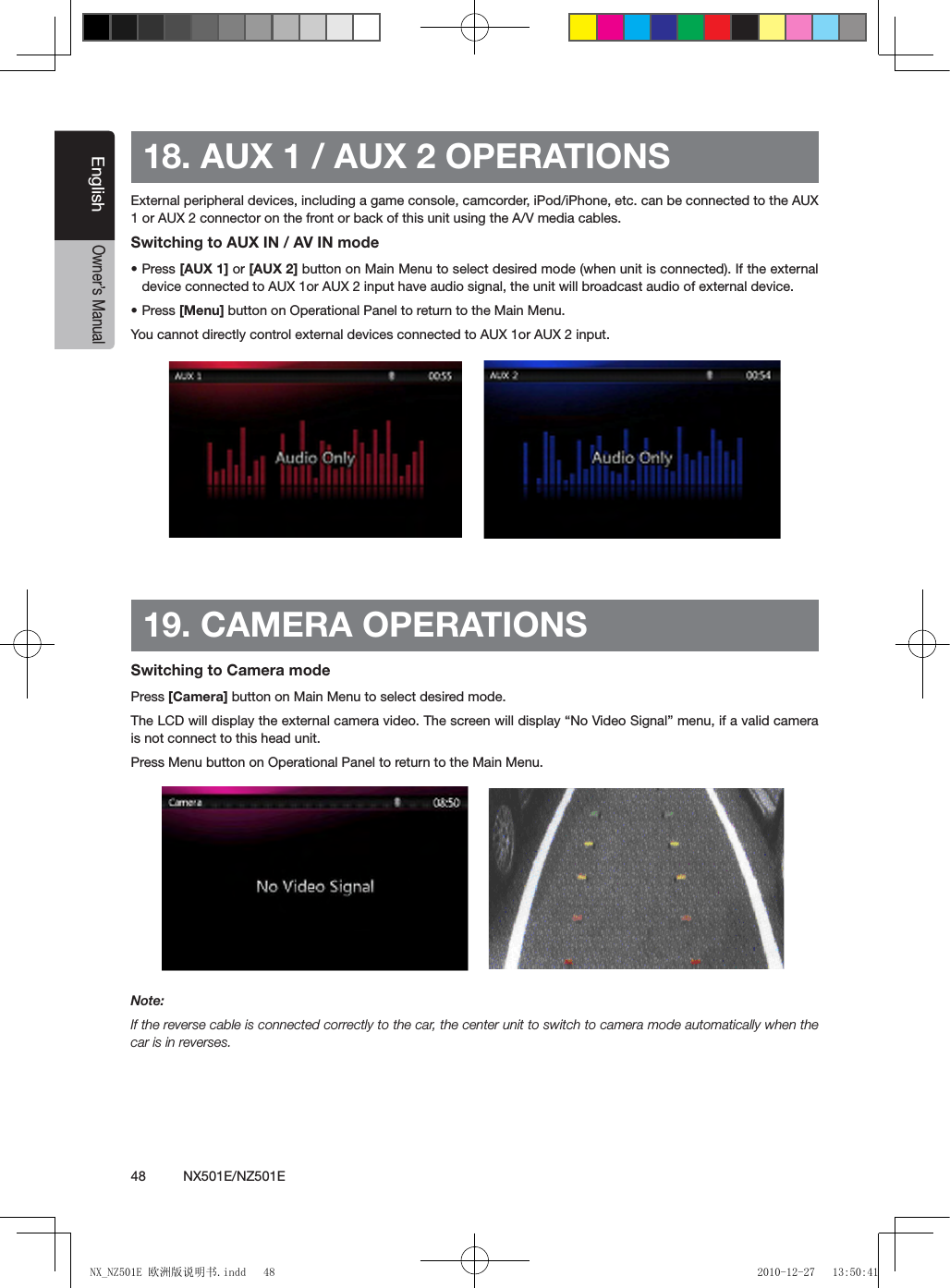

![48 NX501E/NZ501EEnglishOwner’s Manual18. AUX 1 / AUX 2 OPERATIONSExternal peripheral devices, including a game console, camcorder, iPod/iPhone, etc. can be connected to the AUX 1 or AUX 2 connector on the front or back of this unit using the A/V media cables.Switching to AUX IN / AV IN mode• Press [AUX 1] or [AUX 2] button on Main Menu to select desired mode (when unit is connected). If the external device connected to AUX 1or AUX 2 input have audio signal, the unit will broadcast audio of external device. • Press [Menu] button on Operational Panel to return to the Main Menu.You cannot directly control external devices connected to AUX 1or AUX 2 input.19. CAMERA OPERATIONSSwitching to Camera modePress [Camera] button on Main Menu to select desired mode.The LCD will display the external camera video. The screen will display “No Video Signal” menu, if a valid camera is not connect to this head unit. Press Menu button on Operational Panel to return to the Main Menu.Note:If the reverse cable is connected correctly to the car, the center unit to switch to camera mode automatically when the car is in reverses.NX_NZ501E 欧洲版说明书.indd 48 2010-12-27 13:50:41](https://usermanual.wiki/SKYPINE-ELECTRONICS/CNE8121CL/User-Guide-1447228-Page-48.png)

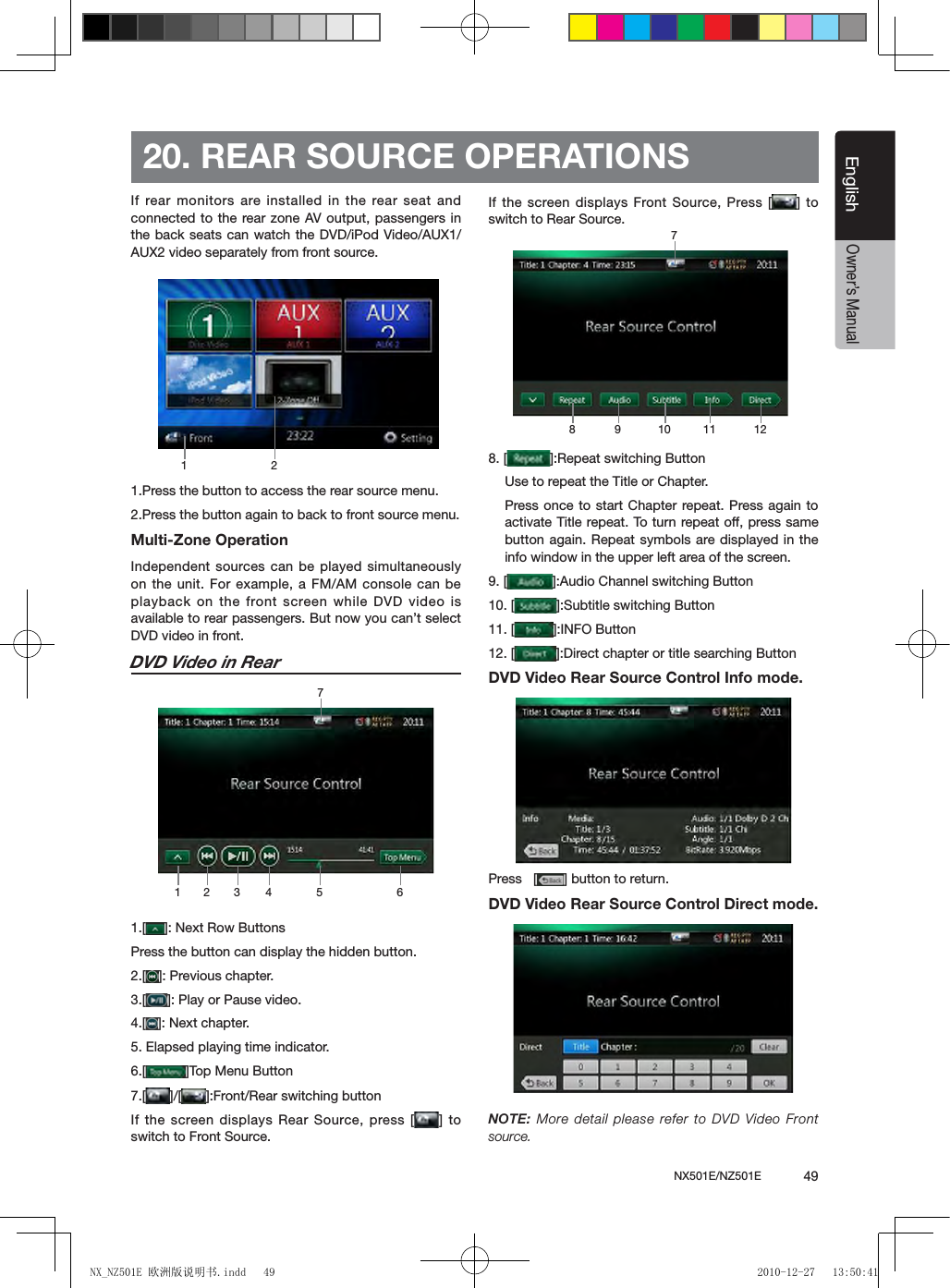

![NX501E/NZ501E 49EnglishEnglishOwner’s Manual20. REAR SOURCE OPERATIONSIf rear monitors are installed in the rear seat and connected to the rear zone AV output, passengers in the back seats can watch the DVD/iPod Video/AUX1/AUX2 video separately from front source.1.Press the button to access the rear source menu.2.Press the button again to back to front source menu.Multi-Zone OperationIndependent sources can be played simultaneously on the unit. For example, a FM/AM console can be playback on the front screen while DVD video is available to rear passengers. But now you can’t select DVD video in front.DVD Video in Rear1.[ ]: Next Row ButtonsPress the button can display the hidden button.2.[ ]: Previous chapter.3.[ ]: Play or Pause video.4.[ ]: Next chapter.5. Elapsed playing time indicator.6.[ ]Top Menu Button7.[ ]/[ ]:Front/Rear switching buttonIf the screen displays Rear Source, press [ ] to switch to Front Source.If the screen displays Front Source, Press [ ] to switch to Rear Source.8. [ ]:Repeat switching ButtonUse to repeat the Title or Chapter.Press once to start Chapter repeat. Press again to activate Title repeat. To turn repeat off, press same button again. Repeat symbols are displayed in the info window in the upper left area of the screen.9. [ ]:Audio Channel switching Button 10. [ ]:Subtitle switching Button11. [ ]:INFO Button12. [ ]:Direct chapter or title searching ButtonDVD Video Rear Source Control Info mode. Press [ ] button to return.DVD Video Rear Source Control Direct mode. NOTE: More detail please refer to DVD Video Front source. 1 21 273 4 5 68 9710 11 12NX_NZ501E 欧洲版说明书.indd 49 2010-12-27 13:50:41](https://usermanual.wiki/SKYPINE-ELECTRONICS/CNE8121CL/User-Guide-1447228-Page-49.png)

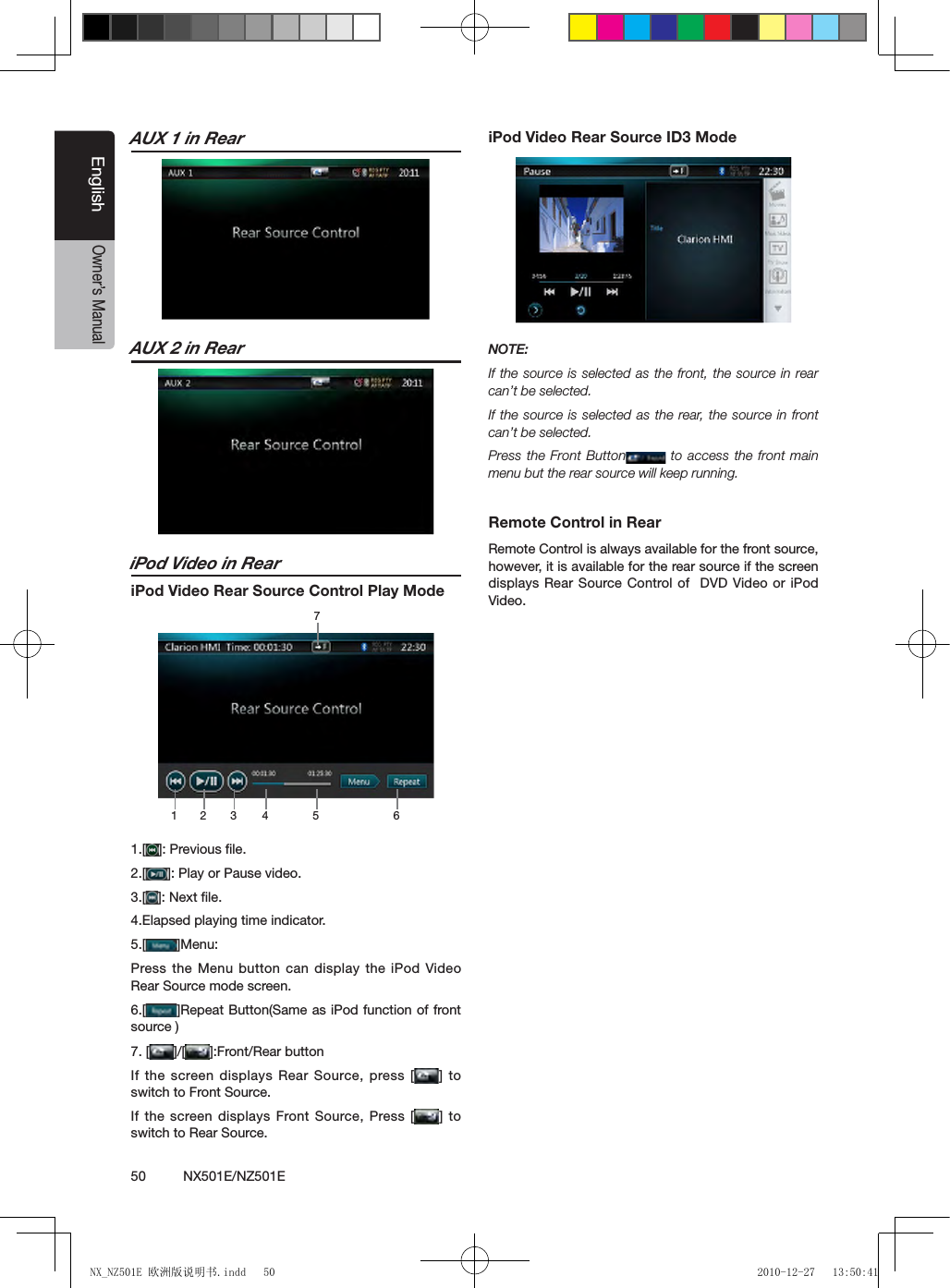

![50 NX501E/NZ501EEnglishOwner’s ManualAUX 1 in RearAUX 2 in ReariPod Video in ReariPod Video Rear Source Control Play Mode1 273 4 5 61.[ ]: Previous le.2.[ ]: Play or Pause video.3.[ ]: Next le.4.Elapsed playing time indicator.5.[ ]Menu:Press the Menu button can display the iPod Video Rear Source mode screen.6.[ ]Repeat Button(Same as iPod function of front source )7. [ ]/[ ]:Front/Rear buttonIf the screen displays Rear Source, press [ ] to switch to Front Source.If the screen displays Front Source, Press [ ] to switch to Rear Source.iPod Video Rear Source ID3 ModeNOTE: If the source is selected as the front, the source in rear can’t be selected.If the source is selected as the rear, the source in front can’t be selected.Press the Front Button to access the front main menu but the rear source will keep running.Remote Control in RearRemote Control is always available for the front source, however, it is available for the rear source if the screen displays Rear Source Control of DVD Video or iPod Video.NX_NZ501E 欧洲版说明书.indd 50 2010-12-27 13:50:41](https://usermanual.wiki/SKYPINE-ELECTRONICS/CNE8121CL/User-Guide-1447228-Page-50.png)

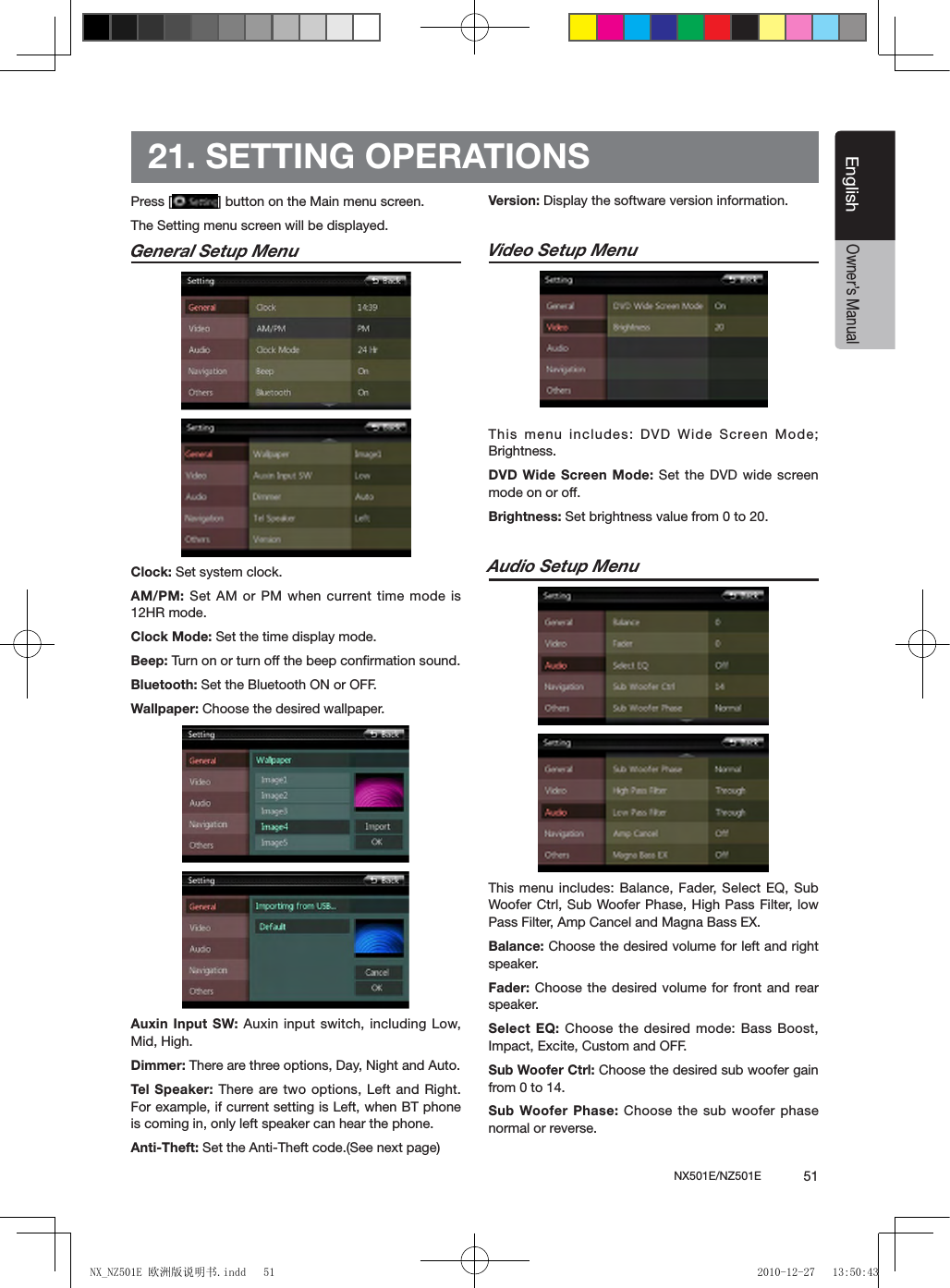

![NX501E/NZ501E 51EnglishEnglishOwner’s Manual21. SETTING OPERATIONSPress [ ] button on the Main menu screen.The Setting menu screen will be displayed.General Setup Menu Clock: Set system clock.AM/PM: Set AM or PM when current time mode is 12HR mode.Clock Mode: Set the time display mode.Beep: Turn on or turn off the beep confirmation sound.Bluetooth: Set the Bluetooth ON or OFF.Wallpaper: Choose the desired wallpaper.Auxin Input SW: Auxin input switch, including Low, Mid, High.Dimmer: There are three options, Day, Night and Auto.Tel Speaker: There are two options, Left and Right. For example, if current setting is Left, when BT phone is coming in, only left speaker can hear the phone.Anti-Theft: Set the Anti-Theft code.(See next page)Version: Display the software version information.Video Setup Menu This menu includes: DVD Wide Screen Mode; Brightness.DVD Wide Screen Mode: Set the DVD wide screen mode on or off.Brightness: Set brightness value from 0 to 20.Audio Setup Menu This menu includes: Balance, Fader, Select EQ, Sub Woofer Ctrl, Sub Woofer Phase, High Pass Filter, low Pass Filter, Amp Cancel and Magna Bass EX.Balance: Choose the desired volume for left and right speaker.Fader: Choose the desired volume for front and rear speaker.Select EQ: Choose the desired mode: Bass Boost, Impact, Excite, Custom and OFF. Sub Woofer Ctrl: Choose the desired sub woofer gain from 0 to 14.Sub Woofer Phase: Choose the sub woofer phase normal or reverse.NX_NZ501E 欧洲版说明书.indd 51 2010-12-27 13:50:43](https://usermanual.wiki/SKYPINE-ELECTRONICS/CNE8121CL/User-Guide-1447228-Page-51.png)

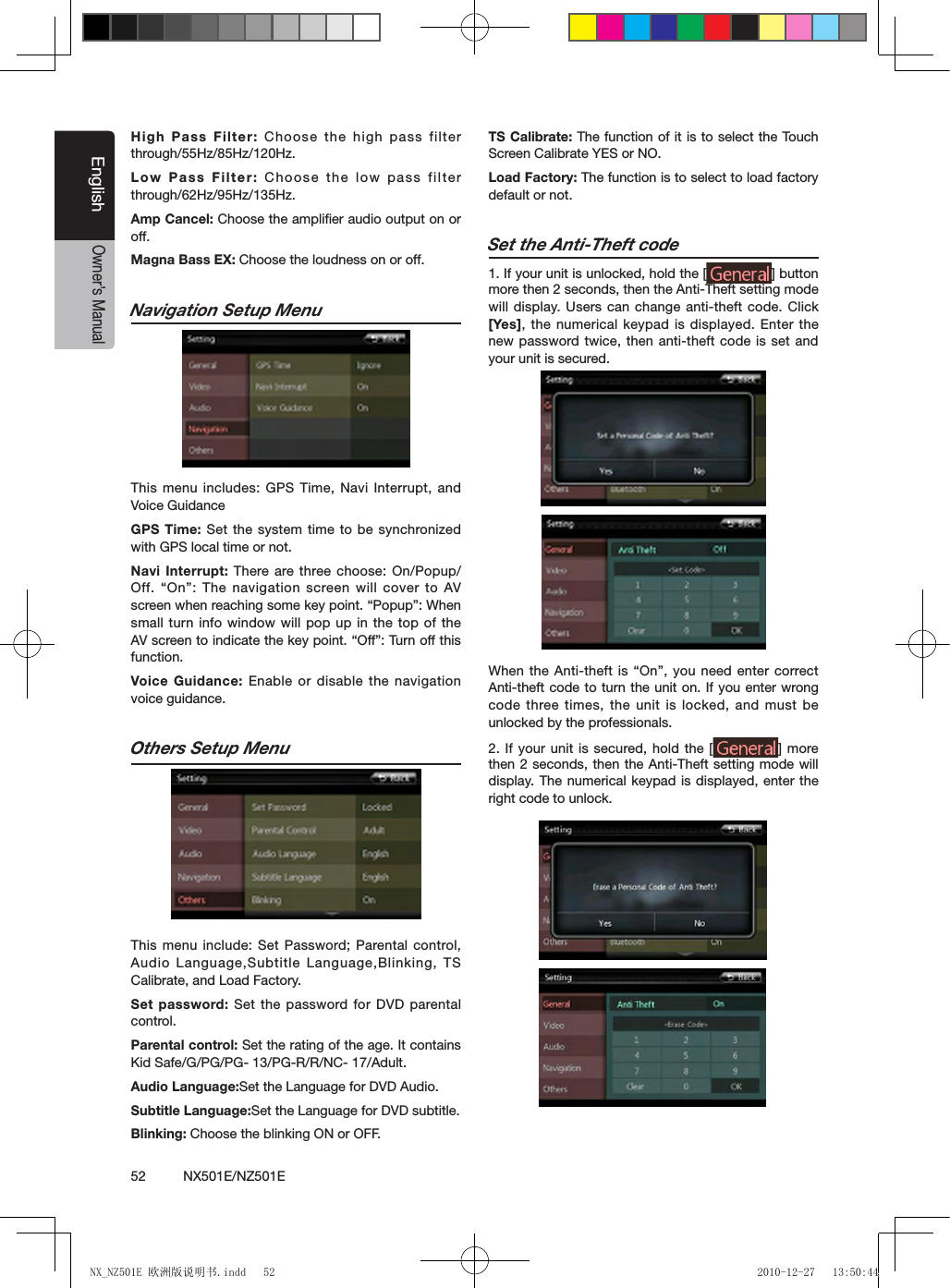

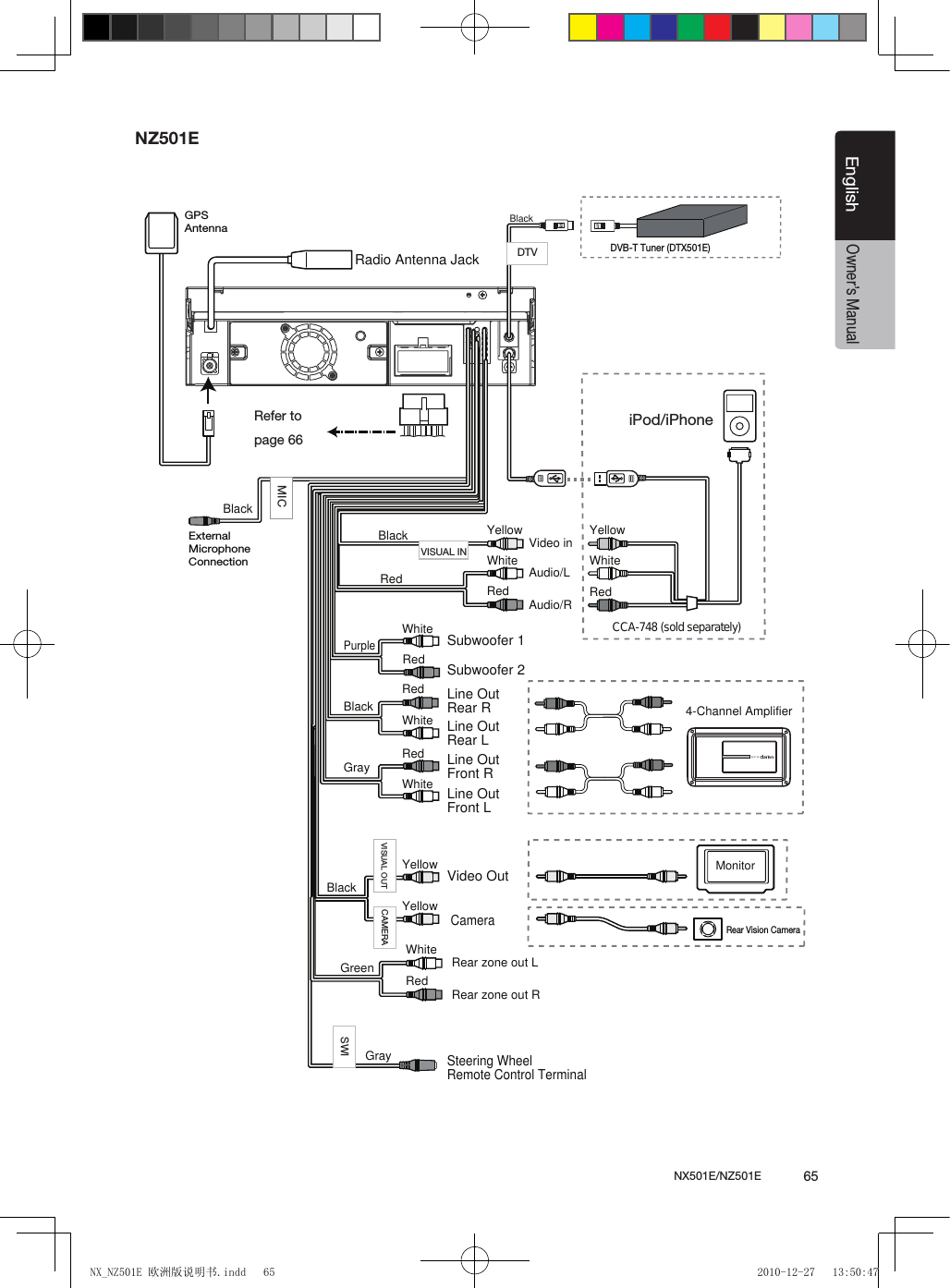

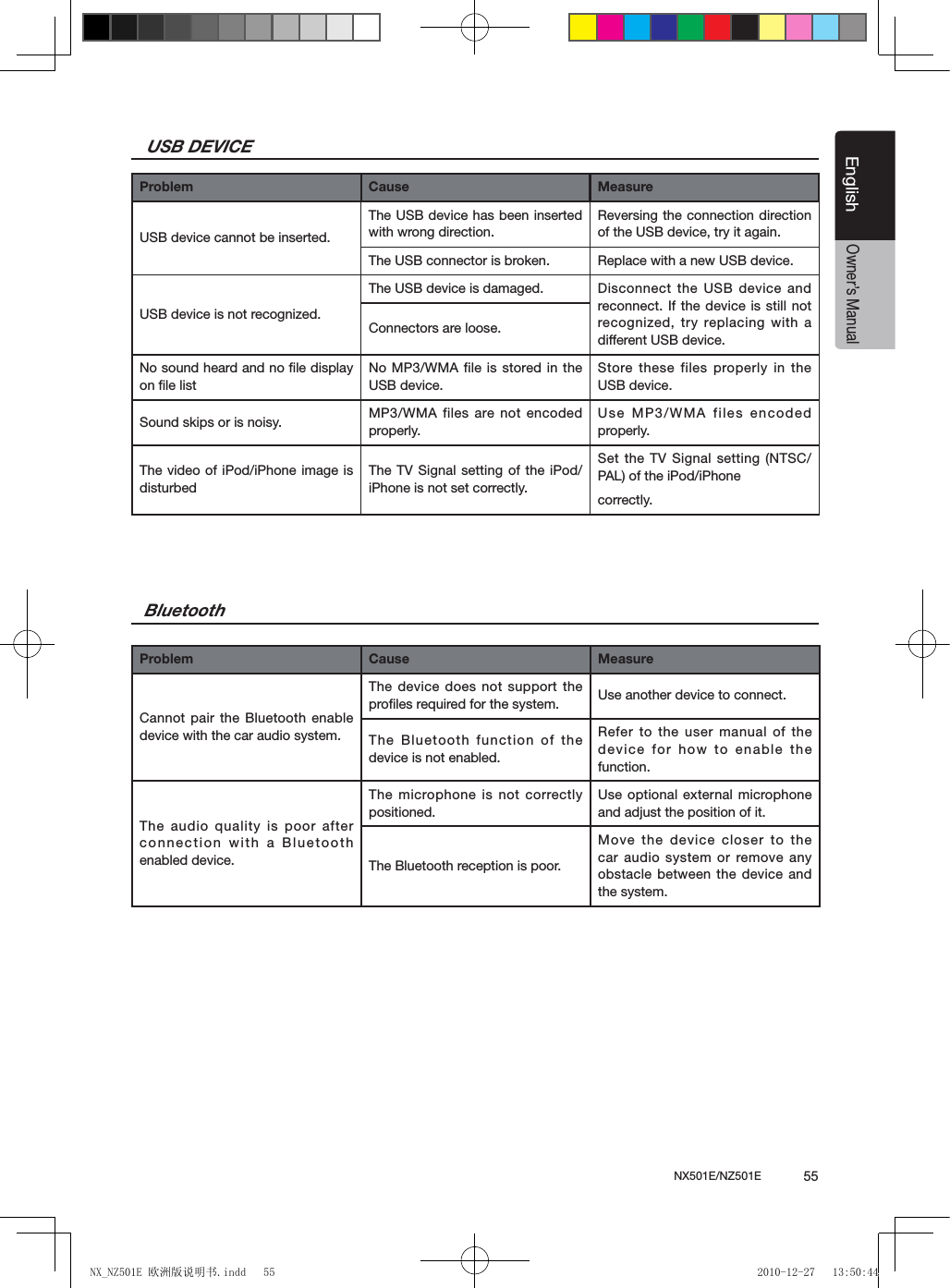

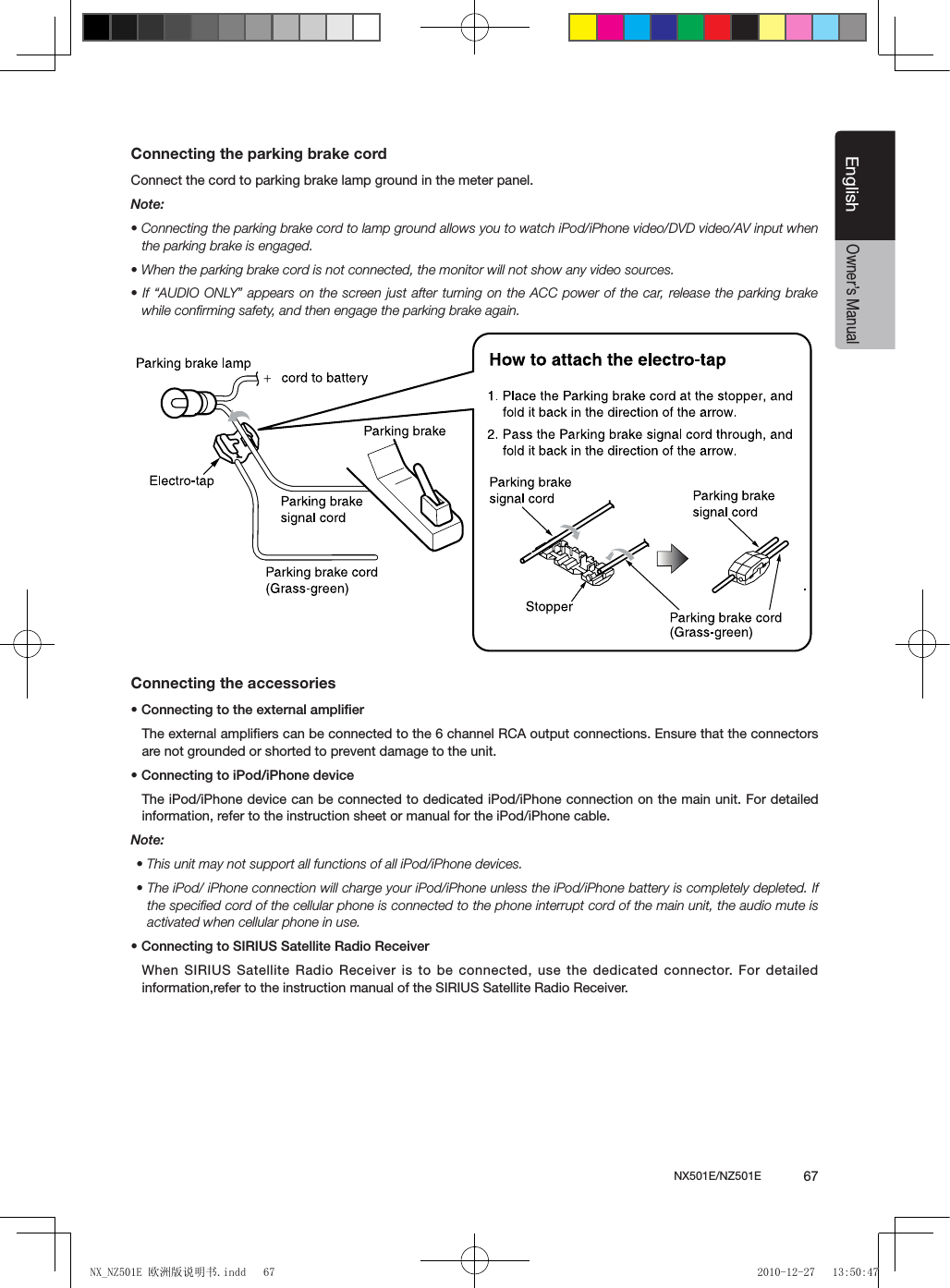

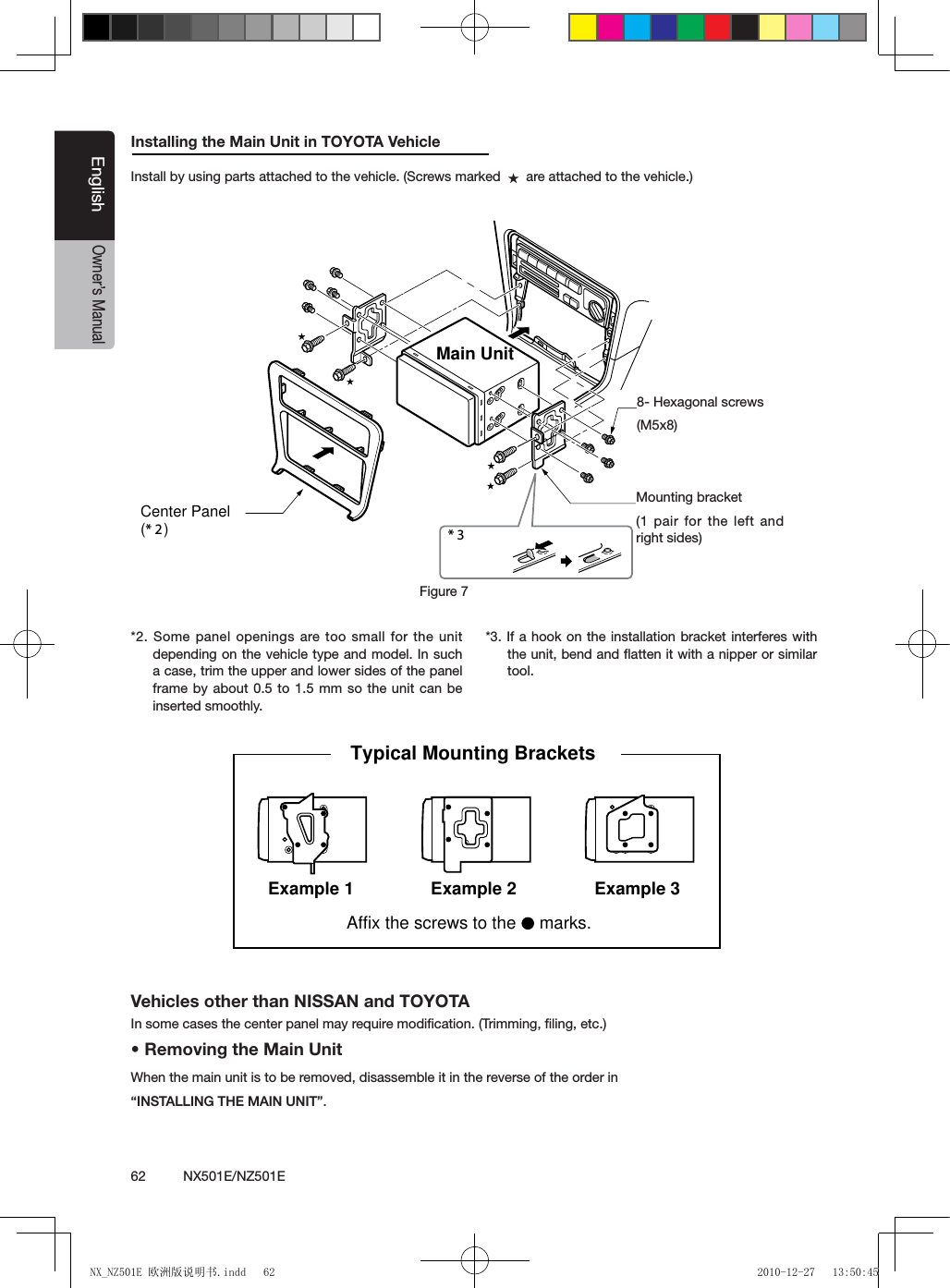

![52 NX501E/NZ501EEnglishOwner’s ManualHigh Pass Filter: Choose the high pass filter through/55Hz/85Hz/120Hz.Low Pass Filter: Choose the low pass filter through/62Hz/95Hz/135Hz.Amp Cancel: Choose the amplifier audio output on or off.Magna Bass EX: Choose the loudness on or off.Navigation Setup Menu This menu includes: GPS Time, Navi Interrupt, and Voice GuidanceGPS Time: Set the system time to be synchronized with GPS local time or not.Navi Interrupt: There are three choose: On/Popup/Off. “On”: The navigation screen will cover to AV screen when reaching some key point. “Popup”: When small turn info window will pop up in the top of the AV screen to indicate the key point. “Off”: Turn off this function.Voice Guidance: Enable or disable the navigation voice guidance.Others Setup Menu This menu include: Set Password; Parental control, Audio Language,Subtitle Language,Blinking, TS Calibrate, and Load Factory.Set password: Set the password for DVD parental control.Parental control: Set the rating of the age. It contains Kid Safe/G/PG/PG- 13/PG-R/R/NC- 17/Adult.Audio Language:Set the Language for DVD Audio.Subtitle Language:Set the Language for DVD subtitle. Blinking: Choose the blinking ON or OFF.TS Calibrate: The function of it is to select the Touch Screen Calibrate YES or NO.Load Factory: The function is to select to load factory default or not.Set the Anti-Theft code1. If your unit is unlocked, hold the [ ] button more then 2 seconds, then the Anti-Theft setting mode will display. Users can change anti-theft code. Click [Yes], the numerical keypad is displayed. Enter the new password twice, then anti-theft code is set and your unit is secured.When the Anti-theft is “On”, you need enter correct Anti-theft code to turn the unit on. If you enter wrong code three times, the unit is locked, and must be unlocked by the professionals.2. If your unit is secured, hold the [ ] more then 2 seconds, then the Anti-Theft setting mode will display. The numerical keypad is displayed, enter the right code to unlock.NX_NZ501E 欧洲版说明书.indd 52 2010-12-27 13:50:44](https://usermanual.wiki/SKYPINE-ELECTRONICS/CNE8121CL/User-Guide-1447228-Page-52.png)
