User Manual

DVD MULTIMEDIA STATION WITH BUILT-IN

NAVIGATION & 6.2” TOUCH PANEL CONTROL

NX404

Owner’s manual

ALL IN ONE DVD PLAYER

NX404

English

English Owner’s Manual

Contents

1. FEATURES ........................................................................................................... 3

Expanding Systems ..............................................................................................3

2. PRECAUTIONS .................................................................................................... 4

3. CAUTIONS ON HANDLING.................................................................................7

Operation Panel ....................................................................................................7

USB Port ...............................................................................................................7

Cleaning ................................................................................................................7

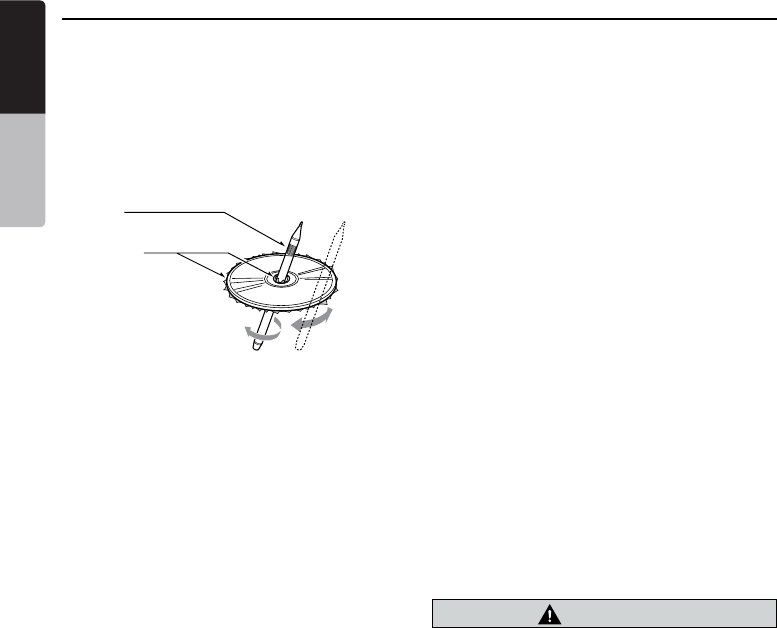

Handling Discs ......................................................................................................8

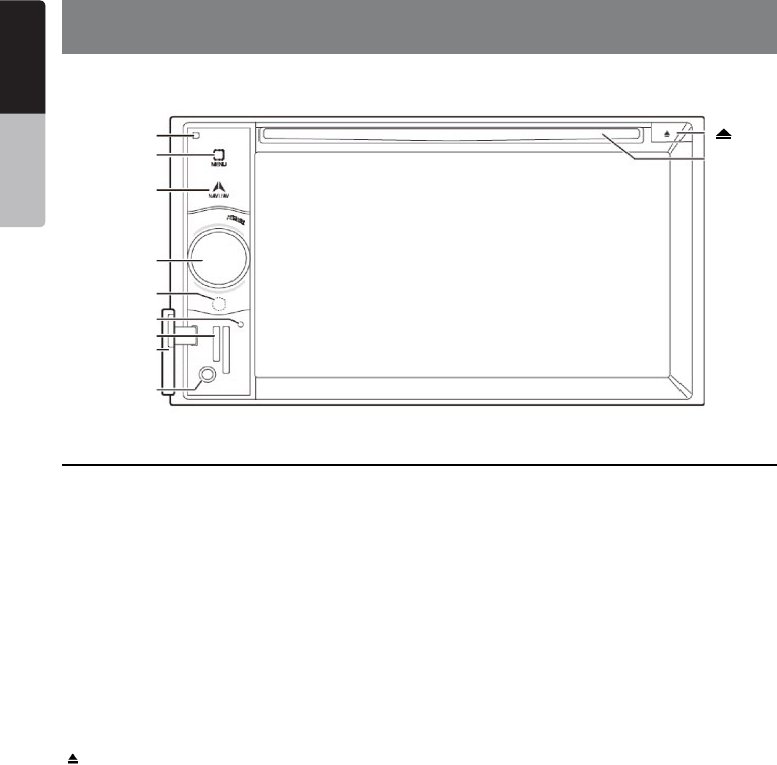

4.Operational Panel ..............................................................................................10

Functions of Buttons ...........................................................................................10

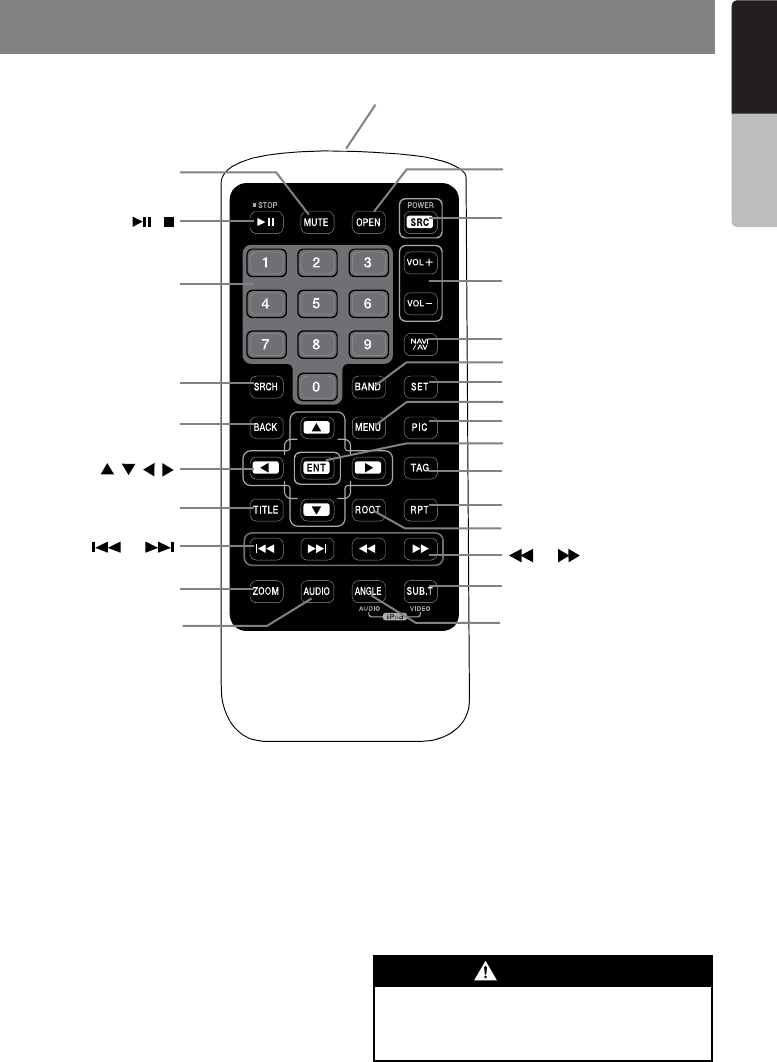

5. REMOTE CONTROL..........................................................................................11

Functions of Remote Control Buttons ................................................................12

6. MAIN MENU.......................................................................................................14

7. DVD Video Player Operations .........................................................................15

Discs ...................................................................................................................15

Change DVD System Settings ............................................................................16

Watching to a disc ..............................................................................................16

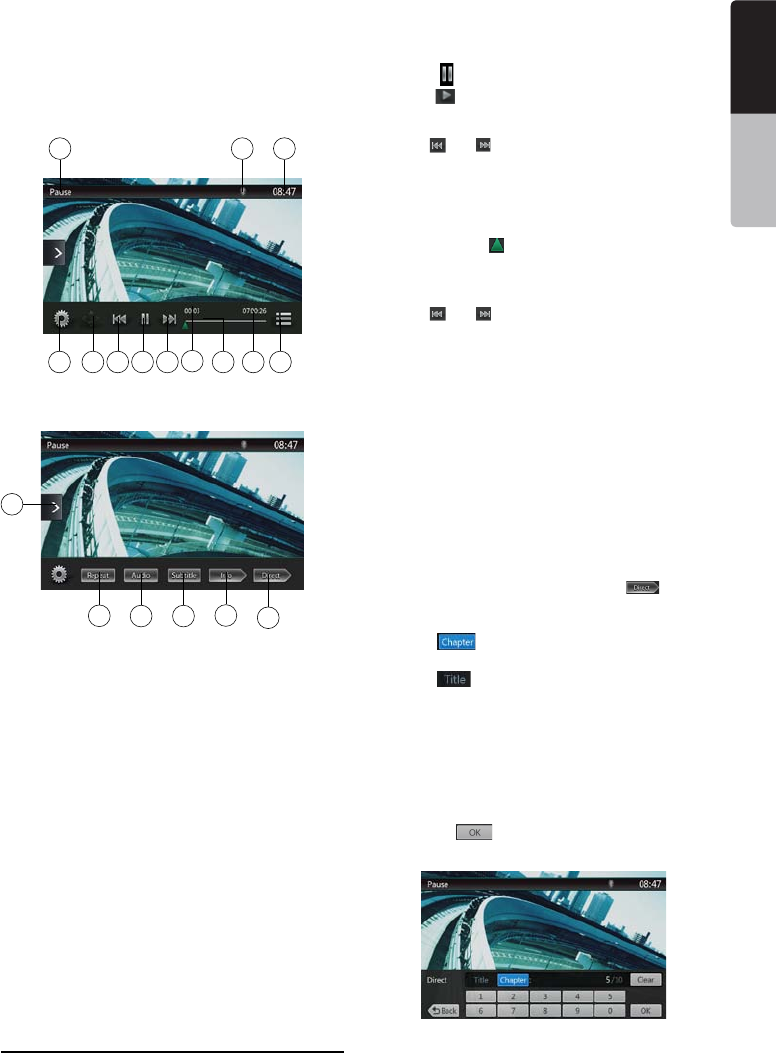

Operate the DVD Player menu ............................................................................ 17

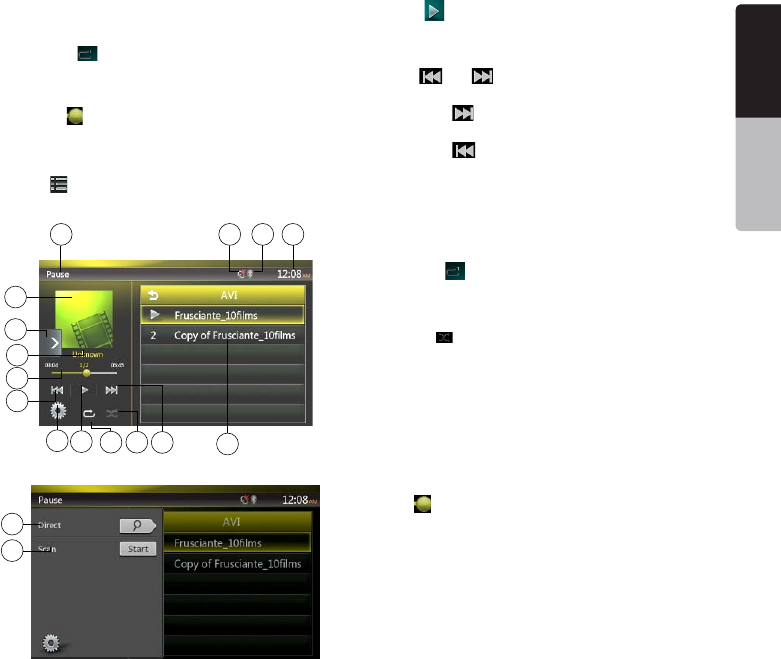

Operate the Video ﬁles Player menu...................................................................19

Switching Subtitles .............................................................................................19

Video ﬁles list ......................................................................................................19

Play DivX Video-On-Demand ﬁle ............................................................................ 19

Playable disc video ﬁles ...................................................................................... 20

8. CD ......................................................................................................................21

Listening to a disc/Ejecting a disc ......................................................................21

Showing CD Player mode screen .......................................................................21

Operate the CD Player menu ..............................................................................21

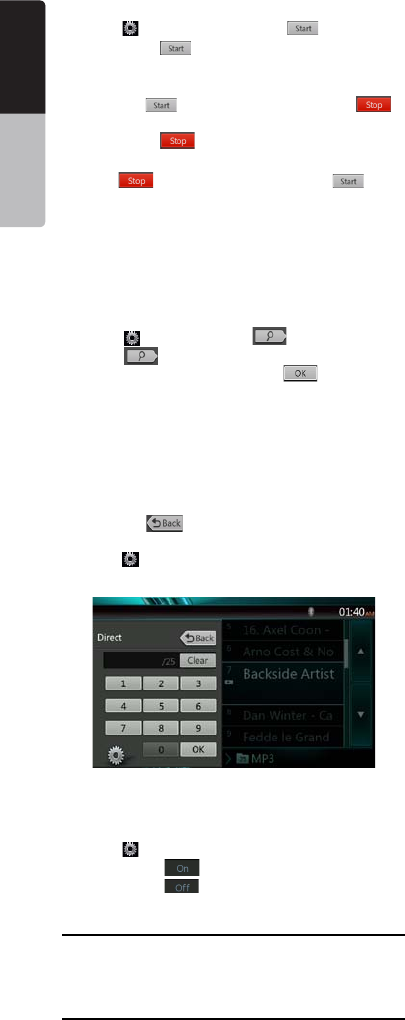

Listening to compressed audio ..........................................................................22

Tag display function ............................................................................................22

9. USB Audio Operations ....................................................................................24

Notes on using USB memories ...........................................................................24

Select USB Audio mode .....................................................................................24

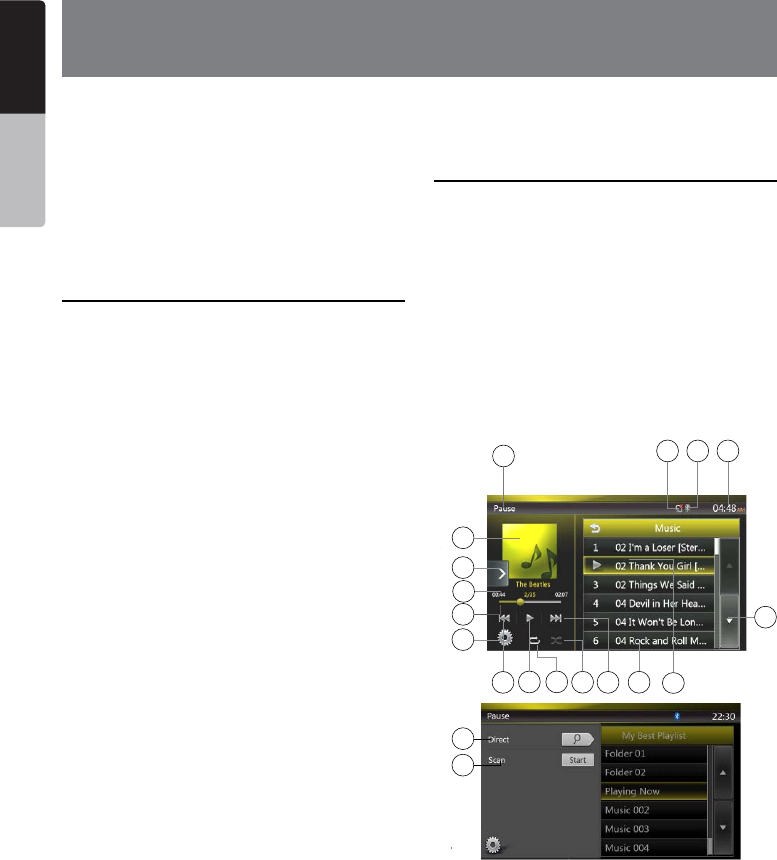

Playing Audio ﬁles in USB memory ....................................................................25

Notes on using USB memories ...........................................................................26

Select USB Video mode .....................................................................................26

Playing video ﬁles in USB memory .....................................................................26

Playable Video ﬁle ............................................................................................... 26

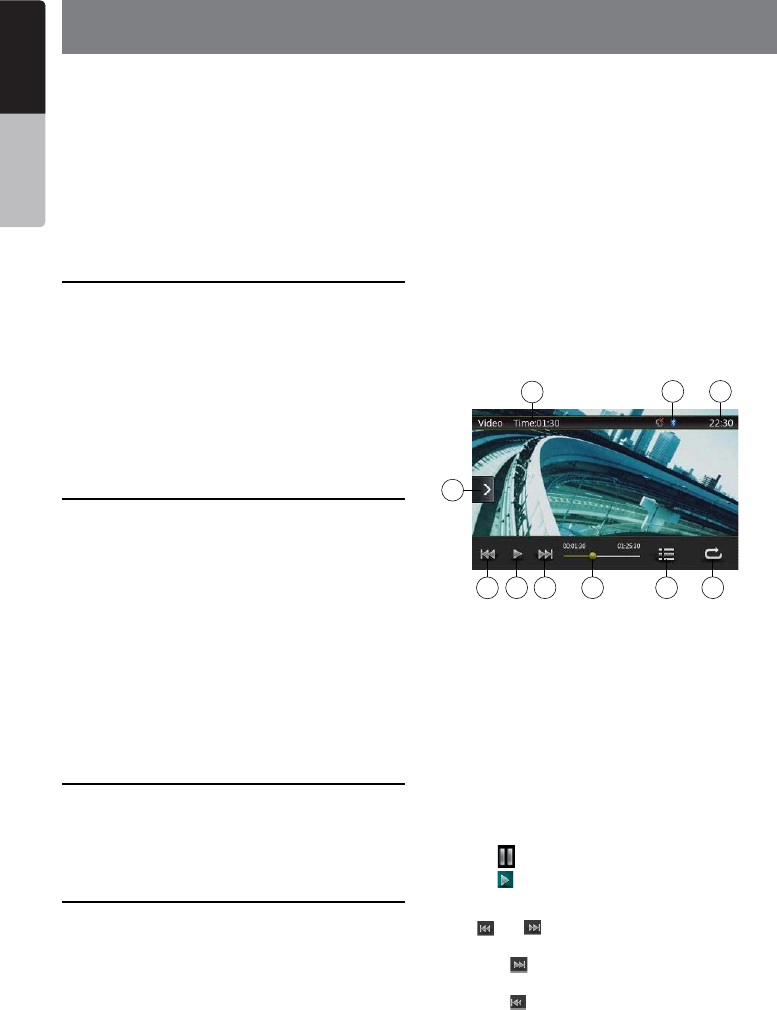

10. USB Video Operations .................................................................................... 26

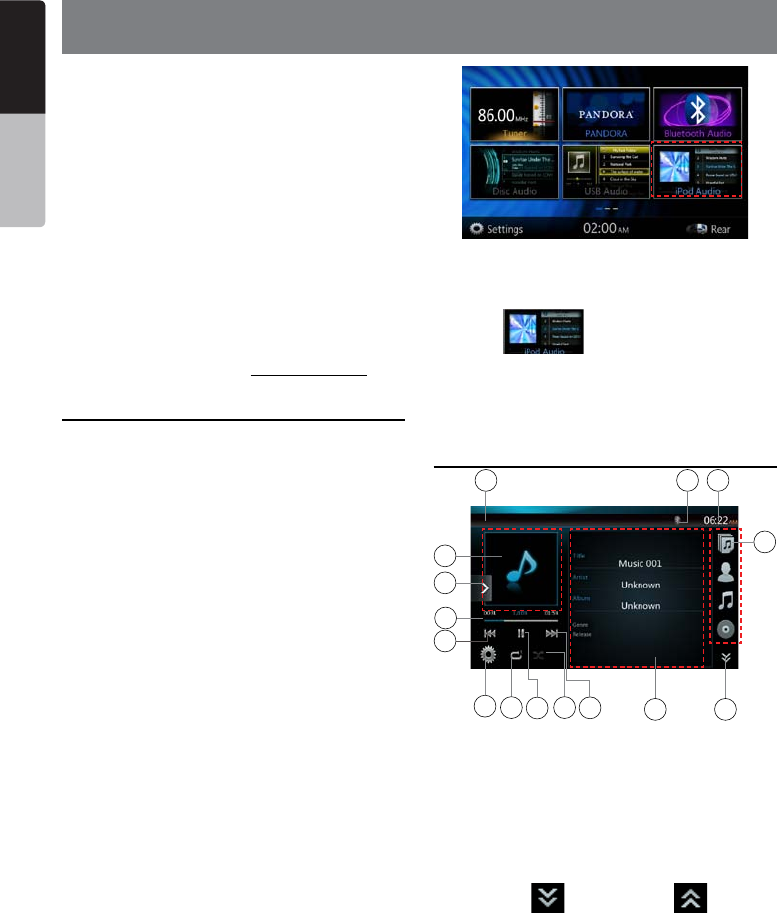

11. iPod/iPhone Operations .................................................................................28

Notes on using Apple iPod/iPhone ..................................................................... 28

iPod Audio ID3 Info .............................................................................................28

iPod audio playlist mode screen ......................................................................... 29

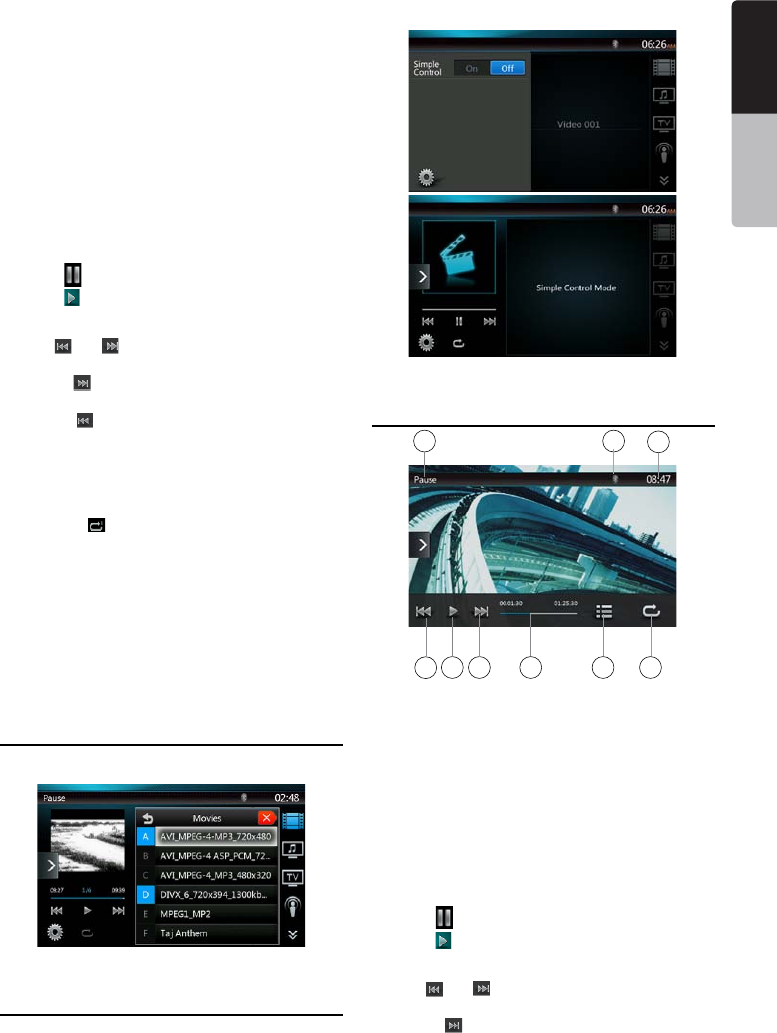

iPod Video Menu Operations .............................................................................. 30

iPod Video ID3 mode screen ..............................................................................30

iPod Video List mode screen ..............................................................................31

iPod Video Simple Control Mode Screen ...........................................................31

iPod Video play mode screen .............................................................................31

iPod Audio Bluetooth mode ................................................................................32

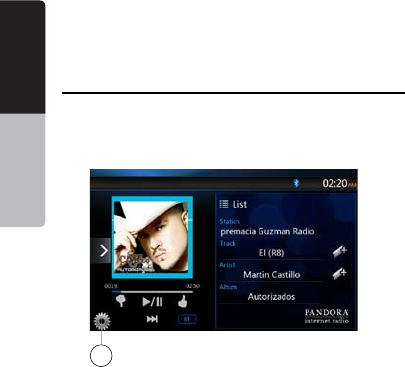

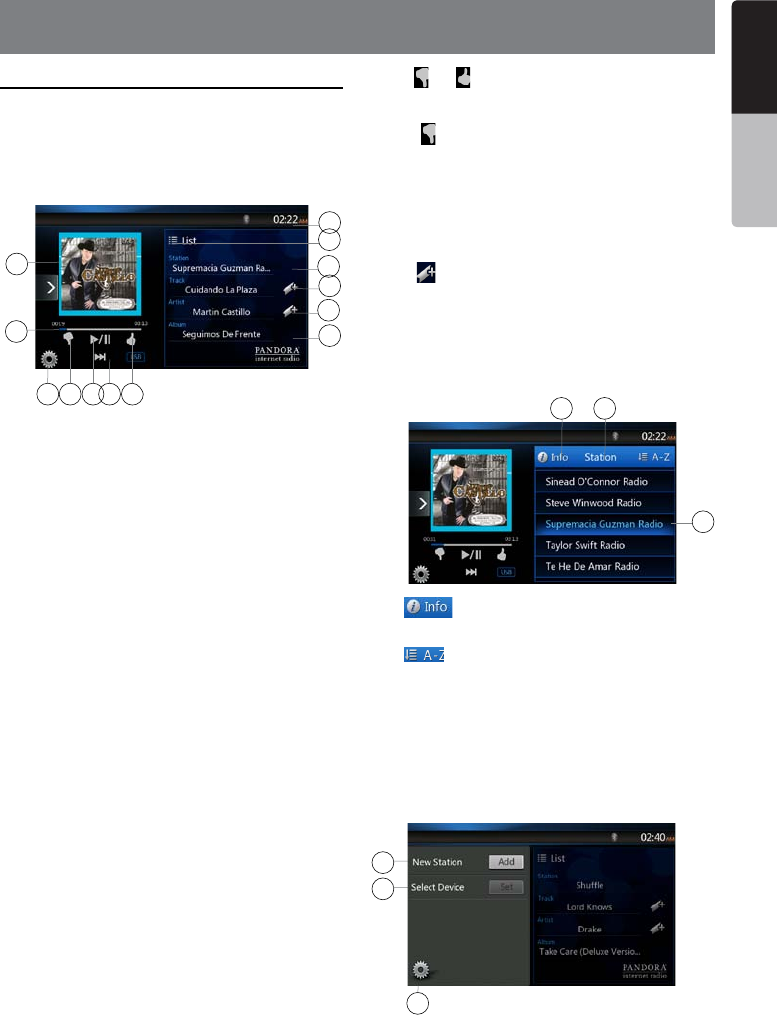

12. PANDORA OPERATIONS ...............................................................................33

Selecting the Pandora mode ..............................................................................33

Pandora Bluetooth mode .................................................................................... 34

13. Bluetooth AUDIO PLAYER OPERATIONS .....................................................35

Selecting the Bluetooth Audio mode ..................................................................35

2NX404

English

English Owner’s Manual

Bluetooth audio player settings ..........................................................................35

Registering your Bluetooth audio player (Pairing)...............................................35

Selecting the Bluetooth audio player .................................................................. 36

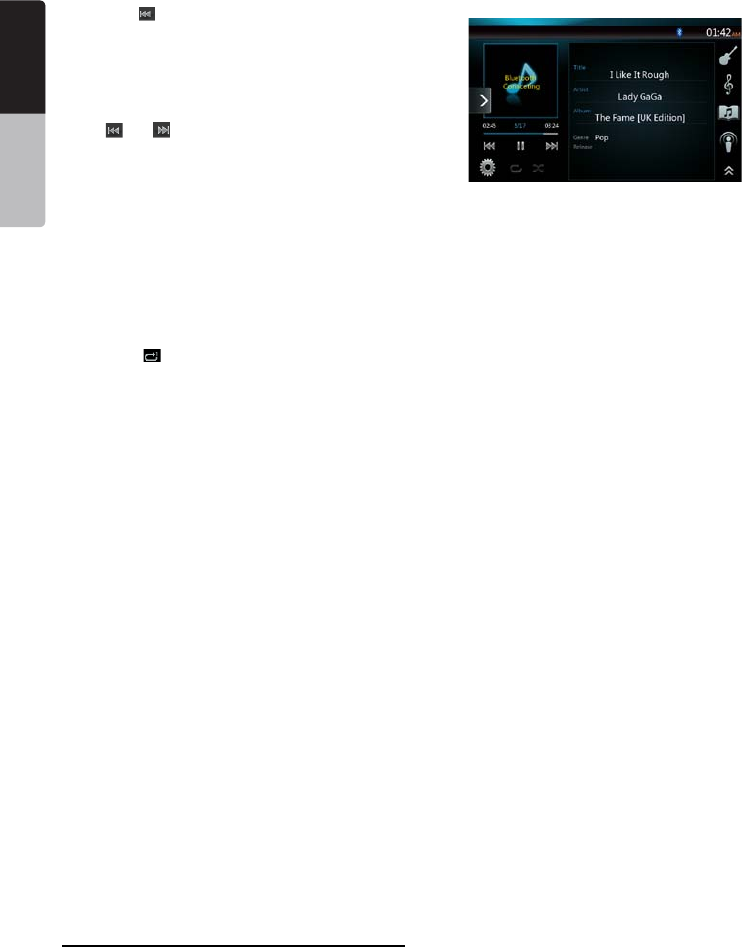

Controlling the Bluetooth audio player ...............................................................36

14. Bluetooth

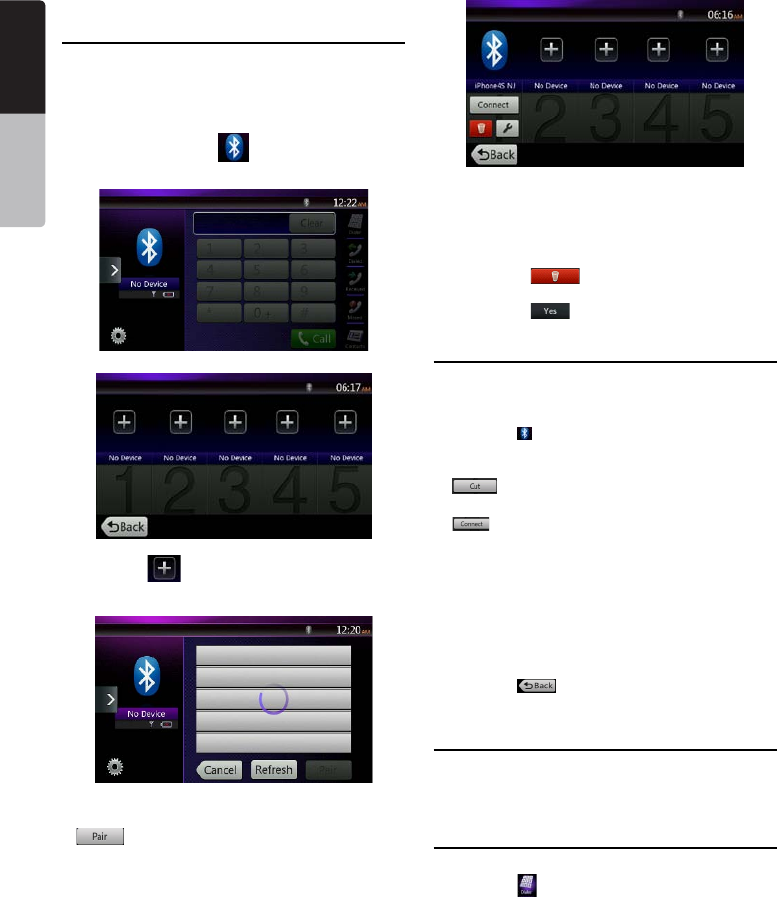

TELEPHONE OPERATIONS ............................................................37

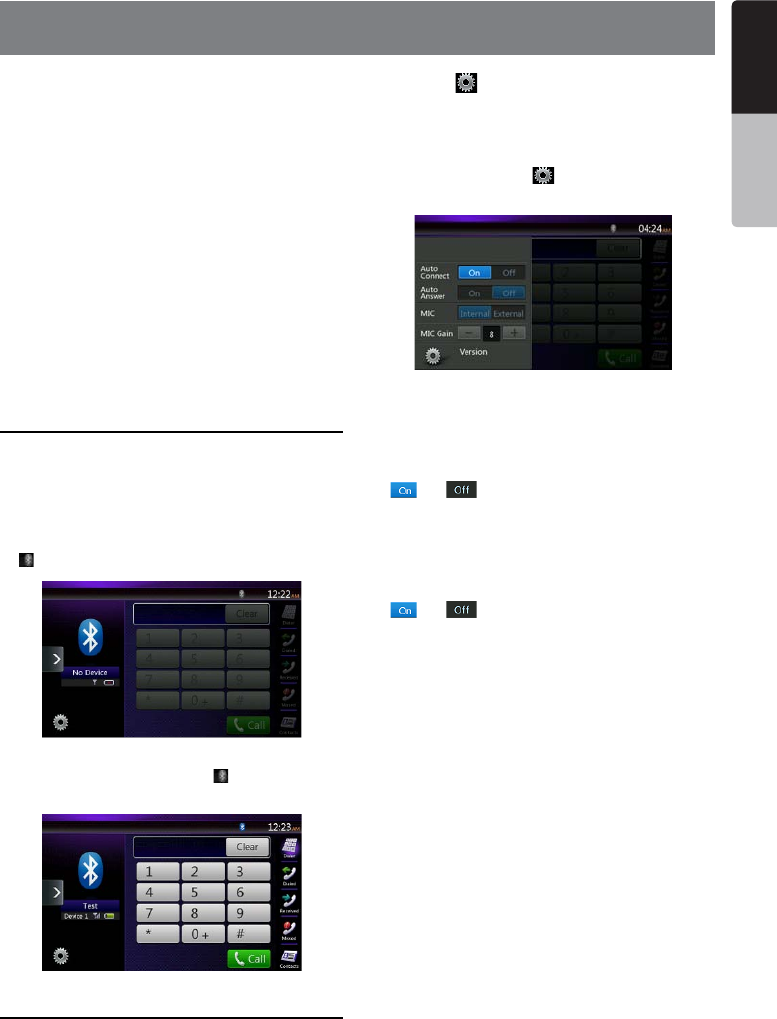

Select the BT Phone mode .................................................................................37

Bluetooth Telephone settings .............................................................................37

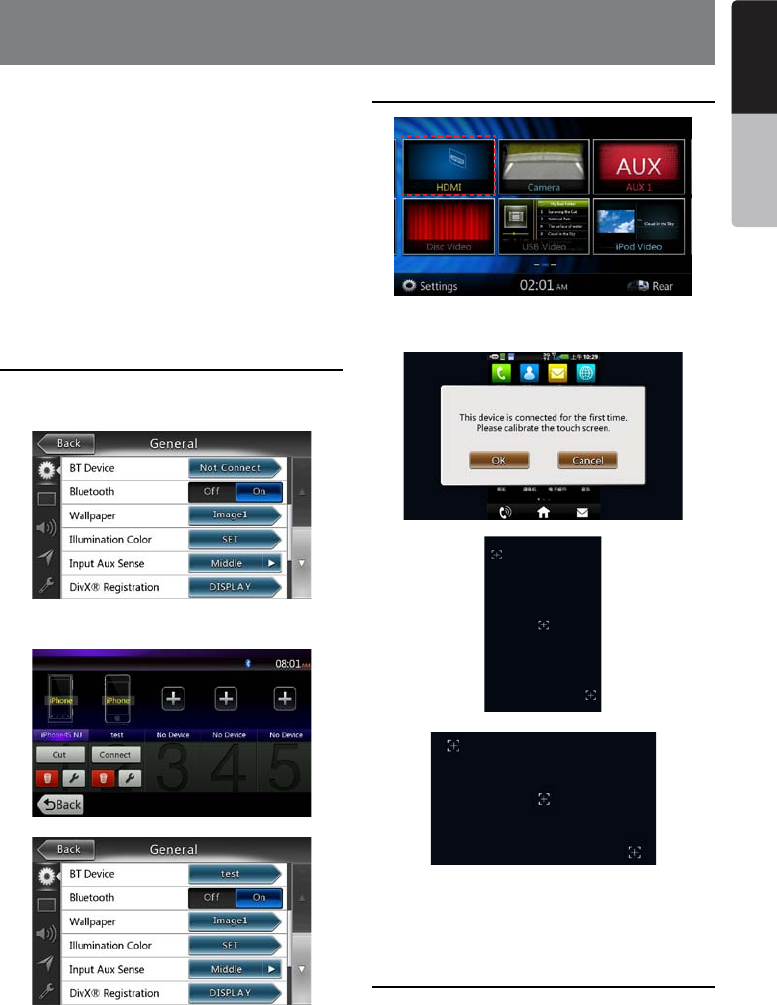

Registering your cellular phone (Pairing) ............................................................38

Select the cellular phone ....................................................................................38

Obtaining the Phone Book data .........................................................................38

Telephone operations .........................................................................................38

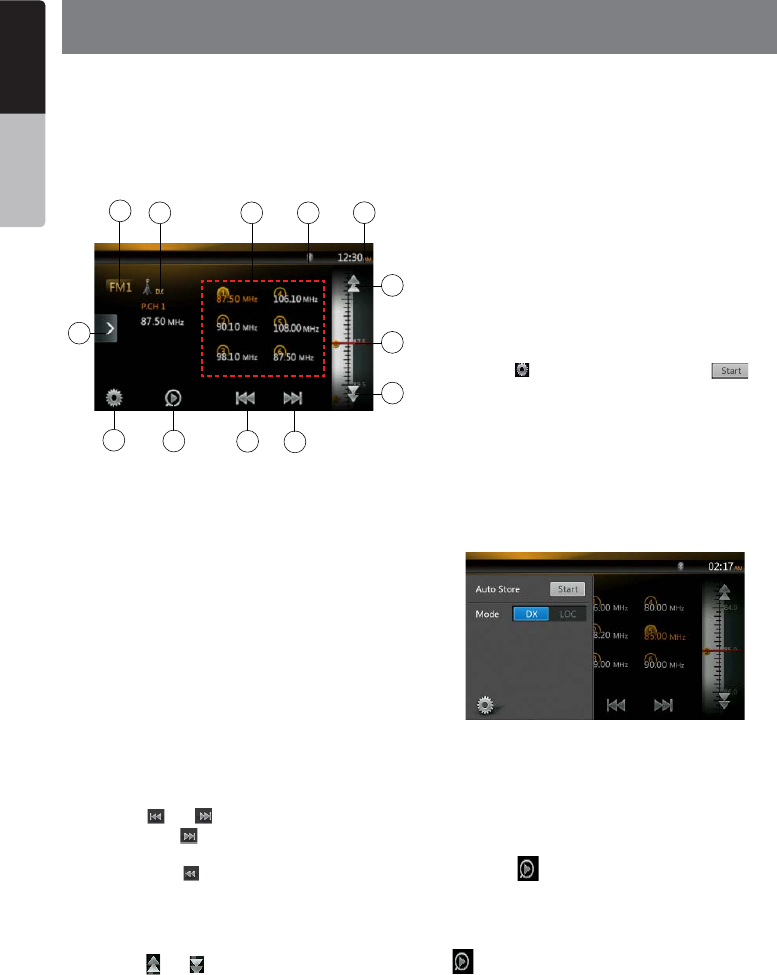

15. Tuner Operations ............................................................................................40

16. HDMI Operation ..............................................................................................41

Select a device for HDMI connect ......................................................................41

Select HDMI source ...........................................................................................41

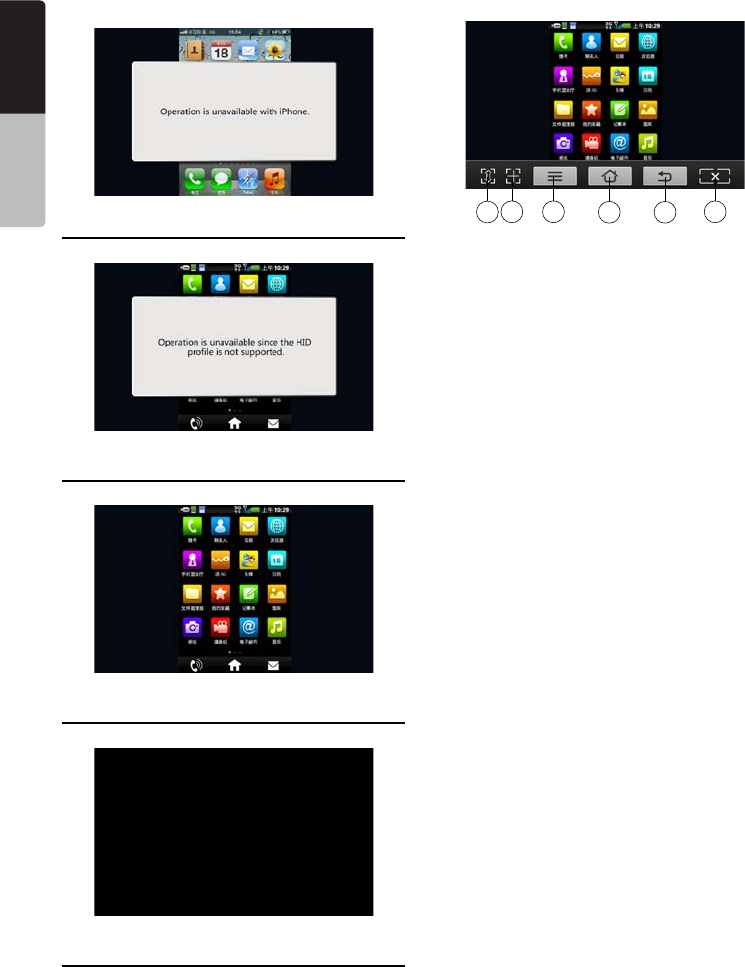

HDMI for iPhone .................................................................................................41

HDMI for Android(No HID proﬁle) .......................................................................42

HDMI for Android(HID proﬁle) .............................................................................42

Other or Any device is not connected ................................................................42

HDMI Mode .........................................................................................................42

17. AUX .................................................................................................................43

18. Camera In Operations ....................................................................................43

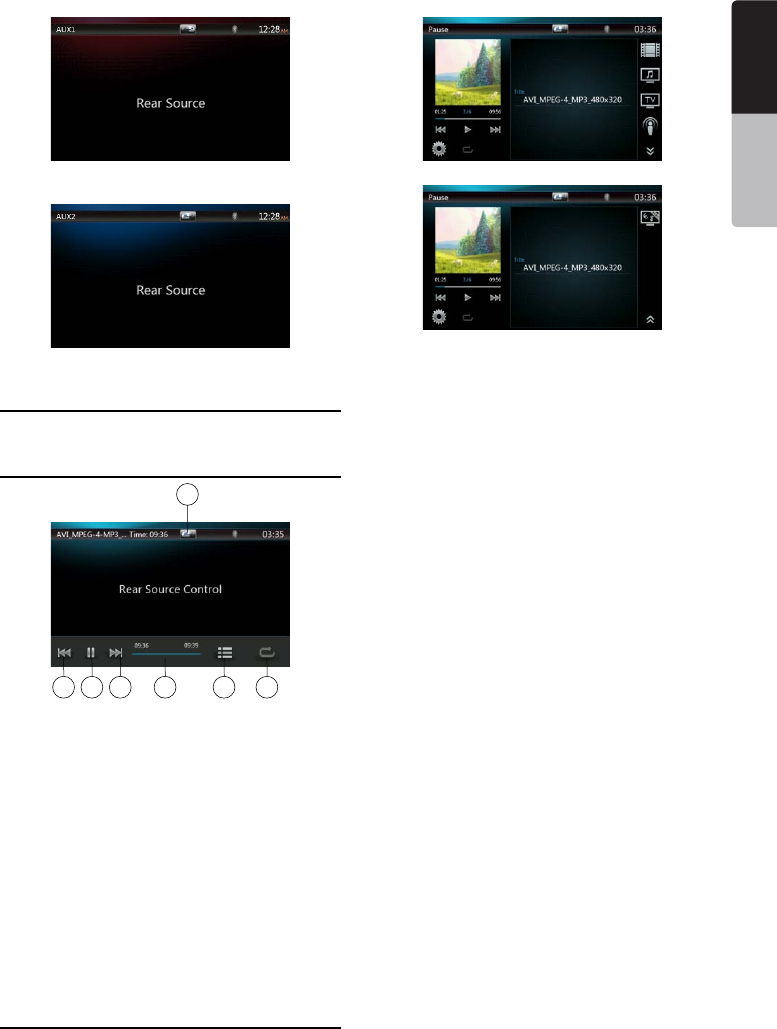

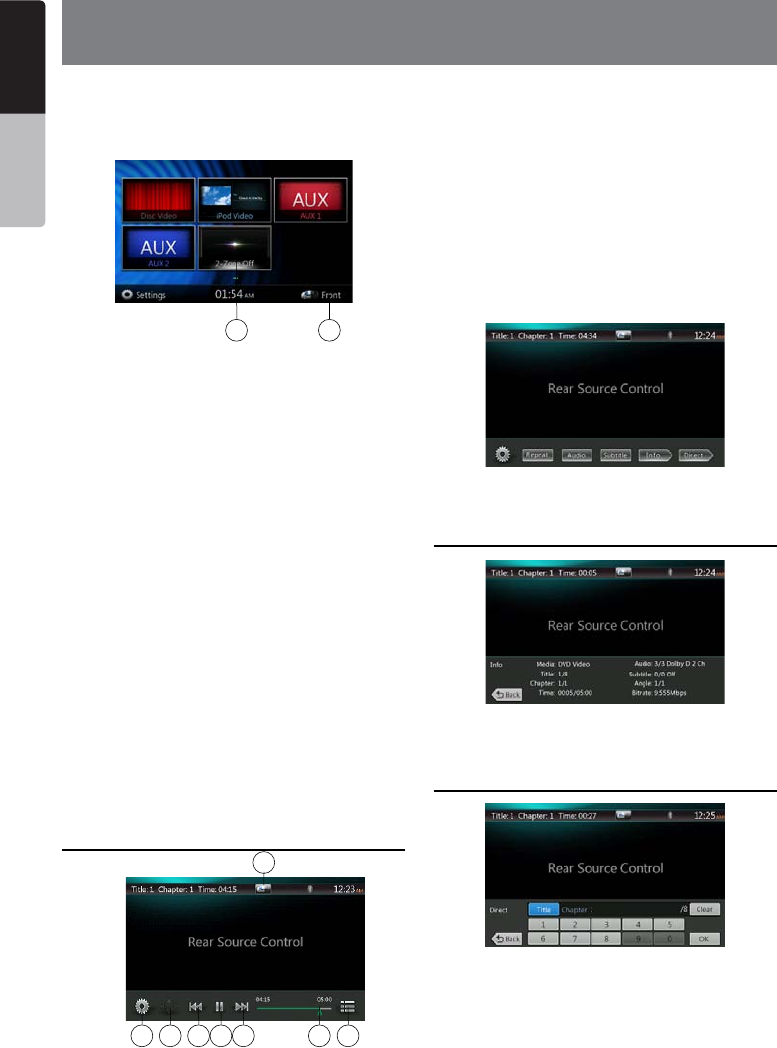

19. Rear Source Operation...................................................................................44

DVD Video in Rear ..............................................................................................44

DVD Video Rear Source Control Info mode. ......................................................44

DVD Video Rear Source Control Direct mode. ..................................................44

iPod Video in Rear ..............................................................................................45

iPod Video Rear Source Control Play Mode ....................................................... 45

iPod Video Rear Source ID3 Mode .....................................................................45

20. Setting Operation ............................................................................................ 46

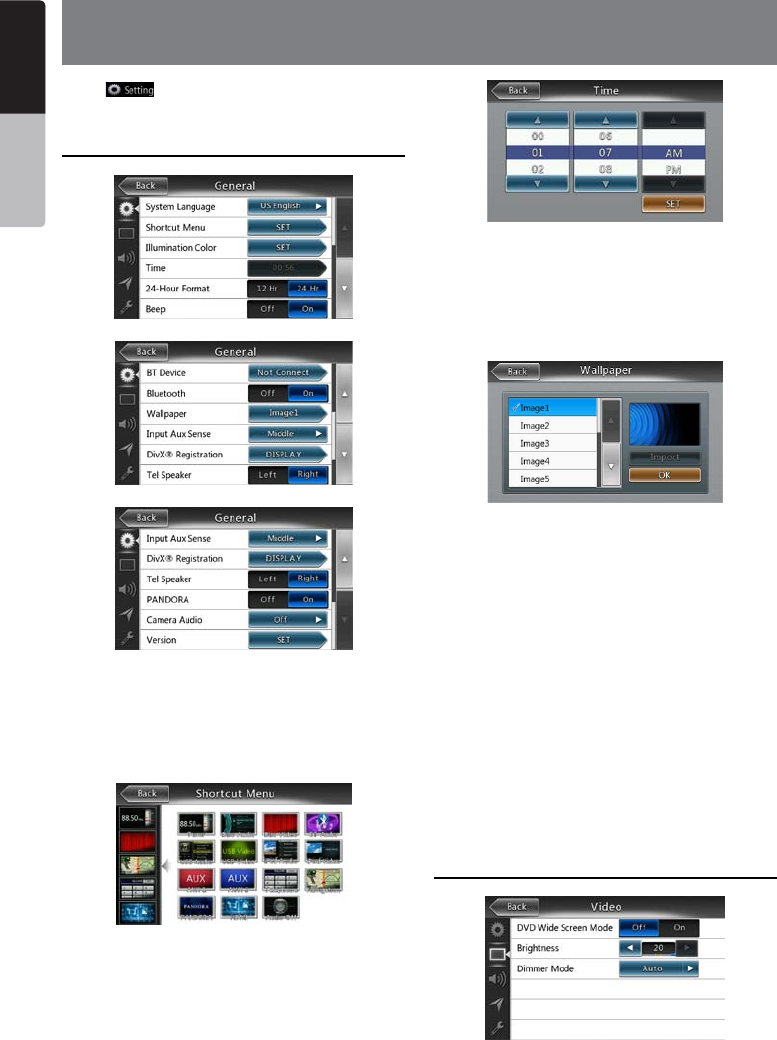

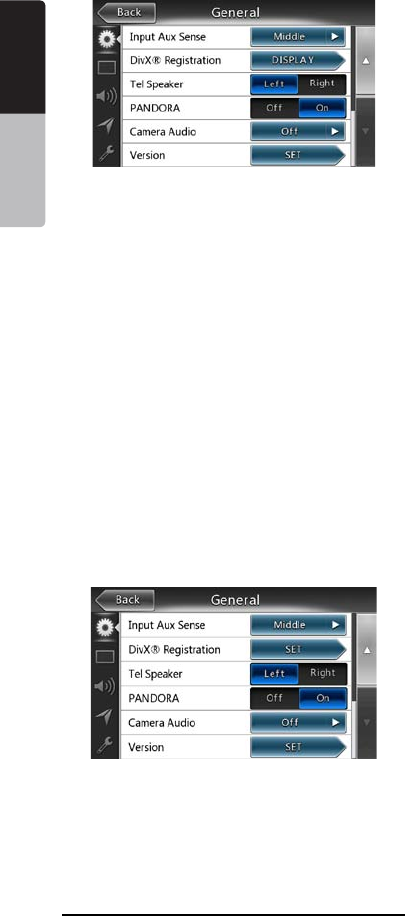

General Setup Menu ...........................................................................................46

Video Setup Menu ..............................................................................................46

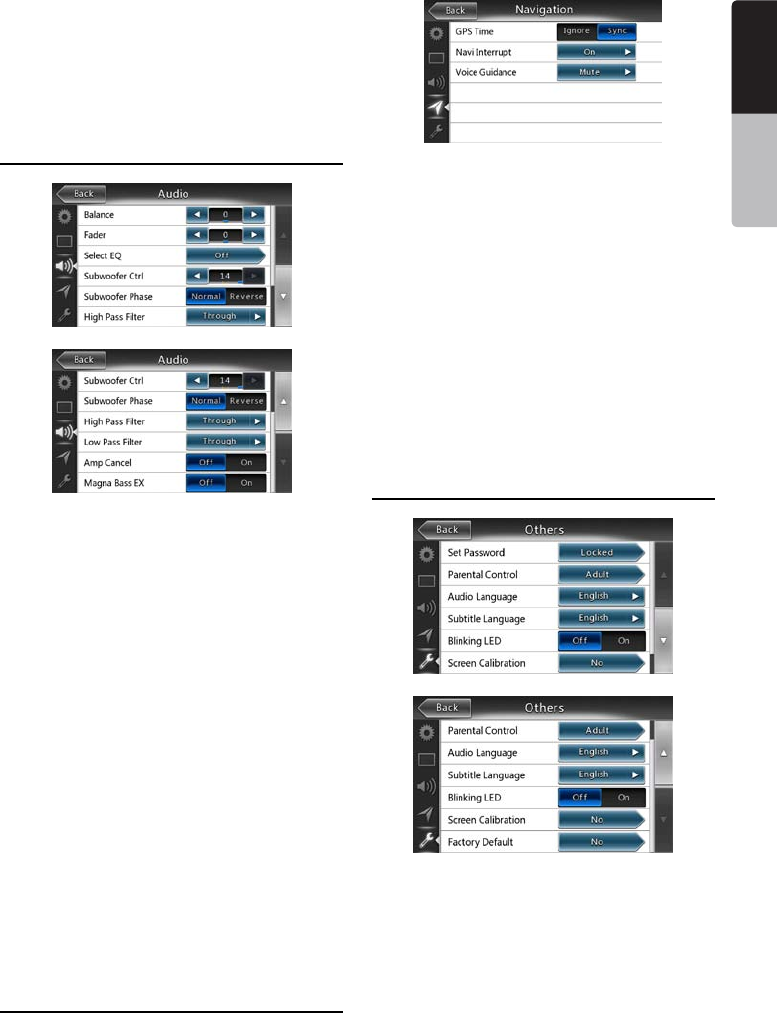

Audio Setup Menu ..............................................................................................47

Navigation Setup Menu ......................................................................................47

Others Setup Menu ............................................................................................. 47

Set the Anti-Theft code ....................................................................................... 48

21. TROUBLESHOOTING .....................................................................................49

GENERAL ............................................................................................................49

DVD PLAYER ......................................................................................................49

USB DEVICE .......................................................................................................50

Bluetooth ............................................................................................................50

TFT screen ..........................................................................................................51

22. ERROR DISPLAY.............................................................................................52

DVD PLAYER ......................................................................................................52

23. SPECIFICATIONS ............................................................................................ 53

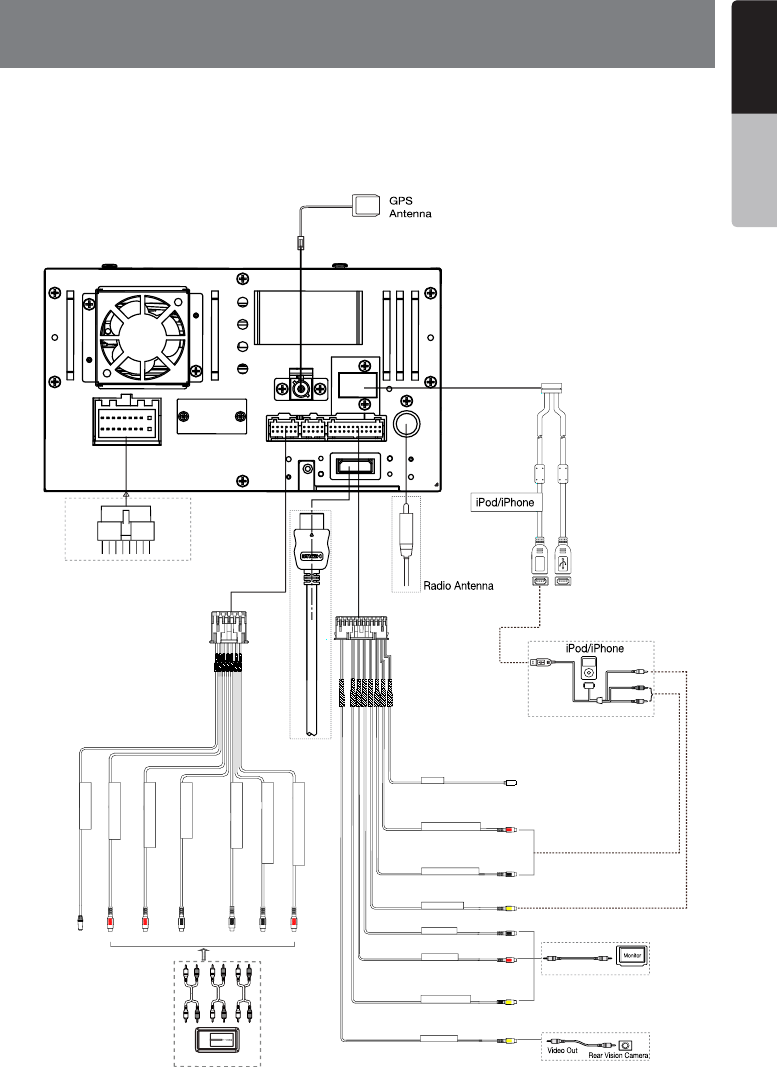

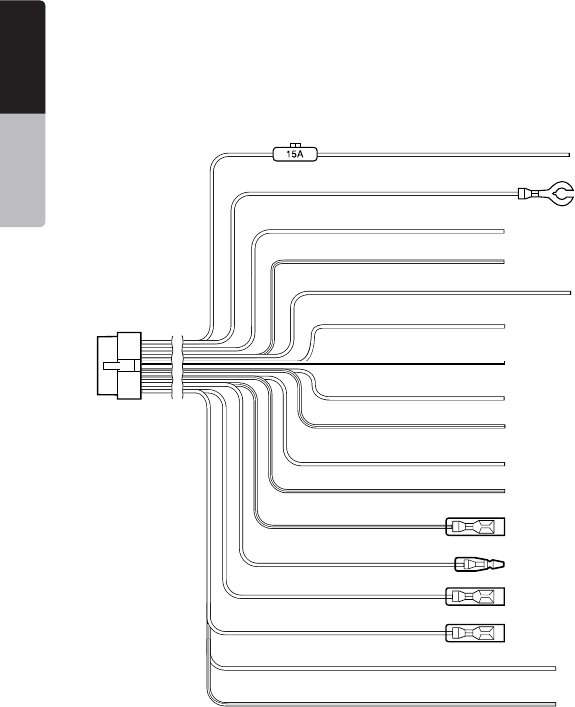

24. WIRE CONNECTION GUIDE ...........................................................................55

NX404

English

English Owner’s Manual

1. FEATURES

Expanding Systems

NOTE:

The items listed outside the frames are the commercial products generally sold.

flac Compatible with ID3-TAG Display

Built-in Parrot Bluetooth

Handsfree (HFP) and Audio Streaming (A2DP &

AVRCP)

Front-Panel Auxiliary Input and 2ch RCA Output with Subwoofer Control

iPod

Expanding visual features

Rear monitor Rear Vision Camera

Expanding audio features

External Power

Amplier

iPhone

USB

Memory

Bluetooth

Telephone

4NX404

English

English Owner’s Manual

2. PRECAUTIONS

• Foryoursafety,thedrivershouldnotwatchanyvideosourcesand/oroperatethecontrolswhiledriving.

Please note that watching and operating any video sources while driving are prohibited by law in some

countries.Also,whiledriving,keepthevolumetoalevelatwhichexternalsoundscanbeheard.

•Donotdisassembleormodifythisunit.Itmaycauseanaccident,re,orelectricshock.

•Donotusethisunitwhenatroubleexists,suchasnoscreencontentappearsornosoundis

audible.Itmaycauseanaccident,re,orelectricshock.Forthatcase,consultyourauthorized

dealer or a nearest Clarion service center.

•Incaseofaproblem,suchasanymaterialhasbeenenteredintheunit,theunitgetswet,or

smokeorstrangesmellscomeoutoftheunit,etc.,stopusingthisunitimmediately,andconsult

yourauthorizeddealeroranearestClarionservicecenter.

Usingitinthatconditionmaycauseanaccident,re,orelectricshock.

•Useafusewiththesamespecicationonlywhenreplacingthefuse.

Using a fuse with a different speciﬁcation may causes a ﬁre.

•Fortheinstallationofthisunitorachangeintheinstallation,askyourauthorizeddealerora

nearest Clarion service center for safety. Professional skills and experiences are required to do

so.

•Whenusingthenavigationsystem,followtheprecautionslistedbelow.Afterreadingthismanual,

be sure to keep it in a handy place.

•Thisnavigationsystemshouldnotbeusedtoreplaceyourownjudgment.Noitinerarysuggested

bythisnavigationsystemshouldeveroverrideanyhighwayregulations,yourownjudgment,ora

knowledge of safe driving practices. Do not follow the navigation system’s suggested itinerary if it

wouldcauseyoutoperformadangerousorillegalact,placeyouinadangeroussituation,ortake

you into an area you consider unsafe.

•Theadviceprovidedbythenavigationsystemistoberegardedasasuggestiononly.Theremay

betimeswhenthenavigationsystemdisplaysthevehicle’slocationincorrectly,failstosuggest

theshortestroute,orfailstodirectyoutoyourdesireddestination.Insuchinstances,relyonyour

owndrivingjudgment,takingintoaccountthedrivingconditionsatthetime.

•Donotusethenavigationsystemtolocateemergencyservices.Thedatabasedoesnotcontain

acompletelistingofemergencyservicessuchaspolicestations,rehalls,hospitalsandwalk-in

clinics. Please show discretion and ask for directions in such instances.

•Asthedriver,youaloneareresponsibleforyourdrivingsafety.

•Inordertoavoidatrafcaccident,donotoperatethesystemwhiledriving.

•Inordertoavoidatrafcaccident,operatethesystemonlywhenthevehicleisstoppedatasafe

place and the parking brake is on.

•Inordertoavoidatrafcaccidentortrafcoffense,rememberthatactualroadconditionsand

trafﬁc regulations take precedence over the information contained on the navigation system.

•Thesoftwaremaycontaininaccurateorincompleteinformationduetothepassageoftime,

changingcircumstances,andthesourcesofinformationused.Pleaserespectcurrenttrafc

conditions and regulations at all times while driving.

•Whereactualroadconditionsandhighwayregulationsdifferfromtheinformationcontainedon

thenavigationsystem,abidebythehighwayregulations.

•Keeptheamountoftimespentviewingthescreenwhiledrivingtoastrictminimum.

WARNING

NX404

English

English Owner’s Manual

•Thenavigationsystemdoesnotprovide,norrepresentinanywayinformationon:trafcand

highwayregulations;technicalaspectsofthevehicleincludingweight,height,width,loadand

speedlimits;roadconditionsincludinggrade,percentageofinclineandsurfaceconditions;

obstacles such as the height and width of bridges and tunnels; and other current driving or road

conditions.Alwaysrelyonyourownjudgmentwhendrivingacar,takingintoaccountcurrent

driving conditions.

6NX404

English

English Owner’s Manual

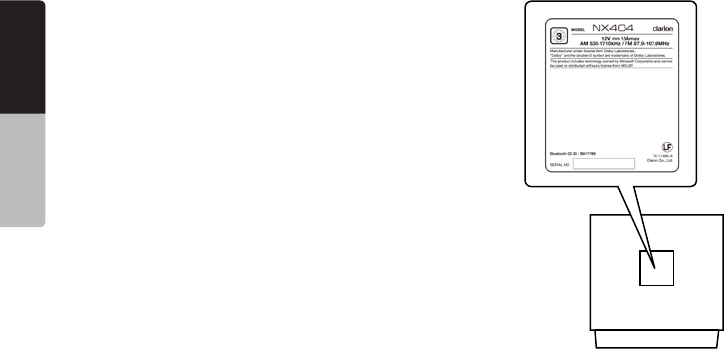

1.When the inside of the car is very cold and

the player is used soon after switching on the

heater, moisture may form on the disc (DVD/

CD) or the optical parts of the player and

proper playback may not be possible. If

moisture forms on the disc (DVD/CD), wipe it

o with a soft cloth. If moisture forms on the

optical parts of the player, do not use the

player for about one hour. The condensation

will disappear naturally allowing normal

operation.

2.Driving on extremely bumpy roads which

cause severe vibration may cause the sound

to skip.

3.This unit uses a precision mechanism. Even

in the event that trouble arises, never open

the case, disassemble the unit, or lubricate

the rotating parts.

NX404

English

English Owner’s Manual

3. CAUTIONS ON HANDLING

Operation Panel

•Theoperationpanelwilloperateproperlyina

temperature range of 0˚ to 60˚ C.

•Donotallowanyliquidsonthesetfrom

drinks,umbrellasetc.Doingsomaydamage

the internal circuitry.

•Donotdisassembleormodifythesetinany

way. Doing so may result in damage.

•Subjectingtheoperationpaneltoshocks

mayresultinbreakage,deformationorother

damage.

•Donotletcigarettesburnthedisplay.

•Ifaproblemshouldoccur,havetheset

inspected at your store of purchase.

•Theremotecontrolunitmaynotworkifthe

remote control sensor is exposed to direct

sunlight.

*Remote control unit is sold separately.

•Inextremelycoldweather,thedisplay

movement may slow down and the display

maydarken,butthisisnotamalfunction.

The display will work normally when the

temperature increases.

•Smallblackandshinyspotsinsidetheliquid

crystal panel are normal for LCD products.

For a longer service life, be sure to read the following cautions.

Cleaning

• Cleaningthecabinet

 Useasoft,dryclothandgentlywipeoff

thedirt.Fortoughdirt,applysomeneutral

detergentdilutedinwatertoasoftcloth,wipe

offthedirtgently,thenwipeagainwithadry

cloth.

 Donotusebenzene,thinner,carcleaner,etc.,

as these substances may damage the cabinet

orcausethepainttopeel.Also,leavingrubber

or plastic products in contact with the cabinet

for long periods of time may cause stains.

• Cleaningtheliquidcrystalpanel

 Theliquidcrystalpaneltendstocollectdust,

so wipe it off occasionally with a soft cloth.

Thesurfaceiseasilyscratched,sodonotrub

it with hard objects.

USB Port

•TheUSBmemorystickmaystickoutwhen

inserted,soitmaycausedangerduring

driving.Insuchcases,youcanusea

commercialUSBextensioncable,etc.,but

use it safely under your own judgement.

•TheUSBmemorysticksmustberecognized

as “USB mass storage class” to work

properly. Some models may not operate

correctly.

When the memorized data is lost or

damaged by any chance, Clarion shall not

be liable for any damage.

 WhenusinganUSBmemorystick,we

recommend that you backup your data stored

on it before by using a personal computer etc.

•DatalesmaybebrokenwhenusingUSB

memorysticksinthefollowingsituation:

When disconnecting the USB memory stick or

turning the power off during writing or reading

data. When affected by static electricity or

electric noise. Connect/disconnect the USB

memory stick when it is not accessed.

•SomeUSBmemorystickscannotbeinserted

to the main unit because of their shape. In

suchcases,useacommercialUSBextension

cable to connect them.

•Connectingwiththecomputerisnotcovered.

•Musicles(MP3,WMA,etc.)storedinthe

USB memory stick can be played back.

8NX404

English

English Owner’s Manual

Handling Discs

Handling

•Newdiscsmayhavesomeroughness

aroundtheedges.Ifsuchdiscsareused,

the player may not work or the sound

may skip. Use a ball-point pen or the like

to remove any roughness from the edge

of the disc.

Ball-point pen

Roughness

Never stick labels on the surface of the

disc or mark the surface with a pencil or

pen.

•Neverplayadiscwithanycellophane

tape or other glue on it or with peeling off

marks.Ifyoutrytoplaysuchadisc,you

may not be able to get it back out of the

DVD player or it may damage the DVD

player.

•Donotusediscsthathavelarge

scratches,aremisshapen,cracked,

etc. Use of such discs may cause

missoperation or damage.

•Toremoveadiscfromitsstoragecase,

press down on the center of the case

andliftthediscout,holdingitcarefully

by the edges.

•Donotusecommerciallyavailabledisc

protection sheets or discs equipped with

stabilizers,etc.Thesemaydamagethe

disc or cause breakdown of the internal

mechanism.

Storage

•Donotexposediscstodirectsunlightor

any heat source.

•Donotexposediscstoexcesshumidity

or dust.

•Donotexposediscstodirectheatfrom

heaters.

Cleaning

•Toremovengermarksanddust,use

a soft cloth and wipe in a straight

line from the center of the disc to the

circumference.

•Donotuseanysolvents,suchas

commerciallyavailablecleaners,anti-

staticspray,orthinnertocleandiscs.

•Afterusingspecialdisccleaner,letthe

disc dry off well before playing it.

On Discs

•Exerciseagoodprecautionwhenloading

a disc. The operation panel will close

automatically when leaving it open for a

while.

•Neverturnoffthepowerandremovethe

unit from the car with a disc loaded.

CAUTION

For your safety, the driver should not

insert or eject a disc, opening the

operation panel while driving.

NX404

English

English Owner’s Manual

•

This product incorporates copyright protection

technology that is protected by U.S. patents

and other intellectual property rights. Use of this

byRoviCorporation,andisintendedforhomeand

other limited viewing uses only unless otherwise

authorizedbyRoviCorporation.

Reverse engineering or disassembly is prohibited.

Use of this product by the customer is restricted to

play program materials to which the Rovi copyright

protection process has been applied.

•

Manufactured under license from Dolby

Laboratories.“Dolby”,“ProLogic”andthedouble-D

symbol are trademarks of Dolby Laboratories.

•

"MadeforiPod,"and"MadeforiPhone"mean

that an electronic accessory has been designed to

connectspecicallytoiPod,oriPhone,respectively,

and has been certiﬁed by the developer to meet

Apple performance standards. Apple is not

responsible for the operation of this device or its

compliance with safety and regulatory standards.

Please note that the use of this accessory with iPod

or iPhone may affect wireless performance. iPhone

andiPodaretrademarksofAppleInc.,registeredin

the U.S. and other countries.

•

The Bluetooth® word mark and logos are owned

by the Bluetooth®SIG,Inc.Andanyuseofsuch

marksbyClarionCo.,Ltd.isunderlicense.Other

trademarks and trade names are those of their

respective owners.

• DivX®,DivXCertied® and associated logos

are trademarks of Rovi Corporation or its

subsidiaries and are used under license.

DivX Certiﬁed® to play DivX®video,including

premium content. Covered by one or more

ofthefollowingU.S.patents:7,295,673;

7,460,668;7,515,710;7,519,274

ABOUTDivXVIDEO:DivX® is a digital video

formatcreatedbyDivX,LLC,asubsidiaryof

Rovi Corporation.

This is an ofﬁcial DivX Certiﬁed® device that

has passed rigorous testing to verify that it

plays DivX video. Visit divx.com for more

information and software tools to convert your

ﬁles into DivX videos.

ABOUTDivXVIDEO-ON-DEMAND:ThisDivX

Certiﬁed® device must be registered in order

to play purchased DivX Video-on-Demand

(VOD) movies To obtain your registration

code,locatetheDivXVODsectioninyour

device setup menu. Go to vod.divx.com for

more information on how to complete your

registration.

About the registered marks, etc.

10 NX404

English

English Owner’s Manual

4.Operational Panel

Functions of Buttons

[Microphone]

[MENU]

[NAVI/AV]

[IR]

[Cover]

[AUX IN]

[REST]

[micro SD slot]

[POWER/VOL]

[Disc slot]

[ ]

[POWER/VOL] Knob

• Press this button to turn on the power.

• When the power is already on, it moves to the

Navigation mode. If Navigation mode is displayed, it

moves to the Navigation menu.

• Keep pressing this button more than 2 second to

turn off the power.

• Turn this button to left or right to decrease or

increase the volume of the system.

[NAVI/AV] Button

• Press this button to display NAVI, press again to

return current source.

• Press and hold this button for 2 seconds to display

the Dimmer setting menu.

[] Eject

• Press to eject disc from unit.

[MENU] Button

• Press this button to display main menu; press again

to return current source.

• Press and hold this button for 2 seconds to turn off

the monitor. Press any place of the screen to turn on

the monitor again.

[RESET] Button

• Press this button to hardware reset the unit.

Note: When the [RESET] button is pressed, frequencies

of radio stations, titles, etc. stored in memory are

cleared.

[micro SD slot ]

Insert a micro SD Card for MAP here. The micro SD

card for MAP is sold separately.

Note: The micro SD card is only for navigation. Please

don’t insert micro SD card for other purpose. After

insertion of micro SD card for MAP, don’t remove it;

otherwise, the navigation function will be disabled.

[AUX IN]

AUX 1 Connector.

[Microphone]

This is used for Bluetooth phone.

[IR] SENSOR

•Receiver for the remote control unit (operating range:

30 degree ins all directions).

*Remote control unit is sold separately.

NX404

English

English Owner’s Manual

5. REMOTE CONTROL

Replacing the batteries

1.Press the retention tab and pull out the

battery tray and remove the old battery.

2. Insert the new CR2025 battery and slide

the battery tray back in the remote control

the same direction that you removed it.

Please ensure the tray is inserted in the

correct direction.

Note:

Using batteries improperly can cause them to

explode. Take note of the following points:

• When replacing batteries, replace both batteries

with new ones.

• Do not short-circuit, disassemble or heat batteries.

• Do not dispose of batteries into re or ames.

• Dispose of spent batteries properly.

Signal transmitter

Operating range : 30°in all directions

[ / ]

[ 0-9 ]

[SRCH]

[BACK]

[ , , , ]

[TITLE]

[ ], [ ]

[ZOOM]

[MUTE]

[AUDIO]

[POWER / SRC]

[VOLUME]

[SEL]

[PIC]

[TAG]

[RPT]

[ ], [ ]

[SUB.T]

[OPEN]

[ANGLE]

[NAV/ AV]

[MENU]

[BAND]

[ROOT]

[ENT]

Lithium batteries contain

Perchlorate

Dispose of discharged batteries properly.

WARNING

*Remote control unit is sold separately.

12 NX404

English

English Owner’s Manual

[ / ] Button

• Press this button to play or pause video and audio

media.

• Press this button more than 1 second to stop video

and audio media.

[MUTE] Button

• Mute or Unmute the speaker.

• The symbol on upper right area of the screen

indicates that speaker is muted.

[POWER/SRC] Button

• Press this button to move the focus to next available

source item on main menu.

• Press this button to power on when the unit is power

off.

• Press this button more than 1 second to power off

when the unit is power on.

[0 - 9] Buttons

• Use in the Key Pad screen to select the radio.

• Use to select the track in the track list screen.

• Press to enter DVD video chapters/titles in the Key

Pad screen.

[VOLUME] Buttons

• Increase and decrease volume.

[NAVI/AV] Button

• Press this button to switch between current source

and current position on navigation map.

[SRCH] Button

• Press this button to open chapter or title search

window while playing DVD.

[BAND] button

• Switch to next band alternately.

[SET] Button

• Press this button to open the Audio setting menu in

any mode.

[BACK] Button

• Press this button to quit main menu if current screen

is main menu.

[ ], [ ], [ ], [ ] Buttons

• Press this button for cursor movement in main menu

or Setting mode.

• From the main menu, you can select your desired

source or change your settings.

[MENU] Button

• Press this button to enter the MAIN MENU or return

current resource.

[PIC] Button

• Press and hold this button to change your monitor

Dimmer.

[ENT] Button

• Press to x the entered data in the Key Pad screen

or enter the item the cursor is on.

[TAG] Button

•The button is not effective.

[TITLE] Button

• Press to go to the title menu on the DVD.

[ROOT] Button

• Press to go to the root menu on the DVD.

[RPT] Button

• Press to perform chapter repeat / title repeat / repeat

off while playing DVD mode.

• Press to perform track repeat/repeat off while playing

CD.

• Press to perform repeat track /repeat folder/ repeat

off while playing MP3/WMA, or video les on disc.

• Press to perform repeat track /repeat folder/ repeat

off while playing MP3/WMA, or video les in USB

memory.

[ ], [ ] Buttons

• Press to seek the next available higher or lower

station in Tuner mode.

• Press to select the next higher or lower chapter

number in DVD video mode.

• Press to select the next higher or lower track in DVD

Audio, USB Video, USB Audio mode.

• Press for movement of background source in

Navigation mode.

[ ], [ ]Buttons

• Press to manually select the next higher or lower

station in Tuner modes.

• Press to perform fast-forward or fast-backward

searching. Press again to change the speed to 2x,

4x, 8x or 16x.

Functions of Remote Control Buttons

You can use the remote control unit to control the NX403A.

*Remote control unit is sold separately.

Note:

• The wireless remote control operation may not be optimal in direct sunlight.

NX404

English

English Owner’s Manual

• Press for movement of background source in

Navigation mode.

[ZOOM] Button

• Press to turn on and zoom in while playing DVD. You

can zoom in up to 3x. (No all DVD disc supports this

function).

[AUDIO] Button

• Press to switch the AUDIO channel of the disc while

playing DVD.

[SUB-T] Button

• Press to switch next available subtitle while playing

DVD.

• Press to display Video menu in iPod mode.

[ANGLE] Button

• Press to switch the different ANGLE while playing

DVD. (No all DVD disc supports this function)

• Press to display Audio menu in iPod mode.

[OPEN] Button

• The button is not effective.

14 NX404

English

English Owner’s Manual

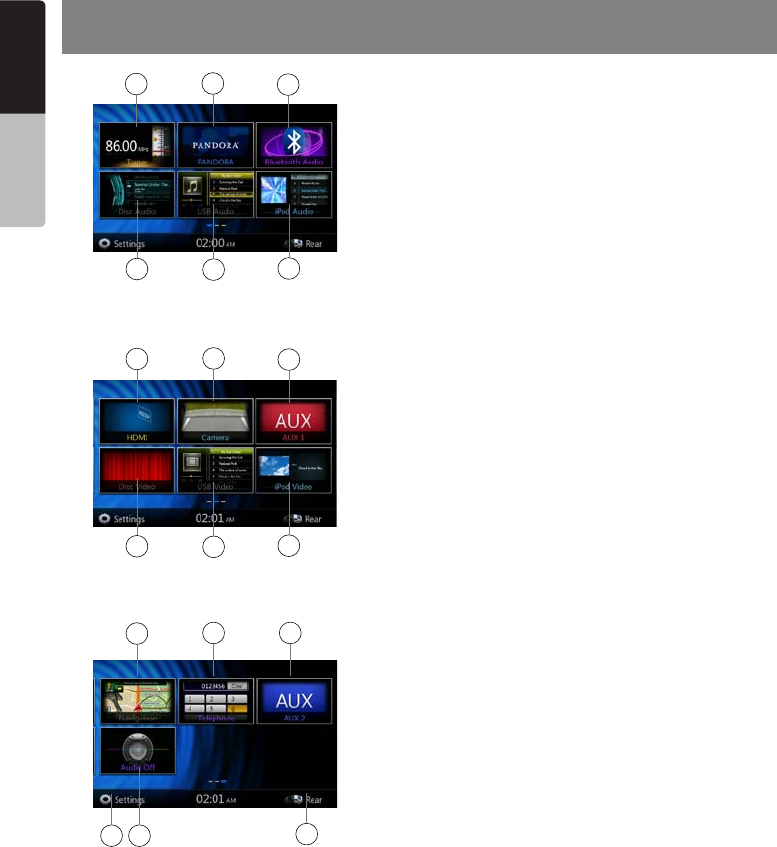

6. MAIN MENU

1 - Tuner---Press the button to display the Tuner mode.

2 - Pandora---Press the button to display the Pandora

mode.

3 - Bluetooth Audio--- Press the button to display the

Bluetooth Audio mode.

4 - Disc Audio---Press the button to display the Disc

Audio mode.

5 - USB Audio---Press the button to display the USB

Audio mode.

6 - iPod Audio---Press the button to display the iPod

Audio mode.

7 - HDMI---Press the button to display the HDMI

mode.

8 - Camera---Press the button to display the Camera

mode.

9 - AUX1 ---Press the button to display the AUX1

mode.

10 - Disc Video---Press the button to display the Disc

Video mode.

11 - USB Video---Press the button to display the USB

Video mode.

12 - iPod Video---Press the button to display the iPod

Video mode.

13 - Navigation---Press the button to display the

Navigation mode.

14 - Telephone--- Press the button to display the

Telephone mode.

15 - AUX2 ---Press the button to display the AUX2

mode.

16 - Setting Button---Press the button to display the

Setting menu.

17 - Audio off---Press the button to make audio source

voice off.

18 - Rear---Press the button to display the Rear mode.

Scrolling the menu

Press screen and scrolling to right or left it will switch to

next or previous page of main menu.

Moving the menu position

1. Press any quadrate icon on main menu more than 2

seconds,theiconwilloatonmainmenu.

2.Scrollingtheoatingicontoanypositionyouwant.

13 14 15

17 18

NX404

English

English Owner’s Manual

7. DVD Video Player Operations

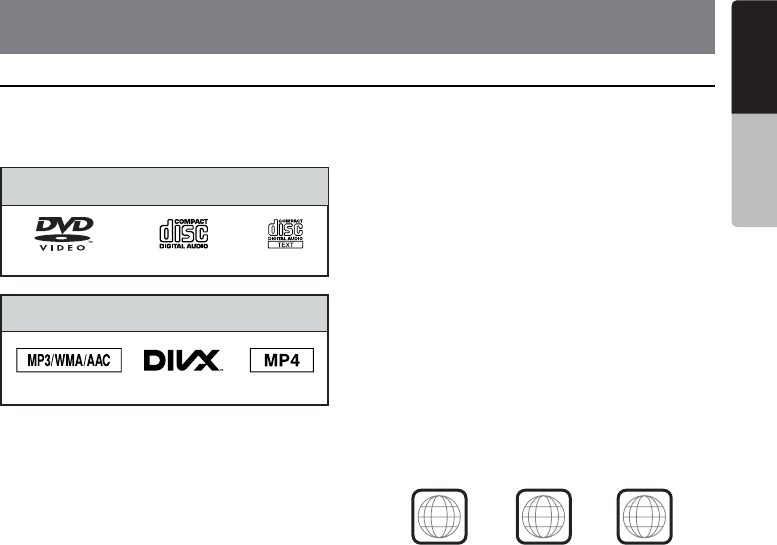

Playable discs

This DVD video player can play the following

discs.

Playable discs

CD TEXTDVD video discs Audio CD

Playablemediales

MP3/WMA/AAC DivX

About CD Extra disc

A CD Extra disc is a disc in which a total of two

sessions have been recorded. The rst session

is Audio session and the second session is Data

session.

Your personally-created CDs with more than

second data sessions recorded cannot be played

on this DVD video player.

Note:

•

WhenyouplayaCDExtradisc,onlytherst

sessionwillberecognized.

About playing a CD-R/CD-RW disc (MP3,

WMA)

This player can play CD-R/CD-RW discs

previously recorded in music CD format (MP3,

WMA).

About playing a DVD-R/RW or DVD+R/RW

disc

MP3/WMA les recorded on DVD-R/ RW and

DVD+R/RW discs can be played.

Discs that cannot be played back

This DVD video player cannot play back DVD-

Audio, DVD-RAM, Photo CDs, etc.

Note:

•

t may also not be possible to play back CDs

recorded on a CD-R unit and CD-RW unit.

(Cause:disccharacteristics,cracks,dust/dirt,

dust/dirtonplayer’slens,etc.)

•

If a CD-R or CD-RW disc that has not been

nalizedisplayed,itwilltakealongtimeto

startplaying.Also,itmaynotbepossibleto

play depending on its recording conditions.

•

You cannot play SuperAudio CD Playback of

the CD player is not supported even if it is a

hybrid disc.

About MP3/WMA playback

This unit can play back CD-R/CD-RW, DVD-R/

RW and DVD+R/RW discs on which MP3/WMA

music data have been recorded.

For a detailed information, see the section

entitled “Listening to compressed audio”.

Note on region numbers

The DVD video system assigns a region number

to DVD video players and DVD discs by sales

area. DVD video players sold in Asia can play

back DVD discs with the region number “ALL”,

“3” or any combination of numbers that also

incorporate a “3”.

The DVD video region number is marked on the

disc jacket as shown below.

ALL

134

Asia

Discs

MP4

16 NX404

English

English Owner’s Manual

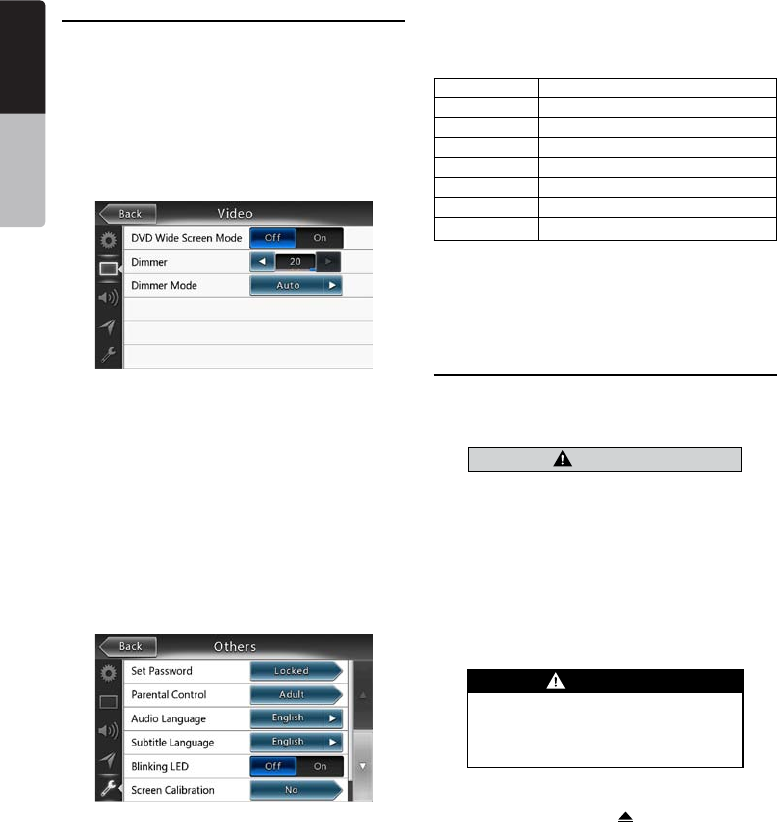

Change DVD System Settings

Note:

If the setup operation is performed in the middle of DVD

video play, the disc will restart from the beginning.

Selecting DVD Setup Menu

1. Press the [Settings] button on the Main Menu to

access the Video setup menu.

2. Press [Video] button. The video menu is displayed.

Setting up the Screen Size

Press the [DVD Wide Screen Mode] button to turn on

or turn off the DVD wide screen mode.

The factory default setting is “off”

Note: Not all DVD disc support this function.

Setting up the password for parental level

control

The factory default pass code is “0000”.

1.In Main Menu press [Settings] button. Press

[Others] button on the display. Touch the [Set

Password] ---- and a numerical key pad will appear.

Input a new password and come again. The password

is set.

Note:

When a disc with view restrictions is inserted, you will

be prompted to input this password. The disc will not be

viewable until the correct password is entered.

Set rating for parental level control

1.Select Others screen while in Setting mode. Press

[Parental Control] button. Press the desired rating for

level control. Use this table to set the parental level.

Kid Safe Kid Safe

G General Audiences

PG Parental Guidance Suggested

PG-13 Parents Strongly Cautioned

PG-R Parental Guidance Restricted

R Restricted

NC-17 No One 17 And Under Admitted

Adult Only Adult

• The contents that the parental level restricts vary

with the country code.

Note: The rating can be selected only under the

password unlocked status, and the limits can be set only

under the password locked status.

Watching to a disc

1. To load a disc:

Insert the disc into the center of the insertion slot the

label side facing up.

CAUTION

For your safety, the driver should not

insert or eject a disc, opening the

operation panel while driving.

Note:

• Never insert foreign objects into the disc insertion slot.

• If the disc is not inserted easily, there may be another

disc in the mechanism or the unit may require service.

• 8cm (single play) discs cannot be used.

2. Disc starts playing automatically.

WARNING

Some videos may be recorded at higher

than desired volume levels. Increase the

volume gradually from the minimal setting

after the video has started.

Ejecting a disc

1. To eject a disc press eject [ ] button. The play

mode then switches to the Tuner mode.

If the disc is left in the ejected position for 10

seconds, the disc is automatically reloaded. In this

case, the play mode will remain in the Tuner mode.

Note: If you force a disc into before auto reloading, it

may damage a disc.Change DVD System Settings

NX404

English

English Owner’s Manual

Showing DVD Player mode screen

-After disc is loaded, the play mode is automatically

engaged.

Touch any place of the screen to display DVD Video

menu touch the screen again to return the playback

screen. The display will return to the playback screen,

if you do not touch the screen for 10 seconds.

1 - Option Button

2 - Show Cursor keys Button

3 - Previous Chapter /Fast Backward Button

4 - Play/Pause Button

5 - Next Chapter /Fast Forward Button

6 - Elapsed playing time

7 - Seek bar

8 - Total time

9 - Menu List Button

10 - System time

11 - Bluetooth status

12 - DVD playback info

13 - Shortcut Button

14 - Repeat Switching Button

15 - Audio Channel switching Button

16 - Subtitle switching Button

17 - Info Button

18 - Direct chapter or title searching Button

Operate the DVD Player menu

You can select the button items displayed in the DVD

menu by directly touching it.

Play/Pause Playback

1. Touch [ ] button to pause during playback.

2. Touch [] button again to resume playback.

Skip (Search) a Chapter

1. Press [ ] or [ ] button during playback.

Chapters are skipped down or up from current

locations, as many times as the button is pressed, and

playback starts.

Skip use seek bar

Press the triangle [ ] on seek bar and drag it to any

position where you want to start playback.

Fast Forward/Fast Backward

1. Press [ ] or [ ] button and hold 2 seconds to

start fast backward or fast forward during playback.

The playback speed starts at 2x, then will increase

to 4x, 8x, and 16x. Release the button will continue

playing with normal speed.

Note:

• No audio is reproduced during fast forward and fast

backward operation.

• The fast forward and fast backward speed may differ

depending on the disc.

Search function

You can locate the beginning of a scene using the

chapter numbers or title numbers recorded on the

DVD Video disc.

1. Showing the DVD Video menu, touch [] button.

The Key Pad screen appears with the chapter/Title

number input mode.

Touching [] button turns the Key Pad to the

chapter number input mode.

Touching [] button turns the Key Pad to the title

number input mode.

• Title

A large segment to divide the data area of the disc.

• Chapter

A small segment to divide the data area of the disc.

2. Input the number of the title/chapter that you want

to play with the [0] to [9] key.

3. Touch the [] button.Change DVD System

Settings

14 15 16 17 18

101112

1 2 3 5 67 8 94

18 NX404

English

English Owner’s Manual

Playback starts from the scene of the input title

number or chapter number.

NOTE:

*If the input title/chapter number does not exist or

searching with a title/chapter number is not allowed,

the screen image will not change.

4. Touch [] button to close the key pad.

Repeat Playback

This operation plays back chapters recorded on the

DVD-Video repeatedly.

1. Showing the DVD Video menu, touch [] button.

2. Touch [] key once for Repeat Chapter, again

for Repeat Title.

3. Press [] button again to turn off the repeat

playback.

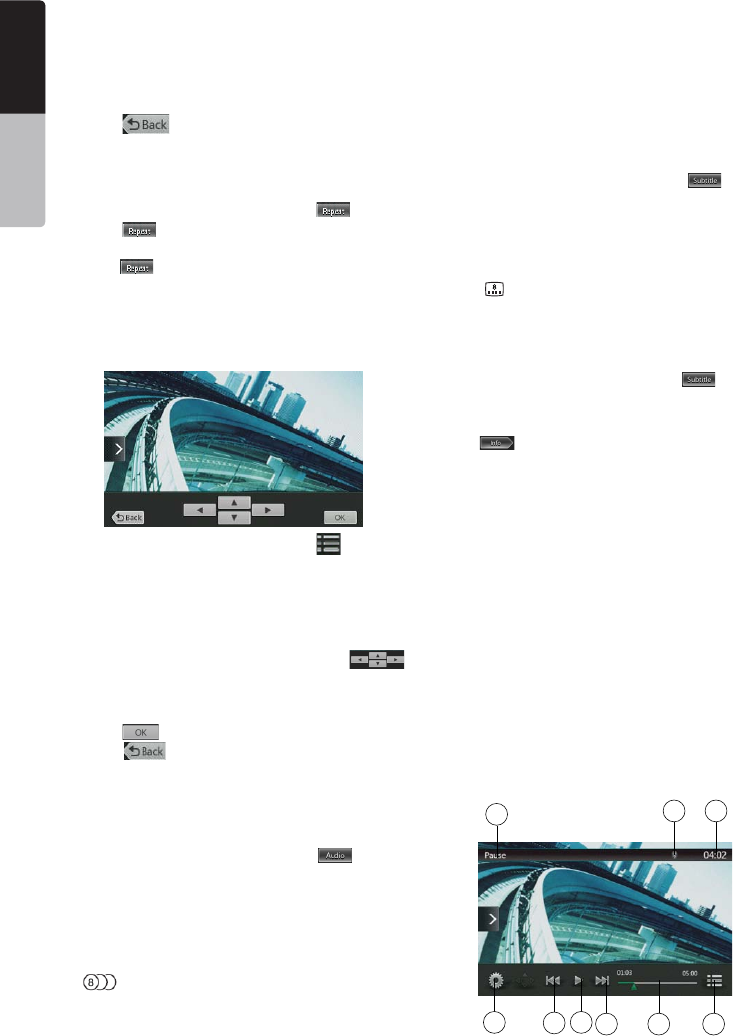

Using the Title Menu

On DVD discs containing two or more titles, you can

select from the title menu for playback.

1. Showing the DVD Video menu, touch [ ] button

during playback.

* Depending on the disc, the title menu may not be

called.

2. Touch the title menu screen. And touch the Show

Cursor keys Button.

3. Select the items in the title menu screen by

directional buttons.

* Depending on the disc, items may not be selected

with the directional buttons.

4. Touch [] button to x on the selected item.

5. Touch [] button.

Switching Audio

On discs in which two or more audios or audio

languages have been recorded, you can switch among

the audio languages during playback.

1. Showing the DVD Video menu, touch [] button

during playback.

• Each time you touch the button, you can switch

among audio languages.

• It may take time to switch among audios.

Depending on the disc, up to 8 kinds of audios may

be recorded. For details, see the mark of the disc:

(Indicates that 8 audios have been recorded).

When the power is turned on and when the disc

is changed to a new one, the language set as the

factory default is selected. If that language has not

been recorded on disc the language is specied on

the disc.

Depending on the disc, switching may be

completely impossible or impossible on some

scenes.

Switching Subtitles

On DVD discs in with two or more subtitle languages

have been recorded, you can switch among the

subtitle languages during playback.

1. Showing the DVD Video menu, touch [] button

to select a subtitle during playback. Each time you

touch the key, you can switch among subtitles.

• It may take time to switch among subtitles.

Depending on the disc, up to 32 kinds of subtitles

may be recorded. For details, see the mark of the

disc: ( Indicates that 8 kinds of subtitles have

been recorded).

Depending on the disc, switching may be

completely impossible or impossible on some

scenes.

2. To turn off subtitles, repeat touching [] button

until subtitles are turned off.

Displaying the playback status

Touch [ ] button on DVD Player mode screen,

Playback status is displayed on screen.

Play MP4/DivX video ﬁles

This system can play video les (AVI/MP4, etc.) stored

on disc.

Note:

DivX Certied® to play DivX® video, including premium

content.

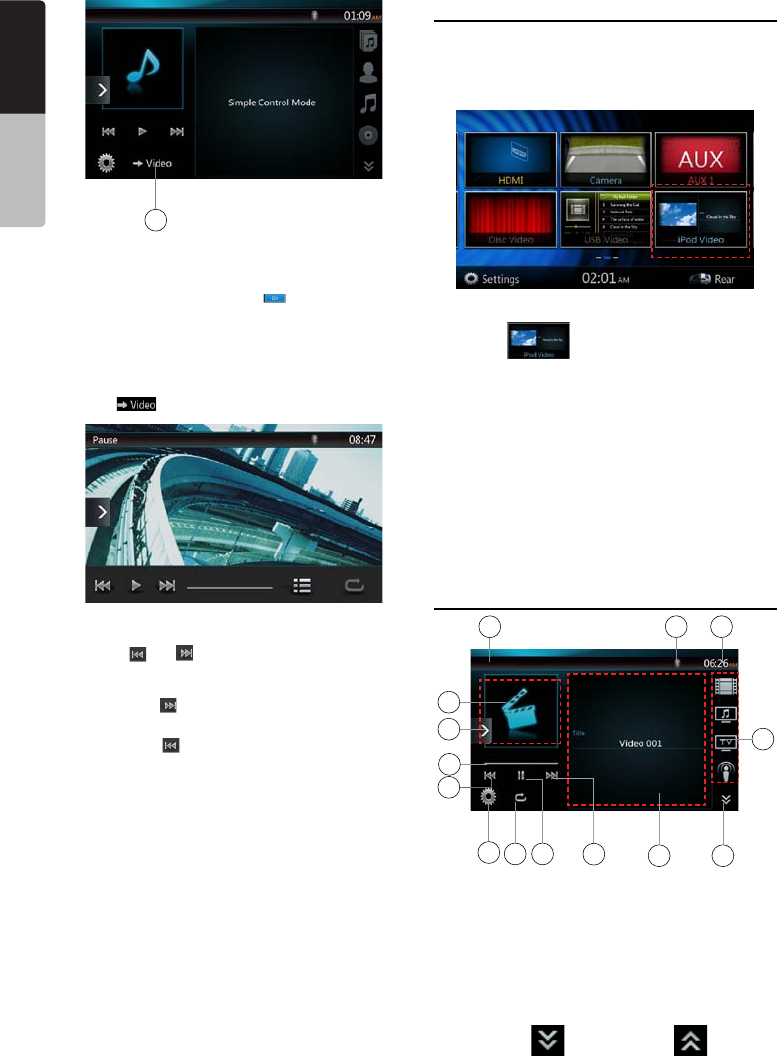

Showing video ﬁles Player mode screen

1. After disc with video les is loaded, touch [Disc

Video] button on MAIN MENU to show video les

player mode screen.

2. Touch the screen of the playing video le to display

Video les player menu touch the screen again to

return the playback screen. The display will return to

the playback screen, if you do not touch the screen

for 10 seconds.

1234 5 6

NX404

English

English Owner’s Manual

1 - Option Button

2 - Previous Track /Fast Backward Button

3 - Play/Pause Button

4 - Next Track/Fast Forward Button

5 - Elapsed playing time /Seek bar

6 - List Mode Button

7 - System time

8 - Bluetooth status

9 - Playback info

10 - Shortcut Button

11 - Repeat Button

12 - Audio Button

13 - Subtitle Button

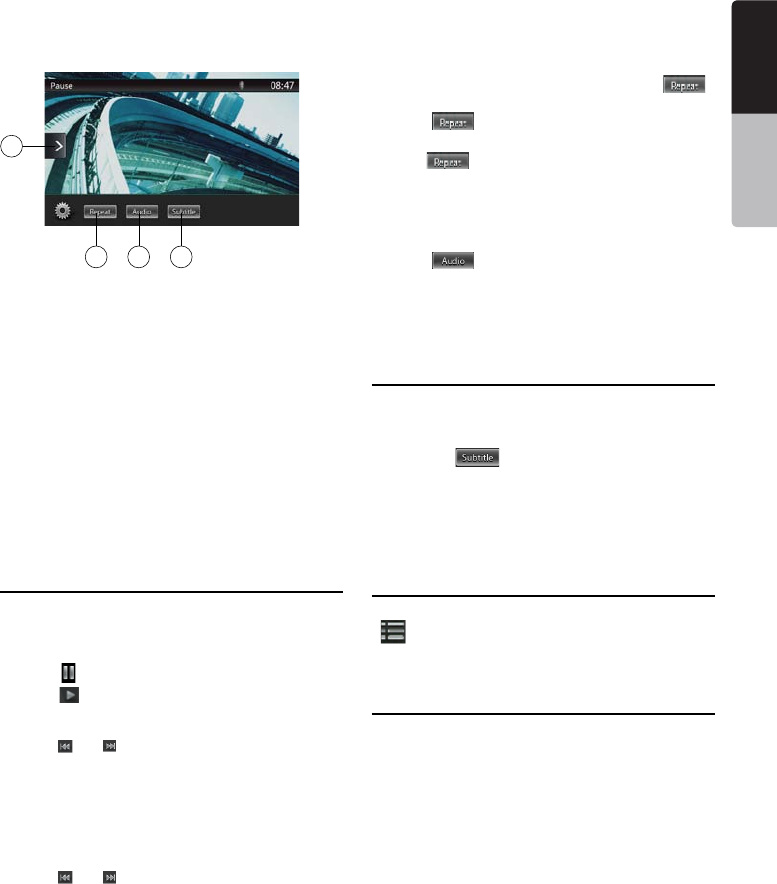

Operate the Video ﬁles Player menu

You can select the button items displayed in the Video

les player menu by directly touching it.

Play/Pause Playback

1. Touch [ ] button to pause during playback.

2. Touch [ ] button again to resume playback.

Switch to Previous/next ﬁle

1. Press [ ] or [ ] button during playback to play

previous /next le

Skip using seek bar

Press the triangle on seek bar and drag it to any

position where you want to start playback.

Fast Forward /Fast Backward

1. Press [ ] or [ ] button and hold 2 seconds to start

fast backward or fast forward during playback. The

playback speed starts at 2x, then will increase to

4x, 8x, and 16x. Release the button will continue

playback with normal speed.

Note:

*No audio is reproduced during fast forward and fast

backward operation.

*The fast forward and fast backward speed may differ

depending on the disc.

Repeat Playback

This operation plays back video les recorded on the

disc repeatedly.

The repeat set as the factory default is Repeat all.

1. Showing the video les player menu, touch []

button.

2. Touch [] button once for Repeat Track, again

for Repeat Folder.

3.Press [] button again for Repeat All.

Switching Audio

Some video les will have two or more audio channels;

you can switch among the audio channels during

playback.

1. Touch [] button during playback.

• Each time you touch the button, you can switch

among audio languages.

• It may take time to switch among audios.

Depending on the disc, switching may be impossible.

Switching Subtitles

Some video les will have two or more subtitles have

been recorded; you can switch among these subtitles

during playback.

1. Touch the [] button to select a subtitle during

playback.

• Each time you touch the key, you can switch among

subtitles.

• It may take time to switch among subtitles.

Depending on the disc, switching may be impossible.

Video ﬁles list

Showing the Video les player menu; touch the

[] button to display video les list screen.

Video les list operations is almost same as Disc Audio

player mode. Please refer to CD Player Operations.

Play DivX Video-On-Demand ﬁle

You must complete a one-time registration process

in order to play a purchased DivX movie on your DivX

device.

Registration is not needed to play free DivX movies

you create or download.

Get DivX Registration Code and Register

your device

1. Press the [Settings] button on the Main Menu to

access [General] setup menu.

2. Press [General] setup button, and press [DISPLAY]

key on the right side of “DivX® Registration”. You will

nd “10 digit DivX registration code on the screen.

11 12 13

20 NX404

English

English Owner’s Manual

3. Enter this code in DivX Player to create a

“Registration video” disc on your PC.Once this

“Registration video” disc has played on this device,

registration is done, and you can enjoy some

purchased DivX movies on your device.

For detail please visit “http://www.divx.com/vod”

4. Press [OK] to close the pop-up window.

Note:

After you register your device, this setting menu is

changed to “DivX® Deregistration”

Deregister your device

Even after you have nished registration, you

can deregister your device if you will not watch

purchased movies on this device anymore.

1. Press the [Settings] button on the Main Menu to

access [General] setup menu.

2. Press [General] setup button, and press [SET] key

on the right side of “DivX® Deregistration”. You will

be asked if you want to deregister this device, then

press [YES] in the pop-up screen.

3. Note 10 digit “Deregistration code” in the pop-up

screen. Keep this code until you deregister this

device on your PC.

4. Deregister this device by using the “Deregistration

code” on your PC.

For detail please visit “http://www/divx.com/vod”

Playable disc video ﬁles

This system can play video les stored on disc.

*.avi les

• format: Divx 4/5/6

• Picture size: 720 x 480

• Audio format: MP3

• Audio sampling frequency: 32/44.1/48 KHz

*.mp4 les:

• format: MPEG4 Visual Simple @L1

• Picture size: 720 x 480

• Audio format: AAC

• Audio sampling frequency: 32/44.1/48 KHz

*.mpg les

• format: MPEG2

• Picture size: 720 x 480

• Audio format: MP3

• Audio sampling frequency: 32/44.1/48 KHz

*.divx les

• format: Divx 3.11/4/5/6

• Picture size: 720 x 480

• Audio format: MP3

• Audio sampling frequency: 32/44.1/48 KHz

NX404

English

English Owner’s Manual

Listening to a disc/Ejecting a disc

Please refer to Disc Video Player Operations -watching

to a disc and Ejecting a disc.

Showing CD Player mode screen

1. After disc is loaded, the play mode is automatically

engaged.

2. If disc have been loaded you can touch [Disc Audio]

button on main menu to display CD player mode

screen.

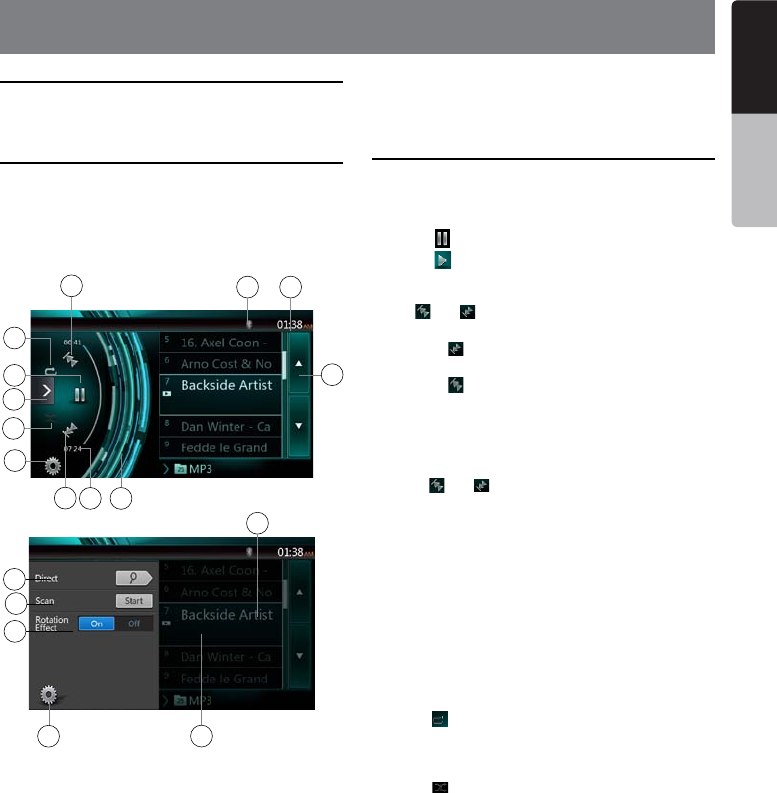

1 - Option Button

2 - Elapsed playing time indicator

3 - Rotation effect

4 - Page Turning

5 - System time

6 - Bluetooth status

7 - Repeat Button

8 - Previous Track /Fast Backward Button

9 - Shortcut Button.

10 - Play/Pause Button

11 - Next Track/Fast Forward Button

12 - Shufe Button

13 - Direct Searching Button

14 - Scan Start/Stop Button

15 - Rotation Effect On/Off Button

16 - Song Title

17 - Artist/album Information

18 - Close option menu Button

Operate the CD Player menu

You can select the button items displayed in the CD

player menu by directly touching it in list.

Play/Pause Playback

1. Touch [ ] button to pause during playback.

2. Touch [] button again to resume playback.

Switch to Previous/next ﬁle or track

Press [ ] or [ ] button during playback to play

previous /next le.

• Pressing [] button starts playback from the

beginning of the next track.

• Pressing [] button starts playback from the

beginning of the current track. When this button is

pressed again within 5 seconds, playback starts

from the beginning of previous track.

Fast Forward /Fast Backward

1. Press [ ] or [ ] button and hold more than

2 seconds to start fast backward or fast forward

during playback. The playback speed starts at 2x,

then will increase to 4x, 8x, and 16x. Release the

button will continue playback with normal speed.

Note:

* No audio is reproduced during fast forward and fast

backward operation.

* The fast forward and fast backward speed may differ

depending on the disc.

Repeat Playback

* The repeat set as the factory default is Repeat All.

Touch [] button switch between Repeat Folder

Repeat All and Repeat Track.

Shufﬂe Playback

1. Touch [ ] button to shufe the tracks during

playback.

2. Touch this button again to turn off the feature.

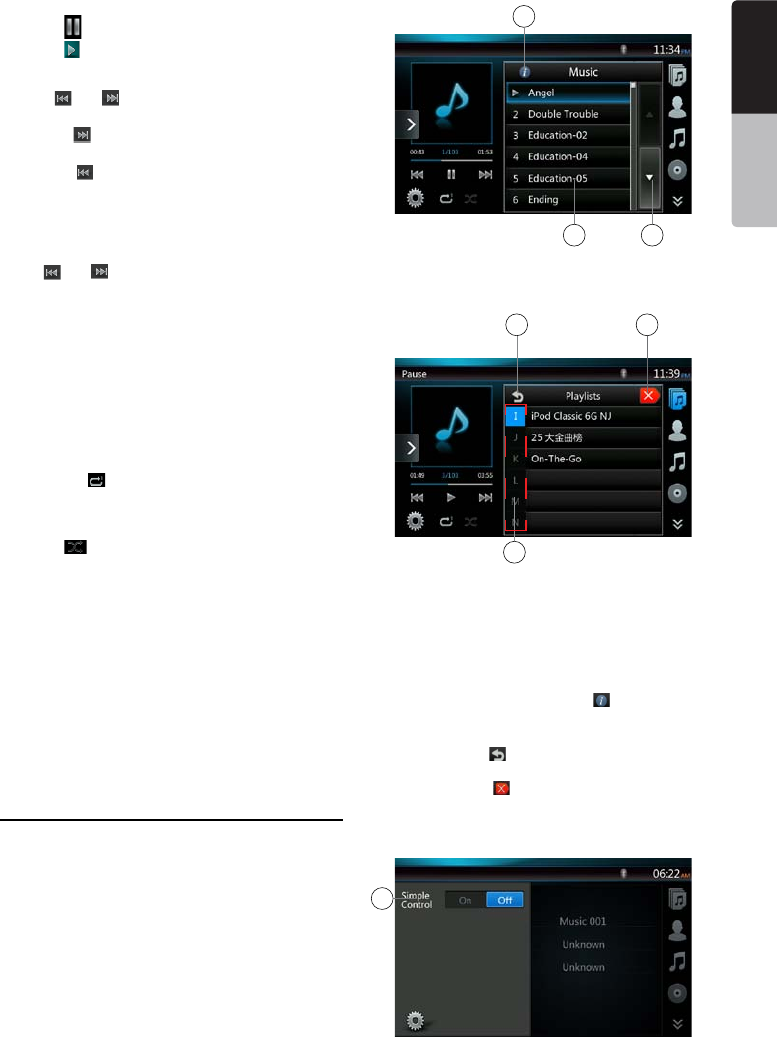

Selecting a track on the Track List Screen

This function allows you to select tracks from a

displayed list.

1. Touch the track title on the display list. The selected

track will start playing.

2. When the desired track is not displayed, press and

ick the track list up or down.

3. Touch the desired track title key. The corresponding

track is started playback.

8. CD

211

22 NX404

English

English Owner’s Manual

Scanning the Tracks

1. Touch [ ] button to show [Scan ] button.

2. Touch [Scan ] button during playback.

• It will play from next track, and each track will

display for 10 seconds.

• The [Scan ] button will switch to [Scan ]

button.

3. Touch [Scan ] button.

• It will continue playback from current track.

• [Scan ] button will switch to [Scan ]

button.

* The function will scan all tracks orderly in current

folder once. After Scan stopped playback will

continue.

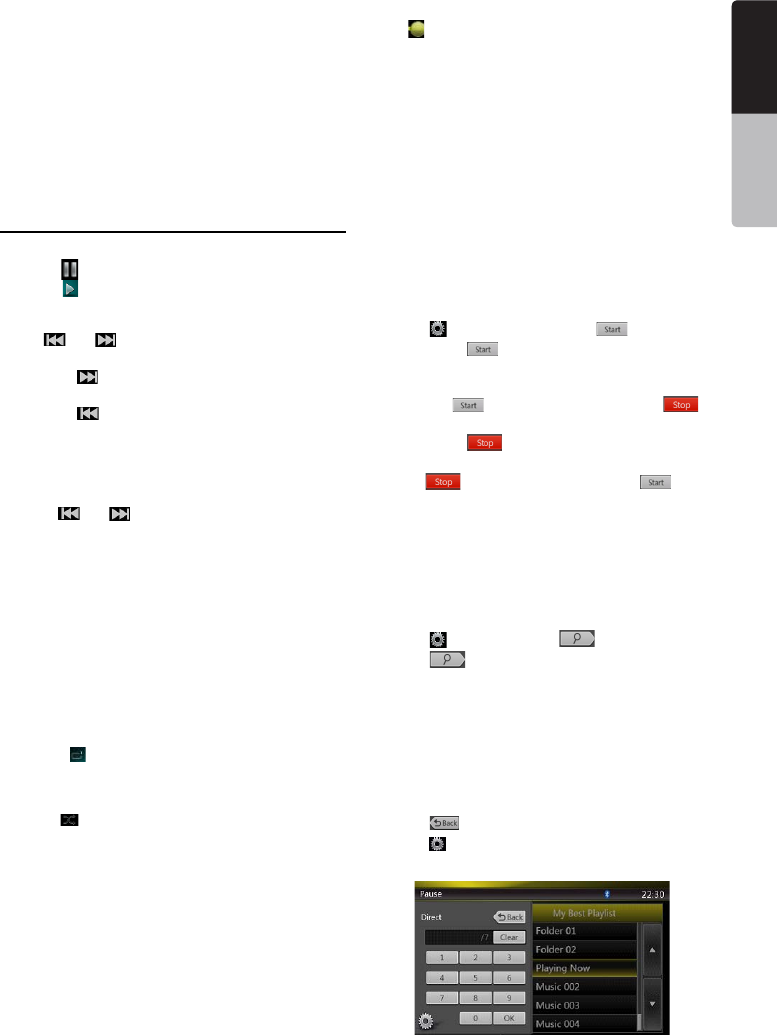

Searching with the Track Number

This operation allows searching using the track

numbers recorded on the CDs.

1. Touch [] Button to show [ ] button.

2. Touch [] button .The numerical keypad will

appear on the screen and touch [ ] button.

3. Input the track number that you want to play back

with [0] to [9] key and touch [OK] key.

Playback starts from the track of the input track

number.

• If the input track number does not exist or searching

with track number is not allowed, the screen image

will not change.

• Touch the [] button will close the numerical

keypad.

• Touch [] Button will close the option window and

display playback screen.

Rotation Effect On/Off

This operation allows turn on/turn off rotation effect.

The factory default is On.

1. Touch [] Button to show [Rotation effect] button

2. Press button [] will turn on the Rotation effect.

3. Press button [] will turn off the Rotation effect.

Listening to compressed audio

This system can play audio les stored on disc.

MP3/ WMA/ AAC

Tag display function

This unit is an ID3 Tag compatible model.

This unit supports the ID3 TAGs of the Version 2.4, 2.3,

1.1 and 1.0.

In displaying, this unit gives priority to the Version 2.3

and 2.4 TAGs.

Note:

• Some CDs recorded on CD-R/RW mode may not be

usable.

Displaying MP3/WMA/AAC TAG titles

Tag information can be displayed for compressed

audio le containing Tag information.

MP3: title, artist, album

WMA: title, artist

AAC: can not display tag information.

Precautions when creating MP3 disc

• File extensions

1. Always add a le extension “.MP3” or “.mp3” to

an MP3 le, and “.WMA” or “.wma” to a WMA and

“.m4a” to a AAC le by using single byte letters.

If you add a le extension other than specied or

forget to add these le extension, the le cannot be

played. In addition, if you use upper case and lower

case letters (capital and small letters) mixed for le

extensions, normal play may not be possible.

2. Files other than MP3/WMA/AAC data cannot be

played.

Playing les with a format not supported will be

skipped, and the scan, random and repeat playback

mode may be canceled.

• File and Disc Not Supported

Files and discs with following extensions are not

supported: *.AAC, *.DLF, *.M3U, *.PLS, *.MP3 PRO

les, les with DRM, open session discs.

• Logical format (File system)

1. When writing an MP3/WMA/AAC le on a disc,

please select “ISO9660 level 1 or level 2 (without

including expansion format)” as the writing software

format. Normal playback may not be possible if the

disc is recorded on another format.

2. The folder name and le name can be displayed as

the title during MP3/WMA/AAC play .

• Entering File and Folder Names

Names using the code list characters are the only

le names and folder names that can be entered and

displayed. Using any other character will cause the le

and folder names to be displayed incorrectly.

• Folder structure

1. A disc with a folder having more than 8 hierarchical

levels will conict with the ISO9660 and playback

will be impossible.

• Number of les or folders

1. The maximum allowable number of folders is 200

(including root directory); the maximum allowable

number of les is 1500 (max. 200 per folder). This

represents the maximum number of tracks that can

be played back.

NX404

English

English Owner’s Manual

2. Tracks are played in the order that they were

recorded onto a disc. (Tracks might not always be

played in the order displayed on the PC).

• Some noise may occur depending on the type of

encoder software used while recording.

• In case of a track recorded at VBR (variable bit rate),

the display for the play time of the track may be

slightly different from the actual play time. Also, the

recommended value of VBR ranges from 32 kbps to

320 kbps.

• After disc selection, the play mode is automatically

engaged.

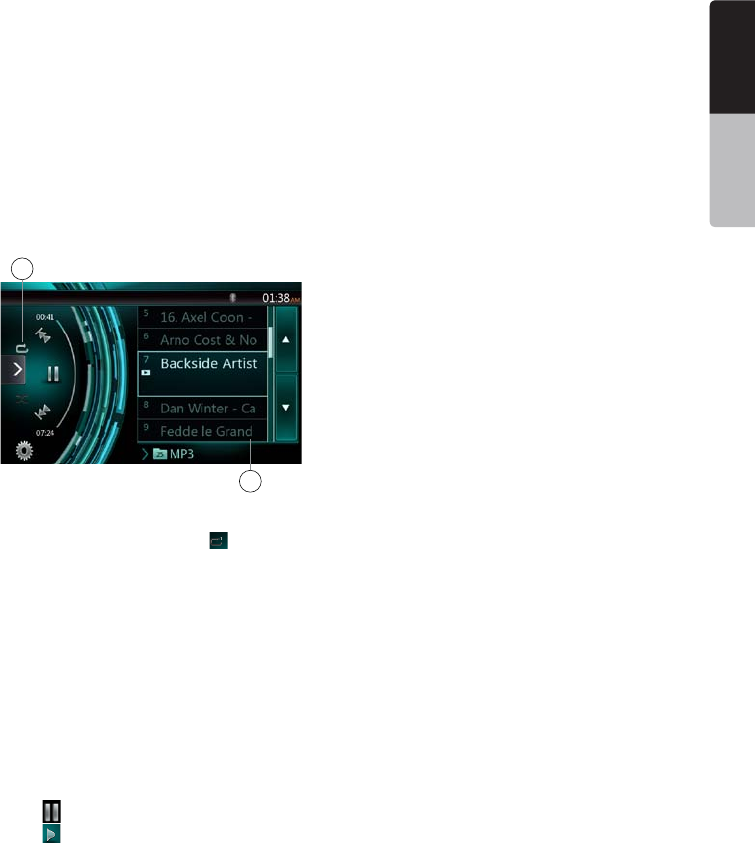

Playback MP3/WMA/AAC menu

1. Repeat Playback

While playing MP3/WMA/AAC touch button can

switch between Repeat Folder, Repeat All and Repeat

Track, Repeat Folder and Repeat All.

2.Current Folder

• Showing title of current folder.

• The number on the folder symbol is the number of

les and folders number in current folder.

• Touch the title of current folder, play list will show

les and folders in upper folder.

*Other operations about playing MP3/WMA/AAC are

almost same as CD Player mode.

Stop Playback

1. Touch [ ] button to stop playback.

2. Touch [ ] button again to resume playback.

Playback resumes from start of the folder which

playing track is in.

•Other operations about playing MP3/WMA/AAC are

almost same as CD Player mode.

24 NX404

English

English Owner’s Manual

This system can play audio les (MP3/WMA/AAC/

FLAC) stored in an USB memory which is recognized

as “USB Mass Storage Class device”. You can use

your USB memory as an audio device by simply

copying desired audio les into it.

Note:

• This system will not operate or may operate improperly

with some USB memory.

• Files protected with any DRM cannot be played.

Notes on using USB memories

General notes

• When no support les, the le list display nothing.

Notes on the Audio les

• This system can play the MP3/WMA/AAC/FLAC les

stored in the USB memory.

MP3 les:

• format: MPEG1/2 Audio layer3

• bit rate: 8k ~ 320kbps

• sampling frequency: 8/12/16/24/32/44.1/48KHz

• le extension: . mp3

WMA les:

• format: Windows media Audio standard L3

prole

• bit rate: 32 ~ 192KHz

• sampling frequency: 32/44.1/48 KHz

• le extension: .wma

AAC les

• format: Advanced Audio Coding LC-AAC,HE-

AAC

• sampling frequency: 32/44.1/48 KHz

• le extension: . m4a

FLAC les

• format: Free Lossless Audio Codec

• quantization bit rate: 16 or 24 bits

• sampling frequency: 44.1~192 KHz

• le extension: . ac

Notes on the folder structure

• The folder hierarchy must be within 8 hierarchical

levels. Otherwise, playback may be impossible.

• The maximum allowable number of folders is 65535

(including root directory and folders with no MP3

les, WMA AAC/FLAC le).

• The maximum allowable number of les in a folder

is 65535.

• You can store the MP3 les, WMA AAC/FLAC

together in a folder.

• The system may become slow if the les or folders

exceed the limitation above.

Notes on the Tag titles

The limitations on the Tag titles are same as those in

DVD Audio Player mode.

Select USB Audio mode

Connect your USB memory with MP3 les, WMA AAC/

FLAC les to the USB connector. The system will

automatically detect the connected device, and the

[USB Audio] button on main menu will be enabled.

• When an USB memory is already connected

Touch [USB Audio] button to select the USB Audio

mode.

The system changes to the USB Audio mode and

starts playback from the previous position or from the

beginning.

Note:

If you reconnect the same device that you disconnected

last, the system will play back where it left off.

1. Option Button

2. Play/Pause Button

3. Previous Track /Fast Backward Button

4. Next Track/Fast Forward Button

5. Repeat Button

6. Shufe Button

7. MP3 les, WMA les in list

8. Folders in list

9. Page Turning

9. USB Audio Operations

5648

101112

NX404

English

English Owner’s Manual

10. System time

11. Bluetooth status

12. Mute status

13. Playback status info

14. Album Art

15. Shortcut Button

16. Current ID3 info area

17. Elapsed playing time indicator/Seek bar

18. Direct Button

19. Scan Button

Playing Audio ﬁles in USB memory

Play/Pause Playback

1. Touch [ ] button to pause during playback.

2. Touch [] button again to resume playback.

Switch to Previous/next ﬁle

Press [ ] or [ ] button during playback to play

previous /next le.

• Pressing [] button starts playback from the

beginning of the next track.

• Pressing [] button starts playback from the

beginning of the current track; when this button is

pressed again within about 5 seconds, playback

starts from the beginning of previous track.

Fast Forward /Fast Backward

Press [ ] or [ ] button and hold more than

2 seconds to start fast backward or fast forward

during playback. The playback speed starts at 2x,

then will increase to 4x, 8x, and 16x .Release the

button will continue playback with normal speed.

Note:

*No audio is reproduced during fast forward and fast

backward operation.

*The fast forward and fast backward speed may differ

depending on the audio les.

Repeat Playback

* The repeat set as the factory default is Repeat All.

Touch the [] button once for Repeat Track, again for

Repeat Folder, Repeat All.

Shufﬂe Playback

1. Touch [ ] button to shufe the tracks in playing

folder during playback.

2. Touch this button again to turn off the feature.

Album Art work

If current audio le contains album art image in ID3,

the picture will be displayed in this area.

ID3 info area

This area display ID3 info of playing le: song title,

artist information, album information, number of

current le/total number in current folder, elapsed

playing time/total time of current le.

Skip use seek bar

Press on seek bar and drag it to any position where

you want to start playback.

Select a folder on display list

Touch the folder title on the display list, the display list

will display les and folders in selected folder.

Selecting a track on the display List

This function allows you to select tracks from a

displayed list.

1. Touch the track title on the display list. The selected

track will start playing.

2. When the desired track is not displayed, press and

ick the track list up or down.

3. Touch the desired track title key. The corresponding

track is started playback.

Scanning the Tracks

1. Touch [ ] Button to show [Scan ] button.

2. Touch [Scan ] button during playback.

• It will play from next track, and each track will

display for 10s seconds.

• The [Scan ] button will switch to [Scan ]

button.

3. Touch [Scan ] button.

• It will continue playback from current track.

• [Scan ] button will switch to [Scan ]

button.

* The function will scan all tracks orderly in current

folder once .After Scan stopped playback will

continue.

Searching with the Track Number

This operation allows searching using the track

numbers in playing folder.

1. Touch [] Button to show [ ] button.

2. Touch [] button .The numerical keypad will

appear on the screen.

3. Input the track number that you want to play back

with [0] to [9] key and touch [OK] key.

Playback starts from the track of the input track

number.

• If the input track number does not exist or searching

with a track number is not allowed, the screen image

will not change.

• Touch [] button will close the numerical keypad.

• Touch [] Button will close the option window and

display playback screen.

26 NX404

English

English Owner’s Manual

10. USB Video Operations

This system can play USB video les (MP4, 3GP etc.)

stored in an USB memory which is recognized as

“USB Mass Storage Class device”. You can use your

USB memory as an audio device by simply copying

desired audio les into it.

Note:

• This system will not operate or may operate improperly

with some USB memory.

• Files protected with any DRM cannot be played.

Notes on using USB memories

General notes

When no support les, the le list display nothing.

Notes on the folder structure

The limitations on the folder structure are same as

those in USB Audio Player mode.

Notes on the Tag titles

The limitations on the Tag titles are same as those in

DVD Audio Player mode.

Select USB Video mode

Connect your USB memory with video les to the USB

connector. The system will automatically detect the

connected device, and the [USB Video] button on

main menu will be enabled.

• When an USB memory is already connected

Touch [USB Video] button on main menu to select the

USB Video mode.

The system changes to the USB Video mode and

starts playback from the previous position or from the

beginning.

Note: If you reconnect the same device that you

disconnected last, the system will play back where it

left off.

Playing video ﬁles in USB memory

If the video is playing, touch the screen of the playing

video to display Operation buttons.

* The display will return to the playback screen, if you

do not touch the screen for 10 seconds.

Playable Video ﬁle

*.mp4 les

• format: MPEG4 Visual

MPEG4 AVC (H.264)

• Picture size: 1280 X 720 (MPEG4 Visual)

1920 x 1080 (MPEG4 AVC)

• Audio format: AAC

• Audio sampling frequency: 32/44.1/48 KHz

*.m4v les

• format: MPEG4 Visual

MPEG4 AVC (H.264)

• Picture size: 720 x 480

• Audio format: AAC

• Audio sampling frequency: 32/44.1/48 KHz

*.mpg les

• format: MPEG2

• Picture size: 720 x 480

• Audio format: MP3

• Audio sampling frequency: 32/44.1/48 KHz

*.3gp les

• format: MPEG4 Visual

H.263

• Audio format: AAC, AMR

• Audio sampling frequency: 8/16/32/44.1/48 KHz

1 - Previous Track /Fast Backward Button

2 - Play/Pause Button

3 - Next Track/Fast Forward Button

4 - Elapsed playing time indicator/Seek bar

5 - Menu List

6 - Repeat Button

7 - System time

8 - Bluetooth status

9 - Playback info

10 - Shortcut Button

Play/Pause Playback

1. Touch [ ] button to Pause playback.

2. Touch [] button to resume playback.

Switch to Previous/next ﬁle

Press [ ] or [ ] button during playback to play

previous /next le.

• Pressing [] button starts playback from the

beginning of the next track.

• Pressing [] button starts playback from the

beginning of the current track; when this button is

pressed again within about 5 seconds, playback

starts from the beginning of previous track.

1234

98 7

NX404

English

English Owner’s Manual

Repeat Playback

* The repeat set as the factory default is Repeat All.

Touch the [] button once for Repeat Track, again

for Repeat Folder, again for Repeat All.

Skip use seek bar

Press the on seek bar and drag it to any position

where you want to start playback.

Switch to USB Video Menu

Press [ ] button playback will be paused, and the

screen will switch to USB Video List.

1 - Option Button

2 - Play/Pause Button

3 - Previous Track /Fast Backward Button

4 - Next Track/Fast Forward Button

5 - Repeat Button

6 - Shufe Button

7 - Video les in list

8 - System time

9 - Bluetooth status

10 - Mute status

11 - Playback status info

12 - Album Art

13 - Shortcut Button

14 - Current le info area

15 - Elapsed playing time indicator/Seek bar

16 - Direct Button

17 - Scan Button

Play/Pause Playback

*On USB Video menu screen, playback status is

pause.

Touch [] button to resume playback. The screen

will go to video screen automatically.

Switch to Previous/next ﬁle

Press [ ] or [ ] button during playback to play

previous /next le.

• Pressing [] button starts playback from the

beginning of the next track.

• Pressing [] button starts playback from the

beginning of the current track; when this button is

pressed again within about 5 seconds, playback

starts from the beginning of previous track.

Repeat Playback

* The repeat set as the factory default is Repeat All.

Touch the [] button once for Repeat Track, again for

Repeat Folder, again for Repeat All.

Shufﬂe Playback

1. Touch [ ] button to shufe the tracks in playing

folder during playback.

2. Touch this button again to turn off the feature.

Current ﬁle info area

This area displays info of current video le: le name,

number of current le/total number in current folder,

Elapsed playing time/total time of current le.

Skip use seek bar

Press on seek bar and drag it to any position where

you want to start playback.

Select a folder on display list

This operation is same as this in USB Audio mode.

Selecting a track on the display List

This operation is same as this in USB Audio mode.

Scanning the Tracks

This operation is same as this in USB Audio mode.

Searching with the Track Number

This operation is same as this in USB Audio mode.

5647

8910

28 NX404

English

English Owner’s Manual

11. iPod/iPhone Operations

iPod/iPhone can be connected by using the

connector cable supplied with the iPod/iPhone, but in

this case, you can enjoy its audio sound only. To enjoy

video movies stored in the iPod/iPhone with video

displaying them on this unit, it is required to use the

special connector cable (CCA-748-600) separately

sold.

However the new products such as iPhone 5,

iPod touch® (5th generation) and iPod nano®

(7th generation) only can connect 10-pin cable

(no video signal output),so these new products

cannot displaying video in video mode.

Note:

• This system will not operate or may operate improperly

with unsupported versions.

• For detailed information on the playable iPod/iPhone

models, see our home page: www.clarion.com

Notes on using Apple iPod/iPhone

• Do not connect an iPod/iPhone to this unit with a

headphone connected to the iPod/ iPhone.

• After the iPod/iPhone has been connected to this

unit, the buttons of iPod buttons are disabled for

operation in the Music mode. In the Video mode, do

not operate the buttons of iPod.

• When in the iPod mode, the screen image input

from the AUX terminal is output to the rear monitor.

• When no data is present, the title display will remain

blank.

• Set the language setting of iPod/iPhone to English

before connecting your iPod/iPhone. Some

characters of the other languages may not be

displayed correctly in this system.

• Precautions on battery consumption:

If the iPod/iPhone is connected to this unit when the

internal battery of iPod/iPhone has run down, this

function may not operate correctly. You must connect

the iPod/iPhone after charging the battery if it has run

down.

iPod Audio Menu Operations

Connect your iPod/iPhone to the USB connector.

The system will automatically detect the connected

device and the iPod Audio button will be enabled for

operation on the Main Menu screen.

The playback starts after a while, from where the iPod/

iPhone has been paused.

• When iPod/iPhone is already connected

Touch the [] key on the Main Menu

screen. The system changes to the iPod mode, and

starts playback from the previous position.

Press MENU button on Operational Panel to return to

the Main Menu.

iPod Audio ID3 Info

1 - Option Button

2 - Repeat Button

3 - Shufe Button

4 - Previous Track /Fast Backward Button

5 - Play/Pause Button

6 - Next Track/Fast Forward Button

7 - ID3 Information

8 - Next Page[ ] / Previous Page[ ] Button

9 - Category List

10 - System Time

11 - Bluetooth Status

12 - Playback Status

13 - Art Work

14 - Shortcut Button

15 - Progress bar

5367

1011

NX404

English

English Owner’s Manual

Play/Pause Playback

1. Touch [ ] button to pause during playback.

2. Touch [] button again to resume playback.

Switch to Previous/next ﬁle

• Press [ ] or [ ] button during playback to play

previous /next le.

• Pressing [] button starts playback from the

beginning of the next track.

• Pressing [] button starts playback from the

beginning of the current track; when this button is

pressed again within about 5 seconds, playback

starts from the beginning of previous track.

Fast Forward /Fast Backward

Press [ ] or [ ] button and hold more than 2

seconds to start fast backward or fast forward during

playback.

Note:

*No audio is reproduced during fast forward and fast

backward operation.

*The fast forward and fast backward speed may differ

depending on the audio les.

Repeat Playback

* depend on iPod.

1. Touch the [] button once for Repeat Track, again

for Repeat All.

Shufﬂe Playback

1. Touch [ ] button to shufe the tracks in playing

folder during playback.

2. Touch this button again to turn off the feature.

Album Art work

If current audio le contains album art image in ID3,

the picture will be displayed in this area.

ID3 info area

This area display ID3 info of playing le: song title,

artist information, album information (Genre, playlist

and release time).

Category List

Select different category songs to play. The

category is same as the iPod/iPhone.

iPod audio playlist mode screen

1 - Switch to Information Button

2 - Playing List

3 - Page Turning

4 - Back to father folder

5 - Close the list mode

6 - Search with the rst alphabet in current list

iPod audio List mode screen

• In the ID3 information mode screen, press the ID3

info area to switch the playing list, and in the playing

list mode screen, press the button [] can back to

the father folder. If the list is in root, press it can close

the list.

• Press the button[ ] can back to the father folder. If

the list is in root, press it can close the list.

• Press the button [ ] to close the List and back to

the ID3 information mode.

Simple Control Mode

30 NX404

English

English Owner’s Manual

1 - Simple Control Button

2 - Video Mode Button

• If the Simple Control is set to [] in option menu,

the screen will become Simple Control Mode. It can

also display the video of iPod/iPhone regardless it is

iPod Audio or iPod Video mode. But only “Previous

Track”、“Play/Pause” and “Next Track” can be

operated.

• Press []the video will play from iPod.

Skipping a track (Simple Control Mode)

Press the [ ] or [ ] button during playback. Tracks

are skipped, as many times as the button is pressed,

and playback starts.

• Pressing the [] button starts playback from the

beginning of the next track.

• Pressing the [] button starts playback from the

beginning of the current track.

When this button is pressed again within about 5

seconds, playback starts from the beginning of the

previous track.

Note: In Simple Control Mode, the best way is to control

the iPod just on iPod.

Selecting a list item from a list screen

(1). Touch the list screen and ick up or down to scroll

the list.

(2). Touch a desired list item on the screen to display

the corresponding list of tracks.

(3). Touch the desired track name on the list to play it.

iPod Video Menu Operations

Connect your iPod/iPhone to the USB connector.

The system will automatically detect the connected

device and the iPod Video button will be enabled for

operation on the Main Menu screen.

• When an iPod/iPhone is already connected

Touch the [] key on the Main Menu screen.

The system changes to the iPod Video mode, and

starts playback from the previous position.

Press MENU button on Operational Panel to return to

the Main Menu.

• Viewing video data in the iPod/iPhone (only for the

iPod/iPhone with video features)

When you connect an iPod/iPhone with video features

by using the optional connector cable for iPod/iPhone

with video, you can enjoy the video data and slide

show data stored in the iPod/iPhone and show them

on the display of this unit (and the rear monitor if

connected).

iPod Video ID3 mode screen

1 - Option Button

2 - Repeat Button

3 - Previous Track Button

4 - Play/Pause Button

5 - Next Track Button

6 - Playing File Title

7 - Category List

8 - Next Page[ ] / Previous Page[ ] Button

456

910

NX404

English

English Owner’s Manual

9 - System Time

10 - Bluetooth Status

11 - Playback Status

12 - Art Work

13 - Shortcut Button

14 - Progress bar

Note:

This icon shows only when 2-Zone on. This icon is in

some screen pictures and none in other some pictures.

It is better to be same setting in a manual. (Also, Navi

icon shows owned by setting. (There is no Navi icon

screen in this manual))

Play/Pause Playback

1. Touch [ ] button to pause during playback.

2. Touch [] button again to resume playback.

Switch to Previous/next ﬁle

• Press [ ] or [ ] button during playback to play

previous /next le.

• Pressing [] button starts playback from the

beginning of the next track.

• Pressing [] button starts playback from the

beginning of the current track.

Repeat Playback

* The repeat set as the factory default is depend on

iPod/iPhone.

1. Touch the [] button once for Repeat One, again

for Repeat All, again for Repeat Off.

Album Art work

If current audio le contains album art image in ID3,

the picture will be displayed in this area.

ID3 info area

The area is display the title of the playing le.

Category List

Select different category songs to play. The

category is same as the iPod/iPhone.

iPod Video List mode screen

This operation is same as this in iPod Audio mode.

iPod Video Simple Control Mode Screen

This operation is same as this in iPod Audio mode.

iPod Video play mode screen

1 - Previous Track /Fast Backward Button

2 - Play/Pause Button

3 - Next Track/Fast Forward Button

4 - Progress bar

5 - Menu List Button

6 - Repeat Button

7 - System time

8 - Bluetooth status

9 - Playback Info

Play/Pause Playback

1. Touch [ ] button to pause during playback.

2. Touch [] button again to resume playback.

Switch to Previous/next Track

• Press [ ] or [ ] button during playback to play

previous /next track.

• Pressing [] button starts playback from the

beginning of the next track.

34 5

32 NX404

English

English Owner’s Manual

• Pressing [ ] button starts playback from the

beginning of the current track; when this button is

pressed again within about 5 seconds, playback

starts from the beginning of previous track.

beginning of the current track.

Fast Forward /Fast Backward

Press [ ] or [ ] button and hold more than 2

seconds to start fast backward or fast forward during

playback. Release the button will continue playback

with normal speed.

Note:

*No audio is reproduced during fast forward and fast

backward operation.

*The fast forward and fast backward speed may differ

depending on the audio les.

Repeat Playback

* The repeat set as the factory default is Repeat Off.

Touch the [] button once for Repeat One, again

for Repeat All, again for Repeat Off.

Note:

The operation in iPod video mode are as same as iPod

Audio mode. Please refer to the iPod Audio Mode

operation.

Note:

Video playback is not available on all iPod/ iPhone

devices. Please contact your Clarion dealer for details.

An optional connection cable or accessory may be

required for this feature.

Note:

• “AUDIO ONLY” is displayed when the automobile is

moving.

• Image data may not be played back according to the

status of the iPod/iPhone

• The volume setting of video data is relatively lower than

audio data. Be sure to lower the volume setting before

switching to the other mode.

• Do not select the categories with no track registered

from the iPod menu screen. The iPod/iPhone may be

frozen. If the iPod/iPhone is frozen, reset the iPod/

iPhone by following the procedure described in the

instruction manual of the iPod/iPhone.

• Audio may be played back slightly out of

synchronization with video images.

iPod Audio Bluetooth mode

When your iPod/iPhone have connected via bluetooth

to this unit,you can also enter iPod Audio mode.The

operation is same as the normal iPod Audio mode.

NX404

English

English Owner’s Manual

12. PANDORA OPERATIONS

Selecting the Pandora mode

1. Turn on Pandora function of your iPod.

2. Connect your iPod to the unit.

3. When iPod/iPhone is already connected, touch the

[Pandora] icon on the Main Menu screen.

• Pandora mode ID 3 Information Screen

1 - Art Work

2 - Progress bar

3 - Settings Button

4 - Thumbs-down

Press this button Thumbs-down current track and play

next track.

5 - Play/Pause Button

Use to control playback and pause.

(1). Touch the key during playback. Playback pauses.

(2). To resume playback touch the key again.

6 - Next track Button

7 - Thumbs-up

8 - System time

9 - List Button

Press this button to show List Screen

10 - Current station name

11 - Current title.

Touch icon to store current title to track favorites list.

12 - Current artist.

Touch icon to store current artist to artist favorites list.

13 - Current album name.

•Skipping a track (Pandora mode)

Press [] button during playback, tracks are skipped

and starts playback from the beginning of the next

track.

Note:

• Some track are not able to be skipped.

• If skip limit has been reached(Skip 6 tracks in

1H),this fuction will not available.

•Track rating

Press [ ] or [ ] button to thumbs-down or Thumbs-

up current track, and the button will light.

Note:

•Press [ ] button will skip to next track (skip limit has

not been reached).

•Some track is not able to be rated (i.e. audio ads

and shared station content). The thumbs buttons will

disable.

•Bookmarking

Touch [ ] button to store current title or artist to track

favorites list.

Note:

•Some track are not able to be bookmarked (i.e. audio

ads). In this case the bookmark buttons will disable.

• Pandora mode Station List

1 - [ ]button

Press this button to display ID 3 Information Screen.

2 - [ ]button

Press this button to sort the list by rst letter,press

again to sort the list by date.

3 - Station list,touch to select station play.

When the desired station is not displayed, press and

ick the station list up or down.

• Pandora mode Setting screen

4 5 76

110

1 2

34 NX404

English

English Owner’s Manual

1 - Add a new Station

2 - Select a device

3 - Close the setting screen

Pandora Bluetooth mode

When your mobile phone have connected to the unit

via bluetooth.You can also enter the Pandora mode.

The operation is same as the normal Pandora mode.

1 - BT mode

When connected via bluetooth.This icon will change

from USB to BT

NX404

English

English Owner’s Manual

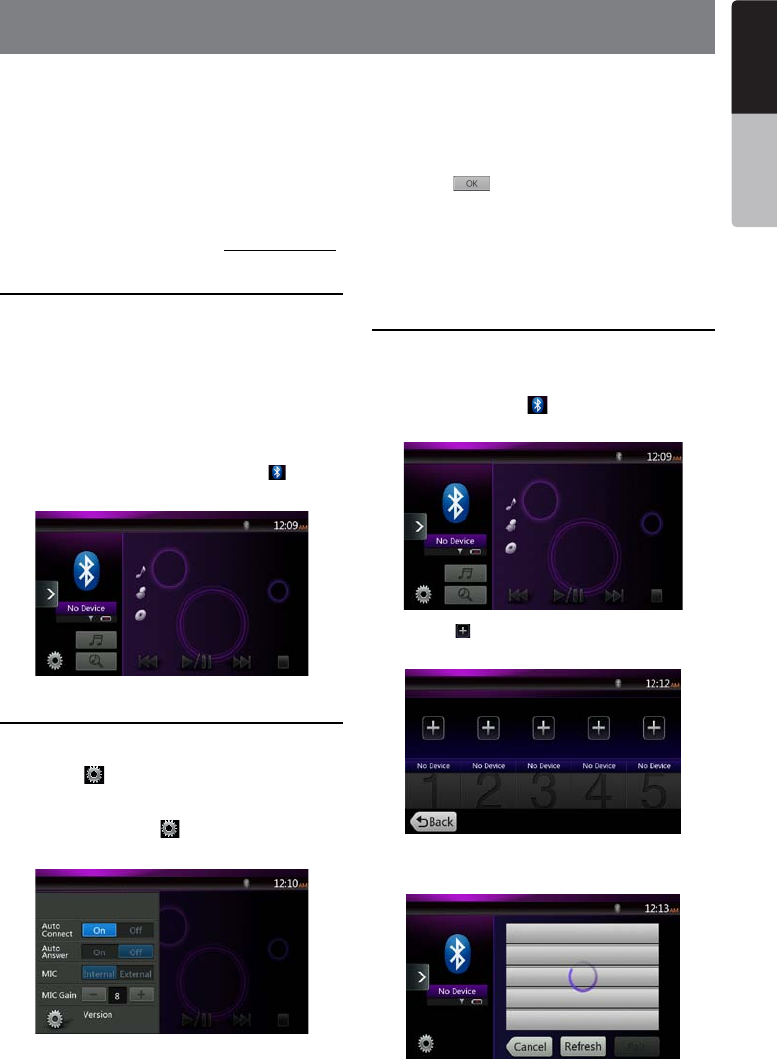

13. Bluetooth AUDIO PLAYER OPERATIONS

Some Bluetooth cellular phones have audio features,

and some portable audio players support the

Bluetooth feature. These devices will be called as

“Bluetooth audio players” in this manual. This system

can play audio data stored in a Bluetooth audio player.

Note:

• This system will not operate or may operate improperly

with some Bluetooth audio players.

• For detailed information on the playable Bluetooth

audio players, see our home page: www.clarion.com

Selecting the Bluetooth Audio mode

1. Touch the [Bluetooth Audio] key to select the

Bluetooth Audio mode.

The system changes to the Bluetooth mode. If the

connection with a Bluetooth audio player has been

already established, you may select the Music

function.

2. Press MENU button on Operational Panel to return

to the Main Menu.

• When the connection with blue icon a Bluetooth

audio player has been established, the [] icon is

displayed at the top of the screen.

Bluetooth audio player settings

You can conrm various information concerning about

the Bluetooth Interface features.

1. Touch the [] button to display the information on

the screen.

2. When you nish conrming the Bluetooth

information, touch the [] button to return to the

previous screen.

If you want to change the Pin Code setting of this unit,

perform the following steps.

• The factory default setting is “1234”.

3. Touch the text box of the Pin Code item to display

the Ten-Key Pad screen.

4. Enter your desired 4-digit PIN number, and then

touch the [] key.

Note:

This model is not supported External MIC.

T2 sample is ENABLED. .

Registering your Bluetooth audio player

(Pairing)

You can register up to 5 Bluetooth audio players.

1. Turn on the power of the Bluetooth audio player you

wish to register.

2. Touch the Device key [] to display the Device

Select screen.

3. Touch the [ ] button to display the Inquiring Device

screen.

36 NX404

English

English Owner’s Manual

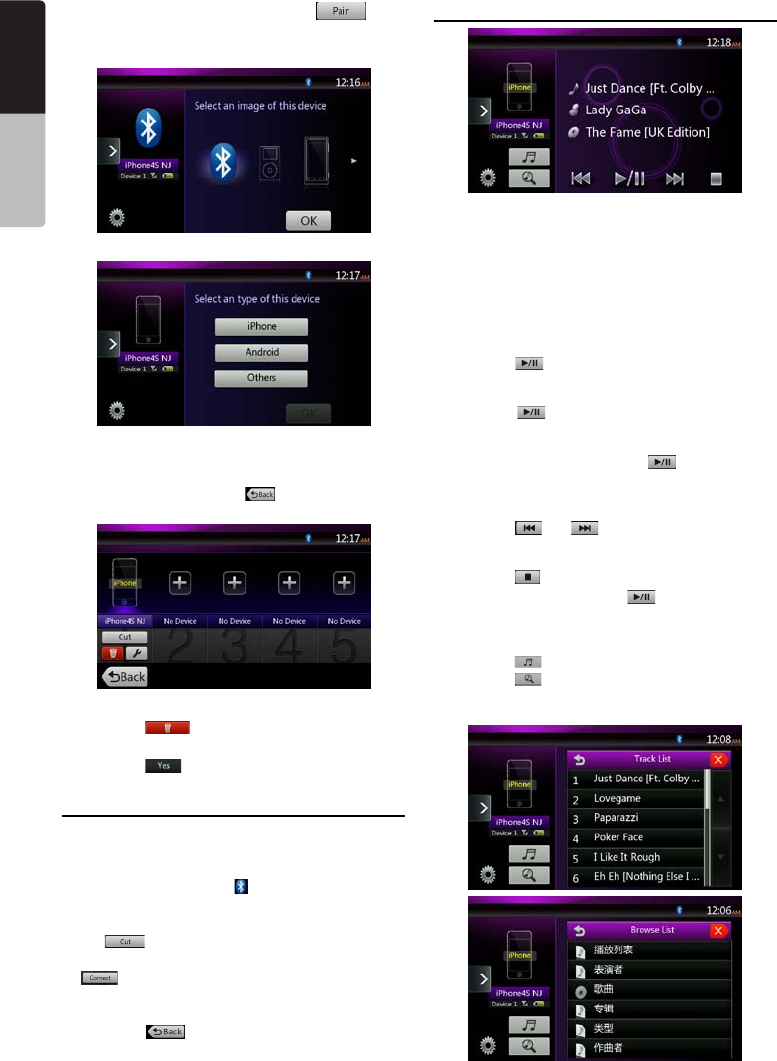

4. Touch your desired Device and press [

] button to register for the Bluetooth audio player.

Then select an image of this device.

And select a type of this device.

When the pairing operation completes, the registered

Bluetooth audio player is set as the current device,

after selecting the favorite icon, the display return to

the device list screen. Press [] button, the display

will return to the Bluetooth audio mode screen.

• To delete the Bluetooth audio player registration

1. Touch the [ ] button to delete the device.

A conrmation screen is displayed.

2. Touch the [ ] button to conrm delete.

Selecting the Bluetooth audio player

To change the current Bluetooth audio player to the

other device which is already registered, perform the

following operation.

1. Touch the Device key to [] display the Device

Select screen.

2. Touch the currently connected device, then press

the [] button to disconnect the active device.

3. Touch the desired Device key you wish to use. Press

[] button to select it as your active device.

The corresponding cellular phone is set as current

telephone.

4. Touch the [] button to return to the previous

screen.

Controlling the Bluetooth audio player

Note:

• Occasionally, depending on the environment, playback

sounds may be fragmented, or switch noises may be

generated.

Playing a music

After the connection with a Bluetooth audio player is

established, the play mode is automatically engaged.

• When playback is not started for some devices,

touch the [] button manually.

Pausing playback

1. Touch the [ ] button during playback.

Playback pauses.

2. To resume playback, touch the [ ] key. Playback

resumes.

Skipping a track (searching)

3. Press the [ ] or [ ] button during playback.

Stopping playback

4. Press the [ ] button during playback.

Tracks are stopped, press the [] button to

playback the rst Track.

Show track list

5. Press the [ ] button to show the current track list.

Press the [] button to show all of the lists.And

you can playback any tracks by touch the items in

the list.

NX404

English

English Owner’s Manual

When the connection with your Bluetooth cellular

phone is established, the following functions are

available on this unit:

• Listening to your telephone calls on the car

speakers.

• Answering to an incoming call.

• Making a call using the Ten-Key pad screen.

• Making a call using the Phone Book data in the

selected cellular phone.

• Making a call using the History data of the dialed/

received calls.

Note:

• Some cellular phones may not be able to transfer the

Phone Book data to head unit.

• The Phone Book data transmission may take a long

time. The operations of sending calls are disabled

during the data transmission.

Select the BT Phone mode

1. Touch the [Bluetooth Telephone] key to select the

Bluetooth Telephone mode.

The Telephone screen is displayed.

2. Press MENU button on Operational Panel to return

to the Main Menu.

• When no Bluetooth Telephone connected, the icon

[] is displayed at the top of the screen.

• When the connection with a Bluetooth Telephone

has been established, the icon [] and signal level

indicator are displayed at the top of the screen.

Bluetooth Telephone settings

You can conrm various information concerning about

the Bluetooth Interface features.

1. Touch the [] button to display the information on

the screen.

2. Perform setting for the desired item. See the

following sections for detail.

3. When you nish conrming the Bluetooth

information, touch the [] key to return to the

previous screen.

Setting Automatic Connection

The system automatically reconnects the cellular

phone after the connection is lost or the system is

restarted.

• The factory default setting is “ON”. Touch the

[] or [ ] button of the Automatic Connection

item to set the function ON or OFF.

Setting Automatic Answer

If a call comes in, answer automatically after

5 seconds.

• The factory default setting is “OFF”. Touch the

[] or [ ] button of the Automatic Answer item

to set the function ON or OFF.

Setting Microphone Gain

You can adjust the input level of the microphone in

16 levels.

• Touch the level indicator button of the Microphone

Gain item to adjust the input level.

Note:

• The input level of the microphone can be affected by

its surroundings. Adjust the level if the person on the

other end of the telephone has a reception problem.

14. Bluetooth

TELEPHONE OPERATIONS

38 NX404

English

English Owner’s Manual

Registering your cellular phone

(Pairing)

You can register up to 3 cellular phones. The

registering method is as same as “Registering your

Bluetooth audio player”.

1. Turn on the power of the cellular phone you wish to

2. Touch the Device key [] to display the Device

Select screen.

3. Touch the [ ] key to display the Inquiring Device

screen.

4. Touch your desired Cellular key to select the key

for the cellular phone to be registered, and press[

] button to register for the Bluetooth cellular

phone.

• You cannot select the Cellular button of which

another cellular phone is already registered.

Select a blank Cellular button.

5. If entering the Pass Key code is prompted on your

cellular phone, enter the Pass Key code set in this

unit.

• You can change the Pass key setting of this

unit from the Bluetooth Info screen under the

Telephone Settings screen.

When the pairing operation completes, the

registered cellular phone is set as the current

telephone, and the display returns to the

Telephone screen.

• To delete the cellular phone registration

1. Touch the [ ] key to delete the device.

A conrmation screen is displayed.

2. Touch the [ ] key to conrm delete.

Select the cellular phone

To change the current cellular phone to the other

device which is already registered, perform the

following operation.

1. Touch the [] key to display the Device Select

screen.

2. Touch the currently connected device, then press

[] key to disconnect the active device.

3. Touch the desired Device key you wish to use. Press

[] key to select it as your active device. The

corresponding cellular phone is set as the current

telephone.

• If the power of the cellular phone is not turned on,

turn it on.

• The cellular phone may prompt to acknowledge the

Bluetooth connection or to enter the Pass Key code

of this unit. Perform these operations according to

the message displayed.

4. Touch the [] key to return to the previous

screen.

Obtaining the Phone Book data

Sending the Phone Book data from the cellular phone

enables you to make a call using the Phone Book

function from this unit.

Telephone operations

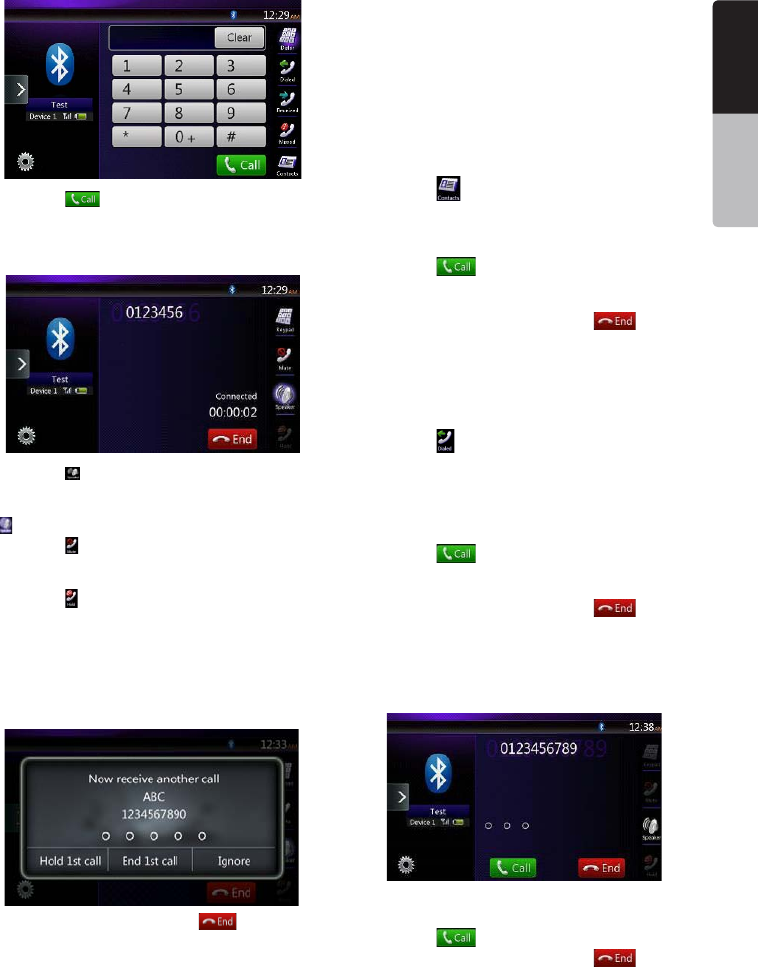

Making a call using the Ten-Key pad

1. Touch the [ ] key to display the Ten-Key pad

screen.

2. Enter the telephone number by using the Ten-Key

pad displayed on the screen.

NX404

English

English Owner’s Manual

3. Touch the [ ] (Send) key to call the entered

number.

• The following Telephone Interrupt screen is

displayed during phone call.

• Touch the [ ] key to talk by using the cellular phone

and canceling the hands-free function (Private

Mode). To return to the hands-free mode, touch the

[] key again.

• Touch the [] key to mute the microphone. Now

you can hear the other side, but the other side

cannot hear your side.

• Touch the [] key to hold the current phone call,

now you can answer to the other incoming call.

Touch again to talk with previous call

If during a call with a third-party call, you can keep

the current call to answer a third party or hang up

the current call to answer a third party. You can also

ignore the third-party calls.

4. When the call is nished, touch [ ] key to hang

up.

Note:

• Depending on some special cellular phone, the

Telephone Interrupt screen may be closed and the

connection with this system may be disconnected

when entering the Private mode.

Making a call using the Phone Book

You can use the Phone Book data obtained from the

cellular phone to make a call from this unit.

Note:

• Before using this function, the Phone Book data must

be sent from the cellular phone.

• Only the Phone Book items with at least one telephone

number registered in the captured Phone Book data

are displayed on the Phone Book screen.

1. Touch the [] key to display the Phone Book

screen.

2. Touch the desired Name key you wish to dial.

• Flick the list up and down to scroll the list.

3. Touch the [] key to call the specied number.

The Telephone Interrupt screen is displayed, and

calling starts.

• When the call is nished, touch the [] key to

hang up.

Making a call using the History

The system will memorize the Dialed/Received calls

record data in the memory. You can conrm it and use

it to make a call from this unit.

1. Touch the [] key. The History List screen is

displayed.

• The items are sorted by Dialed, Missed and

Received calls.

• Flick the list up and down to scroll the list.

2. Touch the desired History item key you wish to dial.

3. Touch the [] key to call the specied number.

The Telephone Interrupt screen is displayed, and

calling starts.

• When the call is nished, touch the [] key to

hang up.

Answering to an incoming call

When a call comes in, the following Telephone

Interrupt screen appears.

You can answer to the incoming call on this system by

the following operation.

1. Touch the [] key to answer the call.

2. When the call is nished, touch the [] key to

hang up.

40 NX404

English

English Owner’s Manual

15. Tuner Operations

Listening to the Tuner

1. Touch the Tuner button on the Main menu display.

The tuner mode screen is displayed.

2. Press the [FM1/FM2/FM3/AM] button to select the

radio band. Each time the button is pressed, the

radio reception band changes in the following order:

FM1->FM2->FM3->AM -> FM1...

1. Preset Scan Button

2. Seek Down

3. Seek Up

4. Step Down

5. Step Up

6. Frequencies Display

7. System time

8. Bluetooth status

9. Preset List

10. DX/Local Display

11. Band Button

12. Shortcut Button

13. Option Button

Seek Tuning

1. Press the [FM1/2/3/AM] button to select the radio

band (FM or AM).

2. Touch the [] or [ ] button

• When Press the [] button, the station is searched

in the direction of higher frequency.

• When Press the [] button, the station is searched

in the direction of lower frequency.

Step Tuning

1. Press the [FM1/2/3/AM] button to select the radio

band (FM or AM).

2. Touch the [] or [ ] button in frequency menu to

tune up or down by one step.

Recalling a preset station

1. Press the [FM1/2/3/AM] button to select the desire

band (FM or AM) on the tuner.

2. Press the preset station (1 to 6) on Preset List.

Manual memory

1. Touch the desired Band key to select the band you

wish to store.

2. Tune to a station you want to store using the seek

tuning, step tuning, or preset tuning.

3. Touch and hold the desired Preset key you want to

store for about 2 seconds.

Auto Store

The Auto Store is a function for storing up to 6 stations

that are automatically searched in sequentially. If the

number of receivable stations cannot reach to 6, the

previous stored station remains.

1. Touch the [FM1/2/3/AM] button to select the

desired band. (FM or AM)

2. Press the [] button, and then press the [ ]

button to start the Auto Store.

A beep sounds and the stations with good reception

are stored automatically to the preset list.

Notes:

1. After auto store, the previous stored stations will be

overwritten.

2. The unit has 4 bands, but FM3 and AM can store by

AS function.

Preset Scan

The Preset Scan receives the stations stored in the

preset memory in order. This function is useful when

searching for the desired station in memory.

1. Touch the [FM1/2/3/AM] Button to select the desired

band. (FM or AM)

2. Touch the [] button to start the Preset Scan.

The unit starts scanning each station for 10 seconds

sequentially. But the station stored is not a valid

station; the scanning time is only 2 seconds.

3. When the desired station is tuned in, touch the

[] button again to stay in that station.

DX/Local Setting

The DX / Local setting changes the tuner sensitivity in

order to separate closely spaced stations. This feature

is useful in areas that have many radio stations in

close proximity.

113

11 8910

NX404

English

English Owner’s Manual

Switching to HDMI mode

Note:Make sure your mobile phone has installed the

SkyMirror app. Before using the HDMI function,you

should connect your mobile phone to the unit via

BT.Then connect your mobile phone to the HDMI via

USB.

Touch the HDMI button on the Main menu display.

The HDMI mode screen is displayed.If it is new

mobile phone, our system will inform mobile phone

APP enter calibration mode automatically. If the

user delete the phone in the list, we should also

delete the mac address, which means this phone

is new one again.

Select a device for HDMI connect

Setting screen

push [Not Connect],select a device to connnect.

Connected device name

Select HDMI source

When a device is connected for the rst time.The

calibration will show up automatically.

Note:During the calibration,the buttons on the mobile

phone can not work.Calibration time is set to 30

seconds.When time is out,the buttons on the mobile

phone will be useful again.

HDMI for iPhone

16. HDMI Operation

42 NX404

English

English Owner’s Manual

HDMI for Android(No HID proﬁle)

HDMI for Android(HID proﬁle)

Other or Any device is not connected

HDMI Mode

1 - Pad move Button

Press this button to switch the operation pad up or

down.

2 - Calibration Button

Press this button to recalibrate the screen.

3 - Menu Button

This button is same as Android OS’s.

4 - Home Button

This button is same as Android OS’s.

5 - Back Button

This button is same as Android OS’s.

6 - Hide Button

Press this button to hide the operation pad.

32 6

NX404

English

English Owner’s Manual

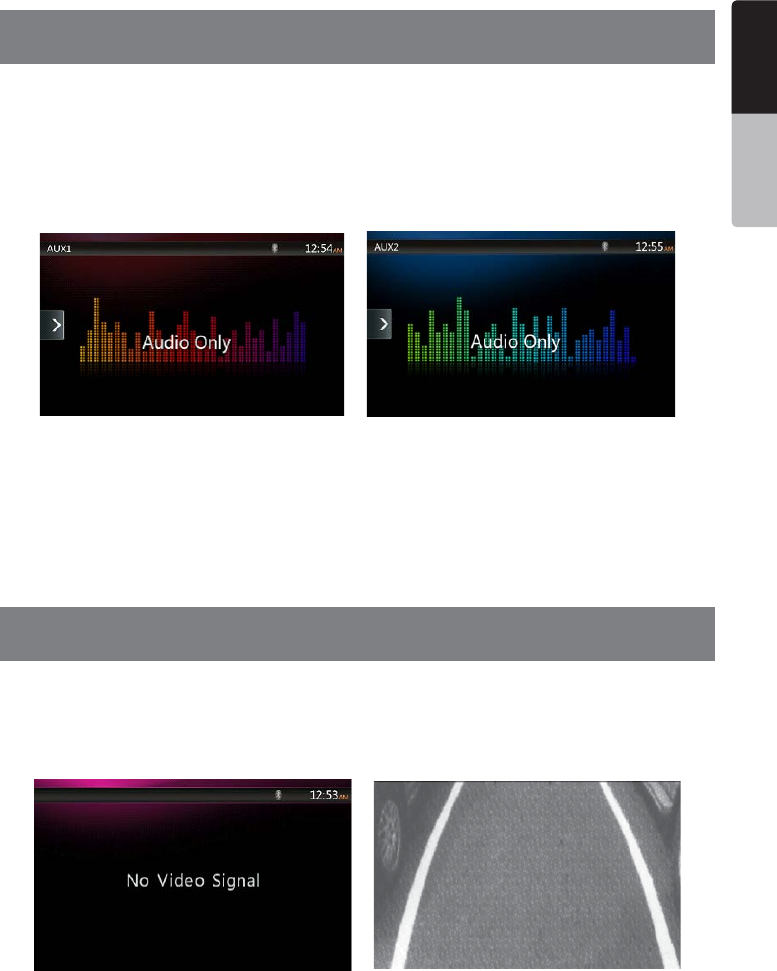

17. AUX

External peripheral devices, including a game console, camcorder, navigation unit, iPod/iPhone, etc. can be

connected to the AUX connector on the front or back of this unit using the A/V media cables.

Switching to AUX IN

Press [AUX1] /[AUX2] button on Main Menu to select desired mode (when unit is reading). If the external device

connected to AUX input have audio signal, the unit will broadcast audio of external device. Press Menu button on

Operational Panel to return to the Main Menu.

You cannot directly control external devices connected to AUX input.

18. Camera In Operations

Switching to Camera mode

Press [Camera] button on Main Menu to select desired mode.

The LCD will display the external camera video. The screen will display “No Video Signal” message, if a valid

camera is not connect to this head unit.

Press MENU button on Operational Panel to return to the Main Menu.

Note:

If the reverse cable is connected correctly to the car, the head unit to go to camera mode automatically when the car

is in reverses.

44 NX404

English

English Owner’s Manual

If a monitor is installed in the rear zone and connected

to the rear zone AV output, passengers in the back

seat can watch the DVD/iPod Video/AUX1/ AUX2

video separately from front source.

1. Press the button to access the front source.

2. Press the button to close the rear source.

Multi-Zone Operation

Independent sources can be played simultaneously

on the unit. For example, a FM/AM console can be

playback on the front screen while DVD video is

available to rear passengers. But now can’t select

DVD video in front.

Access Rear-Zone

1. Touch the Rear button on Main Menu to access the

Rear Source.

2. Select a source to play.

Exit Rear-Zone

Touch the 2-Zone off button to close the Rear Source.

Note:

1. If the source is selected as the front, the source in

rear can’t be selected.

2. If the source is selected as the rear, the source in

front can’t be selected.

3. Press the Front Button to access the main menu but

not close the Rear Source.

DVD Video in Rear

1 - Option Button

2 - Show Cursor keys Button

3 - Previous Chapter /Fast Backward Button

4 - Play/Pause Button

5 - Next Chapter /Fast Forward Button

6 - Elapsed playing time

7 - Menu List Button

8 - Front/Rear button

If the screen displays Rear Source, press Front/Rear

button to switch to Front Source.

If the screen displays Front Source, Press Front/Rear

button to switch to Rear Source.

DVD Video Rear Source Control Info

mode.

PressBACKbuttontoreturn.

DVD Video Rear Source Control Direct

mode.

NOTE: More detail please refer to DVD Video Front

source.

19. Rear Source Operation

1 2 3 4 5 6 7

NX404

English

English Owner’s Manual

AUX1

AUX2

iPod Video in Rear

iPod Video Rear Source Control Play

Mode

1 - Previous Track /Fast Backward Button

2 - Play/Pause Button

3 - Next Track/Fast Forward Button

4 - Progress bar

5 - Menu List Button:

Press the Menu button can display the iPod Video

Rear Source mode screen.

6 - Repeat Button:

Same as iPod function of front source

7 - Front/Rear button

If the screen displays Rear Source, press to switch to

Front Source.

If the screen displays Front Source, Press to switch to

Rear Source.

iPod Video Rear Source ID3 Mode

NOTE:

If the source is selected as the front, the source in rear

can’t be selected.

If the source is selected as the rear, the source in front

can’t be selected.

Press the Front Button to access the front main menu

but the rear source will keep running.

1 2 3 4 5 6

46 NX404

English

English Owner’s Manual

20. Setting Operation

Press [ ] button on the Main menu screen.

The Setting menu screen will be displayed.

General Setup Menu

System Language: Set the Language for system

screen.

Illumination Color: Set the illumination color on the

panel.

Select menu to be able to select from Shortcut

menu and drag it to left side area.

Time: Set system clock.

24-Hour Format: Set the time display mode.

Beep: Turn on or turn off the beep conrmation sound.

Bluetooth: Set the Bluetooth On or Off.

Wallpaper: Choose the desired wallpaper.

Input Aux Sense: AUX input switch, including Low,

Middle, High.

DivX® Registration: Display the information about

DivX® registration.

Tel Speaker: Therearetwooptions,LeftandRight.

Forexample,ifcurrentsettingisRight,whenBT

phoneiscomingin,onlyrightspeakercanhearthe

phone.

Pandora:Therearetwooptions,OnandOff.

Camera Audio:Therearethreeoptions,Off,Onand

Mute.

Version: Display the software version information.

Note:

• Time and 24-Hour Format can be adjusted when set

the system time not to be synchronized with GPS local

time.

Video Setup Menu

NX404

English

English Owner’s Manual

This menu includes: DVD Wide Screen Mode;

Dimmer. Dimmer Mode

DVD Wide Screen Mode: Set the DVD wide screen

mode On or Off.

Dimmer: Set Dimmer value from 0 to 20.

Dimmer Mode: There are three options, Day, Night

and Auto.

Audio Setup Menu

This menu includes: Balance, Fader, Beat EQ, Sub

Woofer Ctrl, Sub Woofer Phase, High Pass Filter Low

Pass Filter, Line Out and Magna Bass EX.

Balance: Choose the desired volume for left and right

speaker.

Fader: Choose the desired volume for front and rear

speaker.

Beat EQ: Choose the desired mode: Bass Boost,

Impact, Excite, Custom and OFF.

Subwoofer Ctrl: Choose the desired subwoofer gain

from 0 to 14.

Subwoofer Phase: Choose the Subwoofer Phase

normal or reverse.

High Pass Filter: Choose the frequency about the

high pass lter or enable. The frequencies include

60Hz, 90Hz and 120Hz.

Low Pass Filter: Choose the frequency about the low

pass lter or enable. The frequencies include 60Hz,

90Hz and 120Hz.

Amp Cancel: Choose the amplier audio output on

or off.

Magna Bass EX: Choose the loudness On or Off.

Note:

Optional cable (sold separately) is necessary when you

use Audio line out.

Navigation Setup Menu

This menu includes: GPS Time, Navi Interrupt, Voice

Guidance.

GPS Time: Set the system time to be synchronized

with GPS local time or not.

Navi Interrupt: There are three choices: On/Popup/

Off. “On”: The navigation screen will cover to AV

screen when reaching some key point. “Popup”: When

small turn info window will pop up in the top of the

AV screen to indicate the key point. “Off”: Turn off this

function.

Voice Guidance: There are three choose: On/Mute/

Off.

On: Interrupt function of voice guidance is on. While

interrupting no attenuate function of AV sound.

Mute: Interrupt function of voice guidance is on. While

interrupting attenuate function sound is on.

Off:disable the navigation voice guidance.

Others Setup Menu

This menu include: Set Password; Parental Control;

Audio Language; Subtitle Language; Screen

Calibration and Factory Default.

Set Password: Set the password for DVD parental

control.

Parental Control: Set the rating of the age. It contains

Kid Safe/G/PG/PG- 13/PG-R/R/NC- 17/Adult.

48 NX404

English

English Owner’s Manual

Audio Language: Set the Language for DVD Audio.

Subtitle Language: Set the Language for DVD subtitle.

Blinking LED: Set blinking LED On or Off.

Screen Calibrate: The function of it is to select the TS

Calibrate YES or NO.

Factory Default: The function is to select to load

factory default or not.

Set the Anti-Theft code

1. If your unit is unlocked, hold the [ ] button

more than 2 seconds, then the Anti-Theft setting

mode will display. Users can change anti-theft

code.

Touch [YES], the numerical keypad is displayed.

Enter the new password twice, then anti-theft code

is set and your unit is secured.

When the Anti-theft is “On”, you need enter correct

Anti-theft code to turn the unit on. If you enter

wrong code three times, the unit is locked, and must

be unlocked by the professionals.

2. If your unit is secured, hold the [ ] button more

than 2 seconds, then the Anti-Theft setting mode

will display. The numerical keypad is displayed,

enter the right code to unlock.

NX404

English

English Owner’s Manual

21. TROUBLESHOOTING

GENERAL

DVD PLAYER

Problem Cause Measure

Power does not turn on. (No

sound is produced.)

Fuse is blown. Replace with a fuse of the

same amperage. If the fuse

blows again, consult your store

of purchase.

Incorrect wiring. Consult your installation center.

Nothing happens when buttons

are pressed.

Display is not accurate.

The microprocessor has

malfunctioned due to noise,

etc.

Press the reset button with a

thin rod.

Note:

When the Reset button is

pressed, turn o the ACC

power.

* When the Reset button is

pressed, frequencies of radio

stations, titles, etc. stored in

memory are cleared.

The remote control unit does

not work.

Direct rays of the sun fall on

the light-receptive part of the

remote control unit.

When direct rays of the sun fall

on the light-receptive part of

the remote control unit, it may

not work.

The battery of the remote

control unit is dead or there is

no battery in the remote control

unit.

Check the battery of the remote

control unit.

Problem Cause Measure

Disc cannot be loaded. A disc is already loaded. Eject the disc before loading

the new one.

There is foreign matter already

in the disc slot.

Remove the foreign matter, or

consult a service station.

Sound skips or is noisy. Disc is dirty. Clean the disc with a soft cloth.

Disc is heavily scratched or

warped.

Replace with a disc in good

condition.

Sound is bad directly after

power is turned on.

Condensation may form on the

internal lens when the car is

parked in a humid place.

Let dry for about 1 hour with the

power on.

Video images are not

displayed.

The parking brake is not

engaged.

Check that the parking brake is

engaged.

Disc cannot play with

the display “PARENTAL

VIOLATION” shown.

Feature exceeds set parental

level.

Release the view limitation or

change the parental level.

See the subsection “Setting up

the parental level”

50 NX404

English

English Owner’s Manual

USB DEVICE

Problem Cause Measure

USB device cannot be inserted. The USB device has been

inserted with wrong direction.

Reversing the connection

direction of the USB device, try

it again.

The USB connector is broken. Replace with a new USB

device.

USB device is not recognized. The USB device is damaged. Disconnect the USB device

and reconnect. If the device

is still not recognized, try

replacing with a dierent USB

device.

Connectors are loose.

No sound heard with the

display “NO FILE” shown.

No MP3/WMA le is stored in

the USB device.

Store these les properly in the

USB device.

Sound skips or is noisy. MP3/WMA les are not

encoded properly.

Use MP3/WMA les encoded

properly.

The video image of iPod/

iPhone is disturbed.

The TV Signal setting of the

iPod/iPhone is not set correctly.

Set the TV Signal setting

(NTSC/PAL) of the iPod/iPhone

correctly.

Bluetooth

Problem Cause Measure

Cannot pair the Bluetooth

enable device with the car

audio system.

The device does not support

the proles required for the

system.

Use another device to connect.

The Bluetooth function of the

device is not enabled.

Refer to the user manual of the

device for how to enable the

function.

The audio quality is poor after

connection with a Bluetooth

enabled device.

The Bluetooth reception is

poor.

Move the device closer to the

car audio system or remove

any obstacle between the

device and the system.

NX404

English

English Owner’s Manual

TFT screen

Problem Cause Measure

The image is not displayed. The parking brake is not

engaged.

Check that the parking brake is

engaged.

The display is dark. The Dimmer control is too low. Adjust the Dimmer properly.

The operating condition is not

good.

The temperature inside the

vehicle may be 0°C or lower. Set

to an appropriate temperature

(25°C or so) and check it again.

The headlight of the vehicle

is lit

The display is made dark

at night to prevent the glare

(When the headlight of the

vehicle is lit in the daytime, the

display gets dark).

There are red, green, and blue

points in display.

-------------------- This is not a failure, but a

phenomenon peculiar to a

liquid crystal panel (The liquid

crystal panel is produced

according to technology with

very high precision. Note that,

though there are eective

pixels of 99.99% or more, pixel

missing or normally lit pixels

account for 0.01%).

52 NX404

English

English Owner’s Manual

22. ERROR DISPLAY

If an error occurs, one of the following displays is displayed.

Take the measures described below to solve the problem.

DVD PLAYER

Display Cause Measure

BAD DISC A disc is caught inside the DVD

deck and is not ejected.

This is a failure of DVD deck’s

mechanism and consult your

store of purchase.

BAD DISC A disc cannot be played due to

scratches, etc.

Replace with a non-scratched,

non-warped disc.

BAD DISC A disc is loaded upside- down

inside the DVD deck and does

not play.

Eject the disc then reload it

properly.

PARENTAL VIOLATION Parental level error Set the correct Parental level.

Disc Region incorrect Region code error Eject the disc, and replace

correct region code disc.

NX404

English

English Owner’s Manual

23. SPECIFICATIONS

FM Tuner

Frequency Range: 87.5 MHz to 108.0 MHz

Usable Sensitivity: 8 dBµV

50dB Quieting Sensitivity: 14 dBµV

Alternate Channel Selectivity: 70 dB

Stereo Separation:

25 dB (1 kHz)

Frequency Response: 30 Hz to 14 kHz

AM Tuner

Frequency Range: 531 kHz to 1,629 kHz

Usable Sensitivity: 30 dBµV

DVD Player System

Digital Versatile Disc System with CDDA capable

Usable discs:

DVD video disc, Compact disc

Frequency Response: 20 Hz to 20 kHz

Sound/Noise Ratio: 95 dbA (1 W Ref)

Dynamic Range: 95 dB (1 kHz)

Distortion: 0.05%

Video system: NTSC/PAL

Audio/Video Input

Audio input voltage: ≤ 2 Vrms

Video input voltage: 1.0 Vp-p@75

Audio input sensitivity (at 2 V output)

High: 325 mVrms

Mid: 650 mVrms

Low: 1.3 Vrms

Audio/Video output

Video output voltage: 1.0 Vp-p @75

Screen Size: 6.2” wide type

Pixels: 1,152,000

Resolution: 800 x 480 x 3 (RGB)

Bluetooth

Specication: Bluetooth Ver 2.1+EDR

Prole: HFP1.5(Hands Free Prole)

HSP1.0 (Headset Prole)

A2DP (Advanced Audio Distribution Prole)

AVRCP1.2,1.3,1.4 (AV Remote Control Prole)

Power Class: 2

USB

Specication: USB 1.1/2.0 (FS)

Playable Audio format:

MP3,WMA,AAC,FLAC

Playable Video format:

AVI,MP4,MPG/MPEG,3gp

General

Power source voltage:

14.4 VDC (10.8 to 15.6 V allowable)

Ground: Negative

Current consumption: 4.0 A @1 W

Auto Antenna Rated Current: 500 mA less

54 NX404

English

English Owner’s Manual

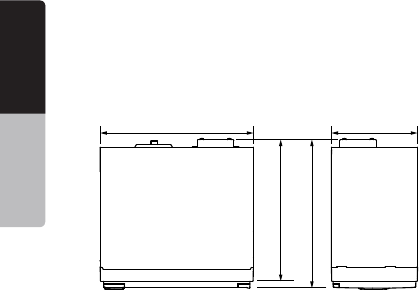

NX404 dimensions:

NX404 weight: 2.4 kg

mm001mm871

165mm

172mm

Note:

• Specications comply with JEITA Standards.

• Specications and design are subject to change without notice for further improvement.

NX404

English

English Owner’s Manual

24. WIRE CONNECTION GUIDE

Note:

• Before installing, be sure to disconnect the negative cable of the car battery.

• In the optional devices, the RCA cables and the Connector cables are separately-sold

items.

NX404

CAMERA_VIDEO

REAR_VIDEO_OUT

REAR_RCH

REAR_LCH

R_AUX2_VIDEO

R_AUX2_AUDIO_LCH

EXT MIC

Red

White

Yellow

CCA-750(sold separately)

4-Channel Amplifier

Red Red RedWhite White White

WHHEL_KEY_IN

RCH_4.2CH_FRONT

RCH_4.2CH_SUROUND

LCH_4.2CH_FRONT

LCH_4.2CH_SUROUND

LCH_4.2CH_SUBWOOFER/RL

RCH_4.2CH_SUBWOOFER/RR

R_AUX2_AUDIO_RCH

HDMI CABLE

For Rear zone

Refer to

page 56

56 NX404

English

English Owner’s Manual

Ye llow

Black

Purple

Purple Bla/ck

Grass-green

Gray

Gray Bla/ck

White

White Bla/ck

Green

Green Blac/k

Blue White/

Orange White/

Red

Brown

Blue

+12Vmainpower

Ground

Rear right +

Rearright -

Parkingbrake cord

Purple Whit/eReverse gear cord

Frontright +

Frontright -

Front left+

Front left-

Rear left+

Rear left-

Amplifierturnon cord-

Illumination

+12V accessory

Phone interrupt

Auto antenna

Note:

*1: Connecting the PHONE INTERRUPT terminal

The phone interrupt will mute the audio if the lead receives a negative or ground signal.

FCC NOTE：

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions: (1) this device may not cause

harmful interference, and (2) this device must accept any interference received,

including interference that may cause undesired operation.

THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV

INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS OR CHANGE

TO THIS EQUIPMENT. SUCH MODIFICATIONS OR CHANGE COULD VOID AND

CHANGE ANNTENA WHICH THE MANUFACTURER PROVIDES.

IT IS THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT.

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a resi dential installation.

This equipment generates, uses and can radiate radio frequenc y energy and, if not

installed and used in accordance with the in structions, may cause harmful interference

to radio communications. However, there is no guarantee that interference will not

occur in a particular insta llation. If this equipment does cause harmful interference to

radio or television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to corr ect the interference by one or more of the

following measures:

-- Reorient or relocate the receiving antenna.

-- Increase the separation between the equipment and receiver.

-- Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

-- Consult the dealer or an experien ced radio/TV technician for help.

To maintain compliance with FCC’s RF exposure guidelines, this equipment should be

installed and operated with a minimum distance of 20cm between the radiator and your

body.
