SKYRC Technology NC2600 AA/AAA Charger Analyzer User Manual 1

SKYRC Technology Co., Ltd. AA/AAA Charger Analyzer 1

User manual

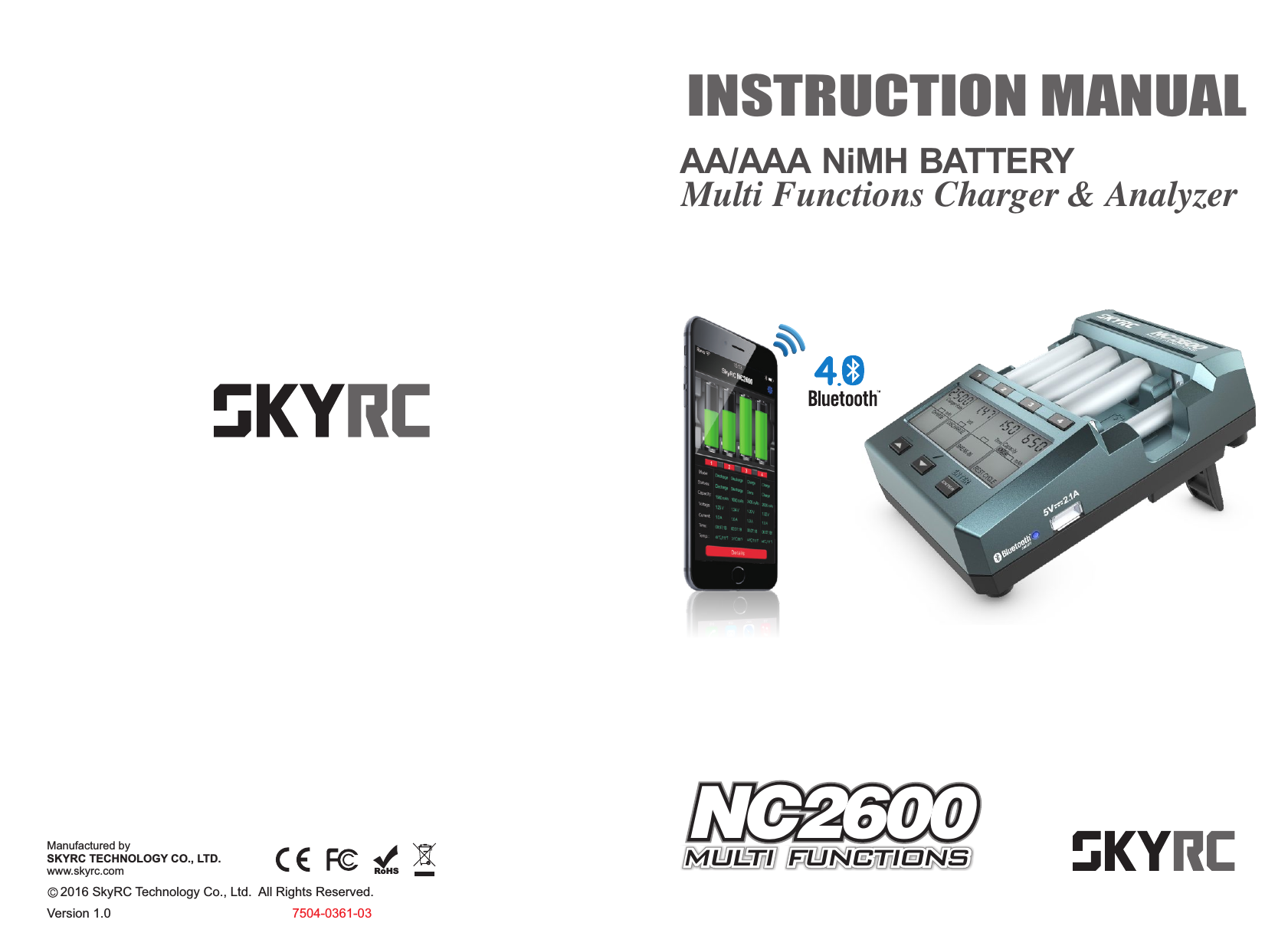

2016 SkyRC Technology Co., Ltd. All Rights Reserved. Manufactured bySKYRC TECHNOLOGY CO., LTD.www.skyrc.comINSTRUCTION MANUALVersion 1.0 7504-0361-03RoHSAA/AAANiMH BATTERYMulti Functions Charger & AnalyzerNC2600multi functions

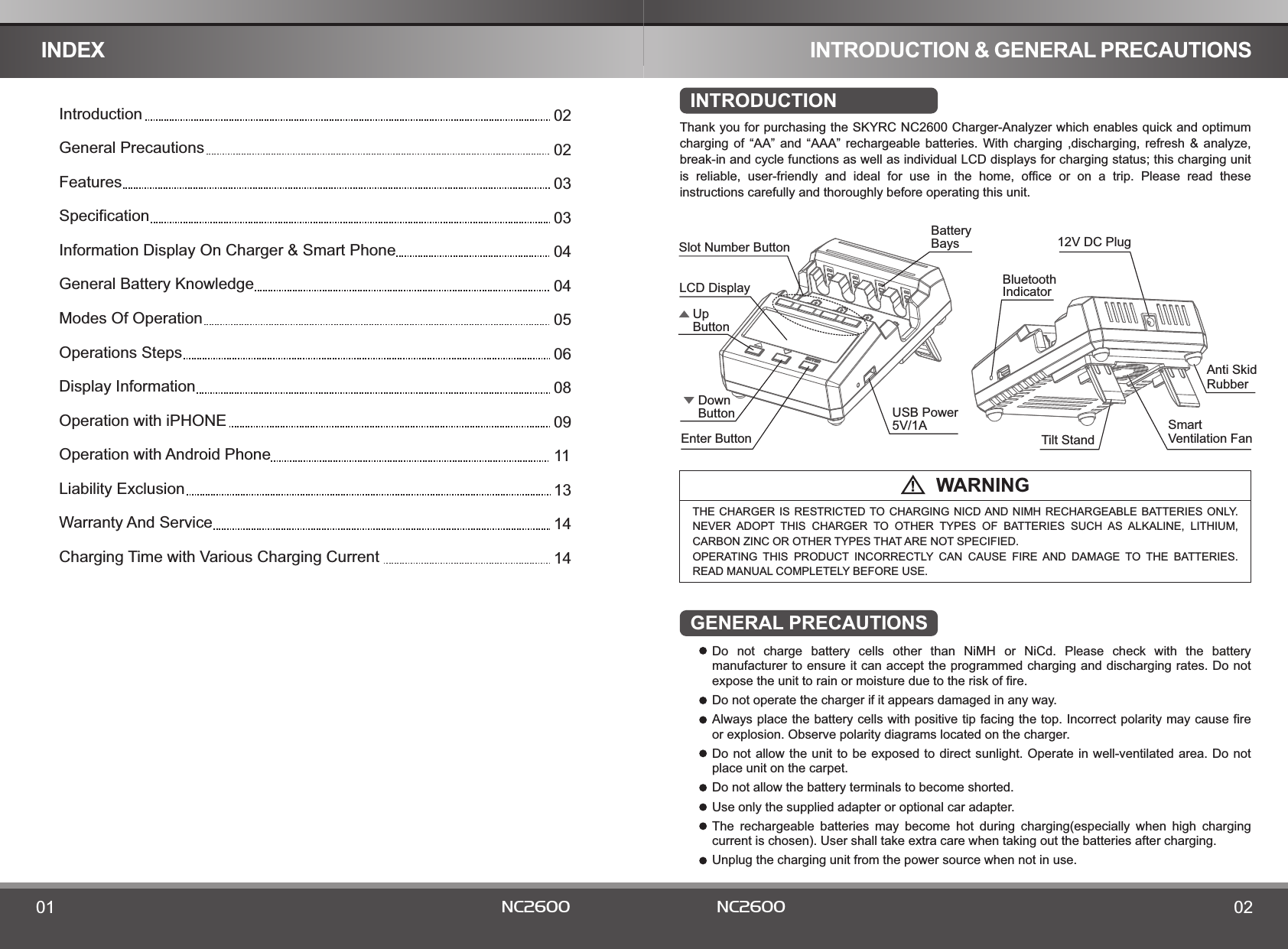

INDEX02NC2600Thank you for purchasing the SKYRC NC2600 Charger-Analyzer which enables quick and optimum charging of “AA” and “AAA” rechargeable batteries. With charging ,discharging, refresh & analyze, break-in and cycle functions as well as individual LCD displays for charging status; this charging unit is reliable, user-friendly and ideal for use in the home, office or on a trip. Please read these instructions carefully and thoroughly before operating this unit. THE CHARGER IS RESTRICTED TO CHARGING NICD AND NIMH RECHARGEABLE BATTERIES ONLY. NEVER ADOPT THIS CHARGER TO OTHER TYPES OF BATTERIES SUCH AS ALKALINE, LITHIUM, CARBON ZINC OR OTHER TYPES THAT ARE NOT SPECIFIED.OPERATING THIS PRODUCT INCORRECTLY CANCAUSE FIRE AND DAMAGE TO THE BATTERIES.READ MANUAL COMPLETELY BEFORE USE.INTRODUCTIONWARNINGGENERAL PRECAUTIONSDo not charge battery cells other than NiMH or NiCd. Please check with the battery manufacturer to ensure it can accept the programmed charging and discharging rates. Do not expose the unit to rain or moisture due to the risk of fire.Do not operate the charger if it appears damaged in any way.Always place the battery cells with positive tip facing the top. Incorrect polarity may cause fire or explosion. Observe polarity diagrams located on the charger.Do not allow the unit to be exposed to direct sunlight. Operate in well-ventilated area. Do not place unit on the carpet. Do not allow the battery terminals to become shorted.Use only the supplied adapter or optional car adapter. The rechargeable batteries may become hot during charging(especially when high charging current is chosen). User shall take extra care when taking out the batteries after charging.Unplug the charging unit from the power source when not in use.12V DC PlugTiltStandSmartVentilation Fan01 NC2600INTRODUCTION & GENERAL PRECAUTIONSIntroductionGeneral PrecautionsFeaturesSpecificationInformationDisplayOnCharger &SmartPhone General Battery KnowledgeModes Of OperationOperations StepsDisplay InformationOperation with iPHONEOperation with Android PhoneLiability ExclusionWarranty And ServiceCharging Time with Various Charging Current0202030304040506080911131414Anti SkidRubberBluetoothIndicatorUSB Power5V/1AEnter ButtonDownButtonUpButtonLCD DisplaySlot Number ButtonBatteryBays

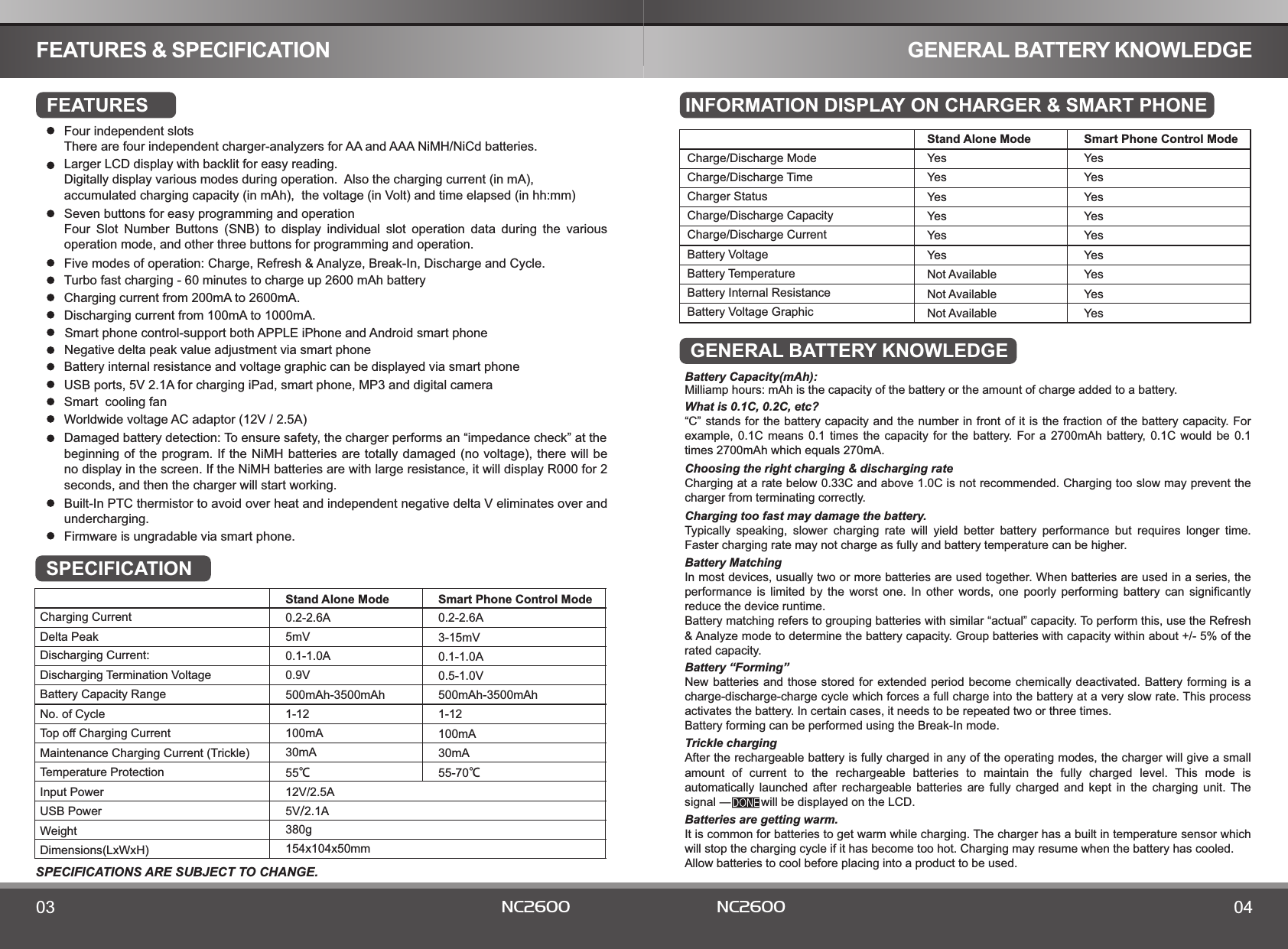

Battery Capacity(mAh): Milliamp hours: mAh is the capacity of the battery or the amount of charge added to a battery.What is 0.1C, 0.2C, etc?“C” stands for the battery capacity and the number in front of it is the fraction of the battery capacity. For example, 0.1C means 0.1 times the capacity for the battery. For a 2700mAh battery, 0.1C would be 0.1 times 2700mAh which equals 270mA.Choosing the right charging & discharging rateCharging at a rate below 0.33C and above 1.0C is not recommended. Charging too slow may prevent the charger from terminating correctly.Charging too fast may damage the battery.Typically speaking, slower charging rate will yield better battery performance but requires longer time. Faster charging rate may not charge as fully and battery temperature can be higher.Battery MatchingIn most devices, usually two or more batteries are used together. When batteries are used in a series, the performance is limited by the worst one. In other words, one poorly performing battery can significantly reduce the device runtime.Battery matching refers to grouping batteries with similar “actual” capacity. To perform this, use the Refresh & Analyze mode to determine the battery capacity. Group batteries with capacity within about +/- 5% of the rated capacity.Battery “Forming”New batteries and those stored for extended period become chemically deactivated. Battery forming is a charge-discharge-charge cycle which forces a full charge into the battery at a very slow rate. This process activates the battery. In certain cases, it needs to be repeated two or three times.Battery forming can be performed using the Break-In mode.Trickle chargingAfter the rechargeable battery is fully charged in any of the operating modes, the charger will give a small amount of current to the rechargeable batteries to maintain the fully charged level. This mode is automatically launched after rechargeable batteries are fully charged and kept in the charging unit. The signal ― will be displayed on the LCD. Batteries are getting warm.It is common for batteries to get warm while charging. The charger has a built in temperature sensor which will stop the charging cycle if it has become too hot. Charging may resume when the battery has cooled.Allow batteries to cool before placing into a product to be used.GENERAL BATTERY KNOWLEDGE04NC260003 NC2600Charge/Discharge ModeCharge/Discharge TimeCharger StatusCharge/Discharge CapacityCharge/Discharge CurrentBattery VoltageBattery TemperatureBattery Internal ResistanceBattery Voltage GraphicStand Alone ModeYesYesYesYesYesYesNot AvailableNot AvailableNot AvailableYesYesYesYesYesYesYesYesYesINFORMATIONDISPLAYONCHARGER &SMARTPHONE Smart Phone Control ModeGENERAL BATTERY KNOWLEDGEFEATURESFour independent slotsThere are four independent charger-analyzers for AA and AAA NiMH/NiCd batteries.Larger LCD display with backlit for easy reading. Digitally display various modes during operation. Also the charging current (in mA), accumulated charging capacity (in mAh), the voltage (in Volt) and time elapsed (in hh:mm)Seven buttons for easy programming and operationFour Slot Number Buttons (SNB) to display individual slot operation data during the various operation mode, and other three buttons for programming and operation.Five modes of operation: Charge, Refresh & Analyze, Break-In, Discharge and Cycle.Turbo fast charging - 60 minutes to charge up 2600 mAh batteryCharging current from 200mA to 2600mA.Discharging current from 100mA to 1000mA.USB ports, 5V 2.1A for charging iPad, smart phone, MP3 and digital cameraSmart cooling fan Worldwide voltage AC adaptor (12V / 2.5A)Damaged battery detection: To ensure safety, the charger performs an “impedance check” at the beginning of the program. If the NiMH batteries are totally damaged (no voltage), there will be no display in the screen. If the NiMH batteries are with large resistance, it will display R000 for 2 seconds, and then the charger will start working.Built-In PTC thermistor to avoid over heat and independent negative delta V eliminates over and undercharging.Firmware is ungradable via smart phone.Smart phone control-support both APPLE iPhone and Android smart phoneNegative delta peak value adjustment via smart phoneBattery internal resistance and voltage graphic can be displayed via smart phoneSPECIFICATIONS ARE SUBJECT TO CHANGE.Charging CurrentDischarging Termination VoltageBattery Capacity RangeNo. of CycleTop off Charging CurrentMaintenance Charging Current (Trickle)Temperature ProtectionInput PowerUSB PowerWeightDimensions(LxWxH)Discharging Current:SPECIFICATIONStand Alone Mode Smart Phone Control ModeDelta Peak12V/2.5A0.2-2.6A5mV0.1-1.0A0.9V500mAh-3500mAh1-12100mA30mA55℃5V/2.1A380g154x104x50mm0.2-2.6A3-15mV0.1-1.0A0.5-1.0V500mAh-3500mAh1-12100mA30mA55-70℃FEATURES & SPECIFICATION

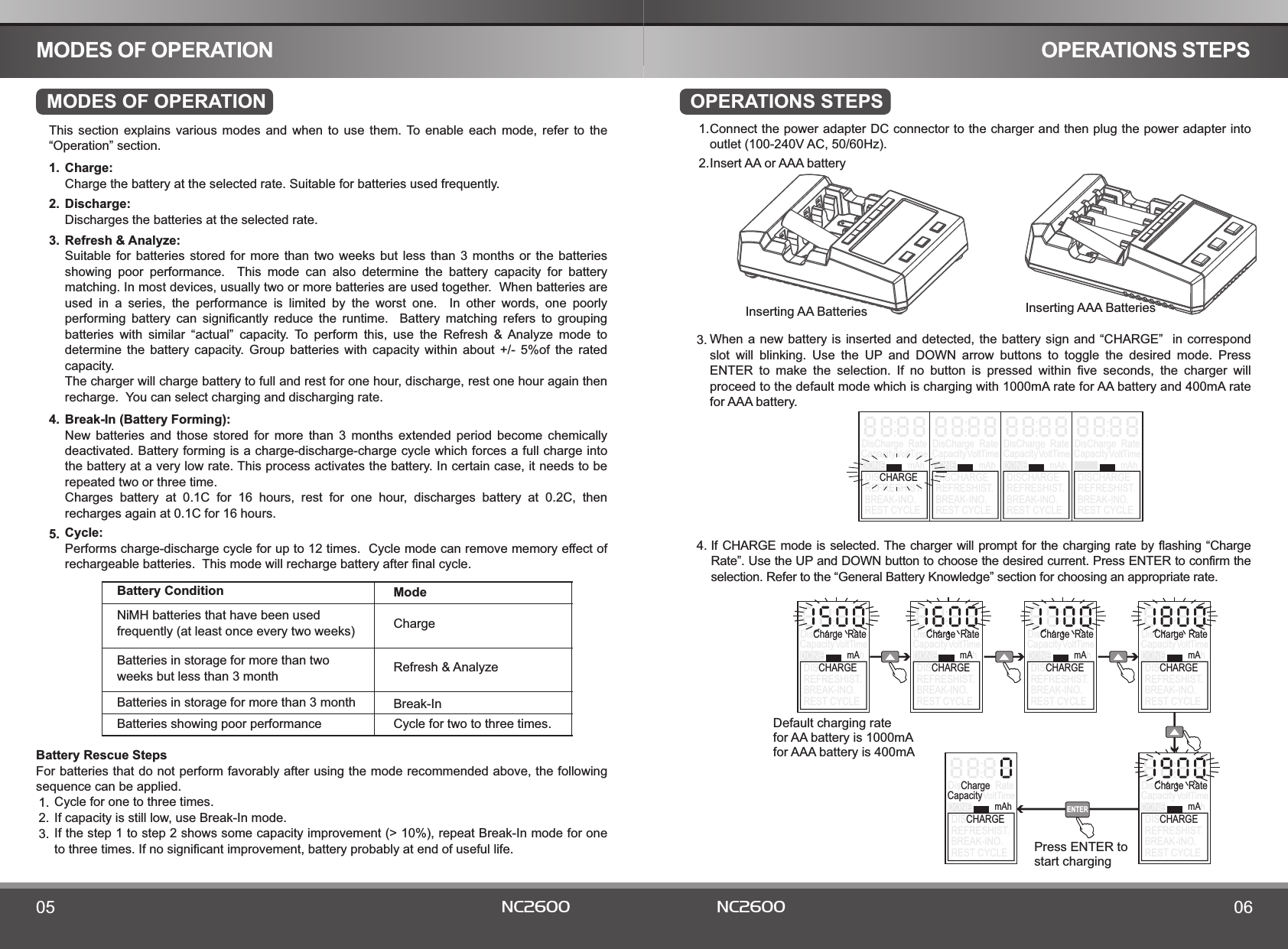

MODES OF OPERATIONOPERATIONS STEPSConnect the power adapter DC connector to the charger and then plug the power adapter into outlet (100-240V AC, 50/60Hz).Insert AA or AAA batteryWhen a new battery is inserted and detected, the battery sign and “CHARGE” in correspond slot will blinking. Use the UP and DOWN arrow buttons to toggle the desired mode. Press ENTER to make the selection. If no button is pressed within five seconds, the charger will proceed to the default mode which is charging with 1000mA rate for AA battery and 400mA rate for AAA battery.Inserting AA Batteries Inserting AAA Batteries1.2.3.DisCharge Rate mAhDISCHARGEREFRESHIST.BREAK-INO.REST CYCLEDisCharge Rate DisCharge Rate DisCharge RateDONE mAh mAh mAhDISCHARGE DISCHARGE DISCHARGEREFRESHIST. REFRESHIST. REFRESHIST.BREAK-INO. BREAK-INO. BREAK-INO.REST CYCLE REST CYCLE REST CYCLECapacity Volt Time Capacity Volt TimeCapacity Volt TimeCapacity Volt TimeIf CHARGE mode is selected. The charger will prompt for the charging rate by flashing “Charge Rate”. Use the UP and DOWN button to choose the desired current. Press ENTER to confirm the selection. Refer to the “General Battery Knowledge” section for choosing an appropriate rate.4.DisCharge Rate mAhDISCHARGEREFRESHIST.BREAK-INO.REST CYCLECapacity Volt TimeDisCharge Rate mAhDISCHARGEREFRESHIST.BREAK-INO.REST CYCLECapacity Volt TimeDisCharge Rate mAhDISCHARGEREFRESHIST.BREAK-INO.REST CYCLECapacity Volt TimeDisCharge Rate mAhDISCHARGEREFRESHIST.BREAK-INO.REST CYCLECapacity Volt TimeDis RateCharge mAhDISCHARGEREFRESHIST.BREAK-INO.REST CYCLECapacity Volt TimePress ENTER tostart chargingDefault charging ratefor AA battery is 1000mAfor AAA battery is 400mADisCharge Rate mAhDISCHARGEREFRESHIST.BREAK-INO.REST CYCLECapacity Volt TimeENTER06NC260005 NC2600OPERATIONS STEPSMODES OF OPERATIONThis section explains various modes and when to use them. To enable each mode, refer to the “Operation” section.Charge: Charge the battery at the selected rate. Suitable for batteries used frequently.Discharge: Discharges the batteries at the selected rate.Refresh & Analyze: Suitable for batteries stored for more than two weeks but less than 3 months or the batteries showing poor performance. This mode can also determine the battery capacity for battery matching. In most devices, usually two or more batteries are used together. When batteries are used in a series, the performance is limited by the worst one. In other words, one poorly performing battery can significantly reduce the runtime. Battery matching refers to grouping batteries with similar “actual” capacity. To perform this, use the Refresh & Analyze mode to determine the battery capacity. Group batteries with capacity within about +/- 5%of the rated capacity.The charger will charge battery to full and rest for one hour, discharge, rest one hour again then recharge. You can select charging and discharging rate.Break-In (Battery Forming): New batteries and those stored for more than 3 months extended period become chemically deactivated. Battery forming is a charge-discharge-charge cycle which forces a full charge into the battery at a very low rate. This process activates the battery. In certain case, it needs to be repeated two or three time. Charges battery at 0.1C for 16 hours, rest for one hour, discharges battery at 0.2C, then recharges again at 0.1C for 16 hours.Cycle: Performs charge-discharge cycle for up to 12 times. Cycle mode can remove memory effect of rechargeable batteries. This mode will recharge battery after final cycle.1. 2. 3. 4. 5. Battery Rescue StepsFor batteries that do not perform favorably after using the mode recommended above, the following sequence can be applied.Cycle for one to three times.If capacity is still low, use Break-In mode.If the step 1 to step 2 shows some capacity improvement (> 10%), repeat Break-In mode for one to three times. If no significant improvement, battery probably at end of useful life.NiMH batteries that have been usedfrequently (at least once every two weeks) ChargeBatteries in storage for more than twoweeks but less than 3 month Refresh & AnalyzeBatteries in storage for more than 3 month Break-InBatteries showing poor performance Cycle for two to three times.Battery Condition Mode1. 2.3.

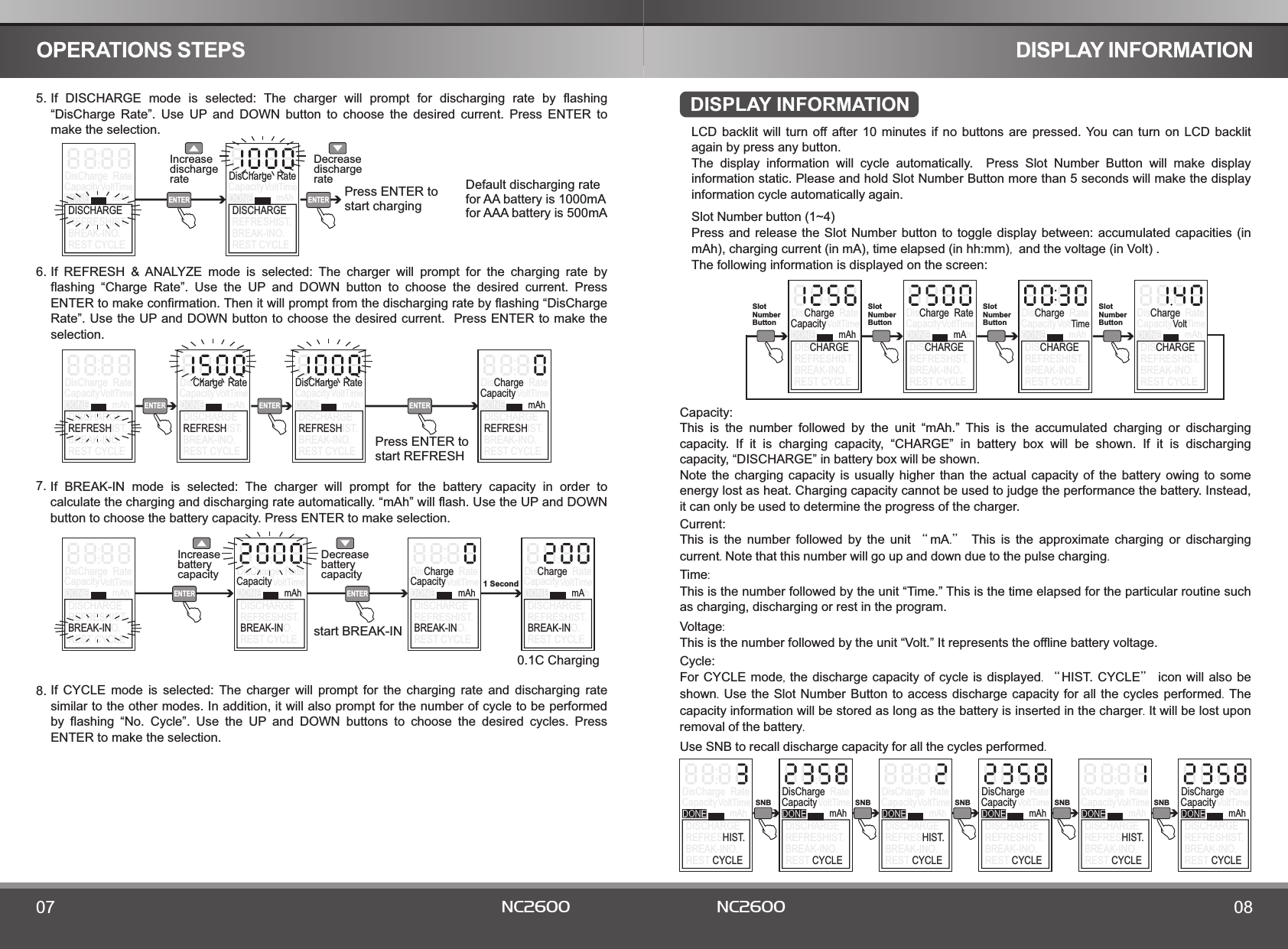

OPERATIONS STEPS08NC260007 NC2600LCD backlit will turn off after 10 minutes if no buttons are pressed. You can turn on LCD backlit again by press any button.The display information will cycle automatically. Press Slot Number Button will make display information static. Please and hold Slot Number Button more than 5 seconds will make the display information cycle automatically again.Slot Number button (1~4)Press and release the Slot Number button to toggle display between: accumulated capacities (in mAh), charging current (in mA), time elapsed (in hh:mm),andthe voltage (in Volt) .The following information is displayed on the screen:Capacity:This is the number followed by the unit “mAh.” This is the accumulated charging or discharging capacity. If it is charging capacity, “CHARGE” in battery box will be shown. If it is discharging capacity, “DISCHARGE” in battery box will be shown.Note the charging capacity is usually higher than the actual capacity of the battery owing to some energy lost as heat. Charging capacity cannot be used to judge the performance the battery. Instead, it can only be used to determine the progress of the charger. Dis RateCharge mAhDISCHARGEREFRESHIST.BREAK-INO.REST CYCLECapacity Volt TimeDis Charge Rate mAhDISCHARGEREFRESHIST.BREAK-INO.REST CYCLECapacity Volt TimeDis RateCharge mAhDISCHARGEREFRESHIST.BREAK-INO.REST CYCLECapacity Volt TimeDis RateCharge mAhDISCHARGEREFRESHIST.BREAK-INO.REST CYCLECapacity Volt TimeSlotNumberButtonSlotNumberButtonSlotNumberButtonSlotNumberButtonDISPLAY INFORMATIONTime:This is the number followed by the unit “Time.” This is the time elapsed for the particular routine such as charging, discharging or rest in the program.Voltage:This is the number followed by the unit “Volt.” It represents the offline battery voltage. Current:Thisisthenumberfollowedbytheunit“mA.”  Thisisthe approximatechargingordischargingcurrent.Notethatthisnumber willgoupanddownduetothepulsecharging.DISPLAY INFORMATIONIf REFRESH & ANALYZE mode is selected: The charger will prompt for the charging rate by flashing “Charge Rate”. Use the UP and DOWN button to choose the desired current. Press ENTER to make confirmation. Then it will prompt from the discharging rate by flashing “DisCharge Rate”. Use the UP and DOWN button to choose the desired current. Press ENTER to make the selection.If DISCHARGE mode is selected: The charger will prompt for discharging rate by flashing “DisCharge Rate”. Use UP and DOWN button to choose the desired current. Press ENTER to make the selection.DisCharge Rate mAhDISCHARGEREFRESHIST.BREAK-INO.REST CYCLECapacity Volt TimeDisCharge Rate mAhDISCHARGEREFRESHIST.BREAK-INO.REST CYCLECapacity Volt Time5.Default discharging ratefor AA battery is 1000mAfor AAA battery is 500mAPress ENTER tostart chargingIncreasedischargerateDecreasedischargerate6.DisCharge Rate mAhDISCHARGEREFRESHIST.BREAK-INO.REST CYCLECapacity Volt TimeENTERDisCharge Rate mAhDISCHARGEREFRESHIST.BREAK-INO.REST CYCLECapacity Volt TimeDisCharge Rate mAhDISCHARGEREFRESHIST.BREAK-INO.REST CYCLECapacity Volt TimeDis RateCharge mAhDISCHARGEREFRESHIST.BREAK-INO.REST CYCLECapacity Volt TimePress ENTER tostart REFRESHENTER ENTERENTER ENTERIf BREAK-IN mode is selected: The charger will prompt for the battery capacity in order to calculate the charging and discharging rate automatically. “mAh” will flash. Use the UP and DOWN button to choose the battery capacity. Press ENTER to make selection.7.DisCharge Rate mAhDISCHARGEREFRESHIST.BREAK-INO.REST CYCLECapacity Volt TimeDisCharge Rate mAhDISCHARGEREFRESHIST.BREAK-INO.REST CYCLECapacity Volt TimeDis RateCharge mAhDISCHARGEREFRESHIST.BREAK-INO.REST CYCLECapacity Volt TimeDis RateCharge mAhDISCHARGEREFRESHIST.BREAK-INO.REST CYCLECapacity Volt Time1 Secondstart BREAK-IN0.1C ChargingIncreasebatterycapacityDecreasebatterycapacityENTER ENTERIf CYCLE mode is selected: The charger will prompt for the charging rate and discharging rate similar to the other modes. In addition, it will also prompt for the number of cycle to be performed by flashing “No. Cycle”. Use the UP and DOWN buttons to choose the desired cycles. Press ENTER to make the selection.8.ForCYCLEmode,thedischargecapacityofcycleis displayed. “HIST. CYCLE”iconwillalsobeshown.UsetheSlotNumber Buttontoaccessdischargecapacityforallthecycles performed. Thecapacityinformationwillbestoredaslongasthebatteryis insertedinthecharger.Itwillbelostuponremovalofthebattery.UseSNBtorecalldischargecapacityforallthecyclesperformed.DisCharge Rate mAhDISCHARGEREFRESHIST.BREAK-INO.REST CYCLECapacity Volt TimeDisCharge Rate mAhDISCHARGEREFRESHIST.BREAK-INO.REST CYCLECapacity Volt TimeSNBDisCharge Rate mAhDISCHARGEREFRESHIST.BREAK-INO.REST CYCLECapacity Volt TimeDisCharge Rate mAhDISCHARGEREFRESHIST.BREAK-INO.REST CYCLECapacity Volt TimeDisCharge Rate mAhDISCHARGEREFRESHIST.BREAK-INO.REST CYCLECapacity Volt TimeDisCharge Rate mAhDISCHARGEREFRESHIST.BREAK-INO.REST CYCLECapacity Volt TimeSNB SNB SNB SNBCycle:

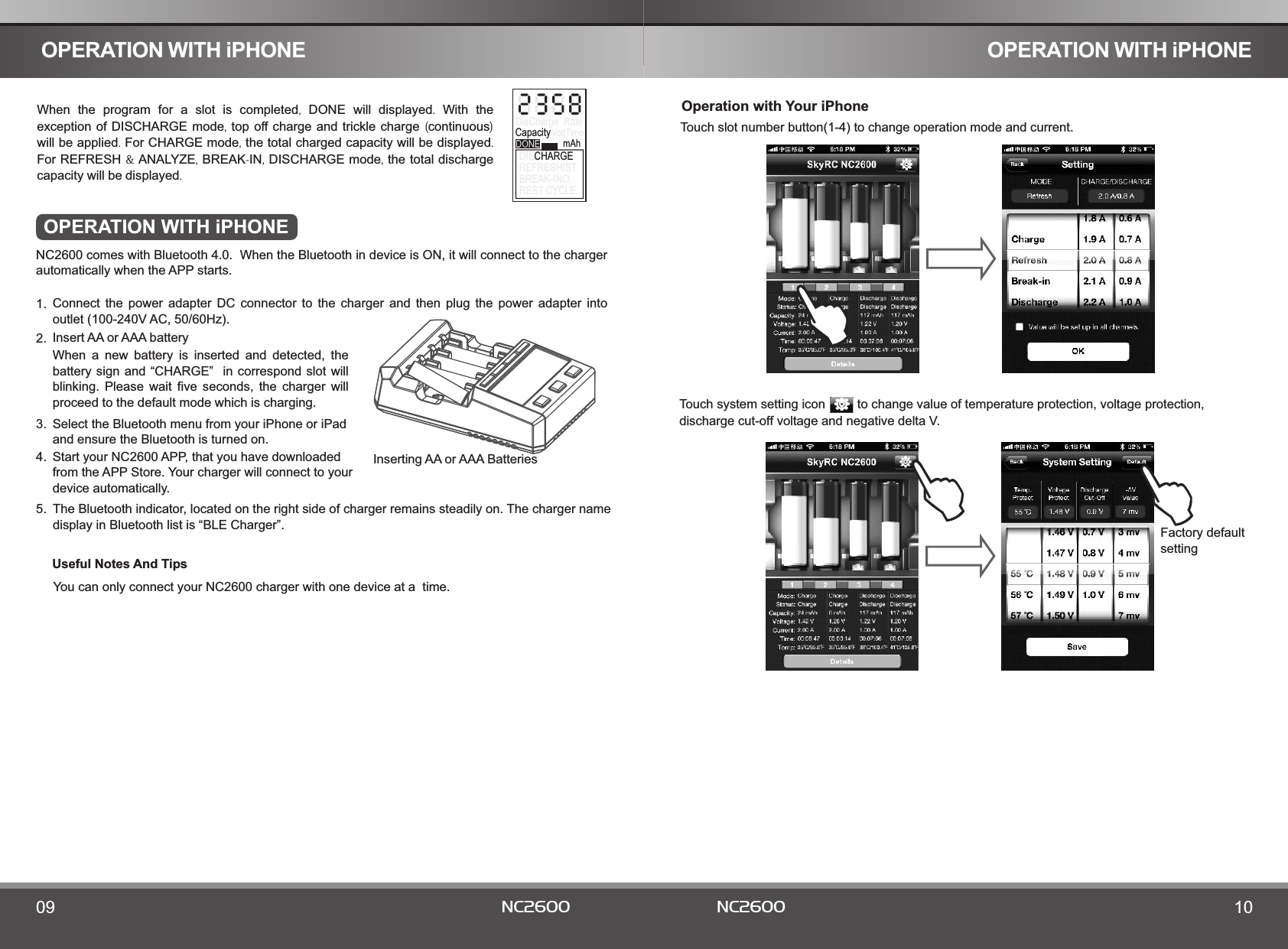

10NC260009 NC2600Useful Notes And TipsYou can only connect your NC2600 charger with one device at a time.Touch slot number button(1-4) to change operation mode and current.Operation with Your iPhoneWhentheprogramforaslotiscompleted, DONE willdisplayed. WiththeexceptionofDISCHARGE mode,top offchargeandtricklecharge(continuous)willbeapplied.ForCHARGEmode,thetotalchargedcapacitywillbedisplayed.ForREFRESH&ANALYZE,BREAK-IN,DISCHARGEmode,the totaldischargecapacitywillbedisplayed.DisCharge Rate mAhDISCHARGEREFRESHIST.BREAK-INO.REST CYCLECapacity Volt TimeOPERATION WITH iPHONENC2600 comes with Bluetooth 4.0. When the Bluetooth in device is ON, it will connect to the charger automatically when the APP starts.Connect the power adapter DC connector to the charger and then plug the power adapter into outlet (100-240V AC, 50/60Hz).Insert AA or AAA batteryInserting AA or AAA Batteries1.2.When a new battery is inserted and detected, the battery sign and “CHARGE” in correspond slot will blinking. Please wait five seconds, the charger will proceed to the default mode which is charging.3. Select the Bluetooth menu from your iPhone or iPadand ensure the Bluetooth is turned on.4.5. The Bluetooth indicator, located on the right side of charger remains steadily on. The charger namedisplay in Bluetooth list is “BLE Charger”.OPERATION WITH iPHONE OPERATION WITH iPHONEFactory defaultsettingTouch systemsetting icon to change value of temperature protection, voltage protection, discharge cut-off voltage and negative delta V.Start your NC2600 APP, that you have downloadedfrom the APP Store. Your charger will connect to yourdevice automatically.

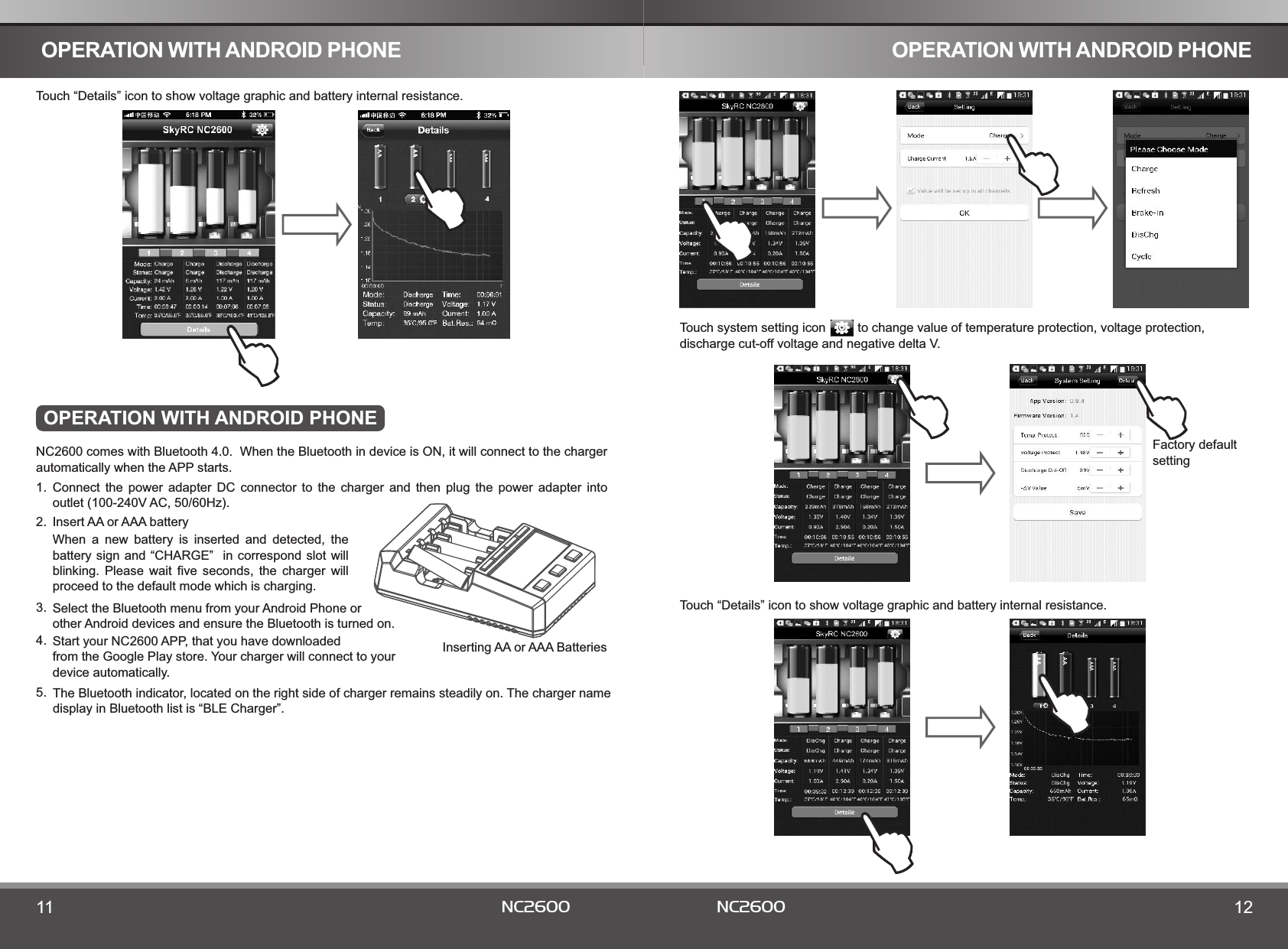

NC2600 comes with Bluetooth 4.0. When the Bluetooth in device is ON, it will connect to the charger automatically when the APP starts.Connect the power adapter DC connector to the charger and then plug the power adapter into outlet (100-240V AC, 50/60Hz).Insert AA or AAA batteryInserting AA or AAA Batteries1.2.When a new battery is inserted and detected, the battery sign and “CHARGE” in correspond slot will blinking. Please wait five seconds, the charger will proceed to the default mode which is charging.3. Select the Bluetooth menu from your Android Phone orother Android devices and ensure the Bluetooth is turned on.4.5. The Bluetooth indicator, located on the right side of charger remains steadily on. The charger namedisplay in Bluetooth list is “BLE Charger”.Start your NC2600 APP, that you have downloadedfrom the Google Play store. Your charger will connect to yourdevice automatically.12NC260011 NC2600Touch systemsetting icon to change value of temperature protection, voltage protection, discharge cut-off voltage and negative delta V.Touch “Details” icon to show voltage graphic and battery internal resistance.OPERATION WITH ANDROID PHONETouch “Details” icon to show voltage graphic and battery internal resistance.OPERATION WITH ANDROID PHONE OPERATION WITH ANDROID PHONEFactory defaultsetting

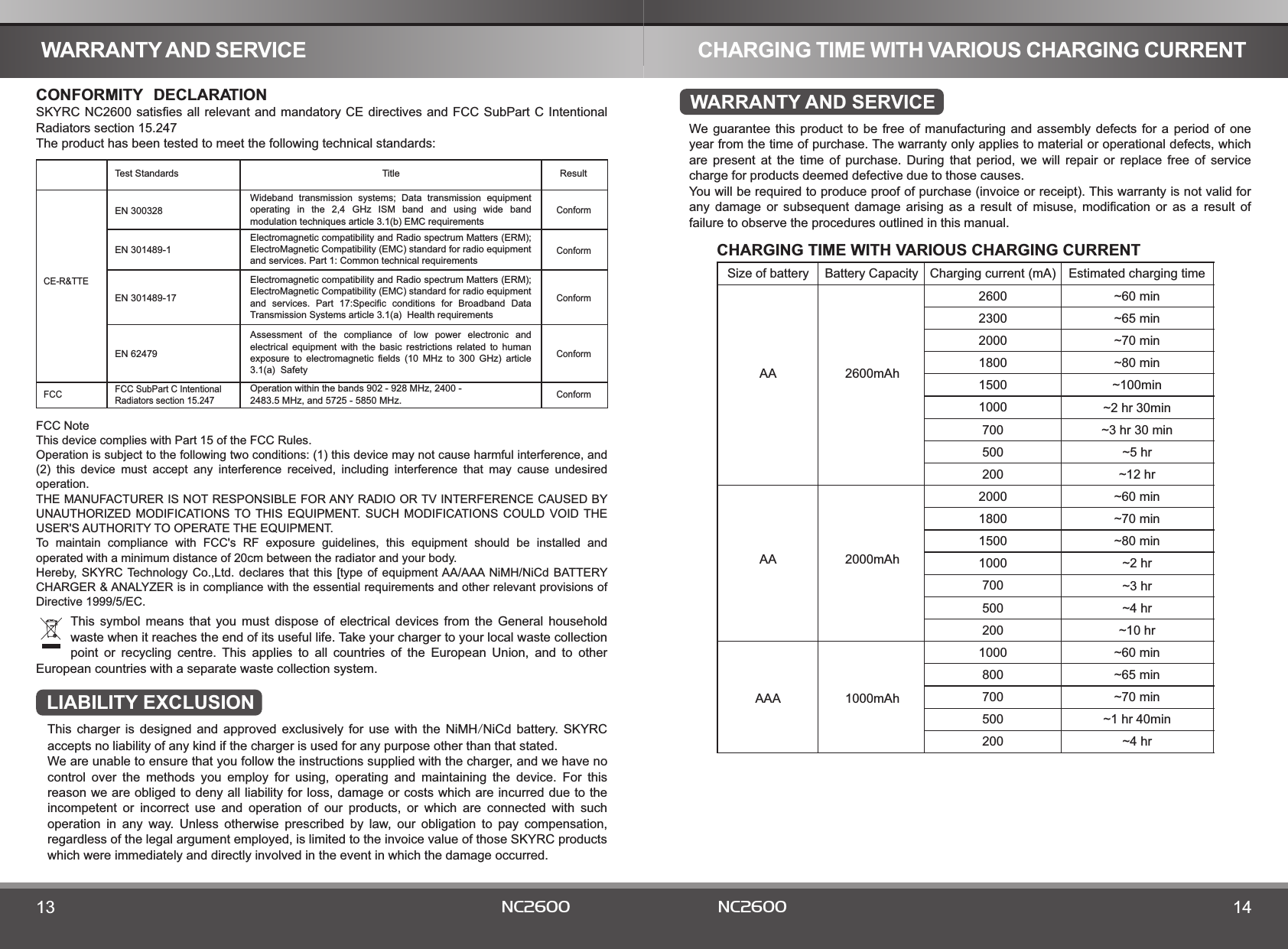

WARRANTY AND SERVICE13 NC2600We guarantee this product to be free of manufacturing and assembly defects for a period of one year from the time of purchase. The warranty only applies to material or operational defects, which are present at the time of purchase. During that period, we will repair or replace free of service charge for products deemed defective due to those causes.You will be required to produce proof of purchase (invoice or receipt). This warranty is not valid for any damage or subsequent damage arising as a result of misuse, modification or as a result of failure to observe the procedures outlined in this manual.WARRANTY AND SERVICESize of battery Battery Capacity Charging current (mA) Estimated charging time26002300200018001500100070050020020001800150010007005002001000800700500200AAAAAAA2600mAh2000mAh1000mAh~60 min~65 min~70 min~80 min~100min~2 hr 30min~3 hr 30 min~5 hr~12 hr~60 min~70 min~80 min~2 hr~3 hr~4 hr~10 hr~60 min~65 min~70 min~1 hr 40min~4 hrCHARGING TIME WITH VARIOUS CHARGING CURRENTCHARGING TIME WITH VARIOUS CHARGING CURRENT14NC2600This charger is designed and approved exclusively for use with the NiMH/NiCd battery. SKYRC accepts no liability of any kind if the charger is used for any purpose other than that stated.We are unable to ensure that you follow the instructions supplied with the charger, and we have no control over the methods you employ for using, operating and maintaining the device. For this reason we are obliged to deny all liability for loss, damage or costs which are incurred due to the incompetent or incorrect use and operation of our products, or which are connected with such operation in any way. Unless otherwise prescribed by law, our obligation to pay compensation, regardless of the legal argument employed, is limited to the invoice value of those SKYRC products which were immediately and directly involved in the event in which the damage occurred.LIABILITY EXCLUSIONCONFORMITYDECLARATIONConformConformConformConformCE-R&TTEFCC FCC SubPart C IntentionalRadiators section 15.247Assessment of the compliance of low power electronic and electrical equipment with the basic restrictions related to human exposure to electromagnetic fields (10 MHz to 300 GHz) article 3.1(a) Safety Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services. Part 17:Specific conditions for Broadband Data Transmission Systems article 3.1(a) Health requirements Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services. Part 1: Common technical requirementsWideband transmission systems; Data transmission equipment operating in the 2,4 GHz ISM band and using wide band modulation techniques article 3.1(b) EMC requirements EN 300328EN 301489-1Test Standards Title ResultSKYRC NC2600 satisfies all relevant and mandatory CE directives and FCC SubPart C Intentional Radiators section 15.247The product has been tested to meet the following technical standards:Operation within the bands 902 - 928 MHz, 2400 - 2483.5 MHz, and 5725 - 5850 MHz.ConformEN 301489-17EN 62479FCC NoteThis device complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesiredoperation.THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THEUSER'S AUTHORITY TO OPERATE THE EQUIPMENT.To maintain compliance with FCC's RF exposure guidelines, this equipment should be installed andoperated with a minimum distance of 20cm between the radiator and your body.Hereby, SKYRC Technology Co.,Ltd. declares that this [type of equipment AA/AAA NiMH/NiCd BATTERY CHARGER & ANALYZER is in compliance with the essential requirements and other relevant provisions ofDirective 1999/5/EC.This symbol means that you must dispose of electrical devices from the General household waste when it reaches the end of its useful life. Take your charger to your local waste collection point or recycling centre. This applies to all countries of the European Union, and to other European countries with a separate waste collection system.

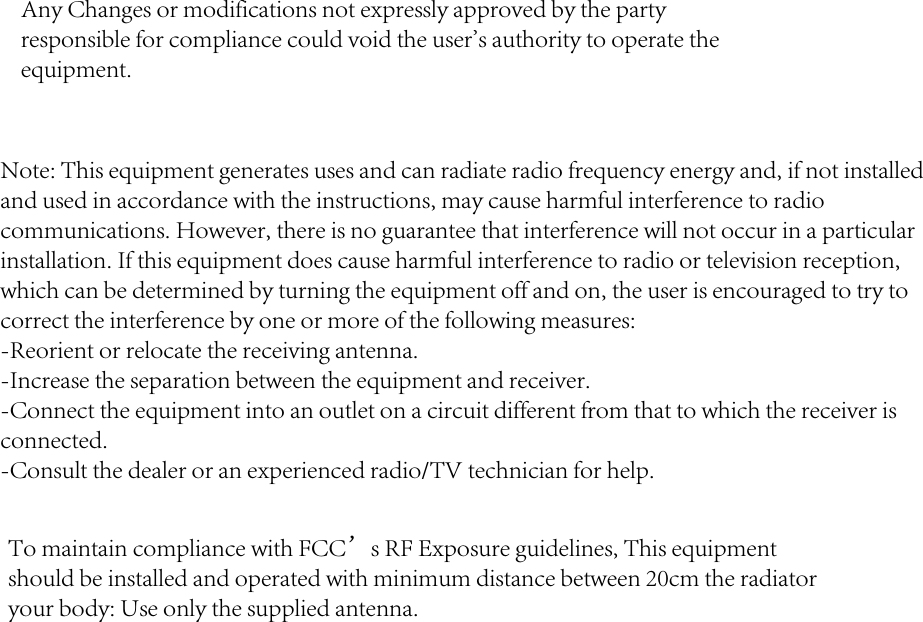

Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.Note: This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:-Reorient or relocate the receiving antenna.-Increase the separation between the equipment and receiver.-Connect the equipment into an outlet on a circuit different from that to which the receiver isconnected.-Consult the dealer or an experienced radio/TV technician for help.To maintain compliance with FCC’s RF Exposure guidelines, This equipment should be installed and operated with minimum distance between 20cm the radiator your body: Use only the supplied antenna.
