DOCSIS 3.0 Wireless Gateway Installation Instructions
Copyright ©2013 SMC Networks. All rights reserved
All information contained in this documentation is subject to change without notice.
Important Safety Instructions
Read these instructions before you begin

electric shock, and injury to persons, including the following:
 Read and follow these instructions.
 Keep these instructions.
 Heed all warnings.
 
 Do not install near any heat sources.
 Clean only with a dry cloth.
 Do not block any ventilation openings.
 
apparatus.
 Unplug this apparatus during lightning storms or when unused for long periods of time.
 
damaged in any way, such as when a power-supply cord or plug is damaged, liquid has been spilled or
objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.
 Do not alter or disable the polarized or grounding-type (three-pronged) plug.
 Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus.

information when used in accordance with the instructions below:
WARNING: Risk of Shock

only! Avoid using and/or connecting the equipment during an electrical storm, to avoid risk of electrocu-
tion.
AVERTISSEMENT: Risque d’électrocution


 Do not use this product near water (i.e. wet basement, bathtub, sink or near a swimming pool, etc.) to
avoid risk of electrocution.
 Avoid using and/or connecting the equipment during an electrical storm, to avoid risk of electrocution.
 

 Only use power supply and power cord included with the equipment.
 Equipment should be installed near the power outlet and should be easily accessible.
 





 In areas of high surge events or poor grounding situations and areas prone to lightning strikes, additional
surge protection may be required on the AC, and Ethernet cables.
Rev 1.1
Nov 2013
2
DOCSIS 3.0 Wireless Gateway Installation Instructions
Copyright ©2013 SMC Networks. All rights reserved
All information contained in this documentation is subject to change without notice.
Models
D3G2408WE.
Package Contents
 
 
 1 – CAT-5 Ethernet cable
 1 – These Installation Instructions

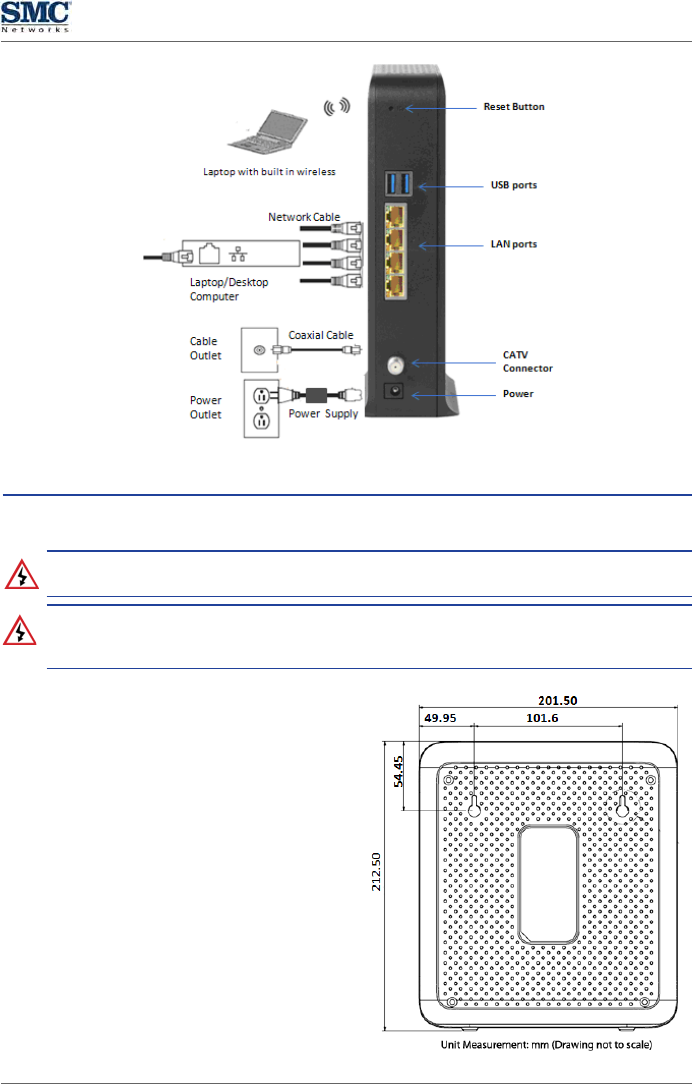

Installation Overview
1. 
 
3. 
WARNING: Use only the provided power supply! Using a different power supply may damage your unit
and void the warranty.
AVERTISSEMENT: 

4. POWER
5. Wait until the DS, US and ONLINEONLINE
device is online. If the ONLINE
6. WPS button

7. Press the WPS button on your computer or wireless client within 60 seconds to complete association
process. When a client joins the network, the WPS

NOTE: You must set up your computer and other wireless client devices to work with security settings on
this device. Refer to the documentation for your wireless client devices for instructions on setting security.

 Open a Web browser page and type  in the address bar.
 
(NOTE: Username and password are case sensitive.)
Username: admin
Password: password
Detailed user manual can be downloaded from http://na.smc.com.
3
DOCSIS 3.0 Wireless Gateway Installation Instructions
Copyright ©2013 SMC Networks. All rights reserved
All information contained in this documentation is subject to change without notice.
Wall-Mounting the Gateway
You can mount the Gateway on a wall by hanging the unit along its width using the two wall mount keyhole
slots on the side of the unit.
WARNING: Wall-mount the Gateway to concrete or plaster wallboard with anchor inserts. Before drilling
holes, check the structure for potential damage to water, gas, or electric lines.
AVERTISSEMENT: Montez la passerelle sur une plaque murale en béton ou en plâtre à l’aide de

ne pas percer des conduites d’eau, de gaz ou des lignes électriques.
1. 


 Use a center punch to mark the location on the
wall for each mounting screw. The screws must
be oriented horizontal to each other and spaced at

3. Drill holes to a depth and diameter appropriate for

 
head protrudes from the wall so that there is a

the underside of the screw head.
5. Orient the Gateway with the mounting keyholes

Gateway down so it stops against the top of the
keyhole opening.
 
Reconnect the power cord to the Gateway and the
electrical outlet.
4
DOCSIS 3.0 Wireless Gateway Installation Instructions
Copyright ©2013 SMC Networks. All rights reserved
All information contained in this documentation is subject to change without notice.
GPL / GNU License


-
able to you at http://gpl.smc.com/


Compliance Statements
Federal Communication Commission Interference Statement

-
ence in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful interference to radio communica-
tions. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one of the follow-
ing measures:
 Reorient or relocate the receiving antenna.
 Increase the separation between the equipment and receiver.
 Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
 
FCC Caution: -

Avertissement de la FCC: 


1. this device may not cause harmful interference, and
 this device must accept any interference received, including interference that may cause undesired opera-
tion.
For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other
channels is not possible.
This device and it's antennas(s) must not be co-located or operating in conjunction with any other antenna or
transmitter except in accordance with FCC multi-transmitter product procedures.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with minimum distance 20 cm between the radiator & your body.
