SMD Funksteuerungs SMD-53200TXX Remote Control Transmitter User Manual 363766

SMD-Funksteuerungs GmbH Remote Control Transmitter 363766

User Manual

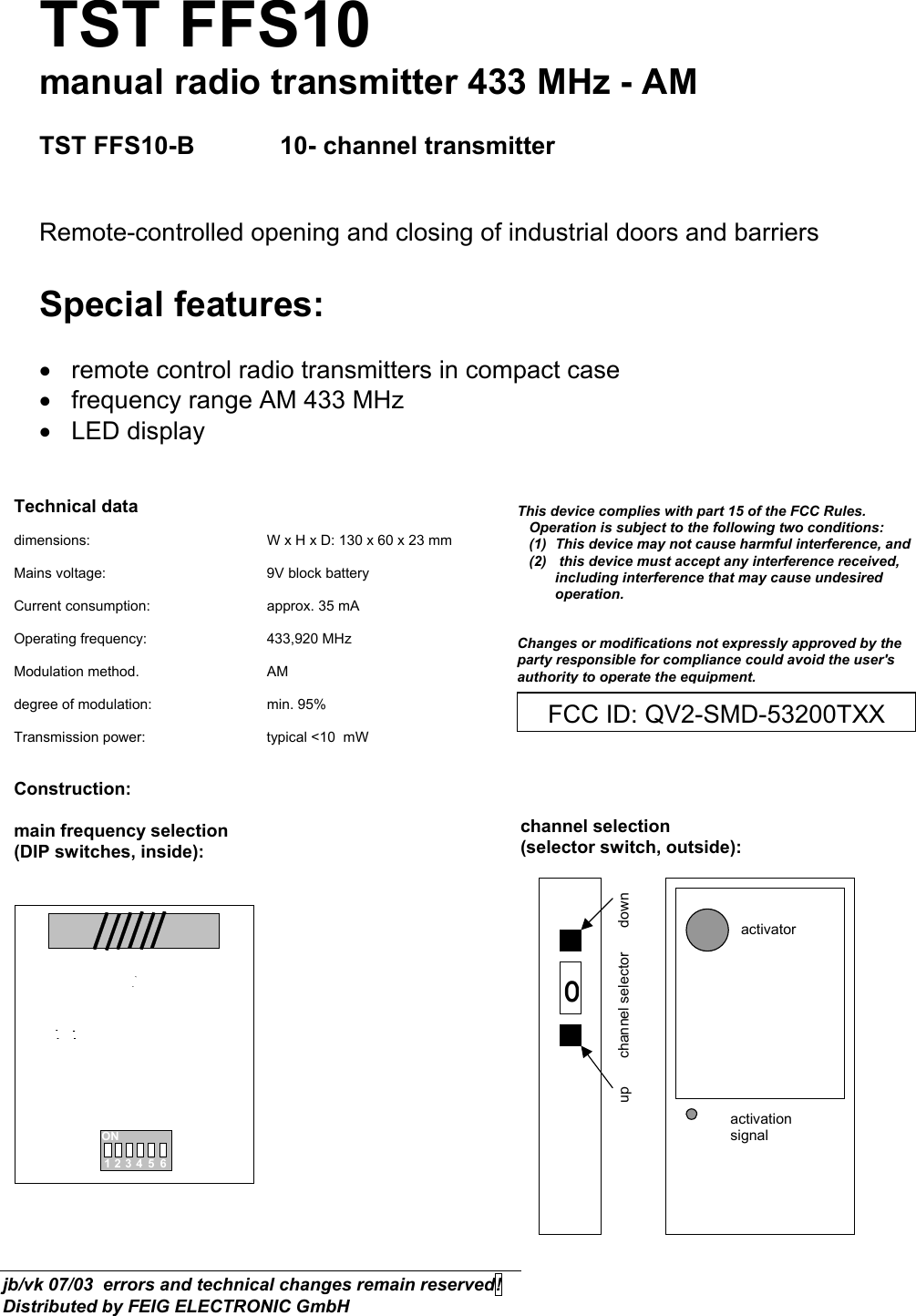

TST FFS10 manual radio transmitter 433 MHz - AM TST FFS10-B 10- channel transmitter Remote-controlled opening and closing of industrial doors and barriers Special features: • remote control radio transmitters in compact case • frequency range AM 433 MHz • LED display Technical data dimensions: W x H x D: 130 x 60 x 23 mm Mains voltage: 9V block battery Current consumption: approx. 35 mA Operating frequency: 433,920 MHz Modulation method. AM degree of modulation: min. 95% Transmission power: typical <10 mW Construction: main frequency selection (DIP switches, inside): ON123456 channel selection (selector switch, outside): 0activatoractivationsignalup channel selector down FCC ID: QV2-SMD-53200TXXThis device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could avoid the user's authority to operate the equipment. jb/vk 07/03 errors and technical changes remain reserved! Distributed by FEIG ELECTRONIC GmbH
