Users Manual
BT Pendant Instruction Manual
Model: LAT9600-01XXE

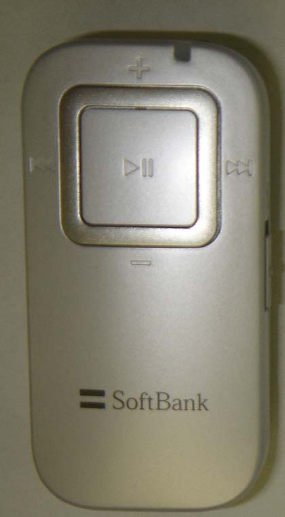

The BT Pendant seamlessly connects with mobile phone in wireless and allows
you to play music files.
Unpacking Contents
Your package should have:
- LAT9600-01XXE BT Pendant - LUM9600-2700E
Headphone
Name and Function of Each Part
⑤
⑥ ②
①
⑦
④
③
① Power key: Turn on/off the power, takes you back to standby mode and
start to play music files.
② Earphone Jack
③ FF key: Press to forward music files or change the mode.
④ REW key: Press to rewind music files or change the mode.
⑤ LED indicator: Indicates whether power is ON or OFF.
Off: OFF
Lit Green and blinked: Power: ON
⑥ Volume key (+): Increase the volume
⑦ Volume key (-): Decrease the volume
⑪
⑨
⑧
⑩
⑧ Hold switch: Press to deactivate the buttons of the main unit to prevent
misoperation. Release before operation to activate the buttons.
⑨ Strap Hole: Attach the strap
⑩ Clip: You can attach the BT pendant to you’re the garment by the Clip.
Please ensure that the Clip is securely attached to the garment.
⑪ Battery compartment
Basic Operations
Using the AAA-size alkaline batteries
Before the BT Pendant can be used for the first time, an AAA-size alkaline
battery must be loaded.
1. Open the battery compartment.
2. Insert an AAA-size battery.
Turning On the Power
Press and hold the Power Key at least 1 second. The LED will flash green.
Turning Off the Power
Press and hold the FF Key, press the Power key and at least 1 second.
Pairing to a Mobile Phone
Before the BT Pendant can be used, it must be paired with a Bluetooth-enabled
mobile phone.
1. Turn off the power of the BT Pendant.
2. Pressing and holding the FF Key, press the Power key at least 1 second.
The BT Pendant is ready for pairing when the LED flashes green quickly.
Refer to your mobile phone’s user guide to prepare the mobile phone for
pairing to the BT Pendant.
Using the headphone
Connect the supplied headphone to the BT pendant.
Adjusting the Volume
Press the Volume key repeatedly until you reach the desired volume level.
Main specifications
Bluetooth Specification: Version 1.1
Dimension: 54.9 mm (L) x 27.7m (W) x 17.4mm (H)
Total weight: approx. 15g
Power supply: AAA-size alkaline battery
Operating temperature: 0 to +60oC
Bluetooth range: max. 10 meters, less in buildings
Federal Communication Commission Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference,
and (2) This device must accept any interference received, including
interference that may cause undesired operation.
Caution:
Any changes or modifications not expressly approved by the party responsible
for product compliance could void the user's authority to operate the equipment.
Caution Exposure to radio frequency radiation
To comply with FCC RF exposure compliance requirements, this device must
not be co-located or operating in conjunction with any other antenna or
transmitter.
