SMK FC016 WLAN Complete Module User Manual 05

SMK Corporation WLAN Complete Module 05

Contents

User Manual

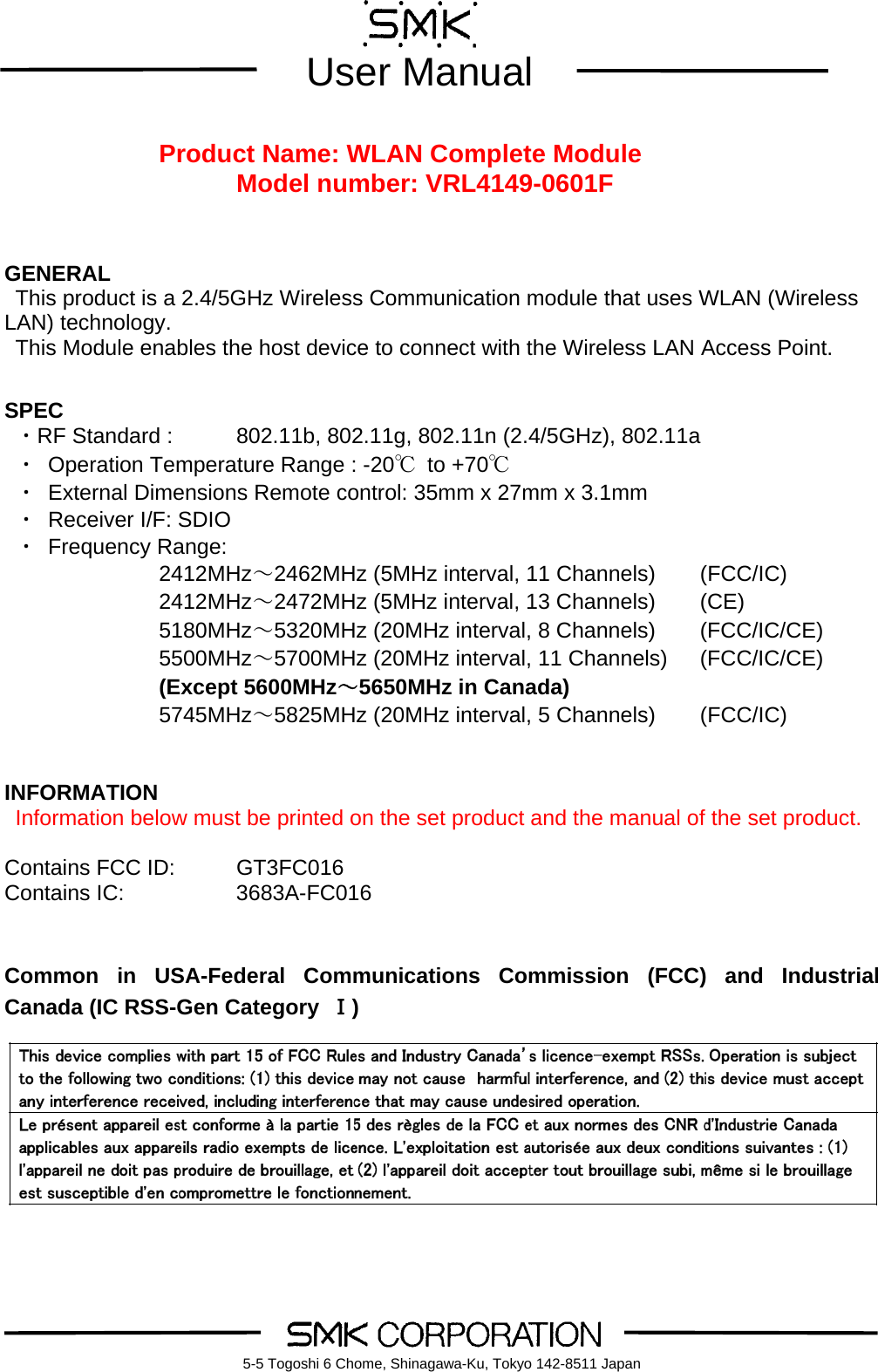

User Manual 5-5 Togoshi 6 Chome, Shinagawa-Ku, Tokyo 142-8511 Japan Product Name: WLAN Complete Module Model number: VRL4149-0601F GENERAL This product is a 2.4/5GHz Wireless Communication module that uses WLAN (Wireless LAN) technology. This Module enables the host device to connect with the Wireless LAN Access Point. SPEC ・RF Standard : 802.11b, 802.11g, 802.11n (2.4/5GHz), 802.11a ・ Operation Temperature Range : -20℃ to +70℃ ・ External Dimensions Remote control: 35mm x 27mm x 3.1mm ・ Receiver I/F: SDIO ・ Frequency Range: 2412MHz～2462MHz (5MHz interval, 11 Channels) (FCC/IC) 2412MHz～2472MHz (5MHz interval, 13 Channels) (CE) 5180MHz～5320MHz (20MHz interval, 8 Channels) (FCC/IC/CE) 5500MHz～5700MHz (20MHz interval, 11 Channels) (FCC/IC/CE) (Except 5600MHz～5650MHz in Canada) 5745MHz～5825MHz (20MHz interval, 5 Channels) (FCC/IC) INFORMATION Information below must be printed on the set product and the manual of the set product. Contains FCC ID: GT3FC016 Contains IC: 3683A-FC016 Common in USA-Federal Communications Commission (FCC) and Industrial Canada (IC RSS-Gen Category Ⅰ)
User Manual 5-5 Togoshi 6 Chome, Shinagawa-Ku, Tokyo 142-8511 Japan ※Over 5mm is recommended as a height of CE marking. Over 5mm

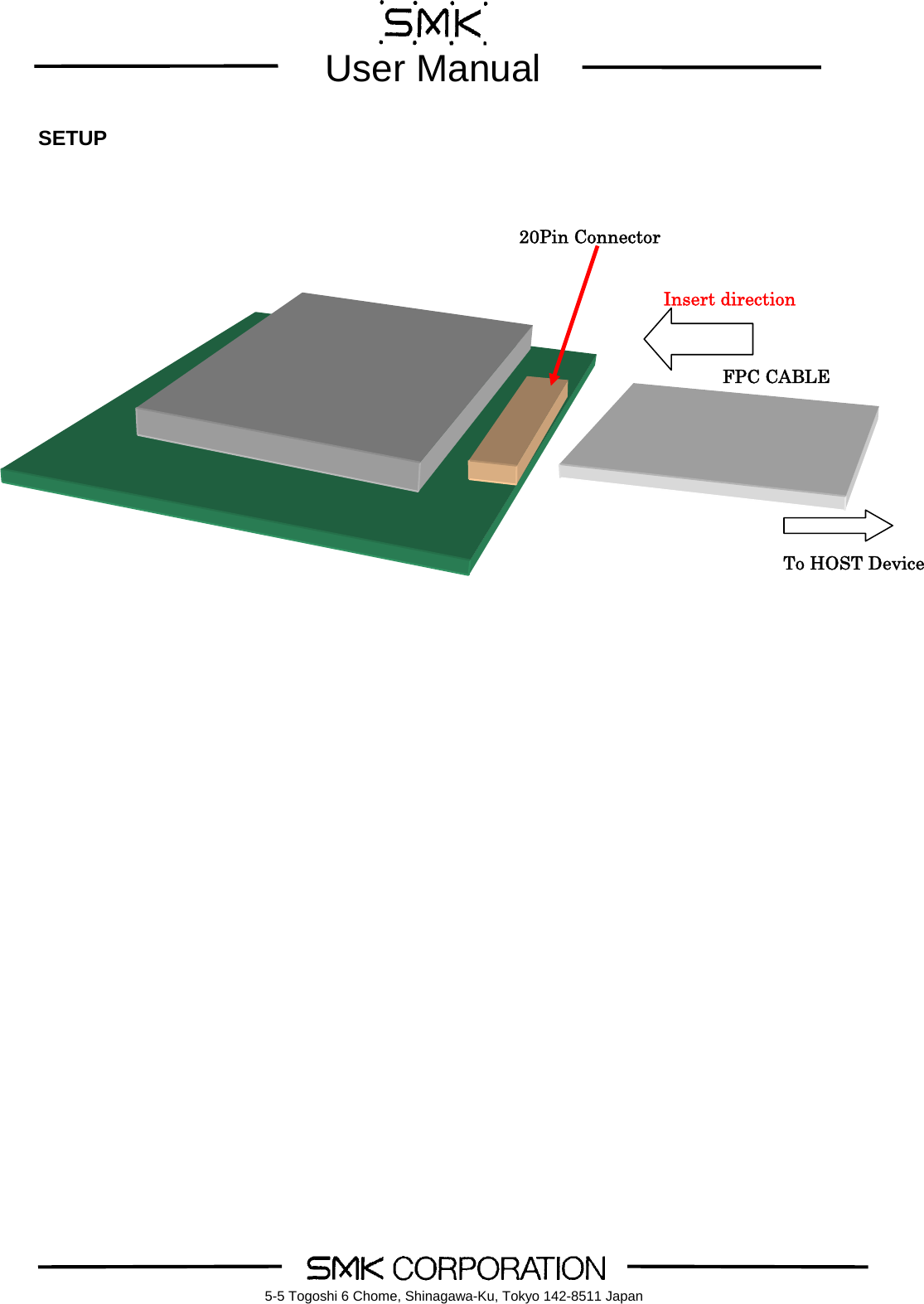

User Manual 5-5 Togoshi 6 Chome, Shinagawa-Ku, Tokyo 142-8511 Japan SETUP FPC CABLE 20Pin ConnectorTo HOST DeviceInsert direction

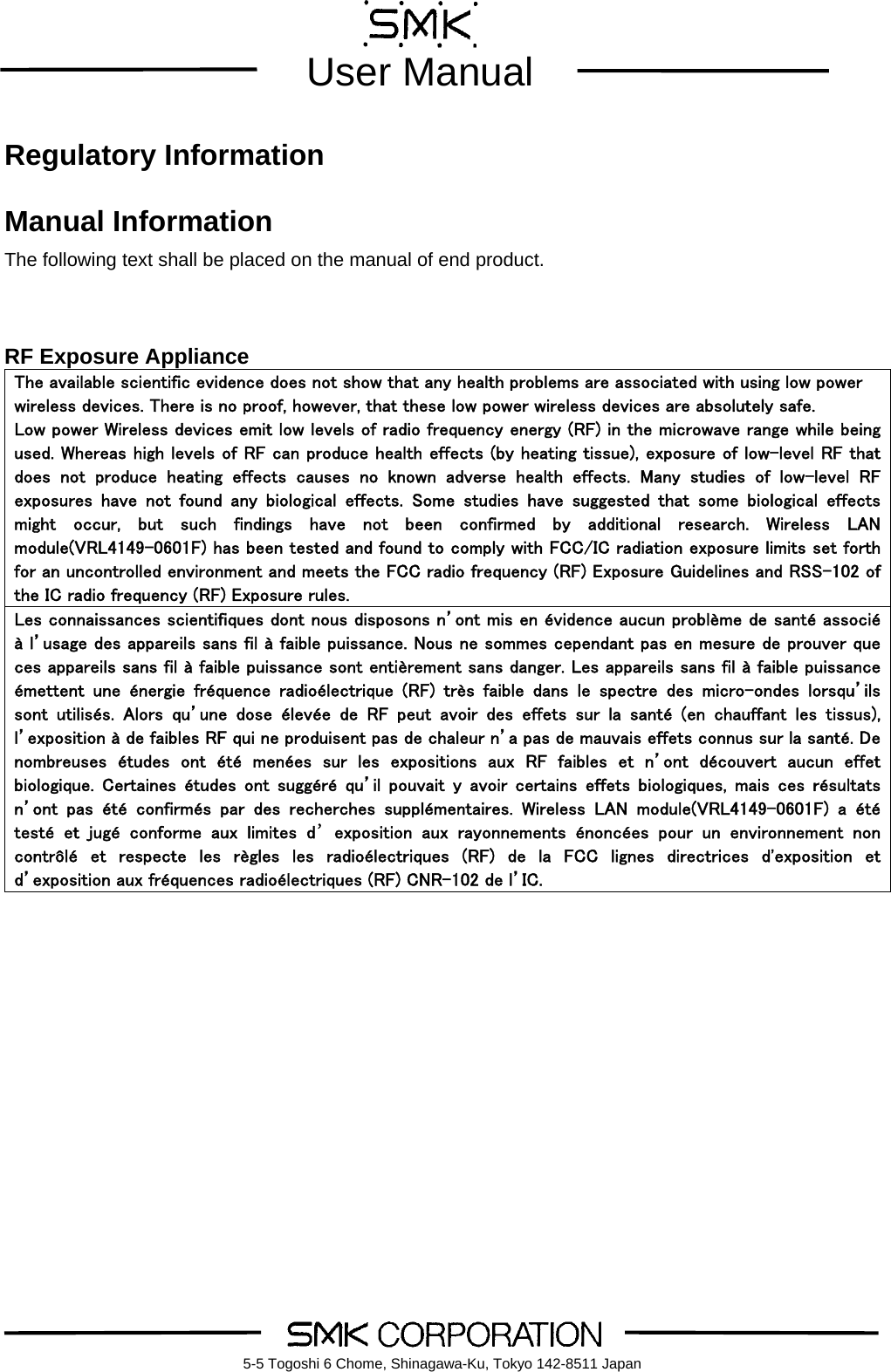

User Manual 5-5 Togoshi 6 Chome, Shinagawa-Ku, Tokyo 142-8511 Japan Regulatory Information Manual Information The following text shall be placed on the manual of end product. RF Exposure Appliance The available scientific evidence does not show that any health problems are associated with using low power wireless devices. There is no proof, however, that these low power wireless devices are absolutely safe. Low power Wireless devices emit low levels of radio frequency energy (RF) in the microwave range while being used. Whereas high levels of RF can produce health effects (by heating tissue), exposure of low-level RF that does not produce heating effects causes no known adverse health effects. Many studies of low-level RF exposures have not found any biological effects. Some studies have suggested that some biological effects might occur, but such findings have not been confirmed by additional research. Wireless LAN module(VRL4149-0601F) has been tested and found to comply with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines and RSS-102 of the IC radio frequency (RF) Exposure rules. Les connaissances scientifiques dont nous disposons n’ont mis en évidence aucun problème de santé associé à l’usage des appareils sans fil à faible puissance. Nous ne sommes cependant pas en mesure de prouver que ces appareils sans fil à faible puissance sont entièrement sans danger. Les appareils sans fil à faible puissance émettent une énergie fréquence radioélectrique (RF) très faible dans le spectre des micro-ondes lorsqu’ils sont utilisés. Alors qu’une dose élevée de RF peut avoir des effets sur la santé (en chauffant les tissus), l’exposition à de faibles RF qui ne produisent pas de chaleur n’a pas de mauvais effets connus sur la santé. De nombreuses études ont été menées sur les expositions aux RF faibles et n’ont découvert aucun effet biologique. Certaines études ont suggéré qu’il pouvait y avoir certains effets biologiques, mais ces résultats n’ont pas été confirmés par des recherches supplémentaires. Wireless LAN module(VRL4149-0601F) a été testé et jugé conforme aux limites d’exposition aux rayonnements énoncées pour un environnement non contrôlé et respecte les règles les radioélectriques (RF) de la FCC lignes directrices d'exposition et d’exposition aux fréquences radioélectriques (RF) CNR-102 de l’IC.

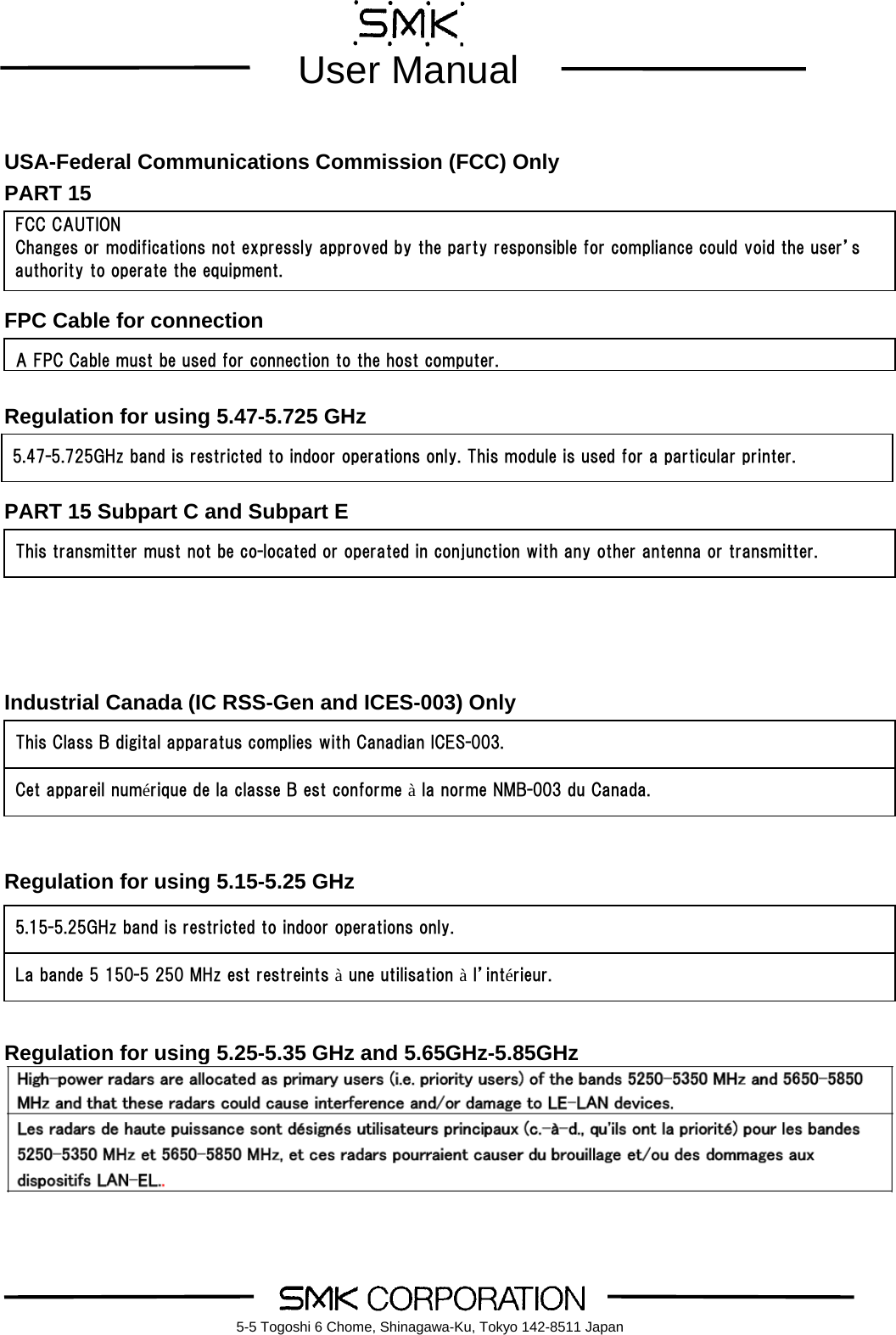

User Manual 5-5 Togoshi 6 Chome, Shinagawa-Ku, Tokyo 142-8511 Japan USA-Federal Communications Commission (FCC) Only PART 15 FPC Cable for connection Regulation for using 5.47-5.725 GHz PART 15 Subpart C and Subpart E Industrial Canada (IC RSS-Gen and ICES-003) Only Regulation for using 5.15-5.25 GHz Regulation for using 5.25-5.35 GHz and 5.65GHz-5.85GHz FCC CAUTION Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. A FPC Cable must be used for connection to the host computer.This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. 5.15-5.25GHz band is restricted to indoor operations only. La bande 5 150-5 250 MHz est restreints à une utilisation à l’intérieur. 5.47-5.725GHz band is restricted to indoor operations only. This module is used for a particular printer.
