User manual for VRL4149-0601F
User Manual
5-5 Togoshi 6 Chome, Shinagawa-Ku, Tokyo 142-8511 Japan
Product Name: WLAN Complete Module
Model number: VRL4149-0601F
GENERAL
This product is a 2.4/5GHz Wireless Communication module that uses WLAN (Wireless
LAN) technology.
This Module enables the host device to connect with the Wireless LAN Access Point.
SPEC
・RF Standard : 802.11b, 802.11g, 802.11n (2.4/5GHz), 802.11a
・Supply Voltage : VDD 2.7 to 5.6 VDC
VIO 1.8 to 2.2 VDC
2.6 to 3.1 VDC
3.3 to 4.0 VDC
+1V8 1.8 to 1.98 VDC
・ Operation Temperature Range : -20℃ to +70℃
・ External Dimensions Remote control: 35mm x 27mm x 3.1mm
・ Receiver I/F: SDIO
・ Frequency Range:
2412MHz～2462MHz (5MHz interval, 11 Channels) (FCC/IC)
2412MHz～2472MHz (5MHz interval, 13 Channels) (CE)
5180MHz～5320MHz (20MHz interval, 8 Channels) (FCC/IC/CE)
5500MHz～5700MHz (20MHz interval, 11 Channels) (FCC/IC/CE)
(Except 5600MHz～5650MHz in Canada)
5745MHz～5825MHz (20MHz interval, 5 Channels) (FCC/IC)
INFORMATION
Information below must be printed on the set product and the manual of the set product.
Contains FCC ID: GT3FC016
Contains IC: 3683A-FC016

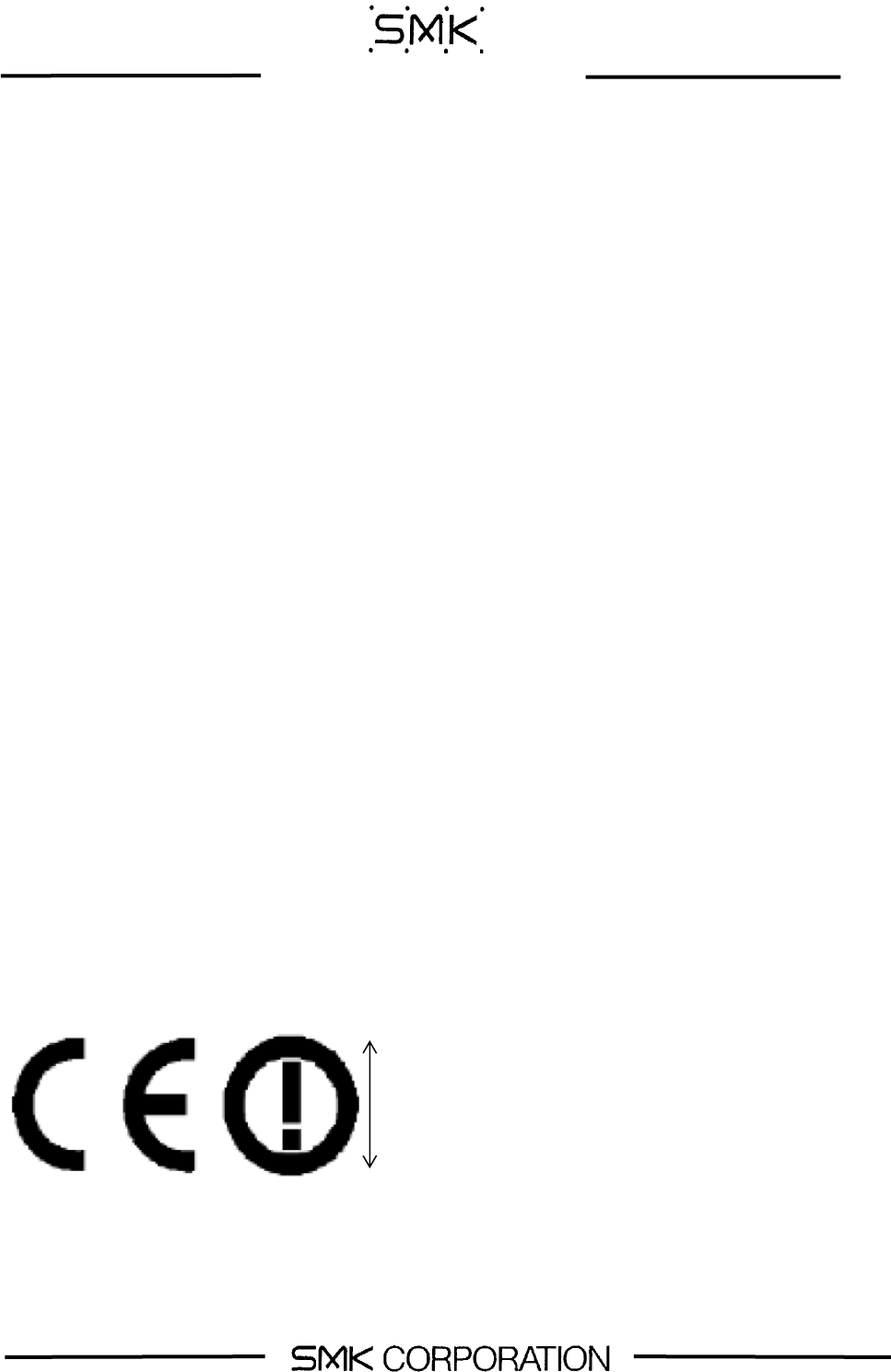

※Over 5mm is recommended as a height of CE marking.
Over 5mm
User Manual
5-5 Togoshi 6 Chome, Shinagawa-Ku, Tokyo 142-8511 Japan

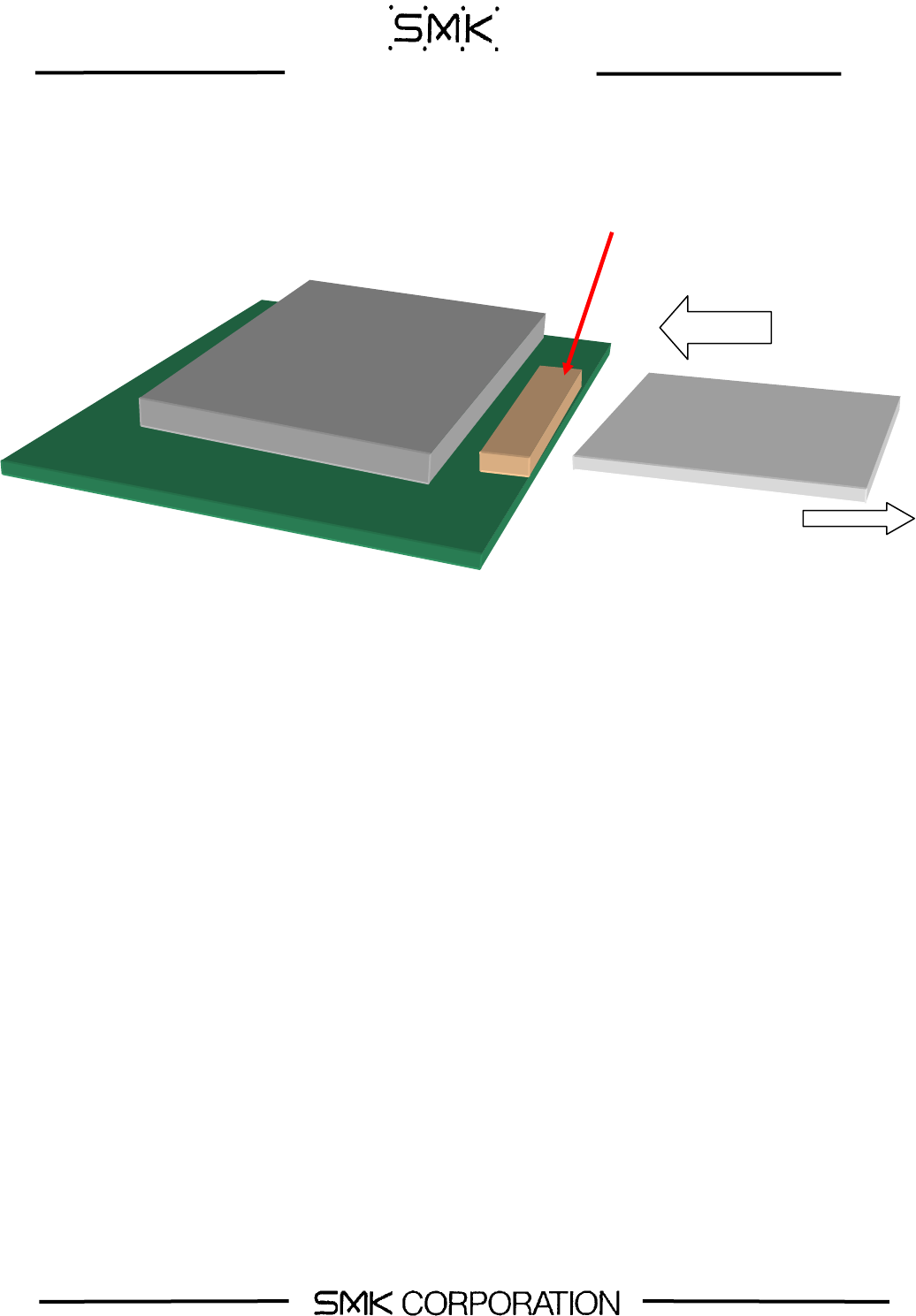

SETUP
FPC CABLE
20Pin Connector
To HOST Device
Insert direction
User Manual
5-5 Togoshi 6 Chome, Shinagawa-Ku, Tokyo 142-8511 Japan
Regulatory Information
Manual Information
The following text shall be placed on the manual of end product.
Common in USA-Federal Communications Commission (FCC) and Industrial
Canada (IC RSS-Gen Category Ⅰ)
RF Exposure Appliance
This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment
and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65 and RSS-102 of
the IC radio frequency (RF) Exposure rules. This equipment should be installed and operated keeping the
radiator at least 20cm or more away from person’s body (excluding extremities: hands, wrists, feet and
ankles).
Cet équipement est conforme aux limites d’exposition aux rayonnements énoncées pour un
environnement non contrôlé et respecte les règles les radioélectriques (RF) de la FCC lignes directrices
d'exposition dans le Supplément C à OET65 et d’exposition aux fréquences radioélectriques (RF)
CNR-102 de l’IC. Cet équipement doit être installé et utilisé en gardant une distance de 20 cm ou plus
entre le dispositif rayonnant et le corps (à l’exception des extrémités : mains, poignets, pieds et chevilles).
USA-Federal Communications Commission (FCC) Only
This device complies with Part 15 of FCC Rules and Industry Canada licence-exempt RSS standard(s). Operation is
subject to the following two conditions: (1) this device may not cause interference, and (2) this device must
accept any interference, including interference that may cause undesired operation of this device.
Le présent appareil est conforme aux la partie 15 des règles de la FCC et CNR d'Industrie Canada applicables aux
appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne
doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d'en compromettre le fonctionnement.
User Manual
5-5 Togoshi 6 Chome, Shinagawa-Ku, Tokyo 142-8511 Japan
PART 15
FPC Cable for connection
Regulation for using 5.15-5.25 GHz
PART 15 Subpart C and Subpart E
Industrial Canada (IC RSS-Gen and ICES-003) Only
FCC CAUTION
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
A FPC Cable must be used for connection to the host com
p
uter.
5.15-5.25GHz band is restricted to indoor operations only.
This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.
User Manual
5-5 Togoshi 6 Chome, Shinagawa-Ku, Tokyo 142-8511 Japan
Regulation for using 5.15-5.25 GHz (RSS-210)
R&TTE Only
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
5.15-5.25GHz band is restricted to indoor operations only.
La bande 5 150-5 250 MHz est restreints à une utilisation à l’intérieur.
User Manual
5-5 Togoshi 6 Chome, Shinagawa-Ku, Tokyo 142-8511 Japan
5180-5320MHz is restricted to indoor operation only.

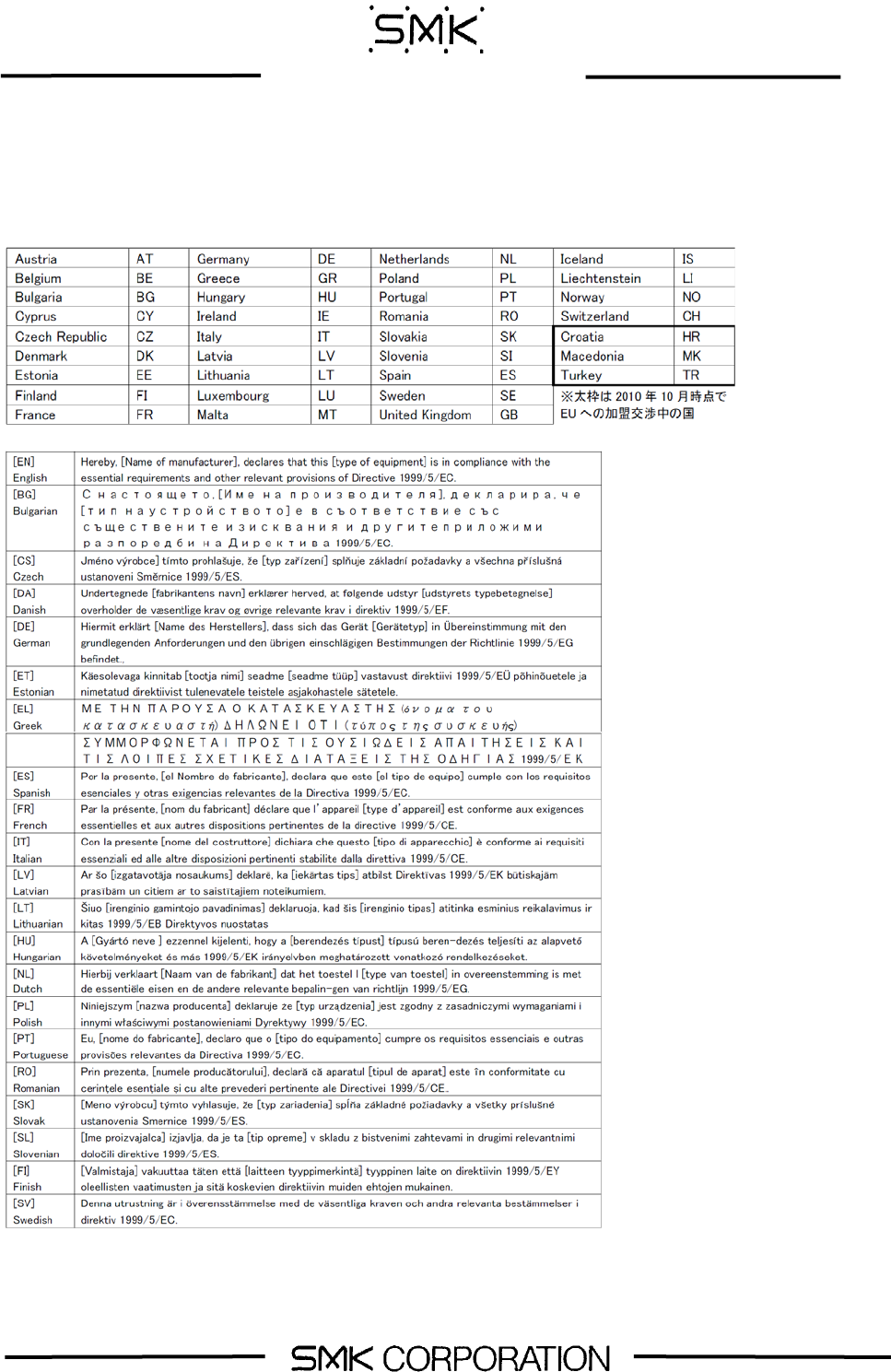

The country codes in which the module is used and the declarations must be listed on the
product, the package, or the manual.
The Examples of declaration
