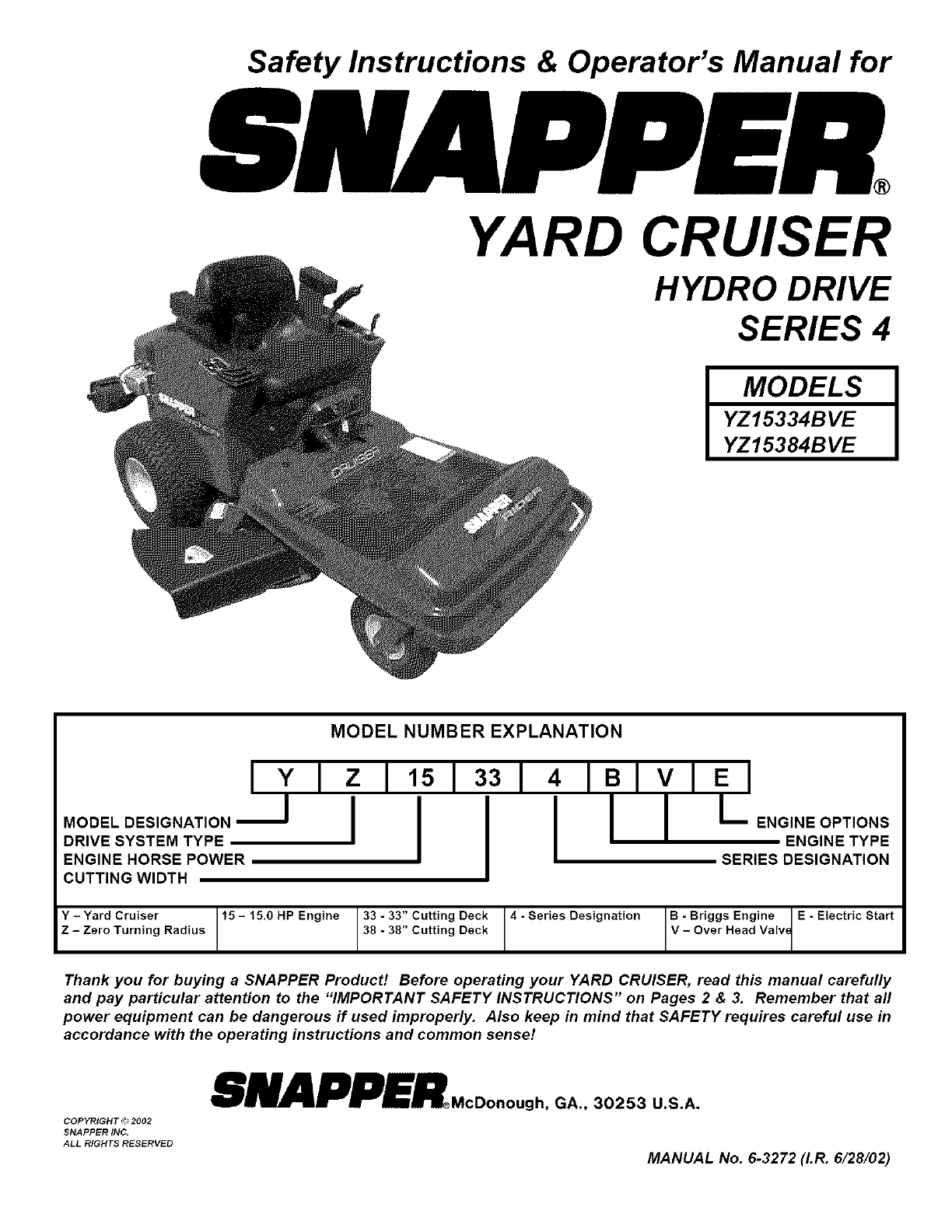

Safety Instructions & Operator's Manual for

YARD CRUISER

HYDRO DRIVE

SERIES 4

IMODELS

YZ15334BVE

YZ15384BVE

MODEL NUMBER EXPLANATION

I YIZ I lsl331 .IBIvlEI

ooo0.00s,o A ,O "III I

DRIVE SYSTEM TYPE ENGINE TYPE

ENGINE HORSE POWER SERIES DESIGNATION

CUTTING WIDTH

Y - Yard Cruiser 15 - 15.0 HP Engine 33 - 33" Cutting Deck 4- Series Designation B -Briggs Engine E - Electric Start

Z - Zero Turning Radius 38 - 38" Cutting Deck V - Over Head Valw

Thank you for buying aSNAPPER Product! Before operating your YARD CRUISER, read this manual carefully

and pay particular attention to the "IMPORTANT SAFETY INSTRUCTIONS" on Pages 2 & 3. Remember that all

power equipment can be dangerous if used improperly. Also keep in mind that SAFETY requires careful use in

accordance with the operating instructions and common sense!

SNAPPER iNC.

R_O0_O

MANUAL No. 6-3272 (I.R. 6/28/02)

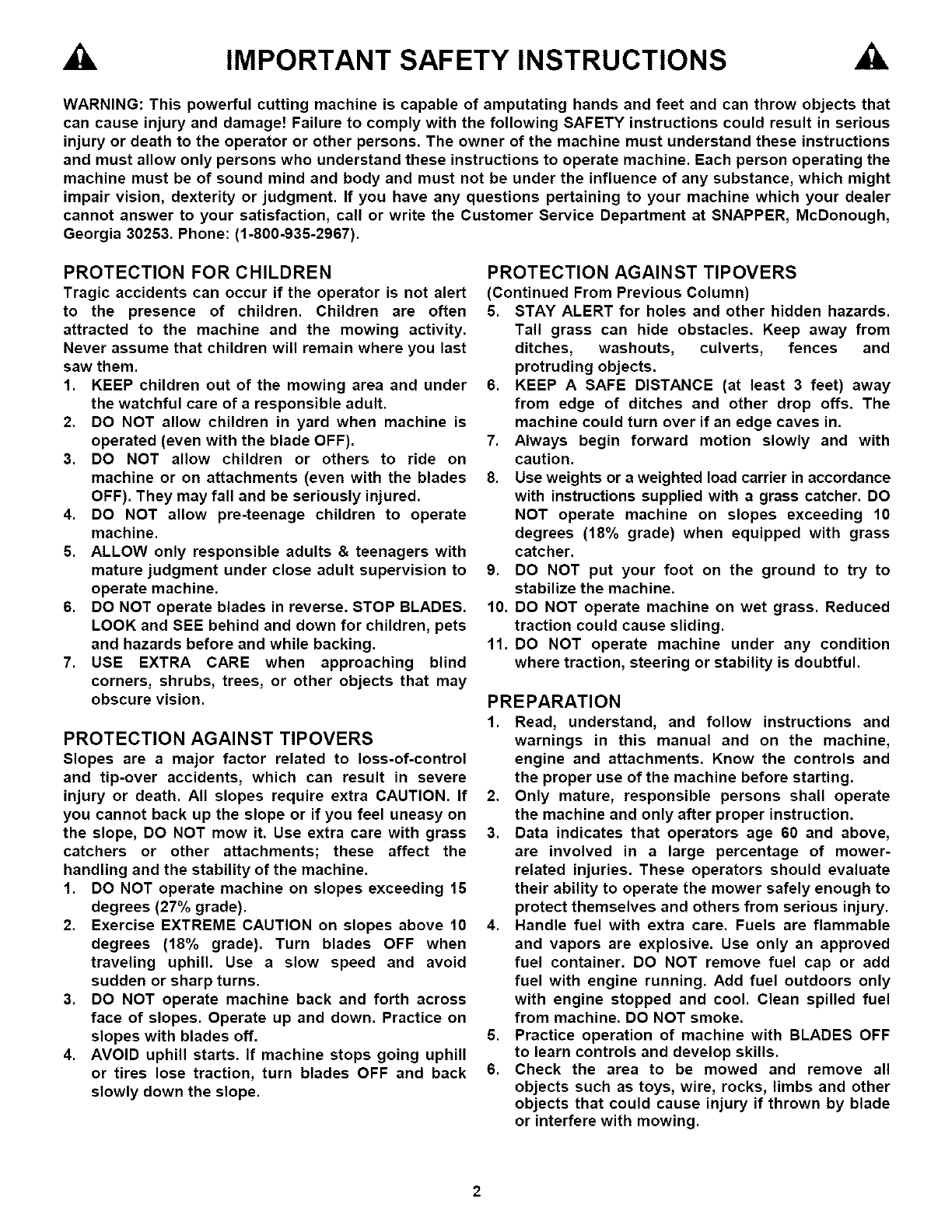

IMPORTANT SAFETY INSTRUCTIONS

WARNING: This powerful cutting machine is capable of amputating hands and feet and can throw objects that

can cause injury and damage! Failure to comply with the following SAFETY instructions could result in serious

injury or death to the operator or other persons. The owner of the machine must understand these instructions

and must allow only persons who understand these instructions to operate machine. Each person operating the

machine must be of sound mind and body and must not be under the influence of any substance, which might

impair vision, dexterity or judgment. If you have any questions pertaining to your machine which your dealer

cannot answer to your satisfaction, call or write the Customer Service Department at SNAPPER, McDonough,

Georgia 30253. Phone: (1-800-935-2967).

PROTECTION FOR CHILDREN

Tragic accidents can occur if the operator is not alert

to the presence of children. Children are often

attracted to the machine and the mowing activity.

Never assume that children will remain where you last

saw them.

1. KEEP children out of the mowing area and under

the watchful care of a responsible adult.

2. DO NOT allow children in yard when machine is

operated (even with the blade OFF).

3. DO NOT allow children or others to ride on

machine or on attachments (even with the blades

OFF). They may fall and be seriously injured.

4. DO NOT allow pre-teenage children to operate

machine.

5. ALLOW only responsible adults & teenagers with

mature judgment under close adult supervision to

operate machine.

6. DO NOT operate blades in reverse. STOP BLADES.

LOOK and SEE behind and down for children, pets

and hazards before and while backing.

7. USE EXTRA CARE when approaching blind

corners, shrubs, trees, or other objects that may

obscure vision.

PROTECTION AGAINST TIPOVERS

Slopes are a major factor related to loss-of-control

and tip-over accidents, which can result in severe

injury or death. All slopes require extra CAUTION. If

you cannot back up the slope or if you feel uneasy on

the slope, DO NOT mow it. Use extra care with grass

catchers or other attachments; these affect the

handling and the stability of the machine.

1. DO NOT operate machine on slopes exceeding 15

degrees (27% grade).

2. Exercise EXTREME CAUTION on slopes above 10

degrees (18% grade). Turn blades OFF when

traveling uphill. Use a slow speed and avoid

sudden or sharp turns.

3. DO NOT operate machine back and forth across

face of slopes. Operate up and down. Practice on

slopes with blades off.

4. AVOID uphill starts. If machine stops going uphill

or tires lose traction, turn blades OFF and back

slowly down the slope.

PROTECTION AGAINST TIPOVERS

(Continued From Previous Column)

5. STAY ALERT for holes and other hidden hazards.

Tall grass can hide obstacles. Keep away from

ditches, washouts, culverts, fences and

protruding objects.

6. KEEP A SAFE DISTANCE (at least 3 feet) away

from edge of ditches and other drop offs. The

machine could turn over if an edge caves in.

7. Always begin forward motion slowly and with

caution.

8. Use weights or a weighted load carrier in accordance

with instructions supplied with a grass catcher. DO

NOT operate machine on slopes exceeding 10

degrees (18% grade) when equipped with grass

catcher.

9. DO NOT put your foot on the ground to try to

stabilize the machine.

10. DO NOT operate machine on wet grass. Reduced

traction could cause sliding.

11. DO NOT operate machine under any condition

where traction, steering or stability is doubtful.

PREPARATION

1. Read, understand, and follow instructions and

warnings in this manual and on the machine,

engine and attachments. Know the controls and

the proper use of the machine before starting.

2. Only mature, responsible persons shall operate

the machine and only after proper instruction.

3. Data indicates that operators age 60 and above,

are involved in a large percentage of mower-

related injuries. These operators should evaluate

their ability to operate the mower safely enough to

protect themselves and others from serious injury.

4. Handle fuel with extra care. Fuels are flammable

and vapors are explosive. Use only an approved

fuel container. DO NOT remove fuel cap or add

fuel with engine running. Add fuel outdoors only

with engine stopped and cool. Clean spilled fuel

from machine. DO NOT smoke.

5. Practice operation of machine with BLADES OFF

to learn controls and develop skills.

6. Check the area to be mowed and remove all

objects such as toys, wire, rocks, limbs and other

objects that could cause injury if thrown by blade

or interfere with mowing.

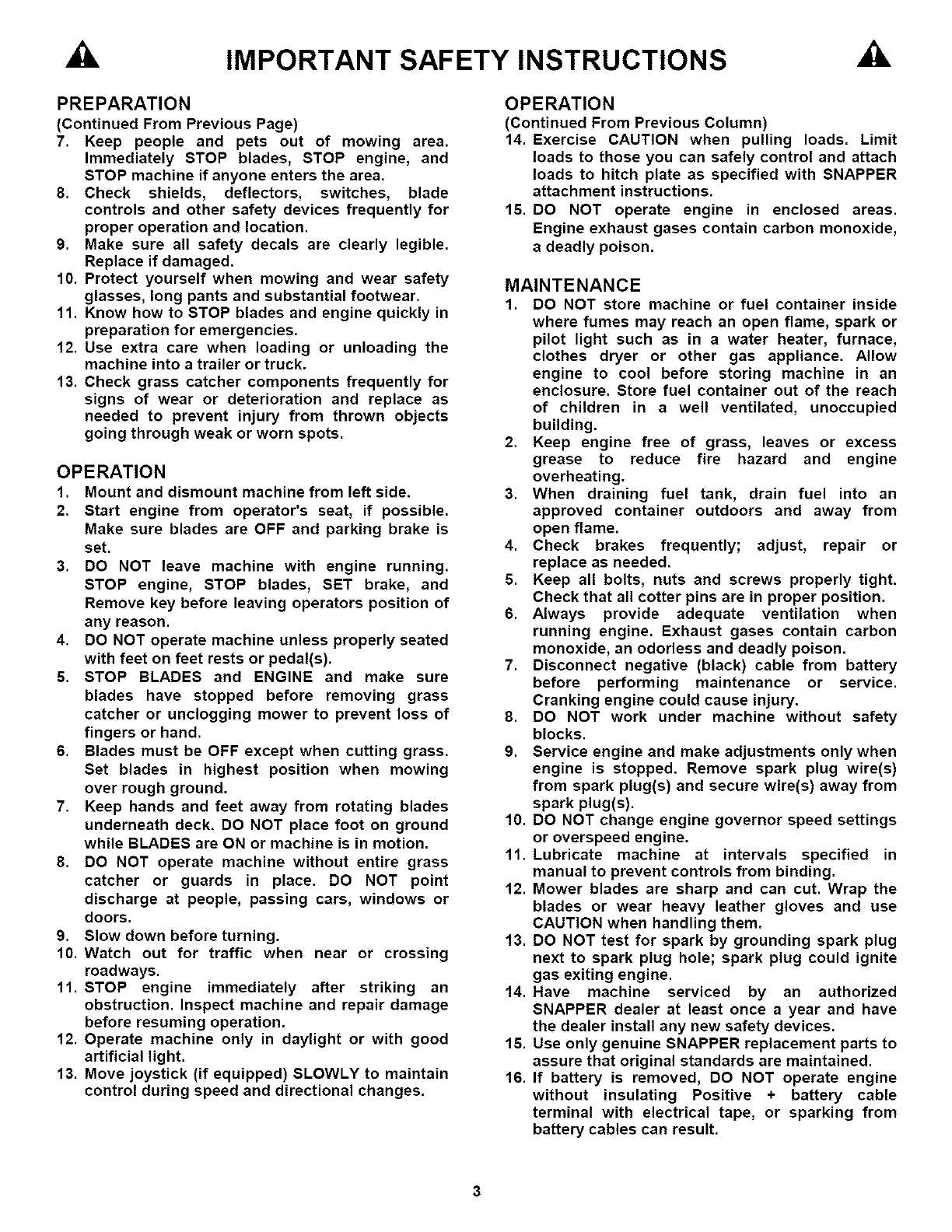

IMPORTANT SAFETY INSTRUCTIONS

PREPARATION

(Continued From Previous Page)

7. Keep people and pets out of mowing area.

Immediately STOP blades, STOP engine, and

STOP machine if anyone enters the area.

8. Check shields, deflectors, switches, blade

controls and other safety devices frequently for

proper operation and location.

9. Make sure all safety decals are clearly legible.

Replace if damaged.

10. Protect yourself when mowing and wear safety

glasses, long pants and substantial footwear.

11. Know how to STOP blades and engine quickly in

preparation for emergencies.

12. Use extra care when loading or unloading the

machine into a trailer or truck.

13. Check grass catcher components frequently for

signs of wear or deterioration and replace as

needed to prevent injury from thrown objects

going through weak or worn spots.

OPERATION

1. Mount and dismount machine from left side.

2. Start engine from operator's seat, if possible.

Make sure blades are OFF and parking brake is

set.

3. DO NOT leave machine with engine running.

STOP engine, STOP blades, SET brake, and

Remove key before leaving operators position of

any reason.

4. DO NOT operate machine unless properly seated

with feet on feet rests or pedal(s).

5. STOP BLADES and ENGINE and make sure

blades have stopped before removing grass

catcher or unclogging mower to prevent loss of

fingers or hand.

6. Blades must be OFF except when cutting grass.

Set blades in highest position when mowing

over rough ground.

7. Keep hands and feet away from rotating blades

underneath deck. DO NOT place foot on ground

while BLADES are ON or machine is in motion.

8. DO NOT operate machine without entire grass

catcher or guards in place. DO NOT point

discharge at people, passing cars, windows or

doors.

9. Slow down before turning.

10. Watch out for traffic when near or crossing

roadways.

11. STOP engine immediately after striking an

obstruction. Inspect machine and repair damage

before resuming operation.

12. Operate machine only in daylight or with good

artificial light.

13. Move joystick (if equipped) SLOWLY to maintain

control during speed and directional changes.

OPERATION

(Continued From Previous Column)

14. Exercise CAUTION when pulling loads. Limit

loads to those you can safely control and attach

loads to hitch plate as specified with SNAPPER

attachment instructions.

15. DO NOT operate engine in enclosed areas.

Engine exhaust gases contain carbon monoxide,

a deadly poison.

MAINTENANCE

1. DO NOT store machine or fuel container inside

where fumes may reach an open flame, spark or

pilot light such as in a water heater, furnace,

clothes dryer or other gas appliance. Allow

engine to cool before storing machine in an

enclosure. Store fuel container out of the reach

of children in a well ventilated, unoccupied

building.

2. Keep engine free of grass, leaves or excess

grease to reduce fire hazard and engine

overheating.

3. When draining fuel tank, drain fuel into an

approved container outdoors and away from

open flame.

4. Check brakes frequently; adjust, repair or

replace as needed.

5. Keep all bolts, nuts and screws properly tight.

Check that all cotter pins are in proper position.

6. Always provide adequate ventilation when

running engine. Exhaust gases contain carbon

monoxide, an odorless and deadly poison.

7. Disconnect negative (black) cable from battery

before performing maintenance or service.

Cranking engine could cause injury.

8. DO NOT work under machine without safety

blocks.

9. Service engine and make adjustments only when

engine is stopped. Remove spark plug wire(s)

from spark plug(s) and secure wire(s) away from

spark plug(s).

10. DO NOT change engine governor speed settings

or overspeed engine.

11. Lubricate machine at intervals specified in

manual to prevent controls from binding.

12. Mower blades are sharp and can cut. Wrap the

blades or wear heavy leather gloves and use

CAUTION when handling them.

13. DO NOT test for spark by grounding spark plug

next to spark plug hole; spark plug could ignite

gas exiting engine.

14. Have machine serviced by an authorized

SNAPPER dealer at least once a year and have

the dealer install any new safety devices.

15. Use only genuine SNAPPER replacement parts to

assure that original standards are maintained.

16. If battery is removed, DO NOT operate engine

without insulating Positive + battery cable

terminal with electrical tape, or sparking from

battery cables can result.

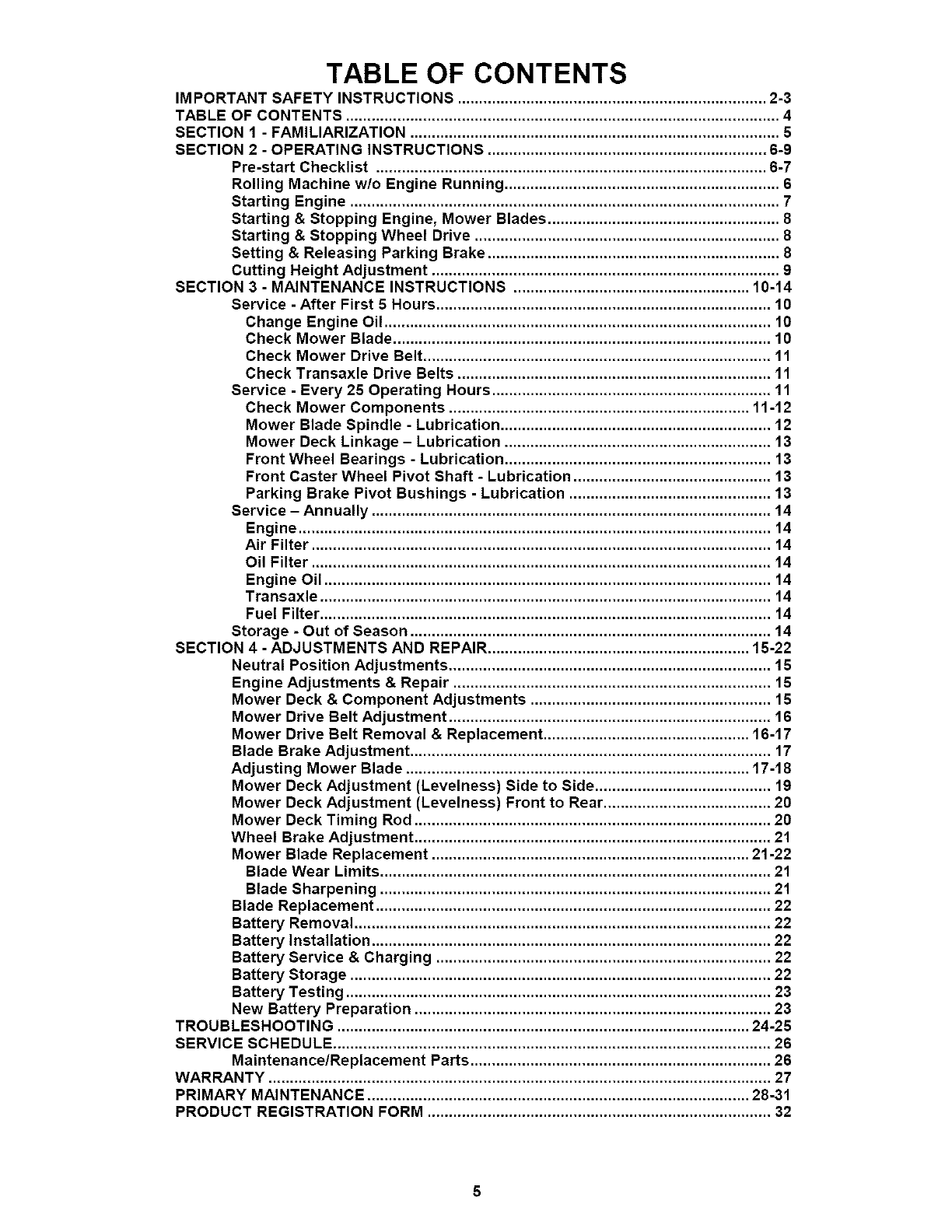

TABLE OF CONTENTS

IMPORTANT SAFETY INSTRUCTIONS ........................................................................ 2-3

TABLE OF CONTENTS ..................................................................................................... 4

SECTION 1 - FAMILIARIZATION ...................................................................................... 5

SECTION 2 -OPERATING INSTRUCTIONS ................................................................. 6-9

Pre-start Checklist ........................................................................................... 6-7

Rolling Machine w/o Engine Running ................................................................ 6

Starting Engine .................................................................................................... 7

Starting & Stopping Engine, Mower Blades ...................................................... 8

Starting & Stopping Wheel Drive ....................................................................... 8

Setting & Releasing Parking Brake .................................................................... 8

Cutting Height Adjustment ................................................................................. 9

SECTION 8 - MAINTENANCE INSTRUCTIONS ....................................................... 10-14

Service -After First 5 Hours .............................................................................. 10

Change Engine Oil .......................................................................................... 10

Check Mower Blade ........................................................................................ 10

Check Mower Drive Belt ................................................................................. 11

Check Transaxle Drive Belts ......................................................................... 11

Service - Every 25 Operating Hours ................................................................. 11

Check Mower Components ...................................................................... 11-12

Mower Blade Spindle - Lubrication ............................................................... 12

Mower Deck Linkage -Lubrication .............................................................. 13

Front Wheel Bearings -Lubrication .............................................................. 13

Front Caster Wheel Pivot Shaft - Lubrication .............................................. 13

Parking Brake Pivot Bushings -Lubrication ............................................... 13

Service - Annually ............................................................................................. 14

Engine .............................................................................................................. 14

Air Filter ........................................................................................................... 14

Oil Filter ........................................................................................................... 14

Engine Oil ........................................................................................................ 14

Transaxle ......................................................................................................... 14

Fuel Filter ......................................................................................................... 14

Storage - Out of Season .................................................................................... 14

SECTION 4 - ADJUSTMENTS AND REPAIR ............................................................. 15-22

Neutral Position Adjustments ........................................................................... 18

Engine Adjustments & Repair .......................................................................... 18

Mower Deck & Component Adjustments ........................................................ 15

Mower Drive Belt Adjustment ........................................................................... 16

Mower Drive Belt Removal &Replacement ................................................ 18-17

Blade Brake Adjustment .................................................................................... 17

Adjusting Mower Blade ................................................................................ 17-18

Mower Deck Adjustment (Levelness) Side to Side ......................................... 19

Mower Deck Adjustment (Levelness) Front to Rear ....................................... 20

Mower Deck Timing Rod ................................................................................... 20

Wheel Brake Adjustment ................................................................................... 21

Mower Blade Replacement .......................................................................... 21-22

Blade Wear Limits ........................................................................................... 21

Blade Sharpening ........................................................................................... 21

Blade Replacement ............................................................................................ 22

Battery Removal ................................................................................................. 22

Battery Installation ............................................................................................. 22

Battery Service & Charging .............................................................................. 22

Battery Storage .................................................................................................. 22

Battery Testing ................................................................................................... 23

New Battery Preparation ................................................................................... 23

TROUBLESHOOTING ................................................................................................ 24-28

SERVICE SCHEDULE ...................................................................................................... 26

Maintenance/Replacement Parts ...................................................................... 26

WARRANTY ..................................................................................................................... 27

PRIMARY MAINTENANCE ......................................................................................... 28-31

PRODUCT REGISTRATION FORM ................................................................................ 32

Section 1 - FAMILIARIZATION

PARKING

JOYSTICK FUELTANK BRAKE

CONTROL

HANDLE

KEY

SWITCH -_

DECK

DISCHARGE

IMPORTANT! The figures and illustrations in this

manual are provided for reference only and may

differ from your specific model. Contact your

Snapper dea er fyou have quest ons.

BRAKE RELEASE

BUTTON

ENGINE

SPEED

CONTROL

BLADE

SWITCH

DECK LIFT

HANDLE

FRAME

COVER

FIGURE

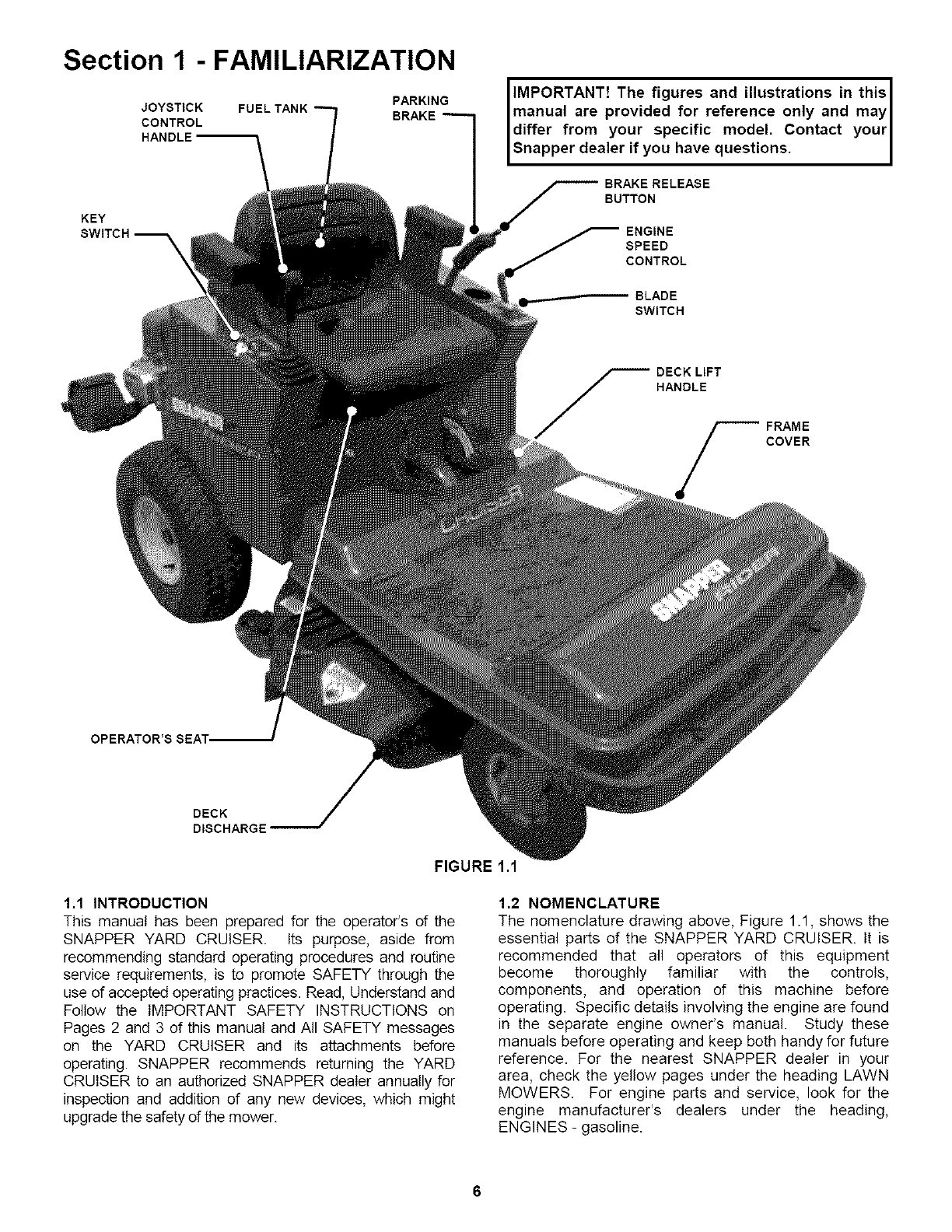

1.1 INTRODUCTION

This manual has been prepared for the operator's of the

SNAPPER YARD CRUISER. Its purpose, aside from

recommending standard operating procedures and routine

service requirements, is to promote SAFETY through the

use of accepted operating practices. Read, Understand and

Follow the IMPORTANT SAFETY INSTRUCTIONS on

Pages 2 and 3 of this manual and All SAFETY messages

on the YARD CRUISER and its attachments before

operating. SNAPPER recommends returning the YARD

CRUISER to an authorized SNAPPER dealer annually for

inspection and addition of any new devices, which might

upgrade the safety of the mower.

1.2 NOMENCLATURE

The nomenclature drawing above, Figure 1.1, shows the

essential parts of the SNAPPER YARD CRUISER. It is

recommended that all operators of this equipment

become thoroughly familiar with the controls,

components, and operation of this machine before

operating. Specific details involving the engine are found

in the separate engine owner's manual. Study these

manuals before operating and keep both handy for future

reference. For the nearest SNAPPER dealer in your

area, check the yellow pages under the heading LAWN

MOWERS. For engine parts and service, look for the

engine manufacturer's dealers under the heading,

ENGINES - gasoline.

Section 2 - OPERATING INSTRUCTIONS

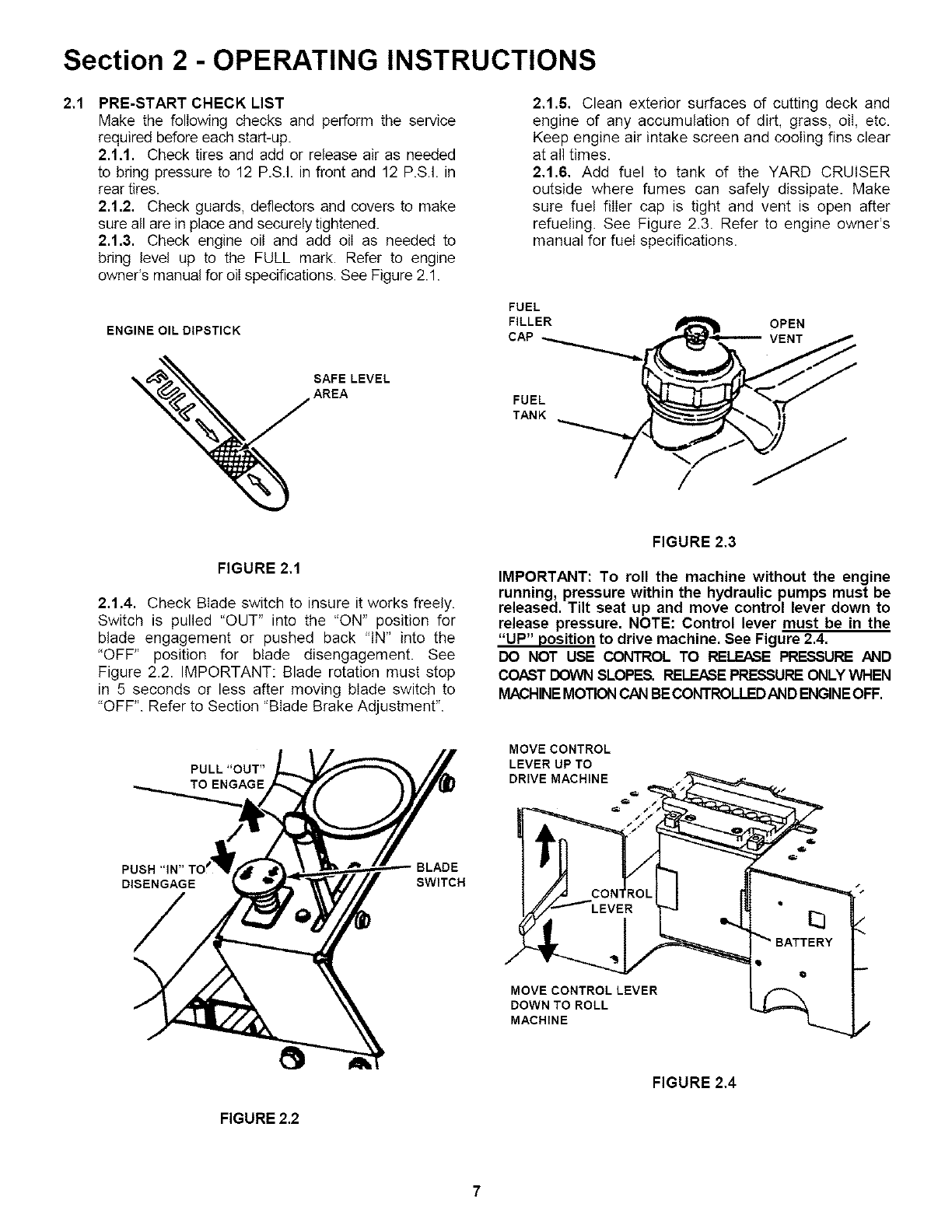

2.1 PRE-START CHECK LIST

Make the following checks and perform the service

required before each start-up.

2.1,1. Check tires and add or release air as needed

to bring pressure to 12 P.S.I. in front and 12 P.S.I. in

rear tires.

2.1,2. Check guards, deflectors and covers to make

sure all are in place and securely tightened.

2.1,3. Check engine oil and add oil as needed to

bring level up to the FULL mark. Refer to engine

owner's manual for oil specifications. See Figure 2.1.

ENGINE OIL DIPSTICK

LEVEL

FIGURE 2.1

2.1.4. Check Blade switch to insure it works freely.

Switch is pulled "OUT" into the "ON" position for

blade engagement or pushed back "IN" into the

"OFF" position for blade disengagement. See

Figure 2.2. IMPORTANT: Blade rotation must stop

in 5 seconds or less after moving blade switch to

"OFF". Refer to Section "Blade Brake Adjustment".

2.1.5. Clean exterior surfaces of cutting deck and

engine of any accumulation of dirt, grass, oil, etc.

Keep engine air intake screen and cooling fins clear

at all times.

2.1.6. Add fuel to tank of the YARD CRUISER

outside where fumes can safely dissipate. Make

sure fuel filler cap is tight and vent is open after

refueling. See Figure 2.3. Refer to engine owner's

manual for fuel specifications.

FUEL

TANK t

FIGURE 2.3

IMPORTANT: To roll the machine without the engine

running, pressure within the hydraulic pumps must be

released. Tilt seat up and move control lever down to

release pressure. NOTE: Control lever must be in the

"UP" position to drive machine. See Figure 2.4.

DO NOT USE CONTROL TO RELEASE PRESSURE hND

COAST DOWN SLOPES. RELEASE PRL--SSUREONLY WHEN

MACHINEMOTIONC/_I BECONTROLLEDAND ENGINEOFF.

PULL"OUT"

TO ENGAGE

PUSH"IN" BLADE

DISENGAGE SWITCH

FIGURE 2.2

MOVE CONTROL

LEVER UP TO

DRIVE MACHINE _;. '_

MOVE CONTROL LEVER

DOWN TO ROLL

MACHINE

FIGURE 2.4

Section 2 - OPERATING INSTRUCTIONS

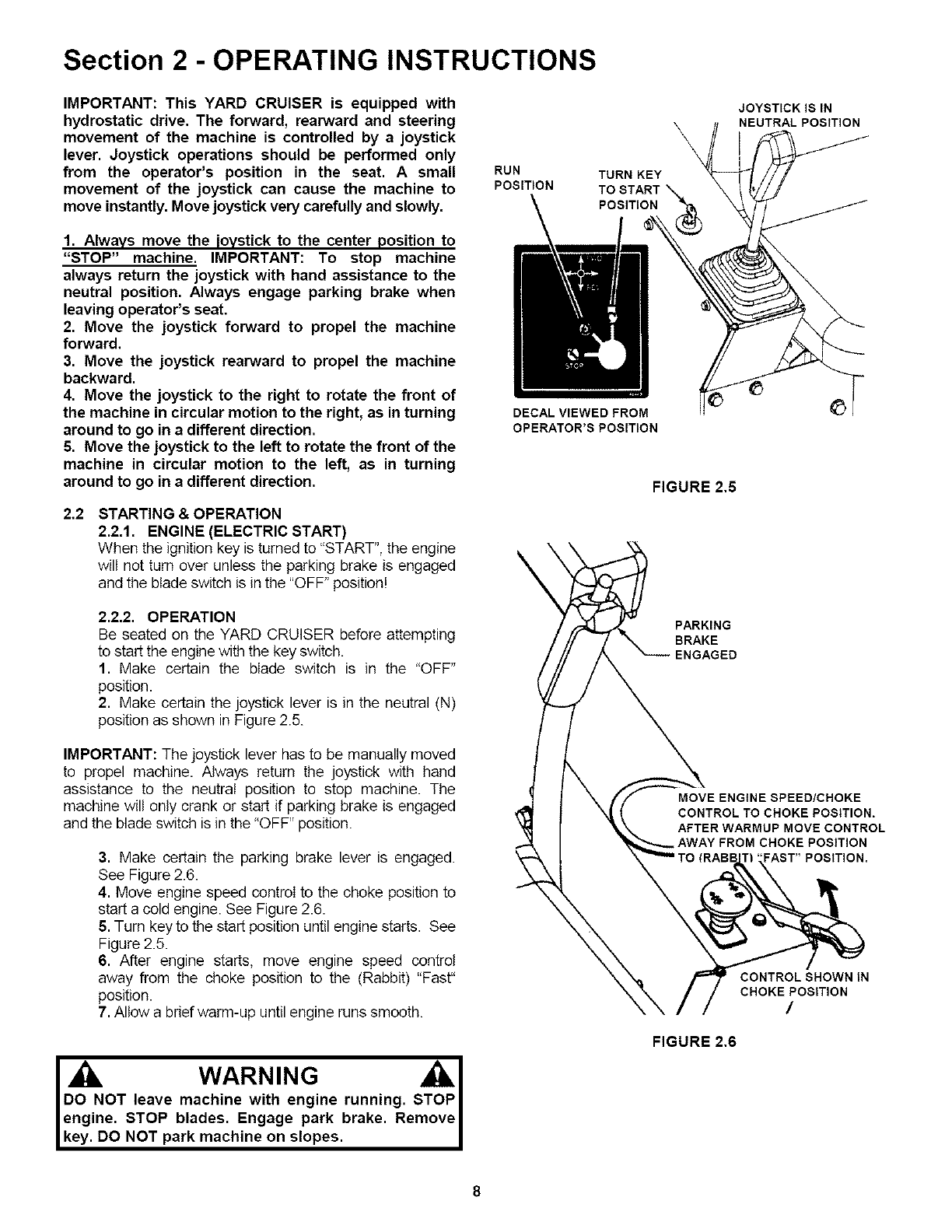

IMPORTANT: This YARD CRUISER is equipped with

hydrostatic drive, The forward, rearward and steering

movement of the machine is controlled by a joystick

lever. Joystick operations should be performed only

from the operator's position in the seat. A small

movement of the joystick can cause the machine to

move instantly. Move joystick very carefully and slowly.

1. Always move the joystick to the center position to

"STOP" machine. IMPORTANT: To stop machine

always return the joystick with hand assistance to the

neutral position. Always engage parking brake when

leaving operator's seat,

2. Move the joystick forward to propel the machine

forward,

3. Move the joystick rearward to propel the machine

backward.

4. Move the joystick to the right to rotate the front of

the machine in circular motion to the right, as in turning

around to go in a different direction,

5. Move the joystick to the left to rotate the front of the

machine in circular motion to the left, as in turning

around to go in a different direction,

2.2 STARTING &OPERATION

2.2,1, ENGINE (ELECTRIC START)

When the ignition key is turned to "START", the engine

will not turn over unless the parking brake is engaged

and the blade switch is in the "OFF" position!

2.2,2. OPERATION

Be seated on the YARD CRUISER before attempting

to start the engine with the key switch.

1. Make certain the blade switch is in the "OFF"

position.

2. Make certain the joystick lever is in the neutral (N)

position as shown in Figure 2.5.

IMPORTANT: The joystick lever has to be manually moved

to propel machine. Always return the joystick with hand

assistance to the neutral position to stop machine. The

machine will only crank or start if parking brake is engaged

and the blade switch is in the "OFF" position.

3. Make certain the parking brake lever is engaged.

See Figure 2.6.

4. Move engine speed control to the choke position to

start a cold engine. See Figure 2.6.

5. Turn key to the start position until engine starts. See

Figure 2.5.

6. After engine starts, move engine speed control

away from the choke position to the (Rabbit) "Fast"

position.

7. Allow a brief warm-up until engine runs smooth.

WARNING AI

DO NOT leave machine with engine running. STOP I

engine. STOP blades. Engage park brake. Removel

key. DO NOT park machine on slopes.

RUN TURN KEY

POSITION

JOYSTICK IS IN

XNEUTRAL POSITION

DECAL VIEWED FROM

OPERATOR'S POSITION

FIGURE 2,5

PARKING

BRAKE

ENGAGED

MOVE ENGINE SPEED!CHOKE

CONTROL TO CHOKE POSITION.

AFTER WARMUP MOVE CONTROL

AWAY FROM CHOKE POSITION

CONTROLSHOWNIN

CHOKE POSITION

FIGURE 2,6

Section 2 - OPERATING INSTRUCTIONS

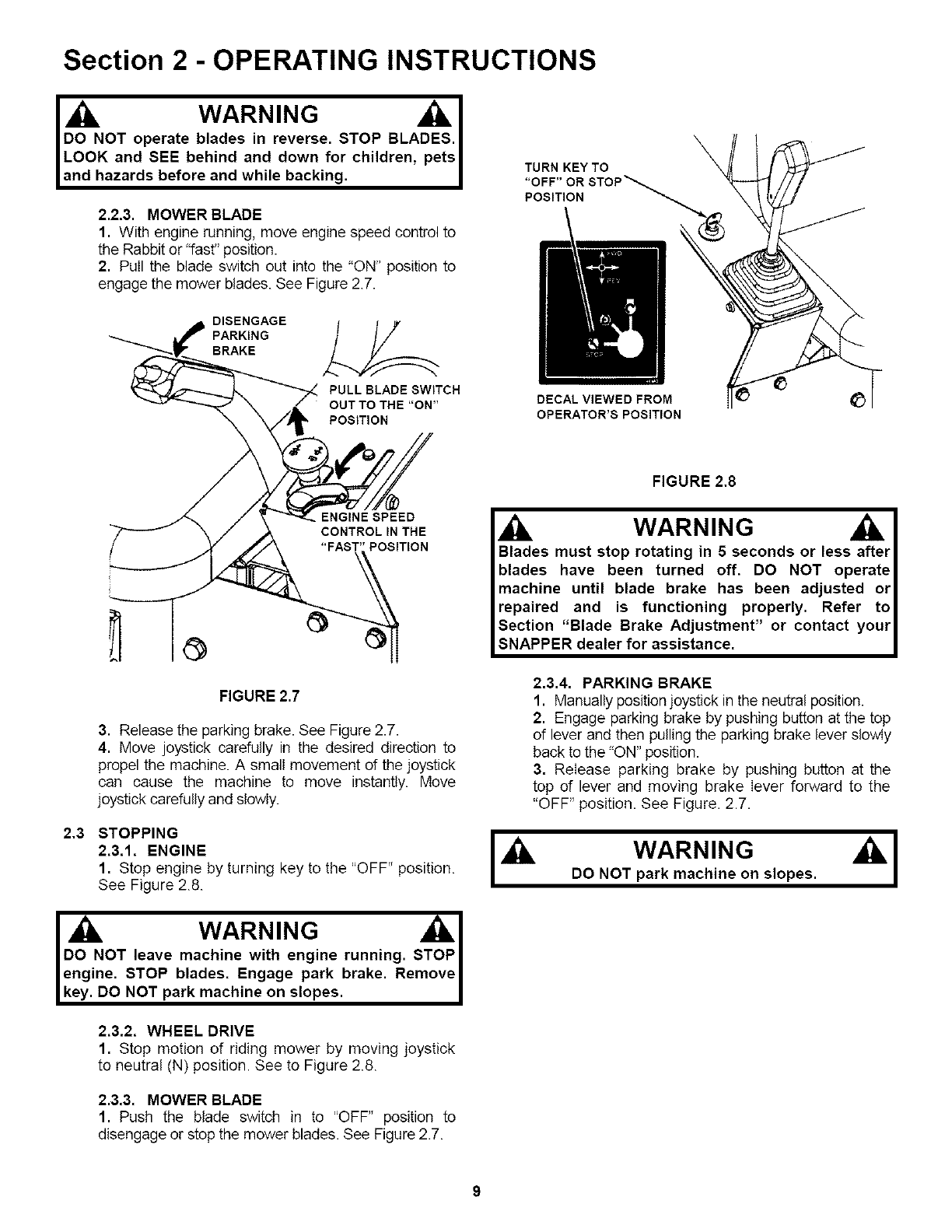

WARNING

DO NOT operate blades in reverse. STOP BLADES. I

LOOK and SEE behind and down for children, petsl

and hazards before and while backing. I

2.2,3. MOWER BLADE

1. With engine running, move engine speed control to

the Rabbit or "fast" position.

2. PulI the blade switch out into the "ON" position to

engage the mower blades. See Figure 2.7.

DISENGAGE

PARKING

BRAKE

PULL BLADE SWITCH

OUT TO THE "ON"

POSITION

ENGINE SPEED

CONTROL IN THE

POSITION

FIGURE2.7

3. Release the parking brake. See Figure 2.7.

4. Move joystick carefully in the desired direction to

propel the machine. A small movement of the joystick

can cause the machine to move instantly. Move

joystick carefully and slowly.

2,3 STOPPING

2,3,1, ENGINE

1. Stop engine by turning key to the "OFF" position.

See Figure 2.8.

WARNING AI

DO NOT leave machine with engine running. STOP I

engine. STOP blades. Engage park brake. Remove I

key. DO NOT park machine on slopes. I

2,3.2, WHEEL DRIVE

1. Stop motion of riding mower by moving joystick

to neutral (N) position. See to Figure 2.8.

2.3.3. MOWER BLADE

1. Push the blade switch in to "OFF" position to

disengage or stop the mower blades. See Figure 2.7.

FIGURE 2,8

WARNING

Blades must stop rotating in 5 seconds or less after

blades have been turned off. DO NOT operate

machine until blade brake has been adjusted or

repaired and is functioning properly. Refer to

Section "Blade Brake Adjustment" or contact your

SNAPPER dealer for assistance.

2.3.4. PARKING BRAKE

1. Manually position joystick in the neutral position.

2. Engage parking brake by pushing button at the top

of lever and then pulling the parking brake lever slowly

back to the "ON" position.

3, Release parking brake by pushing button at the

top of lever and moving brake lever forward to the

"OFF" position. See Figure. 2.7.

WARNING I

DO NOT park machine on slopes.

Section 2 - OPERATING INSTRUCTIONS

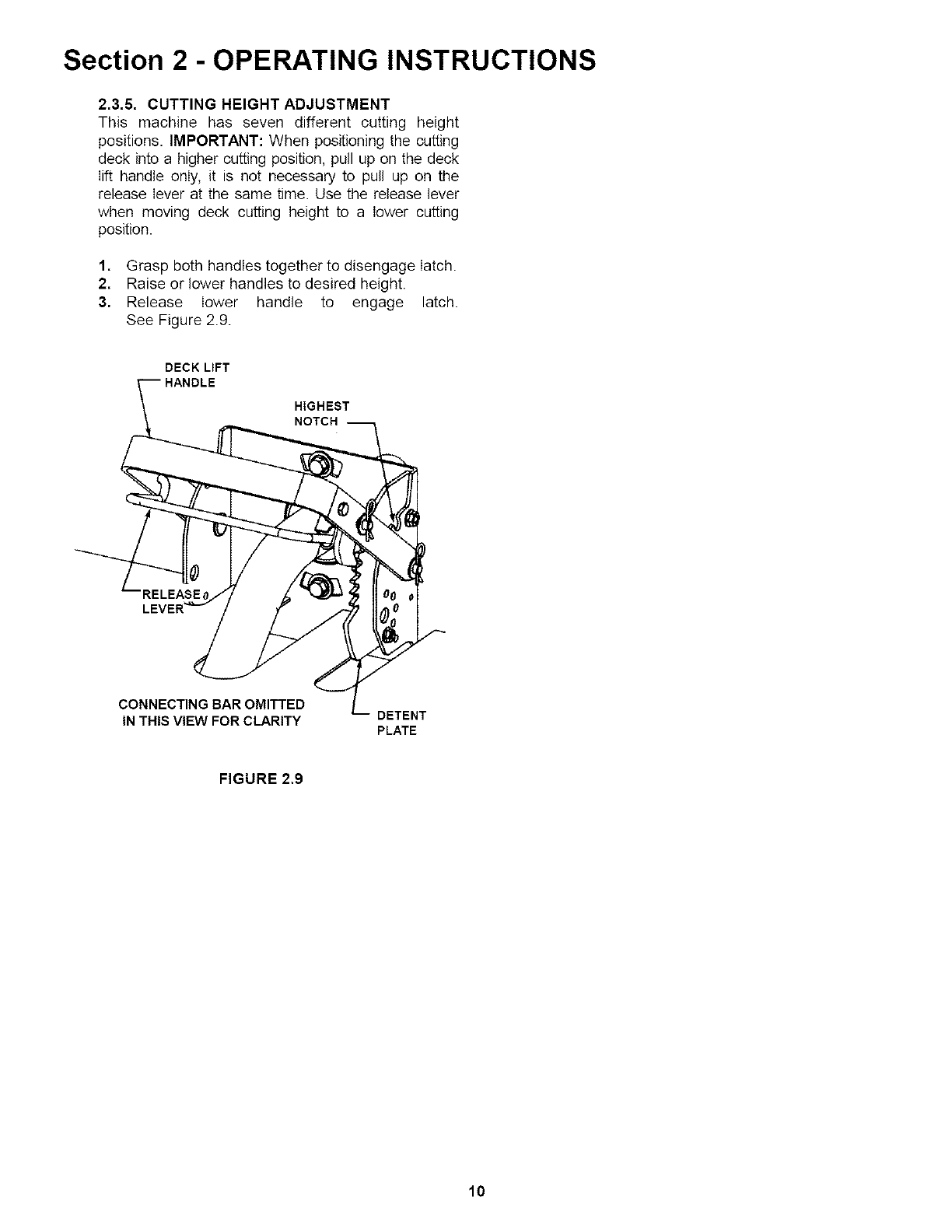

2.3.5, CUTTING HEIGHT ADJUSTMENT

This machine has seven different cutting height

positions. IMPORTANT: When positioning the cutting

deck into a higher cutting position, pull up on the deck

lift handle only, it is not necessary to pull up on the

release lever at the same time. Use the release lever

when moving deck cutting height to a lower cutting

position.

1. Grasp both handles together to disengage latch.

2. Raise or lower handles to desired height.

3. Release lower handle to engage latch.

See Figure 2.9.

DECK LIFT

HIGHEST

NOTCH

L_RELEAS E

CONNECTING BAR OMITTED

IN THIS VIEW FOR CLARITY DETENT

PLATE

FIGURE 2,9

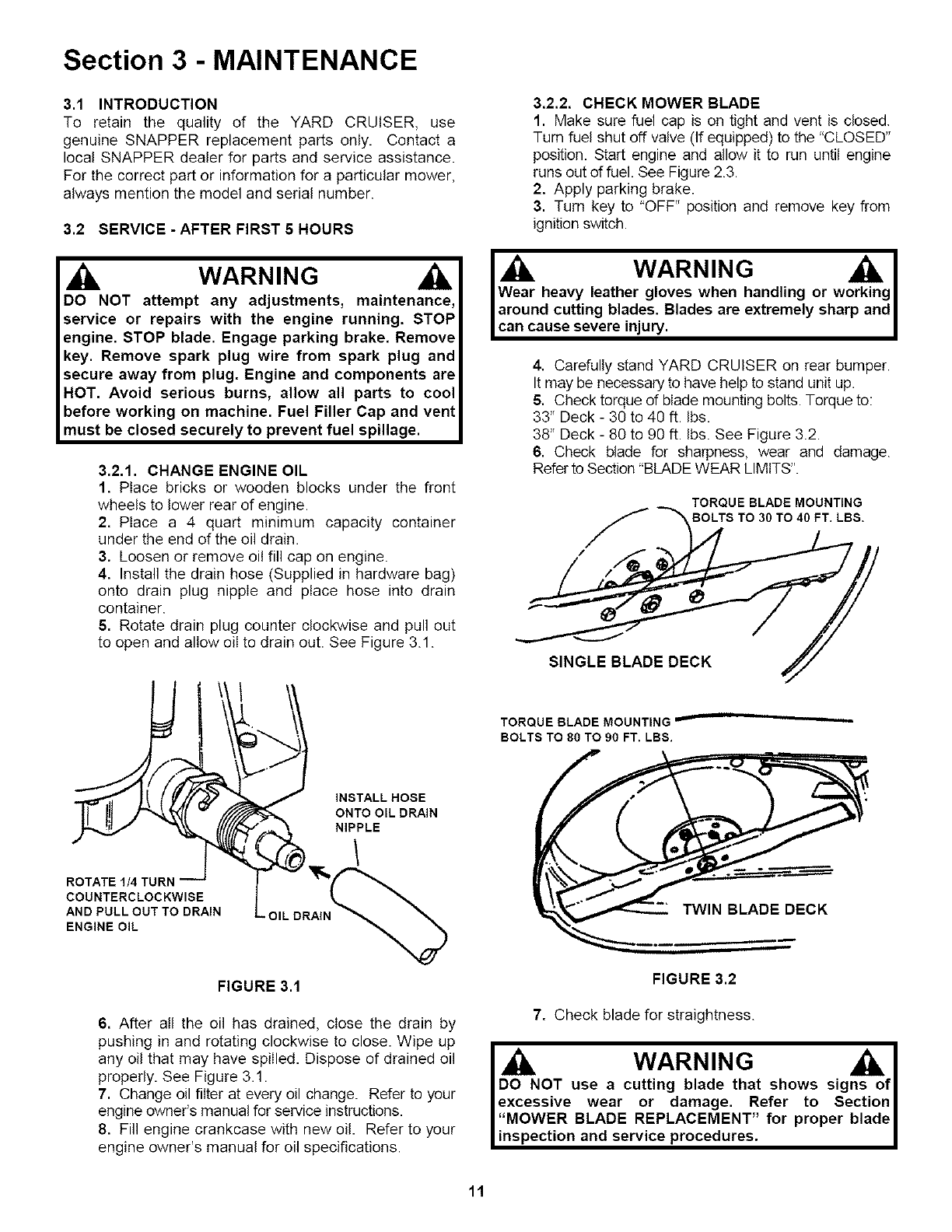

Section 3 - MAINTENANCE

3.1 INTRODUCTION

To retain the quality of the YARD CRUISER, use

genuine SNAPPER replacement parts only. Contact a

local SNAPPER dealer for parts and service assistance.

For the correct part or information for a particular mower,

always mention the model and serial number.

3.2 SERVICE - AFTER FIRST 5 HOURS

WARNING

DO NOT attempt any adjustments, maintenance,

service or repairs with the engine running. STOP

engine. STOP blade. Engage parking brake. Remove

key. Remove spark plug wire from spark plug and

secure away from plug. Engine and components are

HOT, Avoid serious burns, allow all parts to cool

before working on machine. Fuel Filler Cap and vent

must be closed securely to prevent fuel spillage.

3,2,1. CHANGE ENGINE OIL

1. Place bricks or wooden blocks under the front

wheels to lower rear of engine.

2. Place a 4 quart minimum capacity container

under the end of the oil drain.

3. Loosen or remove oil fill cap on engine.

4. Install the drain hose (Supplied in hardware bag)

onto drain plug nipple and place hose into drain

container.

5. Rotate drain plug counter clockwise and pull out

to open and allow oiI to drain out. See Figure 3.1.

3,2,2, CHECK MOWER BLADE

1. Make sure fuel cap is on tight and vent is closed.

Turn fuel shut off valve (If equipped) to the "CLOSED"

position. Start engine and allow it to run until engine

runs out of fuel. See Figure 2.3.

2. Apply parking brake.

3. Turn key to "OFF" position and remove key from

ignition switch.

WARNING

Wear heavy leather gloves when handling or working I

around cutting blades, Blades are extremely sharp and I

can cause severe injury. I

4. Carefully stand YARD CRUISER on rear bumper.

It may be necessary to have help to stand unit up.

5. Check torque of blade mounting bolts. Torque to:

33" Deck - 30 to 40 ft. Ibs.

38" Deck - 80 to 90 ft. Ibs. See Figure 3.2.

6. Check blade for sharpness, wear and damage.

Refer to Section "BLADE WEAR LIMITS".

TORQUE BLADE MOUNTING

BOLTS TO 30 TO 40 FT. LBS.

SINGLE BLADE DECK

iiiiiiiiiiii

TORQUE BLADE MOUNTING "-

BOLTS TO 80 TO 90 FT. LBS.

ROTATE 1/4 TURN

COUNTERCLOCKWISE

AND PULL OUT TO DRAIN

ENGINE OIL

INSTALL HOSE

ONTO OIL DRAIN

NIPPLE

OIL DRAIN TWIN BLADE DECK

FIGURE 3.1

6. After all the oil has drained, close the drain by

pushing in and rotating clockwise to close. Wipe up

any oil that may have spilled. Dispose of drained oil

properly. See Figure 3.1.

7. Change oil filter at every oil change. Refer to your

engine owner's manual for service instructions.

8. Fill engine crankcase with new oil. Refer to your

engine owner's manual for oil specifications.

FIGURE 3.2

7. Check blade for straightness.

A WARN,NG I

DO NOT use a cutting blade that shows signs of I

excessive wear or damage. Refer to Section I

"MOWER BLADE REPLACEMENT" for proper blade I

inspection and service procedures. I

Section 3 - MAINTENANCE

WARNING

DO NOT attempt any adjustments, maintenance,

service or repairs with the engine running. Stop

engine. Stop blade. Engage parking brake. Remove

key. Remove spark plug wire from spark plug and

secure away from plug. Engine and components are

HOT. Avoid serious burns, allow all parts to cool

before working on machine. Fuel Filler Cap and Vent

must be closed securely to prevent fuel spillage.

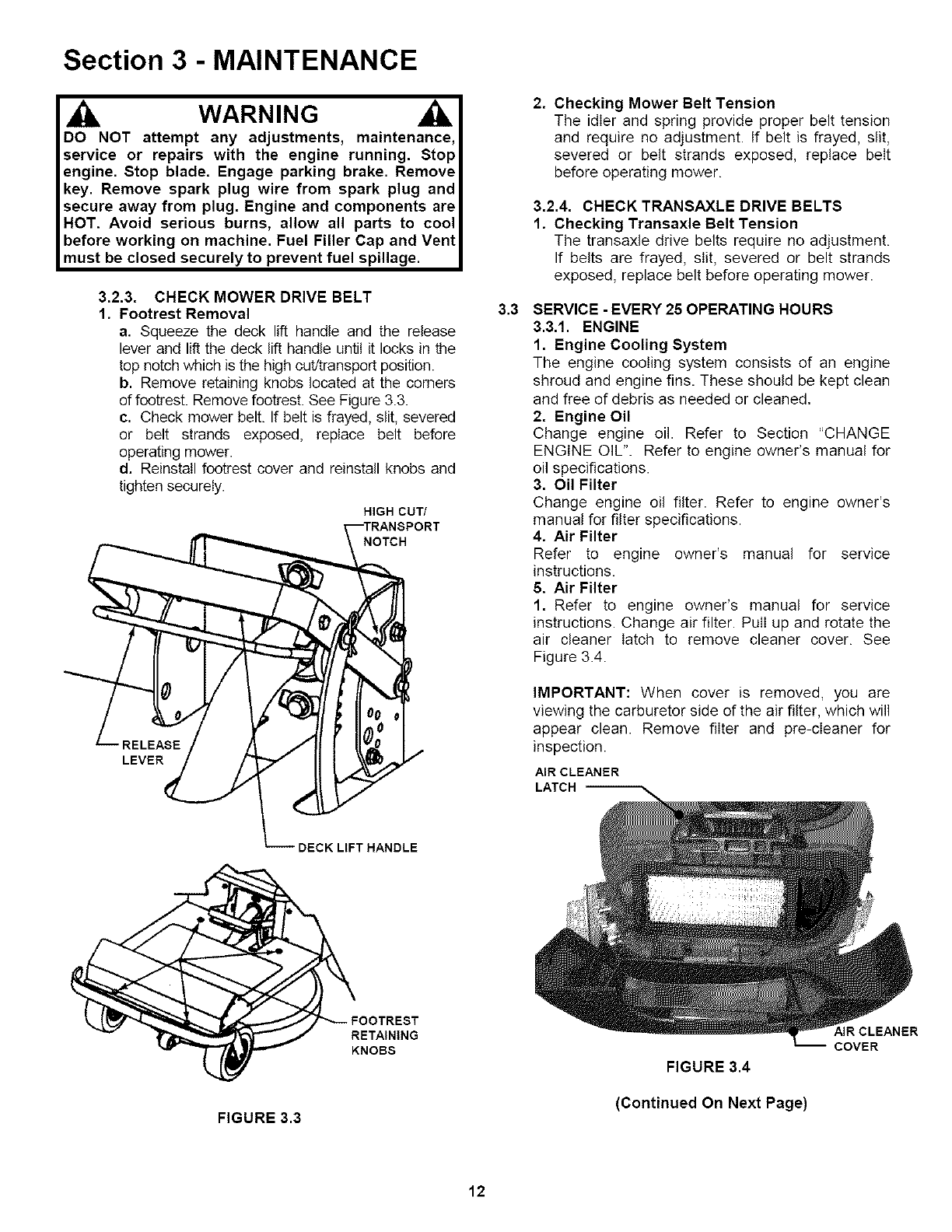

3.2.3. CHECK MOWER DRIVE BELT

1. Footrest Removal

a. Squeeze the deck lift handle and the release

lever and lift the deck lift handle until it locks in the

top notch which is the high cut/transport position.

13.Remove retaining knobs located at the corners

of footrest. Remove footrest. See Figure 3.3.

c. Check mower belt. If belt is frayed, slit, severed

or belt strands exposed, replace belt before

operating mower.

d. Reinstall footrest cover and reinstall knobs and

tighten securely.

HIGH CUT/

NOTCH

RELEASE

LEVER

DECK LIFT HANDLE

RETAINING

KNOBS

FIGURE 3.3

3.3

2. Checking Mower Belt Tension

The idler and spring provide proper belt tension

and require no adjustment. If belt is frayed, slit,

severed or belt strands exposed, replace belt

before operating mower.

3.2.4. CHECK TRANSAXLE DRIVE BELTS

1. Checking Transaxle Belt Tension

The transaxle drive belts require no adjustment.

If belts are frayed, slit, severed or belt strands

exposed, replace belt before operating mower.

SERVICE - EVERY 25 OPERATING HOURS

3.3.1. ENGINE

1. Engine Cooling System

The engine cooling system consists of an engine

shroud and engine fins. These should be kept clean

and free of debris as needed or cleaned.

2. Engine Oil

Change engine oil. Refer to Section "CHANGE

ENGINE OIL". Refer to engine owner's manual for

oil specifications.

3, Oil Filter

Change engine oil filter. Refer to engine owner's

manual for filter specifications.

4. Air Filter

Refer to engine owner's manual for service

instructions.

5. Air Filter

1. Refer to engine owner's manual for service

instructions. Change air filter. Pull up and rotate the

air cleaner latch to remove cleaner cover. See

Figure 3.4.

IMPORTANT: When cover is removed, you are

viewing the carburetor side of the air filter, which will

appear clean. Remove filter and pre-cIeaner for

inspection.

AIR CLEANER

LATCH

FIGURE 3.4

(Continued On Next Page)

AIR CLEANER

COVER

Section 3 - MAINTENANCE

WARNING

DO NOT attempt any adjustments, maintenance,

service or repairs with the engine running. Stop

engine. Stop blade. Engage parking brake. Remove

key. Remove spark plug wire from spark plug and

secure away from plug. Engine and components are

HOT. Avoid serious burns, allow all parts to cool

before working on machine. Fuel Filler Cap and Vent

must be closed securely to prevent fuel spillage.

3.3 SERVICE - EVERY 25 OPERATING HOURS

(Continued From Previous Page)

3,3.1. CHECK ENGINE

5. Air Filter

2. Refer to engine owner's manual for cleaning and

service instructions. Remove and clean engine air

pre-cleaner. Remove and replace engine air

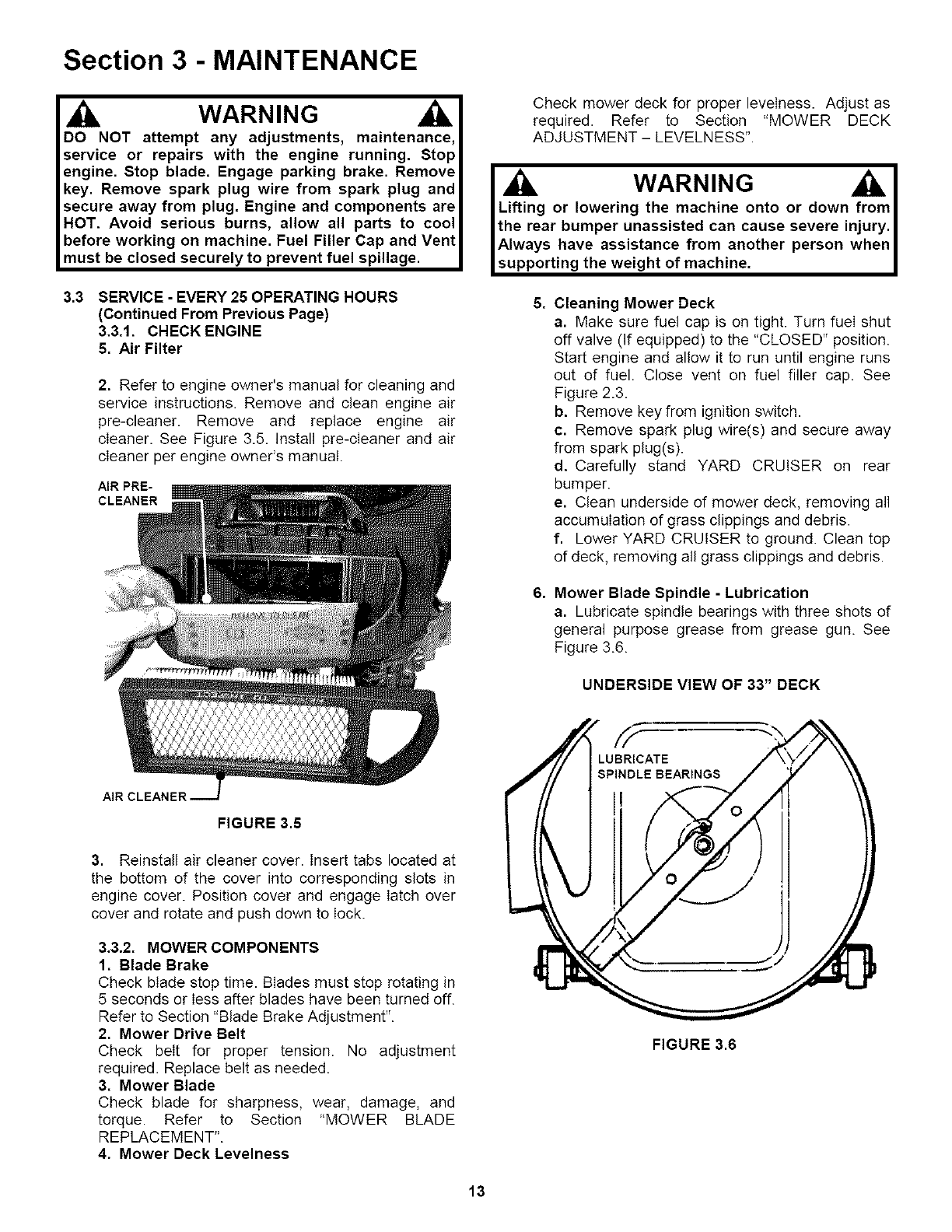

cleaner. See Figure 3.5. Install pre-cIeaner and air

cleaner per engine owner's manual.

AIR PRE-

CLEANER

Check mower deck for proper levelness. Adjust as

required. Refer to Section "MOWER DECK

ADJUSTMENT - LEVELNESS".

WARNING

Lifting or lowering the machine onto or down from

the rear bumper unassisted can cause severe injury.

Always have assistance from another person when

supporting the weight of machine.

5. Cleaning Mower Deck

a. Make sure fuel cap is on tight. Turn fuel shut

off valve (If equipped) to the "CLOSED" position.

Start engine and allow it to run until engine runs

out of fuel. Close vent on fuel filler cap. See

Figure 2.3.

b. Remove key from ignition switch.

c. Remove spark plug wire(s) and secure away

from spark plug(s).

d. Carefully stand YARD CRUISER on rear

bumper.

e. Clean underside of mower deck, removing all

accumulation of grass clippings and debris.

f. Lower YARD CRUISER to ground. Clean top

of deck, removing all grass clippings and debris.

6. Mower Blade Spindle -Lubrication

a. Lubricate spindle bearings with three shots of

general purpose grease from grease gun. See

Figure 3.6.

UNDERSIDE VIEW OF 33" DECK

AIR CLEANER

FIGURE 3.5

3. Reinstall air cleaner cover, insert tabs located at

the bottom of the cover into corresponding slots in

engine cover. Position cover and engage latch over

cover and rotate and push down to lock.

3,3.2. MOWER COMPONENTS

1. Blade Brake

Check blade stop time. Blades must stop rotating in

5 seconds or less after blades have been turned off.

Refer to Section "Blade Brake Adjustment".

2, Mower Drive Belt

Check belt for proper tension. No adjustment

required. Replace belt as needed.

3, Mower Blade

Check blade for sharpness, wear, damage, and

torque. Refer to Section "MOWER BLADE

REPLACEMENT".

4. Mower Deck Levelness

.UBRICATE

SPINDLE BEARINGS

FIGURE 3.6

Section 3 - MAINTENANCE

WARNING

DO NOT attempt any adjustments, maintenance,

service or repairs with the engine running. Stop

engine. Stop blade. Engage parking brake. Remove

key. Remove spark plug wire from spark plug and

secure away from plug. Engine and components are

HOT. Avoid serious burns, allow all parts to cool

before working on machine. Fuel Filler Cap and Vent

must be closed securely to prevent fuel spillage.

7, Mower Deck Linkage -Lubrication

Lubricate all mower deck linkage pivot points with a

light coat of motor oil.

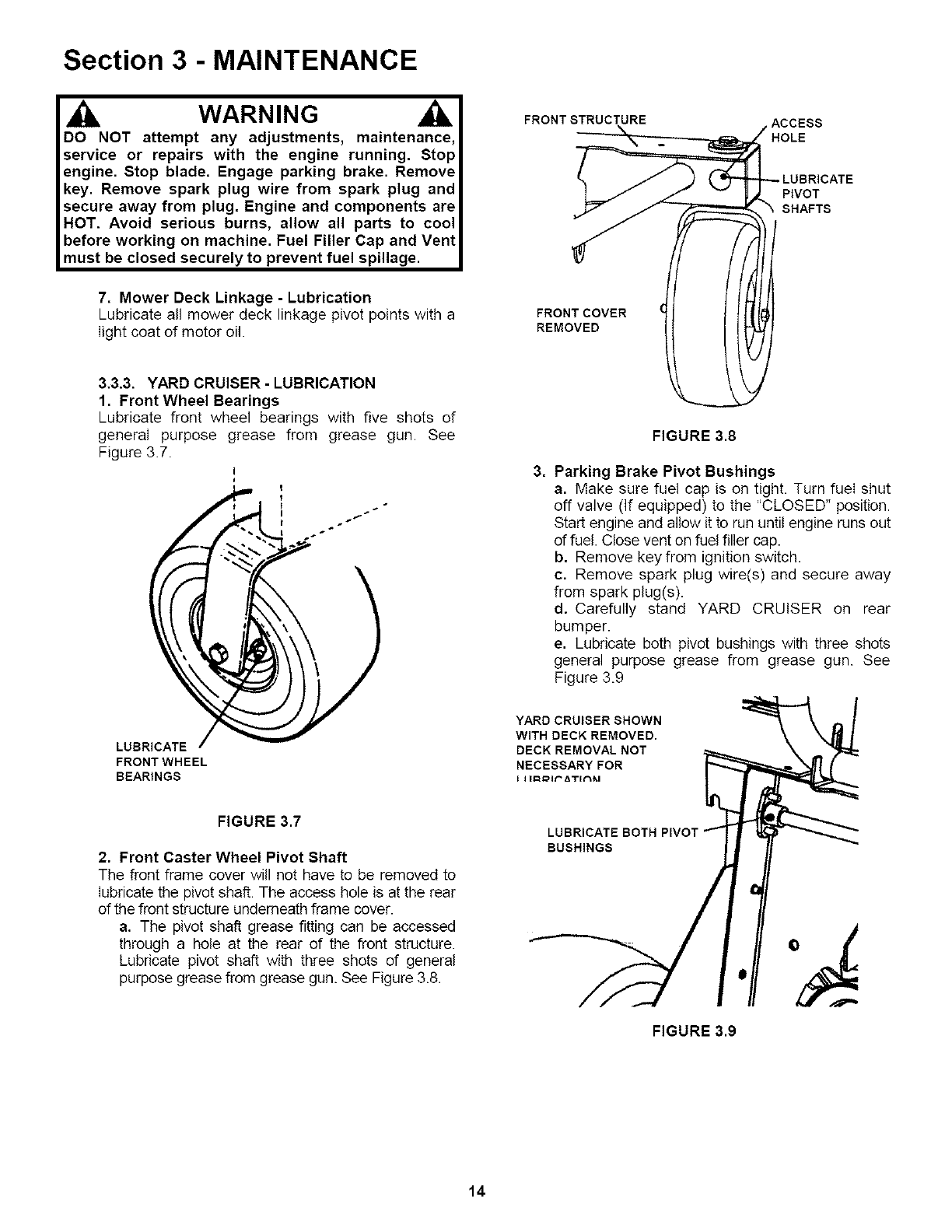

3.3.3. YARD CRUISER - LUBRICATION

1. Front Wheel Bearings

Lubricate front wheel bearings with five shots of

general purpose grease from grease gun, See

Figure 3,7,

LUBRICATE

FRONT WHEEL

BEARINGS

FIGURE 3.7

2. Front Caster Wheel Pivot Shaft

The front frame cover will not have to be removed to

lubricate the pivot shaft. The access hole is at the rear

of the front structure underneath frame cover.

a. The pivot shaft grease fitting can be accessed

through a hole at the rear of the front structure.

Lubricate pivot shaft with three shots of general

purpose grease from grease gun. See Figure 3.8.

FRONTSTRUCTURE ACCESS

HOLE

FRONT COVER

REMOVED

PIVOT

SHAFTS

FIGURE 3.8

3. Parking Brake Pivot Bushings

a. Make sure fuel cap is on tight. Turn fuel shut

off valve (If equipped) to the "CLOSED" position.

Start engine and allow it to run until engine runs out

of fuel. Close vent on fuel filler cap.

b, Remove key from ignition switch.

c. Remove spark plug wire(s) and secure away

from spark plug(s).

d. Carefully stand YARD CRUISER on rear

bumper.

e. Lubricate both pivot bushings with three shots

general purpose grease from grease gun. See

Figure 3.9

YARD CRUISER SHOWN

WITHDECKREMOVED.

DECK REMOVAL NOT

NECESSARY FOR

BUSHINGS

FIGURE 3.9

Section 3 - MAINTENANCE

WARNING

DO NOT attempt any adjustments, maintenance,

service or repairs with the engine running. Stop

engine. Stop blade. Engage parking brake. Remove

key. Remove spark plug wire from spark plug and

secure away from plug. Engine and components are

HOT. Avoid serious burns, allow all parts to cool

before working on machine. Fuel Filler Cap and Vent

must be closed securely to prevent fuel spillage.

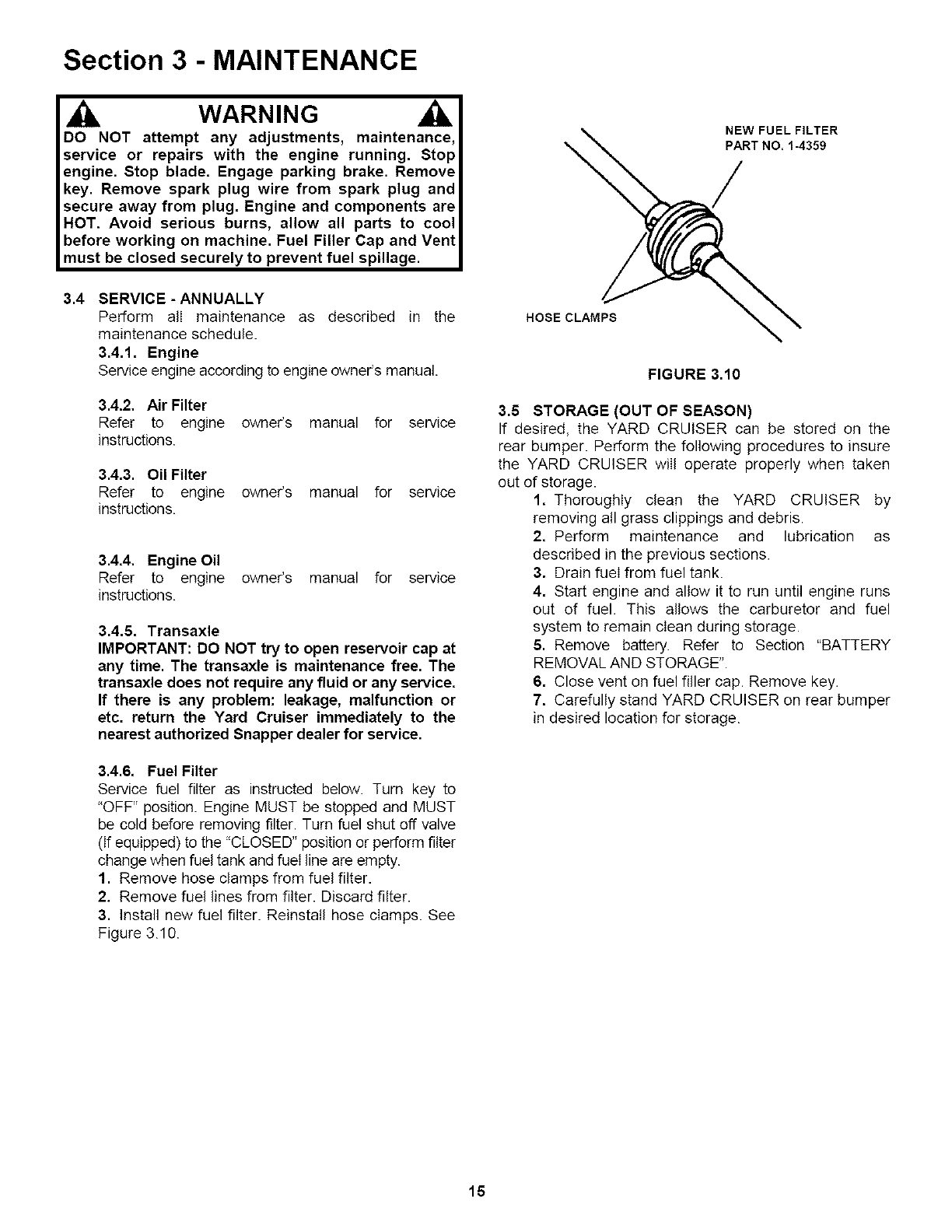

NEW FUEL FILTER

PART NO. 1-4359

3.4 SERVICE - ANNUALLY

Perform alI maintenance as described in the

maintenance schedule.

3,4,1, Engine

Service engine according to engine owner's manual.

3.4.2. Air Filter

Refer to engine owner's manual for service

instructions.

3.4.3. Oil Filter

Refer to engine owner's manual for service

instructions.

3.4.4, Engine Oil

Refer to engine owner's manual for service

instructions.

3.4.5. Transaxle

IMPORTANT: DO NOT try to open reservoir cap at

any time. The transaxle is maintenance free. The

transaxle does not require any fluid or any service.

If there is any problem: leakage, malfunction or

etc. return the Yard Cruiser immediately to the

nearest authorized Snapper dealer for service.

3.4.6, Fuel Filter

Service fuel filter as instructed below. Turn key to

"OFF" position. Engine MUST be stopped and MUST

be cold before removing filter. Turn fuel shut off valve

(if equipped) to the "CLOSED" position or perform filter

change when fuel tank and fuel line are empty.

1. Remove hose clamps from fuel filter.

2. Remove fuel lines from filter. Discard filter.

3. Install new fuel filter. Reinstall hose clamps. See

Figure 3.10.

HOSE CLAMPS

FIGURE 3.10

3.5 STORAGE (OUT OF SEASON)

If desired, the YARD CRUISER can be stored on the

rear bumper. Perform the following procedures to insure

the YARD CRUISER will operate properly when taken

out of storage.

1, Thoroughly clean the YARD CRUISER by

removing all grass clippings and debris.

2, Perform maintenance and lubrication as

described in the previous sections.

3. Drain fuel from fuel tank.

4, Start engine and allow it to run until engine runs

out of fuel. This allows the carburetor and fuel

system to remain clean during storage.

5. Remove battery. Refer to Section "BATTERY

REMOVAL AND STORAGE".

6, Close vent on fuel filler cap. Remove key.

7, Carefully stand YARD CRUISER on rear bumper

in desired location for storage.

Section 4 - ADJUSTMENTS & REPAIR

WARNING

DO NOT attempt any adjustments, maintenance,

service or repairs with the engine running. Stop

engine. Stop blade. Engage parking brake. Remove

key. Remove spark plug wire from spark plug and

secure away from plug. Engine and components are

HOT. Avoid serious burns, allow all parts to cool

before working on machine. Fuel Filler Cap and Vent

must be closed securely to prevent fuel spillage.

4.1 NEUTRAL POSITION ADJUSTMENTS

The joystick controls the movement and stopping of the

unit. Move the joystick to the center or neutral position to

stop mower. IMPORTANT: Always return the joystick

with hand assistance to the neutral position. If mower

does not come to a complete stop or has any movement

when joystick is moved to the neutral position,

adjustment must be made. It is recommended that these

adjustments be made by an authorized SNAPPER

dealer. But, adjust joystick cables as follows after

removing fenders:

1, If mower tracks to the right, loosen bottom nut

first on the right cable. Turn top nut clockwise in a

1/8 increment then retighten lower nut to secure

cable. Check tracking of mower. Repeat this

adjustment if necessary. See Figure 4.1.

2, If mower tracks to the left, loosen bottom nut first

on the left cable. Turn top nut clockwise in a 1/8

increment then retighten lower nut to secure cable.

Check tracking of mower. Repeat this adjustment if

necessary. See Figure 4.1.

4.2 ENGINE ADJUSTMENTS & REPAIR

Refer to the engine owner's manual for those adjustments

and!or repairs that can be made by the owner.

4.3 MOWER DECK & COMPONENT ADJUSTMENTS

The following mower deck and component adjustments

and repairs can be made by the owner. However, if

there is difficulty in achieving these adjustments and

repairs, it is recommended that these repairs be made by

an authorized SNAPPER dealer.

LOWER VIEW

IS SHOWN

FROM THIS

ANGLE

IF MOWER tS

PERFORM

PROCEDURE ON THE

LEFT SIDE CABLE.

IF MOWER IS TRACKING TO

THE RIGHT -

ADJUST RIGHT SIDE CABLE.

FRONT OF MOWER

tIGHT SIDE

ROTATE TOP NUT

•1/8" INCREMENTS

CLOCKWISE

LOOSEN BOTTOM

NUT FIRST

FIGURE 4.1

Section 4 - ADJUSTMENTS & REPAIR

WARNING

DO NOT attempt any adjustments, maintenance,

service or repairs with the engine running. Stop

engine. Stop blade. Engage parking brake. Remove

key. Remove spark plug wire from spark plug and

secure away from plug. Engine and components are

HOT. Avoid serious burns, allow all parts to cool

before working on machine. Fuel Filler Cap and Vent

must be closed securely to prevent fuel spillage.

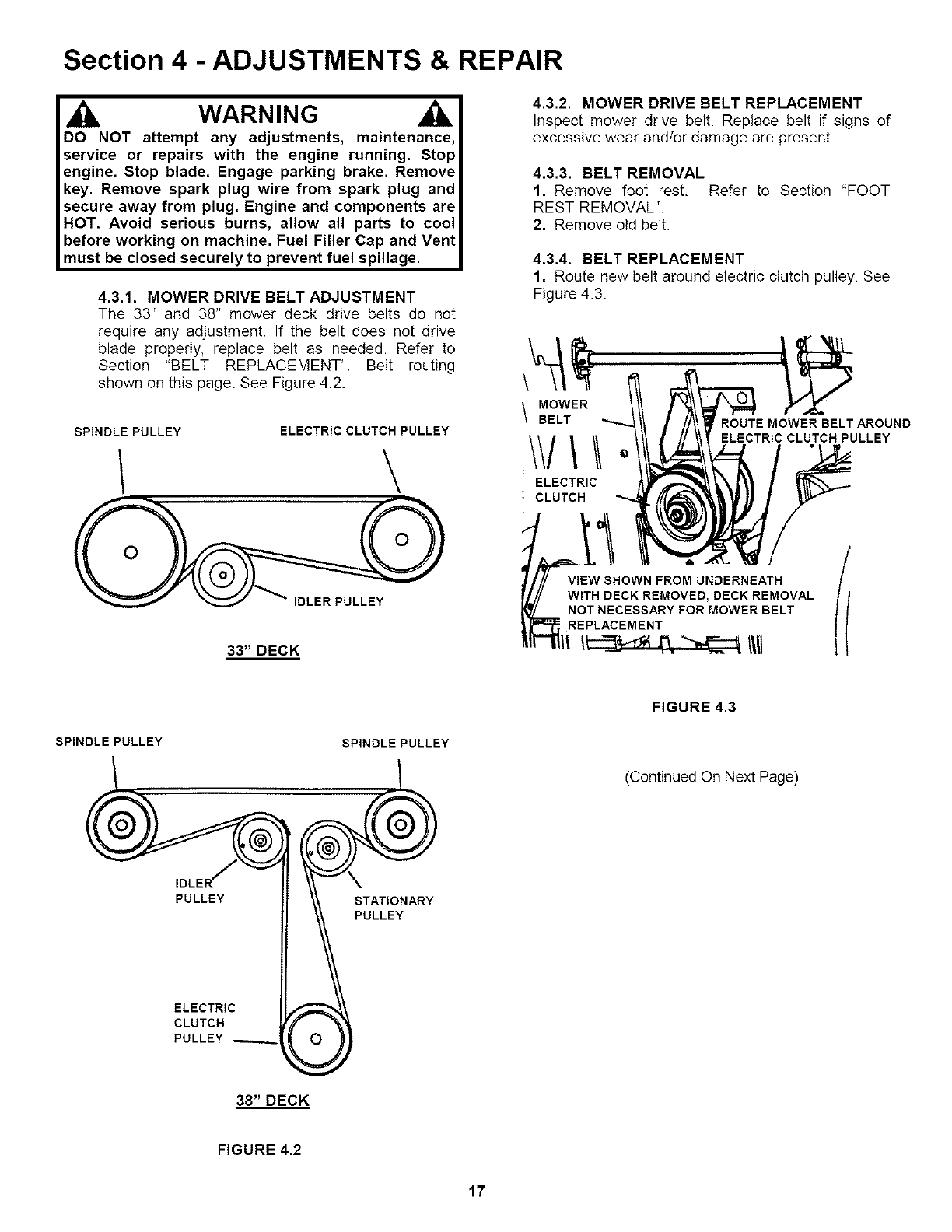

4.3.1, MOWER DRIVE BELT ADJUSTMENT

The 33" and 38" mower deck drive belts do not

require any adjustment. If the belt does not drive

blade properly, replace belt as needed. Refer to

Section "BELT REPLACEMENT". Belt routing

shown on this page. See Figure 4.2.

SPINDLE PULLEY ELECTRIC CLUTCH PULLEY

- D

33" DECK

4,3.2, MOWER DRIVE BELT REPLACEMENT

Inspect mower drive belt. Replace belt if signs of

excessive wear and/or damage are present.

4,3.3. BELT REMOVAL

1. Remove foot rest.

REST REMOVAL".

2. Remove old belt.

Refer to Section "FOOT

4.3.4. BELT REPLACEMENT

1. Route new belt around electric clutch pulley. See

Figure 4.3.

IMOWER

BELT

/ill 11

ELECTRIC

: CLUTCH

ROUTE MOWER BELT AROUND

ELECTRIC CLUTCH PULLEY

VIEW SHOWN FROM UNDERNEATH

WITH DECK REMOVED, DECK REMOVAL

NOT NECESSARY FOR MOWER BELT

SPINDLE PULLEY SPINDLE PULLEY

PULLEY

ELECTRIC

CLUTCH

PULLEY

STATIONARY

PULLEY

38" DECK

FIGURE 4.3

(Continued On Next Page)

FIGURE 4.2

Section 4 - ADJUSTMENTS & REPAIR

WARNING

DO NOT attempt any adjustments, maintenance,

service or repairs with the engine running. Stop engine.

Stop blade. Engage parking brake. Remove key.

Remove spark plug wire from spark plug and secure

away from plug. Engine and components are HOT.

Avoid serious burns, allow all parts to cool before

working on machine. Fuel Filler Cap and Vent must be

closed securely to prevent fuel spillage.

4.3.4. BELT REPLACEMENT

(Continued From Previous)

2. Route belt around stationary idler.

3. Remove spring that is connected to idler pulley.

Loosen nut and bolt that secures idler pulley to idler

arm. Route belt between belt guide and idler pulley.

4. Route belt onto spindle pulley. Make sure belt is

inside spindle pulley belt guide.

5. Reinstall idler pulley spring. See Figure 4.4.

NOTE: The idler belt guide should be positioned so

the Iocator tab fits into the corresponding hole found

on the idler arm. See Figure 4.4. Tighten bolt

securely.

6. Reinstall front frame cover.

4,3,5, BLADE BRAKE ADJUSTMENT

The SNAPPER YARD CRUISER is equipped with

an electric clutch/brake that should stop blade

rotation in 5 seconds or less after being turned off.

If blades continue to rotate longer than 5 seconds,

adjustment or replacement is required. When

properly adjusted, a .010" to .012" feeler gauge will

fit thru the three inspection slots located on the side

of the clutch as shown. See Figure 4.5. Excessive

clearance can adversely affect the function of the

clutch and produce blade stop times over 5

seconds. To adjust, turn the three adjusting nuts

clockwise to reduce clearance. The clearance at

each of the three slots must be set the same.

ADJUSTING

NUT (3)

BELT REPLACEMENTS

Engine to Hydro Pumps (All Models) Part No. 4-1823

Engine to Electric Clutch (All Models) Part No. 2-9117

Electric Clutch to Mower (33" Decks) Part No. 3-5389

Electric Clutch to Mower (38" Decks) Part No. 2-9308

IDLER ARM AND BELT

GUIDE DETAIL

MUST GO

HOLE

MOWE

R BELT

LOCATOR

TAB

IDLER

STATIONARY BELT

PULLEY GUIDE

IDLER

ARM

FIGURE 4.4

FIGURE 4.5

WARNING

Blades must stop rotating in 5 seconds or less after

blades have been turned off. DO NOT operate

machine until blade brake has been adjusted or

repaired and is functioning properly. Contact your

SNAPPER dealer for assistance.

4,3,6, ADJUSTING MOWER BLADE

The straightness of the mower blade(s) is essential

for smooth, even mowing. Adjust blade straightness

as follows. NOTE: Follow Steps 1 thru 4 for all

deck sizes.

1. Make sure fuel cap is on tight. Turn fuel shut off

valve (If equipped) to the "CLOSED" position. Start

engine and allow it to run until engine runs out of

fuel. Close vent on fuel filler cap. See Figure 2.3.

2. Remove key from ignition switch.

3. Remove spark plug wire(s) and secure away

from spark plug(s).

4. Carefully stand YARD CRUISER on rear bumper.

(Continued On Next Page)

Section 4 - ADJUSTMENTS & REPAIR

WARNING

DO NOT attempt any adjustments, maintenance,

service or repairs with the engine running. Stop

engine. Stop blade. Engage parking brake. Remove

key. Remove spark plug wire from spark plug and

secure away from plug. Engine and components are

HOT. Avoid serious burns, allow all parts to cool

before working on machine. Fuel Filler Cap and Vent

must be closed securely to prevent fuel spillage.

4.3.6. ADJUSTING MOWER BLADE

(Continued From Previous Page)

(Adjusting the 33" Deck Blade)

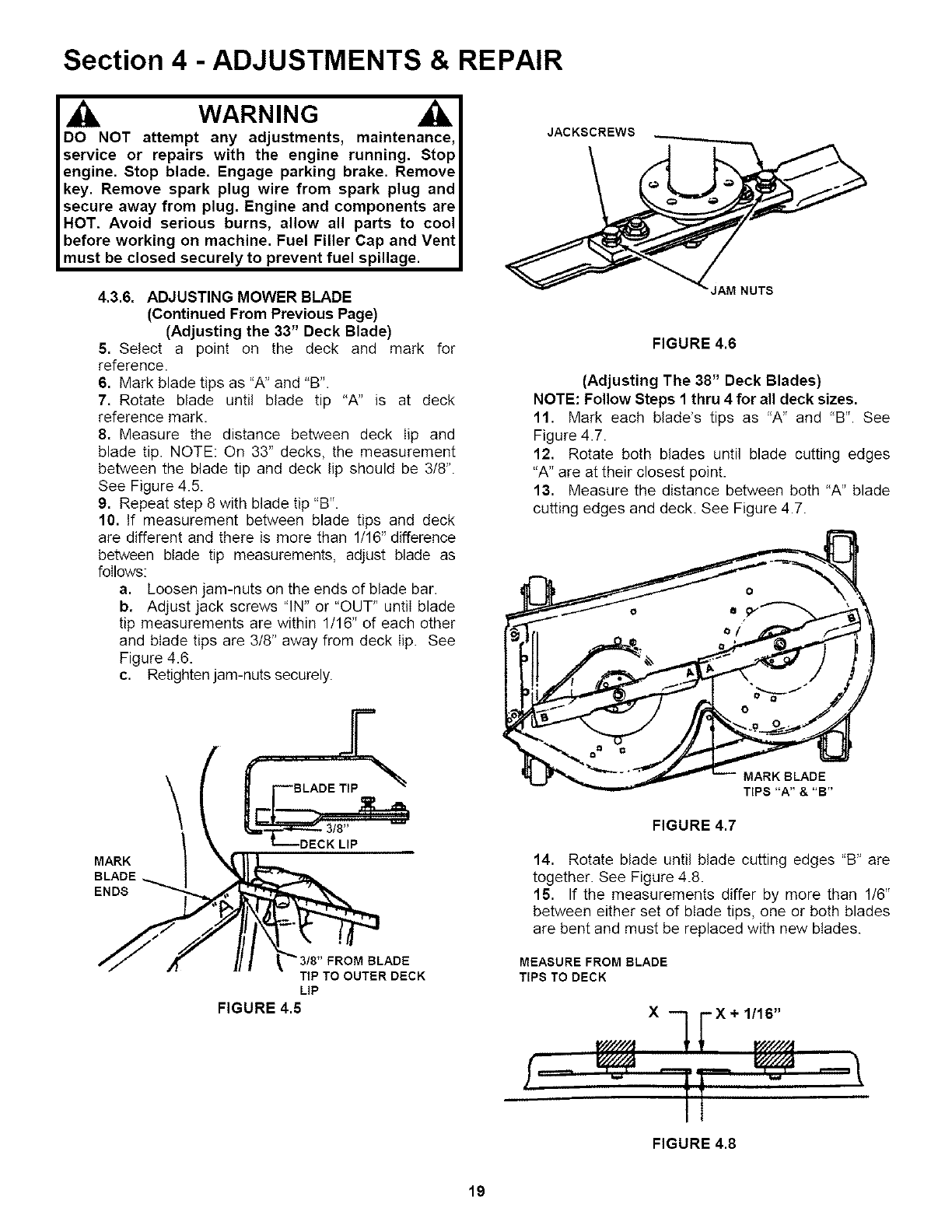

5. Select a point on the deck and mark for

reference.

6. Mark blade tips as "A" and "B".

7. Rotate blade until blade tip "A" is at deck

reference mark.

8. Measure the distance between deck Iip and

blade tip. NOTE: On 33" decks, the measurement

between the blade tip and deck lip should be 3/8".

See Figure 4.5.

9. Repeat step 8 with blade tip "B".

10. If measurement between blade tips and deck

are different and there is more than 1/16" difference

between blade tip measurements, adjust blade as

follows:

a. Loosen jam-nuts on the ends of blade bar.

b. Adjust jack screws "IN" or "OUT" until blade

tip measurements are within 1/16" of each other

and blade tips are 3/8" away from deck lip. See

Figure 4.6.

c. Retighten jam-nuts securely.

MARK

ENDS

FROM BLADE

TIP TO OUTER DECK

LIP

FIGURE 4.6

JACKSCREWS

JAM NUTS

FIGURE 4.6

(Adjusting The 38" Deck Blades)

NOTE: Follow Steps 1thru 4 for all deck sizes.

11. Mark each blade's tips as "A" and "B". See

Figure 4.7.

12, Rotate both blades until blade cutting edges

"A" are at their closest point.

13. Measure the distance between both "A" blade

cutting edges and deck. See Figure 4.7.

FIGURE 4.7

14. Rotate blade until blade cutting edges "B" are

together. See Figure 4.8.

16. If the measurements differ by more than 1/6"

between either set of blade tips, one or both blades

are bent and must be replaced with new blades.

MEASURE FROM BLADE

TIPS TO DECK

FIGURE 4.8

Section 4 - ADJUSTMENTS & REPAIR

WARNING

DO NOT attempt any adjustments, maintenance,

service or repairs with the engine running. Stop

engine. Stop blade. Engage parking brake. Remove

key. Remove spark plug wire from spark plug and

secure away from plug. Engine and components are

HOT. Avoid serious burns, allow all parts to cool

before working on machine. Fuel Filler Cap and Vent

must be closed securely to prevent fuel spillage.

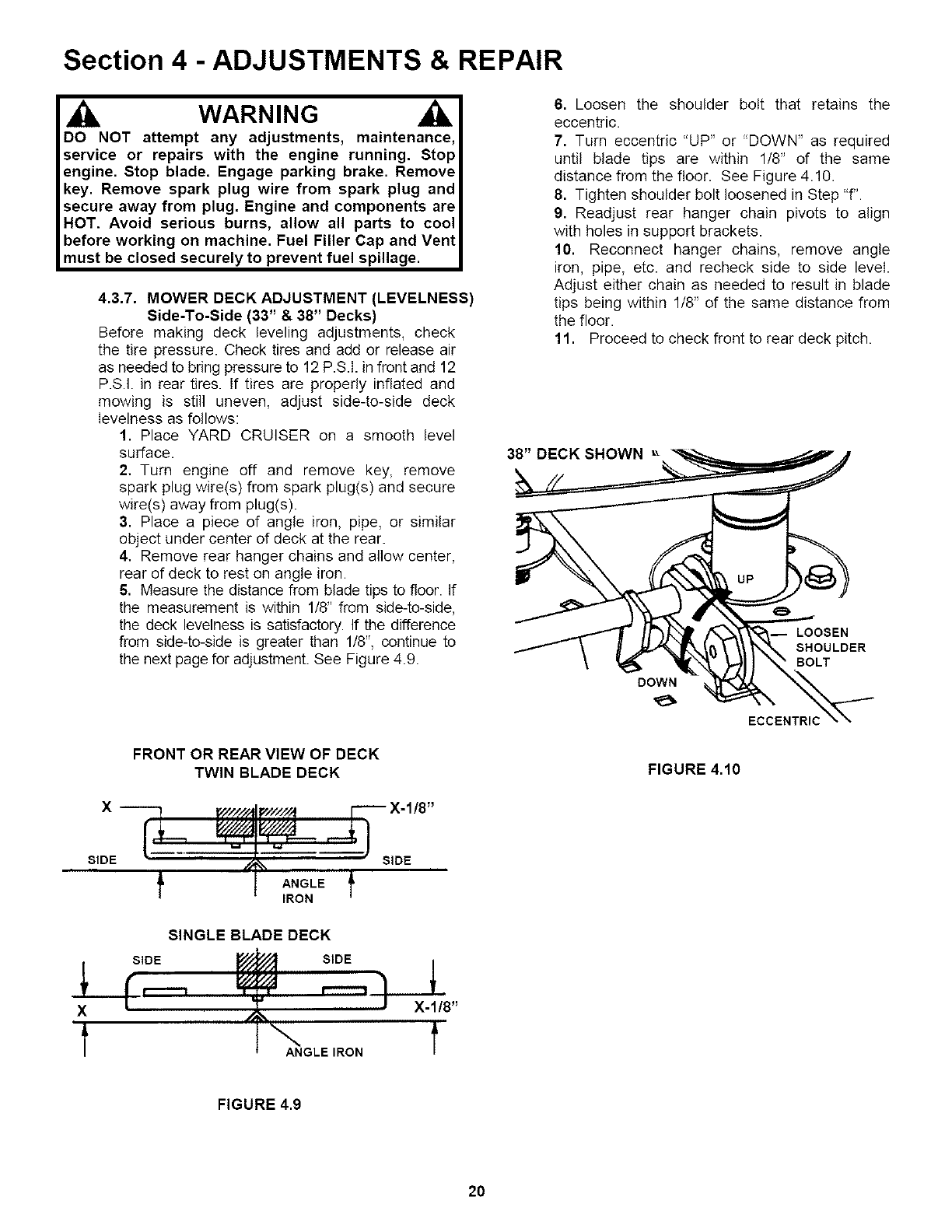

4.3.7. MOWER DECK ADJUSTMENT (LEVELNESS)

Side-To-Side (33" & 38" Decks)

Before making deck leveling adjustments, check

the tire pressure. Check tires and add or release air

as needed to bring pressure to 12 P.S.I. in front and 12

P.S.I. in rear tires. If tires are properly inflated and

mowing is still uneven, adjust side-to-side deck

levelness as follows:

1. Place YARD CRUISER on a smooth level

surface.

2. Turn engine off and remove key, remove

spark plug wire(s) from spark plug(s) and secure

wire(s) away from plug(s).

3. Place a piece of angle iron, pipe, or similar

object under center of deck at the rear.

4. Remove rear hanger chains and allow center,

rear of deck to rest on angle iron.

5. Measure the distance from blade tips to floor. If

the measurement is within 1/8" from side-to-side,

the deck levelness is satisfactory. If the difference

from side-to-side is greater than 1/8", continue to

the next page for adjustment. See Figure 4.9.

FRONT OR REAR VIEW OF DECK

TWIN BLADE DECK

X --.-----7 v///!/Alrt,,'////A i----- X-1/8"

IRON

6. Loosen the shoulder bolt that retains the

eccentric.

7. Turn eccentric "UP" or "DOWN _'as required

until blade tips are within 118" of the same

distance from the floor. See Figure 4.10.

8. Tighten shoulder bolt loosened in Step "f".

9. Readjust rear hanger chain pivots to align

with holes in support brackets.

10. Reconnect hanger chains, remove angle

iron_ pipe, etc. and recheck side to side level.

Adjust either chain as needed to result in blade

tips being within 1/8" of the same distance from

the floor.

11. Proceed to check front to rear deck pitch.

LOOSEN

O LOER

FIGURE 4.10

SINGLE BLADE DECK

SIDE SIDE

ANGLEIRON

FIGURE 4.9

Section 4 - ADJUSTMENTS & REPAIR

WARNING

DO NOT attempt any adjustments, maintenance,

service or repairs with the engine running. Stop engine.

Stop blade. Engage parking brake. Remove key.

Remove spark plug wire from spark plug and secure

away from plug. Engine and components are HOT.

Avoid serious burns, allow all parts to cool before

working on machine. Fuel Filler Cap and Vent must be

closed securely to prevent fuel spillage.

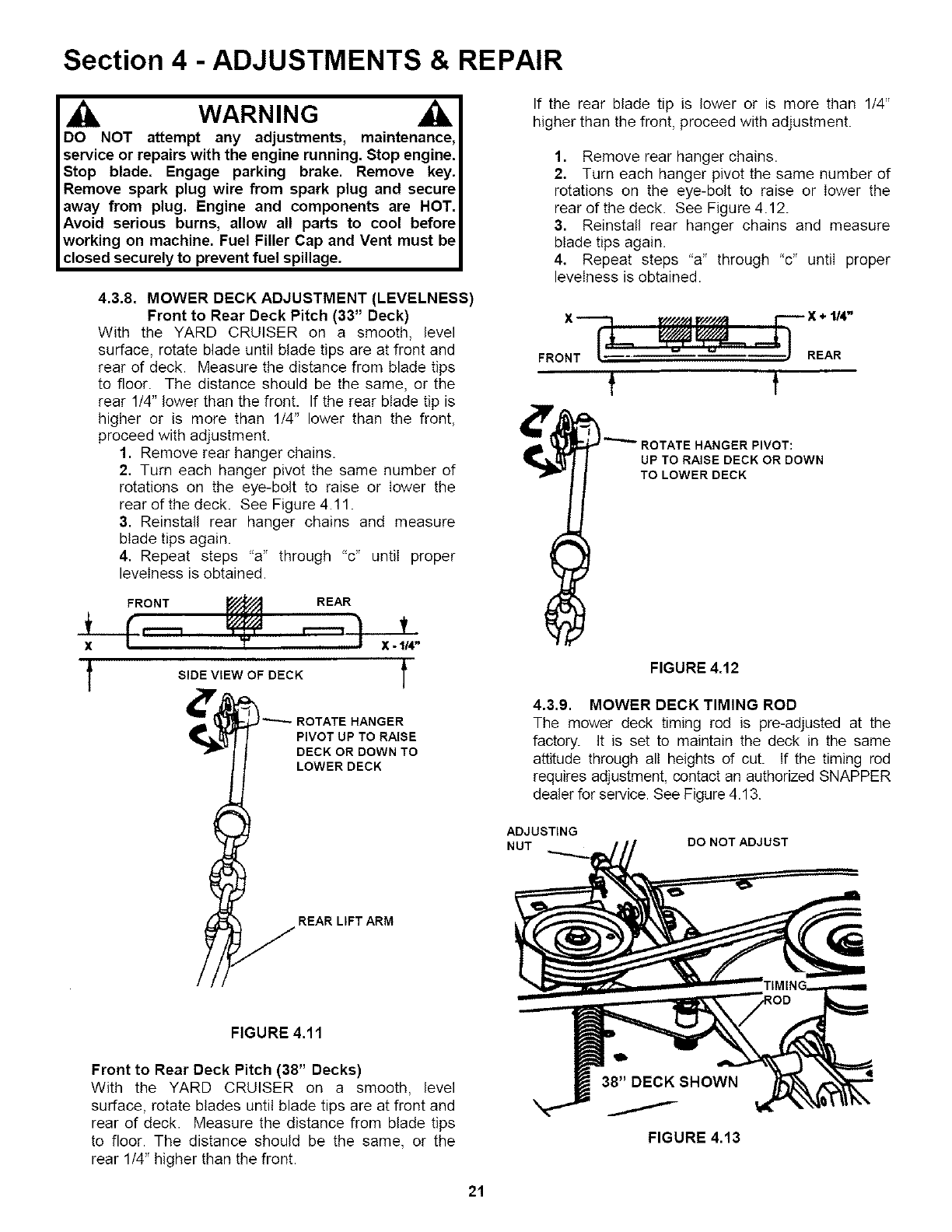

4.3.8. MOWER DECK ADJUSTMENT (LEVELNESS)

Front to Rear Deck Pitch (33" Deck)

With the YARD CRUISER on a smooth, level

surface, rotate blade until blade tips are at front and

rear of deck. Measure the distance from blade tips

to floor. The distance should be the same, or the

rear 1/4" lower than the front. If the rear blade tip is

higher or is more than 1/4" lower than the front,

proceed with adjustment.

1. Remove rear hanger chains.

2. Turn each hanger pivot the same number of

rotations on the eye-bolt to raise or lower the

rear of the deck. See Figure 4.11.

3. Reinstall rear hanger chains and measure

blade tips again.

4. Repeat steps "a" through "c" until proper

leveiness is obtained.

RONT REA.

SIDE VIEW OF DECK

X - 1/4"

ROTATE HANGER

PIVOT UP TO RAISE

DECK OR DOWN TO

LOWER DECK

REAR LIFT ARM

If the rear blade tip is lower or is more than 1/4"

higher than the front, proceed with adjustment.

1. Remove rear hanger chains.

2. Turn each hanger pivot the same number of

rotations on the eye-bolt to raise or lower the

rear of the deck. See Figure 4.12.

3. Reinstall rear hanger chains and measure

blade tips again.

4. Repeat steps "a" through "c" until proper

leveiness is obtained.

X_ V///'//Av////_l [---. X ÷ 1/4"

,RONT REAR

t I

ROTATE HANGER PIVOT:

UP TO RAISE DECK OR DOWN

TO LOWER DECK

FIGURE 4.12

4.3.9. MOWER DECK TIMING ROD

The mower deck timing rod is pre-adjusted at the

factory. It is set to maintain the deck in the same

attitude through all heights of cut. If the timing rod

requires adjustment, contact an authorized SNAPPER

dealer for service. See Figure 4.13.

ADJUSTING

NUT DO NOT ADJUST

FIGURE 4.11

Front to Rear Deck Pitch (38" Decks)

With the YARD CRUISER on a smooth, level

surface, rotate blades until blade tips are at front and

rear of deck. Measure the distance from blade tips

to floor. The distance should be the same, or the

rear 1/4" higher than the front.

38" DECK SHOWN

FIGURE 4.13

Section 4 - ADJUSTMENTS & REPAIR

WARNING

DO NOT attempt any adjustments, maintenance,

service or repairs with the engine running. Stop

engine Stop blade. Engage parking brake Remove

key Remove spark plug wire from spark plug and

secure away from plug. Engine and components are

HOT. Avoid serious burns, allow all parts to cool

before working on machine Fuel Filler Cap and Vent

must be closed securely to prevent fuel spillage

Wear heavy leather gloves when handling or working

around cutting blades. Blades are extremely sharp and

can cause severe injury DO NOT use a cutting blade

that shows signs of excessive wear or damage.

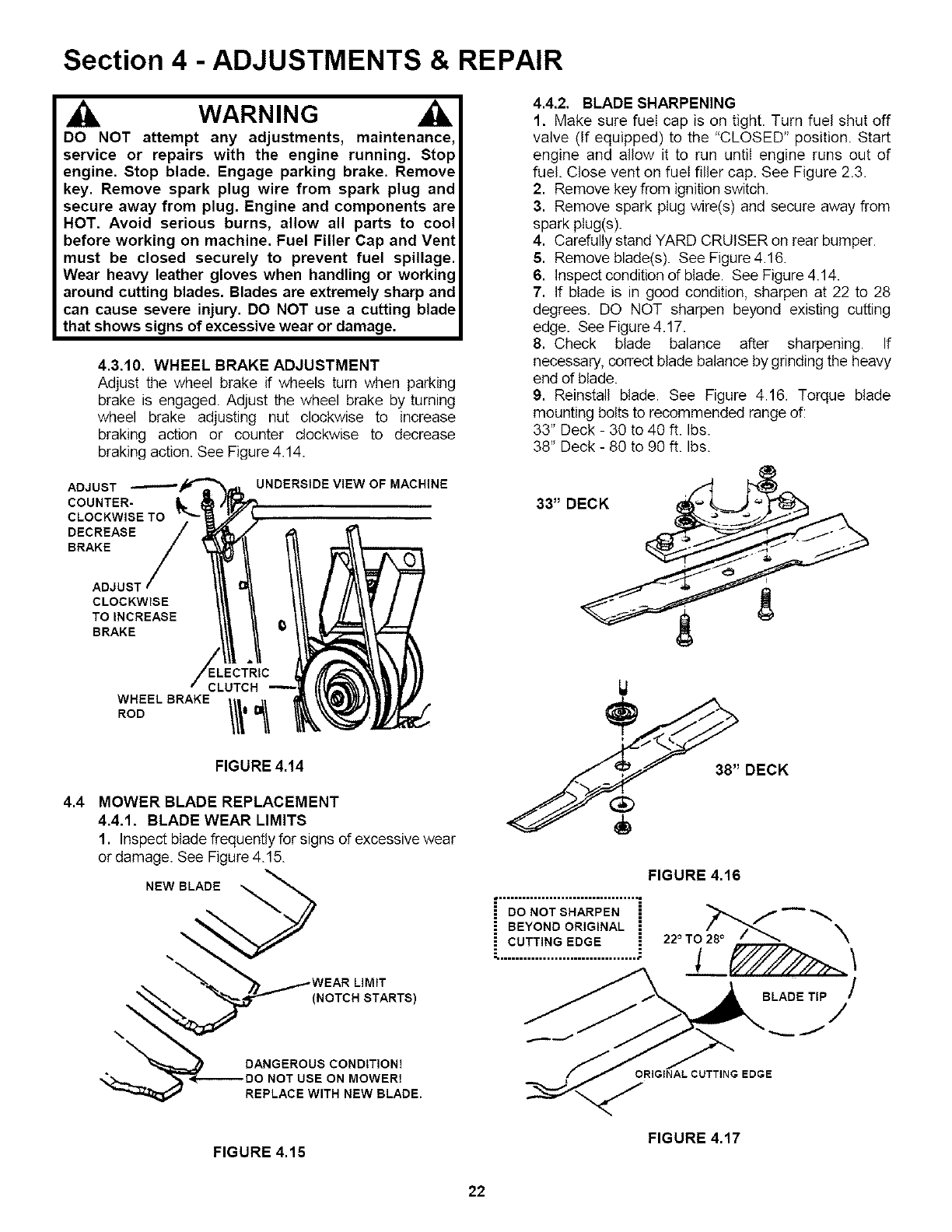

4.3,10, WHEEL BRAKE ADJUSTMENT

Adjust the wheel brake if wheels turn when parking

brake is engaged. Adjust the wheel brake by turning

wheel brake adjusting nut clockwise to increase

braking action or counter clockwise to decrease

braking action. See Figure 4.14.

ADJUST

COUNTER-

CLOCKWISE TO

DECREASE

BRAKE

UNDERSIDE VIEW OF MACHINE

CLOCKWISE

TOINCREASE

BRAKE 0

FIGURE 4.14

MOWER BLADE REPLACEMENT

4.4.1. BLADE WEAR LIMITS

1. Inspect blade frequently for signs of excessive wear

or damage. See Figure 4.15.

NEW BLADE

LIMIT

(NOTCH STARTS)

DANGEROUS CONDITION!

REPLACE WITH NEW BLADE.

4.4,2. BLADE SHARPENING

1. Make sure fuel cap is on tight. Turn fuel shut off

valve (if equipped) to the "CLOSED" position. Start

engine and allow it to run until engine runs out of

fuel. Close vent on fuel filler cap. See Figure 2.3.

2. Remove key from ignition switch.

3. Remove spark plug wire(s) and secure away from

spark plug(s).

4. Carefully stand YARD CRUISER on rear bumper.

5. Remove blade(s). See Figure 4.16.

6. Inspect condition of blade. See Figure 4.14.

7. If blade is in good condition, sharpen at 22 to 28

degrees. DO NOT sharpen beyond existing cutting

edge. See Figure 4.17.

8. Check blade balance after sharpening. If

necessary, correct blade balance by grinding the heavy

end of blade.

9. Reinstall blade. See Figure 4.16. Torque blade

mounting bolts to recommended range of:

33" Deck - 30 to 40 ft. Ibs.

38" Deck - 80 to 90 ft. Ibs.

33" DECK

38" DECK

DO NOT SHARPEN

BEYOND ORIGINAL

CUTTING EDGE

FIGURE 416

BLADE TiP /

ORIGINAL CUTTING EDGE

FIGURE 415 FIGURE 417

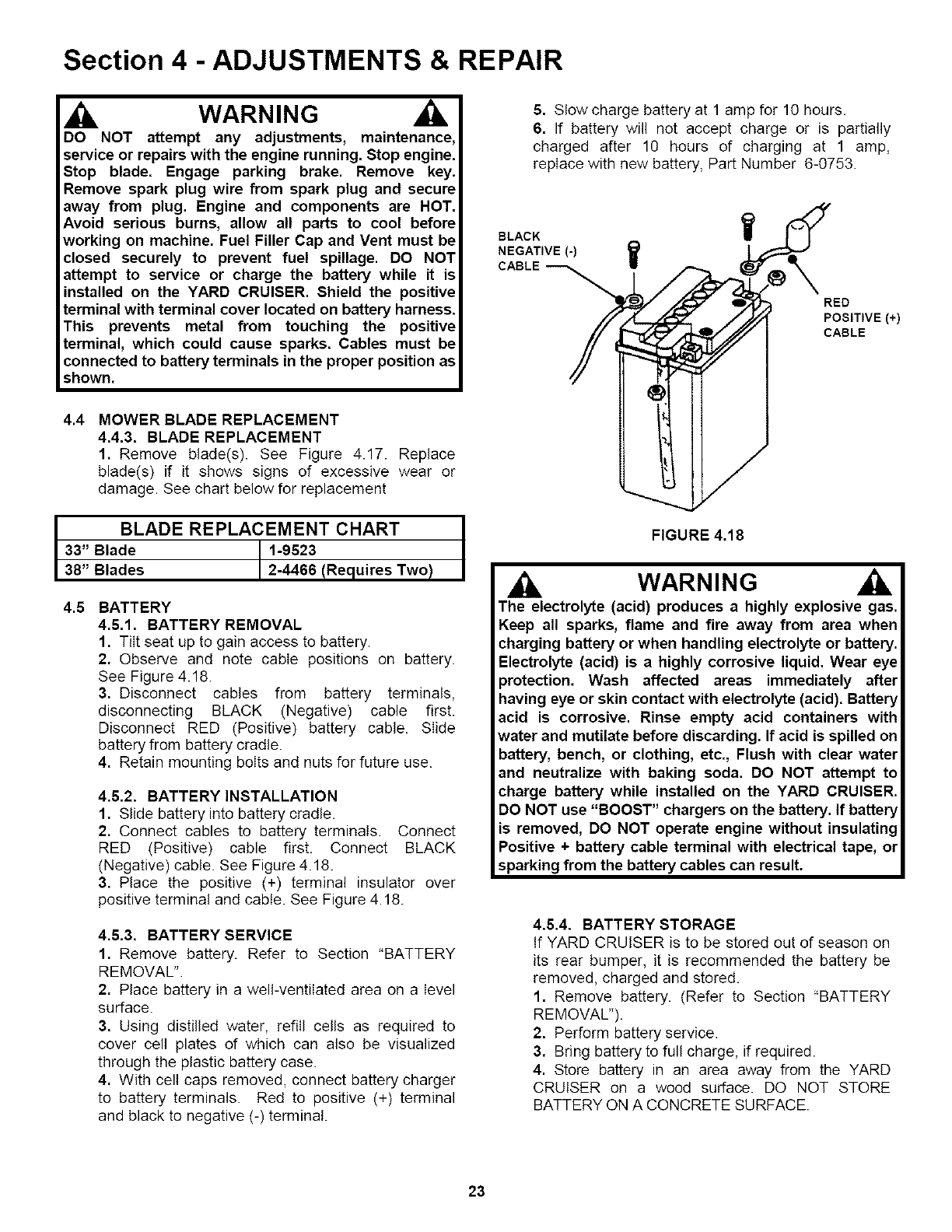

Section 4 - ADJUSTMENTS & REPAIR

WARNING

DO NOT attempt any adjustments, maintenance,

service or repairs with the engine running. Stop engine.

Stop blade. Engage parking brake. Remove key.

Remove spark plug wire from spark plug and secure

away from plug. Engine and components are HOT.

Avoid serious burns, allow all parts to cool before

working on machine. Fuel Filler Cap and Vent must be

closed securely to prevent fuel spillage. DO NOT

attempt to service or charge the battery while it is

installed on the YARD CRUISER. Shield the positive

terminal with terminal cover located on battery harness.

This prevents metal from touching the positive

terminal, which could cause sparks. Cables must be

connected to battery terminals in the proper position as

shown.

5. Slow charge battery at 1 amp for 10 hours.

6. If battery will not accept charge or is partially

charged after 10 hours of charging at 1 amp,

replace with new battery, Part Number 6-0753.

BLACK

NEGATIVE (-)

RED

POSITIVE (+)

CABLE

4.4 MOWER BLADE REPLACEMENT

4.4.3. BLADE REPLACEMENT

1. Remove blade(s). See Figure 4.17. Replace

blade(s) if it shows signs of excessive wear or

damage. See chart below for replacement

BLADE REPLACEMENT CHART

33" Blade J1-9523

38" Blades ]2-4466 (Requires Two)

4.5 BATTERY

4,5,1, BATTERY REMOVAL

1. Tilt seat up to gain access to battery.

2. Observe and note cable positions on battery.

See Figure 4.18.

3. Disconnect cables from battery terminals,

disconnecting BLACK (Negative) cable first.

Disconnect RED (Positive) battery cable. Slide

battery from battery cradle.

4. Retain mounting bolts and nuts for future use.

4,5.2, BATTERY INSTALLATION

1. Slide battery into battery cradle

2. Connect cables to battery terminals. Connect

RED (Positive) cable first. Connect BLACK

(Negative) cable. See Figure 4.18.

3. Place the positive (+) terminal insulator over

positive terminal and cable. See Figure 4.18.

4.5.3. BATTERY SERVICE

1. Remove battery. Refer to Section "BATTERY

REMOVAL".

2. Place battery in a well-ventilated area on a level

surface.

3. Using distilled water, refill cells as required to

cover cell plates of which can also be visualized

through the plastic battery case.

4. With cell caps removed, connect battery charger

to battery terminals. Red to positive (+) terminal

and black to negative (-) terminal.

FIGURE 4.18

WARNING

The electrolyte (acid) produces a highly explosive gas.

Keep all sparks, flame and fire away from area when

charging battery or when handling electrolyte or battery.

Electrolyte (acid) is a highly corrosive liquid. Wear eye

protection. Wash affected areas immediately after

having eye or skin contact with electrolyte (acid). Battery

acid is corrosive. Rinse empty acid containers with

water and mutilate before discarding. If acid is spilled on

battery, bench, or clothing, etc., Flush with clear water

and neutralize with baking soda. DO NOT attempt to

charge battery while installed on the YARD CRUISER.

DO NOT use "BOOST" chargers on the battery. If battery

is removed, DO NOT operate engine without insulating

Positive + battery cable terminal with electrical tape, or

sparking from the battery cables can result.

4.5.4. BATTERY STORAGE

If YARD CRUISER is to be stored out of season on

its rear bumper, it is recommended the battery be

removed, charged and stored.

1. Remove battery. (Refer to Section "BATTERY

REMOVAL").

2. Perform battery service.

3. Bring battery to full charge, if required.

4. Store battery in an area away from the YARD

CRUISER on a wood surface. DO NOT STORE

BATTERY ON A CONCRETE SURFACE.

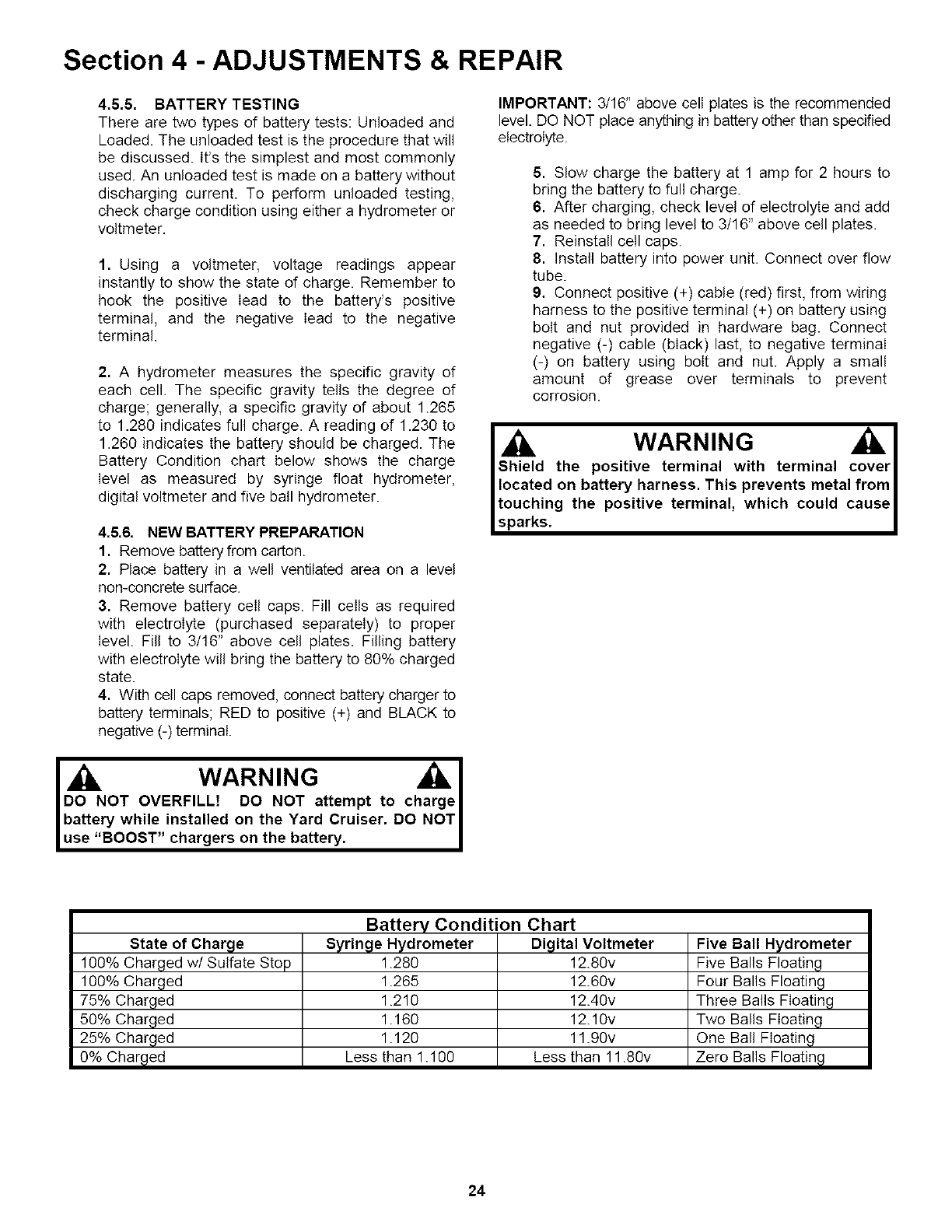

Section 4 - ADJUSTMENTS & REPAIR

4.5.5. BATTERY TESTING

There are two types of battery tests: Unloaded and

Loaded. The unloaded test is the procedure that will

be discussed. It's the simplest and most commonly

used. An unloaded test is made on a battery without

discharging current. To perform unloaded testing,

check charge condition using either a hydrometer or

voltmeter.

1. Using a voltmeter, voltage readings appear

instantly to show the state of charge. Remember to

hook the positive lead to the battery's positive

terminal, and the negative lead to the negative

terminal.

2. A hydrometer measures the specific gravity of

each cell. The specific gravity tells the degree of

charge; generally, a specific gravity of about 1.265

to 1.280 indicates full charge. A reading of 1.230 to

1.260 indicates the battery should be charged. The

Battery Condition chart below shows the charge

level as measured by syringe float hydrometer,

digital voltmeter and five batl hydrometer.

4.5.6. NEW BATTERY PREPARATION

1. Remove battery from carton.

2. Place battery in a well ventilated area on a level

non-concrete surface.

3. Remove battery ceil caps. Fill ceils as required

with electrolyte (purchased separately) to proper

level. Fill to 3/16" above cell plates. Filling battery

with electrolyte will bring the battery to 80% charged

state.

4. With cell caps removed, connect battery charger to

battery terminals; RED to positive (+) and BLACK to

negative (-) terminal.

WARNING _1

DO NOT OVERFILL! DO NOT attempt to charge I

battery while installed on the Yard Cruiser, DO NOTI

use "BOOST" chargers on the battery. I

IMPORTANT: 3/16" above cell plates is the recommended

level. DO NOT place anything in battery other than specified

etectroiyte.

5. Slow charge the battery at 1 amp for 2 hours to

bring the battery to full charge.

6. After charging, check level of electrolyte and add

as needed to bring level to 3/16" above cell plates.

7. Reinstall cell caps.

8. Install battery into power unit. Connect over flow

tube.

9, Connect positive (+) cable (red) first, from wiring

harness to the positive terminal (+) on battery using

bolt and nut provided in hardware bag. Connect

negative (-) cable (black) last, to negative terminal

(-) on battery using bolt and nut. Apply a small

amount of grease over terminals to prevent

corrosion.

WARNING

Shield the positive terminal with terminal cover

located on battery harness. This prevents metal from

touching the positive terminal, which could cause

sparks.

State of Charge

100% Charged w/Sulfate Stop

100% Charged

75% Charged

50% Charged

25% Charged

0% Charged

Batterv Condition

Syringe Hydrometer

1.280

1.265

1.210

1.160

1.120

Less than 1.100

Chart

Digital Voltmeter

12.80v

12.60v

12.40v

12.10v

11.90v

Less than 11.80v

Five Ball Hydrometer

Five Balls Floating

Four Balls Floating

Three Balls Floating

Two Balls Floating

One Ball Floating

Zero Balls Floating

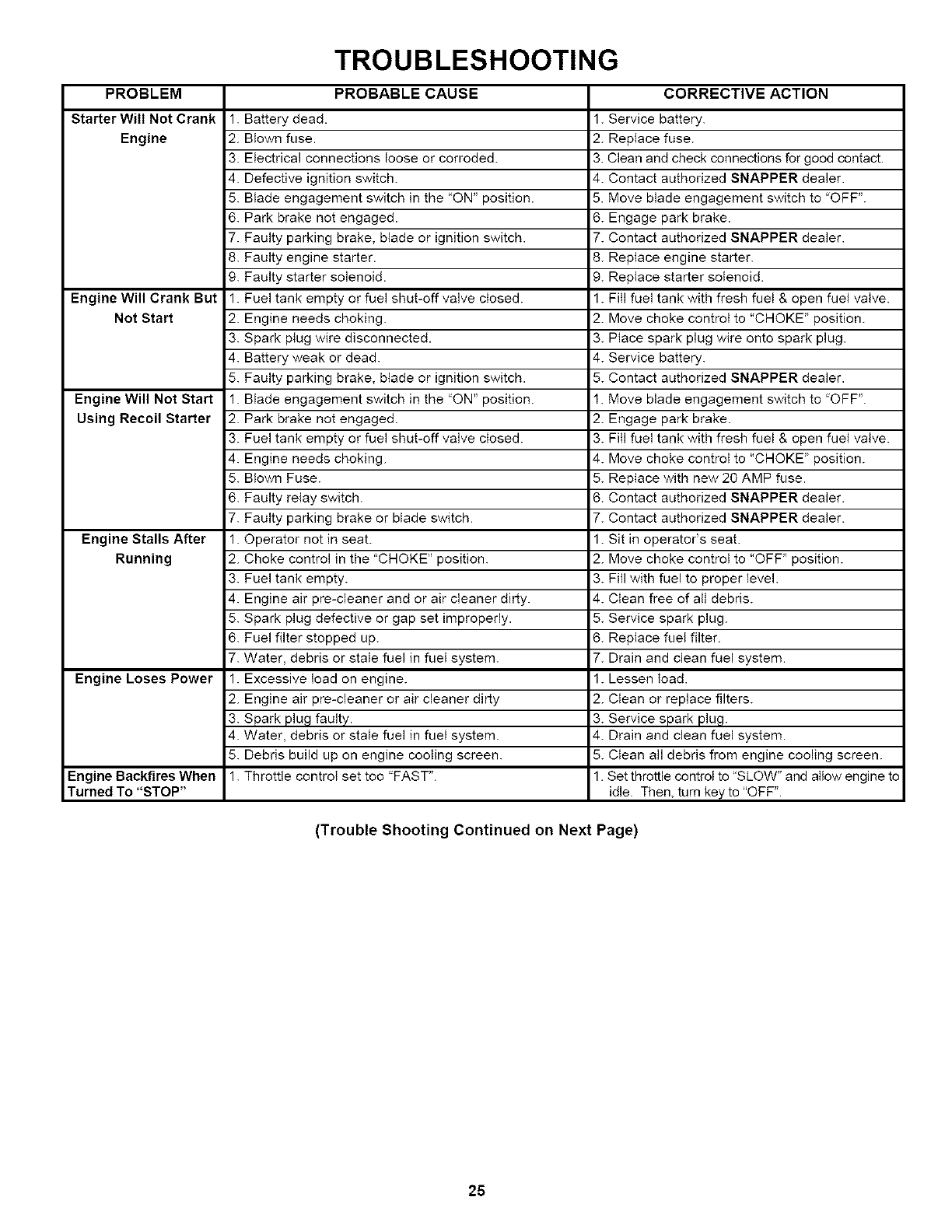

TROUBLESHOOTING

PROBLEM PROBABLE CAUSE CORRECTIVE ACTION

Starter Will Not Crank 1. Battery dead. 1. Service battery.

Engine 2. Blown fuse. 2. Replace fuse.

3. Electrical connections loose or corroded. 3. Clean and check connections for good contact.

4. Defective ignition switch. 4. Contact authorized SNAPPER dealer.

5. Blade engagement switch in the 'ON" position. 5. Move blade engagement switch to 'OFF".

6. Park brake not engaged. 6. Engage park brake.

7. Faulty parking brake, blade or ignition switch. 7. Contact authorized SNAPPER dealer.

8. Faulty engine starter. 8. Replace engine starter.

9. Faulty starter solenoid. 9. Replace starter solenoid.

Engine Will Crank But 1. Fuel tank empty or fuel shut-off valve closed. 1. Fitl fuel tank with fresh fuel & open fuel valve.

Not Start 2. Engine needs choking. 2. Move choke control to 'CHOKE" position.

3. Spark plug wire disconnected. 3. Place spark plug wire onto spark plug.

4. Battery weak or dead. 4. Service battery.

5. Faulty parking brake, blade or ignition switch. 5. Contact authorized SNAPPER dealer.

Engine Will Not Start 1. Blade engagement switch in the 'ON" position. I. Move blade engagement switch to 'OFF".

Using Recoil Starter 2. Park brake not engaged. 2. Engage park brake.

3. Fuel tank empty or fuel shut-off valve closed. 3. Fitl fuel tank with fresh fuel & open fuel valve.

4. Engine needs choking. 4. Move choke control to 'CHOKE" position.

5. Blown Fuse. 5. Replace with new 20 AMP fuse.

6. Faulty relay switch. 6. Contact authorized SNAPPER dealer.

7. Faulty parking brake or blade switch. 7. Contact authorized SNAPPER dealer.

Engine Stalls After 1. Operator not in seat. 1. Sit in operator's seat.

Running 2. Choke control in the "CHOKE" position. 2. Move choke control to 'OFF" position.

3. Fuel tank empty. 3. Fill with fuel to proper level.

4. Engine air pre-cleaner and or air cleaner dirty. 4. Clean free of all debris.

5. Spark plug defective or gap set improperly. 5. Service spark plug.

6. Fuel filter stopped up. 6. Replace fuel filter.

7. Water, debris or stale fuel in fuel system. 7. Drain and clean fuel system.

Engine Loses Power 1. Excessive load on engine. 1. Lessen toad.

2. Engine air pre-cleaner or air cleaner dirty 2. Clean or replace filters.

3. Spark plug faulty. 3. Service spark plug.

4. Water, debris or stale fuel in fuel system. 4. Drain and clean fuel system.

5. Debris build up on engine cooiing screen. 5. Clean all debris from engine cooling screen.

Engine Backfires When 1. Throttle contro{ set too 'FAST". 1. Set throttle contro{ to 'SLOW" and allow engine to

Turned To "STOP" idle. Then, tum keyto "OFF".

(Trouble Shooting Continued on Next Page)

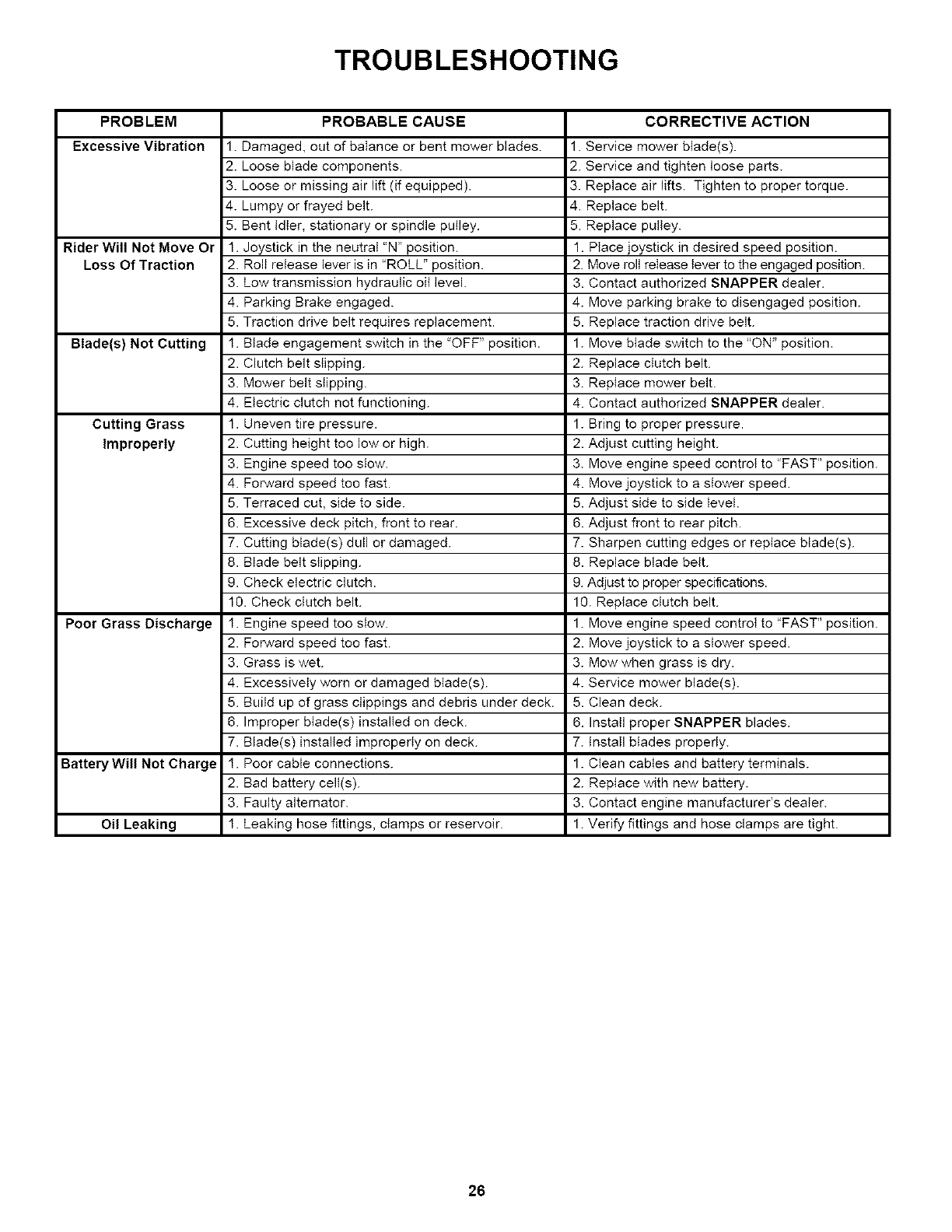

TROUBLESHOOTING

PROBLEM PROBABLE CAUSE CORRECTIVE ACTION

Excessive Vibration 1. Damaged, out of balance or bent mower blades. 1. Service mower blade(s).

2. Loose blade components, 2. Service and tighten loose parts.

3. Loose or missing air lift (if equipped). 3. Replace air lifts. Tighten to proper torque.

4. Lumpy or frayed belt. 4. Replace belt.

5. Bent idler, stationary or spindle putiey. 5. Replace pulley.

Rider Will Not Move Or I. Joystick in the neutral "N" position. I. Place joystick in desired speed position.

Loss Of Traction 2. Roll release lever is in "ROLL" position. 2. Move roll reIease lever to the engaged position.

3. Low transmission hydraulic oil levek 3. Contact authorized SNAPPER dealer.

4. Parking Brake engaged. 4. Move parking brake to disengaged position.

5. Traction drive belt requires replacement. 5. Replace traction drive belt.

Blade(s) Not Cutting I. Blade engagement switch in the "OFF" position. 1. Move blade switch to the "ON" position.

2. Clutch belt sfipping. 2. Replace ctutch belt.

3. Mower belt sfipping. 3. Replace mower belt.

4. EIectric clutch not functioning. 4. Contact authorized SNAPPER dealer.

Cutting Grass I. Uneven tire pressure. 1. Bring to proper pressure.

Improperly 2. Cutting height too low or high. 2. Adjust cutting height.

3. Engine speed too slow. 3. Move engine speed controt to "FAST" position.

4. Forward speed too fast. 4. Move joystick to a slower speed.

5. Terraced cut, side to side. 5. Adjust side to side level.

6. Excessive deck pitch, front to rear. 6. Adjust front to rear pitch.

7. Cutting blade(s) duti or damaged. 7. Sharpen cutting edges or replace blade(s).

8. Blade belt sfipping. 8. Replace blade belt.

9. Check electric clutch. 9. Adjust to proper specifications.

Ig. Check ctutch belt. 10. Replace ctutch belt.

Poor Grass Discharge I. Engine speed too slow. 1. Move engine speed controt to "FAST" position.

2. Forward speed too fast. 2. Move joystick to a slower speed.

3. Grass is wet. 3. Mow when grass is dry.

4. Excessively worn or damaged blade(s). 4. Service mower blade(s).

5. Build up of grass clippings and debris under deck. 5. Clean deck.

6. Improper blade(s) installed on deck. 6. Install proper SNAPPER blades.

7. Blade(s) installed improperly on deck. 7. install blades properly.

Battery Will Not Charge I. Poor cable connections. 1. Clean cables and battery terminals.

2. Bad battery ceil(s). 2. Replace with new battery.

3. Faulty alternator. 3. Contact engine manufacturer's dealer.

Oil Leaking I. Leaking hose fittings, ctamps or reservoir. 1. Verify fittings and hose clamps are tight.

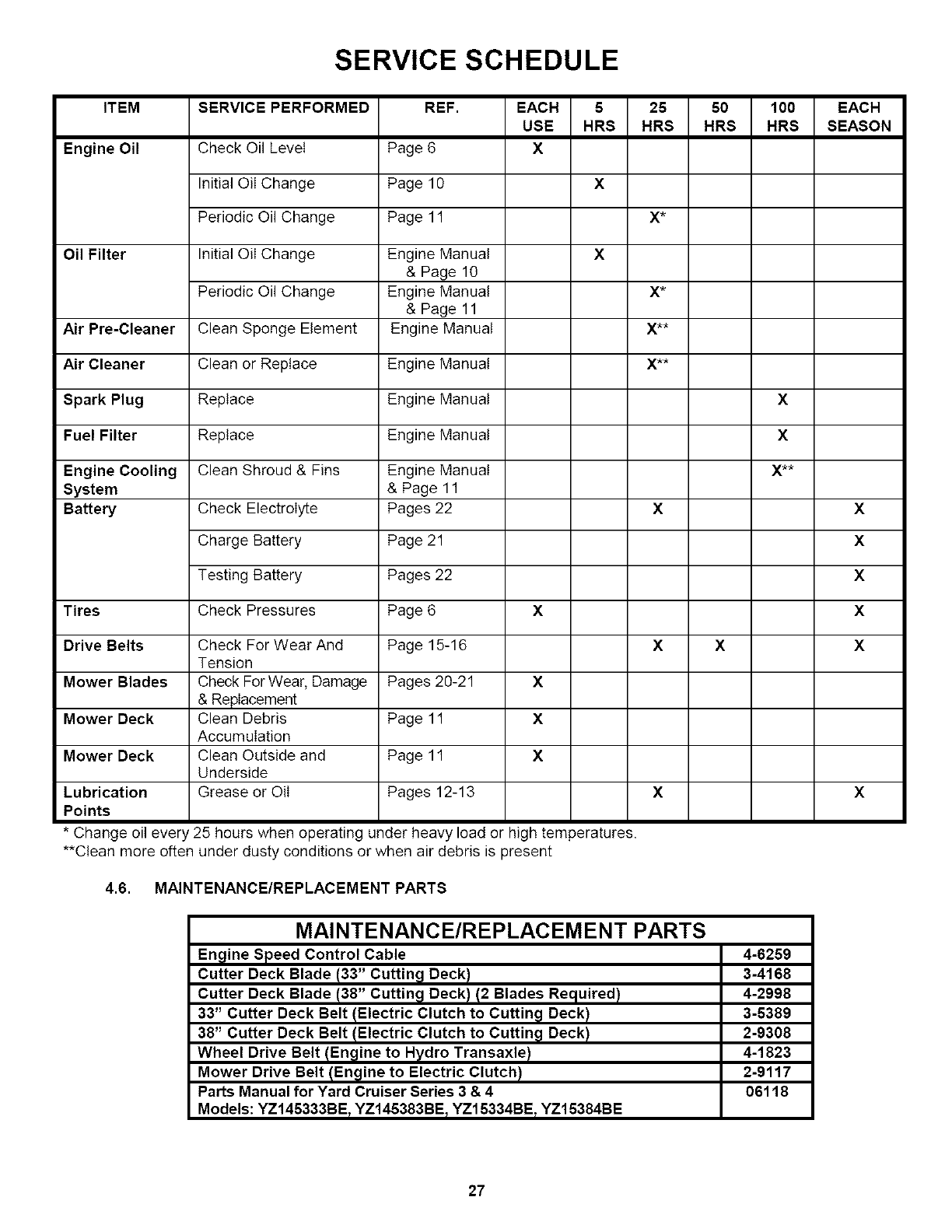

SERVICE SCHEDULE

ITEM SERVICE PERFORMED REF.

Engine Oil Check Oil Level Page 6 X

Initial Oil Change Page 10

Periodic Oil Change Page 11

Oil Filter Initial Oil Change Engine Manual

& Page 10

Periodic Oil Change Engine Manual

& Page 11

Air Pre-Cleaner Clean Sponge Element Engine Manual

Air Cleaner Clean or Replace Engine Manual

Spark Plug Replace Engine Manual

Fuel Filter Replace Engine Manual

Engine Cooling Clean Shroud & Fins Engine Manual

System & Page 11

Battery Check Electrolyte Pages 22

Charge Battery Page 21

Testing Battery Pages 22

Tires Check Pressures Page 6 X

Drive Belts Check For Wear And Page 15-16

Tension

Mower Blades Check ForWear, Damage Pages 20-21 X

& Replacement

Mower Deck Clean Debris Page 11 X

Accumulation

Mower Deck Clean Outside and Page 11 X

Underside

Lubrication Grease or Oil Pages 12-13

Points

EACH 5 25 50 100 EACH

USE HRS HRS HRS HRS SEASON

* Change oil every 25 hours when operating under heavy load or high temperatures.

**Clean more often under dusty conditions or when air debris is present

X**

4.6. MAINTENANCE/REPLACEMENT PARTS

X**

MAINTENANCE/REPLACEMENT PARTS

Engine Speed Control Cable

Cutter Deck Blade (33" Cutting Deck I

Cutter Deck Blade (38" Cutting Deck I !2 Blades Required)

33" Cutter Deck Belt IElectric Clutch to Cutting Deck)

38" Cutter Deck Belt IElectric Clutch to Cutting Deck)

Wheel Drive Belt IEngine to Hydro Transaxle I

Mower Drive Belt IEngine to Electric Clutch I

Parts Manual for Yard Cruiser Series 3 & 4

Models: YZ145333BE_ YZ145383BE_ YZ15334BE_ YZ15384BE

4-6259

3-4168

4-2998

3-5389

2-9308

4-1823

2-9117

06118

3 YEAR LIMITED WARRANTY

For three (3) years from purchase date for the original purchaser's residential, non-commercial use, SNAPPER, through

any authorized SNAPPER dealer will replace, free of charge (except for taxes where applicable), any part or parts found

upon examination by the factory at McDonough, Georgia, to be defective in material or workmanship or both.

For ninety (90) days from purchase date for the original purchaser's commercial, rental, or other non-residentia! use,

SNAPPER, through any authorized SNAPPER dealer will replace, free of charge, any part or parts found upon

examination by the factory at McDonough, Georgia, to be defective in material or workmanship or both.

AiI transportation costs incurred by the purchaser in submitting material to an authorized SNAPPER dealer for

replacement under this warranty must be paid by the purchaser.

This warranty does not apply to engines and their components, and batteries, as these items are warranted separately.

This warranty does not apply to parts that have been damaged by accident, alteration, abuse, improper lubrication,

normal wear, or other cause beyond the control of SNAPPER. This warranty does not cover any machine or component

)art that has been altered or modified changing safety, performance, or durability.

_atteries have a one (1) year prorated warranty period with free replacement if required during the first ninety (90) days

from the original purchase date. SNAPPER will not be responsible for any installation cost incurred. The battery warranty

only covers original equipment batteries and does not cover damage to the battery or machine caused by neglect or

abuse, destruction by fire, explosion, freezing, overcharging, improper maintenance, or use of improper electrolyte.

There is no other express warranty.

DISCLAIMER OF WARRANTY

Implied warranties, including those of merchantability and fitness for a particular purpose, are limited to three

(3) years from purchase date for the original purchaser's residential or other non-commercial use, and ninety

(90) days from purchase for the original purchaser's commercial, rental or other non-residential use, and to the

extent permitted by law, any and all implied warranties are excluded. This is the exclusive remedy. Liabilities for

consequential damages, under any and all warranties are excluded.

Some states do not allow limitations on how long an implied warranty lasts, or do not allow the exclusion or

limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

WARNING: THE USE OF REPLACEMENT PARTS OTHER THAN GENUINE SNAPPER PARTS MAY IMPAIR THE

SAFETY OF SNAPPER PRODUCTS AND WILL VOID ANY LIABILITY AND WARRANTY BY SNAPPER

ASSOCIATED WITH THE USE OF SUCH PARTS.

IMPORTANT: Piease fill out the attached SNAPPER Product Registration Card immediatelyand malt to:

Snapper's Product Registration Center, P.O. Box 1379, McDonough, Georgia 30253

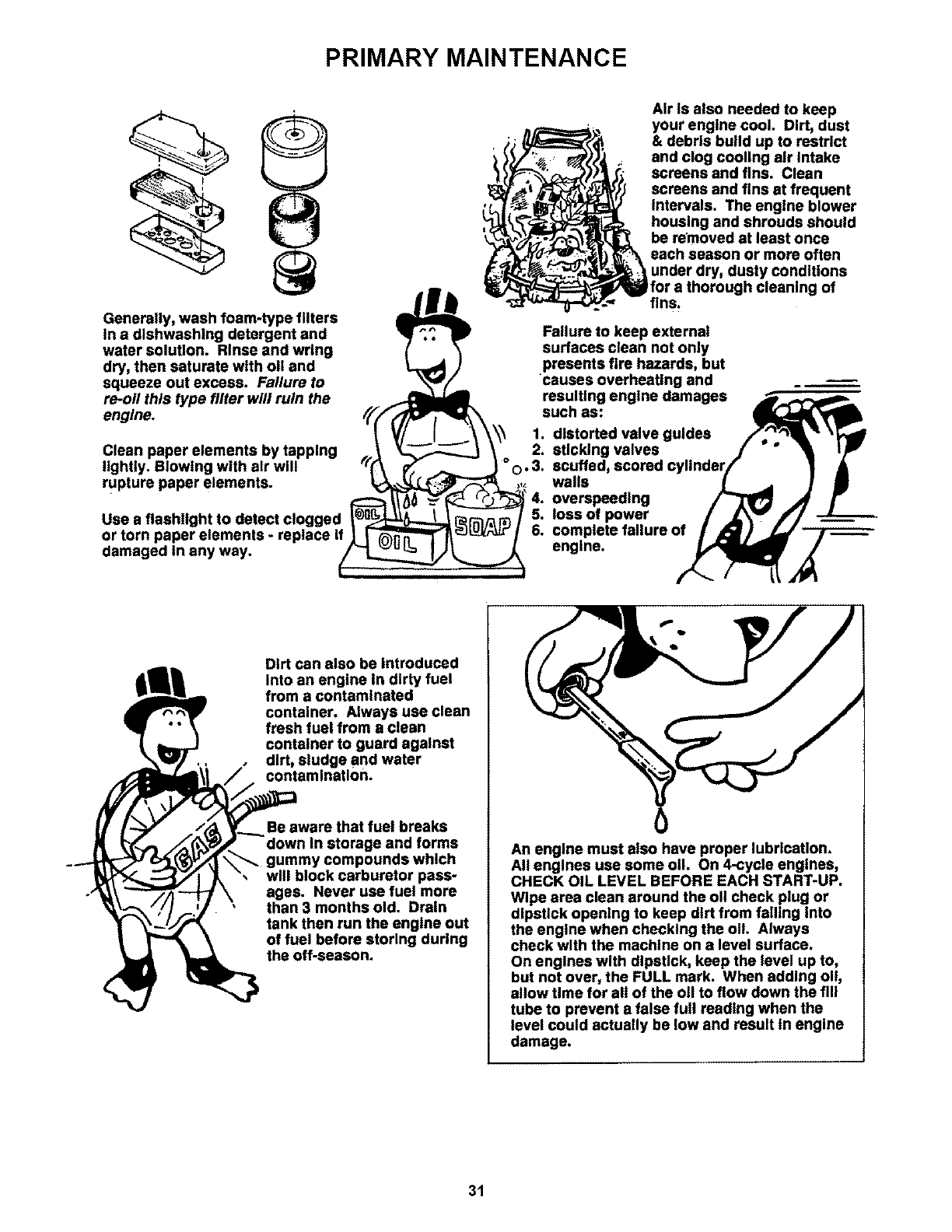

PRIMARY MAINTENANCE

illustration of

how dirt can

dama & how

naintenance

can protect it!

Snapper uses the best avail-

able engines and components

In their products In order to _=

provide long, satisfactory

service. However, proper •=

care Is essential In ""

prolonging engine life. Dirt

Is your engine's enemy

number 11

The engine on your Snapper

product spends Its entire life

operaUng close to the ground at

high speed cresting a virtual

storm of dust and dlrtl

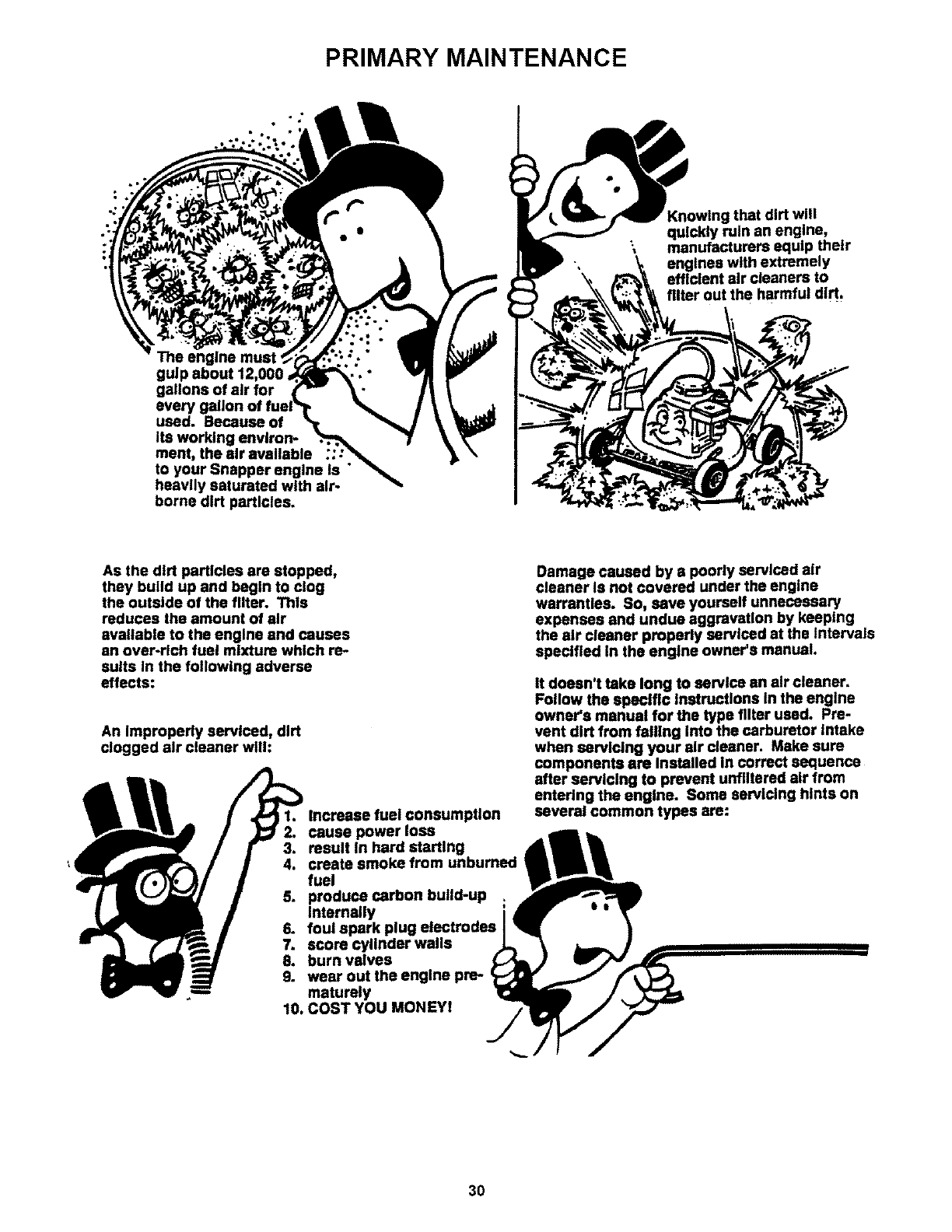

PRIMARY MAINTENANCE

gulp about 12,000,

gallons of air for

every gallon of f=

used. Because of

Its working environ-

ment, the air available

to your Snapper engine Is "

heavily saturated with air-

borne dirt particles.

that dirt will

quickly ruin an engine,

manufacturers equip their

englnse with extremely

efficient air cleaners to

filter out the harmful dirt,

As the dirt pertlclse are stopped,

they build up and begin to clog

the outside of the filter. This

reduces the amount of air

available to the engine and causes

an over-rich fuel mixture which rs-

suite In the following adverse

effects:

An Improperly serviced, dirt

clogged air cleaner will:

Damage caused by a poorly serviced air

cleaner Is not covered under the engine

warranties. So, save yourself unnecessary

expenses end undue aggravation by keeping

the air cleaner properly serviced at the Intervals

specified In the engine owner's manual.

It doesn't take long to service an air cleaner.

Follow the specific Inefmctlons In the engine

owner's manual for the type filter used. Pre-

vent dirt from falling Into the carburetor Intake

when servicing your air cleaner. Make sure

components are Installed in correct sequence

after servicing to prevent unfiltered air from

entering the engine. Some servicing hints on

Increase fuel consumpUon several common types are:

2. cause power loss _=m

3. result in hard starUng _L_I

4. create smoke from unburned _, •

5. _:/ucecarbonbulld-up .

Internally i _' ' •

6. foul spark plug electrodes I _

7. score cyllnder walls _L, -_ _]

8. burn valves _)_/_/_

9. wear out the engine pre- _ J _

maturely _./

10, COST YOU MONEY! /_IF/_ ''_

PRIMARY MAINTENANCE

Air Is also needed to keep

your engine coot. Dirt, dust

& debris build up to restrict

and clog cooling air Intake

screens and fins. Clean

screens and fins at frequent

Intervals. The engine blower

housing and shrouds should

be removed at least once

each season or more often

under dry, dusty conditions

for a thorough cleaning of

/h J) fins.

Generally, wash foam-type filters _

In a dlshwashlng detergent and I_-'_3 1 P Failure to keep external

water solution. Rinse and wring (. '_ surfaces clean not only

dry, then saturate with oll and _jpresents fire hazards, but

squeeze out excess. Failure to "_,_// causes overheating and

re-oil this type _ter will ruin the _resulting engine damages

engine. /f/_l_ SUChas:

V// I _\ \_ 1. distorted valve guides

Clean paper elements by tapplng ,._ _L_ \o 2. aticklngvalves

lightly. Blowlngwlthalrwlll ,r(_ T_, _ J o..3. scuffad, ecoredcyl

rupture paper elements, i_._._"_-:_ _,_ walls

_::_'_'___ __._ Oj_ 4. overspesdlng

Use a flashlight to detect clogged _@I_'._L--_.._ _'-_ r_ /5. loss of power .

or torn paper elements -replace If I _ _ uLv'v':_Ib. complete lailure or

damaged In any way. __ /_ engine.

Dirt can also be introduced

into an engine In dirty fuel

from a contaminated

container. Always use clean

fresh fuel from a clean

container to guard against

dirt, sludge and water

contamination.

Be aware that fuel breaks

down In storage and forms

will block carburetor pass-

ages. Never use fuel more

than 3 months old. Drain

tank then run the engine out

of fuel before storing during

the off-season.

An engine must also have proper lubrication.

All engines use some oil On 4-cycle engines,

CHECK OIL LEVEL BEFORE EACH START-UP.

Wipe area clean around the oll check plug or

dipstick opening to keep dirt from falling Into

the engine when checking the oil Always

check with the machine on a level surface.

On engines with dipstick, keep the level up to,

but not over, the FULL mark. When adding oil,

allow time for all of the oll to flow down the fill

tube to prevent a false full reading when the

level could actually be low and result In engine

damage.

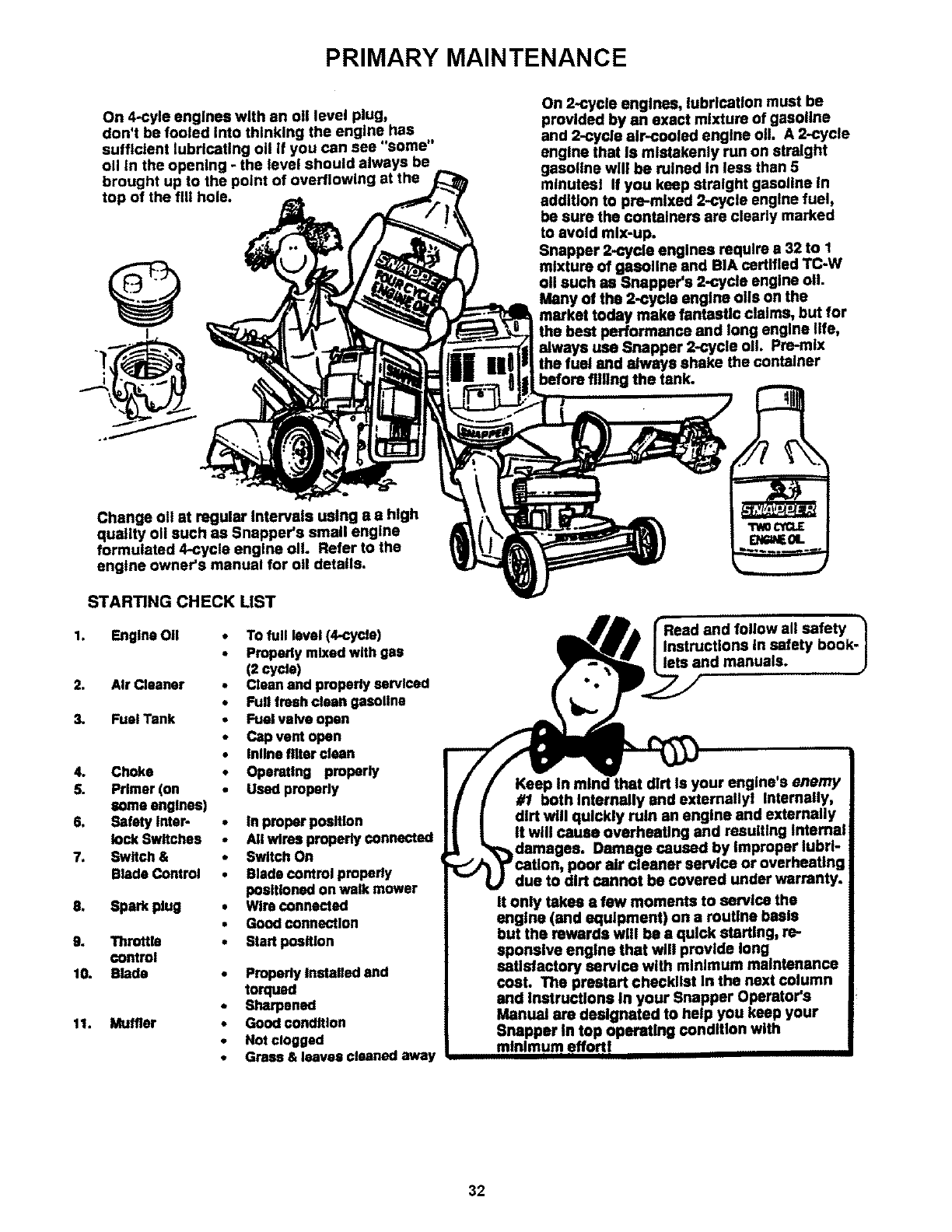

PRIMARY MAINTENANCE

On 4-cyle engines with an oil level plug,

don't be footed into thinking the engine has

sufficient lubricating all If you can see "some"

oll In the opening -the level should always be

brought up to the point of

top of the fill hole.

On 2-cyele engines, lubrication must be

provided by an exact mixture of gasoline

and 2-cycle air-cooled engine oil. A 2-cycle

engine that Is mistakenly run on strelght

gasoline will be ruined in less than 5

mlnutosl If you keep straight gasoline In

addition to pre-mlxed 2-cycle engine fuel,

be sure the containers are clearly marked

to avoid mix-up.

Snapper 2-cyale engines require a 32 to 1

mixture of gasoline and BIA certified TC-W

oUsuch as Snapper's 2-cyele engine oil

Many of the 2-cyele engine oils on the

market today make fantasflc claims, but for

the best performance and long engine life,

always use Snapper 2-cycle oti. Premix

the fuel and always shake the container

before filling the tank.

Change all at regular Intervals using s a high

quality oll such as Snapper's small engine

formulated 4-cycle engine oil Refer to the

engine owner's manual for all details.

STARTING CHECK LIST

EngineOil

Air Cleaner

Fuel Tank

4. Choke

5. Primer (on

some engines)

6. Safety Inter-

lock Switches

7. 8witch &

Blade Control

8. Bpark plug

9. Throttle

control

10. Blade

11. Muffler

* To full level (4-cycle)

• Properly mixed with gas

(2 cycle)

•Clean and properlyserviced

• Full fresh clean gaS.line

• Fuel valve open

* Cap vent open

• Inllne filter clean

* Operating properly

• Used properly

•In proper position

•All wires properly connected

•Switch On

•Blade cantrel properly

positioned on walk mower

• Wire connected

•Good connection

•8tart position

•ProperlyInstalled and

torq.

• Sharpened

• Good condition

•Notclogged

•Grass & leaves cleaned away

_f& rRcad and tollow all safety

_lr |Instructions In safety book-|

d that dirt Is your engine's enemy

II I #1 both Internally and externallyl Internally,

I| I dirt will quickly ruin an engine and externally

| | It w/it cauam overheating and resulting internal

.t _damages. Damage caused by Improper Iubrl-

_" cation, poor air cleaner service or overheating

v(j due to dirt cannot be covered under warranty.

It only takes afew momenta to service the

engine (and equipment) on a routine basis

but the rewards will be a quick starting, re-

sponsive engine that will provide long

satisfactory service with minimum maintenance

coat. The prestart checklist In the next column

and Inetructions In your Snapper Operator's

Manual are dealgnated to help you keep your

Snapper In top operating condition with

minimum effortt II

SNAPPER PRODUCT REGISTRATION FORM

IMPORTANT: KEEP THIS INFORMATION FOR YOUR PERSONAL RECORDS

(Complete the following information on your Snapper purchase)

Model Number

Serial Number

Date of Purchase

Retailer

Retailer's Phone Number

It is very important that you register your purchase with Snapper to ensure

warranty coverage. Please mail your product registration card to:

Snapper at P.O. Box 777, McDonough, Georgia 30253.

Or you may register on line at www.snapA_er.com.

You can contact us at our web site or if you would like to speak with a Customer

Service Representative. Call us at the Snapper Customer Relations Center. For

faster service please have your Serial Number and Model Number available.

Call the Snapper Customer Relations Center at

Eastern Standard Time

Monday through Friday from 8am to

Saturday from 9am to lpm.

1-800-935-2967.

6pm.

NOTES

Safety Instructions & Operator's Manual for

YARD CRUISER

HYDRO DRIVE

SERIES 4

IMPORTANT

Snapper products are built using engines that meet or exceed all applicable emissions requirements on the

date manufactured. The labels on those engines contain very important emissions information and critical

safety warnings. Read, Understand, and Follow all warnings and instructions in this manual, the engine

manual, and on the machine, engine and attachments. If you have any questions about your Snapper product,

contact your local authorized Snapper dealer or contact Snapper Customer Service at Snapper, McDonough,

GA. 30253. Phone: (1-800-935-2967).

WARNING

BATTERY POSTS, TERMINALS AND RELATED ACCESSORIES CONTAIN LEAD AND LEAD COMPOUNDS,

CHEMICALS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER AND BIRTH DEFECTS OR OTHER

REPRODUCTIVE HARM. WASH HANDS AFTER HANDLING.

_l_ WARNING

ENGINE EXHAUST, SOME OF ITS CONSTITUENTS, AND CERTAIN VEHICLE COMPONENTS CONTAIN OR

EMIT CHEMICALS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER OR OTHER

REPRODUCTIVE HARM.

SNAPPERMcDonough,GA,, 30253 U.S.A.

SNAPPER INC.

MANUAL No. 6-3272 (I.R. 6/28/02)

SNAPPER Lawn, Riding Mower Rear Engine Manual L0808151

Navigation menu

Versions of this User Manual:

Views

Navigation
