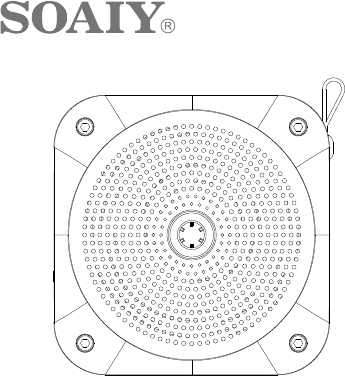

SOAIY TECHNOLOGY X3 Bluetooth Speaker User Manual NTS5
SHENZHEN SOAIY TECHNOLOGY CO.,LTD Bluetooth Speaker NTS5
User manual
Bluetooth Speaker User Guide X3
Hold power button down for (3) seconds to turn on / off the device.
There will be sound effects when you turn on / off the speaker.
The speaker powers off after 5 minutes of inactivity.
Power ON/OFF Operation
1
Charging the speaker before first use is recommended.
Bluetooth Connection Operation
X3
2
Open and enable Bluetooth on your device. (phone, tablet...)
Look for "X3" and select it on your phone / tablet screen.
Wait for Bluetooth to connect and listen to the successful pairing
prompt.
Bluetooth will auto connect when turned on if previous established
connection was not overridden by a different device.
Pause/ Play
Keys Function Operation
3
Button Operation:
Quick Press: It refers to a quick depress of the button, do not
hold.
Holding: Hold the button down for specified amount of time.
Quick Press to pause and play music.
Press and hold it to disconnect Bluetooth Connection.
When a call comes in:
Quick Press twice to redial last phone number.
1 .Quick Press to answer call.
2 .Quick Press again to end call.
3 .Quick Press twice to reject call.
Quick Press to switch to next track.(Available only in Bluetooth)
Press and hold it to turn up the volume.
Keys Function Operation
4
Press to switch to previous track or beginning of the track.
(Available only in Bluetooth)
Press and hold it to turn down the volume.
Keys Function Operation
5
LED Indicator Light:
6
RED
RED
BLUE/RED
BLUE
(Flashing):
(Solid):
(Flashing):
(Solid):
Charging
Fully Charged
Ready to Pair / Pairing
Bluetooth / AUX mode
30cm
Microphone Hole
For better sound quality, please keep the device no more than 30cm
away from you.
Calling from the same room may cause interference in sound quality.
7
AUX audio input
Reset switch
Micro-USB charge
port
Side Interface Diagram
8
AUX IN
9
Connect the device to an audio source
via audio cable. There will be a sound when
connected successfully. The device will play
the music from the audio source.
Reset Switch
Press the reset switch with the help of a paper
clip to reset the device.
10
11
The device can be charged
when it is connected with DC-5V
1A charger via USB cable.
Charging is possible through:
Computer, Power Bank, Car
Charger, Wall plug.
Charging through PC's USB port
is generally the slowest method.
USB Interface
12
Package Contents
User Guide
X3 3.5mm Audio Cable
Micro-USB to USB Charge Cable
13
Technical Data
Bluetooth
Version
Impedance
Dimension
Battery
2.1+EDR
4Ω
L86*W34.5*H86mm
Li-ion battery
3.7V 1200mAh
Frequency
response
Maximum
SPL
Netweight
Charging
time
Playtime
80Hz to 18KHz
86dB
195g
2~3hours
7 hours
(default volume)
Output
power 4.5W
!Important Safety Instructions
● Study this user guide carefully before using this speaker
●Keep speaker away from high temperatures. Do not leave it in the
sun
(Heat degrades battery life span) Keep away from open flames
● Do not expose speaker to liquids or moisture
● Refrain from destroying, modifying, dropping, or throwing speaker
● Always check for power compatibility before charging
● Loud music may impact hearing loss
● Disassembling the speaker will void warranty for speaker
● At the end of the speaker's lifecycle and warranty period, properly
discard speaker according to state law
●Do not store speaker for over a month without usage. We suggest
charging the battery from low power to full once a month to preserve
battery life
14
Supervised by GuangzhouSoaiy Digital Technology Co.,Ltd
Manufactured by Shenzhen Soaiy Technology Co.,Ltd
ADD:2&4/F,Bldg D,Fuxinlin Industrial park,Hangcheng Industrial
Zone,Xixiang Street,Bao’an District,Shenzhen,China
Website:www.soaiyaudio.com
Email:sales@soaiyaudio.com
FCC Caution:
This device complies with part 15 of the FCC Rules. Operation is subject to the condition that this
device does not cause harmful interference (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
The device has been evaluated to meet general RF exposure requirement. Th e device can be used
in portable exposure condition without restriction.
FCC ID: 2AECY-X3
