SOLIDEA LAB SSELTO Smart Toy User Manual

SOLIDEA LAB, Inc. Smart Toy

User Manual

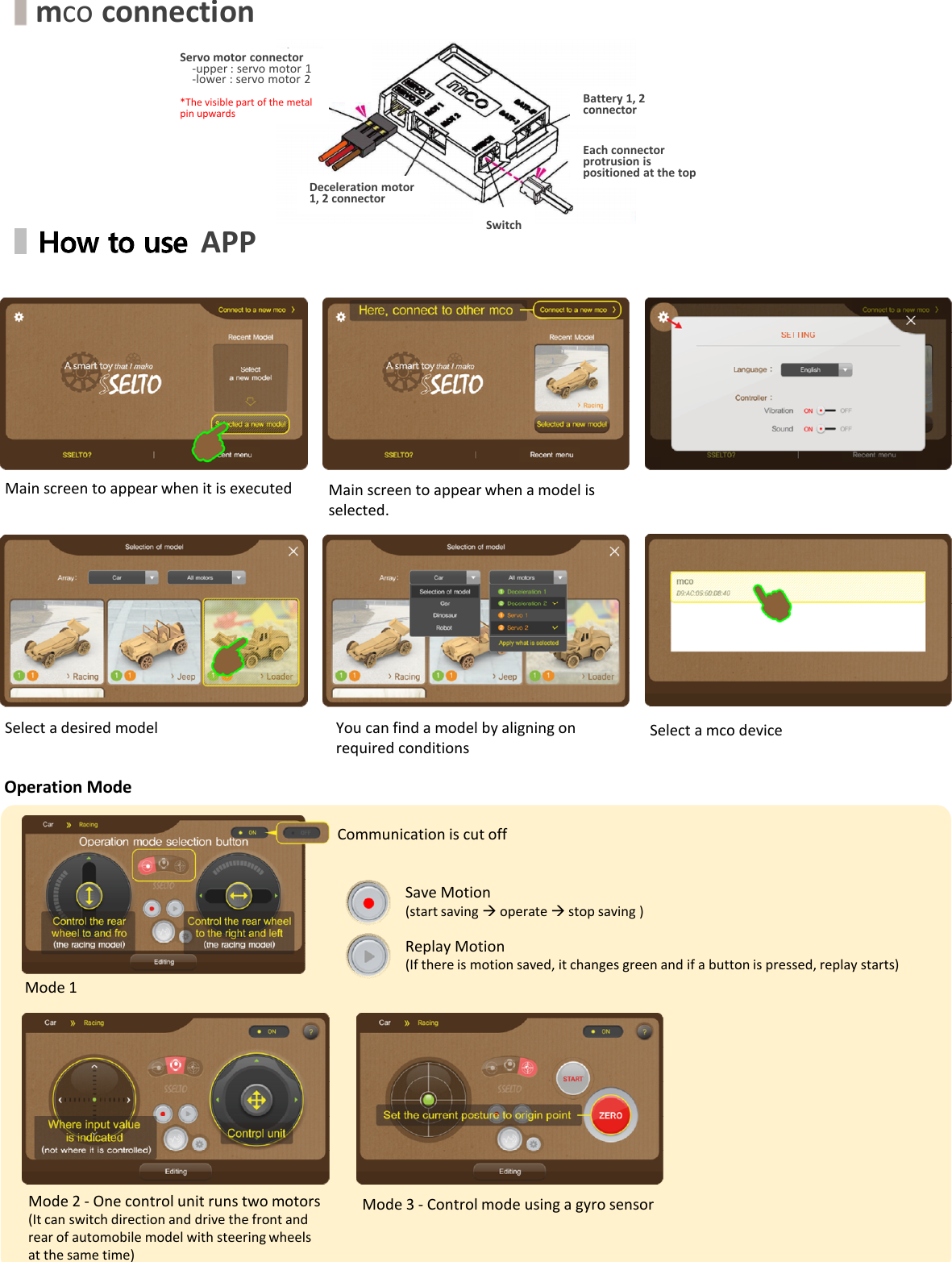

APPMain screen to appear when it is executed Main screen to appear when a model is selected.Select a desired model You can find a model by aligning on required conditions Select a mco deviceSave Motion(start saving àoperate àstop saving ) Replay Motion(If there is motion saved, it changes green and if a button is pressed, replay starts)Communication is cut off Operation ModeMode 1Mode 2 - One control unit runs two motors(It can switch direction and drive the front and rear of automobile model with steering wheels at the same time) Mode 3 - Control mode using a gyro sensormco connectionServo motor connector-upper : servo motor 1-lower : servo motor 2*The visible part of the metal pin upwardsDeceleration motor 1, 2 connectorBattery 1, 2 connectorEach connector protrusion is positioned at the topSwitch

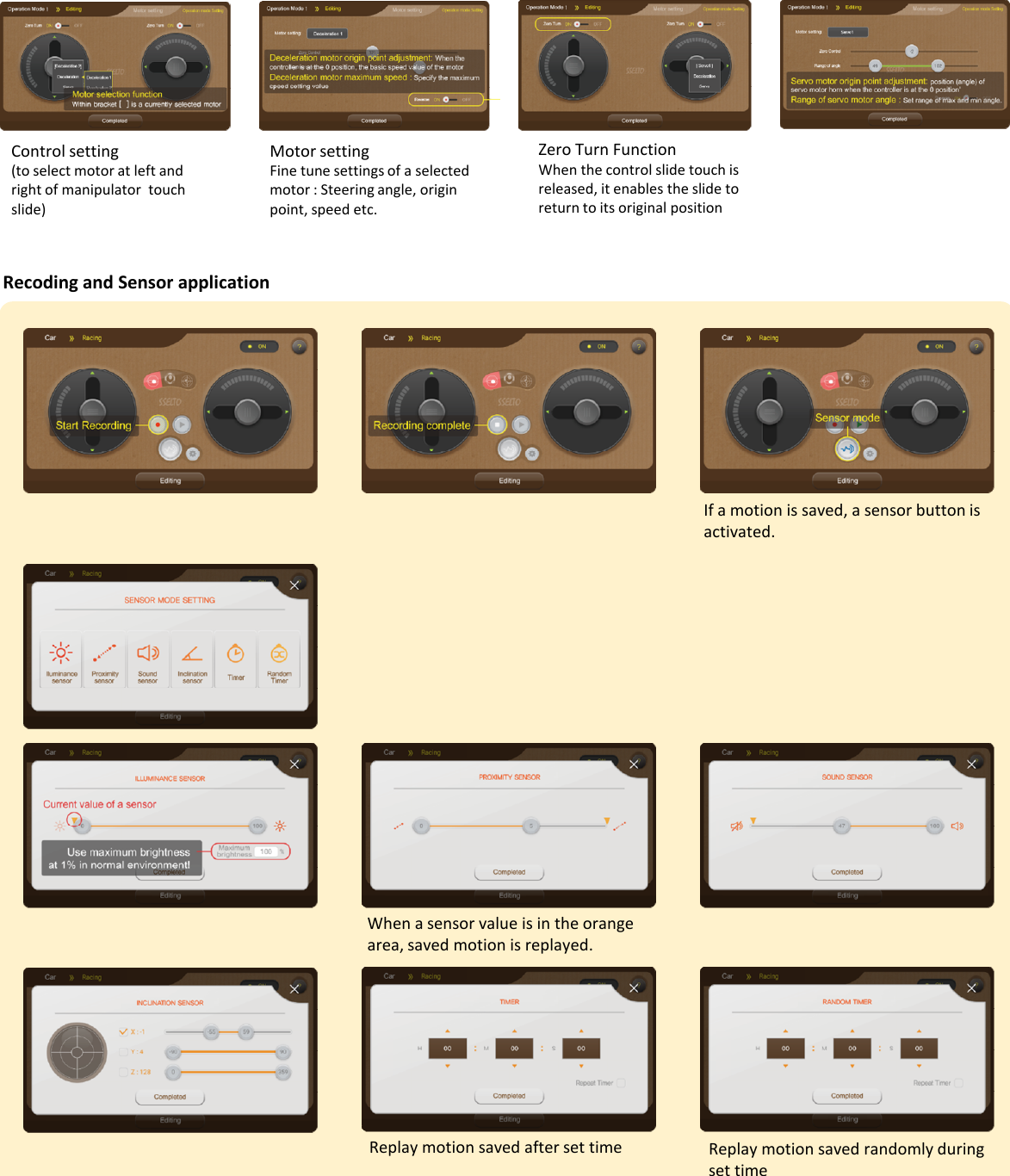

Recoding and Sensor applicationIf a motion is saved, a sensor button is activated. When a sensor value is in the orange area, saved motion is replayed.Replay motion saved after set time Replay motion saved randomly during set timeControl setting(to select motor at left and right of manipulator touch slide)Motor settingFine tune settings of a selected motor : Steering angle, origin point, speed etc.Zero Turn FunctionWhen the control slide touch is released, it enables the slide to return to its original position

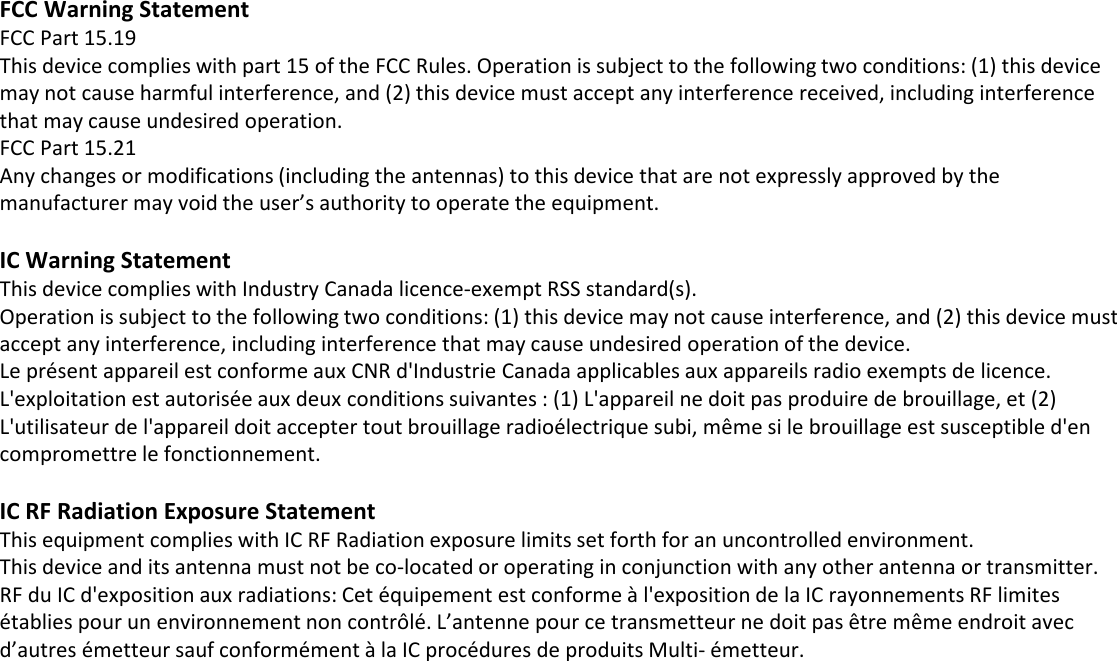

FCC Warning Statement FCC Part 15.19 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Part 15.21 Any changes or modifications (including the antennas) to this device that are not expressly approved by the manufacturer may void the user’s authority to operate the equipment. IC Warning Statement This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) L'appareil ne doit pas produire de brouillage, et (2) L'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. IC RF Radiation Exposure Statement This equipment complies with IC RF Radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. RF du IC d'exposition aux radiations: Cet équipement est conforme à l'exposition de la IC rayonnements RF limites établies pour un environnement non contrôlé. L’antenne pour ce transmetteur ne doit pas être même endroit avec d’autres émetteur sauf conformément à la IC procédures de produits Multi- émetteur.
