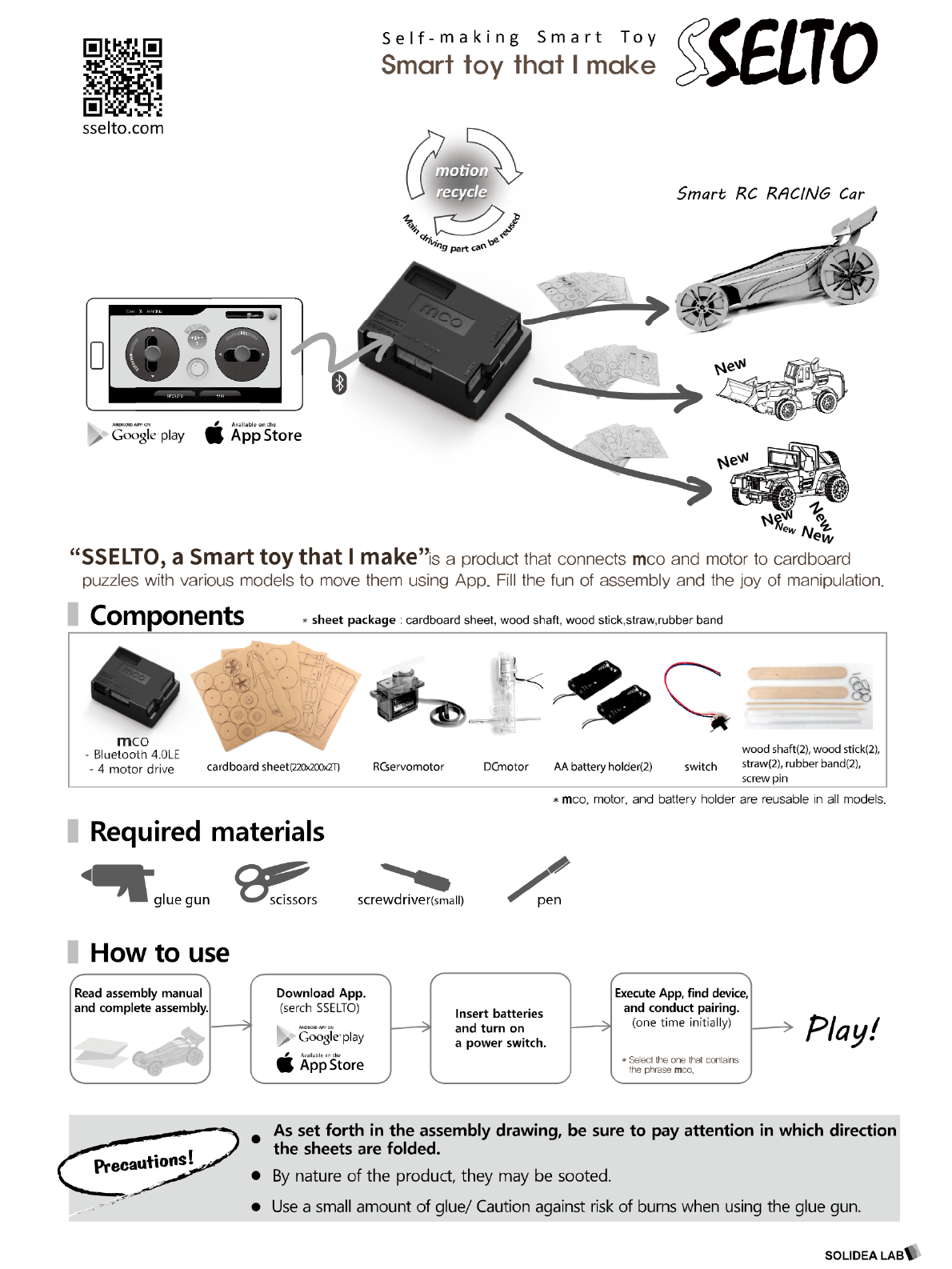

SOLIDEA LAB SSELTO Smart Toy User Manual
SOLIDEA LAB, Inc. Smart Toy
User Manual

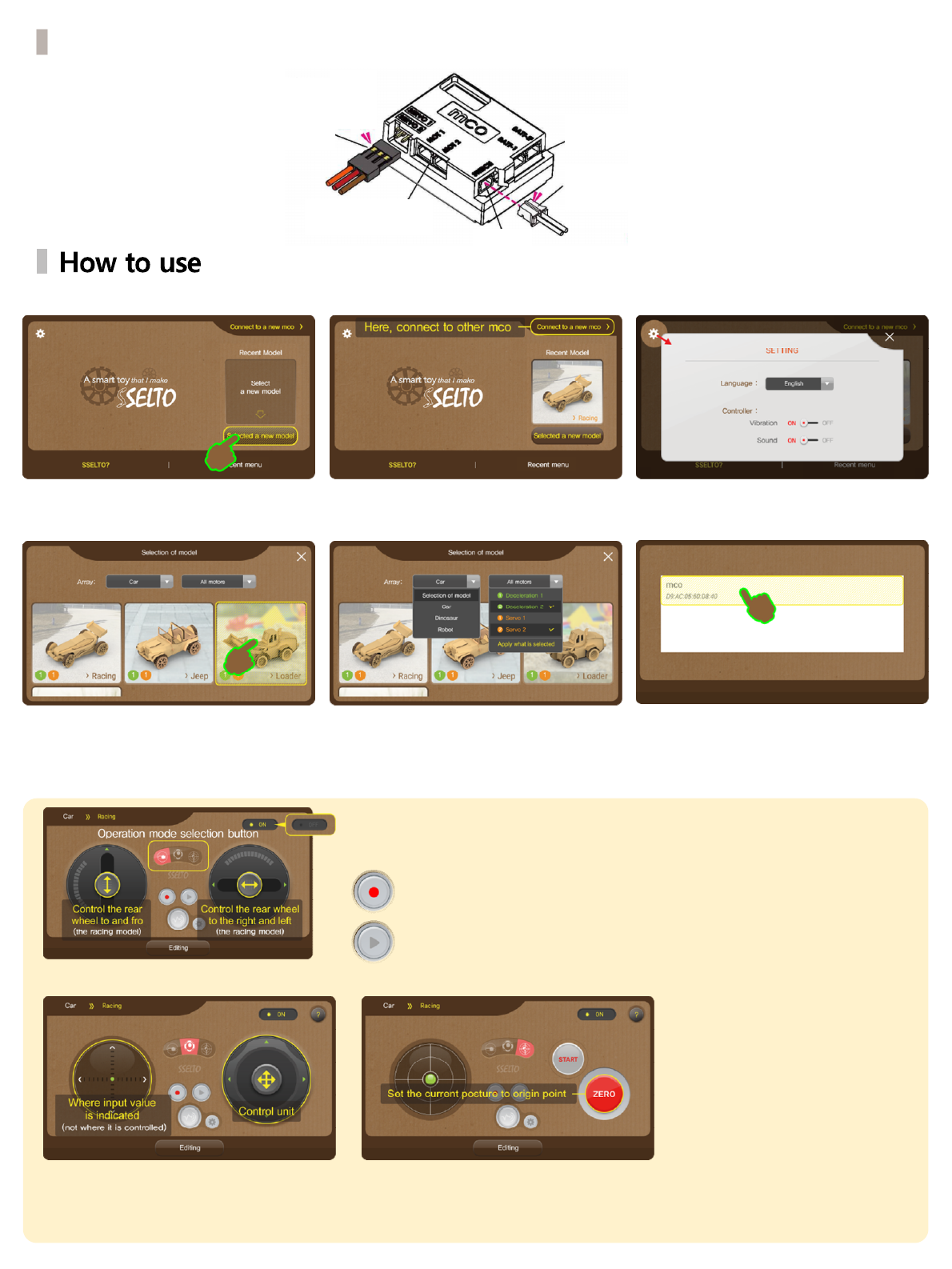

APP
Main screen to appear when it is executed Main screen to appear when a model is
selected.
Select a desired model You can find a model by aligning on
required conditions
Select a mco device
Save Motion
(start saving àoperate àstop saving )
Replay Motion
(If there is motion saved, it changes green and if a button is pressed, replay starts)
Communication is cut off
Operation Mode
Mode 1
Mode 2 - One control unit runs two motors
(It can switch direction and drive the front and
rear of automobile model with steering wheels
at the same time)
Mode 3 - Control mode using a gyro sensor
mco connection
Servo motor connector
-upper : servo motor 1
-lower : servo motor 2
*The visible part of the metal
pin upwards
Deceleration motor
1, 2 connector
Battery 1, 2
connector
Each connector
protrusion is
positioned at the top
Switch

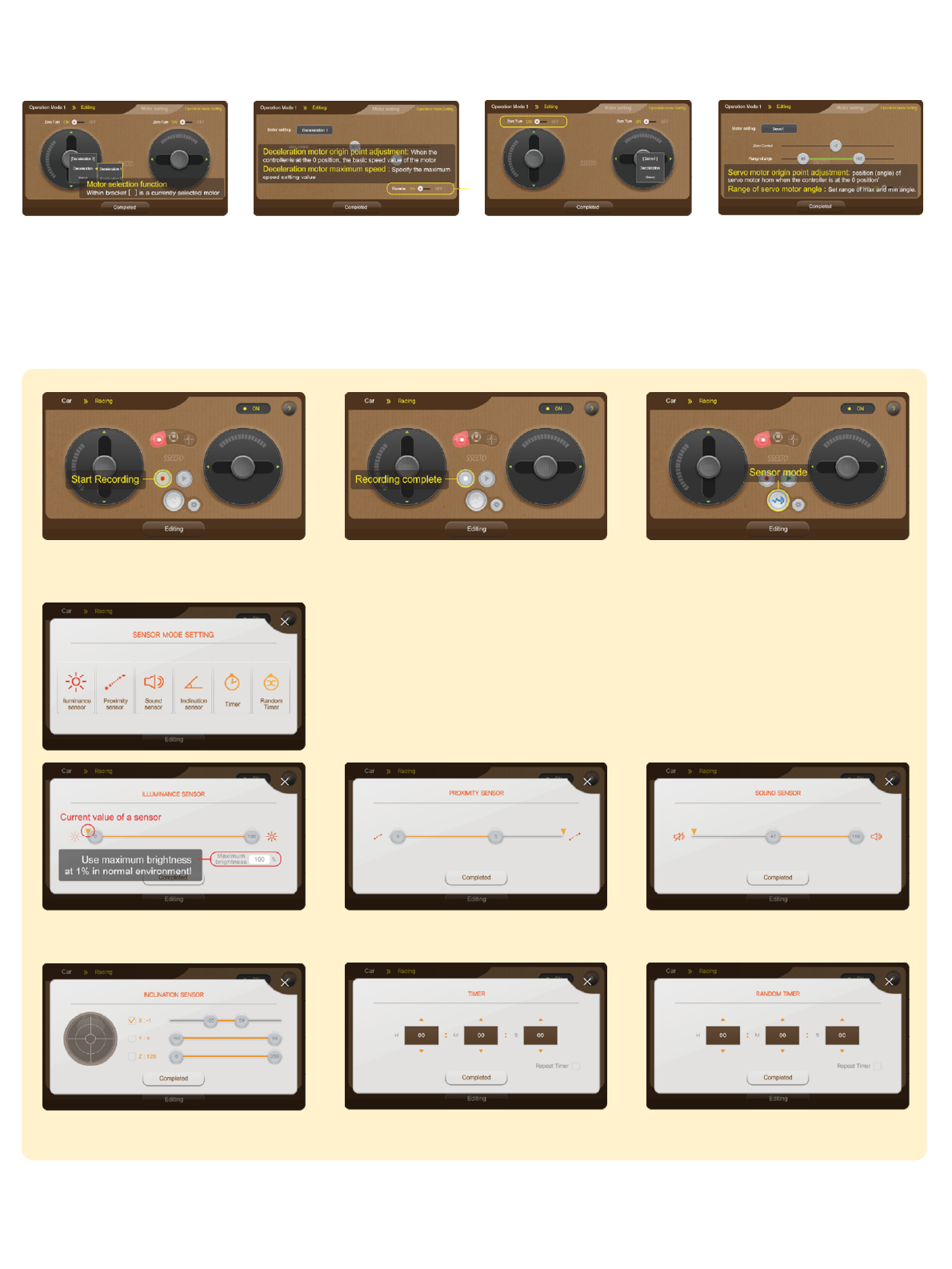

Recoding and Sensor application
If a motion is saved, a sensor button is
activated.
When a sensor value is in the orange
area, saved motion is replayed.
Replay motion saved after set time Replay motion saved randomly during
set time
Control setting
(to select motor at left and
right of manipulator touch
slide)
Motor setting
Fine tune settings of a selected
motor : Steering angle, origin
point, speed etc.
Zero Turn Function
When the control slide touch is
released, it enables the slide to
return to its original position
FCC Warning Statement
FCC Part 15.19
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device
may not cause harmful interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation.
FCC Part 15.21
Any changes or modifications (including the antennas) to this device that are not expressly approved by the
manufacturer may void the user’s authority to operate the equipment.
IC Warning Statement
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must
accept any interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence.
L'exploitation est autorisée aux deux conditions suivantes : (1) L'appareil ne doit pas produire de brouillage, et (2)
L'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en
compromettre le fonctionnement.
IC RF Radiation Exposure Statement
This equipment complies with IC RF Radiation exposure limits set forth for an uncontrolled environment.
This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter.
RF du IC d'exposition aux radiations: Cet équipement est conforme à l'exposition de la IC rayonnements RF limites
établies pour un environnement non contrôlé. L’antenne pour ce transmetteur ne doit pas être même endroit avec
d’autres émetteur sauf conformément à la IC procédures de produits Multi- émetteur.
