User manual
S-TAG Datasheet(ST-GM7400N)
Preliminary
REV 1.0 Solu-M Proprietary and Confidential 1/13
PRODUCT DATASHEET
Company Name
MODEL ST-GM7400N
CUSTOMER
APPROVAL
CUSTOMER REMARK :
Issued By Checked By
Approved By
JY Kim JS Seo JG Ryu
Solu-M
150, Maeyoung-ro(Maetan-Dong), Youngtong-Gu, Suwon, Gyunggi-Do, Korea
Tel : 82-31-210-3494
S-TAG Datasheet(ST-GM7400N)
Preliminary
REV 1.0 Solu-M Proprietary and Confidential 2/13
S-TAG Datasheet
S-Label (Electronic Label System)
REV 1.0
Solu-M
2016-04-19
Summary
This datasheet presents the general performance and specifications of S-Tag for S-Label ESL (Electronic
Shelf Label) system, which is based on IEEE 802.15.4.
© 2015 Solu-M. All rights reserved
The names of actual companies and products mentioned herein
may be the trademarks of their respective owners.
No part of this document may be reproduced, stored in a
retrieval system, or transmitted in any form or by any means
without the express written consent of Solu-M.
This document is subject to change without notice.
S-TAG Datasheet(ST-GM7400N)
Preliminary
REV 1.0 Solu-M Proprietary and Confidential 3/13
Table of Contents
1 GENERAL DESCRIPTION ..................................................................................................... 5
1.1 F
EATURES
......................................................................................................................... 6
1.2 T
YPICAL
A
PPLICATIONS
......................................................................................................... 6
2 SPECIFICATION .................................................................................................................. 7
2.1 P
RODUCT
S
PECIFICATION
....................................................................................................... 7
2.2 R
ADIO
(RF)
S
PECIFICATION
(TBD) .......................................................................................... 7
2.3 NFC
S
PECIFICATION
.......................................................................................................... 8
2.4 M
ECHANICAL
D
RAWING
....................................................................................................... 8
2.5 L
ABELS
............................................................................................................................. 9
3 OPERATION TEST .............................................................................................................. 11
4 ESL OPERATION BY DISPLAY ........................................................................................... 12
5 PACKAGE ........................................................................................................................... 15
6 CAUTIONS FOR TREATMENT............................................................................................. 16
6.1 U
SAGE
E
NVIRONMENT
.......................................................................................................... 16
6.2 S
TORAGE AND
U
SE
.............................................................................................................. 16
6.3 B
ATTERY
R
EPLACEMENT
........................................................................................................ 17
S-TAG Datasheet(ST-GM7400N)
Preliminary
REV 1.0 Solu-M Proprietary and Confidential 4/13
Document History
Rev. Date Revision history Page
1.0 19 Apr 2016 Initial release -
S-TAG Datasheet(ST-GM7400N)
Preliminary
REV 1.0 Solu-M Proprietary and Confidential 5/13
1 General Description
This S-Tag product is a part of Solu-M S-Label (Electronic Shelf Label) system as well as S-Label Gateway
(S-Gate), Remote controller (S-RC). S-Label system make up a system that electronically displays price
and other product information on S-Tags, which has been traditionally printed or written on paper in
places like retail markets.
S-Tag receives product price/information updates from S-Gate and updates or changes its display of price
and other information.
S-Tag is the product based on IEEE standard 802.15.4 for low power wireless communication
applications. S-Tag consists of RF transceiver, RF circuitry and 8051-compatible MCU offering IEEE
802.15.4 based network protocol and MAC protocol and other peripheral devices.

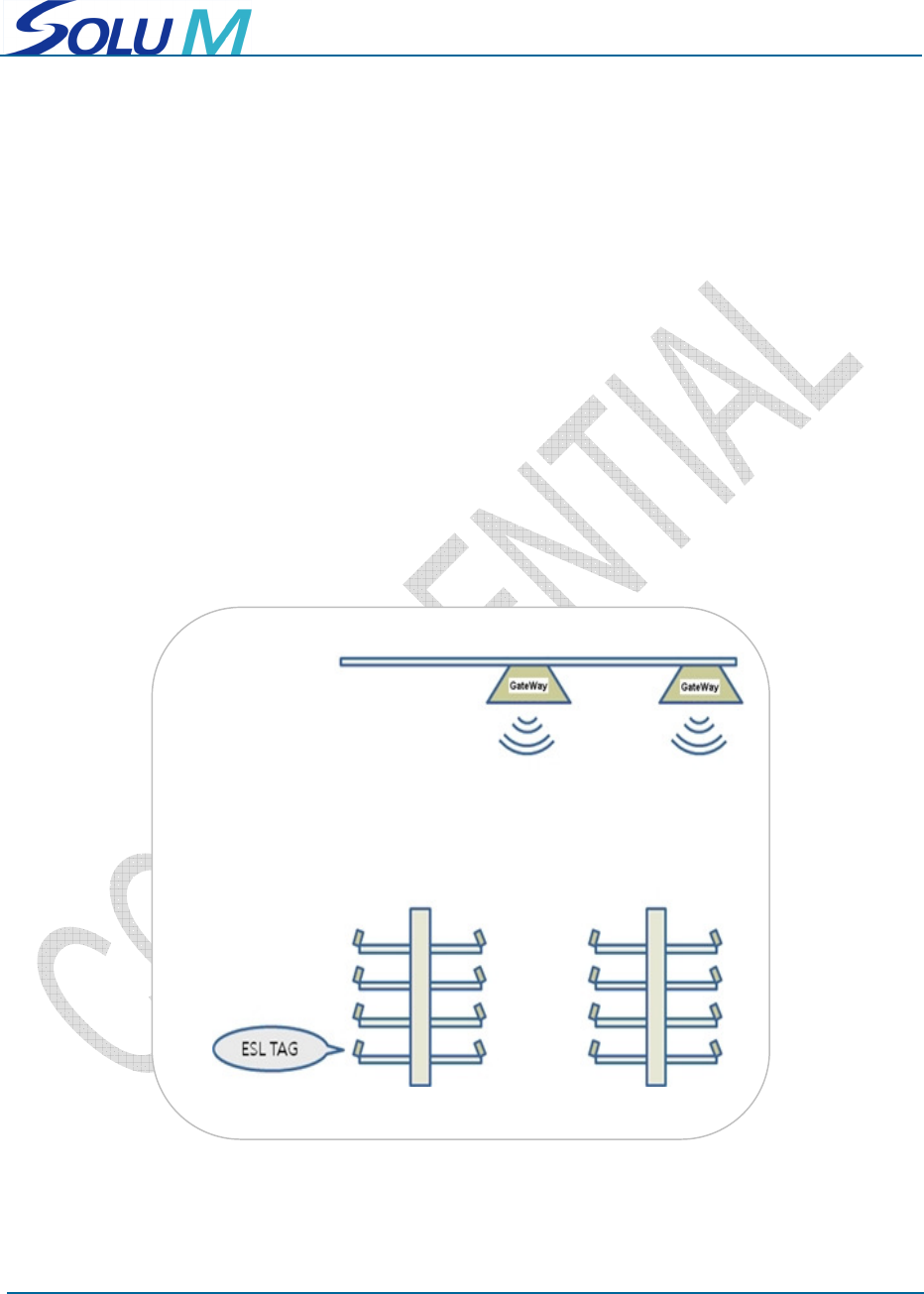

Figure 1. S-Label System
S-TAG Datasheet(ST-GM7400N)
Preliminary
REV 1.0 Solu-M Proprietary and Confidential 6/13
1.1 Features
-
Display : E-Paper Display (EPD) (active type) (163.2 X 97.92 mm)
-
Communication : Wireless communication based on IEEE 802.15.4
-
Operating on 2.4GHz Unlicensed ISM band for ZigBee
-
Low Power Consumption
-
External Wakeup : RF Wakeup (using ISM Band(2.4GHz))
-
Outline Dimension : 181 mm X 123 mm X 15.5 mm
-
Case Color : White
-
Working condition: Indoor where wireless communication is available.
1.2 Typical Applications
-
Retail industry with electronic displays, platforms, solutions and services.
-
Intelligently communicating, managing, and optimizing price and product information.
Front
Rear
Figure 2. Appearance
S-TAG Datasheet(ST-GM7400N)
Preliminary
REV 1.0 Solu-M Proprietary and Confidential 7/13
2 Specification
2.1 Product Specification
Item
Description
Size
181
mm
X
123
mm
X 15.5
mm
Battery
CR2450 Lithium Battery (3V
)
2.5 ~ 3.3Vdc(condition : In active status)
Display
Electrical paper display (
active type
)
(
163.2
X
97.92
mm)
Housing Color
White
Information display
Price, Unit,
Symbol
etc.
Communication
Wireless communication
based on IEEE 802.15.4
Communication
Distance
Radius
20m (Line of Sight)
Operation Temp. 0 ~ 40 (@35~70% RH)
Storage Temp. -20 ~ 60
Etc.
No additional anti
-
theft locking structure : Rail Mounted only
2.2 Radio (RF)
1
Specification
Item
Parameter
SPE
C
Unit
Condition
Min
Typ
Max
TX
Transmit Power
-
4
2
6
dBm
Error Vector Magnitude
10
30
%
When measured for 100 chips
Tx Current
7
0
mA
Total current at max Tx Power
RX
Receiver Sensitivity
-
90
-
-
dBm
PER <
1
%
1
Test Channel : 2480MHz
S-TAG Datasheet(ST-GM7400N)
Preliminary
REV 1.0 Solu-M Proprietary and Confidential 8/13
2.3 NFC Specification
Items
Parameter spec.
Units
Condition
Min
Typ
Max
NFC
Read/Write Distance - 40 - mm PCB status
NFC
Read/Write Distance - 30 - mm Final Assy status

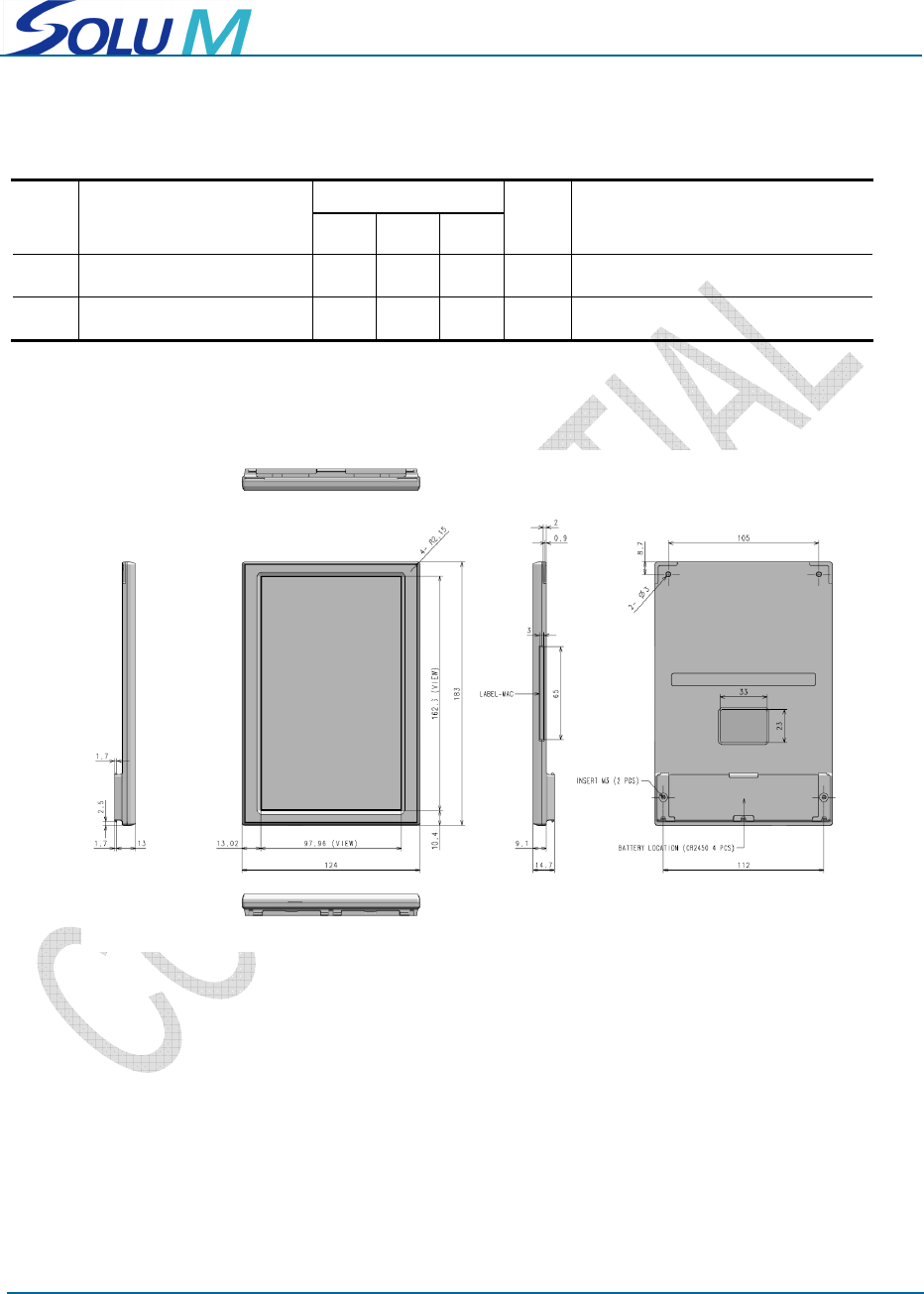

2.4 Mechanical Drawing
Figure 3. Mechanical Dimension
S-TAG Datasheet(ST-GM7400N)
Preliminary
REV 1.0 Solu-M Proprietary and Confidential 9/13
2.5 Labels
2.5.1 Code Information
Serial 1, 2 Code Value
15 Y 5 S A A 2JW
Year : Last two digits of manufacturing year.
(00 ~ 99, Example : 2015 is '15')
Month : Manufacturing month
(1 ~ 9, X(10), Y(11), Z(12))
Date : Manufacturing date
(1 ~ 9, A(10) ~ V(31))
Vendor : Manufacturing vendor
(D : Dongguan Solu-M, S : SEMTHAI, T : TSEM, etc)
Line number : Manufacturing Line number
('A', 'B', 'C', etc)
Revision : Product revision number
(A : First, B : Second, C : Third, etc.)
ZigBee IC Lot Number : Last 3 characters of Lot Number
(Example : YME06862JW is ‘2JW’)
S-TAG Datasheet(ST-GM7400N)
Preliminary
REV 1.0 Solu-M Proprietary and Confidential 10/13

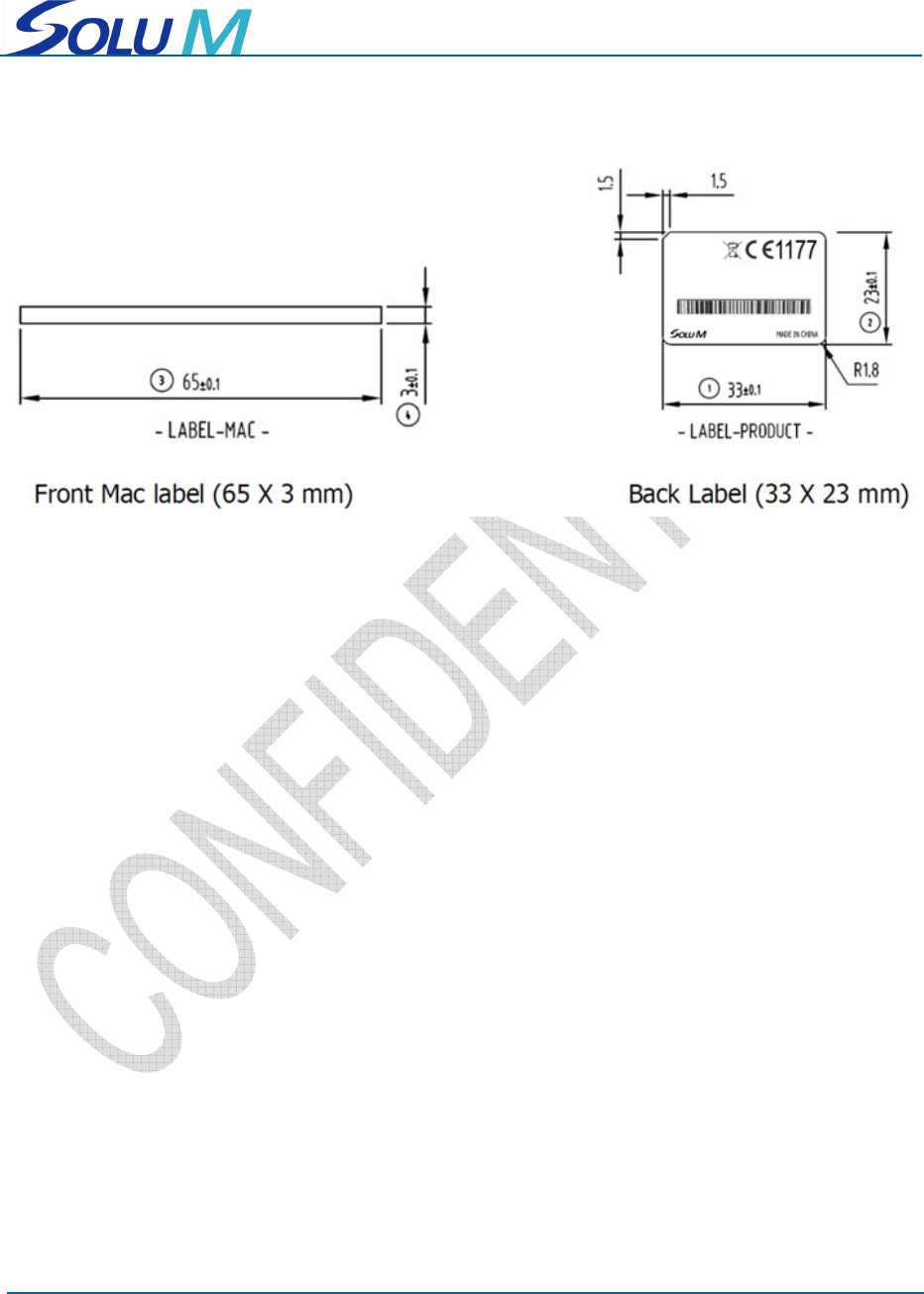

2.5.2 Mac Label Drawings
Figure 2. Mac Labels
Product information is indicated in a printed sticker label. The information consists of MODEL (model
name), MFD (manufacturing date), S/N (serial number), MAC (MAC address), certification mark, and
Manufacture.
1) FCC ID : E2X-ST-GM7400N
2) Model Name : ST-GM7400N
3) MFD : (Month).(Date).(Year) ex) APR.19.2016
4) S/N : Daily Production quantity (5 digits) & Serial Number Information (hexadecimal 10 digits)
5) MAC : barcode & barcode number(hexadecimal 16 digits)
- 6 digits (1st ~ 6th) : XXXXXX (Company code)
- 6 digits (7th ~ 12th) : XXXXXX (Increasing number : 000000 ~ FFFFFF)
- 4 digits (13th ~ 16th) : 705X
S-TAG Datasheet(ST-GM7400N)
Preliminary
REV 1.0 Solu-M Proprietary and Confidential 11/13
3 Operation Test
Equipment : Gateway(S-Gate), R/C, Jig for power supply
Target DUT : EPD TAG
Figure 3. Operation Test
Test Scenario
Install Tag on Jig
Ready to Gateway(S-Gate) and R/C
Tag start to communicate with Gateway
Tag display the image received from Gateway and enter to sleep mode.
(Display pattern : MAC SCAN Icon White)
wake up Tag with R/C
Check Tag (Display pattern : SCAN Icon White)
Get off Tag from Jig.
Criterion
(Below both two conditions should be all satisfied)
Good : You can see a White display.
Compare MAC address with that of label attached to Side or Back plane.
* gateway lost / not found : You can see a diamond( ) in the upper right corner.
S-TAG Datasheet(ST-GM7400N)
Preliminary
REV 1.0 Solu-M Proprietary and Confidential 12/13

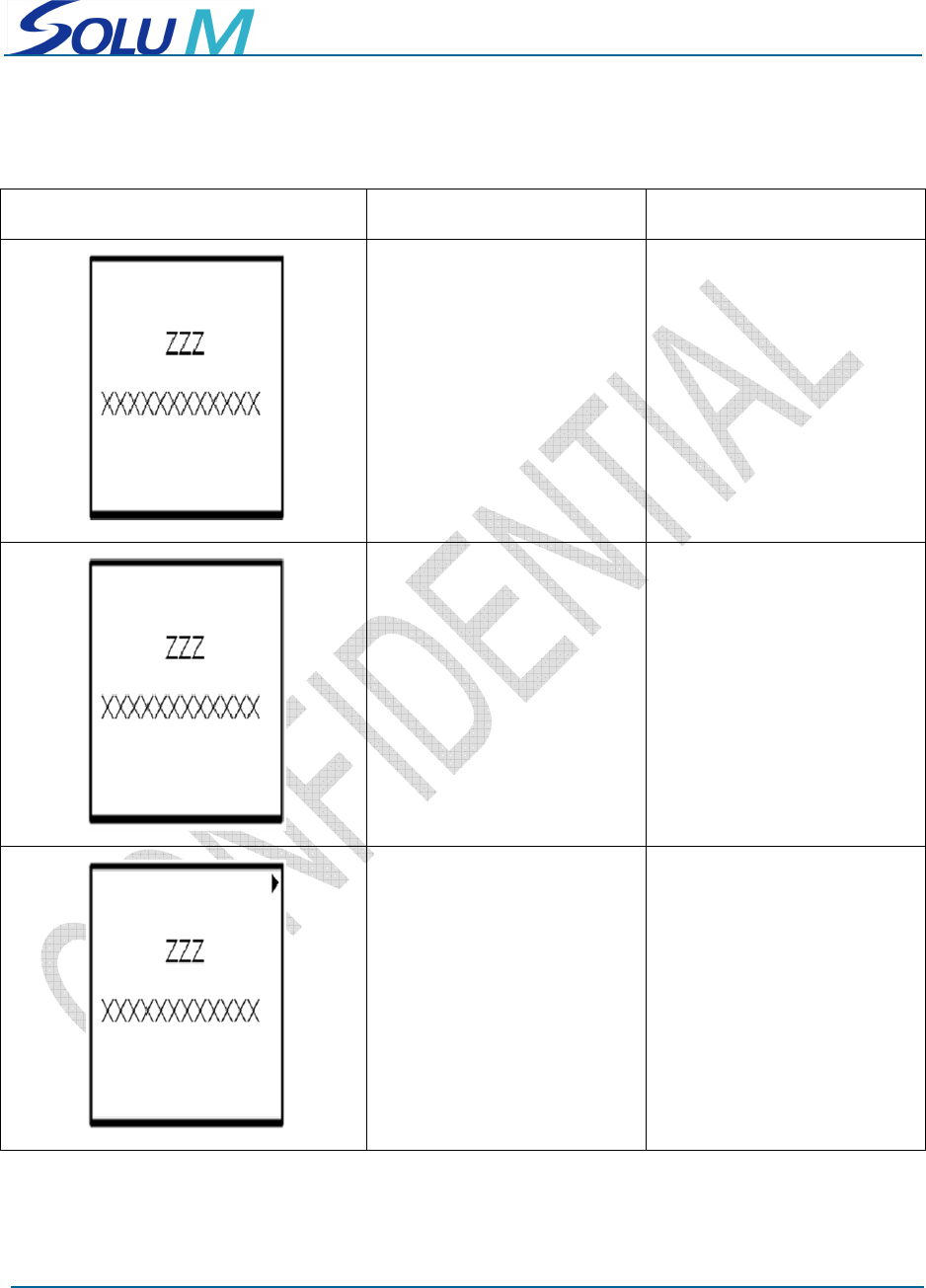

4 ESL Operation by display
It will be updated before 2
nd
release. Below is just a sample.
Display
State
User Action
STATE: 1
Initial display when shipped
from the manufacturer
(Tag version, MAC address).
None
STATE: 1
No change.
To assign a tag using a PDA
STATE 1 2
Searching for GWs
(Tag version, MAC address
and triangle).
A tag woken up by an RC
S-TAG Datasheet(ST-GM7400N)
Preliminary
REV 1.0 Solu-M Proprietary and Confidential 13/13

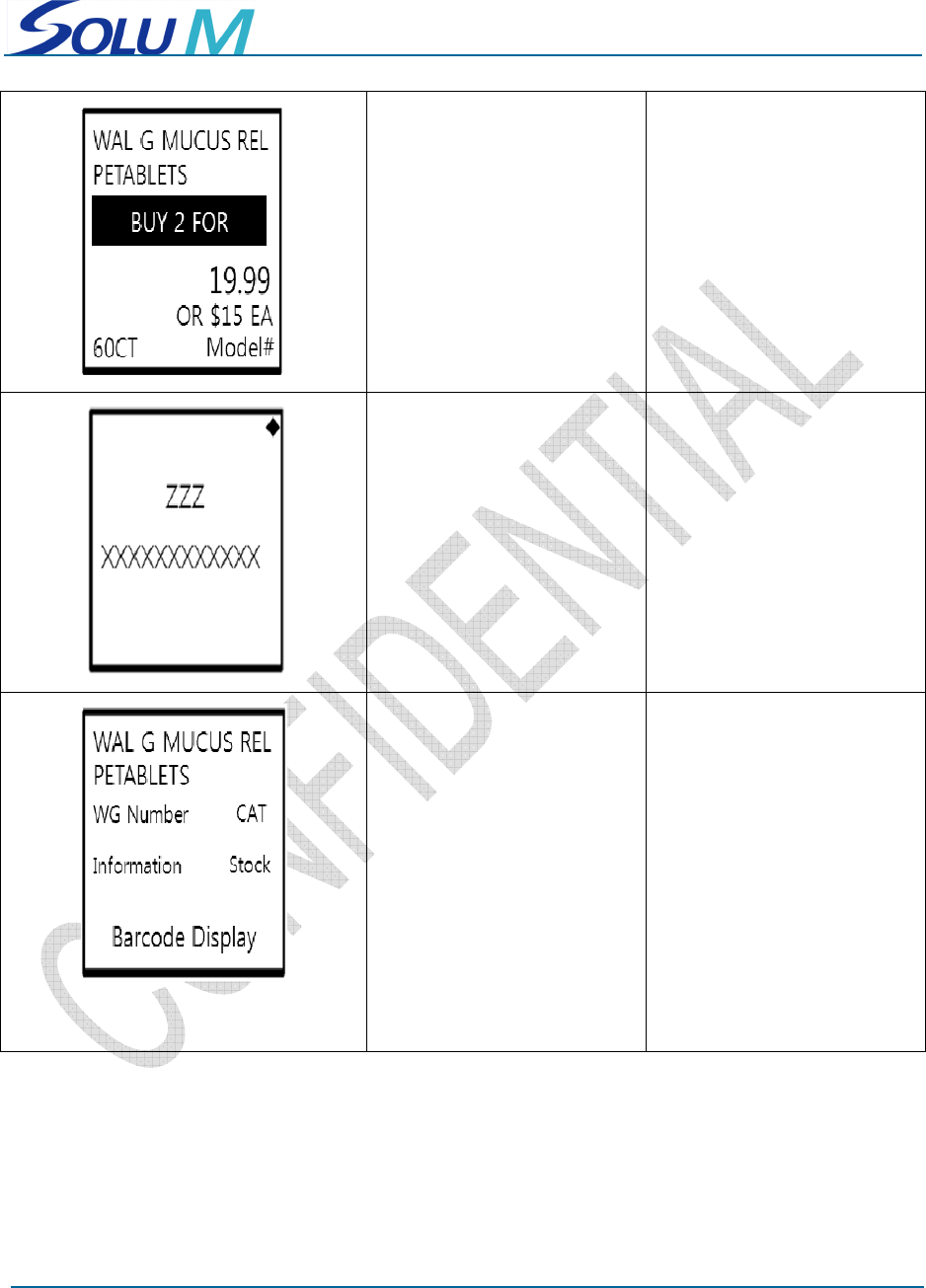

STATE 2 4
A tag is connected to a GW
and received price
(Price)
None
STATE 2
3
A tag failed to locate a GW
(Tag version, MAC address).
STATE 4 5
When a tag is connected to a
GW, and woken up by an RC,
Next page display predefined.
Display is end, tag wait 10
second wakeup signal by RC.
When signal is detected in
this time, immediately return
first Page and Send Price
Request to GW. No signal in
this time, after 10 second
return first Page and Same
Operation.
Woken up by an RC
S-TAG Datasheet(ST-GM7400N)
Preliminary
REV 1.0 Solu-M Proprietary and Confidential 14/13

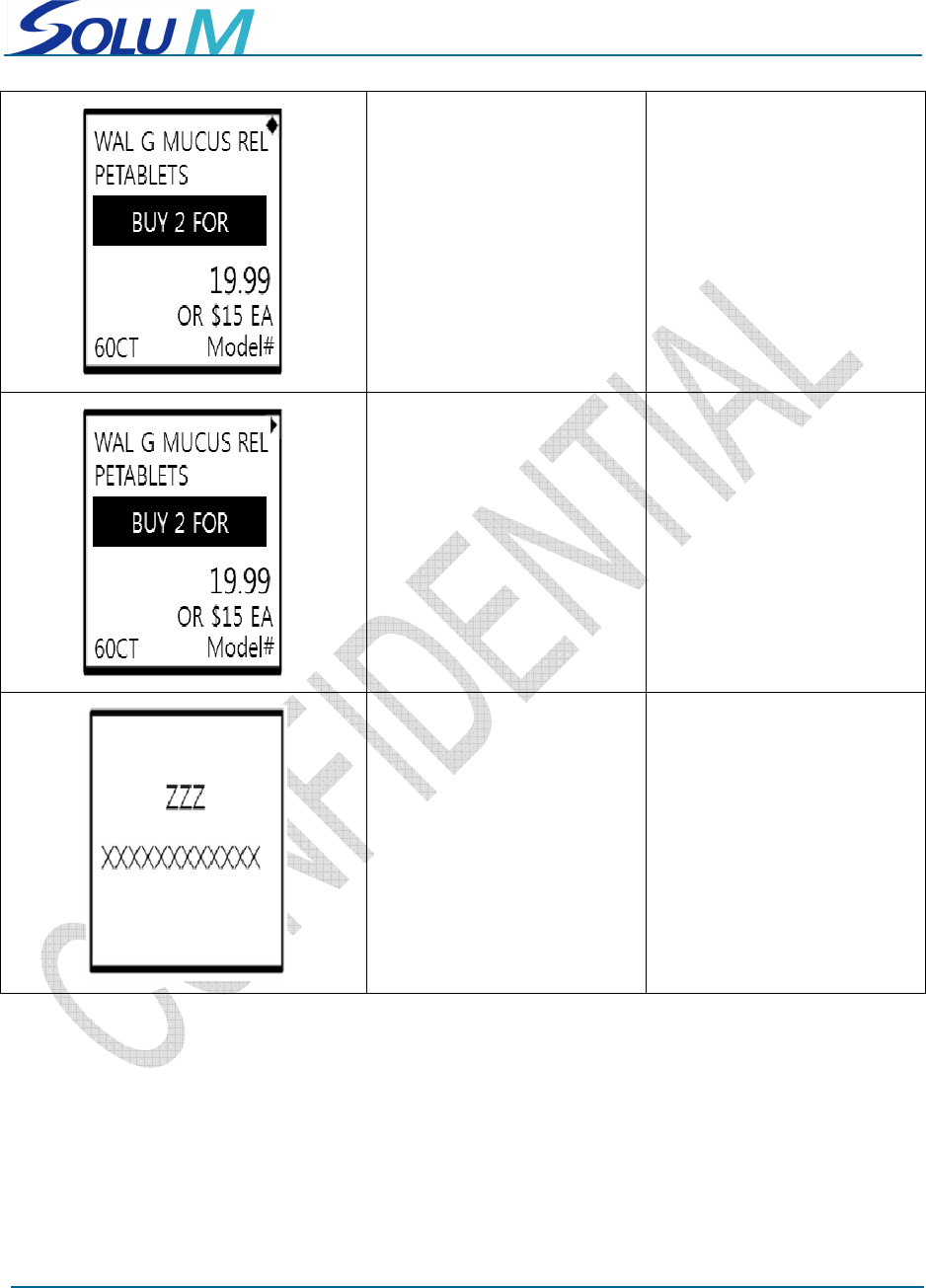

STATE 4 6
Connection to a GW is lost
(price and Rectangle on
upper right corner)
None
STATE 6 6
When connection is lost and
woken up by an RC
(blinks with the price and
Rectangle)
Starts to search GWs.
Woken up by an RC
STATE 4 1
Initial display
(Tag version, MAC address)
To clear an assigned tag
using a PDA
S-TAG Datasheet(ST-GM7400N)
Preliminary
REV 1.0 Solu-M Proprietary and Confidential 15/13

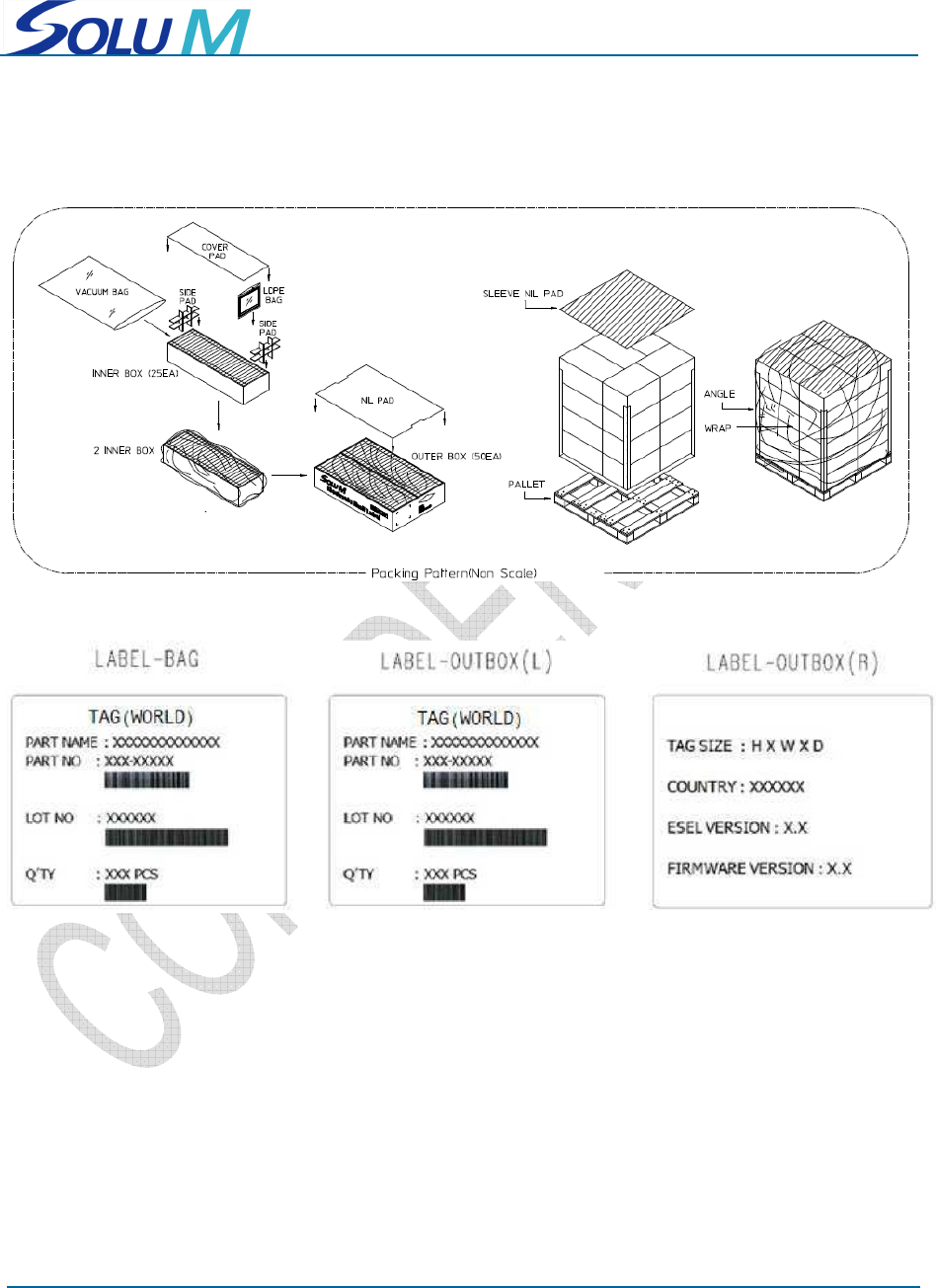

5 Package
S-TAG Datasheet(ST-GM7400N)
Preliminary
REV 1.0 Solu-M Proprietary and Confidential 16/13
6 Cautions for Treatment
Provisions should be made to protect against any damage to the product caused by improper handling.
It is highly recommended that the product should be installed within 3 months from the date of arrival in
the logistics hub. Recommended storage condition is in -20 ~ 60 Celsius degree, 35-70% RH environment.
This RF device operates on the 2.4GHz frequency band and can produce radio interference. The device,
therefore, may not be used for applications where safety of human lives is concerned.
6.1 Usage Environment
Take extra cautions when using this RF device in the vicinity of other electronic devices and appliances.
Most electronic devices and appliances use electromagnetic waves. Electromagnetic waves emitted by this
RF device can affect other electronic devices and appliances.
If using the device in an explosion hazard area, follow all safety regulations, instructions, and signals.
6.2 Storage and Use
Moisture and liquids can damage internal parts and circuit boards if allowed to enter into the device
itself.
Do not place or store the product on a sloped surface. The product may slide and fall off the
surface and damaged.
Use the product in temperatures ranging from 0 to +40 . Parts and circuits may be damaged if
used or stored under temperature extremes.
The display panel needs extra care when handling.
-
Do not apply any impacts on outside since e-Paper display is fragile.
-
Continuous exposure to excessive moisture (over 70% RH) or UV makes display lifetime
shortened.
-
Ghosting image may be appeared in temperature conditions of less than 15 Celsius degree.
Avoid areas with strong magnetism or subject to magnetism. Contact between the device and a
magnetic object can lead to malfunctions.
Do not place the product near heat-producing kitchen appliances like a stove or a microwave or in
the vicinity of highly pressurized containers.
S-TAG Datasheet(ST-GM7400N)
Preliminary
REV 1.0 Solu-M Proprietary and Confidential 17/13
External impact to the product, such as from being dropped, can damage the product or battery
casing can be separated.
Twisting and bending the product can damage the exterior casing and the internal components.
If this product operates abnormally in eliminating battery vinyl or replacing battery, you should
discharge it by contacting battery terminal (+) and (-).
This product uses 2.4GHz frequency band for wireless communication network. Radio
communications can be limited or affected by other applications which share same frequency band,
such as Wi-Fi, Bluetooth, ZigBee, etc.
Frequent communications, updates and screen renewals may reduce battery life time.
6.3 Battery Replacement
6.3.1 Audience
Authorized persons with the following knowledge are allowed to replace the battery.
Battery
Electronic assemblies like circuit board
Compliance of the instruction
Note : If not authorized person, it will not give any warranty.
6.3.2 Instructions
Risk of explosion through incorrect battery replacement.
Keep attention that your hands are dry before you start with replacement.
When replace the battery, please contact right person and get a instructions.
Note : Battery rarely has a little stain or leak.
6.3.3 Steps
1. Open the battery cover.
2. Take out the batteries.
3. Put in the new batteries.
4. Check the batteries direction.
5. Put the battery cover.
S-TAG Datasheet(ST-GM7400N)
Preliminary
REV 1.0 Solu-M Proprietary and Confidential 18/13

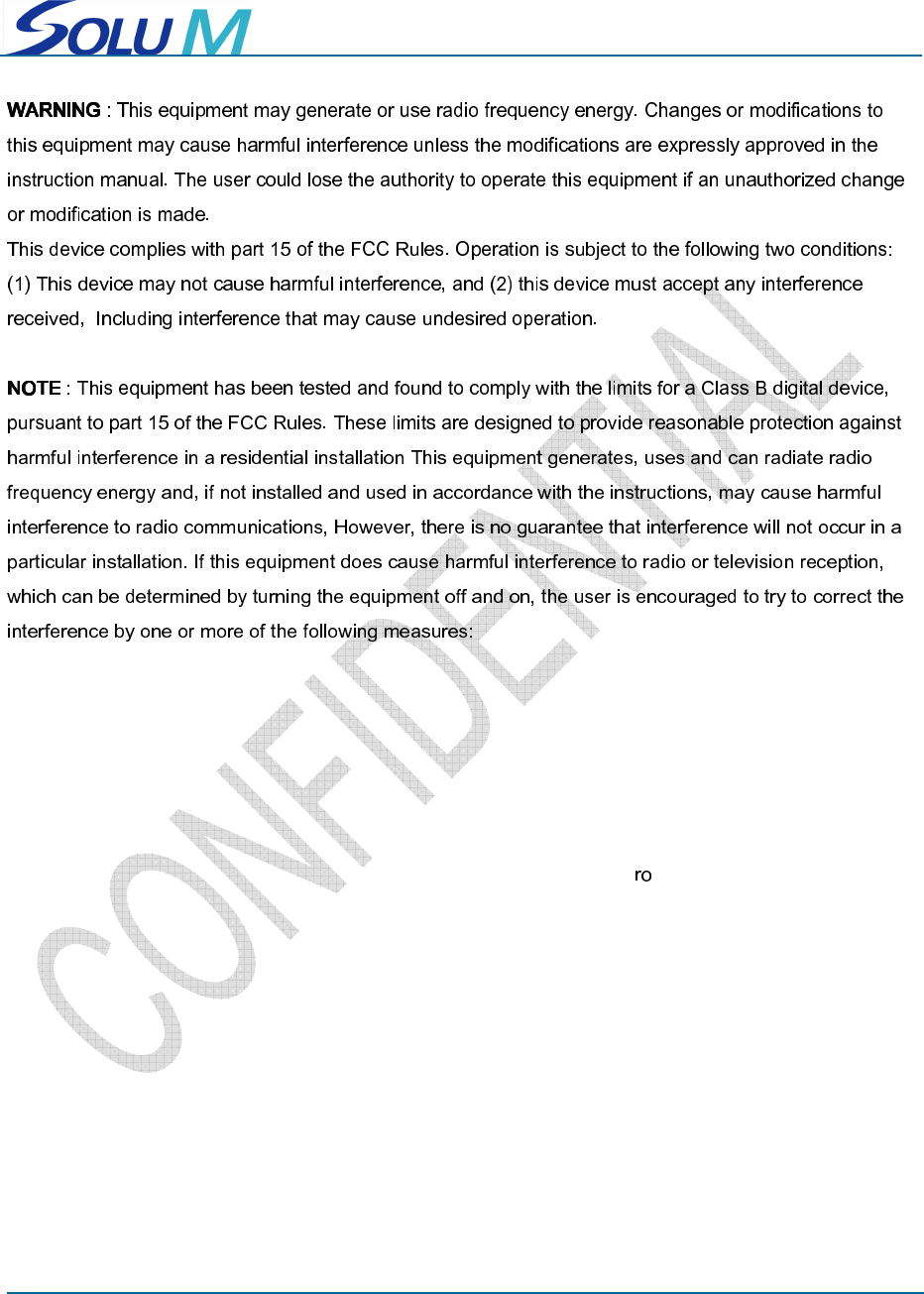

- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Caution
This device complies with FCC radiation exposure limits for an uncontrolled
environment. Avoid operating this device at a distance less than 20cm f m the user
