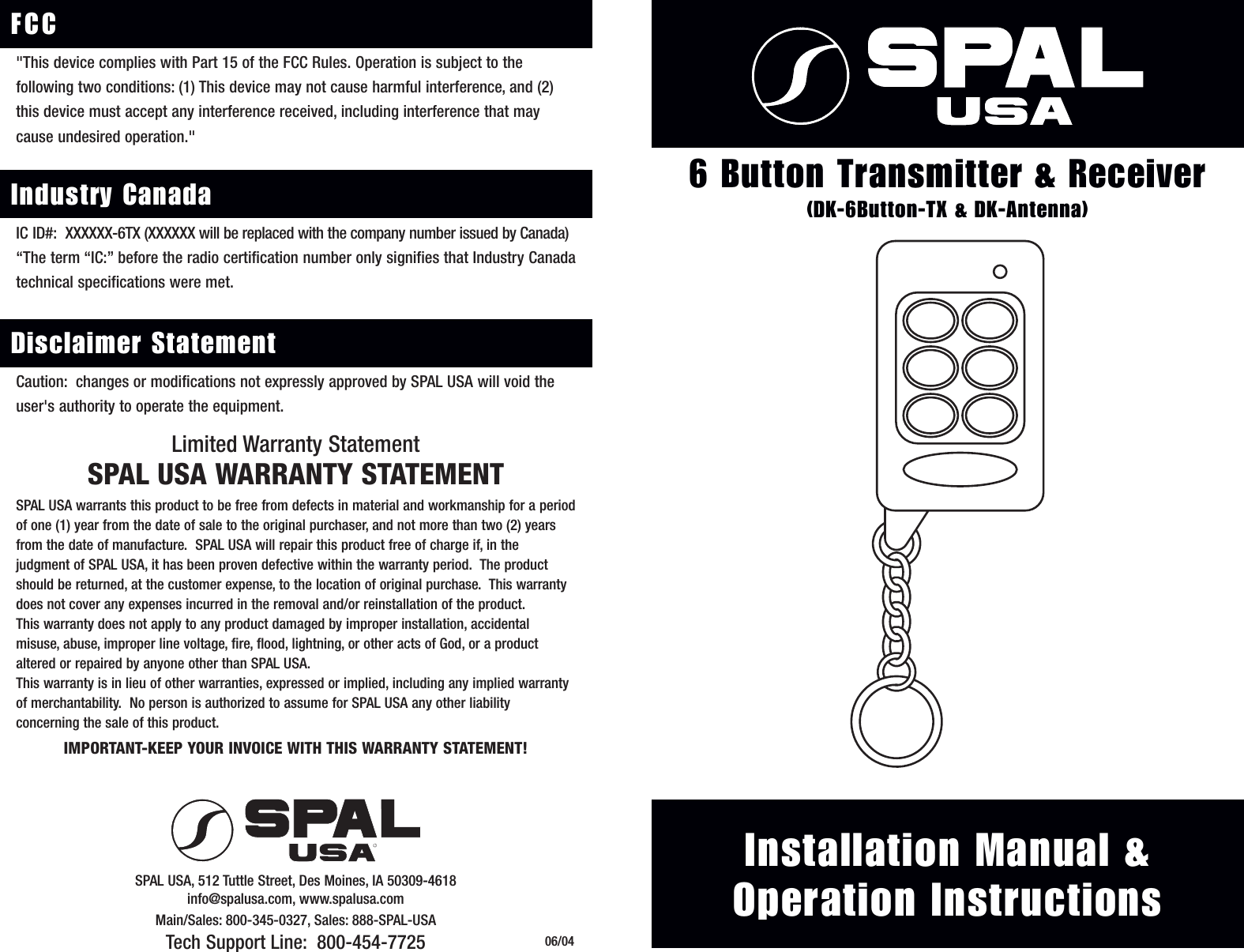

®Installation Manual &Operation Instructions6 Button Transmitter & Receiver(DK-6Button-TX & DK-Antenna)Limited Warranty StatementSPAL USA WARRANTY STATEMENTSPAL USA warrants this product to be free from defects in material and workmanship for a periodof one (1) year from the date of sale to the original purchaser, and not more than two (2) yearsfrom the date of manufacture. SPAL USA will repair this product free of charge if, in the judgment of SPAL USA, it has been proven defective within the warranty period. The productshould be returned, at the customer expense, to the location of original purchase. This warrantydoes not cover any expenses incurred in the removal and/or reinstallation of the product.This warranty does not apply to any product damaged by improper installation, accidental misuse, abuse, improper line voltage, fire, flood, lightning, or other acts of God, or a productaltered or repaired by anyone other than SPAL USA.This warranty is in lieu of other warranties, expressed or implied, including any implied warrantyof merchantability. No person is authorized to assume for SPAL USA any other liability concerning the sale of this product.IMPORTANT-KEEP YOUR INVOICE WITH THIS WARRANTY STATEMENT!SPAL USA, 512 Tuttle Street, Des Moines, IA 50309-4618info@spalusa.com, www.spalusa.comMain/Sales: 800-345-0327, Sales: 888-SPAL-USATech Support Line: 800-454-7725 06/04"This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2)this device must accept any interference received, including interference that maycause undesired operation."FCCIC ID#: XXXXXX-6TX (XXXXXX will be replaced with the company number issued by Canada)“The term “IC:” before the radio certification number only signifies that Industry Canadatechnical specifications were met. Industry CanadaCaution: changes or modifications not expressly approved by SPAL USA will void theuser's authority to operate the equipment.Disclaimer Statement

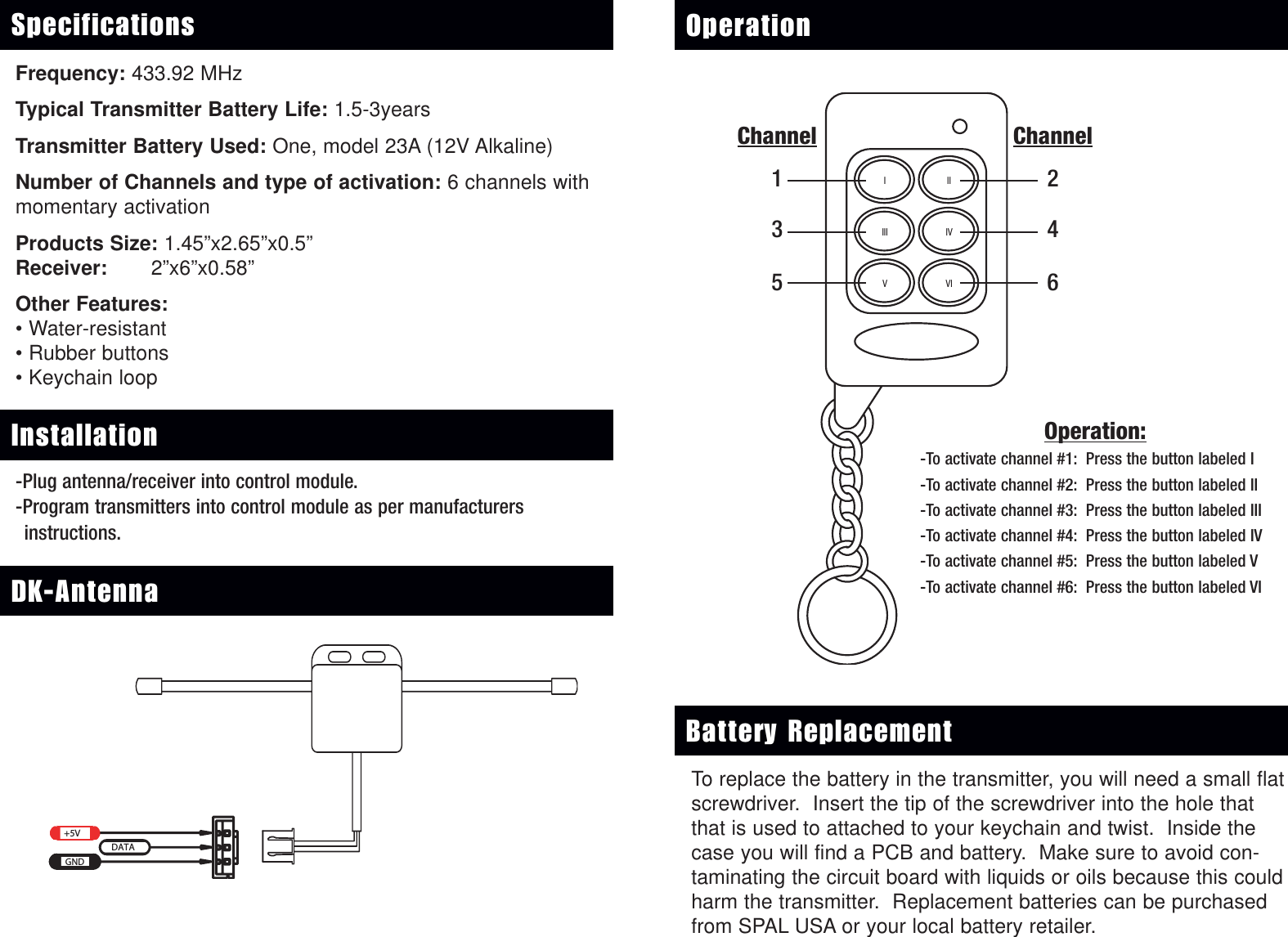

Frequency: 433.92 MHz Typical Transmitter Battery Life: 1.5-3yearsTransmitter Battery Used: One, model 23A (12V Alkaline)Number of Channels and type of activation: 6 channels withmomentary activationProducts Size: 1.45”x2.65”x0.5”Receiver: 2”x6”x0.58”Other Features:• Water-resistant• Rubber buttons• Keychain loopSpecifications OperationIIIIIIVVIIVChannel246Operation:-To activate channel #1: Press the button labeled I-To activate channel #2: Press the button labeled II-To activate channel #3: Press the button labeled III-To activate channel #4: Press the button labeled IV-To activate channel #5: Press the button labeled V-To activate channel #6: Press the button labeled VI+5VGNDDATAChannel135DK-Antenna+5VGNDDATAInstallation-Plug antenna/receiver into control module.-Program transmitters into control module as per manufacturers instructions.To replace the battery in the transmitter, you will need a small flatscrewdriver. Insert the tip of the screwdriver into the hole thatthat is used to attached to your keychain and twist. Inside thecase you will find a PCB and battery. Make sure to avoid con-taminating the circuit board with liquids or oils because this couldharm the transmitter. Replacement batteries can be purchasedfrom SPAL USA or your local battery retailer. Battery Replacement
