SPAL USA 6TX Automotive Aftermarket Transmitter User Manual Instructions1
SPAL USA Automotive Aftermarket Transmitter Instructions1
SPAL USA >
Users Manual
®
Installation Manual &
Operation Instructions
6 Button Transmitter & Receiver
(DK-6Button-TX & DK-Antenna)
Limited Warranty Statement
SPAL USA WARRANTY STATEMENT
SPAL USA warrants this product to be free from defects in material and workmanship for a period
of one (1) year from the date of sale to the original purchaser, and not more than two (2) years
from the date of manufacture. SPAL USA will repair this product free of charge if, in the
judgment of SPAL USA, it has been proven defective within the warranty period. The product
should be returned, at the customer expense, to the location of original purchase. This warranty
does not cover any expenses incurred in the removal and/or reinstallation of the product.
This warranty does not apply to any product damaged by improper installation, accidental
misuse, abuse, improper line voltage, fire, flood, lightning, or other acts of God, or a product
altered or repaired by anyone other than SPAL USA.
This warranty is in lieu of other warranties, expressed or implied, including any implied warranty
of merchantability. No person is authorized to assume for SPAL USA any other liability
concerning the sale of this product.
IMPORTANT-KEEP YOUR INVOICE WITH THIS WARRANTY STATEMENT!
SPAL USA, 512 Tuttle Street, Des Moines, IA 50309-4618
info@spalusa.com, www.spalusa.com
Main/Sales: 800-345-0327, Sales: 888-SPAL-USA
Tech Support Line: 800-454-7725 06/04
"This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation."
FCC
IC ID#: XXXXXX-6TX (XXXXXX will be replaced with the company number issued by Canada)
“The term “IC:” before the radio certification number only signifies that Industry Canada
technical specifications were met.
Industry Canada
Caution: changes or modifications not expressly approved by SPAL USA will void the
user's authority to operate the equipment.
Disclaimer Statement
Frequency: 433.92 MHz
Typical Transmitter Battery Life: 1.5-3years
Transmitter Battery Used: One, model 23A (12V Alkaline)
Number of Channels and type of activation: 6 channels with
momentary activation
Products Size: 1.45”x2.65”x0.5”
Receiver: 2”x6”x0.58”
Other Features:
• Water-resistant
• Rubber buttons
• Keychain loop

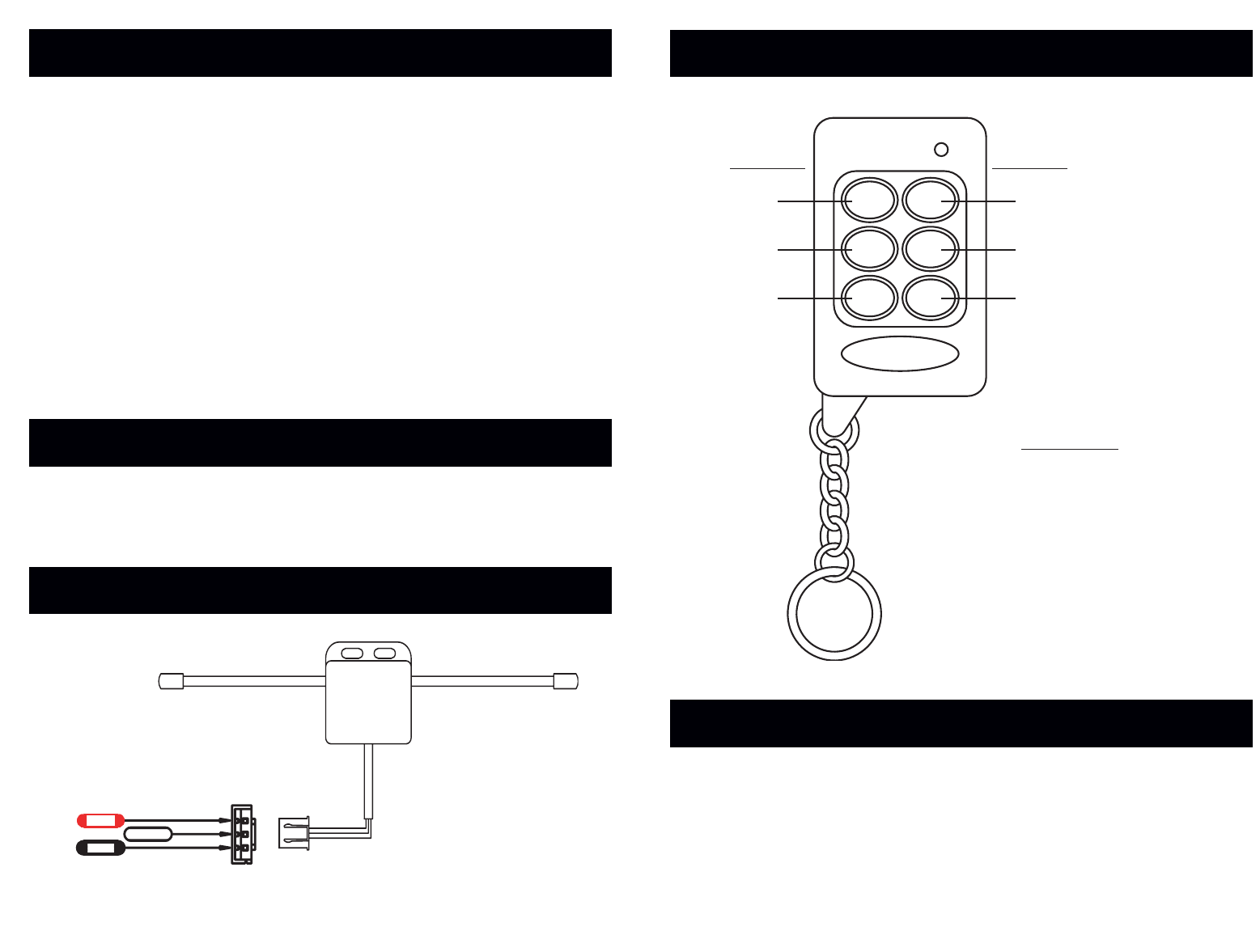

Specifications Operation
III
III
VVI
IV
Channel
2
4
6
Operation:
-To activate channel #1: Press the button labeled I
-To activate channel #2: Press the button labeled II
-To activate channel #3: Press the button labeled III
-To activate channel #4: Press the button labeled IV
-To activate channel #5: Press the button labeled V
-To activate channel #6: Press the button labeled VI
+5V
GND
DATA
Channel
1
3
5
DK-Antenna
+5V
GND
DATA
Installation
-Plug antenna/receiver into control module.
-Program transmitters into control module as per manufacturers
instructions.
To replace the battery in the transmitter, you will need a small flat
screwdriver. Insert the tip of the screwdriver into the hole that
that is used to attached to your keychain and twist. Inside the
case you will find a PCB and battery. Make sure to avoid con-
taminating the circuit board with liquids or oils because this could
harm the transmitter. Replacement batteries can be purchased
from SPAL USA or your local battery retailer.
Battery Replacement
