Assembly, instructions and Rules

313 Waterloo Valley Road /Budd Lake, NJ 07828 /www.sportcraft.com

I English I

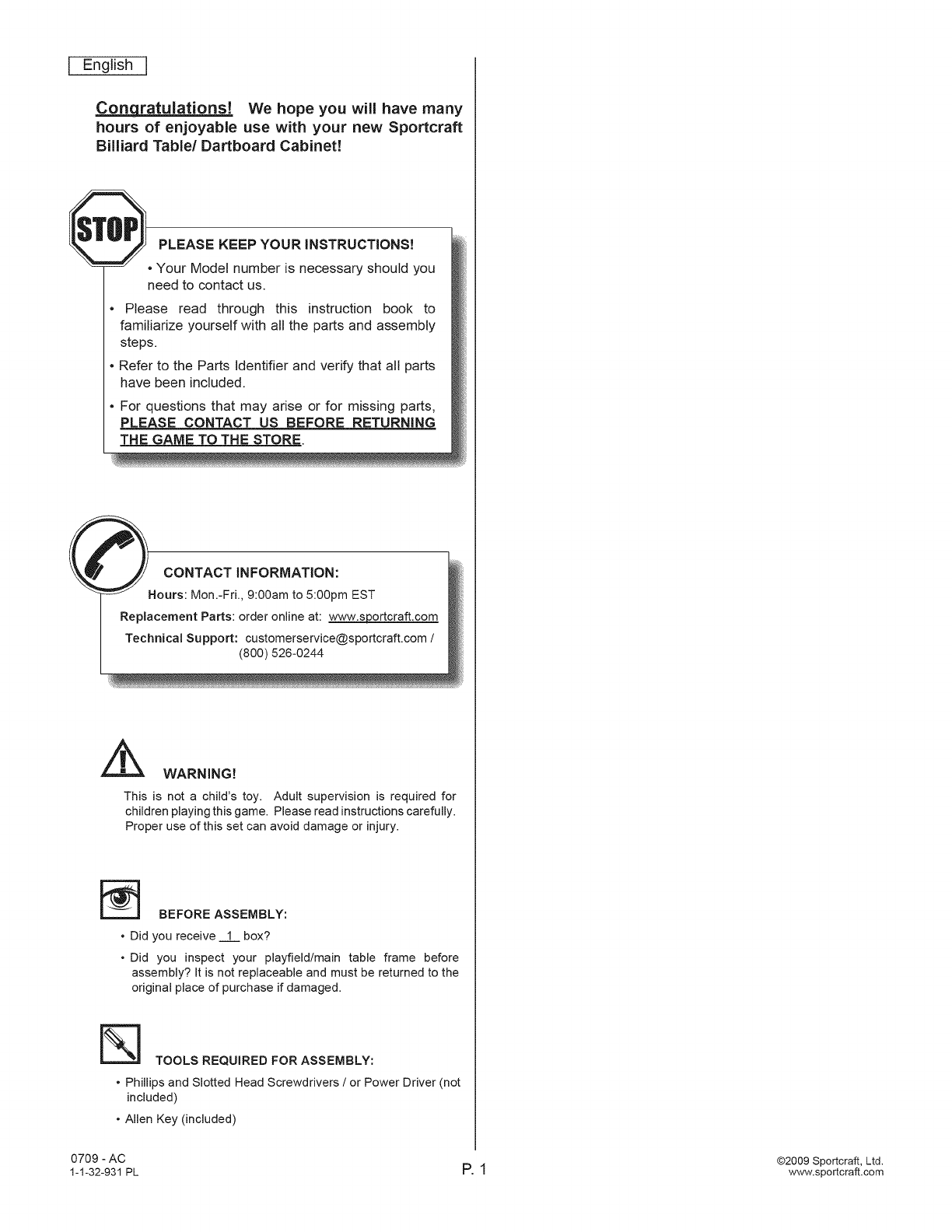

Conqratulations! We hope you will have many

hours of enjoyable use with your new Sportcraft

Billiard Table/Dartboard Cabinet!

PLEASE KEEP YOUR INSTRUCTIONS!

Your Model number is necessary should you

need to contact us.

Please read through this instruction book to

familiarize yourself with all the parts and assembly

steps.

Refer to the Parts Identifier and verify that all parts

have been included.

For questions that may arise or for missing parts,

PLEASE CONTACT US BEFORE RETURNING

THE GAME TO THE STORE.

CONTACT INFORMATION:

Hours: Mon.-Fri., 9:00am to 5:O0pm EST

Replacement Parts: order online at: www.sportcraft.com

Technical Support: customerservice@sportcraft.com /

(800) 526-0244

WARNING!

This is not a child's toy. Adult supervision is required for

children playing this game. Please read instructions carefully.

Proper use of this set can avoid damage or injury.

BEFORE ASSEMBLY:

• Did you receive 1 box?

• Did you inspect your playfield/main table frame before

assembly? It is not replaceable and must be returned to the

original place of purchase if damaged.

TOOLS REQUIRED FOR ASSEMBLY:

• Phillips and Slotted Head Screwdrivers /or Power Driver (not

included)

• Allen Key (included)

0709 - AC @2009 Sportcraft, Ltd.

1-1-32-931 PL P. 1 www.sportcraft.com

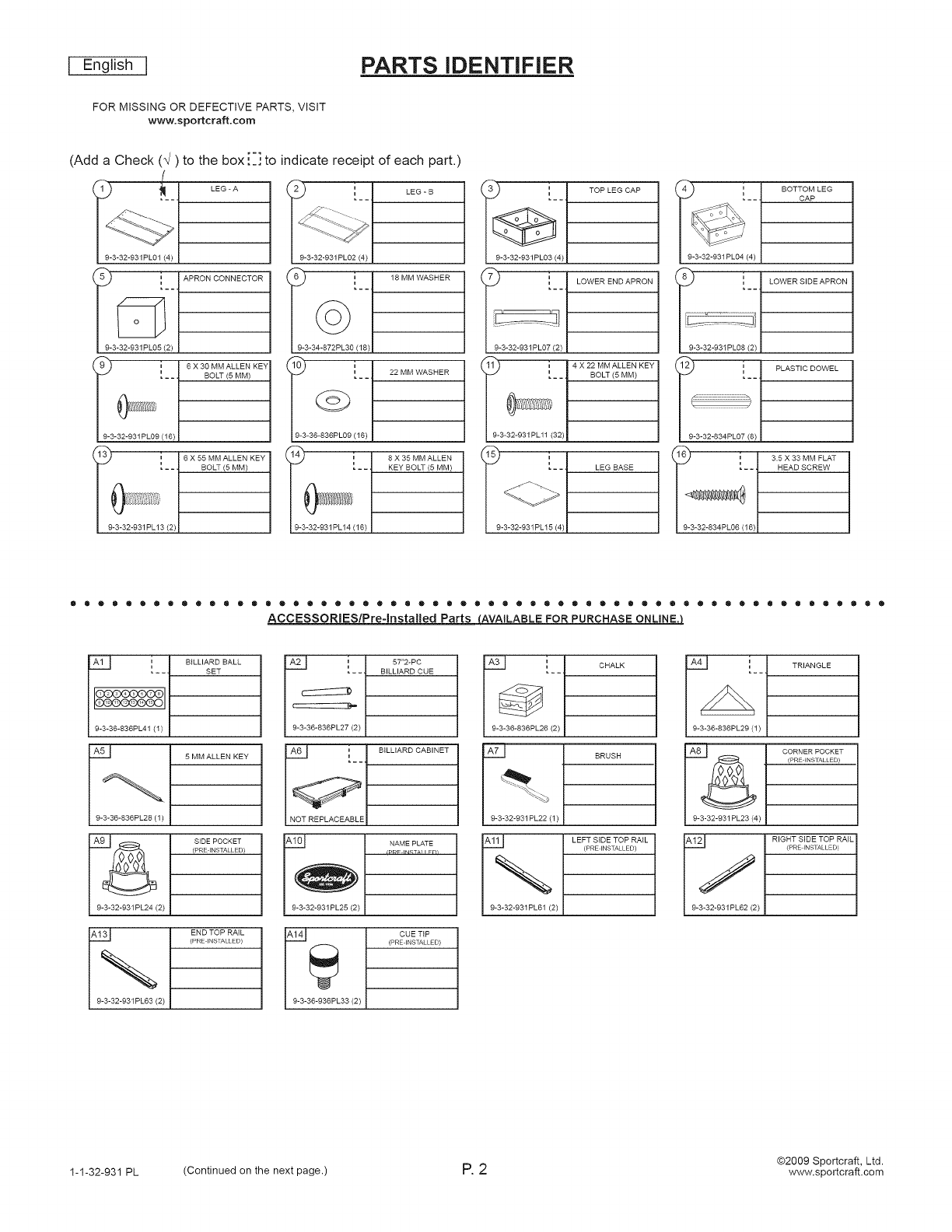

I English I PARTS iDENTiFiER

FOR MISSING OR DEFECTIVE PARTS, VISIT

www.sportcraft.com

(Add a Check (_/) to the box [_']to indicate receipt of each part.)

LEG - A

9-3-32-931PL01 (4)

[ _ _ BOLT (5 MM)

I 9-3-32-931PL09 (16)J

l_ [ - - 6 X 55 MM ALLEN KEY

BOLT (5 MM)

I 9-3-32-931PL13 (2)J

_-3 i LEG - B

-32-931 PL02 (4)

I3 = 1 18 MM WASHER

[--

-34-872PL30 (18)

-32-931PLI4 (16)

Ii_ I TOP LEG CAP

9-3-32-931PL03 4

7°_1

[ - - LOWER END APRON

I 9-3-32-931PL07 (2) |

BOLT (5 MM)

L9_

! iIB°TTO LEG

-32-931 PL04 (4)

[ - - LOWER SIDE APRON

I 9-3-32-931PL98 (2 / |

_ I PLASTIC DOWEL

| 9-3-32-834PL0g (8) _

l :lHEAD SCREW

)

•••®®•• ®•••••®®••®®•®Q•®••®®••®••••®®®••®®•Q••®•• ®®••®•••••

ACCESSORIES/Pre4nstalled Parts _AVAILABLE FOR PURCHASE ONLINE3

A1 I

9-3-36-836PL41 (1)

A__

9-3-36-836PL28 (1)

9-3-32-931 PL24 (2)

9-3-32-931 PL63 (2)

BILLIARD BALL

SET

5 MM ALLEN KEY

SIDE POCKET

(PRE INSTALLED)

END TOP RAIL

(PRE INSTALLED)

A2_ ;5T'2-PC

.... BILLIARD CUE

9-3-36-836PL27 (2)

A6_ i BILLIARD CABINET

NOT REPLACEABLE

2-931PL25 (2)

CUE TIP

(PRE INSTALLED)

9-3-36-936PL33 (2)

9-3-36-836PL26 (2)

9-3-32-931 PL22 (1)

9-3-32-931PL61 (2)

CHALK

BRUSH

LEFT SiDE TOP RAiL

(PRE INSTALLED)

9-3-36-836PL29 (1) J

9-3-32-931 PL23 (4)

9_-3_-32-931 PL62 (2)

TRIANGLE

CORNERPOCKET

(PREINSTALLED)

i

RIGHT SIDE TOP RAIL| l

{PREINSTALLED)

@2009 Sportcraft, Ltd.

1-1-32-931 PL (Continued on the next page.) P. 2 www.sportcraft.com

] English ] ASSEMBLYINSTRUCTIONS:

We recommend that two adults work together to assemble this table.

The table wifl be assembled upside down and then turned over onto its legs.

This is avery heavy table and turning it over wifl require at least two strong

adults.

We suggest that you use the bottom carton as a clean flat work area to protect

the table.

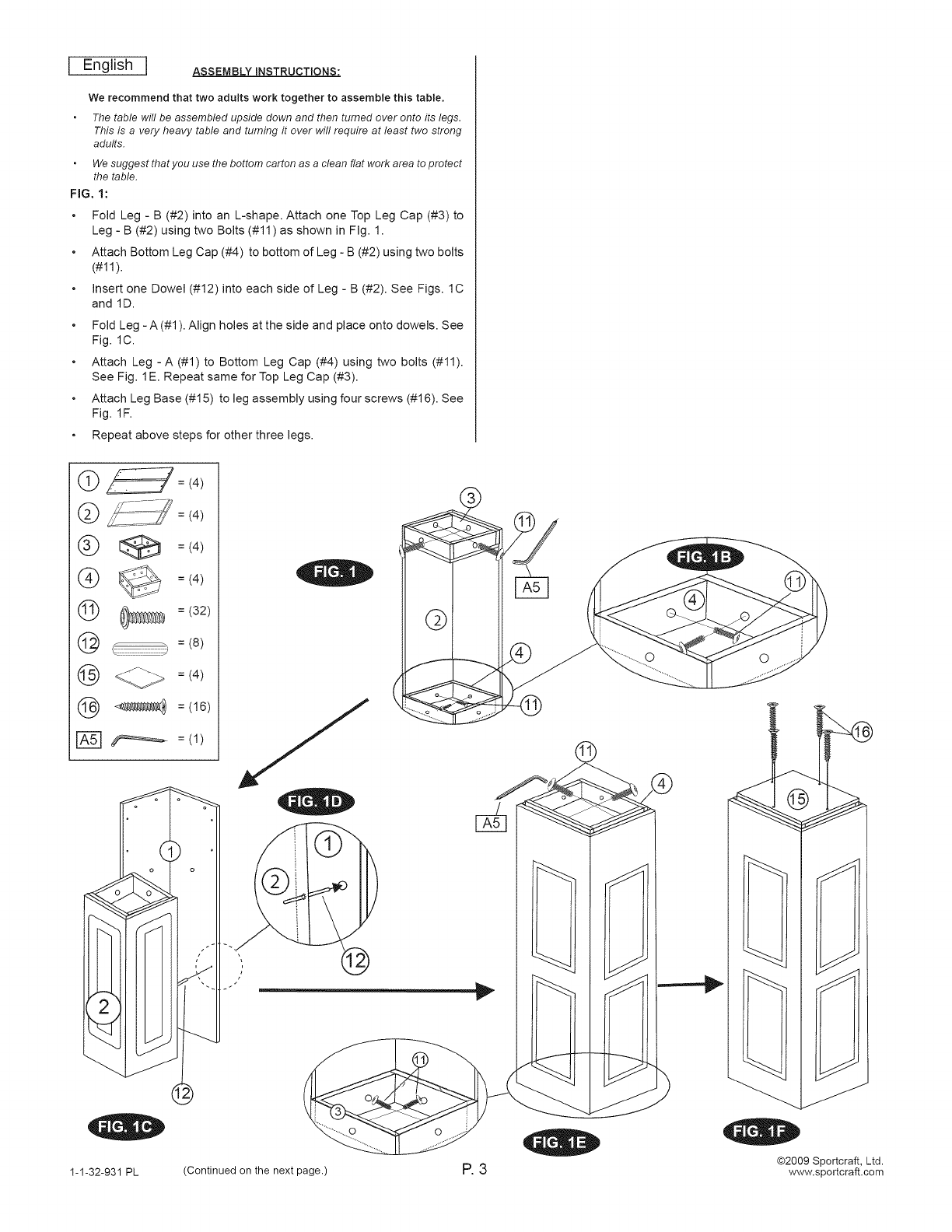

FIG. 1:

Fold Leg - B (#2) into an L-shape. Attach one Top Leg Cap (#3) to

Leg - B (#2) using two Bolts (#11) as shown in Fig. 1.

Attach Bottom Leg Cap (#4) to bottom of Leg - B (#2) using two bolts

(#11).

Insert one Dowel (#12) into each side of Leg - B (#2). See Figs. 1C

and 1D.

Fold Leg - A (#1). Align holes at the side and place onto dowels. See

Fig. 1C.

Attach Leg -A (#1) to Bottom Leg Cap (#4) using two bolts (#11).

See Fig. 1E. Repeat same for Top Leg Cap (#3).

Attach Leg Base (#15) to leg assembly using four screws (#16). See

Fig. 1F.

Repeat above steps for other three legs.

@ _ = (4)

....... _ =

(_ __.__-_ (4)

®

@ _ =(4)

® =/32)

@= (8)

@ <.._ =(4)

@ _ = (16)

['_ _ =(1)

@2009 Sportcraft, Ltd.

1-1-32-931 PL (Continued on the next page.) P. 3 www.sportcraft.com

I English I

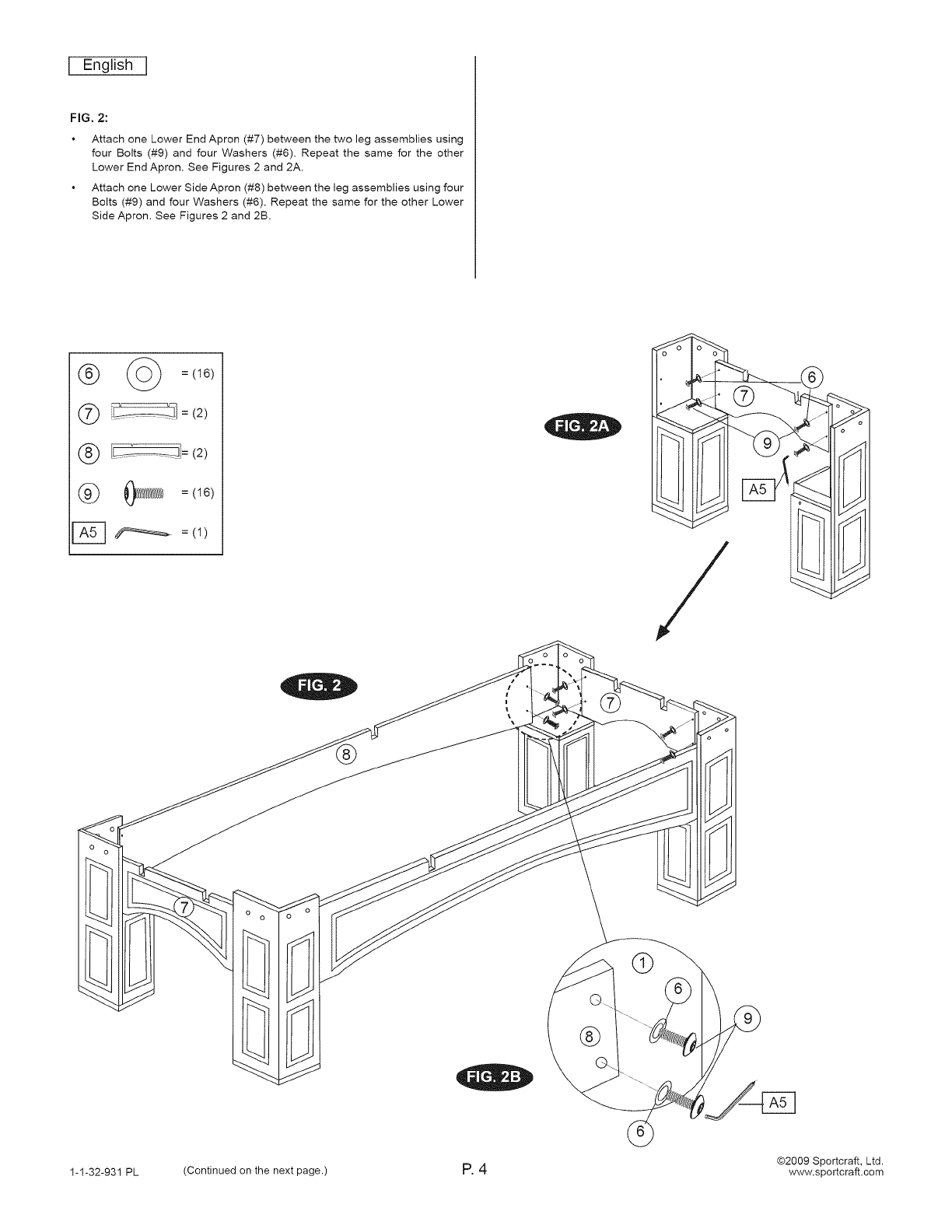

FIG. 2:

Attach one Lower End Apron (#7) between the two leg assemblies using

four Bolts (#9) and four Washers (#6). Repeat the same for the other

Lower End Apron, See Figures 2 and 2A.

Attach one Lower Side Apron (#8) between the leg assemblies using four

Bolts (#9) and four Washers (#6). Repeat the same for the other Lower

Side Apron. See Figures 2 and 2B.

/

®

@2009 Sportcraft, Ltd.

1-1-32-931 PL (Continued on the next page.) P. 4 www.sportcraft.com

I English I

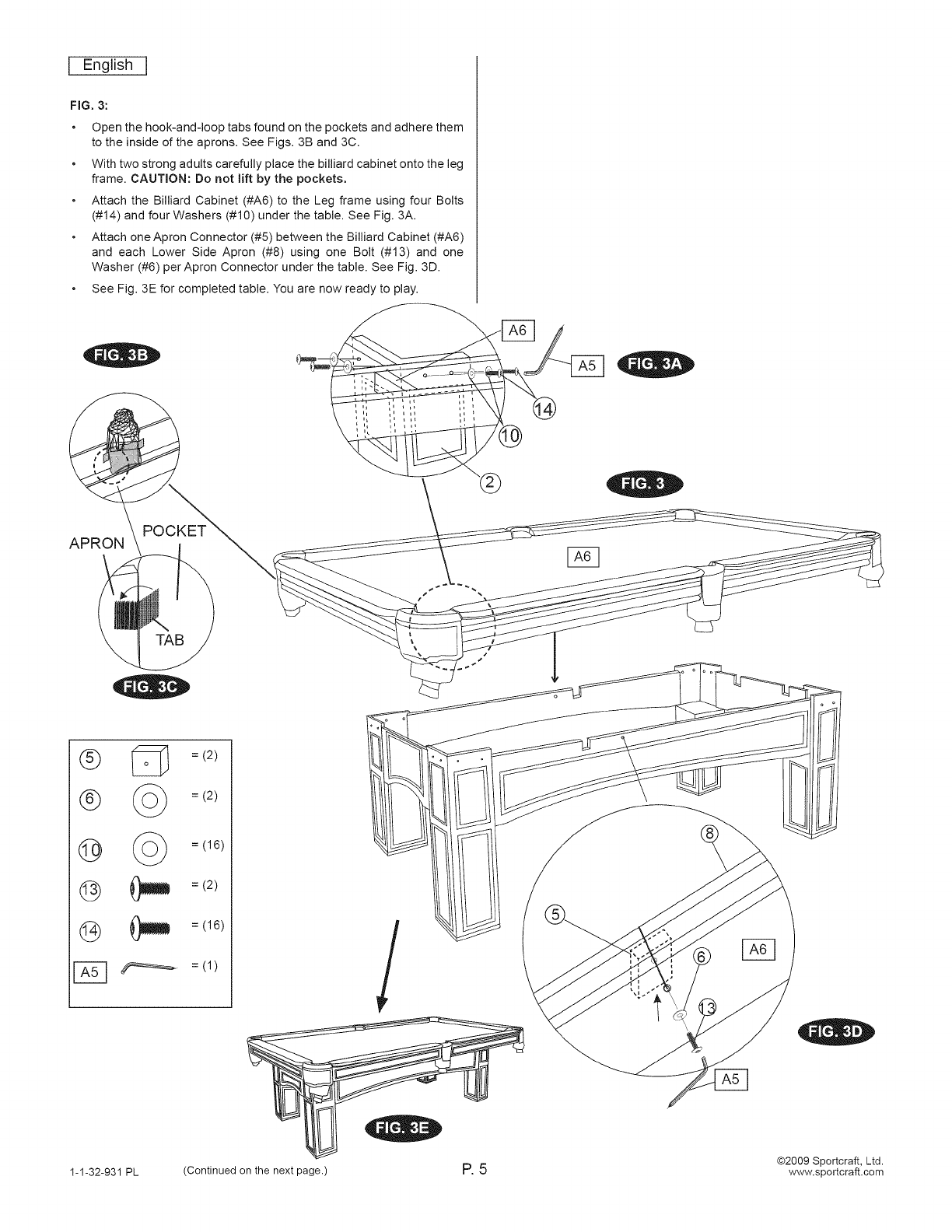

FIG. 3:

Open the hook-and-loop tabs found on the pockets and adhere them

to the inside of the aprons. See Figs. 3B and 3C.

With two strong adults carefully place the billiard cabinet onto the leg

frame. CAUTION: Do not lift by the pockets.

Attach the Billiard Cabinet (#A6) to the Leg frame using four Bolts

(#14) and four Washers (#10) under the table. See Fig. 3A.

Attach one Apron Connector (#5) between the Billiard Cabinet (#A6)

and each Lower Side Apron (#8) using one Bolt (#13) and one

Washer (#6) per Apron Connector under the table. See Fig. 3D.

See Fig. 3E for completed table. You are now ready to play.

APRON

@

@

©

= (2)

= (2)

= (16)

= (2)

= (16)

= (1)

1-1-32-931 PL (Continued on the next page.) P. 5 @2009 Sportcraft, Ltd.

www, sportcraft.com

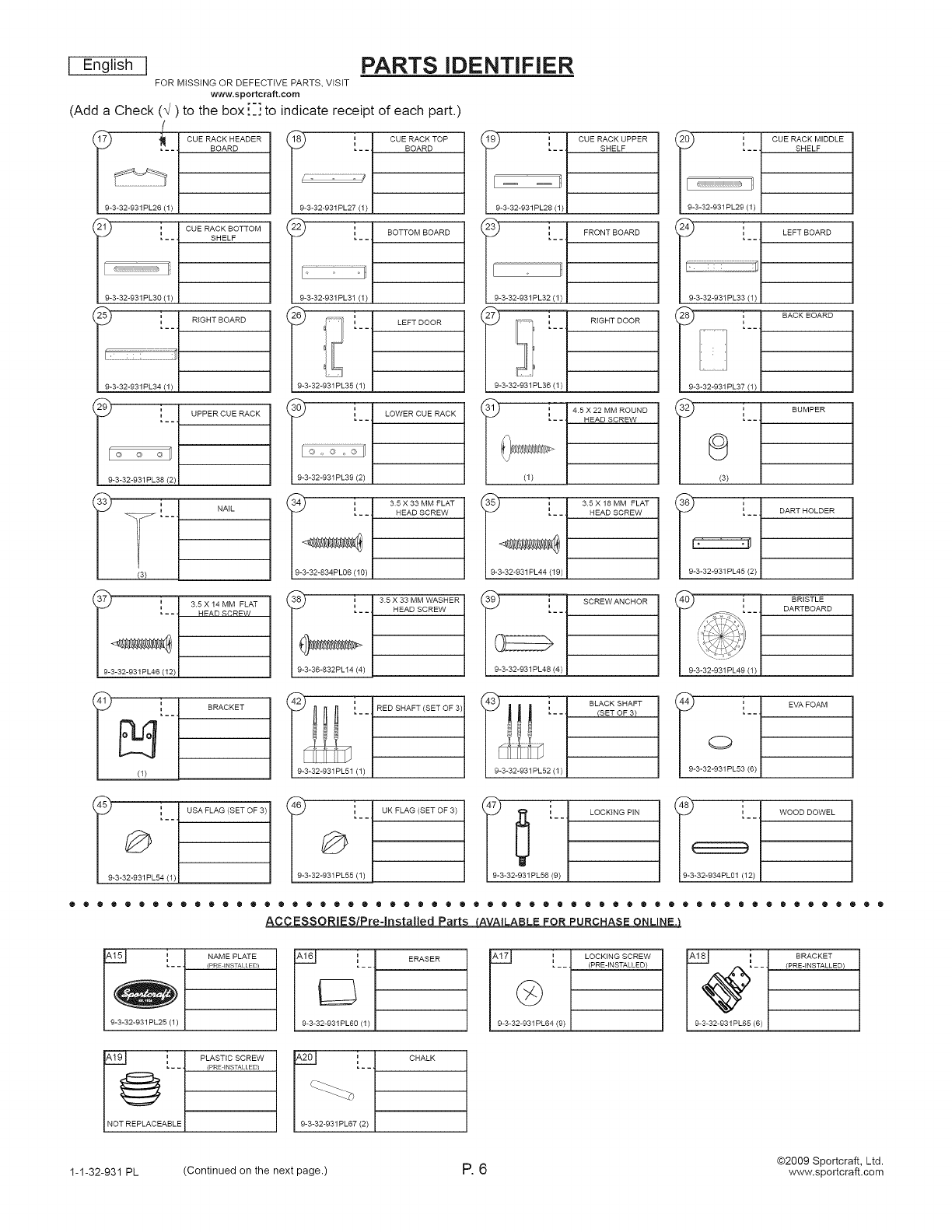

English I PARTS iDENTiFiER

FOR MISSING OR DEFECTIVE PARTS, VISIT

www.sportcraft.com

to the box [_']to indicate receipt of each part.)

CUE RACK HEADER

BOARD

CUE RACKBOTTOM

SHELF

RIGHT BOARD

UPPER CUE RACK

NAIL

i [--1 CUBRAOKTOP

BOARD

3-32-931PL27 (1)

BOTTOM BOARD

[ - -

3-32-931PL31 (1)

_ [--1 LOWER CUE RACK

9-3-32-931 PL39 {2)

[_ - t 35 X 33 MM FLAT

HEAD SCREW

I

9-3-32-834PL06 (10) J

[ - t 35 X 33 MM WASHER

HEAD SCREW

I

I 9-3-36-832PL14 (4) |

(Add a Check (_/)

3-32-931PL26 (1) J

21 ,

I 9-3-32-931PL30(1) |

[__

_ 9-3-32-931PL34 (1) 1

[__

! 9-3-32-931PL38 (2) m

3.5 X 14 MM FLAT

HFAD £C.RFW

RED SHAFT (SET OF 3)

BRACKET

I 1 CUE RACK UPPER

19 [ - - SHELF

C _

-3-32-931 PL28 (1)

_ i FRONTBOARD

9-3-32-931PL32 (1)

I_('_)_- 1 45 X 22 MM ROUND

- HEAD SCREW

[__-1 35X18MM FLAT

HEAD SCREW

[ 9-3-32-931PL44 (19) J

SCREWANCHOR

143j L_

[ 9-3-32-931PL52 (1) J

BLACK SHAFT

(SET OF3}

r

[ 9-3-32-931PL55 (1) J

UK FLAG (SET OF 3) LOCKING PIN

[__ [ CUE RACK MIDDLE

SHELF

I 9-3-32-931PL29 (1)

, - - LEFT BOARD

I 9-3-32-931PL33 (1) |

[I _ - 1 DART HOLDER

[ 9-3-32-931PL4S (2)J

(1)

EVA FOAM

[9-3-32-934PL01 (12) [

WOOD DOWEL

•®• I ® • I • ® •• ® 8• ® • I ®Q I • ® ••••Q® • I•® Q • ® ® • ® ® I®Q I ®••• ® • I ® • I • ® •• ® ®

ACCESSORIES/Pre-lnstalled Parts LAVAILABLE FOR PURCHASE ONLINEJ

" NAME PLATE

=- - (PRE INSTALLED)

9-3-32-931PL25 (1)

ERASER i LOCKING SCREW

=

___ (PRE-INSTALLED)

9-3-32-931PL64 (9) 9-3-32-931 PL65 (6)

BRACKET

(PRE-INSTALLED)

"l PLASTIC SCREW

=- - (PRE INSTALLED)

NOT REPLACEABLE

=

9-3-32-931PL67 (2)

CHALK

@2009 Sportcraft, Ltd.

1-1-32-931 PL (Continued on the next page.) P. 6 www.sportcraft.com

I English I

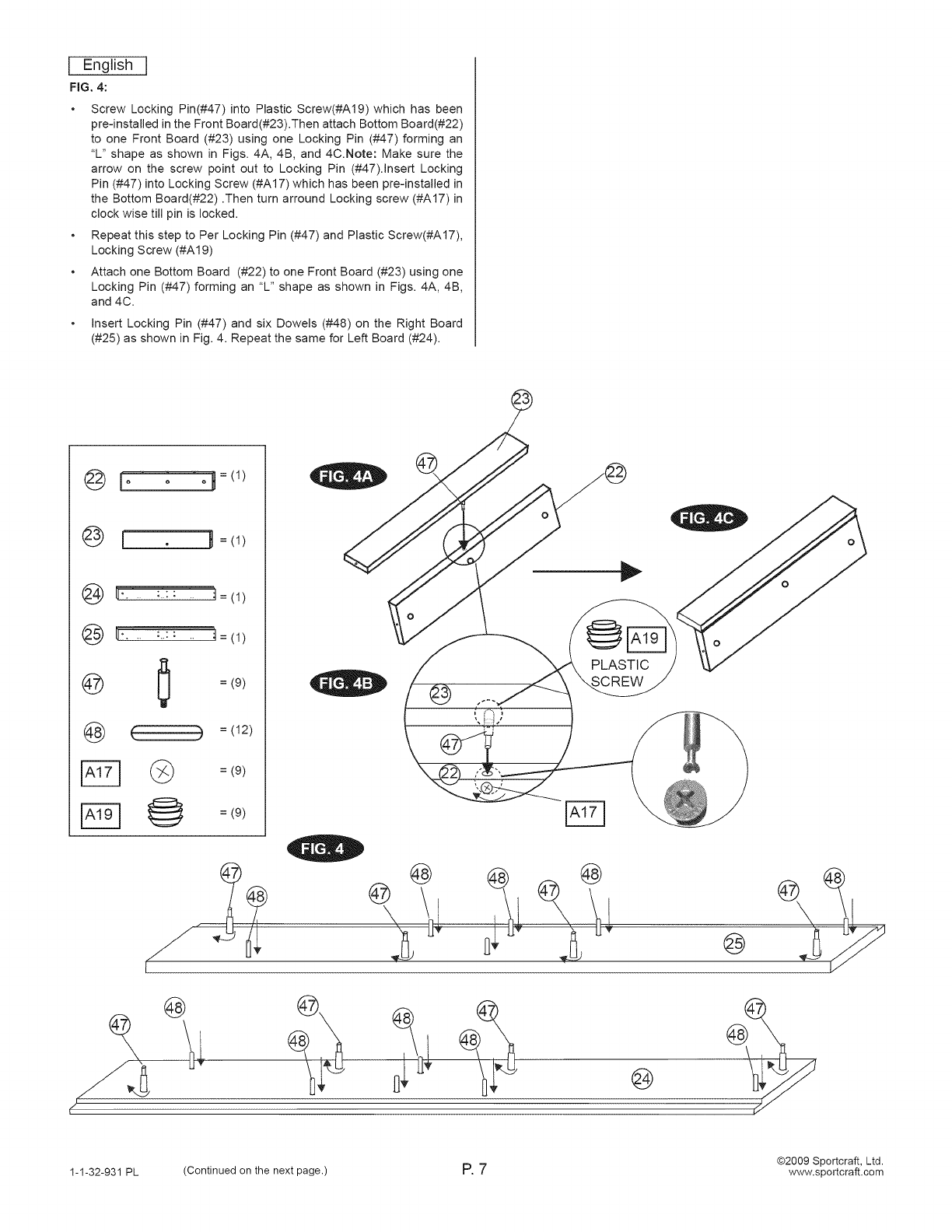

FIG, 4:

Screw Locking Pin(#47)into Plastic Screw(#A19)which has been

prednstalled in the Front Board(#23).Then attach Bottom Board(#22)

to one Front Board (#23) using one Locking Pin (#47) forming an

"L" shape as shown in Figs. 4A, 4B, and 4C.Note: Make sure the

arrow on the screw point out to Locking Pin (#47).Insert Locking

Pin (#47) into Locking Screw (#A17) which has been prednstalled Jn

the Bottom Board(#22) .Then turn arround Locking screw (#A17) in

clock wise till pin is locked.

Repeat this step to Per Locking Pin (#47) and Plastic Screw(#A17),

Locking Screw (#A19)

Attach one Bottom Board (#22) to one Front Board (#23) using one

Locking Pin (#47) forming an "L" shape as shown in Figs. 4A, 4B,

and 4C.

insert Locking Pin (#47) and six Dowels (#48) on the Right Board

(#25) as shown in Fig. 4. Repeat the same for Left Board (#24).

@ lo o oi /1

@ ( li=/1

@

@

@

@

@

@

_1 = (1

= (9)

€ ) (12)

= (9)

= (9)

PLASTIC

SCREW

@

@ ® @

@

@2009 Sportcraft, Ltd.

1-1-32-931 PL (Continued on the next page.) P. 7 www.sportcraft.com

I English I

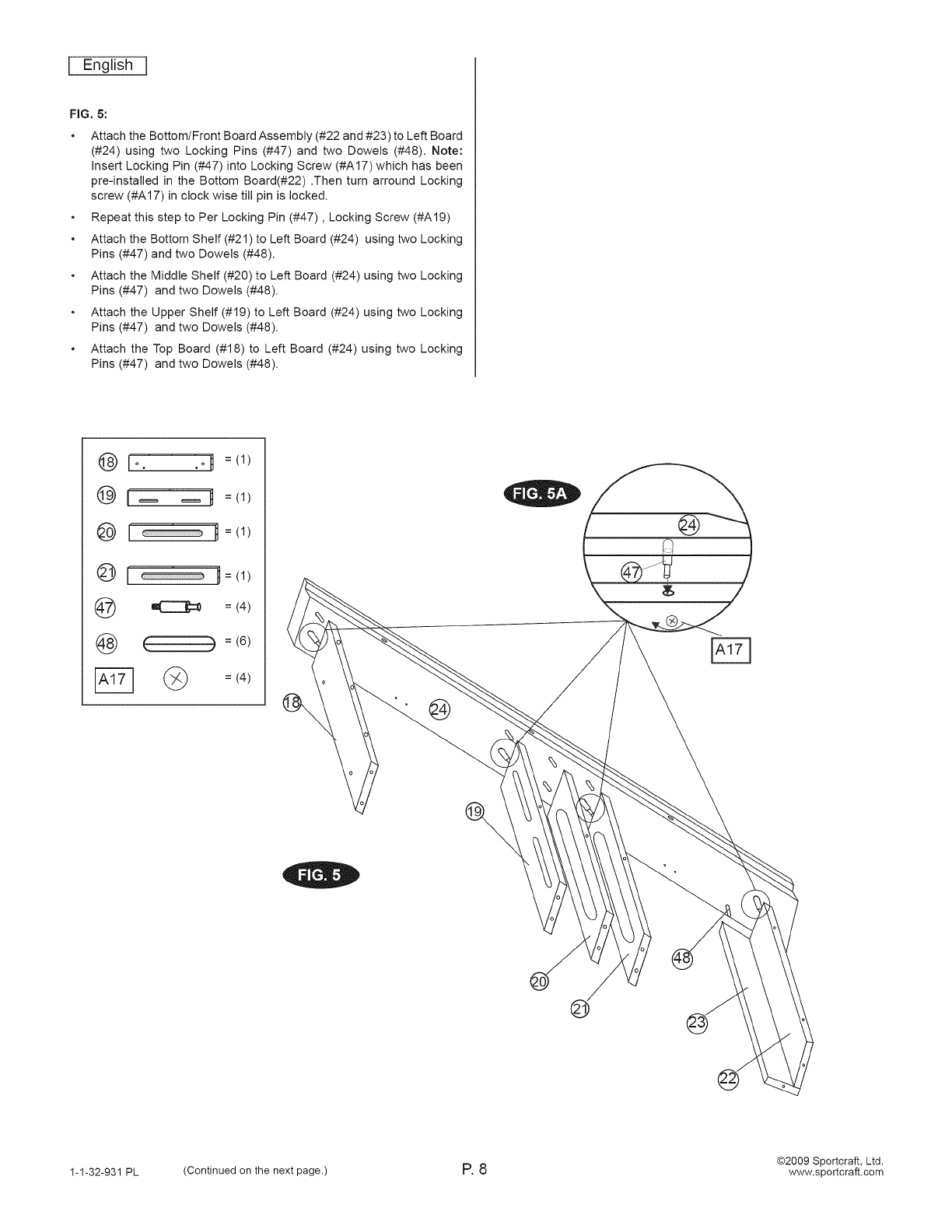

FIG. 5:

Attach the Bottom/Front Board Assembly (#22 and #23) to Left Board

(#24) using two Locking Pins (#47) and two Dowels (#48). Note:

Insert Locking Pin (#47) into Locking Screw (#A17)which has been

prednstalled in the Bottom Board(#22) .Then turn arround Locking

screw (#A17) in clock wise till pin is locked.

Repeat this step to Per Locking Pin (#47), Locking Screw (#A19)

Attach the Bottom Shelf (#21) to Left Board (#24) using two Locking

Pins (#47) and two Dowels (#48).

Attach the Middle Shelf (#20) to Left Board (#24) using two Locking

Pins (#47) and two Dowels (#48).

Attach the Upper Shelf (#19) to Left Board (#24) using two Locking

Pins (#47) and two Dowels (#48).

Attach the Top Board (#18) to Left Board (#24) using two Locking

Pins (#47) and two Dowels (#48).

@ i o. o_ =(1)

@ I _ _ _ =/1)

@ I _=/1)

@ I ':....................................................................................................._ _= (1)

@ _ = (4)

@ ( b (6)

@ :<4> @

@

@2009 Sportcraft, Ltd.

1-1-32-931 PL (Continued on the next page.) P. 8 www.sportcraft.com

I English I

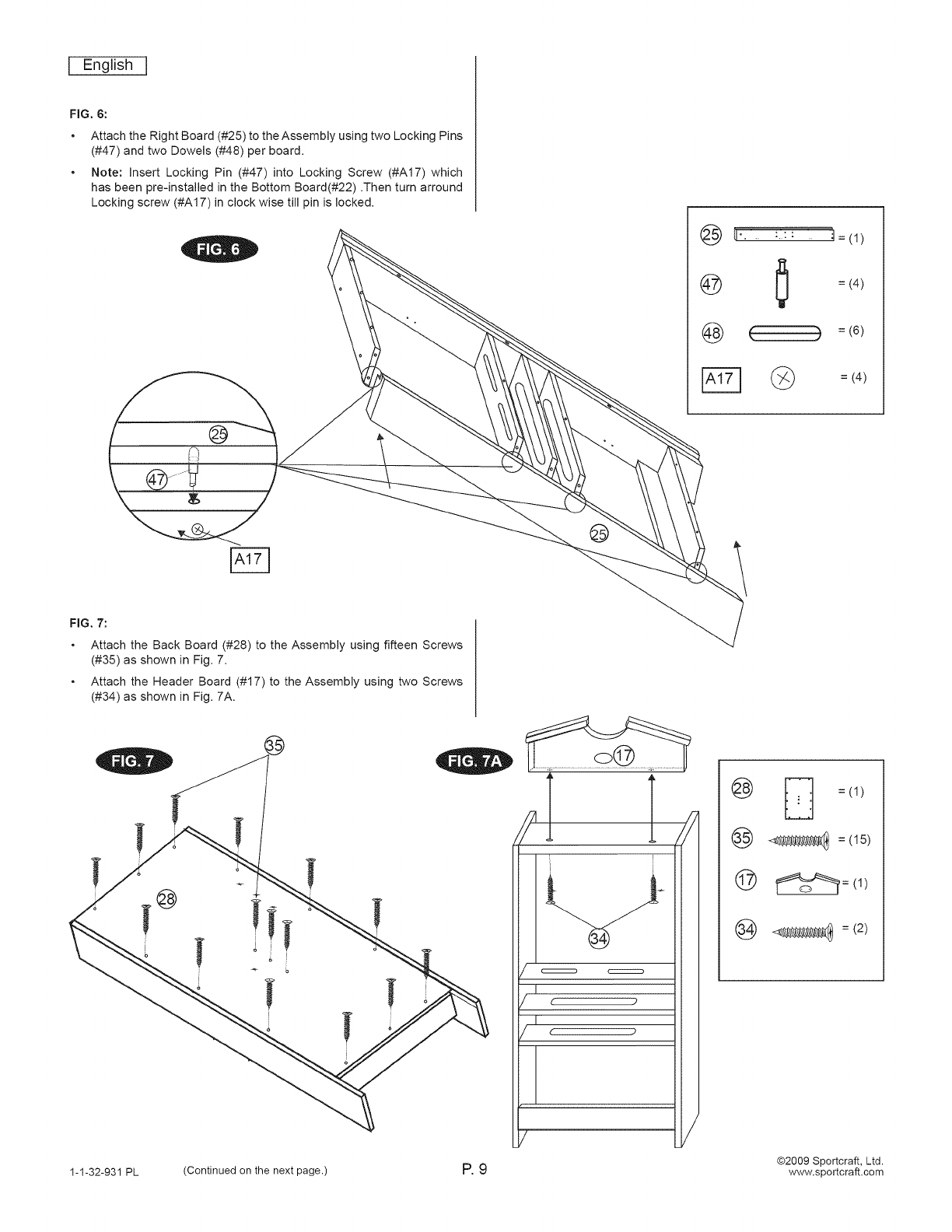

FIG. 6:

Attach the Right Board (#25) to theAssembly using two Locking Pins

(#47) and two Dowels (#48) per board.

Note: insert Locking Pin (#47) into Locking Screw (#A17) which

has been pre-installed in the Bottom Board(#22) .Then turn arround

Locking screw (#A17) in clock wise till pin is locked.

@

t'%

@

FIG. 7:

Attach the Back Board (#28) to the Assembly using fifteen Screws

(#35) as shown in Fig. 7.

Attach the Header Board (#17) to the Assembly using two Screws

(#34) as shown in Fig. 7A.

@

i

i

(@) [_ =(1)

@ _ =(15)

@ _=(1)

@ _ = (2)

@2009 Sportcraft, Ltd.

1-1-32-931 PL (Continued on the next page.) P. 9 www.sportcraft.com

I English I

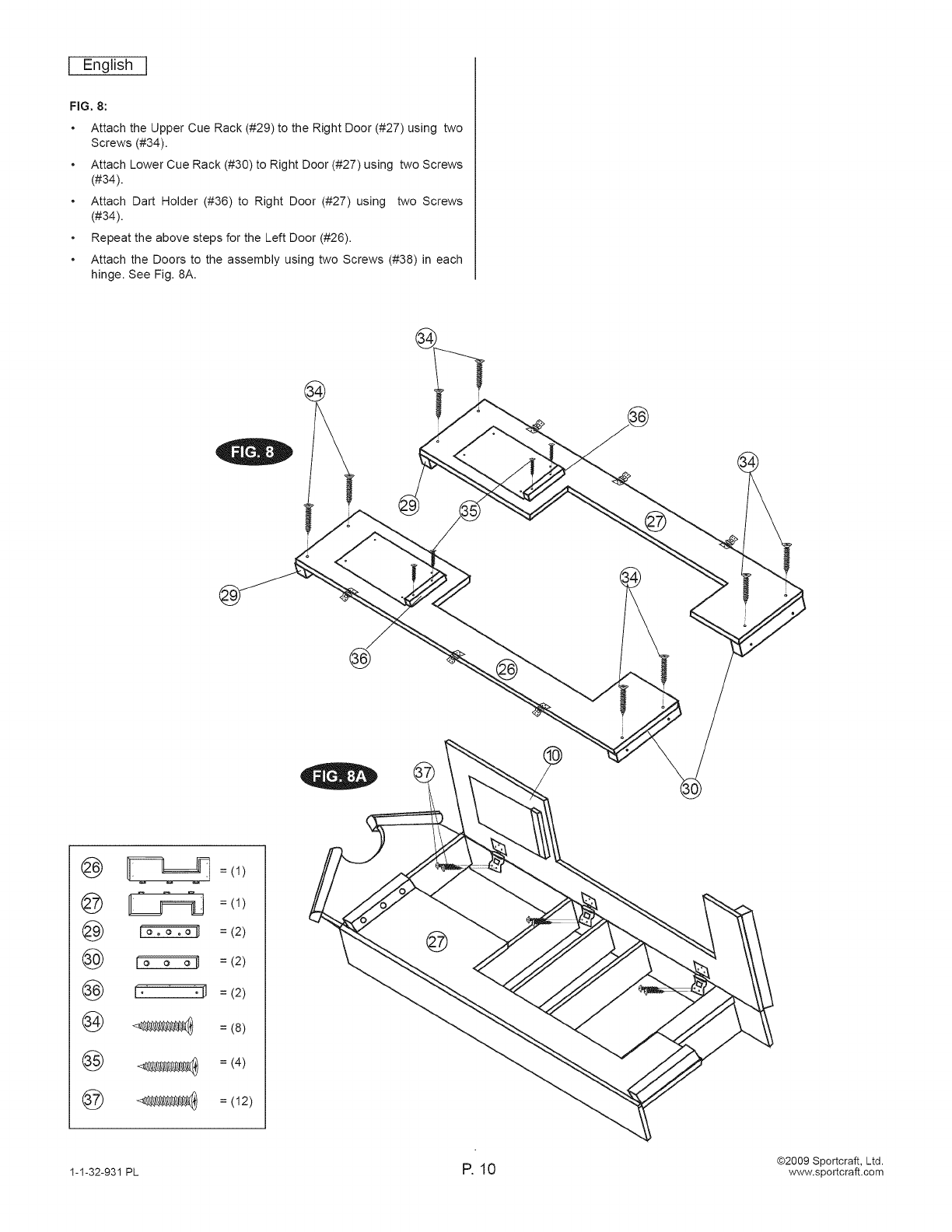

FIG. 8:

Attach the Upper Cue Rack (#29) to the Right Door (#27) using two

Screws (#34).

Attach Lower Cue Rack (#30) to Right Door (#27) using two Screws

(#34).

Attach Dart Holder (#36) to Right Door (#27) using two Screws

(#34).

Repeat the above steps for the Left Door (#26).

Attach the Doors to the assembly using two Screws (#38) in each

hinge. See Fig. 8A.

(_) _ =(1)

_ = (2)

(_) _ = (2)

_) f o " :!] =(2)

® :(4)

@2009 Sportcraft, Ltd.

1-1-32-931 PL P. 10 www.sportcraft.com

I English I

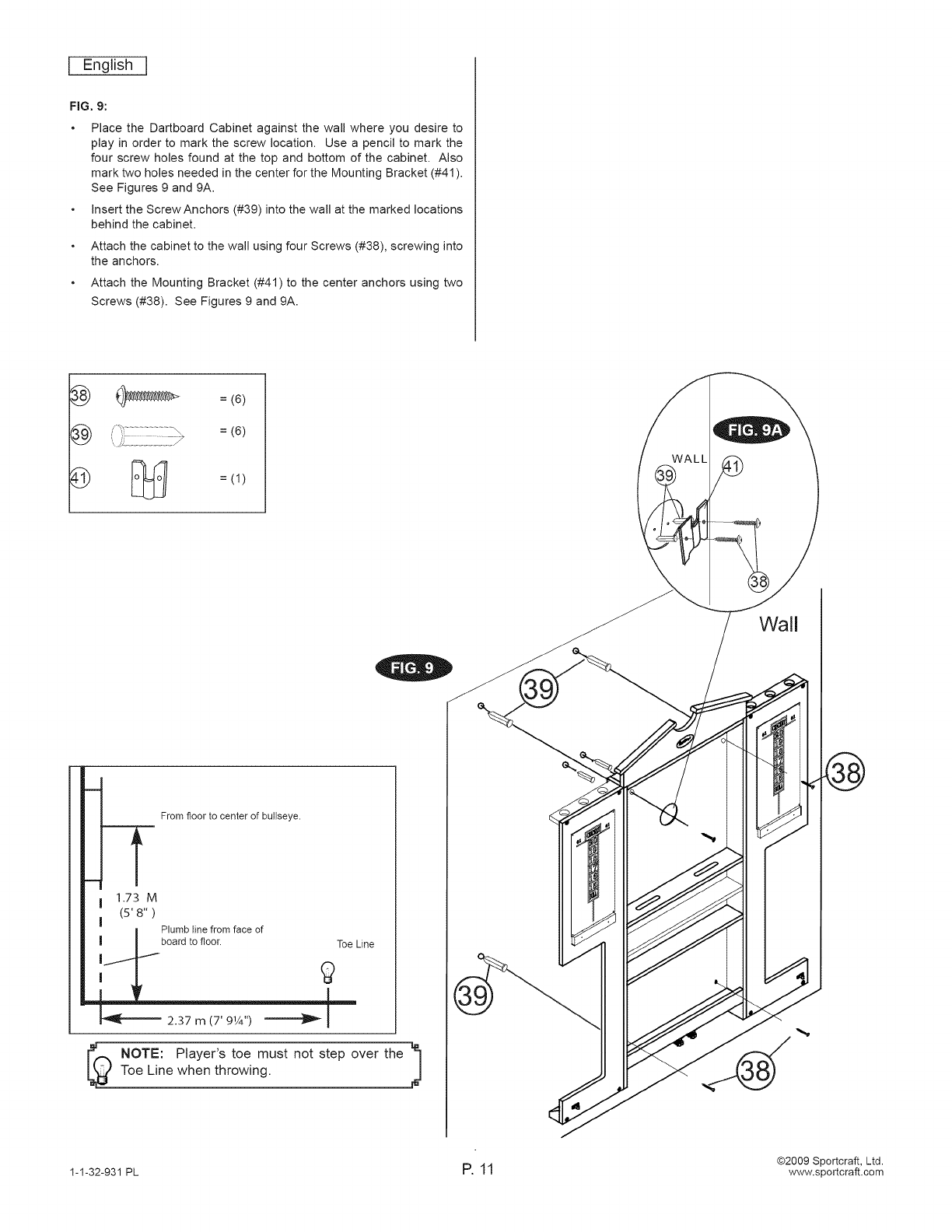

FIG. 9:

Place the Dartboard Cabinet against the wall where you desire to

play in order to mark the screw location. Use apencil to mark the

four screw holes found at the top and bottom of the cabinet. Also

mark two holes needed in the center for the Mounting Bracket (#41).

See Figures 9 and 9A.

insert the ScrewAnchors (#39) into the wall at the marked locations

behind the cabinet.

Attach the cabinet to the wall using four Screws (#38), screwing into

the anchors.

Attach the Mounting Bracket (#41) to the center anchors using two

Screws (#38). See Figures 9 and 9A.

@

= (6)

= (6)

=(1)

WALL

Wall

[ 1.73 M

I (5' 8" )

From floor to center of bullseye.

Plumbline fromface of

boardto floor. ToeLine

2,37 m (7' 91/4'') _

Cf._ NOTE.: Player's toe must not step over the _1

k_Toe Line when throwing.

@2009 Sportcraft, Ltd.

1-1-32-931 PL P. 11 www.sportcraft.com

I English I

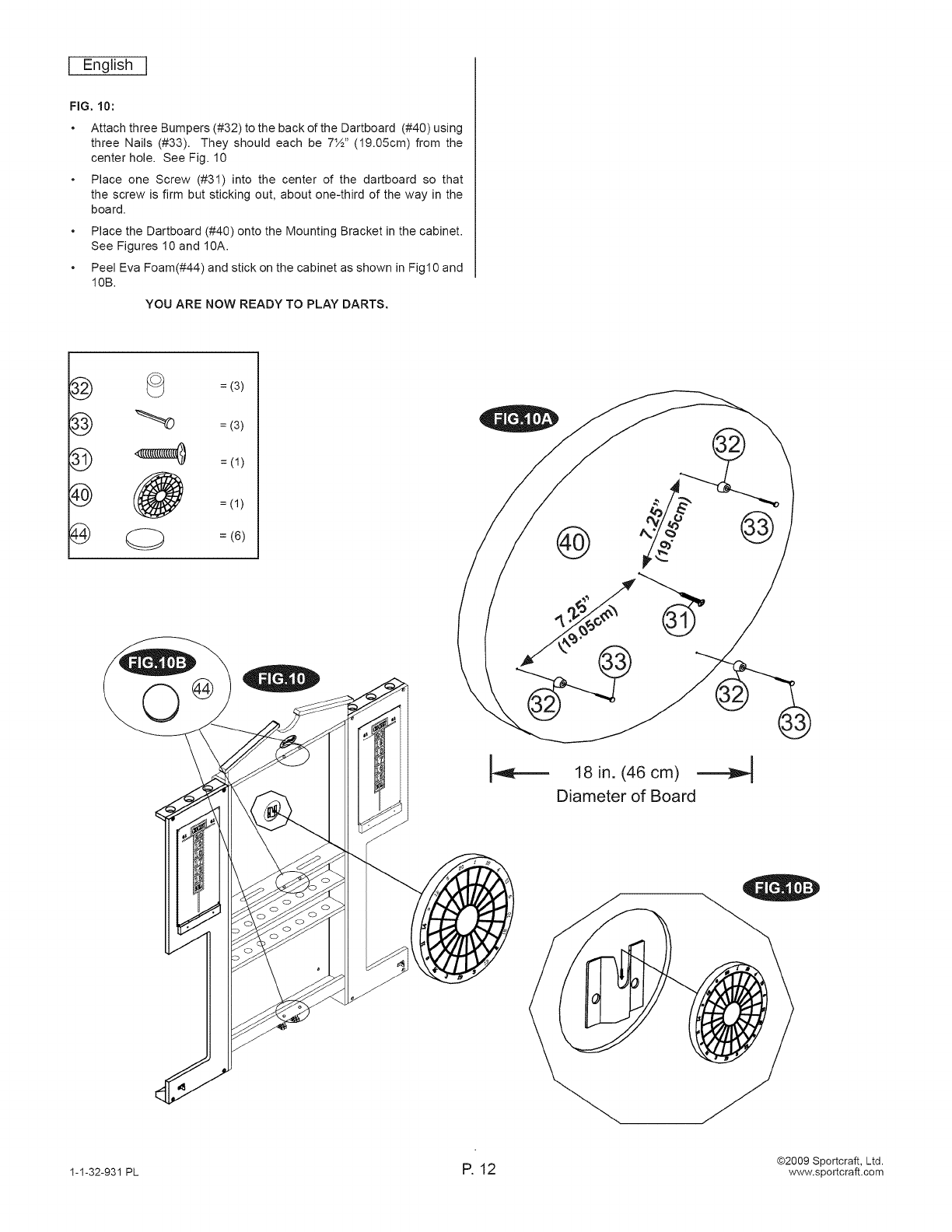

FIG. 10:

Attach three Bumpers (#32) to the back of the Dartboard (#40) using

three Nails (#33). They should each be 7½" (19.05cm) from the

center hole. See Fig. 10

Place one Screw (#31) into the center of the dartboard so that

the screw is firm but sticking out, about one-third of the way in the

board.

Place the Dartboard (#40) onto the Mounting Bracket in the cabinet.

See Figures 10 and 10A.

Peel Eva Foam(#44) and stick on the cabinet as shown in Fig10 and

10B.

YOU ARE NOW READY TO PLAY DARTS.

_ = (3)

_-- 18 in. (46 cm) --_

Diameter of Board

@2009 Sportcraft, Ltd.

1-1-32-931 PL P. 12 www.sportcraft.com

I English[

TABLE

(Mesa)

POCKETS

(Buchaeas)

LEGS

(Piernas)

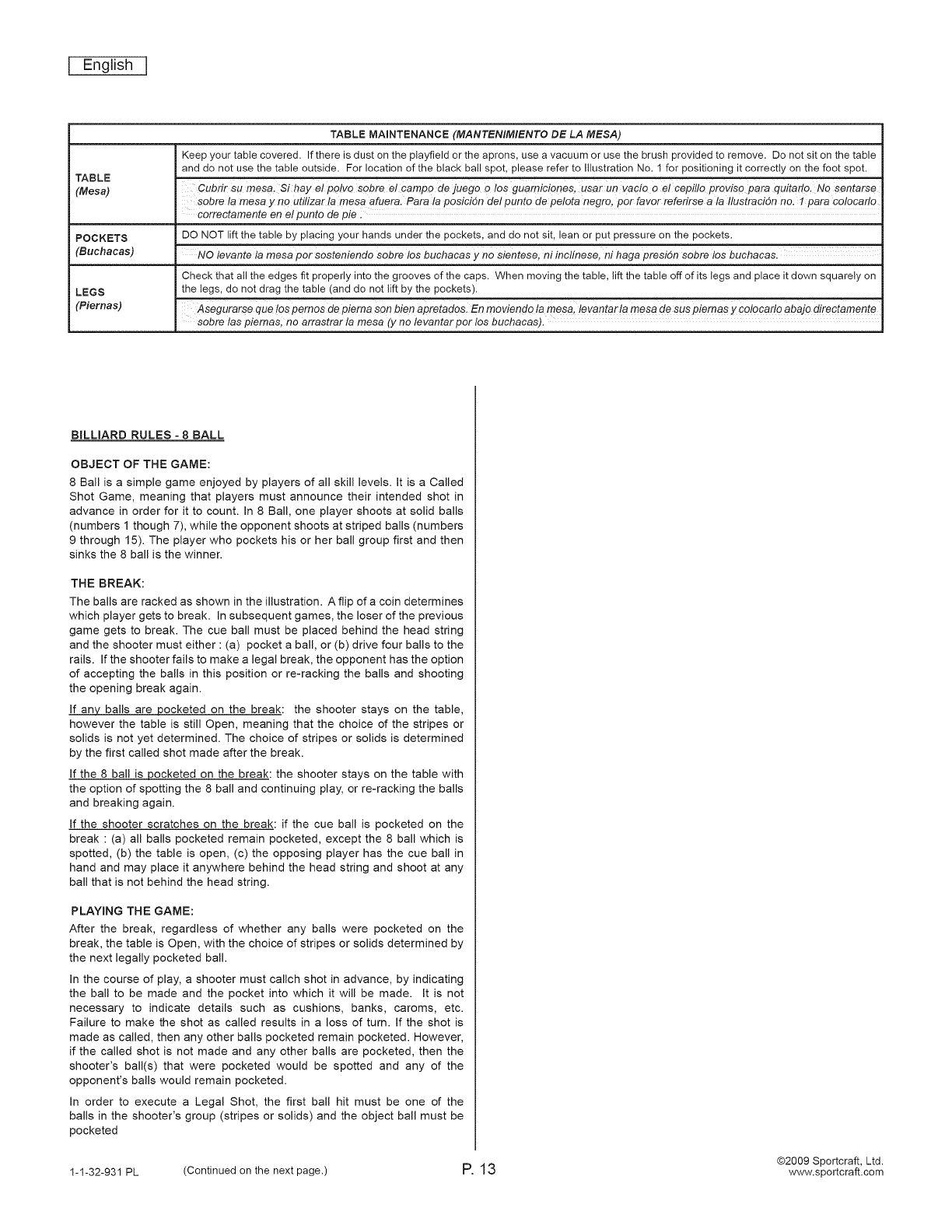

TABLE MAINTENANCE (MANTENIMIENTO DE LA MESA)

Keep your table covered. If there is dust on the playfield or the aprons, use a vacuum or use the brush provided to remove. Do not sit on the table

and do not use the table outside. For location of the black ball spot, please refer to Illustration No. 1 for positioning it correctly on the foot spot.

Cubrir SU mesa, Si hay e! po!vo sobre el campo de juego 0 los guarniciones, usar un vacio oel Cepillo proviso pars quitarlo. Ne sentarse

sabre la mesa y no utilizar !a mesa afuera. Pars la position del punto de pelota negro, per favor referirse a la llustraciOn no. 1pars colocarlo

correctamente en el punto de pie :

DO NOT lift the table by placing your hands under the pockets, and do not sit, lean or put pressure on the pockets.

NO levante Is mesa por sosteniendo sobre los buchacas y no sientese, ni incl[nese, ni haga presiOn sobre los buchscss.

Check that all the edges fit properly into the grooves of the caps. When moving the table, lift the table off of its legs and place it down squarely on

the legs, do not drag the table (and do not lift by the pockets).

Asegur_rse que /_s pem_s de piema s_n bien apretad_s. En m_viendQ _ mesa_ _evantar _amesa de sus piernas y _c_r_ abaj_ directamente

sobre Iss piemas, no arrastrar Is mesa (y no levantar por los buehacas).

BILLIARD RULES -8 BALL

OBJECT OF THE GAME:

8 Ball is a simple game enjoyed by players of all skill levels. It is a Called

Shot Game, meaning that players must announce their intended shot in

advance in order for it to count. In 8 Ball, one player shoots at solid balls

(numbers 1 though 7), while the opponent shoots at striped balls (numbers

9 through 15). The player who pockets his or her ball group first and then

sinks the 8 ball is the winner.

THE BREAK:

The balls are racked as shown in the illustration. Aflip of a coin determines

which player gets to break. In subsequent games, the loser of the previous

game gets to break. The cue ball must be placed behind the head string

and the shooter must either : (a) pocket a ball, or (b) drive four balls to the

rails. If the shooter fails to make a legal break, the opponent has the option

of accepting the balls in this position or re-racking the balls and shooting

the opening break again.

If any balls are pocketed on the break: the shooter stays on the table,

however the table is still Open, meaning that the choice of the stripes or

solids is not yet determined. The choice of stripes or solids is determined

by the first called shot made after the break.

If the 8 ball is pocketed on the break: the shooter stays on the table with

the option of spotting the 8 ball and continuing play, or re-racking the balls

and breaking again.

If the shooter scratches on the break: if the cue ball is pocketed on the

break : (a) all balls pocketed remain pocketed, except the 8 ball which is

spotted, (b) the table is open, (c) the opposing player has the cue ball in

hand and may place it anywhere behind the head string and shoot at any

ball that is not behind the head string.

PLAYING THE GAME:

After the break, regardless of whether any balls were pocketed on the

break, the table is Open, with the choice of stripes or solids determined by

the next legally pocketed ball.

In the course of play, a shooter must callch shot in advance, by indicating

the ball to be made and the pocket into which it will be made. It is net

necessary to indicate details such as cushions, banks, caroms, etc.

Failure to make the shot as called results in a loss of turn. If the shot is

made as called, then any other balls pocketed remain pocketed. However,

if the called shot is net made and any other balls are pocketed, then the

shooter's ball(s) that were pocketed would be spotted and any of the

opponent's balls would remain pocketed.

In order to execute a Legal Shot, the first ball hit must be one of the

balls in the shooter's group (stripes or solids) and the object ball must be

pocketed

@2009 Sportcraft, Ltd.

1-1-32-931 PL (Continued on the next page.) P. 13 www.sportcraft.com

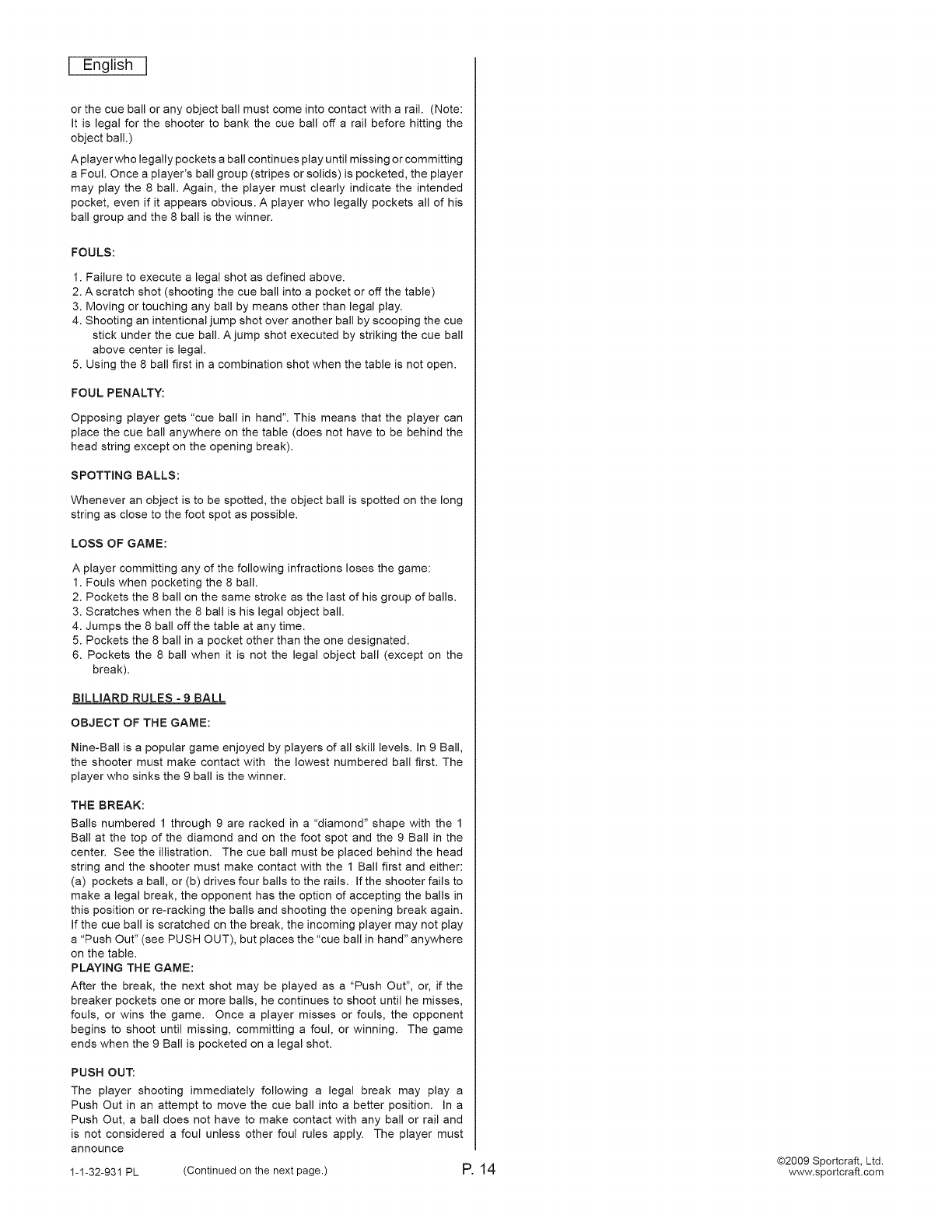

I English I

or the cue bail or any object ball must come into contact with a rail. (Note:

it is legal for the shooter to bank the cue ball off a rail before hitting the

object ball.)

A player who legally pockets a ball continues play until missing or committing

a Foul. Once a player's ball group (stripes or solids) is pocketed, the player

may play the 8 ball. Again, the player must clearly indicate the intended

pocket, even if it appears obvious. A player who legally pockets all of his

ball group and the 8 ball is the winner.

FOULS:

1. Failure to execute a legal shot as defined above.

2. A scratch shot (shooting the cue ball into a pocket or off the table)

3. Moving or touching any ball by means other than legal play.

4. Shooting an intentional jump shot over another ball by scooping the cue

stick under the cue ball. A jump shot executed by striking the cue ball

above center is legal.

5. Using the 8 ball first in a combination shot when the table is not open.

FOUL PENALTY:

Opposing player gets "cue ball in hand". This means that the player can

place the cue ball anywhere on the table (does not have to be behind the

head string except on the opening break).

SPOTTING BALLS:

Whenever an object is to be spotted, the object ball is spotted on the long

string as close to the foot spot as possible.

LOSS OF GAME:

A player committing any of the following infractions loses the game:

1. Fouls when pocketing the 8 ball.

2. Pockets the 8 ball on the same stroke as the last of his group of balls.

3. Scratches when the 8 ball is his legal object ball.

4. Jumps the 8 ball off the table at any time.

5. Pockets the 8 ball in a pocket other than the one designated.

6. Pockets the 8 ball when it is not the legal object ball (except on the

break).

BILLIARD RULES -9 BALL

OBJECT OF THE GAME:

Nine-Ball is a popular game enjoyed by players of all skill levels. In 9 Ball,

the shooter must make contact with the lowest numbered ball first. The

player who sinks the 9 ball is the winner.

THE BREAK:

Balls numbered 1 through 9 are racked in a "diamond" shape with the 1

Ball at the top of the diamond and on the foot spot and the 9 Ball in the

center. See the illistration. The cue ball must be placed behind the head

string and the shooter must make contact with the 1 Ball first and either:

(a) pockets a ball, or (b) drives four balls to the rails, if the shooter fails to

make a legal break, the opponent has the option of accepting the balls in

this position or re-racking the balls and shooting the opening break again.

if the cue ball is scratched on the break, the incoming player may not play

a "Push Out" (see PUSH OUT), but places the "cue ball in hand" anywhere

on the table.

PLAYING THE GAME:

After the break, the next shot may be played as a "Push Out", or, if the

breaker pockets one or more balls, he continues to shoot until he misses,

fouls, or wins the game. Once a player misses or fouls, the opponent

begins to shoot until missing, committing a foul, or winning. The game

ends when the 9 Ball is pocketed on a legal shot.

PUSH OUT:

The player shooting immediately following a legal break may play a

Push Out in an attempt to move the cue ball into a better position. In a

Push Out, a ball does not have to make contact with any ball or rail and

is not considered a foul unless other foul rules apply. The player must

announce

1-1-32-931 PL (Continued on the next page.) P. 14 @2009 Sportcraft, Ltd.

www.sportcraft.com

I English I

the intention of playing a Push Out before the shot, or it is considered

normal play. Any ball pocketed on a Push Out does not count and remains

pocketed (except the 9 Ball). Following a Push Out, the incoming player:

a) must shoot from that position or b) may pass the shot back to the other

player.

FOULS:

1. Failure to execute a legal shot as defined above.

2. Failure to make first contact with the lowest numbered ball on the

table.

3. A scratch shot (shooting the cue ball into a pocket or off the table)

4. Moving or touching any ball by means other than legal play.

5. When the object ball is not pocketed, failure to drive the any ball to a rail

after the cue ball has made contact with the object ball.

6. Shooting an intentional jump shot over another ball by scooping the cue

stick under the cue ball. A jump shot executed by striking the cue ball

above center is legal.

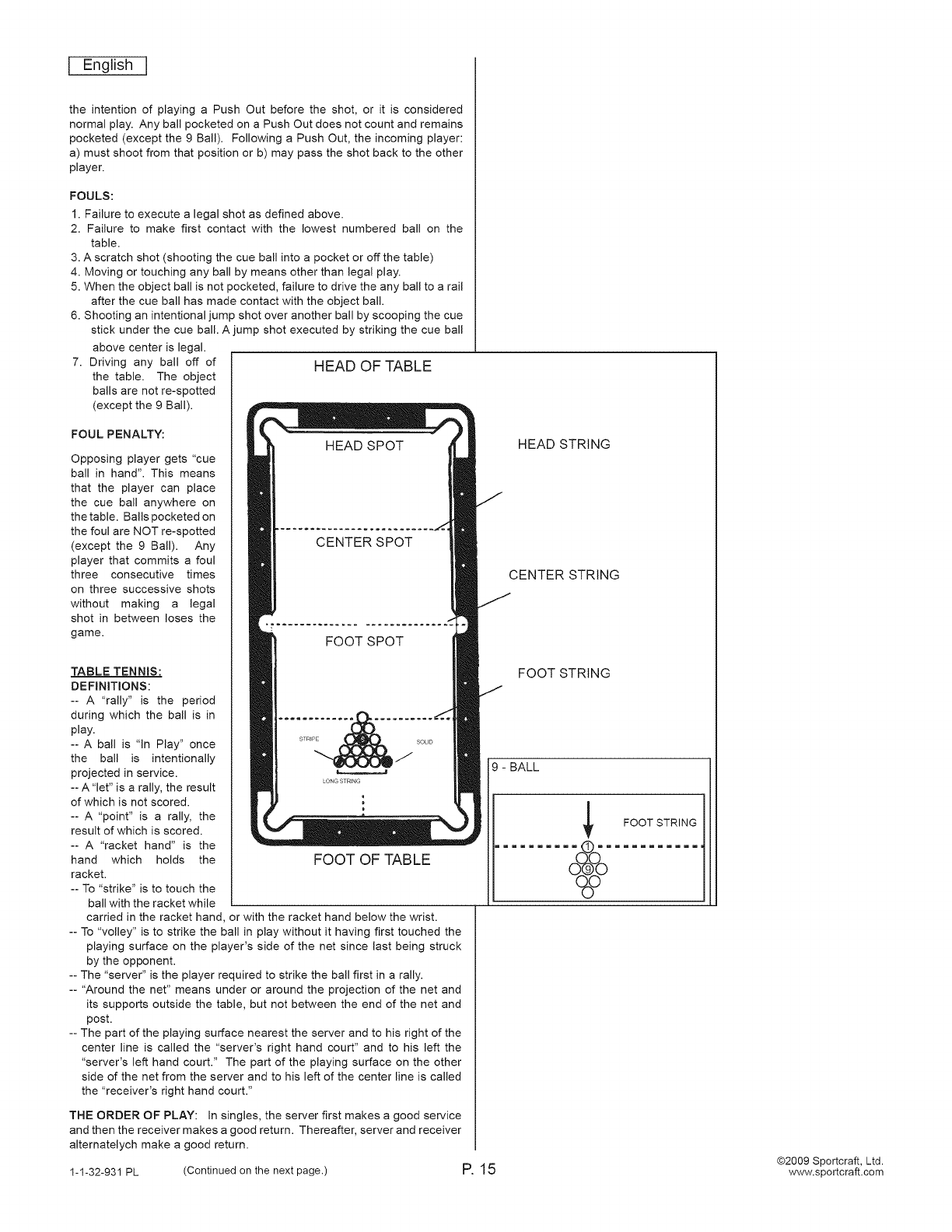

7. Driving any ball off of HEAD OF TABLE

the table. The object

balls are not re-spotted

(except the 9 Ball).

FOUL PENALTY:

Opposing player gets "cue

ball in hand". This means

that the player can place

the cue ball anywhere on

the table. Balls pocketed on

the foul are NOT re-spotted

(except the 9 Ball). Any

player that commits a foul

three consecutive times

on three successive shots

without making a legal

shot in between loses the

game.

TABLE TENNIS:

DEFINITIONS:

-- A "rally" is the period

during which the ball is in

play.

-- A ball is "In Play" once

the ball is intentionally

projected in service.

-- A "let" is a rally, the result

of which is not scored.

-- A "point" is a rally, the

result of which is scored.

-- A "racket hand" is the

hand which holds the FOOT OFTABLE

racket.

-- To "strike" is to touch the

ball with the racket while

carried in the racket hand, or with the racket hand below the wrist.

-- To "volley" is to strike the ball in play without it having first touched the

playing surface on the player's side of the net since last being struck

by the opponent.

-- The "server" is the player required to strike the ball first in a rally.

-- "Around the net" means under or around the projection of the net and

its supports outside the table, but not between the end of the net and

post.

-- The part of the playing surface nearest the server and to his right of the

center line is called the "server's right hand court" and to his left the

"server's left hand court." The part of the playing surface on the other

side of the net from the server and to his left of the center line is called

the "receiver's right hand court."

THE ORDER OF PLAY: In singles, the server first makes a good service

and then the receiver makes a good return. Thereafter, server and receiver

alternatelych make a good return.

1-1-32-931 PL (Continued on the next page.) P. 15

HEAD STRING

CENTER STRING

FOOT STRING

9 - BALL

FOOT STRING ]

1

@2009 Sportcraft, Ltd.

www.sportcraft.com

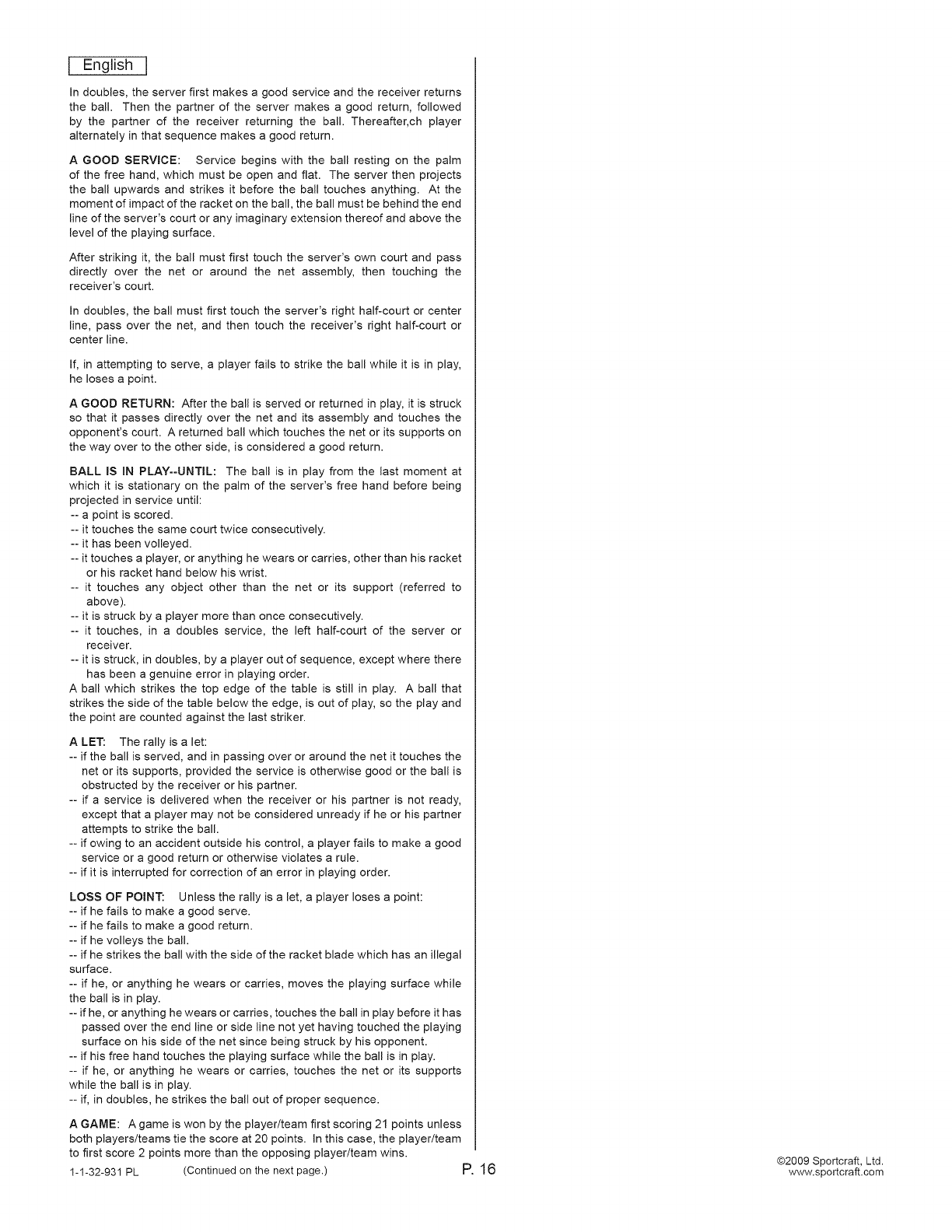

I English I

In doubles, the server first makes a good service and the receiver returns

the ball. Then the partner of the server makes a good return, followed

by the partner of the receiver returning the ball. Thereafter, ch player

alternately in that sequence makes a good return.

A GOOD SERVICE: Service begins with the ball resting on the palm

of the free hand, which must be open and flat. The server then projects

the ball upwards and strikes it before the ball touches anything. At the

moment of impact of the racket on the ball, the ball must be behind the end

line of the server's court or any imaginary extension thereof and above the

level of the playing surface.

After striking it, the ball must first touch the server's own court and pass

directly over the net or around the net assembly, then touching the

receiver's court.

In doubles, the ball must first touch the server's right half-court or center

line, pass over the net, and then touch the receiver's right half-court or

center line.

If, in attempting to serve, a player fails to strike the ball while it is in play,

he loses a point.

A GOOD RETURN: After the ball is served or returned in play, it is struck

so that it passes directly over the net and its assembly and touches the

opponent's court. A returned ball which touches the net or its supports on

the way over to the other side, is considered a good return.

BALL IS IN PLAY-=UNTIL: The bail is in play from the last moment at

which it is stationary on the palm of the server's free hand before being

projected in service until:

-- a point is scored.

-- it touches the same court twice consecutively.

-- it has been volleyed.

-- it touches a player, or anything he wears or carries, other than his racket

or his racket hand below his wrist.

-- it touches any object other than the net or its support (referred to

above).

-- it is struck by aplayer more than once consecutively.

-- it touches, in a doubles service, the left half-court of the server or

receiver.

-- it is struck, in doubles, by a player out of sequence, except where there

has been a genuine error in playing order.

A ball which strikes the top edge of the table is still in play. A ball that

strikes the side of the table below the edge, is out of play, so the play and

the point are counted against the last striker.

A LET: The rally is a let:

-- if the ball is served, and in passing over or around the net it touches the

net or its supports, provided the service is otherwise good or the ball is

obstructed by the receiver or his partner,

-- if a service is delivered when the receiver or his partner is not ready,

except that a player may not be considered unready if he or his partner

attempts to strike the ball,

-- if owing to an accident outside his control, a player fails to make a good

service or a good return or otherwise violates a rule,

-- if it is interrupted for correction of an error in playing order,

LOSS OF POINT: Unless the rally is a let, a player loses a point:

-- if he fails to make a good serve.

-- if he fails to make a good return.

-- if he volleys the ball.

-- if he strikes the ball with the side of the racket blade which has an illegal

surface.

-- if he, or anything he wears or carries, moves the playing surface while

the ball is in play.

-- if he, or anything he wears or carries, touches the ball in play before it has

passed over the end line or side line not yet having touched the playing

surface on his side of the net since being struck by his opponent.

-- if his free hand touches the playing surface while the ball is in play.

-- if he, or anything he wears or carries, touches the net or its supports

while the ball is in play.

-- if, in doubles, he strikes the ball out of proper sequence.

A GAME: Agame is won by the player/team first scoring 21 points unless

both players/teams tie the score at 20 points. In this case, the player/team

to first score 2 points more than the opposing player/team wins.

1-1-32-931 PL (Continued on the next page.) P, 16 @2009 Sportcraft, Ltd.

www.sportcraft.com

I English I

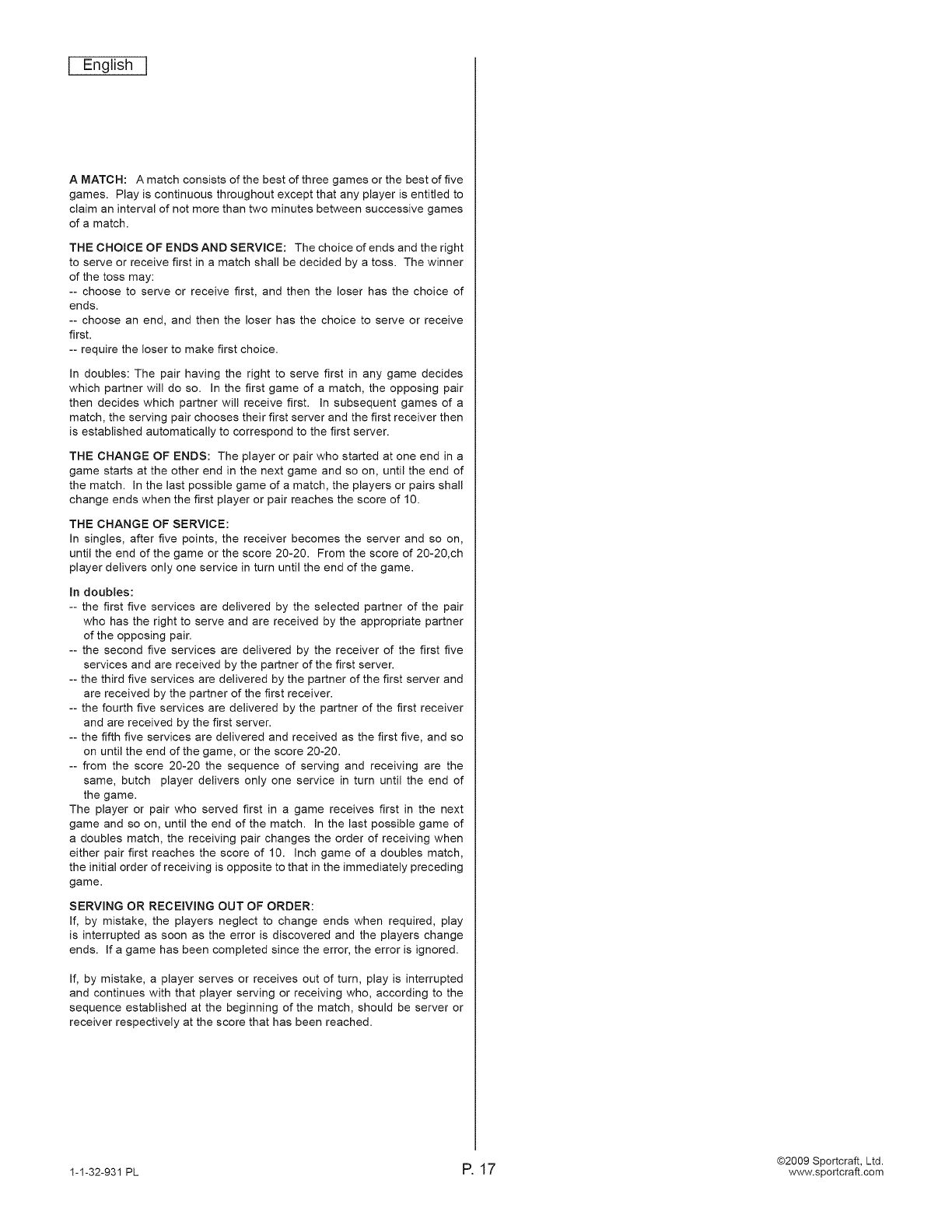

A MATCH: A match consists of the best of three games or the best of five

games. Play is continuous throughout except that any player is entitled to

claim an interval of not more than two minutes between successive games

of a match.

THE CHOICE OF ENDS AND SERVICE: The choice of ends and the right

to serve or receive first in a match shall be decided by a toss. The winner

of the toss may:

-- choose to serve or receive first, and then the loser has the choice of

ends.

-- choose an end, and then the loser has the choice to serve or receive

first.

-- require the loser to make first choice.

In doubles: The pair having the right to serve first in any game decides

which partner will do so. In the first game of a match, the opposing pair

then decides which partner will receive first. In subsequent games of a

match, the serving pair chooses their first server and the first receiver then

is established automatically to correspond to the first server.

THE CHANGE OF ENDS: The player or pair who started at one end in a

game starts at the other end in the next game and so on, until the end of

the match. In the last possible game of a match, the players or pairs shall

change ends when the first player or pair reaches the score of 10.

THE CHANGE OF SERVICE:

In singles, after five points, the receiver becomes the server and so on,

until the end of the game or the score 20-20. From the score of 20-20,ch

player delivers only one service in turn until the end of the game.

In doubles:

-- the first five services are delivered by the selected partner of the pair

who has the right to serve and are received by the appropriate partner

of the opposing pair.

-- the second five services are delivered by the receiver of the first five

services and are received by the partner of the first server.

-- the third five services are delivered by the partner of the first server and

are received by the partner of the first receiver.

-- the fourth five services are delivered by the partner of the first receiver

and are received by the first server.

-- the fifth five services are delivered and received as the first five, and so

on until the end of the game, or the score 20-20.

-- from the score 20-20 the sequence of serving and receiving are the

same, butch player delivers only one service in turn until the end of

the game.

The player or pair who served first in a game receives first in the next

game and so on, until the end of the match. In the last possible game of

a doubles match, the receiving pair changes the order of receiving when

either pair first reaches the score of 10. Inch game of a doubles match,

the initial order of receiving is opposite to that in the immediately preceding

game.

SERVING OR RECEIVING OUT OF ORDER:

If, by mistake, the players neglect to change ends when required, play

is interrupted as soon as the error is discovered and the players change

ends. If a game has been completed since the error, the error is ignored.

If, by mistake, a player serves or receives out of turn, play is interrupted

and continues with that player serving or receiving who, according to the

sequence established at the beginning of the match, should be server or

receiver respectively at the score that has been reached.

@2009 Sportcraft, Ltd.

1-1-32-931 PL P. 17 www.sportcraft.com

I English I

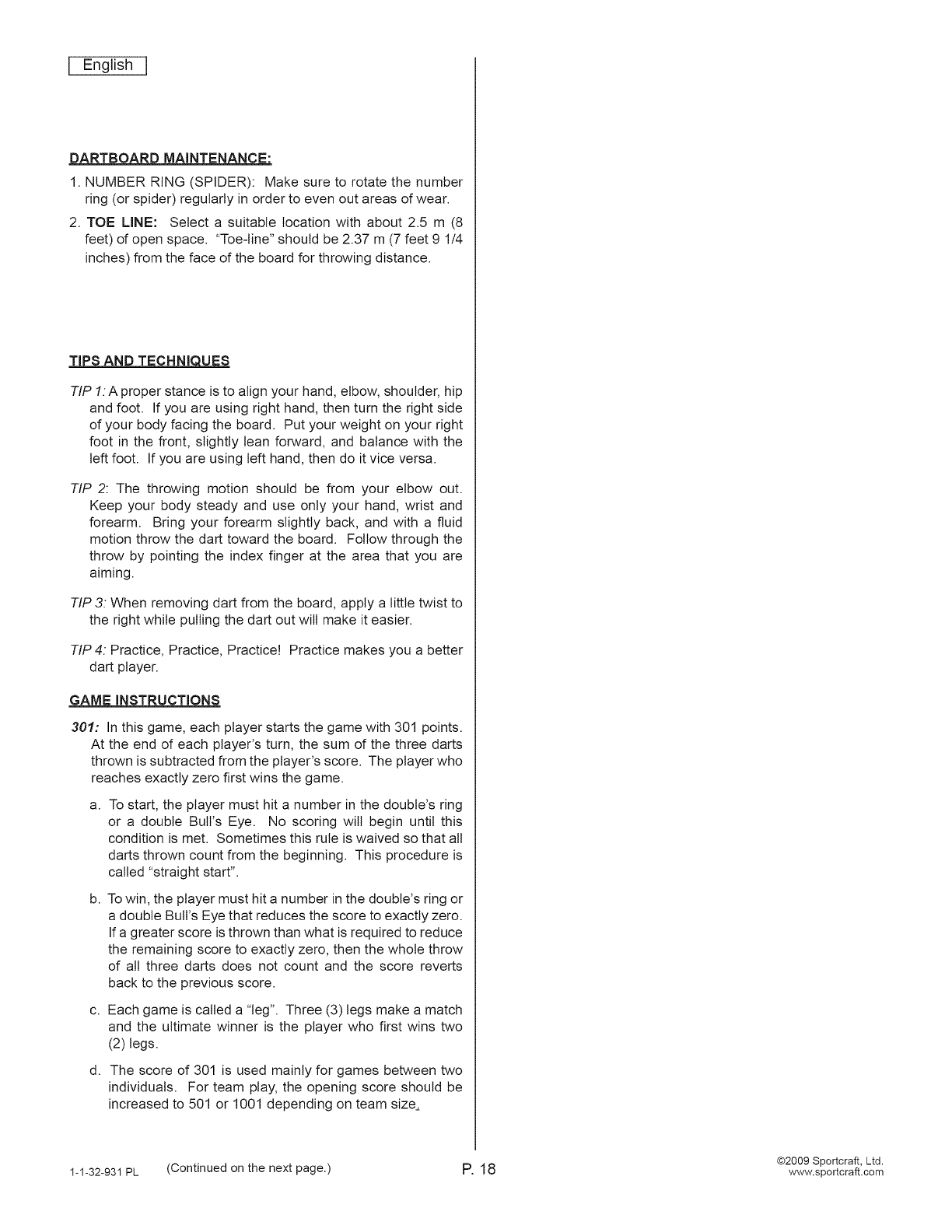

DARTBOARD MAINTENANCE:

1. NUMBER RING (SPIDER): Make sure to rotate the number

ring (or spider) regularly in order to even out areas of wear,

2. TOE LINE: Select a suitable location with about 2.5 m (8

feet) of open space, "Toe-line" should be 2.37 m (7 feet 9 1/4

inches) from the face of the board for throwing distance,

TIPS AND TECHNIQUES

TIP 1: A proper stance is to align your hand, elbow, shoulder, hip

and foot. If you are using right hand, then turn the right side

of your body facing the board. Put your weight on your right

foot in the front, slightly lean forward, and balance with the

left foot. If you are using left hand, then do it vice versa.

TIP 2: The throwing motion should be from your elbow out.

Keep your body steady and use only your hand, wrist and

forearm. Bring your forearm slightly back, and with a fluid

motion throw the dart toward the board. Follow through the

throw by pointing the index finger at the area that you are

aiming.

TIP 3: When removing dart from the board, apply a little twist to

the right while pulling the dart out will make it easier.

TIP 4: Practice, Practice, Practice! Practice makes you a better

dart player.

GAME INSTRUCTIONS

301: In this game, each player starts the game with 301 points.

At the end of each player's turn, the sum of the three darts

thrown is subtracted from the player's score. The player who

reaches exactly zero first wins the game.

a,

b,

c,

d,

To start, the player must hit a number in the doubte's ring

or a double Bull's Eye. No scoring will begin until this

condition is met. Sometimes this rule is waived so that atl

darts thrown count from the beginning. This procedure is

called "straight start".

To win, the player must hit a number in the doubte's ring or

a double Bull's Eye that reduces the score to exactly zero.

If a greater score is thrown than what is required to reduce

the remaining score to exactly zero, then the whole throw

of all three darts does not count and the score reverts

back to the previous score.

Each game is called a "leg". Three (3) legs make a match

and the ultimate winner is the player who first wins two

(2) legs.

The score of 301 is used mainly for games between two

individuals. For team play, the opening score should be

increased to 501 or 1001 depending on team size_

@2009Sportcraft, Ltd.

1-1-32-931 PL (Continued on the next page.) P. 18 www.sportcraft.com

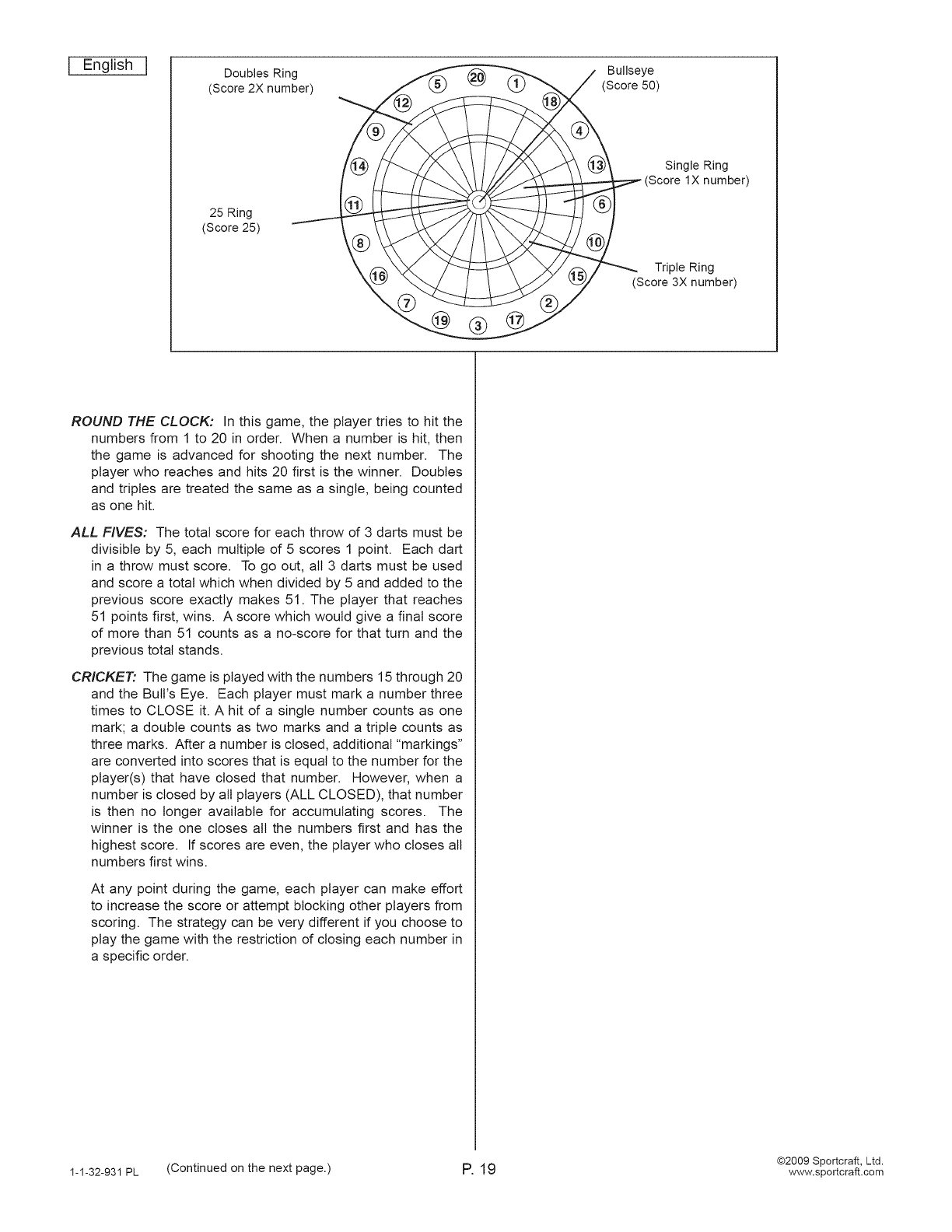

English Doubles Ring

(Score 2X number)

25 Ring

(Score 25)

Bullseye

(Score 50)

)_ Single Ring

(Score 1X number)

Triple Ring

(Score 3X number)

ROUND THE CLOCK: In this game, the player tries to hit the

numbers from 1 to 20 in order. When a number is hit, then

the game is advanced for shooting the next number. The

player who reaches and hits 20 first is the winner. Doubles

and triples are treated the same as a single, being counted

as one hit.

ALL FIVES: The total score for each throw d3 darts must be

divisible by 5, each multiple of 5 scores 1 point. Each dart

in a throw must score. To go out, all 3 darts must be used

and score a total which when divided by 5 and added to the

previous score exactly makes 51. The player that reaches

51 points first, wins. A score which would give a final score

of more than 51 counts as a no-score for that turn and the

previous total stands.

CRICKET: The game is played with the numbers 15 through 20

and the Bull's Eye. Each player must mark a number three

times to CLOSE it. A hit of a single number counts as one

mark; a double counts as two marks and a triple counts as

three marks. After a number is closed, additional "markings"

are converted into scores that is equal to the number for the

player(s) that have closed that number. However, when a

number is closed by all players (ALL CLOSED), that number

is then no longer available for accumulating scores. The

winner is the one closes all the numbers first and has the

highest score. If scores are even, the player who closes all

numbers first wins.

At any point during the game, each player can make effort

to increase the score or attempt blocking other players from

scoring. The strategy can be very different if you choose to

play the game with the restriction of closing each number in

a specific order.

@2009Sportcraft, Ltd.

1-1-32-931 PL (Continued on the next page.) P. 19 www.sportcraft.com

I English I

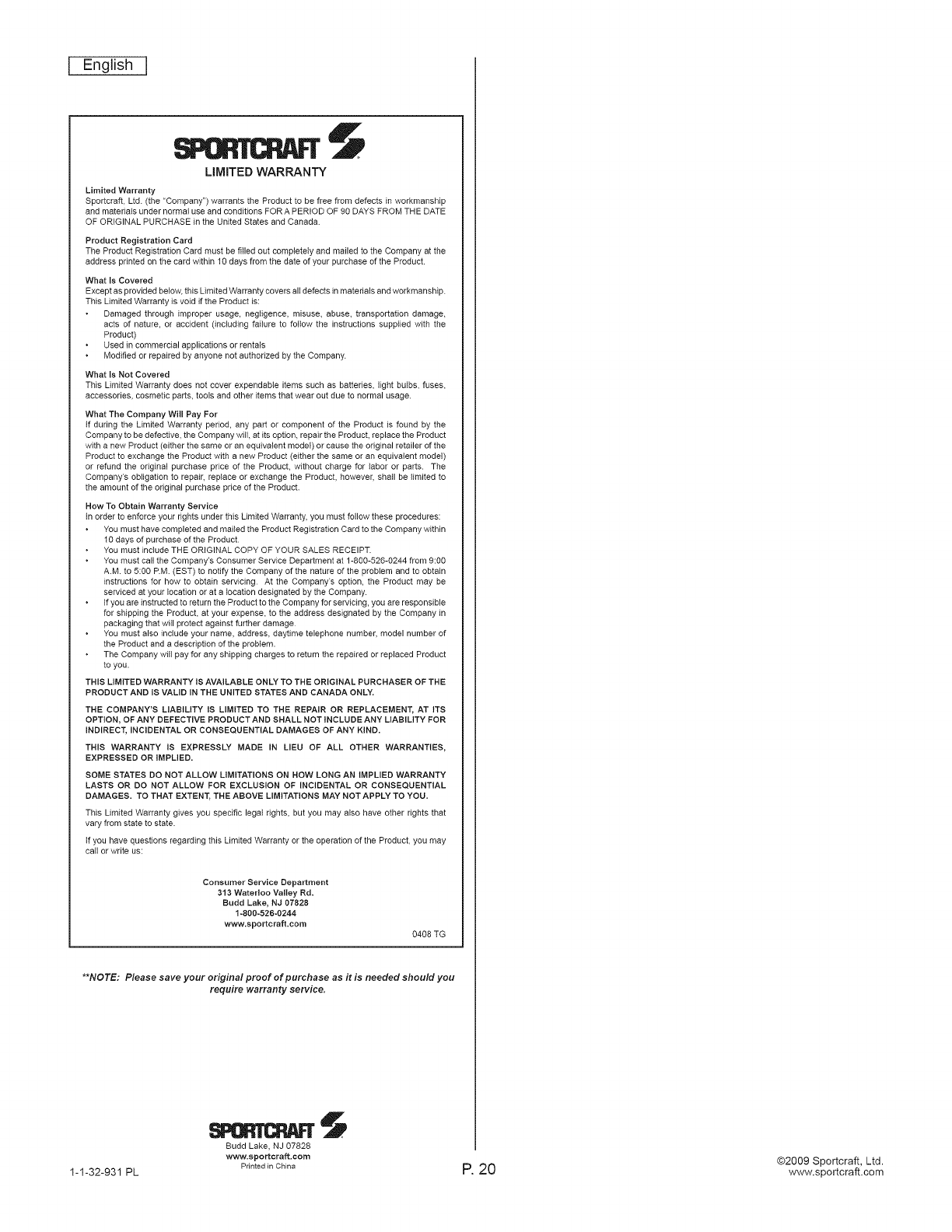

LIMITED WARRANTY

Limited Warranty

Sportcraft, Ltd. (the "Company") warrants the Product to be free from defects in workmanship

and materials under normal use and conditions FOR A PERIOD OF 90 DAYS FROM TH E DATE

OF ORIGINAL PURCHASE in the United States and Canada.

Product Registration Card

The Product Registration Card must be filled out completely and mailed to the Company at the

address printed on the card within 10 days from the date of your purchase of the Product.

What Is Covered

Except as provided below, this Limited Warranty covers all defects in materials and workmanship.

This Limited Warranty is void if the Product is:

Damaged through improper usage, negligence, misuse, abuse, transportation damage,

acts of nature, or accident (including failure to follow the instructions supplied with the

Product)

Used in commercial applications or rentals

Modified or repaired by anyone not authorized by the Company.

What Is Not Covered

This Limited Warranty does not cover expendable items such as batteries, light butbs, fuses,

accessories, cosmetic parts, tools and other items that wear out due to normal usage.

What The Company Will Pay For

if during the Limited Warranty period, any part or component of the Product is found by the

Company to be defective, the Company will, at its option, repair the Product, replace the Product

with a new Product (either the same or an equivalent model) or cause the original retailer of the

Product to exchange the Product with a new Product (either the same or an equivalent model)

or refund the original purchase price of the Product, without charge for labor or parts. The

Company's obligation to repair, replace or exchange the Product, however, shall be limited to

the amount of the original purchase price of the Product.

How To Obtain Warranty Service

in order to enforce your rights under this Limited Warranty, you must follow these procedures:

You must have completed and mailed the Product Registration Card to the Company within

10 days of purchase of the Product.

You must include THE ORIGINAL COPY OF YOUR SALES RECEIPT.

You must call the Company's Consumer Service Department at 1-800-526-0244 from 9:00

A.M. to 5:00 P.M. (EST) to notify the Company of the nature of the problem and to obtain

instructions for how to obtain servicing. At the Company's option, the Product may be

serviced at your location or at a location designated by the Company.

If you are instructed to return the Product to the Company for servicing, you are responsible

for shipping the Product, at your expense, to the address designated by the Company in

packaging that will protect against further damage.

You must also include your name, address, daytime telephone number, model number of

the Product and a description of the problem.

The Company will pay for any shipping charges to return the repaired or replaced Product

to you.

THIS LIMITED WARRANTY IS AVAILABLE ONLY TO THE ORIGINAL PURCHASER OF THE

PRODUCT AND IS VALID IN THE UNITED STATES AND CANADA ONLY.

THE COMPANY'S LIABILITY IS LIMITED TO THE REPAIR OR REPLACEMENT, AT ITS

OPTION, OF ANY DEFECTIVE PRODUCT AND SHALL NOT INCLUDE ANY LiABiLITY FOR

INDIRECT, iNCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY KIND.

THIS WARRANTY IS EXPRESSLY MADE IN LiEU OF ALL OTHER WARRANTIES,

EXPRESSED OR IMPLIED.

SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY

LASTS OR DO NOT ALLOW FOR EXCLUSION OF INCIDENTAL OR CONSEQUENTIAL

DAMAGES. TO THAT EXTENT, THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU.

This Limited Warranty gives you specific legal rights, but you may also have other rights that

vary from state to state.

if you have questions regarding this Limited Warranty or the operation of the Product, you may

call or write us:

Consumer Service Department

313 Waterloo Valley Rd.

Budd Lake, NJ 07828

1-800-526-0244

www.aportcraft.com

0408 TG

**NOTE: Please save your original proof of purchase as it is needed should you

require warranty service,

1-1-32-931 PL

Budd Lake, NJ 07828

www.sportcraft.com

Printedin Chir_a P. 20 @2009 Sportcraft, Ltd.

www.sportcraft.com

XPAGE I OF 2 Sportcessories

313 Waterloo Valley Road

Budd Lake, NJ 07828

www.sportcraft.com

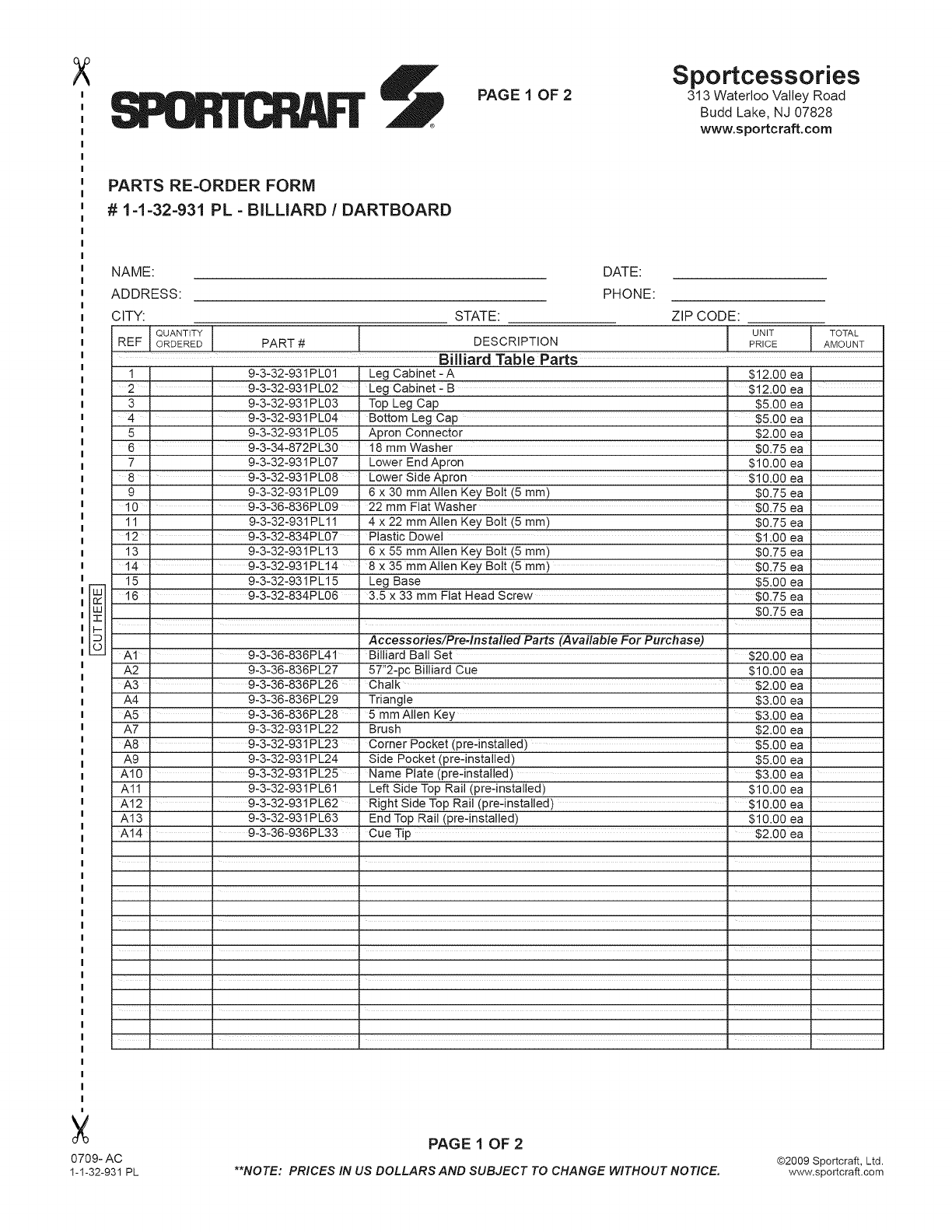

PARTS RE-ORDER FORM

# 1-1-32-931 PL - BILLIARD /DARTBOARD

.

r_,

I--.

NAME: DATE:

ADDRESS: PHONE:

CITY: STATE: ZIP CODE:

QUANTITY UNIT TOTAL

REF ORDERED PART # DESCRIPTION PRICE AMOUNT

Billiard Table Parts

1 9-3-32-931PL01 Leg Cabinet - A $12.00 ea

Leg Cabinet -B $12.00 ea

Top Leg Cap $5.00 ea

Bottom Leg Cap " $5.00 ea

Apron Connector $2.00 ea

18 mm Washer ' $0175 ea

Lower End Apron $10.00 ea

Lower Side Apron $10.00 ea

6 x 30 mm Alien Key Bolt (5 ram) $0.75 ea

22mm Flat Washer $0.75 ea

4 x 22 mm Alien Key Bolt (5 ram) $0.75 ea

Plastic Dowel " $1:00 ea

6 x 55 mm Alien Key Bolt (5 ram) $0.75 ea

8 x 35 mm Allen Key Bolt (5 mm) "$0.75 ea

Leg Base $5.00 ea

16 • 9-3-32-834PL06 3.5 x 33 mm Flat Head Screw = $0.75 ea

$0.75 ea

• I . . .

Accessories/Pre-lnstalled Parts (Available For Purchase)

A1 '9-3-36-836PL41 Billiard Ball Set $20.00 ea

A2 9-3-36-836PL27 57"2-pc Billiard Cue $10.00 ea

A3 • 9-3-36-836PL26 Chalk ' $2.00 ea

A4 9-3-36-836PL29 Triangle $3.00 ea

A5 : 9-3-36-836PL28 5 mm Allen Key = $3.00 ea

A7 9-3-32-931PL22 Brush $2.00 ea

A8 • 9-3-32-931PL23 Corner Pocket (pre-installed) $5.00 ea

A9 9-3-32-931PL24 Side Pocket (pre-instailed) $5.00 ea

A10 i 9-3-32-931PL25 Name Plate (pre-installed) $3.00 ea

All 9-3-32-931PL61 Left Side Top Rail (pre-instailed) $10.00 ea

A12 - 9-3-32-931PL62 Right Side Top Rail (pre-installed) " $10.00 ea

A13 9-3-32-931PL63 End Top Rail (pre-instailed) $10.00 ea

A14 • 9-3-36-936PL33 Cue Tip '$2.00 ea

2 • 9-3-32-931PL02

3 9-3-32-931 P L03

4 • • 9-3-32-931PL04

5 9-3-32-931 PL05

6 ' ' 9-3-34-872PL30

7 9-3-32-931PL07

8 ' ' 9-3-32-931PL08

9 9-3-32-931 P L09

10 • 9-3-36-836PL09

11 9-3-32-931PL11

12 9-3-32-834PL07

13 9-3-32-931PL13

14 • 9-3-32-931PL14

15 9-3-32-931PL15

0709- AC

1-1-32-931 PL

PAGE 1 OF 2

**NOTE: PRICES IN US DOLLARS AND SUBJECT TO CHANGE WITHOUT NOTICE. @2009 Sportcraft, Ltd.

www.sportcraft.com

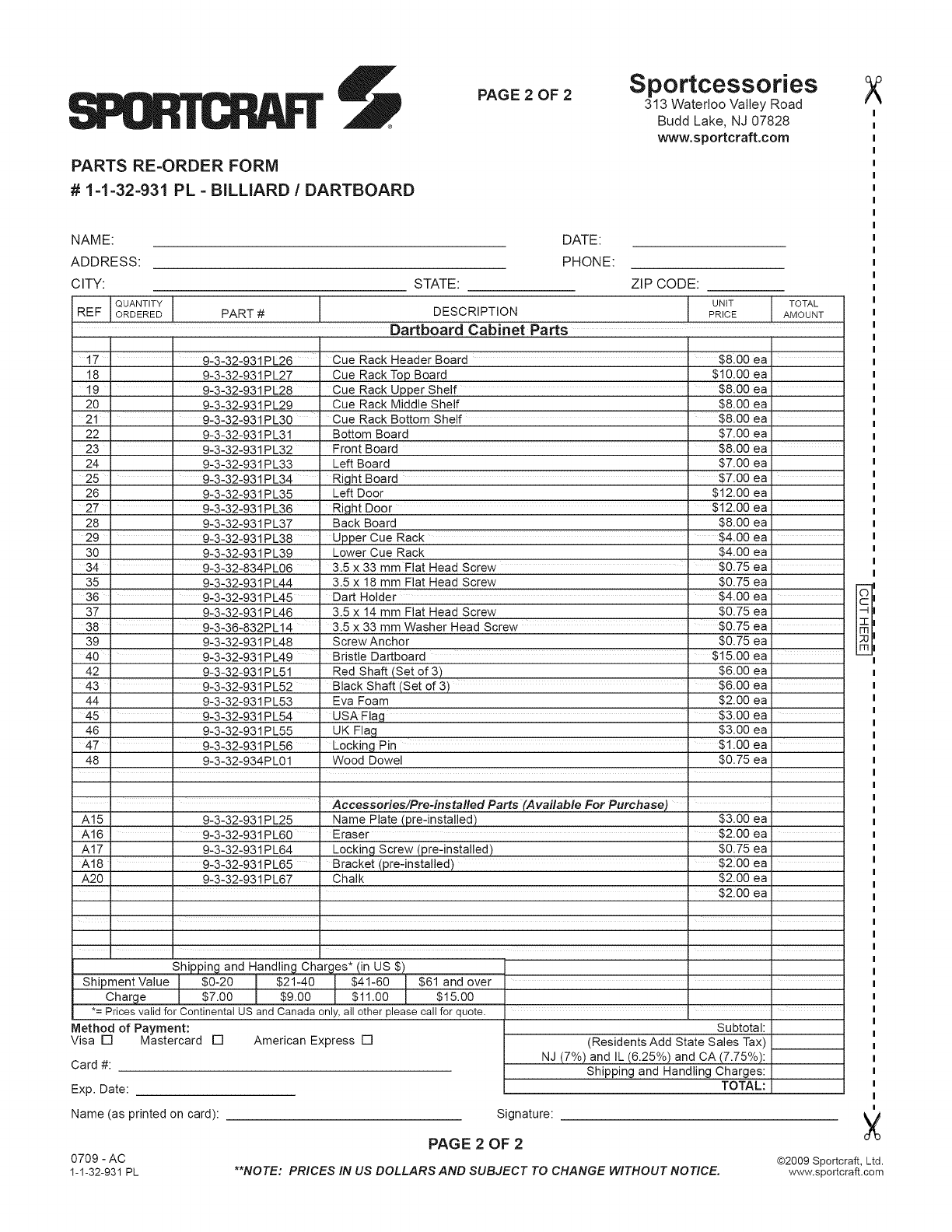

PARTS RE-ORDER FORM

# 1-1-32-931 PL - BILLIARD /DARTBOARD

PAGE 2 OF 2 Sportcessories

313 Waterloo Valley Road

Budd Lake, NJ 07828

www.sportcraft.com

X

NAME: DATE:

ADDRESS: PHONE:

CITY: STATE: Zl P CODE:

QUANTITY UNIT TOTAL

REF ORDERED PART # DESCRIPTION PRICE AMOUNT

...... ............................................................. Dartboard Cabinet Parts ........................................................

i 7 9-3-32'931 PL26

18 9-3-32-931PL27

19 9-3-32-931PL28

20 9-3-32-931 P L29

21 9-3-32-931PL30

22 9-3-32-931 P L31

23 9-3-32-931 PL32

24 9-3-32-931 P L33

25 9-3-32-931 PL34

26 9-3-32-931 PL35

27 9-3-32-931 PL36

28 9-3-32-931 PL37

29 9-3-32-931PL38

30 9-3-32-931 P L39

34 9-3-32-834PL06

35 9-3-32-931 P L44

Cue Rack Header Board • $8.00 ea

Cue Rack Top Board $10.00 ea

Cue Rack Upper Shelf $8.00 ea

Cue Rack Middle Shelf $8.00 ea

Cue Rack Bottom Shelf • $8.00 ea

Bottom Board $7.00 ea

Front Board $8.00 ea

Left Board $7.00 ea

Right Board • $7.00 ea

Left Door $12.00 ea

Right Door _ $12.00 ea

Back Board $8.00 ea

Upper Cue Rack ' $4.00 ea

Lower Cue Rack $4.00 ea

3.5 x 33 mm Flat Head Screw ' $0.75 ea

3.5 x 18 mm Flat Head Screw $0.75 ea

36 ' 9-3-32-931PL45

37 9-3-32 -931 P L46

38 9-3-36-832PL14

39 9-3-32-931 PL48

40 9-3-32-931PL49

42 9-3-32-931 P L51

43 9-3-32-931PL52

44 9-3-32-931 P L53

45 9-3-32-931PL54

46 9-3-32-931 PL55

47 9-3-32-931 PL56

48 9-3-32-934PL01

A15

A16

A17

A18

A20

Dart Holder ' $4.00 ea

3.5 x 14 mm Flat Head Screw $0.75 ea

3.5 x 33 mm Washer Head Screw _ $0.75 ea

Screw Anchor $0.75 ea

Bristle Dartboard ' $15.00 ea

Red Shaft (Set of 3) $6.00 ea

! Black Shaft (Set of 3) ' $6.00 ea

Eva Foam $2.00 ea

USA Flag • $3.00 ea

UK Flag $3.00 ea

Locking Pin ' $1.00 ea

Wood Dowel $0.75 ea

Accessories/Pre-installed Parts (Available For Purchase) '

9-3-32-931PL25 Name Plate (pre-installed) $3.00 ea

9-3-32-931PL60 Eraser ' $2.00 ea

9-3-32-931PL64 Locking Screw (pre-installed) $0.75 ea

9-3-32-931PL65 Bracket (pre-installed) $2.00 ea

9-3-32-931PL67 Chalk $2.00 ea

_ $2.00 ea

ii

Shipping and Handling Charges* (in US $)

Shipment Value $0-20 $21-40 $41-60 $61 and over

Charge $7.00 $9.00 $11.00 $15.00

*= Prices valid for Continental US and Canada only, all other please call for quote.

Method of Payment:

Visa [] Mastercard [] American Express []

Card #:

EXP. Date:

Subtotal:

(Residents Add State Sales Tax)

NJ (7%) and IL (6.25%) and CA (7.75%):

Shipping and Handling Charges:

TOTAL:

Name (as printed on card):

0709 - AC

1-1-32-931 PL

Signature:

PAGE 2OF 2

**NOTE: PRICES IN US DOLLARS AND SUBJECT TO CHANGE WITHOUT NOTICE. @2009Sportcraft, Ltd.

www.sportcraft.com

@2009 Sportcraft, Ltd.

1-1-32-931 PL www.sportcraft.com

@2009Sportcraft,Ltd.

1-1-32-931PL www.sportcraft.com
