SRM Service Center PM6 PowerMeter 6 User Manual pm short manual 30 5 08

SRM Service Center, Inc. PowerMeter 6 pm short manual 30 5 08

Exhibit 8

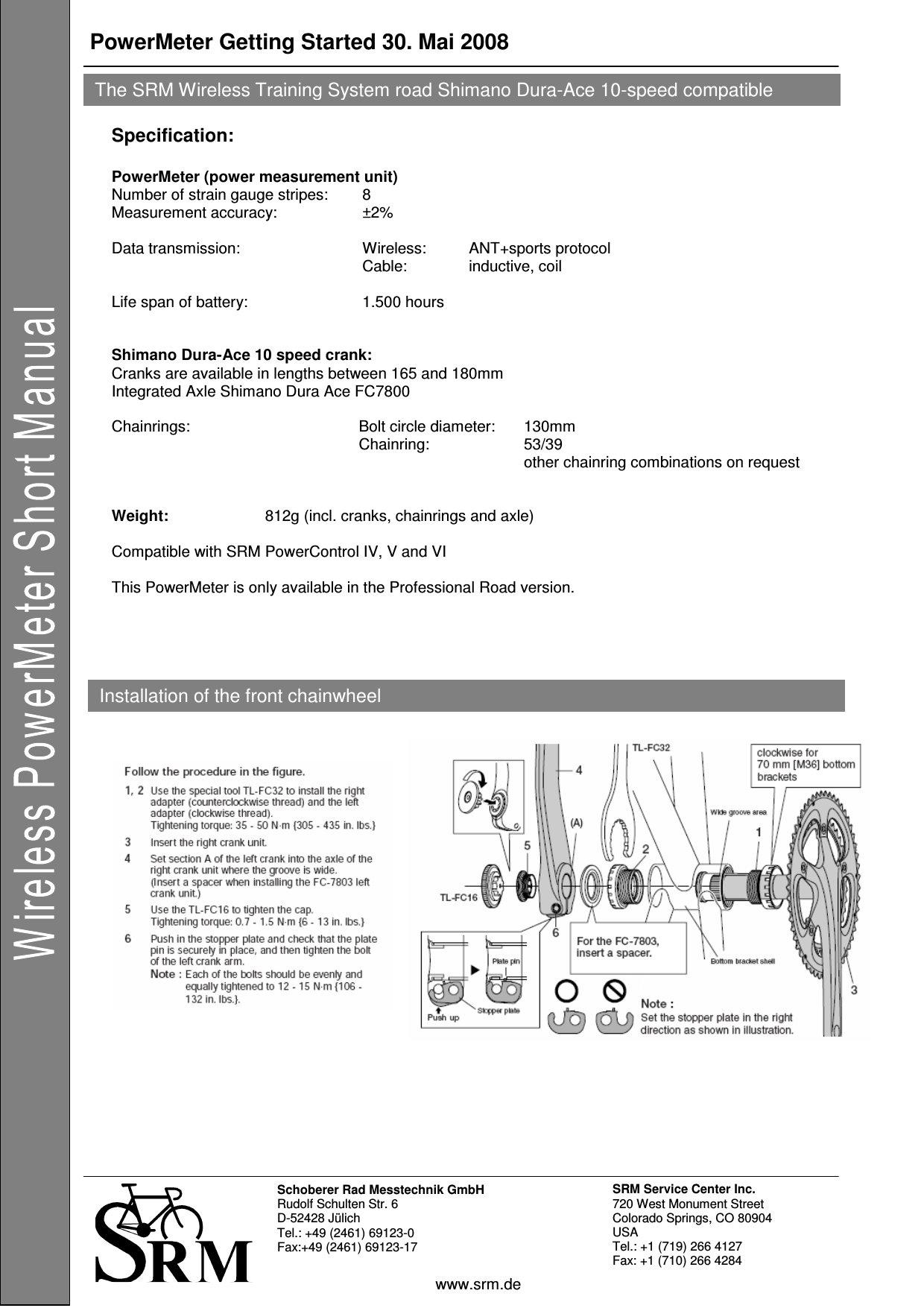

PowerMeter Getting Started 30. Mai 2008 Schoberer Rad Messtechnik GmbH Rudolf Schulten Str. 6 D-52428 Jülich Tel.: +49 (2461) 69123-0 Fax:+49 (2461) 69123-17 SRM Service Center Inc. 720 West Monument Street Colorado Springs, CO 80904 USA Tel.: +1 (719) 266 4127 Fax: +1 (710) 266 4284 www.srm.de Specification: PowerMeter (power measurement unit) Number of strain gauge stripes: 8 Measurement accuracy: ±2% Data transmission: Wireless: ANT+sports protocol Cable: inductive, coil Life span of battery: 1.500 hours Shimano Dura-Ace 10 speed crank: Cranks are available in lengths between 165 and 180mm Integrated Axle Shimano Dura Ace FC7800 Chainrings: Bolt circle diameter: 130mm Chainring: 53/39 other chainring combinations on request Weight: 812g (incl. cranks, chainrings and axle) Compatible with SRM PowerControl IV, V and VI This PowerMeter is only available in the Professional Road version. Installation of the front chainwheel The SRM Wireless Training System road Shimano Dura-Ace 10-speed compatible

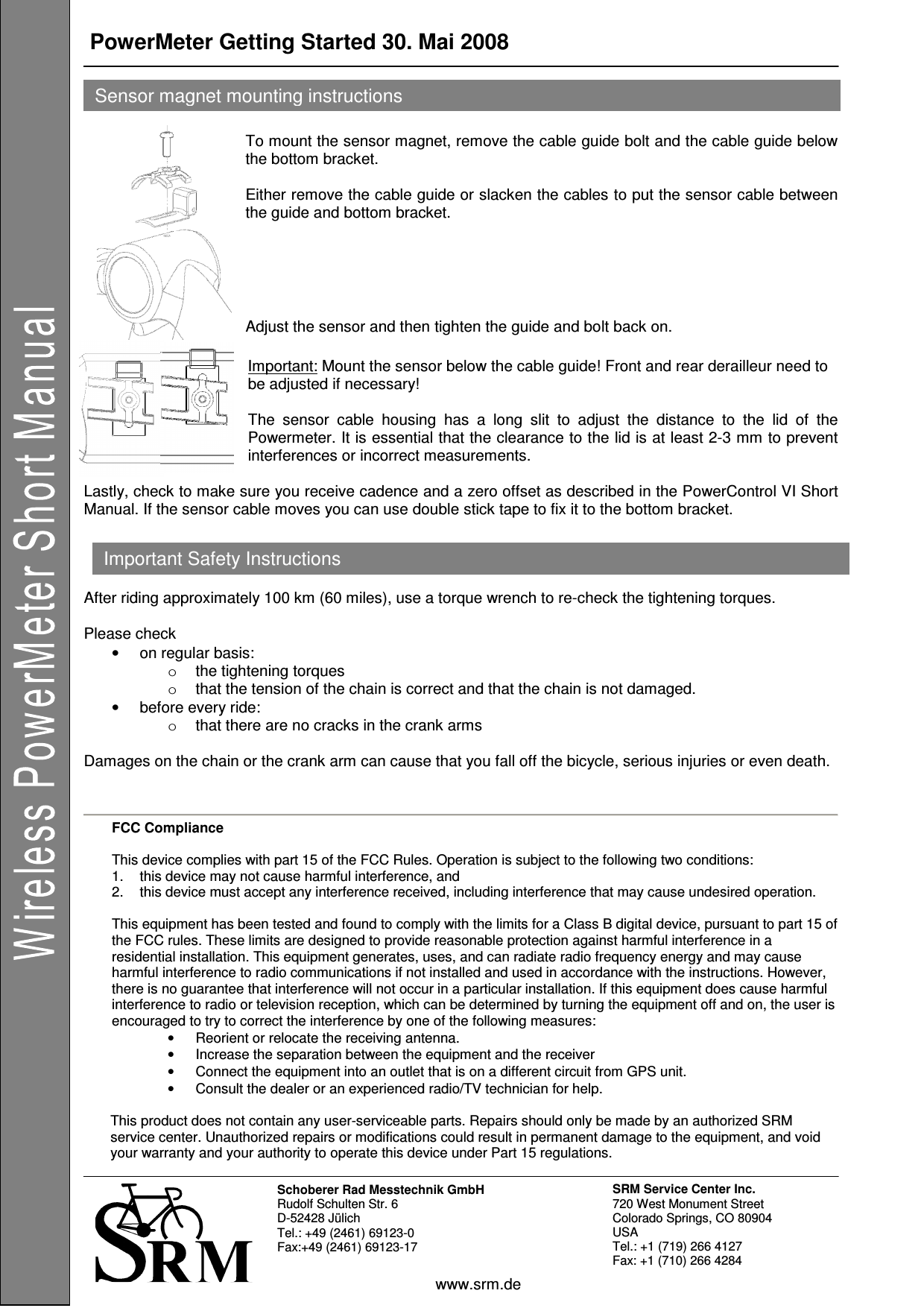

PowerMeter Getting Started 30. Mai 2008 Schoberer Rad Messtechnik GmbH Rudolf Schulten Str. 6 D-52428 Jülich Tel.: +49 (2461) 69123-0 Fax:+49 (2461) 69123-17 SRM Service Center Inc. 720 West Monument Street Colorado Springs, CO 80904 USA Tel.: +1 (719) 266 4127 Fax: +1 (710) 266 4284 www.srm.de To mount the sensor magnet, remove the cable guide bolt and the cable guide below the bottom bracket. Either remove the cable guide or slacken the cables to put the sensor cable between the guide and bottom bracket. Adjust the sensor and then tighten the guide and bolt back on. Important: Mount the sensor below the cable guide! Front and rear derailleur need to be adjusted if necessary! The sensor cable housing has a long slit to adjust the distance to the lid of the Powermeter. It is essential that the clearance to the lid is at least 2-3 mm to prevent interferences or incorrect measurements. Lastly, check to make sure you receive cadence and a zero offset as described in the PowerControl VI Short Manual. If the sensor cable moves you can use double stick tape to fix it to the bottom bracket. After riding approximately 100 km (60 miles), use a torque wrench to re-check the tightening torques. Please check • on regular basis: o the tightening torques o that the tension of the chain is correct and that the chain is not damaged. • before every ride: o that there are no cracks in the crank arms Damages on the chain or the crank arm can cause that you fall off the bicycle, serious injuries or even death. FCC Compliance This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. this device may not cause harmful interference, and 2. this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and may cause harmful interference to radio communications if not installed and used in accordance with the instructions. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and the receiver • Connect the equipment into an outlet that is on a different circuit from GPS unit. • Consult the dealer or an experienced radio/TV technician for help. This product does not contain any user-serviceable parts. Repairs should only be made by an authorized SRM service center. Unauthorized repairs or modifications could result in permanent damage to the equipment, and void your warranty and your authority to operate this device under Part 15 regulations. Sensor magnet mounting instructions Important Safety Instructions
