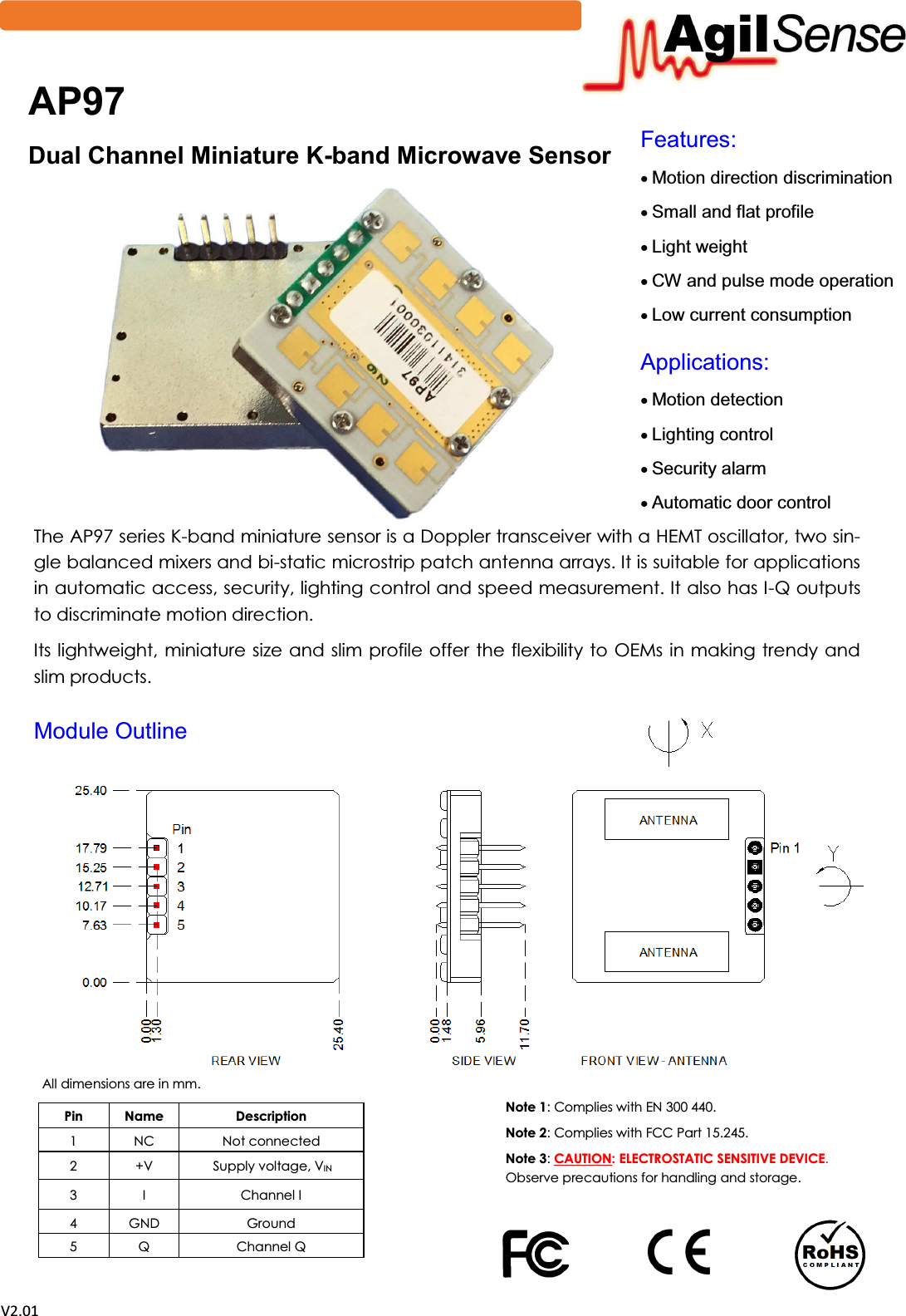

 sϮ͘Ϭϭ )HDWXUHV x0RWLRQGLUHFWLRQGLVFULPLQDWLRQ x6PDOODQGIODWSURILOH x/LJKWZHLJKW x&:DQGSXOVHPRGHRSHUDWLRQ x/RZFXUUHQWFRQVXPSWLRQ $SSOLFDWLRQV x0RWLRQGHWHFWLRQ x/LJKWLQJFRQWURO x6HFXULW\DODUP x$XWRPDWLFGRRUFRQWURO  The AP97 series K-band miniature sensor is a Doppler transceiver with a HEMT oscillator, two sin-gle balanced mixers and bi-static microstrip patch antenna arrays. It is suitable for applications in automatic access, security, lighting control and speed measurement. It also has I-Q outputs to discriminate motion direction. Its lightweight, miniature size and slim profile offer the flexibility to  OEMs in making trendy and slim products. $3 'XDO&KDQQHO0LQLDWXUH.-EDQG0LFURZDYH6HQVRU All dimensions are in mm.  Note 1: Complies with EN 300 440. Note 2: Complies with FCC Part 15.245.  Note 3: CAUTION: ELECTROSTATIC SENSITIVE DEVICE. Observe precautions for handling and storage. Pin  Name  Description 1  NC  Not connected 2  +V   Supply voltage, VIN 3  I  Channel I  4  GND  Ground 5  Q  Channel Q   0RGXOH2XWOLQH

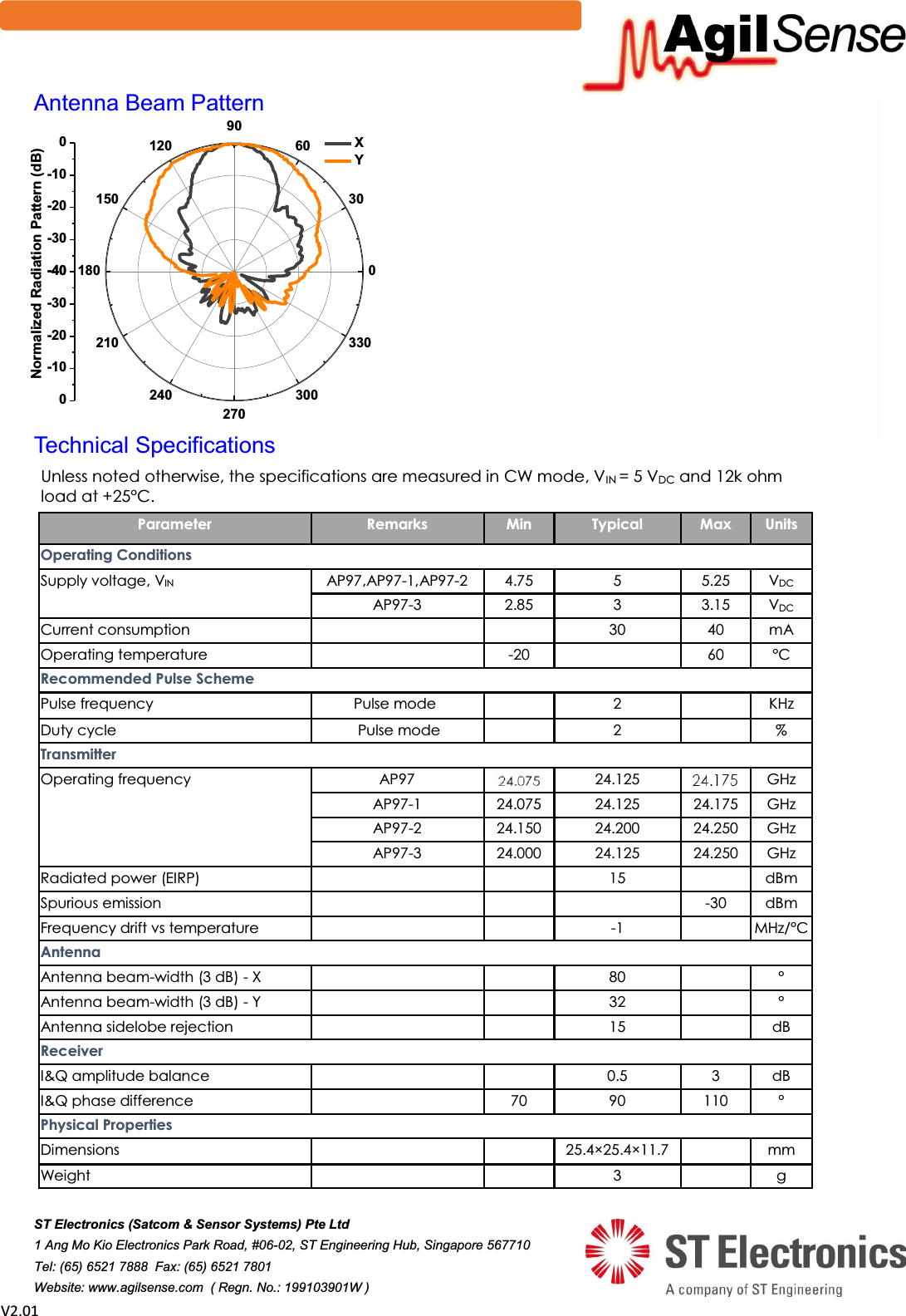

 sϮ͘Ϭϭ 0306090120150180210240270300330-40-30-20-100-40-30-20-100   Normalized Radiation Pattern (dB) X Y$QWHQQD%HDP3DWWHUQ 7HFKQLFDO6SHFLILFDWLRQV Unless noted otherwise, the specifications are measured in CW mode, VIN = 5 VDC and 12k ohm load at +25°C.  Parameter  Remarks  Min  Typical  Max  Units Operating Conditions Supply voltage, VIN   AP97,AP97-1,AP97-2  4.75  5  5.25  VDC AP97-3  2.85  3  3.15  VDC Current consumption        30  40  mA Operating temperature     -20     60  °C Recommended Pulse Scheme Pulse frequency  Pulse mode      2     KHz Duty cycle   Pulse mode     2     % Transmitter Operating frequency  AP97  24.000  24.125  24.250  GHz AP97-1  24.075  24.125  24.175  GHz AP97-2  24.150  24.200  24.250  GHz AP97-3  24.000  24.125  24.250  GHz Radiated power (EIRP)        15     dBm Spurious emission            -30  dBm Frequency drift vs temperature      -1    MHz/°C Antenna Antenna beam-width (3 dB) - X        80     ° Antenna beam-width (3 dB) - Y        32     ° Antenna sidelobe rejection      15    dB Receiver I&Q amplitude balance      0.5  3  dB I&Q phase difference     70  90  110  ° Physical Properties Dimensions        25.4×25.4×11.7     mm Weight        3     g 67(OHFWURQLFV6DWFRP6HQVRU6\VWHPV3WH/WG $QJ0R.LR(OHFWURQLFV3DUN5RDG-67(QJLQHHULQJ+XE6LQJDSRUH 7HO)D[   :HEVLWHZZZDJLOVHQVHFRP5HJQ1R: %ORFN'LDJUDP

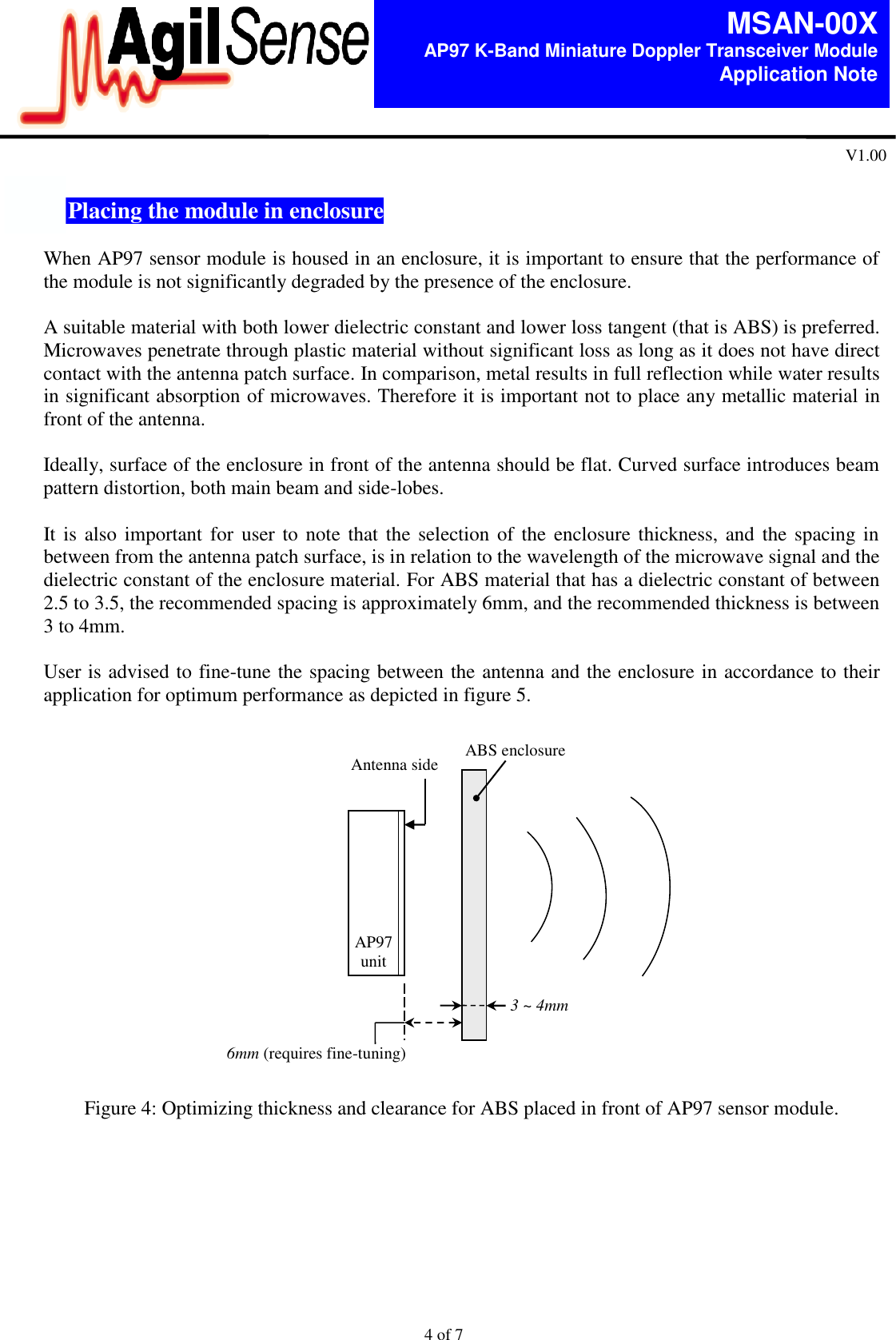

 4 of 7   MSAN-00X AP97 K-Band Miniature Doppler Transceiver Module   Application Note V1.00  7.  Placing the module in enclosure  When AP97 sensor module is housed in an enclosure, it is important to ensure that the performance of the module is not significantly degraded by the presence of the enclosure.  A suitable material with both lower dielectric constant and lower loss tangent (that is ABS) is preferred. Microwaves penetrate through plastic material without significant loss as long as it does not have direct contact with the antenna patch surface. In comparison, metal results in full reflection while water results in significant absorption of microwaves. Therefore it is important not to place any metallic material in front of the antenna.  Ideally, surface of the enclosure in front of the antenna should be flat. Curved surface introduces beam pattern distortion, both main beam and side-lobes.     It is also important  for  user to note that the selection of the enclosure thickness, and the spacing in between from the antenna patch surface, is in relation to the wavelength of the microwave signal and the dielectric constant of the enclosure material. For ABS material that has a dielectric constant of between 2.5 to 3.5, the recommended spacing is approximately 6mm, and the recommended thickness is between 3 to 4mm.  User is advised to fine-tune the spacing between the antenna and the enclosure in accordance to their application for optimum performance as depicted in figure 5.                    Figure 4: Optimizing thickness and clearance for ABS placed in front of AP97 sensor module.    3 ~ 4mm    ABS enclosure Antenna side 6mm (requires fine-tuning)  AP97 unit
