ST Electronics AP98 K-Band Miniature Microwave Doppler Transceiver Module User Manual AP98 Manual rev2

ST Electronics (Satcom & Sensor Systems) Pte Ltd K-Band Miniature Microwave Doppler Transceiver Module AP98 Manual rev2

User Manual rev 3.pdf

sϭ͘ϭϬ)HDWXUHVx6PDOODQGIODWSURILOHx/LJKWZHLJKWx&:DQGSXOVHPRGHRSHUDWLRQx/RZFXUUHQWFRQVXPSWLRQ$SSOLFDWLRQVx/LJKWLQJFRQWUROx0RWLRQGHWHFWLRQx6HFXULW\DODUPx$XWRPDWLFGRRUFRQWUROThe AP98 series ceiling-mount K-band microwave sensor is a Doppler  transceiver with a HEMT oscillator, a single balanced mixer and bi-static microstrip patch antennas. It is suitable for ap-plications in lighting control, automatic access and security.  Its lightweight, miniature size and slim profile offer the flexibility to OEMs in making trendy and slim products. $3&HLOLQJ-0RXQW.-EDQG0LFURZDYH6HQVRUPin  Name  Description 1  +V  Supply voltage, VIN2  IF  IF output 3  GND  Ground All dimensions are in mm.  Note 1: Complies with EN 300 440. Note 2: Complies with FCC Part 15.245.  Note 3: CAUTION: ELECTROSTATIC SENSITIVE DEVICE.Observe precautions for handling and storage.0RGXOH2XWOLQH

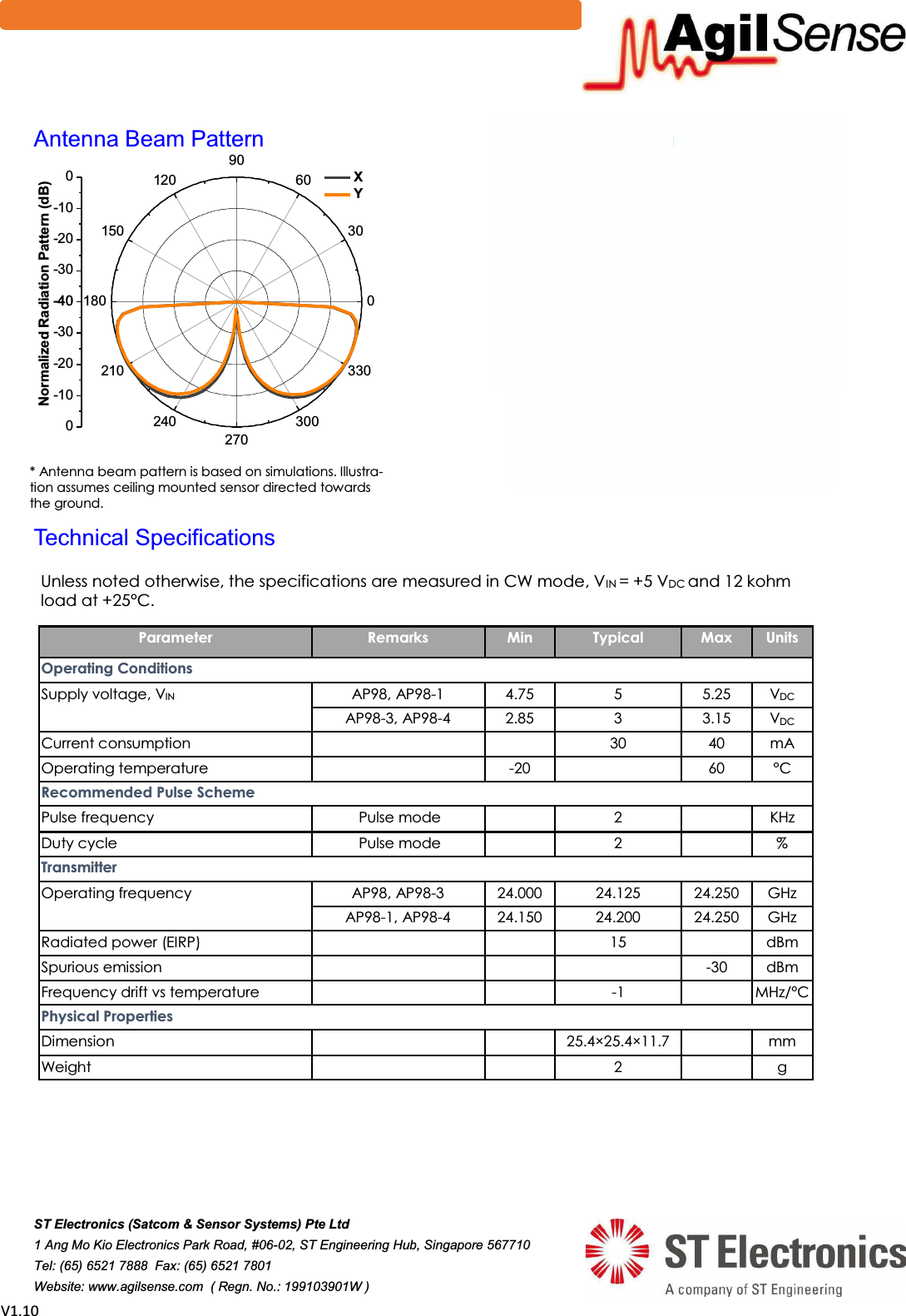

sϭ͘ϭϬ$QWHQQD%HDP3DWWHUQ7HFKQLFDO6SHFLILFDWLRQVUnless noted otherwise, the specifications are measured in CW mode, VIN = +5 VDC and 12 kohm load at +25°C. Parameter  Remarks  Min  Typical  Max  Units Operating Conditions Supply voltage, VIN   AP98, AP98-1  4.75  5  5.25  VDCAP98-3, AP98-4  2.85  3  3.15  VDCCurrent consumption        30  40  mA Operating temperature     -20     60  °C Recommended Pulse Scheme Pulse frequency   Pulse mode     2     KHz Duty cycle   Pulse mode     2     % Transmitter Operating frequency  AP98, AP98-3  24.000  24.125  24.250  GHz AP98-1, AP98-4  24.150  24.200  24.250  GHz Radiated power (EIRP)        15     dBm Spurious emission            -30  dBm Frequency drift vs temperature      -1    MHz/°C Physical Properties Dimension        25.4×25.4×11.7     mm Weight        2     g %ORFN'LDJUDP67(OHFWURQLFV6DWFRP6HQVRU6\VWHPV3WH/WG$QJ0R.LR(OHFWURQLFV3DUN5RDG-67(QJLQHHULQJ+XE6LQJDSRUH7HO)D[   :HEVLWHZZZDJLOVHQVHFRP5HJQ1R:* Antenna beam pattern is based on simulations. Illustra-tion assumes ceiling mounted sensor directed towards the ground. 0306090120150180210240270300330-40-30-20-100-40-30-20-100 Normalized Radiation Pattern (dB)XY

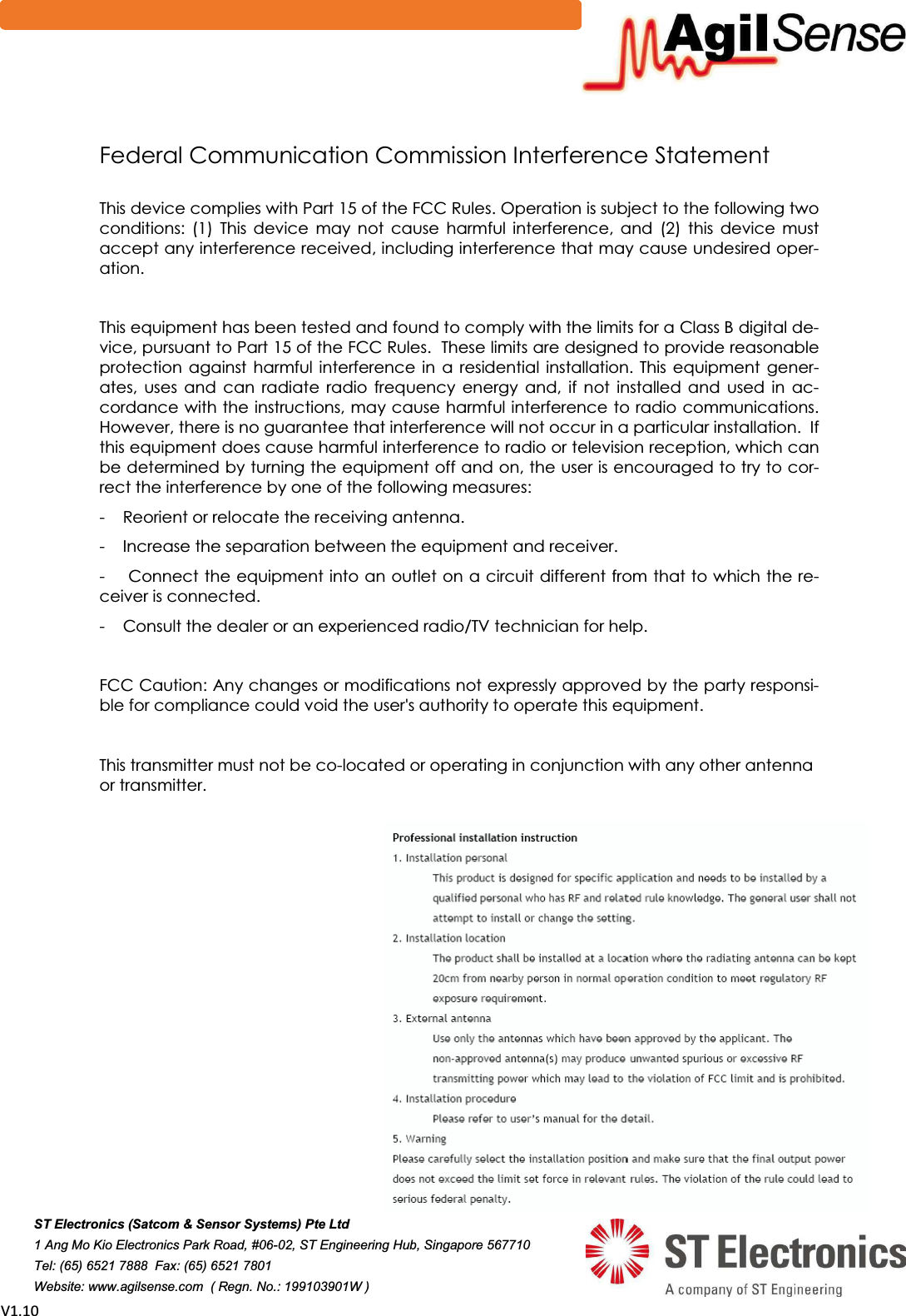

sϭ͘ϭϬFederal Communication Commission Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:  (1)  This  device  may  not  cause  harmful  interference,  and  (2)  this  device  must accept any interference received, including interference that may cause undesired oper-ation. This equipment has been tested and found to comply with the limits for a Class B digital de-vice, pursuant to Part 15 of the FCC Rules.  These limits are designed to provide reasonable protection  against  harmful interference  in  a  residential  installation.  This  equipment  gener-ates,  uses  and  can  radiate  radio  frequency  energy  and,  if  not  installed  and  used  in  ac-cordance with the instructions, may cause harmful interference to radio communications.  However, there is no guarantee that interference will not occur in a particular installation.  If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to cor-rect the interference by one of the following measures: -    Reorient or relocate the receiving antenna. -    Increase the separation between the equipment and receiver. -    Connect the equipment into an outlet on a circuit different from that to which the re-ceiver is connected. -    Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsi-ble for compliance could void the user's authority to operate this equipment.   This transmitter must not be co-located or operating in conjunction with any other antenna   or transmitter.  67(OHFWURQLFV6DWFRP6HQVRU6\VWHPV3WH/WG$QJ0R.LR(OHFWURQLFV3DUN5RDG-67(QJLQHHULQJ+XE6LQJDSRUH7HO)D[   :HEVLWHZZZDJLOVHQVHFRP5HJQ1R:
