ST Electronics AP98 K-Band Miniature Microwave Doppler Transceiver Module User Manual AP98 Manual rev2

ST Electronics (Satcom & Sensor Systems) Pte Ltd K-Band Miniature Microwave Doppler Transceiver Module AP98 Manual rev2

User Manual rev 3.pdf

sϭ͘ϭϬ
)HDWXUHV
x6PDOODQGIODWSURILOH
x/LJKWZHLJKW
x&:DQGSXOVHPRGHRSHUDWLRQ
x/RZFXUUHQWFRQVXPSWLRQ
$SSOLFDWLRQV
x/LJKWLQJFRQWURO
x0RWLRQGHWHFWLRQ
x6HFXULW\DODUP
x$XWRPDWLFGRRUFRQWURO

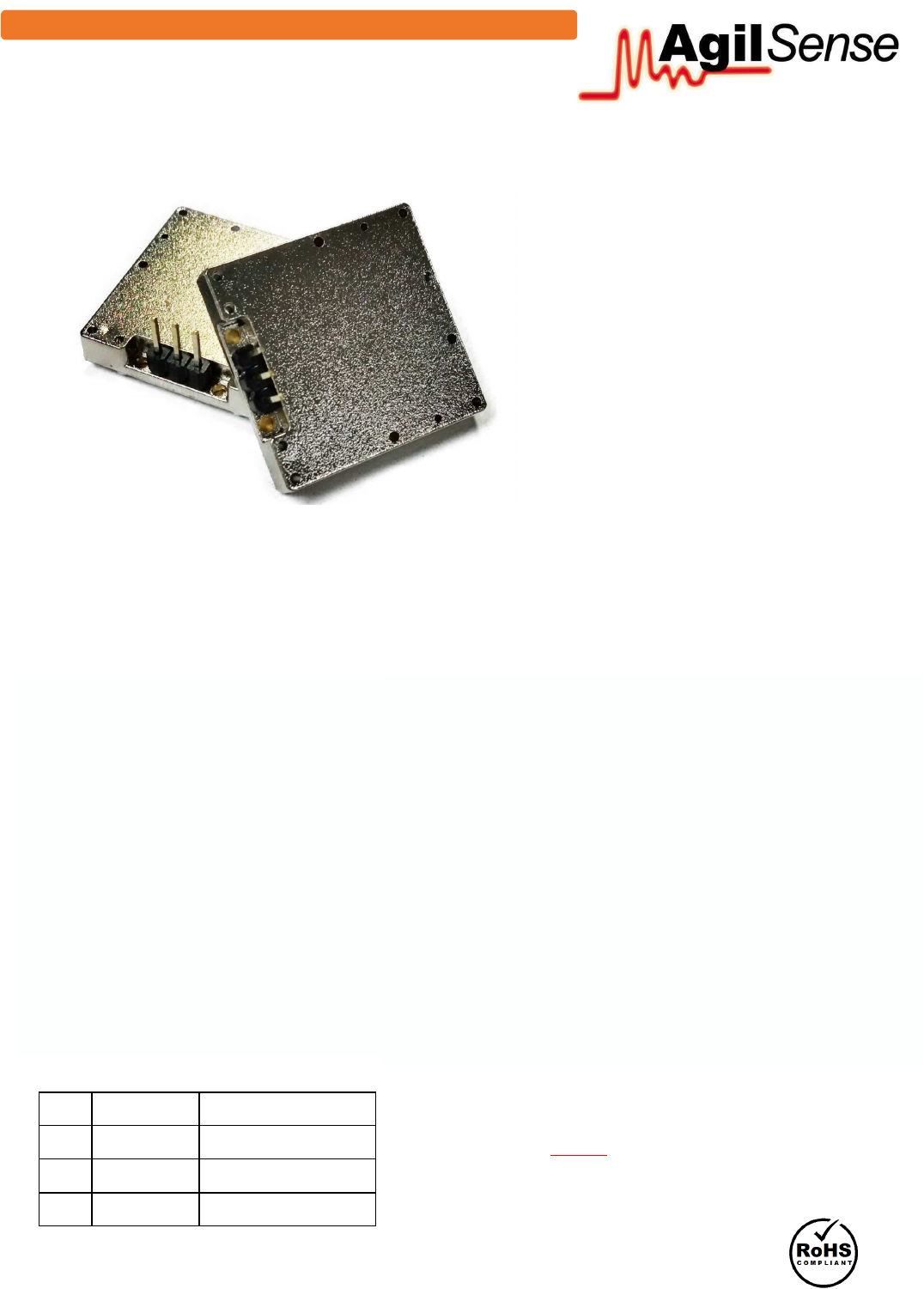

The AP98 series ceiling-mount K-band microwave sensor is a Doppler transceiver with a HEMT
oscillator, a single balanced mixer and bi-static microstrip patch antennas. It is suitable for ap-
plications in lighting control, automatic access and security.
Its lightweight, miniature size and slim profile offer the flexibility to OEMs in making trendy and
slim products.
$3
&HLOLQJ-0RXQW.-EDQG0LFURZDYH6HQVRU
Pin Name Description
1 +V Supply voltage, VIN
2 IF IF output
3 GND Ground
All dimensions are in mm.
Note 1: Complies with EN 300 440.
Note 2: Complies with FCC Part 15.245.
Note 3: CAUTION: ELECTROSTATIC SENSITIVE DEVICE.
Observe precautions for handling and storage.
0RGXOH2XWOLQH
sϭ͘ϭϬ
$QWHQQD%HDP3DWWHUQ
7HFKQLFDO6SHFLILFDWLRQV
Unless noted otherwise, the specifications are measured in CW mode, VIN = +5 VDC and 12 kohm
load at +25°C.
Parameter Remarks Min Typical Max Units
Operating Conditions
Supply voltage, VIN AP98, AP98-1 4.75 5 5.25 VDC
AP98-3, AP98-4 2.85 3 3.15 VDC
Current consumption 30 40 mA
Operating temperature -20 60 °C
Recommended Pulse Scheme
Pulse frequency Pulse mode 2 KHz
Duty cycle Pulse mode 2 %
Transmitter
Operating frequency AP98, AP98-3 24.000 24.125 24.250 GHz
AP98-1, AP98-4 24.150 24.200 24.250 GHz
Radiated power (EIRP) 15 dBm
Spurious emission -30 dBm
Frequency drift vs temperature -1 MHz/°C
Physical Properties
Dimension 25.4×25.4×11.7 mm
Weight 2 g
%ORFN'LDJUDP
67(OHFWURQLFV6DWFRP6HQVRU6\VWHPV3WH/WG
$QJ0R.LR(OHFWURQLFV3DUN5RDG-67(QJLQHHULQJ+XE6LQJDSRUH
7HO)D[
:HEVLWHZZZDJLOVHQVHFRP5HJQ1R:

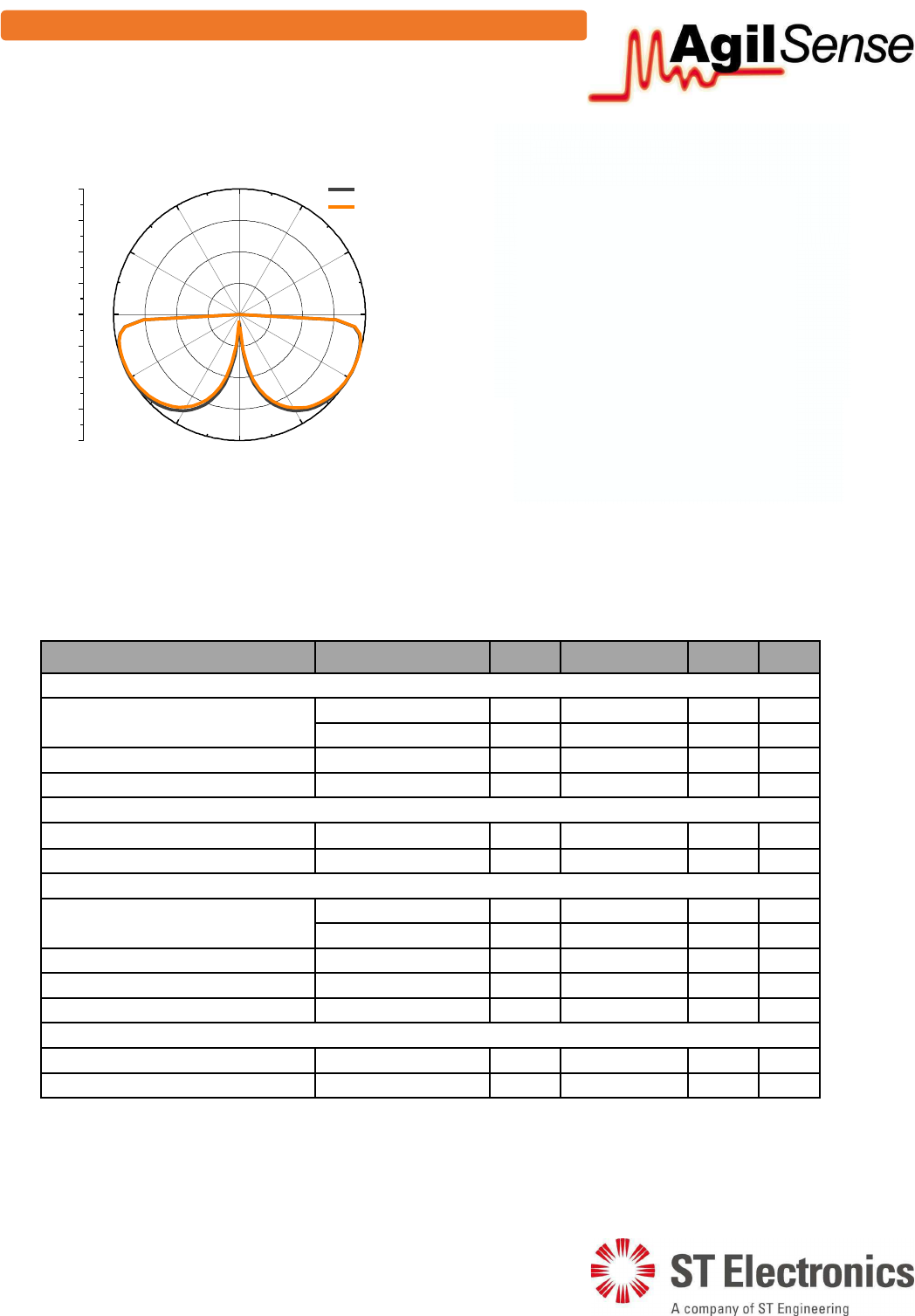

* Antenna beam pattern is based on simulations. Illustra-
tion assumes ceiling mounted sensor directed towards
the ground.
0
30
60
90
120
150
180
210
240
270
300
330
-40
-30
-20
-10
0
-40
-30
-20
-10
0
Normalized Radiation Pattern (dB)
X
Y
sϭ͘ϭϬ

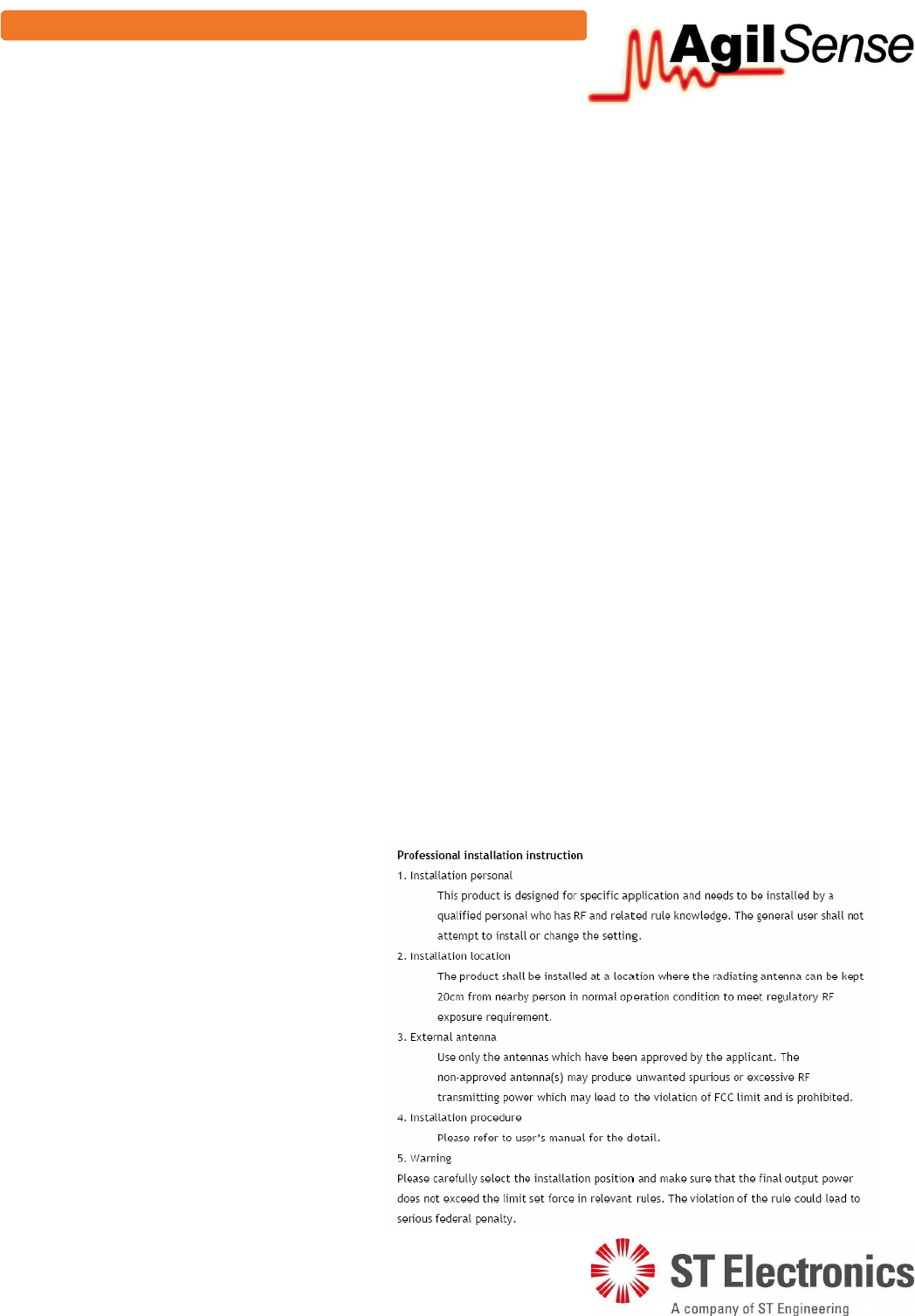

Federal Communication Commission Interference Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired oper-
ation.
This equipment has been tested and found to comply with the limits for a Class B digital de-
vice, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment gener-
ates, uses and can radiate radio frequency energy and, if not installed and used in ac-
cordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to cor-
rect the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the re-
ceiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsi-
ble for compliance could void the user's authority to operate this equipment.
This transmitter must not be co-located or operating in conjunction with any other antenna
or transmitter.
67(OHFWURQLFV6DWFRP6HQVRU6\VWHPV3WH/WG
$QJ0R.LR(OHFWURQLFV3DUN5RDG-67(QJLQHHULQJ+XE6LQJDSRUH
7HO)D[
:HEVLWHZZZDJLOVHQVHFRP5HJQ1R:
