User Manual

FP102TA-HS

Important notes:

1. The user or the installer should be aware that changes and modifications not

expressly approved by Telematics-Wireless could void the user’s authority to

operate the equipment.

2. The transponder must be installed to provide minimum separation distance of at

least 20 cm from all persons and must not be co-located or operated in conjunction

with any other antenna or transmitter

Installing your Transponder

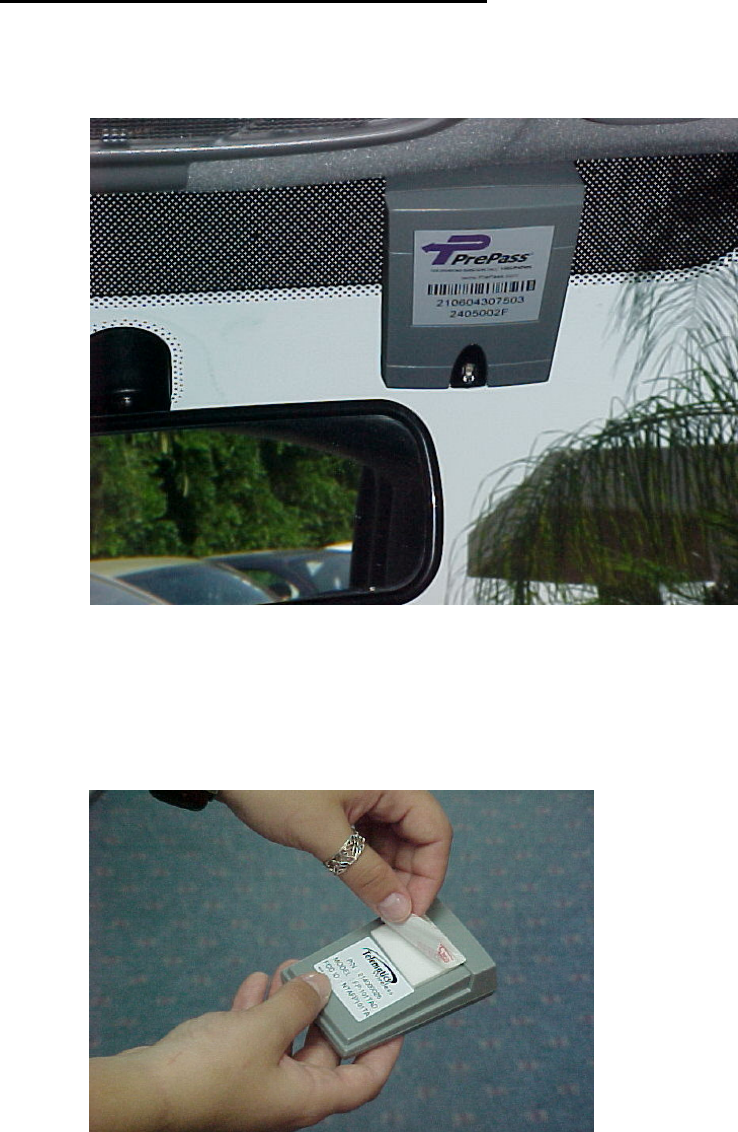

1. Position your transponder on the windshield behind the rearview mirror, 2” to 4”

below the upper edge of the windshield.

2. If the windshield is divided, the transponder should be placed at least 2” away from

the windshield separation line

3. Clean the surface with the provided alcohol pad and let it dry for a few minutes.

4. Remove protective liner to expose adhesive tape.

5. Affix the Transponder onto the windshield. Press firmly against the windshield for

10 seconds.

6. Wait for 2 hours for optimal adhesion of the transponder onto the windshield.
